Effects of Y, GdCu, and Al Addition on the Thermoelectric Behavior of CoCrFeNi High Entropy Alloys

Abstract

Thermoelectric (TE) materials can interconvert waste heat into electricity, which will become alternative energy sources in the future. The high-entropy alloys (HEAs) as a new class of materials are well-known for some excellent properties, such as high friction toughness, excellent fatigue resistance, and corrosion resistance. Here, we present a series of HEAs to be potential candidates for the thermoelectric materials. The thermoelectric properties of Y_xCoCrFeNi, Gd_xCoCrFeNiCu, and annealed Al_0.3CoCrFeNi were investigated. The effects of grain size and formation of the second phase on thermoelectric properties were revealed. In HEAs, we can reduce the thermal conductivity by controlling the phonon scattering due to the considerable complexity of the alloys. The Y, Gd-doped HEAs are competitive candidate thermoelectric materials for energy conversion in the future.

1. Introduction

Traditional alloys include one or two principal elements, but high entropy alloys (HEAs) were defined by Yeh et al. as a new class of materials containing five or more principal elements, each with concentrations between 5 atomic percent (at %) and 35 atomic percent (at %) [1,2,3]. Studies have shown that HEAs exhibit some excellent properties, compared with conventional alloys, such as high hardness, great resistance to evaluation wear, corrosion, friction, fatigue, and oxidation [3,4,5,6,7,8,9,10,11,12,13,14,15].

With the development of the social economy and technology, the energy consumption of the world has increased significantly, and the traditional petrochemical energy has been increasingly exhausted. At present, more than 60 percent of energy is lost in the form of heat during the use of energy [16]. Thermoelectric (TE) materials are going to be the potential candidates for alternative sources of energy, because heat can be directly converted into the electrical energy and vice versa [17,18]. Therefore, the TE materials are also attractive because they can contribute to realizing the sustainable utilization of resources [19]. If the industrial waste heat, automobile exhaust waste heat and other waste heat are converted through thermoelectric materials, the energy efficiency will be greatly improved, and the energy crisis and environment pollution will be alleviated. The thermoelectric material is a kind of functional material which utilizes the transport and interaction of carriers and phonons in solids to achieve the direct conversion between the thermal energy and electrical energy. The thermoelectric-power generation or refrigeration device made of thermoelectric material has the advantages of being noise free, zero emission and pollution free, lacking vibration, small volume, etc. It has been applied in deep space exploration and refrigeration, and has great potential in waste heat power generation [20,21].

Conventional thermoelectric materials currently in use include Bi₂Te₃ based, PbTe based and SiGe based, etc. Bi₂Te₃ is currently the most commercially successful thermoelectric material near room temperature. It is widely used in the field of the thermoelectric refrigeration, and is also the thermoelectric material with the highest power generation efficiency at low temperature [22]. Although Bi₂Te₃ has been commercialized, its performance can be further improved by doping, composition adjustment, etc. PbTe is the medium temperature thermoelectric material that has been studied for the longest time and PbTe-based materials have been successfully used in the NASA aerospace missions many times since 1960. In recent years, PbTe-based thermoelectric materials have made great progress. The application temperature range of the Si-Ge alloy is more than 1000 K. It has been successfully applied to some deep space detectors. For example, in the radioisotope temperature difference battery of the Cassini Saturn detector, the thermoelectric conversion device is prepared by the Si-Ge alloy. However, the reserves of Te and Ge elements are scarce and very costly; Pb is toxic, pollutes the environment, and endangers people’s health. Therefore, the development of environmentally friendly, new low-cost thermoelectric materials is particularly urgent.

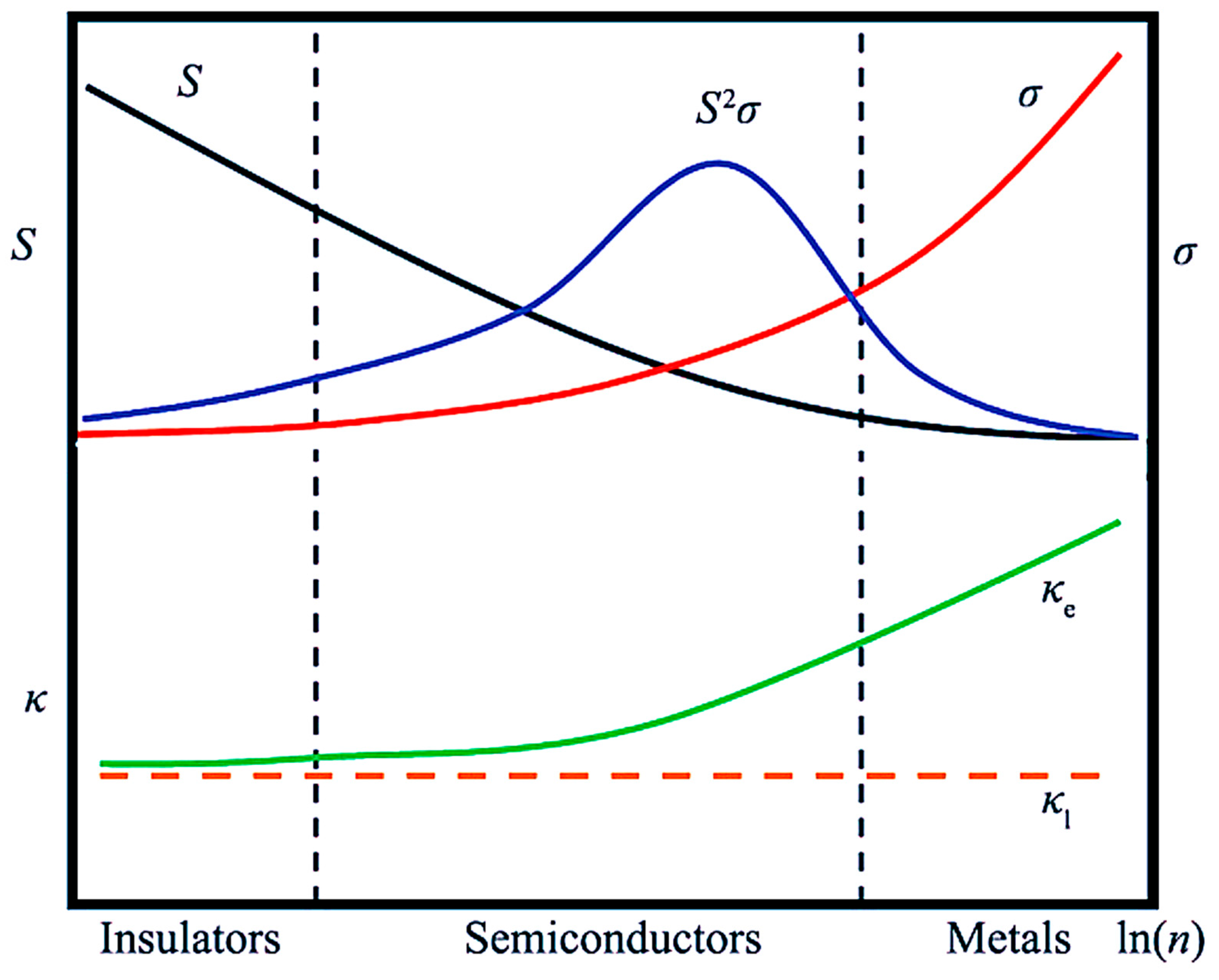

HEAs are always being studied for their mechanical properties. Maybe many new and unexpected properties remain for us to explore. In the search for TE materials, the performance of this kind of material is estimated by the dimensionless figure of merit, defined as ZT = S²Tσ/k [23], where S is the Seebeck coefficient, T is the absolute temperature, σ is the electrical conductivity, and k = k_e + k_l is the total thermal conductivity, where k_e and k_l are the electronic and lattice components of the thermal conductivity, respectively. In practical applications, the efficiency of the TE material depends on the average ZT over the whole working temperature range, rather than its max ZT [24]. So it is our goal to raise the average ZT over the entire working temperature. The larger the ZT value, the better the performance of the TE material. We can easily understand from the equation of ZT that large S and σ, and low k will attain a satisfactory ZT value [25]. In addition, the Seebeck coefficient, electric conductivity, and thermal conductivity, which measure the performance of TE materials, are coupled by the carrier concentration [26]. The variation trend of the three parameters was summarized in Figure 1 as a result of the great efforts of the researchers [27]. We observe that different carrier concentrations lead to various conduction properties. The materials can be divided into insulators, semiconductors, and metals according to their carrier concentration. With the increase of the carrier concentration, the Seebeck coefficient significantly decreases, while the electric conductivity and the electronic thermal conductivity increase [28]. At present, semiconductor materials are the hotspot of the thermoelectric properties, and the TE properties of metallic materials are still remain to be studied.

Generally, for a TE material, the reduction of the k_l is an effective measure to obtain a high ZT value. And k_e relates to the conductivity of the materials, whereas k_l has nothing to do with other parameters. The scattering of phonons plays a crucial part on k_l. The complexity, or disorder in the crystal structure leads to the scattering of phonons. So, it is a feasible method to reduce the lattice thermal conductivity by enhancing the phonon scattering [29,30,31,32,33].

In HEAs, Yeh summarized mainly four core effects of this new kind of alloys. One of them is the severe lattice-distortion effect [1,3,14]. The severe lattice-distortion effect is always compared with the traditional alloys, where the lattice site is mainly occupied by the principal element. For HEAs, each constituent element has the same possibility to occupy the lattice sites, since the size of each atom can be different in some cases, which can lead to severe lattice distortion [1,3,15]. Therefore, in the HEAs, the strategies to control phonon scattering can be generally achieved through the complex nature of the materials [34]. Because of the severe lattice-distortion effect and the points defect, HEAs offer a large amount of complexity, which is conducive to phonon scattering. The phase structure of the HEAs is always highly symmetrical, such as face-centered-cubic (FCC), body-centered-cubic (BCC), and hexagonal-close-packed (HCP) phases. So it is possible for the new class of materials to reach a high convergence of the bands close to the Fermi level to attain the high Seebeck coefficient values [35,36,37]. Therefore, the peculiar microstructures and properties of the HEA provide opportunities to obtain the low lattice thermal conductivity and appropriate Seebeck coefficient to achieve a high ZT value and act as a new class of thermoelectric materials.

Nevertheless, the thermoelectric properties of the HEAs were not extensively studied in the literature. Here the annealed Al_0.3CoCrFeNi (annealed at 473 K, 673 K, 873 K, and 1073 K), Gd_xCoCrFeNiCu (x = 0, 0.3), and Y_xCoCrFeNiCu (x = 0, 0.05, 0.1) were prepared, and the parameters for the thermoelectric properties were studied in this paper.

2. Experimental Section

The button ingots (30 g each) of the sample were prepared by the arc-melting method in a vacuum-titanium-gettered high purity argon (99.999 volume percent, vol %) atmosphere and cooled by the water in a copper crucible. The purity of the element was greater than 99.95 weight percent (wt %). The samples were flipped and remelted at least five times in order to achieve a good homogeneity. We obtain Al_0.3CoCrFeNi, Gd_xCoCrFeNiCu (x = 0, 0.3), and Y_xCoCrFeNi (x = 0, 0.05, 0.1) ingots. The Al_0.3CoCrFeNi was then annealed at 473 K, 673 K, 873 K, and 1073 K in the muffle furnace, respectively. The as-cast samples were cut and then polished to obtain a bright and smooth surface. The crystalline structures of all the samples were obtained with X-ray diffraction (XRD) (Rigaku, Tokyo, Japan) using the Cu-Kα radiation, operating in the 2θ range of 20°–100° at a scanning rate of 4°/min. The microstructures of the samples were characterized by a SE-4800 scanning electron microscope (SEM) (Hitachi, Tokyo, Japan) operated in a back-scatter electron (BSE) mode. The thermal conductivity of the samples was measured in the laser thermal conductivity analyzer (TC-9000H, Ulvac-Riko, Yokohama, Japan), and the cylindrical samples were cut from the center of the ingots with a diameter of 6 mm and thickness of 1 mm. A Seebeck coefficient analyzer (ZEM-3) (Advance-Riko, Yokohama, Japan) was used to determine the temperature-dependent Seebeck coefficient and the electrical resistivity (1/σ). All of the samples were studied from 298 K to ~ 873 K. The temperature difference of each measure point was 50 K.

3. Results

3.1. Crystal Structure

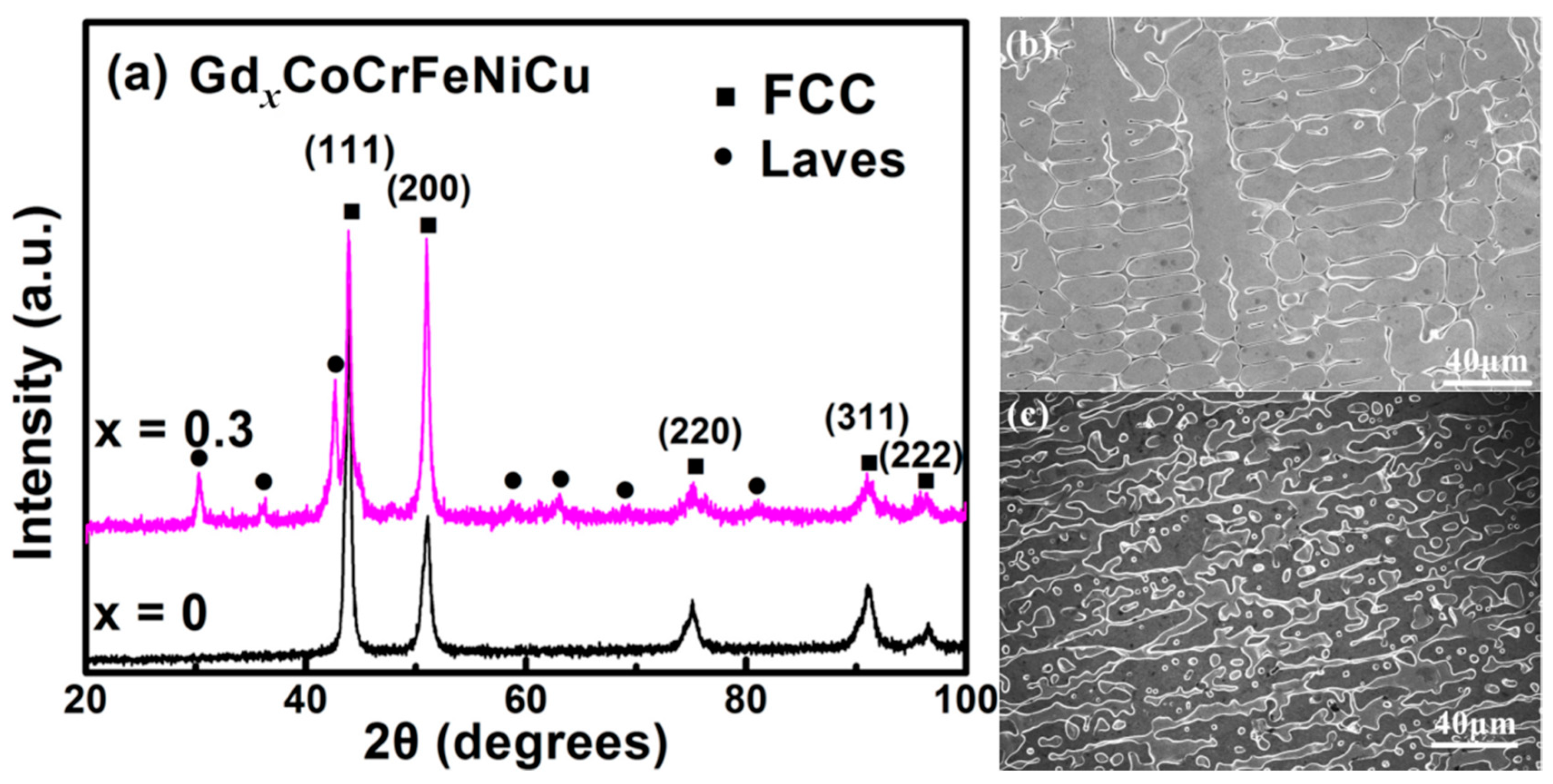

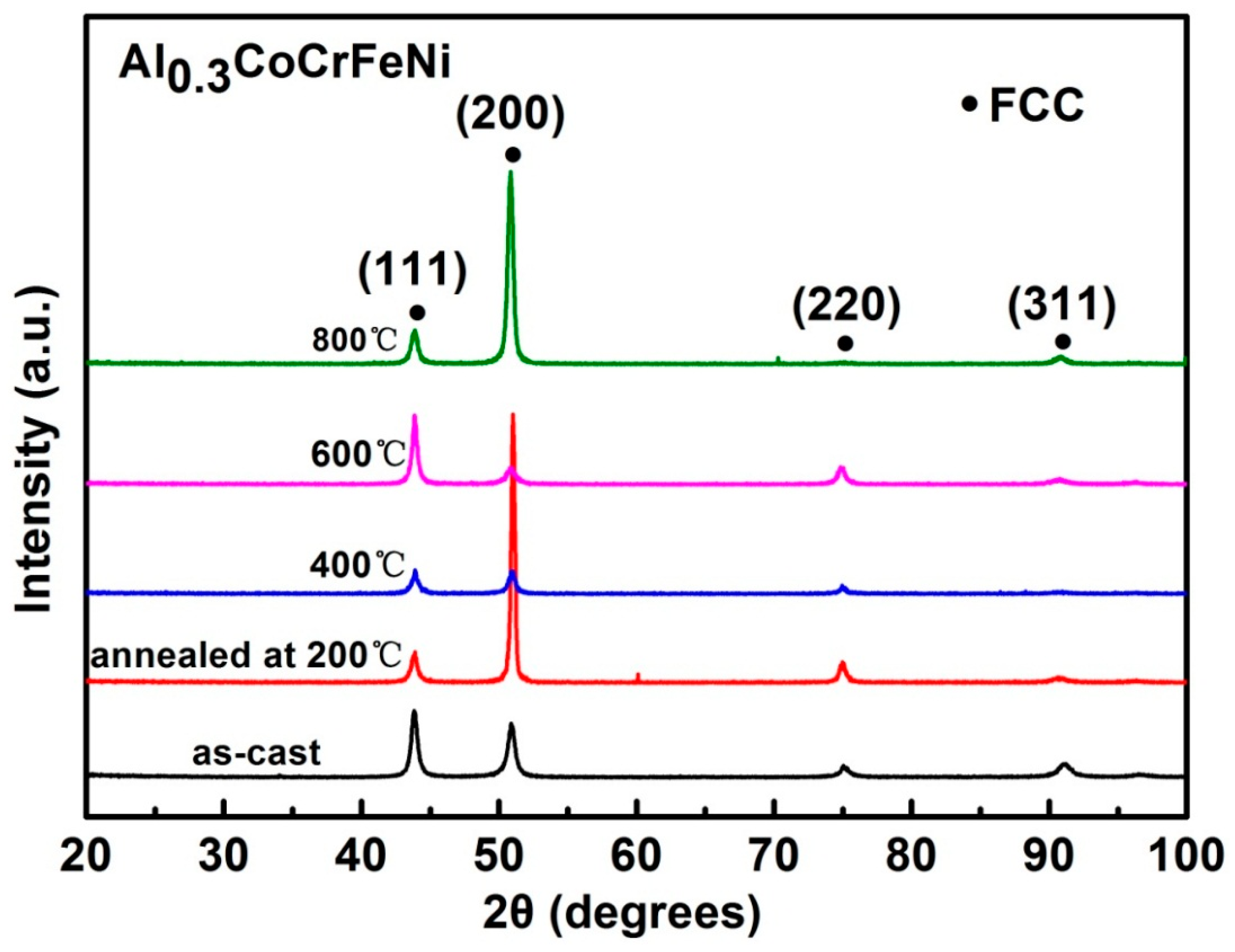

The XRD patterns of the annealed Al_0.3CoCrFeNi were shown in Figure 2. The Al_0.3CoCrFeNi alloy exhibited a simple FCC crystal structure at all the mentioned annealing temperatures. Figure 3a and Figure 4a show the XRD patterns of Gd_xCoCrFeNiCu and Y_xCoCrFeNi, respectively. Only the FCC phase was detected when x = 0. With the increases of Y and Gd contents, new peaks appeared. Those new diffraction peaks were identified as the Laves phase. The microstructure of these HEAs was also displayed in the Figure 3b,c and Figure 4b,c. The HEAs with the Y addition show the typical cast dendrite (DR) identified as the FCC phase, and interdendrite (IR) identified as the Laves phase. With the increase of the Y content, the grain is refined. Based on the XRD patterns of Gd_xCoCrFeNiCu, it can be concluded that when x = 0, the diffraction peaks coincide with the FCC phase. In the sample with x = 0.3, both FCC and Laves phases can be observed, while the FCC structure is still the main phase. With the increase of the Gd content, the grain is refined.

3.2. Electrical Conductivity

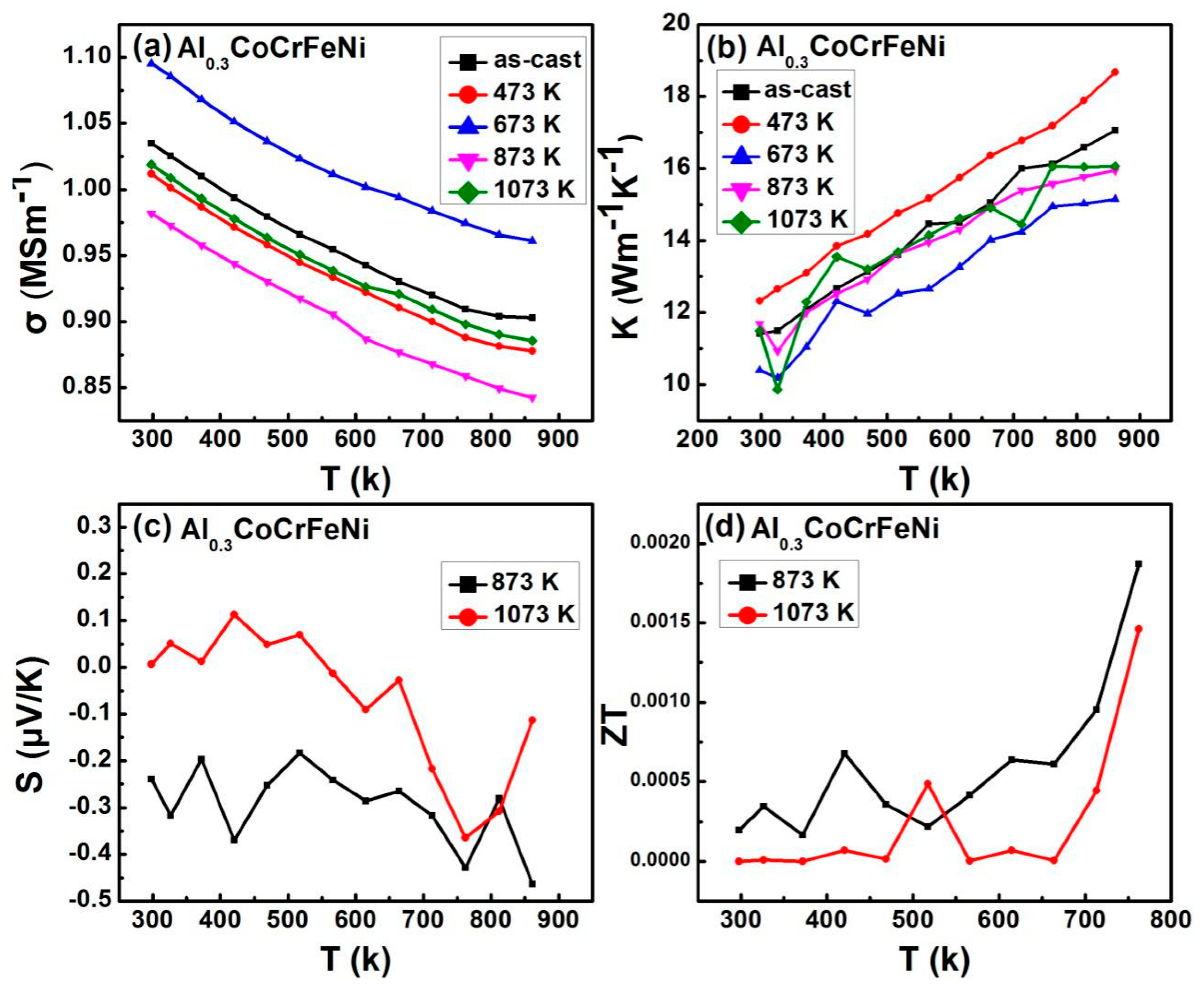

The average electrical conductivity for the annealed Al_0.3CoCrFeNi alloys was presented in Figure 5a. Electrical conductivity is closely connected with the change of temperature. In general, the electrical conductivity of the alloys decreases with increasing the temperature, while the electrical conductivity of the semiconductor is directly proportional to the temperature within a certain temperature range [8,9,10,11]. We observed from Figure 5a that the Al_0.3-HEA worked in accordance with the trend, and the electrical conductivity was inversely proportional to the temperature [14]. But they do not exactly line up with the trend of the annealing temperature. For the sample as-cast, annealed at 473 K and 873 K, the electrical conductivity decreases with the increasing the annealing temperature, while the other two samples do not entirely follow this rule. It is noted that the sample annealed at 673 K shows the highest electrical conductivity among all of the mentioned Al_0.3-HEAs. The conductivity of the samples annealed at 1073 K falls in between the as-cast and annealed at 473 K samples. The conductivity of Gd_xCoCrFeNiCu and Y_xCoCrFeNi were shown in Figure 6a and Figure 7a. The electrical conductivity decreases with the increase of Y and Gd. The Gd₀CoCrFeNiCu shows the highest conductivity among all tested samples.

3.3. Thermal Conductivity

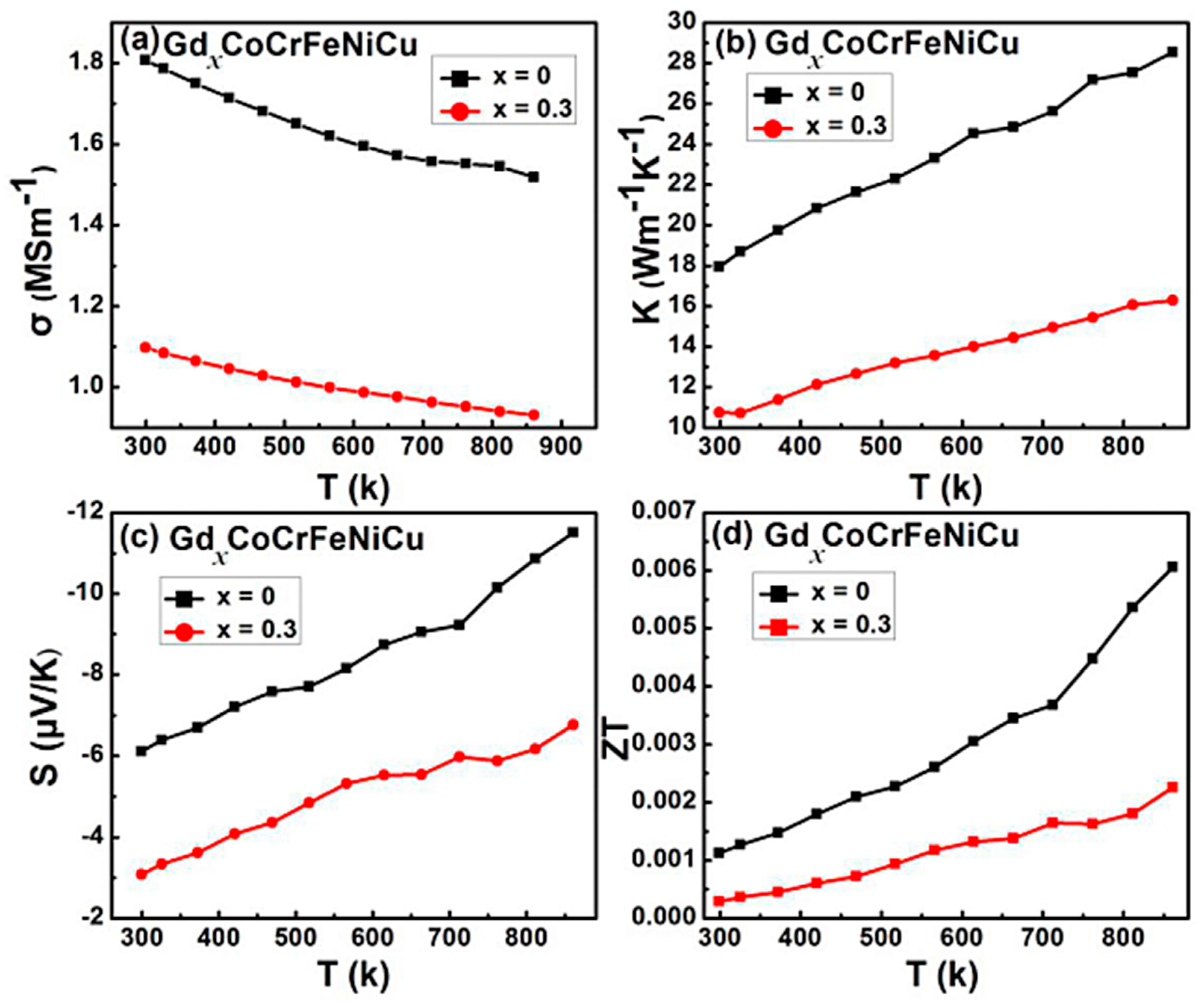

The thermal conductivity (k) of Al_0.3CoCrFeNi was shown in Figure 5b. Thermal conductivity was measured between 298 K and 873 K. The samples were tested every 323 K. In general, the thermal conductivity of Al_0.3 HEAs was in direct proportion to the temperature except for some special points. The conductivity of Gd_xCoCrFeNiCu and Y_xCoCrFeNi also increases with increasing temperature. Furthermore, it was observed that the k value decreases as the contents of Y and Gd increase. The Y_0.05CoCrFeNi was noted for its lowest thermal conductivity in all the samples studied.

3.4. Seebeck Coefficient

The average Seebeck coefficient values for Al_0.3CoCrFeNi were exhibited in Figure 5c. It was observed that the alloys annealed at 673 K and 1073 K reveal a negative Seebeck coefficient. The positive and negative values of the Seebeck coefficient represent the different diffusion patterns of electrons. For the Al_0.3-HEAs, the absolute values of the Seebeck coefficient almost decrease with increasing the annealing temperature, except for some points. The change of S did not show an obvious relationship with the test temperature. The Seebeck coefficient of the other two HEAs were shown in Figure 6c and Figure 7c. The absolute values, S, of the Gd_xCoCrFeNiCu alloys decrease with the increase of the Gd content. Nevertheless, the S is in the direct proportion to the test temperature. The absolute Seebeck coefficient values for Y_x-HEAs decrease with increasing x in the low-temperature range (298 K to 573 K). In the temperature range of 573 K to 723 K, S_0.05 was greater than S_0.1, and in the range of 773 K to 873 K, Y_0.05 shows the highest absolute Seebeck coefficient.

4. Discussion

Recently, particular interest has focused on the formation of the secondary phase in thermoelectric materials to reduce their lattice electric conductivity [31]. From the XRD patterns of the as-cast Y_xCoCrFeNi, the connection between crystal structures and Y contents can be clearly observed. Only diffraction peaks corresponding to the FCC crystal structure was observed in the Y₀CoCrFeNi alloy. However, reflections of the Laves phases can be found with the increase of the Y content. The Laves phase can be identified as a YNi type. With the increase of the Y content, the grain is refined. The microstructure of Gd_XCoCrFeNiCu was shown in the Figure 3b,c, which was typical of dendritic structures. The grain size decreases with changing x from 0 to 0.3. In the multiphase compounds, the inhomogeneous distribution of dopants between the matrix and secondary phase plays a crucial role in the electronic-transport properties [23]. The XRD patterns and microstructures were observed in Figure 2. All of the Al_0.3-HEA samples exhibit a simple FCC structure, and with the increase of the annealing temperature, the grain size increases [38]. We can regard all of the HEA samples as similar low-dimensional thermoelectric materials, which follows the size effect. The low-dimensional thermoelectric material reduces the average free path of the phonon by the size effect to decrease the lattice thermal conductivity [29,39,40,41,42,43]. The lattice thermal conductivity decreases with the decrease of the grain size, which is due to the fact that the small grain size will enhance the long wave phonons scattering. The grain size and thermal conductivity of all samples conform to this rule [12,13,14,15].

From the electric-conductivity data, we observe that the conductivity of all the HEA samples decreases with increasing temperature, which is consistent with the traditional alloys. The Al_0.3 HEAs, annealed at 673 K, possess a high electric conductivity (~1.1 MS∙m⁻¹). The connection between the electric conductivity and annealing temperature was, however, not entirely systematic. Furthermore, a small variation in the composition of the main phase will consequently affect the value for the electric conductivity [36]. With increasing the contents of Y and Gd, the K value decreases. It is because the movement of the carriers (electrons in the metal) is affected by the generation of the Laves phase, leading to the decrease of the electric conductivity.

The change in the Seebeck coefficient for the Al_0.3-HEAs was not entirely systematic over the full annealing temperature range, but the S was changing in a systematic order during the high annealing temperature (873 K and 1073 K). The absolute S value decreases as the annealing temperature changes from 873 K to 1073 K, and the coefficient was nearly in a direct proportion to the test temperature. The change in the Seebeck coefficient from positive to negative values can be ascribed to a change of the diffusion direction of the carriers. In general, the formation of the second phase in the thermoelectric materials will introduce the barrier, which will block the low-energy carriers and thus, cause the decrease of the Seebeck coefficient [44,45]. In the high test-temperature range, the Y_0.05-HEA shows the greatest absolute Seebeck coefficient. Nevertheless, with the formation of the Laves phase in Gd_xCoCrFeNiCu alloys, the absolute S values decrease. We believe that it is because the rare earth element, Gd, possesses a special [46,47] electronic structure. Moreover, due to the bipolar conduction, the Seebeck coefficient is basically in direct proportion to the temperature, since noticeable minority carriers would be excited at high temperatures [21]. We therefore believe that it is necessary to combine both the composition and phase structure with band structures in order to obtain a satisfactory Seebeck coefficient. Serious efforts should be directed towards the band-structure engineering to make the HEAs as effective TE materials. Nowadays, typically investigated TE materials may be semiconducting oxides such as ZnO and Bi₂O₂Se [48,49]. They exhibit ZT values of 0.025 and 0.047 at elevated temperatures of 1073 and 773 K, respectively. Compared to that, the ZT of the HEA studied in the present manuscript is lower. However, high-entropy alloys are not traditional thermoelectric materials. The significance of this paper is to provide an exploration of the possibility of the high-entropy alloy as the thermoelectric material. It is found that the structure of HEA could be changed by doping elements and heat treatment to improve the thermoelectric properties, which provides guiding significance for the study of thermoelectric properties of high-entropy alloys. This is an important insight useful in establishing strategies aimed to design a new kind of thermoelectric materials.

5. Conclusions

We show the potential for the HEAs to act as thermoelectric materials even in the high temperature range. Moreover, it is found that the investigated Al_0.3CoCrFeNi reaches a ZT value of 0.008. There is a large variety of properties that could be discovered in the HEAs. There is a potential for the HEAs to attain an intrinsically-low lattice thermal conductivity due to the complex microstructure. Our research is a step toward the connection between the phase and band structure with the thermoelectric performance.
