Cracking the Initiation Mechanism of High Cu-Bearing Nitrogen-Alloyed Austenitic Stainless Steel in the Process of Hot Deformation

Abstract

The cracking initiation mechanism of high Cu-bearing nitrogen-alloyed austenitic stainless steel was systematically investigated by using a Gleeble-1500D simulator under different strains and deformation temperatures in the hot deformation process. The cracking initiation process and microstructure variations were characterized by optical microscopy (OM), X-ray diffraction (XRD), field emission scanning electron microscopy (FESEM) with energy dispersive spectroscopy (EDS) and transmission electron microscopy (TEM). In the deformation process, Cu-rich and Cr-rich phases were found around the microscopic crack at the strain of 0.5. Cu content was found to be higher at the grain boundary than inside the grain. The equilibrium phase diagram calculated by Thermo-calc shows that Cu precipitates out in the form of an elementary substance below 1022 °C, when the Cu mass fraction reaches 5%. Meanwhile, dislocation walls and twin crystals were observed by TEM. The results show that the synergistic effect of the secondary phases, such as M₂₃C₆ precipitated along the grain boundary and stress concentration, lead to crack generation, which is lower at high temperature and low temperature and is higher at 1100 °C and increase as the strain increases.

1. Introduction

In recent years, Cu-bearing austenite stainless steels have been widely used in dentistry, orthopedics, and other medical applications due to their novel structural and strong antibacterial properties, which have been attributed to the Cu ions acting as the antibacterial agent [1,2]. Moreover, enhancements in the high temperature strength of the steels can be achieved by the formation of tiny Cu-rich phase precipitates with nanometers sizes when an appropriate amount of Cu element is added in the steel [3]. Some researchers [4,5] have reported that Cu is often added into steel to improve the corrosion resistance and creep resistant strength. The mechanism of the enhancement and the role of Cu in the steel are yet to be identified and are currently under investigation [6,7]. However, it has been proposed that Cu, which is dissolved in the austenite matrix during the solution treatment, precipitates during service as a nano-sized Cu-rich phase within the matrix [8]. Yang et al. [9] have revealed that the addition of Cu up to 3–4 wt.% is optimum because such addition leads to the appearance of Cu-rich phase precipitates with an ideal combination of size, number and spacing and accelerates the effect of Cu on the enhancement of the creep performance of steel. The excessive addition of copper to steels can also have adverse effects on mechanical properties. It can form low-temperature eutectic phases that preferentially segregate to the grain boundaries and embrittle the alloy [10,11]. Futamura et al. [12] reported that the addition of up to 4 wt.% Cu to low carbon austenitic stainless steels leads to a reduction in ductility due to the segregation and precipitation of Cu along the grain boundaries during solution treatment, which in turn facilitates grain boundary embrittlement. Tong et al. [13] have studied in depth copper precipitation behavior in 4.36 wt.% Cu-bearing austenitic steels by atom probe tomography and confirmed Cu precipitates present a core-shell structure with a shell enriched in Ni, Mn and Si after the ageing treatment. It has also been shown [14] that the addition of Cu up to 5 wt.% to SUS 304 H alloys indeed leads to fracture and fatigue crack growth characteristics at ambient conditions.

Numerous studies have been performed on the influence of different Cu additions on the microstructure, mechanical properties, corrosion resistance, antibacterial performance and fatigue cracks of steel. Hence, in this work, the cracking initiation mechanism of Cu-bearing nitrogen-alloyed austenitic stainless steel in the process of the hot deformation with different temperatures and deformations was studied using a Gleeble-1500D simulator. To elucidate the mechanism, the equilibrium phase diagram of Cu-bearing nitrogen-alloyed austenitic stainless steel was calculated by Thermo-calc. Using field emission scanning electron microscopy (FESEM) and transmission electron microscopy (TEM), the microstructure of the tested alloy was characterized in detail, and the cracking initiation mechanism was investigated.

2. Experimental Procedures

Ingots were fabricated using a 50 kg vacuum induction furnace and were forged and hot rolled at 1200 °C to obtain 15 mm thick plates. Subsequently, these plates were solution treated at 1100 °C for 30 min, followed by water quenching to obtain a homogeneous austenite microstructure. The hot rolled plates were used for various mechanical properties and microstructural investigations. The chemical compositions of the alloy examined in this investigation are as follows (wt.%): 0.11 C, 18.7 Cr, 5.33 Ni, 5.15 Cu, 1.86 Mn, 2.12 Mo, 0.27 Si, 0.01 P, 0.008 S, 0.38 N, and Fe balance.

The hot deformation tests were conducted using a Gleeble-1500D simulator (DSI, New York, NY, USA). Cylindrical specimens with a diameter and length of 8 mm and 12 mm, respectively, were machined from the solution treated plates, and each specimen for which the hot deformation tests were conducted was first heated to 1250 °C at the rate of 5 °C/s and was held for 5 min to obtain the same initial austenitic grain size. After being cooled to the deformation temperature at the rate of 30 °C/s, and thermally retarded for 30 s, the specimens were subjected to compressive deformation with different deformation values in the 20–40% range and temperature of 1050–1200 °C at the strain rate of 1 s⁻¹, as shown in Figure 1, followed by water quenching immediately to preserve the high temperature deformed microstructures.

To characterize the change in the microstructure, the quenched specimens were sliced in parallel with the compression axis at the center and subjected to standard grinding and polishing techniques prior to etching with a solution of 30 mL of HCl and 10 mL of HNO₃ for 30–50 s at room temperature. The etched samples subjected to different hot compression deformations were then examined using optical microscopy (OM) (ZEISS, Oberkochen, Germany) and scanning electron microscopy (SEM) (FEI, Hillsboro, OR, USA) with energy dispersive spectroscopy (EDS) to evaluate the initiation, growth, and propagation process of cracks under different deformation conditions. The microstructure was analyzed by an EBSD system attached to a Zeiss Suppra55 field emission scanning electron microscopy (FESEM) (ZEISS, Oberkochen, Germany). The EBSD specimens were prepared by mechanical grinding, polishing, and subsequent electrolytic polishing in a solution of ethyl alcohol and perchloric acid (15:85, volume fraction) under 20 V for 30 s. The phase composition in the solution treatment state was identified by X-ray diffraction (XRD) (RIGAKU, Tokyo, Japan) with a Cu-Kα characteristic radiation source in the 2θ range of 20–80°. Thin foils were prepared for transmission electron microscopy (TEM). They were observed by using a TEM instrument (JEM2100) (JEOL, Tokyo, Japan) with EDS at 200 kV to investigate the microcosmic mechanism responsible for crack formation during hot compression. In order to prevent the influence of copper, the double tilt test bench is made of Be. Thermodynamic calculations were carried out using Thermo-calc 2017a software for Windows using the TCFE8 database for steels and Fe-base alloys.

3. Results and Discussion

3.1. Thermodynamic Calculation and Microstructure

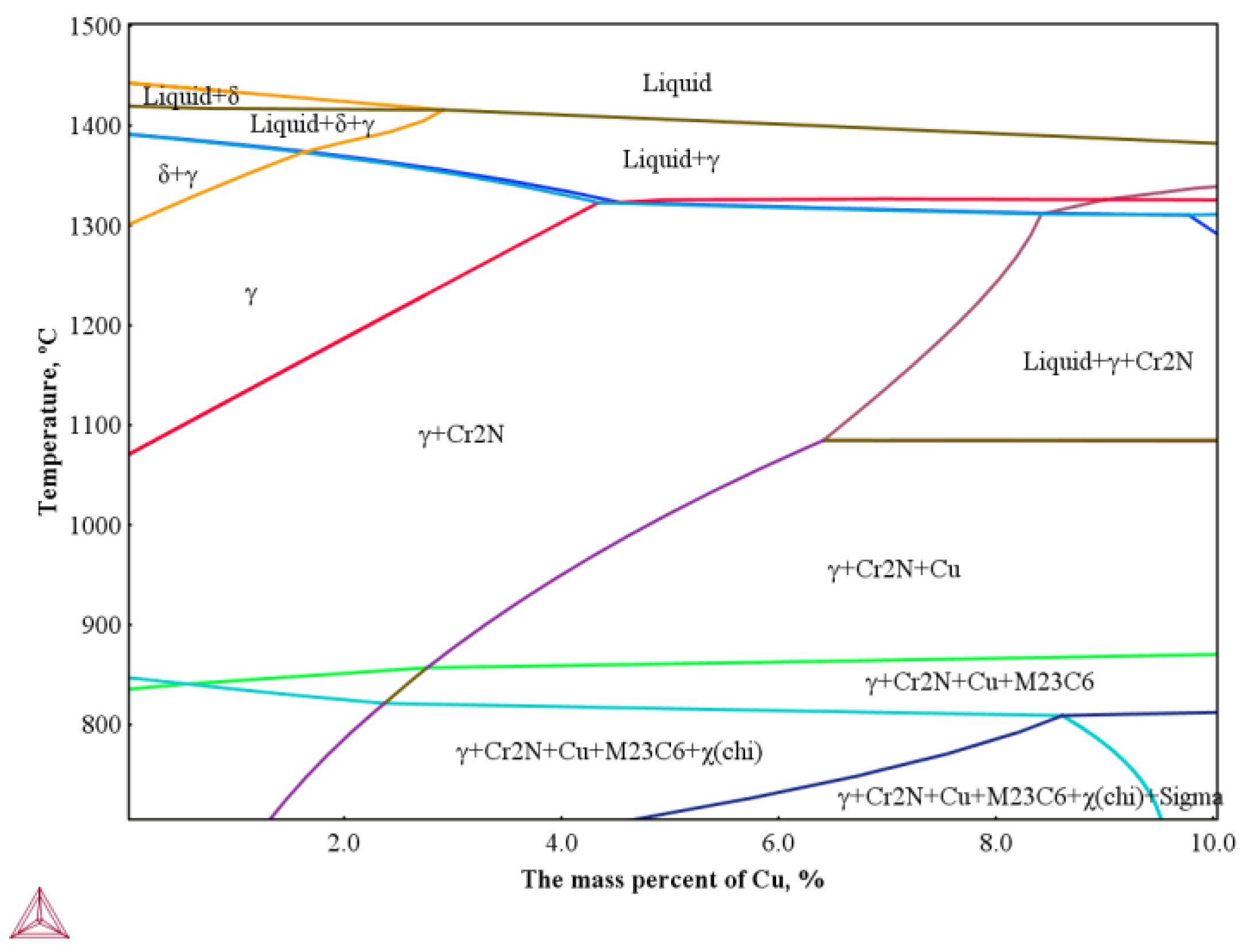

Figure 2 shows the equilibrium phase diagram of the tested alloy, where the horizontal axis represents the mass percent of copper, and the vertical axis is the phase transformation temperature. It can be seen that for austenite stainless steel with Cu added to more than 1.2%, copper precipitates out to different degrees at 692 °C, and the maximum solubility temperature of the elementary Cu rises gradually with the increase in the copper content. When the mass fraction of the added Cu in the material reaches 5%, the maximum solubility temperature is 1022 °C, at which point the stability region of austenite stainless steel is between 1022 °C and 1323 °C, and the microstructure is mainly austenite. When the mass fraction is 6.4%, the maximum solubility temperature is 1087 °C and stays unchanged. Meanwhile, the maximum solubility temperature of Cr₂N rises with the increase mass fraction of Cu, and the maximum solubility temperature of Cr₂N is 1328 °C at 5% Cu. However, the austenite zone vanishes when 8.4% Cu is added.

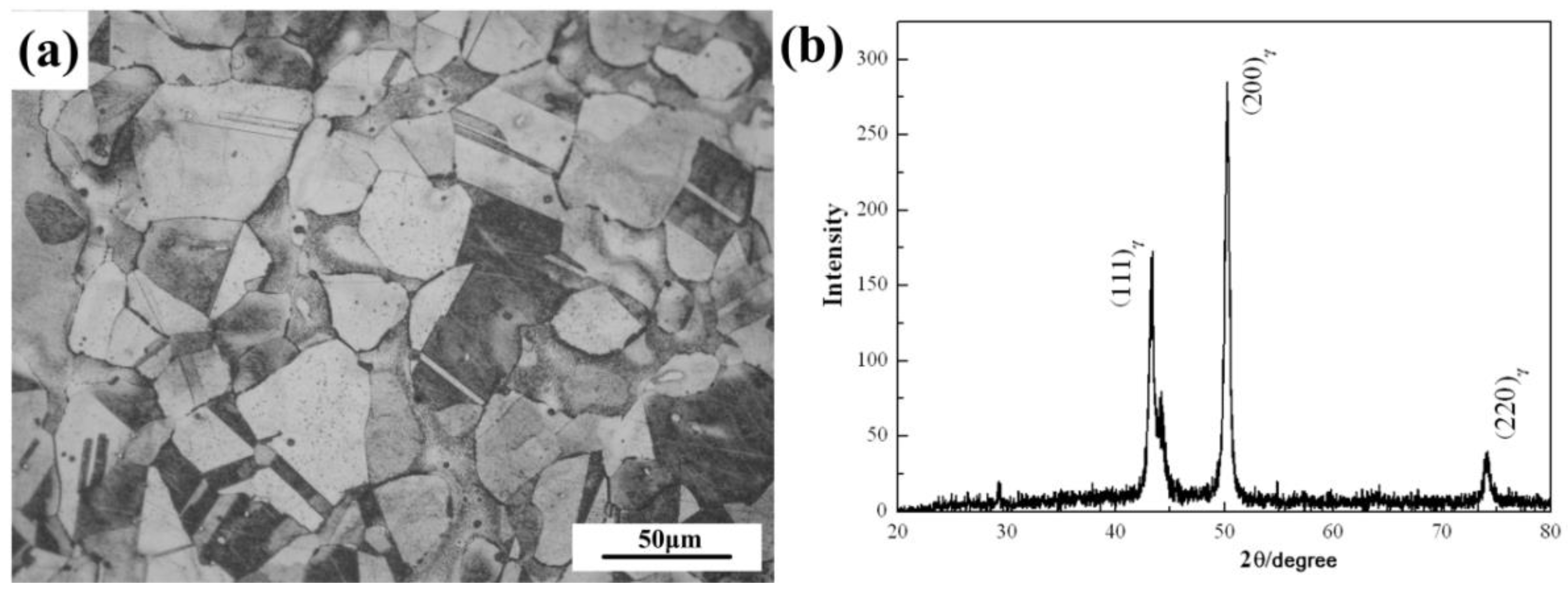

Figure 3a,b shows the optical micrograph and XRD patterns, respectively, of the sample in the solution state. Thus, it can be seen that the microstructure is full of austenite in accordance with the result of the calculation by Thermo-calc.

3.2. Effect of Strain on Microcracks

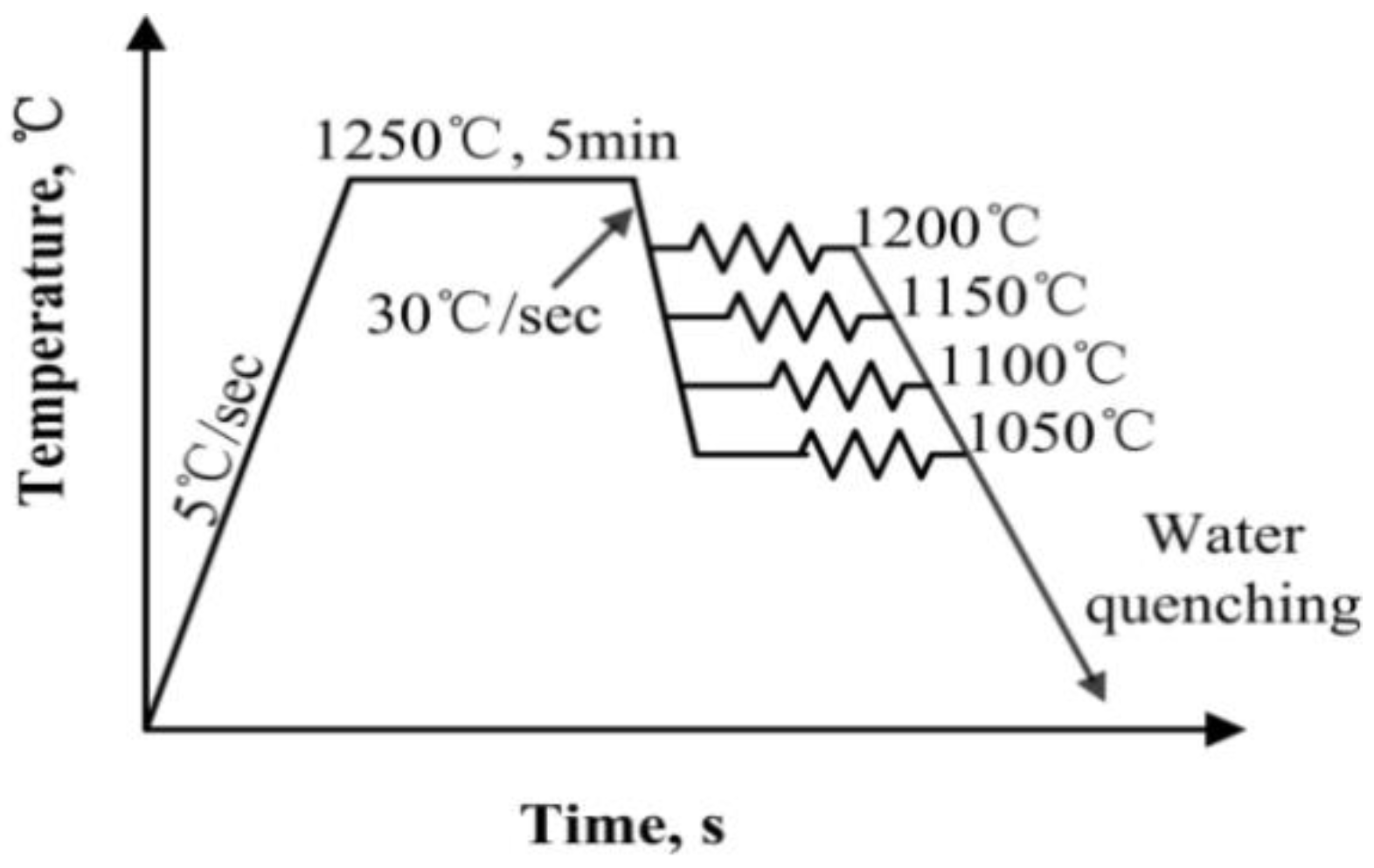

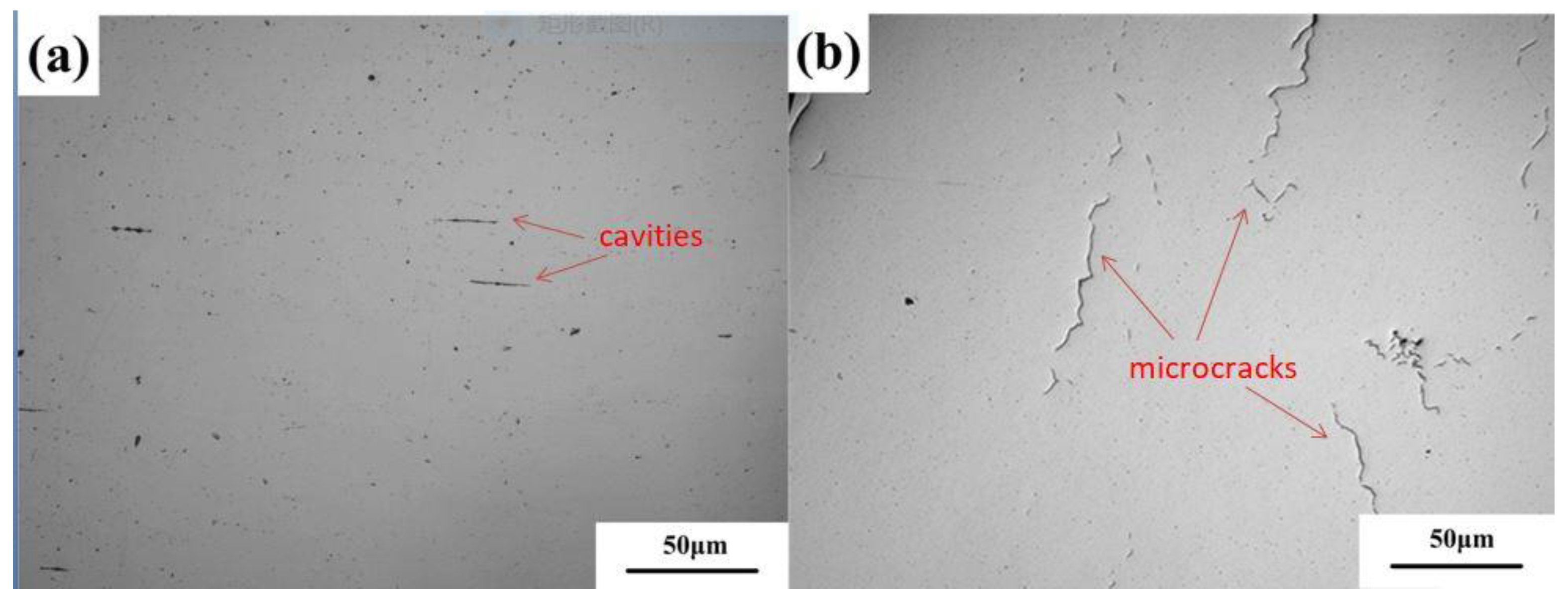

Based on the schematic diagrams shown in Figure 1, the hot compression tests were carried out to simulate the hot rolling process. Figure 4 shows the development of microcracks at 1150 °C during the hot deformation process. It can be seen that no microcracks form in the samples compressed at the strain of 0.2, but the discontinuous segregation of precipitates appears, as shown in Figure 4a. When the strain reaches 0.5, apparent microcracks nucleate, coalesce and propagate, as shown in Figure 4b, and eventually evolve into microcracks.

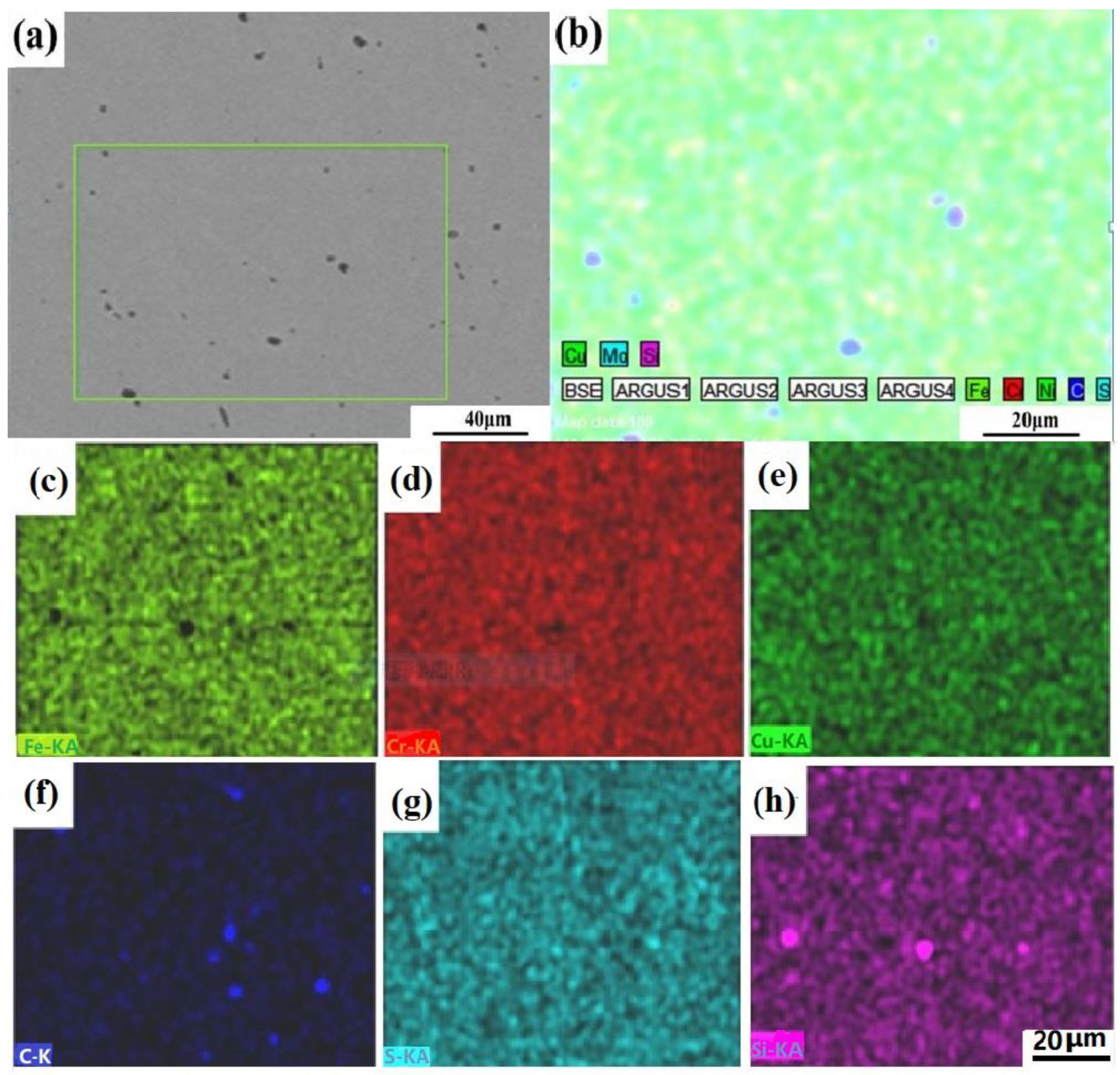

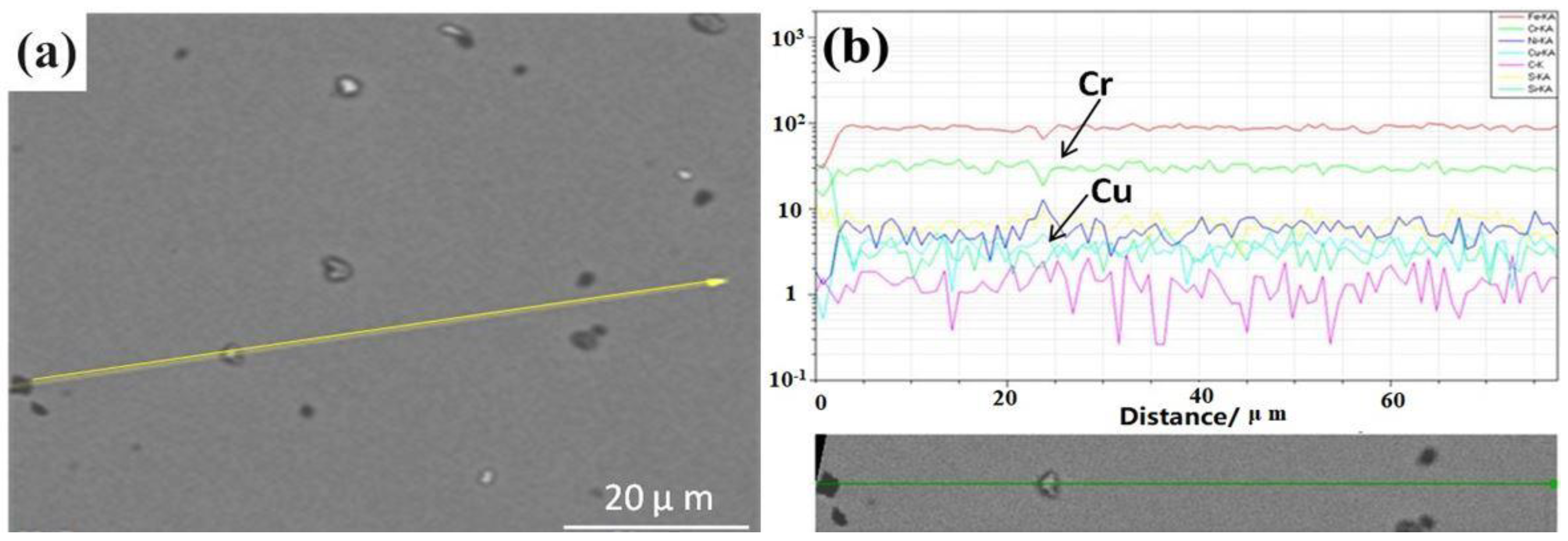

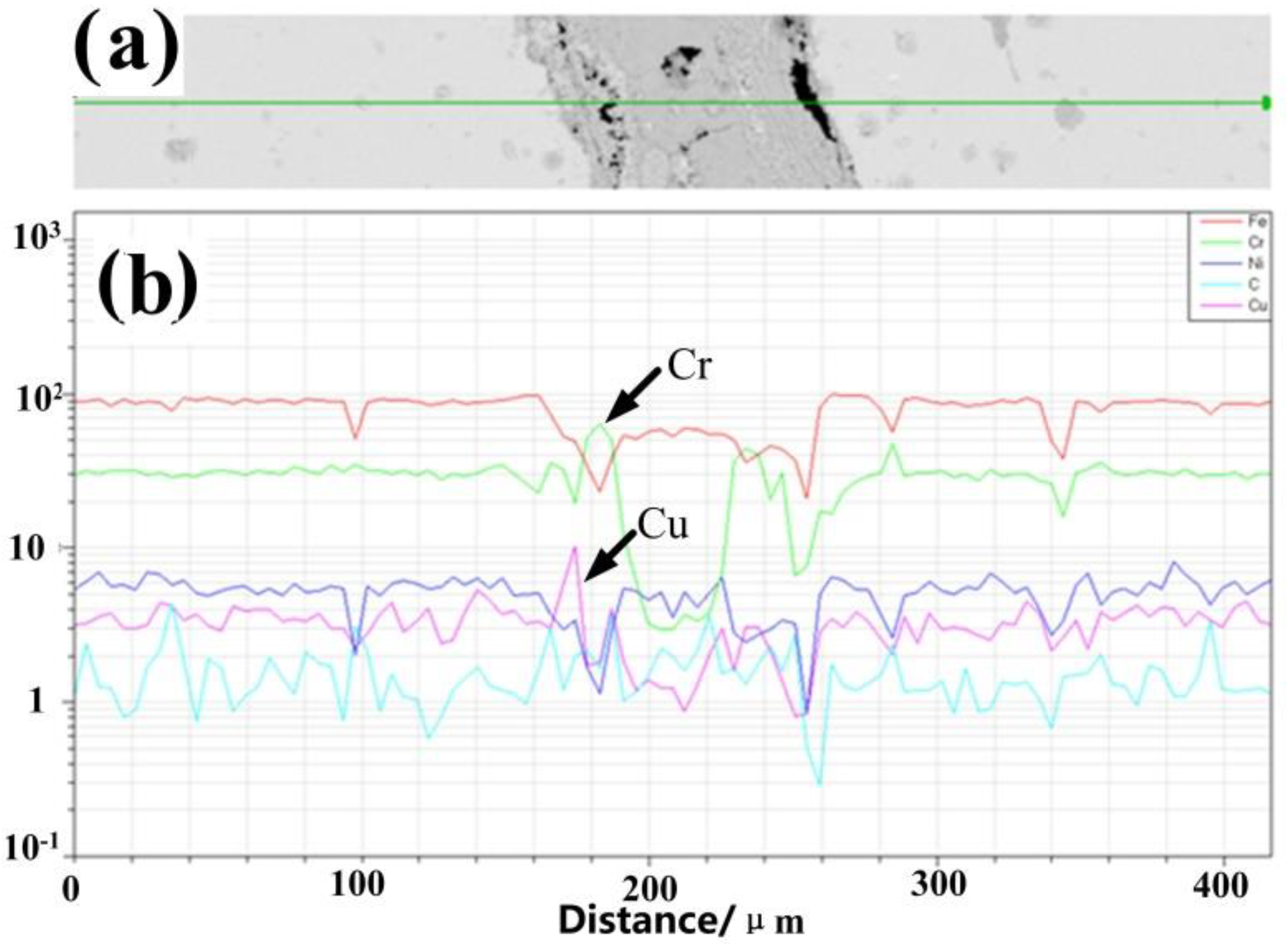

To further study the formation mechanism of microcracks, field emission scanning electron microscopy (FESEM) with energy dispersive spectroscopy (EDS) was used to elucidate the origins of microcrack formation. Figure 5a shows a SEM micrograph of the precipitates for the Cu-bearing austenite stainless steel after the hot compression test with the strain of 0.2 at 1050 °C; it can be seen that no cracking occurs. Figure 5b shows the EDS-X-ray maps corresponding to Figure 5a. Through the examination of the EDS-X-ray maps of C, S and Si shown in Figure 5f,g,h, respectively, these precipitates are identified as carbide and oxide inclusions, and no apparent Cr-rich and Cu-rich zone is observed(Figure 5d,e). To further illustrate the distribution of Cu in deformed materials, a SEM-EDS elemental line-scan map is obtained in the process of hot deformation at the strain of 0.2, with the results shown in Figure 6a. It can be seen from the maps of Figure 6b that the peak and trough values of Cu show little difference with the change in the distance. The values of vibration are almost the same and are approximately in the range of 1–2 μm, which accounts for the homogeneous Cu distribution along the line and the possibility of the dispersed distribution of the particles.

From the standpoint of fracture mechanics, the formation of microcracks is closely related to the second-phase particles and precipitates contained in steel. The second-phase inclusions contained in the material induce a cavity that nucleates, grows, and polymerizes until it is connected to the macroscopic cracks, and this process is considered to be the root cause of the crack propagation and the fracture of the material. With the strain reaching 0.5, the nucleation and propagation of microcracks arises. Figure 7a shows the area of cavity formation and aggregation, in which many small cavities in the left and a cavity after aggregation are marked, and a SEM-EDS elemental line-scan map is carried out along a line. It can be seen from Figure 7b that the Cr-rich areas appear around cavities and the distribution of Cu along the line is inhomogeneous. The peak and trough values of Cu show large differences, and a chromium-depleted zone appears in the middle. It can be seen from the above phenomena that the rich-Cu phase increases with the strain increasing, and the chromium-rich zone is generated due to the Cr(C, N) precipitates in the grain boundary.

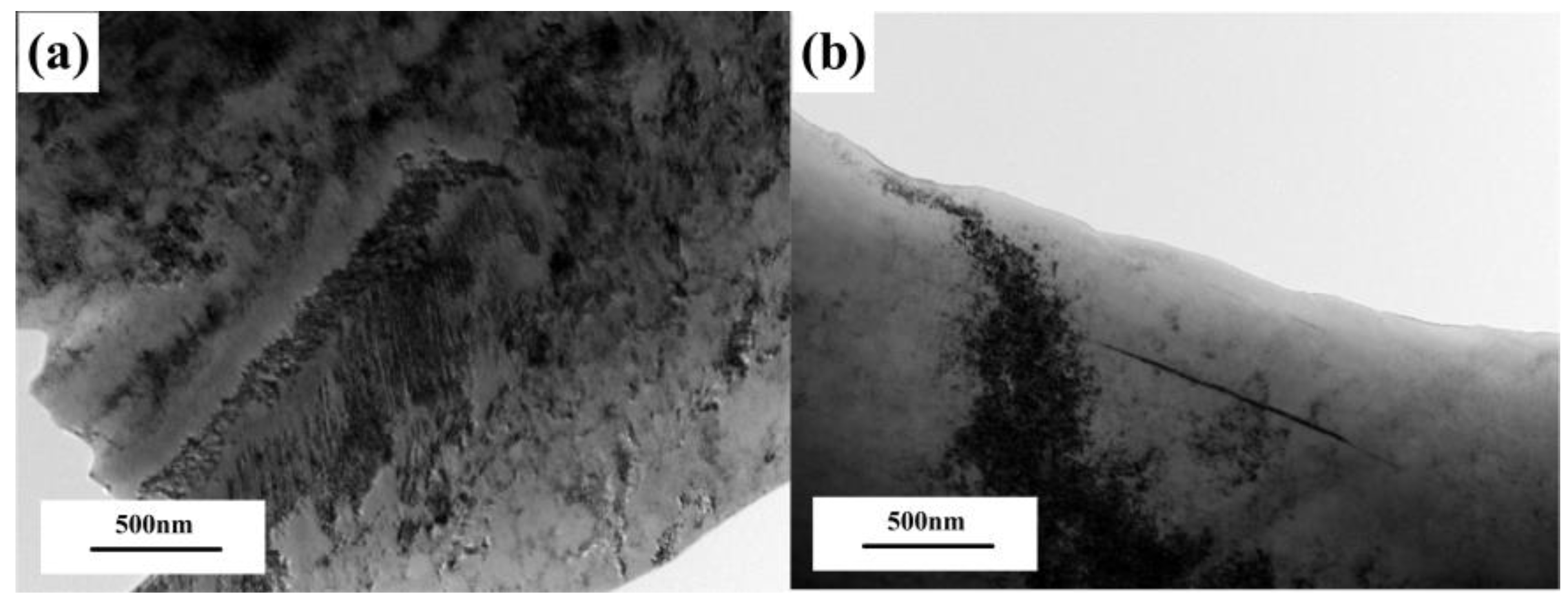

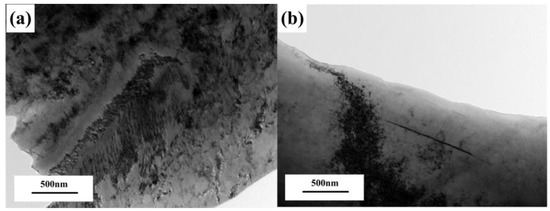

The dislocations and the twin crystals of the samples deformed at 1050 °C are shown in Figure 8. Various dislocation configurations, including free dislocations, dislocation walls and twins, were observed in deformed grains, further confirming that the dislocations also play an important role in crack formation. However, as shown in Figure 8a, for the sample deformed with the strain of 0.2 at 1050 °C, the dislocation walls are observed obviously, and there are fewer free dislocations. While deformed at the strain of 0.5, it is difficult for the dislocations to move, and stress concentration becomes severe. The twins are observed as a complement to slip at the stress concentration zone (Figure 8b).

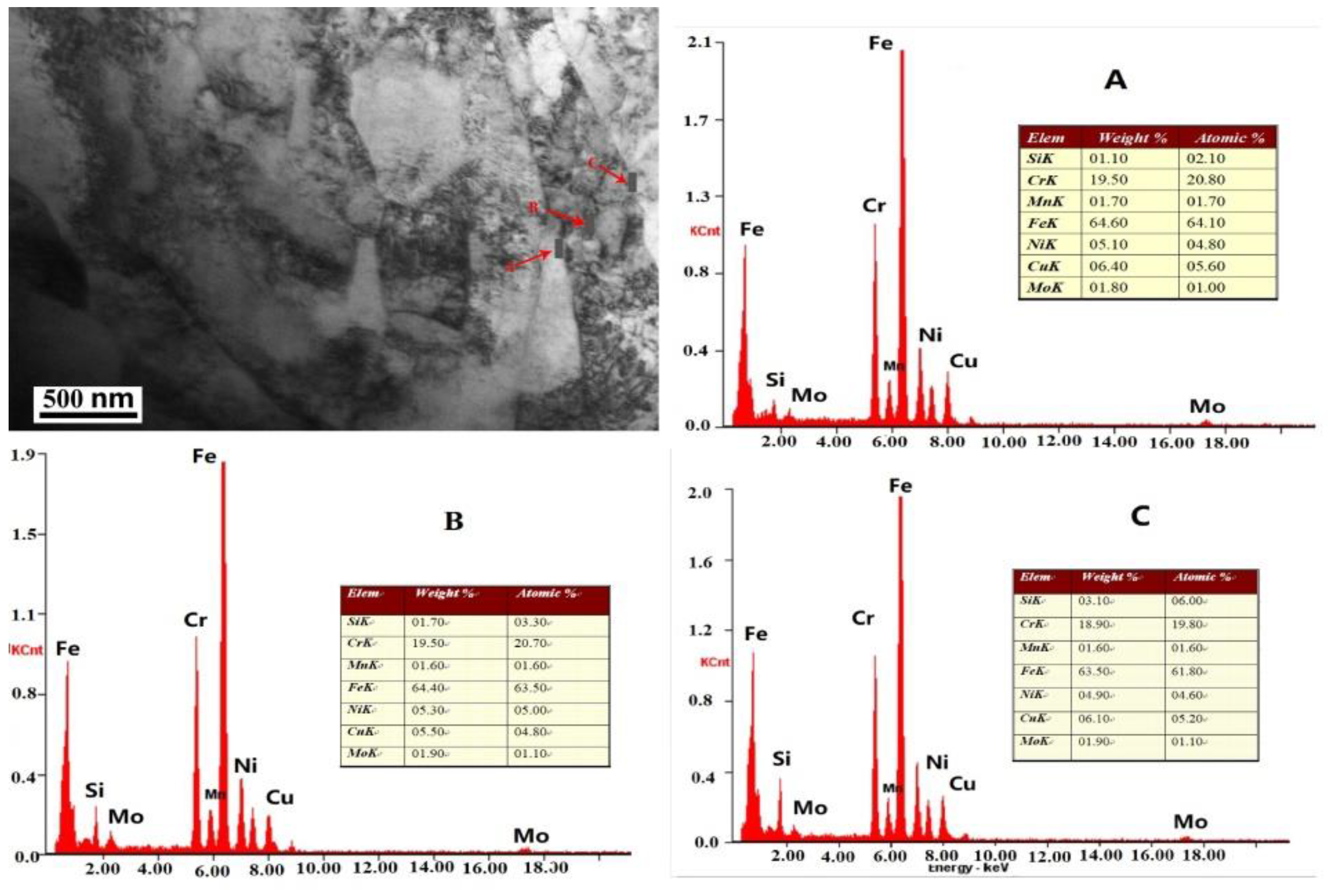

Yeli and Auger [15] have proposed that Cr₂N precipitates out in advance around the grain boundary, offering the inhomogeneous nucleation location for Cu. The Cu-rich precipitates increase in the deformation process, and some Cu nucleates around Cr₂N distributed in the grain boundary, leading to the segregation of Cu and weakening of the grain boundary. As shown in Figure 9, regions A and C are the grain boundaries, and B is the region inside the grain. The copper content is 6.4 wt.% in region A, 5.5 wt.% in region B and 6.1 wt.% in region C, from which it can be seen that the Cu content in the grain boundary is higher than that of Cu inside the grain. On the other hand, it is also revealed that the intercrystalline crack formation is related to intercrystalline Cr₂N precipitation [16]. When hot deformation is conducted, dislocations move along the slip plane. Nevertheless, intercrystalline Cr₂N hinders the dislocation movement, leading to dislocation pile-up and stress concentration. Therefore, microcracks arise during hot compression due to the synergistic effect of intergranular Cu-rich and Cr₂N precipitation. According to literature 17, Nitrogen is detected exclusively in the form of CrN⁺ by APT, the interconnected structure displayed is possibly due to the migration of N to dislocations and matrix defects, which explains the results of the experiment.

3.3. Effect of Deformation Temperature on Microcracks

To further study the origin of crack formation, hot compression tests were carried out for the Cu-bearing austenite stainless steel at the strain of 0.5 and temperature range of 1050–1200 °C.

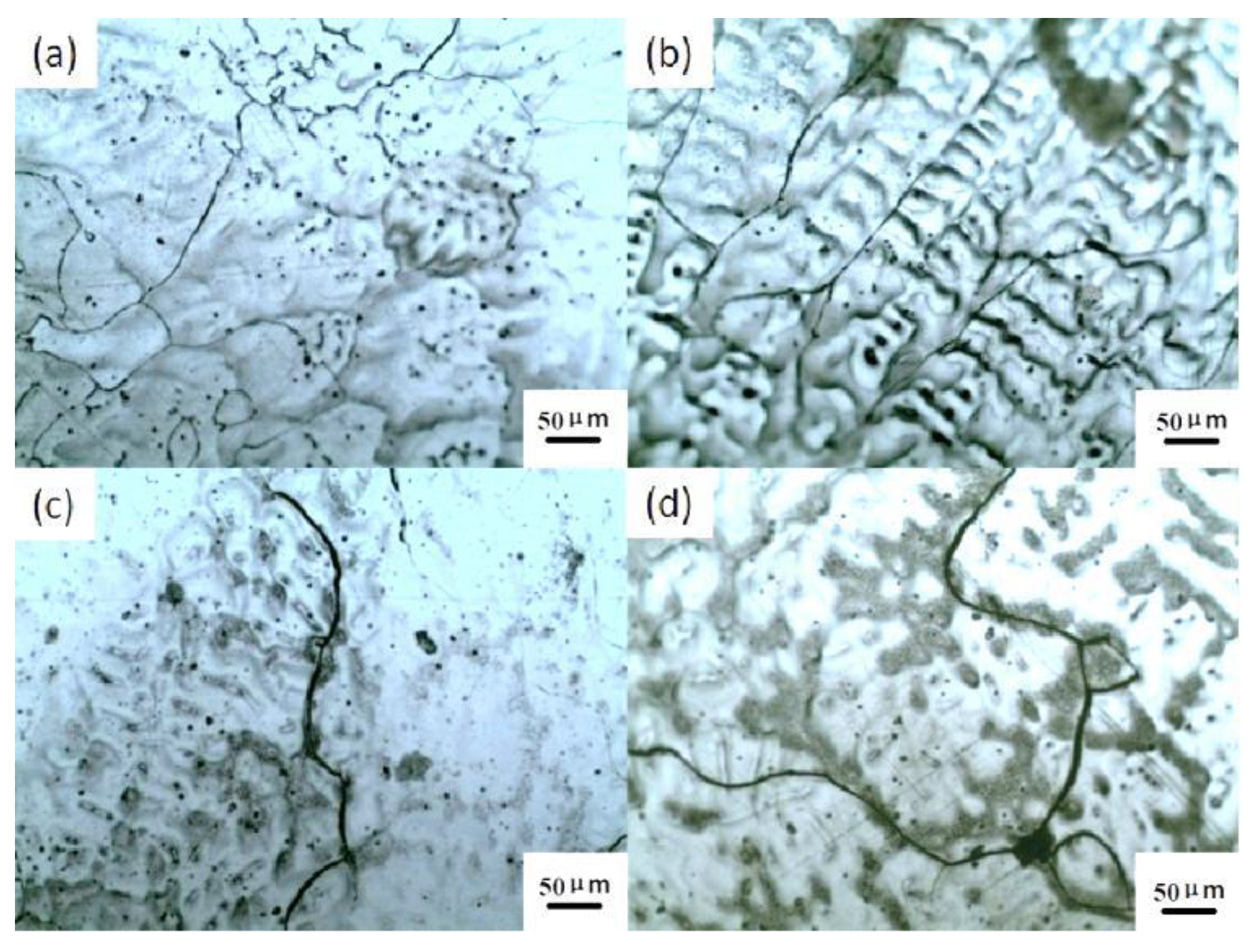

The samples were cut along the direction perpendicular to the axial direction and polished. It can be seen from Figure 10 that a large number of cracks in the interior of the sample occur at the deformation temperature of 1100 °C, while less quantity is observed at other temperatures.

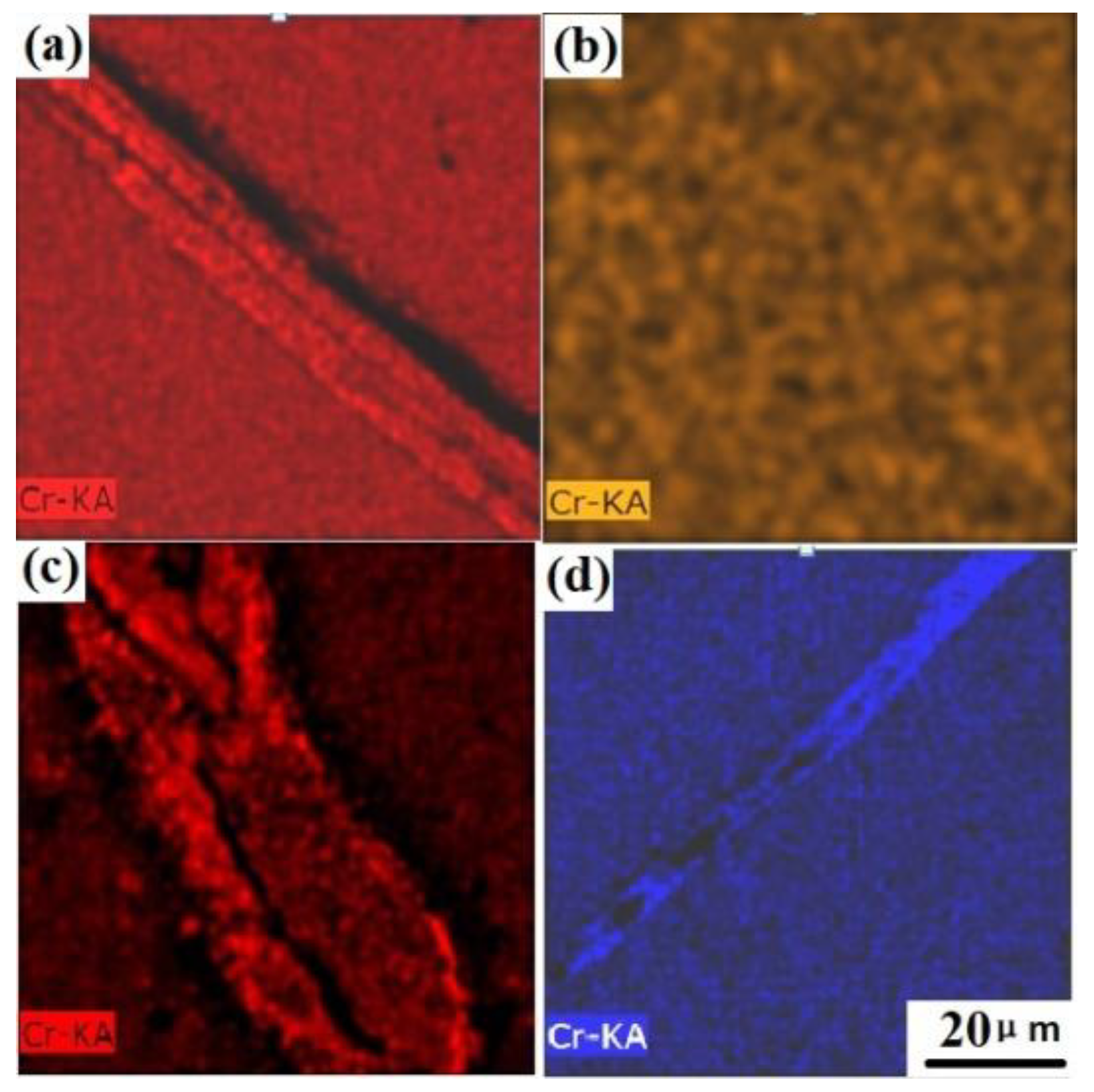

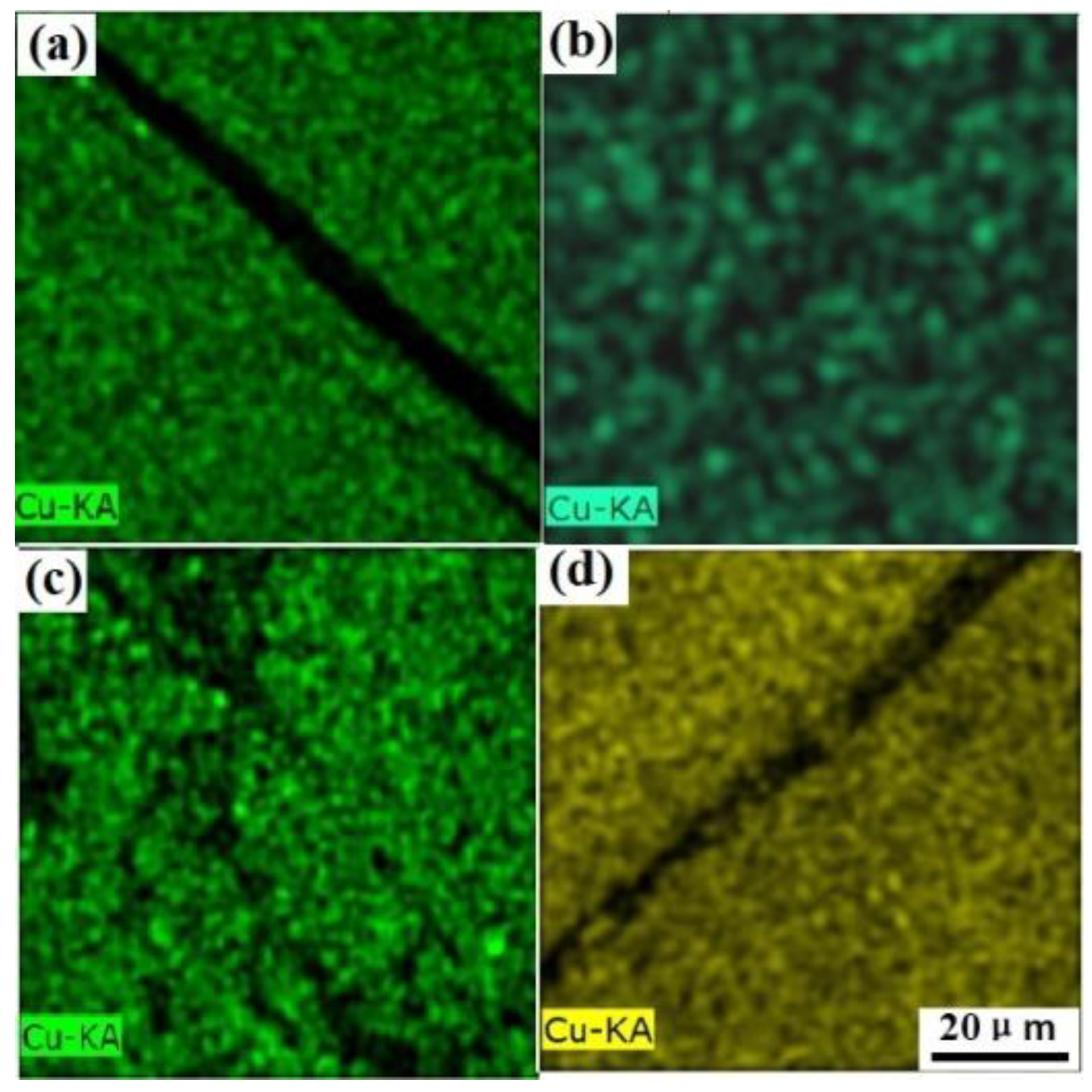

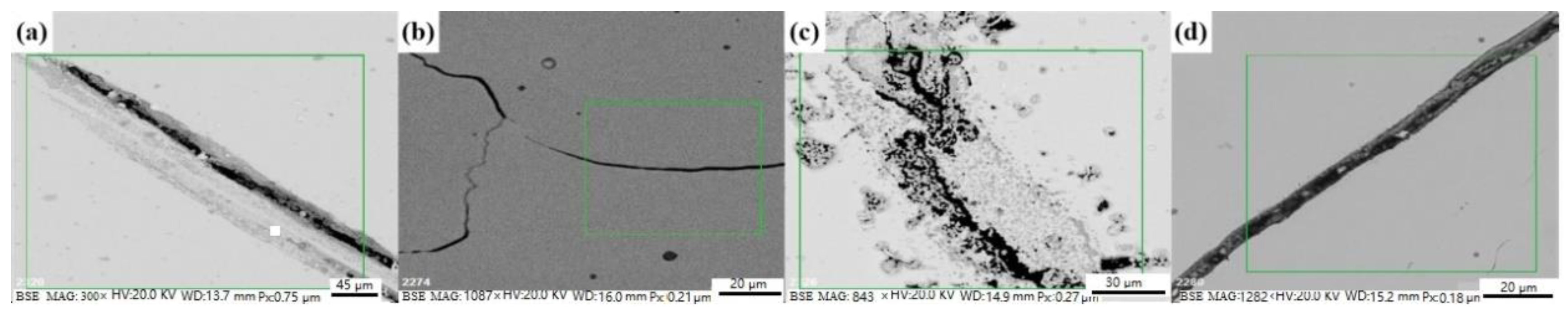

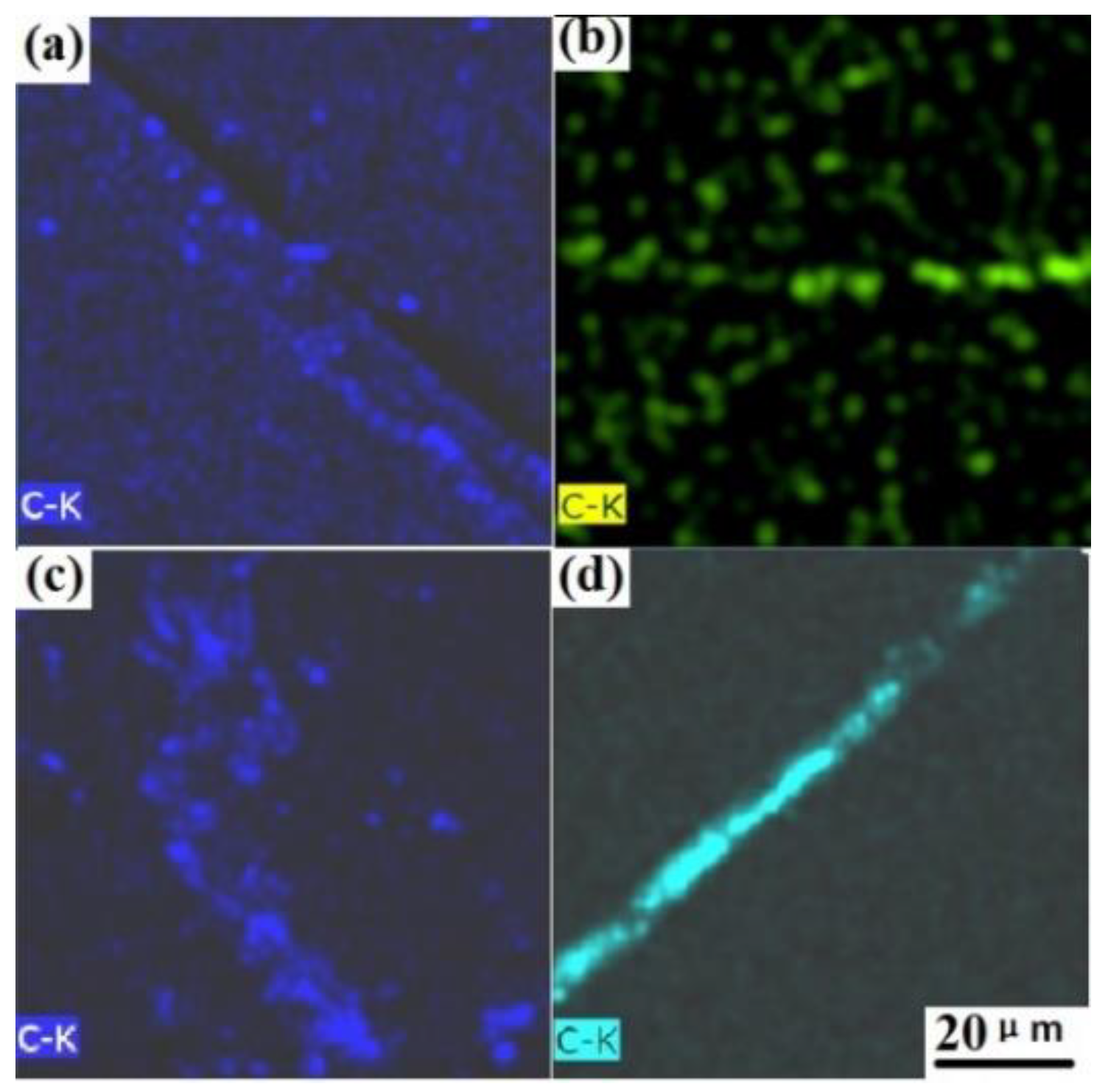

From the microscopic point of view, the formation of cracks is strongly related to the precipitation of the second phase. However, conditions of undeformed austenite are close to those of homogeneous nucleation. The driving force of precipitation is only the supersaturated energy of micro-alloying elements in austenite, and carbon nitrides can be hardly obtained in actual production. Nevertheless, the strain accelerates the precipitation process of strain-induced precipitation. After the hot deformation at the different strains was investigated, it was necessary to investigate the element distribution of the samples under different deformation temperatures. Figure 11 shows the SEM images of the microcrack zones and the cavity zones obtained by hot deformation at the different temperatures. In addition, the elements are analyzed by EDS-X-ray maps. The result in Figure 12, Figure 13 and Figure 14 represent the distributions of Cu, Cr, and C, respectively, in the zone marked in Figure 11. It can be seen that Cu-rich, Cr-rich and carbide phases appear in the microcrack and cavity areas and increase with the increase in the temperature of the hot compression process.

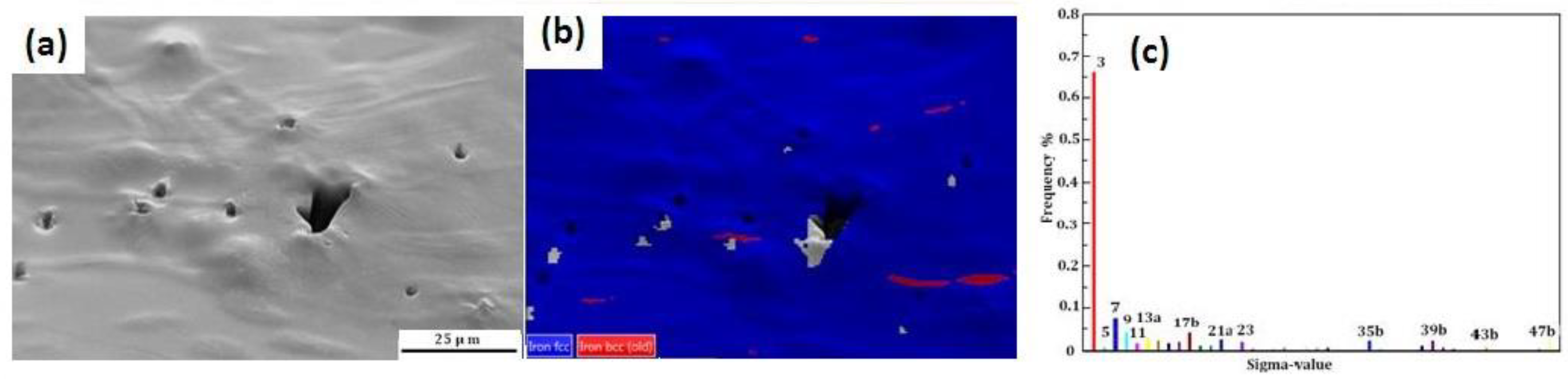

EBSD analysis of the test specimens with the strain of 0.5 at 1100 °C (Figure 15a) shows that the compressed sample has a plastic deformation zone on the cut surface. Micropores can easily form, expand, and link with each other in this region, leading to crack propagation. Figure 15b shows that a very small amount of ferrite forms, it is possible to be δ-ferrite formed during the hot rolling process, which easily distributes along the grain boundary in the plastic deformation zone being prone to crack propagation along the ferrite. Figure 15c shows coincidence site lattice (CSL) distribution, it means that the low-angle Σ3 grain boundary accounts for more than 66%, the grain boundary energy is low, and it is easy to form cracks in the compression process.

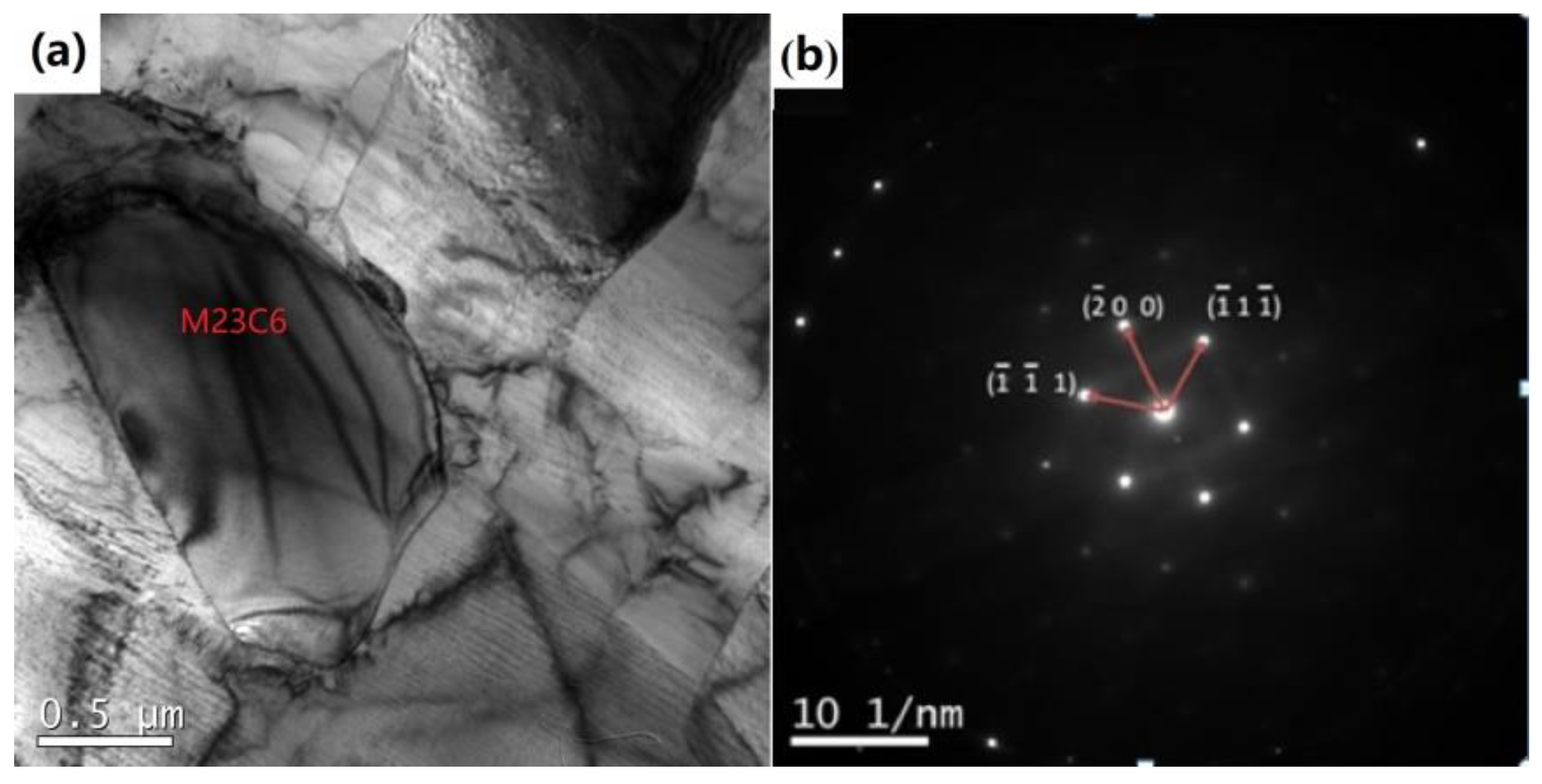

The actual cracked sample rolling at 1100 °C was taken, and TEM analysis was performed. Block precipitates along the grain boundary in the Figure 16a were a composite of carbide, and the combined transmission analysis (selected area electron diffraction, SAED) showed mainly M₂₃C₆ carbide in the Figure 16b.

The elements mainly precipitate in the form of the Cu-rich phase and the Cr(C, N) phase, which weaken the grain boundary so that the cavities form around the second phase. Meanwhile, the inclusions hinder dislocation movement, and the dislocation pile-up is generated, which leads to the concentration of stress. The stress concentration results in cavity aggregation and growth, and eventually the microcracks form. The microcrack extension under large strain leads to the fracture of materials. However, it can be seen from Figure 10 that the most cracks occur at 1100 °C, and the least number of cracks is observed at higher temperature and at lower temperature. That is mainly because an increased temperature accelerates the velocity of the dislocations and reduces the stress concentration phenomenon caused by the dislocation pile-up. Furthermore, the second phase seldom precipitates at a lower temperature during the process of deformation, and few cavities are formed. When the hot compression temperature is higher, the speed of the dislocations increases, and the stress concentration phenomenon due to dislocation pile-up is weakened. Briefly, the macroscopic cracks decrease at lower and higher temperatures in the hot deformation process.

To further study the relationship of second phase precipitation and the microcrack formation, the external stress $\mathsf{\sigma }$ required in the process of cavity formation around the second-phase particles is introduced, and its expression is obtained as [17]:

$$\mathsf{\sigma }=\frac{1}{q}{\left(\frac{E{\mathsf{\gamma }}_s}{\mathsf{\alpha }}\right)}^{\frac{1}{2}}+\frac{{\mathsf{\sigma }}_s}{q}{\left(\frac{\Delta V}{V}\right)}^{\frac{1}{2}},$$

(1)

where q is the average stress concentration factor around the second phase, E is the elastic modulus of the matrix, γ_S is the specific surface energy of the matrix, σ_s is the yield strength of the matrix, and α is the proportionality coefficient and its value in the steel is 0.5. V is the volume of the second-phase particles, and ΔV is the volume of the plastic deformation zone of the matrix around the second-phase particles. Equation (1) shows that the required stress is inversely proportional to the precipitate size. The stress that cavity formation has is unrelated to the shape of the second phase, but rather, mainly depends on size. Cavities are more likely to form around the second phase with large dimensions. The Cu-rich precipitates, carbides and nitrides increase with the increase in strain, and the external stress σ required in the process of forming cavities decreases, making it easy to form cavities. Furthermore, the deformation temperature and strain rate have a significant influence. A relatively low temperature can give rise to a rapid increase in the yield strength σ_s due to the slow movement of dislocations under the low temperature, when the strain rate reaches a constant value. According to Equation (1), the external stress σ increases.

According to the energy consumption analysis method of the crack propagation process, the fracture toughness of materials G_IC is obtained [17]:

$$G_{\mathrm{IC}}=2{\mathsf{\gamma }}_{\mathrm{s}}+{\mathsf{\gamma }}_{\mathrm{p}},$$

(2)

where γ_S is the specific surface energy of the matrix, and γ_p is the consumed plastic energy during the formation of the microcracks per unit area. Because of the poor toughness for most second phases compared to the matrix, it is impossible for plastic deformation to occur, which restricts the size of the plastic zone near the crack tip; therefore, γ_p decreases, and crack propagation is promoted through the formation, growth and coalescence of cavities. Hence, the increase in the second phase and inclusion volume fraction is detrimental to the fracture toughness of materials. In addition, the size, shape and distribution of the precipitates have a remarkable influence on the fracture toughness. Furthermore, the existence of segregation element weakening of the grain boundary significantly reduces the strength of the interface and the binding force of both sides of the crystal interface but has no obvious influence on the yield strength of materials. Fracture plastic energy γ_p of the micro-zone adjacent to the interface is so low that it is easy for microcracks to form and extend along the grain boundary, thus significantly reducing the tensile strength. In this experiment, it is clearly observed that with the strain of 0.5 at each temperature, microcracks exist along the grains and extend through the grain boundary, destroying the microstructure, resulting in the material failure. The reason is that most intergranular fractures are brittle fractures, and the toughness is low, which is due to the element segregation, the second phase and stress concentration interaction with weakening the grain boundary.

4. Conclusion

From the study of the cracks formed in the hot deformation process with different strains and deformation temperatures, the following conclusions can be drawn:

(1)

It can be seen from the calculation result obtained using Thermo-calc that Cu dissolves in the matrix in elemental form.

(2)

The phenomenon of neucleation and propagation for microcracks is obvious. Meanwhile, M₂₃C₆ precipitates along the grain boundaries, causing the segregation of chromium at the grain boundaries and enrichment of Cu and Cr due to the increasing strain weakening the grain boundary, as is found by TEM and SEM examination of the microstructure.

(3)

The formation of the second phase and stress concentration are the origins of microcrack formation. It is seen from the TEM examination of the morphology that the dislocation walls appear at the strain of 0.2, while the twin crystals form in the stress concentration zone at the strain of both 0.2 and 0.5.

(4)

Due to the precipitation of the second phase and the dislocation movement, the amount of macroscopic crack is lower at high and low temperatures and is higher at 1100 °C.
