Local Monte Carlo Method for Fatigue Analysis of Coarse-Grained Metals with a Nanograined Surface Layer
Abstract
:1. Introduction
2. Numerical Framework

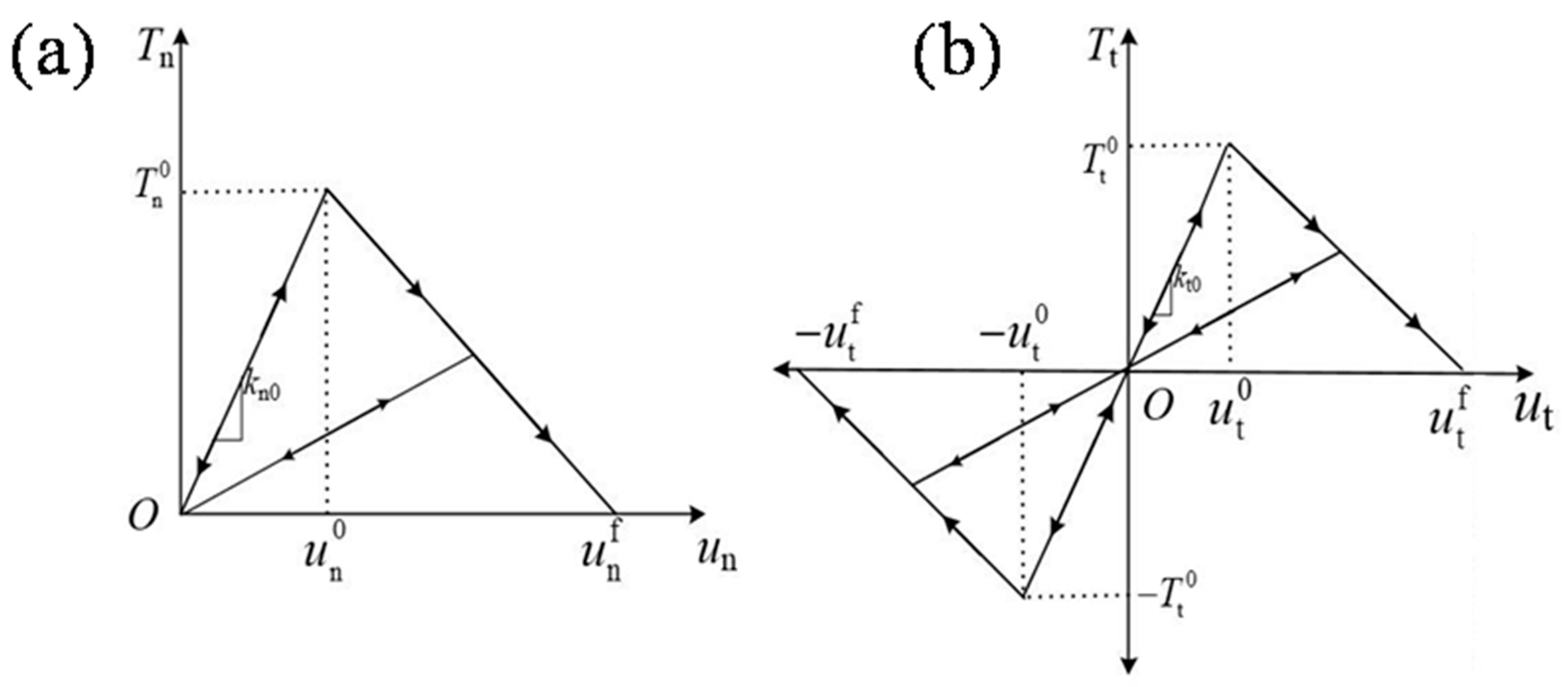

2.1. Cohesive Finite Element Method

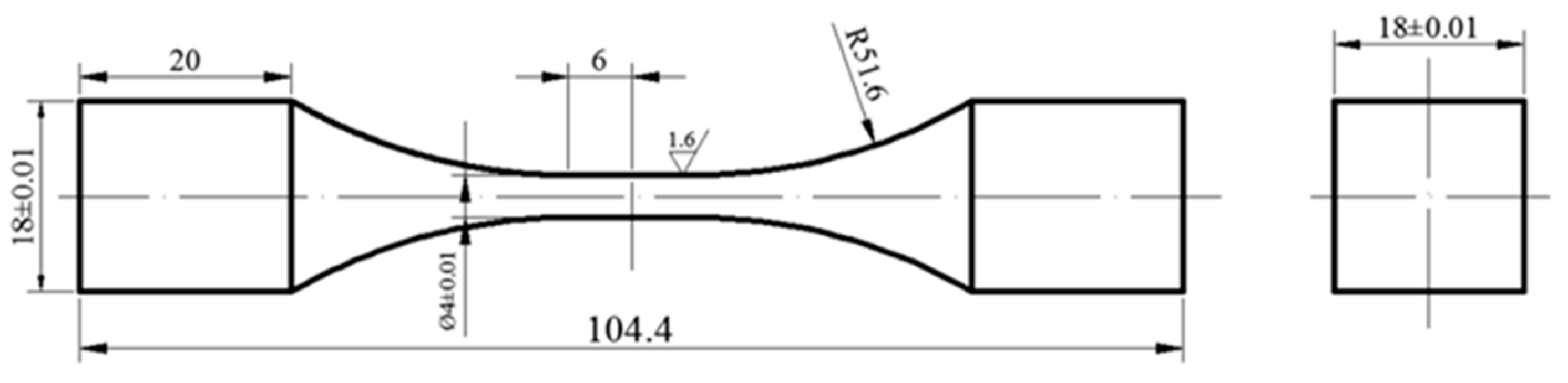

2.2. 3D CFE Geometric Modeling and Quantification of Constitutive Parameters
- (i)
- Mesh the circular cross section of the 3D specimen. The initial mesh consists of triangular elements in the core location and quadrilateral elements in the surrounding area;
- (ii)
- Generate 3D solid meshes. Read the nodal coordinates and the nodal connectivity of the 2D elements, and then renumber them to establish the index between each new element and the corresponding nodal number. The 2D indices can be extended to 3D so that wedge elements (C3D6) in the core location and hexahedron elements in the surrounding area can be generated;
- (iii)

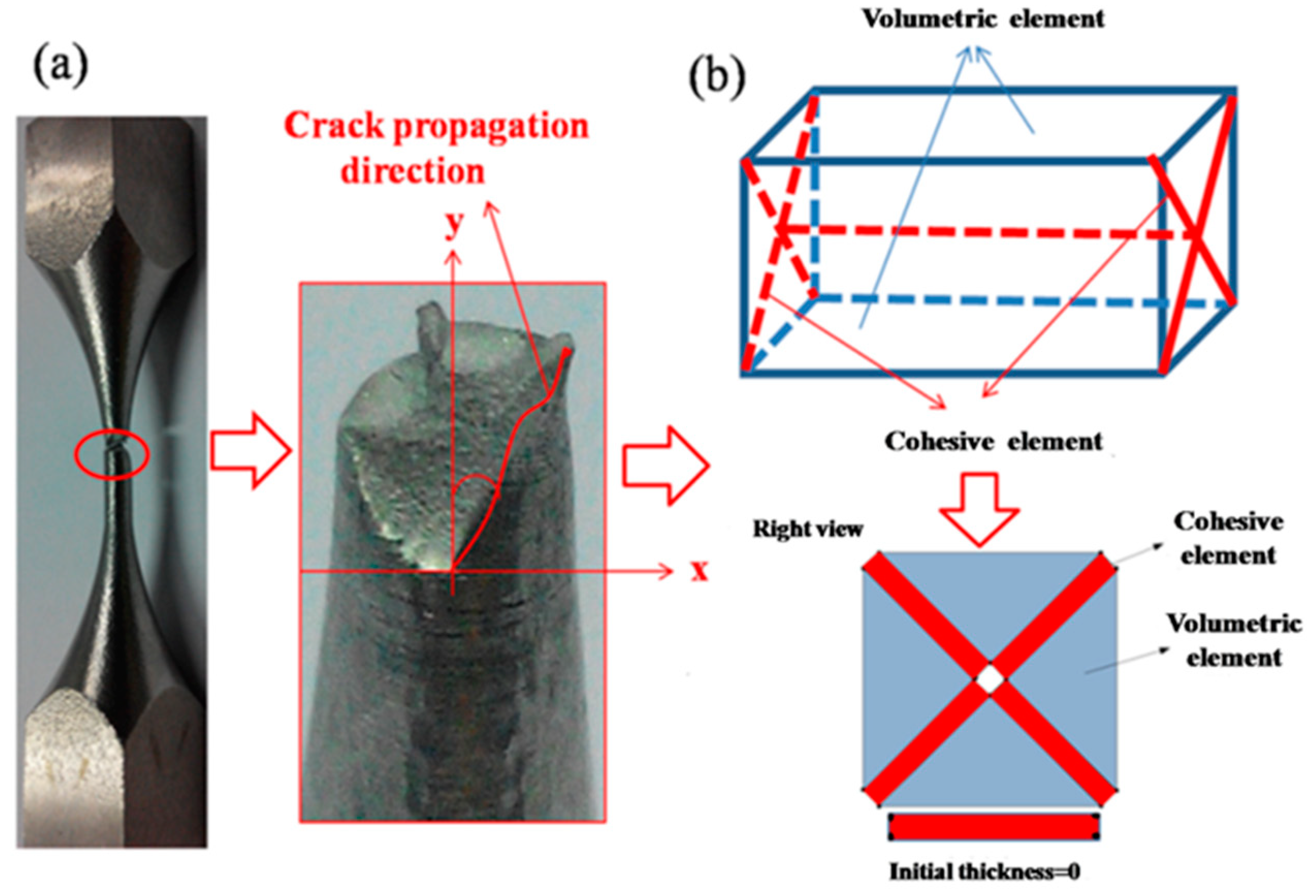

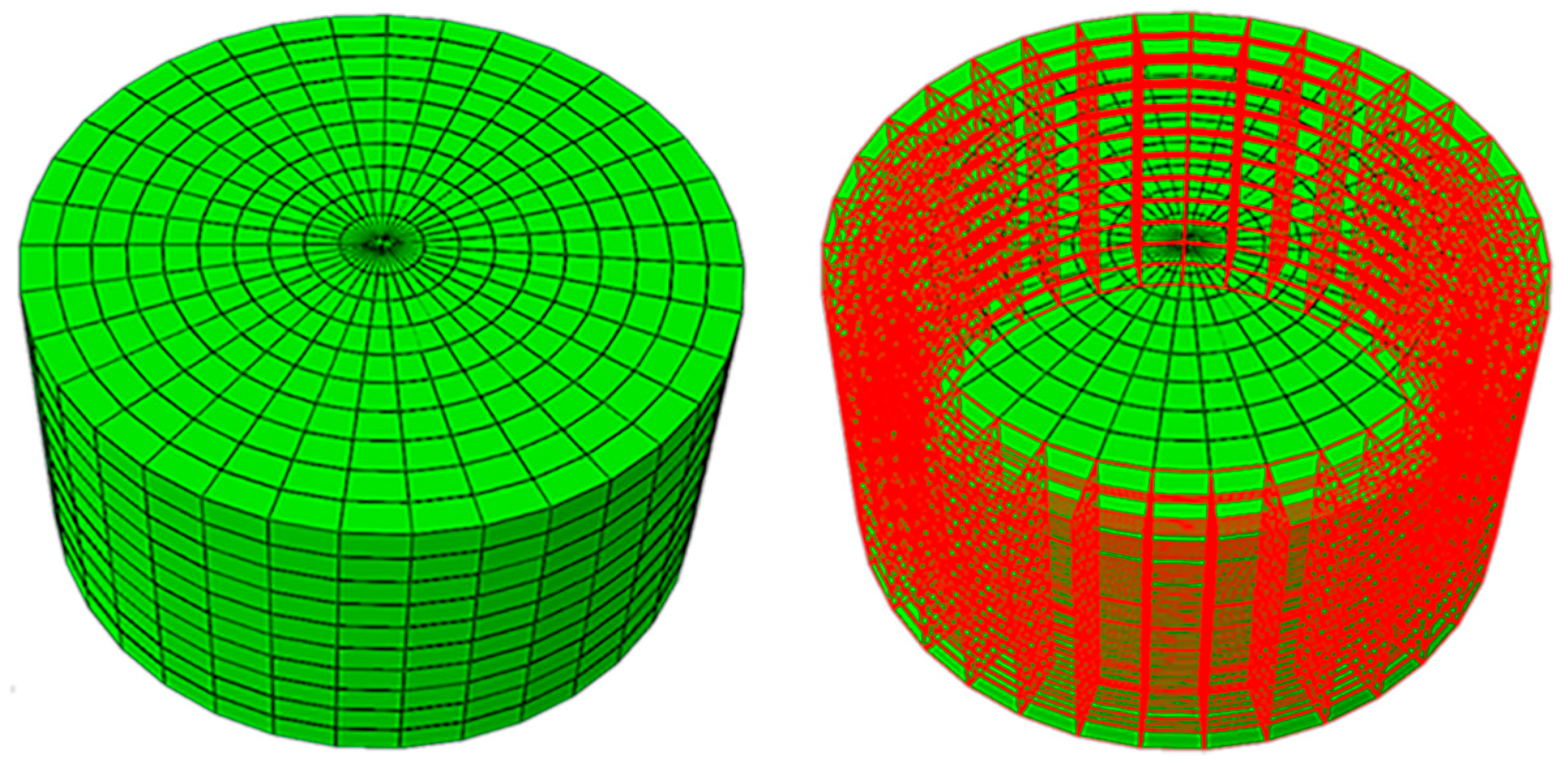

- Insert cohesive elements. Partition every hexahedron element into four wedge elements along the left and right surfaces, as shown in Figure 3b. One node is replaced by eight separate nodes at the same position at the diagonal center, and four 8-noded cohesive elements (COH3D8 in [44]) and four 6-noded cohesive elements (COH3D6) are generated. The right view of this insertion model is also presented in Figure 3b. COH3D8 can be inserted between the frontal and rear surfaces of the wedge elements, COH3D6 and COH3D8 can be inserted between the left and right surfaces of the wedges and between the upper and lower surfaces of the wedge elements, respectively.
2.3. Weibull Random Field

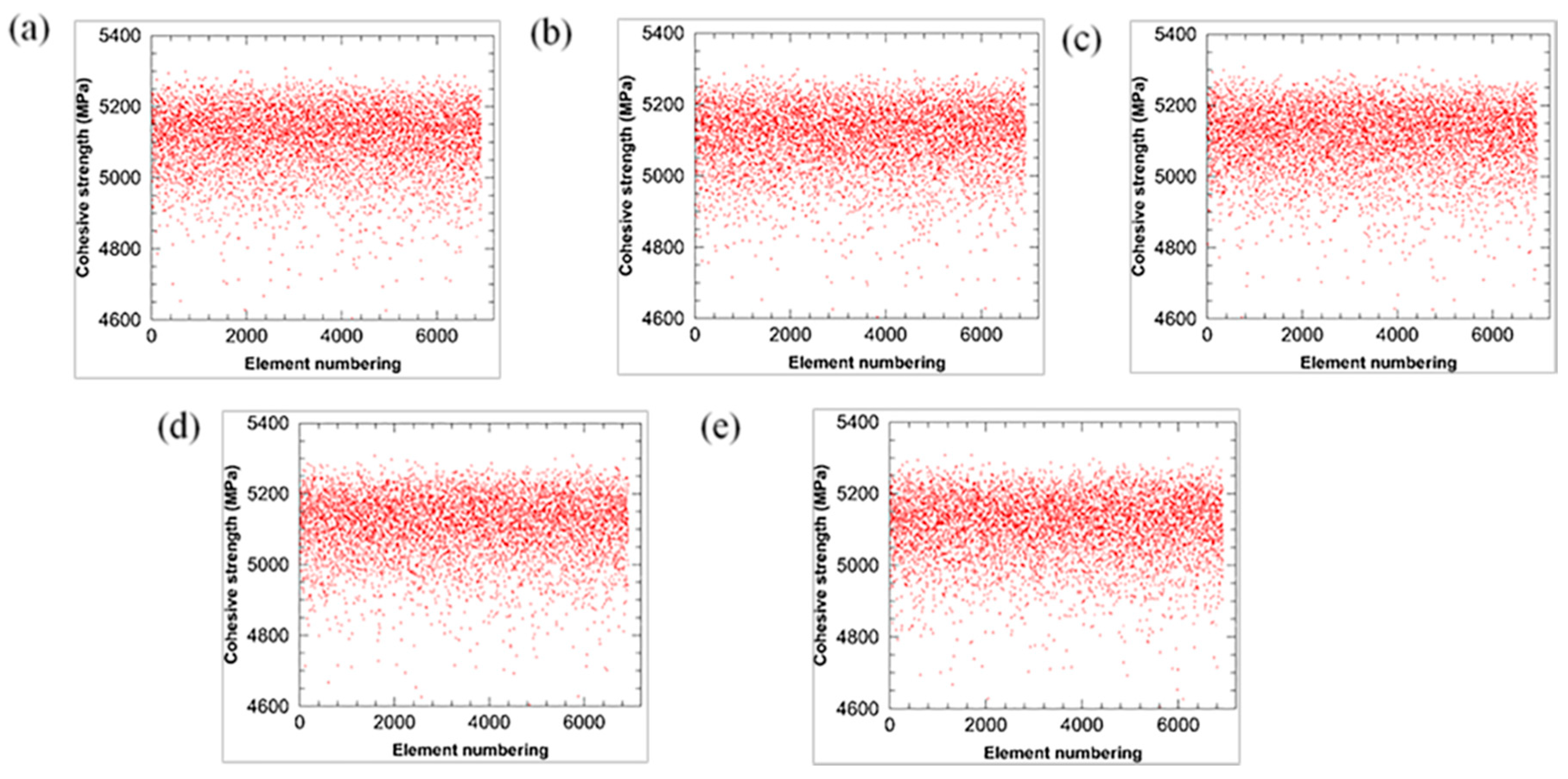

3. Results for CG and SMATed Specimens

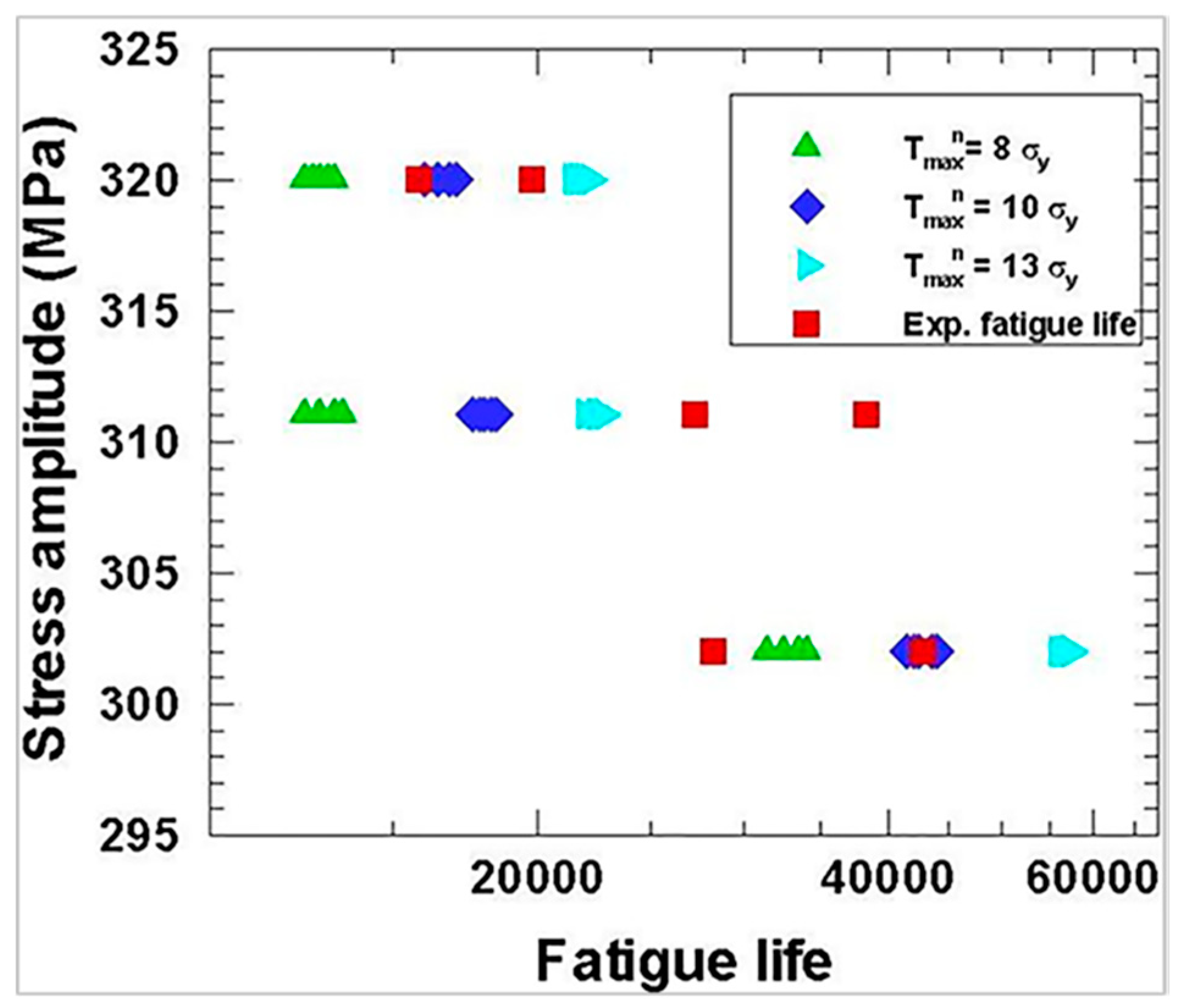

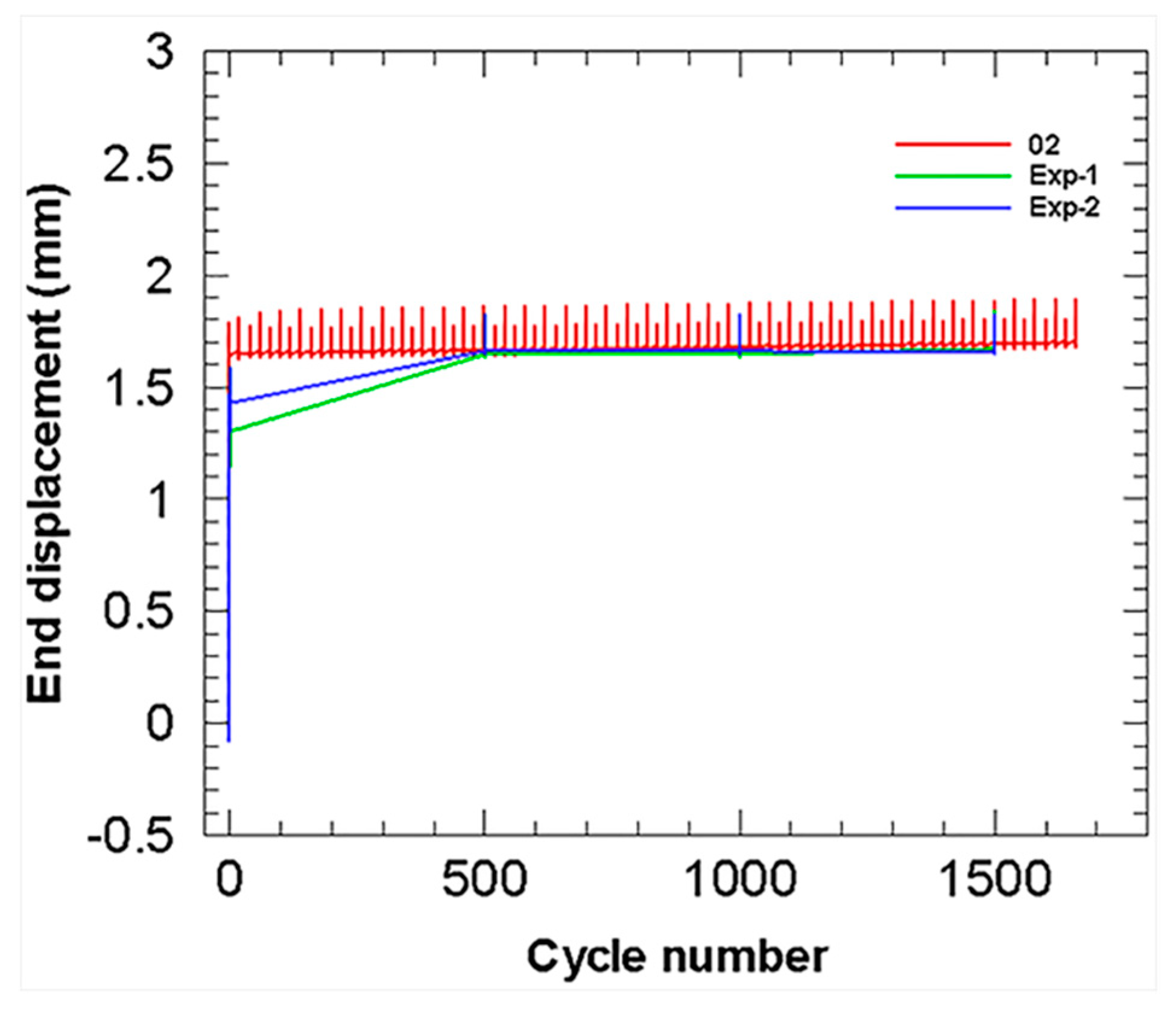

3.1. Cohesive Strength Effects on the Fatigue Life for the CG Specimens

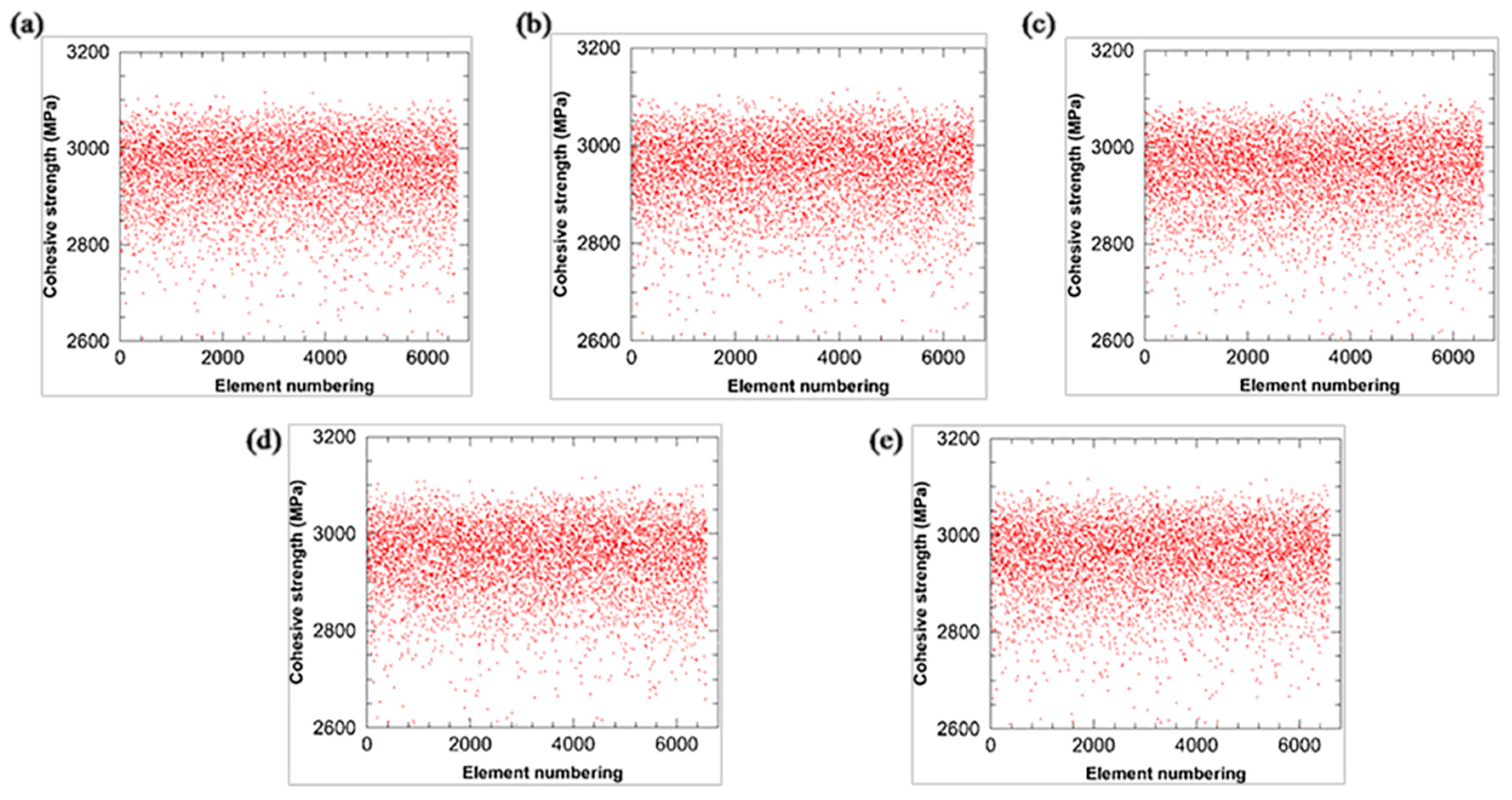

3.2. Random Field Effects on the Fatigue Life and Damage Evolution of CG Specimens

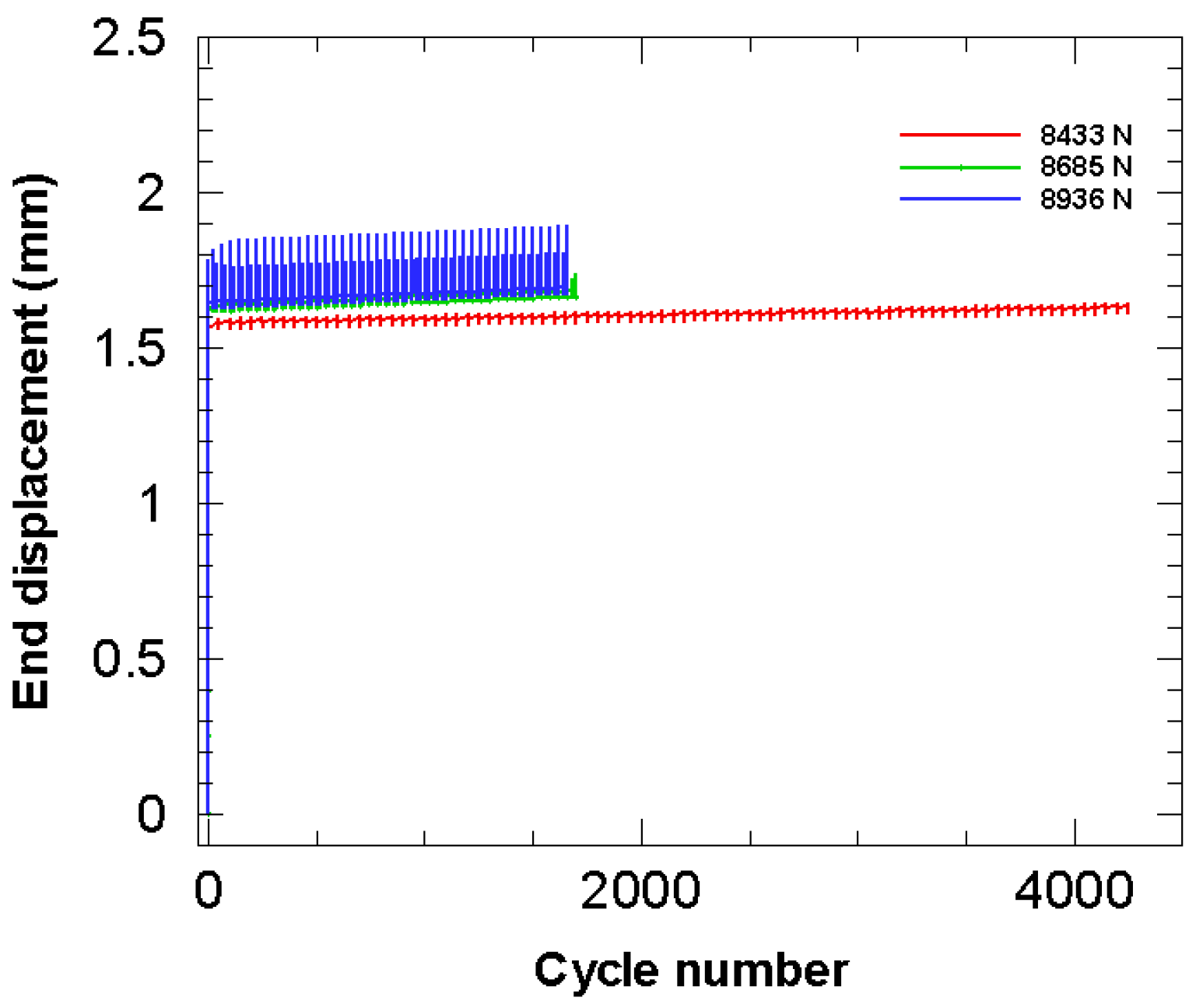

3.3. Load Effects on the Fatigue Life and Damage Evolution of CG Specimens

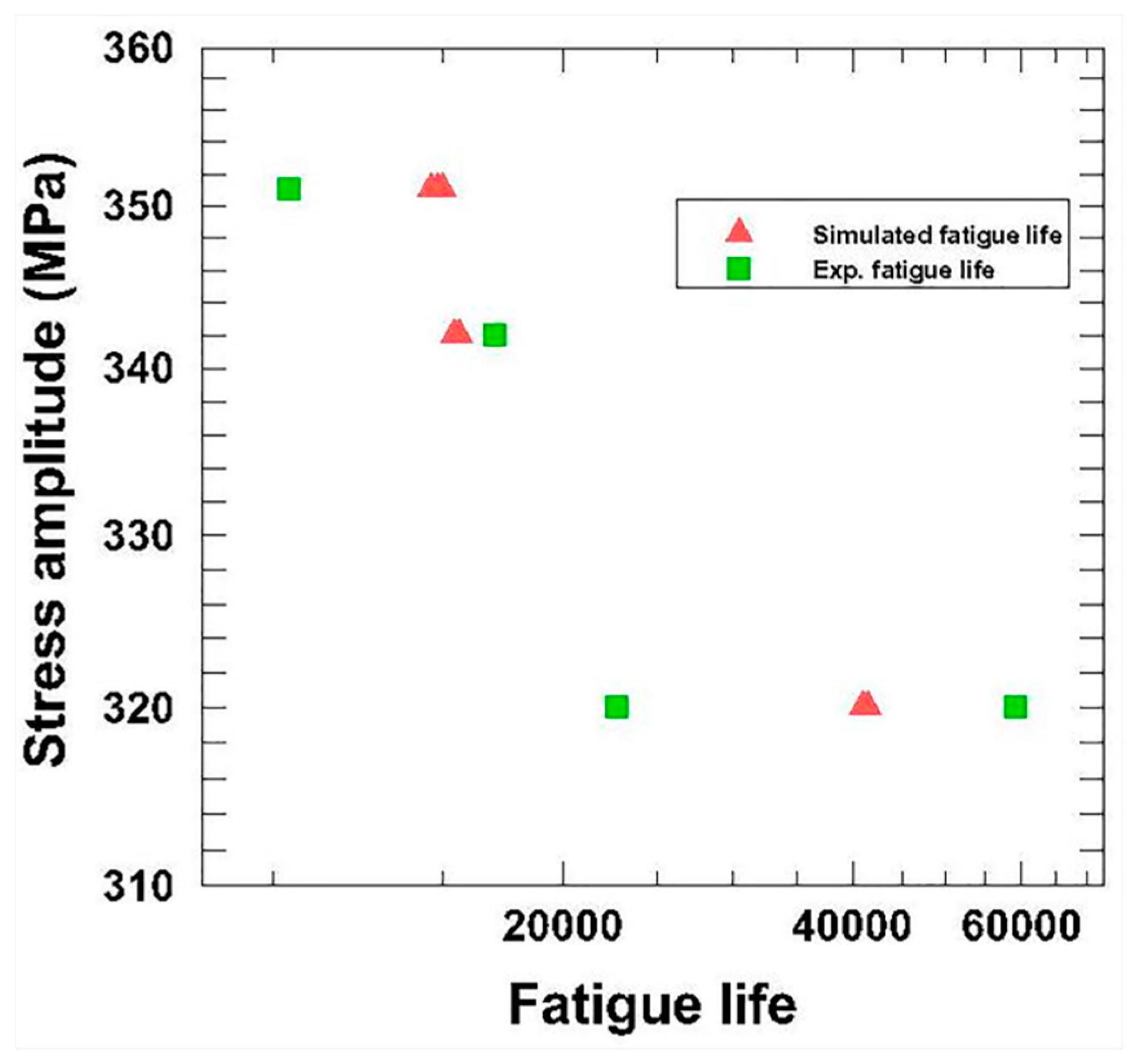

3.4. Fatigue Life and Damage Evolution of the SMATed Specimens
4. Conclusions and Outlooks
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Azadmanjiri, J.; Berndt, C.C.; Kapoor, A.; Wen, C. Development of surface nano-crystallization in alloys by surface mechanical attrition treatment (SMAT). Crit. Rev. Solid State Mater. Sci. 2015, 40, 164–181. [Google Scholar] [CrossRef]
- Jones, R. Fatigue crack growth and damage tolerance. Fatigue Fract. Eng. Mater. Struct. 2014, 37, 463–483. [Google Scholar] [CrossRef]
- Ritchie, R.O.; Yu, W.; Blom, A.F.; Holm, D.K. An analysis of crack tip shielding in aluminium alloy 2124: A comparison of large, small through-crack and surface fatigue cracks. Fatigue Fract. Eng. Mater. Struct. 1987, 10, 343–363. [Google Scholar] [CrossRef]
- Jones, R.; Singh Raman, R.K.; McMillan, A.J. Crack growth: Does microstructure play a role? Eng. Fract. Mech. 2018, 187, 190–210. [Google Scholar] [CrossRef]
- Lu, K.; Lu, J. Nanostructured surface layer on metallic materials induced by surface mechanical attrition treatment. Mater. Sci. Eng. A 2004, 375, 38–45. [Google Scholar] [CrossRef] [Green Version]
- Tao, N.R.; Zhang, H.W.; Lu, K.; Lu, J. Development of nanostructures in metallic materials with low stacking fault energies during surface mechanical attrition treatment (SMAT). Mater. Trans. 2003, 44, 1919–1925. [Google Scholar] [CrossRef]
- Zhang, H.W.; Hei, Z.K.; Liu, G.; Lu, J.; Lu, K. Formation of nanostructured surface layer on AISI 304 stainless steel by means of surface mechanical attrition treatment. Acta Mater. 2003, 51, 1871–1881. [Google Scholar] [CrossRef]
- Tao, N.R.; Wang, Z.B.; Tong, W.P.; Sui, M.L.; Lu, J.; Lu, K. An investigation of surface nanocrystallization mechanism in Fe induced by surface mechanical attrition treatment. Acta Mater. 2002, 50, 4603–4616. [Google Scholar] [CrossRef]
- Wu, X.; Tao, N.R.; Hong, Y.; Liu, G.; Xu, B.; Lu, J.; Lu, K. Strain-induced grain refinement of cobalt during surface mechanical attrition treatment. Acta Mater. 2005, 53, 681–691. [Google Scholar] [CrossRef] [Green Version]
- Dewo, P.; van de Houwen, E.B.; Suyitno; Marius, R.; Magetsari, R.; Verkerke, G.J. Redesign of Indonesian-made osteosynthesis plates to enhance their mechanical behavior. J. Mech. Behav. Biomed. 2015, 42, 274–281. [Google Scholar] [CrossRef] [PubMed]
- Sun, Y.; Bailey, R. Improvement in tribocorrosion behavior of 304 stainless steel by surface mechanical attrition treatment. Surf. Coat. Technol. 2014, 253, 284–291. [Google Scholar] [CrossRef]
- Balusamy, T.; Venkateswarlu, M.; Murthy, K.S.N.; Vijayanand, S.; Narayanan, T.S.N.S. Effect of surface mechanical attrition treatment (SMAT) on the surface and electrochemical characteristics of Pb-Sn alloy. Int. J. Electrochem. Sci. 2014, 9, 96–108. [Google Scholar]
- Kargar, F.; Laleh, M.; Shahrabi, T.; Rouhaghdam, A.S. Effect of treatment time on characterization and properties of nanocrystalline surface layer in copper induced by surface mechanical attrition treatment. Bull. Mater. Sci. 2014, 37, 1087–1094. [Google Scholar] [CrossRef]
- Jin, L.; Cui, W.F.; Song, X.; Liu, G.; Zhou, L. The formation mechanisms of surface nanocrystallites in β-type biomedical TiNbZrFe alloy by surface mechanical attrition treatment. Appl. Surf. Sci. 2015, 347, 553–560. [Google Scholar] [CrossRef]
- Huang, R.; Han, Y. Structure evolution and thermal stability of SMAT-derived nanograined layer on Ti–25Nb–3Mo–3Zr–2Sn alloy at elevated temperatures. J. Alloy. Compd. 2013, 554, 1–11. [Google Scholar] [CrossRef]
- Yin, Z.; Yang, X.; Ma, X.; Moering, J.; Yang, J.; Gong, Y.L. Strength and ductility of gradient structured copper obtained by surface mechanical attrition treatment. Mater. Des. 2016, 105, 89–95. [Google Scholar] [CrossRef]
- Chen, A.Y.; Liu, J.B.; Wang, H.T.; Lu, J.; Wang, Y.M. Gradient twinned 304 stainless steels for high strength and high ductility. Mater. Sci. Eng. A 2016, 667, 179–188. [Google Scholar] [CrossRef] [Green Version]
- Kumar, S.A.; Raman, S.G.S.; Narayanan, T.S.N.S. Influence of surface mechanical attrition treatment duration on fatigue lives of Ti–6Al–4V. Trans. Indian Inst. Met. 2014, 67, 137–141. [Google Scholar] [CrossRef]
- Brinckmann, S.; Siegmund, T. A cohesive zone model based on the micromechanics of dislocations. Model. Simul. Mater. Sci. Eng. 2008, 16, 065003. [Google Scholar] [CrossRef]
- Gong, B.M.; Paggi, M.; Carpinteri, A. A cohesive crack model coupled with damage for interface fatigue problems. Int. J. Fract. 2012, 173, 91–104. [Google Scholar] [CrossRef]
- Ghovanlou, M.K.; Jahed, H.; Khajepour, A. Cohesive zone modeling of fatigue crack growth in brazed joints. Eng. Fract. Mech. 2014, 120, 43–59. [Google Scholar] [CrossRef] [Green Version]
- Puigvert, F.; Crocombe, A.D.; Gil, L. Fatigue and creep analyses of adhesively bonded anchorages for CFRP tendons. Int. J. Adhes. Adhes. 2014, 54, 143–154. [Google Scholar] [CrossRef] [Green Version]
- Kim, K.; Yoon, M.J. Fretting fatigue simulation for aluminium alloy using cohesive zone law approach. Int. J. Mech. Sci. 2014, 85, 30–37. [Google Scholar] [CrossRef]
- García-Collado, A.; Vasco-Olmo, J.M.; Díaz, F.A. Numerical analysis of plasticity induced crack closure based on an irreversible cohesive zone mode. Theor. Appl. Fract. Mech. 2017, 89, 52–62. [Google Scholar] [CrossRef]
- Naval Publications and Form Center (NPFC). Military Specification Airplane Damage Tolerance Requirements; Military and Government Specs & Standards, MIL-A-83444 (USAF); NPFC: Englewood, CO, USA, 1974. [Google Scholar]
- Berens, A.P.; Hovey, P.W.; Skinn, D.A. Risk Analysis for Aging Aircraft Fleets—Volume 1: Analysis; WL-TR-91-3066; Flight Dynamics Directorate, Wright Laboratory, Air Force Systems Command, Wright-Patterson Air Force Base: Dayton, OH, USA, 1991. [Google Scholar]
- Rahman, S.; Rao, B.N. An element-free Galerkin method for probabilistic mechanics and reliability. Int. J. Solids Struct. 2001, 38, 9313–9330. [Google Scholar] [CrossRef] [Green Version]
- Bouhamida, B.; Sereir, Z.; Chateauneuf, A. Uncertainties of stress intensification near broken fibers of unidirectional composite with random fiber spacing. Theor. Appl. Fract. Mech. 2013, 65, 1–7. [Google Scholar] [CrossRef]
- Campanile, A.; Piscopo, V.; Scamardella, A. Statistical properties of bulk carrier longitudinal strength. Mar. Struct. 2014, 39, 438–462. [Google Scholar] [CrossRef]
- Hartig, J.U.; Häussler-Combe, U. Numerical stochastic analysis of RC tension bar cracking due to restrained thermal loading. Theor. Appl. Fract. Mech. 2014, 74, 39–47. [Google Scholar] [CrossRef]
- Su, X.T.; Yang, Z.J.; Liu, G.H. Monte Carlo simulation of complex cohesive fracture in random heterogeneous quasi-brittle materials: A 3D study. Int. J. Solids Struct. 2010, 47, 2336–2345. [Google Scholar] [CrossRef]
- Yang, Z.J.; Su, X.T.; Chen, J.F.; Liu, G.H. Monte Carlo simulation of complex cohesive fracture in random heterogeneous quasi-brittle materials. Int. J. Solids Struct. 2009, 46, 3222–3234. [Google Scholar] [CrossRef] [Green Version]
- Cetin, A.; Harkegard, G.; Naess, A. The fatigue limit: An analytical solution to a Monte Carlo problem. Int. J. Fatigue 2013, 55, 194–201. [Google Scholar] [CrossRef]
- Pashah, S.; Arif, A.F.M. Fatigue life prediction of adhesive joint in heat sink using Monte Carlo method. Int. J. Adhes. Adhes. 2014, 50, 164–175. [Google Scholar] [CrossRef]
- Guo, X.; Yang, T.; Weng, G.J. 3D cohesive modeling of nanostructured metallic alloys with a Weibull random field in torsional fatigue. Int. J. Mech. Sci. 2015, 101, 227–240. [Google Scholar] [CrossRef]
- Sun, Q.Q.; Guo, X.; Weng, G.J.; Chen, G.; Yang, T. Axial-torsional high-cycle fatigue of both coarse-grained and nanostructured metals: A 3D cohesive finite element model with uncertainty characteristics. Eng. Fract. Mech. 2018, 195, 30–43. [Google Scholar] [CrossRef]
- Roesler, J.; Paulino, G.H.; Park, K.; Gaedicke, C. Concrete fracture prediction using bilinear softening. Cem. Concr. Compos. 2007, 29, 300–312. [Google Scholar] [CrossRef]
- Guo, X.; Leung, A.Y.T.; Chen, A.Y.; Ruan, H.H.; Lu, J. Investigation of non-local cracking in layered stainless steel with nanostructured interface. Scr. Mater. 2010, 63, 403–406. [Google Scholar] [CrossRef]
- Agnihotri, P.K.; Kar, K.K.; Basu, S. Cohesive zone model of carbon nanotube-coated carbon fiber/polyester composites. Model. Simul. Mater. Sci. Eng. 2012, 20, 035014. [Google Scholar] [CrossRef]
- Carpinteri, A.; Gong, B.M.; Corrado, M. Hardening cohesive/overlapping zone model for metallic materials: The size-scale independent constitutive law. Eng. Fract. Mech. 2012, 82, 29–45. [Google Scholar] [CrossRef]
- Guo, X.; Zhang, W.J.; Zhu, L.L.; Lu, J. Mesh dependence of transverse cracking in laminated metals with nanograined interface layers. Eng. Fract. Mech. 2013, 105, 211–220. [Google Scholar] [CrossRef]
- May, M.; Holger, V.; Hiermaier, S. Predictive modeling of damage and failure in adhesively bonded metallic joints using cohesive interface elements. Int. J. Adhes. Adhes. 2014, 49, 7–17. [Google Scholar] [CrossRef]
- Shao, Y.; Zhao, H.P.; Feng, X.Q.; Gao, H.J. Discontinuous crack-bridging model for fracture toughness analysis of nacre. J. Mech. Phys. Solids 2012, 60, 1400–1419. [Google Scholar] [CrossRef]
- ABAQUS User’s Manual, version 6.10; Dassault: Providence, RI, USA, 2015.
- Oshida, Y.; Deguchi, A. Martensite formation and the related toughness in 304 stainless steel during low temperature fatigue. Fatigue Fract. Eng. Mater. Struct. 1987, 10, 363–372. [Google Scholar] [CrossRef]
- Frontan, F.; Zhang, Y.M.; Dao, M.; Lu, J.; Galvez, F.; Jerusalem, A. Ballistic performance of nanocrystalline and nanotwinned ultrafine crystal steel. Acta Mater. 2012, 60, 1353–1367. [Google Scholar] [CrossRef] [Green Version]
- Chen, X.H.; Lu, J.; Lu, L.; Lu, K. Tensile properties of a nanocrystalline 316L austenitic stainless steel. Scr. Mater. 2005, 52, 1039–1044. [Google Scholar] [CrossRef]
- Cias, A.; Wronski, A.S. Mechanical properties distributions of PM manganese steels analysed by Gaussian and Weibull statistics. Powder Metall. 2010, 53, 328–335. [Google Scholar] [CrossRef]
- Yang, L.; Tao, N.R.; Lu, K.; Lu, L. Enhanced fatigue resistance of Cu with a gradient nanograined surface layer. Scr. Mater. 2013, 68, 801–804. [Google Scholar] [CrossRef]
- Wang, Q.; Sun, Q.; Xiao, L.; Sun, J. Effect of surface nanocrystallization on fatigue behavior of pure titanium. J. Mater. Eng. Perform. 2015, 25, 1–9. [Google Scholar] [CrossRef]
- Jones, R.; Huang, P.; Peng, D. Practical computational fracture mechanics for aircraft structural integrity. In Aircraft Sustainment and Repair; Jones, R., Matthews, N., Baker, A.A., Champagne, V., Jr., Eds.; Butterworth-Heinemann Press: Oxford, UK, 2018; Chapter 4; pp. 67–128. ISBN 978-0081005408. [Google Scholar]
- Miedlar, P.C.; Berens, A.P.; Gunderson, A.; Gallagher, J.P. Analysis and Support Initiative for Structural Technology (ASIST); AFRL-VA-WP-TR-2003-3002; Defense Technical Information Center: Fort Belvoir, VA, USA, 2003. [Google Scholar]
- Tiffany, C.F.; Gallagher, J.P.; Babish, I.V.C.A. Threats to Aircraft Structural Safety, Including a Compendium of Selected Structural Accidents/Incidents; ASC-TR-2010-5002; Aeronautical Systems Center, Engineering Directorate, Wright-Patterson Air Force Base: Dayton, OH, USA, 2010. [Google Scholar]
- Jones, R.; Peng, D.; Huang, P.; Singh, R.R. Crack growth from naturally occurring material discontinuities in operational aircraft. Procedia Eng. 2015, 101, 227–234. [Google Scholar] [CrossRef]
- Jones, R.; Huang, P.; Peng, D. Crack growth from naturally occurring material discontinuities under constant amplitude and operational loads. Int. J. Fatigue 2016, 91, 434–444. [Google Scholar] [CrossRef]
- Lo, M.; Jones, R.; Bowler, A.; Dorman, M.; Edwards, D. Crack growth at fastener holes containing intergranular cracking. Fatigue Fract. Eng. Mater. Struct. 2017, 40, 1664–1675. [Google Scholar] [CrossRef]
- Jones, R.; Peng, D.; McMillan, A. Crack growth from naturally occurring material discontinuities. In Aircraft Sustainment and Repair; Jones, R., Matthews, N., Baker, A.A., Champagne, V., Jr., Eds.; Butterworth-Heinemann Press: Oxford, UK, 2018; Chapter 5; pp. 129–190. ISBN 978-0081005408. [Google Scholar]
- Molent, L.; Barter, S.A.; Wanhill, R.J.H. The lead crack fatigue lifing framework. Int. J. Fatigue 2011, 33, 323–331. [Google Scholar] [CrossRef]
- Molent, L.; Jones, R. The influence of cyclic stress intensity threshold on fatigue life scatter. Int. J. Fatigue 2016, 82, 748–756. [Google Scholar] [CrossRef]
304 SS | C3D6 | COH3D6 | COH3D8 | Total Elements | |
---|---|---|---|---|---|
CG | MCSed | - | 2800 | 3780 | 6580 |
Total | 12,950 | 12,915 | 18,935 | 44,800 | |
SMATed | MCSed | - | 5600 | 7910 | 13,510 |
Total | 15,750 | 15,715 | 23,065 | 54,530 |
304 SS | (MPa) | (MPa) | (MPa) | (MPa) | (J m−2) |
---|---|---|---|---|---|
CG | 295 | 2949 | 2949 | 2949 | 25,592 |
NGL | 1278 | 5109 | 5109 | 5109 | 5896 |
© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Guo, X.; Sun, Q.; Yang, T.; Weng, G.J.; Zhang, C.; Feng, X. Local Monte Carlo Method for Fatigue Analysis of Coarse-Grained Metals with a Nanograined Surface Layer. Metals 2018, 8, 479. https://doi.org/10.3390/met8070479
Guo X, Sun Q, Yang T, Weng GJ, Zhang C, Feng X. Local Monte Carlo Method for Fatigue Analysis of Coarse-Grained Metals with a Nanograined Surface Layer. Metals. 2018; 8(7):479. https://doi.org/10.3390/met8070479
Chicago/Turabian StyleGuo, Xiang, Qiuqiu Sun, Tao Yang, George J. Weng, Cunbo Zhang, and Xiqiao Feng. 2018. "Local Monte Carlo Method for Fatigue Analysis of Coarse-Grained Metals with a Nanograined Surface Layer" Metals 8, no. 7: 479. https://doi.org/10.3390/met8070479
