Microstructure and Tensile Properties of the Mg-6Zn-4Al-xSn Die Cast Magnesium Alloy

Abstract

The effect of various Sn contents (1–2 wt. %) on the microstructure, age hardening response, and tensile and casting properties of the high-pressure die cast Mg-6Zn-4Al alloy were studied. All as-cast alloys consisted of α-Mg and icosahedral quasi-crystalline phase; and the addition of 2% Sn caused the formation of Mg₂Sn phases. Dendrite structure and eutectic phases were observably refined by Sn addition. The hot tearing susceptibility of the die cast Mg-6Zn-4Al alloy prominently decreased with increasing Sn addition. During T6 heat treatment, Sn addition did not obviously affect the time to reach peak hardness, but significantly enhanced the age hardening response and improved the strength of alloys under peak-aged conditions. Compared to single aging, double aging resulted in the higher density of finer β₁′ and β₂′ precipitates. The double aged Mg-6Zn-4Al-1Sn alloy offered the optimum tensile properties among all conditions. The yield strength, ultimate tensile strength, and elongation were 209 MPa, 305 MPa, and 4.3%, respectively.

1. Introduction

In the past decades, magnesium alloys have been commonly used in automobile, aviation, and electronics industries owing to their excellent strength-to-weight ratios, good castability, and high specific stiffness [1,2]. Die casting is a very important fabrication way for Mg alloys, and has been extensively used to manufacture magnesium components due to its good size accuracy, high productivity, and significant economic benefit [3]. Unfortunately, widespread use of magnesium alloys in many areas is restricted by their moderate strength, low ductility, and expensive alloying elements [4,5,6]. As a result, for broader applications, it is necessary to research some low cost and high-strength die-castable Mg alloys.

The Mg-Zn-Al (ZA) series alloys are put forward as cost-effective and creep-resistant alloys to narrow the gap between AZ91D and some creep-resistant but expensive alloys [7]. However, the mechanical properties of the Mg-Zn-Al alloys still need to be enhanced. Alloying or micro alloying is an important method to improve mechanical properties of Mg alloys. It was reported that addition of rare earth (RE) to ZA alloys caused new RE-containing phases to form and microstructures were refined, which lead to the improvement of the mechanical properties of ZA alloys [8,9]. Adding small amount of Sr element also could refine the grain size and enhance the strength of ZA alloys [10]. Addition of Ca to ZA104 alloy could result in a harder and more stable intermetallic phase under high temperature, so that the creep resistance is improved substantially [11]. In recent years, Sn addition to ZA alloys get more concern, because it can achieve high strength at room and elevated temperature with low cost [12]. Yang et al. [13] illustrated that addition of Sn to gravity casting ZA84 magnesium alloy improves tensile, creep properties, and casting fluidity. Chen et al. [14] have found that a slight addition of Sn (0.5 wt. %) lead to the improvement in the ambient and elevated temperature strength of ZA62 alloy.

In addition, many studies have been done to promote the effect of ageing strengthening for Mg-Zn-Al ternary alloys hardenable by precipitation [15,16,17]. The Mg-Zn-Al-Sn system is considered to be suitable for heat treatment to obtain high strength. Sasaki et al. [16] reported that peak hardness of Mg-2.2Sn-0.5Zn-1.0Al can be increased to 95 HV by double aging. It has been found that the Mg-6Zn-3Sn-2Al alloy after ageing has much greater strength than in the as-cast state [17].

However, some Mg-Zn-Al alloys are susceptible to hot tearing during solidification, which limited their applications in casting components [18]. Previous studies have revealed that Sn addition could improve castability of Mg alloys [13,19]. Turen found that, with addition of 0.5 wt. % Sn to AZ91 magnesium alloy, fluidity increased and hot tearing susceptibility (HTS) decreased [19].

The present study chooses Mg-6Zn-4Al as the base alloy owing to its moderate castability and outstanding age-hardening response. The HTS, microstructure, and tensile properties of Mg-6Zn-4Al-xSn (x = 0–2 wt. %) alloys were studied. The main aims of present work are to explore the effect of Sn addition and understanding the strengthening mechanism of T6-treated Mg-6Zn-4Al alloy containing Sn, so the results could be helpful for developing a new-style Mg-Zn-Al-Sn system alloy with excellent mechanical properties and better castability.

2. Experimental Procedures

High purity Mg (>99.9%), pure Zn (>99.95%), pure Al (>99.9%), and pure Sn (>99.9%) were used to fabricate alloys. A TOYO BD-350V5 (Toyo Machinery and Metal, Akashi, Japan) cold chamber high-pressure die casting machine was used to prepare a specific casting (as shown in Figure 1). All test samples were extracted from a plate-like bar (part E in Figure 1). The casting parameters adopted were as follows: 7.6 m/s injection speed, 680 °C melt temperature, and 200 °C mold temperature. In slow shot stage, injection speed was 0.25 m/s and 0.4 m/s. Speed was changed to 4 m/s in the fast shot stage. Casting pressure was 70 MPa.

The chemical compositions of investigated alloys were checked by an inductively-coupled plasma analyzer (ICP, Plasma 400, Perklin-Elmer, Waltham, MA, America) and listed in

Table 1. Chemical compositions of the experimental alloys in weight percentage.

Alloy	Nominal Composition	Actual Composition (wt. %)
		Zn	Al	Sn	Mg
ZA64	Mg-6Zn-4Al-0Sn	6.164	3.970	-	Bal
ZAT641	Mg-6Zn-4Al-1Sn	6.666	4.153	1.036	Bal
ZAT642	Mg-6Zn-4Al-2Sn	6.526	4.105	2.097	Bal

. The specimens were solution-treated for 40 h at 345 °C, and then quenched in the water. Single aging was performed at 175 °C in an oil bath. Double aging was held by pre-aging at 70 °C for 16 h, followed by aging at 175 °C. Vickers hardness (HV-30, Shanghai, China) measurement was made using 49 N load.

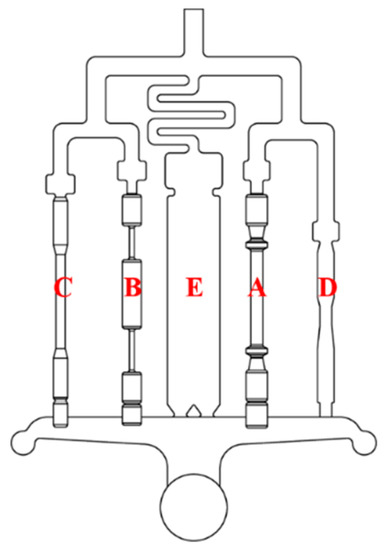

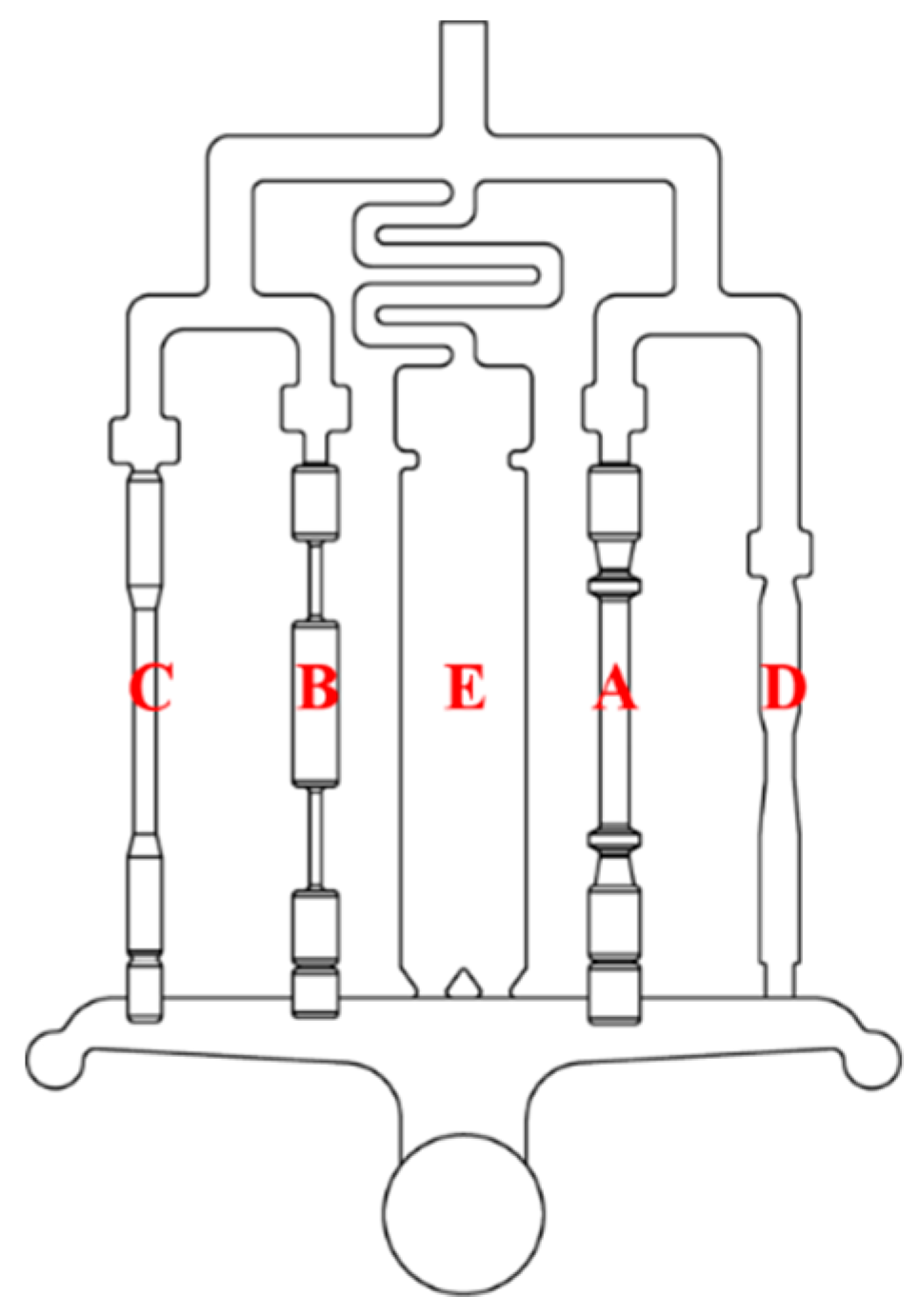

The hot tearing susceptibility was evaluated from the quantity of cracks in the different bars of the die castings. As shown in Figure 1, from bar A to bar E, the propensity of hot tearing was decreased. In order to increase hot tearing discrimination of different bars, a hot tearing factor of each bar was set (A:2, B = 4, C:8, D:16, E:32). The values of HTS were calculated by ∑(Q_tear × F_bar), where Q_tear is the quantity of cracks on each bar and F_bar is the hot tearing factor of each bar. In order to ensure the credibility of the statistical results, ten die casting specimens were counted for each alloy and the average value reported.

For microstructure observation, as-cast samples were etched with 4% nitric acid plus alcohol solution and heat-treated samples were etched with solution picric acid (4.2 g picric acid + 10 mL water + 10 mL acetic acid + 70 mL ethanol). The microstructure observation was performed using a ZEISS optical microscope (OM, Zeiss Axio Observer A1, ZEISS, Jena, Germany), transmission electron microstructure (TEM, JEM-2100F, JEOL, Tokyo, Japan), and scanning electron microscopy (SEM, NOVA Nano 230, FEI, Hillsboro, OR, America). The dendrite sizes of the as-cast samples were evaluated on the OM images using Image-Pro Plus software by the linear intercept method. The TEM foils were made by combination of twin-jet electro-polishing and ion thinning. The composition of the phases was characterized with an energy dispersive spectrometer (EDS) installed in SEM. The phases of as-cast samples were identified by X-ray diffraction (XRD, D/max 2550VL/PC, Rigaku, Japan) operated at 5 °/min. Tensile tests (Z100, Zwick, Worms, Germany) were performed at a speed of 1 mm/min at room temperature (RT).

3. Results and Discussion

3.1. Hot Tearing

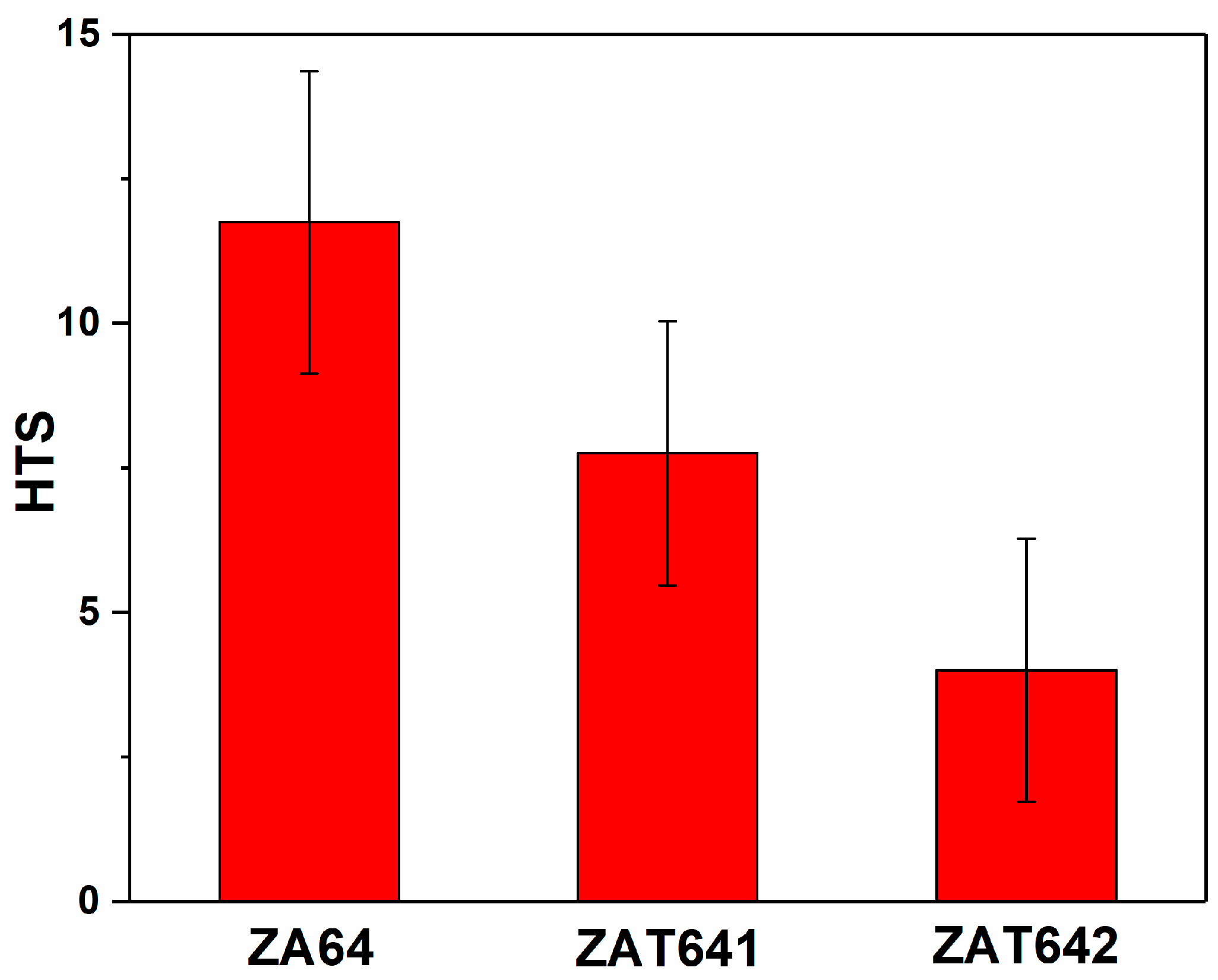

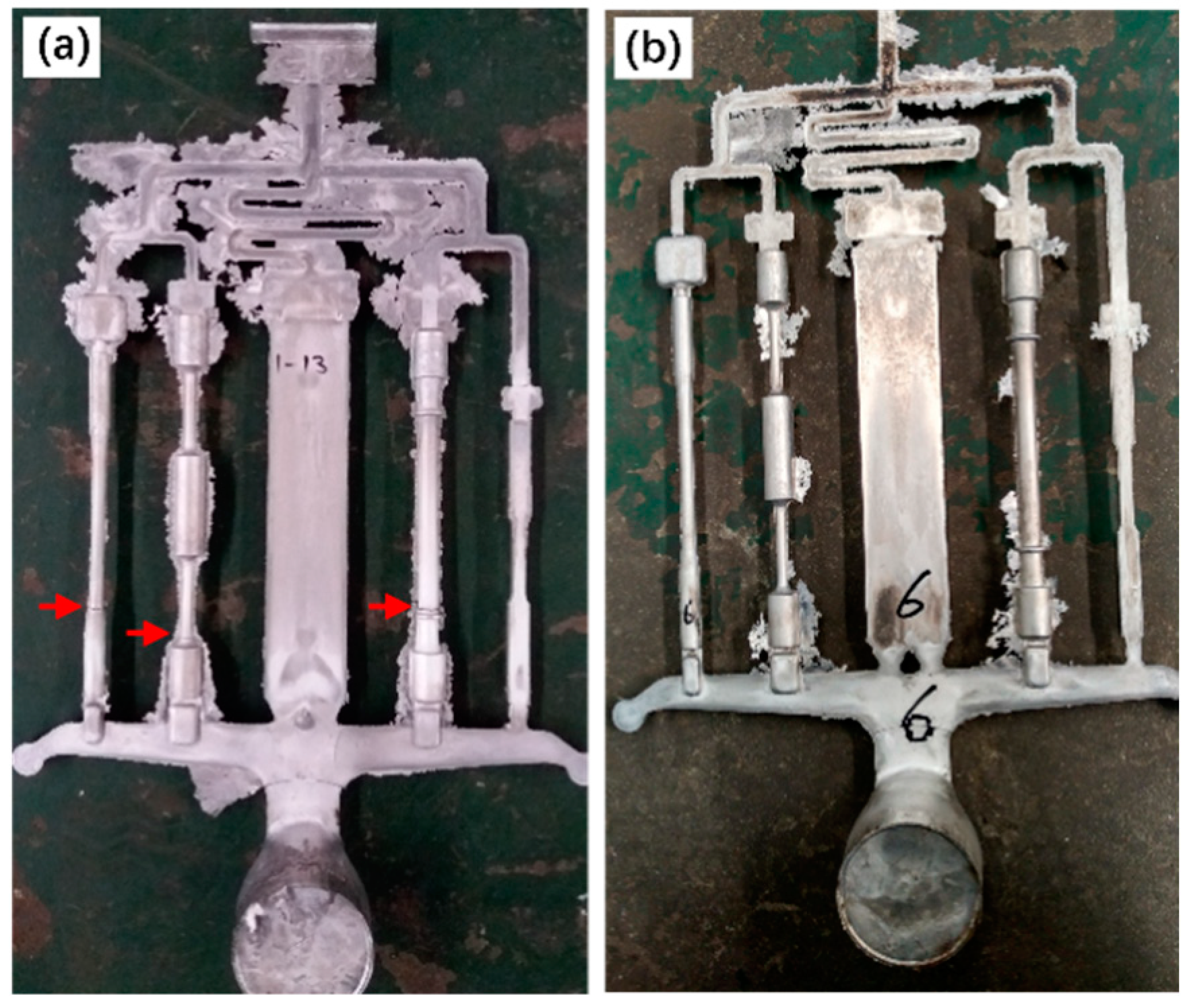

A previous study has pointed out that ZA64 alloys are prone to hot tearing during die casting [20]. For further application of ZA series alloys, the hot tearing susceptibility of the alloys needs to be improved. Figure 2 shows the hot tearing susceptibility of the investigated die cast alloys by addition of Sn content. It is obvious that, with increasing Sn addition to ZA64 alloy, HTS decreases. The typical images of die casting ZA64 and ZAT642 alloys are shown in Figure 3. The cracks in the ZA64 alloy are shown by head arrow in Figure 3a. It can be seen from Figure 3b that there was no obvious crack in the die casting specimen of ZAT642 alloy. It is interesting that Sn addition could significantly improve the hot tearing susceptibility of die casting the ZA64 alloy, which reveals that Mg-6Zn-4Al-xSn alloys are promising for die casting, but the mechanism for the effect of Sn on HTS of the ZA64 alloy will be further studied in another work.

3.2. As-Cast Microstructure

The optical microstructures of the as-cast Mg-6Zn-4Al-xSn alloys are shown in Figure 4. The microstructure displayed a dendritic solidification structure composed of α-Mg and a lot of second phases at the dendritic boundaries and in inter-dendritic spacings. With Sn addition, the dendrite size decreased considerably and the dendrite structure tended to become equiaxed morphology. The average dendrite sizes of ZA64, ZAT641, and ZAT642 were 15.79 ± 2.5 μm, 12.61 ± 1.6 μm, and 10.37 ± 1.2 μm, respectively, which implies that Sn addition refines the dendrite structure of the as-cast ZA64 alloy. On the basis of solidification theory, solute segregation is a key factor on the dendrite refinement [21,22]. During solidification process, Sn atoms enrich at the solid–liquid interface and accelerates the solute enrichment of Al and Zn [23], which causes a composition undercooling in front of the solidification interface resulting in the dendritic refinement.

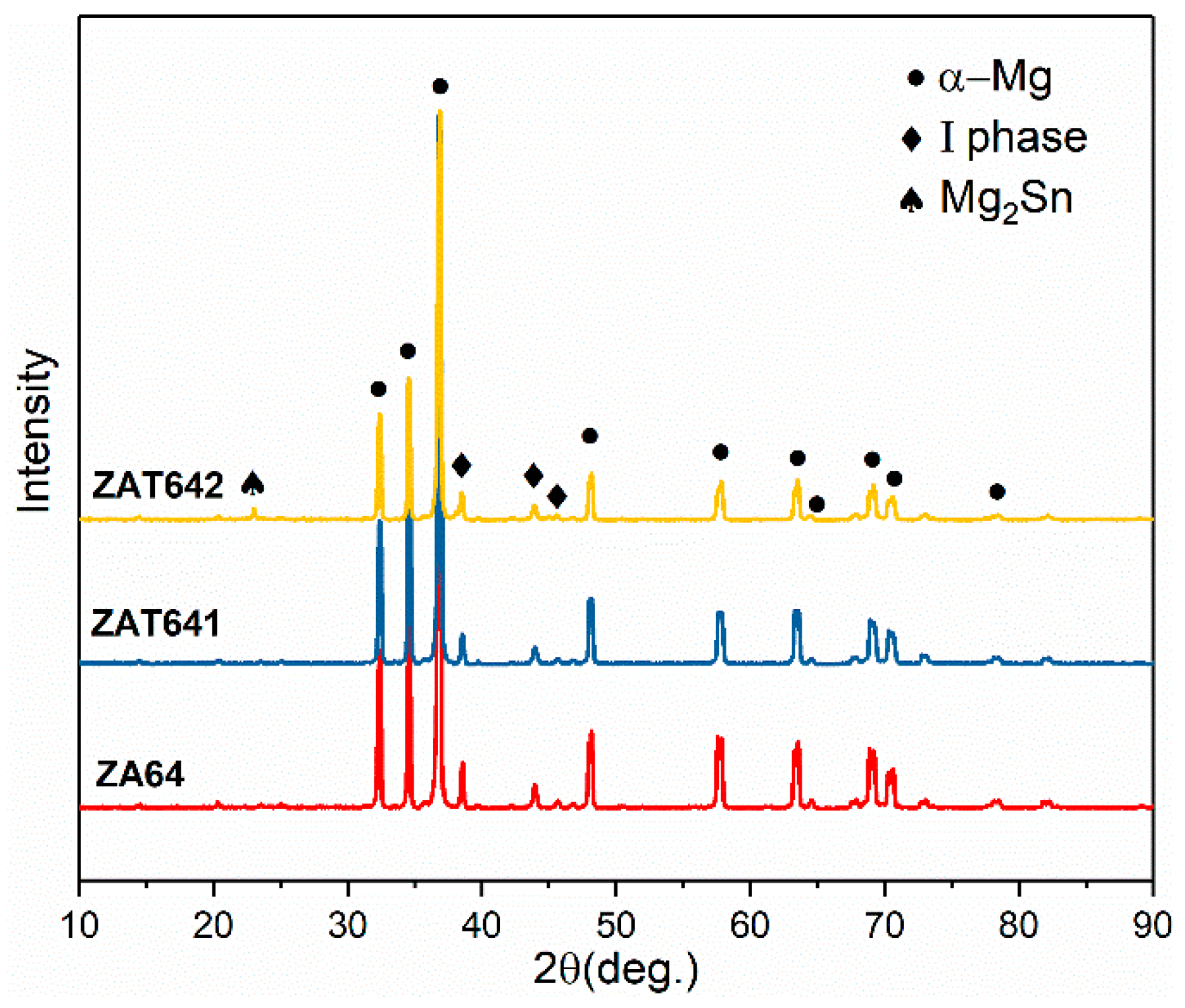

The XRD patterns of the all as-cast alloys are presented in Figure 5. Constituent phases in alloys are mainly α-Mg phases and quasicrystal phases (I-phase). With 2% Sn addition, diffraction peak of Mg₂Sn phases could be detected. Generally, when the difference of the electronegativity between different elements is higher, the formation of intermetallic compounds is easier. According to this theory, Mg₂Sn phases were easily formed in the Mg-Zn-Al-Sn system referring to the electronegative values of Mg, Al, Zn, and Sn (1.31, 1.61, 1.65, and 1.96, respectively) [14]. However, diffraction peaks of Mg₂Sn in ZAT641 alloy cannot be observed, because Sn atoms mostly dissolve into the matrix. Referring to existing literature [24], Mg₂Sn phases can easily be detected when the addition of Sn is above 2% in as-cast Mg-Zn-Al alloys, which is consistent with the present work.

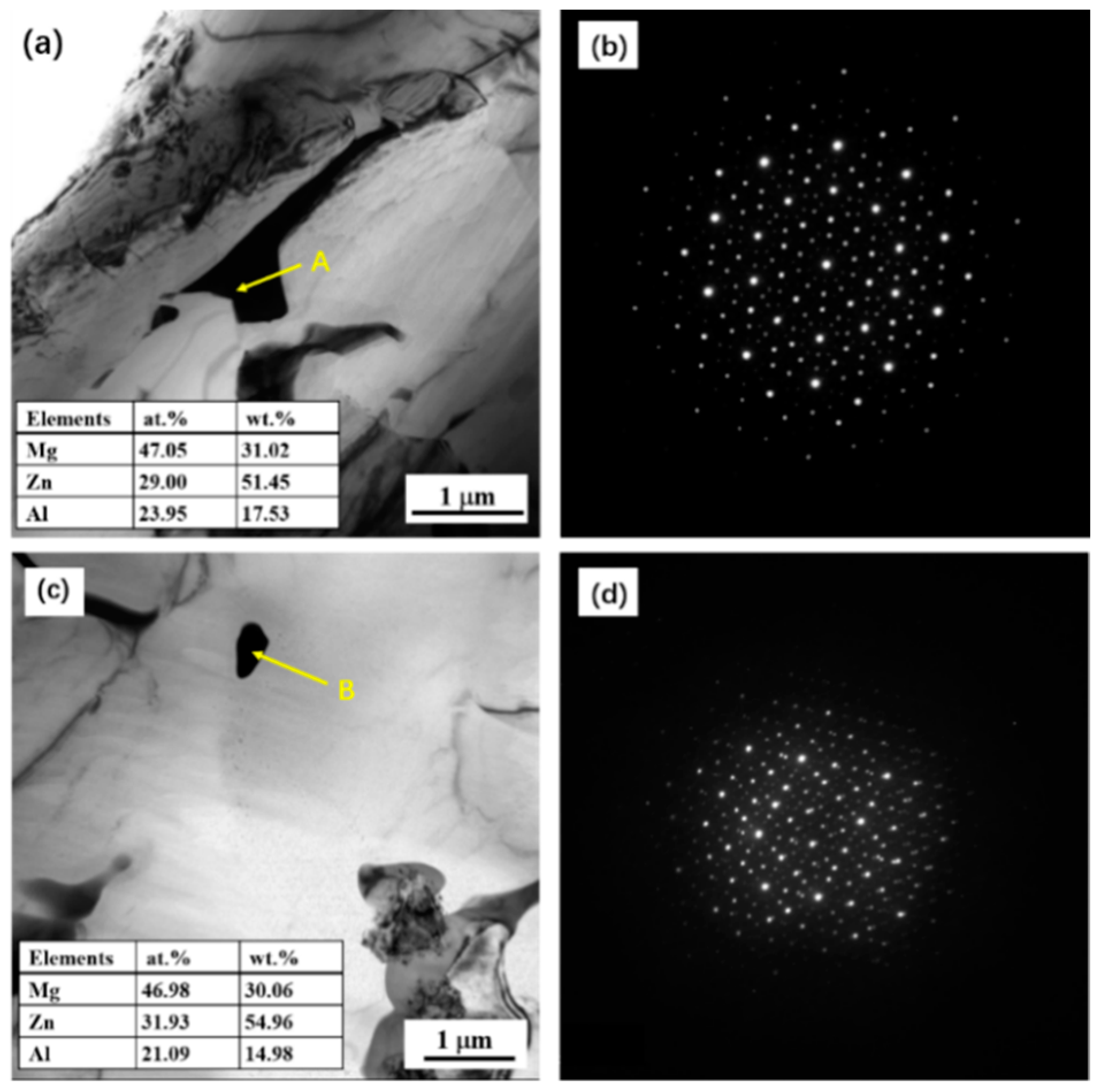

To further verify the presence of I-phase, the ZA64 alloy was examined by using TEM analysis. Figure 6 illustrates TEM morphology of the second phases and corresponding selected-area electron diffraction (SAED) patterns. As shown in SAED patterns, intermetallic phases displayed a five-fold symmetry, which could be identified as the icosahedral quasi-crystalline structure. I-phase had the approximate chemical composition of Mg₄₇Zn₂₉Al₂₄ and Mg₄₇Zn₃₂Al₂₁ in the ZA64 alloy, which were similar to the result reported by Bourgeois [25]. Zhang et al. [26] found that low Zn-Al ratio and high Al contents are easier to lead to the appearance of I-phase in casting ZA alloys, which supports the existence of I-phases in this study. It is widely accepted that I-phase has excellent properties, for instance high strength, high thermal conductivity, and low friction coefficient [27,28,29]; moreover, I-phase–matrix interface has a good bonding and could contribute to transfer stress between two phases [30]. However, formation mechanism of I-phase in ZA system alloys still need to be further studied.

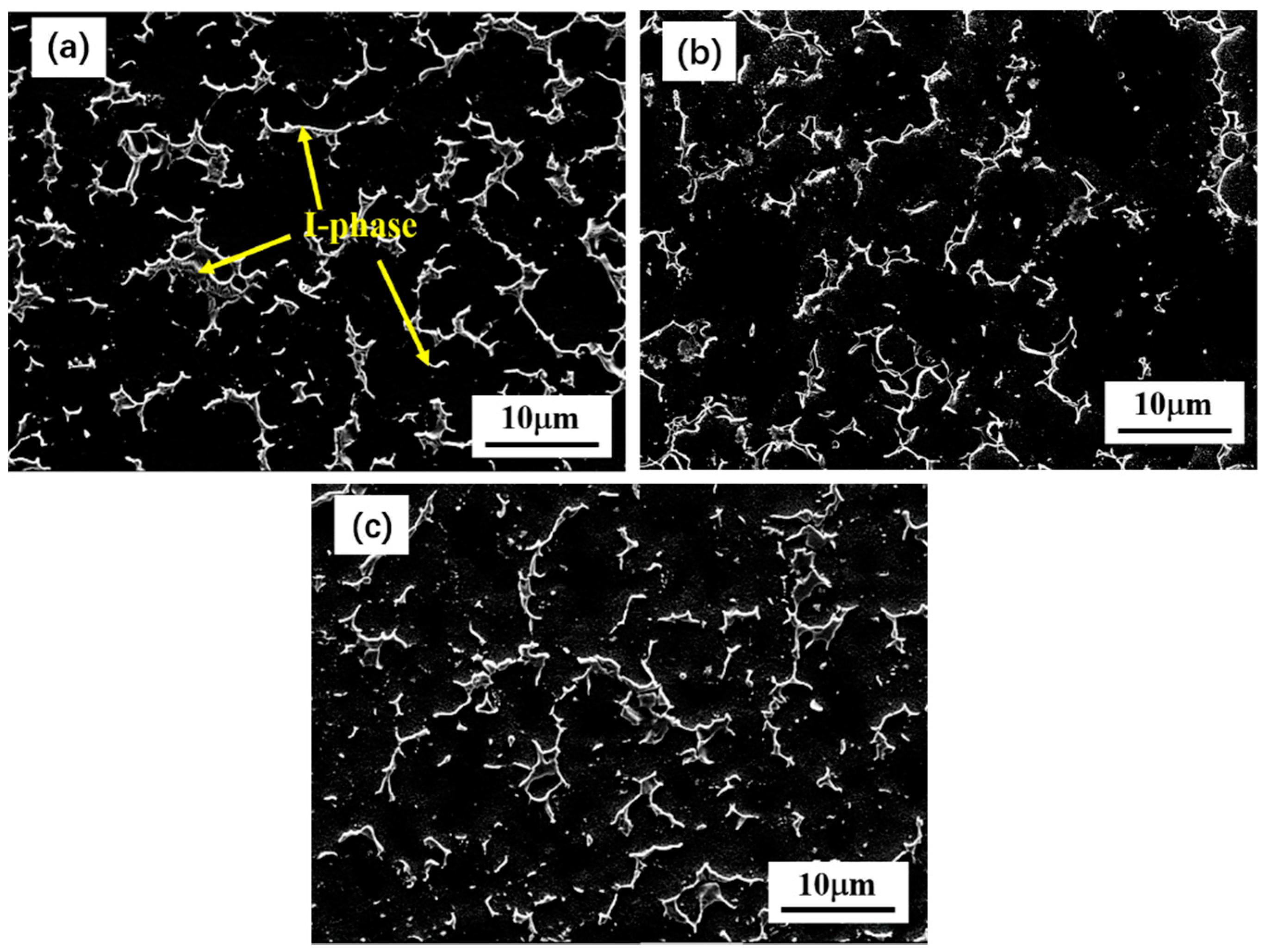

Figure 7 shows the typical SEM microstructures of all of the as-cast studied alloys. Most of the continuous and/or quasi-continuous network I-phases were distributed along the grain boundaries. It was obvious that eutectic phases were refined by Sn addition; however, compared with the ZAT641 alloy, intermetallics tended to become coarse and were distributed continuously again with 2% Sn addition. Previous studies reported that the size of eutectics is closely related to the morphology of primary dendrite [31]. As shown above, addition of 1% Sn decreases the size of α-Mg dendrite and second dendrite arm spacing, which will provide limited regions for the growth of eutectics, leading to the refinement of the eutectics. With 2% Sn addition, more solutes concentrate at the solid–liquid interface, promoting the growth of eutectics, which causes eutectics to grow with continuous and coarse morphology.

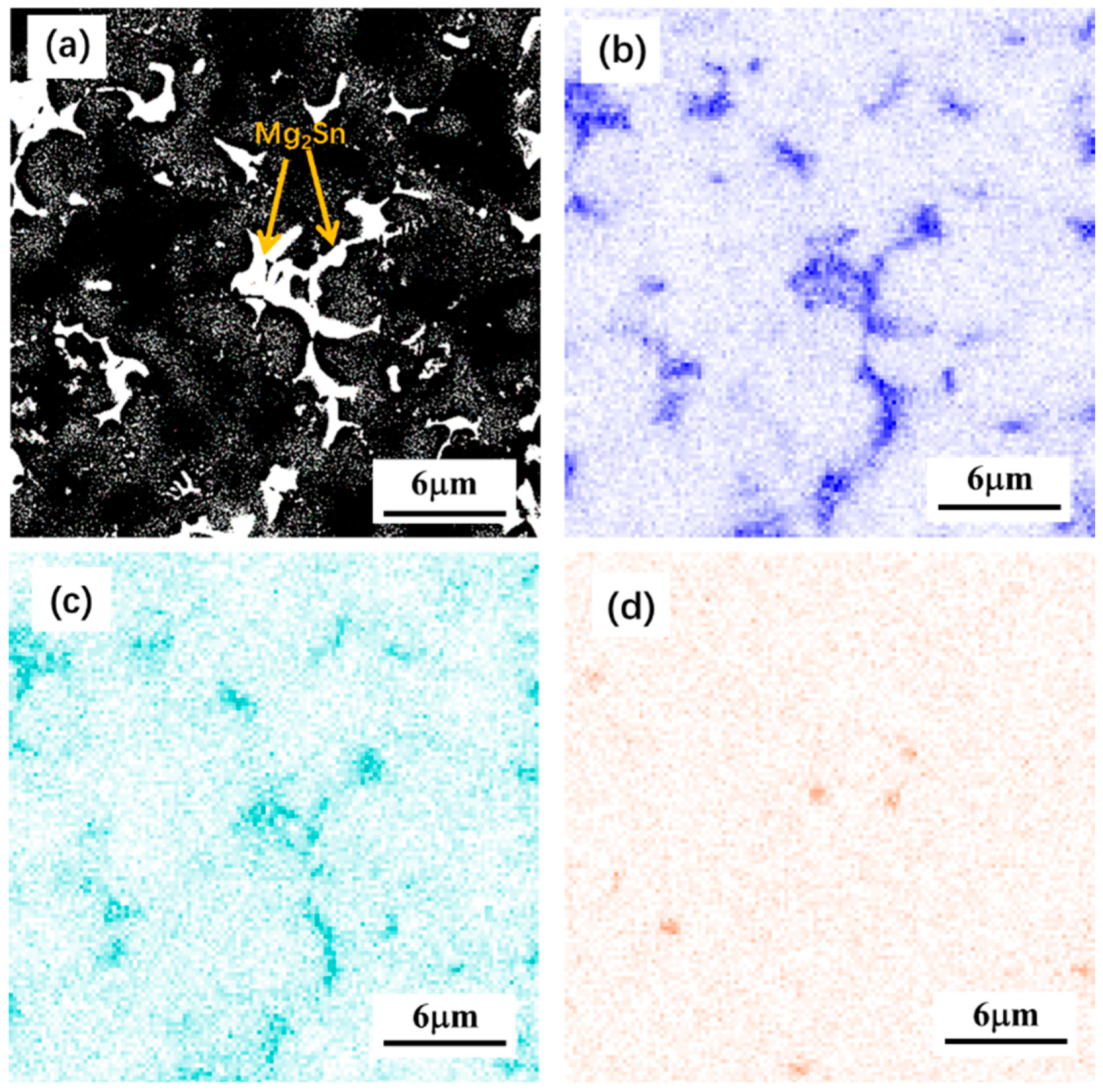

According to EDS mapping results, as shown in Figure 8, the Sn element was mainly distributed in Mg₂Sn, and Mg₂Sn phases mainly coexisted with the continuous phase. However, Zn and Al elements were mainly enhanced in the I-phase.

3.3. Aging Response Behavior and Peak-Aged Microstructure

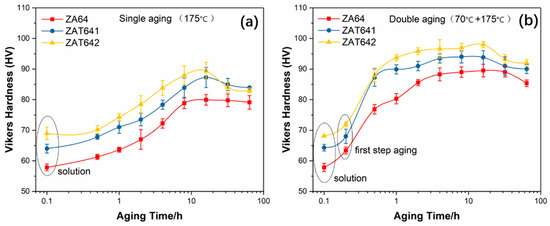

Figure 9 shows the age hardening response of all of the studied alloys subjected to single aging and double aging. The hardness values increased with aging time in the early stage and then decreased due to over-aging. Various Sn addition had no significant influence on the time to reach peak hardness. Obviously, Sn addition substantially enhanced the age hardening response. As the Sn content increased from 0% to 2%, peak hardness increased from 80 to 89 Hv after single aging, and increased from 90 to 98 Hv after double aging. Compared to single aging, the double aging treatment resulted in a significant increase in the hardness and accelerated the age-hardening process.

Figure 10 shows the optical micrographs of all double-peak aged alloys. There were still a small number of undissolved intermetallics distributed along grain boundaries and within grains. There was no significant difference in grain size among all double-peak aged alloys.

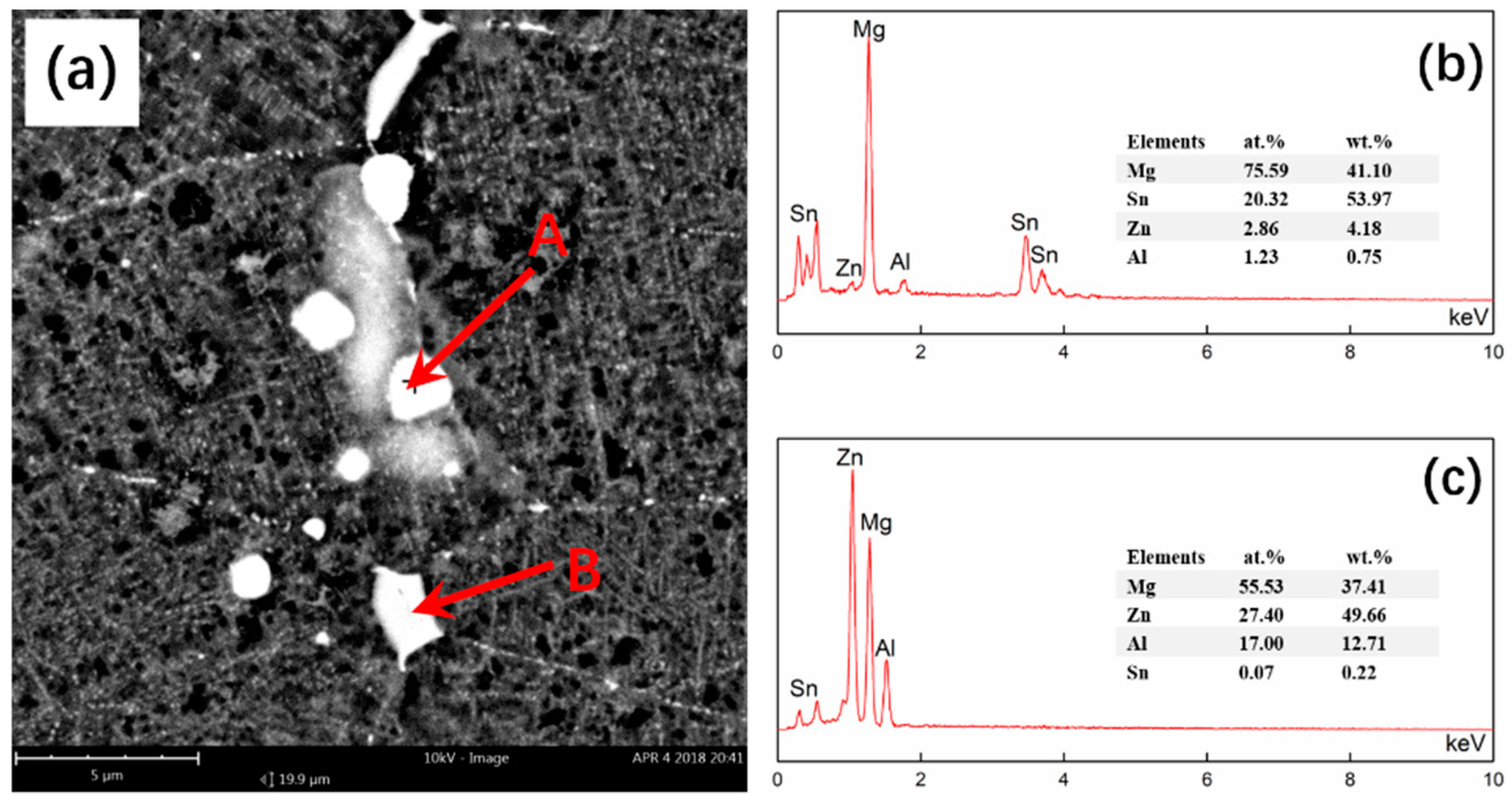

From Figure 11a, the SEM image of the double-peak aged ZAT642 alloy shows that some spherical (marked A) and irregularly shaped (marked B) phases were distributed on the grain boundaries and within grains. According to EDS analysis, as shown in Figure 11b,c, spherical and irregularly shaped phases belonged to Mg₂Sn and undissolved I-phases, respectively.

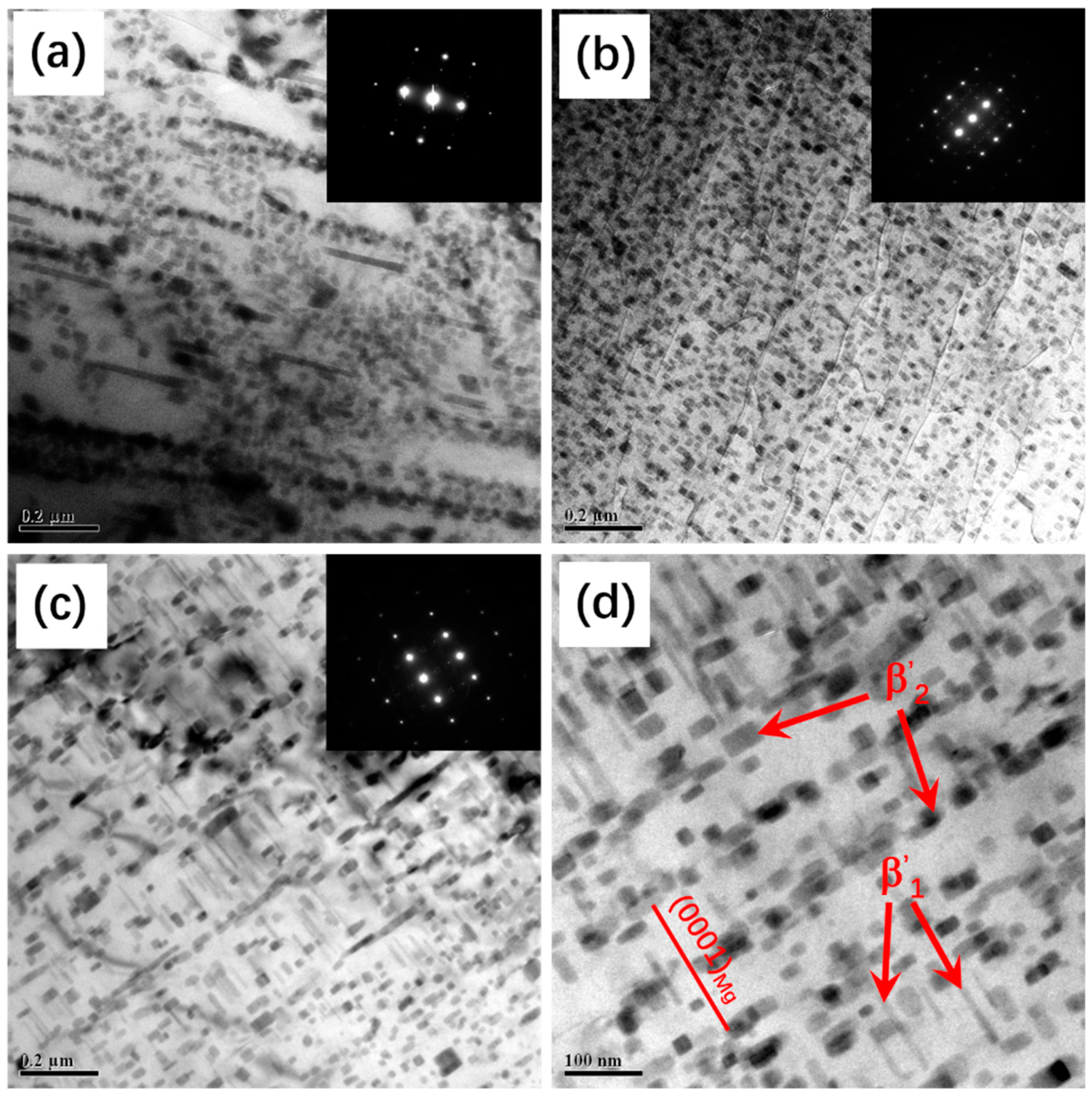

Figure 12 shows the TEM images of all double-peak aged alloys obtained from $[10\overline{1}0]$ zone axis. Densely distributed precipitates presented two different morphologies. One was rod precipitates, aligned with the [0001]_Mg direction, and the other was coarse plate precipitates, lying on the (0001) basal plane. Rod-like precipitates was identified as β₁′ phase, and plate-like precipitates was β₂′ phase, which are typical precipitates in the Mg-Zn system. It is commonly known that β₁′ has an orientation relationship of ${\left\{2\overline{1}\overline{1}0\right\}}_{{{\mathsf{\beta }}^{\prime }}_1}$ //${(0001)}_{\mathrm{Mg}}$ and ${[0001]}_{{{\mathsf{\beta }}^{\prime }}_1}$//${[0001]}_{{{\mathsf{\beta }}^{\prime }}_1}$ with the matrix, and β₂′ phase has a${\left\{2\overline{1}\overline{1}0\right\}}_{{{\mathsf{\beta }}^{\prime }}_2}$//${\left\{10\overline{1}0\right\}}_{\mathrm{Mg}}$ and ${[0001]}_{{{\mathsf{\beta }}^{\prime }}_2}$//${[0001]}_{\mathrm{Mg}}$ orientation relationship [32,33,34]. In the double-peak aged ZA64 alloy, precipitates were coarse and distributed randomly. Adding Sn to the ZA64 alloy resulted in the prominent refinement and homogenous distribution of β₁′ and β₂′ precipitates, especially with 1% Sn addition. The precipitates in the ZAT641 alloy were much denser and finer than those in ZA64 alloys. The size of the rod-like precipitates was ~60.4 nm and ~6.8 nm in length and diameter, and the diameter and width of the blocky precipitate was ~24.6 nm and ~17.1 nm, respectively, in the double-peak aged ZAT641 alloy.

The results obviously show that Sn addition can enhance the age-hardening response. Previous investigation concluded that adding Sn to Mg-Zn alloys leads to co-segregation of Zn and Sn atoms in precipitates after double aging. The atomic radius of Zn was similar to that of Sn. The interfacial misfit energy between the precipitate and the matrix by the size effect was reduced due to combination of Sn and Zn elements in the precipitates, which was beneficial for the age hardening response [35]. Therefore, precipitates were noticeably denser and finer in as-aged Sn-containing alloys compared to the ZA64 alloy. For the ZAT642 alloy, most of the Sn atoms participate in the formation of Mg₂Sn phases, distributing along the grain boundaries rather than existing in the precipitates. Thus, the precipitates in the ZAT642 alloys were not as dense and fine as those in the ZAT641 alloy.

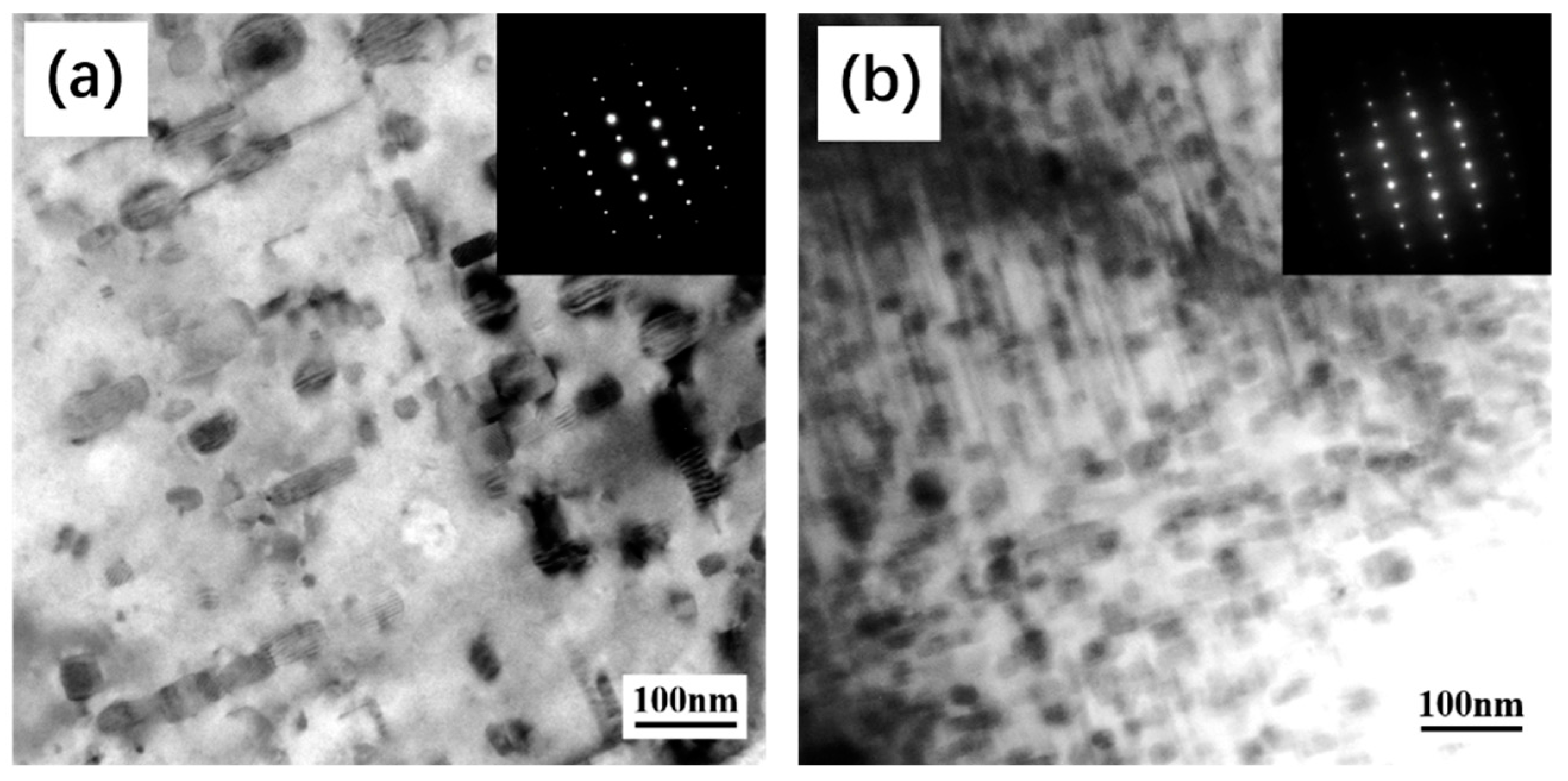

The TEM bright-field images of single-peak aged and double-peak aged ZAT641 alloys taken from the $[11\stackrel{-}{2}0]$ zone axis are shown in Figure 13. It was apparent that the double aging treatment brought about finer, more uniform, and higher-density precipitates compared to the single aged alloy. This is ascribed to the emergence of Guinier Preston (G.P) zones during pre-aging. It was reported that G.P zones form under low-temperature aging conditions in Mg-Zn-Al systems [36]. G.P. zones could act as heterogeneous nucleation points for the transition phases during the next stage of high temperature aging, thus leading to homogeneous distribution of finer precipitates and enhancing the age-hardening response [37].

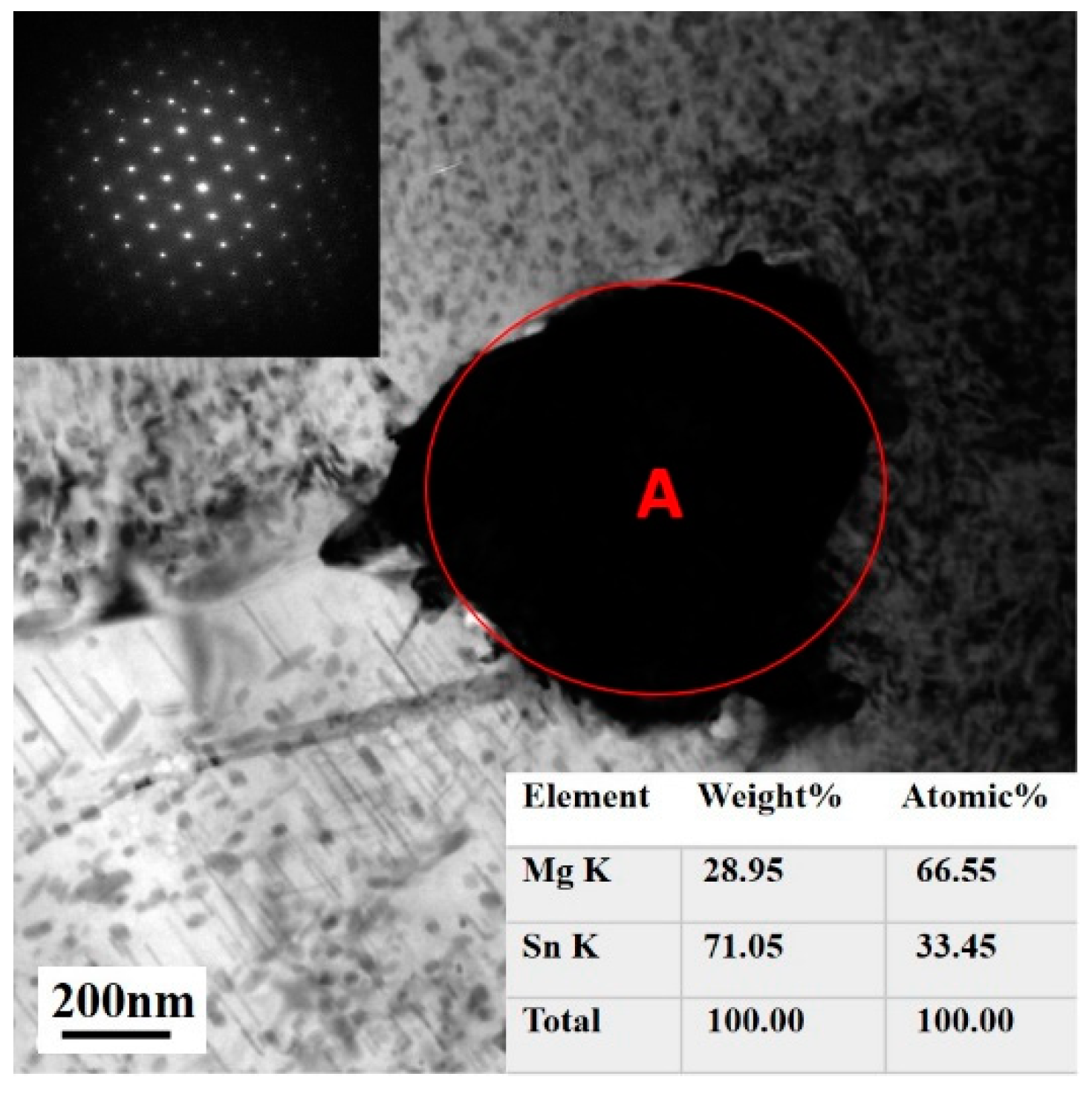

The bright TEM image of coarse particle A, at the grain boundary, in the double-aged ZAT642 alloy is shown in Figure 14. According to the EDS result inserted in Figure 14, particle A can be identified as the cubic Mg₂Sn phase. The size of the Mg₂Sn phase was about 500 nm, much larger than precipitates. These Mg₂Sn phases did not dissolve into the matrix due to their high temperature stability, and they could contribute to the increase of base hardness of the ZAT642 alloy, as shown in Figure 9.

3.4. Tensile Properties

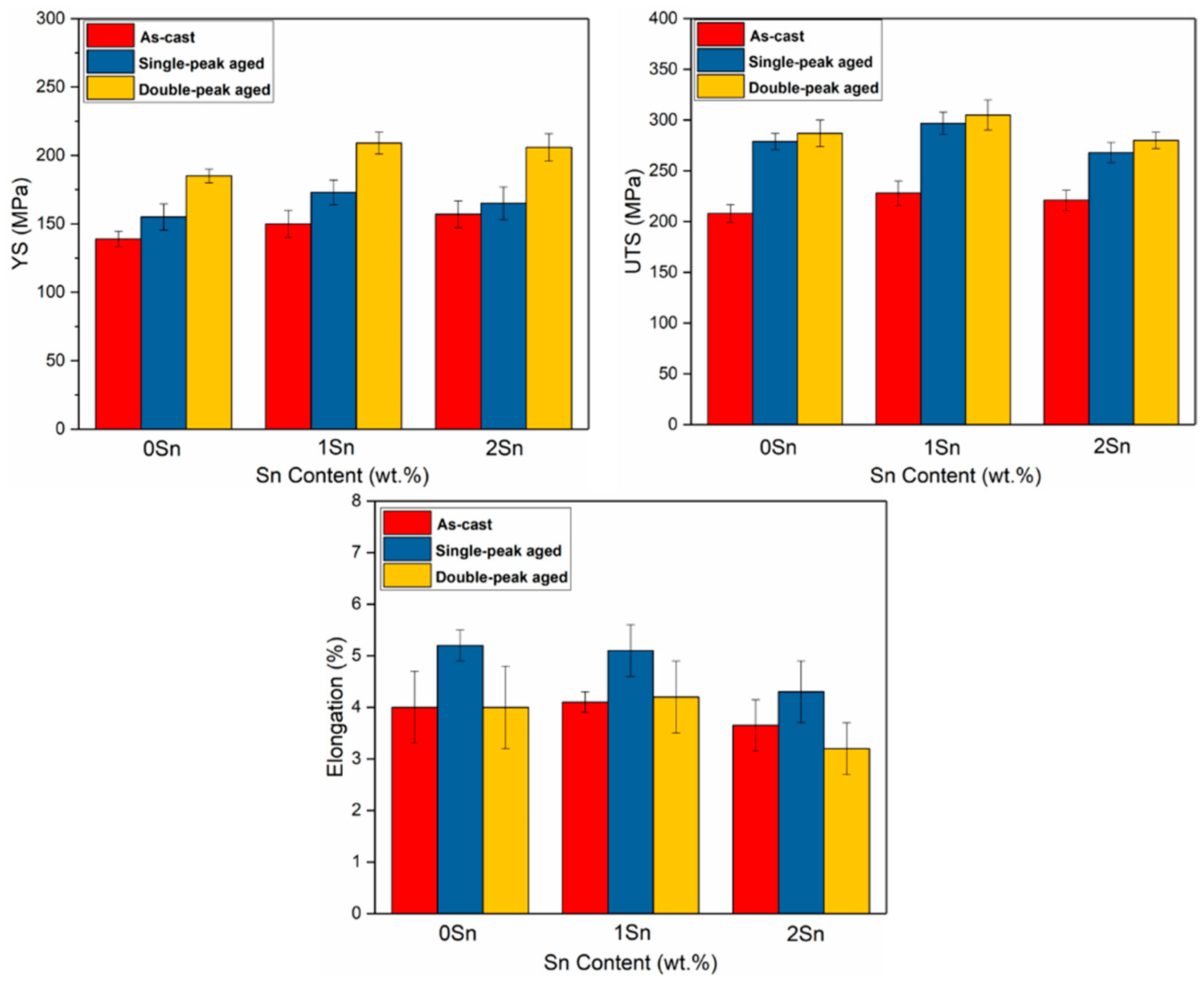

Figure 15 shows the tensile test results of all alloys in as-cast and peak-aged states. For the as-cast alloys, Sn addition improved the yield strength (YS) and ultimate tensile strength (UTS) of the ZA64 alloy. The YS of the as-cast alloys increased moderately with increasing Sn content, which should be ascribed to the following aspects. Sn addition refines dendrite and eutectic phases. As we know, fine and uniform phases along the grain boundaries are more likely to be an effective barrier to suppress dislocation movement so as to improve the YS [38]. Additionally, Sn atoms have high solubility in the Mg matrix, resulting in solute strengthening, and Mg₂Sn phases in the ZAT642 alloy could contribute to the improvement of YS. However, the ZAT641 alloy offered the highest UTS and elongation, which was 228 MPa and 4.1%, respectively. When Sn addition was up to 2%, eutectic phases and Mg₂Sn phases tend to coexist with I-phases, becoming coarse and continuous or quasi-continuous in morphology, which caused a slight loss of the UTS and ductility.

Compared to the as-cast alloys, T6 treatments remarkably enhanced the YS and UTS of all the studied alloys, especially after the double aging treatment. Moreover, as-aged Sn-containing alloys showed more obvious age-strengthening effect than the ZA64 alloy. Among all of the as-aged alloys, the ZAT641 alloy offered the optimal aging response. The YS and UTS of the double-peak aged ZAT641 samples were 209 MPa and 305 MPa, respectively, which were almost 24 MPa and 18 MPa higher than that of the double-peak aged ZA64 alloy. Meanwhile, compared with the single aged ZAT641 alloy, the YS got improvement of 36MPa after the double ageing treatment.

As we can see from Figure 10, after the ageing treatment, the grain size was not decreased obviously by various Sn addition. Accordingly, precipitation strengthening was most possibly considered as the main reason for the strengthening of as-aged alloys. During the heat treatment process, most of the compounds dissolved into the matrix, through solution treatment, and subsequent aging brought about abundant β₁′ and β₂′ precipitates within the Mg matrix, effectively suppressing the dislocation movements and consequently strengthening the as-cast alloys. As is well known, the distribution and volume fraction of precipitates has a great effect on the strength of age-treated Mg alloys [39]. The increment in critical resolved shear stress (CRSS) caused by dislocations bowing around particles in a slip plane is inversely proportional to λ, and in turn λ is proportional to $R/\sqrt{fv}$ (λ is the effective average particle spacing, R is the mean planar particles size, and $fv$ is the volume fractions of the particles) [40]. Double aged ZAT641 samples had denser, finer, and more uniformly distributed precipitates; therefore, they exhibited higher strength than other alloys.

It must also be mentioned that the UTS and elongation of the alloy containing 2% Sn were deteriorated. As it can be seen from Figure 11 and Figure 14, there were coarse Mg₂Sn phases and undissolved second phases in the peak-aged ZAT642 alloy, which possibly caused stress concentration and acted as crack initiation sites, causing an adverse effect on the UTS and elongation of the ZAT642 alloy.

Fracture surface characteristics were performed on SEM to investigate the fracture mode of as-aged alloys. SEM fractographs of all double-peak aged alloys are shown in Figure 16. Generally speaking, most magnesium alloys possess hexagonal crystal structure and fewer slip systems, two or more slip systems barely activated simultaneously. Fracture modes of magnesium alloys are usually cleavage fractures, quasi-cleavage fractures, and inter-granular fractures [41]. From Figure 16, cleavage facets and steps, river patterns, and fine dimples can be clearly observed, which demonstrates that fracture surfaces had a mix of the fracture modes mentioned above. With various Sn addition, the fracture mode was not altered remarkably. However, the cleavage planes were large and the river patterns were obvious in the ZA64 alloy, as shown in Figure 16a. By comparison, the ZAT641 alloy had less cleavage planes and obvious fine dimples (Figure 16b), indicating that the ductility of ZAT641 was relatively high, which was in line with the elongation results. As seen from Figure 16c, there were visible microcracks in the ZAT642 alloys, which was presumably related to the existence of the undissolved Mg₂Sn and irregular residual phases distributing along grain boundaries. Generally, cracks easily originate and extend along the interfaces between the α-Mg matrix and coarse phases due to stress concentration, and coarse Mg₂Sn phases and undissolved eutectics provide effective crack initiation sites. Besides, the fractured surface of ZAT642 also displayed the evident micro-void, which are created by the process of void coalescence at the initial stage of fracture coalescence in the areas showing higher density particles. Therefore, the ductility and UTS of the as-aged ZA642 alloy were relatively poor.

4. Conclusions

The microstructure and mechanical properties of as-cast and as-aged Mg-6Zn-4Al-xSn (x = 0–2 wt. %) alloys, as well as castability, were studied. The following results were drawn:

(1) As-cast ZA64 alloys are composed of α-Mg and icosahedral quasi-crystal phase. Sn addition substantially refine eutectic phases. Mg₂Sn phases can be detected when the content of Sn is 2%.

(2) Sn addition obviously decreases the hot tearing susceptibility of the die cast ZA64 alloy. The hot tearing susceptibility of the 2% Sn-containing alloy is much lower than the ZA64 die casting alloy.

(3) Sn addition improves the strength and ductility of the as-cast ZA64 alloy, due to eutectics refinement and solute strengthening. The ZAT641 alloy offers optimal tensile properties in the as-cast condition.

(4) T6 treatment significantly improves the strength of studied alloys, especially double aging, which is mainly attributed to precipitate strengthening and homogeneous distribution of denser and finer precipitates in double aged samples.

(5) Sn addition results in more β₁′ and β₂′ phase precipitates, and refinement of precipitates during aging, so as to enhance the strength of as-aged alloys. The double-aged ZAT641 alloy exhibits the best comprehensive mechanical properties with a YS of 209 MPa, UTS of 305 MPa, and elongation of 4.3%, whereas the addition of 2% Sn deteriorates the ultimate tensile strength and elongation of as-aged alloys because of the coarse Mg₂Sn phases along the grain boundary.
