Comparative Study Involving Effect of Curing Regime on Elastic Modulus of Geopolymer Concrete
Abstract
:1. Introduction
Research Contribution
2. Experimental Program
2.1. Fly-Ash and Bottom-Ash

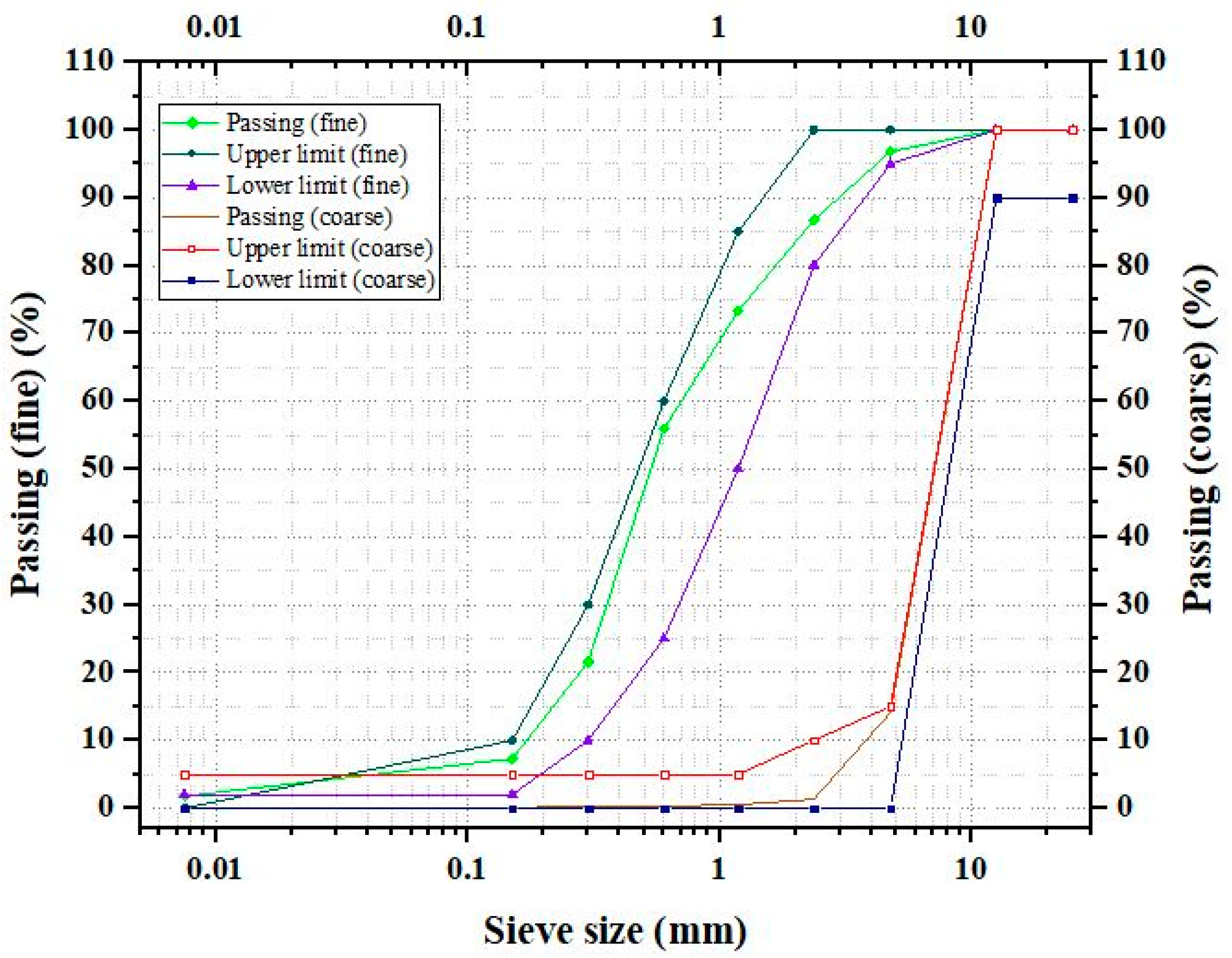

2.2. Alkaline Liquid and Aggregates
2.3. Mix Proportion
3. Method of Casting, Curing and Testing
3.1. Specimen Preparation
3.2. Curing of Samples
3.3. Test Methods
3.3.1. Compressive Strength

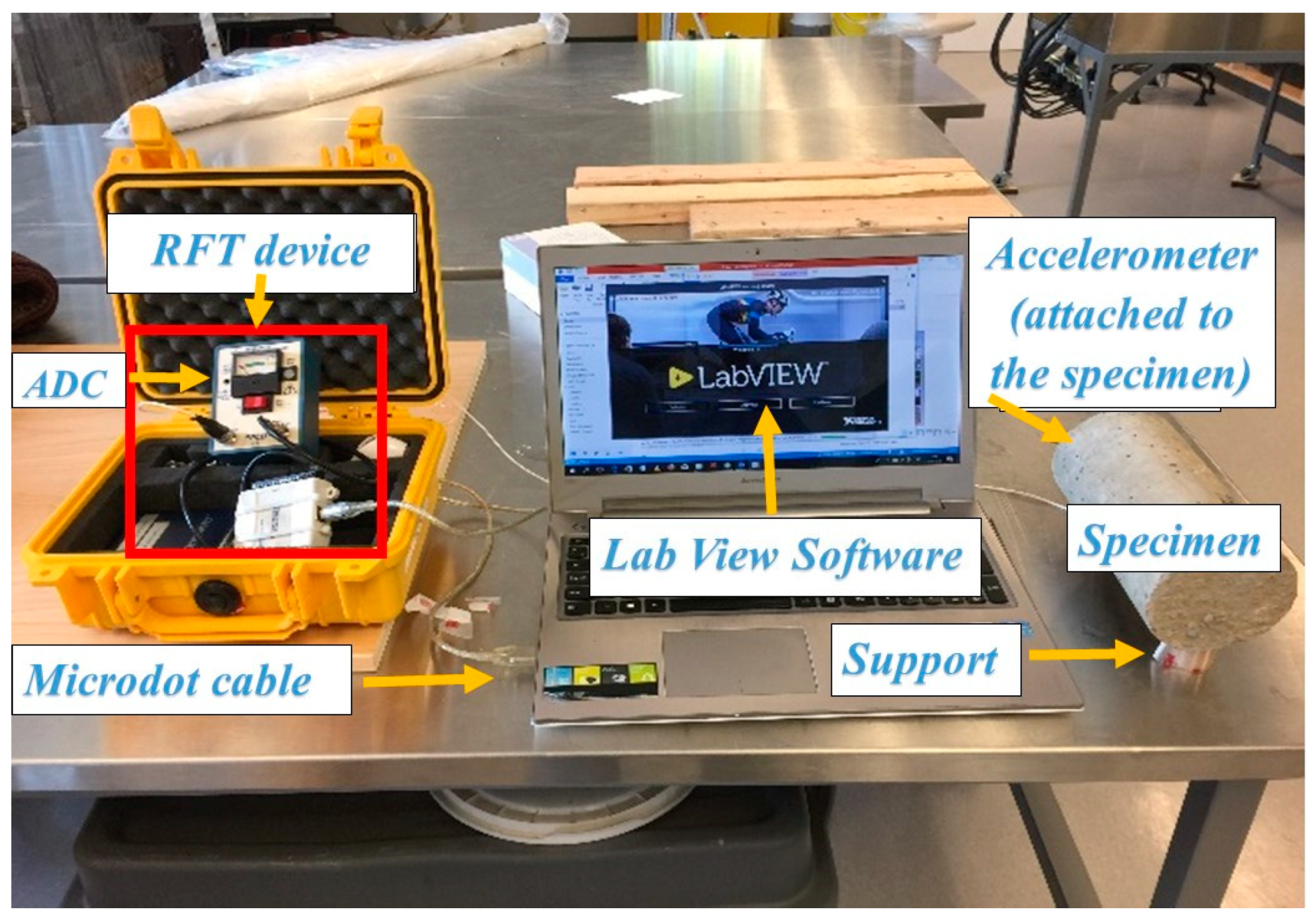

3.3.2. Dynamic Modulus of Elasticity
3.3.3. Modulus of Elasticity Predictive Models
4. Results and Discussion
4.1. Workability and Density

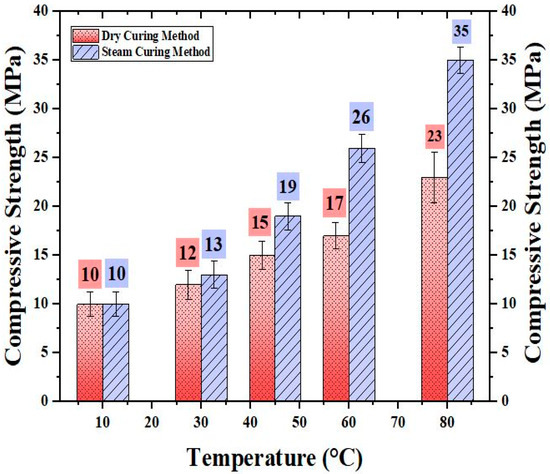

4.2. Effect of Heat Treatment on Compressive Strength of GPC Samples
4.3. Longitudinal Resonant Frequency

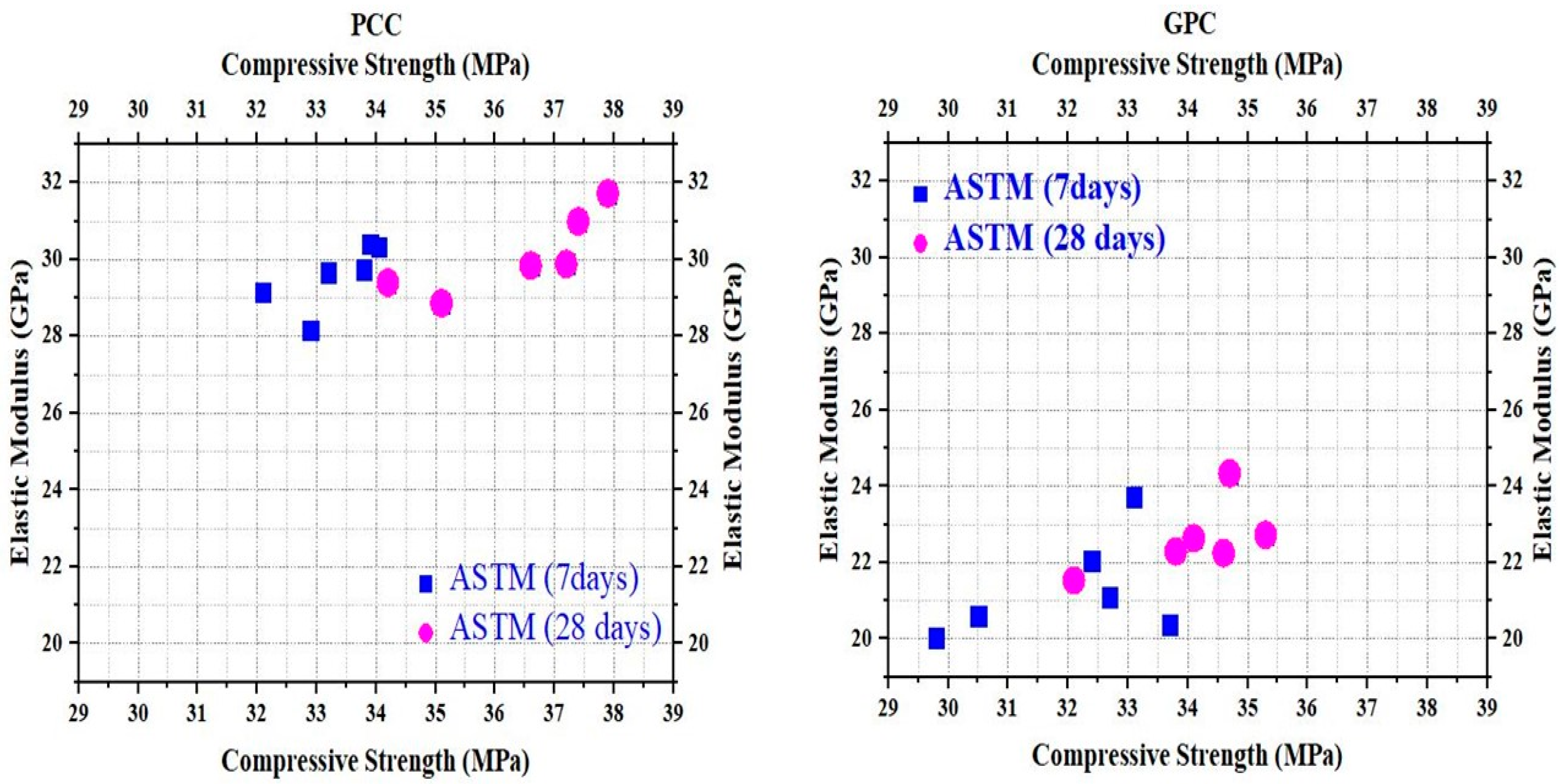

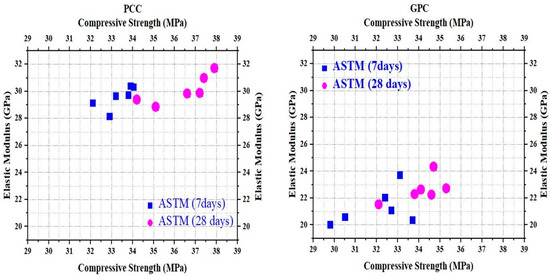

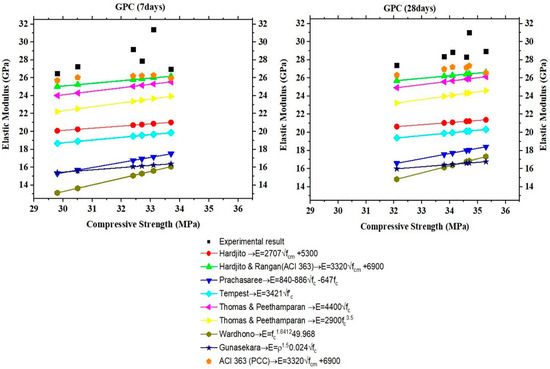

4.4. Comparison between Predicted and Experimental Modulus of Elasticity
5. Conclusions
- Compressive strength increased approximately 3.5 times when steam-cured temperature increased from ambient to 80 °C. Compressive strength increased approximately 2.3 times when specimens were dry-cured at the same temperature range. Hence, steam curing is preferable to dry curing if rapid strength development is required.
- The measured values of the resonant frequency of K-based GPC (~7200–9000 Hz) with a compressive strength of 35 MPa was lower than that of cement-based concrete (~8000–9100 Hz) of 35 MPa due to the elevated temperature condition and internal moisture loss.
- The dynamic modulus of elasticity of bottom-ash based GPC was about 20–24 GPa at an age of 7 days and 28 days. Contrary to this, PCC showed a higher value of elastic modulus that ranged from 27 to 33 GPa.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Turner, L.K.; Collins, F.G. Carbon dioxide equivalent (CO2) emission: A comparison between geopolymer and OPC cement concrete. Constr. Build. Mater. 2013, 43, 125–130. [Google Scholar] [CrossRef]
- Gartner, E. Industrially interesting approaches to “low CO2” cements. Cem. Concr. Res. 2004, 34, 1489–1498. [Google Scholar] [CrossRef]
- Wallah, S. Creep behavior of fly-ash based geopolymer concrete. Civ. Eng. Dimens. 2010, 12, 73–78. [Google Scholar]
- Dwivedi, A.; Jain, M.K. Fly ash-waste management and overview: A Review. Recent Res. Sci. Technol. 2014, 6, 30–35. [Google Scholar]
- Environmental Protection Agency. Regulatory Determination on Wastes from the Combustion of Fossil Fuels; Environmental Protection Agency: Washington, DC, USA, 2000.
- American Coal Ash Association. Coal Combustion Product Production & Use Survey Report; American Coal Ash Association: Farmington Hills, MI, USA, 2018. [Google Scholar]
- Chindaprasirt, P.; Jaturapitakkul, C.; Chalee, W.; Rattanasak, U. Comparative Study on the characteristics of fly-ash and bottom-ash geopolymers. Waste Manag. 2009, 29, 539–543. [Google Scholar] [CrossRef]
- Sinha, D.K.; Kumar, A.; Kumar, S. Development of Geopolymer Concrete from Fly Ash and Bottom Ash Mixture. J. Trans. Indian Ceram. Soc. 2014, 73, 143–148. [Google Scholar] [CrossRef]
- Ul Haq, E.; Padmanabhan, S.K.; Licciulli, A. Synthesis and characteristics of fly ash and bottom ash based geopolymers—A comparative study. Ceram. Int. 2014, 40, 2965–2971. [Google Scholar] [CrossRef]
- Duxson, P.; Fernández-Jiménez, A.; Provis, J.L.; Lukey, G.C.; Palomo, A.; van Deventer, J.S. Geopolymer technology: The current state of the art. J. Mater. Sci. 2007, 42, 2917–2933. [Google Scholar] [CrossRef]
- McLellan, B.C.; Williams, R.P.; Lay, J.; Van Riessen, A.; Corder, G.D. Costs and carbon emissions for geopolymer pastes in comparison to ordinary Portland cement. J. Clean. Prod. 2011, 19, 1080–1090. [Google Scholar] [CrossRef] [Green Version]
- Habert, G.; De Lacaillerie, J.D.E.; Roussel, N. An environmental evaluation of geopolymer based concrete production: Reviewing current research trends. J. Clean. Prod. 2011, 19, 1229–1238. [Google Scholar] [CrossRef]
- Okoye, F.N.; Durgaprasad, J.; Singh, N.B. Fly ash/Kaolin based geopolymer green concretes and their mechanical properties. Data Brief 2015, 5, 739–744. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Shaikh, F.U.A. Mechanical and durability properties of fly ash geopolymer concrete containing recycled coarse aggregates. Int. J. Sustain. Built Environ. 2016, 5, 277–287. [Google Scholar] [CrossRef] [Green Version]
- Xie, T.; Ozbakkaloglu, T. Behavior of low-calcium fly and bottom ash-based geopolymer concrete cured at ambient temperature. Ceram. Int. 2015, 41, 5945–5958. [Google Scholar] [CrossRef]
- Zhuang, X.Y.; Chen, L.; Komarneni, S.; Zhou, C.H.; Tong, D.S.; Yang, H.M.; Yu, W.H.; Wang, H. Fly ash-based geopolymer: Clean production, properties and applications. J. Clean. Prod. 2016, 125, 253–267. [Google Scholar] [CrossRef]
- Part, W.K.; Ramli, M.; Cheah, C.B. An overview on the influence of various factors on the properties of geopolymer concrete derived from industrial by-products. Constr. Build. Mater. 2015, 77, 370–395. [Google Scholar] [CrossRef]
- Ryu, G.S.; Lee, Y.B.; Koh, K.T.; Chung, Y.S. The mechanical properties of fly ash-based geopolymer concrete with alkaline activators. Constr. Build. Mater. 2013, 47, 409–418. [Google Scholar] [CrossRef]
- Khater, H. Effect of calcium on geopolymerization of aluminosilicate wastes. J. Mater. Civ. Eng. 2011, 24, 92–101. [Google Scholar] [CrossRef]
- Mehta, P.K.; Monteiro, P.J. Concrete Microstructure, Properties and Materials, 4th ed.; MC-Graw Hill: New York, NY, USA, 2014. [Google Scholar]
- Sinan, E.A.; Erdoğan, T. Alkali activation of a slag at ambient and elevated temperatures. Cem. Concr. Compos. 2012, 34, 131–139. [Google Scholar]
- Yang, K.H.; Song, J.K.; Song, K.I. Assessment of CO2 reduction of alkali-activated concrete. J. Clean. Prod. 2013, 39, 265–272. [Google Scholar] [CrossRef]
- Gupta, R.; Rathod, H. Current state of K-based geopolymer cements cured at ambient temperature. Emerg. Mater. Res. 2015, 4, 125–129. [Google Scholar] [CrossRef]
- Belforti, F.; Azarsa, P.; Gupta, R.; Dave, U. Effect of Freeze-thaw on K-based geopolymer concrete and portland cement concrete. In Proceedings of the 6th Nirma University International Conference on Engineering, Ahmedabad, India, 23–25 November 2017. [Google Scholar]
- Yang, C.; Gupta, R. Prediction of the compressive strength from resonant frequency for low-calcium fly ash-based geopolymer concrete. J. Mater. Civ. Eng. 2018. [Google Scholar] [CrossRef] [Green Version]
- Fathollah, S. Effect of curing regime and temperature on the compressive strength ofcement-slagmortars. Constr. Build. Mater. 2012, 36, 549–556. [Google Scholar]
- Parghi, A.; Shahria Alam, M. Effects of curing regimes on the mechanical properties and durability of polymer-modified mortars—An experimental investigation. J. Sustain. Cem. Based Mater. 2016, 5, 324–347. [Google Scholar] [CrossRef]
- Heah, C.Y.; Kamarudin, H.; Al Bakri, A.M.; Binhussain, M.; Luqman, M.; Nizar, I.K.; Ruzaidi, C.M.; Liew, Y.M. Effect of Curing Profile on Kaolin-based Geopolymers. Phys. Procedia 2011, 22, 305–311. [Google Scholar] [CrossRef] [Green Version]
- Yip, C.K.; Lukey, G.C.; Provis, J.L.; van Deventer, J.S. Effect of calcium silicate sources on geopolymerization. Cem. Concr. Res. 2008, 38, 554–564. [Google Scholar] [CrossRef]
- Noushini, A.; Castel, A. The effect of heat-curing on transport properties of low-calciumfly ash-based geopolymer concrete. Constr. Build. Mater. 2016, 112, 464–477. [Google Scholar] [CrossRef]
- Arenas, C.; Luna-Galiano, Y.; Leiva, C.; Vilches, L.F.; Arroyo, F.; Villegas, R.; Fernández-Pereira, C. Development of a fly ash-based geopolymeric concrete with construction and demolition wastes as aggregates in acoustic barriers. Constr. Build. Mater. 2017, 134, 433–442. [Google Scholar] [CrossRef]
- Temuujin, J.; van Riessen, A.; MacKenzie, K.J.D. Preparation and characterization of fly ash based geopolymer mortars. Constr. Build. Mater. 2010, 24, 1906–1910. [Google Scholar] [CrossRef]
- Chindaprasirt, P.; Chareerat, T.; Sirivivatnanon, V. Workability and strength of coarse high calcium fly ash geopolymer. Cem. Concr. Compos. 2007, 29, 224–229. [Google Scholar] [CrossRef]
- Lee, N.; Lee, H. Setting and mechanical properties of alkali-activated fly ash/slag concrete manufactured at room temperature. Constr. Build. Mater. 2013, 47, 1201–1209. [Google Scholar] [CrossRef]
- Görhan, G.; Kürklü, G. The influence of the NaOH solution on the properties of the fly ash-based geopolymer mortar cured at different temperatures. Compos. Part B Eng. 2014, 58, 371–377. [Google Scholar] [CrossRef]
- Singh, B.; Ishwarya, G.; Gupta, M.; Bhattacharyya, S.K. Geopolymer concrete: A review of some recent developments. Constr. Build. Mater. 2015, 85, 78–90. [Google Scholar] [CrossRef]
- Memon, F.A.; Nuruddin, M.F.; Demie, S.; Shafiq, N. Effect of Curing Conditions on Strength of Fly ash-based Self-Compacting Geopolymer Concrete. Int. J. Civ. Environ. Eng. 2011, 5, 342–345. [Google Scholar]
- Nurruddin, M.F.; Sani, H.; Mohammed, B.S.; Shaaban, I. Methods of curing geopolymer concrete: A review. Int. J. Adv. Appl. Sci. 2018, 5, 31–36. [Google Scholar] [CrossRef]
- ASTM C618/C618M. Standard Specification for Coal Fly Ash and Raw or Calcined Natural Pozzolan for Use in Concrete; American Society for Testing and Materials: West Conshohocken, PA, USA, 2017. [Google Scholar]
- Azarsa, P.; Gupta, R. Novel approach to microscopic characterization of cryo formation in air voids of concrete. Micron 2019, 122, 21–27. [Google Scholar] [CrossRef] [PubMed]
- ASTM C127/C127M. Standard Test Method for Relative Density (Specific Gravity) and Absorption of Coarse Aggregate; American Society for Testing and Materials: West Conshohocken, PA, USA, 2015. [Google Scholar]
- ASTM C33/C33M. Standard Specification for Concrete Aggregates; American Society for Testing and Materials: West Conshohocken, PA, USA, 2015. [Google Scholar]
- ASTM C150/C150M. Standard Specification for Portland Cement; American Society for Testing and Materials: West Conshohocken, PA, USA, 2017. [Google Scholar]
- CSA A23.1. Standard for Concrete Materials and Methods of Concrete Construction; Canadian Standard Association: Toronto, ON, Canada, 2014. [Google Scholar]
- ASTM C192/C192M. Standard Practice for Making and Curing Concrete Test Specimens in the Laboratory; American Society for Testing and Materials: West Conshohocken, PA, USA, 2015. [Google Scholar]
- Satpute Manesh, B.; Wakchaure Madhukar, R. and Patankar Subhash, V. Effect of Duration and Temperature of Curing on Compressive Strength of Geopolymer Concrete. Int. J. Eng. Innov. Technol. (IJEIT) 2012, 1, 152–155. [Google Scholar]
- ASTM C39/C39M. Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens; American Society for Testing and Materials: West Conshohocken, PA, USA, 2014. [Google Scholar]
- ASTM C215/C215M. Standard Test Method for Fundamental Transverse, Longitudinal, and Torsional Resonant Frequencies of concrete specimens; American Society for Testing and Materials: West Conshohocken, PA, USA, 2014. [Google Scholar]
- Hardjito, D.; Wallah, S.E.; Sumajouw, D.M.J.; Rangan, B.V. The stress-strain behaviour of fly-ash based geopolymer concrete. Dev. Mech. Struct. Mater. 2005, 35, 831–834. [Google Scholar]
- Hardjito, D.; Rangan, B.V. Development and Properties of Low-Calcium Fly Ash-Based Geopolymer Concrete; Curtin University of Technology: Perth, Australia, 2005. [Google Scholar]
- AS 3600. Concrete Structure; Standards Australia, Homebus (NSW Australia): Sydney, Australia, 2009. [Google Scholar]
- ACI 363. State of the Art Report on High Strength Concrete; ACI Committee: Detriot, MI, USA, 1992. [Google Scholar]
- AS 1012.17. Determination of the Static Chord Modulus of Elasticity and Poisson’s Ratio of Concrete Specimens; Australian Standard: Sydney, Australia, 1997. [Google Scholar]
- Tempest, B. Engineering characterization of waste derived geopolymer cement concrete for structural applications. Dissertation Abstr. Int. 2010, 71. [Google Scholar]
- ASTM C469/C469M. Standard Test Method for Static Modulus of Elasticity and Poisson’s Ratio of Concrete in Compression; American Society for Testing and Materials: West Conshohocken, PA, USA, 2002. [Google Scholar]
- Prachasaree, W.; Limkatanyu, S.; Hawa, A.; Samakrattakit, A. Samakrattakit. Development of equivalent stress block parameters for fly-ash based geopolymer concrete. Arab J. Sci. Eng. 2014, 39, 8549–8558. [Google Scholar] [CrossRef]
- ACI 318. Building Code Requirements for Structural Concrete and Commentary; ACI Committee: Farmington Hills, MI, USA, 2014. [Google Scholar]
- Thomas, R.; Peethamparan, S. Alkali-activated concrete: Engineering properties and stress-strain behaviour. Constr. Build. Mater. 2015, 93, 49–56. [Google Scholar] [CrossRef] [Green Version]
- Wardhono, A. The durability of fly-ash geopolymer and alkali-activated slag concrete. Ph.D. Thesis, RMIT University, Melbourne, Australia, 2015. [Google Scholar]
- Ng, T.; Foster, S. Development of high performance geopolymer concrete. In Future in Mechanics and Structures and Materials; Taylor&Francis: London, UK, 2008. [Google Scholar]
- Diaz-Loya, E.I.; Allouche, E.N.; Vaidya, S. Mechanical properties of fly-ash based geopolymer concrete. ACI Mater. 2011, 102, 300–306. [Google Scholar]
- Gunasekara, C.M. Influence of properties of fly ash from different sources on the mix design and performance of geopolymer concrete. Ph.D. Thesis, RMIT University, Melbourne, Australia, 2016. [Google Scholar]
- Olivia, M.; Nikraz, H. Properties of fly-ash geopolymer concrete designed by Taguchi method. Mater. Des. 2012, 36, 191–198. [Google Scholar] [CrossRef] [Green Version]
- C143/C143M. Standard Test Method for Slump of Hydraulic-Cement Concrete; American Society for Testing and Materials: West Conshohocken, PA, USA, 2015. [Google Scholar]
- Junaid, M.T.; Kayali, O.; Khennane, A.; Black, J. A mix design procedure for low calcium alkali activated fly ash-based concretes. Constr. Build. Mater. 2015, 79, 301–310. [Google Scholar] [CrossRef]
- Leung, C.K.Y. Concrete as a Building Material. In Encyclopedia of Materials: Science and Technology, 2nd ed.; Pergamon Press: Pergamon, Turkey, 2001; pp. 1471–1479. ISBN 978-0-08-043152-9. [Google Scholar]
- Fang, G.; Ho, W.K.; Tu, W.; Zhang, M. Workability and mechanical properties of alkali-activated fly ash-slag concrete cured at ambient temperature. Constr. Build. Mater. 2018, 172, 476–487. [Google Scholar] [CrossRef]
- Deb, P.S.; Nath, P.; Sarker, P.K. The effects of ground granulated blast-furnace slag blending with fly ash and activator content on the workability and strength properties of geopolymer concrete cured at ambient temperature. Mater. Des. 2014, 62, 32–39. [Google Scholar] [CrossRef] [Green Version]
- Pangdaeng, S. Phoo-ngernkham, T.; Sata, V.; Chindaprasirt, P. Influence of curing conditions on properties of high calcium fly ash geopolymer containing Portland cement as additive. Mater. Des. 2014, 53, 269–275. [Google Scholar] [CrossRef]
- Li, X.; Wang, Z.; Jiao, Z. Influence of Curing on the Strength Development of Calcium-Containing Geopolymer Mortar. Materials 2013, 6, 5069–5076. [Google Scholar] [CrossRef]
- Abdollahnejad, Z.; Dalvand, A.; Mastali, M.; Luukkonen, T.; Illikainen, M. Luukkonen and M. Illikainen. Effects of waste ground glass and lime on the crystallinity and strength of geopolymers. Mag. Concr. Res. 2018. [Google Scholar] [CrossRef]
- Nazari, A.; Bagheri, A.; Riahi, S. Properties of geopolymer with seeded fly ash and rice husk barkash. Mater. Sci. Eng. 2011, 24, 73–95. [Google Scholar]
- Das, B.; Neithalath, N. Sustainable Construction and Building Materials; Springer: Berlin/Heidelberg, Germany, 2018. [Google Scholar]
- Vijai, K.; Kumutha, R.; Vishnuram, B.G. Effect of types of curing on strength of geopolymer concrete. Int. J. Phys. Sci. 2010, 5, 1419–1423. [Google Scholar]
- Nath, P.; Sarker, P.K.; Rangan, V.B. Early age properties of low-calcium fly ash geopolymer concrete suitable for ambient curing. Procedia Eng. 2015, 125, 601–607. [Google Scholar] [CrossRef] [Green Version]
- Dombrowski, K.; Buchwald, A.; Weil, M. The influence of calcium content on the structure and thermal performance of fly ash based geopolymers. J. Mater. Sci. 2007, 42, 3033–3043. [Google Scholar] [CrossRef]
- Provis, J. Green concrete or red herring? —Future of alkali-activated materials. Adv. Appl. Ceram. 2014, 113, 472–477. [Google Scholar] [CrossRef]
- Barbosa, V.F.; MacKenzie, K.J. Synthesis and thermal behavior of potassium sialate geopolymers. Mater. Lett. 2003, 57, 1477–1482. [Google Scholar] [CrossRef]
- Lizcano, M.; Kim, H.S.; Basu, S.; Radovic, M. Mechanical properties of sodium and potassium activated metakaolin-based geopolymers. J. Mater. Sci. 2011, 47, 2607–2616. [Google Scholar] [CrossRef]
- Hounsi, A.D.; Lecomte-Nana, G.; Djeteli, G.; Blanchart, P.; Alowanou, D.; Kpelou, P.; Napo, K.; Tchangbedji, G.; Praisler, M. How does Na, K alkali metal concentration change the early age structural characteristic of kaolin-based geopolymers. Ceram. Int. 2014, 40, 8593–8962. [Google Scholar] [CrossRef]
- Committee, N.R. In-place Strenght Evaluation—A Recommended Practice. NRMCA Publication 133; NRMCA: Silver Spring, MD, USA, 2003. [Google Scholar]
- Pradip Nath, S.P. Use of OPC to improve setting and early strength properties of low calcium fly ash geopolymer concrete cured at room temperature. Cem. Concr. Compos. 2015, 55, 205–214. [Google Scholar] [CrossRef]
- Hamidi, F.; Aslani, F.; Valizadeh, A. Compressive and tensile strength fracture models for heavyweightgeopolymer concrete. Eng. Fract. Mech. 2020, 231, 107023. [Google Scholar] [CrossRef]
- Abdollahnejad, Z.; Luukkonen, T.; Mastali, M.; Kinnunen, P.; Illikainen, M. Kinnunen and M. Illikainen. Development of One-Part Alkali-Activated Ceramic/Slag Binders Containing Recycled Ceramic Aggregates. J. Civ. Eng. 2019, 31. [Google Scholar] [CrossRef] [Green Version]
- El-Newihy, A. Application of Impact Resonance Method for Evaluation of the Dynamic Elastic Properties of Polypropylene Fiber Reinforced Concrete. Ph.D. Dissertation, University of Victoria, Victoria, BC, Canada, 2017. [Google Scholar]
- Massoud, S.; Deventer, J.v.; Mendis, P.; Lukey, G. Engineering properties of inorganic polymer concretes (IPCs). Cem. Concr. Res. 2007, 37, 251–257. [Google Scholar]
- Fernandez-Jimenez, A.M.; Palomo, A.; Lopez-Hombrados, C. Lopez-Hombrados. Engineering properties of alkali-activated fly ash concrete. ACI Mater. J. 2006, 103, 106–112. [Google Scholar]
- Duxson, P.S.W.M.; Mallicoat, S.W.; Lukey, G.C.; Kriven, W.M.; van Deventer, J.S. The effect of alkali and Si/Al ratio on the development of mechanical properties of metakaolin-based geopolymers. Colloids Surfaces A Physicochem. Eng. Aspects 2007, 292, 8–20. [Google Scholar] [CrossRef]
- Sofi, M.; Van Deventer, J.S.J.; Mendis, P.A.; Lukey, G.C. Mendis and G. Lukey. Engineering properties of inorganic polymer concretes (IPCs). Cem. Concr. Res. 2007, 37, 251–257. [Google Scholar] [CrossRef]
- Nath, P.; Sarker, P.K. Flexural strength and elastic modulus of ambient-cured blended low-calcium fly ash geopolymer concrete. Constr. Build. Mater. 2017, 130, 27–31. [Google Scholar] [CrossRef]
- Granata, M.F.; Margiotta, P.; Arici, M. Simplified Procedure for Evaluating the Effects of Creep and Shrinkage on Prestressed Concrete Girder Bridges and the Application of European and North American Prediction Models. J. Bridge Eng. 2013, 18, 1281–1297. [Google Scholar] [CrossRef]
- Argiz, C.; Sanjuán, M.Á.; Menéndez, E. Coal bottom ash for portland cement production. Adv. Mater. Sci. Eng. 2017, 7. [Google Scholar] [CrossRef] [Green Version]
- Wongpa, J.; Kiattikomol, K.; Jaturapitakkul, C.; Chindaprasirt, P. Compressive strength, modulus of elasticity, and water permeability of inorganic polymer concrete. Mater. Des. 2010, 31, 4748–4775. [Google Scholar] [CrossRef]
- Kar, A.; Halabe, U.B.; Ray, I.; Unnikrishnan, A. Nondestructive characterization of alkali activated fly ash and/or slag concrete. Eur. Sci. J. 2013, 9, 52–74. [Google Scholar]
Chemical Compounds | Fly-Ash (%) | Bottom-Ash (%) |
---|---|---|
SiO2 | 47.1 | 60.11 |
Al2O3 | 17.4 | 14.35 |
Fe2O3 | 5.7 | 5.92 |
CaO | 14 | 10.40 |
MgO | 5.4 | 4.49 |
SO3 | 0.8 | 0.10 |
LOI | 0.19 | 0.00 |
Na2O | N/A | 2.232 |
K2O | N/A | 1.766 |
TiO2 | N/A | 0.892 |
P2O5 | N/A | 0.200 |
Mn2O3 | N/A | 0.093 |
Fly-Ash | ASTM C618 [39] | |
---|---|---|
Fineness retained on 45 μm (No. 325 sieve) | 17.3% | <34% (complies) |
Strength activity index with Portland cement% of control at 28 days | 99% | >75% (complies) |
Water requirement, percent of control | 100% | <105% (complies) |
Autoclave expansion | 0.04% | <0.8% (complies) |
Density | 2.65 Mg/m3 | <5% (complies) |
Material | Appearance | Odor | pH | Boiling Point | Specific Gravity | Solubility |
---|---|---|---|---|---|---|
Fly-ash | Gray/Black or Brown/Tan (Powder) | odorless | 4–12 | >1000 °C | 2.0–2.9 (water = 1) | Water: <5% (slightly) |
Bottom-ash | Gray/Black or Brown/Tan (Powder) | odorless | 4–12 | >1000 °C | 2.0–2.9 (water = 1) | Water: <5% (slightly) |
GPC | PCC | |
---|---|---|
Material | Content (kg/m3) | Content (kg/m3) |
Fly-ash | 194 | _ |
Bottom-ash | 194 | _ |
Coarse aggregates | 1170 | 1120 |
Sand | 630 | 820 |
KOH (12 M) | 85.16 | _ |
K2SiO3 | 125.74 | _ |
Cement (PC) | _ | 340 |
Water | 38.71 | 181 |
Type | PCB-ICP |
Model | 352C33 |
Height | 15.7 mm |
Weight | 5.8 g |
Sensitivity | 10.2 mV (m/s2) |
Frequency Range | 0.3–15,000 Hz |
Non-Linearity | <1% |
Transverse Sensitivity | <5% |
Temperature Range | −54 to 93 °C |
Equation | Establisher |
---|---|
Ec = 2707 + 5300 | Hardjito et al. |
Ec = 3320 + 6900 | ACI 363 (Hardjito and Rangan) |
Ec = 3421 | Tempest et al. |
Prachasaree et al. | |
E = 2900fc3/5 | Thomas and Peethamparan |
E = 4400 | Thomas and Peethamparan |
Ec = fc1.6412 49.968 | Wardhonoet al. |
Ec = ρ1.5 0.024 | Gunasekara et al. |
