Toward BIM and LPS Data Integration for Lean Site Project Management: A State-of-the-Art Review and Recommendations
Abstract
:1. Introduction
1.1. Research Topic and Scope
- Identify the prevalent lean and BIM interactions that have been investigated and experimented on by researchers and industrial professionals;
- Find the limitations of the identified strong lean and BIM interconnections;
- Discover the latest research orientations that overcome the current gaps in applying the strong lean and BIM interactions;
- Suggest an integrated information technology system that allows effective application of the prevalent lean and BIM interactions.
1.2. Lean Construction Overview
- Lean production management: This runs from the beginning of a project to the handover of a facility. It consists of work structuring (WS) and production control. Introduced by Ballard in 1999, work structuring is used before the construction stage to break down products and processes into work chunks in order to dimension production units and organize handoffs between groups [20]. WS deliverables encompass project execution strategies and organizational structures, operations design, and master and phase schedules. From a lean mindset, master schedules should only include special clients’ milestones. Phase or pull schedules are best produced by last planners, who can create a reliable network of executable tasks and use float to buffer uncertain activities [21]. Contrary to traditional project management wisdom, we notice that lean construction suggests hierarchical, collaborative, and progressively detailed planning. In order to support continuous workflow, location-based scheduling techniques such as line of balance, flowline and takt-time planning are preferred over the well-known activity-based critical path method (CPM) and program evaluation and review technique (PERT). Planning is followed by control to ensure that project objectives are met. For a lean community, production control means ensuring events conform to the plan. This conceptualization is distinct from traditional project control, where discrepancies in project progress trigger corrective actions. The functions of the Last Planner production control system help to achieve those ends, which also evolved over time. Its first production unit control component, driven by a quality checklist of weekly work, focuses on solving the mismatch between what a superintendent said he would do and what he did. This primary item improves labor productivity and commitment quality, and this key performance metric was labeled percent plan completed (PPC). The PPC could hit 100% if tasks are made ready before their execution date. This is the function of workflow control or a lookahead plan, the second fundamental component of LPS. During lookahead scheduling, last planners divide phase schedule activities into assignments and analyze their constraints before adding those tasks to the lookahead window and thus to the weekly work agenda [22].
- Lean design: This aims to integrate process and product design in the pursuit of TFV goals. It encourages the exploration of alternatives between cross-functional teams rather than handing off single point solutions to downstream disciplines. This strategy fits well-integrated forms of contracts like IPD or design-build projects.
- Lean supply: The objective is to optimize the flow of goods and services, information, and funds between customers and suppliers. The best practices advocated are standardization, off-site fabrication and preassembly, consolidation of transport orders, and long-term supplier relationships.
- Lean assembly: The goal is to minimize in situ installation effort by using several tools, such as just-in-time delivery, one-touch handling, first run studies, multi-skilling, total quality management, and so forth.
1.3. BIM Overview

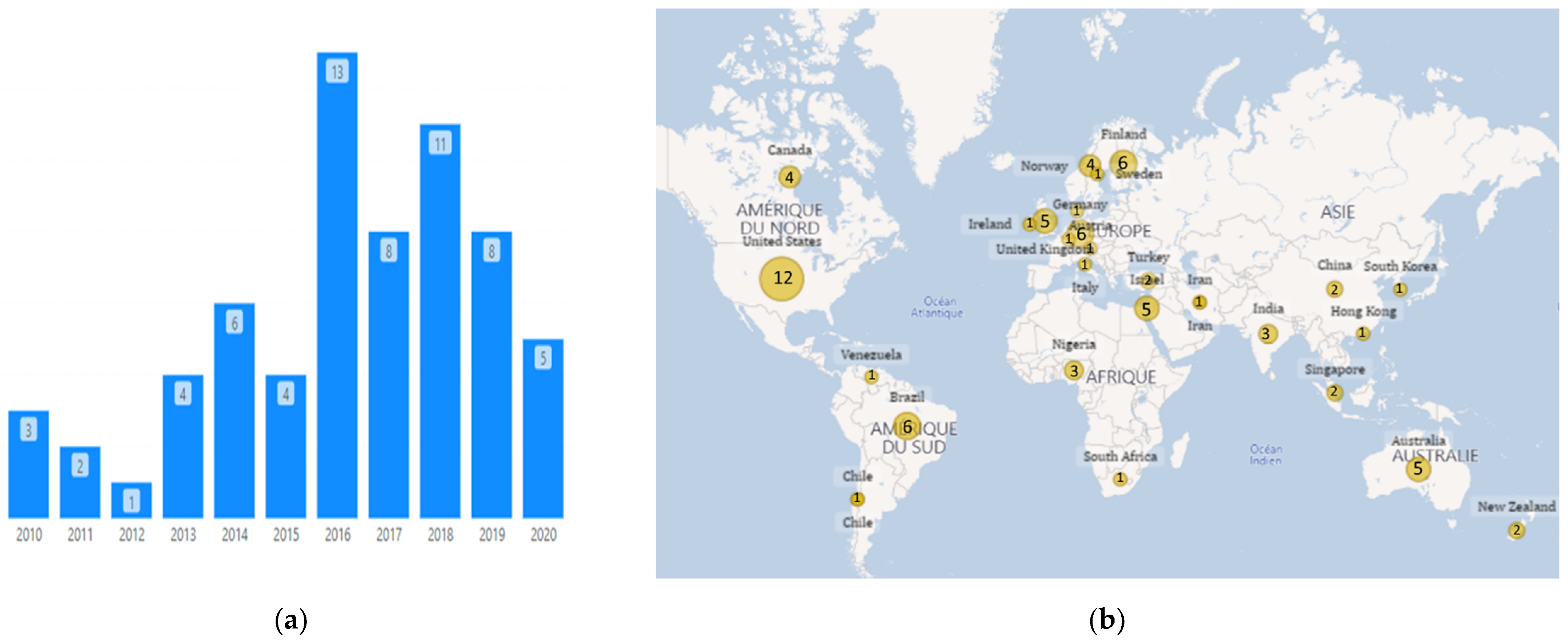

2. Methodology
3. In-Depth Analysis and Results

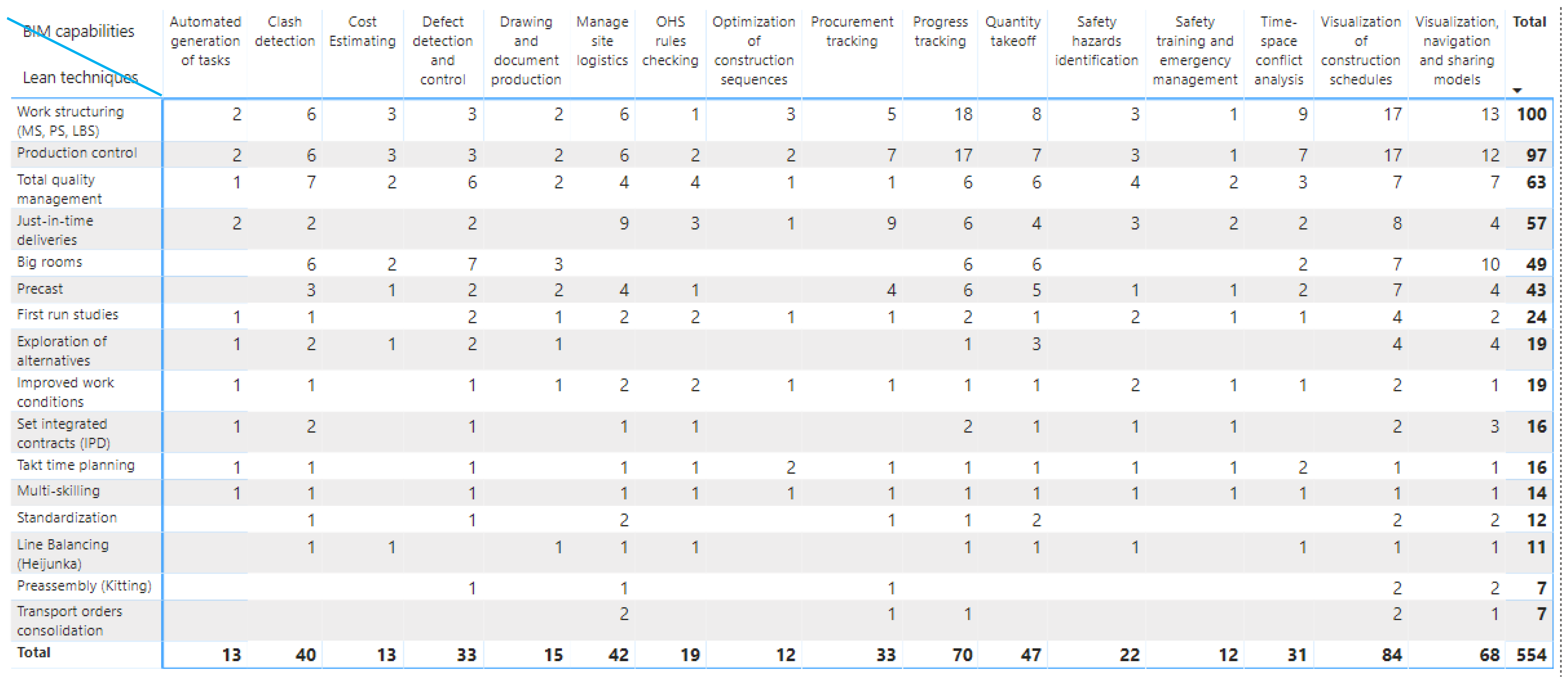

3.1. Weighting Matrix of Lean Construction and BIM Interactions

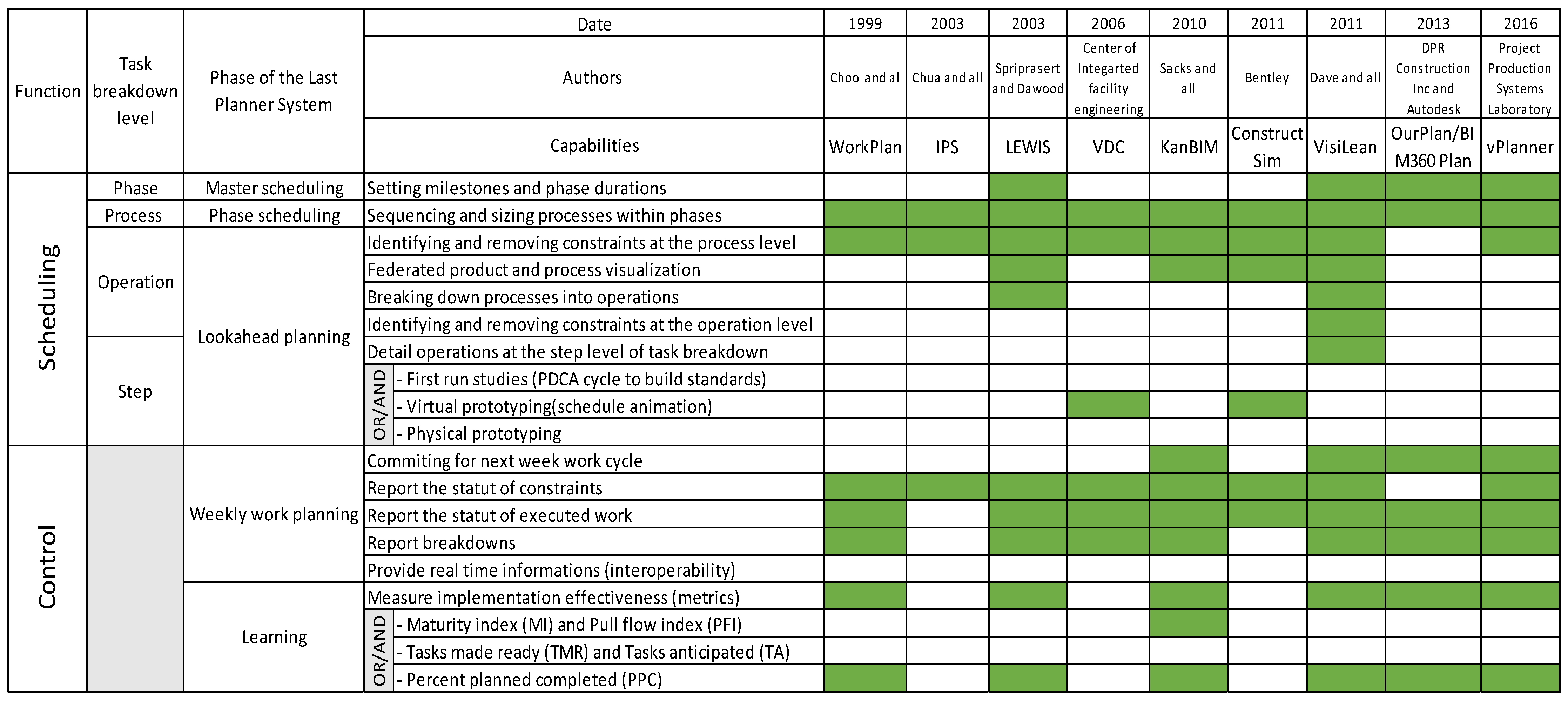

3.2. Lean IT Tools Supporting Production Scheduling and Control
3.3. Research Orientations in the Field of Construction Planning and Control Automation
3.3.1. Automated Trial Runs for Scheduling
3.3.2. Automation Trial Runs for Progress Monitoring
4. Discussion
5. Conclusions and Further Works
