Article

Space Performance Assessment of a Relocatable Health Facility: Mosul Hospital as a Case Study

by
Zhiman Khairi Ismael
* and
Kadhim Fathel Khalil
Architectural Engineering Department, University of Duhok, Duhok 42001, Iraq
*
Author to whom correspondence should be addressed.
Buildings 2022, 12(10), 1539; https://doi.org/10.3390/buildings12101539
Submission received: 24 August 2022 / Revised: 18 September 2022 / Accepted: 20 September 2022 / Published: 26 September 2022
(This article belongs to the Section Architectural Design, Urban Science, and Real Estate)

Abstract

:
Relocatable buildings are commonly spread around as an alternative method of construction. To consider it a successful practice, it should perform its function similarly to a traditional way. Assessing a building after its operation determines the rate of its success and decides the possibility of repeating its type. This study aimed to provide a comprehensive knowledge base related to space evaluation of the building through spatial assessment. This study investigated the functional efficiency and dimensional requirements of a relocatable hospital in Mosul, in the south of Iraq. This study compared the dimensional requirements of eight hospital departments to the standard, followed by functional efficacy analysis based on space syntax theory and compared the results to examples used in standards books. The results showed that departments in the relocatable buildings have good plan integration. We concluded that hospitals constructed with containers could achieve functional efficiency.

1. Introduction

Destruction caused by ISIS in Mosul, in the south of Iraq, resulted in fast-paced demographic changes, which pose different challenges to that region. Cities are in a hurry to recover and develop new buildings to meet new space demands. Recently, interest in modular and relocatable buildings has increased significantly during the 2010s, especially in the public sector. In particularl, the school and healthcare sectors have used temporary modular solutions, primarily due to booming renovation needs and migration between regions [1]. Relocatable buildings were described by Abuin as buildings that can be transported in parts but which are assembled at the site almost instantly into a usable form. They are practically carried but sometimes have a portable system built into their structure and can be reused in another location for another function. Relocatable buildings are leveraged from the prefabrication process, helping to curb costs and time resources required to speed up the construction process. This is particularly useful for large-sized and high-volume building demand. The benefits of relocatable buildings include rapidity and quality of construction, sustainability, adaptability, and multi-functionality. At the same time, their challenges are rigid design, dimensional restrictions, and poor image [2]. A relocatable building is made of many containers; an intermodal container is a large, standardized shipping container designed and built for intermodal freight transport, meaning these containers can be used across different modes of transportation—from ship to rail to truck—without unloading and reloading their cargo [3]. Based on size alone, up to 95% of intermodal containers comply with ISO standards [4].
In 2006, the Architect Peter DeMaria designed the first two-story shipping container home in the U.S. as an approved structural system. Several architects, such as Adam Kalkin, have built original homes using discarded shipping containers for their parts, using them in their original form, or a mix of both [4]. In the same year, the Urban Space Management firm completed the project called Container City I in London. The firm went on to complete additional container-based building projects, with more underway. In 2006, the Dutch company Tempohousing finished, in Amsterdam, the biggest container village in the world: 1000 student homes from modified shipping containers from China [4]. In 2010, German architect Stefan Beese utilized six 40′ long shipping containers to create a large viewing deck and a VIP lounge area [4].
In the health sector, relocatable modular buildings have many benefits and provide a viable option for cities struggling to meet their fluctuating space demands. Relocatable modular buildings could solve the challenges posed by quickly changing demographics in different types of regions and deliver both usability and circularity [1]. The requirement of a complete diagnostic capacity hospital can be met with a relocatable building solution. In the healthcare sector, relocatable buildings constitute a suitable solution in case of a lack of construction budget or time limitations [5]. Figure 1 shows the steps involved in creating buildings with containers.
Regionally, construction in the healthcare sector has been growing continuously, and the need for using the relocatable building is evident. Hospitals, as a type of building, are disinterested in the external appearance of the building, focusing, rather, on its functional efficiency. Space performance is the main factor of functional efficiency in hospitals and can only be evaluated through the space syntax tool. Thus, the study aimed to provide a comprehensive knowledge base related to spatial assessment of the building through the dominant tool, space syntax. According to the container size used for this type of building, the designer is restricted to a specific grid dimension and has to design a highly functionalized building with the size of containers, which is limiting. Thus, the research question was as follows: do containers’ fixed dimensions affect the performance of the spaces in health care buildings? The objective of this study was to assess the potential of relocatable buildings in terms of their functional efficiency and dimensional requirements according to universal standards to address these challenges. In this study, Mosul hospital was selected as a notable case of a relocatable hospital. The case study was evaluated using a dimension and space syntax tool comparison with standards. Its endeavor to apply two methods is with the purpose of increasing reliability by measuring the ability of buildings to perform in a way similar to traditional ones in terms of spaces.

2. Literature Review

2.1. Relocatable Hospital Development

Kukil Han showed an example of a relocatable hospital, which he designed to provide immediate aid in hard-hit disaster-stricken areas. Modularized container medical treatment centers can either function individually or as larger modular units. Deliverability of the units by ground or via helicopter provides a shorter response time to emergency areas [6]. Another example was shown by Hord Macht and Spevco, who eliminated the need for a standard hospital. In their design, 58 trailers provide a fully operational, fully mobile 48-bed hospital. The trailers include every aspect of a hospital, from waiting for spaces to surgical suites, pharmacies, and labs. The design constitutes the future of how health care will travel. It is a system that effectively transforms health care for entire regions and countries over time, letting the hospital and care come to the patient [7].
Despite the spreading nature of relocatable building usage, scientific studies about it are minimal. Kyro is the only researcher who focused on the relocatable building when he searched about the possibility of relocatable buildings to deliver usability, which is defined as the potential of the building to meet the needs of the specific users. The study provides a framework for a modular relocatable building that could deliver both circularity and usability. The primary data included semi-structured interviews, whereas additional data comprised site visits, observation, and written documents [1].
In this context, it was found that there are very limited studies dealing with the topic of relocatable hospitals from a very limited standpoint, which ensures the importance of this study.

2.2. Space Assessment in Hospital

Space syntax in the design process is based on a configurational theory of space and attempts to decode spatial formations and their impacts on human activity [8]. Its main interest is the relationship between human beings and their inhabited areas. Space syntax considers that distinctive characteristics of societies exist within spatial systems, and their knowledge is conveyed through the organization of spaces. Since the late 1990s, space syntax has increasingly been applied to the study of healthcare facilities [8]. Space syntax is theorized as an appraising tool for health facility buildings in several studies. Arslan and Koken evaluated the 130 healthcare buildings that are affected by earthquakes and which needed renovation by using the space syntax method to analyze the pre-and post-strengthening projects. Visibility graph analysis (VGA) was conducted, and then permeability graph analysis was compared with it in terms of the connectivity, integration, and mean depth value [9]. In the same regard, Pramanik presented space syntax methods for analyzing the activity and flow of spaces in the hospital. A clinic as a case study in the construction phase was used to develop the integration procedure and then compared with the actual case analysis [10]. Another study about evaluating spatial configuration in hospital buildings was carried out by Setola. A study was conducted in three hospitals in Italy and demonstrated how the spatial configuration of a hospital’s public spaces influences the interfaces between patients and medical staff. Social surveys and space syntax analyses were used [11]. Regarding the assessment of a specific department in the hospital such as outpatient, Chen investigated the relationships between the wayfinding system of the outpatient areas and the patients’ behaviors in the hospital by using space syntax at Cheng Ching Hospital in Taiwan. They integrated axial mapping and isovist analysis to provide suggestions on the location, format, and content of the wayfinding system [12]. Furthermore, Setola focused on the spaces connection system concerning public flows. Space syntax was chosen as a possible tool to show the potential of an evidence-based approach combining the social and spatial aspects concerning the people’s movements. The case study was performed at the Careggi University Hospital in Florence [13]. Moreover, Khan described the genotype of 250-bed hospital layouts in Bangladesh by analyzing six hospitals within a cultural tradition. An integration measure in space syntax was used to discover the department’s difference factor value [14]. Additionally, Beck and Turkienicz concluded, in their study, that spatial usage had a higher relationship with visibility compared with a short distance by analyzing the visibility and permeability relations of three defined routes in a hospital [15]. Additionally, Sadek examined the potential influence of the spatial configuration of a new emergency department on the effectiveness of visual surveillance, movement, and communication [16].
Depending on the literature review, studies that use space syntax provide reasonable evidence for assessing the spatial configuration of healthcare facilities. However, the knowledge gap is derelict in evaluating the usability of the relocatable hospital, while this type of hospital is used worldwide. Furthermore, the research is studying the space performance of the relocatable hospital through the dimensional requirement and the functional efficiency through several factors such as wayfinding and accessibility. The limitation of this study is the space aspects that are related to planning, such as space dimensions, shape, boundary, circulation, and the relationship of shapes.

3. Space Performance

3.1. Dimensional Requirement

This study followed two leader standards in the field of architecture and healthcare facilities. The first is The Guideline for Design and Construction of Hospitals and Outpatient Facilities, which intends to keep pace with evolving healthcare needs and in response to requests for up-to-date guidance from healthcare providers, designers, and regulators. Prescriptive measurements, when given, have been carefully considered relative to generally recognized standards [17]. The second is the Neufert, Architects’ Data which is a reference book for spatial requirements in building design. The book is conceived to help the initial setup of buildings by providing extensive information about spatial requirements [18].

3.2. Functional Efficiency

3.2.1. Wayfinding

The term “wayfinding” can be traced back to the 1960s when it was first mentioned by Kevin Lynch in his book The Image of the City. Lynch used wayfinding to explain people’s cognition and analytical capabilities toward the urban environment. He defined paths, edges, districts, nodes, and landmarks as the essential elements that support one’s image of a place [19]. Hospitals share many attributes of cities and urban planning. A clear hierarchy of circulation (primary, secondary streets, and back alleys) is essential for complex hospitals as is in cities’ urban paths. Nodes and landmarks similarly serve as reference points along paths. For instance, well-designed departmental entries, nurses’ stations, and courtyards can operate as important nodes and landmarks. Eventually, distinguishing departmental and functional zoning can act equivalently to city districts and edges to facilitate legibility [16]. There are several reasons why people have problems finding their way in hospitals; hospitals often are complicated environments, people are first-time visitors, and the names of units on the signs are often long, difficult, and similar to each other [20]. Improving the wayfinding feature is a sophisticated problem that is influenced by multiple factors [16]. Although wayfinding is the main function of the sign system in hospitals, architectural space design also plays a significant role. Carpman demonstrated that signs alone are not sufficient to guide wayfinding behavior in large complex environments such as hospitals [21]. Architectural design of spaces is one of the critical factors to wayfinding in large hospitals, as Mollerup considered pre-visit information, architecture, and the naming of places as three main factors in wayfinding [20]. Carroll noted that floor plan complexity significantly affected wayfinding behaviors [22]. O’Neill suggested a close relationship between building plan complexity and the number of times people become lost. The sizes, forms, relationships among spaces, and the irregularity of floor plans are the leading causes of this complexity. Moderate and straightforward route planning in space will help reduce the problems of wayfinding. However, too many route intersections will increase the number of decision points, making users more easily confused [23].
Field of view in the entry point and corridor integration is an essential predictor of exploration and wayfinding. In other words, an integrated analysis of a hospital plan is a powerful indicator of which corridors visitors can be expected to walk in and have a better memory of. Moreover, the syntax value of Isovist analysis in the entry space affected wayfinding and indicated which entry poses more wayfinding difficulties [24]. According to International Health Facility Guidelines, an understanding of the reasonable progression of space and the relationships between them will contribute to determining the circulation system for its importance in creating an existing wayfinding system [17].

3.2.2. Accessibility

Healthcare accessibility is one of the most significant factors for overall patients inside the hospital. Accessibility is defined by Cambridge Dictionary as “the characteristics of something that makes it possible to enter, use or approach” [25]. The physical architecture of hospital departments should provide quick access to staff equipment and supplies [26]. To ensure the safety of patients, healthcare departments should have an apparent architectural layout that allows staff to readily access patient rooms and promote clear vision for continuous observation. To improve care delivery, healthcare systems experts often implement accessibility analysis, focusing on the patients’ activities with flexible movement [26]. Flexibility in accessibility refers to applications that include spatial proximity relationships among different functional sectors, patient–staff relations, circulation hierarchy, path differentiation, the transportation of equipment, the legibility of access, journey times, and entrance control [13].
The aim is to keep circulation organized and straightforward to a user by decreasing the number of decision points and maximizing visual access. The wayfinding in the case study was measured by two indicators: the entry point of view and the corridor integration, as shown in Figure 2. According to accessibility, this study focused on two indicators within the accessibility: first, the patient–staff relationship, and second, the plan complexity, as shown in Figure 2.

4. Research Method

The research used a two-level method to assess the space performance of the relocatable building. The first evaluated the dimensional requirements of the hospital, which is about comparing hospital space areas and dimensions with standards. As mentioned, the standards used were as follows: Guidelines for Design and Construction of Hospitals and Outpatient Facilities, 2018; and Neufert, Architects’ Data, 2019.
The second level of the method is about evaluating the functional efficiency of the hospital by using space syntax, DepthmapX software with version X-0.8.8. In space syntax, visual information is described by the isovist, which is the set of all points visible from a given vantage point in space. When performing the spatial analysis, space syntax provides the ability to investigate both visibility and accessibility situations [16]. Isovist analysis was chosen to measure the field of view in entry spaces and then indicate the wayfinding in the hospital. In addition, the axial map analysis was selected to measure the corridor integration in hospitals and indicate the wayfinding value in hospitals, as shown in Table 1.
Visual graph analysis VGA was used to measure the connectivity and integration of the hospital departments, which indicating the patient–staff relationship and then measuring the accessibility of the plan. Space syntax measurements of connectivity (the number of direct connections to other spaces) and integration (how well one space is connected to all other spaces) allow for representing the layouts’ configurational properties and the degree of their complexity [16]. Convex map analysis was carried out to measure the depth of the hospital departments and then the complexity of the plan and accessibility in the hospital was calculated, as shown in Table 1.

5. Case Study

From 2014 to 2017, Mosul and Nineveh suffered severe devastation due to the control of the Islamic State (IS) terrorist militia over the city. They heavily damaged the healthcare buildings such as Al ‘Salaam hospital, which used to be the biggest hospital in the area before it was destroyed in 2017, as shown in Figure 3. Since being liberated from IS in July 2017, the western part of Mosul, in particular, has suffered from the large-scale destruction of public and private infrastructure. Social services such as health care are limited [27]. Recovery and Rehabilitation in Mosul, as a program of the GIZ organization, supports the reconstruction of a relocatable health care facility. The first relocatable hospital in Mosul consists of 150 beds and accommodates up to 1500 outpatients and 150 inpatients a day to receive adequate primary and special medical treatments [27]. Figure 4 shows the hospital in the construction process.
In July 2017, Mosul city was liberated from ISIS. The relocatable hospital was constructed by GIZ (German Agency for International Cooperation GmbH), the main German development agency, in partnership with the Ministry of Health. The relocatable hospital in Mosul was built on the same site as Al ‘Salaam hospital on a single floor and contains more than 600 containers, as shown in Figure 5 and Appendix A Figure A1. Two types of containers were used; first, a high cube of 13.09 m2 area, 2.90 m height, and second a high cube of 26.77 m2, 2.90 m height, as shown in Figure 6, was used. To analyze the case study, eight departments of the hospital were chosen (Emergency, Dialysis, Pediatric, Outpatient, Radiology, Endoscopy, Laboratory, and Wards).

6. Results

6.1. Results Related to Dimensional Requirements

To determine if the building performs its function in terms of size and dimensions of its space, all department spaces were compared to the minimum standards. Each department was detailed by all spaces in comparison with standards as shown below.
The emergency department in Mosul hospital is about 1211 m2 in area and comprises 75 containers as shown in Table 2 and Figure A2. The dialysis department is about 325 m2 in area and comprises 22 containers, as shown in Table 3 and Figure A3. All treatment and patient spaces are in larger spaces than minimum standards, leading to the ability to perform their function. However, failures in the area are in rooms related to staff rest and service spaces.
The pediatric department in Mosul hospital is about 487 m2 in area and comprises 27 containers. As shown in Table 4 and Figure A4, all spaces are in larger rooms than minimum standards, which leads to the ability to perform their function, except for the area for staff rest.
The outpatient department in Mosul hospital is about 443 m2 in area and comprises 30 containers. As shown in (Table 5) and (Figure A5), all main spaces including consultation rooms, treatment, and examination spaces are in larger spaces than minimum standards, which leads to the ability to perform their function. However, failures in the area are in spaces related to the laboratory, clean room, ENT, and corridors.
The radiology department is about 207 m2 in area and comprises 21 containers. As shown in Table 6 and Figure A6, all spaces such as the ultrasound examination or procedure rooms, x-ray, consultation room, and control are in larger areas than minimum standards, which leads to the ability to perform their function. Only the service corridor is smaller than required.
The endoscopy department in Mosul hospital is about 177 m2 in area and comprises 12 containers. As shown in Table 7 and Figure A7, all spaces such as the procedure room, pre-procedure room, and post-procedure room are in larger space than the minimum standards, which leads to the ability to perform their function. However, there are failures in the clearance at the side, head, and foot of the stretcher in the pre-procedure and post-procedure rooms.
The laboratory department in Mosul hospital is about 135 m2 in area and comprises nine containers. As shown in Table 8 and Figure A8, spaces such as bloodwork and laboratory work are larger spaces than minimum standards, which leads to the ability to perform their function. However, there are failures in the storage area.
Wards in Mosul hospital have about a 3408 m2 area divided into three parts and 126 containers; most of the container wards are the large type. As shown in Table 9 and Figure A9, the main spaces such as the patient room, isolated patient rooms, corridors, and clean rooms are in larger areas than minimum standards, leading to their ability to perform their function. However, there are failures in staff rest and procedure rooms.

6.2. Results Related to Space Syntax

The space syntax results were obtained by analyzing the architectural layout plan for each department of the case study and comparing the same department in the standards. Examples were selected according to the size and component of the case study department. Table 10 shows the models used in all space syntax analyses. Table 11 shows the comparison in the area between the case study and the examples used.

6.2.1. Wayfinding Results

Isovist provides data on the coverage of the viewing area from a certain point within each department plan. Isovist was measured from the public space (lobby). The Isovist analysis was conducted only at the entrance point because wayfinding is related to the decision points and entrance is the main decision point that appears in all departments. The highest value of the Isovist area represented the highest value of wayfinding. A high Isovist value means high visual access at a point in the entrance, which leads to high wayfinding at that point. Visitors to the entry point of a department can have high visual access, which helps them find their way. Table 12 shows the Isovist area values and graphs of case study departments compared with examples from Neufert. The results showed that the deferent in value of Isovist areas from the entrance of all departments was positive in the relocatable hospital (case study) except the pediatric department. This indicates that the angle of view in the entrance point was higher in the case study than in the examples, leading to a better wayfinding value.
Corridor integration is shown in the results of the axial map integration analysis (Table 13). The red color is the highest integration value and represents a higher value of wayfinding than the blue line, which means a lower degree. The results showed that the integration value of all departments was higher in the relocatable hospital (case study) than in examples except the pediatric department and ward. The highest degree of integration is in the radiology department of the case study. This indicates that in most departments, plans of the case study are well integrated compared with the example departments.

6.2.2. Accessibility Results

Visibility graphs analyze the range of any point in the spatial layout that is visible from other points. A graph also measures and calculates the points that are not directly visible by testing how many intervening points are needed for a point to see others [28]. Connectivity in the syntax visibility graph showed the highest rates on dialysis and emergency (766.4, 765.5), respectively, and were more prominent than examples (Table 14), where the warm colors (red, orange, yellow) indicate high visibility and cold colors (blue, dark blue) show the low-visibility spaces (the cold colors negatively affect the result and give low readings), and lower VGA values than the examples for pediatric, radiology, and endoscopy departments. A well-connected plan represented a good relationship between patient and staff spaces, strengthening the accessibility.
Integration in the syntax visibility graph measures the patient–staff relationship; the high integrated plan means a strong connection between patient spaces and staff spaces, leading to good care offered to patients. The results showed the highest rates for laboratory and dialysis departments (12.95, 9.3), respectively, and were more prominent than the examples (Table 15). The rate of plan integration is bigger in case study departments than in examples, except for emergency, pediatric, and radiology departments, where the value of plan integration was lower than in the example. ore integrated plan indicated higher accessibility.
Plan complexity is another indicator of accessibility measured by the depth of convex map analysis. Each space in plan is converted into convex polygons and connected to sounding spaces. It is used to consider the configuration relationships among spaces. Convex depth is used to express how deep the plan is [28]. Higher depth in the plan reflects a more complex plan and a lower accessibility rate. The convex map represents a graph system in which each node matches a convex space, and each line relates the connection between them; in this situation, the depth is utilized to represent the number of spaces that must be crossed to proceed from one location to another. The depth in the corridor (main circulation) space is the lowest level (no crossing space). All other spaces were measured according to the number of spaces they should across to reach. Spaces that have a direct connection with the corridor measure as having more depth than the corridor itself. So, a plan which has many crossing spaces is considered high depth. The results showed that most of the departments in the case study had larger planned depth than in the example. However, some departments had less depth than, for example, outpatient (1.88 vs. 2.79), endoscopy (2.2 vs. 2.78), and laboratory departments (1.93 vs. 2.6), as shown in Table 16.
The difference between case studies and examples represents the rate of efficiency in each plan. The deferent numbers in the Isovist area and VGA connectivity were converted from (100 to 1) to be similar to other analyses and be easy to compare; for example, 210 was converted to 2.1. Table 17 shows the overall deferent rate in all space syntax analyses.
The overall results show that departments such as outpatient and laboratory are performing their function well when their rate of deference in all analyses is positive. Dialysis and endoscopy are also well-functionalized performances, followed by emergency and wards. However, the pediatric department obtained negative results in all analyses.

7. Conclusions

Building healthcare facilities with relocatable buildings has become a present need. Designers face many challenges dealing with relocatable buildings beginning with the restrictions related to the size of containers to the poor exterior appearance. This study assists the space performance of relocatable buildings in terms of wayfinding and accessibility. Based on a comparison with standards, the study concluded that spaces in healthcare buildings constructed with containers are efficient in size and dimension. The size of containers has not negatively affected the size of spaces. Therefore, relocatable hospitals are performing their function according to the dimensional requirements.
Moreover, the performance of relocatable buildings is assisted according to wayfinding as a functional efficiency factor. The space syntax analysis concludes that all relocatable hospital departments should have a clear view of the entrance and integrated plans that lead to a good wayfinding feature. Wayfinding is an indicator of efficiency in hospitals constructed as relocatable buildings. Besides, accessibility as another factor of functional efficiency is assessed in relocatable buildings. The visual graph analysis concluded that all departments in the relocatable building had good plan connectivity and integration compared with the example plans. This indicates that the relationship between patients and staff is more robust, and accessibility in the relocatable hospital department is achieved. Planning in the relocatable building can be designed at a reasonable level according to the complexity, which smoothens the accessibility in the building. The study concluded that healthcare buildings constructed with containers to be relocatable could achieve functional efficiency. Designers can overcome the restrictions related to the size of containers in relocatable buildings. Thus, this type of building can be adapted more based on its advantages.

Author Contributions

Conceptualization, Z.K.I. and K.F.K.; methodology, K.F.K.; software, Z.K.I.; validation, K.F.K.; formal analysis, Z.K.I.; investigation, Z.K.I.; resources, K.F.K.; data curation, K.F.K.; writing—original draft preparation, Z.K.I.; writing—review and editing, K.F.K.; visualization, Z.K.I.; supervision, K.F.K.; project administration, K.F.K.; funding acquisition, Z.K.I. and K.F.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

Thanks to GIZ (German Agency for International Cooperation GmbH) organization and the Ministry of Health in Mosul for supplying data about the case study used in this study.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Figure A1. Site plan of the relocatable hospital in Mosul city, Case study.
Figure A1. Site plan of the relocatable hospital in Mosul city, Case study.
Buildings 12 01539 g0a1

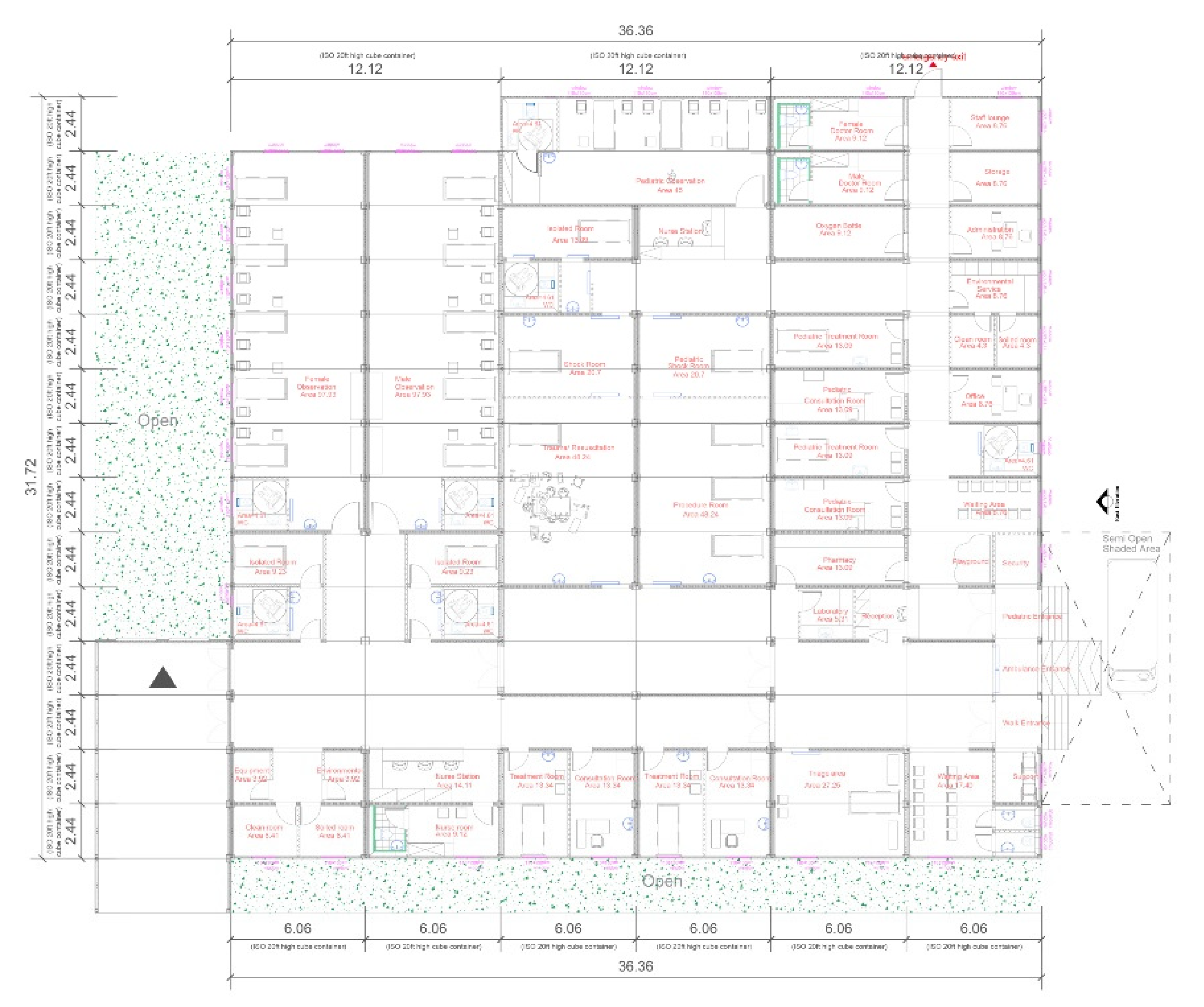

Figure A2. Emergency department plan of the relocatable hospital in Mosul.
Figure A2. Emergency department plan of the relocatable hospital in Mosul.
Buildings 12 01539 g0a2

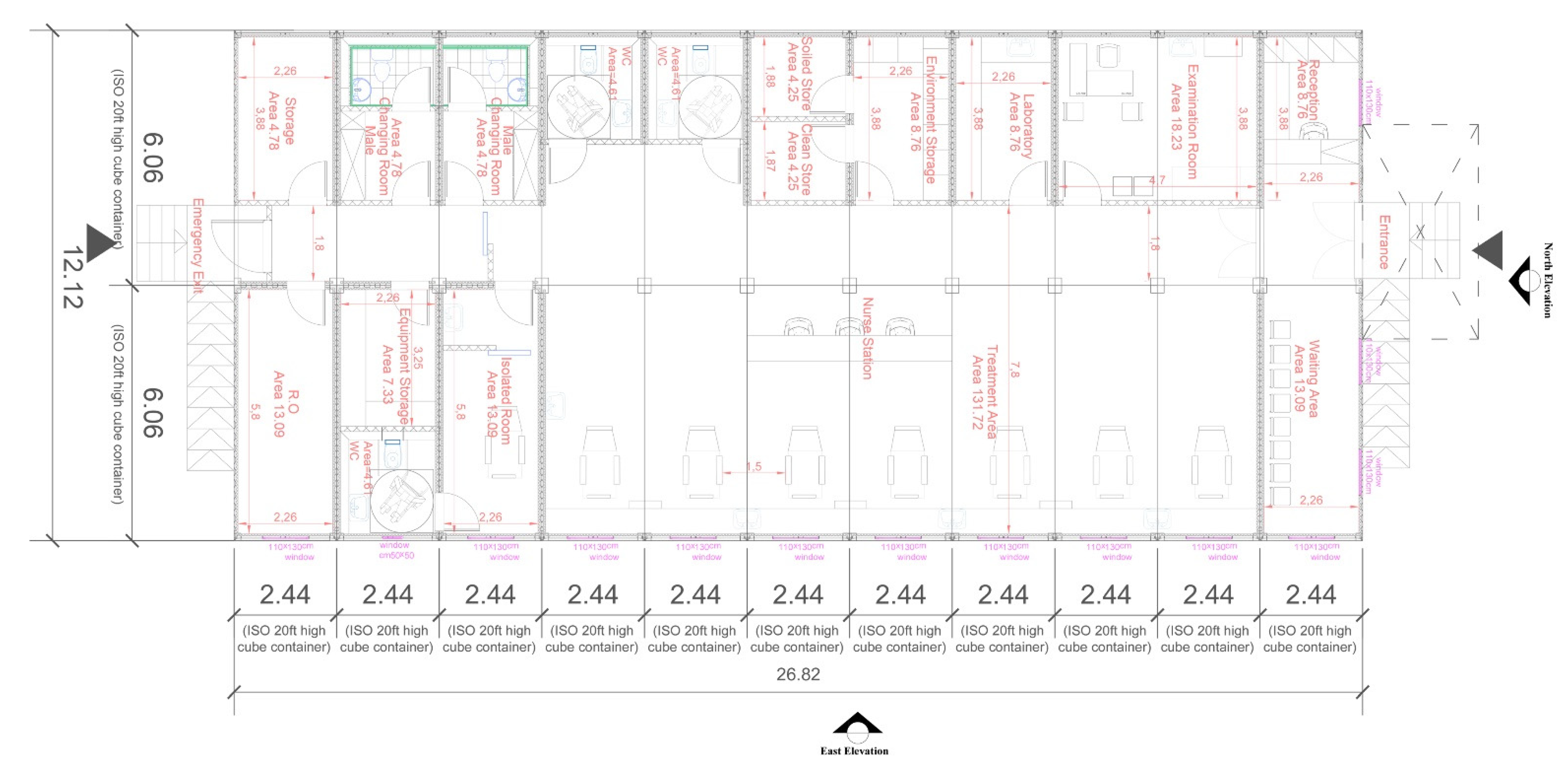

Figure A3. Dialysis department plan of the relocatable hospital in Mosul.
Figure A3. Dialysis department plan of the relocatable hospital in Mosul.
Buildings 12 01539 g0a3

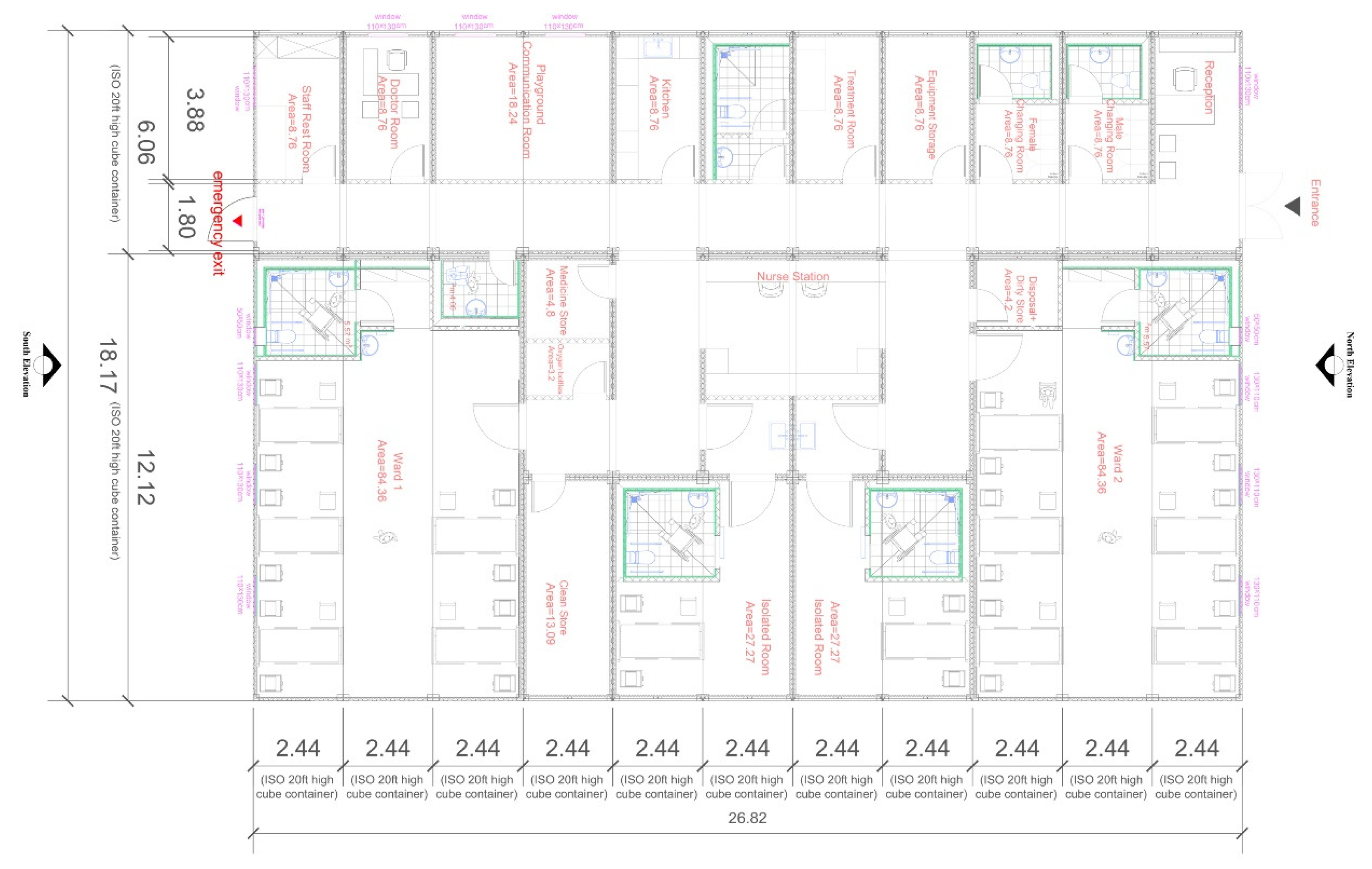

Figure A4. Pediatric department plan of the relocatable hospital in Mosul.
Figure A4. Pediatric department plan of the relocatable hospital in Mosul.
Buildings 12 01539 g0a4

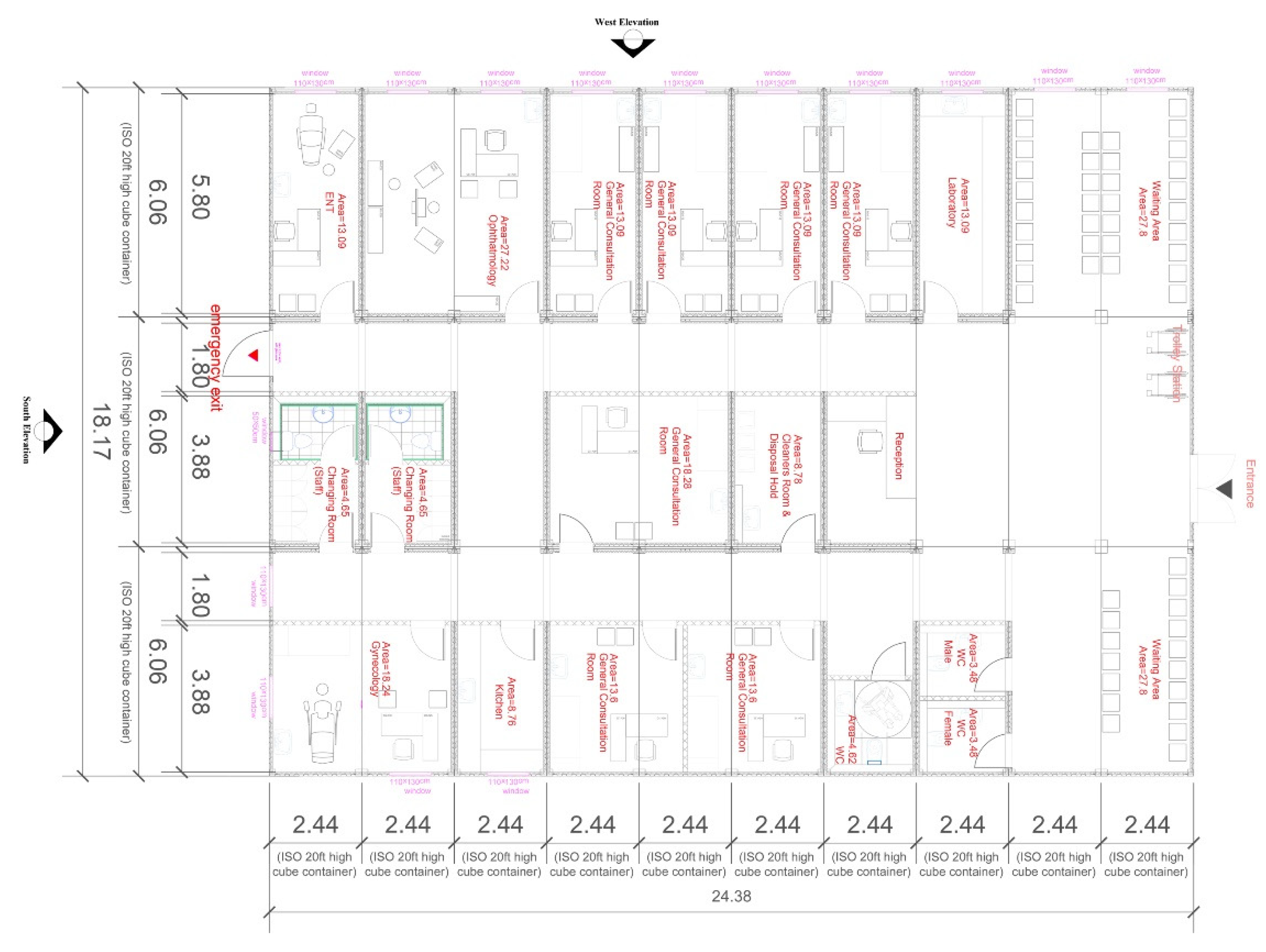

Figure A5. Outpatient department plan of the relocatable hospital in Mosul.
Figure A5. Outpatient department plan of the relocatable hospital in Mosul.
Buildings 12 01539 g0a5
Figure A6. Radiology department plan of the relocatable hospital in Mosul.
Figure A6. Radiology department plan of the relocatable hospital in Mosul.
Buildings 12 01539 g0a6

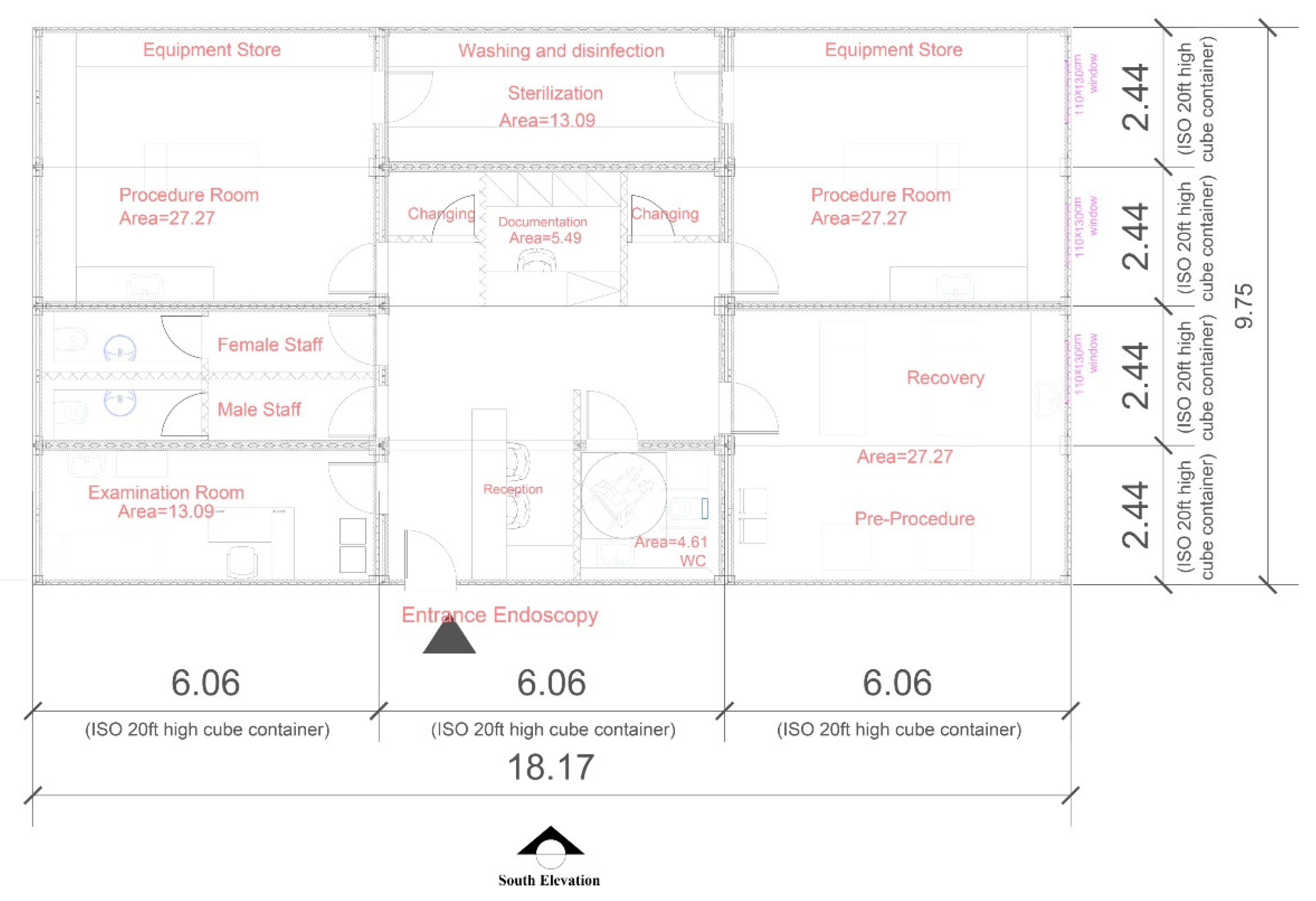

Figure A7. Endoscopy department plan of the relocatable hospital in Mosul.
Figure A7. Endoscopy department plan of the relocatable hospital in Mosul.
Buildings 12 01539 g0a7

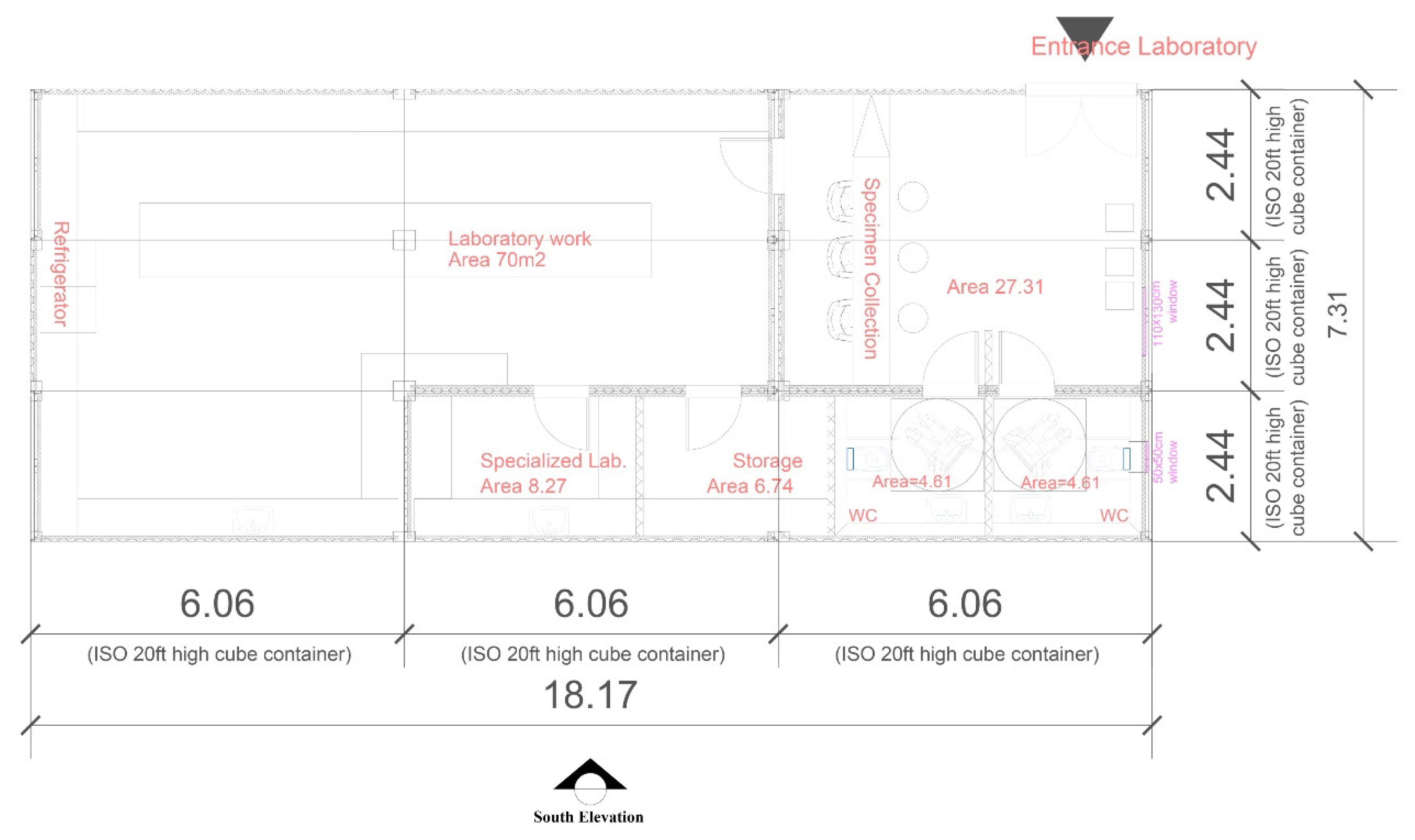

Figure A8. Laboratory department plan of the relocatable hospital in Mosul.
Figure A8. Laboratory department plan of the relocatable hospital in Mosul.
Buildings 12 01539 g0a8

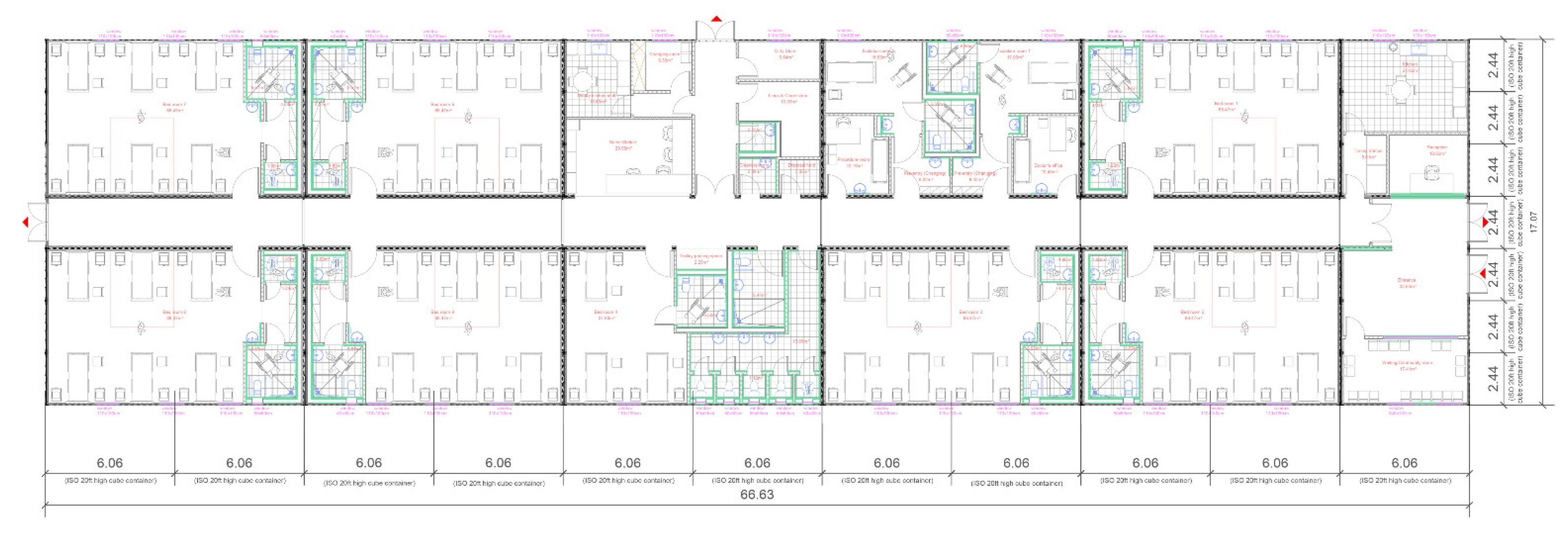

Figure A9. Ward department plan of the relocatable hospital in Mosul.
Figure A9. Ward department plan of the relocatable hospital in Mosul.
Buildings 12 01539 g0a9

References

  1. Kyrö, R.; Jylhä, T.; Peltokorpi, A. Embodying circularity through usable relocatable modular buildings. Facilities 2019, 37, 75–90. [Google Scholar] [CrossRef]
  2. Abuin, E.B. Kinetic Performance: A Study in Portable Architecture. Master’s Thesis, Florida International University, Miami, FL, USA, 2004; p. 1132. Available online: https://digitalcommons.fiu.edu/etd/1132 (accessed on 16 February 2022).
  3. Lewandowski, K. Growth in the Size of Unit Loads and Shipping Containers from Antique to WWI. Packag. Technol. Sci. 2016, 29, 451–478. [Google Scholar] [CrossRef]
  4. Rodrigue, J.P. World Container Production, 2007, The Geography of Transport Systems. Hofstra University. 2013. Available online: https://transportgeography.org/wp-content/uploads/GTS_Third_Edition.pdf (accessed on 16 February 2022).
  5. Why Relocatable, Smit: Mobile Equipment B.V. Available online: https://smit.one/whyrelocatable.html (accessed on 3 July 2022).
  6. Minner, K. Mobile Hospital/Kukil Han. Available online: https://www.archdaily.com/153047/mobile-hospital-kukil-han (accessed on 27 July 2022).
  7. Cilento, K. Mobile Hospital/Hord Coplan Macht + Spevco. Available online: https://www.archdaily.com/54890/mobile-hospital-hord-coplan-macht-spevco (accessed on 27 July 2022).
  8. Dursun, P. Space Syntax in Architectural Design. In Proceedings of the 6th International Space Syntax Symposium, Istanbul, Turkey, 12–15 June 2007. [Google Scholar]
  9. Arslan, H.D.; Köken, B. Evaluation of the Space Syntax Analysis in Post-Strengthening Hospital Buildings. Archit. Res. 2016, 6, 88–97. [Google Scholar] [CrossRef]
  10. Pramanik, A.; Haymaker, J.; Swarts, M.; Zimring, C. Integrating clinic process flow, space syntax and space adjacency analysis: Formalization of computational method in building programming. SIGRADI 2015, 2, 262–272. [Google Scholar] [CrossRef]
  11. Setola, N.; Borgianni, S.; Martinez, M.; Tobari, E. The Role of Spatial Layout of Hospital Public Spaces in Informal patient-medical Staff Interface. In Proceedings of the Ninth International Space Syntax Symposium, Sejong University, Seoul, Korea, 31 October—3 November 2013. [Google Scholar]
  12. Chen, M.; Ko, Y.; Hsieh, W. Exploring the Planning and Configuration of the Hospital Wayfinding System by Space Syntax: A Case Study of Cheng Ching Hospital, Chung Kang Branch in Taiwan. ISPRS Int. J. Geo-Inf. 2021, 10, 570. [Google Scholar] [CrossRef]
  13. Setola, N. A New Approach to the Flows System Analysis in the Teaching Hospitals. In Proceedings of the 7th International Space Syntax Symposium, Stockholm, Sweden, 8–11 June 2009; Available online: https://sss7.org/Proceedings/10ArchitecturalResearchandArchitecturalDesign/S099_Setola.pdf (accessed on 3 April 2022).
  14. Khan, N. Constructing Genotype in Hospital Design: A comparative study of the layouts of hospital buildings in Bangladesh. In Proceedings of the Ninth International Space Syntax Symposium, Sejong University, Seoul, Korea, 31 October–3 November 2013. [Google Scholar]
  15. Beck, M.; Turkienicz, B. Visibility and permeability: Complementary syntactical attributes of wayfinding. In Proceedings of the Seventh International Space Syntax Symposium, Royal Institute of Technology, Stockholm, Sweden, 1–7 September 2009. [Google Scholar]
  16. Sadek, A.H. A comprehensive approach to facilitate wayfinding in healthcare facilities. Des. Health 2015, 3, 1–11. [Google Scholar] [CrossRef]
  17. Facility Guidelines Institute. Guidelines for Design and Construction of Hospitals and Outpatient Facilities; Includes ANSI/ASHRAE/ASHE; Facility Guidelines Institute: New York, NY, USA, 2018; ISBN 978-0-87258-943-8. (eBook edition). [Google Scholar]
  18. Neufert, E. Architects’ Data, 4th ed.; Wiley-Blackwell: New York, NY, USA, 2019; ISBN 978-1-119-28435-2. [Google Scholar]
  19. Lynch, K. The Image of the City; MIT Press: Cambridge, MA, USA, 1960. [Google Scholar]
  20. Mollerup, P. Wayshowing in the hospital. AMJ 2009, 1, 112–114. [Google Scholar] [CrossRef]
  21. Carpman, J.R.; Grant, M.A.; Simmons, D.A. Hospital Design and Wayfinding: A Video Simulation Study. Environ. Behav. 1985, 17, 296–314. [Google Scholar] [CrossRef]
  22. Carroll, B.J. Human Cognitive Abilities: A Survey of Factor-Analytic Studies; Cambridge University Press: Cambridge, UK, 1993. [Google Scholar]
  23. O’Neill, M.J. Effects of Signage and Floor Plan Configuration on Wayfinding Accuracy. Environ. Behav. 1991, 23, 553–574. [Google Scholar] [CrossRef]
  24. Haq, S.; Luo, Y. Space Syntax in Healthcare Facilities Research: A Review. HERD Health Environ. Res. Des. J. 2012, 5, 98–117. [Google Scholar] [CrossRef] [PubMed]
  25. Cambridge Dictionary, Cambridge Dictionary Official Website. Available online: https://dictionary.cambridge.org/ (accessed on 21 February 2022).
  26. Cocina, G.G. Responding to User Cultural Needs in Hospitals with the Support of Space Syntax Analysis. Available online: https://www.semanticscholar.org/paper/Responding-to-user-cultural-needs-in-hospitals-with-Cocina/f47389e1640c8ce4027edb3b277fa655d019283b (accessed on 23 June 2022).
  27. Wagner, M. Recovery and Rehabilitation Mosul: Strengthening the Resilience of Vulnerable Populations in Nineveh, Iraq. Available online: https://www.giz.de/en/worldwide/83031.html (accessed on 4 August 2022).
  28. Al-Sayed, K. Space Syntax Methodology; Bartlett School of Architecture, UCL: London, UK, 2018. [Google Scholar]
Figure 1. Steps of creating buildings with containers.
Figure 1. Steps of creating buildings with containers.
Buildings 12 01539 g001

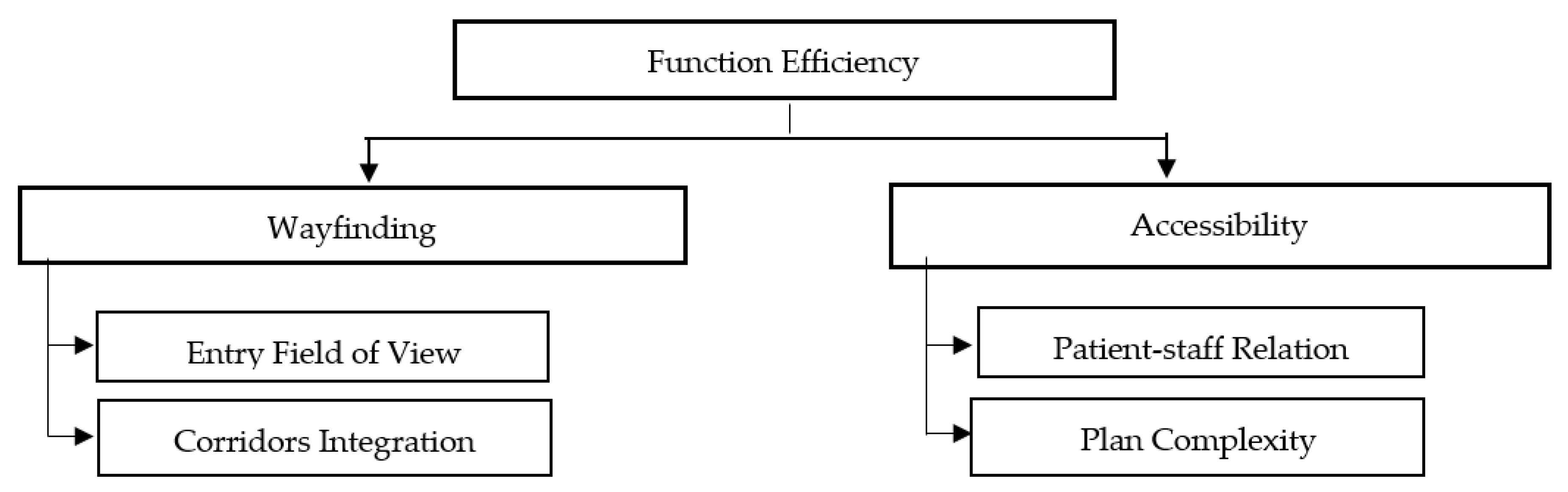

Figure 2. The study factors and indicators.
Figure 2. The study factors and indicators.
Buildings 12 01539 g002

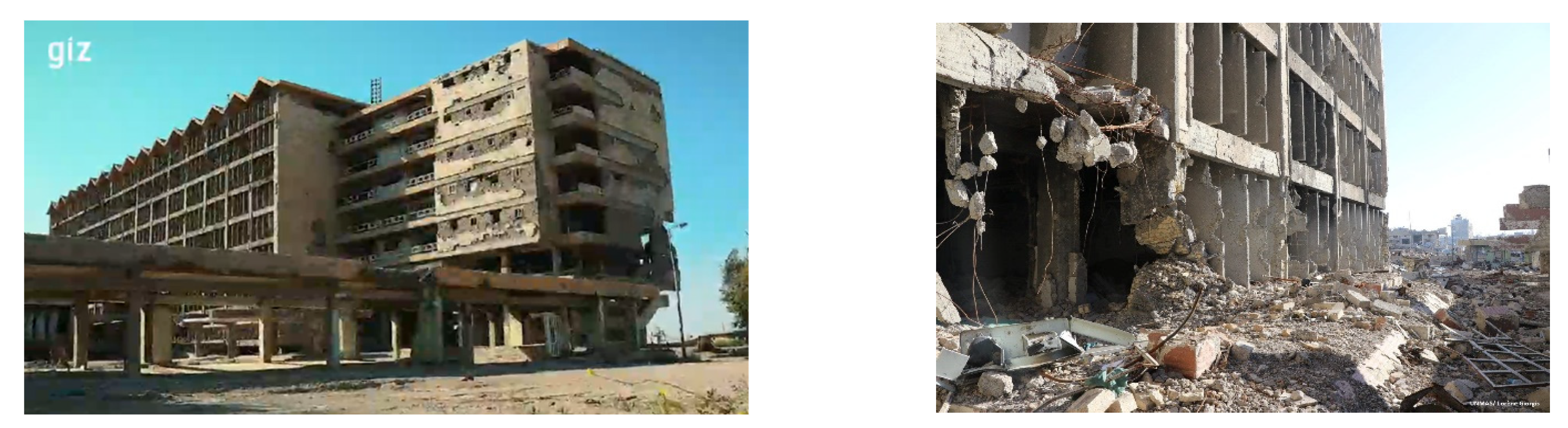

Figure 3. Al ‘Salaam hospital in Mosul after the Islamic State (IS) era [27].
Figure 3. Al ‘Salaam hospital in Mosul after the Islamic State (IS) era [27].
Buildings 12 01539 g003

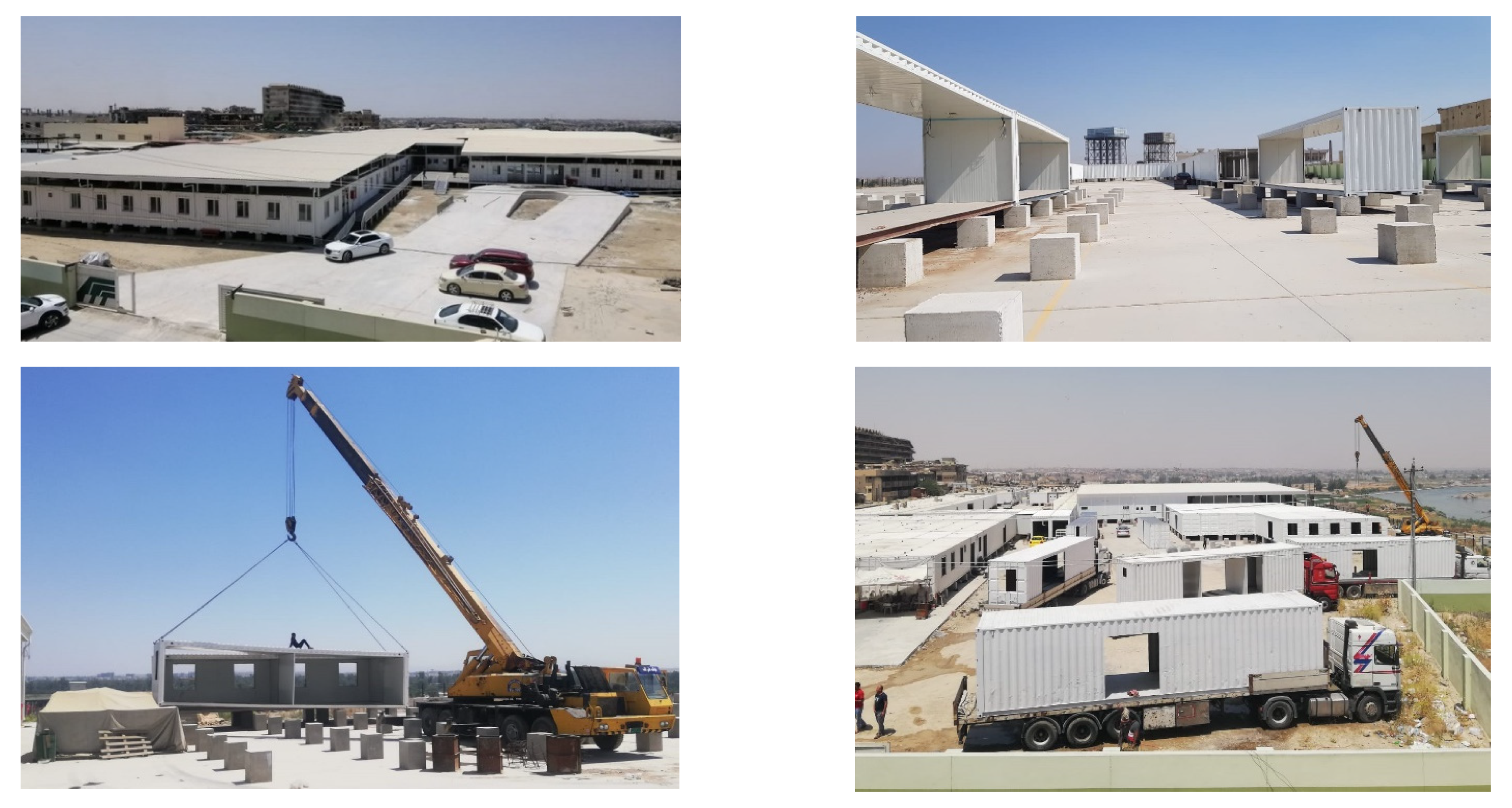

Figure 4. Photographic documentation of the relocatable hospital in Mosul.
Figure 4. Photographic documentation of the relocatable hospital in Mosul.
Buildings 12 01539 g004
Figure 5. Site plan of the Mosul relocatable hospital in the city of Mosul. Case study.
Figure 5. Site plan of the Mosul relocatable hospital in the city of Mosul. Case study.
Buildings 12 01539 g005

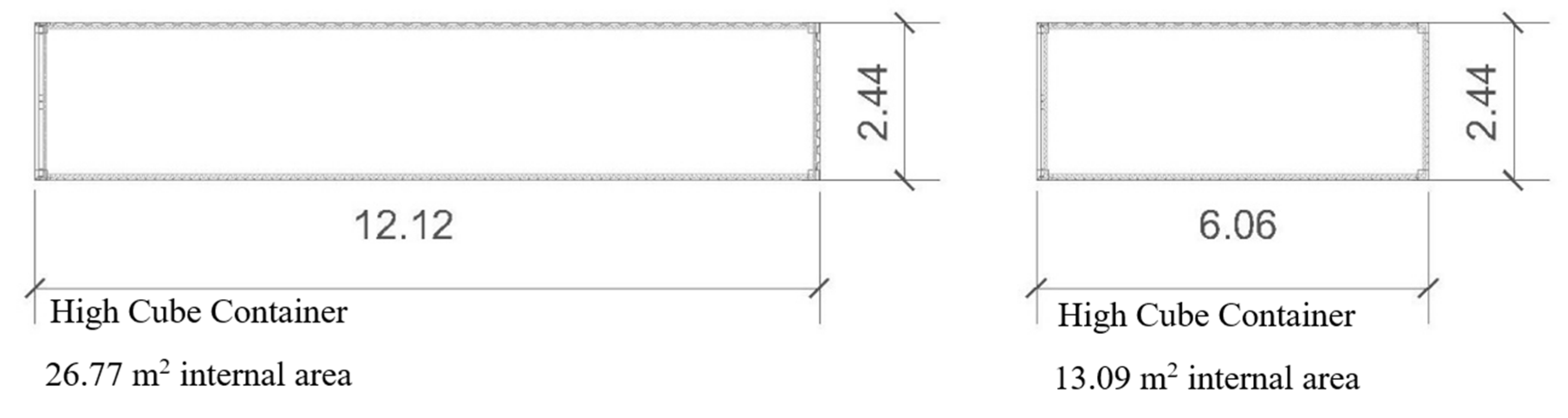

Figure 6. Types of containers used in the case study.
Figure 6. Types of containers used in the case study.
Buildings 12 01539 g006
Table 1. Space syntax methods used in the study.
Table 1. Space syntax methods used in the study.
Functional
Efficiency
FactorsIndicatorSpace Syntax MapSpace Syntax Indicator
Way FindingEntry field of viewIsovistIsovist Area
Corridors integrationAxial mapIntegration
AccessibilityPatient-staff relationVGAConnectivity
Integration
Plan ComplexityConvex MapDepth

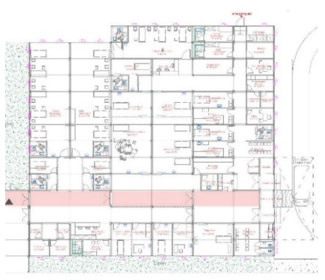

Table 2. Dimensional requirements of the emergency department compared to standards.
Table 2. Dimensional requirements of the emergency department compared to standards.
Emergency PlanDimensions Details
DescriptionStandardIn PlanDef.
Buildings 12 01539 i001Single-bed Patient Room11.15 m213.09 m21.94+
Multiple-bed Patient Room, Per bed9.29 m219.58 m2+10.29
15 m2+5.71
Ambulance Ent. Width1.83 m2.3 m+0.47
Trauma Room23.23 m248.24 m2+25
Treatment Room11.15 m213.34 m2+2.19
Consultation Room11.15 m213.34 m2+2.19
Clearance around stretcher.1.52 m2 m+0.48
Operating Room30 m248.24 m2+18.24
Nurse Work Ares25 m226.15 m2+1.15
Staff Rest15 m29.12 m2−5.88
Clean Room10 m26.41 m2−3.59
Corridor2.25 m2.25 m0
Service Corridor1.5 m2.18 m0.68

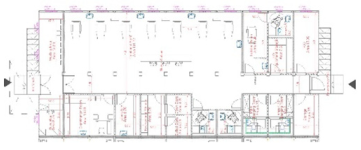

Table 3. Dimensional requirements of the dialysis department compared to standards.
Table 3. Dimensional requirements of the dialysis department compared to standards.
Dialysis PlanDimensions Details
DescriptionStandardIn PlanDef.
Buildings 12 01539 i002Examination Room11.15 m218.23 m2+7.08
Treatment Area, Per Chair7.44 m29.89 m2+2.45
Clearance Between chairs1.22 m1.5 m+0.28
From Nurse Station to Chair1.83 m1.9 m+0.07
Isolated Room9.29 m13.09 m2+3.8
Nurse Work Area15 m218.9 m2+3.9
Staff Rest15 m213.09 m2−1.91
Clean Room10 m28.76 m2−1.24
Corridor1.5 m1.8 m+0.3
Table 4. Dimensional requirements of the pediatric department compared to standards.
Table 4. Dimensional requirements of the pediatric department compared to standards.
Pediatric PlanDimensions Details
DescriptionStandardIn PlanDef.
Buildings 12 01539 i003Single-bed Patient Room9.29 m219.67 m2+10.38
Multiple-bed Patient Room, Per bed7.43 m211.42 m2+3.99
Treatment Room11.15 m28.76 m2+2.19
Nurse work Ares15 m217.27 m2+2.27
Staff Rest15 m28.76 m2−6.24
Clean Room10 m213.09 m2+3.09
Corridor2.25 m2.25 m0
Service Corridor1.5 m1.8 m+0.3
Table 5. Dimensional requirements of the outpatient department compared to standards.
Table 5. Dimensional requirements of the outpatient department compared to standards.
Outpatient PlanDimensions Details
DescriptionStandardIn PlanDef.
Buildings 12 01539 i004Consultation Room11.15 m213.09 m2+1.94
18.28 m2+7.13
Treatment room11.15 m218.24 m2+7.09
Examination room7.43 m213.09 m2+5.66
ENT20 m218.09 m2−1.91
Clean Room10 m28.78 m2−1.22
Laboratory15 m213.09 m2−1.91
Corridor2.25 m1.8 m−0.45
Table 6. Dimensional requirements of the radiology department compared to standards.
Table 6. Dimensional requirements of the radiology department compared to standards.
Radiology PlanDimensions Details
DescriptionStandardIn PlanDef.
Buildings 12 01539 i005Ultrasound Examination or Procedure Rooms11.15 m213.35 m2+2.2
X-Ray20 m227.27 m2+7.27
Consultation Room11.15 m213.09 m2+1.94
Control10 m213.09 m2+3.09
Storage10 m214.66 m2+4.66
Service Corridor1.5 m1.12 m−0.38
Table 7. Dimensional requirements of the endoscopy department compared to standards.
Table 7. Dimensional requirements of the endoscopy department compared to standards.
Endoscopy PlanDimensions Details
DescriptionStandardIn PlanDef.
Buildings 12 01539 i006Procedure Room11.15 m227.27 m2+16.12
Clearance at each side, head, and foot of the stretcher1.07 m1.35 m2+0.28
Pre-Procedure, Per bed5.58 m25.6 m2+0.02
Pre-Procedure clearance.1.52 m1.2 m−0.3
Post-Procedure, Per bed7.43 m28.03 m2+0.6
Post-Procedure clearance.1.52 m1.2 m−0.32
Sterilization10 m213.09 m2+3.09
Consultation Room11.15 m213.09 m2+1.94
Table 8. Dimensional requirements of the laboratory department compared to standards.
Table 8. Dimensional requirements of the laboratory department compared to standards.
Laboratory PlanDimensions Details
DescriptionStandardIn PlanDef.
Buildings 12 01539 i007Taking Blood samples5.76 m210 m2+4.24
Laboratory Work35 m270 m2+35
Storage10 m26.74 m2−3.26
Table 9. Dimensional requirements of the wards compared to standards.
Table 9. Dimensional requirements of the wards compared to standards.
Ward PlanDimensions Details
DescriptionStandardIn PlanDef.
Buildings 12 01539 i008Single-bed Patient Room11.15 m216.85 m2+5.7
Multiple-bed Patient Room, Per bed9.29 m211.41 m2+1.85
12.62 m2+3.33
Clearance multiple-bed 1.52 m1.78 m+0.26
Ward Corridor2.25 m2.25 m0
Service Corridor1.5 m1.9 m+0.4
Nurse work Ares25 m226 m2+1
Procedure Room11.15 m210.16 m2−0.99
Staff Rest15 m210.48 m2−4.52
Clean Room10 m210.03 m2+0.03
Table 10. Examples used in the space syntax analysis. Adapted from ref. [18].
Table 10. Examples used in the space syntax analysis. Adapted from ref. [18].
EmergencyDialysisPediatricOutpatient
Buildings 12 01539 i009 Buildings 12 01539 i010 Buildings 12 01539 i011 Buildings 12 01539 i012
Helios Clinic, Gotha, Arch.: Worner+ Partner.Hellos Clinic, Gotha, Arch.: Worner+ Partner.Velbert Municipal Hospital.Oskar-Ziethen Hospital, Arch.: Deubzer Architekten.
RadiologyEndoscopyLaboratoryWards
Buildings 12 01539 i013 Buildings 12 01539 i014 Buildings 12 01539 i015 Buildings 12 01539 i016
St Johann Nepomuk Catholic Hospital, Arch.: Thiede Klosges.Beizig Hospital Arch.: Thiede KlosgesSoltau Distric Hospital. Arch.: Poelzig + BiermannSt Elisabeth Hospital, Halle. Arch.: U + A Weicken
Table 11. Examples used in the space syntax analysis.
Table 11. Examples used in the space syntax analysis.
DepartmentArea (Case Study)Ares Example (Nufert)
Emergency1208 m2750 m2
Dialysis324.8 m2522 m2
Pediatric486.5 m2566 m2
Outpatient443 m2532 m2
Radiology310 m2466 m2
Endoscopy180 m2160 m2
Laboratory134.5 m2177 m2
Ward1137 m2914 m2
Table 12. Isovist area values and graphs of case study departments compared to examples.
Table 12. Isovist area values and graphs of case study departments compared to examples.
DepartmentsIsovist Area
Relocatable HospitalExamplesDef.
Emergency Buildings 12 01539 i017 Buildings 12 01539 i018
155136.1+18.9
Dialysis Buildings 12 01539 i019 Buildings 12 01539 i020
102.293.7+8.5
Pediatric Buildings 12 01539 i021 Buildings 12 01539 i022
95.7121.4−25.7
Outpatient Buildings 12 01539 i023 Buildings 12 01539 i024
111.831.2+80.6
Radiology Buildings 12 01539 i025 Buildings 12 01539 i026
73.262.9+10.3
Endoscopy Buildings 12 01539 i027 Buildings 12 01539 i028
45.426.7+18.7
Laboratory Buildings 12 01539 i029 Buildings 12 01539 i030
55.636.6+19
Wards Buildings 12 01539 i031 Buildings 12 01539 i032
182.1140.9+41.2
Buildings 12 01539 i033 Coverage of the viewing area from a point in the entrance
Table 13. Axial Map/Integration values and the graphs of case study departments compared to examples.
Table 13. Axial Map/Integration values and the graphs of case study departments compared to examples.
DepartmentsAxial Map/Integration
Relocatable HospitalExamplesDef.
Emergency Buildings 12 01539 i034 Buildings 12 01539 i035
5.325.25+0.07
Dialysis Buildings 12 01539 i036 Buildings 12 01539 i037
9.768.37+1.39
Pediatric Buildings 12 01539 i038 Buildings 12 01539 i039
5.796.6−0.81
Outpatient Buildings 12 01539 i040 Buildings 12 01539 i041
6.854.8+2.05
Radiology Buildings 12 01539 i042 Buildings 12 01539 i043
5.516.19−0.68
Endoscopy Buildings 12 01539 i044 Buildings 12 01539 i045
8.136.52+1.61
Laboratory Buildings 12 01539 i046 Buildings 12 01539 i047
8.035.62+2.41
Wards Buildings 12 01539 i048 Buildings 12 01539 i049
5.857.46−1.61
Buildings 12 01539 i050
Table 14. Visual graph analysis/connectivity values and graphs of case study departments compared to examples.
Table 14. Visual graph analysis/connectivity values and graphs of case study departments compared to examples.
DepartmentsVGA/ConnectivityDef.
Relocatable HospitalExamples
Emergency Buildings 12 01539 i051 Buildings 12 01539 i052
765.5555.5+210
Dialysis Buildings 12 01539 i053 Buildings 12 01539 i054
766.4487.5+278.9
Pediatric Buildings 12 01539 i055 Buildings 12 01539 i056
471.9522.4−50.5
Outpatient Buildings 12 01539 i057 Buildings 12 01539 i058
548.9271.5+277.4
Radiology Buildings 12 01539 i059 Buildings 12 01539 i060
323633.8−310.8
Endoscopy Buildings 12 01539 i061 Buildings 12 01539 i062
355.3481−125.7
Laboratory Buildings 12 01539 i063 Buildings 12 01539 i064
538.2308.8+229.4
Wards Buildings 12 01539 i065 Buildings 12 01539 i066
742.6573.5+169.1
Buildings 12 01539 i067
Table 15. Visual graph analysis/integration values and graphs of case study departments compared to examples.
Table 15. Visual graph analysis/integration values and graphs of case study departments compared to examples.
DepartmentsVGA/integration
Relocatable HospitalExamplesDef.
Emergency Buildings 12 01539 i068 Buildings 12 01539 i069
5.295.52−0.23
Dialysis Buildings 12 01539 i070 Buildings 12 01539 i071
9.36.38+2.92
Pediatric Buildings 12 01539 i072 Buildings 12 01539 i073
5.076.67−1.6
Outpatient Buildings 12 01539 i074 Buildings 12 01539 i075
6.494.45+2.04
Radiology Buildings 12 01539 i076 Buildings 12 01539 i077
5.427.72−2.3
Endoscopy Buildings 12 01539 i078 Buildings 12 01539 i079
8.117.11+1
Laboratory Buildings 12 01539 i080 Buildings 12 01539 i081
12.956.12+6.83
Wards Buildings 12 01539 i082 Buildings 12 01539 i083
6.696.55+0.14
Buildings 12 01539 i084
Table 16. Convex map analysis/depth values and graphs of the case study departments compared to examples.
Table 16. Convex map analysis/depth values and graphs of the case study departments compared to examples.
DepartmentsConvex Map/Depth
Relocatable HospitalExamplesDef.
Emergency Buildings 12 01539 i085 Buildings 12 01539 i086
4.892.95−1.94
Dialysis Buildings 12 01539 i087 Buildings 12 01539 i088
2.882.18−0.7
Pediatric Buildings 12 01539 i089 Buildings 12 01539 i090
2.822.63−0.19
Outpatient Buildings 12 01539 i091 Buildings 12 01539 i092
1.882.79+0.91
Radiology Buildings 12 01539 i093 Buildings 12 01539 i094
3.672.1−1.57
Endoscopy Buildings 12 01539 i095 Buildings 12 01539 i096
2.22.78+0.58
Laboratory Buildings 12 01539 i097 Buildings 12 01539 i098
1.932.6+0.67
Wards Buildings 12 01539 i099 Buildings 12 01539 i100
3.462.54−0.92
Buildings 12 01539 i101
Table 17. Overall deferent rate in all space syntax analyses.
Table 17. Overall deferent rate in all space syntax analyses.
DepartmentsFunctional Efficiency
Way FindingAccessibility
Entry Field of ViewCorridors IntegrationPatient-Staff RelationPlan Complexity
IsovistAxial MapVGAConvex Map
Isovist AreaIntegrationConnectivityIntegrationDepth
Emergency+0.19+0.07+2.10−0.23−1.94
Dialysis+0.08+1.39+2.79+2.92−0.7
Pediatric−0.25−0.81−0.51−1.6−0.19
Outpatient+0.8+2.05+2.77+2.04+0.91
Radiology+0.10−0.68−3.11−2.3−1.57
Endoscopy+0.19+1.61−1.26+1+0.58
Laboratory+0.19+2.41+2.29+6.83+0.67
Wards+0.41−1.61+1.69+0.14−0.92
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ismael, Z.K.; Khalil, K.F. Space Performance Assessment of a Relocatable Health Facility: Mosul Hospital as a Case Study. Buildings 2022, 12, 1539. https://doi.org/10.3390/buildings12101539

AMA Style

Ismael ZK, Khalil KF. Space Performance Assessment of a Relocatable Health Facility: Mosul Hospital as a Case Study. Buildings. 2022; 12(10):1539. https://doi.org/10.3390/buildings12101539

Chicago/Turabian Style

Ismael, Zhiman Khairi, and Kadhim Fathel Khalil. 2022. "Space Performance Assessment of a Relocatable Health Facility: Mosul Hospital as a Case Study" Buildings 12, no. 10: 1539. https://doi.org/10.3390/buildings12101539

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
