The Impact of Imperfect Maintenance Scheduling on the Physical Degradation of Painted Renderings
Abstract
:1. Introduction

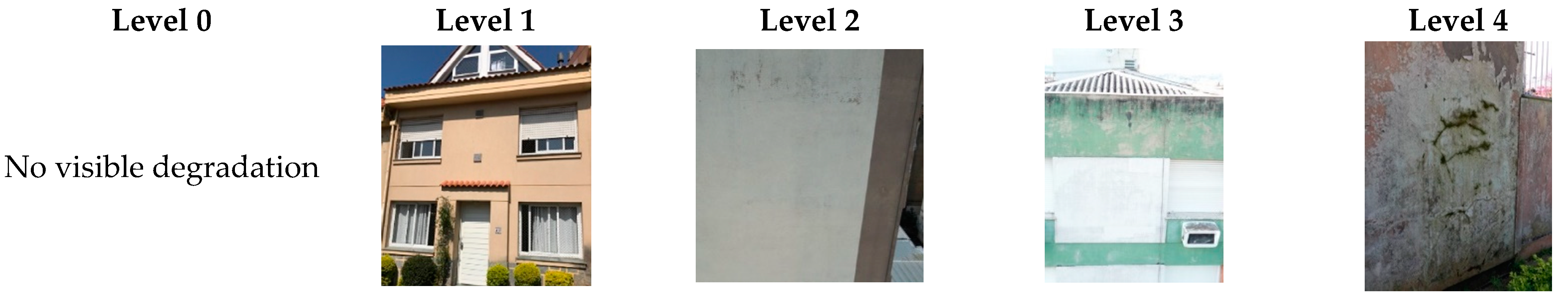

2. Assessment of the Degradation Condition of Painted Rendered Façades
3. Maintenance and Refurbishment Services Carried Out on Painted Renderings
3.1. Simple Linear Regression
3.2. Graphic Method for Each Case Study
4. Discussion
- Different services led to distinct decreases in the physical degradation of the façades;

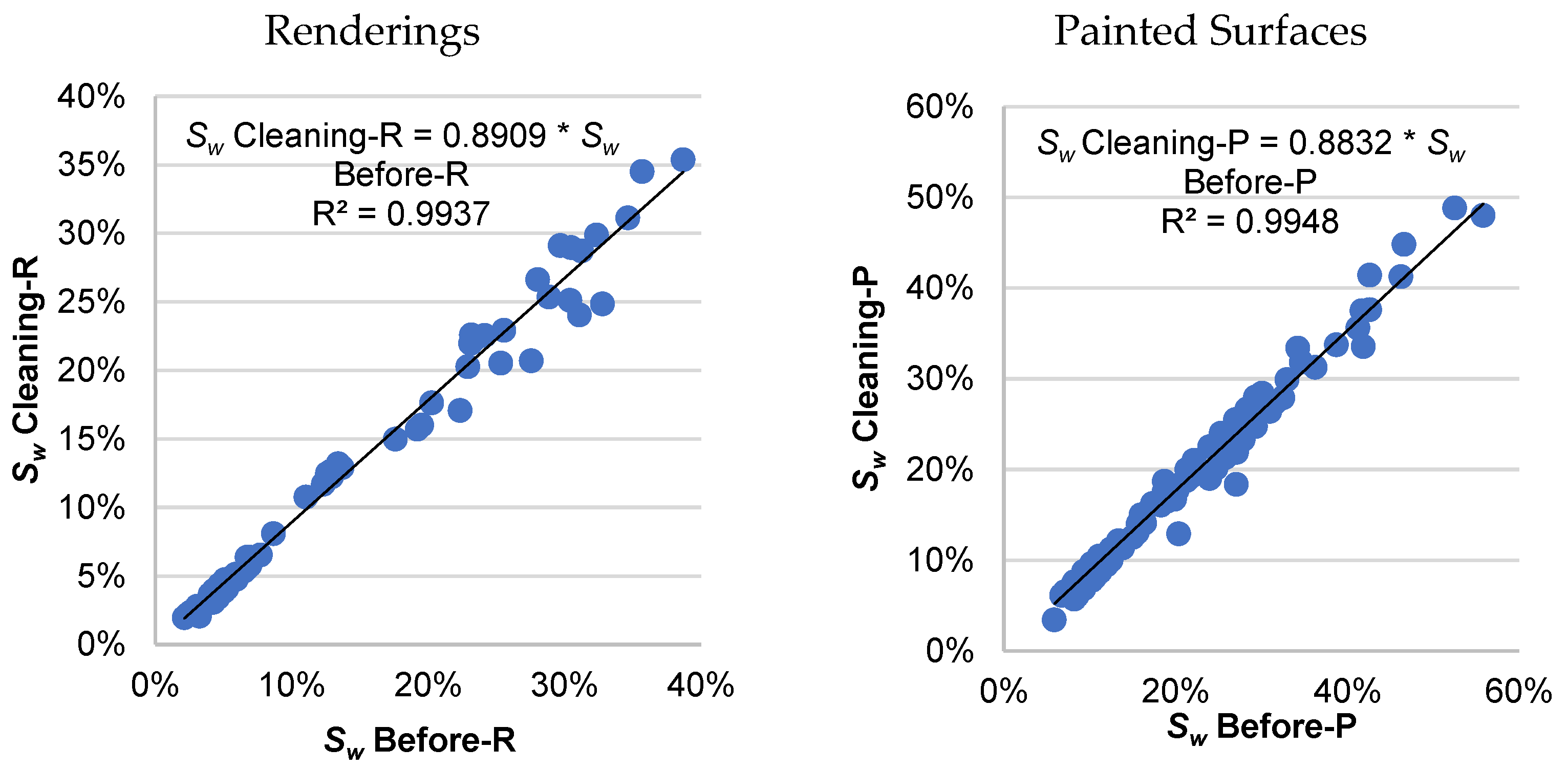

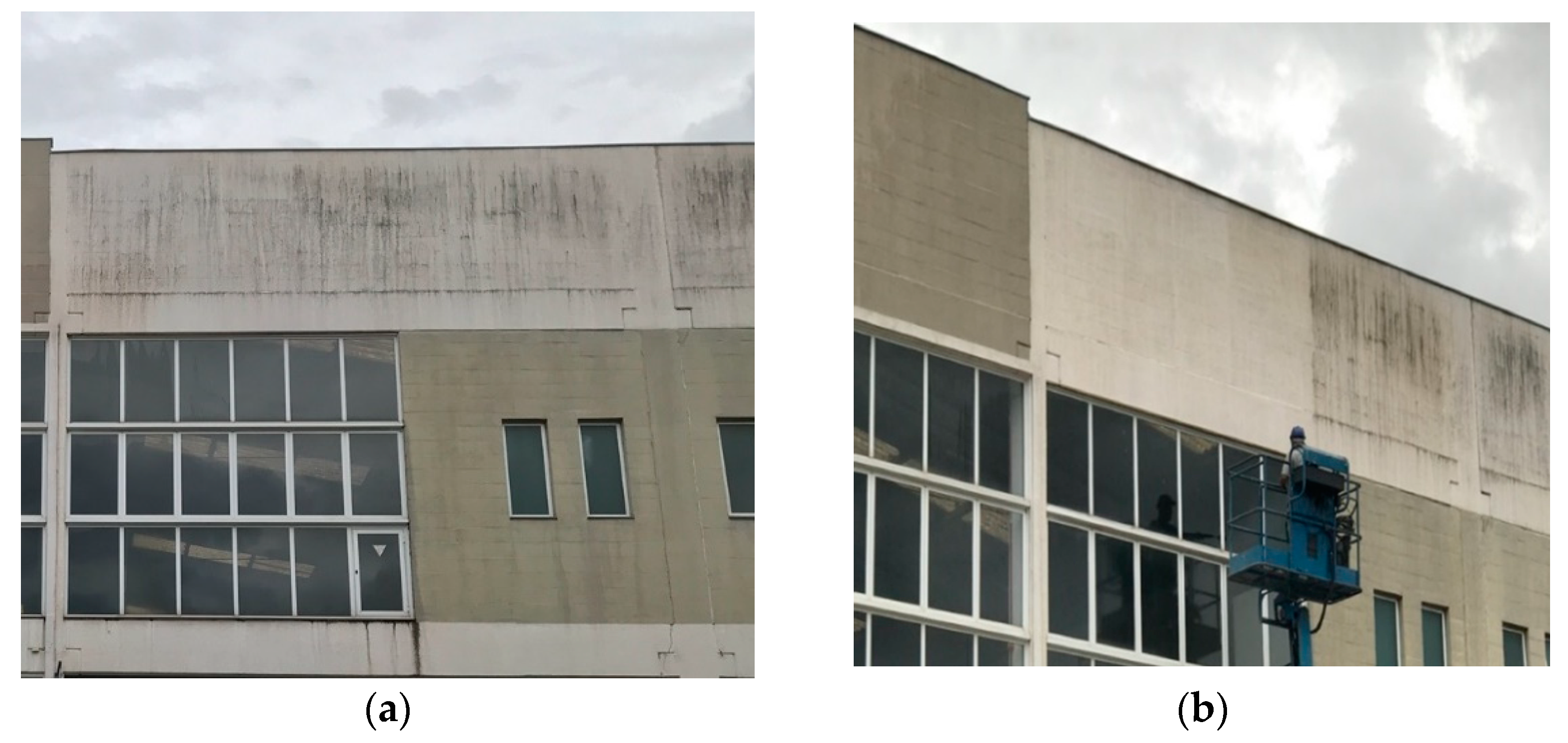

- Cleaning operations reduced, on average, 13% (12.2% for renderings and 13.2% for painted surfaces) of the overall severity of degradation;
- Ferreira et al. [62] corroborate these results, suggesting that the adoption of minor interventions or cleaning operations can increase operating costs, but, on the other hand, when carried out with an adequate frequency, can allow the performance of components to be maintained at high standards during most or part of their service life, thus, promoting its durability;

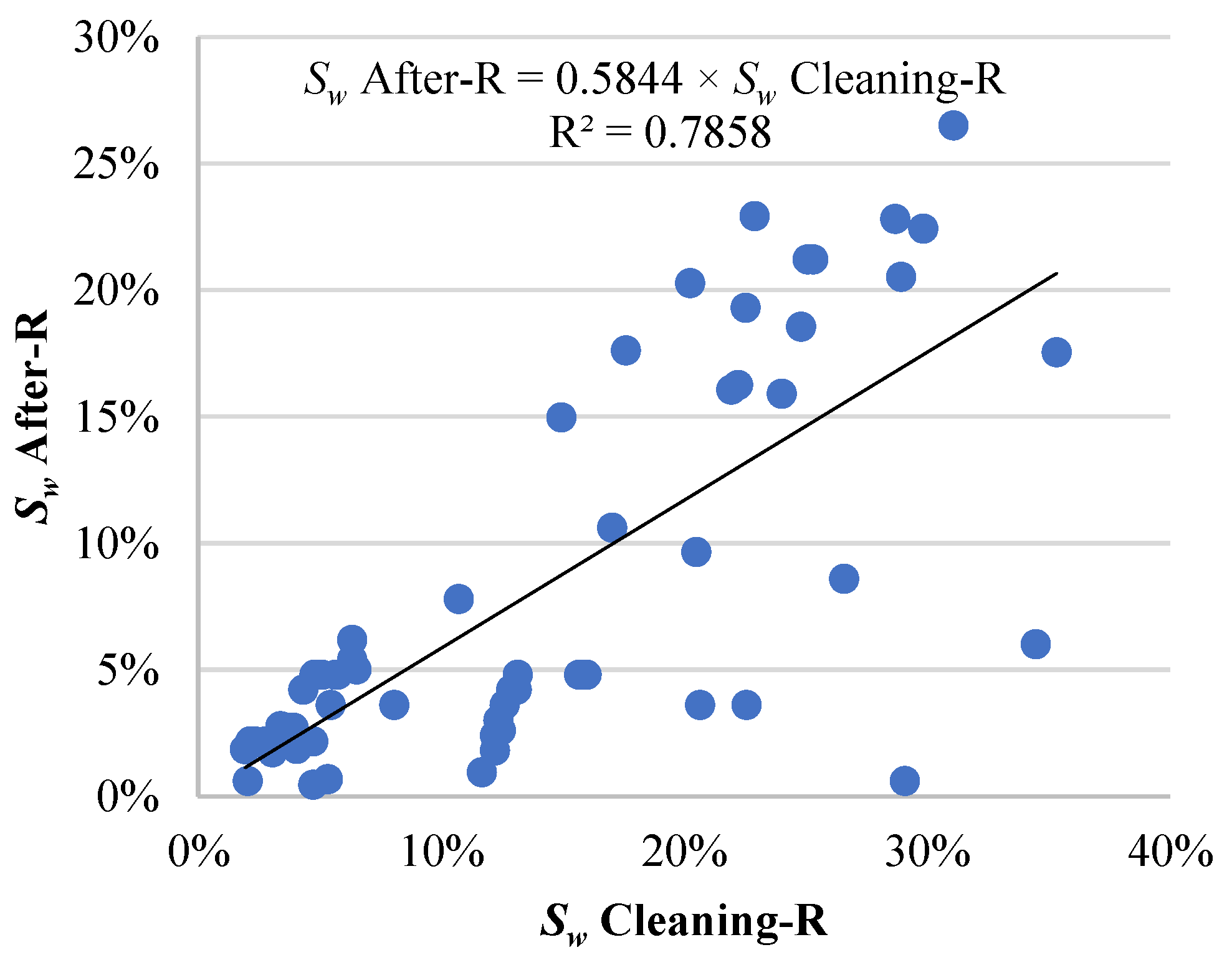

- Partial repair of renderings reduced, on average, 71.1% of the façade’s overall severity of degradation;
- According to Table 1, Table 4 and Table 5, and other findings, there was a lack of technical basis in decision making. This probably stemmed from the lack of: (i) interaction between the design, the execution and the maintenance phases and (ii) the lack of periodic inspections and/or technically inefficient guidance/reporting;
- According to Table 5, among the 79 renderings inspected:
- ○
- In 49 cases or in 62% of the sample, rehabilitation was carried out before the end of their service life;
- ○
- In 15 cases or in 19% of the sample, rehabilitation was carried out after the end of their service life, with an average delay of 5 years;
- ○
- In only 15 cases (19% of the sample), interventions were carried out at the appropriate time in relation to the end of the element’s service life.
- According to Table 5, of the 86 painted surfaces inspected:
- ○
- In 23 cases or in 27% of the sample, rehabilitation was carried out before the end of their service life, with an average remaining period at the time of the intervention of 5 years (for the most favorable combination of coatings’ characteristics);
- ○
- In 30 cases or in 35% of the sample, rehabilitation was carried out after the end of their service life, with an average delay of 6 years;
- ○
- In 33 cases, or in 38% of the sample, interventions were carried out at the appropriate time in relation to the end of the element’s service life.
- Ferreira et al. [8] corroborate these results by suggesting that maintenance actions are carried out before the appropriate time, which leads to unnecessary costs or postpones the intervention to moments of urgency, when users’ safety may already be compromised. Cardinal et al. [64] also suggested that the inspections tended to result in reactive maintenance, and in this sense, the inspections should be performed more frequently, according to a planned maintenance strategy, to optimize the moments for interventions in a cost-effective way;
- The record of interventions carried out during the life cycle of the sample analyzed did not meet the technical guidelines of the ABNT [5,28,65]. In this sense, Kanniyapan et al. [39], Silva, Brito and Gaspar [12], Silva, Ranasinghe and Silva [40], Souza [41], Wu et al. [42] and Zanoni [43] cautioned that academic researchers and industry professionals face difficulties in obtaining data on anomalies resulting from a lack of maintenance.
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Zhu, L.; Shan, M.; Hwang, B.-G. Overview of design for maintainability in building and construction research. J. Perform. Constr. Facil. 2018, 32, 04017116. [Google Scholar] [CrossRef]
- Love, P.E.D.; Li, H. Quantifying the causes and costs of rework in construction. Constr. Manag. Econ. 2000, 18, 479–490. [Google Scholar] [CrossRef]
- Flores-Colen, I.; Brito, J. A systematic approach for maintenance budgeting of buildings façades based on predictive and preventive strategies. Constr. Build. Mater. 2010, 24, 1718–1729. [Google Scholar] [CrossRef]
- Kirk, S.J.; Dell’Isola, A.J. Life Cycle Costing for Design Professionals, 2nd ed.; McGraw Hill: New York, NY, USA, 1995. [Google Scholar]
- ABNT NBR 5674; Manutenção de Edificações: Requisitos para o Sistema de Gestão de Manutenção, 2. ed. ABNT: Rio de Janeiro, Brazil, 2012.
- ABNT NBR 15575-1; Edificações habitacionais: Desempenho: Parte 1: Requisitos Gerais, 4. ed. ABNT: Rio de Janeiro, Brazil, 2021.
- Chiang, Y.H.; Zhou, L.; Li, J.; Lam, P.T.I. Achieving sustainable building maintenance through optimizing life-cycle carbon, cost, and labor: Case in Hong Kong. J. Constr. Eng. Manag. 2014, 140, 05014001. [Google Scholar] [CrossRef]
- Ferreira, C.; Dias, I.S.; Silva, A.; Brito, J.; Flores-Colen, I. Criteria for selection of cladding systems based on their maintainability. J. Build. Eng. 2021, 39, 102260. [Google Scholar] [CrossRef]
- Gaspar, P.M.S.L. Vida Útil das Construções: Desenvolvimento de uma Metodologia para a Estimativa da Durabilidade de Elementos da Construção: Aplicação a Rebocos de Edifícios Correntes. Master’s Thesis, Universidade Tecnica de Lisboa, Lisboa, Portugal, 2009. [Google Scholar]
- Ruparathna, R.; Hewage, K.; Sadiq, R. Multi-period maintenance planning for public buildings: A risk based approach for climate conscious operation. J. Clean. Prod. 2018, 170, 1338–1353. [Google Scholar] [CrossRef]
- Silva, A.; Brito, J. Do we need a buildings’ inspection, diagnosis and service life prediction software? J. Build. Eng. 2019, 22, 335–348. [Google Scholar] [CrossRef]
- Silva, A.; Brito, J.; Gaspar, P.L. Methodologies for Service Life Prediction of Buildings: With a Focus on Façade Claddings; Springer International: New York, NY, USA, 2016. [Google Scholar]
- Chai, C.; Brito, J.; Gaspar, P.L.; Silva, A. Predicting the service life of exterior wall painting: Techno-economic analysis of alternative maintenance strategies. J. Constr. Eng. Manag. 2014, 140, 04013057. [Google Scholar] [CrossRef]
- Grussing, M.N. Life cycle asset management methodologies for buildings. J. Infrastruct. Syst. 2014, 20, 04013007. [Google Scholar] [CrossRef]
- Hovde, P.J. From Theoretical Evaluation to Practical Implementation. In Proceedings of the 9th DBMC International Conference on Durability of Building Materials and Components, Brisbane, Australia, 17–21 March 2002; Available online: https://www.irbnet.de/daten/iconda/CIB9332.pdf (accessed on 10 June 2021).
- ISO 15.686-1; Buildings and Constructed Assets: Service Life Planning: Part 1: General Principles and Framework, 2nd ed. ISO: Geneva, Switzerland, 2011.
- Paulo, P.; Branco, F.; Brito, J.; Silva, A. BuildingsLife: The use of genetic algorithms for maintenance plan optimization. J. Clean. Prod. 2016, 121, 84–98. [Google Scholar] [CrossRef]
- Prieto, A.J.; Silva, A.; Brito, J.; Macias-Bernal, J.M.M. Serviceability of facade claddings. Build. Res. Inf. 2018, 46, 179–190. [Google Scholar] [CrossRef]
- Haagenrud, S.E. Factors causing degradation. In Guide and Bibliography to Service Life and Durability Research for Building Material and Components; Jernberg, P., Lacasse, M.A., Haagenrud, S.E., Sjöström, C., Eds.; CIB: Rotterdam, The Netherlands, 2004; pp. 2-1–2-105. Available online: http://www.irbnet.de/daten/iconda/CIB1073.pdf (accessed on 12 July 2021).
- Dann, N.; Cantell, T. Maintenance in conservation. In Understanding Historic Building; Forsyth, M., Ed.; Blackwell: Oxford, UK, 2007; pp. 185–198. [Google Scholar]
- Wood, B. Maintenance integrated design and manufacture of buildings: Toward a sustainable model. J. Arch. Eng. 2012, 18, 192–197. [Google Scholar] [CrossRef]
- Madureira, S.; Flores-Colen, I.; Brito, J.; Pereira, C. Maintenance planning of facades in current buildings. Constr. Build. Mater. 2017, 147, 790–802. [Google Scholar] [CrossRef]
- Nowogonska, B. Diagnoses in the aging process of residential buildings constructed using traditional technology. Buildings 2019, 9, 126. [Google Scholar] [CrossRef] [Green Version]
- Rodrigues, F.; Matos, R.; Di Prizio, M.; Costa, A. Conservation level of residential buildings: Methodology evolution. Constr. Build. Mater. 2018, 172, 781–786. [Google Scholar] [CrossRef]
- Brito, J.; Pereira, C.; Silvestre, J.D.; Flores-Colen, I. Expert Knowledge-Based Inspection Systems: Inspection, Diagnosis, and Repair of the Building Envelope; Springer: Cham, Switzerland, 2020. [Google Scholar]
- Watt, D. Building Pathology: Principles and Practice, 2nd ed.; Blackwell: Oxford, UK, 2007. [Google Scholar]
- ABNT NBR 5671; Participação dos Intervenientes em Serviços e Obras de Engenharia e Arquitetura. ABNT: Rio de Janeiro, Brazil, 1990.
- ABNT NBR 16280; Reforma em Edificações: Sistema de Gestão de Reformas: Requisitos, 2. ed. ABNT: Rio de Janeiro, Brazil, 2020.
- Forcada, N.; Macarulla, M.; Gangolells, M.; Casals, M. Posthandover housing defects: Sources and origins. J. Perform. Constr. Facil. 2013, 27, 756–762. [Google Scholar] [CrossRef]
- Shohet, I.M.; Puterman, M.; Gilboa, E. Deterioration patterns of building cladding components for maintenance management. Constr. Manag. Econ. 2002, 20, 305–314. [Google Scholar] [CrossRef]
- Attia, S.; Bilir, S.; Safy, T.; Struck, C.; Loonen, R.; Goia, F. Current trends and future challenges in the performance assessment of adaptive façade systems. Energy Build. 2018, 179, 165–182. [Google Scholar] [CrossRef] [Green Version]
- Pereira, C.; Brito, J.; Silvestre, J.D. Harmonising the classification of diagnosis methods within a global building inspection system: Proposed methodology and analysis of fieldwork data. Eng. Fail. Anal. 2020, 115, 104627. [Google Scholar] [CrossRef]
- Pires, R.; Brito, J.; Amaro, B. Statistical survey of the inspection, diagnosis and repair of painted rendered facades. Struct. Infrastruct. Eng. 2015, 11, 605–618. [Google Scholar] [CrossRef]
- ABNT NBR 16747; Inspeção Predial: Diretrizes, Conceitos, Terminologia, Requisitos e Procedimento. ABNT: Rio de Janeiro, Brazil, 2020.
- De Paula Ramos, V.L.; Petersen, A.B.B.; Jacques, L.D.S. A relevância da manutenção predial para aferição da responsabilidade civil do construtor: Entre a Engenharia Civil, os Tribunais e o Direito. Rev. Direito Civ. Contemp. 2022; accepted. [Google Scholar]
- Ferraz, G.T.; Brito, J.; Freitas, V.P.; Silvestre, J.D. State-of-the-art: Review of building inspection systems. J. Perform. Constr. Facil. 2016, 30, 04016018. [Google Scholar] [CrossRef]
- Wang, Z.-Q.; Hu, C.-H.; Si, X.-S.; Zio, E. Remaining useful life prediction of degrading systems subjected to imperfect maintenance: Application to draught fans. Mech. Syst. Signal Process. 2018, 100, 802–813. [Google Scholar] [CrossRef]
- Xu, J.; Liang, Z.; Li, Y.-F.; Wang, K. Generalized condition-based maintenance optimization for multi-component systems considering stochastic dependency and imperfect maintenance. Reliab. Eng. Syst. Saf. 2021, 211, 107592. [Google Scholar] [CrossRef]
- Kanniyapan, G.; Mohammad, I.S.; Nesan, L.J.; Mohammed, M.A.H.B.; Asmoni, M.N.A.M.; Ganisen, S. Implementing maintainability in building material selection: A preliminary survey. J. Teknol. 2015, 77, 145–154. [Google Scholar] [CrossRef] [Green Version]
- Silva, N.; Ranasinghe, M.; Silva, C. Risk factors affecting building maintenance under tropical conditions. J. Financ. Manag. Prop. Constr. 2012, 17, 235–252. [Google Scholar] [CrossRef]
- Souza, J.S. Impacto dos Fatores de Degradação Sobre a Vida Útil de Fachadas de Edifícios. Ph.D. Thesis, Universidade de Brasília, Brasília, Brazil, 2019. [Google Scholar]
- Wu, S.; Neale, K.; Williamson, M.; Hornby, M. Research opportunities in maintenance of office building services system. J. Qual. Maint. Eng. 2010, 16, 23–33. [Google Scholar] [CrossRef] [Green Version]
- Zanoni, V.A.G. Influência dos Agentes Climáticos de Degradação no Comportamento Higrotérmico de Fachadas em Brasília. Ph.D. Thesis, Universidade de Brasília, Brasília, Brazil, 2015. [Google Scholar]
- Amos, D.; Musa, Z.N.; Au-Yong, C.P. A review of facilities management performance measurement. Prop. Manag. 2019, 37, 490–511. [Google Scholar] [CrossRef]
- Arditi, D.; Nawakorawit, M. Designing buildings for maintenance: Designers’ perspective. J. Arch. Eng. 1999, 5, 107–116. [Google Scholar] [CrossRef]
- Hassanain, M.A.; Fatayer, F.; Al-Hammad, A.-M. Design phase maintenance checklist for water supply and drainage systems. J. Perform. Constr. Facil. 2015, 29, 04014082. [Google Scholar] [CrossRef]
- Al-Hammad, A.; Assaf, S.; Al-Shihah, M. The effect of faulty design on building maintenance. J. Qual. Maint. Eng. 1997, 3, 29–39. [Google Scholar] [CrossRef]
- Ishak, N.H.; Chohan, A.H.; Ramly, A. Implications of design deficiency on building maintenance at post-occupational stage. J. Build. Apprais. 2007, 3, 115–124. [Google Scholar] [CrossRef] [Green Version]
- Kanniyapan, G.; Nesan, L.J.; Mohammad, I.S.; Keat, T.S.; Ponniah, V. Selection criteria of building material for optimising maintainability. Constr. Build. Mater. 2019, 221, 651–660. [Google Scholar] [CrossRef]
- Gaspar, P.L.; Brito, J. Quantifying environmental effects on cement-rendered facades: A comparison between different degradation indicators. Build. Environ. 2008, 43, 1818–1828. [Google Scholar] [CrossRef]
- Gaspar, P.L.; Brito, J. Limit states and service life of cement renders on façades. J. Mater. Civ. Eng. 2011, 23, 1396–1404. [Google Scholar] [CrossRef]
- Chai, C.; Brito, J.; Gaspar, P.L.; Silva, A. Statistical modelling of the service life prediction of painted surfaces. Int. J. Strateg. Prop. Manag. 2015, 19, 173–185. [Google Scholar] [CrossRef] [Green Version]
- Gaspar, P.L.; Brito, J. Service life estimation of cement-rendered facades. Build. Res. Inf. 2008, 36, 44–55. [Google Scholar] [CrossRef]
- Silva, A.; Brito, J.; Gaspar, P.L. Application of the factor method to maintenance decision support for stone cladding. Autom. Constr. 2012, 22, 165–174. [Google Scholar] [CrossRef]
- Silva, A.; Brito, J.; Gaspar, P.L. A comparative multi-criteria decision analysis of service life prediction methodologies for rendered facades. J. Build. Eng. 2018, 20, 476–487. [Google Scholar] [CrossRef]
- Silva, A.; Dias, J.L.; Gaspar, P.L.; Brito, J. Statistical models applied to service life prediction of rendered facades. Autom. Constr. 2013, 30, 151–160. [Google Scholar] [CrossRef]
- Lavy, S.; Shohet, I.M. A strategic integrated healthcare facility management model. Int. J. Strateg. Prop. Manag. 2007, 11, 125–142. [Google Scholar] [CrossRef]
- Moubray, J. Reliability-Centered Maintenance, 2nd ed.; Industrial Press: New York, NY, USA, 1997. [Google Scholar]
- Shohet, I.M.; Rosenfeld, Y.; Puterman, M.; Gilbo, E. Deterioration patterns for maintenance management: A methodological approach. In Durability of Building Materials and Components 8; Lacasse, M.A., Vanier, D.J., Eds.; Institute for Research in Construction: Ottawa, ON, Canada, 1999; pp. 1666–1678. [Google Scholar]
- Shohet, I.M.; Paciuk, M. Service life prediction of exterior cladding components under standard conditions. Constr. Manag. Econ. 2004, 22, 1081–1090. [Google Scholar] [CrossRef]
- Shohet, I.M.; Paciuk, M. Service life prediction of exterior cladding components under failure conditions. Constr. Manag. Econ. 2006, 24, 131–148. [Google Scholar] [CrossRef]
- Ferreira, C.; Silva, A.; Brito, J.; Dias, I.S.; Flores-Colen, I. The impact of imperfect maintenance actions on the degradation of buildings’ envelope components. J. Build. Eng. 2021, 33, 101571. [Google Scholar] [CrossRef]
- Aikivuori, A.M. Critical loss of performance: What fails before durability. In Proceedings of the 8th International Conference on Durability of Building Materials and Components (DBMC), Vancouver, BC, Canada, 30 May–3 June 1999; Volume 1, pp. 1369–1376. Available online: https://www.irbnet.de/daten/iconda/CIB1808.pdf (accessed on 20 September 2021).
- Cardinal, S.M.; Tosin, C.E.; Pilz, S.E.; Costella, M.F. Inspection method for building maintenance management in higher education institutions. J. Perform. Constr. Facil. 2020, 34, 04020112. [Google Scholar] [CrossRef]
- ABNT NBR 14037; Diretrizes para Elaboração de Manuais de Uso, Operação e Manutenção das Edificações: Requisitos para Elaboração e Apresentação dos Conteúdos, 2. ed. ABNT: Rio de Janeiro, Brazil, 2011.
Construction | Years Since the Last Maintenance/Refurbishment | Years Since the Start of Operation | Reason for the Intervention |
---|---|---|---|
1 | 6.85 | 6.85 | Aesthetics and cracks |
2 | 3.19 | 3.19 | To comply with the use, operation and maintenance manual regarding washing |
3 | 20.75 | 20.75 | Aesthetics, cracking and infiltrations |
4 | 20.01 | 40.03 | Aesthetics |
5 | 11.89 | 42.91 | Detachment. End of life cycle |
6 | 11.59 | 42.61 | Aesthetics |
7 | 15.01 | 40.03 | Aesthetics |
8 | 1.10 | 1.10 | Generalized paint cracking (outlier: construction fault) |
9 | 7.69 | 7.69 | Cracks in the texture and on the south side there were infiltrations |
10 | 9.01 | 59.04 | Aesthetics and cracks |
11 | 7.34 | 37.36 | Infiltrations |
12 | 17.12 | 17.12 | Aesthetics |
13 | 16.62 | 16.62 | Aesthetics, cracks and infiltrations |
14 | 15.67 | 20.67 | Aesthetics |
15 | 20.01 | 50.03 | Aesthetics, cracks and infiltrations |
16 | 4.96 | 4.96 | Partial heterogeneity of the original painting |
17 | 5.04 | 5.04 | Detachment (outlier: construction fault) |
18 | 6.88 | 6.88 | Aesthetics, but the condominium withdrew from the intervention due to the costs |
Renderings | Painted Surfaces | ||
---|---|---|---|
Degradation ΔSw | Standard deviation | 1.69% | 1.92% |
Average | 1.52% | 2.83% | |
Maximum observed | 7.95% | 8.75% | |
Minimum observed | 0.16% | 0.00% | |
Case studies | - | 79 | 86 |
Cases between the average and the standard deviation | - | 68 (86.07%) | 64 (74.42%) |
Cases with a reduction superior to the average ΔSw | Framing | 22 (27.84%) | 29 (33.72%) |
Close to avenues with a high volume of traffic | 10 (45.45%) | 18 (62.06%) | |
South orientation | 8 (36.36%) | 12 (41.37%) | |
Considerable period without maintenance/refurbishment | 8 (36.36%) | 22 (75.86%) | |
Considerable period since the entry into service | 18 (81.81%) | 24 (82.75%) |
Renderings | ||
---|---|---|
Degradation ΔSw | Standard deviation | 6.12% |
Average | 5.24% | |
Maximum observed | 28.50% | |
Minimum observed | 0% | |
Case studies | 79 | |
Cases between the average and the standard deviation | 73 (92.4%) | |
Cases with the reduction superior to average ΔSw | Framing | 31 (39.24%) |
Close to avenues with a high volume of traffic | 16 (51.61%) | |
South orientation | 11 (35.48%) | |
Considerable period without maintenance/refurbishment | 21 (67.74%) | |
Considerable period since the entry into service | 11 (35.48%) |
- | Renderings | Painted Surfaces | |||||
---|---|---|---|---|---|---|---|
- | Average Remaining Service Life at the Time of the Intervention | Average Delay Period in Relation to the Appropriate Time for Intervention | - | Average Remaining Service Life at the Time of the Intervention | Average Delay Period in Relation to the Appropriate Time for Intervention | ||
Intervals observed by: | Maximum (years) | 46 | 41 | 9 | 21 | 11 | 13 |
Average (years) | 18 | 14 | 4 | 9 | 4 | 4 | |
Minimum (years) | 3 | 0 | 0 | 3 | 0 | 0 | |
Estimated service life intervals considering the standard deviation | Maximum (years) | 28 | 24 | 7 | 14 | 7 | 8 |
Average (years) | 18 | 14 | 4 | 9 | 4 | 4 | |
Minimum (years) | 8 | 4 | 1 | 5 | 1 | 0 | |
Std. deviation (years) | 10 | 10 | 3 | 4 | 3 | 4 |
- | Renderings | Painted Surfaces | |
---|---|---|---|
Case studies | 79 | 86 | |
Timely intervention | 15 (18.98%) | 33 (38.37%) | |
Untimely intervention | Before the end of service life | 49 (62.02%) | 23 (26.74%) |
After the end of service life | 15 (18.98%) | 30 (34.88%) |
