3.1. Compressive Strength Results and Analysis
Table 7 is the uniaxial compressive strength of geopolymer mortar for 3 and 7 days in the orthogonal test. As shown in
Figure 5. The test data adopt the method of range analysis to analyse the factor A, that is, the alkali equivalent. This factor is in the first column and will include three data with the same factor at the same level in a group, that is, in the column of alkali equivalent, MKSF-1, MKSF-2, and MKSF-3 are the first group, MKSF-4, MKSF-5, and MKSF-6 are, the second group of the same factor with different levels, MKSF-7, MKSF-8, and MKSF-9 is the third group, and so on. Nine groups of experiments are divided into three groups under the same level and the same factor. Other factors will only appear once, and the other conditions are the same. This will replace the original 3
3 = 27 groups of experiments with 9 groups of experiments evenly and dispersedly, and at the same time, the number of experiments can be reduced.
The principle of range analysis is to first calculate the sum of the three sets of data of the same level and the same factor, that is, Ki, then calculate the average value of Ki Hi = Ki/3, and finally calculate the range Ri = Max(Hi) − Min(Hi). The table shows that the greater the range Ri, the greater the influence of this factor on the strength of geopolymer mortar. The range analysis of the compressive strength test results of geopolymer mortar at different ages of 3 and 7 days is carried out. The order of factors affecting the strength of geopolymer mortar from large to small is water glass modulus > alkali equivalent > bone glue ratio > silicon powder content. The reasons are as follows:
Compare the average values of the compressive strengths of the three groups at the same level under the same factor, and
Figure 6 shows the trend of the level of the influencing factors.
- (a)
The level of alkali equivalent is used as a measure of the quality of Na
2O in the alkali activator, which determines the level of PH value. In a relatively alkaline environment, the hydration reaction rate of geopolymers can be accelerated, and the silico-alumina raw materials can be better dissolved, so the increase of the base equivalent and controlled within a certain range can be to increase the colloidal strength. It can be seen from
Figure 6a,e that the mechanical properties of the geopolymer first decreased and then increased with the increase of the alkali equivalent. Too much alkalinity results in the excessive formation of early precipitation of the aluminosilicate product [
31,
32], thereby affecting the colloidal strength. It can be seen that when the alkali equivalent is 13%, the compressive strength of geopolymer mortar reaches the highest;
- (b)
Water glass is an alkaline activator, and the modulus affects the compressive strength of geopolymer mortar, as seen in
Figure 6b,f. When the modulus of water glass is 1.2–1.4 m, and when the modulus of water glass is 1.4, the compressive strength reaches the maximum, and when the modulus is greater than 1.4 m, the compressive strength of the sample gradually decreases. When the modulus is 1.2–1.4 m, the content of oligomeric [SiO
2] in water glass gradually increases, and the content of high polymer [SiO
2] decreases, and the alumino-siliceous raw material in metakaolin undergoes depolymerization, which makes the polymerized strength increase. When the modulus is greater than 1.4, too much high polymer [SiO
2] reduces the pH value and cannot react with the silicon-alumina raw materials in metakaolin in a low-alkaline environment, and the hydration rate decreases, which is not conducive to the efficient progress of the geopolymer reaction and is therefore detrimental to the strength after polymerization. It can be seen that in the geopolymer mortar, when the modulus of water glass is 1.4 m, it is the best modulus;
- (c)
The effect of the bone glue ratio on the compressive strength of geopolymer mortar. As shown in
Figure 6c,g, it can be seen from the figure that the bone-to-adhesive ratio is 1.0–2.0. With the increase of the bone glue ratio, the compressive strength of the sample decreases first and then increases, but more aggregates are not conducive to the working performance of the mortar, so the bone glue ratio of the mortar needs to be controlled within a certain range;
- (d)
It can be seen from
Figure 6d,h that the content of silica fume affects the compressive strength of high-strength geopolymer mortar. Within the range of 8–16% of silica fume content, the compressive strength of mortar increases with the increase of silicon as powder decreases, and the compressive strength reaches the highest when the content of silicon powder is 8%. This is because the silica fume gives full play to the role of fine particles, and the addition of the fine-grained silica fume improves the gradation of the geopolymer cementitious material, fills the pores and enhances the density of the slurry [
18,
33],; the specific surface area of the silica fume is large, adsorbing a large amount of free water to improve the internal compactness of the mortar, and the content of silica fume will increase the silicon-aluminum ratio of the base material, and the increase of the silicon-aluminum ratio will increase the degree of reaction in the geopolymer polymerization reaction and improve the strength. When a large amount of silica fume is not conducive to the polymerization reaction of mortar, an appropriate amount of silica fume has a favorable effect on the compressive strength. It can be seen that in the geopolymer mortar, when the content of silica fume is 8%, the improvement of the compressive strength is the best.
Summarizing the above effects of alkali equivalent, water glass modulus, bone glue ratio, and silica fume content on the strength of geopolymer mortar, the optimal mixing ratio of compressive strength of geopolymer mortar is alkali equivalent 13%, water glass modulus 1.4, bone glue ratio 2.0, and silicon powder content of 8%. The optimal mix ratio selected by the orthogonal test was experimentally studied, and its seven-day uniaxial compressive strength was 81.22 MPa.

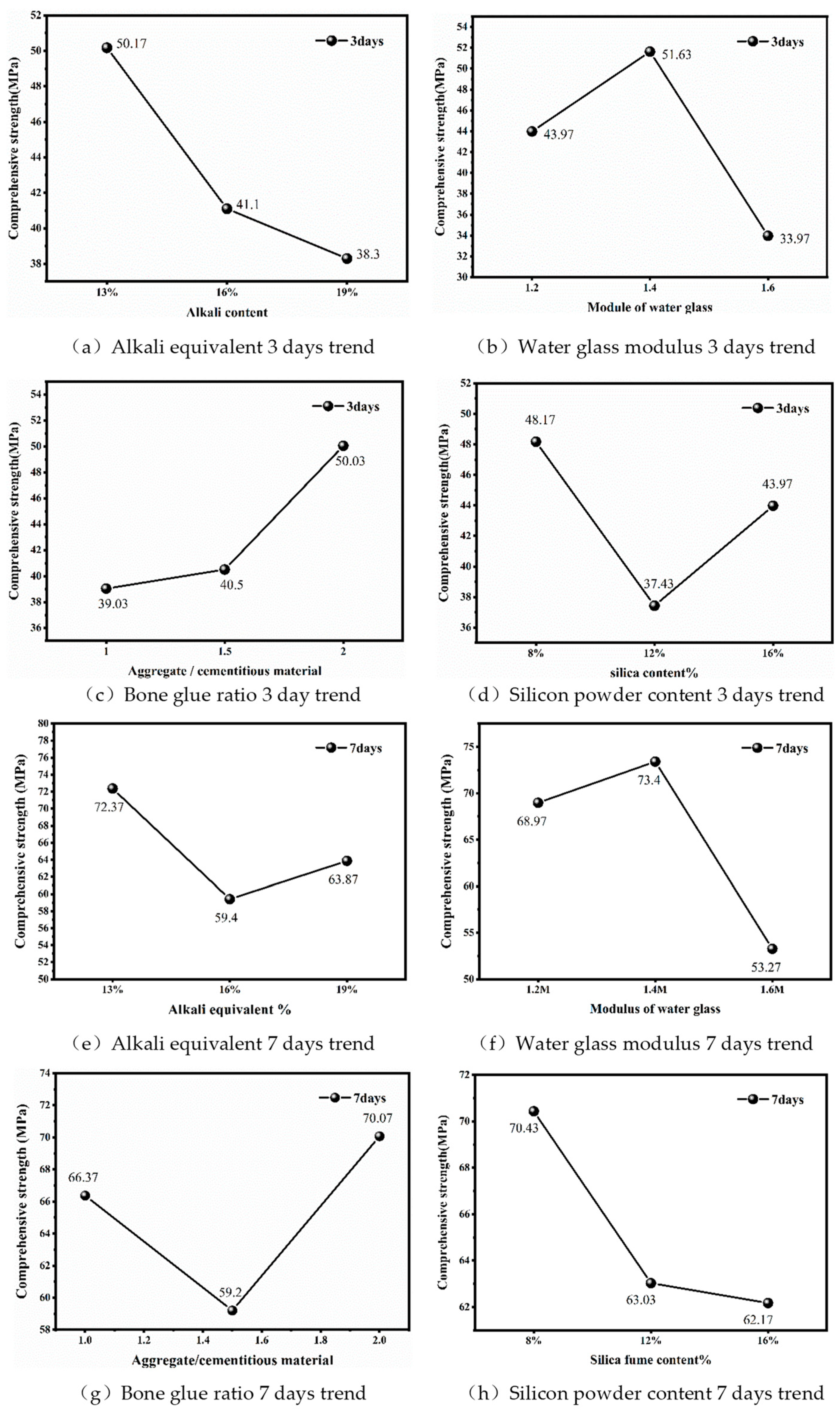

Figure 6.
Influence mortar 3 days, 7 days level change trend.
Figure 6.
Influence mortar 3 days, 7 days level change trend.
Compressive strength:

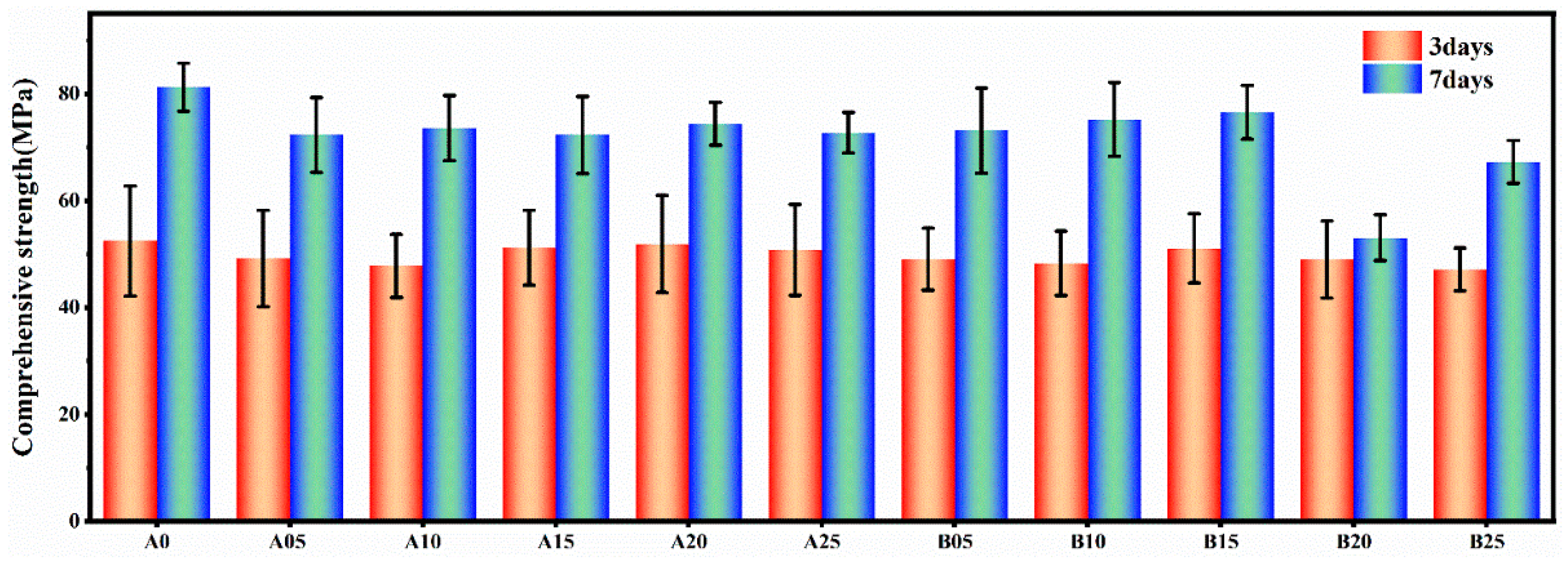

Figure 7 shows the 3-day and 7-day compressive strength values of polyether defoamer and silicone defoamer with different dosages. The 3-day and 7-day compressive strength of MKSF-0% is higher than that of the sample after adding defoamer the compressive strength value, and the defoamer changes the cohesive force of the inorganic macromolecular polymer produced by the geopolymer reaction, thereby reducing the overall strength of the mortar, which is reflected in the subsequent fluidity test, microscopic test, and further discussions. In addition, it can be seen from
Table 8 that when the content of polyether defoamer is 0.05–0.25%, as the content of polyether defoamer gradually increases, the compressive strength value of geopolymer mortar increases first and then decreases, and reaches the maximum strength of the polyether defoamer content at 0.20%, because the defoamer will eliminate the bubbles inside the mortar to a certain extent, reduce the generation of pores, reduce the internal porosity of the mortar, and improve the mortar resistance to a certain extent. When the content of the silicone defoamer is 0.05–0.25%, as the content of silicone defoamer gradually increases, the compressive strength value of geopolymer mortar first increases and then decreases, and reaches 0.15%. The reason for the maximum strength of the silicone defoamer dosage is the same as the reaction principle of the polyether defoamer, which reduces the porosity inside the mortar and improves the compactness to increase the strength value of the mortar.
At the same time, we found that the compressive strength of geopolymer mortar after the addition of two defoamers was lower than that without the addition of defoamer, because the compressive strength of geopolymer depends on the microstructure and the intrinsic properties of gelling ions. The mechanical properties of the mortar and the degree of reaction of the raw materials, the defoamer changes the cohesiveness of the inorganic polymer mortar produced by the depolymerization-polymerization reaction of the geopolymer, and this change to the mortar itself is far more than that of the defoamer. The resulting decrease in porosity and the increase in density bring changes. Therefore, we will find that the addition of defoamer will not improve the 3-day and 7-day compressive strength values of geopolymer mortar.
Mobility and density:
Table 9 shows the changes in the flow and density properties of mortar with different dosages of polyether defoamer and silicone defoamer. It is not difficult to find that the fluidity and density of the geopolymer colloid have been improved by both defoamers. As shown in

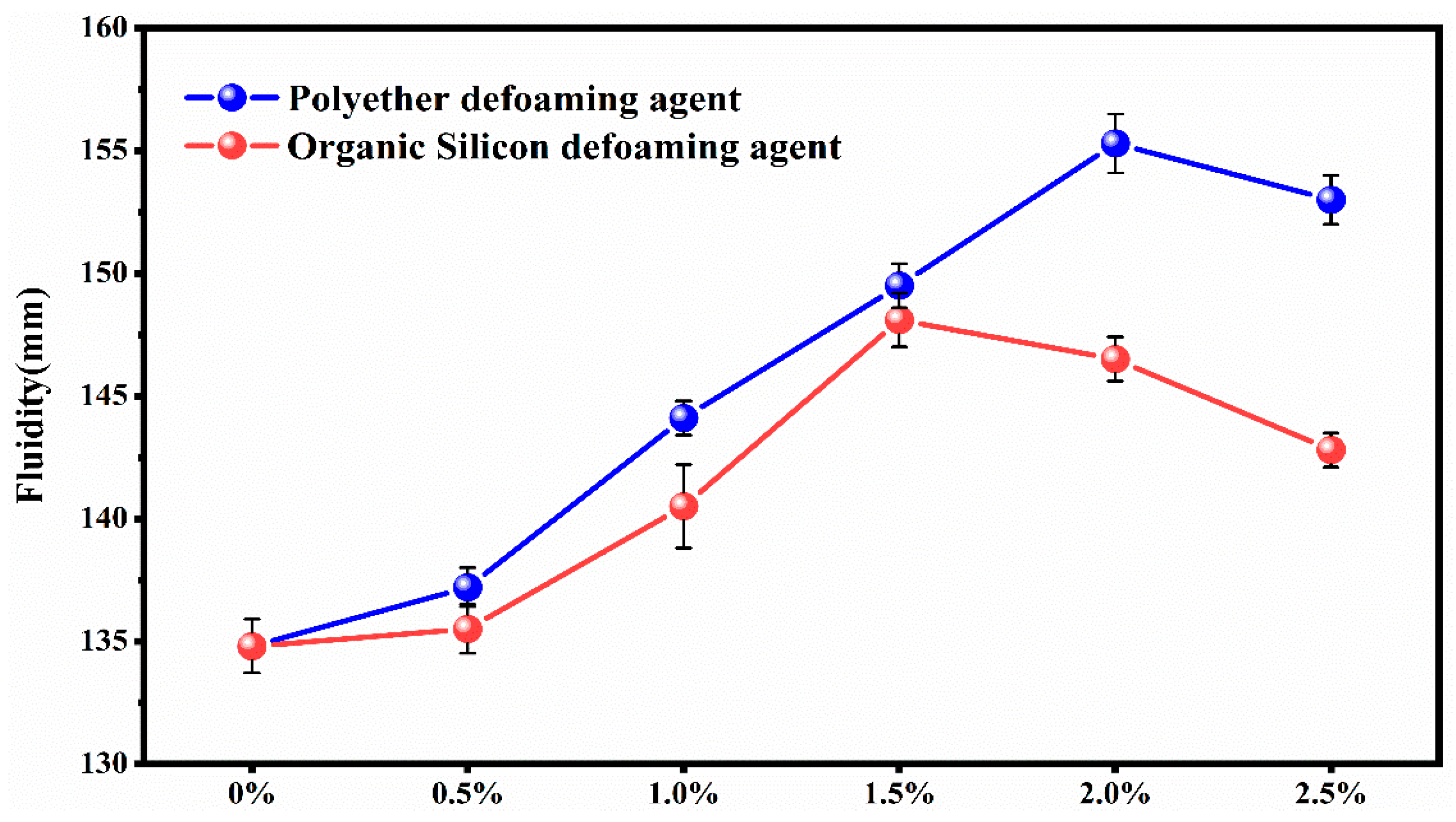

Figure 8 and
Figure 9, the fluidity of the polyether defoamer is the largest when the content of the polyether defoamer is 0.20%. The fluidity is the largest when the dosage of the agent is 0.15%. Taking MKSF-0% as an example, the fluidity of the 0.20% polyether defoamer group is increased by 15.2%, and the fluidity of the 0.15% silicone defoamer group increases by 9.8%. At the same time, the density of the two defoamers increases the most when the dosage is 0.20%. Taking MKSF-0% as an example in the geopolymer mortar test, the density of the 0.20% polyether defoamer group increased by 10.9%, and the silicone defoamer increased by 0.15%. The density of the agent group is increased by 7.2%, and the defoamer can eliminate the air bubbles in the mortar, reduce the surface tension between the mortars, reduce the cohesion, and improve the compactness. It can be seen that both defoamers greatly improve the fluidity of geopolymer mortar, but the polyether defoamer improves the fluidity and density of mortar the most, so the use of polyether defoamer is more conducive to mortar mobility.
Water absorption:

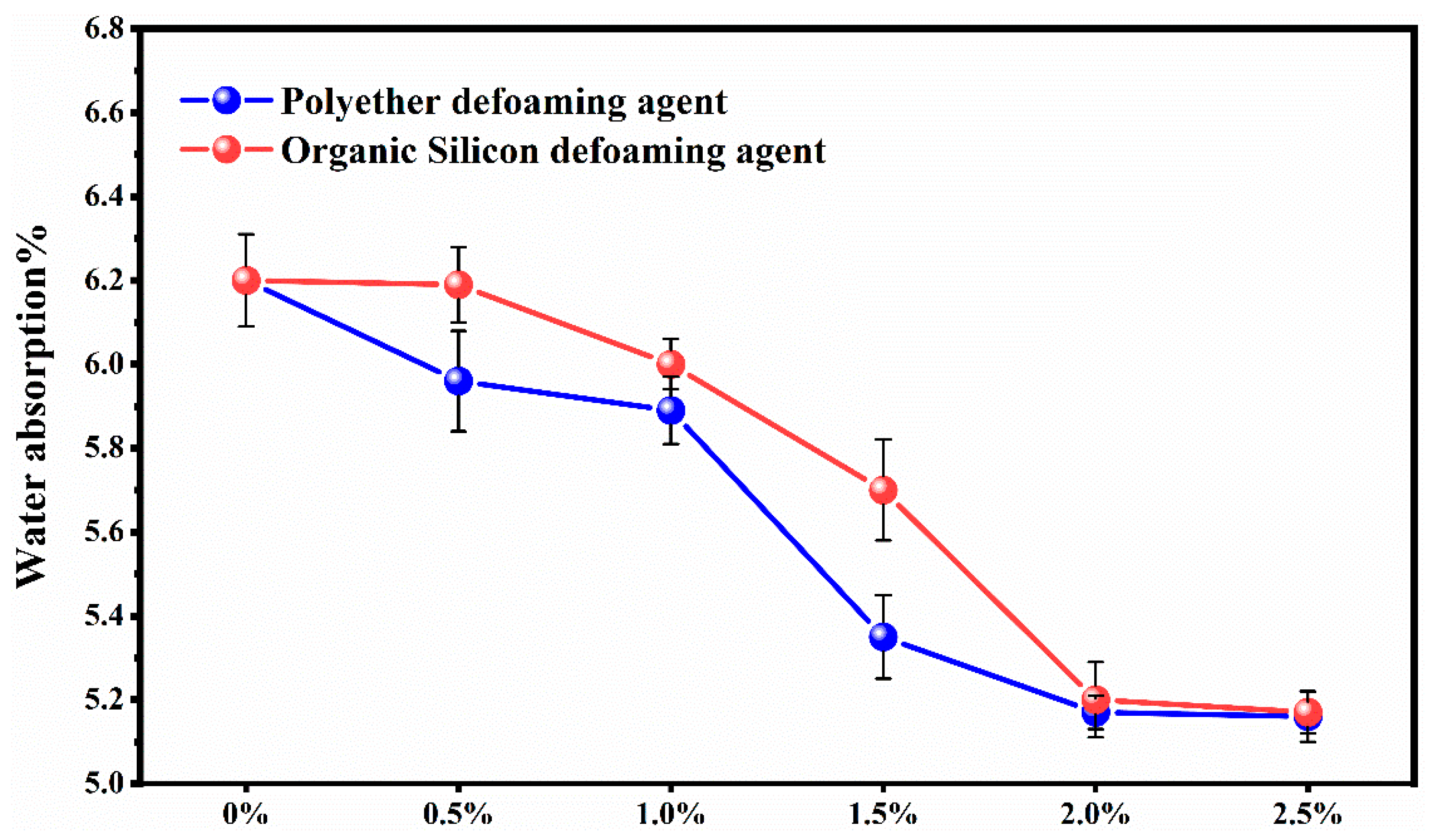

Figure 10 shows the change of water absorption rate of geopolymer mortar under different dosages of defoamer. The water absorption rate of geopolymer mortar decreases with the increase of the dosage of two defoamers. Compared with the MKSF-0% group, the water absorption rate of the polyether defoamer with a dosage of 0.25% is reduced by 16.6%, and the water absorption rate of the polyether defoamer with a dosage of 0.25% The water absorption rate of the silicone defoamer is reduced by 16.1%. This is because the defoamer can greatly reduce the bubbles existing in the mortar, making the mortar colloid material more dense after the reaction, thereby increasing the density and reducing the water absorption.
3.2. Influence of Defoamer on the Properties of Geopolymer Mortar
The microstructure of MKSF-0%, MKSFP-0.20%, and MKSFO-0.15% mortars which had been cured for 7 days were observed under 3000 times and 500 times magnification and analyzed by energy chromatograph under 500 times magnification.

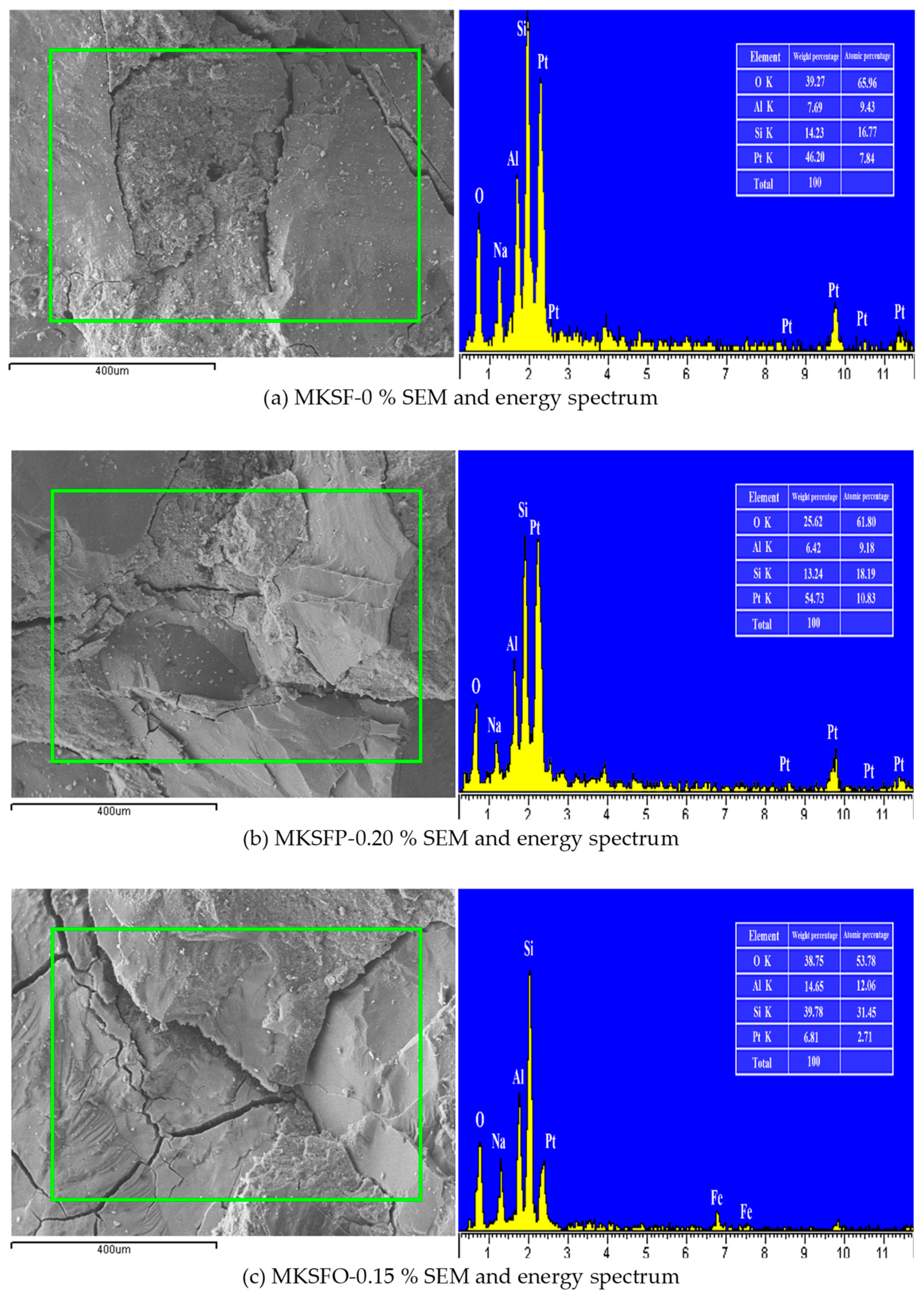

Figure 11 shows the microstructure of MKSF-0%, MKSFP-0.20%, and MKSFO-0.15% mortars. It can be seen from the figure that compared with the mortar of the MKSFP-0.20% and MKSFO-0.15% groups, the MKSF-0% group has a dense structure and the gaps between the particles are filled. The surface of the MKSFP-0.20% and the MKSFO-0.15% group has more cracks, and the surface is rough. In the comparison test of the three groups of mortars, the cracks near the cementitious material in the MKSF-0% group are less and dense, while the cracks in the MKSFP-0.20% and MKSFO-0.15% groups are wider and clearer. The cementitious material generated by the polymerization reaction of aluminosilicate materials reduces the cementation between mortars and increases the voids between mortars. Therefore, compared with the two defoamer groups, the surface density of the benchmark group is better. Therefore, compared with the two defoamer groups of MKSFP-0.20% and MKSFO-0.15%, the surface compactness of the MKSF-0% reference group is better, and the flaky units are wrapped and cemented together by the gel of the geopolymer. Independent fine particles, aggregates, and flocs have formed giant particles with strong network links, and the arrangement between gel flocs and giant particles is more compact and has a more uniform microstructure, and the phenomenon of overhead between particles is greatly reduced.
Spectra of geopolymer mortar samples MKSF-0%, MKSFP-0.20%, and MKSFO-0.15% in the selected area are shown in
Figure 11, which shows the elemental composition and chemical composition of each sample in the selected area. EDS provides qualitative evidence for the analysis of cementitious materials in geopolymer mortar.
Table 10 shows Si/Al and Na/Al molar ratios in geopolymer mortars. It can be seen from the analysis table that the atomic percentage of Na element in the three groups of samples is maintained at a low level compared to Si element and Al element, and the Na element in the geopolymer comes from the alkali activator water glass, so the Na element is introduced. In addition, it is worth noting that the atomic percentage of Si in geopolymer is at a relatively high level, which is related to the large amount of SiO
2 in metakaolin and water glass. Metakaolin and water glass in geopolymer cementitious materials are rich in Si. The Si/Al and Na/Al molar ratios can be used as qualitative indicators. From the EDS analysis table, it can be seen that the Si/Al and Na/Al in the three groups of experiments swing around 1.0 and 0.85, respectively, and n(Si):n(Na):n(Al) is almost the same. The addition of ions did not affect the process of inorganic polymer polymerization in the geopolymer reaction process.
In order to evaluate the effect of defoamers on geopolymer mortar, SEM and EDES were used to observe the microstructure of MKSF-0%, MKSFP-0.20%, and MKSFO-0.15%. In the MKSFP-0.20% and MKSFO-0.15% groups, the distribution of Na, Si, and Al is relatively uniform without enrichment. In the MKSF-0% group, we found that the content of Na element is less but the distribution is uniform, and there is no enrichment phenomenon. The distribution of Si and Al elements has triangular grooves. The reason for this phenomenon is that metakaolin and water glass were caused by insufficient reaction, and, except for the groove-shaped part, the rest of the distribution is relatively uniform, and there is no enrichment phenomenon.

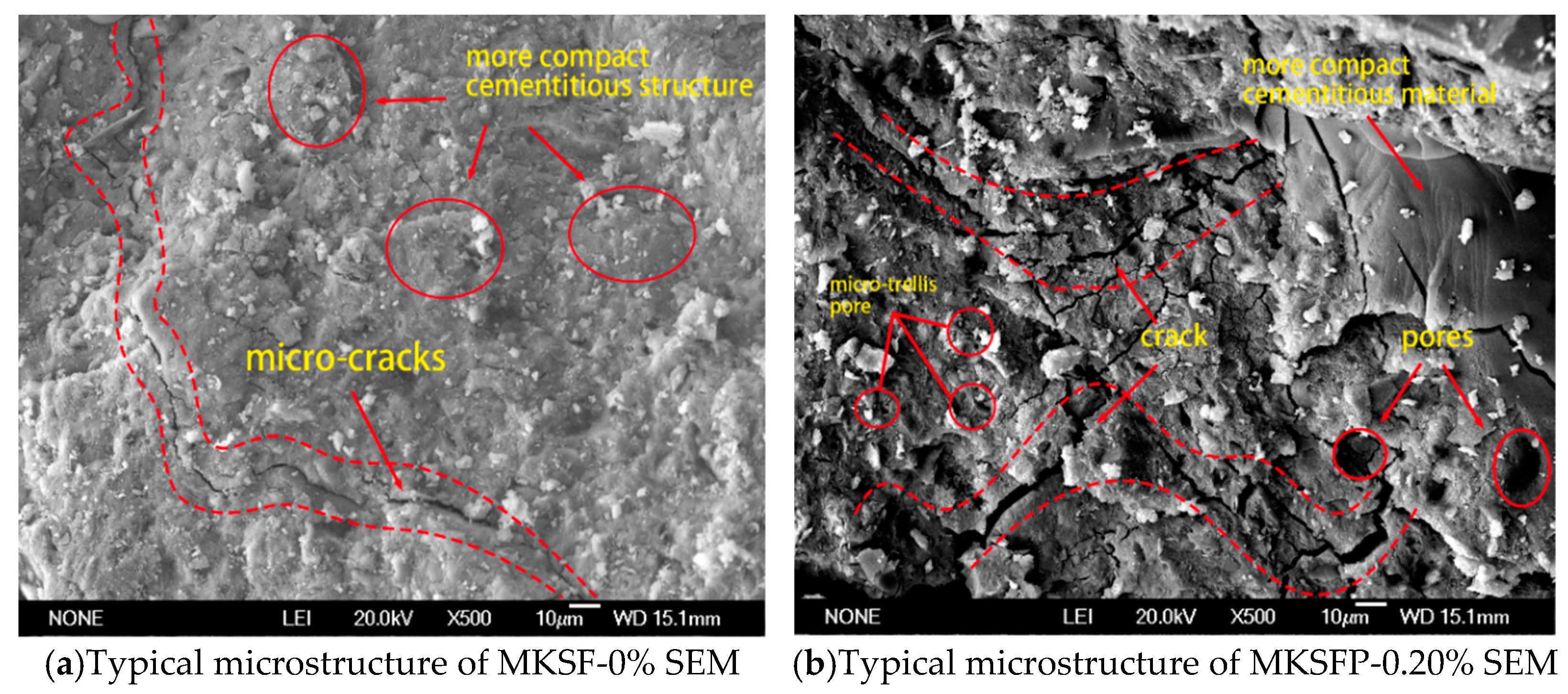

Figure 12 shows that, compared with MKSFP-0.20% and MKSFO-0.15%, MKSF-0% has a more uniform and dense microstructure, which is mainly due to the directional encapsulation and connection of the lamellar units after mortar polymerization, so that the geopolymer cementitious material has obvious regularity and spatial distribution. The directionality, due to the addition of defoaming agent, affects the bonding connection between the lamellar units generated after the polymerization of geopolymer mortar, which will make the mortar lamellar units present a certain dispersion in the spatial distribution and the arrangement of the lamellar units after polymerization looser, thus weakening the filling effect of the gel material. It can be seen that the addition of defoamer affects the cementation of aggregates after the polymerization of silicate materials to a certain extent, forming an overhead structure. Therefore, it can be seen from the microstructure of MKSFP-0.20% and MKSFO-0.15% that a wide range of micro-cracks and pores are distributed on the surface of mortar. The reason for this phenomenon is positively correlated with the decrease of compressive strength of geopolymer by defoaming agent.
Since the surface quality of the mortar can be observed on a macro scale, the improvement effect of the MKSF-0% group on the surface quality of the mortar can be qualitatively judged by the naked eye. Additionally, the number is large, while the MKSFP-0.20% and MKSFO-0.15% group mortars have different degrees of improvement, and the improvement effect is very significant. Among them, the MKSFP-0.20% group has almost no honeycomb pitting phenomenon. The quality effect is the best, which is mainly due to the fact that when the mortar is vibrated, the bubbles overflowing outwards come into contact with the defoamer on the surface of the mortar, so that the residual air bubbles on the surface of the mortar are reduced. In addition, the defoamer has a certain water-reducing effect, and the contact with the surface of the mortar reduces the water–cement ratio, making it more compact after hardening, so the apparent quality of the specimen is improved.
Figure 13 shows the surface morphology and failure modes of MKSF-0%, MKSFP-0.20%, and MKSFO-0.15%. It can be clearly seen that the addition of defoamer effectively improves the generation of honeycomb and pockmarked surfaces on the surface of the mortar, so that the surface of the mortar has high flatness and gloss, which shows that the defoamer can effectively change the surface of the mortar and morphological characteristics, so as to achieve the purpose of improving the apparent quality of the mortar. The MKSF-0% group has obvious characteristics after failure. The failure specimen presents two positive and inverted trapezoids with basically the same size and symmetrically arranged along the abscissa. There was no uneven stress. In the test samples of MKSFP-0.20% and MKSFO-0.15% groups, it can be seen that the arrangement of the specimens after failure is in a normal trapezoid and inverted conical arrangement. This is because the geopolymer mortar itself is brittle and the splitting tensile strength is smaller. The specimen is not constrained during the lateral force received during the compression process, so that the cracks generated by the side extrusion will be ejected, resulting in the destruction of the integrity of the geopolymer mortar.
