Gypsum Mortars with Acacia dealbata Biomass Waste Additions: Effect of Different Fractions and Contents

by
Alessandra Ranesi
1,2,*,
Paulina Faria
1,
Ricardo Correia
3,
Maria Teresa Freire
4,
Rosário Veiga
2 and
Margarida Gonçalves
3,5
1
CERIS–Civil Engineering Research and Innovation for Sustainability, NOVA School of Science and Technology, NOVA University of Lisbon, Quinta da Torre, 2829-516 Caparica, Portugal
2
National Laboratory for Civil Engineering, Avenida do Brasil 101, 1700-066 Lisbon, Portugal
3
METRICs, Department of Science and Technology of the Biomass, NOVA University of Lisbon, Quinta da Torre, 2829-516 Caparica, Portugal
4
CERIS–Civil Engineering Research and Innovation for Sustainability, SIVAL-Gessos Especiais Lda, Rua Emídio Oliveira Faria, 2425-879 Souto da Carpalhosa, Portugal
5
VALORIZA, Polythechnic Institute of Portalegre, Campus Politécnico, 7300-555 Portalegre, Portugal
*
Author to whom correspondence should be addressed.
Buildings 2022, 12(3), 339; https://doi.org/10.3390/buildings12030339
Submission received: 26 January 2022 / Revised: 3 March 2022 / Accepted: 9 March 2022 / Published: 11 March 2022
(This article belongs to the Section Building Materials, and Repair & Renovation)
Browse Figures
Versions Notes

Abstract

:
In recent decades, interest in the eco-efficiency of building materials has led to numerous research projects focused on the replacement of raw materials with mineral and biomass wastes, and on the production of mortars with low-energy-consuming binders, such as gypsum. In this context, five different fractions (bark, wood, branchlets, leaves, and flowers) of Acacia dealbata—an invasive species—were evaluated as fillers for premixed gypsum mortars, at 5% and 10% (vol.) addition levels and fixed water content. Although these biomass fractions had different bulk densities (>50% of variation), all the mortars were workable, although presenting different consistencies. As expected, dry density decreased with biomass addition, but, while mortars with addition at 5% presented a slight shrinkage, a slight expansion occurred with those with 10% addition. Generally, the mechanical properties decreased with the biomass additions even if this was not always proportional to the added content. The wood fraction showed the most positive mechanical results but flexural and compressive strengths of all the tested mortars were found to be higher than the lower standard limit, justifying further studies.

1. Introduction

In recent years many findings have been made on the effects of indoor relative humidity and temperature on human health [1,2,3]. It is common knowledge that an intermediate range of relative humidity (RH) can prevent airway and ocular irritations in various diseases [4,5] and is often related to thermal comfort in free-running buildings [6] when adaptive models are considered [7].
Plastering mortars usually cover large indoor surfaces and, thus, can contribute to passively equilibrating indoor relative humidity improving occupants’ comfort and, in some cases, health. To provide that contribution, they have to be highly hygroscopic, adsorbing and desorbing moisture from and to the indoor air.
Gypsum plasters are broadly used to coat (plaster) indoor walls and ceilings as they appear to be an appropriate option not only in new construction but also in many restoration interventions [8]. Moreover, hemihydrate gypsum binder is produced at around 120–180 °C, having a much lower firing temperature and milling energy for production than other binders, i.e., cement (around 1500 °C) or air lime (around 900 °C). Thus, the associated low embodied energy makes gypsum plasters a sustainable solution. However, among common plastering mortars, gypsum-based mortars present very low hygroscopicity [9,10,11]. Although not studied in the present work, it is probable that the moisture buffer capacity of gypsum plasters may be improved with the addition of hygroscopic materials.
Nonetheless, the eco-efficiency of building products can be increased by addition of wastes and the replacement of raw materials [12,13]. Among these wastes, agro-industrial wastes can be used in the production of eco-products for construction [14] with the purpose of enhancing relevant physical and chemical properties, such as bulk density, thermal conductivity, and the hygric and hygroscopic behavior of those products, while creating useful applications for various biomass wastes [15,16,17,18,19]. Actually, as biomass is usually hygroscopic, it is expected that they may improve gypsum plasters hygroscopicity. However, in comparison to cement-based mortars [20,21,22], studies on the effects of the incorporation of agro-industrial wastes in gypsum-based mortars are rare.
Acacia species mostly originated in Australia but have spread all over the world and have become invasive due to their high capacity for growth, seed production, and seed germination, which can be active for several years. Their selective removal is not economically viable if added-value applications are not found for the collected biomass. The use of biomass collected in forest environments contributes to reducing the danger of forest fires [23,24] and, in the case of invasive species, may constitute a method of propagation control since it disrupts the reproductive cycle, namely by preventing seed formation [25].
Use of Acacia wastes in plaster formulations was not found in literature although applications of Acacia biomass in composite materials have been described by some authors [26,27]. Also, some fractions of the plant have already been used in other sectors, namely bark as a source of tannins for the leather industry [28] or flowers used to produce absolute oils for the perfume industry [29]. Other fractions of Acacia biomass have traditionally been used as a source of bioactive components for folk medicines [30]. After recovery of these functional extractives, the biomass still retains most of its lignocellulosic components, keeping its potential to be used in energy production or material applications.
The aim of the present study was to assess if the addition of different fractions and contents of Acacia dealbata biomass to gypsum plastering mortars jeopardizes the common fresh-state properties of the mortars or their mechanical properties in order to discard formulations which do not meet the requirements for further studies related to hygroscopicity. Hence, five different fractions of the same plant (Acacia dealbata) were selected and added to a gypsum premixed mortar (5% and 10% vol.) after the recovery of extractives for other applications. Although the premixed product is based on a low embodied energy binder, such as hemihydrate gypsum, the addition of biomass reduces the consumption of raw materials needed to produce it, reducing the environmental impact of the plasters. Nevertheless, it is important to confirm if the addition require a higher consumption of water to present adequate workability and comply with the mechanical requirements for gypsum-based plastering mortars.

2. Materials and Methods

2.1. Materials

A premixed industrial powder product (GP), Sival Reabilita, produced by the company Sival, in Portugal was selected for the study. This product based on gypsum, mineral fillers, and admixtures and is ready to mix with water for manual application in interior walls and ceilings. It complies with EN 13279-1 [31], type B1/20/2 and can be used to plaster old indoor old walls as well as new ones.
Five different Acacia dealbata fractions were selected to be incorporated in the mortar formulations: flowers (Fl), leaves (Le), branchlets (Br), wood (Wo), and bark (Ba). The biomasses were collected in the regions of Alcobaça and Caparica (Central Portugal), from at least ten different trees at each location. The fractions were milled, sieved to 2 mm, and macerated in acetone, at 25 °C, to recover extractives that could be valorized in various applications, such as nutraceutical products. The extracted biomasses were air-dried at 25 °C for 48 h, and characterized for loose bulk density and color coordinates according to the CIELab color system before use in the mortar preparations. Instrumental color was determined using a colorimeter (CHROMA METER CR-410, Tokyo, Japan), calibrated using a standard white reflector plate. The visual observation of the A. dealbata fractions at the time of the mortar production is presented in Figure 1, and Table 1 presents their loose bulk density and color parameters.
A decrease in the luminosity parameter L* observed for leaves and flowers indicates darker colors. Although fresh Acacia flowers had a light yellow color, the process of solvent extraction and drying, promotes oxidation reactions that result in a brownish darker color. Low values of a* indicate an increase of the green component, an effect that was more evident for leaves and wood. The yellow component was higher for the biomass fraction with higher b* values, namely wood and branchlets. These different colors of the biomasses can influence the color of the mortars and are important if the plasters have no finishing layer. The loose bulk density of the factions varied up to 51% from the denser bark fraction to the lighter wood one.

2.2. Mix Design

The selected fractions of A. dealbata were added to the GP, at 0% (reference mortar), 5%, and 10% by volume, and manually homogenized. Additions of constant volumes of all the different fractions were made so that the physical changes were comparable. The mass for exact incorporation of each fraction (Table 2) was calculated according to the loose bulk density of each biomass (Table 1).
The powder mix was added to water for 1 min using the sprinkling method, left to soak for another minute, and then mechanically mixed for 1 min (Figure 2). A volumetric ratio of 1:3 (water:GP) corresponding to a ratio by mass of 0.45, was kept for all the mortars (Table 2).

2.3. Specimens and Methods

In Figure 3 a flowchart is presented to resume the experimental steps.
The fresh mortars were tested for consistency using the flow-table method, determined based on EN 13279-2 [32] at a fixed amount of water. The fresh-state density was determined based on EN 1015-6 [33]. For the hardened mortars, a minimum of five standardized prismatic specimens (160 mm × 40 mm × 40 mm) were produced for each formulation and the following properties were determined:
  • Volumetric shrinkage—determined using a digital caliper.
  • Apparent bulk density—based on EN 1015-10 [34]—geometrically determined using a digital caliper and a balance with 0.001 g resolution.
  • Flexural and compressive strengths—based on EN 1015-11 [35]—using an electromechanical testing device from Microtest, model EM1/100/FR. The loading rates were adjusted so that failure occurred within a period of 10–25 s for flexural strength and 30–90 s for compressive strength. Load cells of 2 kN and 200 kN were used, depending on the mechanical strength of the material (Figure 4).
  • Dynamic modulus of elasticity—based on EN 14146 [36]—by resonance frequency using a Zeus ZRM equipment.
  • Optical microscope observation—using an Olympus SZH-10 optical microscope.
  • Open porosity—based on EN 1936 [37]—by vacuum and hydrostatic weighing.

3. Results and Discussion

3.1. Flow-Table Consistency, Density, and Drying Shrinkage

The consistency of the mortars (Figure 5) was determined using the flow-table method and the results obtained are presented in Table 2. All the mortars showed adequate spreading values, coherent with a good workability. Except for wood, the addition of 5% of biomasses slightly improved the flow of the mortars. The same happened for the 10% addition, except for the leaves. Therefore, the influence of the biomasses was in general very positive, as the additions did not required additional water to maintain workability. Moreover, it was expected that, for a fixed amount of water, an increase in the volume of powders would have led to lower values of flow-table consistency. This was not observed in the case of flowers and wood which, on the contrary, showed a flow increase. This may have been related to the combined effects of different particle size distribution, particle shapes, and hygroscopicity of the different biomass fractions. Hygroscopicity of a biomass is typically higher than that of biochars and affects the water available for hydration of other mortar components [38]. Unlike biochar particles or sand particles, biomass particles have irregular shapes that influence the mechanical interactions between themselves and other mortar components, thus affecting the flow behavior of the wet mortars [39]. These observations suggest that further tests using biomass particles of different granulometries may help to elucidate these effects.
Figure 6 shows the values of the bulk density of the mortars from the fresh state to the 28th curing day. It can be easily observed that during the first 14 days, the density decreased for all the formulations, and that the drying essentially occurred during that period. The addition of biomasses, in both volumetric percentages (5% and 10%), did not significantly modify the bulk density of the mortars which was around 1.6 kg/dm3 in the fresh state and 1.2 kg/dm3 from the 14th curing day onwards. Only for the plastering mortars with addition of bark did the first 7 days of curing show a higher decrease in bulk density, possibly caused by a faster evaporation of water. The bark particles had some differences in their contents of cellulose, hemicellulose, and lignin, relative to the other biomass fractions [40], which determines the surface groups of these particles and may have influenced their interactions with water molecules. Generally, the volume reduction was lower for the mortars with 5% biomass addition relative to the reference mortar, while all the formulations with 10% (vol.) biomass addition showed a slight volume increase up to one month of age. No cracks were observed in either the reference or the modified mortar samples. Therefore, the addition of biomass had a positive effect in the prevention of significant volume variation that could cause plaster cracking or lack of adherence to the support.

3.2. Flexural and Compressive Strength

Flexural and compressive strength tests were performed after 30 days. All the mortars with added of bio-based wastes presented lower flexural and compressive strengths than the reference mortar. This was much less significant for those with addition of the wood fraction, especially at 5%. Indeed, a general decrease was noticed, namely between 40 and 55%. Moreover, a higher content of the same biomass usually corresponded with a lower flexural strength of the mortar, except for leaves and branchlets where the content presented insignificant differences. Although the latter showed a similar flexural strength at 5% and 10% of biomass addition, the compressive strength increased with an increase in biomass. In addition, bark showed this tendency to a small degree, whereas particles of flowers and wood reduced the compressive strength with increased contents. As mentioned previously, the different fractions of A. dealbata biomass have different amounts of cellulose, hemicellulose, and lignin. This affects their surface and their tenacity during milling, resulting in different particle shapes and different particle size distributions [40]. These different characteristics will also affect chemical and physical interactions with other mortar components, thus influencing mechanical properties. This tendency for a decrease in mechanical properties with the addition of biomass was already observed by other authors [41,42]. Morales-Conde [43] found that not exceeding 5% of sawdust incorporation on gypsum mortars led to an improvement of flexural strength, whereas all the percentages of sawdust additions decreased the compressive strength. The same authors related this phenomenon to a discontinuity introduced by the particles in the gypsum matrix which might have caused a reduction of strength. A lower hydration rate in the composites was also referenced by Chiki et al. [44], Panesar et al. [45] (2012), and Fatma et al. [42]. Nevertheless, all the mortars fulfilled the flexural and compressive strengths requirements of the EN 13279-1 [31] for gypsum plasters, as presented in Figure 7.

3.3. Dynamic Modulus of Elasticity (DME)

The dynamic modulus of elasticity (DME) generally showed a similar tendency to the flexural and compressive strengths. The incorporation of 5% and 10% (vol.) of different A. dealbata fractions introduced a decrease in the DME of the mortars (Figure 8). Moreover, the higher the volume of biomass added, the lower the modulus, as expected. These results can indicate a higher deformability of the mortars, which can lead to a lower susceptibility to cracking phenomena. Nevertheless, the particles of biomass could be responsible for the DME decrease by triggering new voids in the mortar matrix, as evidenced by the Olympus SZH-10 optical microscope observation (Figure 9). A poor interface between the gypsum matrix and the sawdust particles, and a high water absorption of the sawdust were found to be responsible for the poorer mechanical behavior of the gypsum–sawdust composites studied by Dai et al. [46]. Some differences on the hydrophilic nature of the fractions of A. dealbata may have led to a high absorption of the mixing water and a consequent increase of volume of the biomass particles during the mixing process. Thus, less water available during the gypsum hydration process could have led to a lower hydration rate (with lower mechanical properties) of the modified mortars when compared to the reference one. Moreover, once dried, the particles of biomass could have lost their gained volume creating the big voids that were found (Figure 9). The biomass particles could also have physically replaced a corresponding volume of the gypsum paste, therefore, decreasing the mechanical properties of the mortar.
The color of the dry mortars was also assessed by naked eye and optical microscope observation. It could be seen that the differences in color due to the addition of the different biomasses and contents was not relevant when compared with the reference mortar.

3.4. Open Porosity

The values of open porosity of the eleven mortars were quite similar, although a small amount of variation was observed (Figure 10). All the mortars were highly porous, with values around 40%. The addition of flowers, leaves, and branchlets increased the porosity (the higher the percentage, the higher the effect). The addition of wood and bark, instead, kept the open porosity below the value of the reference mortar. The results agreed with the observed values of DME and flexural and compressive strengths, whereby the mortars with incorporation of A. dealbata wood particles showed the lowest open porosity and one of the highest mechanical properties.

4. Conclusions

After the removal of extracts that can be used in value-added chemical products, the wastes of five different fractions of A. dealbata, an invasive species in many countries, were added to a premixed gypsum plastering mortar in 5% and 10% volumes.
The study showed that the addition of A. dealbata biomasses did not significantly affect the workability of the mortars and their water requirements—seven mortars out of ten showed a higher flow-table consistency than the reference mortar despite a fixed amount of water being used for all. In addition, the bulk density, open porosity, and color were not appreciably modified by the additions, but a general decrease in mechanical properties was observed. However, mortars with all the studied fractions and contents presented flexural and compressive values that complied with the requirements of EN 13279-1 [31] for gypsum plasters. Acacia dealbata wood showed the closest mechanical properties to the reference mortar, having the best potential to be used as an addition to gypsum mortars, at least up to 10% volume incorporation rate, without causing relevant changes in their workability, density, or flexural or compressive strengths. Thus, this study allows us to conclude that the gypsum-based products with the inclusion of the studied additives are viable as plasters, according to EN 13279-1 [31].
Further studies will assess whether the addition of these biomasses, beyond their advantages in the reduction of incorporated energy, can improve the hygroscopicity of gypsum plasters and, therefore, their passive contribution to comfort and health in indoor environments. Moreover, the biomass fractions which had more negative effects on the mechanical properties of the studied plasters, might still present a high relative humidity passive regulation performance and therefore be promising for this reason.

Author Contributions

Conceptualization, A.R., P.F., M.T.F. and M.G.; investigation, A.R., R.C., M.T.F. and M.G.; writing—original draft preparation, A.R.; writing—review and editing, P.F., R.C., M.T.F., R.V. and M.G.; supervision, P.F. and R.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Portuguese Foundation for Science and Technology: Alessandra Ranesi Doctoral Training Programme EcoCoRe grant number PD/BD/150399/2019 and Civil Engineering Research and Innovation For Sustainability Unit-CERIS (UIDB/04378/2020).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

The authors would like to thank the National Laboratory for Civil Engineering of Portugal (LNEC) for the laboratory equipment and the support provided through the projects PRESERVe and REuSE; the Department of Civil Engineering of the NOVA School of Science and Technology of the University of Lisbon, and the Department of R&D of SIVAL—Gessos Especiais,, Lda.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mäkinen, T.M.; Juvonen, R.; Jokelainen, J.; Harju, T.H.; Peitso, A.; Bloigu, A.; Silvennionen-Kassinen, S.; Leinonen, M.; Hassi, J. Cold temperature and low humidity are associated with increased occurrence of respiratory tract infections. Respir. Med. 2009, 103, 456–462. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Reinikainen, L.M.; Jaakkola, J.J. Efffects of temperature and humidification in the office environment. Arch. Environ. Health 2001, 56, 365–368. [Google Scholar] [CrossRef]
  3. Markowicz, P.; Larsson, L. Influence of relative humidity on VOC concentrations in indoor air. Environ. Sci. Pollut. Res. 2015, 22, 5772–5779. [Google Scholar] [CrossRef] [PubMed]
  4. Jones, A.P. Indoor air quality and health. Atmos. Environ. 1999, 33, 4535–4564. [Google Scholar] [CrossRef]
  5. Walkoff, P. Indoor air humidity, air quality, and health—An overview. Int. J. Hyg. Environ. Health 2018, 221, 376–390. [Google Scholar] [CrossRef] [PubMed]
  6. Almeida, R.M.S.F.; Ramon, N.M.M.; Freitas, V.P. Thermal comfort models and pupils’ perception in free-running school buildings of a mild climate country. Energy Build. 2016, 11, 64–75. [Google Scholar] [CrossRef]
  7. Vellei, M.; Herrera, M.; Fosas, D.; Natarajan, S. The influence of relative humidity on adaptive thermal comfort. Build. Environ. 2017, 124, 171–185. [Google Scholar] [CrossRef]
  8. Freire, M.T.; Veiga, R.; Santos Silva, A.; de Brito, J. Restoration of ancient gypsum-based plasters: Design of compatible materials. Cem. Concr. Compos. 2021, 120, 104014. [Google Scholar] [CrossRef]
  9. Lima, J.; Faria, P.; Veiga, R. Comparison of an earth mortar and common binder mortars for indoor plastering. In Proceedings of the ICSEFCM2021—2nd International Conference on Sustainable, Environmentally Friendly Construction Materials, Szczecin, Poland, 31 August–2 September 2021; Horszczaruk, E., Brzozowski, P., Eds.; pp. 71–76, ISBN 978-83-7663-324-4. [Google Scholar]
  10. Santos, T.; Gomes, M.I.; Santos Silva, A.; Ferraz, E.; Faria, P. Comparison of mineralogical, mechanical and hygroscopic characteristic of earthen, gypsum and cement-based plasters. Constr. Build. Mater. 2020, 254, 119222. [Google Scholar] [CrossRef]
  11. Ranesi, A.; Faria, P.; Veiga, M.R. Traditional and modern plasters for built heritage: Suitability and contribution for relative humidity passive regulation. Heritage 2021, 4, 132. [Google Scholar] [CrossRef]
  12. Santos, T.; Almeida, J.; Silvestre, J.D.; Faria, P. Life cycle assessment of mortars: A review on technical potential and drawbacks. Constr. Build. Mater. 2021, 288, 123069. [Google Scholar] [CrossRef]
  13. Brazão Farinha, C.; Silvestre, J.D.; de Brito, J.; Veiga, R. Life Cycle Assessment of Mortars with Incorporation of Industrial Wastes. Fibers 2019, 7, 59. [Google Scholar] [CrossRef] [Green Version]
  14. Cintura, E.; Nunes, L.; Esteves, B.; Faria, P. Agro-industrial wastes as building insulation materials: A review and challenges for Euro-Mediterranean countries. Ind. Crops Prod. 2021, 171, 113833. [Google Scholar] [CrossRef]
  15. Mazhoud, B.; Collet, F.; Pretot, S.; Chamoin, J. Hygric and thermal properties of hemp-lime plasters. Build. Environ. 2016, 96, 206–216. [Google Scholar] [CrossRef]
  16. Liuzzi, S.; Rubino, C.; Stefanizzi, P.; Petrella, A.; Boghetich, A.; Casavola, C.; Pappalettera, G. Hygrothermal properties of clayey plasters with olive fiber. Constr. Build. Mater. J. 2018, 158, 24–32. [Google Scholar] [CrossRef]
  17. Pavlíková, M.; Zemanová, L.; Pokorný, J.; Záleská, M.; Jankovský, O.; Lojka, M.; Pavlík, Z. Influence of wood-based biomass ash admixing on the structural, mechanical, hygric, and thermal properties of air lime mortars. Materials 2019, 12, 2227. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Maskell, D.; da Silva, C.F.; Mower, K.; Rana, C.; Dengel, A.; Ball, R.J.; Ansell, M.P.; Thomson, A.; Peter, U.; Walker, P.J. Bio-based plasters for improved indoor air quality. In Proceedings of the ICBBM–2nd International Conference on Bio-based Building Materials, Clermont-Ferrand, France, 21–23 June 2017. [Google Scholar]
  19. Romano, A.; Bras, A.; Grammatikos, S.; Shaw, A.; Riley, M. Bio-based and recycled materials: Characterisation and hygrothermal assessment for passive relative humidity management. In Proceedings of the 3rd International Conference on Bio-based Building Materials, Belfast, UK, 26–28 June 2018. [Google Scholar]
  20. Kunchariyakun, K.; Sinyoung, S.; Kajitvichyanukul, P. Comparative microstructures and mechanical properties of mortar incorporating wood fiber waste from various curing conditions. Case Stud. Constr. Mater. 2022, 16, e00855. [Google Scholar] [CrossRef]
  21. de Azevedo, A.R.G.; Klyuev, S.; Marvila, M.T.; Vatin, N.; Alfimova, N.; de Lima, T.E.S.; Fediuk, R.; Olisov, A. Investigation of the potential use of Curauá fiber for reinforcing mortars. Fibers 2020, 8, 69. [Google Scholar] [CrossRef]
  22. Maia Pederneira, C.; Veiga, R.; de Brito, J. Physical and Mechanical Performance of Coir Fiber-Reinforced Rendering Mortars. Materials 2020, 14, 823. [Google Scholar] [CrossRef]
  23. Nunes, L.J.R.; Rodrigues, A.M.; Loureiro, L.M.E.F.; Sá, L.C.R.; Matias, J.C.O. Energy recovery from invasive species: Creation of value chains to promote control and eradication. Recycling 2021, 6, 21. [Google Scholar] [CrossRef]
  24. Raposo, M.A.M.; Pinto-Gomes, C.J.; Nunes, L.J.R. Selective shrub management to preserve Mediterranean forests and reduce the risk of fire: The case of mainland Portugal. Fire 2020, 3, 65. [Google Scholar] [CrossRef]
  25. Lorenzo, P.; González, L.; Reigosa, M.J. The Genus Acacia as Invader: The characteristic case of acacia dealbata link in Europe. Ann. For. Sci. 2010, 67, 101. [Google Scholar] [CrossRef] [Green Version]
  26. Dawit, J.B.; Lemu, H.G.; Regassa, Y.; Akessa, A.D. Investigation of the mechanical properties of Acacia tortilis fiber reinforced natural composite. Mater. Today Proc. 2021, 38, 2953–2958. [Google Scholar] [CrossRef]
  27. Sakthi Vadivel, K.; Govindasamy, P. Mechanical and water absorption properties of Acacia Arabica bark fiber/polyester composites: Effect of alkali treatment and fiber volume fraction. Mater. Today Proc. 2021, 46, 2281–2287. [Google Scholar] [CrossRef]
  28. Ogawa, S.; Yazaki, Y. Tannins from Acacia mearnsii De Wild. Bark: Tannin determination and biological activities. Molecules 2018, 23, 837. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Perriot, R.; Breme, K.; Uwe, J.M.; Carenini, E.; Ferrando, G.; Baldovini, N. Chemical composition of french mimosa absolute oil. J. Agric. Food Chem. 2010, 58, 1844–1849. [Google Scholar] [CrossRef]
  30. Sowndhararajan, K.; Joseph, J.M.; Manian, S. Antioxidant and Free Radical Scavenging Activities of Indian Acacias: Acacia Leucophloea (Roxb.) Willd., Acacia Ferruginea Dc., Acacia Dealbata Link. and Acacia Pennata (l.) Willd. Int. J. Food Prop. 2013, 16, 1717–1729. [Google Scholar] [CrossRef]
  31. EN 13279-1; Gypsum Binders and Gypsum Plasters—Part 1: Definitions and Requirements. European Committee for Standardization (CEN): Brussels, Belgium, 2008.
  32. EN 13279-2; Gypsum Binders and Gypsum Plasters—Part 2: Test methods. European Committee for Standardization (CEN): Brussels, Belgium, 2014.
  33. EN 1015-6; Methods of Test for Mortar for Masonry—Part 6: Determination of Bulk Density of Fresh Mortar. European Committee for Standardization (CEN): Brussels, Belgium, 1999.
  34. EN 1015-10; Methods of Test for Mortar for Masonry—Part 10: Determination of Dry Bulk Density of Hardened Mortar. European Committee for Standardization (CEN): Brussels, Belgium, 1999.
  35. EN 1015-11; Methods of Test for Mortar for Masonry—Part 11: Determination of Flexural and Compressive Strength of Hardened Mortar. European Committee for Standardization (CEN): Brussels, Belgium, 1999.
  36. EN 14146; Natural Stone Test Methods. Determination of the Dynamic Modulus of Elasticity (by Measuring the Fundamental Resonance Frequency). European Committee for Standardization (CEN): Brussels, Belgium, 2004.
  37. EN 1936; Determination of Real Density and Apparent Density and Total and Partial Open Porosity. European Committee for Standardization (CEN): Brussels, Belgium, 2007.
  38. Tan, K.; Qin, Y.; Du, T.; Li, L.; Zhang, L.; Wang, J. Biochar from waste biomass as hygroscopic filler for pervious concrete to improve evaporative cooling performance. Constr. Build. Mater. 2021, 287, 123078. [Google Scholar] [CrossRef]
  39. Pachón-Morales, J.; Colin, J.; Pierre, F.; Puel, F.; Perré, P. Effect of torrefaction intensity on the flow properties of lignocellulosic biomass powders. Biomass Bioenergy 2019, 120, 301–312. [Google Scholar] [CrossRef]
  40. López-Hortas, L.; Rodríguez-González, I.; Díaz-Reinoso, B.; Torres, M.D.; Moure, A.; Domínguez, H. Tools for a multiproduct biorefinery of Acacia dealbata biomass. Ind. Crops Prod. 2021, 169, 113655. [Google Scholar] [CrossRef]
  41. Pedreño-Rojas, M.A.; Morales-Condes, M.J.; Rubio-de-Hita, P.; Pérez-Gálvez, F. Impact of wetting–drying cycles on the mechanical properties and microstructure of wood waste–gypsum composites. Materials 2019, 12, 1829. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Fatma, N.; Allègue, L.; Salem, M.; Zitoune, R.; Zidi, M. The effect of doum palm fibers on the mechanical and thermal properties of gypsum mortar. J. Compos. Mater. 2019, 53, 2641–2659. [Google Scholar] [CrossRef]
  43. Morales-Conde, M.J.; Rodríguez-Liñán, C.; Pedreño-Rojas, M.A. Physical and mechanical properties of wood-gypsum composites from demolition material in rehabilitation works. Constr. Build. Mater. 2016, 114, 6–14. [Google Scholar] [CrossRef]
  44. Chicki, M.; Agoudjil, B.; Boudenne, A.; Gherabli, A. Experimental investigation of new biocomposite with low cost forthermal insulation. Energy Build. 2013, 66, 267–273. [Google Scholar] [CrossRef]
  45. Panesar, D.K.; Shindman, B. The mechanical, transport and thermal properties of mortar and concrete containing waste cork. Cem. Concr. Compos. 2012, 34, 982–992. [Google Scholar] [CrossRef]
  46. Dai, D.; Fan, M. Preparation of bio-composite from wood sawdust and gypsum. Ind. Crops Products 2015, 74, 417–424. [Google Scholar] [CrossRef]
Buildings 12 00339 g001 550

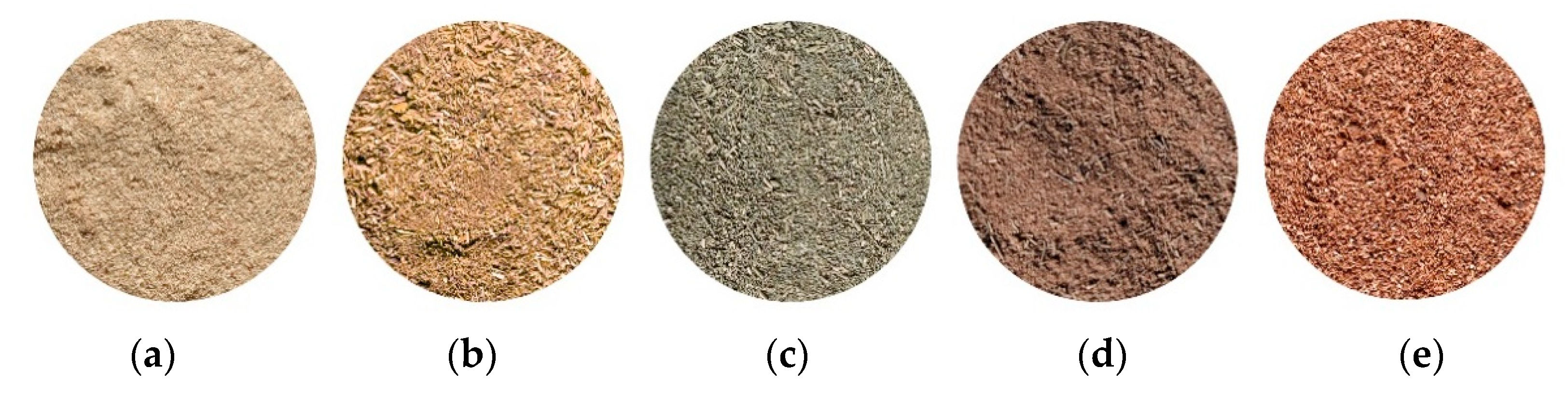

Figure 1. Acacia dealbata fractions: (a) wood, (b) branchlets, (c) leaves, (d) flowers, and (e) bark.
Figure 1. Acacia dealbata fractions: (a) wood, (b) branchlets, (c) leaves, (d) flowers, and (e) bark.
Buildings 12 00339 g001
Buildings 12 00339 g002 550

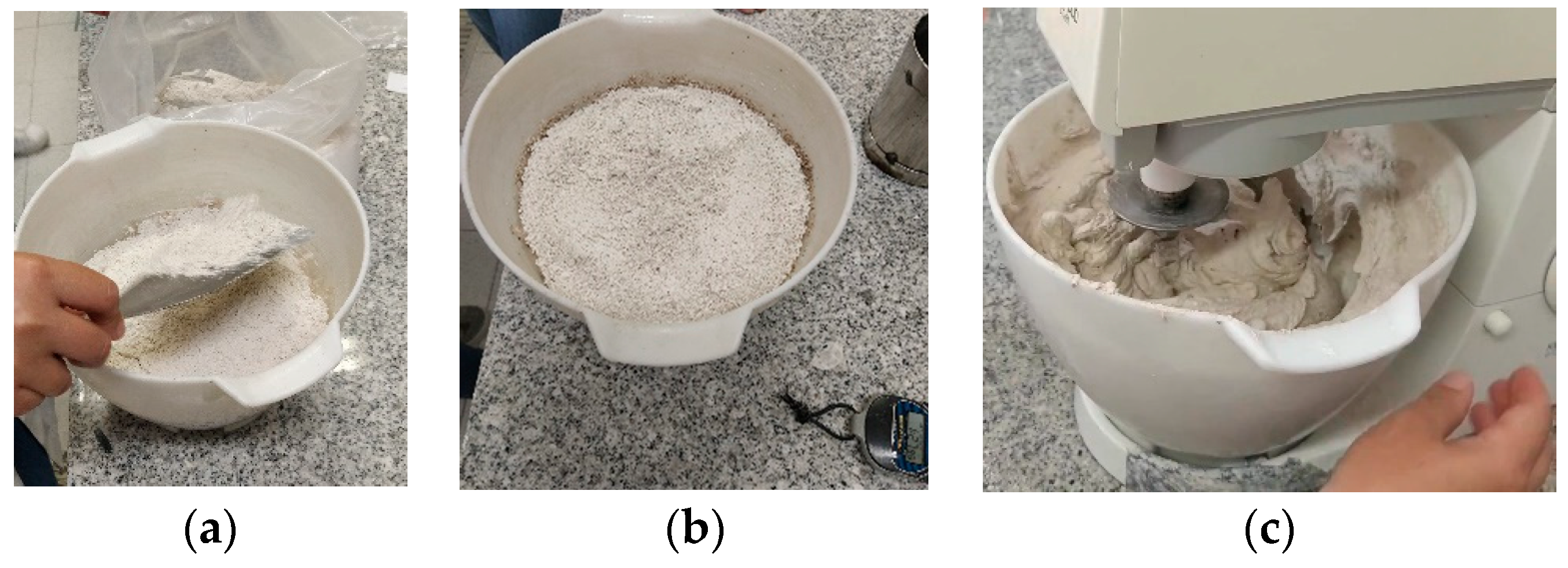

Figure 2. Mortar preparation: (a) sprinkling method, (b) soaking, and (c) mechanical mix.
Figure 2. Mortar preparation: (a) sprinkling method, (b) soaking, and (c) mechanical mix.
Buildings 12 00339 g002
Buildings 12 00339 g003 550

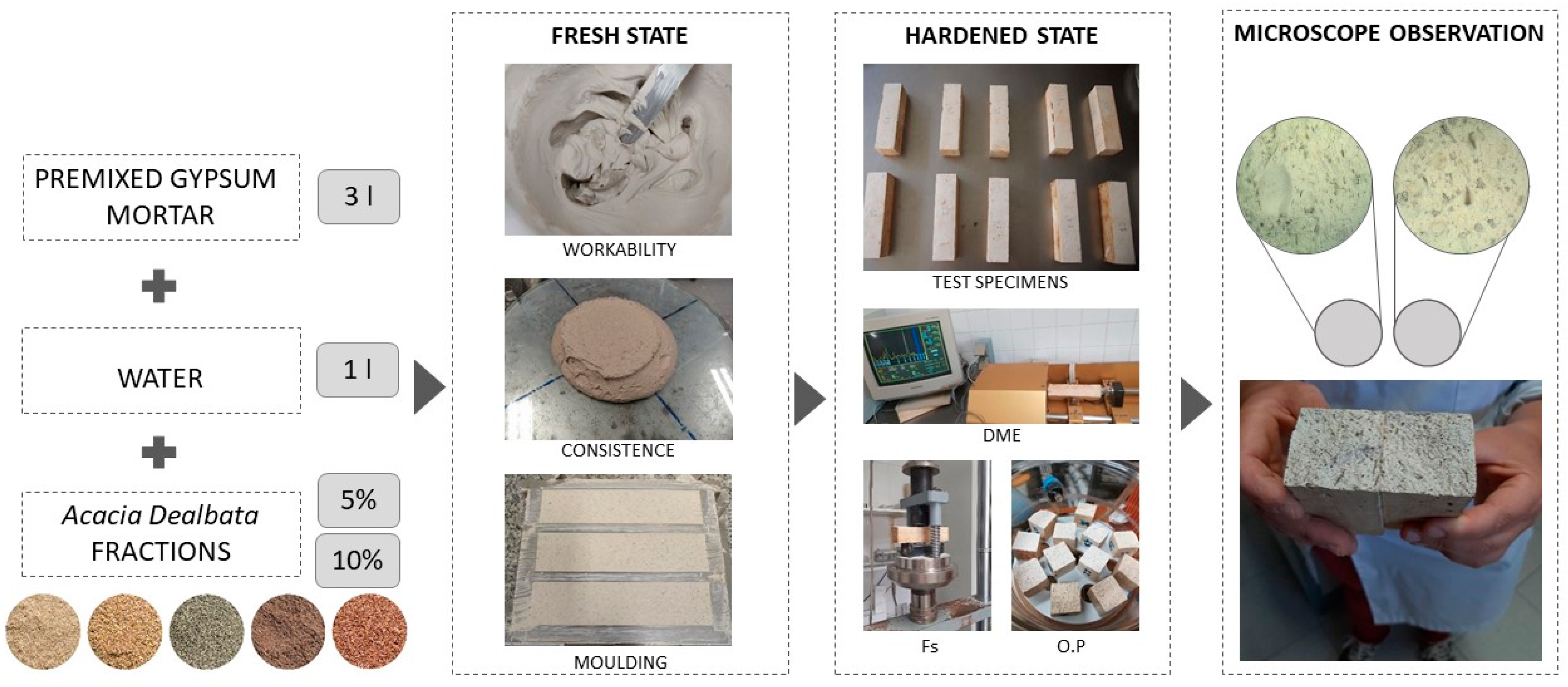

Figure 3. Experimental flowchart. DME, dynamic modulus of elasticity; Fs, flexural strength test; O.P., open porosity by vacuum and hydrostatic weighing.
Figure 3. Experimental flowchart. DME, dynamic modulus of elasticity; Fs, flexural strength test; O.P., open porosity by vacuum and hydrostatic weighing.
Buildings 12 00339 g003
Buildings 12 00339 g004 550

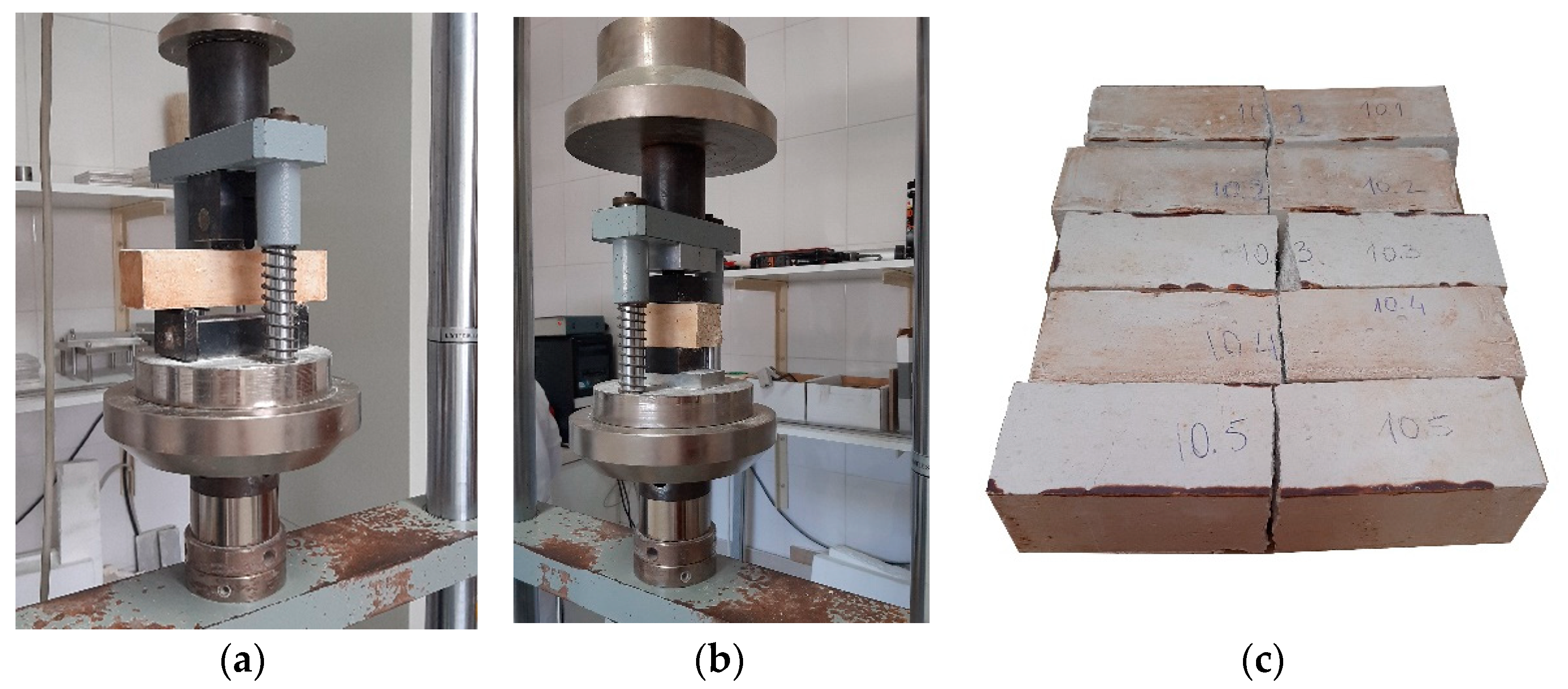

Figure 4. Flexural (a) and compressive (b) strength tests, and Wo10 specimens after the flexural tests (c).
Figure 4. Flexural (a) and compressive (b) strength tests, and Wo10 specimens after the flexural tests (c).
Buildings 12 00339 g004
Buildings 12 00339 g005 550

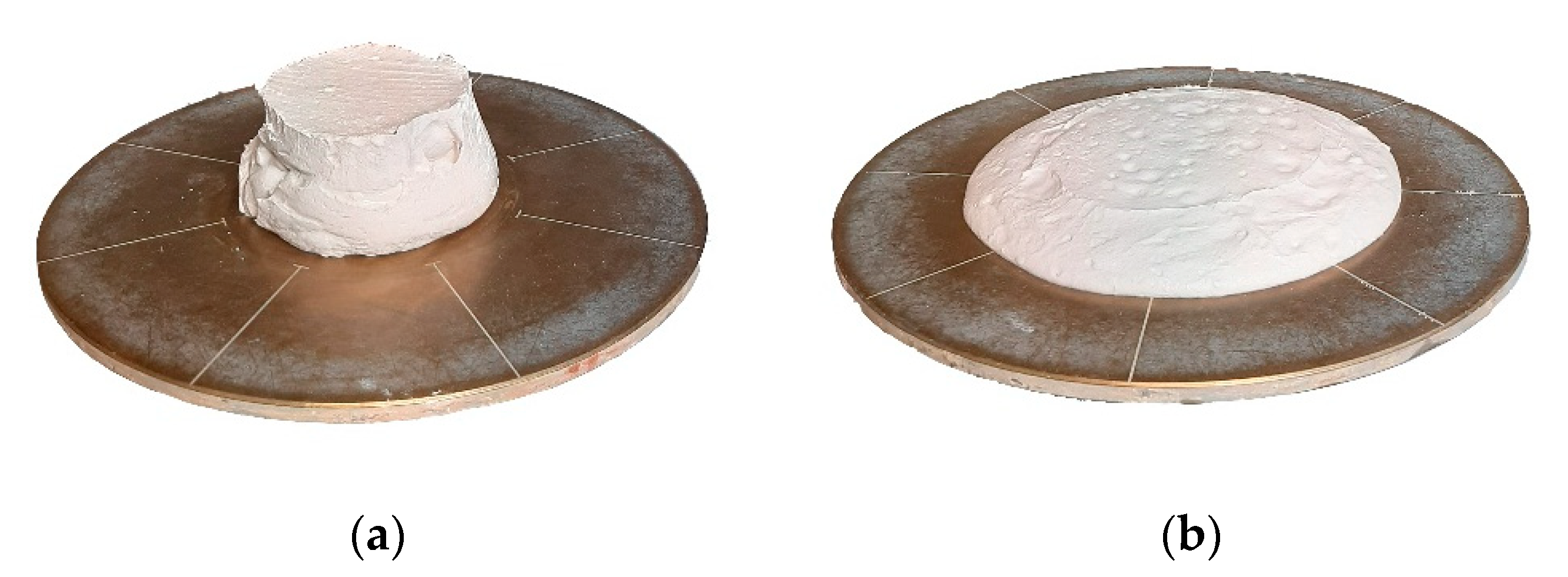

Figure 5. Flow-table consistency at the removal of the cone of the reference mortar (a) and after jolting the flow table fifteen times (b).
Figure 5. Flow-table consistency at the removal of the cone of the reference mortar (a) and after jolting the flow table fifteen times (b).
Buildings 12 00339 g005
Buildings 12 00339 g006 550
Figure 6. Bulk density of the tested mortars and, in orange, the volumetric drying shrinkage at 28 days.
Figure 6. Bulk density of the tested mortars and, in orange, the volumetric drying shrinkage at 28 days.
Buildings 12 00339 g006
Buildings 12 00339 g007 550
Figure 7. Flexural (a) and compressive (b) strengths of the mortars—average values and standard deviation. Dashed red lines represent the lower limits of the EN 13279-1 [31] for gypsum plasters (B1 to B6 class).
Figure 7. Flexural (a) and compressive (b) strengths of the mortars—average values and standard deviation. Dashed red lines represent the lower limits of the EN 13279-1 [31] for gypsum plasters (B1 to B6 class).
Buildings 12 00339 g007
Buildings 12 00339 g008 550
Figure 8. Dynamic modulus of elasticity of the tested mortars—average values and standard deviation.
Figure 8. Dynamic modulus of elasticity of the tested mortars—average values and standard deviation.
Buildings 12 00339 g008
Buildings 12 00339 g009 550

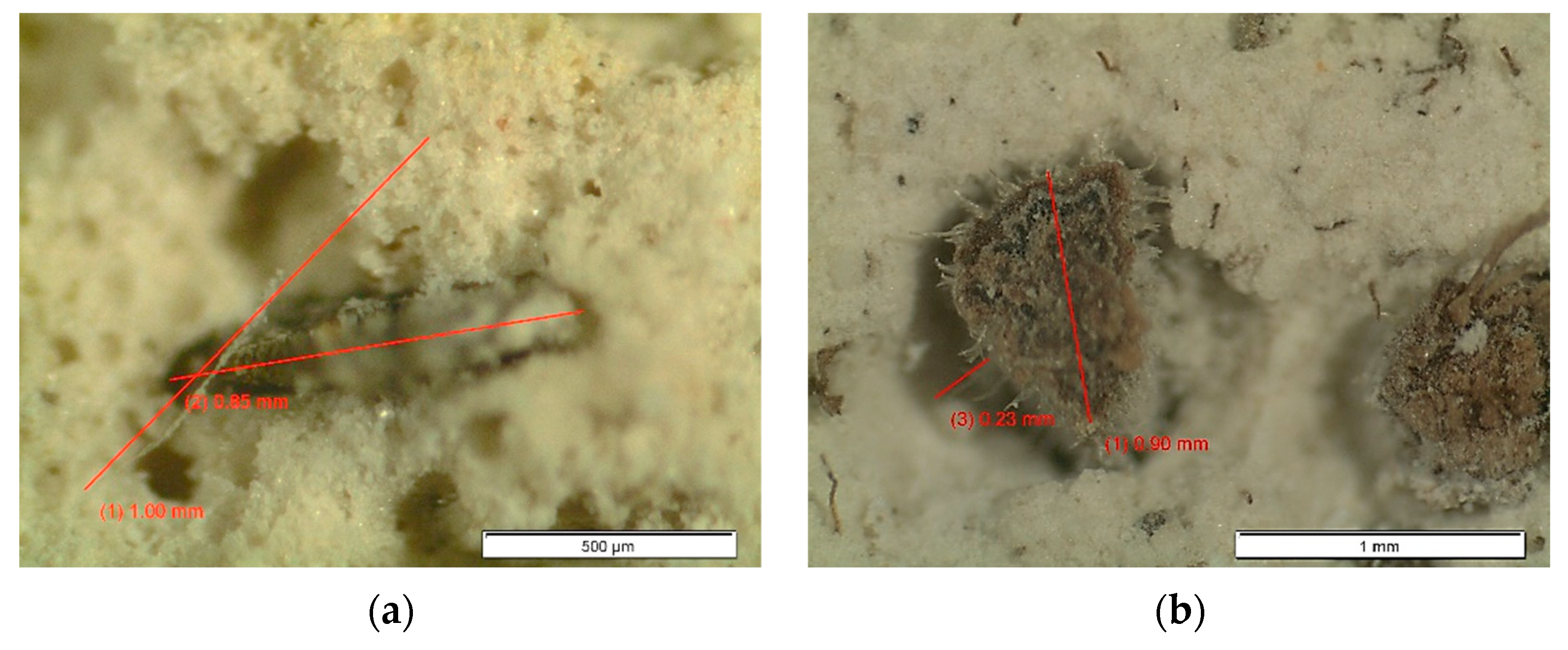

Figure 9. Optical microscope observations showing voids introduced by the biomass in Le5 (a) and Fl10 (b) mortar.
Figure 9. Optical microscope observations showing voids introduced by the biomass in Le5 (a) and Fl10 (b) mortar.
Buildings 12 00339 g009
Buildings 12 00339 g010 550

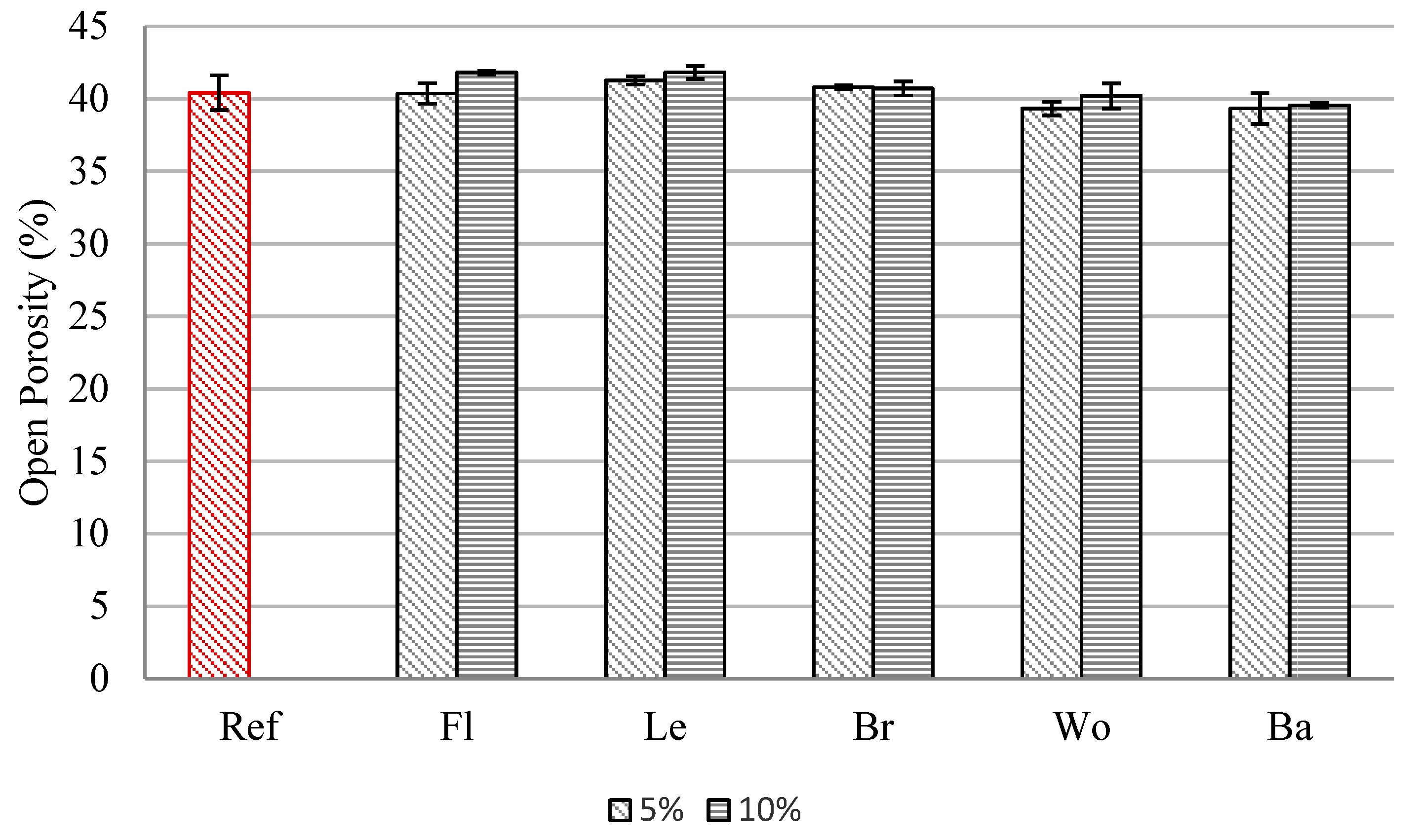

Figure 10. Open porosity of tested mortars. The average values and the standard deviation were calculated from three specimens.
Figure 10. Open porosity of tested mortars. The average values and the standard deviation were calculated from three specimens.
Buildings 12 00339 g010
Table
Table 1. Loose bulk density and color coordinates of Acacia dealbata fractions.
Table 1. Loose bulk density and color coordinates of Acacia dealbata fractions.
A. dealbata FractionLoose Bulk Density (g/cm3)Color (CIELB Coordinates)
L*a*b*
Wood0.21165.580.6818.94
Branchlets0.37859.111.3117.51
Leaves0.41534.970.5911.04
Flowers0.21735.338.5011.39
Bark0.43543.197.5812.85
Table
Table 2. Composition of the mortars and flow table consistence.
Table 2. Composition of the mortars and flow table consistence.
MortarAcacia FractionAddition (vol, %)Addition (Mass, g)Flow (mm)
REF–––163.0
Fl5Flowers532.6163.0
Le5Leaves562.2168.5
Br5Branchlets556.7171.3
Wo5Wood531.7160.3
Ba5Bark565.2175.5
Fl10Flowers1065.3165.5
Le10Leaves10124.4156.5
Br10Branchlets10113.5171.0
Wo10Wood1063.3165.3
Ba10Bark10130.4165.0
