Life Cycle Environmental Impact of Underground Plastic Recharge Chambers in Stormwater Management
Abstract
:1. Introduction
2. Background
2.1. Infiltration Studies Involving RCs
2.2. Water Quality Studies Involving RCs
2.3. Testing of Mechanical Properties of RCs under Loads
2.4. LCA Studies of SCMs Other Than RCs
2.5. RCs as an SCM
3. Methods

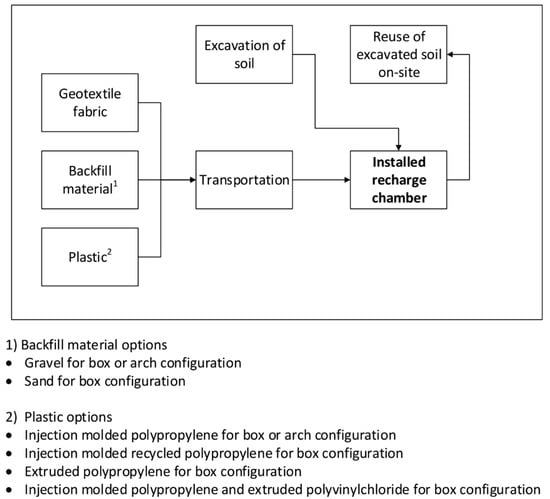

3.1. Functional Unit, Goal, Scope, and System Boundary
3.2. Life Cycle Inventory
3.3. Life Cycle Impact Assessment

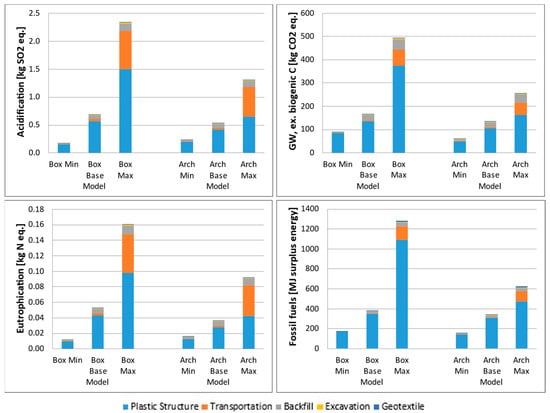

4. Results

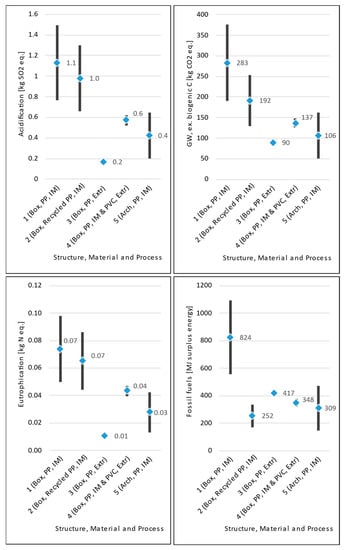

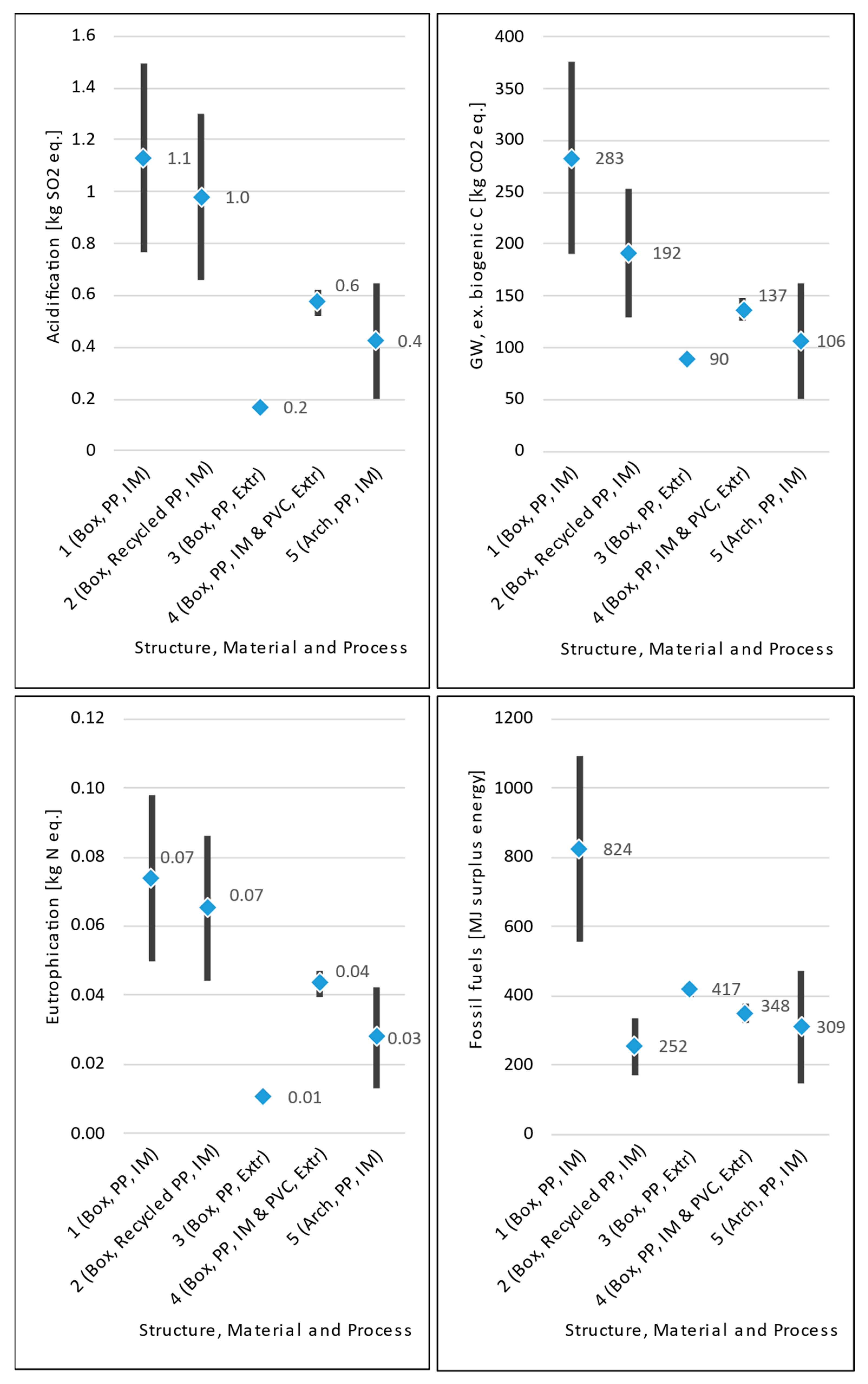

4.1. Plastic Structure

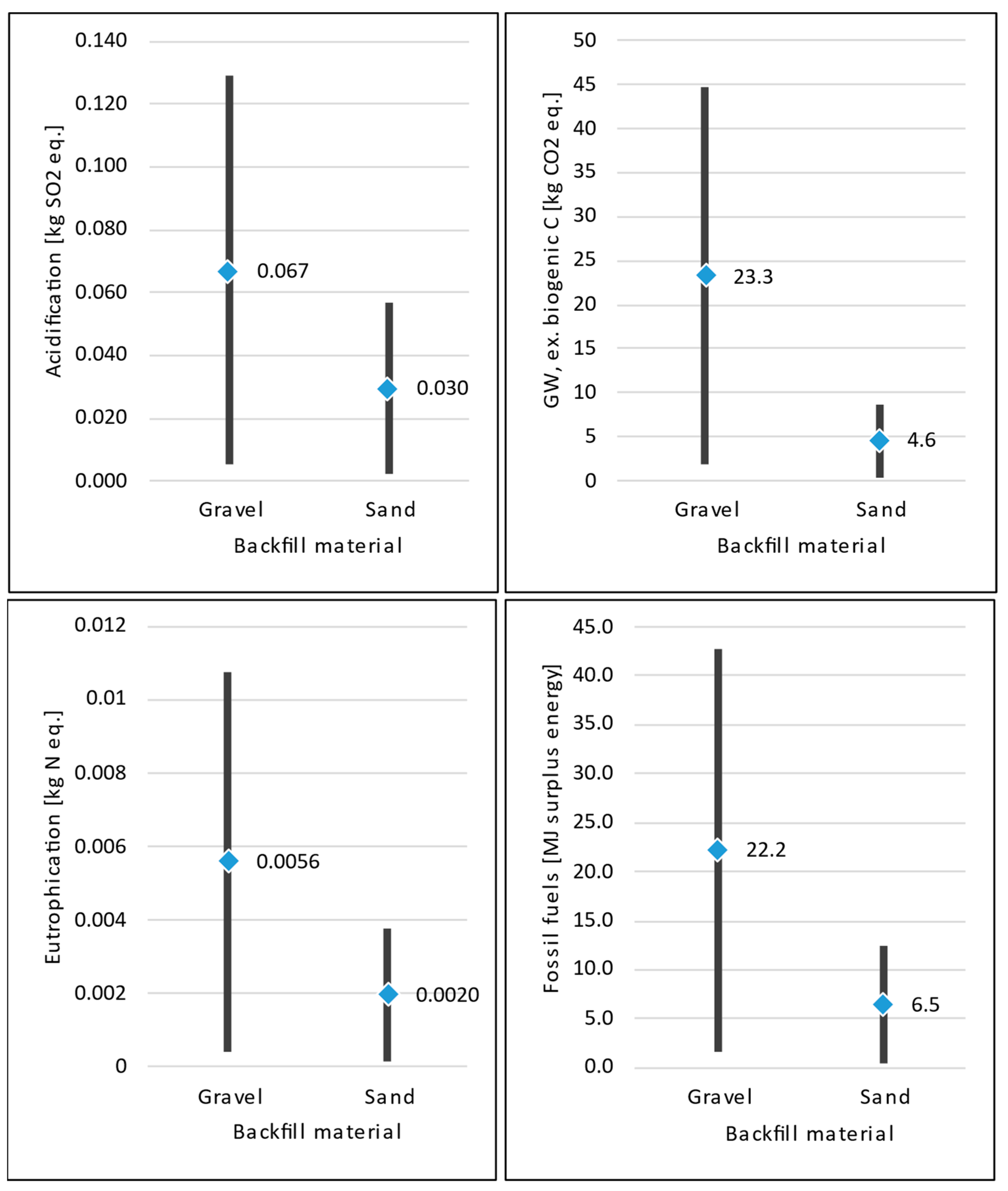

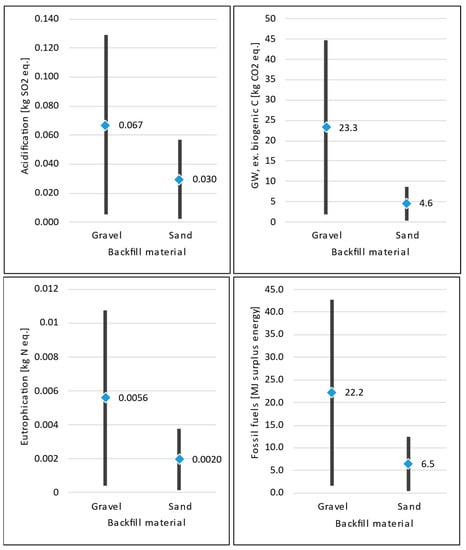

4.2. Backfill Material

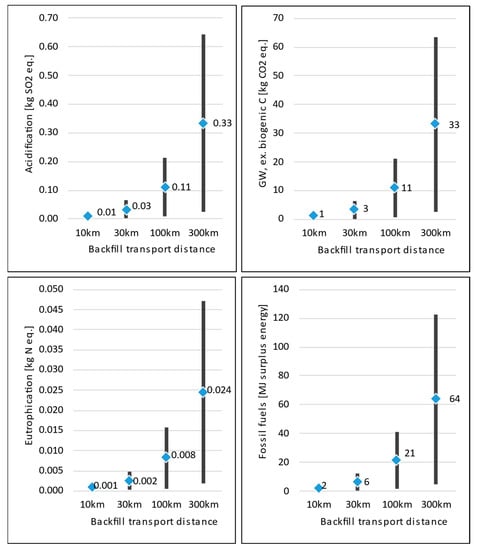

4.3. Transportation Distance
5. Discussion
6. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- US EPA. Low Impact Development (LID) Literature Review Document #EPA-841-B-00-005; United States Environmental Protection Agency, Office of Water: Washington, DC, USA, 2000.
- Hale, R. Spatial and temporal variation in local stormwater infrastructure use and stormwater management paradigms over the 20th century. Water 2016, 8, 310. [Google Scholar] [CrossRef]
- McPhillips, L.E.; Matsler, A.M. Temporal evolution of green stormwater infrastructure strategies in three US cities. Front. Built Environ. 2018, 4. [Google Scholar] [CrossRef] [Green Version]
- Hopkins, K.G.; Bhaskar, A.S.; Woznicki, S.A.; Fanelli, R.M. Changes in event-based streamflow magnitude and timing after suburban development with infiltration-based stormwater management. Hydrol. Processes 2019, 34, 387–403. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Market Study Report. Global Stormwater Detention System Market Size, Status and Forecast 2021–2027Document #MSR3951641. 2021, p. 117. Available online: https://www.marketstudyreport.com/reports/global-stormwater-detention-system-market-size-status-and-forecast-2021-2027 (accessed on 28 March 2022).
- Bailey, J. Personal communication on recharge chambers including applications and installations. 2017. [Google Scholar]
- Bhaskar, A.S.; Hogan, D.M.; Archfield, S.A. Urban base flow with low impact development. Hydrol. Processes 2016, 30, 3156–3171. [Google Scholar] [CrossRef] [Green Version]
- Bhaskar, A.S.; Hogan, D.M.; Nimmo, J.R.; Perkins, K.S. Groundwater recharge amidst focused stormwater infiltration. Hydrol. Processes 2018, 32, 2058–2068. [Google Scholar] [CrossRef]
- Rhea, L.; Jarnagin, T.; Hogan, D.; Loperfido, J.V.; Shuster, W. Effects of urbanization and stormwater control measures on streamflows in the vicinity of Clarksburg, Maryland, USA. Hydrol. Processes 2015, 29, 4413–4426. [Google Scholar] [CrossRef]
- Burszta-Adamiak, E.; Lomotowski, J. Modelling of percolation rate of stormwater from underground infiltration systems. Water Sci. Technol. 2013, 68, 2144–2150. [Google Scholar] [CrossRef]
- Sparkman, S.A.; Hogan, D.M.; Hopkins, K.G.; Loperfido, J.V. Modeling watershed-scale impacts of stormwater management with traditional versus low impact development design. J. Am. Water Resour. Assoc. 2017, 53, 1081–1094. [Google Scholar] [CrossRef]
- Drake, J.; Young, D.; McIntosh, N. Performance of an underground stormwater detention chamber and comparison with stormwater management ponds. Water 2016, 8, 211. [Google Scholar] [CrossRef] [Green Version]
- Masada, T. Deflection formulas for buried chamber structures. J. Pipel. Syst. Eng. Pract. 2017, 8, 4017005. [Google Scholar] [CrossRef]
- Masada, T. Full-scale field load testing of storm-water storage chamber structures. J. Perform. Constr. Facil. 2011, 25, 317–325. [Google Scholar] [CrossRef]
- Masada, T.; Zhu, J.Q. Computer analysis of buried stormwater chamber structures. J. Pipel. Syst. Eng. Pract. 2015, 6, 4014013. [Google Scholar] [CrossRef]
- Brachman, R.W.I.; LeBlanc, J.M. Short-term lateral response of a buried modular polymer stormwater collection structure to compaction and overburden pressure. J. Geotech. Geoenviron. Eng. 2017, 143, 4017070. [Google Scholar] [CrossRef]
- Moore, I.D.; Brachman, R.W.I.; Elshimi, T.; Rahman, K. Analysis and testing to characterize the strength of buried infrastructure. In Proceedings of the 13th International Conference of the International Association for Computer Methods and Advances in Geomechanics, Melbourne, Australia, 9–13 May 2011; p. 6. [Google Scholar]
- McGrath, T.J.; Mailhot, D. Designing stormwater chambers to meet AASHTO specifications. J. ASTM Int. 2010, 7, 1–8. [Google Scholar] [CrossRef]
- Aung, T.H.; Khabbaz, H.; Fatahi, B. Parametric study of applied stresses on infiltration modular cells installed under roads. Procedia Eng. 2016, 143, 1325–1332. [Google Scholar] [CrossRef] [Green Version]
- AASHTO Standard Specifications. Available online: https://www.transportation.org/ (accessed on 11 December 2021).
- Montalto, F.; Behr, C.; Alfredo, K.; Wolf, M.; Arye, M.; Walsh, M. Rapid assessment of the cost-effectiveness of low impact development for CSO control. Landsc. Urban Plan. 2007, 82, 117–131. [Google Scholar] [CrossRef]
- Petit-Boix, A.; Sevigne-Itoiz, E.; Rojas-Gutierrez, L.A.; Barbassa, A.P.; Josa, A.; Rieradevall, J.; Gabarrell, X. Environmental and economic assessment of a pilot stormwater infiltration system for flood prevention in Brazil. Ecol. Eng. 2015, 84, 194–201. [Google Scholar] [CrossRef] [Green Version]
- Vineyard, D.; Ingwersen, W.W.; Hawkins, T.R.; Xue, X.B.; Demeke, B.; Shuster, W. Comparing green and grey infrastructure using life cycle cost and environmental impact: A rain garden case study in Cincinnati, OH. J. Am. Water Resour. Assoc. 2015, 51, 1342–1360. [Google Scholar] [CrossRef]
- Fathollahi, A.; Coupe, S.J. Life cycle assessment (LCA) and life cycle costing (LCC) of road drainage systems for sustainability evaluation: Quantifying the contribution of different life cycle phases. Sci. Total Environ. 2021, 776, 145937. [Google Scholar] [CrossRef]
- Hengen, T.J.; Sieverding, H.L.; Stone, J.J. Lifecycle assessment analysis of engineered stormwater control methods common to urban watersheds. J. Water Resour. Plan. Manag.-ASCE 2016, 142, 04016016. [Google Scholar] [CrossRef]
- Andrew, R.M.; Vesely, E.T. Life-cycle energy and CO2 analysis of stormwater treatment devices. Water Sci. Technol. 2008, 58, 985–993. [Google Scholar] [CrossRef] [PubMed]
- Peterson, L.A.; Awerbuch, P.M.; Spatari, S. Environmental and economic implications of stormwater management alternatives in rural development. J. Ind. Ecol. 2021, 24, 1076–1088. [Google Scholar] [CrossRef]
- O’Sullivan, A.D.; Wicke, D.; Hengen, T.J.; Sieverding, H.L.; Stone, J.J. Life Cycle Assessment modelling of stormwater treatment systems. J. Environ. Manag. 2015, 149, 236–244. [Google Scholar] [CrossRef] [PubMed]
- Byrne, D.M.; Grabowski, M.K.; Benitez, A.C.B.; Schmidt, A.R.; Guest, J.S. Evaluation of life cycle assessment (LCA) for roadway drainage systems. Environ. Sci. Technol. 2017, 51, 9261–9270. [Google Scholar] [CrossRef] [PubMed]
- Flynn, K.M.; Traver, R.G. Green infrastructure life cycle assessment: A bio-infiltration case study. Ecol. Eng. 2013, 55, 9–22. [Google Scholar] [CrossRef]
- De Sousa, M.R.C.; Montalto, F.A.; Spatari, S. Using life cycle assessment to evaluate green and grey combined sewer overflow control strategies. J. Ind. Ecol. 2012, 16, 901–913. [Google Scholar] [CrossRef]
- Moore, T.L.C.; Hunt, W.F. Predicting the carbon footprint of urban stormwater infrastructure. Ecol. Eng. 2013, 58, 44–51. [Google Scholar] [CrossRef]
- Rivela, B.; Cuerda, I.; Olivieri, F.; Bedoya, C.; Neila, J. Life Cycle Assessment for ecodesign of ecological roof made with Intemper TF ecological water-tank system. Mater. Constr. 2013, 63, 131–145. [Google Scholar] [CrossRef] [Green Version]
- Spatari, S.; Hubler, J.F.; Hsuan, Y.G.; Marcellus, K. Beneficial use of plastic pipe in sustainable stormwater infrastructure. In Proceedings of the 1st International Specialty Conference on Sustaining Public Infrastructure, Edmonton, AB, Canada, 6–9 June 2012. [Google Scholar]
- Spatari, S.; Yu, Z.W.; Montalto, F.A. Life cycle implications of urban green infrastructure. Environ. Pollut. 2011, 159, 2174–2179. [Google Scholar] [CrossRef]
- ACF Environmental. Available online: www.acfenvironmental.com (accessed on 13 November 2017).
- ACO Stormbrixx. Available online: www.acostormbrixx.us (accessed on 13 November 2017).
- Atlantis. Available online: www.rainharvest.com/atlantis-d-raintank-modular-rainwater-storage-system.asp (accessed on 13 November 2017).
- Brentwood StormTank. Available online: www.brentwoodindustries.com/stormwater-management (accessed on 13 November 2017).
- EcoRain. Available online: www.ecorain.com (accessed on 13 November 2017).
- Greening Solution. Available online: www.greening-solution.com (accessed on 13 November 2017).
- NidaPlast. Available online: www.nidaplast.com/en-uk (accessed on 13 November 2017).
- Wavin Q-Bic Plus. Available online: www.wavin.co.uk (accessed on 13 November 2017).
- ADS Storm Tech. Available online: www.stormtech.com (accessed on 13 November 2017).
- Contech Engineered Solutions. Available online: http://www.conteches.com/ (accessed on 13 November 2017).
- Graf EcoBloc. Available online: www.graf-water.com (accessed on 13 November 2017).
- Prinsco HydroStor. Available online: www.prinsco.com (accessed on 13 November 2017).
- StormKeeper. Available online: www.laneenterprises.com (accessed on 13 November 2017).
- Billman, S.; Schlouch Inc., Blandon, PA, USA. Personal communication on project pricing and price sensitivity, 2017.
- PA Aggregates and Concrete Association. Available online: http://www.pacaweb.org/ (accessed on 5 January 2018).
- Dirt-Doc. Available online: http://dirt-doc.com/ (accessed on 5 January 2018).
- Walker, R. Density of Bulk Materials. Available online: https://www.simetric.co.uk/si_materials.htm (accessed on 13 November 2017).
- Wallbarn Geotextiles. Available online: https://www.wallbarn.com/geotextiles/ (accessed on 13 November 2017).
- Thinkstep. Thinkstep GaBi. Available online: http://www.gabi-software.com/international/index/ (accessed on 17 December 2017).
- Spatari, S.; Betz, M.; Florin, H.; Baitz, M.; Faltenbacher, M. Using GaBi 3 to perform life cycle assessment and life cycle engineering. Int. J. Life Cycle Assess. 2001, 6, 81. [Google Scholar] [CrossRef]
- Bare, J.C. Tool for the Reduction and Assessment of Chemical and Other Environmental Impacts (TRACI Version 2.1). Available online: https://www.epa.gov/chemical-research/tool-reduction-and-assessment-chemicals-and-other-environmental-impacts-traci (accessed on 17 April 2020).
- Bare, J. TRACI 2.0: The tool for the reduction and assessment of chemical and other environmental impacts 2.0. Clean Technol. Environ. Policy 2011, 13, 687–696. [Google Scholar] [CrossRef]
- Bare, J.C. Traci—The tool for the reduction and assessment of chemical and other environmental impacts. J. Ind. Ecol. 2002, 6, 49–78. [Google Scholar] [CrossRef]
- Ryberg, M.; Vieira, M.D.M.; Zgola, M.; Bare, J.; Rosenbaum, R.K. Updated US and Canadian normalization factors for TRACI 2.1. Clean Technol. Environ. Policy 2014, 16, 329–339. [Google Scholar] [CrossRef]
- Sphera Solutions. Polypropylene (PP) Granulate Secondary; from Post-Consumer Waste, via Washing, Granulation, Pelletization; Production Mix, at Plant; 90% Recycling Rate (en); Sphera Solutions: Stuttgart, Germany, 2020. [Google Scholar]
- Keoleian, G.A.; Spatari, S.; Beal, R.T.; Stephens, R.D.; Williams, R.L. Application of life cycle inventory analysis to fuel tank system design. Int. J. Life Cycle Assess. 1998, 3, 18–28. [Google Scholar] [CrossRef]
- Na, S.; Nguyen, L.; Spatari, S.; Hsuan, Y.G. Effects of recycled HDPE and nanoclay on stress cracking of HDPE by correlating Jc with slow crack growth. Polym. Eng. Sci. 2018, 58, 1471–1478. [Google Scholar] [CrossRef] [Green Version]
- Nguyen, L.K.; Na, S.; Hsuan, Y.G.; Spatari, S. Uncertainty in the life cycle greenhouse gas emissions and costs of HDPE pipe alternatives. Resour. Conserv. Recycl. 2020, 154, 104602. [Google Scholar] [CrossRef]
- Nguyen, L.; Hsuan, Y.G.; Spatari, S. Life cycle economic and environmental implications of Prisitne high density polyethylene and alternative materials in drainage pipe applications. J. Polym. Environ. 2017, 25, 925–947. [Google Scholar] [CrossRef]
- Aero Aggregates North America. Available online: https://www.aeroaggna.com/ (accessed on 30 May 2022).
- National Ready Mixed Concrete Association on Flowable Fill. Available online: https://www.flowablefill.org/ (accessed on 30 May 2022).
Design Type | LCI | Min (kg) | Max (kg) | Distance (km) | GaBi Thinkstep Dataset |
---|---|---|---|---|---|
1 (Box, Polypropylene, Injection-Molded) | Excavation of moist earth | 1952 | 5192 | GLO: excavator, 100 kW, construction | |
Polypropylene geotextile fabric | 0.12 | 0.61 | 100–1000 | RER: polypropylene film (PP) PlasticsEurope | |
Backfill material (gravel or sand) | 160 | 4021 | 30–300 | EU-28: limestone, gravel or EU28: sand 0/2 | |
Polypropylene injection-molded structure | 43 | 85 | 100–1000 | RER: polypropylene injection-molding part | |
2 (Box, Recycled Polypropylene, Injection-Molded) | Excavation of moist earth | 1952 | 5192 | GLO: excavator, 100 kW, construction | |
Polypropylene geotextile fabric | 0.12 | 0.61 | 100–1000 | RER: polypropylene film (PP) PlasticsEurope | |
Backfill material (gravel or sand) | 160 | 4021 | 30–300 | EU-28: limestone, gravel or EU28: sand 0/2 | |
Recycled Polypropylene injection-molded structure | 43 | 77 | 100–1000 | RER: polypropylene injection-molding partMinus DE: polypropylene granulateplus recycled regranulated PP 1 | |
3 (Box, Polypropylene, Extruded) | Excavation of moist earth | 1952 | 5192 | GLO: excavator, 100 kW, construction | |
Polypropylene geotextile fabric | 0.12 | 0.61 | 100–1000 | RER: polypropylene film (PP) PlasticsEurope | |
Backfill material (gravel or sand) | 160 | 4021 | 30–300 | EU-28: limestone, gravel or EU28: sand 0/2 | |
Polypropylene extruded structure | 40 | 44 | 100–1000 | DE: polypropylene granulate (PP) mix and GLO: plastic extrusion profile | |
4 (Box, Polypropylene, Injection-Molded + PVC, Extruded) | Excavation of moist earth | 1952 | 5192 | GLO: excavator, 100 kW, construction | |
Polypropylene geotextile fabric | 0.12 | 0.61 | 100–1000 | RER: polypropylene film (PP) PlasticsEurope | |
Backfill material (gravel or sand) | 160 | 4021 | 30–300 | EU-28: limestone, gravel or EU28: Sand 0/2 | |
Polypropylene injection-molded structure | 14 | 17 | 100–1000 | RER: polypropylene injection-molding part | |
Polyvinylchloride extruded structure | 19 | 23 | 100–1000 | RER: polyvinylchloride pipe (PVC) PlasticsEurope | |
5 (Arch, Polypropylene, Injection-Molded) | Excavation of moist earth | 1955 | 4623 | GLO: excavator, 100 kW, construction | |
Polypropylene geotextile fabric | 0.42 | 0.69 | 100–1000 | RER: polypropylene film (PP) PlasticsEurope | |
Backfill material (gravel) | 611 | 3249 | 30–300 | EU-28: limestone, gravel | |
Polypropylene injection-molded structure | 11 | 37 | 100–1000 | RER: polypropylene injection-molding part |
