Low-Carbon Self-Healing Concrete: State-of-the-Art, Challenges and Opportunities
Abstract

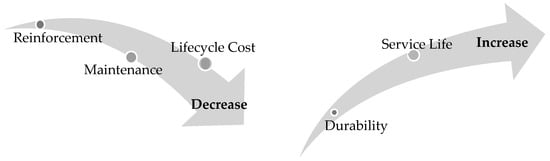

:1. Introduction
2. Approaches of Self-Healing
2.1. Autogenous Self-Healing
- Curing conditions: Water curing is recommended to facilitate precipitation of healing products.
- Crack width: Healable width mostly limited to 200 µm.
- Water–cement ratio: Higher cement to water ratio has more unhydrated cement particles available for further hydration.
- Concrete age: Where possible, it is better to induce cracking at early ages.
- Internal stress: Prestressing at an early age to increase recovery of mechanical properties.
2.2. Autonomous Self-Healing
3. SHC Structural Engineering Performance
3.1. Mechanical Properties
3.2. Durability Properties

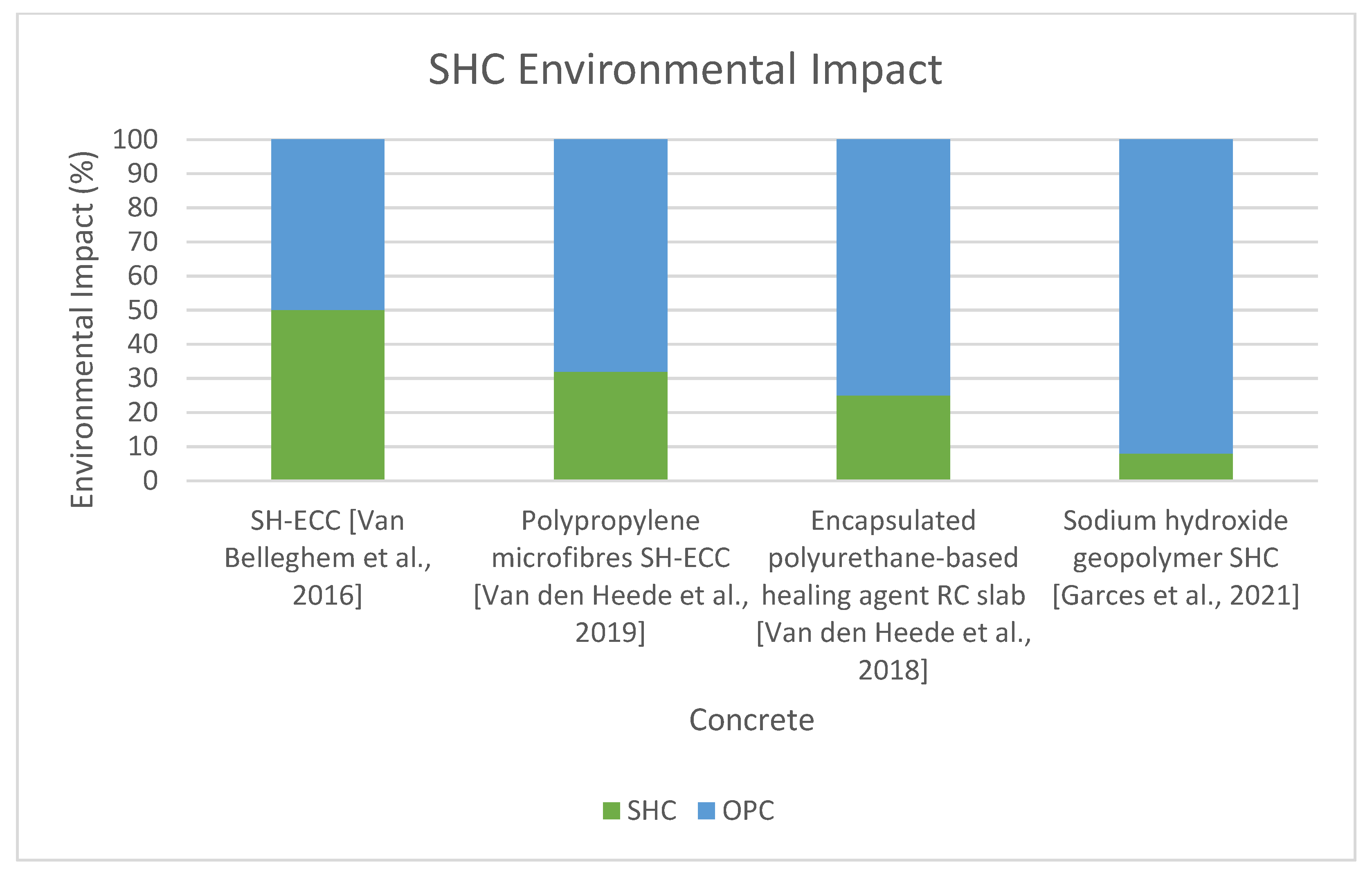

4. SHC Market Feasibility

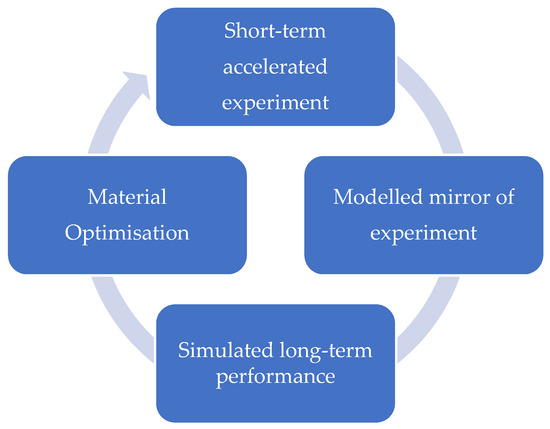

5. Future Perspective
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Ellis, L.D.; Badel, A.F.; Chiang, M.L.; Park, R.J.-Y.; Chiang, Y.-M. Toward electrochemical synthesis of cement—An electrolyzer-based process for decarbonating CaCO3 while producing useful gas streams. Proc. Natl. Acad. Sci. USA 2019, 117, 12584–12591. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Andrew, R.M. Global CO2 emissions from cement production, 1928–2018. Earth Syst. Sci. Data 2019, 11, 1675–1710. [Google Scholar] [CrossRef] [Green Version]
- United Nations. The Sustainable Development Goals Report. 2021. Available online: https://unstats.un.org/sdgs/report/2021/The-Sustainable-Development-Goals-Report-2021.pdf (accessed on 12 May 2022).
- Sunakh Zabanoot, M.S. Review of Autogenous and Autonomous self-Healing Concrete Technologies for Marine Environments. High Perform. Optim. Des. Struct. Mater. IV 2020, 196, 31. [Google Scholar] [CrossRef]
- Van Tittelboom, K.; De Belie, N. Self-Healing in Cementitious Materials—A Review. Materials 2013, 6, 2182–2217. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Roig-Flores, M.; Serna, P. Concrete Early-Age Crack Closing by Autogenous Healing. Sustainability 2020, 12, 4476. [Google Scholar] [CrossRef]
- Qureshi, T.; Al-Tabbaa, A. Self-healing concrete and cementitious materials. In Advanced Functional Materials; IntechOpen: London, UK, 2020; pp. 191–213. [Google Scholar] [CrossRef]
- Li, V.C.; Yang, E.-H. Self Healing in Concrete Materials; Springer Series in Materials Science; Springer: Dordrecht, The Netherlands, 2007; pp. 161–193. [Google Scholar] [CrossRef] [Green Version]
- Schlangen, E.; ter Heide, N.; van Breugel, K. Crack healing of early age cracks in concrete. In Measuring, Monitoring and Modeling Concrete Properties; Springer: Dordrecht, The Netherlands, 2006; pp. 273–284. [Google Scholar] [CrossRef]
- Thenbs.com. TR 74 Cementitious Materials: The Effect of Ggbs, Fly Ash, SILICA Fume and Limestone Fines on the Properties of Concrete, Concrete Society—Publication Index|NBS. 2015. Available online: www.thenbs.com/PublicationIndex/documents/details?Pub=CS&DocID=299663 (accessed on 20 May 2022).
- Tait, M.W.; Cheung, W.M. A comparative cradle-to-gate life cycle assessment of three concrete mix designs. Int. J. Life Cycle Assess 2016, 21, 847–860. [Google Scholar] [CrossRef] [Green Version]
- Oliveira, A.D.S.; Gomes, O.D.F.M.; Ferrara, L.; Fairbairn, E.D.M.R.; Filho, R.D.T. An overview of a twofold effect of crystalline admixtures in cement-based materials: From permeability-reducers to self-healing stimulators. J. Build. Eng. 2021, 41, 102400. [Google Scholar] [CrossRef]
- Xue, C.; Tapas, M.J.; Sirivivatnanon, V. Cracking and Stimulated Autogenous Self-Healing on the Sustainability of Cement-Based Materials: A review. J. Sustain. Cem.-Based Mater. 2022. Available online: https://opus.lib.uts.edu.au/handle/10453/154415 (accessed on 17 June 2022). [CrossRef]
- Hermawan, H.; Minne, P.; Serna, P.; Gruyaert, E. Understanding the Impacts of Healing Agents on the Properties of Fresh and Hardened Self-Healing Concrete: A Review. Processes 2021, 9, 2206. [Google Scholar] [CrossRef]
- Zhang, Y.; Wang, R.; Ding, Z. Influence of Crystalline Admixtures and Their Synergetic Combinations with Other Constituents on Autonomous Healing in Cracked Concrete—A Review. Materials 2022, 15, 440. [Google Scholar] [CrossRef]
- Geraldo, R.H.; Guadagnini, A.M.; Camarini, G. Self-healing concrete with crystalline admixture made with different cement content. Ceramica 2021, 167, 370–377. [Google Scholar] [CrossRef]
- Guzlena, S.; Sakale, G. Self-healing concrete with crystalline admixture—A review. IOP Conf. Ser. Mater. Sci. Eng. 2019, 660, 012057. [Google Scholar] [CrossRef]
- De Nardi, C.; Gardner, D.; Jefferson, A.D. Development of 3D Printed Networks in Self-Healing Concrete. Materials 2020, 13, 1328. [Google Scholar] [CrossRef] [Green Version]
- Menon, R.R.; Luo, J.; Chen, X.; Zhou, H.; Liu, Z.; Zhou, G.; Zhang, N.; Jin, C. Screening of Fungi for Potential Application of Self-Healing Concrete. Sci. Rep. 2019, 9, 2075. [Google Scholar] [CrossRef] [PubMed]
- Khushnood, R.A.; Ali, A.M.; Faraz Bhatti, M.; Ahmed Khan, H. Self-healing fungi concrete using potential strains Rhizopus oryzae and Trichoderma longibrachiatum. J. Build. Eng. 2022, 50, 104155. [Google Scholar] [CrossRef]
- Jin, C.; Yu, R.; Shui, Z. Fungi: A Neglected Candidate for the Application of Self-Healing Concrete. Front. Built Environ. 2018, 4, 62. [Google Scholar] [CrossRef]
- Du Plessis, A.; Babafemi, A.J.; Paul, S.C.; Panda, B.; Tran, J.P.; Broeckhoven, C. Biomimicry for 3D concrete printing: A review and perspective. Addit. Manuf. 2021, 38, 101823. [Google Scholar] [CrossRef]
- Shah, K.W.; Huseien, G.F. Biomimetic Self-Healing Cementitious Construction Materials for Smart Buildings. Biomimetics 2020, 5, 47. [Google Scholar] [CrossRef]
- Kumar, V.; Balasubramaniam, B.; Srinivasan, M.; Palani, G. An Overview of Techniques Based on Biomimetics for Sustainable Development of Concrete. Curr. Sci. 2011. Available online: www.researchgate.net/publication/269275282_An_overview_of_techniques_based_on_biomimetics_for_sustainable_development_of_concrete (accessed on 23 May 2022).
- Hizami Abdullah, M.A.; Harmiza Abdullah, N.A.; Tompang, M.F. Development and Performance of Bacterial Self-healing Concrete—A Review. IOP Conf. Ser. Mater. Sci. Eng. 2018, 431, 062003. [Google Scholar] [CrossRef]
- Imad Mohammed, A.; Awadh Ba Rahman, A.; Mohd Nasir, N.A.; Bakar, N.A.; Safiee, N.A. Evaluation of the Compatibility of Modified Encapsulated Sodium Silicate for Self-Healing of Cementitious Composites. Appl. Sci. 2021, 11, 10847. [Google Scholar] [CrossRef]
- Andalib, R.; Abd Majid, M.Z.; Hussin, M.W.; Ponraj, M.; Keyvanfar, A.; Mirza, J.; Lee, H.-S. Optimum concentration of Bacillus megaterium for strengthening structural concrete. Constr. Build. Mater. 2016, 118, 180–193. [Google Scholar] [CrossRef]
- Jena, S.; Basa, B.; Panda, K.C.; Sahoo, N.K. Impact of Bacillus subtilis bacterium on the properties of concrete. Mater. Today Proc. 2020, 32, 651–656. [Google Scholar] [CrossRef]
- Reddy, P.; Kavyateja, B. Experimental Study on Strength Parameters of Self Repairing Concrete. Ann. Chim.—Sci. Matériaux 2019, 43, 305–310. [Google Scholar] [CrossRef]
- Vijay, K.; Murmu, M. Self-repairing of concrete cracks by using bacteria and basalt fiber. SN Appl. Sci. 2019, 1, 1344. [Google Scholar] [CrossRef] [Green Version]
- Guo, S.; Chidiac, S. MAT152-1 CSCE Annual Conference Growing with Youth—Croître avec les Jeunes Laval (Greater Montreal) Self-Healing Concrete: A Critical Review. 2019. Available online: https://www.csce.ca/elf/apps/CONFERENCEVIEWER/conferences/2019/pdfs/PaperPDFVersion_152_0423094222.pdf (accessed on 17 June 2022).
- Al-Tabbaa, A.; Lark, B.; Paine, K.; Jefferson, T.; Litina, C.; Gardner, D.; Embley, T. Biomimetic cementitious construction materials for next-generation infrastructure. Proc. Inst. Civ. Eng.—Smart Infrastruct. Constr. 2018, 171, 67–76. [Google Scholar] [CrossRef] [Green Version]
- Azarsa, P.; Gupta, R.; Biparva, A. Assessment of self-healing and durability parameters of concretes incorporating crystalline admixtures and Portland Limestone Cement. Cem. Concr. Compos. 2019, 99, 17–31. [Google Scholar] [CrossRef]
- Sideris, K.K.; Chatzopoulos, A.; Tassos, C.; Manita, P. Durability of concretes prepared with crystalline admixtures. MATEC Web Conf. 2019, 289, 09003. [Google Scholar] [CrossRef]
- Giannaros, P.; Kanellopoulos, A.; Al-Tabbaa, A. Sealing of cracks in cement using microencapsulated sodium silicate. Smart Mater. Struct. 2016, 25, 084005. [Google Scholar] [CrossRef]
- Mirshahmohammad, M.; Rahmani, H.; Maleki-Kakelar, M.; Bahari, A. Effect of sustained service loads on the self-healing and corrosion of bacterial concretes. Constr. Build. Mater. 2022, 322, 126423. [Google Scholar] [CrossRef]
- Litina, C.; Bumanis, G.; Angelini, G.; Dudek, M.; Maddalena, R.; Amenta, M.; Papaioannou, S.; Pérez, G.; Calvo, J.G.; Asensio, E.; et al. Evaluation of methodologies for assessing self-healing performance of concrete with mineral expansive agents: An interlaboratory study. Materials 2021, 14, 2024. [Google Scholar] [CrossRef] [PubMed]
- Ferrara, L.; Krelani, V.; Moretti, F. On the use of crystalline admixtures in cement based construction materials: From porosity reducers to promoters of self healing. Smart Mater. Struct. 2016, 25, 084002. [Google Scholar] [CrossRef]
- Qian, C.; Zheng, T.; Zhang, X.; Su, Y. Application of microbial self-healing concrete: Case study. Constr. Build. Mater. 2021, 290, 123226. [Google Scholar] [CrossRef]
- Sonali Sri Durga, C.; Ruben, N.; Sri Rama Chand, M.; Venkatesh, C. Performance studies on rate of self healing in bio concrete. Mater. Today: Proc. 2019, 27, 158–162. [Google Scholar] [CrossRef]
- Tayebani, B.; Hosseinibalam, N.; Mostofinejad, D. Influential Effect of Self-Healing Treatment on Water Absorption and Electrical Resistance of Normal and Light Weight Aggregate Concretes. Int. J. Civ. Environ. Eng. 2019, 13, 195–199. Available online: https://publications.waset.org/10010219/influential-effect-of-self-healing-treatment-on-water-absorption-and-electrical-resistance-of-normal-and-light-weight-aggregate-concretes#:~:text=As%20a%20conclusion%2C%2020%25%20increase (accessed on 17 June 2022).
- Hussein, Z.M.; Abedali, A.H.; Ahmead, A.S. Improvement Properties of Self -Healing Concrete by Using Bacteria. IOP Conf. Ser. Mater. Sci. Eng. 2019, 584, 012034. [Google Scholar] [CrossRef] [Green Version]
- Shanthi, M. Strength and Water Absorption of Bacterial Concrete Prepared with M-sand—A Study. 2016. Available online: https://www.ijert.org/research/strength-and-water-absorption-of-bacterial-concrete-prepared-with-m.sand-a-study-IJERTV5IS090346.pdf (accessed on 27 May 2022).
- Poornima, V.; Venkatasubramani, R.; Sreevidya, V.; Pavan, C.; Nourin, A. Effect of microbial solution on compressive strength, water absorption and sorptivity of cement mortar incorporated with metakaolin. IOP Conf. Ser. Mater. Sci. Eng. 2020, 872, 012173. [Google Scholar] [CrossRef]
- Chahal, N.; Siddique, R.; Rajor, A. Influence of bacteria on the compressive strength, water absorption and rapid chloride permeability of fly ash concrete. Constr. Build. Mater. 2012, 28, 351–356. [Google Scholar] [CrossRef]
- Huang, Y.; Wang, X.; Sheng, M.; Qin, D.; Ren, J.; Zhou, X.; Zhu, J.; Xing, F. Dynamic behavior of microcapsule-based self-healing concrete subjected to impact loading. Constr. Build. Mater. 2021, 301, 124322. [Google Scholar] [CrossRef]
- Li, V.C.; Herbert, E. Robust Self-Healing Concrete for Sustainable Infrastructure. J. Adv. Concr. Technol. 2012, 10, 207–218. [Google Scholar] [CrossRef] [Green Version]
- The University of Bath’s Research Portal. (n.d.). RM4L—Resilient Materials for Life. Available online: https://researchportal.bath.ac.uk/en/projects/rm4l-resilient-materials-for-life (accessed on 20 May 2022).
- Europa.eu. CORDIS|European Commission. 2022. Available online: https://cordis.europa.eu/project/id/309451/reporting (accessed on 29 May 2022).
- Van Mullem, T.; Gruyaert, E.; Caspeele, R.; De Belie, N. First Large Scale Application with Self-Healing Concrete in Belgium: Analysis of the Laboratory Control Tests. Materials 2020, 13, 997. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Sierra Beltran, M.G.; Jonkers, H.M.; Mors, R.M.; Mera-Ortiz, W. Field Application of self-healing concrete with natural fibres as linings for irrigation canals in Ecuador. In Proceedings of the ICSHM 2015: 5th International Conference on Self-Healing Materials, Durham, NC, USA, 22–24 June 2015; Available online: Repository.tudelft.nl/islandora/object/uuid:650616c5-ff06-49b4-8db0-076df52a9ea1?collection=research (accessed on 20 May 2022).
- Wang, X.; Huang, Y.; Zhang, J.; Fang, C.; Yu, K.; Chen, Q.; Li, T.; Han, R.; Yang, Z.; Xu, P.; et al. Laboratory and field study on the performance of microcapsule-based self-healing concrete in tunnel engineering. Constr. Build. Mater. 2019, 220, 90–101. [Google Scholar] [CrossRef]
- Chen, Y.; Xia, C.; Shepard, Z.; Smith, N.; Rice, N.; Peterson, A.M.; Sakulich, A. Self-Healing Coatings for Steel-Reinforced Concrete. ACS Sustain. Chem. Eng. 2017, 5, 3955–3962. [Google Scholar] [CrossRef]
- Van Belleghem, B.; Van den Heede, P.; Van Tittelboom, K.; De Belie, N. Quantification of the Service Life Extension and Environmental Benefit of Chloride Exposed Self-Healing Concrete. Materials 2016, 10, 5. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Van den Heede, P.; De Belie, N.; Pittau, F.; Habert, G.; Mignon, A. Life Cycle Assessment of Self-Healing Engineered Cementitious Composite (SH-ECC) Used for the Rehabilitation of Bridges. Available online: Core.ac.uk/display/188629730 (accessed on 20 May 2022).
- Van den Heede, P.; Mignon, A.; Habert, G.; De Belie, N. Cradle-to-gate life cycle assessment of self-healing engineered cementitious composite with in-house developed (semi-)synthetic superabsorbent polymers. Cem. Concr. Compos. 2018, 94, 166–180. [Google Scholar] [CrossRef]
- Garces, J.I.T.; Dollente, I.J.; Beltran, A.B.; Tan, R.R.; Promentilla, M.A.B. Life Cycle Assessment of self-healing geopolymer concrete. Clean. Eng. Technol. 2021, 4, 100147. [Google Scholar] [CrossRef]
Method | Recommendation | Limitation |
---|---|---|
Intrinsic | High cement content to increase amount of unhydrated cement for further hydration. | Healing mostly limited to early-age crack formation and hydration phases. Healing mostly limited to crack widths up to 200 μm [13]. |
Mineral admixture | Moderate SCM replacement by cement binder for sufficient availability of carbon hydroxide. Wet exposure. | Continued water exposure is required due to low permeability. Not repeatable to exhaustive mineral and cement supply and reactivity. Poor early-age mechanical properties due to delayed hydration. |
Crystalline admixture | High cement content. Up to 4.5% by weight of cement. Wet exposure [14,15]. | Slow healing pace [16]. Healing mostly limited to crack widths up to 300 μm [17]. |
Method | Recommendation | Limitation |
---|---|---|
Encapsulation | Low microcapsule content and size to mimic aggregate bonding. Customable brittleness capsule (elastic when hydrated and brittle dried). Uniform dispersion of capsules for distributed healing. Placing capsules in molds during casting to avoid rupture during mixing [32]. | Difficulty establishing upscaling techniques for industrial use. |
Vascular flow | Homogenous distribution of vessels. | Impractical due to manual and strategic installation. |
Healing System | Concrete | Nutrient | Curing | Mechanical Properties 7 Days 28 Days 56 Days | Ref. | ||
---|---|---|---|---|---|---|---|
Compressive Strength | Split Tensile Strength | Flexural Strength | |||||
Crystalline admixture (0.8% wt. cement) | CEM II 32.5N | - | Water | ↑ 18% | - | - | [33] |
Crystalline admixture (0.8% wt. cement) | CEM II 42.5 R | - | Water | ↑ 12% | - | - | [34] |
1% wt. cement 500 μm Arabic shell of liquid sodium silicate 1% wt. cement 130 μm poly-urea of solid sodium silicate | OPC | - | Water | - ↓ 4% ↓ 9% - ↑ 7% ↓ 11% | - - - | - - - | [35] |
B. Subtilis (105 cells/mL wt.) | OPC-43 | Veg broth | Water | ↑ 32% | ↑ 14% | ↑ 29% | [28] |
B. Subtilis (105 μBC) | OPC | 0.5% calcium lactate | Water | ↑ 19% ↑ 24% ↑ 32% | - ↑ 25% ↑ 26% | - - - | [29] |
B. Subtilis (105 μBC) | OPC and basalt fiber | 0.5% calcium lactate | Water | ↑ 18% ↑ 17% ↑ 15% | - ↑ 16% ↑ 17% | - - - | [30] |
Sporosarcina pasteurii (107 μBC) | OPC | calcium nitrate-urea | Water | ↑ 44% | ↑ 36% | - | [36] |
SHC | Test | Laboratory Specimen | Field Application | Findings Laboratory Field | Ref. |
---|---|---|---|---|---|
Direct addition of Mixed Ureolytic Culture and anaerobic granular bacteria in CEM III/B 42.5 N | Capillary water absorption Water permeability | RC prism | RC roof slab | Wet–dry cycles ideal for visual crack closure. Negligible water absorption. Regain of liquid tightness. Roof slab developed condensation drops deemed favourable for self-healing activity. No cracking was observed; hence not tested. Direct addition not recommended due to further mixing requirement producing increased air content. | [50] |
Lightweight aggregate containing alkali-resistant bacterial healing agent and natural fibers | Flexural strength testing Compressive strength | - | Linings for irrigation canals | 15.4% compressive strength increase in SHC sample. Crack sealing after 6 months of cracking and curing. No cracking observed; hence not tested. | [51] |
Microcapsule-based epoxy resin with OPC, GGBS, FA, and expansive agent | Laboratory: Compressive strength Rapid chloride migration test Field: Strain monitoring sensor | Cube | Precast concrete slab embedded structure for tunnel application | Microcapsules reduced density and uniformity of concrete, reducing compressive strength. Loss of 20% in compressive strength after crack healing. Improved impermeability. No significant fluctuations in monitored strain. | [52] |
FA, GGBS, CEM I 42.5 Laboratory: Powder-based healing agent Field: Capsule-based microbial concrete | Laboratory: Workability Compressive strength Field Strain and temperature monitoring Ultrasonic testing | - | Underground metro structure | Negligible workability influence Decreased density in microbial concrete. Slightly lower compressive strength than normal concrete at 28 d. Improved impermeability after crack repair. Equivalent self-healing of cracks was observed in both normal and microbial SHC. Large strain measured on one wall caused 2 vertical cracks. The cracks were sealed after 41 d and 60 d; however, large amounts of healing product seemed to leak externally. Increased temperature monitored in early ages, likely indicating accelerated hydration, possibly due to capsule rupture. Waveform distorted with cracking and regained uniformity upon healing. Three cracks appeared and the best healing methods reported in order included: (1) Wet burlap with nutrients (2) Wet burlap with water (3) Water spraying | [39] |
RC with epoxy-coated 10% wt. microencapsulated tung oil | Accelerated corrosion test Pullout test Compressive strength | Reinforced mortar cylinder Mortar cylinder Mortar cube | - | 83% of SHC samples were free of corrosion. Bond stress comparable to conventional concrete with sustained integrity of interfacial bonding. SHC compressive strength was higher than standard concrete. | [53] |
