Improving the Mechanical Properties of Recycled Asphalt Pavement Mixtures Using Steel Slag and Silica Fume as a Filler

by
Mohammad Naser
1,
Mu’tasim Abdel-Jaber
2,*,†,
Rawan Al-Shamayleh
2,
Reem Ibrahim
2,
Nawal Louzi
2 and
Tariq AlKhrissat
2
1
Department of Civil Engineering, The University of Jordan, Amman 11942, Jordan
2
Department of Civil Engineering, Al-Ahliyya Amman University, Amman 19328, Jordan
*
Author to whom correspondence should be addressed.
†
On sabbatical leave from Department of Civil Engineering, The University of Jordan, Amman 11942, Jordan.
Buildings 2023, 13(1), 132; https://doi.org/10.3390/buildings13010132
Submission received: 25 November 2022 / Revised: 27 December 2022 / Accepted: 29 December 2022 / Published: 4 January 2023
(This article belongs to the Section Building Materials, and Repair & Renovation)
Browse Figures
Versions Notes

Abstract

:
Due to its environmental and economic advantages, the use of recycled materials in asphalt mixes is witnessing increased interest, where the properties of those mixes are significantly affected by the properties of the recycled materials in them. This paper discusses the results of an experimental study conducted to evaluate the performance of recycled asphalt mixtures made with reclaimed asphalt pavement aggregate (RAP). These mixtures were also prepared with two filler additives, namely steel slag (SS) and silica fume (SF), at four different percentages by weight of the aggregate. A total number of 234 mixtures were tested. The laboratory results indicated the effectiveness of using such additives as a filler material. The Marshall stability showed improvement for mixes prepared with steel slag ranging from 11.73 to 32.73 kN as the RAP level increased; the highest stability load was recorded for the 75% RAP with a 50% steel slag mix. On the other hand, the silica fume depicted variance in its strength, yet the maximum load value of 31.02 kN was for the 75% RAP with 100% silica fume. The use of steel slag in the presence of water decreased the stability results, while satisfying the ASTM standards.

1. Introduction

The different properties of the different components of asphalt mixtures have direct implications on the properties of the mixture and their performance under the various traffic loading and climate conditions. The main components of hot-mix asphalts (HMA) are asphalt binder and mineral aggregates, which constitute 90–95% by weight and 75–85% by volume of the HMA [1]. Therefore, the properties of HMA are significantly affected by the physical and chemical properties of the aggregates in the mix. There have been many studies on the use of recycled materials as partial replacement of aggregates in HMA, where some studies have shown that utilizing 100% recycled aggregates can reduce the road construction cost by up to 70% [2]. Besides the benefits of using the HMA technology, including its simplicity and sustainability promotion in the pavement fields, there are some drawbacks such as the affordability compared with the cold-mix technology and the specified climate conditions (i.e., the outdoor temperature of at least 40 °C).
The reduction in virgin material (i.e., virgin binder and aggregate) production costs, natural resources conservation, and landfill space clearance are some of the benefits that recycled materials offer to the asphalt paving industry [3,4,5,6,7]. The use of reclaimed asphalt pavement (RAP) has been a common practice as it has shown promising results related to the asphalt mixture’s performance characteristics, including cracking resistance, fatigue life, rutting resistance, and moisture susceptibility [8,9,10,11,12,13,14]. In particular, Mulatu et al. [15] studied the Marshall stability, rutting, and moisture susceptibility on a total of 64 mix designs. They investigated seven different replacement ratios up to 65%. The results showed that as the RAP content in the hot asphalt mixtures increased, the tensile strength ratio decreased, while maintaining the limits of the standards and providing resistance to deformation and moisture-induced damage. They also concluded that replacing the crushed aggregate with 45% of RAP material satisfied the stability, flow, and volumetric properties’ specification limits. Heating RAP material, as reported by Mallick et al. [16], showed its effectiveness in enhancing the binder dispersion, compatibility, and densification of the asphalt mixes, which, in turn, resulted in improving their strength, workability, and stiffness. Moreover, Gao et al. [17] stated that the duration of mixing showed its influence on the blending and dispersion of the hot asphalt mixes prepared with RAP. As the mixing duration increased, the performance of the recycled asphalt mixture improved; the optimum mixing times were 60s and 90s for the mixing plant and laboratory, respectively. Nowadays, researchers have used modifier or rejuvenating agents to enhance the asphalt pavement performance. One particular research is the study conducted by Malinowski et al. (2022) [18]. Four different modifiers were tested with and without a crosslinking agent. The results demonstrated the dual crosslinked biopolymer effect by the increase in the water and frost resistance by about 9%. In a different study, the rutting resistance and the fatigue life of the epoxy asphalt recycled mixture were evaluated [19]. It showed that the mixes with the epoxy asphalt recycled mixture were better in their rutting and cracking resistance. Additionally, they concluded that there was a potential to recycle a mixture with 100% RAP content.
Similar to RAP material, researchers have investigated the use of steel slag (SS) in the hot asphalt mixes and have evidenced their possibility of substituting the natural aggregate [20,21,22,23,24]. Steel slag is a byproduct waste material that comes from steel-making furnaces during the separation of the molten steel from the impurities [25,26]. Its properties depend on the process type of crude steel production, the valorization process, and the slag cooling conditions [27,28]. The steel slag application in road construction showed not only an improvement in the hot asphalt mixture performance but also proved to be an economical and environment-friendly option, because it minimizes the non-renewable natural aggregate’s consumption in asphalt pavements every year and empties the occupied space of dumped waste in landfills [26,27,28,29,30,31,32,33].
In the literature, past studies have shown excellent results when substituting the natural aggregate of the hot asphalt mixtures with the coarse part of the steel slag in their rutting resistance, stability, tensile strength, and fatigue life [34,35,36,37,38]. In 2015, Zumrawi and Khalill [39] conducted their experimental tests on four different percentages of steel slag (e.g., 0%, 50%, 75%, and 100%). They concluded that replacing natural aggregate with steel slag at their optimum asphalt content increased the Marshall stability and density of the hot asphalt mixtures and decreased both air void ratios and flow values compared with the control mix (100% natural aggregate). Asi et al. [40] investigated the replacement of the natural limestone aggregate in asphalt mixtures with steel slag in terms of their resilient modulus, creep, wheel crack, and indirect tensile strength tests at five different percentages ranging between 0% to 100% in increments of 25%. The results showed an improvement in the tested mechanical properties for mixes up to 75%. In their study, Ziaee et al. [41] stated that the use of steel slag resulted in higher asphalt absorption, hence a higher optimum asphalt content of the asphalt mixtures. This conclusion agreed with the findings of Hassan at al. (2021) [42]. The increase in asphalt consumption can be attributed to the shape irregularity, high air content, and porous texture of the steel slag, as suggested by [34,40,43,44]. In addition, the physical properties of the steel slag, which are similar to sand, made them adhere well to the asphalt cement. The irregularity of the steel slag particles caused high internal frictional force inside them and their small shrinkage helped in preventing volume shrinkage resulting from the temperature changes [45].
Introducing steel slag to RAP mixtures has also been an investigation topic for some researchers [38,46,47]. The main conclusion has been the suitability of using steel slag as a replacement in the hot asphalt mixture/incorporated RAP aggregate. In particular, Fakhri and Ahmadi [26,29] observed that incorporating RAP with steel slag improved the dynamic creep, resilient modulus, fatigue life, and indirect tensile strength of asphalt mixes. They also remarked that as the RAP content increased, the moisture susceptibility of the mixtures reduced. However, the opposite observation was found in Yang et al.’s [48] experimental research, where the addition of RAP increased the moisture susceptibility for both hot and warm asphalt mixes. The loose honeycomb porous structure, high texture, and angularity of the steel slag [24] improved the adhesion and mechanical properties of the recycled asphalt hot mixtures, as reported by Yang et al. [49]. The enhancement included mainly their rutting and cracking resistance, fatigue performance, and moisture susceptibility. They suggested using steel slag in mixes containing 70% RAP, as it demonstrated the looked-for performance plus met the asphalt pavement’s upper surface design requirements.
Silica fume (SF) is also a byproduct material that has been limitedly studied within the asphalt paving industry in recent years. It comes from the smelting process in the elemental silicon and ferrosilicon alloy production in electric arc furnaces [50,51]. Additionally, their very fine particles have a mean size of 0.1–0.3 µm [52,53,54]. The addition of the silica fume to the asphalt mixtures showed its effectiveness in lowering the asphalt cement content [52], decreasing the stiffness modulus [55], and improving the fatigue life [56]. Al-Zajrawi et al. [57] studied the silica fume effect on hot asphalt mixtures concerning the Marshall stability and flow parameters. They found that, compared with the conventional mixes, the ones with silica fume apart from filler aggregate showed higher tensile strength resistance, stability, and flow values. The increase in stability ranged between 31% and 59%. A similar study by Al-Taher et al. [58], showed an increase in the Marshall stability and flow by about 23.61% and 4.67%, respectively. They also concluded the influence of adding silica fume to the asphalt mixes, in terms of reducing the rutting depth and increasing the indirect tensile strength of the tested asphalt mixtures. In 2021, Aboelmagd et al. [59] investigated the mechanical properties of asphalt mixes with nano-silica fume prepared at low and high contents. The properties included stiffness, rutting, fatigue life, and moisture damage of these mixes. The study results indicated an improvement in the rheological and physical properties of the hot asphalt mixtures prepared with high contents of nano-silica fume. The high contents were 30%, 40%, and 50%, respectively. Moreover, the modified mixtures showed more resistance to rutting, fatigue cracking, and moisture damage when compared with the control mix.
The works conducted so far using the byproduct materials have mainly focused on using them as a coarse aggregate alternative. To the best of our knowledge, limited studies have considered the use of these additives as a filler replacement in hot asphalt mixtures prepared with RAP at different ratios. Therefore, the aim of this study was to investigate the effect of adding steel slag and silica fume to the optimum asphalt binder content in addition to determining the asphalt content demand. The Marshall mix design method was preferred for its simplicity, affordability, portability, and ability to produce mixes with densities closer to real pavement densities (field densities). Both the Marshall stability and the flow testing properties were conducted to find the suitable mix that will prevent deformation from axle loads. The asphalt mixtures were prepared and tested following the American Society for Testing and Materials (ASTM) provisions.

2. Materials and Methods

For the aim of this study, the crushed limestone recycled aggregates were used for preparing the hot asphalt mixtures. Figure 1 summarizes the experimental work. The tested properties of these aggregates are provided in Table 1. Figure 2 shows their gradation with a nominal maximum size of 19 mm. The gradation of the coarse aggregate ranged between 19.5 mm and 4.75 mm, whereas the fine aggregate ranged from 2.36 mm to 0.075 mm.
Asphalt cement with a 60/70 penetration grade (ASTM D5-20 [60]), obtained from a local company, was used for all the asphalt mixtures in the investigation. Additional characteristics of the asphalt were tested and are shown in Table 2. Four percentages of RAP aggregates were studied, including 25%, 50%, 75%, and 100%, respectively. The resulting asphalt content of the RAP material, determined by quantitative extraction following the ASTM D2172 guidelines [61], was equal to 5.25% by weight of the aggregate.
Table
Table 1. Typical properties of the aggregate material used for the control mix.
Table 1. Typical properties of the aggregate material used for the control mix.
Test TypeAggregate MaterialStandard Methods
(Specifications)
LimestoneRAP
CoarseFineFillerCoarseFineFiller
Bulk specific gravity2.452.351.612.392.341.91ASTM C127 [62], ASTM C128 [63]
Absorption (%)8.619.4513.711.253.158.53ASTM-C127 [62]
Los Angeles abrasion (%)22.5410.31ASTM C131 [64]
The preparation of these surface type asphalt mixtures was according to the Marshall design method, mainly to obtain the optimum asphalt content, based on the maximum stability for each RAP mix. Consequently, for these optimum asphalt mixes, the addition of the undensified silica fume and steel slag was applied in different ratios. These are the 25%, 50%, 75%, and 100% by the weight of the filler proportion from the total aggregate used. Figure 3 shows the steel slag gradation and after crushing.
The virgin asphalt cement was added and mixed simultaneously with the crushed limestone, RAP, and the investigated additives in a heated lab mixer for 5 min at medium speed and an extra 5 min at a higher speed rate. Both aggregates (i.e., limestone and RAP) were preheated for 24 h at (103–105) °C to be mixed with the other materials. Three mixes for each asphalt content were tested in their Marshall stability, therefore the total number of mixtures made was 234. The asphalt mixtures were compacted using the Marshall compaction apparatus (ASTM D6926-20 [68]) at 75 blows on each side, as specified for heavy traffic surface and base pavement design.
Buildings 13 00132 g002 550

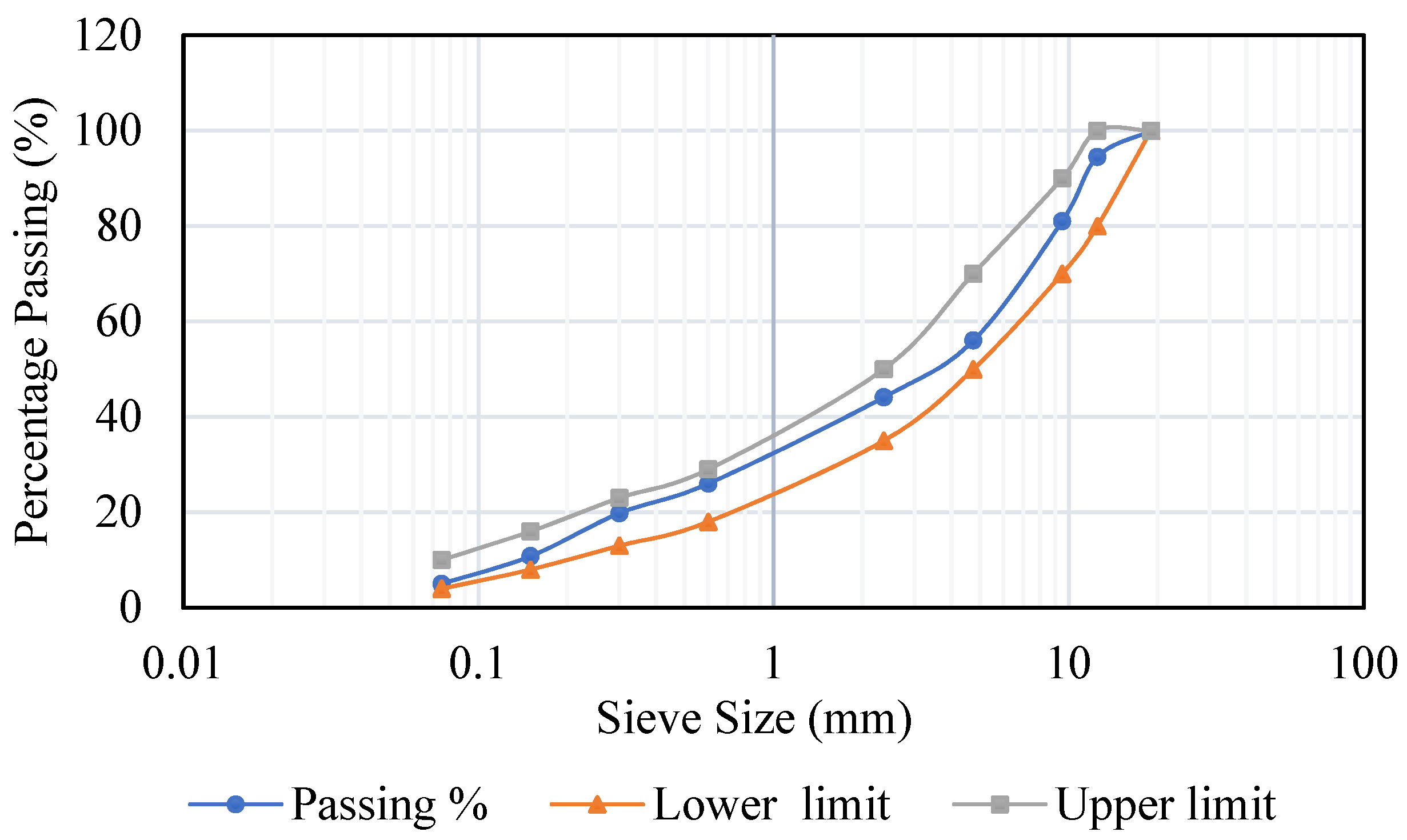

Figure 2. Design grading curves of the tested hot asphalt mixes, ASTM D3515-01 [69].
Figure 2. Design grading curves of the tested hot asphalt mixes, ASTM D3515-01 [69].
Buildings 13 00132 g002
Buildings 13 00132 g003 550

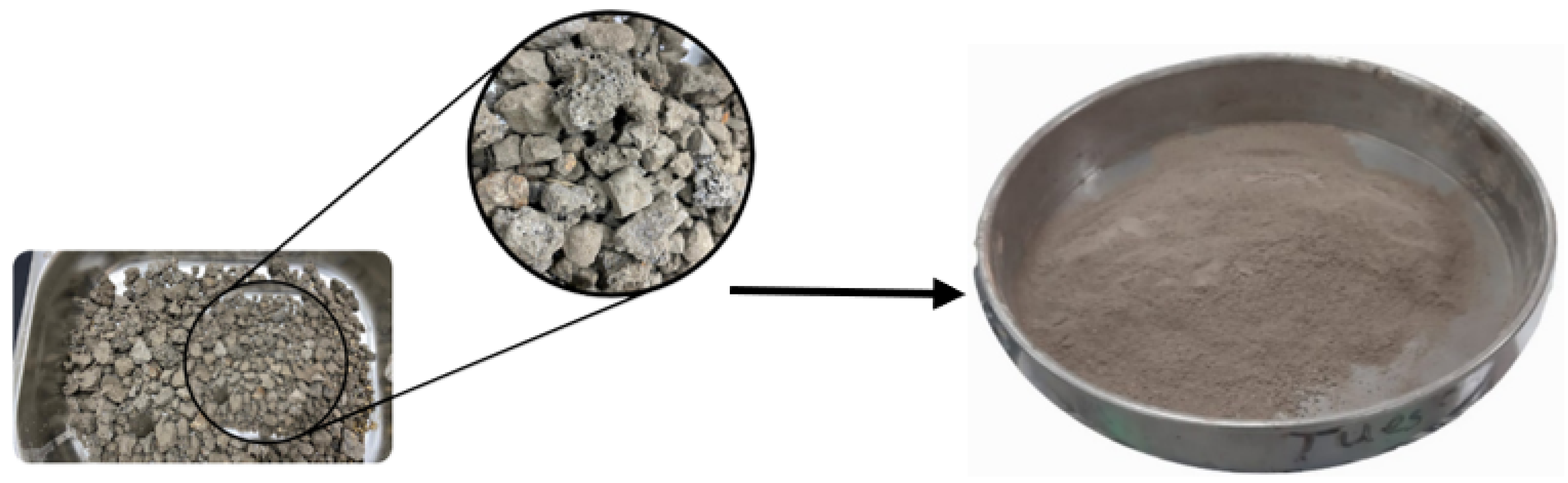

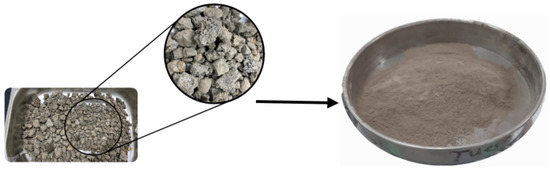

Figure 3. The steel slag material used before and after being crushed.
Figure 3. The steel slag material used before and after being crushed.
Buildings 13 00132 g003
Marshall stability and flow tests were conducted in two phases. The first phase included mixes containing RAP materials that were prepared with various asphalt levels to determine their optimum asphalt content (OAC); therefore, in the second phase, new RAP mixes with the corresponding OAC at different percentages of additives were prepared and tested.

3. Results and Discussion

3.1. Reclaimed Asphalt Pavement

The test results of the first phase evidenced the effectiveness of using the RAP aggregates as a replacement for the natural aggregate with the hot asphalt mixtures. Table 3 presents the test results for the mixes containing limestone only. In general, mixtures with RAP exhibited higher stability values than those made with limestone (see Table 4). The maximum stability values for the 75% and 100% RAP mixes were recorded respectively at a 2% AC level, showing less demand in the asphalt content. On the other hand, the lower percentages of RAP needed additional asphalt cement to attain their maximum stability, as shown in Figure 4a.
Except in the case of the 25% RAP mix, adding RAP material increased the flow values for three tested percentages as the asphalt content increased (see Figure 4b). This increase, however, exceeded the ASTM standards for heavy traffic pavements. Moreover, additional violations in the limits of the standards were observed in the air voids, VMA, and VFA, respectively, as can be seen in Figure 4c–e. This can be attributed to the reduction in the active asphalt content and to the differences in the asphalt content viscosity due to aging [4,73]. It can be concluded that increasing RAP quantities is proportionally affected by the stiffness, which means that adding RAP material results in a stiffer asphalt mixture. Therefore, in the second phase, using chemical and byproduct materials as a filler was investigated at 25%, 50%, 75%, and 100%, respectively. Figure 4f shows the asphalt content versus the unit weight values for all tested mixes.
The hot asphalt mixtures were prepared with various proportions of RAP at their optimum asphalt content (OAC). So, for asphalt mixes with higher RAP contents, the OAC was 2%, whereas, for the 25% and 50% RAP contents, the OAC was 4% and 3%, respectively. This observation of the asphalt content reduction agreed with the findings of some previous studies [6,14].

3.2. RAP Mixtures Prepared with Steel Slag

Incorporating steel slag into the RAP mixes, as shown in Table 5, improved the asphalt mixtures’ mechanical and volumetric properties, attributing to the bulk-specific gravity of the steel slag [35,74]. The Marshall stability (see Figure 5a) showed a significant improvement for mixes containing 50% and 75% RAP contents when adding 75% and 50% of the fine steel slag material to the asphalt mixtures, respectively. The highest stability load recorded was 32.73 kN for mixes prepared with 75% RAP and 50% steel slag at 2% AC content. This observation agreed well with the findings of Rahat et al. [75]. The flow and air voids increased simultaneously as the steel slag levels increased, as shown in Figure 5b,c, respectively. The volumetric properties of the mix, including the VMA and VFA, showed that, for the HMA containing lower RAP contents, the increase in the steel slag addition resulted in lower VMA values. However, it was the opposite trend in the 75% and 100% RAP mixes (see Figure 5d). The voids filled with asphalt showed an increase in their results, as seen in Figure 5e, upon using higher RAP and steel slag contents, caused by the asphalt binder extenders due to the increase in the fine particles [75]. Lastly, the unit weight values showed the contrast relation between the tested mixes, for which the 25% and 50% RAP mixtures had an ascending trend with the increase in the steel slag replacement levels, whereas, for the 75% and 100% RAP mixes, the descended trend was observed (see Figure 5f).

RAP Mixtures Prepared with Steel Slag Tested under Water

Table 6 shows the test results of the tested asphalt mixtures prepared with different steel slag replacement ratios under the presence of water. As shown in Figure 6, the addition of steel slag resulted in reducing the strength capacity of these mixtures after curing. The stability values for the 25% RAP mixes decreased from 11.73 kN to 9.84 kN (i.e., a 16.11% decrease), as shown in Figure 6a, whereas for the 50% RAP mixes the reduction was in the neighborhood of 11.55% (see Figure 6b). In contrast, the presence of water for the asphalt mixes containing large RAP quantities with different steel slag ratios showed nearly similar performance in terms of its Marshall stability. The 75% RAP mix showed only a 0.55% reduction in their strength (see Figure 6c), while it was 6.49% for the mixtures prepared with the 100% RAP aggregate (see Figure 6d). The decrease in the stability and strength of the asphalt mixtures may have been caused by the increase in the water erosion time leading to the increase in the pH value, reducing the steel slag adhesion and accelerating the hydration process on the steel slag surface [76,77]. The findings of using the steel slag as a filler material in underwater environments indicated its effectiveness in achieving less variation in the stability values after curing for 4 days at 50 °C, following the ASTM D1075-07 [77] procedures.

3.3. RAP Mixtures Prepared with Silica Fume

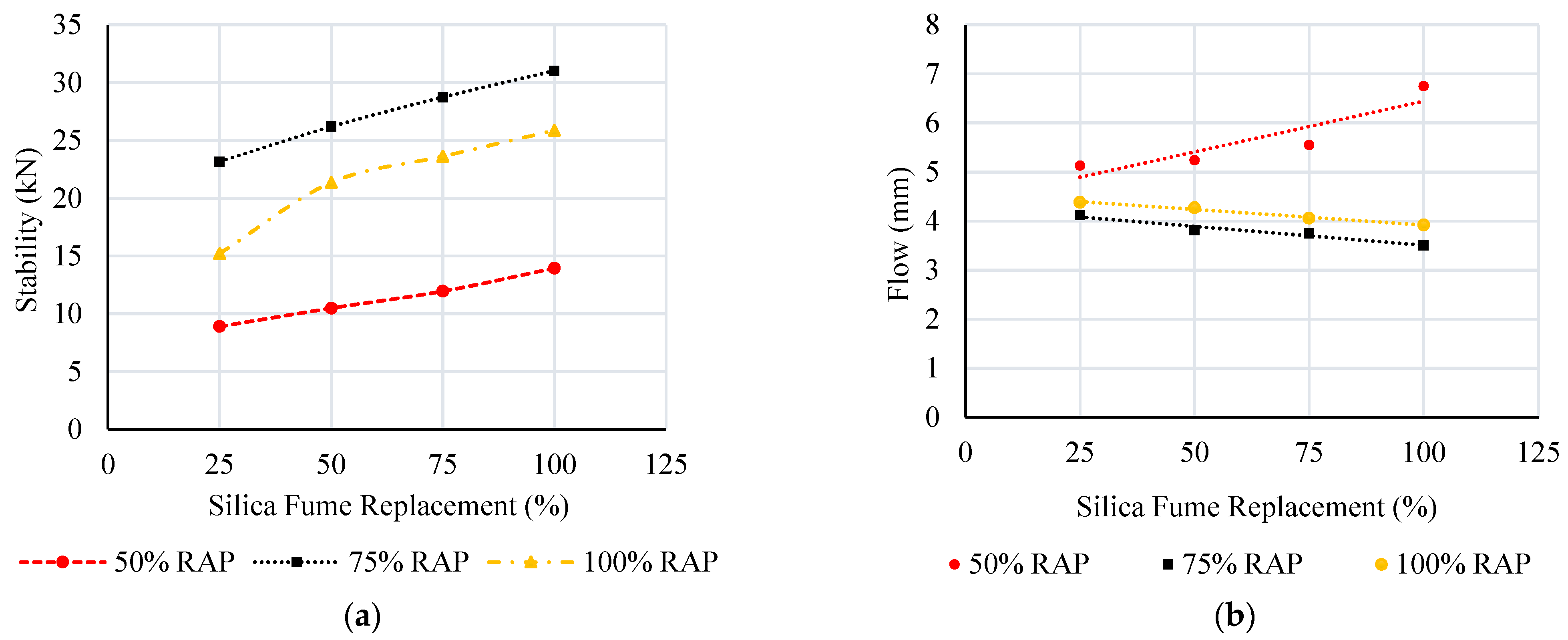

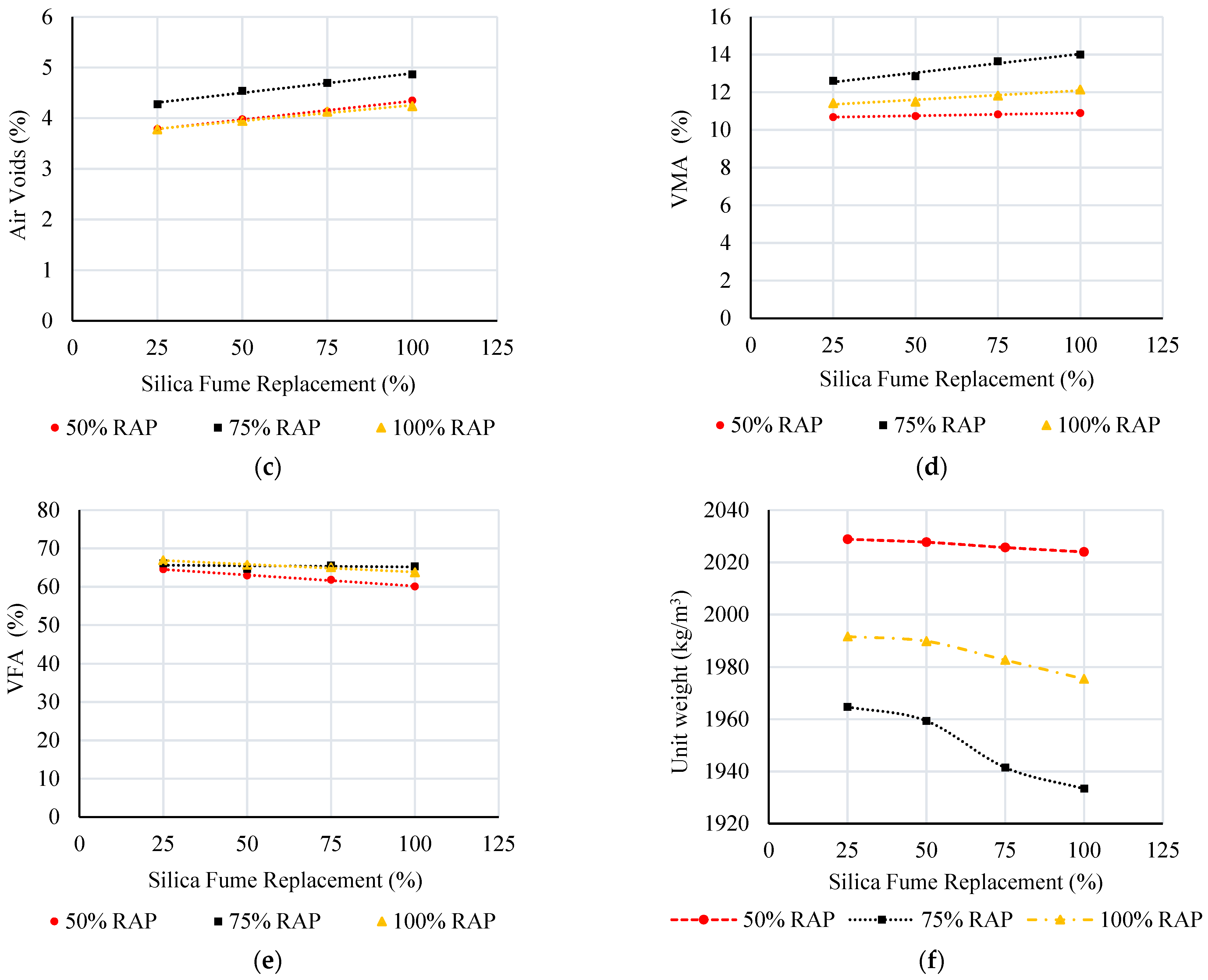

Table 7 provides a summary of the Marshall test results for all the RCA mixtures. Adding un-densified silica fume to the asphalt mixes containing RAP showed an improvement in the stability results, as depicted in Figure 7a. The 25% RAP mix failed when curing before testing, whereas the remaining mixes achieved the minimum Marshall stability limit of 8 kN but failed to satisfy the flow requirements, mainly for the 50% RAP mix (see Figure 7b). With its high air voids, the 75% RAP mix prepared with silica fume varied from the two other tested RAP mixes, as shown in Figure 7c. The same observation was found in the VMA parameter (see Figure 7d). This variation in the volumetric properties may be attributed to the alkali chemical reaction resulting from the high surface area and amorphous silica contents in the silica fume [78]. No significant differences were noticed in Figure 7e related to the voids filled with asphalt values. The unit weight results (see Figure 7e) depicted variances between the RAP mixes containing SF. The fine nature of the silica fume particles blocked the voids and therefore increased the density of the asphalt mixture, as reported in the Alia Al-Ani study [79].
Considering the financial aspects, using silica fume showed its feasibility, as it was locally produced and thus economically viable, with a maximum price value of 1 kg at USD 40. Moreover, the recycling of the raw and waste materials had a positive impact on the environmental and economic perspectives since they did not have any value for money, specifically for this study.
Compared with the RAP mixes/incorporated steel slag, the asphalt mix prepared with 100% RAP + 100% SF should have the highest enhancement relative to the 100% RAP control mix, whereas a similar performance was observed for the 75% RAP + 75% SF.

4. Conclusions

The experimental study discussed in this paper evaluates the use of steel slag and silica fume materials on the mechanical properties of the hot asphalt mixtures containing RAP aggregate at different percentages. Based on the results, the following conclusions were drawn:
I.
Adding RAP aggregate in large quantities increased the stability and decreased the optimum asphalt content, especially in the case of the 100% RAP mix, which recorded 23.22 kN at 2% asphalt content.
II.
The use of steel slag at 50% and 75% proved its effectiveness in improving the mechanical and volumetric properties of the recycled mixtures with a percent improvement of 38.92% and 68.88%, respectively.
III.
The highest stability reached for mixes prepared with different proportions of 75% and 50%, respectively, of the RAP and steel slag materials.
IV.
Introducing water to the recycled asphalt mixtures containing steel slag showed a decrease in the Marshall stability values yet maintained the ASTM requirements. Nonetheless, the 75% RAP mix sustained its high stability load of 32.55 kN after curing at 50 °C.
V.
Significant behavior related to the stability was observed for asphalt mixtures with silica fume. The 75% RAP mix prepared with different silica fume ratios showed stability improvement, with the highest value of 31.02 kN recorded at a 75% silica fume addition.
To further evaluate the performance of the recycled asphalt mixtures, the authors recommend detailed experimental research that includes the indirect tensile strength test, permanent deformation, thermal cracking, fatigue, and moisture damage considering the optimum asphalt mixes obtained in this research for the steel slag and silica fume additives, respectively.

Author Contributions

Conceptualization, M.A.-J.; methodology, M.N., N.L. and T.A.; investigation, M.A.-J., R.A.-S., R.I., N.L. and T.A.; Writing—original draft R.A.-S., M.N. and R.I.; Writing—review and editing, R.A.-S. and R.I.; supervision, M.A.-J. and M.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The article includes all the research data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Arabani, M.; Azarhoosh, A.R. The effect of recycled concrete aggregate and steel slag on the dynamic properties of asphalt mixtures. Constr. Build. Mater. 2012, 35, 1–7. [Google Scholar] [CrossRef]
  2. Naser, M.; Abdel-Jaber, M.; Al-shamayleh, R.; Louzi, N.; Ibrahim, R. Evaluating the Effects of using Reclaimed Asphalt Pavement and Recycled Concrete Aggregate on the Behavior of Hot Mix Asphalts. Transp. Eng. 2022, 10, 100140. [Google Scholar] [CrossRef]
  3. Abdelaziz, A.; Martin, A.E.; Arámbula-Mercado, E.; Sobieski, T. Study of the quantification of recycled binder activity in asphalt mixtures with RAP. Constr. Build. Mater. 2021, 309, 125189. [Google Scholar] [CrossRef]
  4. Tran, B.T.; Hassan, R.A. Performance of Hot-Mix Asphalt Containing Recycled Asphalt Pavement. Transp. Res. Rec. 2011, 2205, 121–129. [Google Scholar] [CrossRef]
  5. Kaseer, F.; Arámbula-Mercado, E.; Cucalon, L.G.; Martin, A.E. Performance of asphalt mixtures with high recycled materials content and recycling agents. Int. J. Pavement Eng. 2018, 21, 836–877. [Google Scholar] [CrossRef]
  6. Abdel-Jaber, M.; Al-shamayleh, R.A.; Ibrahim, R.; Alkhrissat, T.; Alqatamin, A. Mechanical properties evaluation of asphalt mixtures with variable contents of reclaimed asphalt pavement (RAP). Results Eng. 2022, 14, 100463. [Google Scholar] [CrossRef]
  7. Fournier, J.M.; Álvarez, D.A.; Aenlle, A.A.; Tenza-Abril, A.J.; Ivorra, S. Combining Reclaimed Asphalt Pavement (RAP) and Recycled Concrete Aggregate (RCA) from Cuba to Obtain a Coarse Aggregate Fraction. Sustainability 2020, 12, 5356. [Google Scholar] [CrossRef]
  8. Barraj, F.; Khatib, J.; Castro, A.; Elkordi, A. Effect of Chemical Warm Mix Additive on the Properties and Mechanical Performance of Recycled Asphalt Mixtures. Buildings 2022, 12, 874. [Google Scholar] [CrossRef]
  9. Farooq, M.A.; Mir, M.S. Use of reclaimed asphalt pavement (RAP) in warm mix asphalt (WMA) pavements: A review. Innov. Infrastruct. Solut. 2017, 2, 10. [Google Scholar] [CrossRef]
  10. Dao, D.V.; Nguyen, N.L.; Nguyen, M.H.; Ly, H.B.; Truong, V.Q. Evaluation of cracking resistance of warm mix asphalt incorporating high reclaimed asphalt pavement content. Proc. Inst. Mech. Eng. Part L J. Mater. Des. Appl. 2022, 236, 2550–2560. [Google Scholar] [CrossRef]
  11. Bańkowski, W. Evaluation of Fatigue Life of Asphalt Concrete Mixtures with Reclaimed Asphalt Pavement. Appl. Sci. 2018, 8, 469. [Google Scholar] [CrossRef] [Green Version]
  12. Mousa, E.; Azam, A.M.; El-Shabrawy, M.; El-Badawy, S. Laboratory Characterization of Reclaimed Asphalt Pavement for Road Construction in Egypt. Can. J. Civ. Eng. 2017, 44, 417–425. [Google Scholar] [CrossRef] [Green Version]
  13. Vislavičius, K.; Sivilevičius, H. Effect of reclaimed asphalt pavement gradation variation on the homogeneity of recycled hot-mix asphalt. Arch. Civ. Mech. Eng. 2013, 13, 345–353. [Google Scholar] [CrossRef]
  14. Saed, S.A.; Karimi, H.R.; Rad, S.M.; Aliha, M.R.M.; Shi, X.; Haghighatpour, P.J. Full range I/II fracture behavior of asphalt mixtures containing RAP and rejuvenating agent using two different 3-point bend type configurations. Constr. Build. Mater. 2022, 314, 125590. [Google Scholar] [CrossRef]
  15. Mulatu, T.; Tefera, B.Y.; Geremew, A. Study on the Suitability of Reclaimed Asphalt Pavement Aggregate (RAPA) in Hot Mix Asphalt Production. J. Eng. Res. 2021, 9, 1–19. [Google Scholar] [CrossRef]
  16. Mallick, R.B.; Bradley, J.E.; Bradbury, R.L. Evaluation of Heated Reclaimed Asphalt Pavement Material and Wax-Modified Asphalt for Use in Recycled Hot-Mix Asphalt. Transp. Res. Rec. 1998, 1, 112–122. [Google Scholar] [CrossRef]
  17. Gao, J.; Yao, Y.; Huang, J.; Yang, J.; Song, L.; Xu, J.; Lu, X. Effect of Hot Mixing Duration on Blending, Performance, and Environmental Impact of Central Plant Recycled Asphalt Mixture. Buildings 2022, 12, 1057. [Google Scholar] [CrossRef]
  18. Malinowski, S.; Wróbel, M.; Bandura, L.; Woszuk, A.; Franus, W. Use of New Green Bitumen Modifier for Asphalt Mixtures Recycling. Materials 2022, 15, 6070. [Google Scholar] [CrossRef]
  19. Yi, X.; Chen, H.; Wang, H.; Shi, C.; Yang, J. The feasibility of using epoxy asphalt to recycle a mixture containing 100% reclaimed asphalt pavement (RAP). Constr. Build. Mater. 2022, 319, 126122. [Google Scholar] [CrossRef]
  20. Aziz, M.M.A.; Hainin, M.R.; Yaacob, H.; Ali, Z.; Chang, F.L.; Adnan, A.M. Characterization and utilization of steel slag for the construction of roads and highways. Mater. Res. Innov. 2014, 18, S6-255–S6-259. [Google Scholar] [CrossRef]
  21. Yiying, H.; Boon, S.K.; Loi, S.S.; Fang, F.T.; Chong, Y.C. Steel Slag Aggregate for Asphalt Pavement. In Proceedings of the 9th ICPT, Dalian, China, 9–13 August 2015. [Google Scholar]
  22. Kumar, H.; Varma, S. A review on utilization of steel slag in hot mix asphalt. Int. J. Pavement Res. Technol. 2020, 14, 232–242. [Google Scholar] [CrossRef]
  23. Hainin, M.R.; Aziz, M.M.A.; Ali, Z.; Jaya, R.P.; El-Sergany, M.M.; Yaacob, H. Steel Slag as A Road Construction Material. J. Teknol. 2015, 73, 33–38. [Google Scholar] [CrossRef] [Green Version]
  24. Dondi, G.; Mazzotta, F.; Lantieri, C.; Cuppi, F.; Vignali, V.; Sangiovanni, C. Use of Steel Slag as an Alternative to Aggregate and Filler in Road Pavements. Materials 2021, 14, 345. [Google Scholar] [CrossRef] [PubMed]
  25. Ziaee, S.A.; Behnia, K. Evaluating the effect of electric arc furnace steel slag on dynamic and static mechanical behavior of warm mix asphalt mixtures. J. Clean. Prod. 2020, 274, 123092. [Google Scholar] [CrossRef]
  26. Fakhri, M.; Ahmadi, A. Evaluation of fracture resistance of asphalt mixes involving steel slag and RAP: Susceptibility to aging level and freeze and thaw cycles. Constr. Build. Mater. 2017, 157, 748–756. [Google Scholar] [CrossRef]
  27. Thomas, C.; Rosales, J.; Polanco, J.A.; Agrela, F. Woodhead Publishing Series in Civil and Structural Engineering. In New Trends in Eco-Efficient and Recycled Concrete; Woodhead Publishing: Sawston, UK, 2019; pp. 169–190. [Google Scholar] [CrossRef]
  28. Huaiwei, Z.; Xin, H. An overview for the utilization of wastes from stainless steel industries. Resour. Conserv. Recycl. 2011, 55, 745–754. [Google Scholar] [CrossRef]
  29. Fakhri, M.; Ahmadi, A. Recycling of RAP and steel slag aggregates into the warm mix asphalt: A performance evaluation. Constr. Build. Mater. 2017, 147, 630–638. [Google Scholar] [CrossRef]
  30. Mladenovic, A.; Turk, J.; Kovac, J.; Mauko, A.; Cotic, Z. Environmental evaluation of two scenarios for the selection of materials for asphalt wearing courses. J. Clean. Prod. 2015, 87, 683–691. [Google Scholar] [CrossRef]
  31. Ferreira, V.J.; Vilaplana, A.; García-Armingol, T.; Aranda-Uson, A.; Lausín-Gonzalez, C.; Lopez-Sabiron, A.M.; Ferreira, G. Evaluation of the steel slag incorporation as coarse aggregate for road construction: Technical requirements and environmental impact assessment. J. Clean. Prod. 2016, 130, 175–186. [Google Scholar] [CrossRef]
  32. Sorlini, S.; Sanzeni, A.; Rondi, L. Reuse of steel slag in bituminous paving mixtures. J. Hazard. Mater. 2012, 209–210, 84–91. [Google Scholar] [CrossRef]
  33. Ahmedzade, P.; Sengoz, B. Evaluation of steel slag coarse aggregate in hot mix asphalt concrete. J. Hazard. Mater. 2009, 165, 300–305. [Google Scholar] [CrossRef] [PubMed]
  34. Oluwasola, E.A.; Hainin, M.R.; Aziz, M.M.A. Evaluation of asphalt mixtures incorporating electric arc furnace steel slag and copper mine tailings for road construction. Transp. Geotech. 2015, 2, 47–55. [Google Scholar] [CrossRef]
  35. Pasetto, M.; Baldo, N. Mix design and performance analysis of asphalt concretes with electric arc furnace slag. Constr. Build. Mater. 2011, 25, 3458–3468. [Google Scholar] [CrossRef]
  36. Louzi, N. Modification of hot asphalt mixtures in Jordan and Syria by using steel slag. Jordan J. Civ. Eng. 2012, 6, 279–292. [Google Scholar]
  37. Wen, H.; Wu, S.; Bhusal, S. Performance evaluation of asphalt mixes containing steel slag aggregate as a measure to resist studded tire wear. J. Mater. Civ. Eng. 2016, 28, 04015191. [Google Scholar] [CrossRef]
  38. Ameri, M.; Hesami, S.; Goli, H. Laboratory evaluation of warm mix asphalt mixtures containing electric arc furnace (EAF) steel slag. Const. Build. Mater. 2013, 49, 611–617. [Google Scholar] [CrossRef]
  39. Zumrawi, M.; Khalill, F. Experimental study of steel slag used as aggregate in asphalt mixture. Int. J. Civ. Environ. Struct. Constr. Arch. Eng. 2015, 9, 683–688. [Google Scholar]
  40. Asi, I.M.; Qasrawi, H.Y.; Shalabi, F.I. Use of steel slag aggregate in asphalt concrete mixes. Can. J. Civ. Eng. 2007, 34, 902–911. [Google Scholar] [CrossRef]
  41. Ziaee, S.A.; Kavussi, A.; Qazizadeh, M.J.; Moghadam, A.M. Evaluation of long-term ageing of asphalt mixtures containing EAF and BOF steel slags. Int. J. Transport. Eng. 2015, 2, 245–265. [Google Scholar] [CrossRef]
  42. Hassan, K.E.; Attia, M.I.E.; Reid, M.; Al-Kuwari, M.B.S. Performance of steel slag aggregate in asphalt mixtures in a hot desert climate. Case Stud. Constr. Mater. 2021, 14, e00534. [Google Scholar] [CrossRef]
  43. Kavussi, A.; Qazizadeh, M.J. Fatigue characterization of asphalt mixes containing electric arc furnace (EAF) steel slag subjected to long term aging. Constr. Build. Mater. 2014, 72, 158–166. [Google Scholar] [CrossRef]
  44. Pasetto, M.; Baldo, N. Performance comparative analysis of stone mastic asphalts with electric arc furnace steel slag: A laboratory evaluation. Mater. Struct. 2012, 45, 411–424. [Google Scholar] [CrossRef]
  45. Sun, J.; Bieliatynskyi, A.; Krayushkina, K.; Akmaldinova, O. Research progress of steel slag asphalt concrete. E3S Web Conf. 2020, 175, 11014. [Google Scholar] [CrossRef]
  46. Goli, A. The study of the feasibility of using recycled steel slag aggregate in hot mix asphalt. Case Stud. Constr. Mater. 2022, 16, e00861. [Google Scholar] [CrossRef]
  47. Masoudi, S.; Abtahi, S.M.; Goli, A. Evaluation of electric arc furnace steel slag coarse aggregate in warm mix asphalt subjected to long-term aging. Constr. Build. Mater. 2017, 135, 260–266. [Google Scholar] [CrossRef]
  48. Yang, S.; Braham, A.; Wang, L.; Wang, Q. Influence of aging and moisture on laboratory performance of asphalt concrete. Constr. Build. Mater. 2016, 115, 527–535. [Google Scholar] [CrossRef]
  49. Yang, C.; Wu, S.; Cui, P.; Amirkhanian, S.; Zhao, Z.; Wang, F.; Zhang, L.; Wei, M.; Zhou, X.; Xie, J. Performance characterization and enhancement mechanism of recycled asphalt mixtures involving high RAP content and steel slag. J. Clean. Prod. 2022, 336, 130484. [Google Scholar] [CrossRef]
  50. Panesar, D.K. Supplementary cementing materials. In Developments in the Formulation and Reinforcement of Concrete, 2nd ed.; Woodhead Publishing: Sawston, UK, 2019; pp. 55–85. [Google Scholar] [CrossRef]
  51. Kunal, R.S. Utilization of industrial by-products and natural ashes in mortar and concrete: Development of sustainable construction materials. In Nonconventional and Vernacular Construction Materials; Woodhead Publishing: Sawston, UK, 2016; pp. 159–204. [Google Scholar] [CrossRef]
  52. Jiao, D.; Shi, C.; Yuan, Q.; An, X.; Liu, Y.; Li, H. Effect of constituents on rheological properties of fresh concrete—A review. Cem. Concr. Compos. 2017, 83, 146–159. [Google Scholar] [CrossRef]
  53. Thomas, M. The effect of supplementary cementing materials on alkali-silica reaction: A review. Cem. Concr. Res. 2011, 41, 1224–1231. [Google Scholar] [CrossRef]
  54. Khan, A.A.S.; Ullah, N.; Ahmad, A.; Ali, S. Evaluation of Mechanical Properties of Hot Mix Asphalt by Replacing the Combination of Marble Dust and Silica Fume as A Filler. Glob. Sci. J. 2020, 8, 681–690. [Google Scholar]
  55. Sarsam, S.I.; AL-Zubaidi, I. Resistance to deformation under repeated loading of aged and recycled sustainable pavement. Am. J. Civ. Eng. 2014, 1, 34–39. [Google Scholar] [CrossRef]
  56. Sarsam, S.I.; AL-Lamy, A.K. Fatigue life assessment of modified asphalt concrete. Int. J. Sci. Res. Knowl. 2015, 3, 30–41. [Google Scholar] [CrossRef]
  57. Al-Zajrawi, A.K.; Mashkur, B.T.; Al-Zahra, Z.A. Effect of Silica on Hot Mix Asphalt Mixture. IOP Conf. Ser. Mater. Sci. Eng. 2020, 737, 012148. [Google Scholar] [CrossRef]
  58. Al-Taher, M.G.; Hassanin, H.D.; Ibrahim, M.F.; Sawan, A.M. Investigation of the Effect of Adding Silica Fume on Asphalt Concrete Properties. Int. J. Eng. Res. 2018, 7, 48–55. [Google Scholar] [CrossRef]
  59. Aboelmagd, A.Y.; Moussa, G.S.; Enieb, M.; Khedr, S.; Abd Alla, E.M. Evaluation of Hot Mix Asphalt and Binder Performance Modified with High Content of Nano Silica Fume. J. Eng. Sci. 2021, 49, 378–399. [Google Scholar] [CrossRef]
  60. ASTM D5; Standard Test Method for Penetration of Bituminous Materials. ASTM International: West Conshohocken, PA, USA, 2020. [CrossRef]
  61. ASTM D2172; Standard Test Methods for Quantitative Extraction of Asphalt Binder from Asphalt Mixtures. ASTM International: West Conshohocken, PA, USA, 2018. [CrossRef]
  62. ASTM C127; Standard Test Method for Relative Density (Specific Gravity) and Absorption of Coarse Aggregate. ASTM International: West Conshohocken, PA, USA, 2015. [CrossRef]
  63. ASTM C128; Standard Test Method for Relative Density (Specific Gravity) and Absorption of Fine Aggregate. ASTM International: West Conshohocken, PA, USA, 2015. [CrossRef]
  64. ASTM C131; Standard Test Method for Resistance to Degradation of Small-Size Coarse Aggregate by Abrasion and Impact in the Los Angeles Machine. ASTM International: West Conshohocken, PA, USA, 2020. [CrossRef]
  65. ASTM D70; Standard Test Method for Specific Gravity and Density of Semi-Solid Asphalt Binder (Pycnometer Method). ASTM International: West Conshohocken, PA, USA, 2021. [CrossRef]
  66. ASTM D36; Standard Test Method for Softening Point of Bitumen (Ring-and-Ball Apparatus). ASTM International: West Conshohocken, PA, USA, 2020. [CrossRef]
  67. ASTM D113; Standard Test Method for Ductility of Asphalt Materials. ASTM International: West Conshohocken, PA, USA, 2017. [CrossRef]
  68. ASTM D6926; Standard Practice for Preparation of Asphalt Mixture Specimens Using Marshall Apparatus. ASTM International: West Conshohocken, PA, USA, 2020. [CrossRef]
  69. ASTM D3515; Test Method for Resistance of Plastic Flow of Bituminous Mixtures Using Marshall Apparatus. ASTM International: West Conshohocken, PA, USA, 2001.
  70. ASTM D6927; Standard Test Method for Marshall Stability and Flow of Asphalt Mixtures. ASTM International: West Conshohocken, PA, USA, 2015. [CrossRef]
  71. ASTM D3203; Standard Test Method for Percent Air Voids in Compacted Asphalt Mixtures. ASTM International: West Conshohocken, PA, USA, 2017. [CrossRef]
  72. ASTM D2729; Standard Specification for Poly (Vinyl Chloride) (PVC) Sewer Pipe and Fittings. ASTM International: West Conshohocken, PA, USA, 2021. [CrossRef]
  73. Li, X.; Marasteanu, M.O.; Williams, R.C.; Clyne, T.R. Effect of Reclaimed Asphalt Pavement (Proportion and Type) and Binder Grade on Asphalt Mixtures. Transp. Res. Rec. 2008, 2051, 90–97. [Google Scholar] [CrossRef]
  74. Yildirim, I.Z.; Prezzi, M. Use of Steel Slag in Subgrade Applications; Joint transportation research program; Indiana department of transportation and purdue university: West Lafayette, IN, USA, 2009. [Google Scholar] [CrossRef] [Green Version]
  75. Rahat, H.H.; Karmakar, A.; Madani, A.Z. The Effect of Steel Slag Powder on HMA Stability. Malays. J. Civ. Eng. 2022, 34, 37–43. [Google Scholar] [CrossRef]
  76. Huang, X.; Yan, F.; Guo, R.; He, H. Study on the Performance of Steel Slag and Its Asphalt Mixture with Oxalic Acid and Water Erosion. Materials 2022, 15, 6642. [Google Scholar] [CrossRef]
  77. ASTM D1075; Standard Test Method for Effect of Water on Compressive Strength of Compacted Bituminous Mixtures. ASTM International: West Conshohocken, PA, USA, 2007. [CrossRef]
  78. Srivastava, V.; Kumar, R.; Agarwal, V.C.; Mehta, P.K. Effect of Silica Fume on Workability and Compressive Strength of OPC Concrete. J. Environ. Nanotechnol. 2014, 3, 32–35. [Google Scholar] [CrossRef]
  79. Al-Ani, A.F. The Impact of Utilizing Silica Fume as a Filler on Asphalt Concrete Mixes. Key Eng. Mater. 2020, 857, 22–31. [Google Scholar] [CrossRef]
Buildings 13 00132 g001 550

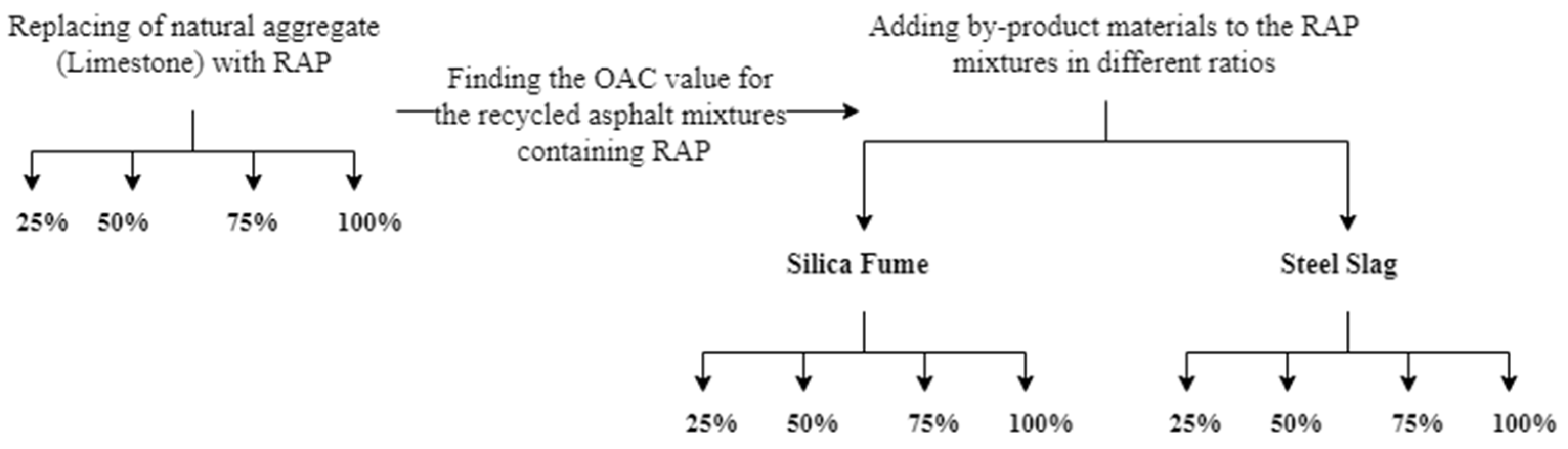

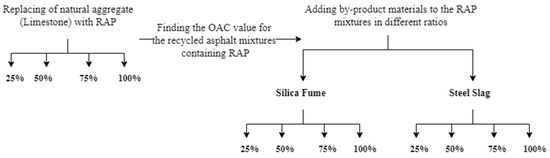

Figure 1. Experimental work flowchart.
Figure 1. Experimental work flowchart.
Buildings 13 00132 g001
Buildings 13 00132 g004a 550Buildings 13 00132 g004b 550

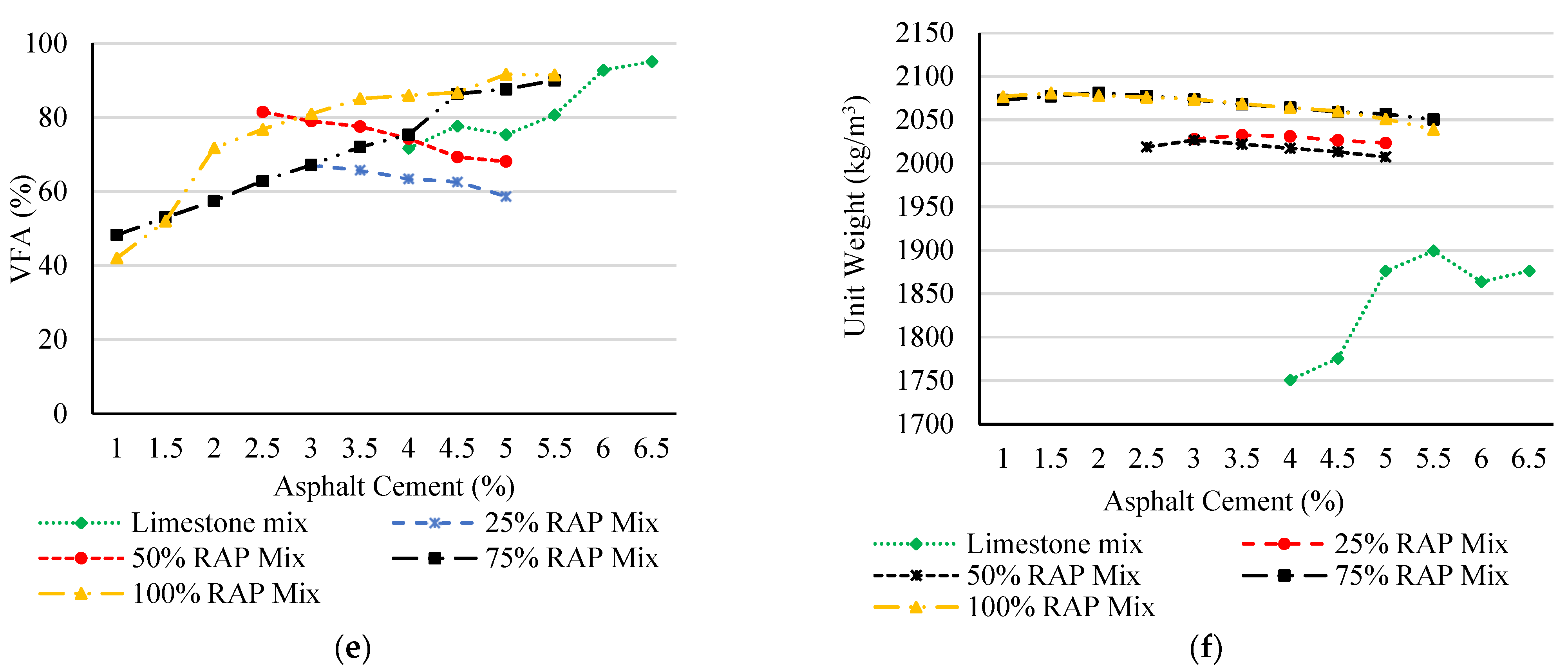

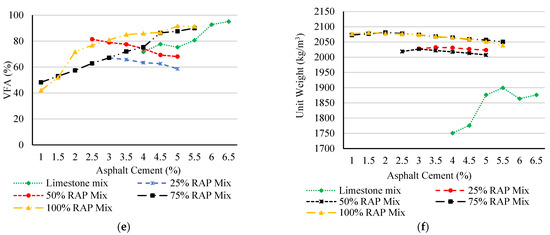

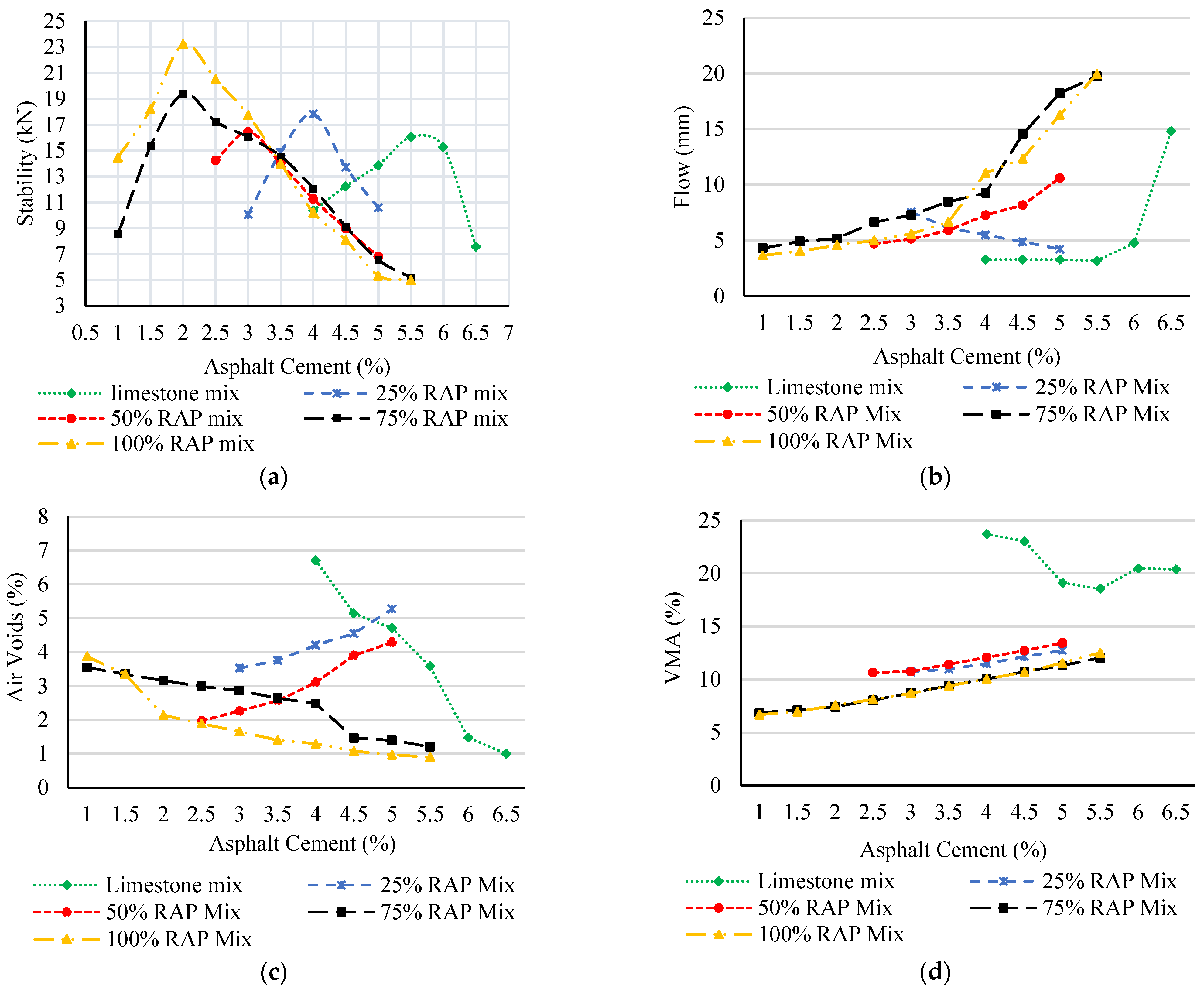

Figure 4. Test results of the asphalt mixes containing RAP in terms of (a) Marshall stability; (b) flow; (c) unit weight; (d) air voids; (e) VMA; (f) VFA.
Figure 4. Test results of the asphalt mixes containing RAP in terms of (a) Marshall stability; (b) flow; (c) unit weight; (d) air voids; (e) VMA; (f) VFA.
Buildings 13 00132 g004aBuildings 13 00132 g004b
Buildings 13 00132 g005a 550Buildings 13 00132 g005b 550

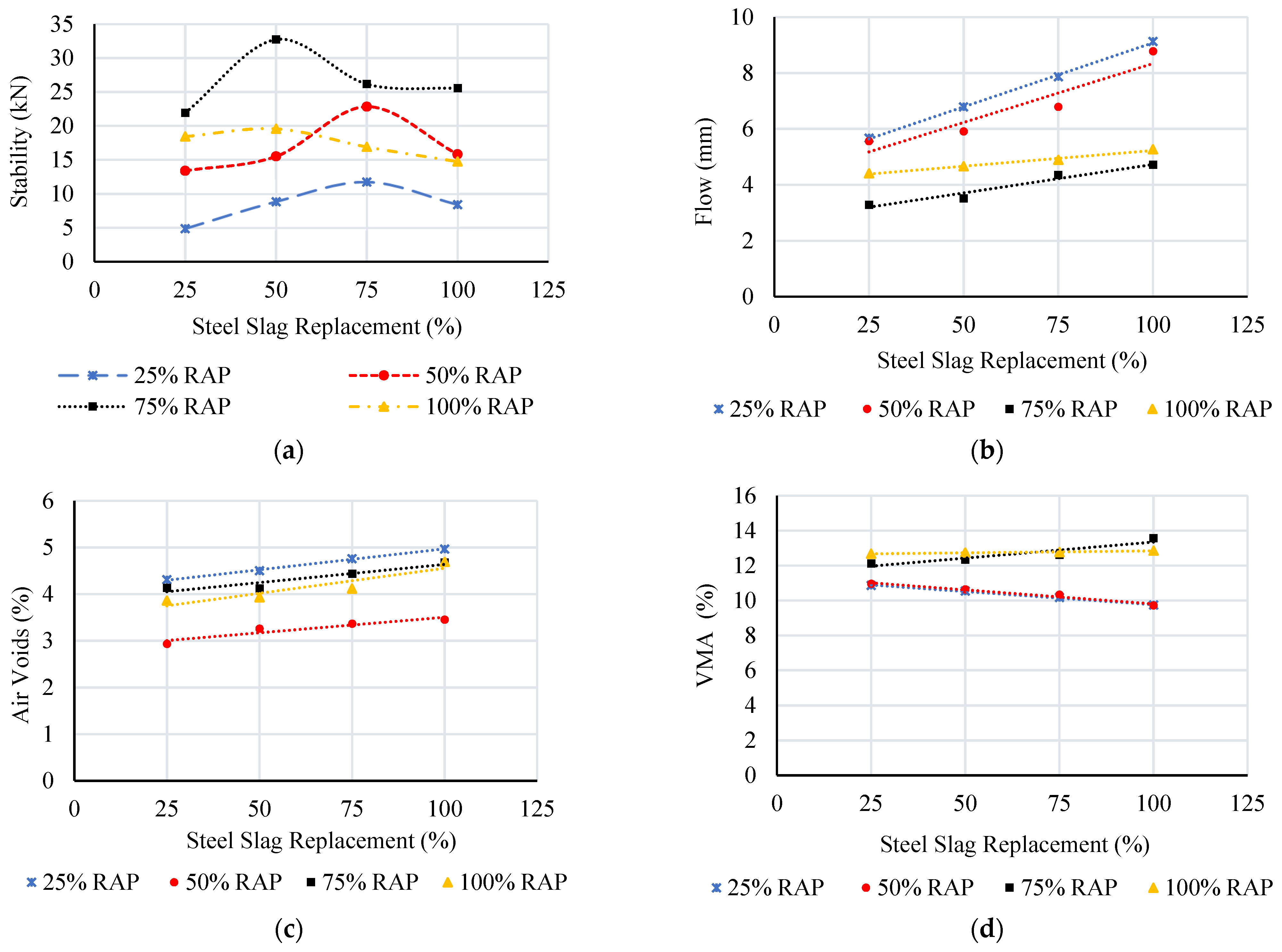

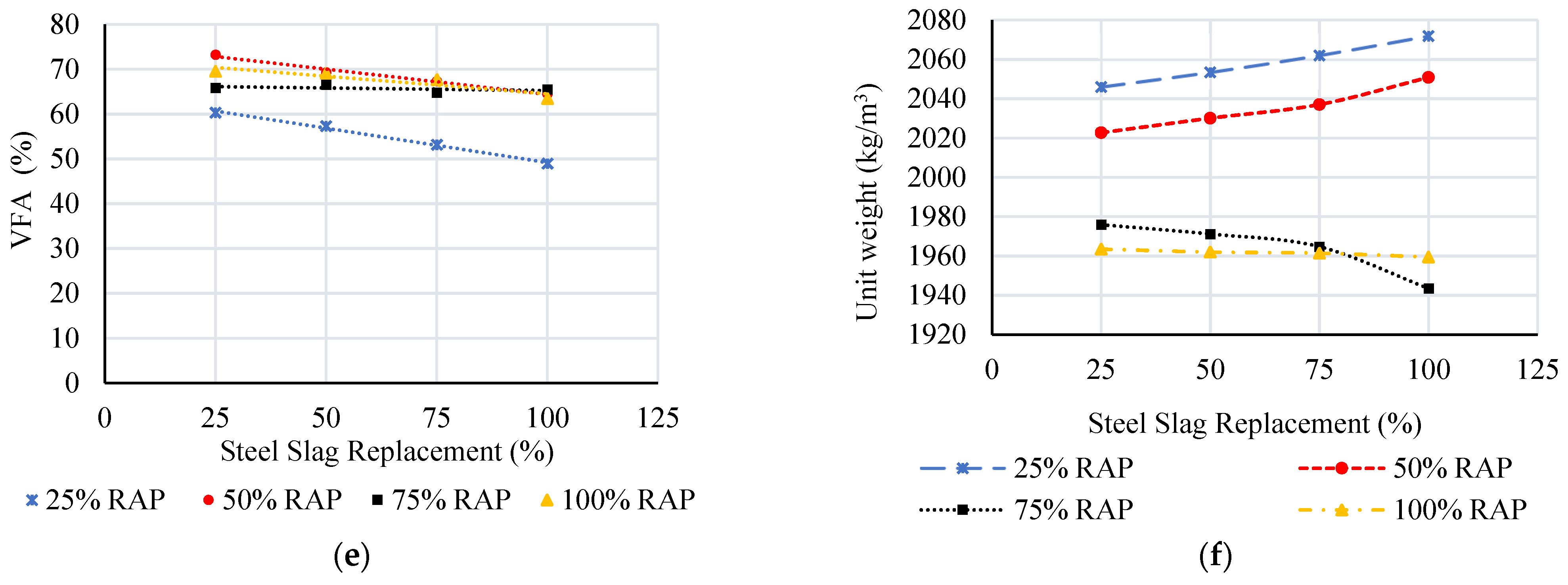

Figure 5. Test results of the RAP mix prepared with steel slag material in terms of (a) Marshall stability; (b) flow; (c) unit weight; (d) air voids; (e) VMA; (f) VFA.
Figure 5. Test results of the RAP mix prepared with steel slag material in terms of (a) Marshall stability; (b) flow; (c) unit weight; (d) air voids; (e) VMA; (f) VFA.
Buildings 13 00132 g005aBuildings 13 00132 g005b
Buildings 13 00132 g006a 550Buildings 13 00132 g006b 550

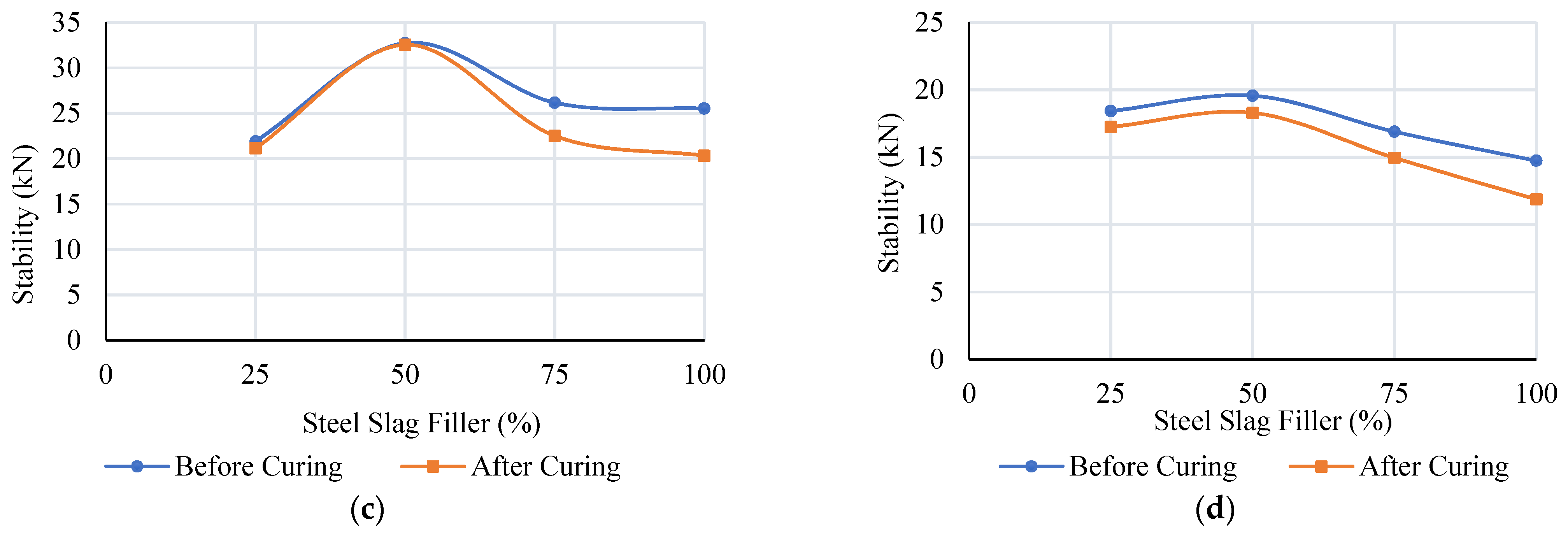

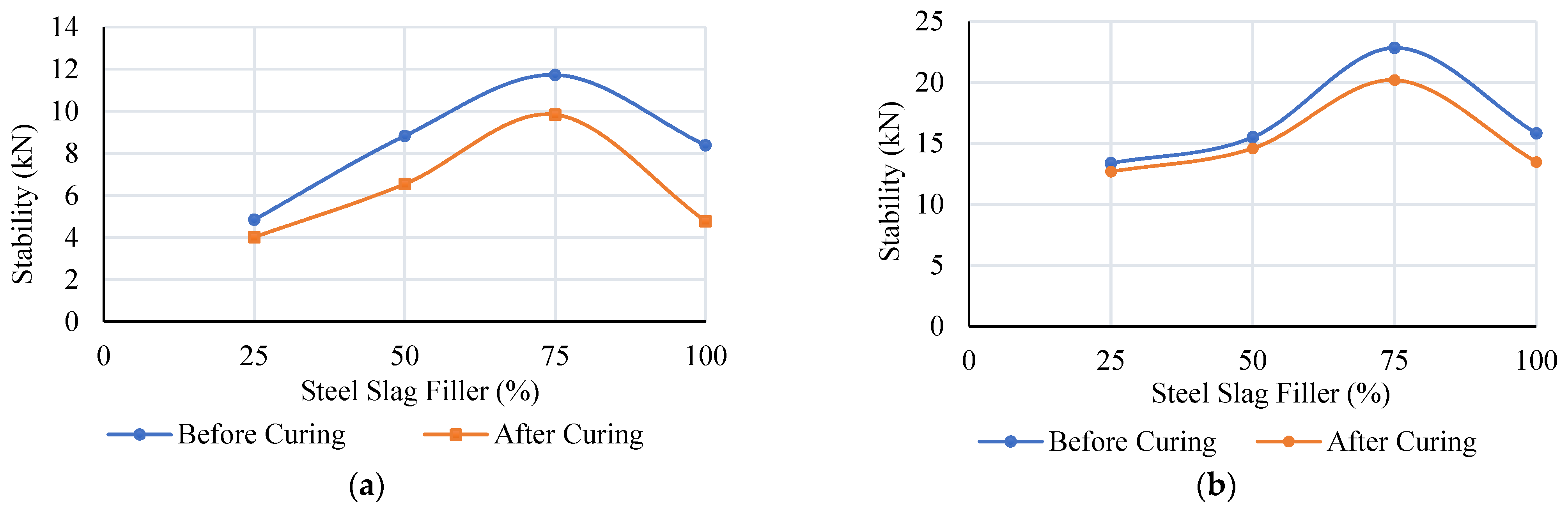

Figure 6. Marshall stability values for the asphalt mixes tested under water and prepared with (a) 25% RAP; (b) 50% RAP; (c) 75% RAP; (d) 100% RAP.
Figure 6. Marshall stability values for the asphalt mixes tested under water and prepared with (a) 25% RAP; (b) 50% RAP; (c) 75% RAP; (d) 100% RAP.
Buildings 13 00132 g006aBuildings 13 00132 g006b
Buildings 13 00132 g007a 550Buildings 13 00132 g007b 550
Figure 7. Test results of the three recycled aggregate mixes prepared with silica fume in terms of (a) Marshall stability; (b) flow; (c) unit weight; (d) air voids; (e) VMA; (f) VFA.
Figure 7. Test results of the three recycled aggregate mixes prepared with silica fume in terms of (a) Marshall stability; (b) flow; (c) unit weight; (d) air voids; (e) VMA; (f) VFA.
Buildings 13 00132 g007aBuildings 13 00132 g007b
Table
Table 2. Technical properties of the virgin asphalt cement.
Table 2. Technical properties of the virgin asphalt cement.
Test TypeAsphalt Cement MaterialStandard Methods
(Specifications)
Asphalt Binder
Specific gravity1.01ASTM-D70-21 [65]
Softening point (°C)60ASTM-D36-20 [66]
Ductility at 25 °C (cm)+100ASTM-D113-17 [67]
Table
Table 3. Test results for the mix prepared with limestone only.
Table 3. Test results for the mix prepared with limestone only.
Test TypeAsphalt Cement (%)
44.555.566.5
Stability (kN) [70]10.3712.2413.8816.0515.297.58
Flow (mm) [70]3.273.263.273.174.7514.80
Air voids (%) [71]6.715.144.713.581.470.99
VMA (%)23.7123.0519.1118.5420.4920.38
VFA (%)71.7277.7175.3680.7092.8095.13
Unit weight (kg/m3) [72]1750.921775.481876.151899.321863.731876.22
Table
Table 4. Test results for the tested mix prepared with RAP aggregate.
Table 4. Test results for the tested mix prepared with RAP aggregate.
Test TypeTest MixAsphalt Cement (%)
11.522.533.544.555.5
Stability (kN)
[70]		25% RAP----10.0614.8817.8213.7210.59-
50% RAP---14.2416.4414.0111.269.006.81-
75% RAP8.5415.3619.3817.2416.0614.5712.089.156.565.19
100% RAP14.4718.2123.2220.5217.7414.0010.238.095.354.99
Flow (mm)
[70]		25% RAP----7.546.125.484.874.21-
50% RAP---4.695.125.907.268.1610.60-
75% RAP4.294.905.166.637.268.479.2614.5418.2219.75
100% RAP3.644.034.564.995.586.6511.0512.3416.2819.93
Air voids (%)
[71]		25% RAP----3.533.764.214.555.27-
50% RAP---1.972.262.573.113.914.29-
75% RAP3.553.363.162.992.862.642.481.461.401.20
100% RAP3.883.352.141.891.651.401.301.080.970.90
VMA (%)25% RAP----10.7310.9911.5112.1712.76-
50% RAP---10.6710.7811.4512.1012.7413.46-
75% RAP6.867.157.438.068.739.4310.0610.7511.3212.06
100% RAP6.696.977.588.138.709.4010.0610.7111.5712.55
VFA (%)25% RAP----67.0865.7863.4562.6458.72-
50% RAP---81.5179.0177.5674.3269.3468.11-
75% RAP48.2753.0457.4762.9167.2072.0375.3986.3887.6790.04
100% RAP42.0452.0271.7876.8280.9985.1086.0086.7691.6591.49
Unit weight (kg/m3)
[72]		25% RAP----2027.892032.322031.102026.402023.42-
50% RAP---2018.802026.782021.982017.432013.352007.23-
75% RAP2073.012077.152081.362077.752073.262067.952064.232059.132056.792050.36
100% RAP2076.842081.002077.882076.142073.912068.622064.292060.082050.972039.04
Table
Table 5. Test results for the RAP mixes containing steel slag.
Table 5. Test results for the RAP mixes containing steel slag.
Test TypeTest MixSteel Slag (SS) Replacement
25%50%75%100%
Stability (kN)
[70]		25% RAP4.858.8311.738.39
50% RAP13.3815.522.8415.82
75% RAP21.9132.7326.1725.53
100% RAP18.4319.5716.914.74
Flow (mm)
[70]		25% RAP5.676.797.879.13
50% RAP5.565.916.798.78
75% RAP3.293.514.354.71
100% RAP4.414.664.895.27
Air voids (%)
[71]		25% RAP4.314.504.764.97
50% RAP2.933.263.373.45
75% RAP4.144.124.444.68
100% RAP3.863.934.124.69
VMA (%)25% RAP10.8610.5410.169.73
50% RAP10.9610.6310.329.72
75% RAP12.1212.3312.6213.56
100% RAP12.6712.7412.7612.85
VFA (%)25% RAP60.3357.3153.1648.94
50% RAP73.2369.3367.3864.48
75% RAP65.8766.5564.8265.48
100% RAP69.5469.1267.7263.47
Unit weight (kg/m3)
[72]		25% RAP2045.952053.342061.972071.83
50% RAP2022.692030.112037.062050.87
75% RAP1975.891971.181964.741943.50
100% RAP1963.501962.001961.441959.47
Table
Table 6. Test results for the tested mixes with steel slag under water for 4 days at 50 °C.
Table 6. Test results for the tested mixes with steel slag under water for 4 days at 50 °C.
Test MixBefore CuringAfter Curing
Stability (kN)Flow (mm)Stability (kN)Flow (mm)
25% RAP at 4% AC25% SS4.855.674.025.24
50% SS8.836.796.546.59
75% SS11.737.879.846.97
100% SS8.399.134.788.53
50% RAP at 3% AC25% SS13.385.5612.695.65
50% SS15.505.9114.596.02
75% SS22.846.7920.206.54
100% SS15.828.7813.478.70
75% RAP at 2% AC25% SS21.913.2921.153.68
50% SS32.733.5132.553.42
75% SS26.174.3522.524.31
100% SS25.534.7120.334.64
100% RAP at 2% AC25% SS18.434.4117.254.23
50% SS19.574.6618.304.54
75% SS16.904.8914.954.78
100% SS14.745.2711.875.20
Table
Table 7. Test results for the RAP mixes containing silica fume.
Table 7. Test results for the RAP mixes containing silica fume.
Test TypeTEST MixSilica Fume (SF) Replacement
25%50%75%100%
Stability (kN)
[70]		50% RAP8.910.4911.9513.94
75% RAP23.1626.1928.7431.02
100% RAP15.2121.3523.6225.86
Flow (mm)
[70]		50% RAP5.135.245.556.75
75% RAP4.123.813.753.5
100% RAP4.384.274.063.92
Air voids (%)
[71]		50% RAP3.793.984.134.35
75% RAP4.284.544.704.86
100% RAP3.783.954.134.24
VMA (%)50% RAP10.6910.7410.8310.90
75% RAP12.6212.8613.6514.01
100% RAP11.4211.5011.8212.14
VFA (%)50% RAP64.5662.9361.8260.09
75% RAP66.0964.6865.5765.29
100% RAP66.9165.6965.0663.77
Unit weight (kg/m3)
[72]		50% RAP2028.852027.722025.672024.00
75% RAP1964.741959.371941.531933.39
100% RAP1991.571989.791982.681975.46
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Naser, M.; Abdel-Jaber, M.; Al-Shamayleh, R.; Ibrahim, R.; Louzi, N.; AlKhrissat, T. Improving the Mechanical Properties of Recycled Asphalt Pavement Mixtures Using Steel Slag and Silica Fume as a Filler. Buildings 2023, 13, 132. https://doi.org/10.3390/buildings13010132

AMA Style

Naser M, Abdel-Jaber M, Al-Shamayleh R, Ibrahim R, Louzi N, AlKhrissat T. Improving the Mechanical Properties of Recycled Asphalt Pavement Mixtures Using Steel Slag and Silica Fume as a Filler. Buildings. 2023; 13(1):132. https://doi.org/10.3390/buildings13010132

Chicago/Turabian Style

Naser, Mohammad, Mu’tasim Abdel-Jaber, Rawan Al-Shamayleh, Reem Ibrahim, Nawal Louzi, and Tariq AlKhrissat. 2023. "Improving the Mechanical Properties of Recycled Asphalt Pavement Mixtures Using Steel Slag and Silica Fume as a Filler" Buildings 13, no. 1: 132. https://doi.org/10.3390/buildings13010132

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
