Review

Indoor Environmental Quality and Comfort in Offices: A Review

by
Virginia Isabella Fissore
*,
Silvia Fasano
,
Giuseppina Emma Puglisi
,
Louena Shtrepi
and
Arianna Astolfi
Department of Energy, Politecnico di Torino, 10129 Turin, Italy
*
Author to whom correspondence should be addressed.
Buildings 2023, 13(10), 2490; https://doi.org/10.3390/buildings13102490
Submission received: 3 August 2023 / Revised: 22 September 2023 / Accepted: 25 September 2023 / Published: 30 September 2023

Abstract

:
People spend about 90% of their time in closed spaces such as residential and office environments, and indoor environmental quality (IEQ) has effects on their health, well-being, overall comfort and work productivity. The IEQ domains (i.e., thermal, acoustic, visual and indoor air quality) are able to influence office users’ work day and even cause the onset of diseases. This review aims at investigating IEQ in offices and the multidomain combined effects on occupants’ overall comfort. Studies published between 2016 and 2022 were summarized, focusing on four research questions formulated to deepen the knowledge on (i) IEQ perception and evaluation, (ii) IEQ indexes and parameters, (iii) factors that influence comfort perception and (iv) IEQ and comfort representation in space and time. For these research questions, a total of 29, 19, 10 and 9 studies, found on the Scopus database through a keywords search, were considered, respectively. The studies were included only if they appraised a multidomain approach. The results obtained for each research question reveal that: (i) Post-Occupancy Evaluation (POE) surveys are often applied to understand how occupants perceive IEQ, and in-field monitoring based on low-cost sensors is implemented more and more to acquire IEQ data, (ii) a set of indexes and parameters for IEQ assessment is not standardized yet, although some parameters are commonly used, (iii) personal factors like age and gender, and contextual factors like workstation location and office type, influence occupants’ comfort perception and (iv) dashboards are used to allow office end-users to visualize the indoor conditions of the environment.

1. Introduction

Indoor environmental quality (IEQ), which accounts for the thermal, acoustic, visual and indoor air quality (IAQ) domains, is a remarkably investigated topic in the recent literature due to the time that people spend indoors [1]. According to the European Commission, people spend about 90% of their time in closed spaces and most of the time at work [2,3]; thus, research focuses on the influence of IEQ on occupants’ overall comfort, well-being, health and work productivity in offices [4].
The assessment of indoor environmental conditions is therefore of fundamental importance and is usually based on two methodologies, i.e., in-field monitoring of IEQ parameters and indexes and occupants’ subjective feedback collection [5].
Traditionally, measurements of IEQ parameters were performed by means of independent devices and mainly consisted of spot measurements with high costs and invasiveness in the monitored environment [6]. This methodology has changed through the years thanks to the use of low-cost sensors within the IoT framework, and nowadays it is possible to perform intensive, long-term monitoring campaigns [7]. The design of continuous IEQ monitoring systems, through the implication of wireless sensor network and cloud software platforms, allows one to monitor, continuously and simultaneously, the thermal, acoustic, lighting and air quality domains [3,5]. Standards and building certification schemes define parameters and indexes to be monitored to assess thermal, acoustic and visual conditions and indoor air quality in offices. Nevertheless, a set of parameters or a universally recognized index deemed to be effective for IEQ assessment is not available yet. Standards, e.g., EN 16798-1:2019 [8], ANSI/ASHRAE 55:2017 [9], ISO 7730:2005 [10], ISO 3382-3:2022 [11], ISO 22955:2021 [12], NF S31-080 [13], EN 17037:2018 [14] and EN 12464-1:2021 [15], establish threshold values which are used as guidelines by designers to achieve indoor habitability. Building certification schemes provide a set of parameters and their thresholds as well, with the aim of ensuring building acceptability and occupants’ health and well-being, becoming a useful guide for the selection of parameters to be monitored for IEQ assessment. As Wei et al. [16] state in their review, most of the building certification schemes were developed for the evaluation of many building aspects (e.g., energy, use of materials, water, etc.). The WELL Building Standard was mainly devoted to the health and quality of life of building occupants, and recently, LEED and BREEAM also expanded their credit structure, considering social and economic well-being, safety and security.
Nevertheless, it has been proven that not all the occupants consider themselves satisfied with IEQ conditions even when the physical requirements are met [17]. Occupants’ comfort is defined as the status in which people feel a sensation of well-being and satisfaction, and it deals with the space that surrounds the human body and its perception. Moreover, one’s feeling about oneself in relation to the surrounding environment defines well-being, and if physiological, psychological and social needs are satisfied, individual well-being tends to be high [18]. For this reason, to investigate IEQ perception and users’ satisfaction with indoor environmental conditions, the Post-Occupancy Evaluation (POE) method is applied, which includes questionnaires to be submitted to the end-users [4,19]. Nevertheless, the reliability of subjective responses could be altered by factors that influence occupants’ comfort perception [17], such as contextual, physiological and personal factors. The main contextual factors are building orientation, view toward the outside, workstation location [20], office typology and occupancy hours [21]. The main personal factors are age, gender [22], place of residence [21], culture and past experiences [17]. Occupants’ level of control over the building systems and indoor environmental conditions at their workstation affects their comfort perception too [23].
Many POE survey tools in the past were developed as benchmarks for future POE studies, e.g., among others, the UK Building Use Studies (BUS), the Australian Building Occupants Survey System Australia (BOSSA), the Dutch Work Environment Diagnosis Instrument (WODI) and the American model developed by the Center of the Built Environment (CBE) [4,19].
Thanks to the information and communication technology and the use of portable computers, tablets and smartphones, it is now possible to continuously collect occupants’ subjective feedback. However, a unique methodology universally recognized and applied is not available yet [24]. As a step forward in the collection of subjective feedback, occupants can be provided with information on real-time monitored IEQ conditions, and a comparison between objective and subjective data can be performed through the new technologies [6].
Questionnaires represent a useful tool also for the broader detection of office occupants’ self-assessed productivity and health, since they allow for a personal recording of building-related health symptoms (e.g., tired or strained eyes, headache, cough, etc.) caused by bad indoor environmental conditions [25]. In 1983, the World Health Organization first defined the concept of Sick Building Syndrome (SBS), when causes and consequences were not widely investigated yet, ventilation rates in buildings were limited and emissions from buildings materials were high. The symptoms of SBS (e.g., eyes, nose, throat and skin irritation and neurotoxic health problems) affect building occupants in relation to the time they spend indoor and are related to personal and environmental variables [26]. Therefore, both physical monitoring and consequent interventions and actions for workers’ well-being and health are needed for the prevention of building-related symptoms [25].
Work productivity is also demonstrated to be affected by IEQ depending on the occupants’ demographics, the type of office and the type of work tasks to be performed [27]. Thermal comfort, indoor air quality, visual comfort, acoustics and office layout are key factors affecting occupants’ productivity [28]. A study was conducted to analyze the interconnections between IEQ and attitudinal, social and demographic factors and their influence on productivity belief. The results demonstrate that IEQ satisfaction, country of residence, thermal comfort, perceived possibility of controlling indoor environmental features and proneness in sharing these controls are the strongest positive predictors of the productivity belief [21].
Four research questions are released in this review and shown in Table 1 with the keywords used for the review searching process. The four research questions were formulated based on a primary knowledge of IEQ to deeply investigate the main factors contributing to this theme. The final aim was the development of a system, named PROMET&O (PROactive Monitoring for indoor EnvironmenTal quality & cOmfort), including a low-cost multisensor device, a questionnaire to assess the occupants’ comfort perception, personal and behavioral factors and a dashboard for data visualization [29].
The relationship between IEQ and its perception, i.e., the influence it has on human beings, was considered the first factor to be investigated. IEQ is assessed for different reasons (e.g., the correlation with energy consumptions, with occupant behavior, with building automation and control systems, etc.), but one of the major concerns is the relationship with occupants’ comfort, well-being and health. These different reasons determine different methodologies for IEQ evaluation; however, it almost always encompasses the measurement and calculation of the parameters and indexes of the four domains (thermal, visual, acoustic and IAQ). Due to the lack of a standardized procedure, a further goal of this review (addressed in the first and second research questions) was to understand how this problem is tackled in the current literature in terms of methodologies, devices, time required, parameters and indexes assessed.
In the third research question, the main personal and contextual factors, to be analyzed when performing an in-field campaign of IEQ and comfort perception assessment, are investigated.
The fourth research question was formulated with the aim of acknowledging the way IEQ is communicated to the end-users of the environment. For this reason, studies presenting a single IEQ index, able to resume the environmental conditions and presenting a smart solution for IEQ conditions and overall comfort reporting to the end-user were searched for. The final aim was to identify, if present, the common points to define a final methodology for IEQ representation in space and time.

2. Materials and Methods

This work aims at summarizing the state of the art about IEQ in office buildings and its effects on occupants’ overall comfort. Studies published between 2016 and 2022 are summarized, focusing on the abovementioned four research questions. In the following subsections, the process followed for the literature search and the selection of records is described.
The searching method applied in this review followed the rules of the “Preferred Reporting Items for Systematic Reviews and Meta-Analyses” (PRISMA) [30]. It is based on detecting documents using specific keywords combined by means of the Boolean operators. These keywords appeared in the title, abstract or keywords of the searched documents. Table 1 shows the keywords for each of the four research questions, which were based on a general literature survey [1,31,32].
The search process was carried out with the Scopus search engine. Once the records responding to the first step of the selection based on the keywords were collected, inclusion and exclusion criteria were defined for the further selection. As inclusion criteria, keywords were searched only in articles published between 2016 and 2020, and the papers had to be written in English. Articles out of topic or not related to indoor environmental quality and comfort were excluded, and, after reading the text, other studies were excluded if they were not in compliance with the research purposes. Additional research on the Scopus database was conducted for each research question with the same methodology mentioned above to add the papers published between 2021 and 2022. For each research question, studies found with the searches of the other research questions but considered relevant were also included.

2.1. Literature Search Outcomes for the Four Research Questions

A total of 641, 106, 703 and 295 records were found on the Scopus database for the four research questions, respectively. After the application of the inclusion and exclusion criteria, a total of 15, 6, 4 and 2 studies were then analyzed for the four topics, respectively. Through the additional research conducted following the same methodology but limited to years 2021 and 2022, a total of 1, 6 and 1 studies were included, respectively, in the first, second, and fourth research questions. The search was also conducted for the third research question, but no significant studies were found. Additionally, 13, 7, 6 and 6 studies were included in the first, second, third and fourth research questions from the results of the other research questions. Details on the literature search outcomes are reported in the following paragraphs, where the four research questions are labeled as RQ1, RQ2, RQ3 and RQ4, respectively.

2.1.1. RQ1—“How Is IEQ Perceived and Evaluated?”

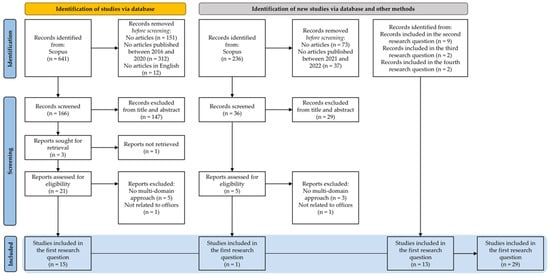

Figure 1 shows the study-selection process followed for the first research question, “How is IEQ perceived and evaluated?”. The literature search brought 641 results, lowered to 490 by applying the document typology limitation to articles. A further reduction to 166 records was applied by excluding the documents not published between 2016 and 2020 and the documents not written in English. After the screening of their title and abstract, only 21 out of 166 were considered to be relevant to the research question. Particularly, 146 were excluded because they were related to other research fields, such as the medical, psychosocial, nursing and management fields. After the full text reading, 6 records were further excluded because they did not present a multidomain approach (n = 5) and because they were not carried out in offices (n = 1). Finally, only 15 of the available studies on IEQ perception and evaluation in offices were used. Only 1 study published between 2021 and 2022 was added, and 13 studies were added from the second (n = 9), third (n = 2) and fourth (n = 2) research questions, for a total of 29 studies analyzed.

2.1.2. RQ2—“What Are the Main IEQ Indexes and Parameters?”

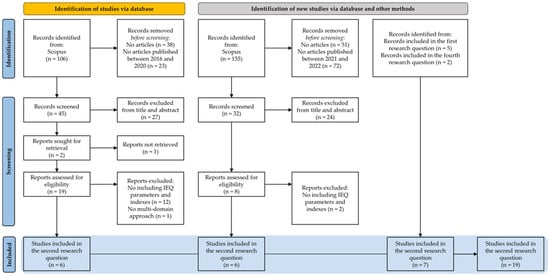

Figure 2 shows the study-selection process followed for the second research question, “What are the main IEQ indexes and parameters?”. The literature search brought 106 results, lowered to 68 by applying the document typology limitation to articles. A further reduction to 45 records was applied by excluding the documents not published between 2016 and 2020. After the screening of their title and abstract, only 19 out of 45 were considered to be relevant to the research question. After reading the full text, 13 records were further excluded because they were not related to the four IEQ domains’ parameters and indexes or because they did not present a multidomain approach. Finally, only 6 of the available studies on IEQ indexes and parameters to assess office environments were used. Additionally, 6 studies published between 2021 and 2022 were added and 7 studies from the first (n = 5) and fourth (n = 2) research questions were added, for a total of 19 studies analyzed.

2.1.3. RQ3—“What Are the Main Contextual and Personal Factors That Influence the Comfort Perception?”

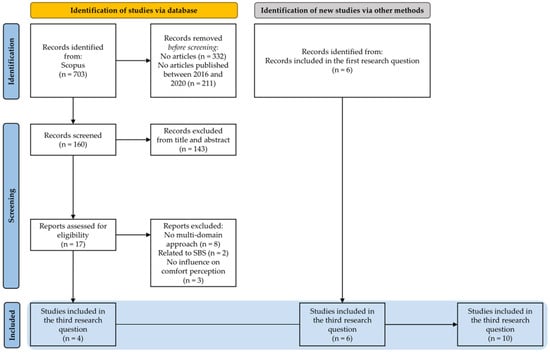

Figure 3 shows the study-selection process followed for the third research question, “What are the main contextual and personal factors that influence the comfort perception?”. The literature search brought 703 results, lowered to 371 by applying the document typology limitation to articles. A further reduction to 160 records was applied by excluding the documents not published between 2016 and 2020. After the screening of their title and abstract, only 17 out of 160 were considered to be relevant to the research question. Particularly, 143 were excluded because they were related to the medical field, chemical field or computer science field or because they did not present a multidomain approach. After reading the full text, 13 records were further excluded because they did not present a multidomain approach or were off topic. Finally, only 4 of the available studies on contextual and personal factors influencing comfort perception were used. No studies published between 2021 and 2022 were added, since the research conducted on the Scopus database did not bring significant results on the topic. In the end, 6 studies from the first research question were added, for a total of 10 studies analyzed.

2.1.4. RQ4—“How Are IEQ and Comfort Represented in Space and Time?”

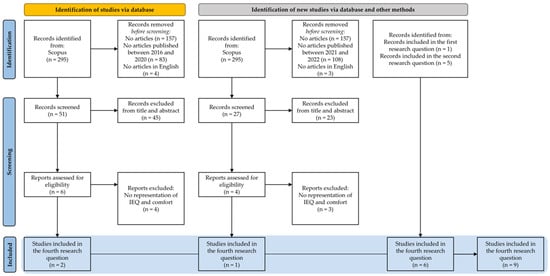

Figure 4 shows the study-selection process followed for the fourth research question, “How are IEQ and comfort represented in space and time?”. The literature search brought 295 results, lowered to 138 by applying the document typology limitation to articles. A further reduction to 51 records was applied by excluding the documents not published between 2016 and 2020 and the documents not written in English. After the screening of their title and abstract, only 6 out of 51 were considered to be relevant to the research question. Particularly, 45 were excluded because they were related to the medical field or chemical field or did not present a multidomain approach. After reading the full text, 4 records were further excluded because they were considered to be off topic. Finally, only 2 of the available studies on IEQ and comfort representation in space and time were used. Additionally, 1 study published between 2021 and 2022 was added, and 6 studies from the first (n = 1) and second (n = 5) research questions were added, for a total of 9 studies analyzed.

3. Results

Table 2 resumes the most meaningful information of the contents collected from all the analyzed studies.

3.1. RQ1—“How Is IEQ Perceived and Evaluated?”

To answer the question on how IEQ is perceived by office occupants, the first step is to search for the methodologies used to acquire their subjective feedback on their comfort perception. The Post-Occupancy Evaluation (POE) method was introduced in the 1960s for this purpose [19]. POE surveys were introduced not only to understand occupants’ overall comfort, but also as tools for the assessment of indoor conditions to further evaluate, overall, the building performance after it has been built and occupied [22,39,48]. Thus, a POE survey requires more data (e.g., building properties and IEQ data) that are collected through in-field IEQ measurements [4,19] to further ascertain the consistency of subjective feedback.
Among the analyzed studies within the first research question, the evaluation of IEQ is entrusted both to office occupants’ feedback (obtained through their answer to surveys) and to in-field monitoring of IEQ parameters in 14 out of 29 studies [4,6,22,33,40,42,43,44,45,46,48,49,51,52]. A total of 10 studies performed only an IEQ perception analysis campaign [19,21,23,27,34,35,36,37,38,47], 3 studies performed only an in-field IEQ measurement campaign [3,41,50], 1 study presents the BOSSA tool for IEQ perception and evaluation [39] and 1 study presents the development of the SAMBA tool for IEQ monitoring [5].
A total of 25 studies assessed the comfort perception, and the results reveal that 16% of them found visual comfort to be the most satisfying domain, 1 study (4%) found IAQ to be the most satisfying domain and the other 80% did not provide this information. On the other side, the most unsatisfying domain is the acoustic one in 24% of the studies, followed by the thermal domain and IAQ (16%). Furthermore, the acoustic domain has the highest correlation with work productivity and health.
The results reveal that temperature is the most unsatisfying aspect of thermal comfort, followed by air movement and humidity. Concerning acoustic comfort, verbal noise, ability to limit undesired sounds, sound privacy, noise level, nonverbal noise, quietness and noise from the inside are the most-complained-about aspects. Artificial lighting, amount of daylighting and glare are the most unsatisfying aspects of visual comfort. Concerning IAQ, ventilation, followed by freshness, stuffy or fresh air and odor are the aspects complained about the most by office occupants.
As presented in Table 2, many typologies of questionnaires were applied in the analyzed studies. Some of them used already developed questionnaires, e.g., the COPE (Cost-effective Open-Plan Environment), the SPOES (Sustainable Post-Occupancy Evaluation Surveys), the BOSSA Time-Lapse and the BOSSA Snap-Shot, while others used customized questionnaires. A total of 16% of the studies used paper-based questionnaires, 56% used online surveys and 1 study used the photovoice application (4%). Among the studies that used an online survey, 21% used a mobile device to administer it, 14% used a tablet, 7% used a computer and the other studies did not specify this information.
All the questionnaires presented a different number of questions, but 68% of these were based on a seven-point Likert scale; 20% on a five-point Likert scale; 8% on a four-point Likert scale; and 4% on a three-point Likert scale, a nine-point Likert scale, a continuous visual analogue scale spanning from −100 to +100, a scale from 0 to 100 and open-ended questions.
As shown in Table 3, for what concerns thermal comfort, the perception of the overall thermal environment is the most surveyed aspect (in 60% of the studies), followed by satisfaction with temperature (52%), air movement (20%), humidity (16%), too hot/too cold temperature, temperature variation and temperature of the surfaces surrounding the person (8%), temperature stability, windows position and cold feet (4%). Concerning visual comfort, 60% of the questionnaires asked about satisfaction with the overall lighting environment, 32% about satisfaction with natural lighting and 24% with artificial lighting. A total of 28% asked about lighting level; 16% about direct glare, visual privacy and view outside; and 12% about glare in the computer screen, light for computer work, glare from sun, glare from artificial lighting and shading. Only 8% asked about amount of electric lighting, reflected light and access to daylight. A total of 4% asked about light for paper-based tasks.
The overall acoustic environment satisfaction was assessed by 44% of the papers, whereas 40% assessed the noise level; 20% the satisfaction with sound privacy; 16% with verbal noise; and 12% with outside noise, noise from building systems and noise from inside. Only 8% assessed nonverbal noise and unwanted interruptions, and 4% assessed noise disturbance, noise distraction, quietness and noise sources. The greatest part of the studies (80%) asked about general satisfaction with IAQ, and only a few asked more detailed questions on IAQ domain: 32% asked about ventilation, 28% about odor, 20% about humid/dry air and 16% about stuffy or fresh air and freshness.

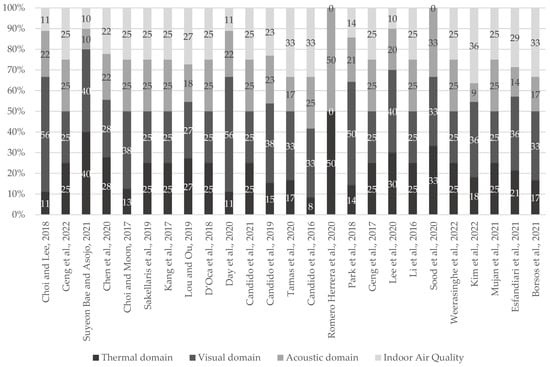

Figure 5 shows the weight of each domain in the IEQ survey calculated considering the number of questions for each domain over the total number of questions. The mean weight of the thermal domain, calculated as mean of its weight in each analyzed study, is 23%. The visual domain has a mean weight of 32%, the acoustic domain of 23% and the IAQ of 22%. This means that visual comfort is, so far, considered to have the greatest role on IEQ evaluations, while IAQ results in the lowest weight, which may be due to the complexity of the possible variables to be accounted for.
From the analyzed studies, a summary of the most frequently asked questions not related to IEQ is presented in Table 4. Questions have been categorized by the authors. Gender and age are the most frequently asked factors (48% of the studies), followed by perceived productivity and access to thermostats (44%); control over light (36%); overall comfort, job category and view outside (28%).
Table 2 also shows how IEQ is evaluated through in-field monitoring campaigns. A total of 6 studies declared they performed both long-term monitoring and spot measurements [22,41,42,44,48,50], whereas 6 studies performed only long-term monitoring [3,6,40,46,49,51], 4 studies performed only spot measurements [4,22,45,52], 1 study presents the SAMBA tool [5] and 1 study presents the BOSSA tool for IEQ monitoring [39]. A total of 53% of the studies used independent devices for specific parameters to be monitored, 37% used a specific kind of multisensor to measure simultaneously thermal, acoustic, visual and air quality parameters. These devices were either a low-cost portable device [3], the IEQ cart “e-BOT” [4], IEQ cart [22], NEAT (National Environmental Assessment Toolkit) cart developed by the Center for Building Performance and Diagnostics (CBPD) at Carnegie Mellon University [42], the BOSSA Nova cart [39], the SAMBA tool [5], a wireless sensor infrastructure [40], a multisensor [6] or the ENVIRA prototype [49]. The 11% of the studies used both single devices and a multisensor. The IEQ indexes and parameters used to assess IEQ through in-field monitoring will be better analyzed in RQ2.
Furthermore, 32% of the studies used low-cost sensors, 47% used accurate devices and 21% did not declare this information.

3.2. RQ2—“What Are the Main IEQ Indexes and Parameters?”

A total of 19 studies on IEQ parameter and index monitoring were analyzed, as described in Section 3.1, and Table 5 resumes the main indexes and parameters assessed by each study. Concerning thermal comfort, air temperature is monitored by all the studies, relative humidity by 95%, air velocity by 53%, predicted mean vote and predicted percentage of dissatisfied by 32%, globe temperature and radiant temperature by 21%, mean radiant temperature by 16% and draught risk by 5%. Illuminance is the most monitored parameter of visual comfort, since 100% of the studies chose to monitor it. It is then followed by unified glare rating (21%); daylight factor (16%); luminance (11%); and illuminance uniformity, ratio of the minimum illuminance to the average illuminance on the immediate surrounding area, ratio of the minimum illuminance to the average illuminance on the background area, ratio of the visual task discomfort glare to the average discomfort glare in the immediate surrounding area and ratio of the visual task discomfort glare to the average discomfort glare on the background area (5%). To assess acoustic conditions of the environment, sound pressure level is monitored by 74% of the studies; reverberation time by 11%; and background noise level, sound pressure level of winter air conditioning, sound pressure level of summer air conditioning, statistical sound levels and speech transmission index by 5%. Concentration of carbon dioxide is monitored by 100% of the analyzed studies to evaluate the air quality. Particulate matter 2.5 is monitored by 53% of the studies; total volatile organic compounds and particulate matter 10 by 42%; formaldehyde by 32%; concentration of carbon monoxide by 16%; concentration of benzene by 12%; and ventilation rate, concentration of radon, volatile organic compounds and relative humidity by 5%.

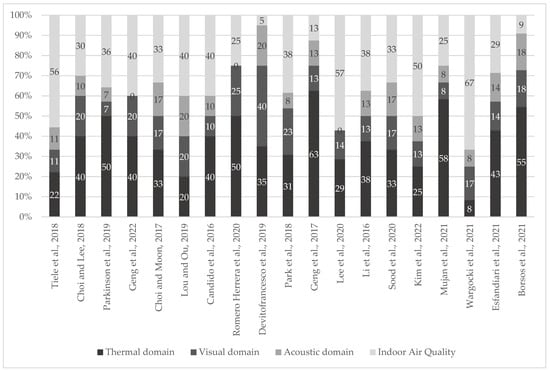

Figure 6 shows the weight of each domain on overall IEQ calculated considering the number of parameters assessed for each domain in the analyzed studies. The mean weight of the thermal domain, calculated as mean of its weight in each analyzed study, is 37%. The visual domain has a mean weight of 17%, the acoustic domain of 11% and the IAQ domain of 35%. This means that the thermal domain is considered to be the one that mainly influences the IEQ conditions, while the acoustic is the less assessed one in the analyzed studies through in-field monitoring. This could be due to the number of variables to be considered when evaluating the acoustic quality of an environment, especially in open-plan offices, where controlling noise sources is often not easy or even not possible.
Furthermore, air temperature, illuminance and carbon dioxide are the only parameters assessed by all the analyzed papers, while for the acoustic domain, the most assessed parameter is the sound pressure level, which is assessed only by 74% of the studies.

IEQ Indexes in International Standards

Starting from the results of this research question, further research was carried out about IEQ indexes related to thermal, acoustic, visual and indoor air quality domains set in international standards.
ISO 3382-3:2022 [11] and NF S31-080 [13] for acoustic comfort provide values for different office types. Standard EN 12464-1:2021 [15] for visual comfort is organized in tasks, because each activity requires a different level of lighting conditions.
Table A1 shows indexes selected from international standards divided in the four IEQ domains. Three typologies of workplaces were identified: single office, shared office (from two to five people) and open-plan offices. The indexes and parameters included for thermal quality are predicted mean vote, predicted percentage of dissatisfied, room operative temperature, relative humidity and air velocity. Noise levels, reverberation time, insulation, spatial decay and distraction distance are the indexes evaluated for the acoustic domain. For the visual domain, it is necessary to differentiate between electric lighting and natural lighting: levels of illuminance, unified glare rating, illuminance uniformity and color rendering index are assessed for electric lighting, whereas daylight factor and dynamic indexes such as spatial daylight autonomy, annual sunlight exposure and daylight glare probability are used to evaluate natural lighting. Concentrations of carbon dioxide, carbon monoxide, formaldehyde, particulate matter, ozone, radon and nitrogen dioxide are defined for IAQ.

3.3. RQ3—“What Are the Main Contextual and Personal Factors That Influence the Comfort Perception?”

Occupants’ perception of IEQ is influenced by factors not strictly related to thermal, acoustic, visual and IAQ domains. The findings of the research reveal that occupants’ personal control over the indoor environment and over building systems (e.g., thermostats, windows and electric lighting) have a high correlation with overall comfort [23,35]. Furthermore, access to nature, daylight and outdoor environment should be ensured to reduce stress and improve positive mood and wellness of office workers [36,53].
Table 6 and Table 7 resume, respectively, the main contextual factors and personal factors that in the analyzed studies are found to influence the occupants’ comfort perception. Concerning the contextual factors, personal space has been found to affect overall comfort, whereas the office typology affected overall comfort in one study and only the visual comfort in another study due to the different levels of control on electric lighting conditions. However, the authors of that study declared that a larger sample size is needed to confirm this result, since Bonferroni correction showed that this result was not significant [35].
The workstation location is found to affect overall comfort perception, thermal comfort and visual comfort. Work typology is found to affect thermal and acoustic comfort. Two studies revealed that occupants’ control on building systems influences the overall comfort perception, while one study showed it influences mainly visual comfort. Work area aesthetics, adaptation of the work area, furnishings, cleanliness, amount of interruptions, season, area ratio of window to floor and privacy influence the overall comfort perception.
Concerning the personal factors that influence comfort perception, in the analyzed studies, three factors have been assessed: gender, age and birthplace. Gender was found to influence thermal comfort by 4 studies and visual and acoustic comfort by 1 study. Age was found to influence visual comfort in 3 studies and thermal and acoustic comfort in 1 study. Only 1 study showed that birthplace had an influence on thermal, visual and acoustic comfort.

3.4. RQ4—“How Are IEQ and Comfort Represented in Space and Time?”

To answer this research question, a total of 9 studies [3,5,6,40,41,46,49,50,52] were analyzed, as summarized in Table 8. In all the analyzed studies, an in-field monitoring campaign was performed to collect data about the real conditions of the working space. In 67% of the studies, an IEQ index was calculated, starting from the monitored parameters. In one study, a simulation tool was also used to define the value of some specific indexes used for the calculation of the IEQ index. Each study presents a specific methodology for the calculation of the IEQ index, that comprehends parameters’ threshold definition and weighting scheme of each parameter and comfort domain (thermal, visual, acoustic, air quality). A total of 33% of the studies, among the 6 that calculated the IEQ index [3,5,6,41,49,50], chose to define it through a percentage value, 33% chose to represent it through a caption (e.g., “good”, “average”, “poor”) and a percentage value, 17% represented it by the use of colors (e.g., green, yellow, red) and a percentage value and, finally, 17% represented it with numbers. Furthermore, 56% collected occupants’ feedback to obtain data on their perception of the indoor environment. Among them, 60% asked the occupants for feedback directly through a developed dashboard, 11% asked for it through a paper-based survey and 11% did not specify this information.
A total of 56% of the 9 studies included in this research represented the data on a developed dashboard, 11% directly over the multisensor and 33% did not specify this information. The represented data are in 9% of the studies only the IEQ index; in 22% the IEQ index and the value of each domain; in 22% the IEQ index and the value of each monitored parameter; and in 11% the IEQ index, the value of each domain and the value of each monitored parameter. A total of 11% represented only the temperature value, and 22% represented only the monitored parameters. Furthermore, 22% represented the occupants’ subjective comfort perception obtained from their feedback. A total of 44% of the studies also provided additional information (e.g., specific warnings in case of exceeding the established threshold for a single parameter, suggestions about the monitored parameters or more information about the monitored environment) while 56% did not.

4. Conclusions and Future Perspectives

This literature review summarizes studies published between 2016 and 2022 to investigate IEQ in offices and the multidomain combined effects on occupants’ overall comfort. Four research questions have been formulated to better investigate (i) IEQ perception and evaluation, (ii) IEQ indexes and parameters, (iii) factors that influence the comfort perception and (iv) IEQ and comfort representation in space and time. In this section, the main conclusions outreached from the analysis of the selected studies for each research question are listed.

4.1. RQ1—“How Is IEQ Perceived and Evaluated?”

The first research question of this review aimed first at analyzing the way the indoor environmental conditions are perceived by office building occupants and how their perception is investigated in terms of the mainly used support tool, questionnaire typology, number of questions, rating scale and most frequently asked questions for each IEQ domain. The results demonstrate that in the included studies, (i) 56% administered online surveys and 16% paper-based questionnaires, (ii) different typologies of questionnaires were used (POE, COPE, SPOES, BOSSA Time-Lapse, BOSSA Snap-Shot and customized questionnaires) with different numbers of questions, (iii) the most frequently asked questions for each domain are overall thermal environment and temperature, overall lighting environment and natural lighting, overall acoustic environment and noise level, and overall air quality and ventilation, and (iv) 68% of the administered questionnaire was based on a seven-point Likert scale. Furthermore, visual comfort is usually the most satisfying domain, while acoustic comfort is the most unsatisfying and has the highest correlation with work productivity and health.
A further aim of the first research question was to understand the way IEQ is assessed. Among the selected studies, 14 out of 29 performed the IEQ evaluation both through occupants’ feedback collection and in-field monitoring of IEQ parameters. Concerning the IEQ monitoring, the aim of the review was to acquire knowledge on the devices used and the way the monitoring is conducted. The results demonstrate that (i) 32% of the studies used low-cost sensors, 47% used accurate devices, the others did not provide this information, and that (ii) 53% used independent sensors or accurate devices, 37% used prototypes that combine multiple accurate devices or low-cost sensors in a single body and 11% used both.

4.2. RQ2—“What Are the Main IEQ Indexes and Parameters?”

The main indexes and parameters monitored using the aforementioned devices to assess IEQ were analyzed and included in the second research question. The aim was to understand how many and which parameters need to be monitored to define the conditions of an indoor environment. The results reveal two main findings. First, the thermal domain is the one with a higher number of monitored parameters with respect to the other domains, while the acoustic domain is the less assessed one. This is considering both number of monitored parameters and number of studies that assessed it, as air temperature, illuminance and carbon dioxide are the only parameters assessed by all the analyzed studies. For the acoustic domain, the most assessed parameter is the sound pressure level, which is assessed by 74% of the studies. Second, the two most assessed parameters or indexes for each domain in the analyzed studies are air temperature and relative humidity, illuminance and unified glare rating, sound pressure level and reverberation time, carbon dioxide and PM2.5.

4.3. RQ3—“What Are the Main Contextual and Personal Factors That Influence the Comfort Perception?”

The reliability of subjective responses on comfort perception obtained through questionnaires was the object of investigation. There are many factors found in the literature that were proven to influence occupants’ comfort perception, such as contextual and personal factors. From the studies included in this review, a list of contextual factors was defined, but (i) most of them were found to have influence over one or more aspects of comfort by only one study and (ii) among them, work typology, occupants’ control on building systems, furnishings and cleanliness are the only factors found to influence comfort by more than one study. Concerning personal factors, the performed analysis revealed that (i) gender is the most influencing factor on thermal comfort and (ii) age is the most influencing factor on visual comfort.

4.4. RQ4—“How Are IEQ and Comfort Represented in Space and Time?”

The fourth research question was formulated to find out how, in the recent literature, the IEQ and comfort are represented in space and time in an effective and user-friendly way. The main outcomes reveal that 67% of the studies included in the fourth research question defined a new IEQ index, and this is represented in 33% of the studies through a percentage value, in 33% through a caption and a percentage value, in 17% through the use of colors and a percentage value and, finally, in the other 17%, through numbers. A total of 56% of the studies also collected subjective feedback and, among them, 60% collected feedback directly through a developed dashboard. A total of 56% of the studies showed the data in the developed dashboard.

4.5. Future Perspectives

The standards on thermal comfort, acoustic comfort, visual comfort and indoor air quality often provide parameters and indexes threshold values to avoid a discomfort condition. Only some standards, such as EN 16798-1:2019 [8] and NF S31-080 [13], provide a subdivision into categories, allowing different quality levels to be achieved in the indoor environment. In recent years, building certification schemes have given specific attention to comfort factors through scores assignment to each domain. The French acoustics standard NF S31-080 [13] defines parameters and indexes values for three different performance ranges, overcoming the concept of comfort as risk avoidance. In this way, different flexible comfort ranges are provided: the “standard” level, the “efficient” level and the “highly efficient” level. This is a qualitative definition related to office activities based on the different typologies of tasks and workplaces. These comfort ranges may allow the setting of indoor environmental conditions in relation to occupants’ needs and office tasks, and the satisfaction of customers’ requests through office design. However, as result of this review, it can be stated that to reach the maximum expected level of comfort, it is not sufficient that all the parameters and indexes of the four domains, identified as contributing to the indoor environmental quality definition, comply with the highest range. In fact, there are contextual and personal factors that greatly influence the occupants’ comfort perception. The influence of these factors determines an uncertainty that can only find expression with the assessment of the occupants’ perceived comfort. Furthermore, the occupants’ actions aimed at satisfying personal comfort expectations impact the energy consumption of office buildings. For this reason, an optimal design that appraises IEQ and occupants’ perception could ensure their health, well-being and comfort and support energy savings.
The IEQ perception and the multidomain effect on occupants’ comfort is a field still to be investigated. The implementation of a methodology able to appraise the relationship between IEQ, occupants’ comfort, personal and contextual factors and energy consumption is fostered. Occupants’ engagement toward a more proactive behavior is needed, especially in the post-COVID-19 era, in which more attention is paid to office design, with regards to safety, health and a new office-working concept.

Author Contributions

Conceptualization, V.I.F., S.F., G.E.P., L.S. and A.A.; methodology, V.I.F., S.F., G.E.P., L.S. and A.A; formal analysis, V.I.F., S.F. and A.A.; writing—original draft preparation, V.I.F. and S.F.; writing—review and editing, V.I.F., G.E.P., L.S. and A.A.; supervision, G.E.P., L.S. and A.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the national action program in the framework of the REACT EU Initiative: Programma Operativo Nazionale (PON) Ricerca e Innovazione 2014–2020 REACT EU Percorsi di dottorato su tematiche green e sui temi dell’innovazione D.M. 1061 del 10/08/2021.

Data Availability Statement

Data available on request from the authors.

Acknowledgments

The authors would like to thank Giorgia Spigliantini, Anna Pellegrino, Stefano Paolo Corgnati, Marco Carlo Masoero, Vincenzo Corrado, C2R Energy Consulting S.r.l. and Italgas.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ACR Air Change Rate
B magnetic induction mean value
BOSSA Building Occupants Survey System Australia
BREEAM Building Research Establishment Environmental Assessment Method
BUS Building Use Studies
CBE Center of the Built Environment
CBPD Center for Building Performance and Diagnostics
COPE Cost-effective Open-Plan Environment
D Devices used
DF Daylight Factor
DR Draught Risk
E illuminance
EF Electrical Field level
GM Green Mark
I Indexes assessed
IAQ Indoor Air Quality
IEQ Indoor Environmental Quality
IoT Internet of Things
L10 sound pressure level tenth percentile
L50 sound pressure level fiftieth percentile
L90 sound pressure level ninetieth percentile
LEED Leadership in Energy and Environmental Design
Li,w sound pressure level of winter air–conditioning
Li,s sound pressure level of summer air–conditioning
LM Long-term Monitoring
Lmin minimum sound pressure level
Lmax maximum sound pressure level
Lp,B background noise level
M Method used
NB Number of Buildings
NEAT National Environment Assessment Toolkit
NO Number of Offices
NQ Number of Questions
OLED Organic Light-Emitting Diode
P Parameters assessed
pb barometric pressure
PD Percentage of Dissatisfied
PM Particulate Matter
PMV Predicted Mean Vote
POE Post-Occupancy Evaluation
PPD Predicted Percentage of Dissatisfied
PRISMA Preferred Reporting Items for Systematic Reviews and Meta-Analyses
QS Questionnaires Sent
QT Questionnaire Typology
QV Questionnaires Valid
R Response rate
Rback ratio of the visual task discomfort glare to the average discomfort glare on the background area
RH Relative Humidity
Rsurr ratio of the visual task discomfort glare to the average discomfort glare in the immediate surrounding area
S Support used
SAMBA Sentient Ambient Monitoring of Buildings in Australia
SBS Sick Building Syndrome
SM Spot Measurement
SPL Sound Pressure Level
SPOES Sustainable Post-Occupancy Evaluation Surveys
STI Speech Transmission Index
T reverberation time
Ta air temperature
Tg globe temperature
Tmr mean air temperature
Tr radiant temperature
TVOC Total Volatile Organic Compounds
UGR Unified Glare Rating
Uo illuminance uniformity
U0,surr ratio of the minimum illuminance to the average illuminance on the immediate surrounding area
U0,back ratio of the minimum illuminance to the average illuminance on the background area
Va air velocity
WHO World Health Organization
WODI Work Environment Diagnosis Instrument

Appendix A

Table A1. IEQ parameters and indexes and their thresholds defined by standards. Parameters and indexes are divided in the four IEQ domains (thermal, acoustic, visual and indoor air quality) and in three office typologies (single office, shared office and open-plan office).
Table A1. IEQ parameters and indexes and their thresholds defined by standards. Parameters and indexes are divided in the four IEQ domains (thermal, acoustic, visual and indoor air quality) and in three office typologies (single office, shared office and open-plan office).
Parameter/Index and Reference StandardSingle OfficeShared OfficeOpen-Plan Office
Thermal domain
Predicted mean vote (PMV) * [-]
EN ISO 7730:2005 [10]
Category A−0.2 < PMV < +0.2−0.2 < PMV < +0.2−0.2 < PMV < +0.2
Category B−0.5 < PMV < +0.5−0.5 < PMV < +0.5−0.5 < PMV < +0.5
Category C−0.7 < PMV < +0.7−0.7 < PMV < +0.7−0.7 < PMV < +0.7
Predicted percentage of dissatisfied (PPD) * [%]
EN ISO 7730:2005 [10]
Category APPD < 6PPD < 6PPD < 6
Category BPPD < 10PPD < 10PPD < 10
Category CPPD < 15PPD < 15PPD < 15
Operative temperature (Top) [°C]
EN ISO 7730:2005 [10]
A (summer)24.5 ± 1.0 24.5 ± 1.0
A (winter)22.0 ± 1.0 22.0 ± 1.0
B (summer)24.5 ± 1.5 24.5 ± 1.5
B (winter)22.0 ± 2.0 22.0 ± 2.0
C (summer)24.5 ± 2.5 24.5 ± 2.5
C (winter)22.0 ± 3.0 22.0 ± 3.0
Relative humidity (RH) [%]
EN 16798-1:2019 [8]
25 ≤ RH ≤ 60 25 ≤ RH ≤ 60
Air velocity (Va) [m/s]
EN ISO 7730:2005 [10]
A (summer)0.12 0.12
A (winter)0.10 0.10
B (summer)0.19 0.19
B (winter)0.16 0.16
C (summer)0.24 0.24
C (winter)0.21 0.21
Acoustic domain
Total noise level (L50) [dB(A)]
NF S31-080:2006 [13]
Standard levelL50 ≤ 55L50 ≤ 55L50 ≤ 55
Efficient level35 ≤ L50 < 4535 ≤ L50 < 4540 < L50 < 45
Highly efficient level30 < L50 < 3530 < L50 < 3540 < L50 < 45
—External noises (DnT,A,tr) [dB]
NF S31-080:2006 [13]
Standard levelDnT,A,tr ≥ 30DnT,A,tr ≥ 30DnT,A,tr ≥ 30
Efficient levelDnT,A,tr ≥ 30 and
L50 ≤ 35 dB(A)
DnT,A,tr ≥ 30 and
L50 ≤ 35 dB(A)
DnT,A,tr ≥ 30 and L50 ≤ 35 dB(A)
Highly efficient levelDnT,A,tr ≥ 30 and
L50 ≤ 30 dB(A)
DnT,A,tr ≥ 30 and
L50 ≤ 30 dB(A)
DnT,A,tr ≥ 30 and L50 ≤ 30 dB(A)
—Equipment noise
NF S31-080:2006 [13]
Standard levelLAeq ≤ 45 dB(A)LAeq ≤ 45 dB(A)LAeq ≤ 45 dB(A)
Efficient levelLp ≤ NR 33Lp ≤ NR 33NR 35 ≤ Lp ≤ NR 40
Highly efficient levelLp ≤ NR 30 (permanent) and Lmax ≤ 35 dB(A) (intermittent)Lp ≤ NR 30 (permanent) and Lmax ≤ 35 dB(A) (intermittent)Lp ≤ NR 33 (permanent) and
Lmax ≤ 35 dB(A) (intermittent)
Reverberation time (Tr) [s]
NF S31-080:2006 [13]
Standard level/Tr ≤ 0.6Tr ≤ 0.8
Efficient levelTr ≤ 0.7Tr ≤ 0.60.6 < Tr < 0.8
Highly efficient levelTr ≤ 0.6Tr ≤ 0.5Tr ≤ 0.6
Reverberation time (Tr) [s]
ISO 22955:2021 [12]
Tr ≤ 0.5
Tr ≤ 0.8 at 125 Hz
Impact noise L′nTw [dB]
NF S31-080:2006 [13]
Standard levelL′nTw ≤ 62L′nTw ≤ 62L′nTw ≤ 62
Efficient levelL′nTw ≤ 60L′nTw ≤ 60L′nTw ≤ 60
Highly efficient levelL′nTw ≤ 58L′nTw ≤ 58L′nTw ≤ 58
Insulation from internal airborne noise (DnT,A) [dB]
NF S31-080:2006 [13]
Standard levelDnT,A ≥ 35DnT,A ≥ 35DnT,A ≥ 30
Efficient levelDnT,A ≥ 40DnT,A ≥ 40DnT,A ≥ 35
Highly efficient levelDnT,A ≥ 45DnT,A ≥ 45DnT,A ≥ 40
Spatial decay
NF S31-080:2006 [13]
Standard level 2 dB. If decay not applicable: Tr ≤ 1.2 s
Efficient level 3 dB. If decay not applicable: Tr ≤ 1.0 s
Highly efficient level 4 dB. If decay not applicable: Tr ≤ 0.8 s
Spatial decay
ISO 3382-3:2022 [11]
7 dB
Spatial decay
ISO 22955:2021 [12]
>6 dB
Distraction distance [m]
ISO 3382-3:2022 [11]
5
Visual domain—electric lighting
Illuminance in working areas (E) [lx]
EN 16798-1:2019 [8]
500 500
Illuminance on the task area (E) [lx] *
EN 12464-1:2021 [15]
T1300300300
T2500500500
T3750750750
T4 300300
T5200200200
T6500500
Unified glare rating (UGR) [-] *
EN 12464-1:2021 [15]
T1UGR ≤ 19UGR ≤ 19UGR ≤ 19
T2UGR ≤ 19UGR ≤ 19UGR ≤ 19
T3UGR ≤ 16UGR ≤ 16UGR ≤ 16
T4 UGR ≤ 22UGR ≤ 22
T5UGR ≤ 35UGR ≤ 35UGR ≤ 35
T6UGR ≤ 19UGR ≤ 19
Illuminance uniformity (U) [-] *
EN 12464-1:2021 [15]
T1U ≥ 0.4U ≥ 0.4U ≥ 0.4
T2U ≥ 0.6U ≥ 0.6U ≥ 0.6
T3U ≥ 0.7U ≥ 0.7U ≥ 0.7
T4 U ≥ 0.6U ≥ 0.6
T5U ≥ 0.4U ≥ 0.4U ≥ 0.4
T6U ≥ 0.6U ≥ 0.6
Color rendering index (CRI) [-] *
EN 12464-1:2021 [15]
T1CRI ≥ 80CRI ≥ 80CRI ≥ 80
T2CRI ≥ 80CRI ≥ 80CRI ≥ 80
T3CRI ≥ 80CRI ≥ 80CRI ≥ 80
T4 CRI ≥ 80CRI ≥ 80
T5CRI ≥ 80CRI ≥ 80CRI ≥ 80
T6CRI ≥ 80CRI ≥ 80
Visual domain—natural lighting
Daylight factor (DF) [%]
EN 17037:2018 [14]
DF > 2DF > 2DF > 2
Spatial daylight autonomy (sDA) [%] *
IES_LM-83-12 [54]
Nominally acceptedsDA > 55sDA > 55sDA > 55
PreferredsDA > 75sDA > 75sDA > 75
Annual sunlight exposure (ASE) [%] *
IES_LM-83-12 [54]
Nominally acceptedASE < 7ASE < 7ASE < 7
Clearly acceptableASE < 3ASE < 3ASE < 3
Daylight glare probability (DGP) [-] *
EN 17037:2018 [14]
Daylight glare mostly not perceived *DGP ≤ 0.35DGP ≤ 0.35DGP ≤ 0.35
Daylight glare perceived not disturbing *0.35 < DGP ≤ 0.40.35 < DGP ≤ 0.40.35 < DGP ≤ 0.4
Daylight glare often disturbing0.4 < DGP ≤ 0.450.4 < DGP ≤ 0.450.4 < DGP ≤ 0.45
Daylight glare intolerableDGP ≥ 0.45DGP ≥ 0.45DGP ≥ 0.45
Indoor air quality
Carbon dioxide (CO2) concentration above outdoors for nonadapted persons [ppm] *
EN 16798-1:2019 [8]
Category I550550550
Category II800800800
Category III135013501350
Category IV135013501350
Carbon monoxide (CO) [mg/m3] *
EN 16798-1:2019 [8]
15 min mean≤100≤100≤100
1 h mean≤35≤35≤35
8h mean≤10≤10≤10
24 h mean≤7≤7≤7
Formaldehyde [μg/m3] *
EN 16798-1:2019 [8]
30 min mean≤100≤100≤100
Particulate matter (PM2.5) [μg/m3] *
EN 16798-1:2019 [8]
24 h mean≤25≤25≤25
Annual mean≤10≤10≤10
Particulate matter (PM10) [μg/m3] *
EN 16798-1:2019 [8]
24 h mean≤50≤50≤50
Annual mean≤20≤20≤20
Ozone (O3) [μg/m3] *
EN 16798-1:2019 [8]
8 h mean≤100≤100≤100
Radon (Rn) *
EN 16798-1:2019 [8]
100 Bq/m3 (sometimes 300 mg/m3,
country-specific)
100 Bq/m3 (sometimes 300 mg/m3, country-specific)100 Bq/m3 (sometimes 300 mg/m3, country-specific)
Nitrogen dioxide (NO2) [μg/m3] *
EN 16798-1:2019 [8]
1 h mean≤200≤200≤200
Annual mean≤20≤20≤20
T1 Filing, copying, etc. T2 Writing, typing, reading, data processing, CAD workstations. T3 Technical drawing. T4 Conference and meeting rooms. T5 Reception desk. T6 Archives. * Parameters specified for the different office typologies by authors and not by standards indications.

References

  1. Schweiker, M.; Ampatzi, E.; Andargie, M.S.; Andersen, R.K.; Azar, E.; Barthelmes, V.M.; Berger, C.; Bourikas, L.; Carlucci, S.; Chinazzo, G.; et al. Review of Multi-domain Approaches to Indoor Environmental Perception and Behaviour. Build. Environ. 2020, 176, 106804. [Google Scholar] [CrossRef]
  2. European Comission. European Comission Indoor Air Pollution: New EU Research Reveals Higher Risks than Previously Thought; European Comission: Brussels, Belgium, 2003; IP/03/1278. [Google Scholar]
  3. Tiele, A.; Esfahani, S.; Covington, J. Design and Development of a Low-Cost, Portable Monitoring Device for Indoor Environment Quality. J. Sensors 2018, 2018, 5353816. [Google Scholar] [CrossRef]
  4. Choi, J.H.; Lee, K. Investigation of the Feasibility of POE Methodology for a Modern Commercial Office Building. Build. Environ. 2018, 143, 591–604. [Google Scholar] [CrossRef]
  5. Parkinson, T.; Parkinson, A.; de Dear, R. Continuous IEQ Monitoring System: Context and Development. Build. Environ. 2019, 149, 15–25. [Google Scholar] [CrossRef]
  6. Geng, Y.; Zhang, Z.; Yu, J.; Chen, H.; Zhou, H.; Lin, B.; Zhuang, W. An Intelligent IEQ Monitoring and Feedback System: Development and Applications. Engineering 2022, 18, 218–231. [Google Scholar] [CrossRef]
  7. Jayathissa, P.; Quintana, M.; Abdelrahman, M.; Miller, C. Humans-as-a-Sensor for Buildings—Intensive Longitudinal Indoor Comfort Models. Buildings 2020, 10, 174. [Google Scholar] [CrossRef]
  8. EN 16798-1; 2019 Energy Performance of Buildings—Ventilation for Buildings. Part 1: Indoor Environmental Input Parameters for Design and Assessment of Energy Performance of Buildings Addressing Indoor Air Quality, Thermal Environment, Lighting and Acoustics. European Committee for Standardization: Brussels, Belgium, 2019.
  9. ANSI/ASHRAE 55; 2017 Thermal Environmental Conditions for Human Occupancy. American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE): Atlanta, GA, USA, 2017.
  10. ISO 7730; 2005 Ergonomics of the Thermal Environment—Analytical Determination and Interpretation of Thermal Comfort Using Calculation of the PMV and PPD Indices and Local Thermal Comfort Criteria. ISO: Geneva, Switzerland, 2005.
  11. ISO 3382-3; 2012 Acoustics—Measurement of Room Acoustic Parameters. ISO: Geneva, Switzerland, 2012.
  12. ISO 22955; 2021 Acoustics—Acoustic Quality of Open Office Spaces. ISO: Geneva, Switzerland, 2021.
  13. NF S31-080; Acoustics—Offices and Associated Areas—Acoustic Performance Levels and Criteria by Type of Area. AFNOR: Saint-Denis, France, 2006.
  14. EN 17037; 2018 Daylight in Buildings. European Committee for Standardization: Brussels, Belgium, 2018.
  15. EN 12464-1; 2021 Light and Lighting—Lighting of Work Places. Part 1: Indoor Work Places. European Committee for Standardization: Brussels, Belgium, 2021.
  16. Wei, W.; Wargocki, P.; Zirngibl, J.; Bendžalová, J.; Mandin, C. Review of Parameters Used to Assess the Quality of the Indoor Environment in Green Building Certification Schemes for Offices and Hotels. Energy Build. 2020, 209, 109683. [Google Scholar] [CrossRef]
  17. Rasheed, E.O.; Byrd, H. Can Self-Evaluation Measure the Effect of IEQ on Productivity? A Review of Literature. Facilities 2017, 35, 601–621. [Google Scholar] [CrossRef]
  18. Ong, B.L. Beyond Environmental Comfort; Routledge: Oxford, UK; New York, NY, USA, 2013; ISBN 9780415453684/0415453682/9780415453691/0415453690. [Google Scholar]
  19. Suyeon Bae, C.S.M.; Asojo, A.O. Indoor Environmental Quality Factors That Matter to Workplace Occupants: An 11-Year-Benchmark Study. Build. Res. Inf. 2021, 49, 445–459. [Google Scholar] [CrossRef]
  20. Aboulfotouh, A.K.; Tolba, O.; Ezzeldin, S. The Impact of Workspace Location and Indoor Environmental Quality on Employees’ Satisfaction within Office Buildings: A Case Study in Cairo. Indoor Built Environ. 2020, 31, 2094–2114. [Google Scholar] [CrossRef]
  21. Chen, C.F.; Yilmaz, S.; Pisello, A.L.; De Simone, M.; Kim, A.; Hong, T.; Bandurski, K.; Bavaresco, M.V.; Liu, P.L.; Zhu, Y. The Impacts of Building Characteristics, Social Psychological and Cultural Factors on Indoor Environment Quality Productivity Belief. Build. Environ. 2020, 185, 107189. [Google Scholar] [CrossRef]
  22. Choi, J.H.; Moon, J. Impacts of Human and Spatial Factors on User Satisfaction in Office Environments. Build. Environ. 2017, 114, 23–35. [Google Scholar] [CrossRef]
  23. Sakellaris, I.; Saraga, D.; Mandin, C.; de Kluizenaar, Y.; Fossati, S.; Spinazzè, A.; Cattaneo, A.; Szigeti, T.; Mihucz, V.; de Fernandes, E.O.; et al. Personal Control of the Indoor Environment in Offices: Relations with Building Characteristics, Influence on Occupant Perception and Reported Symptoms Related to the Building—The Officair Project. Appl. Sci. 2019, 9, 3227. [Google Scholar] [CrossRef]
  24. Lassen, N.; Josefsen, T.; Goia, F. Design and In-Field Testing of a Multi-Level System for Continuous Subjective Occupant Feedback on Indoor Climate. Build. Environ. 2021, 189, 107535. [Google Scholar] [CrossRef]
  25. Azuma, K.; Ikeda, K.; Kagi, N.; Yanagi, U.; Osawa, H. Evaluating Prevalence and Risk Factors of Building-Related Symptoms among Office Workers: Seasonal Characteristics of Symptoms and Psychosocial and Physical Environmental Factors. Environ. Health Prev. Med. 2017, 22, 38. [Google Scholar] [CrossRef]
  26. Dhungana, P.; Chalise, M. Prevalence of Sick Building Syndrome Symptoms and Its Associated Factors among Bank Employees in Pokhara Metropolitan, Nepal. Indoor Air 2019, 30, 244–250. [Google Scholar] [CrossRef]
  27. Kang, S.; Ou, D.; Mak, C.M. The Impact of Indoor Environmental Quality on Work Productivity in University Open-Plan Research Offices. Build. Environ. 2017, 124, 78–89. [Google Scholar] [CrossRef]
  28. Al Horr, Y.; Arif, M.; Kaushik, A.; Mazroei, A.; Katafygiotou, M.; Elsarrag, E. Occupant Productivity and Office Indoor Environment Quality: A Review of the Literature. Build. Environ. 2016, 105, 369–389. [Google Scholar] [CrossRef]
  29. Astolfi, A.; Carullo, A.; Fissore, V.; Puglisi, G.E.; Arcamone, G.; Shtrepi, L.; Raviola, E.; Barbaro, A.; Espinosa, G.R.; Chiavassa, P.; et al. Development and Metrological Characterization of a Multi-Sensor Device for Indoor Environmental Quality (IEQ) Monitoring. In Proceedings of the 2023 IEEE International Workshop on Metrology for Living Environment (MetroLivEnv), Milano, Italy, 29–31 May 2023; pp. 179–184. [Google Scholar]
  30. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. The PRISMA 2020 Statement: An Updated Guideline for Reporting Systematic Reviews. PLoS Med. 2021, 18, e1003583. [Google Scholar] [CrossRef]
  31. Frontczak, M.; Schiavon, S.; Goins, J.; Arens, E.; Zhang, H.; Wargocki, P. Quantitative Relationships between Occupant Satisfaction and Satisfaction Aspects of Indoor Environmental Quality and Building Design. Indoor Air 2012, 22, 119–131. [Google Scholar] [CrossRef]
  32. Sakellaris, I.A.; Saraga, D.E.; Mandin, C.; Roda, C.; Fossati, S.; De Kluizenaar, Y.; Carrer, P.; Dimitroulopoulou, S.; Mihucz, V.G.; Szigeti, T.; et al. Perceived Indoor Environment and Occupants’ Comfort in European “Modern” Office Buildings: The OFFICAIR Study. Int. J. Environ. Res. Public Health 2016, 13, 444. [Google Scholar] [CrossRef] [PubMed]
  33. Lou, H.; Ou, D. A Comparative Field Study of Indoor Environmental Quality in Two Types of Open-Plan Offices: Open-Plan Administrative Offices and Open-Plan Research Offices. Build. Environ. 2019, 148, 394–404. [Google Scholar] [CrossRef]
  34. D’Oca, S.; Pisello, A.L.; De Simone, M.; Barthelmes, V.M.; Hong, T.; Corgnati, S.P. Human-Building Interaction at Work: Findings from an Interdisciplinary Cross-Country Survey in Italy. Build. Environ. 2018, 132, 147–159. [Google Scholar] [CrossRef]
  35. Day, J.K.; Ruiz, S.; O’Brien, W.; Schweiker, M. Seeing Is Believing: An Innovative Approach to Post-Occupancy Evaluation. Energy Effic. 2020, 13, 473–486. [Google Scholar] [CrossRef]
  36. Candido, C.; Marzban, S.; Haddad, S.; Mackey, M.; Loder, A. Designing Healthy Workspaces: Results from Australian Certified Open-Plan Offices. Facilities 2021, 39, 411–433. [Google Scholar] [CrossRef]
  37. Candido, C.; Chakraborty, P.; Tjondronegoro, D. The Rise of Office Design in High-Performance, Open-Plan Environments. Buildings 2019, 9, 100. [Google Scholar] [CrossRef]
  38. Tamas, R.; Ouf, M.M.; O’Brien, W. A Field Study on the Effect of Building Automation on Perceived Comfort and Control in Institutional Buildings. Archit. Sci. Rev. 2020, 63, 74–86. [Google Scholar] [CrossRef]
  39. Candido, C.; Kim, J.; De Dear, R.; Thomas, L. BOSSA: A Multidimensional Post-Occupancy Evaluation Tool. Build. Res. Inf. 2016, 44, 214–228. [Google Scholar] [CrossRef]
  40. Romero Herrera, N.; Doolaard, J.; Guerra-Santin, O.; Jaskiewicz, T.; Keyson, D. Office Occupants as Active Actors in Assessing and Informing Comfort: A Context-Embedded Comfort Assessment in Indoor Environmental Quality Investigations. Adv. Build. Energy Res. 2020, 14, 41–65. [Google Scholar] [CrossRef]
  41. Devitofrancesco, A.; Belussi, L.; Meroni, I.; Scamoni, F. Development of an Indoor Environmental Quality Assessment Tool for the Rating of Offices in Real Working Conditions. Sustainability 2019, 11, 1645. [Google Scholar] [CrossRef]
  42. Park, J.; Loftness, V.; Aziz, A. Post-Occupancy Evaluation and IEQ Measurements from 64 Office Buildings: Critical Factors and Thresholds for User Satisfaction on Thermal Quality. Buildings 2018, 8, 156. [Google Scholar] [CrossRef]
  43. Geng, Y.; Ji, W.; Lin, B.; Zhu, Y. The Impact of Thermal Environment on Occupant IEQ Perception and Productivity. Build. Environ. 2017, 121, 158–167. [Google Scholar] [CrossRef]
  44. Lee, J.Y.; Wargocki, P.; Chan, Y.H.; Chen, L.; Tham, K.W. How Does Indoor Environmental Quality in Green Refurbished Office Buildings Compare with the One in New Certified Buildings? Build. Environ. 2020, 171, 106677. [Google Scholar] [CrossRef]
  45. Li, N.; Cui, H.; Zhu, C.; Zhang, X.; Su, L. Grey Preference Analysis of Indoor Environmental Factors Using Sub-Indexes Based on Weber/Fechner’s Law and Predicted Mean Vote. Indoor Built Environ. 2016, 25, 1197–1208. [Google Scholar] [CrossRef]
  46. Sood, T.; Janssen, P.; Miller, C. Spacematch: Using Environmental Preferences to Match Occupants to Suitable Activity-Based Workspaces. Front. Built Environ. 2020, 6, 113. [Google Scholar] [CrossRef]
  47. Weerasinghe, A.S.; Onyeizu, E.; Rotimi, J.O.B. Environmental and Socio-Psychological Drivers of Building Users’ Behaviours: A Case Study of Tertiary Institutional Offices in Auckland. J. Facil. Manag. 2022. [Google Scholar] [CrossRef]
  48. Kim, Y.K.; Abdou, Y.; Abdou, A.; Altan, H. Indoor Environmental Quality Assessment and Occupant Satisfaction: A Post-Occupancy Evaluation of a UAE University Office Building. Buildings 2022, 12, 986. [Google Scholar] [CrossRef]
  49. Mujan, I.; Licina, D.; Kljajić, M.; Čulić, A.; Anđelković, A.S. Development of Indoor Environmental Quality Index Using a Low-Cost Monitoring Platform. J. Clean. Prod. 2021, 312, 127846. [Google Scholar] [CrossRef]
  50. Wargocki, P.; Wei, W.; Bendžalová, J.; Espigares-Correa, C.; Gerard, C.; Greslou, O.; Rivallain, M.; Sesana, M.M.; Olesen, B.W.; Zirngibl, J.; et al. TAIL, a New Scheme for Rating Indoor Environmental Quality in Offices and Hotels Undergoing Deep Energy Renovation (EU ALDREN Project). Energy Build. 2021, 244, 111029. [Google Scholar] [CrossRef]
  51. Esfandiari, M.; Zaid, S.M.; Ismail, M.A.; Hafezi, M.R.; Asadi, I.; Mohammadi, S.; Vaisi, S.; Aflaki, A. Occupants’ Satisfaction toward Indoor Environment Quality of Platinum Green-Certified Office Buildings in Tropical Climate. Energies 2021, 14, 2264. [Google Scholar] [CrossRef]
  52. Borsos, Á.; Zoltán, E.S.; Pozsgai, É.; Cakó, B.; Medvegy, G.; Girán, J. The Comfort Map—A Possible Tool for Increasing Personal Comfort in Office Workplaces. Buildings 2021, 11, 233. [Google Scholar] [CrossRef]
  53. Göçer, Ö.; Candido, C.; Thomas, L.; Göçer, K. Differences in Occupants’ Satisfaction and Perceived Productivity in High- and Low-Performance Offices. Buildings 2019, 9, 199. [Google Scholar] [CrossRef]
  54. IES Daylight Metrics Committee. IES Spatial Daylight Autonomy (sDA) and Annual Sunlight Exposure (ASE); Daylight Metrics Committee. Approved Method IES LM-83-12; Illuminating Engineering Society of North America: New York, NY, USA, 2012. [Google Scholar]
Figure 1. Flowchart of the selection process followed to determine the studies published between 2016 and 2022 deemed inherent and complying to the research question “How is IEQ perceived and evaluated?”.
Figure 1. Flowchart of the selection process followed to determine the studies published between 2016 and 2022 deemed inherent and complying to the research question “How is IEQ perceived and evaluated?”.
Buildings 13 02490 g001
Figure 2. Flowchart of the selection process followed to determine the studies published between 2016 and 2022 deemed inherent and complying to the research question “What are the main IEQ indexes and parameters?”.
Figure 2. Flowchart of the selection process followed to determine the studies published between 2016 and 2022 deemed inherent and complying to the research question “What are the main IEQ indexes and parameters?”.
Buildings 13 02490 g002
Figure 3. Flowchart of the selection process followed to determine the articles published between 2016 and 2022 deemed inherent and complying to the research question “What are the main contextual and personal factors that influence the comfort perception?”.
Figure 3. Flowchart of the selection process followed to determine the articles published between 2016 and 2022 deemed inherent and complying to the research question “What are the main contextual and personal factors that influence the comfort perception?”.
Buildings 13 02490 g003
Figure 4. Flowchart of the selection process followed to determine the articles published between 2016 and 2022 deemed inherent and complying to the research question “How are IEQ and comfort represented in space and time?”.
Figure 4. Flowchart of the selection process followed to determine the articles published between 2016 and 2022 deemed inherent and complying to the research question “How are IEQ and comfort represented in space and time?”.
Buildings 13 02490 g004
Figure 5. Weight in percentage for thermal domain, visual domain, acoustic domain and indoor air quality over overall IEQ calculated considering the number of questions asked for each domain in the questionnaires submitted in the analyzed studies [4,6,19,21,22,23,27,33,34,35,36,37,38,39,40,42,43,44,45,46,47,48,49,51,52].
Figure 5. Weight in percentage for thermal domain, visual domain, acoustic domain and indoor air quality over overall IEQ calculated considering the number of questions asked for each domain in the questionnaires submitted in the analyzed studies [4,6,19,21,22,23,27,33,34,35,36,37,38,39,40,42,43,44,45,46,47,48,49,51,52].
Buildings 13 02490 g005
Figure 6. Weight in percentage for thermal domain, visual domain, acoustic domain and indoor air quality over overall IEQ calculated considering the number of parameters assessed for each domain in the analyzed studies [3,4,5,6,22,33,39,40,41,42,43,44,45,46,48,49,50,51,52].
Figure 6. Weight in percentage for thermal domain, visual domain, acoustic domain and indoor air quality over overall IEQ calculated considering the number of parameters assessed for each domain in the analyzed studies [3,4,5,6,22,33,39,40,41,42,43,44,45,46,48,49,50,51,52].
Buildings 13 02490 g006
Table 1. Research questions and keywords used for the literature review. The questions are related to offices.
Table 1. Research questions and keywords used for the literature review. The questions are related to offices.
NResearch QuestionKeywords
RQ1How is IEQ perceived and evaluated?Multidimensional comfort, overall comfort, IEQ, discomfort, cross-modal effect, combined effect, office, workplace, work environment
RQ2What are the main IEQ indexes and parameters?IEQ index, IEQ parameter, office, work environment
RQ3What are the main contextual and personal factors that influence the comfort perception?IEQ, indoor environmental quality, indoor environment, office, workplace, work environment, contextual variable, contextual factor, psychosocial factor, context
RQ4How are IEQ and comfort represented in space and time?Indoor environmental quality, comfort, user interface, platform, interface, data representation, data visualization, office
Table 2. Summary of the contents collected from the studies (Ref) included in review. The following information is provided: location; study period; number of office or buildings (NO/NB); questionnaire details, i.e., questionnaire typology (QT), questionnaires sent (QS), questionnaires valid (QV), response rate (R), support used (S), number of questions (NQ); IEQ monitoring details, i.e., devices used (D), method used (M), that is, long-term monitoring (LM) or spot measurement (SM), and parameters and indexes assessed (P/I).
Table 2. Summary of the contents collected from the studies (Ref) included in review. The following information is provided: location; study period; number of office or buildings (NO/NB); questionnaire details, i.e., questionnaire typology (QT), questionnaires sent (QS), questionnaires valid (QV), response rate (R), support used (S), number of questions (NQ); IEQ monitoring details, i.e., devices used (D), method used (M), that is, long-term monitoring (LM) or spot measurement (SM), and parameters and indexes assessed (P/I).
RefLocationStudy
Period
NO/
NB
IEQ Evaluation
QuestionnaireIEQ Monitoring
QTQSQVRSNQDMP/I
[3]University of Warwick 1 O-MultisensorLMTa, RH, E, CO2, CO, PM2.5, PM10, TVOC, SPL
[4]Downtown Los Angeles20171 OCustomized COPE 110 Paper30IEQ cart
“e-BOT” and hand-held
sensors
SMTa, Tr, RH, Va, E, UGR, CO2, PM, TVOC, SPL
City of Irvine1 O79
[5] -SAMBALMTa, Tmr, RH, Va, E, CO2, CO, TVOC, CH2O, SPL
[6]China202063 B 2425 Online, mobile MultisensorLMTa, RH, E, CO2, PM2.5
[19]Minnesota2009–201941 BSPOES 2836 Online29-
[21]Brazil, Italy, Poland,
Switzerland, United States, Taiwan
6 B 2537 Online -
[22]University of Southern
California
9 BCustomized COPE 29IEQ cartLM and SMTa, Tr, RH, Va, E, CO2, PM, TVOC, SPL
City of Los
Angeles
5 B
[23]8 European CountriesOctober 2011–May 2012167 B 744141%Online -
[27]South of ChinaDecember 2015–March 201619 B 23187% -
[33]Huaqiao
University, China
September 201713 O 6282.2% Independent devicesSMTa, RH, E, Uo, SPL, Lmin, Lmax, L10, L50, L90, CO2, CH2O, PM2.5, PM10
12 O63
[34]TurinApril–May 2017 442450211%Online37-
Perugia299140514%
Renden159825316%
[35]Eastern
Washington State
20181 B 1805731.7%Online, photovoice survey60-
[36]Australia 4 OBOSSA
Time-Lapse
465 -
5 O656
[37]Australia 61 OBOSSA Time-Lapse 8827 Online31-
[38]CanadaJune–July 201823 B 170 Interviews24-
[39] BOSSA
Time-Lapse
and BOSSA
Snap-Shot
Online31BOSSA
Nova cart
SMTa, Tg, RH, Va, E, CO2, CO, TVOC, CH2O, SPL
[40]NetherlandsOctober 20161 B 173 Online Wireless
sensor
infrastructure
LMTa, RH, E, CO2
United
Kingdom
November 20161 B288
[41] -Independent devicesLM and SMΔCO2, Ta, RH, Tmr, Va, PMV, PD, DR, DF, U0,surr, U0,back, Rsurr, Rback, Li,w, Li,s, T, STI,
B, EF
[42] 2003–201464 OCustomized COPE Paper and online NEAT cart,
independent
devices
LM and SMTa, Tr, RH, Va, E, UGR, CO2, CO, PM2.5, PM10, TVOC,
acoustic quality
[43]Tsinghua
University in Beijing, China
November 20161 O 441 Online Independent devicesTest (2 h)Ta, Tg, RH, E, CO2, Lp,B
[44]SingaporeSeptember 2014–
December 2016
4 BPOE 11573.7%Tablet Independent devicesLMCO2, Ta, RH
4 B11385.6%
6 B 13972.9%SME, CO, CH2O, PM2.5, outdoor ACR
[45]Guangzhou, ChinaApril–May 20141 O 91 Independent devicesSMTa, RH, Va, E, CO2, PM10, CH2O, SPL
[46]National
University of Singapore
April–May 20192 B Mobile Independent sensorsLMTa, RH, E, CO2, TVOC, SPL
[47]Auckland, New ZealandOctober 2020–January 20215 B 2575220%Online -
[48]Al Ain, United Arab EmiratesDecember 2019–
February 2020
9 OPOE Independent devicesLM and SMTa, RH, E, CO2, PM2.5, PM10, TVOC, SPL
[49]Novi Sad, SerbiaAugust 20201 O 3434100%Paper ENVIRA
Prototype
LMTa, Tg, Tmr, Va, RH, PMV, PPD, E, CO2, PM2.5, TVOC, SPL, pb
1 O3635
[50]Southern, Central and Northern
Europe
April 2019–March 20206 B-Independent sensorsLM and SMTa, ventilation rate, RH, E, DF, CO2, PM2.5, CH2O,
benzene, radon, SPL
[51]Putrajaya, Kuala
Lumpur
May–August 20191 BBUS17411264% Independent devicesLMTa, Va, RH, E, CO2, TVOC, SPL
Shah Alam, Kuala
Lumpur
1 B
[52]BudapestNovember 2019–
January 2020
1 O 216 Online Independent devicesSMTa, Tr, Va, RH, E, CO2, SPL
Table 3. Summary of the surveyed subfactors for each IEQ domain in the studies (Ref) included in the first research question.
Table 3. Summary of the surveyed subfactors for each IEQ domain in the studies (Ref) included in the first research question.
IEQ DomainSubfactorsRef
Thermal
comfort
Overall thermal environment[6,19,21,27,33,34,35,36,38,43,45,47,49,51,52]
Temperature[4,19,21,22,23,27,33,39,40,42,44,46,51]
Air movement[19,21,23,42,44]
Humidity[19,27,33,44]
Too hot/too cold temperature[23,48]
Temperature variation[23,48]
Surfaces’ temperature[23,48]
Temperature stability[51]
Windows are too close/far from me[21]
Cold feet[48]
Visual
comfort
Overall lighting environment[4,6,21,23,27,33,34,35,36,42,43,44,45,47,51]
Natural lighting[20,26,30,35,37,40,46,53]
Lighting level[37,39,44,46,48,49,52]
Artificial lighting[19,23,28,33,38,51]
Direct glare[22,23,35,48]
Visual privacy[35,37,42,44]
View to outside[21,37,39,48]
Glare in the computer screen[4,21,42]
Amount of daylighting[20,22,35]
Light for computer work[4,22,42]
Glare from sun[4,42,51]
Glare from artificial light[4,42,51]
Shading[37,39,52]
Reflected light[22,48]
Amount of electric lighting[19,21]
Access to daylight[37,39]
Light for paper-based tasks[42]
Acoustic
comfort
Overall acoustic environment[6,19,21,23,27,33,34,43,45,47,51]
Noise level[35,37,38,39,40,44,46,48,49,52]
Sound privacy[35,37,39,42,44]
Verbal noise[4,23,42,51]
Outside noise[21,23,51]
Noise from building systems[4,21,23]
Noise from inside[21,24,51]
Nonverbal noise[23,42]
Unwanted interruptions[37,39]
Noise disturbance[33]
Noise distraction and privacy[36]
Quietness[28]
Noise sources[28]
IAQ
perception
Overall air quality[4,6,19,21,22,23,28,33,34,35,36,37,39,42,43,44,45,47,49,51]
Ventilation/air velocity[21,22,28,33,37,39,48,52]
Odor[21,23,38,42,48,51,52]
Humid/dry air[23,37,39,48,51]
Stuffy or fresh air[21,23,28,48]
Freshness[28,33,39,51]
Table 4. Summary of the surveyed factors and subfactors not belonging to the four IEQ domains and assessed through the questionnaires in the studies (Ref) included in the first research question.
Table 4. Summary of the surveyed factors and subfactors not belonging to the four IEQ domains and assessed through the questionnaires in the studies (Ref) included in the first research question.
Surveyed FactorsSubfactorsRef
WorkspacePersonal space[27,33,36,38]
Amount of personal space[4,22,39,42,44]
Connection to the outdoor environment[36,37,39]
Building maintenance[19,36,37,39]
Overall layout[23,27,33,35,36,37]
View outside[4,22,23,35,37,39,42]
Overall appearance (aesthetics)[19,37,39,42]
Cleanliness[19,37,39,42,51]
Overall furnishings[19,27,35,51]
Adjustability of furnishings[19,35,37,39]
Office type[21,42,47,51]
Enclosure of the work area[4,22,42]
Indoor environment[22,44]
HealthPerceived health[36,37,39,51]
Headache[23,44,48]
Stuffy/runny nose[23,44,48]
Sleepiness[23,44,48]
Time spent at workHours per week in work area[19,21,34,36,42]
Overall years spent in the building[19,38,48,51]
PersonalGender[4,19,21,27,34,36,37,42,47,48,49,51]
Age[4,19,21,27,34,36,37,42,47,48,49,51]
Job category[4,21,34,36,37,42,48]
ControlPersonal control[21,35,36,37,44]
Access to thermostats[4,21,22,23,34,35,37,38,39,47,48]
Control over ventilation[23,37,39,47,48]
Control over shade from the sun[21,23,34,35]
Control over light[21,23,34,35,37,38,39,47,48]
Control over noise[23,38,47]
Operable windows[21,34,35]
Perceived
productivity
[4,21,23,27,33,34,36,37,39,42,51]
Level of privacy [4,19,22,23]
Alterability of
physical conditions
[4,35,42]
Overall comfort [23,34,37,38,39,40,51]
IEQ [4,21,35,42,43,49]
Table 5. Summary of the indexes and parameters of thermal, acoustic, visual and indoor air quality domains used to assess IEQ in the studies (Ref) included in the second research question.
Table 5. Summary of the indexes and parameters of thermal, acoustic, visual and indoor air quality domains used to assess IEQ in the studies (Ref) included in the second research question.
IEQ DomainIndexes and ParametersRef
Thermal domainAir temperature[3,4,5,6,22,33,39,40,41,42,43,44,45,46,48,49,50,51,52]
Relative humidity[3,4,5,6,22,33,39,40,41,42,43,44,45,46,48,49,50,51]
Air velocity[4,5,22,39,41,42,45,49,51,52]
Predicted mean vote[5,6,41,43,49,51]
Predicted percentage of dissatisfied[6,22,41,43,49,52]
Globe temperature[5,39,43,49]
Radiant temperature[4,22,42,52]
Mean radiant temperature[5,41,49]
Draught risk[41]
Visual domainIlluminance[3,4,5,6,22,33,39,40,41,42,43,44,45,46,48,49,50,51,52]
Unified glare rating[4,22,41,42]
Daylight factor[41,50,52]
Luminance[41,42]
Illuminance uniformity[33]
Ratio of the minimum illuminance to the average illuminance on the immediate surrounding area[41]
Ratio of the minimum illuminance to the average illuminance on the background area[41]
Ratio of the visual task discomfort glare to the average discomfort glare in the immediate surrounding area[41]
Ratio of the visual task discomfort glare to the average discomfort glare on the background area[41]
Acoustic domainSound pressure level[3,4,5,22,33,39,42,45,46,48,49,50,51,52]
Reverberation time[41,52]
Background noise level[22,43]
Sound pressure level of winter
air conditioning
[41]
Sound pressure level of summer
air conditioning
[41]
Statistical sound levels (L10, L50 and L90)[33]
Speech transmission index[41]
Indoor Air QualityCarbon dioxide[3,4,5,6,22,33,39,40,41,42,43,44,45,46,48,49,50,51,52]
Particulate Matter 2.5[3,4,6,22,33,42,44,48,49,50]
Total volatile organic compounds[3,5,22,39,42,48,49,51]
Particulate Matter 10[3,4,5,23,33,42,45,47]
Formaldehyde[5,33,39,44,45,50]
Carbon monoxide[3,5,39,42,44]
Benzene[50]
Ventilation rate[50]
Radon[50]
Volatile organic compounds[46]
Relative humidity[50]
Table 6. Summary of the contextual factors that influence the comfort perception identified in the analyzed studies (Ref) included in the third research question.
Table 6. Summary of the contextual factors that influence the comfort perception identified in the analyzed studies (Ref) included in the third research question.
Contextual FactorAffected DomainRef
Personal spaceOverall comfort[33]
Office typologyOverall comfort[33]
Visual comfort[35]
Acoustic comfort[27]
Workstation locationOverall comfort[27]
Thermal comfort[22]
Visual comfort[22]
Work typologyThermal comfort[33]
Acoustic comfort[27,33]
Occupants’ control on building systemsOverall comfort[23,38]
Visual comfort[35]
Work area aestheticsOverall comfort[37]
Adaptation of the work areaOverall comfort[37]
FurnishingOverall comfort[19,37]
CleanlinessOverall comfort[19,37]
Amount of interruptionsOverall comfort[37]
SeasonOverall comfort[4]
Area ratio of window to floorVisual comfort[33]
PrivacyOverall comfort[19]
Table 7. Summary of the personal factors that influence the comfort perception identified in the analyzed studies (Ref) included in the third research question.
Table 7. Summary of the personal factors that influence the comfort perception identified in the analyzed studies (Ref) included in the third research question.
Personal FactorAffected DomainRef
GenderThermal comfort[4,22,27,34]
Visual comfort[23]
Acoustic comfort[4]
AgeThermal comfort[23]
Visual comfort[4,23,28]
Acoustic comfort[28]
BirthplaceThermal comfort[28]
Visual comfort[28]
Acoustic comfort[28]
Table 8. Summary of the contents of the studies (Ref) included in the fourth research question. The following information is provided: parameters and indexes used for the calculation of the IEQ index; parameters rating; IEQ index, occupants’ feedback collection; represented data; support tool used for data representation; end-users of the developed tool.
Table 8. Summary of the contents of the studies (Ref) included in the fourth research question. The following information is provided: parameters and indexes used for the calculation of the IEQ index; parameters rating; IEQ index, occupants’ feedback collection; represented data; support tool used for data representation; end-users of the developed tool.
RefParameters and IndexesParameters
Rating
IEQ IndexOccupants’
Feedback
Represented DataSupport ToolEnd-Users
[3]Ta, RH, CO, CO2, TVOC, PM2.5, PM10, E, SPLGood, average, poor, badPercentage IEQ indicator, IEQ score and warningsLow-power OLED display on the external caseResearchers,
enthusiasts, everyday users
[5]Ta, RH, Tg, Va, SPL, E, TVOC, CH2O, CO, CO2Good (green), fair (yellow), poor (red)Percentage Real-time averages, compliance times, recent histories, alerts, noncompliant parameters, IEQ ratingIEQ Analytics web service (online data visualization)Building owners, facility managers, tenants, building occupants
[6]Ta, RH, E, CO2, PMPercent of measurement results within the compliance range in the last hourPercentage based on specific weighting schemePerceptions or level of satisfaction with each IEQ factorData visualization and downloadsWeb platform and mobile interfaceProfessionals and data analysts
Real-time and historical data of IEQ parameters, their ratings, overall IEQ and suggestions for usersMobile interfaceBuilding
occupants
[40]Ta, RH, CO2, E, movement Pleasantness, thermal comfort, sound levelReal-time temperature value of the selected sensor box, occupants’ pleasantness and thermal sensation votesCompi app: web-based mobile app also accessible via a web browserOffice
employees
[41]ΔCO2, Ta, RH, Tm, Va, PMV, PPD, DR, DF, U0,surr, U0,back, Rsurr, Rback, Li,w, Li,s, T, STI, B, EFScore attributed according to a predefined benchmark scale and weightScore in a four-option range
evaluation
(−1, 0, 3, 5)
Indoor thermal comfort, indoor air quality, visual comfort, acoustic quality, electromagnetic pollution, overall level of environmental quality Owner, manager, building customer
[46]Ta, RH, SPL, E, CO2, TVOC, presence Temperature, light, noise
levels
Information about the room and real-time values of temperature, humidity and noiseSpacematch platform: web-based mobile applicationOffice
employees
[49]Ta, Tg, Tr, Va, RH, E, CO2, PM2.5, TVOC, SPL, pb Integration of IEQ parameters through derivation of their weighting coefficientsPerception of IEQ evaluated using a paper-based surveySingle domain indexes and IEQ index displayed visually using gauges, real-time values of IEQ parameters and their graphical representationUser-friendly smartphone applicationBuilding
occupants
[50]Ta, ventilation rate, RH, E, DF, CO2, PM2.5, CH2O, benzene, radon, SPLGreen,
yellow, orange, red color
Roman numerals from I (high quality level) to IV (low quality level) Quality of the thermal environment, acoustic environment, indoor air, luminous environment and overall level of IEQ
[52]Ta, Tr, Va, RH, E, CO2, SPL Odors, ventilation, noises and sounds, shielding, lighting and thermal conditionsThermal comfort, CO2,
visual comfort and acoustic comfort of each workstation
Office
occupants
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Fissore, V.I.; Fasano, S.; Puglisi, G.E.; Shtrepi, L.; Astolfi, A. Indoor Environmental Quality and Comfort in Offices: A Review. Buildings 2023, 13, 2490. https://doi.org/10.3390/buildings13102490

AMA Style

Fissore VI, Fasano S, Puglisi GE, Shtrepi L, Astolfi A. Indoor Environmental Quality and Comfort in Offices: A Review. Buildings. 2023; 13(10):2490. https://doi.org/10.3390/buildings13102490

Chicago/Turabian Style

Fissore, Virginia Isabella, Silvia Fasano, Giuseppina Emma Puglisi, Louena Shtrepi, and Arianna Astolfi. 2023. "Indoor Environmental Quality and Comfort in Offices: A Review" Buildings 13, no. 10: 2490. https://doi.org/10.3390/buildings13102490

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
