Experimental Investigations of the Bond Behavior between Carbon Rebars and Concrete in Germany
Abstract
:1. Introduction
2. Bond Behavior of Non-Metallic (Carbon) Rebars in Concrete
3. Experimental Test Series 1: Various Carbon Rebars

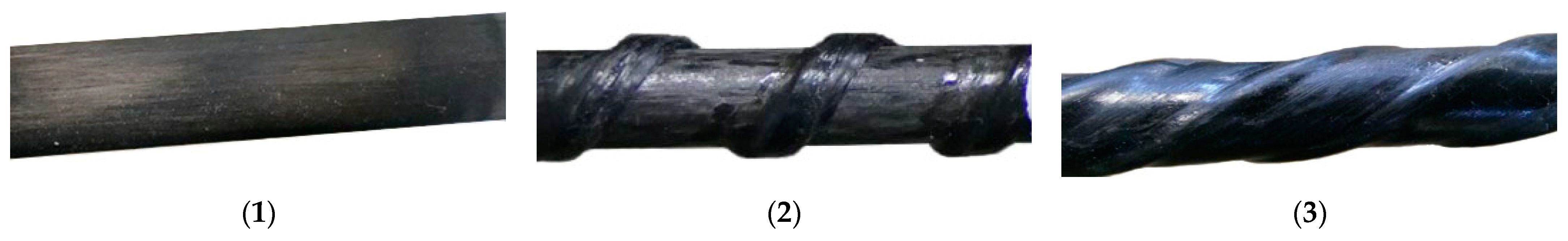

3.1. General

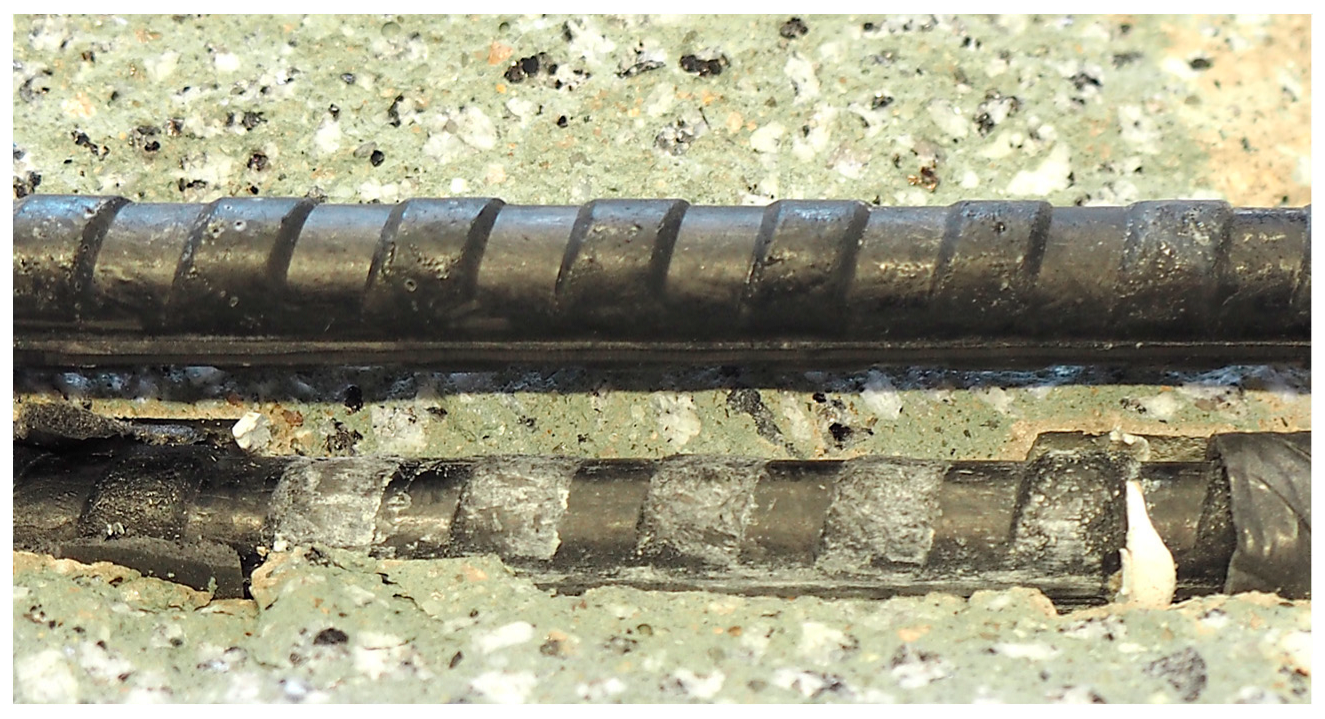

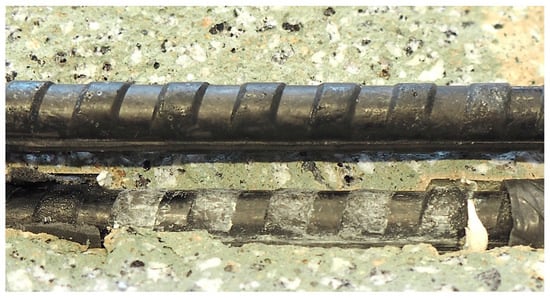

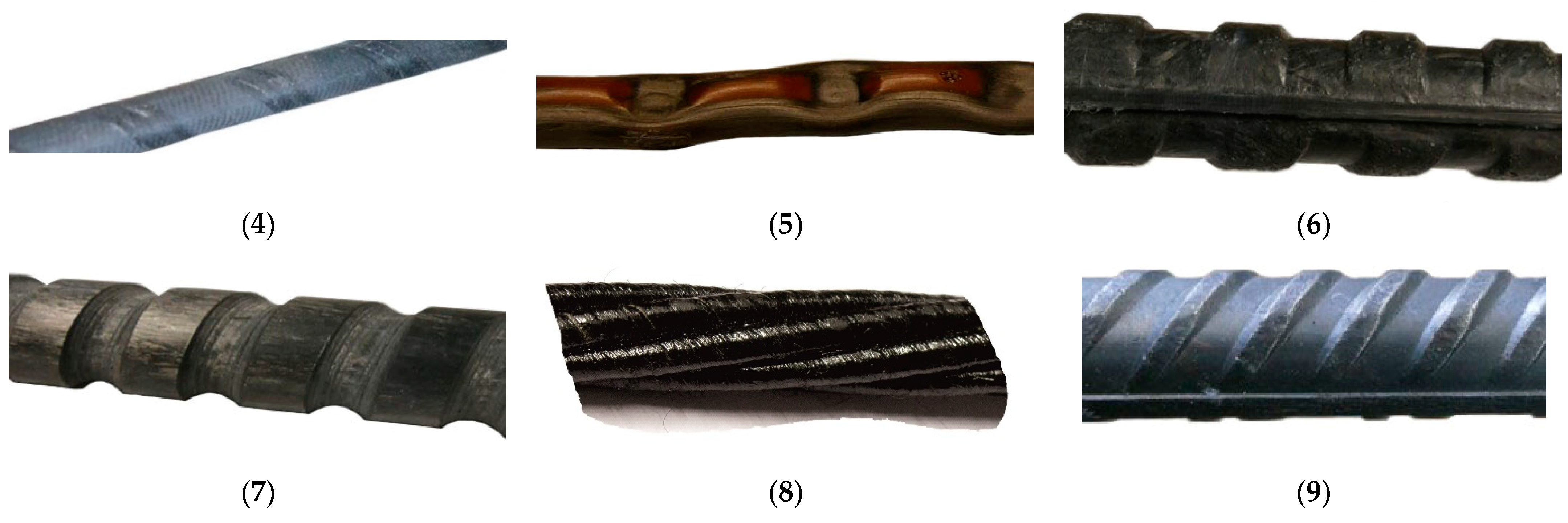

3.2. Materials

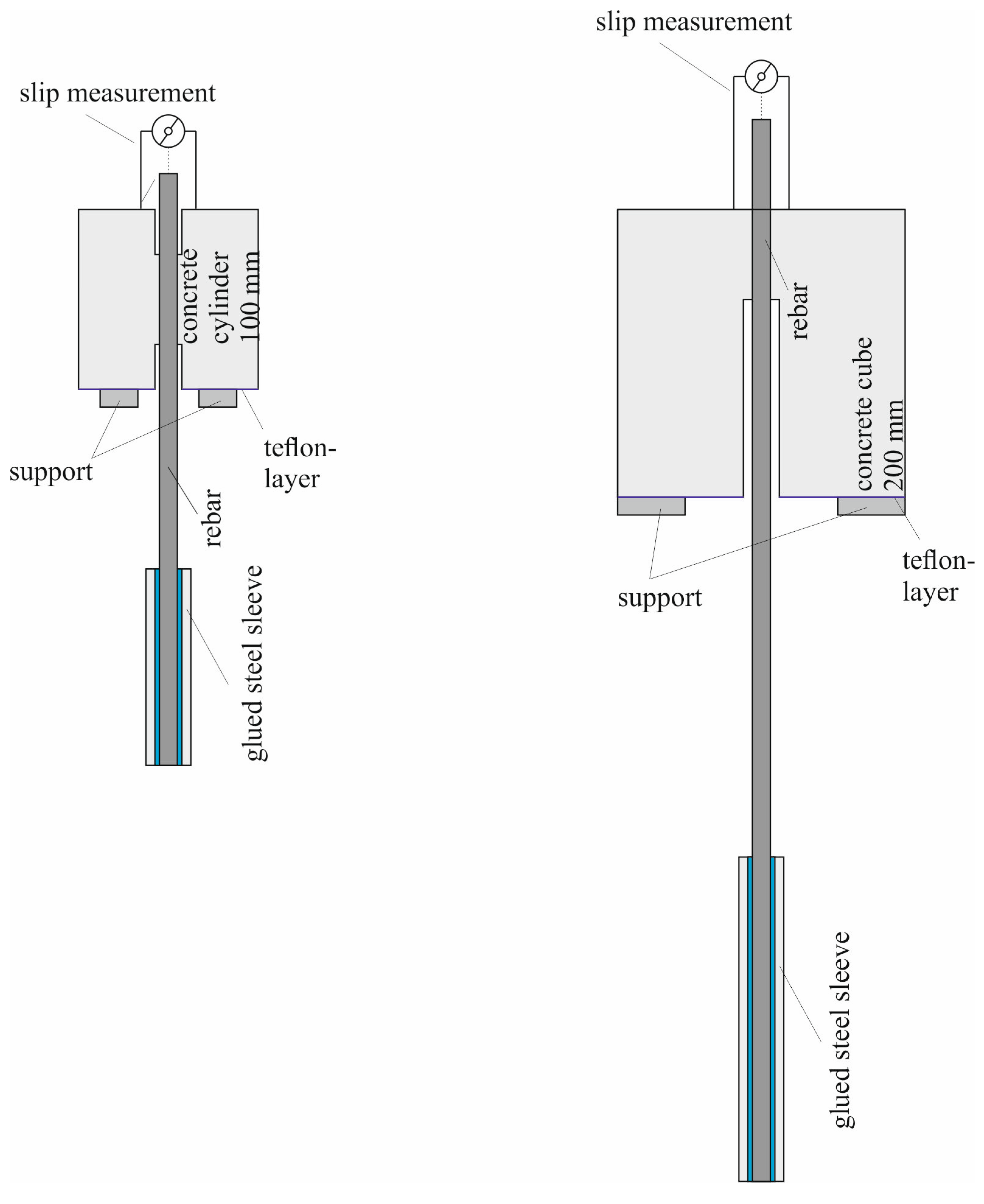

3.3. Sample Preparation, Test Setup, and Execution

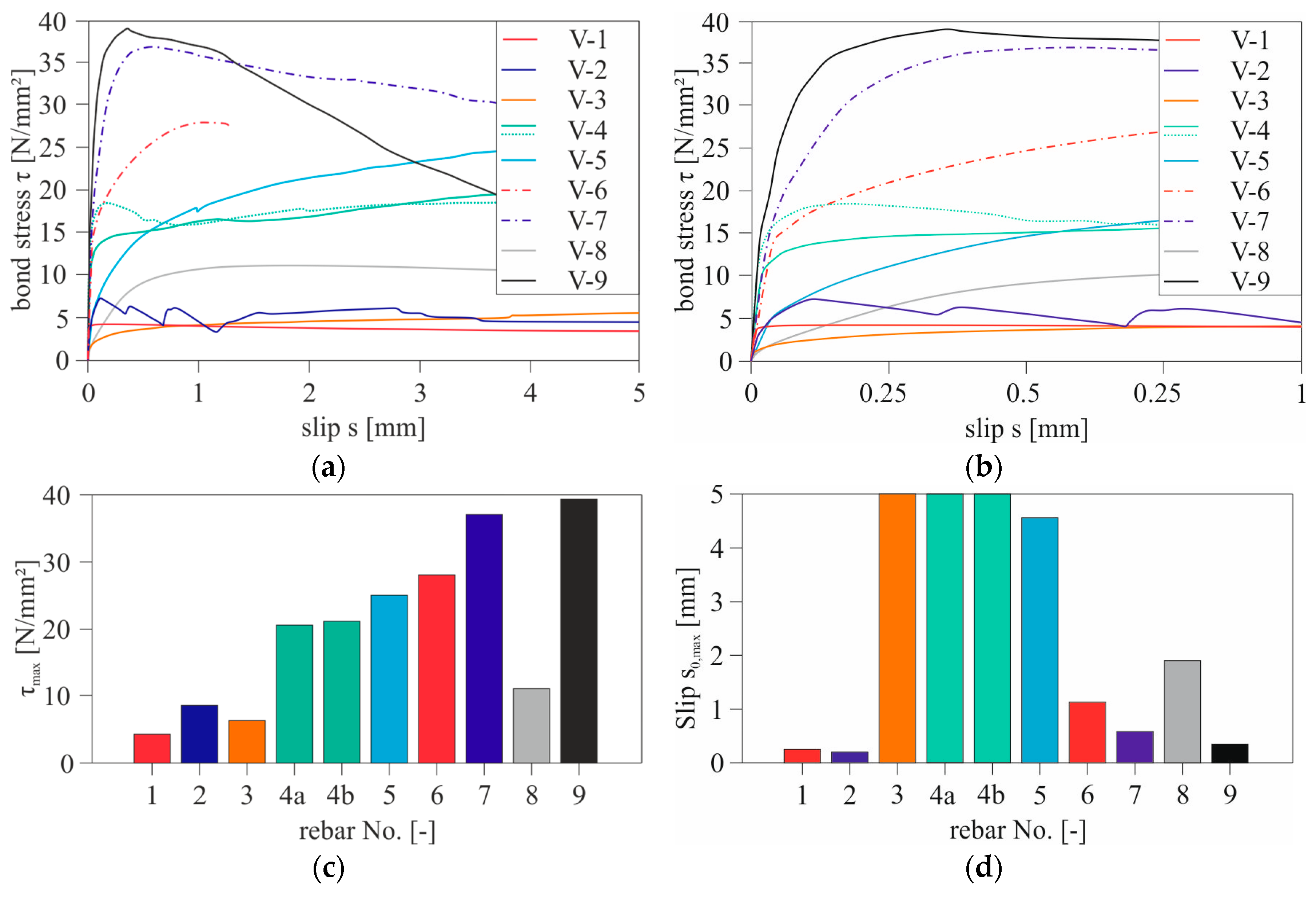

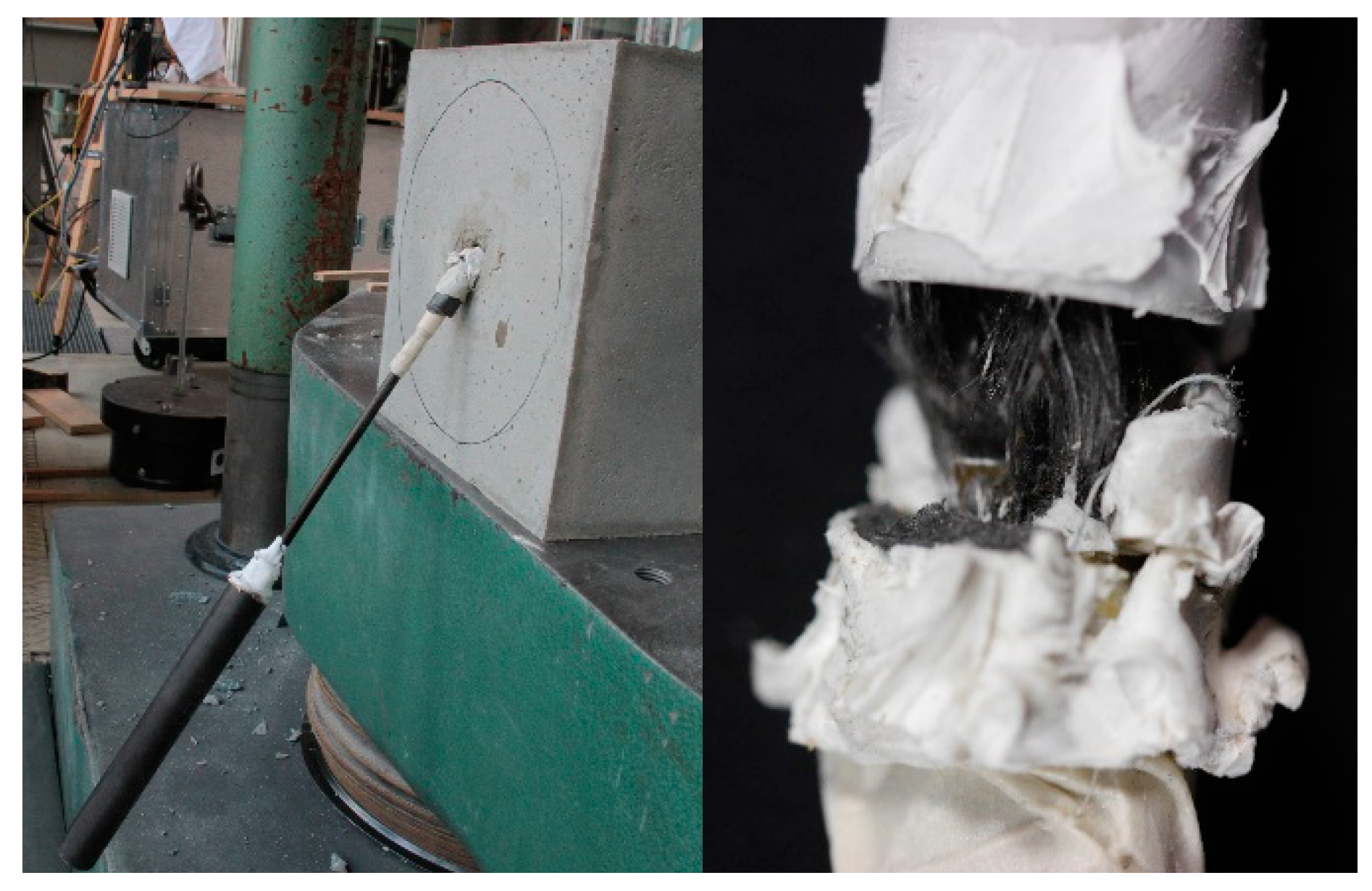

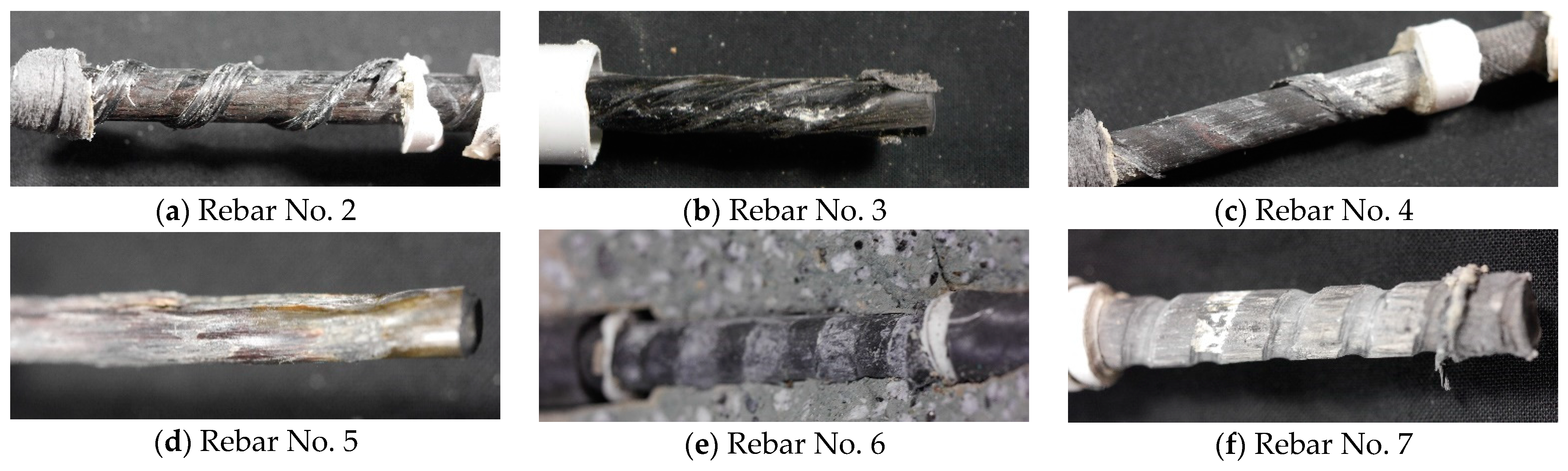

3.4. Test Results
3.5. Comparison
4. Experimental Test Series 2: Further Investigation
4.1. General
4.2. Materials

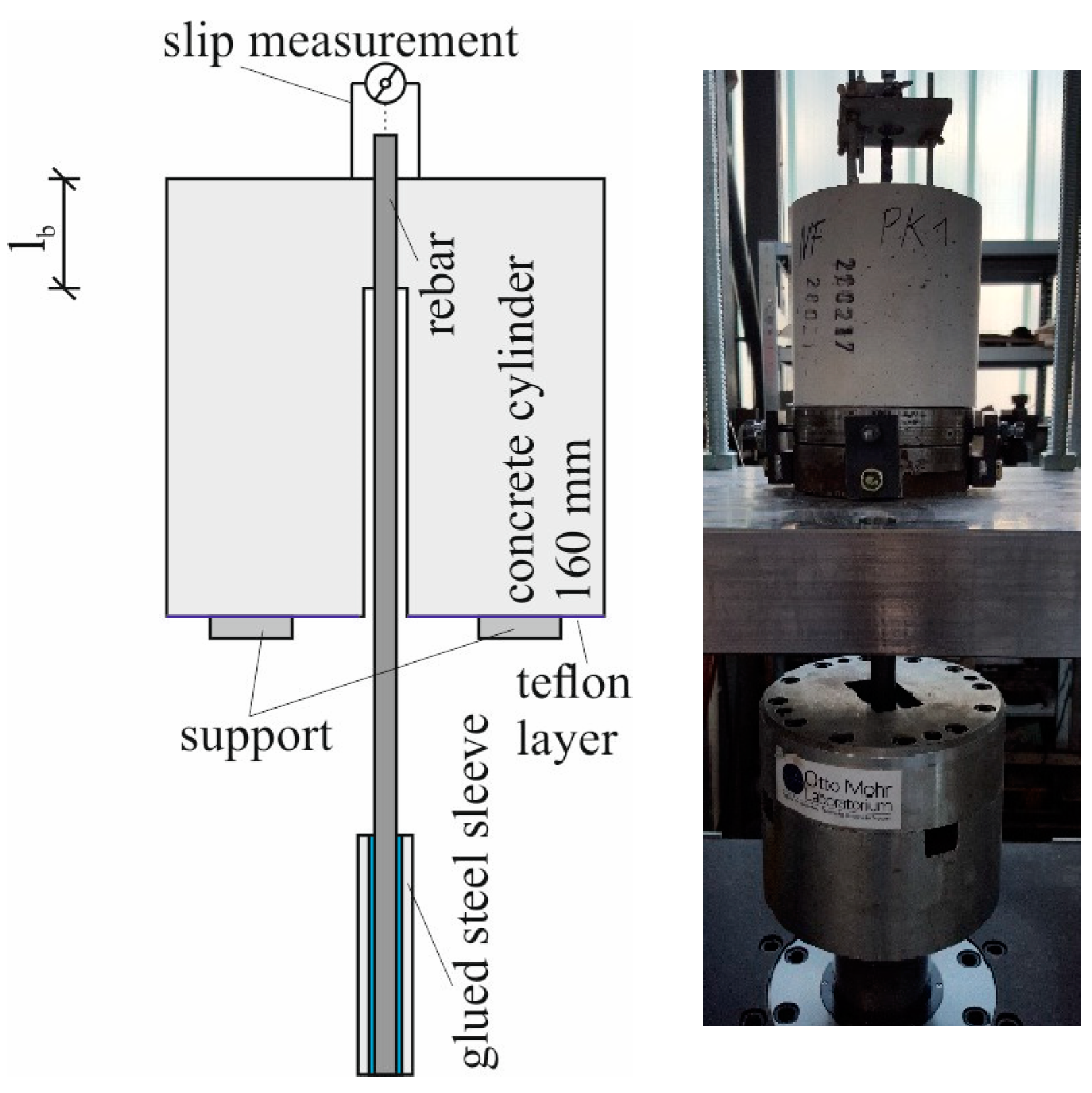

4.3. Sample Preparation, Test Setup, and Execution

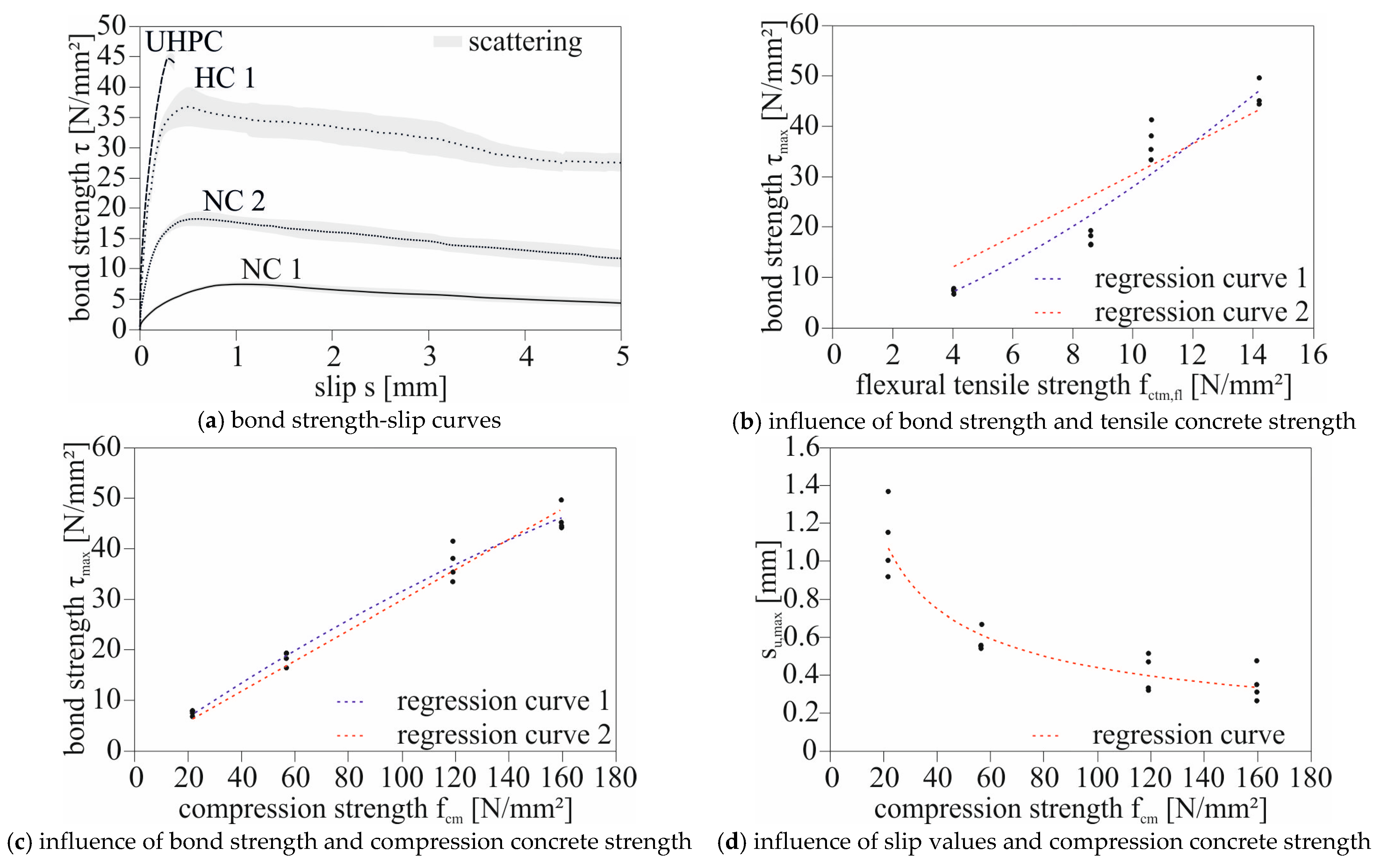

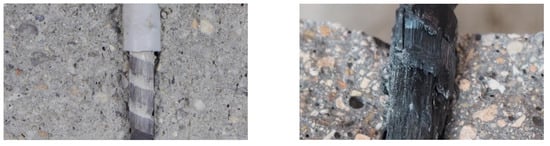

4.4. Experimental Results: Concrete Strength

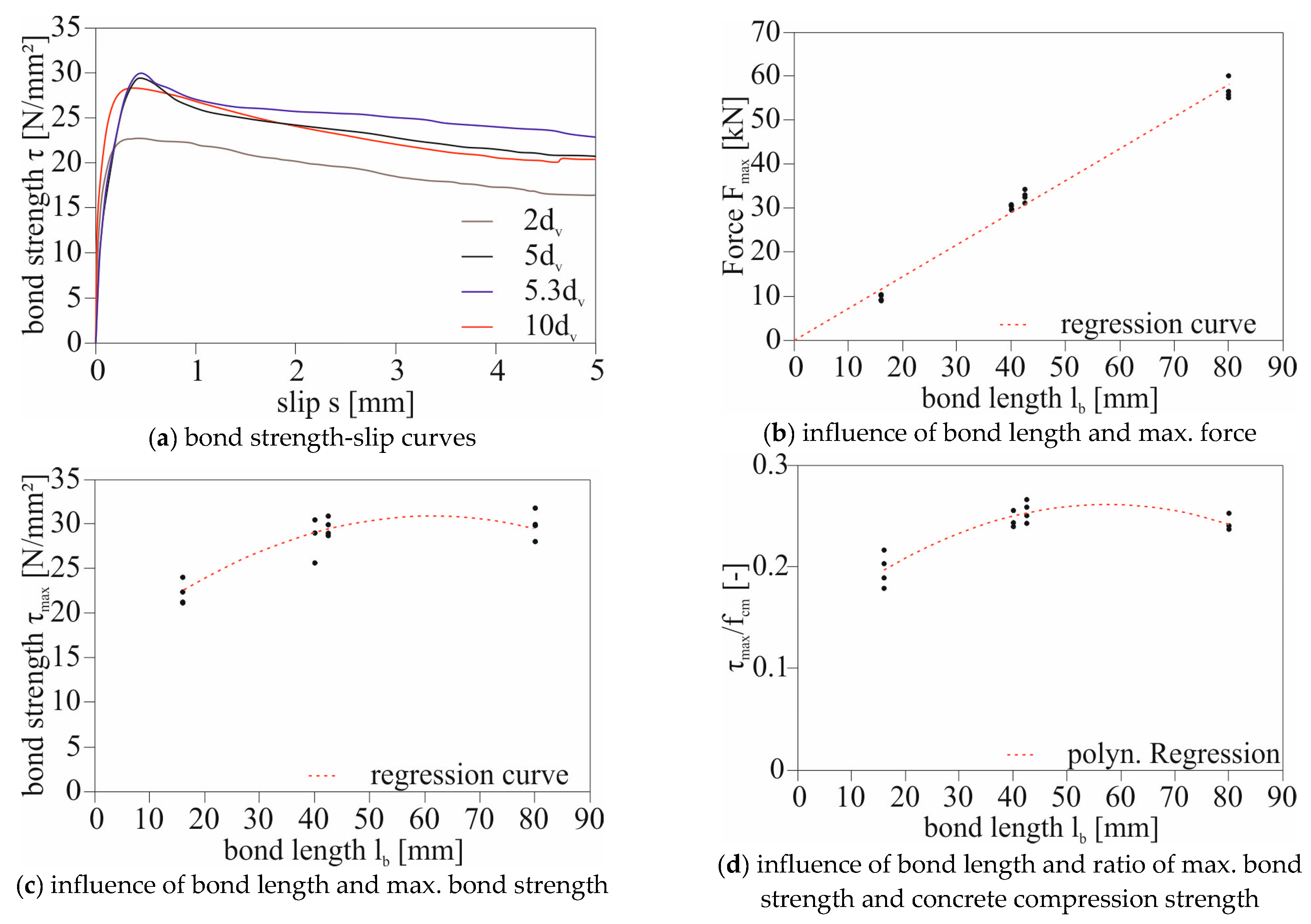

4.5. Experimental Results: Bond Length

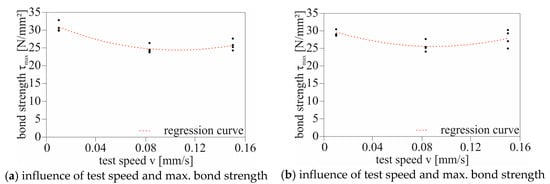

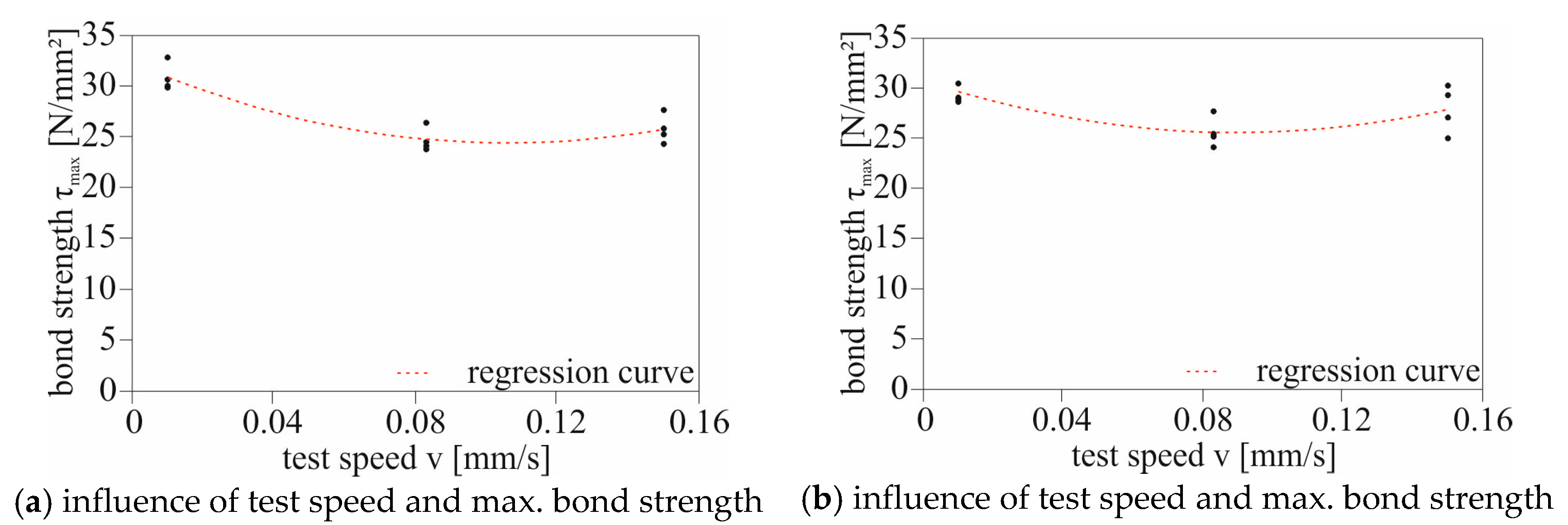

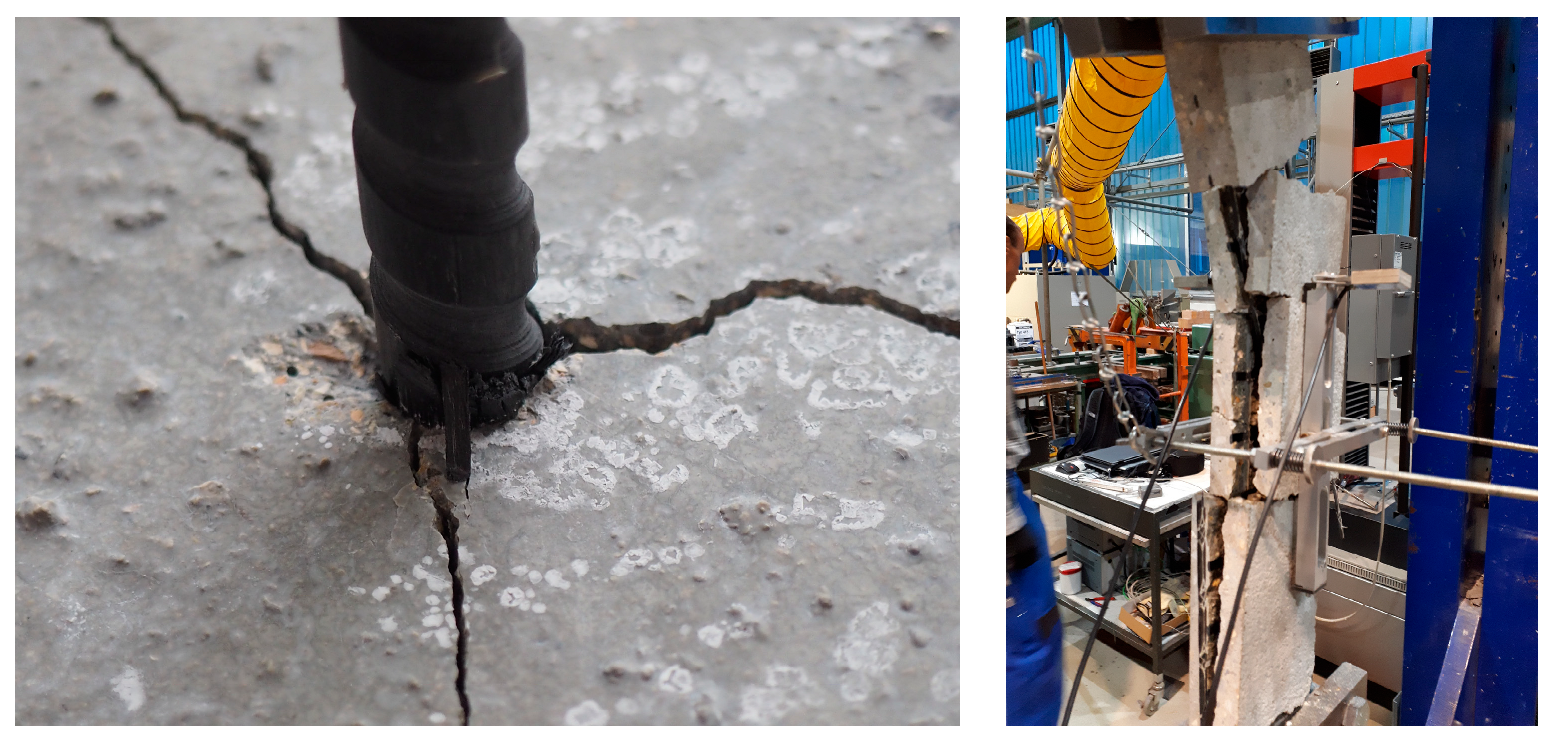

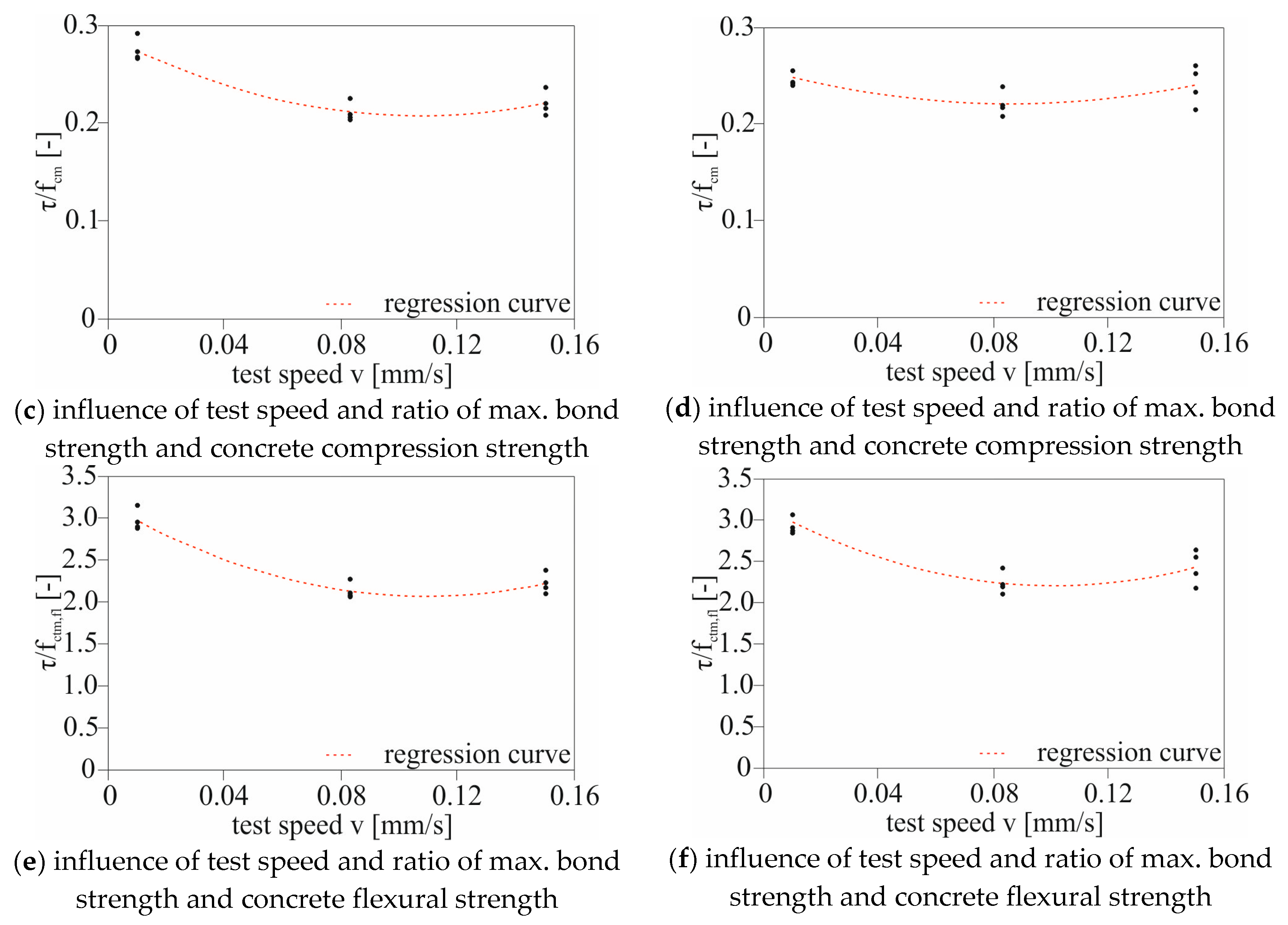

4.6. Experimental Results: Influence of the Test Speed
5. Further Research
6. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Wagner, J.; Wurgau, C.; Schumann, A.; Schutze, E.; Ehlig, D.; Nietner, L.; Curbach, M. Strengthening of Reinforced Concrete Structures with Carbon Reinforced Concrete—Possibilities and Challenges. Civ. Eng. 2022, 3, 400–426. [Google Scholar] [CrossRef]
- May, M.; Schumann, A.; May, S. The new approval for the sustainable strengthening of existing structures with carbon reinforced concrete. Civ. Eng. Des. 2022, 4, 72–78. [Google Scholar] [CrossRef]
- Riegelmann, P.; Schumann, A.; May, S.; Bochmann, J.; Garibaldi, M.P.; Curbach, M. Müther’s shell structures in Germany—A solution to avoid demolition. Proc. Inst. Civ. Eng. Eng. Hist. Herit. 2021, 174, 124–132. [Google Scholar] [CrossRef]
- Backes, J.G.; Schmidt, L.; Bielak, J.; Rosario, P.; Traverso, M.; Claben, M. Comparative Cradle-to-Grave Carbon Footprint of a CFRP-Grid Reinforced Concrete Façade Panel. Sustainability 2023, 15, 11548. [Google Scholar] [CrossRef]
- Reichenbach, S.; Preinstorfer, P.; Hammerl, M.; Kromoser, B. A review on embedded fibre-reinforced polymer reinforcement in structural concrete in Europe. Constr. Build. Mater. 2021, 307, 124946. [Google Scholar] [CrossRef]
- Bielak, J.; Schmidt, M.; Hegger, J.; Fesse, F. Structural Behavior of Large-Scale I-Beams with Combined Textile and CFRP Reinforcement. Appl. Sci. 2020, 10, 4625. [Google Scholar] [CrossRef]
- Schumann, A.; May, S.; Curbach, M. Design and Testing of various Ceiling Elements made of Carbon Reinforced Concrete. Proceedings 2018, 2, 543. [Google Scholar] [CrossRef]
- Apitz, A.; Schimtz, J.; Huckler, A.; Schlaich, M. New thermoplastic carbon fiber reinforced polymer rebars and stirrups. Struct. Concr. 2022, 23, 923–938. [Google Scholar] [CrossRef]
- Schumann, A.; May, M.; Curbach, M. Carbonstäbe im Bauwesen—Teil 1: Grundlegende Materialcharakteristiken. Beton Stahlbetonbau 2018, 113, 868–876. [Google Scholar] [CrossRef]
- Hammerl, M.; Kromoser, B. Bending Behaviour of Prestressed T-Shaped Concrete Beams Reinforced with FRP—Experimental and Analytical Investigations. Materials 2022, 15, 3843. [Google Scholar] [CrossRef]
- Hammerl, M.; Stoiber, N.; Haemmerle, J.; Shams, A.; Bischoff, T.; Kromoser, B. Verbundverhalten umwickelter CFK-Stäbe in Beton—Kurzzeituntersuchung der Verbundeigenschaften mittels Pull-out-Tests. Beton Stahlbetonbau 2021, 116, 935–946. [Google Scholar] [CrossRef]
- Pritschow, A. Zum Verbundverhalten von CFK-Betonbauteilen mit Faserverbundkunststoff-Bewehrung. Ph.D. Thesis, University of Stuttgart, Stuttgart, Germany, 2016. [Google Scholar]
- Stark, A.P.B.; Claßen, M.; Hegger, J. Bond behaviour of CFRP tendons in UHPFRC. Eng. Struct. 2019, 178, 148–161. [Google Scholar] [CrossRef]
- Lieboldt, M.; Tietze, M.; Schladitz, F. C³-Projekt—Erfolgreiche Partnerschaft für Innovation im Bauwesen. Bauingenieur 2018, 98, 265–273. [Google Scholar] [CrossRef]
- Máca, P.; Panteki, E.; Combe, U.; Curbach, M. Definition of Loading Rate for the Experimental and Numerical Investigation of Reinforcement’s Bond in Concrete Under Impact Loading. In High Tech Concrete: Where Technology and Engineering Meet; Springer: Cham, Switzerland, 2017; pp. 929–937. [Google Scholar] [CrossRef]
- Gambarova, P.G.; Rosati, G.P. Bond and splitting in reinforced concrete: Test results on bar pull-out. Mater. Struct. 1996, 29, 267–276. [Google Scholar] [CrossRef]
- Zobel, R.; Curbach, M. Numerical study of reinforced and prestressed concrete components under biaxial tensile stresses. Struct. Concr. 2017, 18, 356–365. [Google Scholar] [CrossRef]
- Betz, P.; Schumann, A.; Scheerer, S.; Curbach, M. Carbonstäbe im Bauwesen—Teil 5: Einflussfaktoren auf das Verbundverhalten. Beton Stahlbetonbau 2021, 116, 924–934. [Google Scholar] [CrossRef]
- Suppanz, F.; Kromoser, B. Verbundverhalten subtraktiv bearbeiteter CFK-Stäbe in UHPC. Beton Stahlbetonbau 2020, 115, 504–513. [Google Scholar] [CrossRef]
- Schumann, A. Experimentelle Untersuchungen des Verbundverhaltens von Carbonstäben in Betonmatrices. Ph.D. Thesis, University of Dresden, Dresden, Germany, 2020. [Google Scholar]
- Schumann, A.; May, M.; Scheerer, S.; Curbach, M. Carbonstäbe im Bauwesen—Teil 2: Verbundverhalten—Verbundversuche an unterschiedlichen Carbonstäben. Beton Stahlbetonbau 2020, 115, 962–971. [Google Scholar] [CrossRef]
- Schumann, A.; Schladitz, F.; Curbach, M. Bond behavior of carbon rebars. Carbon 2020, 6, 9. [Google Scholar]
- Accornero, F.; Cafarelli, R.; Carpinteri, A.; Nanni, A. Scale effects in GFRP-bar reinforced concrete beams. Struct. Concr. 2023, 24, 2817–2826. [Google Scholar] [CrossRef]
- Schneider, K. Basisvorhaben B2: Nachhaltige Bindemittel und Betone für die Zukunft: Matrix Datenblatt: C3-B2-NF-3–139–8. Ergebnisplattform im C3-Vorhaben “Carbon Concrete Composite”. 2016. Available online: https://portal.bauen-neu-denken.de (accessed on 15 December 2018).
- Schneider, K.; Butler, M.; Mechtcherine, V. Carbon Concrete Composite C3—Nachhaltige Bindemittel und Betone für die Zukunft. Beton Stahlbetonbau 2017, 112, 784–794. [Google Scholar] [CrossRef]
- Böhm, R.; Thieme, M.; Wohlfahrt, D.; Wolz, D.S.; Richter, B.; Jager, H. Reinforcement Systems for Carbon Concrete Composites Based on Low-Cost Carbon Fibers. Fibers 2018, 6, 56. [Google Scholar] [CrossRef]
- DIN EN 196–1; Methods of Testing Cement–Part 1: Determination of Strength. European Commission: Brussels, Belgium, 2016.
- Will, N. Zum Verbundverhalten von Spanngliedern mit Nachträglichem Verbund unter Statischer und Dynamischer Dauerbeanspruchung. Ph.D. Thesis, University of Aachen, Aachen, Germany, 1997. [Google Scholar]
- Ullner, R. Verbundverhalten von Litzenspanngliedern mit Nachträglichem Verbund. Ph.D. Thesis, University of Zürich, Zürich, Switzerland, 2008. [Google Scholar]
- Nitsch, A. Spannbetonfertigteile mit Teilweiser Vorspannung aus Hochfestem Beton. Ph.D. Thesis, University of Aachen, Aachen, Germany, 2001. [Google Scholar]
- Achillides, Z. Bond Behaviour of FRP Bars in Concrete. Ph.D. Thesis, University of Sheffield, Sheffield, UK, 1998. [Google Scholar]
- Achillides, Z.; Pilakoutas, K. Bond Behavior of Fiber Reinforced Polymer Bars under Direct Pullout Conditions. J. Compos. Constr. 2004, 8, 173–181. [Google Scholar] [CrossRef]
- Lindorf, A.; Lemnitzer, L.; Curbach, M. Experimental investigations on bond behaviour of reinforced concrete under transverse tension and repeated loading. Eng. Struct. 2009, 31, 1469–1476. [Google Scholar] [CrossRef]
- RILEM. Essais portant sur l’adhérence des armatures du béton: 2. Essai par traction—Bond test for reinforcing steel: 2. Pull-Out Test. Matériaux Constr. 1970, 3, 175–178. [Google Scholar] [CrossRef]
- Rolland, A.; Quiertant, M.; Khadour, A.; Chataigner, S.; Benzarti, K.; Argoul, P. Experimental investigations on the bond behavior between concrete and FRP reinforcing bars. Constr. Build. Mater. 2018, 173, 136–148. [Google Scholar] [CrossRef]
- Zhou, Z.; Qiao, P. Bond behavior of epoxy-coated rebar in ultra-high performance concrete. Constr. Build. Mater. 2018, 182, 406–417. [Google Scholar] [CrossRef]
- Manfred, C.; Sebastian, M.; Müller, E.; Schumann, A.; Schütze, E.; Wagner, J. Verstärken mit Carbonbeton. In Betonkalender 2022: Nachhaltigkeit, Digitalisierung, Instandhaltung, 111, Jahrgang; Ernst & Sohn GmbH & Co. KG.: Berlin, Germany, 2022; Chapter 12. [Google Scholar] [CrossRef]
- Polskoy, P.P.; Mailyan, D.; Beskopylny, A.N.; Meskhi, B. Bearing Capacity of Reinforced Concrete Beams with Initial Cracks Reinforced with Polymer Composite Materials. Polymers 2022, 14, 3337. [Google Scholar] [CrossRef] [PubMed]
- Schumann, A.; Schöffel, J.; May, S.; Schladitz, F. Ressourceneinsparung mit Carbonbeton Am Beispiel der Verstärkung der Hyparschale in Magdeburg. In Nachhaltigkeit, Ressourceneffizienz und Klimaschutz Konstruktive Lösungen für das Planen und Bauen—Aktueller Stand der Technik; Hauke, B., Ed.; Institut Bauen und Umwelt: Berlin, Germany, 2021. [Google Scholar]
- Schütze, E.; Bielak, J.; Scheerer, S.; Hegger, J.; Curbach, M. Uniaxial tensile test for carbon reinforced concrete with textile reinforcement. Beton Stahlbetonbau 2018, 11, 33–47. [Google Scholar] [CrossRef]
- Frenzel, M.; Baumgartel, E.; Marx, S.; Curbach, M. The Cracking and Tensile-Load-Bearing Behaviour of Concrete Reinforced with Sanded Carbon Grids. Buildings 2023, 13, 2652. [Google Scholar] [CrossRef]
- Preinstorfer, P.; Yanik, S.; Kirnbaur, J.; Lees, J.M.; Robisson, A. Cracking behaviour of textile-reinforced concrete with varying concrete cover and textile surface finish. Compos. Struct. 2023, 312, 116859. [Google Scholar] [CrossRef]
Binder | Quartz Fine Sand | Sand 0/2 | Aggregate 2/5 | Superplasticizer | Water |
---|---|---|---|---|---|
(kg/m³) | (kg/m³) | (kg/m³) | (kg/m³) | (kg/m³) | (kg/m³) |
621 | 250 | 530 | 837 | 16 | 145 |
Name (-) | Rebar (-) | Specimen No. (-) | lb (mm) | dv (mm) | Age (d) | τmax (N/mm2) | so,max (mm) | fcm (N/mm2) | fctm,fl (N/mm2) |
---|---|---|---|---|---|---|---|---|---|
V-1-1 | 1 | 1 | 40 | 8 | 10 | 4.3 | 0.2 | 107.3 | 10.4 |
V-1-2 | 1 | 1 | 40 | 8 | 10 | 4.3 | 0.3 | 107.3 | 10.4 |
V-2-1 | 2 | 1 | 40 | 8 | 14 | 8.1 | 0.2 | 108.2 | 11.2 |
V-2-2 | 2 | 1 | 40 | 8 | 14 | 6.9 | 0.2 | 108.2 | 11.2 |
V-2-3 | 2 | 1 | 40 | 8 | 14 | 10.7 | 0.3 | 108.2 | 11.2 |
V-3-1 | 3 | 1 | 45 | 9 | 11 | 6.0 | 10.9 | 108.7 | 10.0 |
V-3-2 | 3 | 1 | 45 | 9 | 11 | 7.4 | 10.8 | 108.7 | 10.0 |
V-3-3 | 3 | 1 | 45 | 9 | 11 | 5.8 | 5.7 | 108.7 | 9.98 |
V-4-1 | 4 | 1 | 30 | 6 | 12 | 20.0 | 5.7 | 112.4 | 9.8 |
V-4-2 | 4 | 1 | 30 | 6 | 12 | 21.5 | 4.2 | 112.4 | 9.8 |
V-4-3 | 4 | 1 | 30 | 6 | 12 | 19.9 | 10.2 | 112.4 | 9.8 |
V-4-4 | 4 | 1 | 40 | 8 | 12 | 21.2 | 6.1 | 112.4 | 9.8 |
V-4-5 | 4 | 1 | 40 | 8 | 12 | 21.1 | 5.3 | 112.4 | 9.8 |
V-4-6 | 4 | 1 | 40 | 8 | 12 | 21.2 | 6.7 | 112.4 | 9.8 |
V-5-1 | 5 | 1 | 30 | 6 | 11 | 21.5 | 6.5 | 108.7 | 10.0 |
V-5-2 | 5 | 1 | 30 | 6 | 11 | 28.9 | 2.6 | 108.7 | 10.0 |
V-6-1 | 6 | 2 | 50 | 10 | 12 | 29.1 | 1.1 | 112.4 | 9.8 |
V-6-2 | 6 | 2 | 50 | 10 | 12 | 26.75 | 1.4 | 112.4 | 9.8 |
V-6-3 | 6 | 2 | 50 | 10 | 12 | 28.9 | 0.9 | 112.4 | 9.8 |
V-7-1 | 7a | 1 | 40 | 8 | 13 | 36.0 | 0.5 | 115.0 | 10.1 |
V-7-2 | 7a | 1 | 40 | 8 | 13 | 38.05 | 0.6 | 115.0 | 10.1 |
V-8-1 | 8 | 1 | 46.5 | 9.3 | 12 | 11.7 | 2.3 | 111.5 | 9.9 |
V-8-2 | 8 | 1 | 46.5 | 9.3 | 12 | 11.0 | 1.7 | 111.5 | 9.9 |
V-8-3 | 8 | 1 | 46.5 | 9.3 | 12 | 11.2 | 1.8 | 111.5 | 9.9 |
V-9-1 | 9 | 1 | 20 | 10 | 11 | 38.0 | 0.3 | 108.7 | 10.0 |
V-9-2 | 9 | 1 | 20 | 10 | 11 | 40.1 | 0.4 | 108.7 | 10.0 |
V-9-3 | 9 | 1 | 20 | 10 | 11 | 40.0 | 0.3 | 108.7 | 10.0 |
Name | Compressive Strength | Flexural Tensile Strength |
---|---|---|
(-) | (N/mm2) | (N/mm2) |
NC1 | 20.7 | 4.0 |
NC2 | 56.8 | 8.6 |
HC1 | 119.1 | 10.6 |
UHPC | 159.7 | 14.2 |
