Rethinking the Heritage through a Modern and Contemporary Reinterpretation of Traditional Najd Architecture, Cultural Continuity in Riyadh
Abstract
:1. Introduction

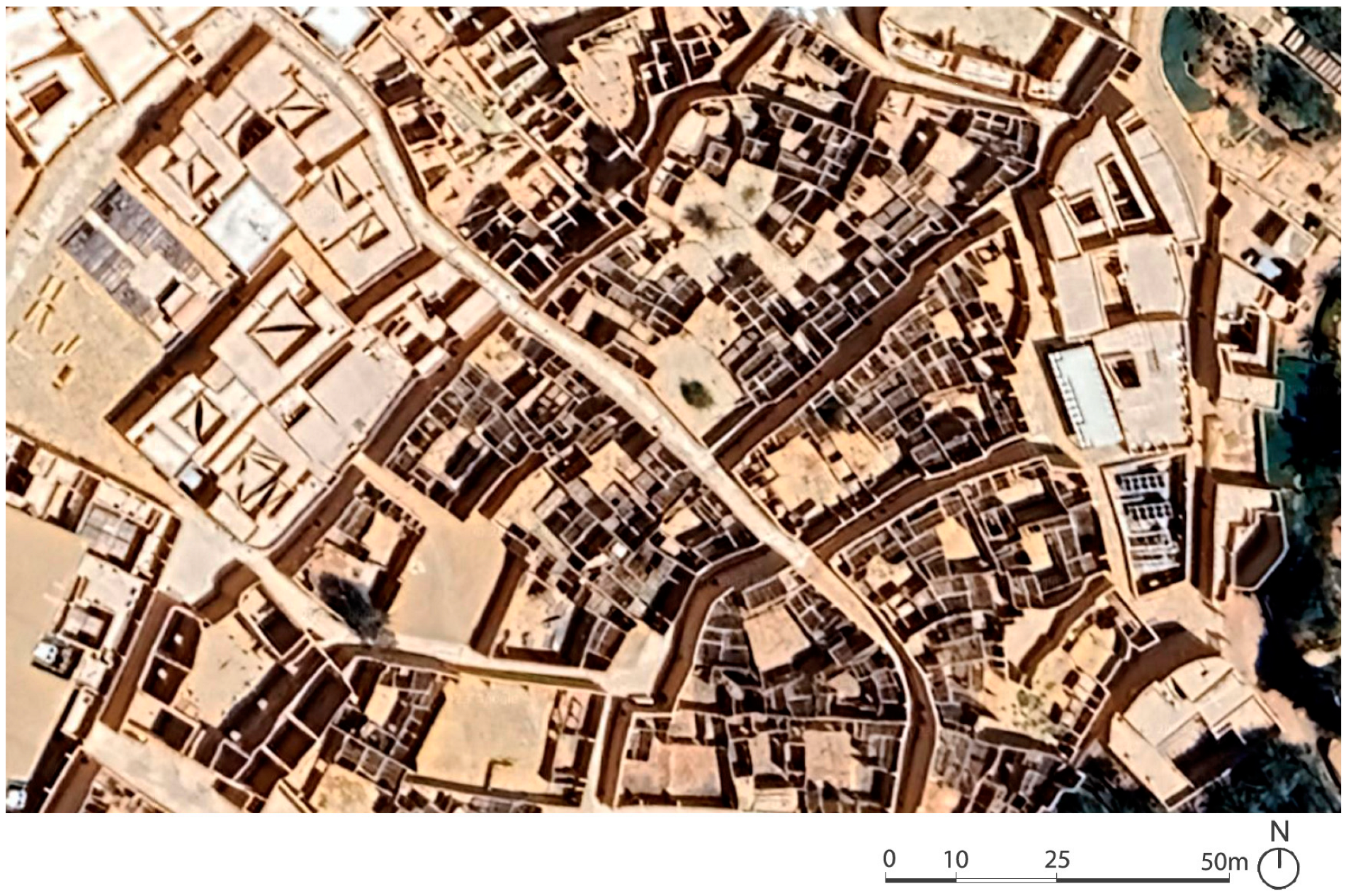

2. Historical Background

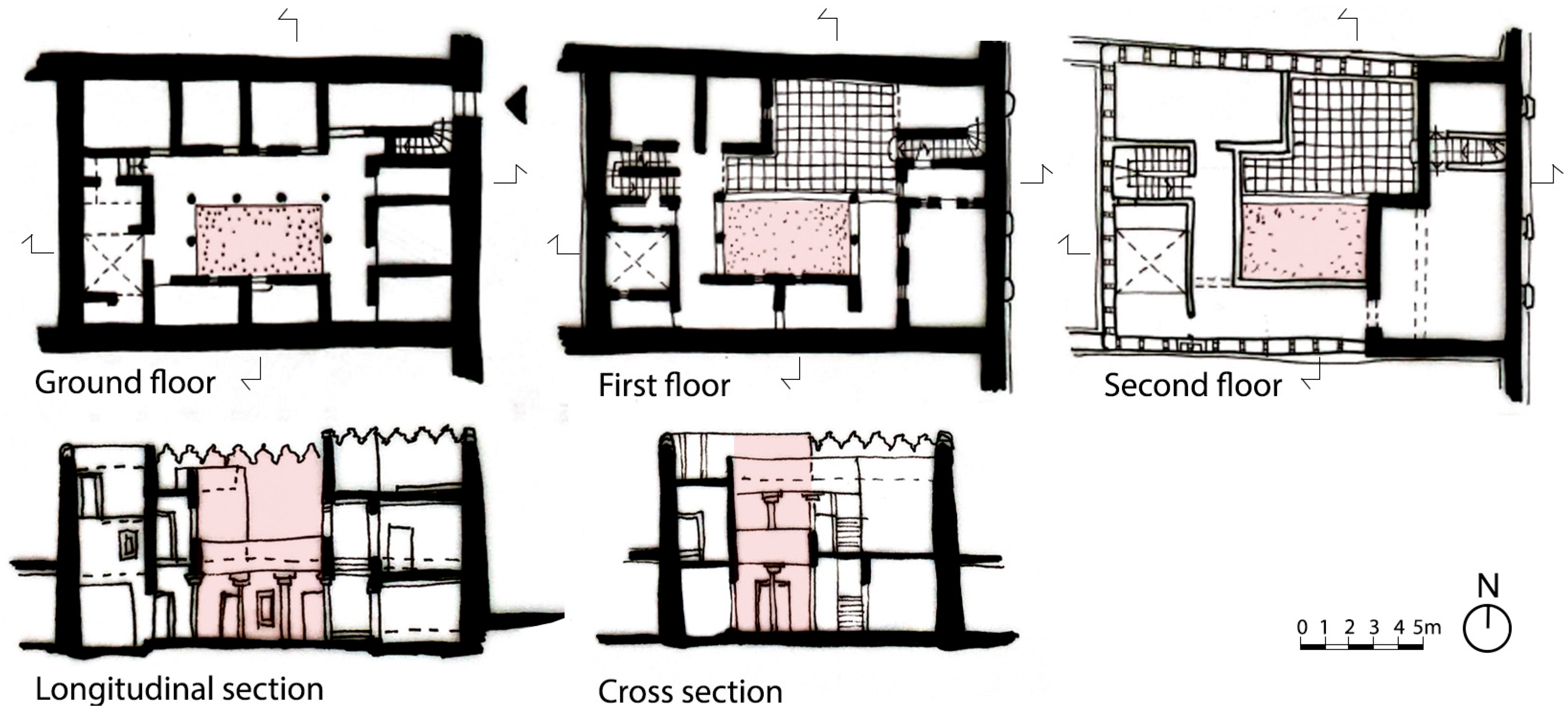

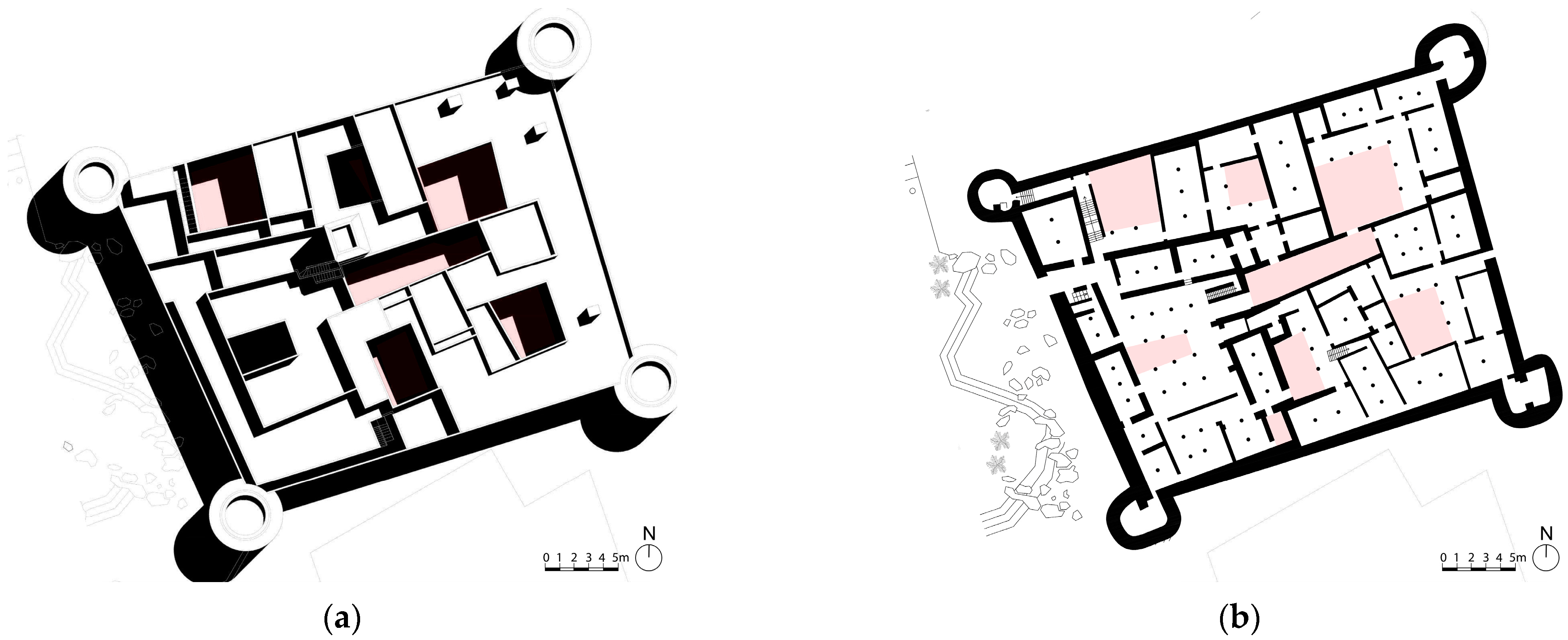

2.1. Historical Typology and Compositional Aspects

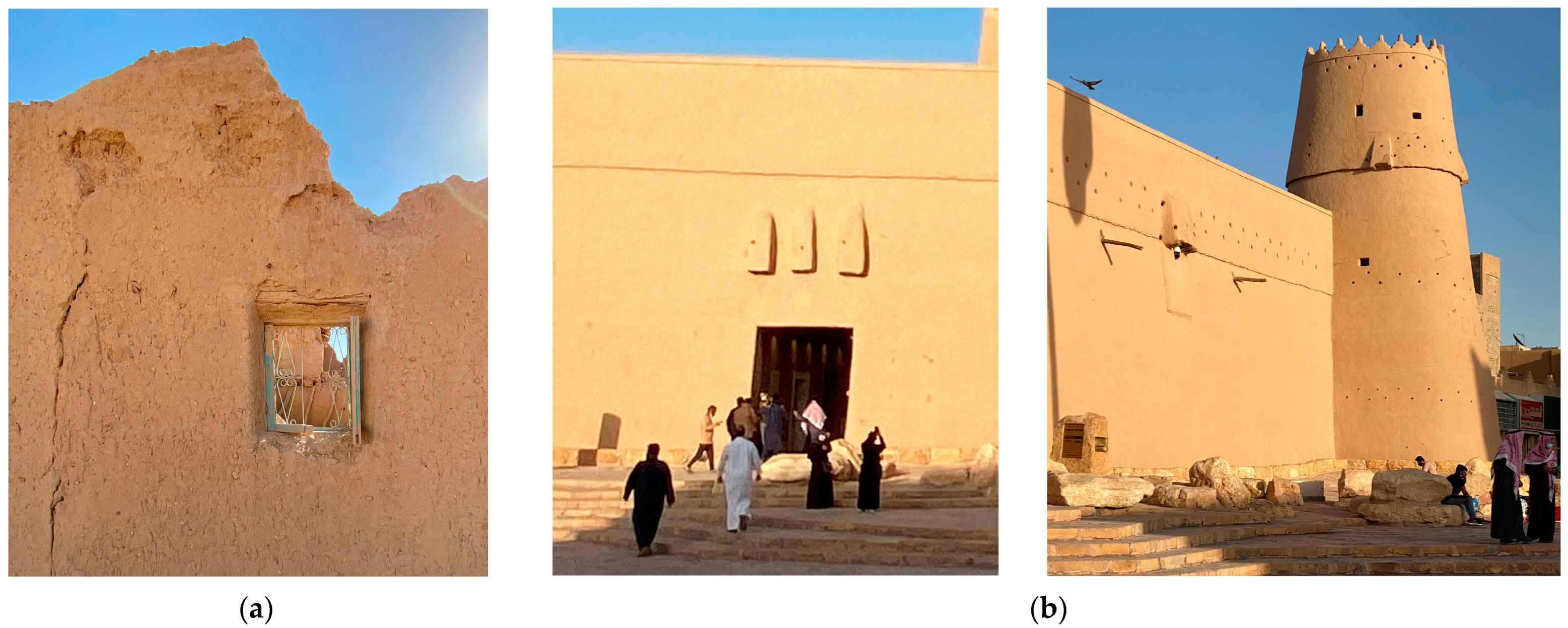

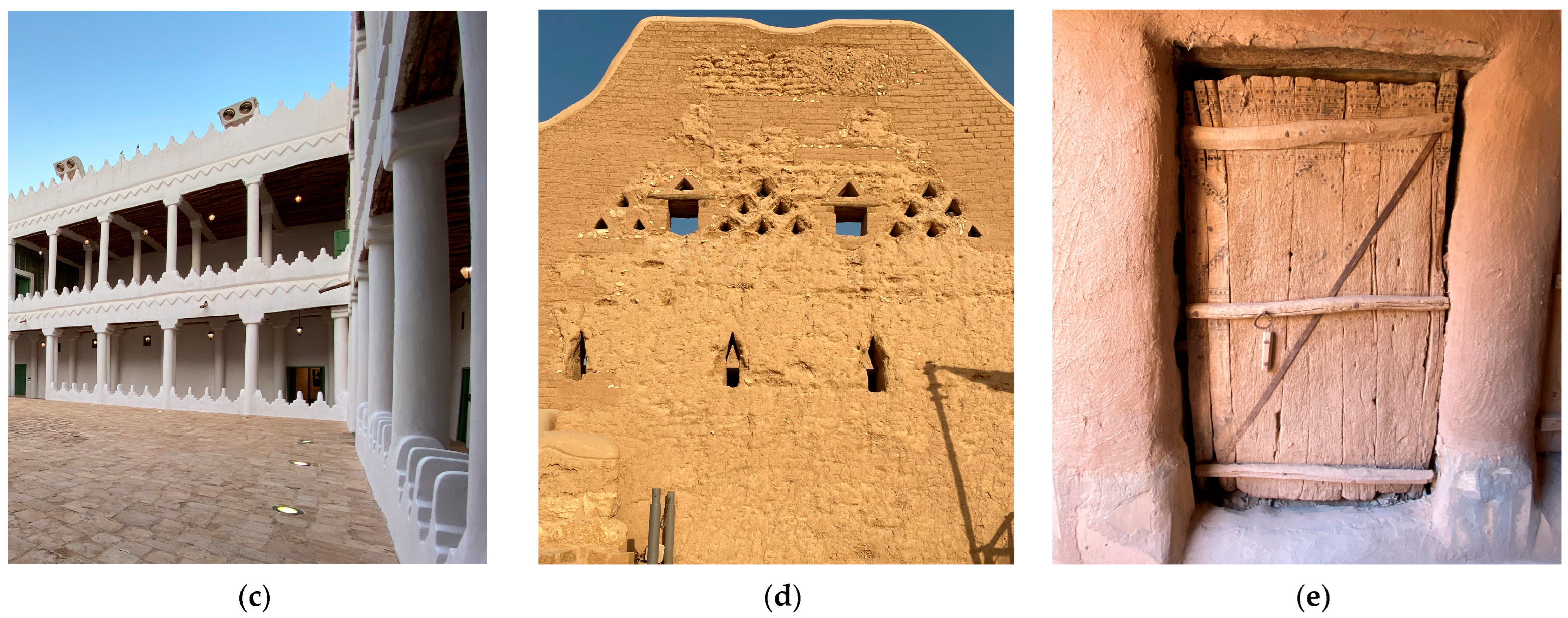

2.2. The Architectural Elements of the Surfaces in Najd Native Architecture
- The porous texture of the walls obtained from organic materials. Given the scarce availability of stones and different varieties of trees suitable for construction, the buildings were built with mud or sun-dried bricks and finished with the application of mud plaster. The walls were very thick to isolate the interior spaces from extreme heat and to achieve greater structural integrity [23]. The mud bricks, composed of a mixture of water, straw, and other fibers, highlight the relationship between architectural artifice and naturalness. Straw and natural elements do not have an ornamental function, but they creep into the walls, creating efflorescence and contributing to the breakdown of the facade. The surface becomes tactile, rough, and imbued with Saudi culture and traditions. The walls become plastic, composed of the soil and the silt collected after the rainy seasons of “Wadi Hanifa,” the valley in the Najd region. Furthermore, chromaticity plays a vital role in architectural constructions; the color of the earth, of the clayey soil, is the dominant color of the native architecture in Saudi Arabia. It almost seems that buildings shaped by the force of nature arise naturally from the ground as an integral part of the environment (Figure 6a).
- The wall effervescence of the architectural detail with an observation function (Tarma). A pronounced architectural element called Tarma characterizes the facade of the buildings, accentuating the porosity of the surfaces. It is usually arranged on the second floor and above the door. It works as a “peephole” to observe people outside the door of the building without being seen inside [24]. The Tarma of different shapes and sizes also has symbolic value, as it helps users of the urban space to identify the building and its entrance through the various forms of the element. It is interesting to note how the size of the interior spaces and the width of the street the building faces affect the size and shape of the Tarma. The relationship between symbol and ornament is inseparable from the local culture (Figure 6b).
- The battlements at the top of the wall (Shurfat). The hand-molded and layered walls are tapered upwards and finished in a crenelated shape. These decorative elements in the form of triangles or arrows, sometimes alternating between full and empty, create a proportional rhythm by acting as a parapet for the rooftop and, in turn, protecting the facades from rainwater. It is customary to find a horizontal strip engraved in the wall under these elements, with triangles underneath, always upside-down, as protection from rainwater (Figure 6c).
- The small openings in the walls (Furjat). The walls are often pierced with small rectangular or triangular openings, a feature of the Najd architectural style, to promote adequate air movement, lighting to the interior spaces, and the view from inside to outside. These small openings do not have a purely decorative function but are arranged vertically, horizontally, or in stacks, creating a pattern on the facade with different dispositions and densities [25]. The different arrangements of the openings meet the different socio-cultural needs of the population while preserving the technical and environmental characteristics [26]. The alternation of irregular openings of different shapes and sizes infuses the building with rhythm, lightening its visual weight by breaking up the facade’s composition and bringing out its expressive value. The result is a building that expresses an apparent simplicity and lives of a suggestive rhythmic cadence, capturing the observer’s eye (Figure 6d).
- The doors (Al-Bab). The traditional Najd doors function as an access element to the building and are very particular in design. They are usually square in size, single-sided made of wood or palm trees. Some entrance doors are colored, engraved, and painted with geometric motifs, embellished with repetitive designs of a symbolic nature, and very pleasant in style and composition. The door and its visual features, use of color, and ornamentation support non-verbal communication by guiding the visitor to the building [27]. This element is an essential visual element to guide the local population and identify their position (Figure 6e).

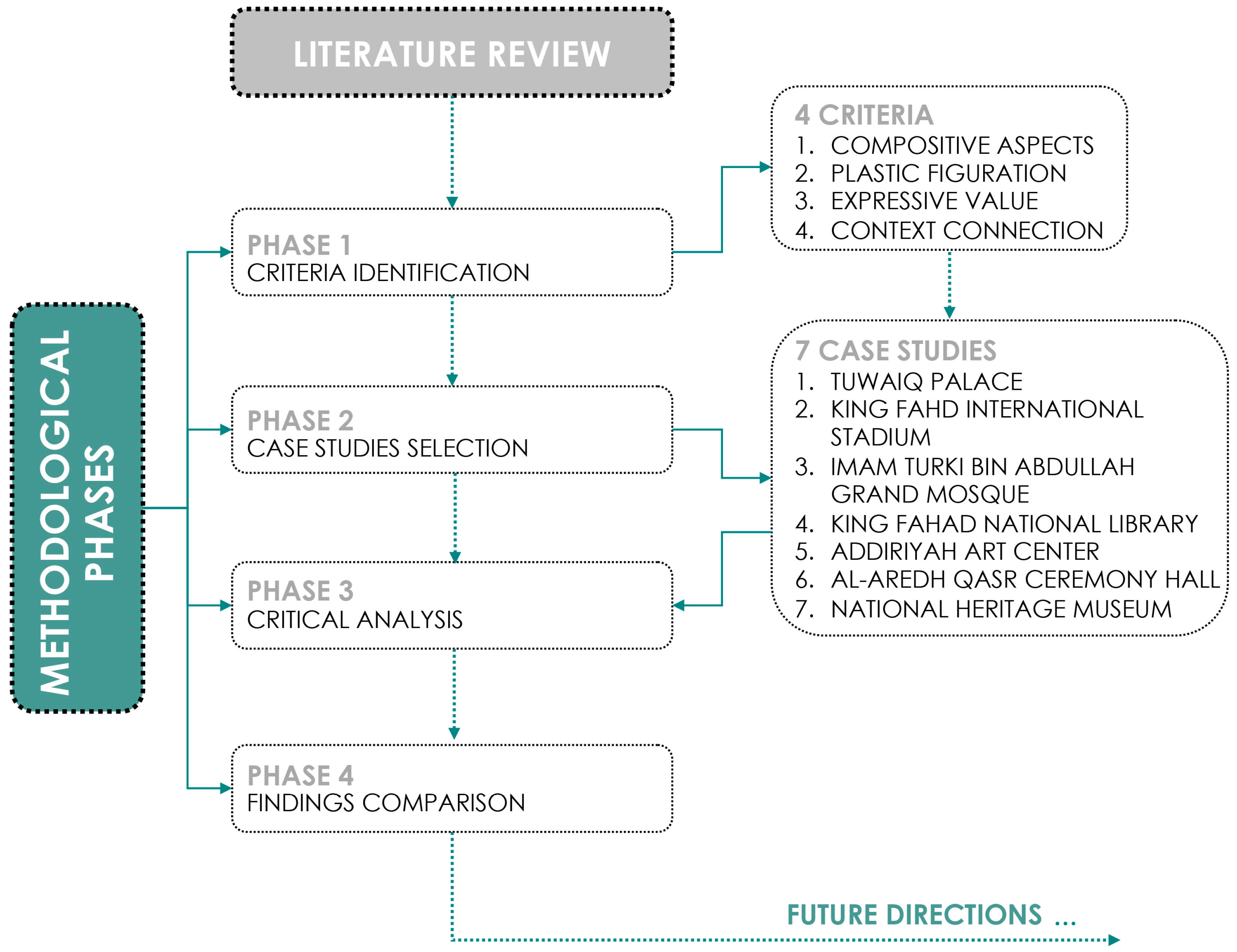

3. Methodology
3.1. Identified Criteria

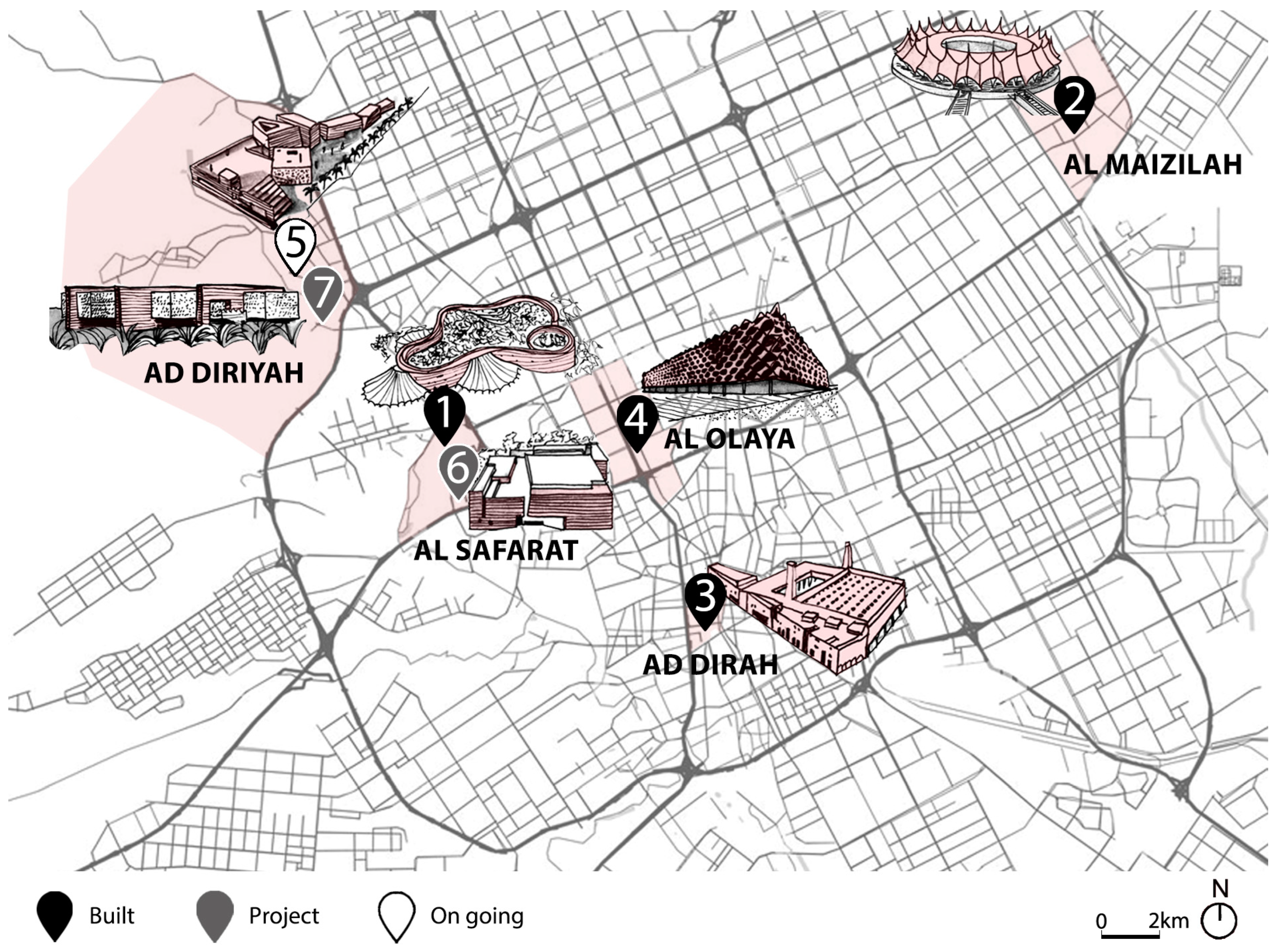

3.2. Case Studies Selection
- (i)
- Formal aspects,
- (ii)
- Plastic and aesthetic figuration,
- (iii)
- Relationship between architectural artifice and naturalness,
- (iv)
- The location in different districts of Riyadh to differentiate the selection range,
- (v)
- Award winners and/or for their prominent architectural features.
3.3. Critical Analysis of Case Studies

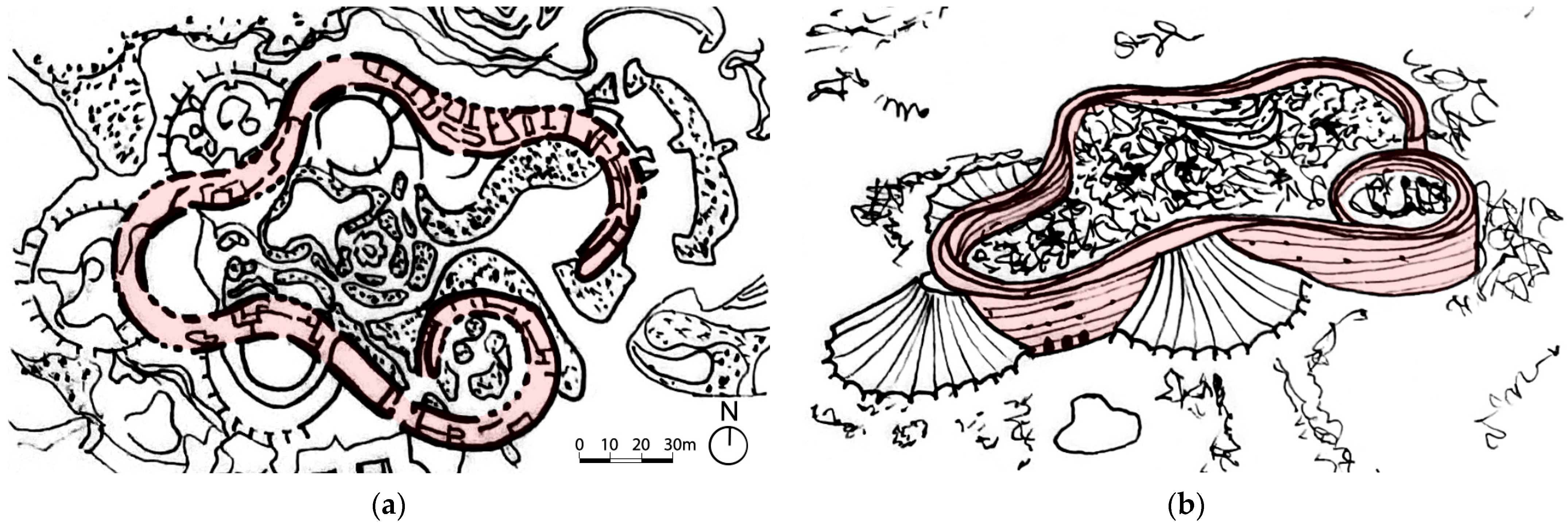

3.3.1. Case Study 1: Tuwaiq Palace (1985), Frei Otto
- Compositive aspects. The project refers to different elements of the traditional architecture of the central Najd region of Saudi Arabia. The plan has a courtyard typology that recalls the typology of fortresses of native architecture to preserve the privacy inside; the thick wall typical of vernacular architecture is translated here as a “living wall” made up of thick and rusticated stone walls. In addition, the small openings in the walls, typical of traditional architecture, are arranged along the facades to minimize solar gain. The use of the tent in the circular spaces along the livable wall is integrated here with the fortress typology, giving a modern twist to the traditional use.
- Plastic figuration. The building has an organic and curved form; the wall is the absolute protagonist that defines its plastic and formal aspect. The 800 m long wall winds around itself, wrapping an oasis inside (Figure 9a). The strong formal aspect is contrasted by a series of constantly evolving interior spaces. Inside the wall, the users are encouraged to discover a variety of spatial and environmental experiences [29]. The spine along the building evokes the fortress with its mass, the local stone cladding, and the thinly scattered openings.
- Expressive value. With its dynamic surfaces, the wall recalls the sand dunes created by the wind. The concrete walls covered with local Riyadh stone look like an extension of the surrounding desert and give the building architectural expressiveness provided by the porous surface typical of Najd architecture. The contrast between the heavy walls and the lightness of the Teflon fiber fabric curtains gives an expressive balance to the entire building.
- Context connection. The unique design of the Tuwaiq palace integrates the two local archetypes, the fortress, and the tent, with the natural phenomenon of the oasis to create physical protection for the environment, with the idea of offering the only panoramic view from the building with the path practicable on the roof [30,31]. The idea of the landscape is to provide a contrast between the lush garden inside the wall and the arid nature of the rocky plateau outside that overlooks the Wadi Hanifa below and the city of Riyadh beyond. Even the sky is a strong element that characterizes the project inside the oasis. The palace seems to grow and rise from the rocky desert, becoming an integral part (Figure 9b).

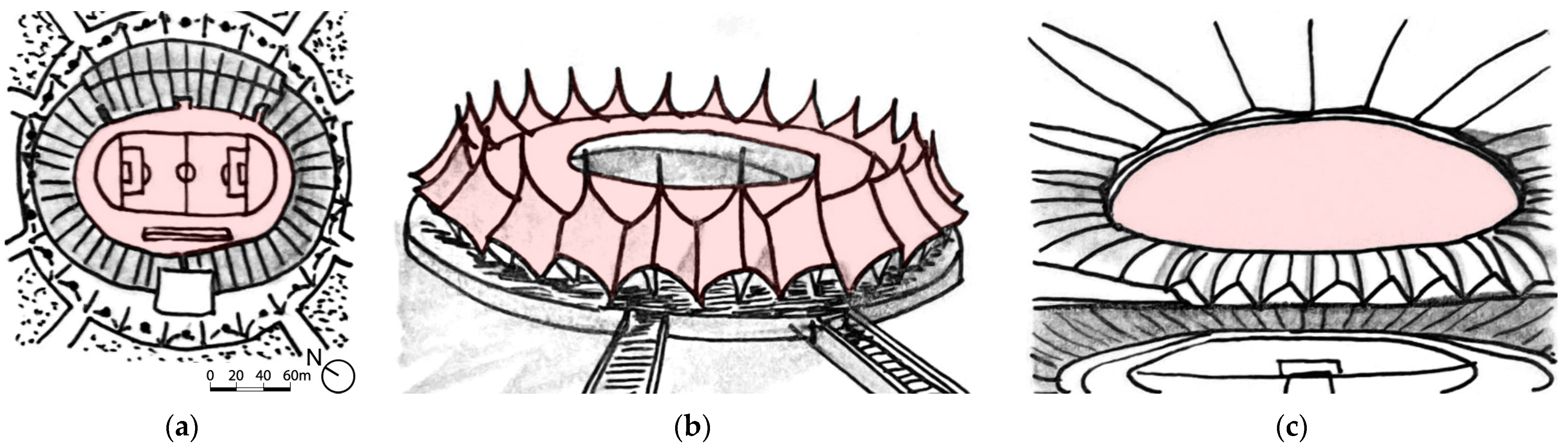

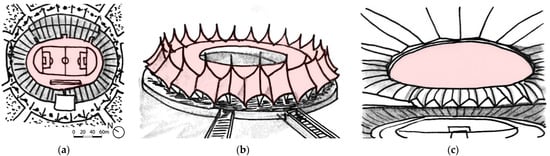

3.3.2. Case Study 2: King Fahd International Stadium (1986), Ian Fraser
- Compositive aspects. The stadium features a circular shape with a radius of 247 m (Figure 10a). This multi-use architectural typology lends itself mainly to sporting and cultural activities, configuring itself as an infrastructure for a dynamic, involved, and emotional crowd. The protagonist element of this architecture is the roof, considered the most extensive roof in the world despite its sizeable central opening. The roof reinterprets the traditional Bedouin tent with a technologically advanced roof construction consisting of a series of Teflon-coated fiberglass units in the shape of a tent supported by cables [32].
- Expressive value. The roof’s steep folds, which comprise 24 tent units, give the exterior a powerfully expressive image to create a new visual narrative.
- Context connection. The stadium is located in an arid and flat area northeast of Riyadh. The curtains that cover the stadium have a high iconographic value and are a point of reference for the urban landscape of Riyadh. Under the roof are single-tiered stands shaped like a bowl, mainly supported on artificial land slopes. The huge umbrella keeps the sun off the seats while providing shade and comfort in the hot desert climate. In this project, the sky plays a fundamental role, as the roof is open towards the top, creating a strong connection between the building, the sky, and the desert (Figure 10c).

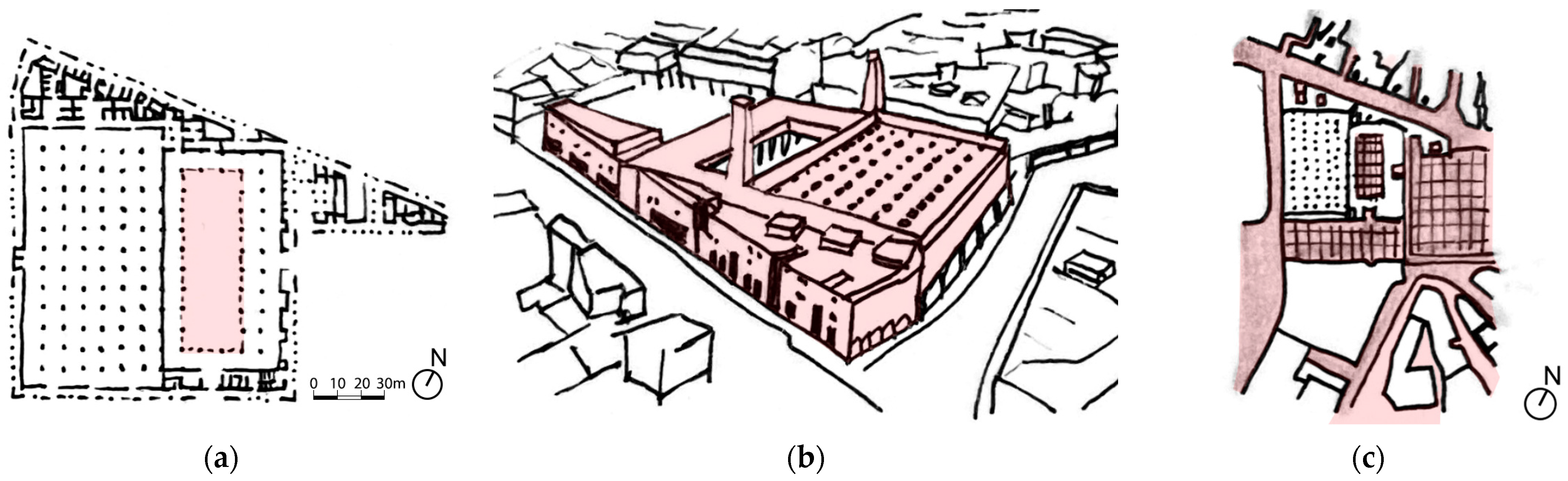

3.3.3. Case Study 3: Imam Turki Bin Abdullah Grand Mosque (1992), Rasem Badran
- Compositive aspects. The mosque consists of a main prayer hall preceded by a 4800 square meter courtyard, which incorporates the courtyard’s typology of traditional Najd architecture (Figure 11a). Columns, courtyards, and narrow passageways recall the traditional uses of space. Traditional spatial features are perfectly included, not copying the past but interpreting it [36].
- Expressive value. The external walls are covered in local limestone, punctured by the small triangular openings typical of the Najd tradition. The openings create a further dialogue between past and present by creating a rhythm in the facade and bringing out the expressive character of the building of apparent simplicity. The relationship between the mosque and Al Masmak fortress is clear, where Rasem Badran takes up the idea of the wall as a transition space between the outside and the inside.
- Context connection. The Great Mosque is located at the center of a group of public buildings in Riyadh’s historic center. The center of worship is in complete harmony with the surrounding urban fabric rather than emerging as an autonomous element [38]. The idea of the wall as a separation between internal and external space, which derives from the nearby fortress of Al Masmak, is used as a metaphor and a principle for urban and visual composition. The alternation of solids (the prayer hall) and voids (the courtyard) integrate perfectly with the traditional Najd urban area (Figure 11c). The yard creates a suitable microclimate inside, reducing the temperature in the prayer room. Furthermore, the buildings clad by the local limestone walls make good thermal comfort.
3.3.4. Case Study 4: King Fahad National Library (1983)—(Addition in 2013), Gerber Architekten
- Compositive aspects. The original cruciform library building built in 1983 was enclosed within a square building plan. The result is a “box” within a “box”; i.e., the contemporary cuboid-shaped structure aims to protect the original library by integrating it inside (Figure 12a). The existing cruciform building, topped with a dome, which was reconstructed in steel and glass, is the cultural symbol of the library [39].
- Plastic figuration. Despite an almost rigid and symmetrical plan, the library took on a plastic figuration by adding a new “skin” in 2013. The facade’s cladding is made up of diamond-shaped curtains, creating a play on the facade between solids and voids. The tents act as umbrellas, reinterpreting the tradition of the Bedouin tent innovatively and technologically (Figure 12b).
- Expressive value. The white membranes that cover the four sides of the new library intervention create a unique style that characterizes the facades. The ‘”skin” of the building achieves strong expressive value thanks to the three-dimensional aspect of the surface. At night, the building becomes the cultural beacon of the city through its changing colors (Figure 12c).
- Context connection. The library site connects the capital’s main traffic arteries, King Fahad Road and Olaya Street. The building is located within an urban park also designed by Gerber Architekten, including the green areas. The library represents the iconographic center of a prestigious urban district undergoing expansion. The new urban plaza offers direct access to the library, creating a filter between the busy Olaya Street and the library. Furthermore, the filigree steel cable structure of the facades has a solar penetration level of only 7% and, at the same time, maintains a relationship with the outside, with the possibility of looking both in and out. The membrane facade has been optimized with the local solar path through a complex three-dimensional light refraction, combining sun protection with light penetration and transparency [40].

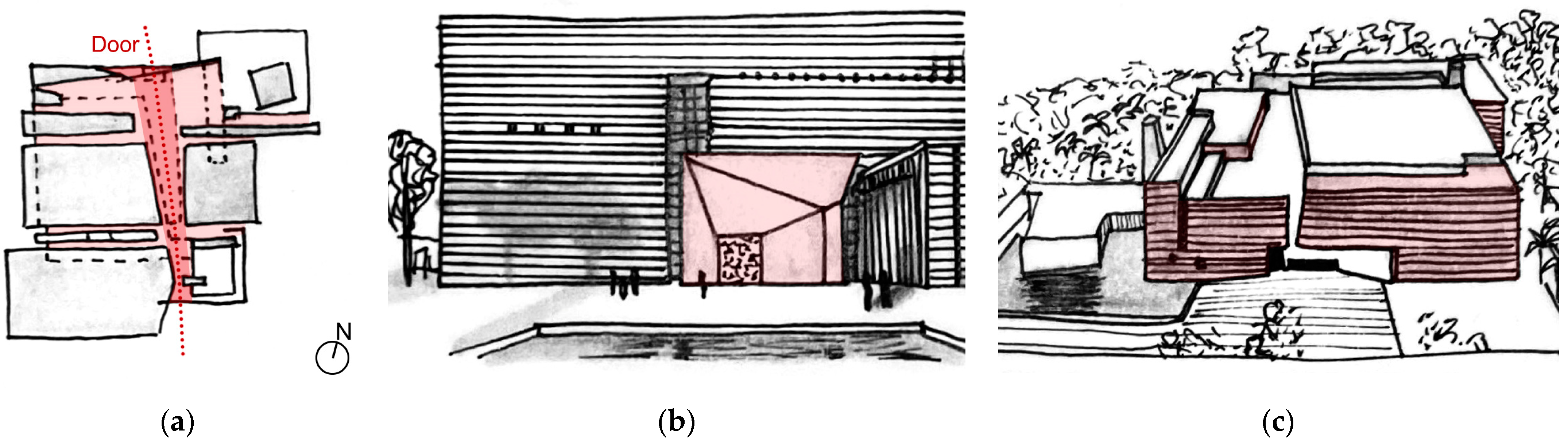

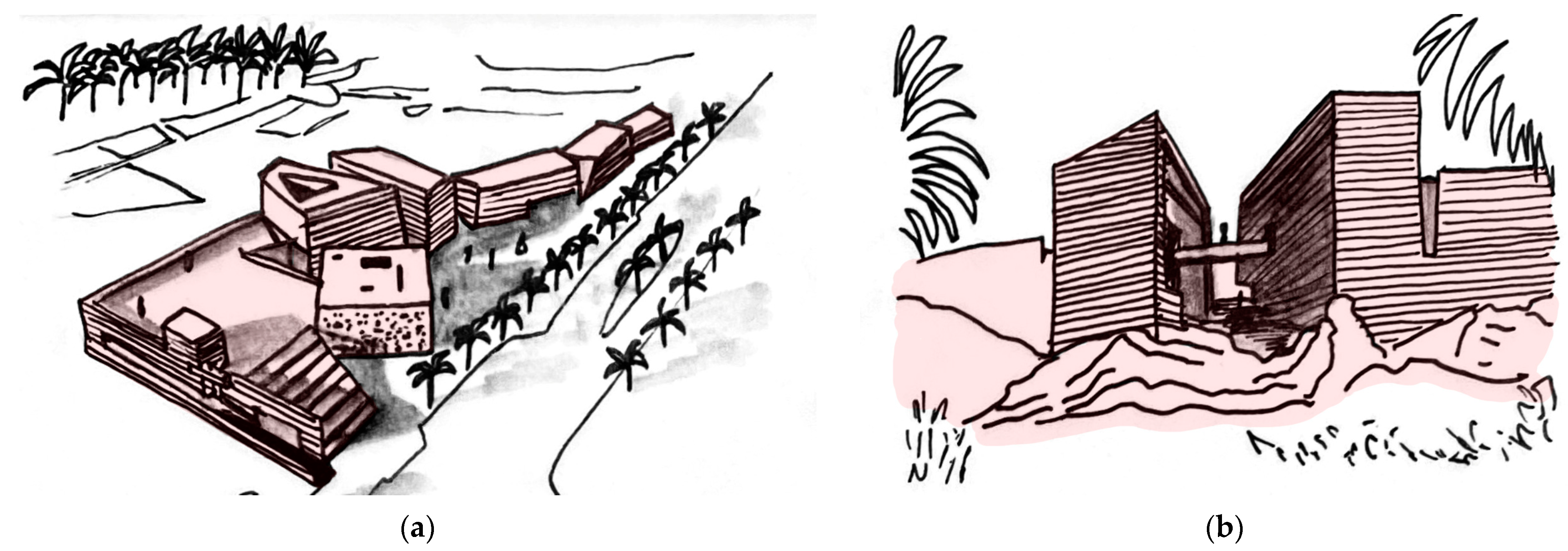

3.3.5. Case Study 5: Addiriyah Art Center (2015), Schiattarella Associati
- Compositive aspects. The project is an urban fragment connected to the rest of the city. The narrow streets between the volumes of the project recall those of the historic city of ad-Dir’iyah. As Schiattarella states, “…With an act of profound respect, we have chosen to start afresh from local cultural roots, working on the value of differences and thus studying materials, spatial organization, volumetric articulation, geometric complexity typical of the countries where we work. This method does not seek historicized linguistic solutions, but an entirely contemporary architectural dimension but an alternative to globalization’s expression” [42].
- Plastic figuration. The volumes of different shapes and heights are mainly articulated along a linear path. This linearity is broken by the irregularity and orientation of the masses, which create a harmonious composition, a balance between the project and the context (Figure 13a). Nature is the real protagonist of the project. The volumes are articulated according to the surrounding landscape; nature guides the building’s form.
- Expressive value. In this project, materiality is expressed by a difficult material to shape: the void. The empty space between the volumes of the building dialogues with matter and light. As Schiattarella says, “…the intervention of natural light is an explosive tool because naturally the light that penetrates the void marks and underlines the space making it constantly change, and therefore enriches the sense of architecture with infinite possibilities; it enters the depths in some way, it slides on the smooth walls, it stops on the walls, or it vibrates along the folds of the knurled walls” [42]. The mainly closed volumes have irregular openings of different arrangements and densities according to the internal function to modulate light entry. The side facing the landscape is underlined by horizontality through the horizontal and parallel incisions on the surface of the walls propped up by small irregularly shaped openings that capture the observer’s attention.
- Context connection. The relationship with the context is the dominant element of the project. The building is located on top of a natural escarpment on the border between the modern city and a lush natural area of green areas and palm groves, separated by the linear layout of the Wadi Hanifa. The building, therefore, acquires considerable importance as it is positioned on a natural “podium” and becomes a point of reference for the surrounding environment. The volumes, seen from the landscape side, emerge from the same rock they are located, creating a strong link with nature (Figure 13b) [43]. The Art Center, designed to be built with local materials, is well integrated with the surrounding environment, creating permeable alleys, staggered volumes of different heights, and good shading between the buildings.

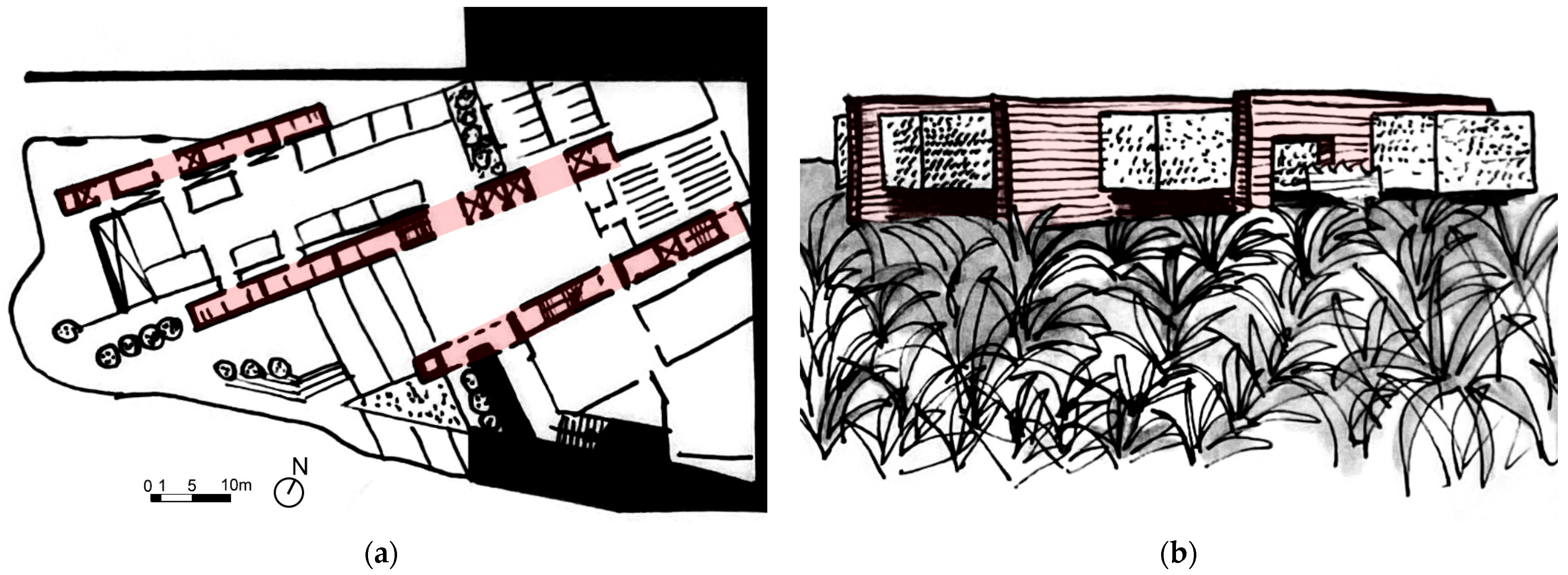

3.3.6. Case Study 6: Al-Aredh Qasr Ceremony Hall (2018), Schiattarella Associati
- Compositive aspects. The project is articulated in a composition of volumes of different shapes, sizes, and heights, organized along a central spine, which recalls the typology of the Arab Souq with the various masses flanking the central path (Figure 14a). Although the function here differs from that of the market, the central path is well suited to organizing the spaces appropriately, creating harmony in the project.
- Plastic figuration. The plasticity and malleability of the volumes create curious plays on the facades. The entrance is the real protagonist of the main facade. Here, the traditional Najd “Al-Bab” door is an essential visual element to guide the local population and identify its position, emphasized by sloping surfaces. The engravings of the traditional local door are here reinterpreted through a contemporary gold texture in relief (Figure 14b). Additionally, in this project, the past-to-present translation is not an imitation but a successful translation of the historical elements.
- Expressive value. This project’s relationship between full and empty spaces plays a fundamental role. Each volume features such openings that recall those of traditional Najd architecture. The project exploits the natural light penetrating its masses to illuminate the interior spaces, creating a chiaroscuro effect. The material used respects the reference territory through Riyadh stones, creating volumes with unique colors and textures of surfaces.
- Context connection. As previously mentioned, the project integrates the “symbols” of Saudi cultural identity and the meaning of the formal elements that reflect that identity (Figure 14c). The “horizontal” arrangement of the irregular masses respects the flat level of the surrounding land surrounded by palm trees [44,45]. The interplay between solids and voids on the facade of different shapes and sizes offers extraordinary climatic capacities by modulating the light inside the buildings entirely made with the local stone of Riyadh.
3.3.7. Case Study 7: National Heritage Museum (2015), Omrania
- Compositive aspects. The plan of the building presents a “comb” arrangement, composed of clearly divided served and serving spaces, creating a proportionate rhythm between the alternation of the transparent exhibition spaces with the “habitable” walls containing stairs and services. Thick walls link tradition and modern construction by translating the traditional walls of the city of At-Turaif into a contemporary key through “habitable” walls (Figure 15a).
- Plastic figuration. The interaction between tradition and contemporaneity is played out in the relationship between the alternation of habitable walls closed with transparent and light “boxes.” The height of the walls, more significant than the exhibition spaces, brings out their importance as a reference to the past.
- Expressive value. The rough surfaces of the walls integrate with the surrounding environment. The walls give the project an architectural expressiveness provided by the porous surface typical of Najd architecture. The contrast between the heavy walls and the lightness of “boxes” gives an expressive balance to the entire museum (Figure 15b).
- Context connection. The design is inspired by the nearby ruins of Di’riyah, whose mud walls appear to have grown straight out of the ground, creating a series of heavy rammed earth walls. The arrangement of volumes and walls through a comb typology allows the building to merge with the surrounding landscape, providing views over the Wadi Hanifa [46,47]. The imposing partition walls were designed without openings to preserve the interior spaces from the arid climate, in turn shading the exhibition spaces by reducing their temperature.
4. Results and Discussion
5. Conclusions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- MoMRAH. Kingdom of Saudi Arabia’s Report on the Implementation of the New Urban Agenda. Ministry of Municipal, Rural Affairs & Housing. Kingdom of Saudi Arabia. 2022. Available online: https://www.urbanagendaplatform.org/sites/default/files/2023-04/NUA%20Report%20Final_05Dec2022-compressed.pdf (accessed on 2 May 2023).
- Rong, W.; Bahauddin, A. Heritage and Rehabilitation Strategies for Confucian Courtyard Architecture: A Case Study in Liaocheng, China. Buildings 2023, 13, 599. [Google Scholar] [CrossRef]
- Ministry of Culture. Our Cultural Vision for the Kingdom of Saudi Arabia. 2019. Available online: https://www.moc.gov.sa/themes/custom/moc/assets/pdf/MOC_Cultural_Vision_EN_NEW.pdf (accessed on 2 May 2023).
- Salameh, M.; Touqan, B. From Heritage to Sustainability: The Future of the Past in the Hot Arid Climate of the UAE. Buildings 2023, 13, 418. [Google Scholar] [CrossRef]
- UNESCO—United Nations Educational, Scientific and Cultural Organization. Florence Declaration: Culture, Creativity and Sustainable Development. Research, Innovation, Opportunities. In UNESCO World Forum on Culture and Cultural Industries, 3rd ed.; UNESCO: Florence, Italy, October 2014; Available online: https://unesdoc.unesco.org/ark:/48223/pf0000230394 (accessed on 9 May 2023).
- Moscatelli, M. Cultural identity of places through a sustainable design approach of cultural buildings. The case of Riyadh. IOP Conf. Ser. Earth Environ. Sci. 2022, 1026, 012049. Available online: https://iopscience.iop.org/article/10.1088/1755-1315/1026/1/012049 (accessed on 31 May 2023). [CrossRef]
- Bacon, E.N. Design of Cities; Revised Edition; Penguin Publishing Group: London, UK, 1974; pp. 16–18. [Google Scholar]
- Bilardi, A. Rappresentazione e rappresentatività dell’architettura. Il disegno delle superfici nelle opere di Herzog et de Meuron. Doctoral Thesis, University of Naples Federico II, Naples, Italy, 2016. Available online: http://www.fedoa.unina.it/10786/1/bilardi_addolorata_28.pdf (accessed on 9 May 2023).
- Chizzoniti, D.; Moscatelli, M. Expressiveness and figuration in the construction of social architecture. In Modernity, Frontiers and Revolutions, 1st ed.; Monteiro, M.R., Ming Kong, M., Pereira Neto, M.J., Eds.; CRC Press: London, UK, 2018; pp. 98–105. [Google Scholar]
- NASA-Goddard Space Flight Center. Dust Storm in Saudi Arabia. 2005. Available online: https://earthobservatory.nasa.gov/images/15004/dust-storm-in-saudi-arabia (accessed on 9 May 2023).
- UNESCO—World Heritage Convention. At-Turaif District in ad-Dir’iyah. 2010. Available online: https://whc.unesco.org/en/list/1329/ (accessed on 9 May 2023).
- Bay, M.A.; Alnaim, M.M.; Albaqawy, G.A.; Noaime, E. The Heritage Jewel of Saudi Arabia: A Descriptive Analysis of the Heritage Management and Development Activities in the At-Turaif District in Ad-Dir’iyah, a World Heritage Site (WHS). Sustainability 2022, 14, 10718. [Google Scholar] [CrossRef]
- Ishteeaque, E.M. Native Architecture of Central Region (Najd) And Northern regions. In The Native Architecture of Saudi Arabia; Riyadh Municipality: Riyadh, Saudi Arabia, 2008; pp. 24–27. [Google Scholar]
- Mortada, H. Sustainable Desert Traditional Architecture of the Central Region of Saudi Arabia. Sustain. Dev. 2016, 24, 6. [Google Scholar] [CrossRef]
- Dwidar, S.; Sirror, H.; Derbali, A.; Abdelgawad, D.; Abdelsattar, A. Importance of Internal Courtyards in Designing Historical and Contemporary Masjid. J. Islam. Archit. 2022, 7, 356–363. [Google Scholar] [CrossRef]
- Al-Nafea’, N.; Llewellyn-Jones, R. Riyadh’s vanishing courtyard houses. Asian Aff. 1997, 28, 335–342. [Google Scholar] [CrossRef]
- Heritage Commission. Al Masmak. 2021. Available online: http://heritage.moc.gov.sa/en/points-of-interest/al-masmak (accessed on 9 May 2023).
- RCRC—Royal Commission for Riyadh City. Al Masmak. 1998. Available online: https://www.rcrc.gov.sa/en/publication/al-masmak (accessed on 9 May 2023).
- Mazzetto, S. Assessing heritage reuse interventions in Gulf Countries. IOP Conf. Ser. Earth Environ. Sci. 2022, 1026, 012044. Available online: https://iopscience.iop.org/article/10.1088/1755-1315/1026/1/012044 (accessed on 31 May 2023). [CrossRef]
- Hebatallah, A.; Eman, S.A.; Mustafa, G.R. Traditional Market Design towards Cohesion between Social Sustainability and Bioclimatic Approach. IOP Conf. Ser. Mater. Sci. Eng. 2019, 471, 072002. Available online: https://iopscience.iop.org/article/10.1088/1757-899X/471/7/072002 (accessed on 31 May 2023).
- Tawfiq, M.A. Vernacular architecture education in the Islamic society of Saudi Arabia: Towards the development of an authentic contemporary built environment. Habitat Int. 1997, 21, 229–253. [Google Scholar] [CrossRef]
- Alnaim, M.M. The Hierarchical Order of Spaces in Arab Traditional Towns: The Case of Najd, Saudi Arabia. World J. Eng. Technol. 2020, 8, 347–366. [Google Scholar] [CrossRef]
- Ishteeaque, E.M. Native Architecture of Najd, Riyadh and Central Region. In The Native Architecture of Saudi Arabia; Riyadh Municipality: Riyadh, Saudi Arabia, 2008; pp. 51–85. [Google Scholar]
- Alnaim, M.M. Understanding the Traditional Saudi Built Environment: The Phenomenon of Dynamic Core Concept and Forms. World J. Eng. Technol. 2020, 10, 292–321. [Google Scholar] [CrossRef]
- Ghazala, A.A.S.A. The Concept of Visual Scope for Heritage Values and Vocabulary as an Introduction to Restoring Urban Identity in the Twenty-First Century. A Case Study of the Kingdom of Saudi Arabia. Archit. Res. 2021, 11, 1. [Google Scholar] [CrossRef]
- Alnaim, M.M. Traditional Najdi Settlement Architectural Elements: Harmonizing Function, Aesthetics, and Shared Socio-Cultural Meaning. J. Archit. Plan. 2021, 33, 261–276. [Google Scholar] [CrossRef]
- Kamel, M.K.; Mahgoub, Y.M. The Role of Decorative Design In Reviving The Aesthetics Of The Gulf Architectural Heritage. Psychol. Educ. 2021, 58, 1055–1066. Available online: http://psychologyandeducation.net/pae/index.php/pae/article/view/4760/4188 (accessed on 31 May 2023).
- Omrania. From Idea to Construction: The Design of Tuwaiq Palace. 2022. Available online: https://omrania.com/insights/from-idea-to-construction-the-design-of-tuwaiq-palace-2/ (accessed on 9 May 2023).
- Sarin, S. The Tuwaiq Palace by Frei Otto: Pearls in the Desert, Rethinking The Future. 2021. Available online: https://www.re-thinkingthefuture.com/case-studies/a2599-the-tuwaiq-palace-by-frei-otto-pearls-in-the-desert/ (accessed on 9 May 2023).
- Wikiarquitectura. Tuwaiq Palace—Data, Photos & Plans. Available online: https://en.wikiarquitectura.com/building/tuwaiq-palace/#tuwaiq-palace-pb (accessed on 9 May 2023).
- Omrania. Tuwaiq Palace. Available online: https://omrania.com/project/tuwaiq-palace/ (accessed on 9 May 2023).
- Berger, H. Light Structures—Structures of Light, 2nd ed.; AuthorHouse: Bloomington, IN, USA, 2005; pp. 110–117. [Google Scholar]
- Ishii, K. Membrane Designs and Structures in the World; Shinkenchiku-sha Co. Ltd.: Tokyo, Japan, 1999; pp. 208–209. [Google Scholar]
- Writer, S. Rasem Badran on Revitalizing Riyadh’s Architecture. 2018. Available online: https://www.middleeastarchitect.com/people/rasem-badran-on-revitalising-riyadhs-architecture (accessed on 9 May 2023).
- Mosqpedia. Great Mosque of Riyadh. Available online: https://mosqpedia.org/en/mosque/251 (accessed on 9 May 2023).
- RCRC—Royal Commission for Riyadh City. Mosques Built by RCRC. Available online: https://www.rcrc.gov.sa/en/projects/mosques (accessed on 9 May 2023).
- Kaihoul, A.; Sriti, L. Towards public identity and climate awareness architecture. In Cities’ Identity through Architecture and Arts, 1st ed.; Catalani, A., Nour, Z., Versaci, A., Hawkes, D., Bougdah, H., Sotoca, A., Ghoneem, M., Trapani, F., Eds.; Taylor & Francis Group: London, UK, 2018; pp. 129–137. [Google Scholar]
- Ali, M.K. The Use of Precedents in Contemporary Arab Architecture. Case Studies: Rasem Badran and Henning Larsen. Doctoral Thesis, University of Jordan, Amman, Jordan, 1981. [Google Scholar]
- Architizer. King Fahad National Library Riyadh. Available online: https://architizer.com/blog/projects/king-fahad-national-library-riyadh/ (accessed on 9 May 2023).
- Gerber Architekten. King Fahad National Library. 2014. Available online: https://www.archdaily.com/469088/king-fahad-national-library-gerber-architekten (accessed on 9 May 2023).
- Scalco, C. Addiriyah Contemporary Art Center (Arabia Saudita)—Schiattarella Associati. 2016. Available online: https://www.arketipomagazine.it/addiriyah-contemporary-art-center-arabia-saudita-schiattarella-associati/ (accessed on 9 May 2023).
- Isplora. ArchiTalks #12: Schiattarella Associati. 2020. Available online: https://www.isplora.com/it/News/Architetti/architalks-schiattarella-associati-lezione (accessed on 9 May 2023).
- Schiattarella Associati. We Empower Cultural Diversity. Available online: https://www.schiattarella.com/project/addiriyah-art-center/ (accessed on 9 May 2023).
- Schiattarella Associati. Al Aredh Qasr. Available online: https://www.schiattarella.com/project/al-aredh/ (accessed on 9 May 2023).
- Architizer. Al Alredh Kasr Ceremony Hall. Available online: https://architizer.com/projects/al-aredh-kasr-ceremony-hall/ (accessed on 9 May 2023).
- Omrania. Contemporary Design Inspired By Architectural Heritage. 2017. Available online: https://omrania.com/insights/contemporary-design-inspired-architectural-heritage/ (accessed on 9 May 2023).
- Omrania. National Architectural Heritage Exhibition. Available online: https://omrania.com/project/national-architectural-heritage-exhibition/ (accessed on 9 May 2023).
- Abuorf, H.; Wafi, S. A Continuity of the Past in Contemporary Architecture: Investigating a “Cultural Continuity”. Int. Res. J. Adv. Eng. Sci. 2020, 5, 288–294. [Google Scholar]
- Mazzetto, S. Sustainable Heritage Preservation to Improve the Tourism Offer in Saudi Arabia. Urban Plan. 2022, 7, 195–207. [Google Scholar] [CrossRef]
- Hu, M.; Suh, J.; Pedro, C. An Integrated Framework for Preservation of Hawaii Indigenous Culture: Learning from Vernacular Knowledge. Buildings 2023, 13, 1190. [Google Scholar] [CrossRef]
Criteria | Definition Criteria | Sub-Criteria |
---|---|---|
Compositive aspects | Analysis of logical and artistic approaches for formal choices and the composition of spaces through historical and cultural integration. |
|
Plastic figuration | Quality of a building to develop freely in space, leaving its volume and richness of articulated forms perfectly visible. |
|
Expressive value | Expressive character of the walls through the materiality of rough and tactile surfaces. |
|
Context connection | Integration of the project with the environment, paying attention to local resources and climatic aspects. |
|
Building Name | Year | Status | Architects | Award/Relevance | Location | |
---|---|---|---|---|---|---|
1 | Tuwaiq Palace | 1985 | Built | Frei Otto, Omrania and Büro Happold | Aga Khan Award for Architecture, 1998 | Al Safarat |
2 | King Fahd International Stadium | 1986 | Built | Ian Fraser and John Roberts and Partners | One of the largest stadium roofs in the world | Al Maizilah |
3 | Imam Turki Bin Abdullah Grand Mosque | 1992 | Built | Rasem Badran and Dar Al Omran | Aga Khan Award for Architecture, 1995 | Ad Dirah |
4 | King Fahad National Library | 1983 and 2013 | Built | Gerber Architekten | Best architectural work in 2015 by global A+Award program | Al Olaya |
5 | Addiriyah Art Center | 2015 | Ongoing | Schiattarella Associati |
| Ad Diriyah |
6 | Al-Aredh Qasr Ceremony Hall | 2018 | Project | Schiattarella Associati | The complexity of the design that derives from the attention to the details, the working methods and the materials | Al Safarat |
7 | National Heritage Museum | 2015 | Project | Omrania | Innovative project without reproducing historical forms or relying on foreign models | Ad Diriyah |
Case Studies | Criteria | ||||
---|---|---|---|---|---|
Compositive Aspects | Plastic Figuration | Expressive Value | Context Connection | ||
1. | Tuwaiq Palace (1985), Frei Otto, Omrania and Büro Happold | Open courtyard surrounded by thick walls reminiscent of a fortress that encloses an oasis in the desert with tensile structure “tents”. | Organic and curved composition of the wall that winds around itself. | A smooth-flowing surface that resembles wind-crafted dunes. Expressive balance between mud walls and Teflon-coated fiberglass. | Garden oasis as a physical protection of the of the desert around it, and physical connection with the sky. |
2. | King Fahd International Stadium (1986), Ian Fraser | Central plan covered along the perimeter with a tensile structure roof reminiscent of a Bedouin tent. | The rich sculpture of the roof umbrella generates a plastic appearance generated by its sinusoidal shapes. | The roof’s steep folds give the exterior a powerfully expressive image to create a new visual narrative. | The roof creates a strong connection between the building, the sky, and the desert, providing shade and comfort in the hot desert climate. |
3. | Imam Turki Bin Abdullah Grand Mosque (1992), Rasem Badran—Dar Al Omran | Open courtyard preceding the main prayer hall. | The minarets break the horizontality of the main volumes of the mosque, generating verticality to the entire composition of the masses. | Small triangular openings create a rhythm in the facade and bring out the expressive character of the building of apparent simplicity. | The alternation of solids and voids perfectly integrates the Mosque with the traditional Najd urban fabric. The yard creates a suitable microclimate inside. |
4. | King Fahad National Library (1983)—Addition building in 2013, Gerber Architekten | Cruciform plan enclosed within a square-plan building. The result is a “box” within a “box”. | The tents on the envelope act as umbrellas reinterpreting the tradition of the Bedouin tent in a modern, technological way. | The “skin” of the building achieves a strong expressive value thanks to the three-dimensional aspect of the surface. | The membrane facade maintains a relationship with the outside, with the possibility of looking both in and out. It combines sun protection with light penetration and transparency. |
5. | Addiriyah Art Center (2015), Schiattarella Associati | Urban fragment connected to the rest of the city. | The harmonious composition of the irregular masses creates a balance between the project and the context. | The materiality is expressed by a difficult material to shape: the void: the space between the volumes. | The building is well integrated with the surrounding environment, creating permeable alleys, staggered volumes of different heights, and good shading between the buildings. |
6. | Al-Aredh Qasr Ceremony Hall (2018), Schiattarella Associati | The volumes are organized along a central spine which recalls the typology of the Arab Souq. | The plasticity and malleability of the volumes create curious plays on the facades. | The Riyadh stones creating volumes with unique colors and textures of surfaces. | Integration of the surrounding context starting from the “symbols” of Saudi cultural identity. |
7. | National Heritage Museum (2015), Omrania | A “comb” arrangement plan with thick “habitable” walls deriving from the ancient walls of the At-Turaif district. | Alternation of the heavy walls with light “boxes”. | Rough wall surfaces alternate with a rhythmic series of glass light boxes. | The walls preserve the interior spaces from the arid climate shading the exhibition spaces by reducing their temperature. |
