Multi-Component Cements for Sealing Casing Columns in Boreholes
Abstract
:1. Introduction
Multi-Component Cements
- Reduction in the content of clinker phases susceptible to corrosion, i.e., tricalcium aluminate C3A in the cement composition, which is related to the reduction in the share of clinker in the cement composition in favor of ash;
- Reduction in Ca(OH)2 content in the hardened cement matrix;
- Change in the microstructure of the hardened cement slurry as a result of the fly ash pozzolanic reaction;
- Sealing the structure of the hardening cement slurry using pozzolanic reaction products and non-hydrated fly ash particles.
2. Materials and Methods
2.1. Subject of Study
- Clinker (K)—from 40 to 64% by weight;
- Blast furnace slag (S)—from 18 to 30% by weight;
- Pozzolans (P, Q) or silica fly ash (V)—from 18 to 30% by weight.
- Portland clinker content—65% by weight;
- Content of ground granulated blast furnace slag—30% by weight;
- Setting regulator (gypsum) content—5% by weight.
- Recipe A—with 18% silica fly ash and 82% CEM II/B-S 32.5R cement;
- Recipe B—containing 30% silica fly ash and 70% CEM II/B-S 32.5R cement.
2.2. Determination of Technological Parameters of Fresh and Hardened Cement Slurries
- PN-EN 197-1. Cement. Part 1. Composition, requirements and compliance criteria for common cements. 2012 (after amendment).
- PN-EN ISO 10426-1. Oil and gas industry. Cements and materials for cementing holes. Part 1. Specification. 2010.
- PN-EN ISO 10426-2. Oil and gas industry. Cements and materials for cementing holes. Part 2: Testing of drilling cements. 2006.
- PN-EN 535 ISO 2431. Determination of flow time using flow cups. March 1993.
- (a)
- For fresh cement slurries compounds:
- Density—using Baroid balance;
- Free water—using a measuring cylinder;
- Fluidity—using the AzNII cone;
- Relative viscosity—using a Ford cup No. 4;
- Filtration—using a Baroid filter press;
- Setting time—using the Vicat apparatus;
- Rheological properties (plastic viscosity, apparent viscosity, yield point)—using a rotary viscometer with coaxial cylinders, type Chan—35 API Viscometer—Tulusa, Oklahoma USA EG.G Chandler Engineering with twelve rotational speeds (600, 300, 200, 100, 60, 30, 20, 10, 6, 3, 2, 1 rpm, corresponding to the following shear rates: 1022.04, 511.02, 340.7, 170.4, 102.2, 51.1, 34.08, 17.04, 10.22, 5.11, 3.41, 1.70 s−1);

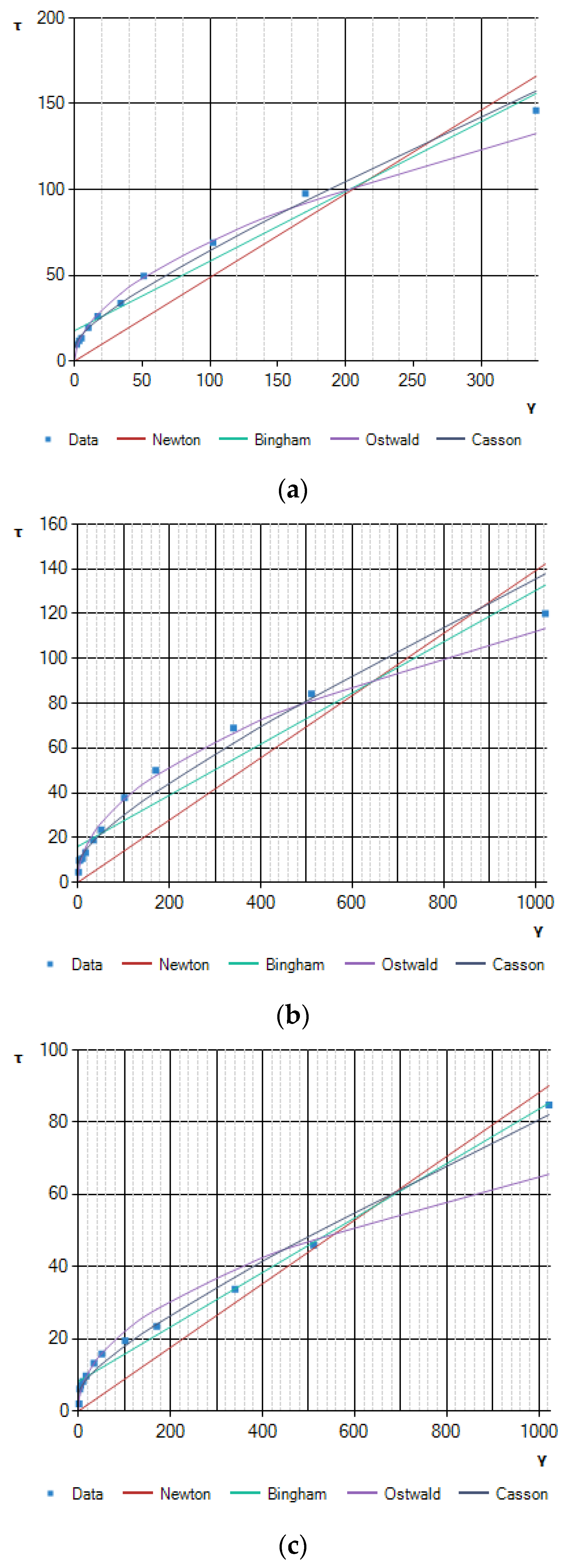

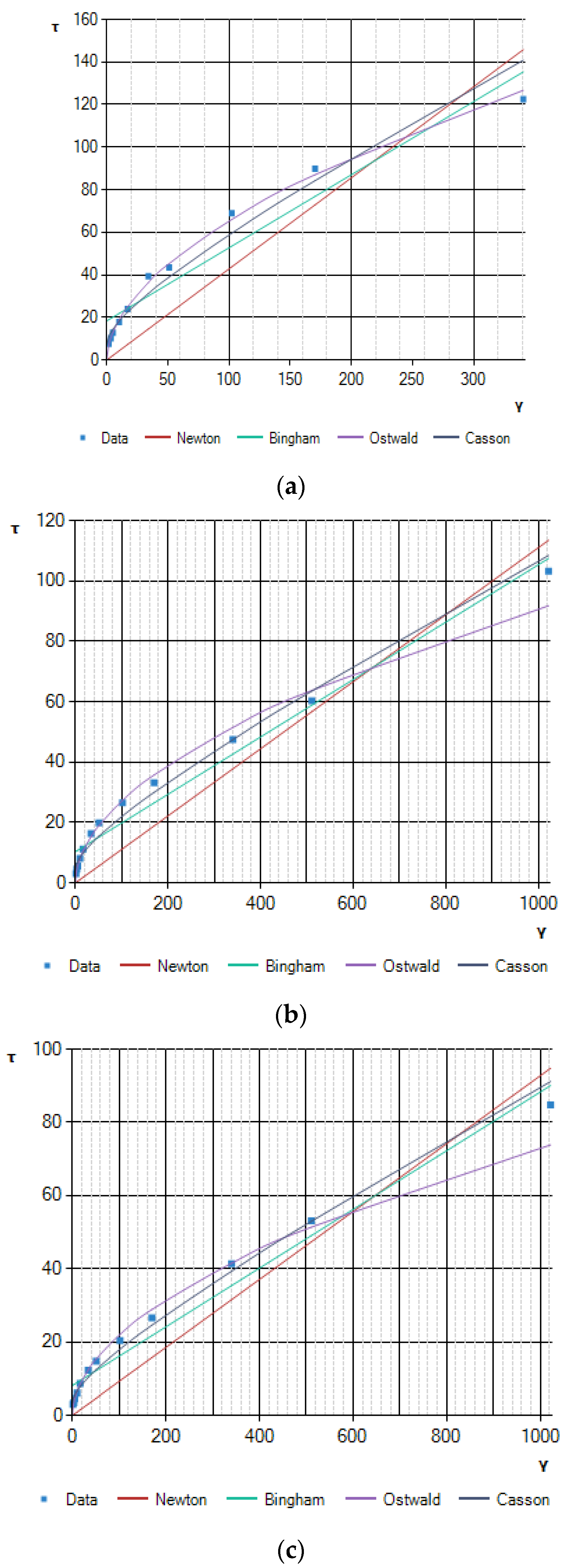

- Determination of the rheological model—the selection of the optimal rheological model of cement slurries consists in determining the rheological curve that enables the best description of the measurement results in the coordinate system: shear stress (τ)–shear rate (γ).
- (b)
- For hardened cement slurries compounds:
- Compressive and bending strength—using a testing machine—model E183 PN by Matest.
3. Results and Discussion
4. Conclusions
- The percentage content of the main components (clinker, slag, ash) in multi-component cement has a significant impact on the technological parameters of fresh and hardened cement slurries. The selection of the CEM V cement variety will depend on the geological and technical conditions in which casing columns are cemented in boreholes.
- Technological parameters of slurries based on multi-component cements can be designed and selected due to the nature of the work performed and the required preferences. They can be applied, among others, to the following:
- Cementing columns of casing pipes in boreholes;
- Liquidation of absorptive zones in the subsoil;
- Hydrotechnical and underground construction;
- Soil stabilization in road and urban construction;
- Special geoengineering works (drilled piles, diaphragm walls, displacement piles formed in the ground, micropiles).
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Gonet, A.; Knez, D.; Macuda, J.; Stryczek, S. Selected Issues of Wellbore Hydraulics and Cementing; Knez, D., Ed.; AGH University of Science and Technology Press: Cracow, Poland, 2017. [Google Scholar]
- Gonet, A.; Stryczek, S. Podstawy Geoinżynierii; Wydawnictwa AGH: Cracow, Poland, 2020. [Google Scholar]
- Kremieniewski, M. Zaczyny o obniżonej gęstości stosowane w warunkach występowania komplikacji w otworze wiertniczym. Nafta-Gaz 2021, 77, 736–743. [Google Scholar] [CrossRef]
- Pisarczyk, S.G. Metody Modyfikacji Podłoża Gruntowego; Oficyna Wydawnicza Politechniki Warszawskiej: Warszawa, Poland, 2005. [Google Scholar]
- Stryczek, S.; Gonet, A. Geoinżynieria. Studia; Rozprawy, Monografie 2000 Nr. 71; Polska Akademia Nauk. Instytut Gospodarki Surowcami Mineralnymi i Energią: Cracow, Poland, 2000. [Google Scholar]
- Aadnoy, B.S.; Cooper, I.; Miska, S.Z.; Mitchell, R.F. Advanced Drilling and Well Technology; SPE: Richardson, TX, USA, 2009. [Google Scholar]
- Kremieniewski, M. Poprawa Stabilności Sedymentacyjnej Zaczynów Cementowych; Prace Naukowe Instytutu Nafty i Gazu Państwowego Instytutu Badawczego: Kraków, Poland, 2017. [Google Scholar]
- Kremieniewski, M. Recipe of Lightweight Slurry with High Early Strength of the Resultant Cement Sheath. Energies 2020, 13, 1583. [Google Scholar] [CrossRef] [Green Version]
- Kremieniewski, M.; Rzepka, M.; Stryczek, S.; Wiśniowski, R. Comparison of gas migration test and building structural strength of slurry in the aspect of limiting gas invasion. AGH Drilling Oil Gas 2016, 33, 595–608. Available online: http://journals.bg.agh.edu.pl/DRILLING/2016.33.3/drill.2016.33.3.595.pdf (accessed on 15 February 2023). [CrossRef] [Green Version]
- Kremieniewski, M.; Wiśniowski, R.; Stryczek, S.; Orłowicz, G. Possibilities of Limiting Migration of Natural Gas in Boreholesin the Context of Laboratory Studies. Energies 2021, 14, 4251. [Google Scholar] [CrossRef]
- Stryczek, S.; Gonet, A.; Rzyczniak, M. Technologia Cieczy Wiertniczych; Wydawnictwa AGH: Kraków, Poland, 2018. [Google Scholar]
- Stryczek, S.; Małolepszy, J.; Gonet, A.; Wiśniowski, R.; Kotwica, Ł. Wpływ Dodatków Mineralnych Na Kszałtowanie Się Właściwości Technologicznych Zaczynów Uszczelniających Stosowanych W Wiertnictwie I Geoinżynierii; Monografia pod redakcją Stryczka S. Wydawnictwo SCMR Wioska z Chorzowa: Kraków, Poland, 2011; Projekt współfinansowany przez UE w ramach środków Europejskiego Funduszu społecznego—Kapitał Ludzki. [Google Scholar]
- Stryczek, S.; Wiśniowski, R.; Gonet, A. Wpływ Plastyfikatorów Na Właściwości Reologiczne Zaczynów Uszczelniających Do Prac Geoinżynieryjnych; Wiertnictwo, Nafta, Gaz; Wydawnictwa AGH: Kraków, Poland, 2007. [Google Scholar]
- Stryczek, S.; Wiśniowski, R.; Uliasz-Misiak, B.; Złotkowski, A.; Kotwica, Ł.; Rzepka, M.; Kremieniewski, M. Studia Nad Doborem Zaczynów Uszczelniających W Warunkach Wierceń W Basenie Pomorskim; Stryczek, S., Ed.; Wydawnictwa AGH: Kraków, Poland, 2016. [Google Scholar]
- Gonet, A.; Stryczek, S.; Kremieniewski, M. Modern Methods of Strengthening and Sealing Salt Mines. Energies 2022, 15, 5303. [Google Scholar] [CrossRef]
- Kurdowski, W. Chemia Cementu I Betonu; Wydawnictwo Naukowe PWN: Warszawa, Poland, 2010. [Google Scholar]
- Małolepszy, J. Hydratacja I Własności Spoiwa Żużlowo-Alkalicznego; Wydawnictwa AGH: Kraków, Poland, 1989. [Google Scholar]
- Neville, A.M. Właściwości Betonu (Tłumaczenie Z Języka Angielskiego), 5th ed.; Polski Cement: Kraków, Poland, 2012. [Google Scholar]
- Izak, P. Reologia Zawiesin Ceramicznych; Wydawnictwa AGH: Kraków, Poland, 2012. [Google Scholar]
- Kembłowski, Z. Reometria Płynów Nienewtonowskich; WNT: Warszaw, Poland, 1973. [Google Scholar]
- Wiśniowski, R.; Stryczek, S.; Skrzypaszek, K. Kierunki Rozwoju Badań Nad Reologią Płynów Wiertniczych; Wiertnictwo, Nafta, Gaz; AGH: Kraków, Poland, 2007; Volume 24. [Google Scholar]
- Wiśniowski, R.; Stryczek, S.; Skrzypaszek, K. Wyznaczanie Oporów Laminarnego Przepływu Zaczynów Cementowych, Opisywanych Modelem Herschela-Bulkleya; Wiertnictwo, Nafta, Gaz; AGH: Kraków, Poland, 2006; Volume 23. [Google Scholar]
- Wiśniowski, R. O Oporach Przepływu Cieczy Wiertniczych; Wiertnictwo, Nafta, Gaz; AGH: Kraków, Poland, 2003; Volume 20. [Google Scholar]
- Kremieniewski, M.; Błaż, S.; Stryczek, S.; Wiśniowski, R.; Gonet, A. Effect of Cleaning the Annular Space on the Adhesion of the Cement Sheath to the Rock. Energies 2021, 14, 5187. [Google Scholar] [CrossRef]
- Kon, E.; Jóźwiak, H. Klasyfikacje i Wymagania Dla Domieszek Do Betonu, Zaprawy i Zaczynu. Cem. Wapno Beton 2000, 5, 23–26. [Google Scholar]
- Kucharska, L. Tradycyjne i współczesne domieszki do betonu zmniejszające ilość wody zarobowej. Cem. Wapno Beton 2000, 5, 46–61. [Google Scholar]
- Kremieniewski, M. Wpływ wybranych dodatków lekkich na zmianę parametrów technologicznych zaczynu. Nafta-Gaz 2022, 78, 426–434. [Google Scholar] [CrossRef]
- Stryczek, S.; Gonet, A.; Kremieniewski, M. Special Cement Slurries for Strengthening Salt Rock Mass. Energies 2022, 15, 6087. [Google Scholar] [CrossRef]
- Łukowski, P. Nowe osiągnięcia w dziedzinie domieszek do betonu. Nowocz. Bud. Inżynieryjne 2015, 32–36. [Google Scholar]
- Kremieniewski, M. Rola plastyfikatora w projektowaniu zaczynu lekkiego o podwyższonej stabilności sedymentacyjnej. Nafta-Gaz 2019, 75, 571–578. [Google Scholar] [CrossRef]
- Łukowski, P. Domieszki upłynniające-osiągnięcia, perspektywy, wyzwania. Bud. Technol. Archit. 2018, 53–56. [Google Scholar]
- Kremieniewski, M. Improving the Efficiency of Oil Recovery in Research and Development. Energies 2022, 15, 4488. [Google Scholar] [CrossRef]
- Available online: https://www.basf.com/pl/pl.html (accessed on 4 November 2021).
- Available online: https://www.master-builders-solutions.com/pl-pl (accessed on 4 November 2021).
- Available online: https://www.master-builders-solutions.com/pl-pl/products/masterglenium (accessed on 4 November 2021).
- Kremieniewski, M. Korelacja skuteczności działania środków dyspergujących o różnym mechanizmie upłynniania. Nafta-Gaz 2020, 76, 816–826. [Google Scholar] [CrossRef]
- Wiśniowski, R.; Skrzypaszek, K. Komputerowe wspomaganie wyznaczania modelu reologicznego cieczy—Program Flow-Fluid Coef. NTTB Nowocz. Tech. I Technol. Bezwykopowe 2001, 2, 72–77. [Google Scholar]
- Wiśniowski, R.; Skrzypaszek, K. Analiza modeli reologicznych stosowanych w technologiach inżynierskich. Wiert. Naft. Gaz 2006, 23, 523–532. [Google Scholar]
- Kremieniewski, M. Zmiana parametrów reologicznych zaczynu lateksowego pod wpływem dodatku mikrosfery. Nafta-Gaz 2020, 76, 37–45. [Google Scholar] [CrossRef]
Cement CEM V/A according to the PN-EN 197-1 Standard | CEM V/A Cement Prepared according to Recipe A | CEM V/A Cement Prepared according to Recipe B | |
---|---|---|---|
Clinker content, % by weight | 40–64 | 53.3 | 45.5 |
Slag content (S), % by weight | 18–30 | 24.6 | 21.0 |
Ash content (V), % by weight | 18–30 | 18.0 | 30.0 |
Set time regulator, % by weight | 0–5 | 4.0 | 3.5 |
w/c | 0.4 | 0.5 | 0.6 | ||
---|---|---|---|---|---|
Density | kg/m3 | Cem A | 1870 | 1800 | 1690 |
Cem B | 1830 | 1720 | 1640 | ||
Free water | % | Cem A | 0.00 | 0.00 | 0.00 |
Cem B | 0.00 | 0.00 | 0.64 | ||
Fluidity | mm | Cem A | 110 | 135 | 200 |
Cem B | 95 | 120 | 160 | ||
Relative viscosity | s | Cem A | - | - | 29.00 |
Cem B | - | - | 36.45 | ||
Filtering | mL/s | Cem A | 60/15 | 90/32 | 110/23 |
Cem B | 35/10 | 70/22 | 105/26 |
w/c | 0.4 | 0.5 | 0.6 | |
---|---|---|---|---|
Start of binding | Cem A | 4 h 40 min | 5 h 20 min | 6 h 20 min |
Cem B | 5 h 00 min | 6 h 50 min | 7 h 20 min | |
End of binding | Cem A | 7 h 20 min | 8 h 30 min | 10 h 40 min |
Cem B | 8 h 00 min | 11 h 00 min | 13 h 00 min | |
Setting time | Cem A | 2 h 20 min | 3 h 10 min | 4 h 20 min |
Cem B | 3 h 00 min | 4 h 10 min | 5 h 40 min |
w/c | 0.4 | 0.5 | 0.6 | ||
---|---|---|---|---|---|
Rheological model type | Binghama | Plastic viscosity n, Pas | 0.188 | 0.0951 | 0.08 |
Yield limit t, Pa | 30.151 | 10.344 | 8.125 | ||
Correlation coefficient r, | 0.925 | 0.985 | 0.9852 | ||
Oswalda de Waele | Consistency factor k, Pasn | 5.548 | 2.403 | 1.962 | |
Exponent n, | 0.53 | 0.526 | 0.524 | ||
Correlation coefficient r, | 0.986 | 0.991 | 0.99 | ||
Casonna | Plastic viscosity n, Pas | 0.144 | 0.068 | 0.059 | |
Yield limit t, Pa | 11.425 | 4.315 | 3.246 | ||
Correlation coefficient r, | 0.947 | 0.9941 | 0.995 |
w/c | 0.4 | 0.5 | 0.6 | ||
---|---|---|---|---|---|
Rheological model type | Binghama | Plastic viscosity n, Pas | 0.207 | 0.1143 | 0.066 |
Yield limit t, Pa | 32.149 | 16.072 | 9.018 | ||
Correlation coefficient r, | 0.924 | 0.963 | 0.986 | ||
Oswalda de Waele | Consistency factor k, Pasn | 6.207 | 3.95 | 2.573 | |
Exponent n, | 0.521 | 0.485 | 0.461 | ||
Correlation coefficient r, | 0.988 | 0.997 | 0.984 | ||
Casonna | Plastic viscosity n, Pas | 0.16 | 0.081 | 0.042 | |
Yield limit t, Pa | 12.013 | 6.871 | 4.511 | ||
Correlation coefficient r, | 0.945 | 0.981 | 0.996 |
w/c | 0.4 | 0.5 | 0.6 | |||
---|---|---|---|---|---|---|
Flexural strength, MPa | 1 day | Cement | A | <1.29 | <1.29 | <1.29 |
Cement | B | <1.29 | <1.29 | <1.29 | ||
2 days | Cement | A | 3.60 | 2.10 | <1.29 | |
Cement | B | 3.30 | 1.95 | <1.29 | ||
7 days | Cement | A | 6.70 | 4.10 | 3.10 | |
Cement | B | 5.60 | 4.00 | 2.40 | ||
14 days | Cement | A | 7.90 | 5.80 | 3.90 | |
Cement | B | 6.40 | 5.20 | 3.70 | ||
21 days | Cement | A | 9.30 | 7.20 | 5.10 | |
Cement | B | 8.80 | 6.60 | 4.40 | ||
28 days | Cement | A | 9.90 | 8.00 | 5.40 | |
Cement | B | 9.20 | 7.00 | 4.60 |
w/c | 0.4 | 0.5 | 0.6 | |||
---|---|---|---|---|---|---|
Compressive strength, MPa | 1 day | Cement | A | 3.50 | 1.80 | 0.90 |
Cement | B | 2.90 | 1.20 | 0.80 | ||
2 days | Cement | A | 9.70 | 4.80 | 2.90 | |
Cement | B | 9.10 | 4.80 | 2.70 | ||
7 days | Cement | A | 22.00 | 11.10 | 6.80 | |
Cement | B | 20.00 | 10.40 | 6.20 | ||
14 days | Cement | A | 32.70 | 17.00 | 10.00 | |
Cement | B | 27.80 | 15.30 | 9.60 | ||
21 days | Cement | A | 39.10 | 22.90 | 14.20 | |
Cement | B | 33.90 | 19.60 | 12.90 | ||
28 days | Cement | A | 42.30 | 25.10 | 15.50 | |
Cement | B | 35.60 | 21.10 | 13.50 |
