Influence of Balcony Glazing on Energy Efficiency and Thermal Comfort of Dwellings in a Dry Mediterranean Climate within a Warm Semi-Arid Climate
Abstract
:1. Introduction

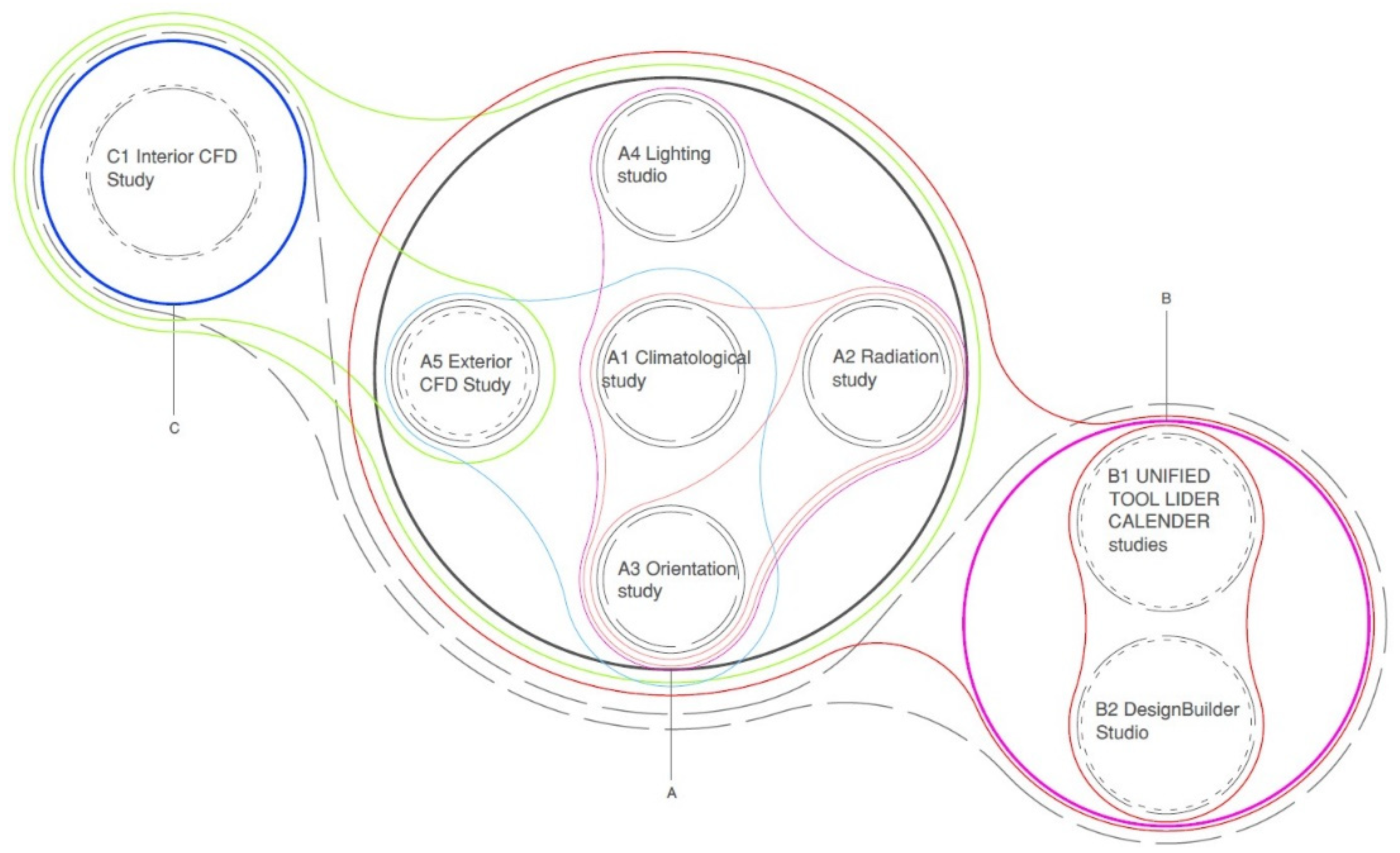

2. Materials and Methods
- -

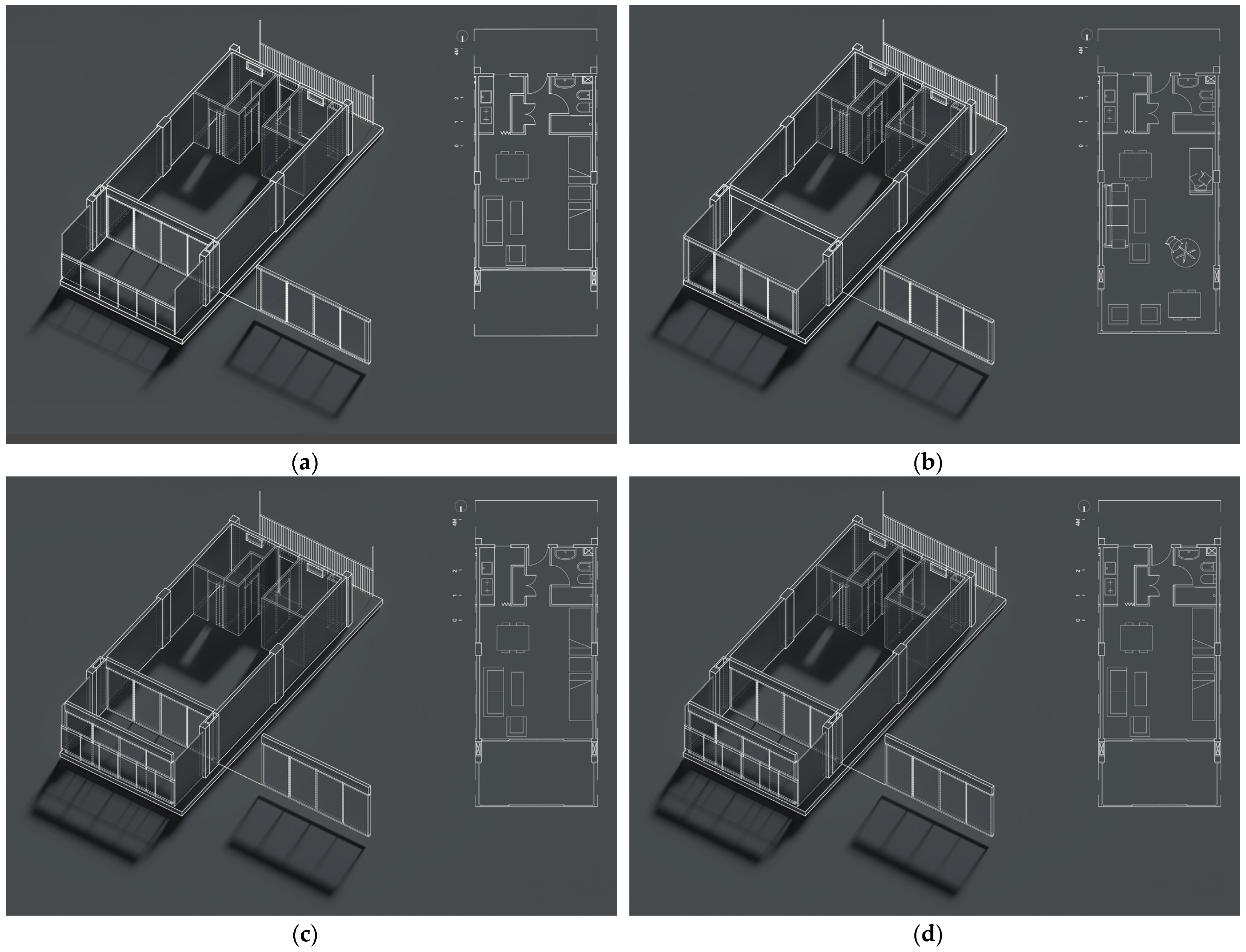

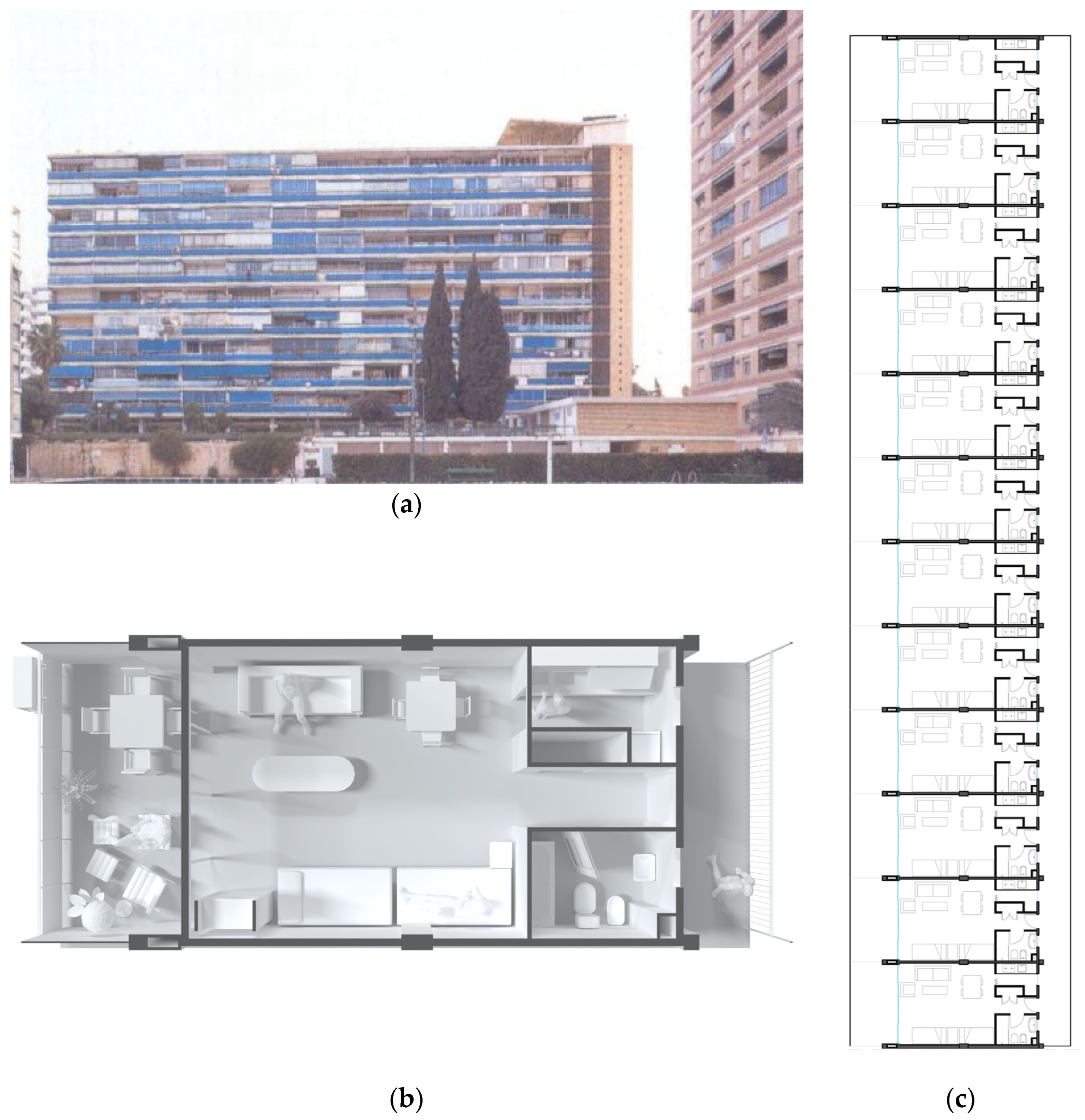

- Original house: A dwelling that maintains the original distribution with the exterior terrace (Figure 5a).
- -
- Modification 1: A refurbished dwelling with glazing on the terrace that joins it to the living room and eliminates the original enclosure that separated the living room from the terrace (Figure 5b).
- -
- Modification 2: A refurbished dwelling with glazing on the terrace that maintains the original façade windows and enclosures between the terrace and the living room (Figure 5c).
- -
- Modification 3: A refurbished dwelling with glazing on the terrace, maintaining the original façade enclosures and windows between the terrace and the living room, and applying natural ventilation in summer (Figure 5d).
3. Results

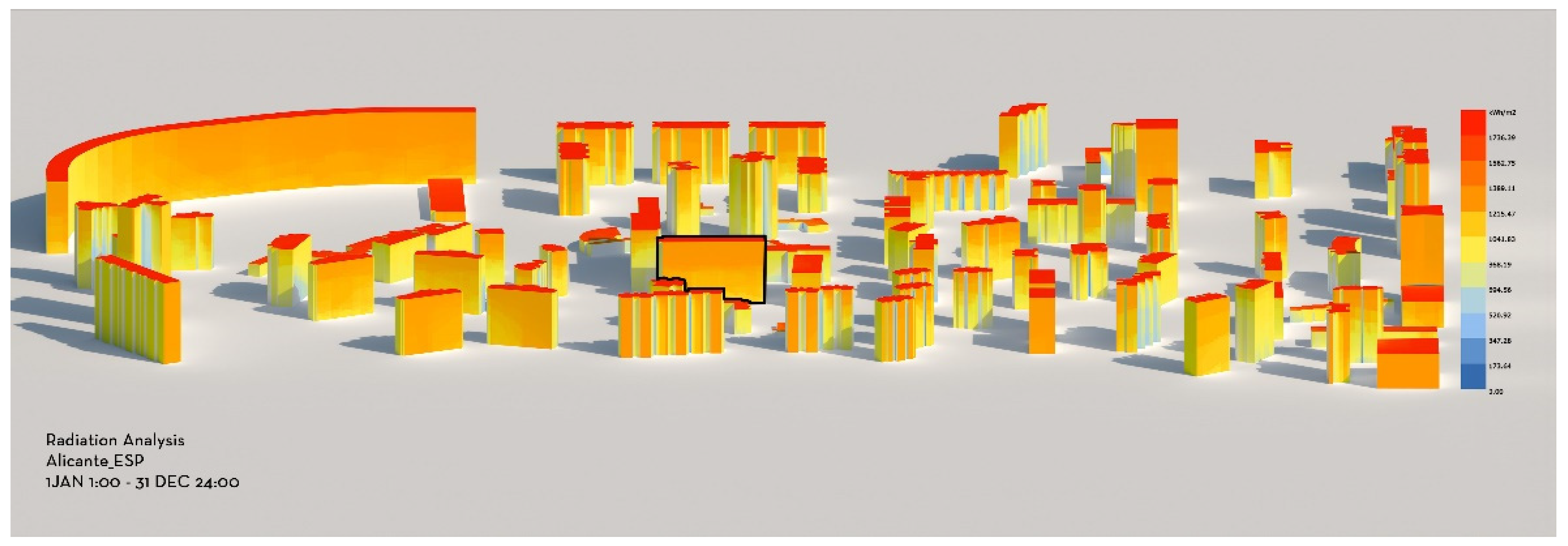

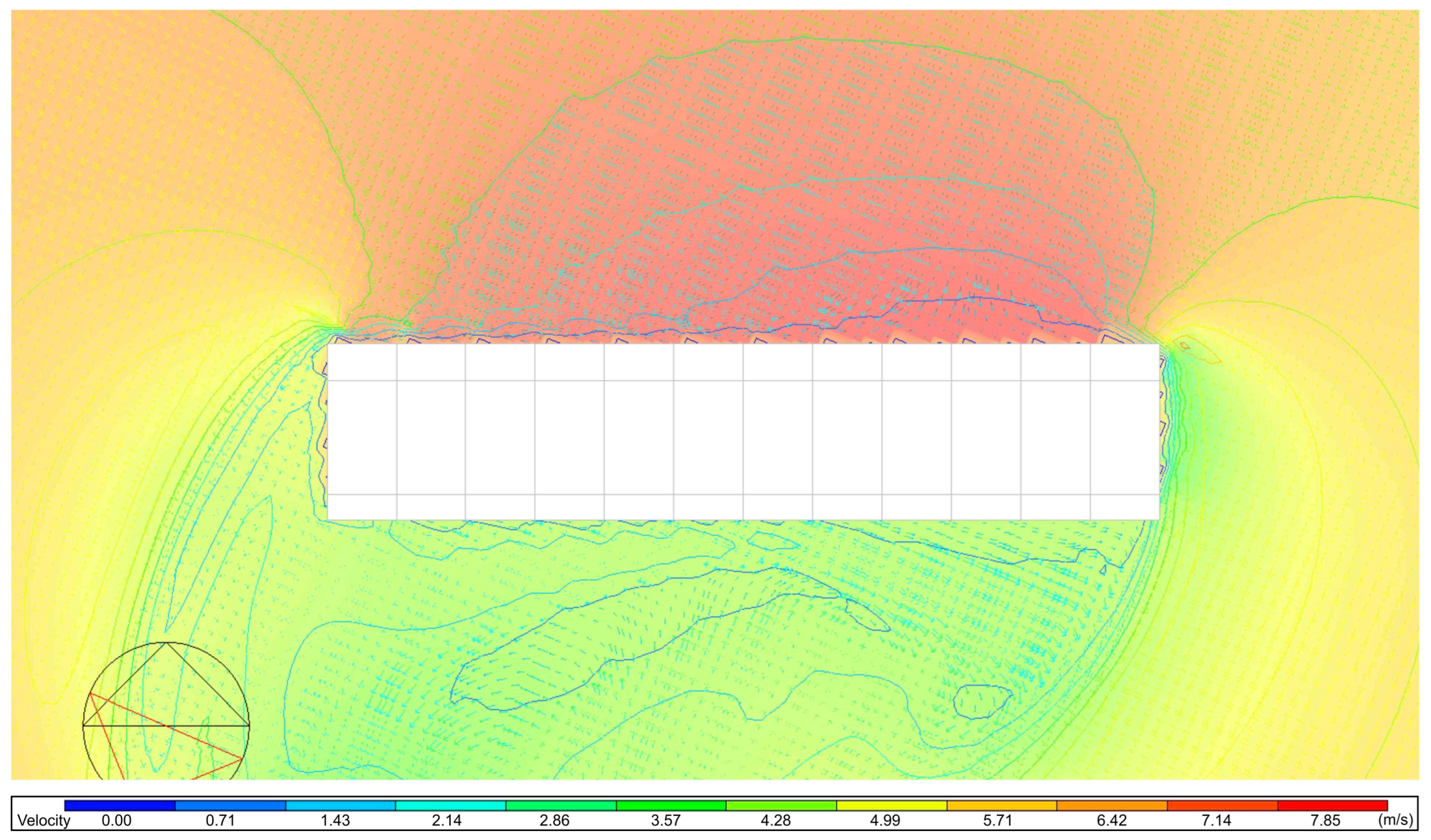

3.1. Climate Studies of the Building

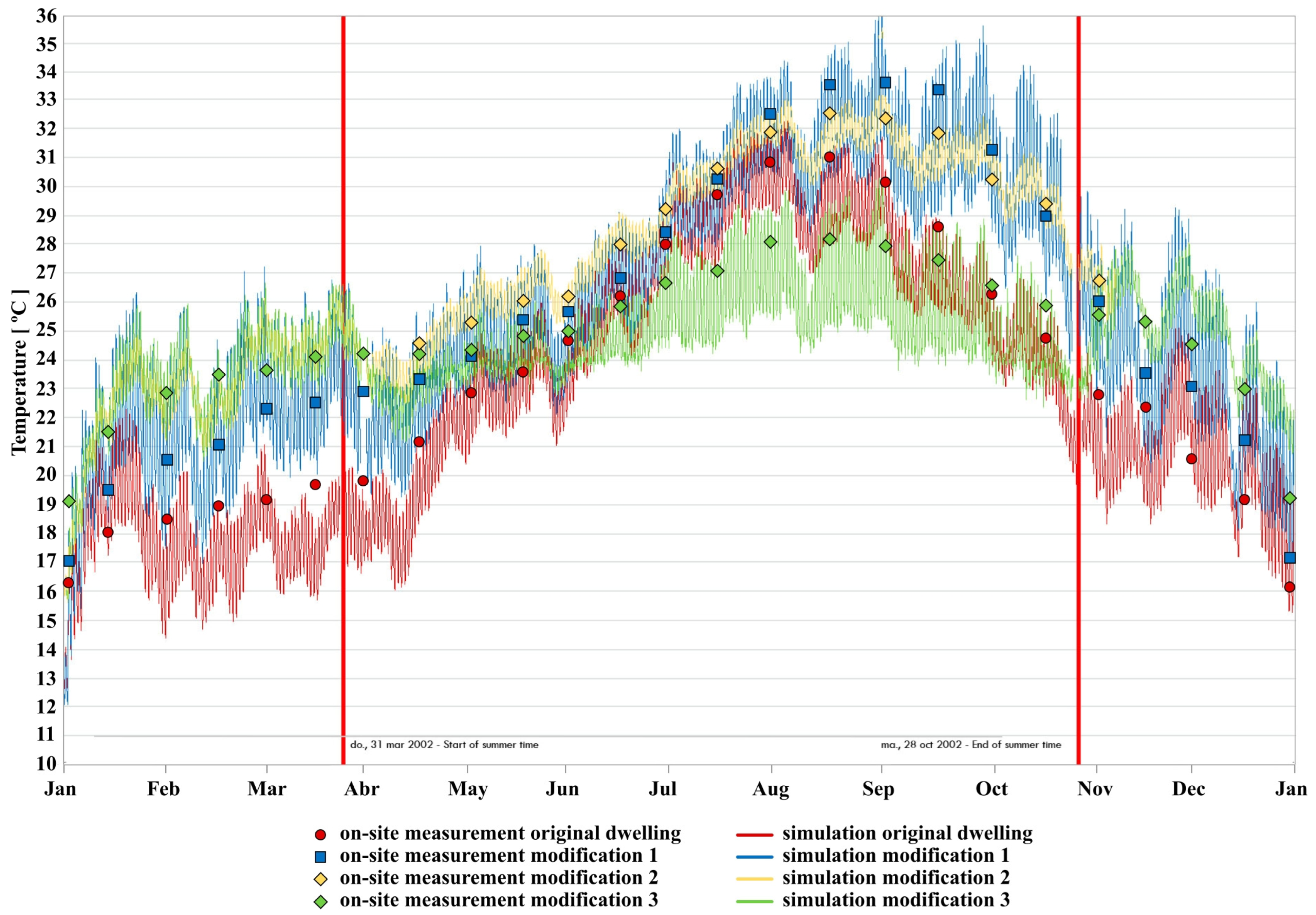

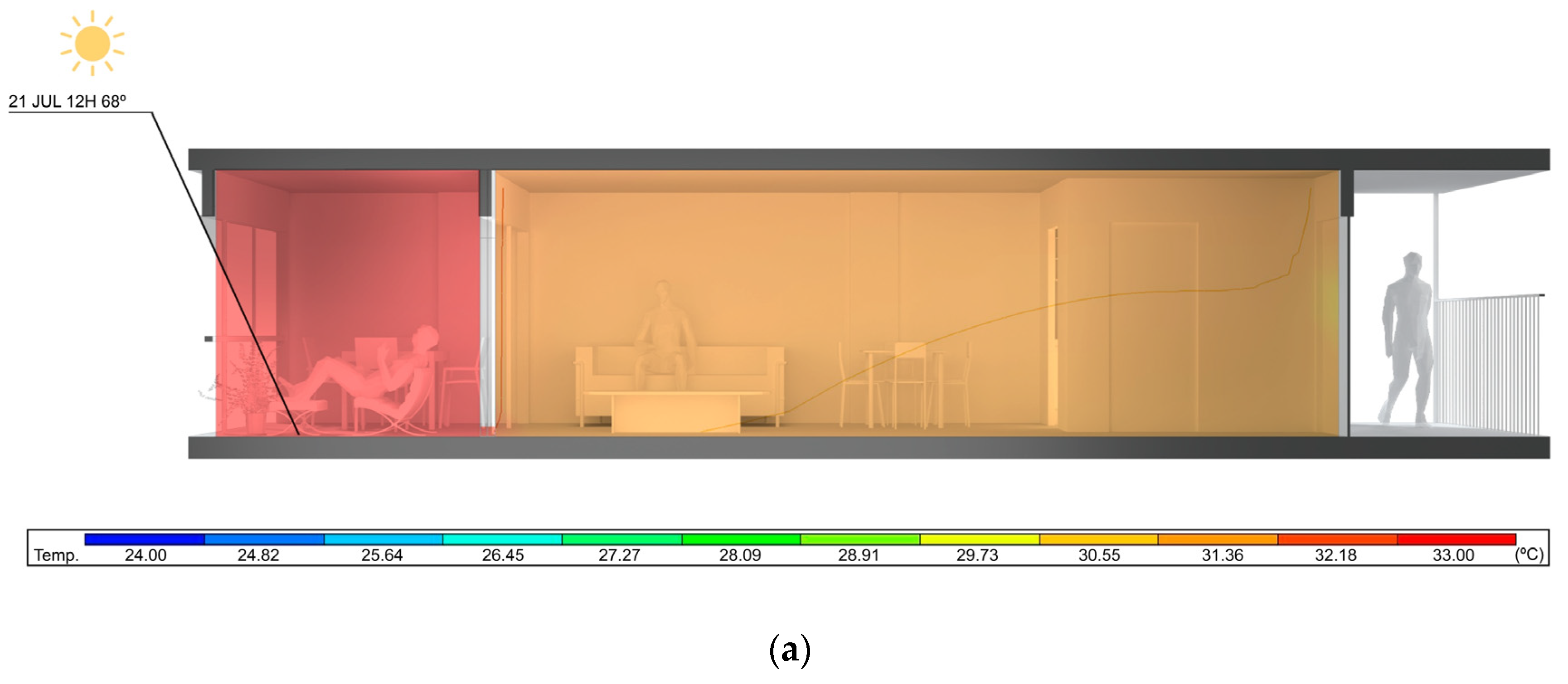

3.2. Indoor Temperatures

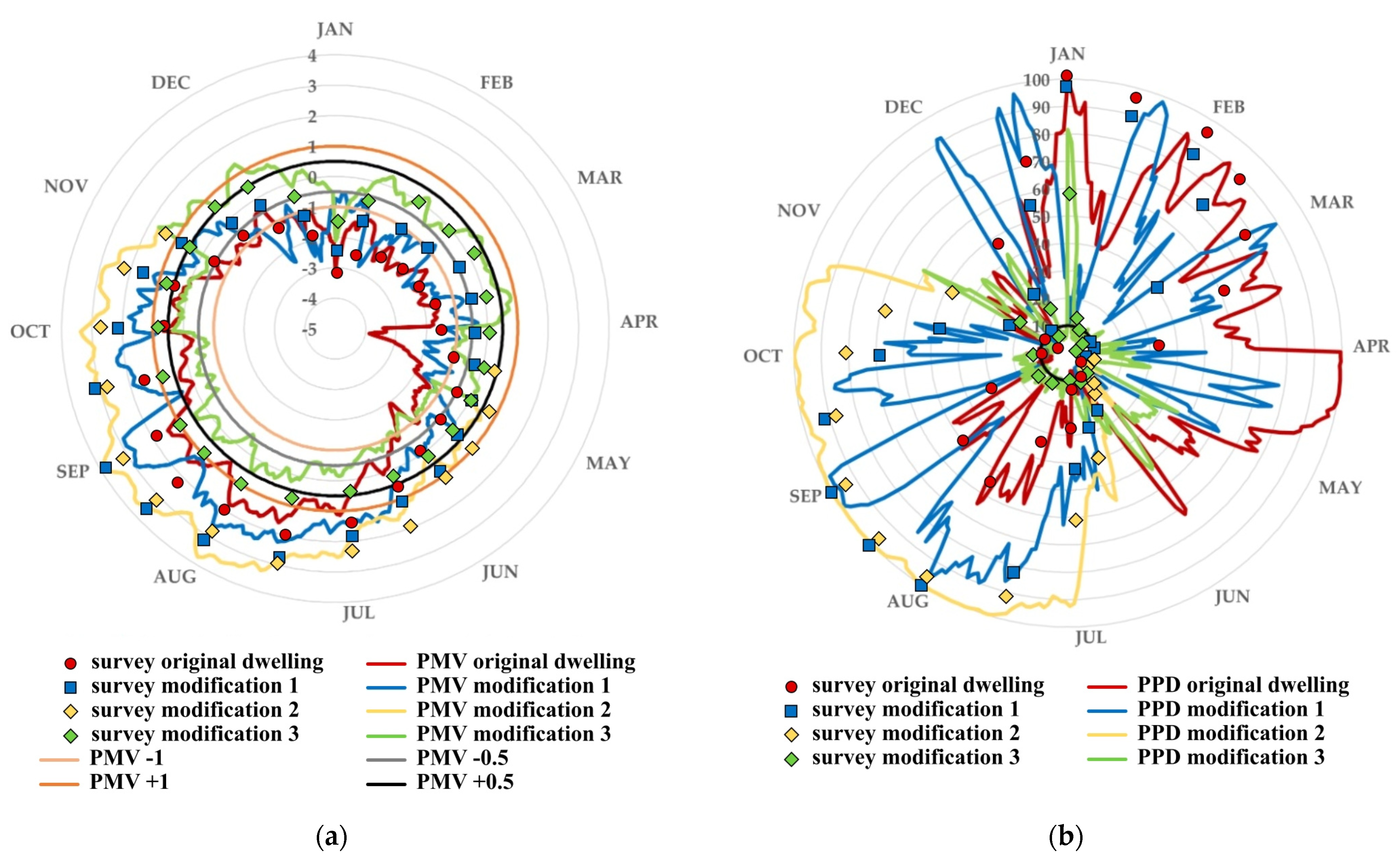

3.3. Thermal Comfort
3.4. Energy Efficiency
4. Discussion
4.1. Indoor Temperatures and Thermal Comfort
4.2. Energy Efficiency
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Martínez Medina, A. Arquitectura del boom turístico (1953–1979). Canelobre 2016, 66, 167–185. [Google Scholar]
- Adams, B.; Bissio, R.; Yoke Ling, C.; Donald, K.; Martens, J.; Prato, S.; Vermuyten, S. Spotlight. Enfoques sobre Desarrollo Sostenible 2017; Social Watch: Montevideo, Uruguay, 2017; pp. 110–122. [Google Scholar]
- Grao-Gil, O. El Desafío a las Alturas Desde la Singularidad. El Apartotel Riscal de Alicante de Francisco Muñoz. pp. 1–12. Available online: https://congresopionerosarquitectos.com/api/assets/es/VI_PDF_comunicaciones_aceptadas/VI_Congreso_Pioneros_Arquitectura_moderna_-_16.pdf (accessed on 20 March 2022).
- Navas, J. VIA 02p-120. Francisco Muñoz Llorens; ViA-Arquitectura: Barcelonca, Spain, 2022; Available online: https://www.via-arquitectura.net/02_prem/02p-120.htm (accessed on 9 June 2022).
- Jaén Urban, G.; Martínez Medina, A.; Oliva Meyer, J.; Oliver Ramírez, J.L.; Sempere Pascual, P.; Calduch Cervera, J. Guía de Arquitectura de la Provincia de Alicante; Instituto Alicantino de Cultura “Juan Gil-Albert”: Alicante, Spain, 1999. [Google Scholar]
- Martínez-Medina, A. Mestres. Arquitectura Moderna en la Comunidad Valenciana; Universidad de Alicante: Alicante, Spain, 2019; Available online: http://hdl.handle.net/10045/122744 (accessed on 20 March 2022).
- Martínez Medina, A.; Calduch Cervera, J.; Agustí Lara, L.; Oliva Meyer, J. Arquitectura del Sol en la Comunidad Valenciana; Colegio Oficial de Arquitectos de la Comunitat Valenciana, Ed.; Universidad de Alicante y Colegio Oficial de Arquitectos de la Comunidad Valenciana: Alicante, Spain, 2001; Available online: http://hdl.handle.net/10045/102529 (accessed on 20 March 2022).
- Huete, R. Tendencias del turismo residencial: El caso del Mediterráneo Español. El Periplo SustenTable 2008, 14, 65–87. Available online: http://www.uaemex.mx/plin/psus/periplo14/articulo_04.pdf (accessed on 20 March 2022). [CrossRef]
- Suárez, M. Los Espacios Intermedios como Tema y Estrategia de Proyecto en la Arquitectura Moderna. 2013. Available online: http://saber.ucv.ve/bitstream/123456789/7780/1/T026800009758-0-PDF_Marjorie_S_Surez_Pesquera_ltima_versin-000%281%29.pdf (accessed on 20 March 2022).
- Kapstein, G. Espacios Intermedios: Respuesta Arquitectónica al Medio Ambiente, 2nd ed.; Ediciones ARQ: Santiago de Chile, Chile, 2015. [Google Scholar]
- Moltó, E. Francisco Muñoz, Maestro de Arquitectos en Alicante|Agenda|EL PAÍS. El País. 2005. Available online: https://elpais.com/diario/2005/04/28/agenda/1114639206_850215.html (accessed on 20 March 2022).
- Aelenei, D.; De Azevedo Leal, H.; Aelenei, L. The use of attached-sunspaces in retrofitting design: The case of residential buildings in Portugal. Energy Procedia 2014, 48, 1436–1441. [Google Scholar] [CrossRef] [Green Version]
- Grudzińska, M. Evaluation of the performance of enclosed balconies based on temperature monitoring. J. Phys. Conf. Ser. 2021, 2069, 012133. [Google Scholar] [CrossRef]
- Simões, N.; Manaia, M.; Simões, I. Energy performance of solar and Trombe walls in Mediterranean climates. Energy 2021, 234, 121197. [Google Scholar] [CrossRef]
- Sancho Ávila, J.M.; Jesús Riesco, M.; Sánchez de Cos Escuin, M.C.; Montero Caldaso, J.; Alonso Jiménez, C.; López, B.M. Atlas de Radiación Solar en España Utilizando Datos del SAF de Clima de EUMETSAT. España; Ministerio de Agricultura Alimentación y Medio Ambiente: Madrid, Spain, 2012; 162p, Available online: https://repositorio.aemet.es/bitstream/20.500.11765/2531/1/atlasradiacion_cal2013.pdf (accessed on 20 March 2022).
- Chazarra Bernabé, A.; Flórez García, E.; Peraza Sánchez, B.; Tohá Rebull, T.; Lorenzo Mariño, B.; Pinto, E.C.; Moreno García, J.V.; Romero Fresneda, R.; Botey Fullat, R. Mapas Climáticos de España (1981–2010) Y ETo (1996–2016); Ministerio Para La Transición Ecológica: Madrid, Spain, 2018; p. 75. [Google Scholar] [CrossRef]
- Hilliaho, K.; Kovalainen, V.; Huuhka, S.; Lahdensivu, J. Glazed spaces: A simplified calculation method for the evaluation of energy savings and interior temperatures. Energy Build. 2016, 125, 27–44. [Google Scholar] [CrossRef]
- Bataineh, K.M.; Fayez, N. Analysis of thermal performance of building attached sunspace. Energy Build. 2011, 43, 1863–1868. [Google Scholar] [CrossRef]
- Fernández-González, A. Analysis of the thermal performance and comfort conditions produced by five different passive solar heating strategies in the United States midwest. Sol. Energy 2007, 81, 581–593. [Google Scholar] [CrossRef]
- Frontczak, M.; Wargocki, P. Literature survey on how different factors influence human comfort in indoor environments. Build. Environ. 2011, 46, 922–937. [Google Scholar] [CrossRef]
- Aghamolaei, R.; Ghaani, M.R. Balancing the impacts of energy efficiency strategies on comfort quality of interior places: Application of optimization algorithms in domestic housing. J. Build. Eng. 2020, 29, 101174. [Google Scholar] [CrossRef]
- Cañadas, J.J.M.; Fernández, Á.B.L.; Juan, J.J.P.P.; Hernández, J.C.L. Invernaderos con cubierta de plástico y cristal en el sureste español. Cuad. Investig. 2008, 1, 1–54. Available online: https://www.publicacionescajamar.es/publicacionescajamar/public/pdf/series-tematicas/centros-experimentales-las-palmerillas/invernaderos-con-cubierta-de-plastico.pdf (accessed on 20 March 2022).
- Gao, C.F.; Lee, W.L. Evaluating the influence of window types on the natural ventilation performance of residential buildings in Hong Kong. Int. J. Vent. 2011, 10, 227–238. [Google Scholar] [CrossRef]
- Alhamad, I.M.; Alsaleem, M.; Taleb, H. Passive Heating and Cooling Potential Strategies: A Comparison between Moderate Summers and Warm Winters Climate Zones. J. Phys. Conf. Ser. 2019, 1276, 012059. [Google Scholar] [CrossRef] [Green Version]
- Lucon, O.; Ürge-Vorsatz, D.; Ahmed, A.Z.; Akbari, H.; Bertoldi, P.; Cabeza, L.F.; Eyre, N.; Gadgil, A.; Harvey, L.D.; Jiang, Y.; et al. Climate Change 2014: Mitigation of Climate Change. In IPCC Working Group III Contribution to AR5: Chapter 9—Buildings; Cambridge University Press: Cambridge, UK, 2015. [Google Scholar]
- Pérez-Carramiñana, C.; González-Avilés, Á.B.; Galiano-Garrigós, A.; Lozoya-Peral, A. Optimization of Architectural Thermal Envelope Parameters in Modern Single-Family House Typologies in Southeastern Spain to Improve Energy Efficiency in a Dry Mediterranean Climate. Sustainability 2022, 14, 3910. [Google Scholar] [CrossRef]
- González-Avilés, Á.B.; Pérez-Carramiñana, C.; Galiano-Garrigós, A.; Ibarra-Coves, F.; Lozano-Romero, C. Analysis of the Energy Efficiency of Le Corbusier’s Dwellings: The Cité Frugès, an Opportunity to Reuse Garden Cities Designed for Healthy and Working Life. Sustainability 2022, 14, 4537. [Google Scholar] [CrossRef]
- Pérez-Carramiñana, C.; AnMaciá-Mateu, A.; Sirvent-García, G.; Lledó-Llorca, I. Study of Natural Ventilation and Solar Control Strategies to Improve Energy Efficiency and Environmental Quality in Glazed Heated Swimming Pools in a Dry Mediterranean Climate. Sustainability 2022, 14, 8243. [Google Scholar] [CrossRef]
- O’Donovan, A.; O’Sullivan, P.D.; Murphy, M.D. Predicting air temperatures in a naturally ventilated nearly zero energy building: Calibration, validation, analysis and approaches. Appl. Energy 2019, 250, 991–1010. [Google Scholar] [CrossRef]
- Esther Falcón Pérez, C. Afrontando el Reto de la Eficiencia Energética en Edificios a Través de las Cooperativas de Viviendas. Rev. Crítica Derecho Inmob. 2021, 97, 13–63. Available online: https://www.researchgate.net/publication/350385979_Afrontando_el_reto_de_la_eficiencia_energetica_en_edificios_a_traves_de_las_cooperativas_de_viviendas (accessed on 7 June 2022).
- Pellegrino, A.; Cammarano, S.; Lo Verso, V.R.M.; Corrado, V. Impact of daylighting on total energy use in offices of varying architectural features in Italy: Results from a parametric study. Build. Environ. 2017, 113, 151–162. [Google Scholar] [CrossRef]
- Ghrab-Morcos, N. CHEOPS: A simplified tool for thermal assessment of Mediterranean residential buildings in hot and cold seasons. Energy Build. 2005, 37, 651–662. [Google Scholar] [CrossRef]
- Borrallo-Jiménez, M.; Lopezdeasiain, M.; Esquivias, P.M.; Delgado-Trujillo, D. Comparative study between the Passive House Standard in warm climates and Nearly Zero Energy Buildings under Spanish Technical Building Code in a dwelling design in Seville, Spain. Sci. Energy Build. 2021, 254, 111570. [Google Scholar] [CrossRef]
- Troup, L.; Phillips, R.; Eckelman, M.J.; Fannon, D. Effect of window-to-wall ratio on measured energy consumption in US office buildings. Energy Build. 2019, 203, 109434. [Google Scholar] [CrossRef]
- Simon, F.; Ordoñez, J.; Girard, A.; Parrado, C. Modelling energy use in residential buildings: How design decisions influence final energy performance in various Chilean climates. Indoor Built Environ. 2019, 28, 533–551. [Google Scholar] [CrossRef]
- López-Ochoa Luis, M.; Las-Heras-Casas, J.; López-González, L.M.; Olasolo-Alonso, P. Towards nearly zero-energy buildings in Mediterranean countries: Energy Performance of Buildings Directive evolution and the energy rehabilitation challenge in the Spanish residential sector. Energy 2019, 176, 335–352. [Google Scholar] [CrossRef]
- López-Ochoa, L.M.; Las-Heras-Casas, J.; López-González, L.M.; García-Lozano, C.; López-Ochoa, L.M.; Las-Heras-Casas, J.; López-González, L.M.; García-Lozano, C. Environmental and energy impact of the EPBD in residential buildings in cold Mediterranean zones: The case of Spain. Energy Build. 2017, 150, 567–582. [Google Scholar] [CrossRef]
- Figueiredo, A.; Kämpf, J.; Vicente, R. Passive House Optimization for Portugal: Overheating Evaluation and Energy Performance. Energy Build. 2016, 118, 181–196. [Google Scholar] [CrossRef]
- Harkouss, F.; Fardoun, F.; Biwole, P.H. Passive design optimization of low energy buildings in different climates. Energy 2018, 165, 591–613. [Google Scholar] [CrossRef]
- Causone, F.; Pietrobon, M.; Pagliano, L.; Erba, S. A high performance home in the Mediterranean climate: From the design principle to actual measurements. Energy Procedia 2017, 140, 67–79. [Google Scholar] [CrossRef]
- Orden. Orden FOM/588/2017, de 15 de Junio, Por La Que Se Modifican El Documento Básico DB-HE 975 “Ahorro de Energía” y El Documento Básico DB-HS “Salubridad”, Del Código Técnico de La Edificación, Aprobado Por Real Decreto 976 314/2006, de 17 de Marzo, 2017; Agencia Estatal Boletín Oficial del Estado: Madrid, Spain, 2017. [Google Scholar]
- Muñoz Criado, A.; Doménech Gregori, V. Energía. Estrategia Territorial Comunitat Valenciana; Generalitat Valenciana, Conselleria de Medi Ambient, Aigua, Urbanisme i Habitatge: València, Spain, 2011; 70p. [Google Scholar]
- Martínez Noguera, J. Hacia una Construcción Sostenible: Análisis de Soluciones Constructivas para Mejora de la Eficiencia Energética y la Reducción de la Huella de Carbono; Universidad Politécnica de Cartagena: Cartagena, Spain, 2021; Available online: https://repositorio.upct.es/handle/10317/9650 (accessed on 20 March 2022).
- Albatayneh, A.; Alterman, D.; Page, A.; Moghtaderi, B. The Significance of Building Design for the Climate. Environ. Clim. Technol. 2018, 22, 165–178. [Google Scholar] [CrossRef] [Green Version]
- Albatayneh, A. Optimisation of building envelope parameters in a semi-arid and warm Mediterranean climate zone. Energy Rep. 2021, 7, 2081–2093. [Google Scholar] [CrossRef]
- Galiano-Garrigós, C.L.; Marcos, T.K.; Juan Gutiérrez, P.J. Reassessing thermal comfort in modern architecture: E.1027 as a case study. Build. Res. Inf. 2022, 50, 230–254. [Google Scholar] [CrossRef]
- Morán Blanco, S.; Miguel, C.; Barrado, D. El objetivo de desarrollo sostenible 11 de la Agenda 2030: Ciudades y comunidades sostenibles. Metas 2020, desafíos, políticas y logros. Cuad. Estrateg. 2020, 206, 21–68, ISSN 1697-6924. Available online: https://dialnet.unirioja.es/servlet/articulo?codigo=7649178&info=resumen&idioma=ENG%0Ahttps://dialnet.unirioja.es/servlet/articulo?codigo=7649178&info=resumen&idioma=SPA%0Ahttps://dialnet.unirioja.es/servlet/articulo?codigo=7649178 (accessed on 20 March 2022).
- Taheri, B.; Jabari, F.; Akbari Foroud, A. A green cogeneration microgrid composed of water-source heat pumps, a gravity energy storage, and a bio-fueled gas turbine: Design and techno-economic optimization. Sustain. Cities Soc. 2023, 95, 104594. [Google Scholar] [CrossRef]
- Taheri, B.; Akbari Foroud, A.; Jabari, F. Design and performance optimization of a tri-generation energy hub considering demand response programs. Energy Sci. Eng. 2022, 11, 675–684. [Google Scholar] [CrossRef]
- Niampira Daza, A.; Puche Berroca, J.D.; Ceferino Urrea, G. Estrategias de diseño arquitectónico de bajo impacto ambiental como aporte a la eficiencia energética en el clima cálido húmedo. ACAIRE 2021, 1, 8. [Google Scholar]
- Martinez, R. ¿Qué es una Ciudad Sostenible?, por Rosa Martínez: Ethic. Ethic. 2018. Available online: https://ethic.es/2018/10/que-es-una-ciudad-sostenible/ (accessed on 20 March 2022).
- Prieto, A.; Knaack, U.; Auer, T.; Klein, T. Passive cooling & climate responsive façade design exploring the limits of passive cooling strategies to improve the performance of commercial buildings in warm climates. Energy Build. 2018, 175, 30–47. [Google Scholar] [CrossRef]
- AICIA. Líder-Calener Unified Tool Software, v2.0.2253.1167; Dirección General de Arquitectura, Vivienda y Suelo del Ministerio de Transportes, Movilidad y Agenda Urbana y por el Instituto para la Diversificación y Ahorro de la Energía (IDEA): Madrid, Spain, 2021; Herramienta Unificada LIDER-CALENER (V 2.0.2253.1167); Available online: https://www.codigotecnico.org/Programas/HerramientaUnificadaLIDERCALENER.html (accessed on 20 March 2022).
- ASHRAE Standard-55; Thermal Environment Conditions for Human Occupancy. American Society of Heating, Refrigerating and Air-Conditioning Engineers: Peachtree Corners, GA, USA, 2020.
- Chazarra, A.; Flórez, E.; Peraza, B.; Tohá, T.; Lorenzo, B.; Criado, E.; Moreno, J.V.; Romero, R.; Botey, R. Mapas Climáticos de España (1981–2010) y ETo (1996–2016); Ministerio para la Transición Ecológica, Agencia Estatal de Meteorología: Madrid, Spain, 2018. [Google Scholar]
- Ministerio de Fomento. Documento Descriptivo Climas de Referencia; Ministerio de Fomento: Madrid, Spain, 2017. [Google Scholar]
- García Kerdan, I.; Morillón Gálvez, D.; Sousa, G.; Suárez de la Fuente, S.; Silva, R.; Hawkes, A. Thermodynamic and thermal comfort optimisation of a coastal social house considering the influence of the thermal breeze. Build. Environ. 2019, 155, 224–246. [Google Scholar] [CrossRef]
- Oliva Meyer, J. Juan Antonio García Solera 1953–2003; Colegio Oficial De Arquitectos De La Comunidad Valenciana: Valencia, Spain, 2005. [Google Scholar]
- Kurtz, F.; Monzón, M.; López-Mesa, B. Obsolescencia de la envolvente térmica y acústica de la vivienda social de la postguerra española en áreas urbanas vulnerables. El caso de Zaragoza. Inf. Construcción 2015, 67, m021. [Google Scholar] [CrossRef]
- DesignBuilder v.7.0.1.006; DesignBuilder Software Ltd.: Stroud, UK, 2021.
- Villar Burke, R.; Sorribes Gil, M.; Jiménez González, D.; Sobaler Rodríguez, J. Guía de Aplicación DB-HE 2019; Ministerio de Transportes, Movilidad y Agenda Urbana. Gobierno de España: Madrid, Spain, 2019. [Google Scholar]
- Agencia Estatal Boletín Oficial del Estado. Real Decreto 486/1997, de 14 de Abril, por el que se Establecen las Disposiciones Mínimas de Seguridad y Salud en los Lugares de Trabajo; Agencia Estatal Boletín Oficial del Estado: Madrid, Spain, 1997. [Google Scholar]
- Ege Çeter, A.; Furkan Ozbey, M.; Turhan, C. Gender inequity in thermal sensation based on emotional intensity for participants in a warm mediterranean climate zone. Int. J. Therm. Sci. 2023, 185, 108089. [Google Scholar] [CrossRef]
- Furkan Ozbey, M.; Ege Çeter, A.; Orfioglu, S.; Alkan, N.; Turhan, C. Sensitivity analysis of the effect of current mood states on the thermal sensation in educational buildings. Indoor Air 2022, 32, e13073. [Google Scholar]

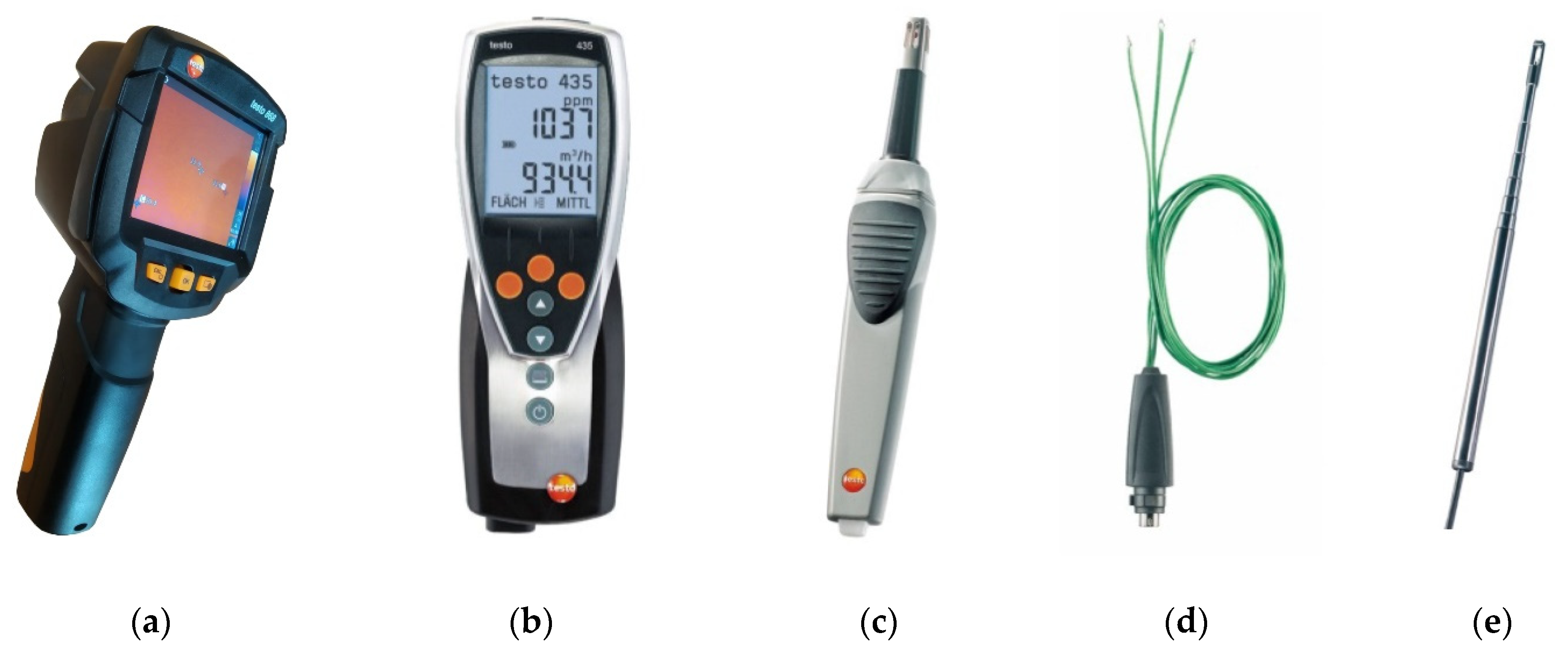

Model | Measuring Range | Accuracy | |
---|---|---|---|
Thermographic camera | Testo 868 | −15–+50 °C | ±2 °C/±2% |
+10–+95% HR | ±2% HR | ||
Thermal transmittance flowmeter | Testo 435-2 | −20–+50 °C | - |
Humidity/temperature probe | Testo | −20–+70 °C | ±0.3 °C |
+10–+100% HR | ±2% HR | ||
Surface probe | Testo | −20–+70 °C | ±0.1 °C |
Hot-wire probe | Testo | −20–+70 °C | ±0.3 °C |
±0.3 m/s |

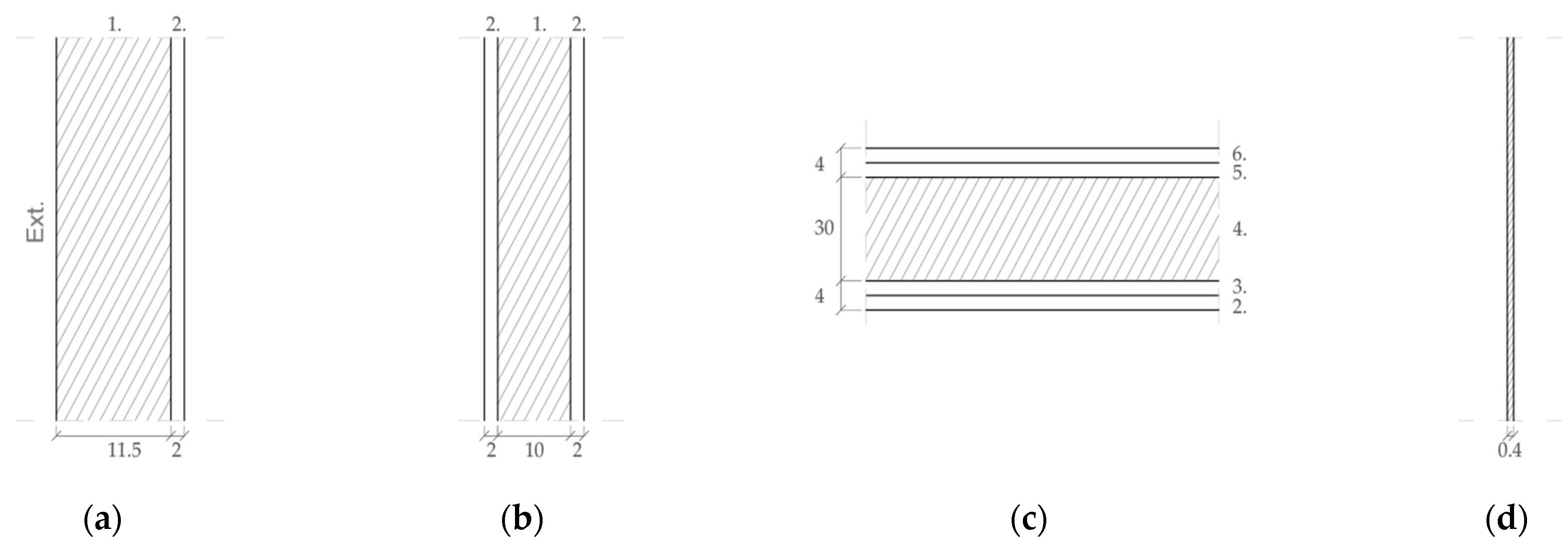

Composition of the Thermal Envelope of the Original House | Thickness (cm) | Thermal Conductivity (W/m·K) | U (W/m2·K) | g |
---|---|---|---|---|
Roof: | 1.43 | |||
Ceramic tile | 2 | 1.3 | ||
Cement mortar | 2 | 0.55 | ||
FU ceramic interlayer | 30 | 0.846 | ||
Mass concrete | 2 | 1.65 | ||
Low-hardness gypsum d < 600 | 2 | 0.18 | ||
Interior walls: | 2.07 | |||
Low-hardness gypsum d < 600 | 2 | 0.18 | ||
1/2 ceramic brick | 11.5 | 0.991 | ||
Low-hardness gypsum d < 600 | 2 | 0.18 | ||
Enclosure type: | 2.52 | |||
1/2 ceramic brick | 11.5 | 0.991 | ||
Low-hardness gypsum d < 600 | 2 | 0.18 | ||
Window: | Uw = 5.68 | |||
Glass (90% of the window) | Ug = 5.70 | g = 0.68 | ||
Frame (10% of the window) | Uh = 5.58 |
Parameter | Applicable Regulation | |||
---|---|---|---|---|
People/m2 | Metabolic rate | Schedule | DB-HE | |
Occupation | 0.05 | 1 | Activated 24/7 | Application Guide 2019 [61] |
Cop | Months | Schedule | DB-HE Annex D | |
Cooling equipment | 4 | 6/7/8/9 | 0:00–24:00 27 °C | Operational conditions and |
Heating equipment | 3.5 | ½/3/4/5/10/11/12 | 0:00–24:00 19 °C | use profiles [41] |
Ren/h | Schedule | |||
Mechanical ventilation | 0.44 | Activated 24/7 | DB-HS3 [41] | |
Natural nocturnal ventilation | 0.44 | 0:00–08:00 100% | ||
Average illumination | Power | |||
Internal lightning loads | 200 lux | 2 W/m2 | 0:00–07:00 10% | Royal Decree 486/1997 |
07:00–19:00 30% | Annex IV [62] | |||
19:00–23:00 100% 23:00–24:00 50% |

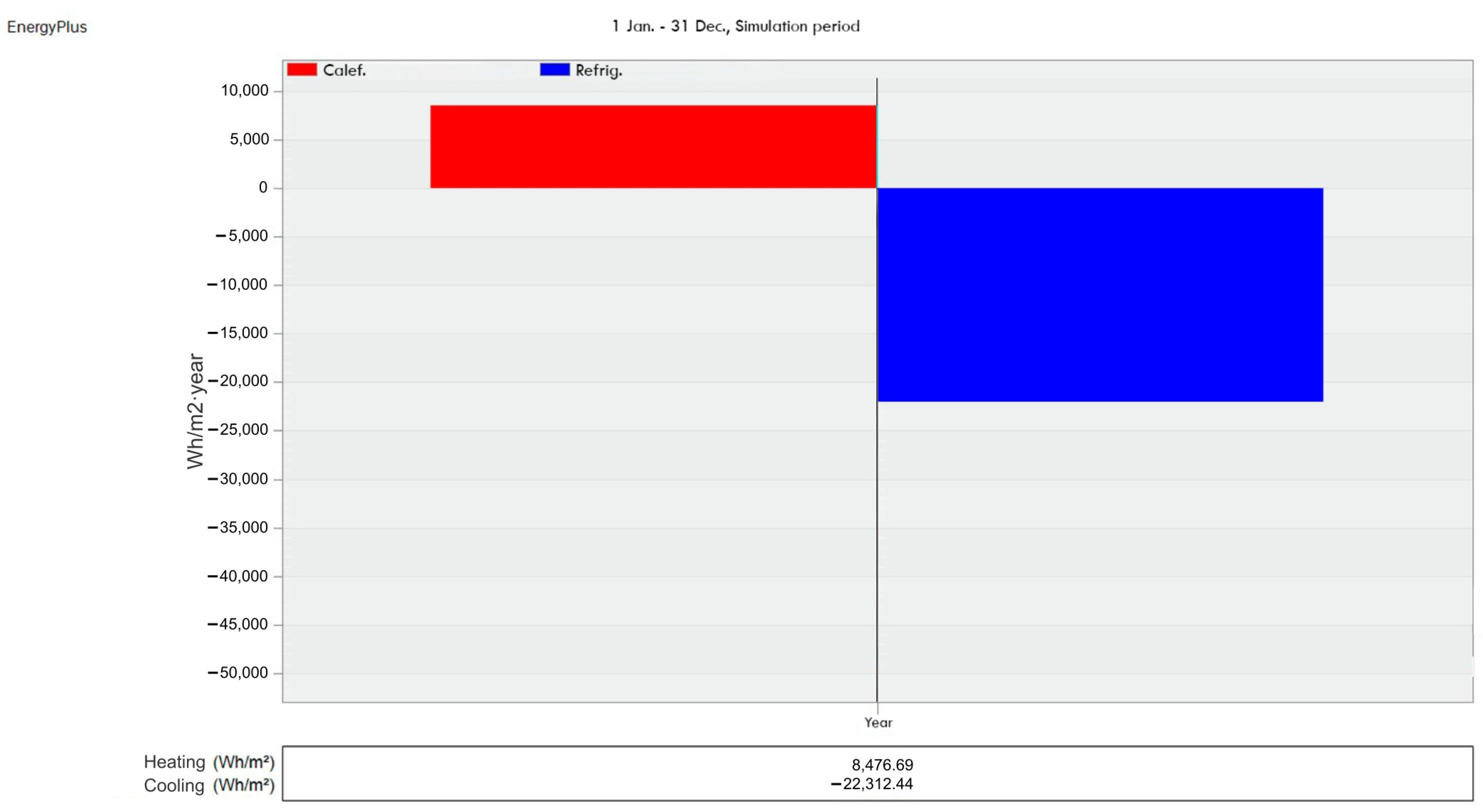

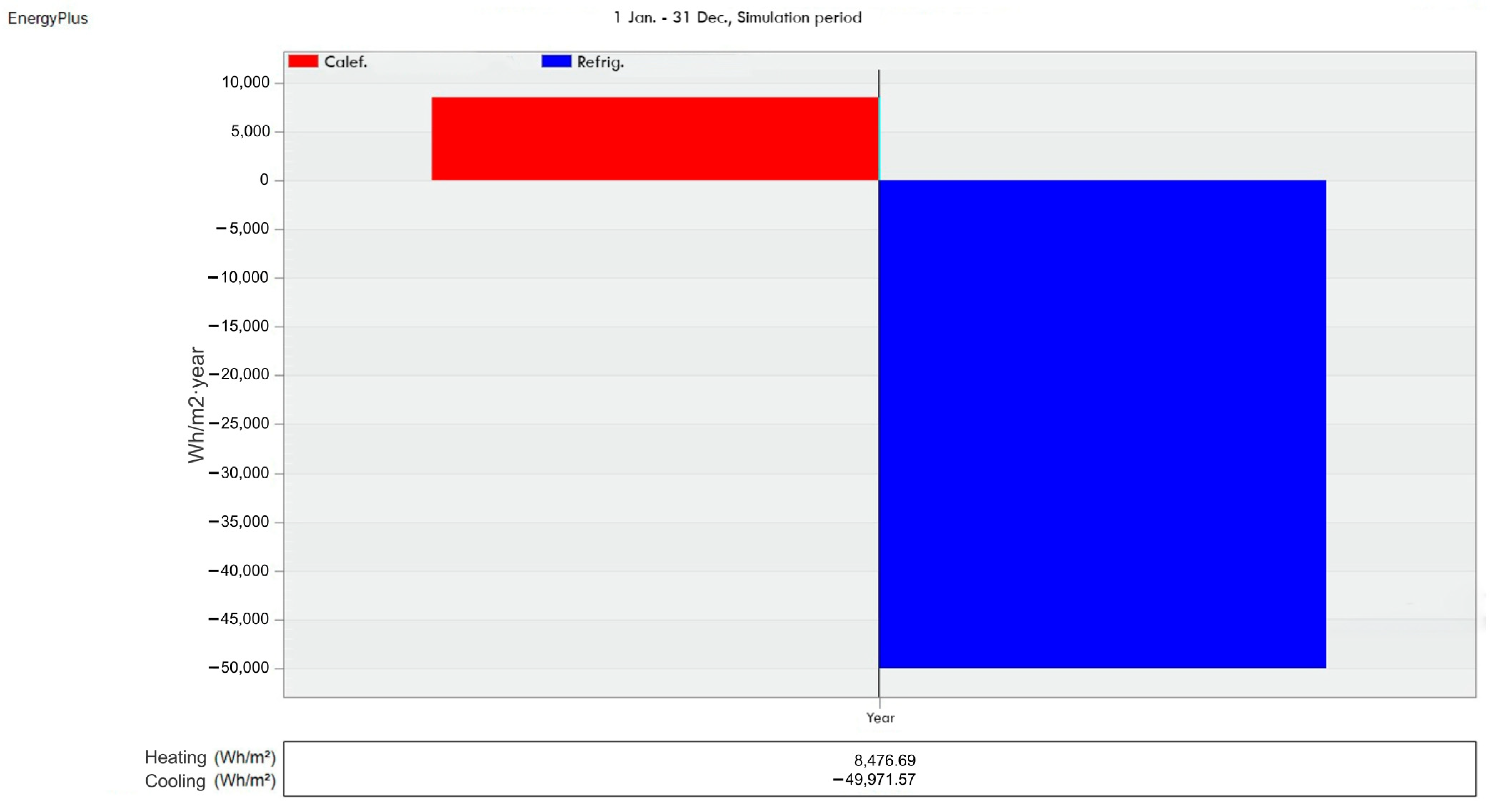

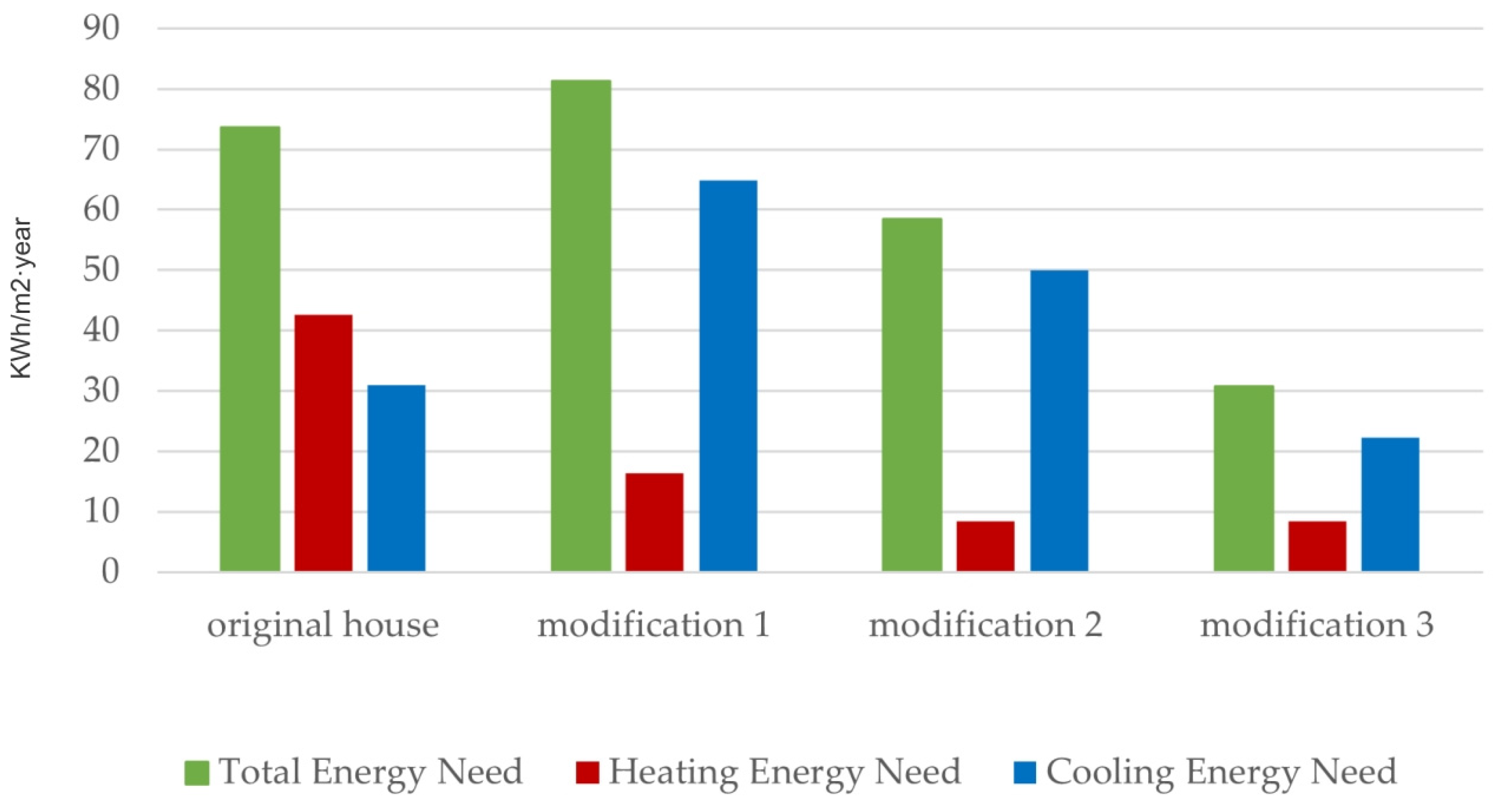

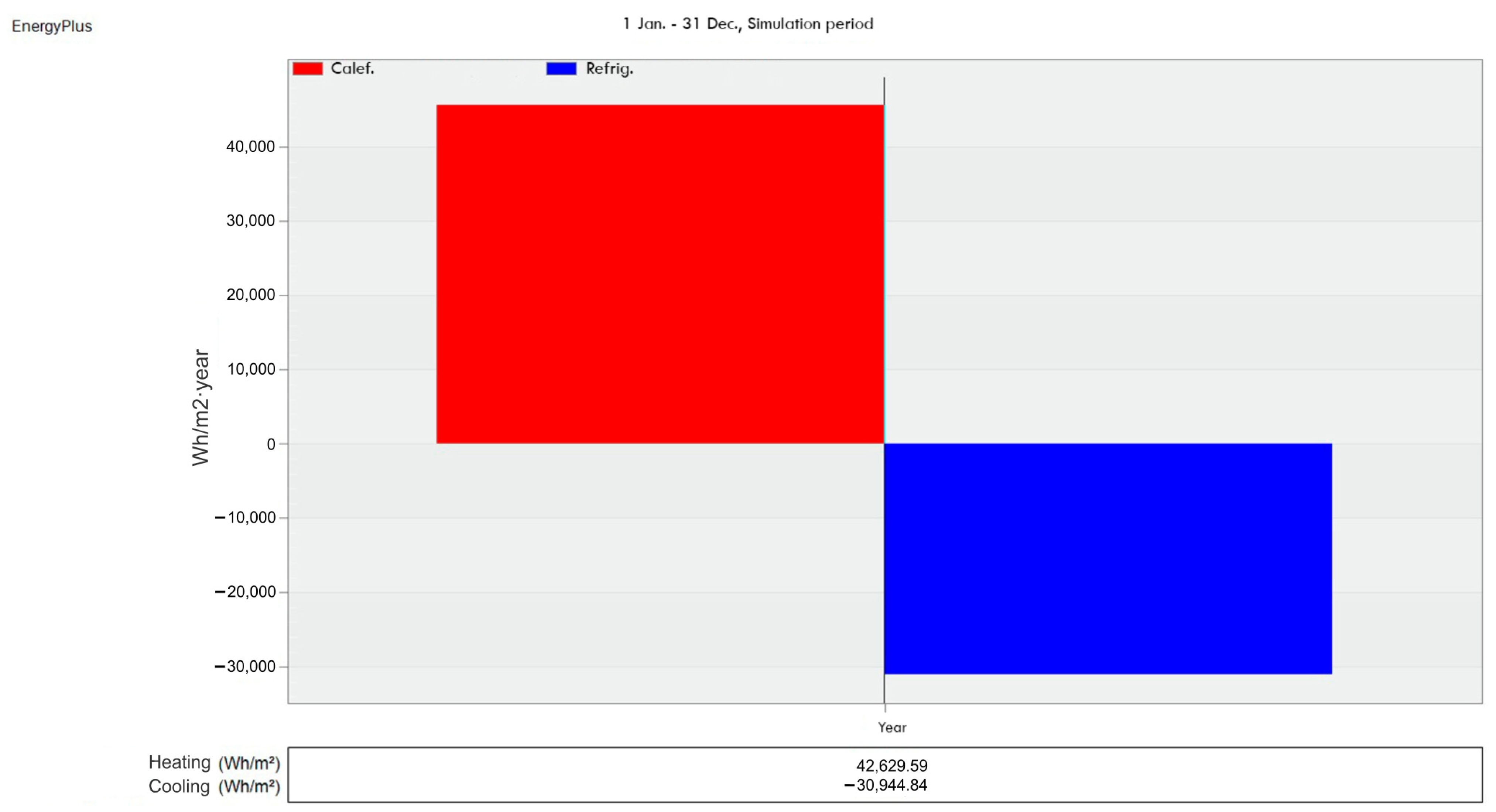

Case Study | Heating | Cooling | Total |
---|---|---|---|
Original house | 42.62 | 30.94 | 73.56 |
Modification 1 | 16.35 | 64.90 | 81.25 |
Modification 2 | 8.47 | 49.97 | 58.44 |
Modification 3 | 8.47 | 22.31 | 30.78 |
KWh/m2 year | KWh/m2 year | KWh/m2 year |
