1. Introduction
The performance-based design of buildings has evolved beyond the consideration of earthquakes to consideration of additional natural hazards, particularly windstorms [
1]. This evolution in design is reflected by the many performance-based frameworks that have been proposed for wind engineering [
1,
2,
3,
4,
5,
6,
7,
8,
9,
10]. An important aspect of building performance is inelastic behavior. One reason inelastic behavior is important is that rare, large-magnitude windstorms, such as hurricanes, thunderstorms, derechos, and tornadoes cannot always be mitigated economically using design based on elastic forces. Although several studies have studied the inelastic responses of buildings subjected to wind loads [
11,
12,
13,
14,
15,
16], an examination of the underlying behavior has not been attempted to date. In particular, the role of ductility in an inelastic wind response is not well understood.
A fundamental concept in earthquake engineering is that it is the ductility of the lateral force resisting system and not its strength, that is the key to economically design a building to withstand earthquakes. The importance of ductility for seismic design can be demonstrated by idealizing the lateral system as a single-degree-of-freedom (SDOF) system subjected to a base excitation, as shown in

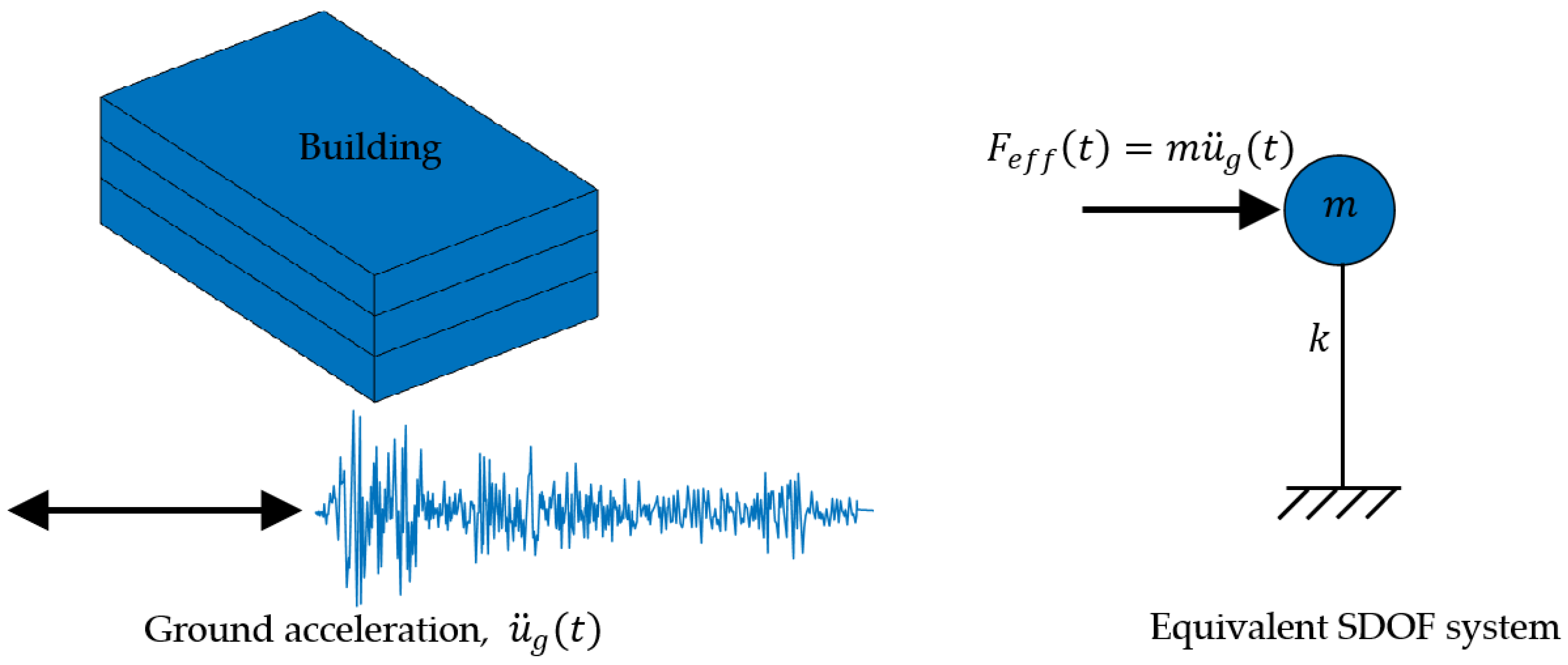

Figure 1. The effective lateral force (
) that is generated by the motion of the building relative to its base is equivalent to the building mass (
) times the ground acceleration (
). As will be shown later in the paper, the dynamic response of the SDOF system depends primarily on the natural period of vibration (
) of the building, the viscous damping ratio (
) assumed in the analysis, and the force versus deformation behavior of the lateral system [
11,
17].

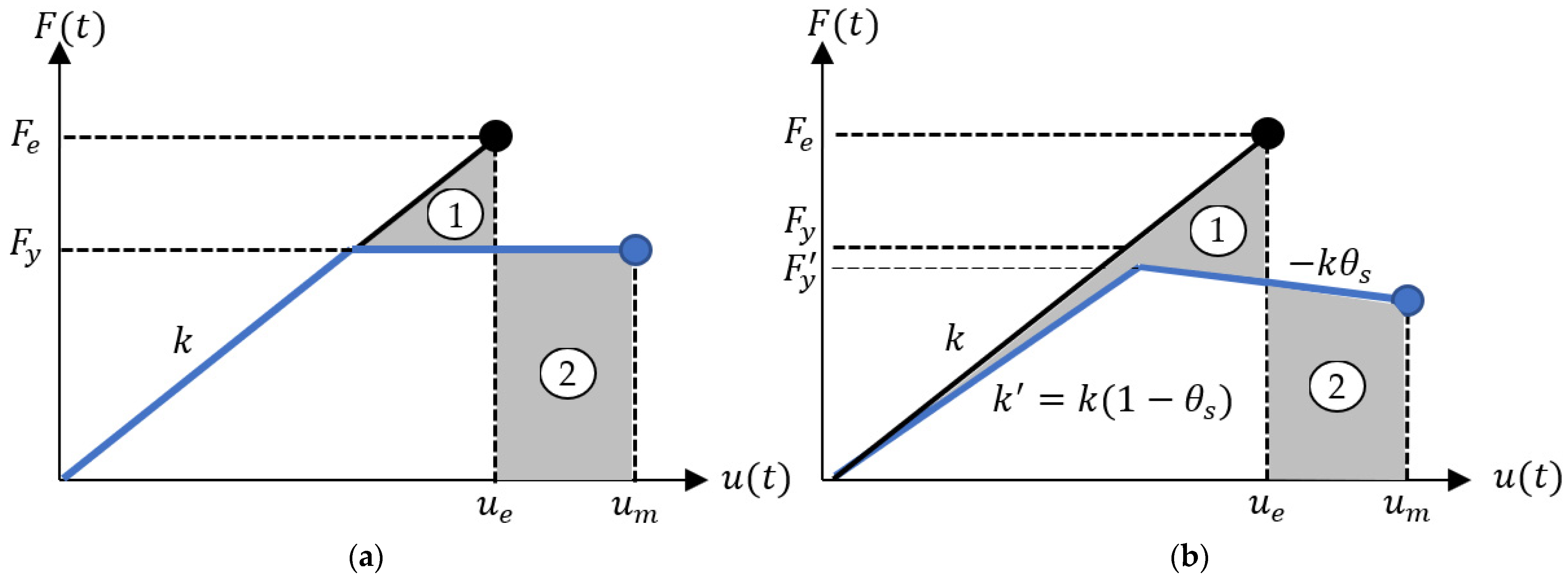

For ductile lateral systems, the force versus deformation behavior can be approximated using a bilinear relationship. If gravity load effects are not included, the bilinear relationship, shown in
Figure 2a, is defined by the lateral system stiffness (
) and yield strength (
). The required ductility is equal to the peak elastic displacement (
) divided by the yield displacement (
=
). For reference, the figure shows the maximum force that would develop if the system was to remain elastic (
). If gravity load effects are included, the bilinear relationship is rotated, as shown in
Figure 2b, depending on the ratio of the gravity load to the elastic buckling load of the lateral system, denoted as the stability coefficient (
). The effect of the gravity load is a reduced initial stiffness (
), a reduced yield strength (
), and a negative secondary (post-peak) stiffness (
).
The importance of ductility in earthquake engineering can be illustrated by considering the response of a SDOF system subjected to an acceleration record. In this illustration, the horizontal ground acceleration in the north–south direction that was recorded during the 1940 El Centro earthquake at the Imperial Valley Irrigation District station [
17] is used, and the structure is assumed to have 5% viscous damping.

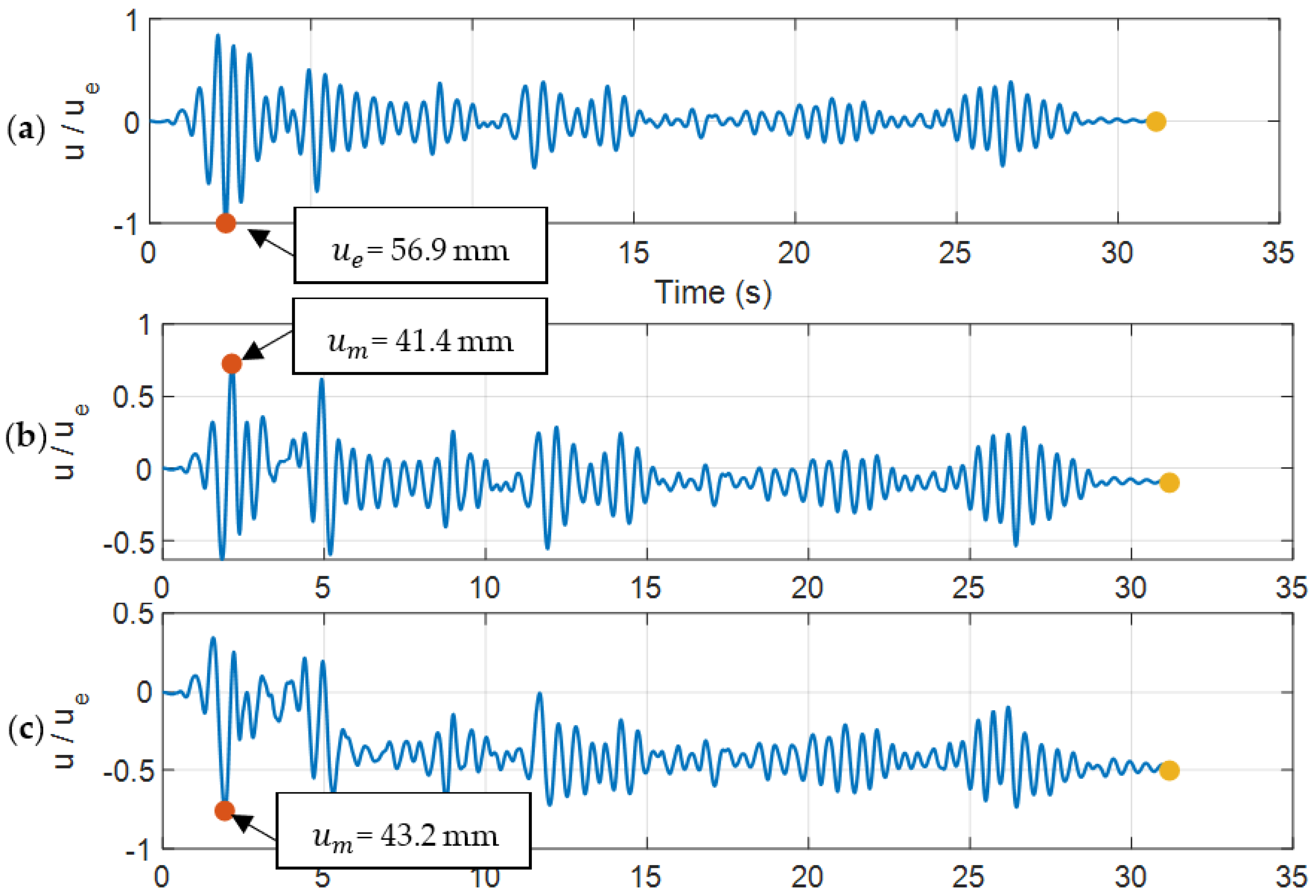

Figure 3a shows the displacement response history for an elastic system, with
= 1.0 s. The peak elastic displacement (
) is equal to 56.9 mm. By comparison,
Figure 3b shows the inelastic response of the system if the yield strength is half of that required to keep the system elastic (i.e.,
=
/2 =
).
Figure 3c shows the inelastic response if the yield strength is only a quarter of the elastic strength. Interestingly, the example shows that the peak inelastic displacement (
) is roughly constant, regardless of the yield strength.

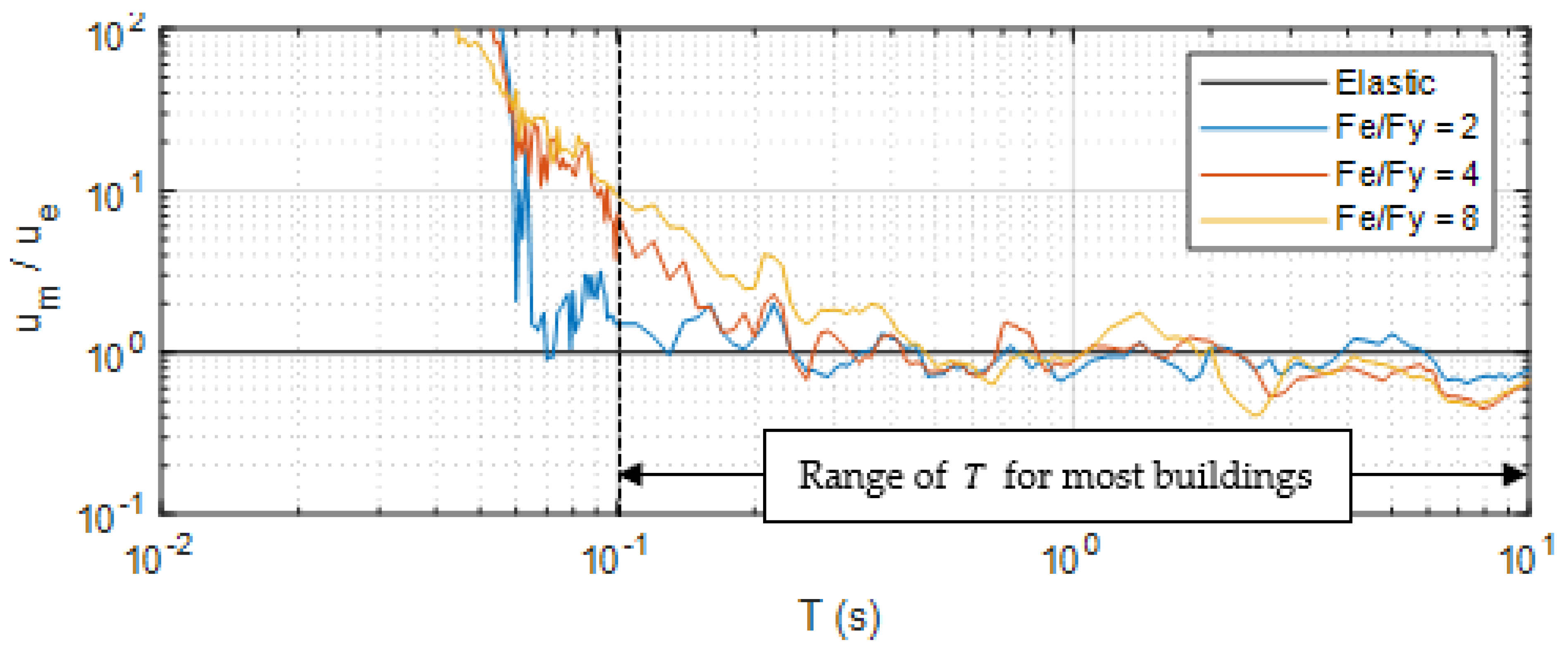

Figure 4 shows the ratio of the peak inelastic to peak elastic displacements for a range of periods of vibration and for yield strengths, ranging from 1/2 to 1/8 of the required elastic strength. The figure shows that the ratio of peak inelastic displacement ratio is roughly constant for structures with
greater than 0.3 s (sometimes termed as “medium- and long-period” buildings). Since the fundamental period of vibration of most buildings is between 0.1 s and 10 s, the example illustrates that, for most buildings, the displacement of an inelastic lateral system subjected to this specific ground motion is approximately equal to the displacement of the same system responding elastically. Results similar to those shown in
Figure 4 have been confirmed for other ground motion records [
18] and for other types of force–deformation relationships [
19].
The upshot is that for earthquake ground motions, the displacement is independent of the yield strength of the lateral system. This surprising result was first observed by Veletsos and Newmark [
20], and it is commonly known as the “equal displacement rule.” The equal displacement concept has been shown to generally hold true, as long as the strength and stiffness of the system does not degrade, e.g., due to the gravity load effect shown in
Figure 2b, fatigue is not an issue, and assuming that the ductility capacity of the lateral system is greater than or equal to the ductility demand.
For “short-period” buildings, where the equal displacement rule does not hold, an alternative assumption that has been proposed in the literature is that the strain energy corresponding to the peak inelastic displacement is equal to the strain energy at the peak elastic response [
21]. This is referred to as the “equal energy rule.” The equal energy rule can be checked by comparing the shaded area 1 with the shaded area 2 in
Figure 2. If the areas are equal, the equal energy rule holds. However, previous studies have indicated that the equal energy rule is questionable [
22,
23,
24]. As a consequence, most design provisions in the United States and Europe are based on the equal displacement rule [
25].
The implication of the equal displacement rule in earthquake engineering is that a building can be designed for a reduced lateral force if the lateral system is capable of deforming proportional to that reduction and if the lateral system can sustain inelastic cycles without a loss of strength or stiffness. As a result, the key objective in performance-based seismic design is to provide ductility. However, it is unclear how ductility should be applied in performance-based wind design.
The purpose of this study is to determine if the equal displacement rule can additionally be applied to wind forces. To achieve this purpose, bilinear SDOF systems were subjected to two types of excitations: wavelet-based excitations and wind excitation derived from wind tunnel test data. This study examines SDOF systems instead of multi-degree-of-freedom (MDOF) systems because the response of SDOF systems is the basis for the equal displacement rule in the literature e.g., [
11,
17,
20]. Although the focus of this study is on wind excitations, the principal conclusions could additionally be applied to other types of excitations.

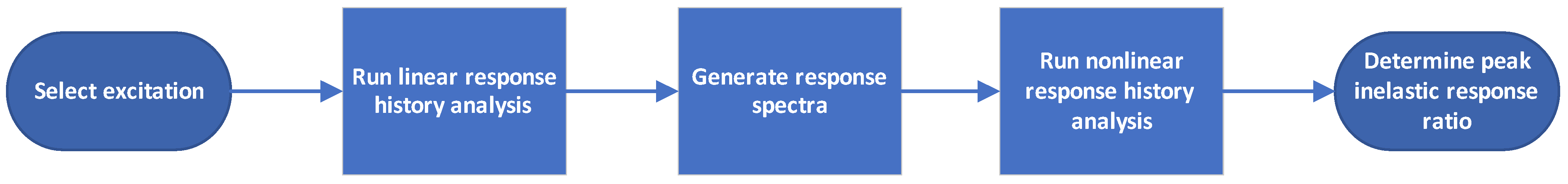

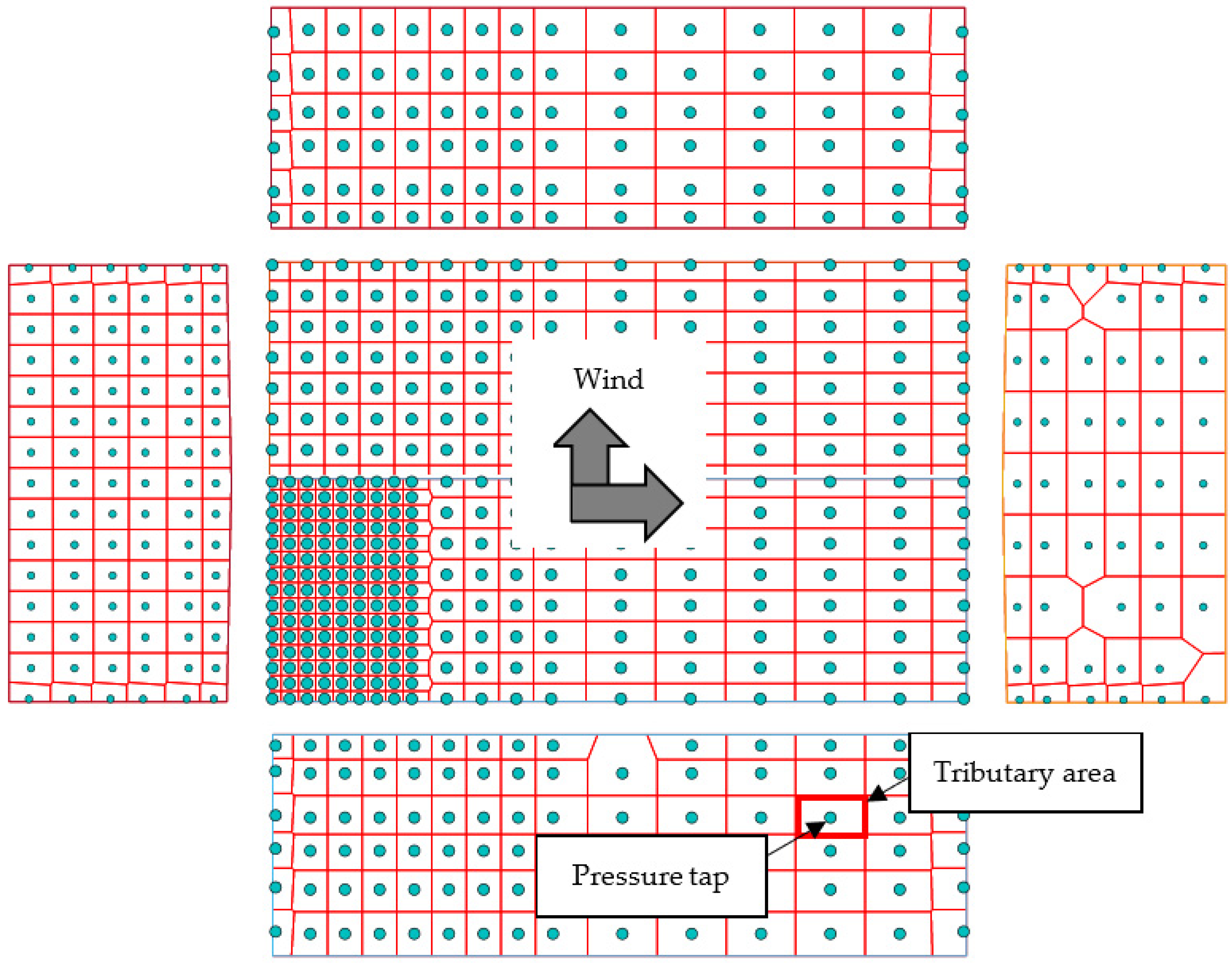

This paper is organized as follows. First, the methodology is described: the approach used to generate wavelet-based excitations is explained, and the process is used to determine wind-force excitations based on wind tunnel test data. Second, the results are presented: the effect of polarity, frequency content of the excitation, duration, and stiffness and strength degradation due to gravity loads on the wavelet response is discussed, followed by a discussion of the effect of wind directionality and duration on the wind response. Third, the core findings and their implications for performance-based wind design are discussed.
3. Results
The relationship between the peak inelastic displacement ratio, or the peak inelastic energy ratio, the period of vibration, and the yield strength ratio (
) is shown as a three-dimensional surface (e.g.,

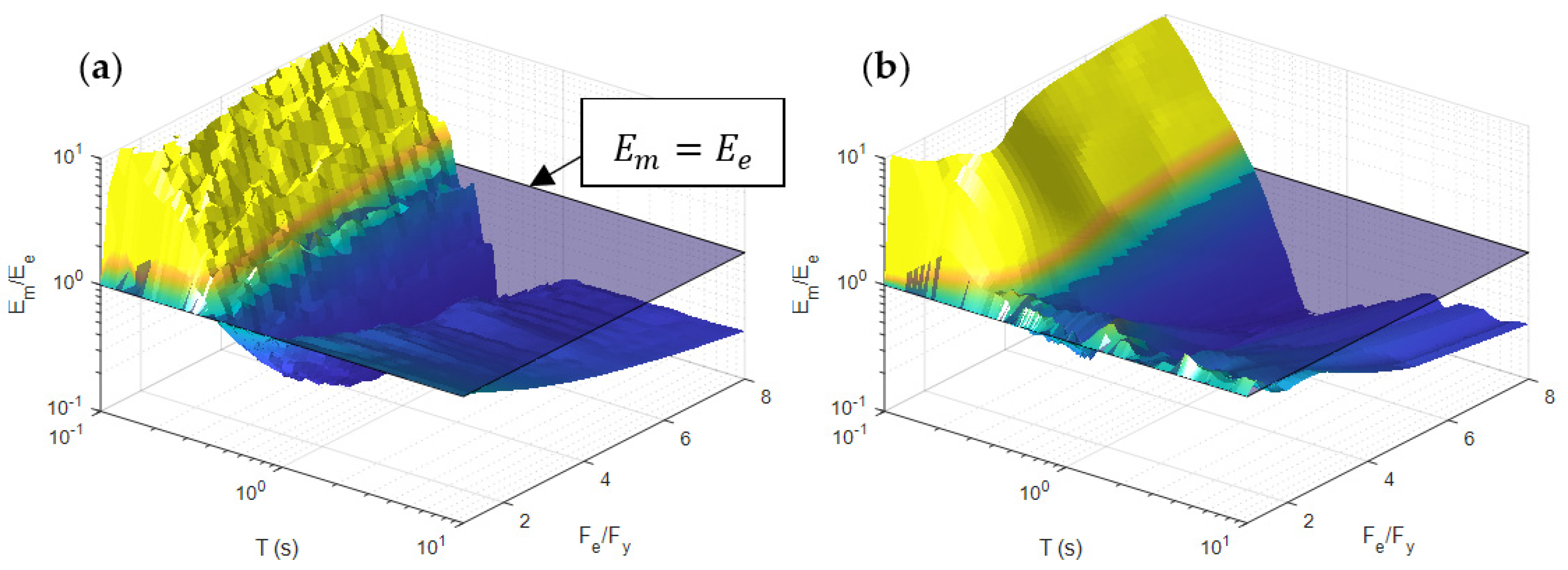

Figure 11 and
Figure 12). The yield strength ratio ranges from 1 to 8 for the wavelet-based excitations. This range covers all the lateral systems currently listed in ASCE 7-22 Table 12.2-1 [
31]. For the wind force excitations, the yield strength ratio ranges from 1 to 2. A smaller range was used for the wind force figures, based on the range of yield strength ratios identified in previous studies [
11,
12]. The period range in the figures covers most buildings, as discussed previously. For reference, the equal displacement (
) plane or equal energy (
) plane is superimposed on the surface.

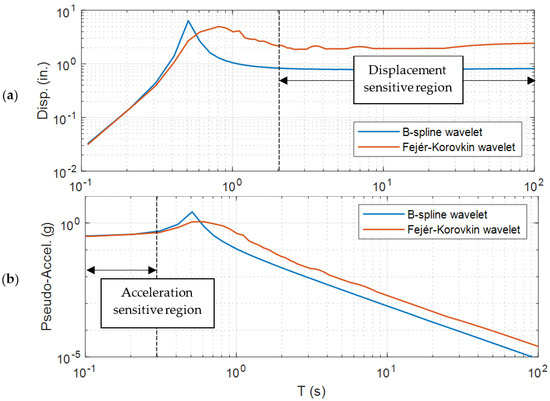

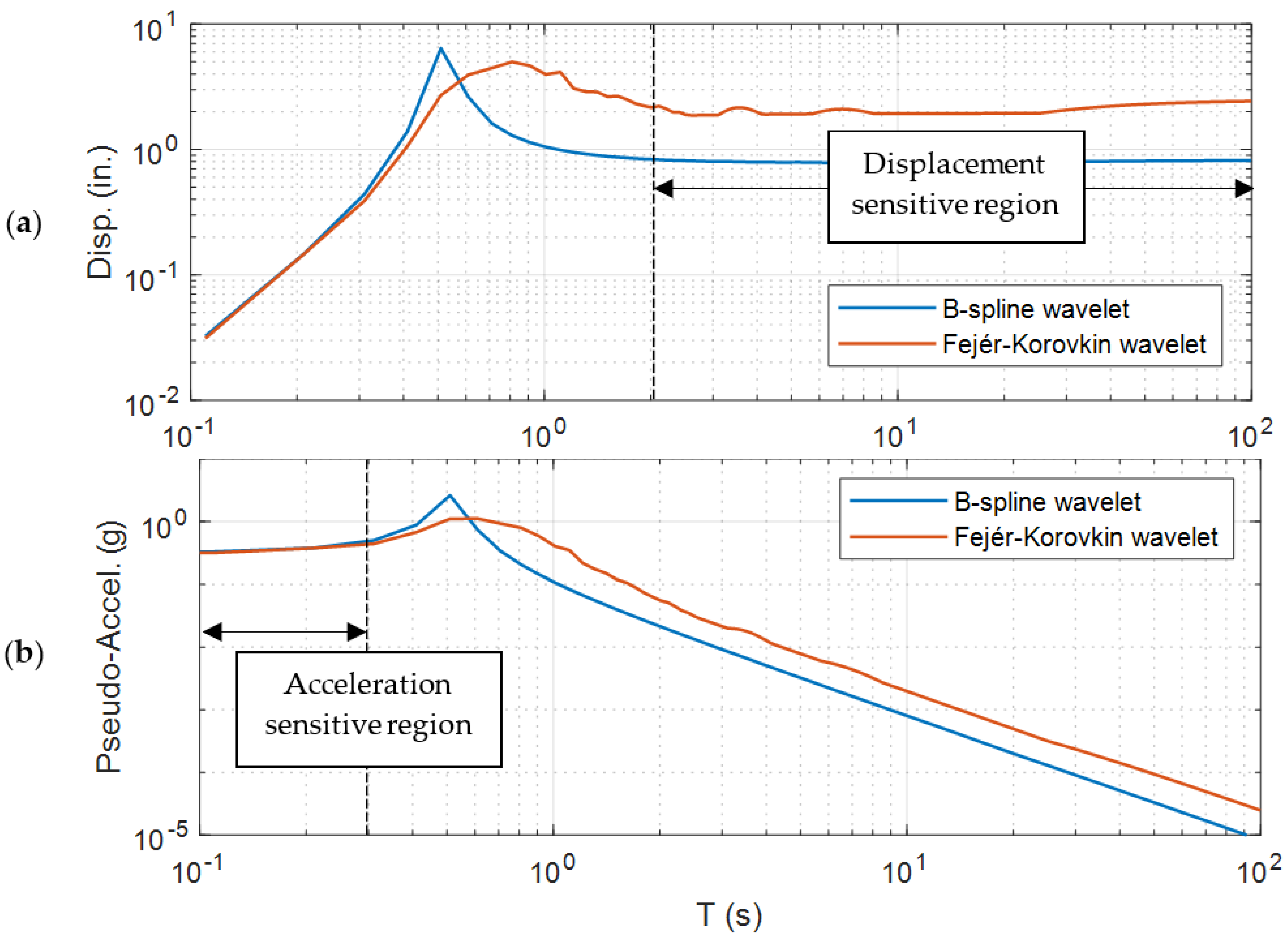

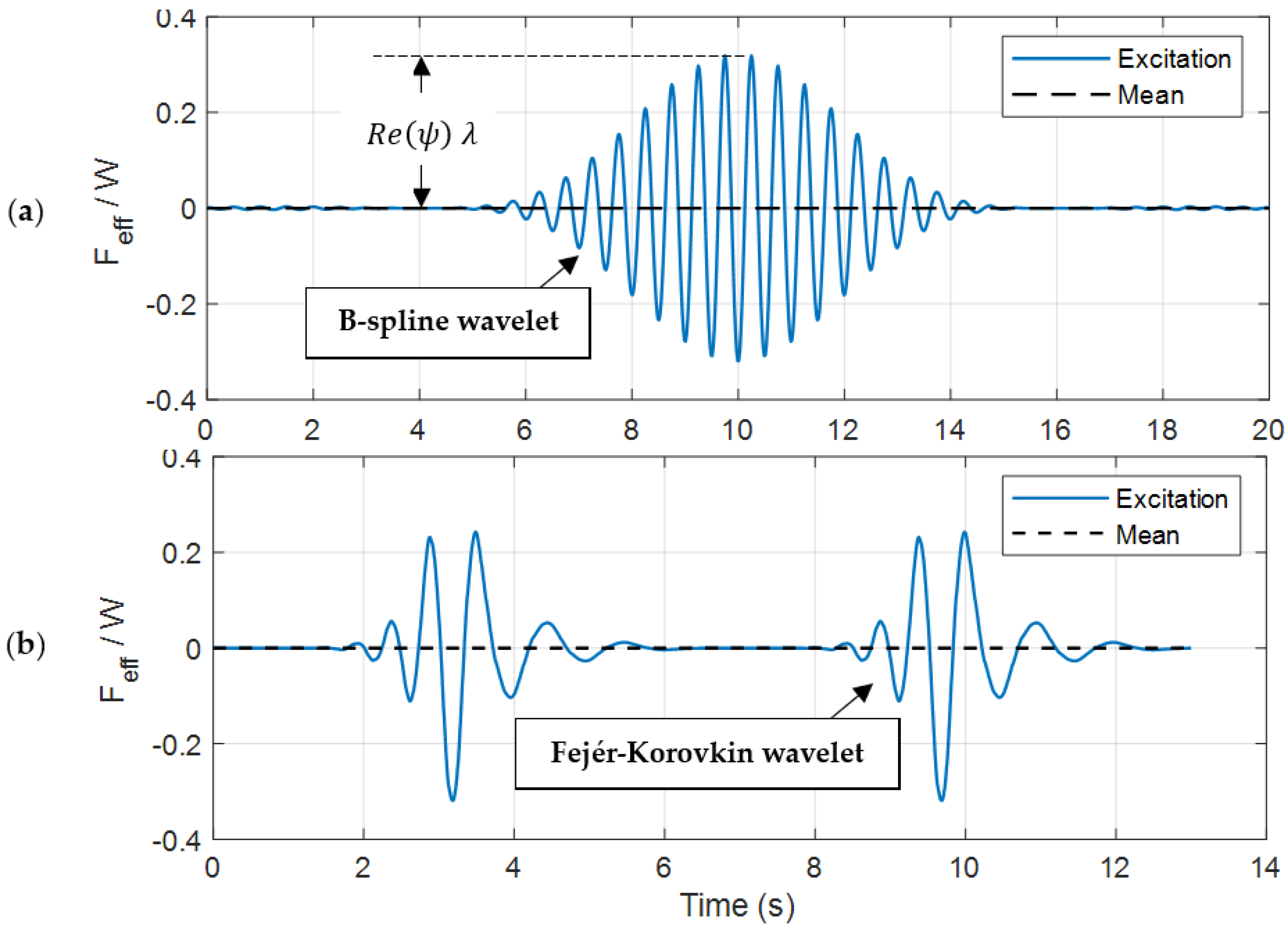

3.1. Wavelet-Based Excitation

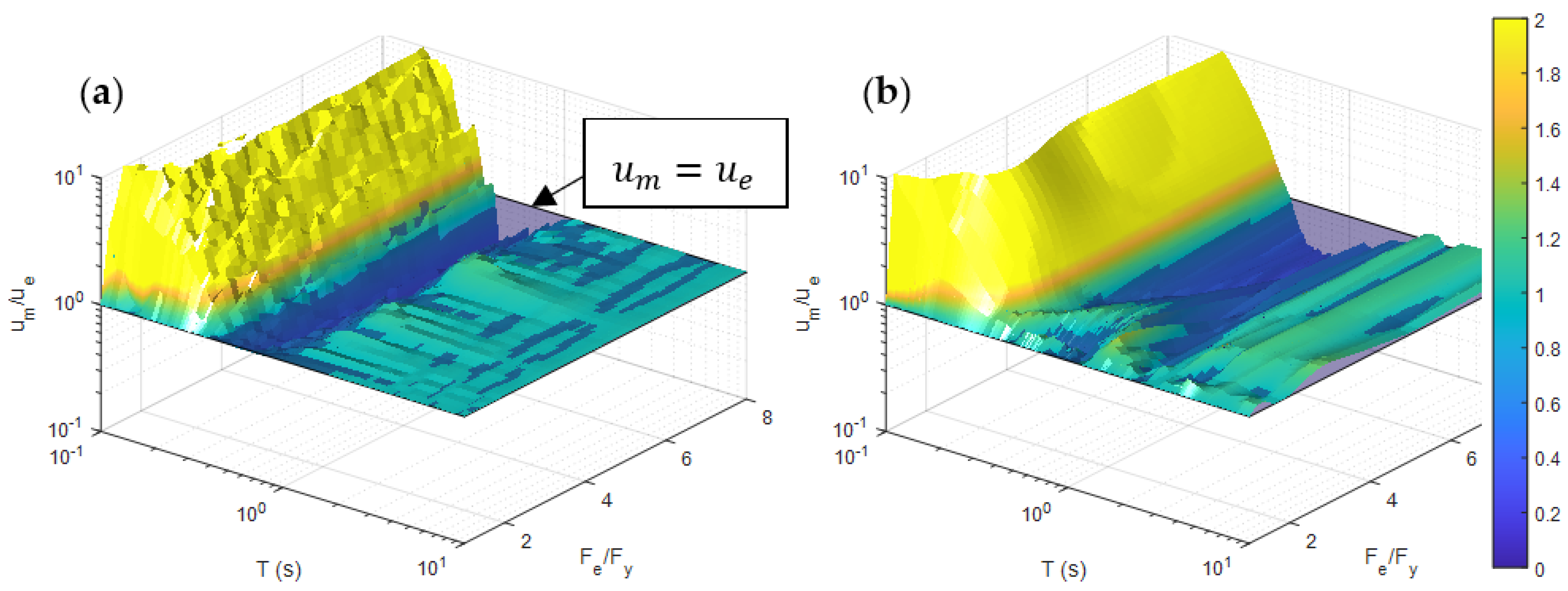

The results for the B-spline wavelet (
Figure 11a) show that the equal displacement rule holds in the displacement-sensitive region, however not in the acceleration-sensitive region. This finding agrees with the literature e.g., [
17]. The results additionally reveal that the peak inelastic displacement is actually smaller than the peak elastic displacement for periods of vibration near the center frequency of the wavelet (the trough region in the surface). These results are essentially independent of the yield strength ratio. The results for the Fejér–Korovkin wavelet (
Figure 11b) are basically the same, except that for low yield strength ratios the peak inelastic and peak elastic displacements are similar (there is no trough).
For both types of wavelets, results show that the equal energy rule generally does not hold, even in the acceleration-sensitive region. In the velocity- and displacement-sensitive regions, the peak inelastic energy is much smaller than the peak elastic energy: up to 90% less for high yield strength ratios.
The roughness in the surfaces of the B-spline wavelet reflects the band of high frequency content in the excitation. In contrast, the Fejér–Korovkin wavelet does not contain a similar band of high frequency content. As a result, the surfaces of the Fejér–Korovkin wavelet are smoother.

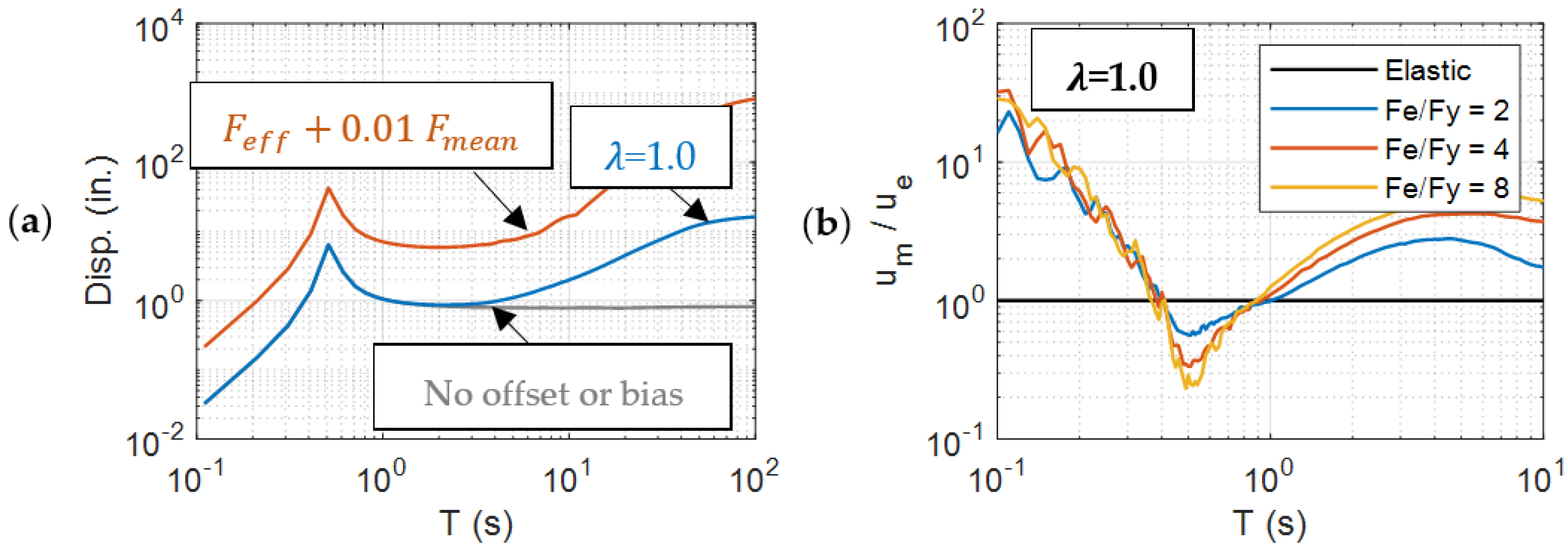

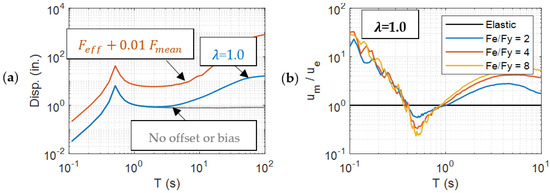

The effect of polarity on the B-spline wavelet response is shown in
Figure 13. The polarity of the excitation has a profound effect on the peak inelastic displacement. A 1% amplitude bias (
= 1.01) significantly narrows the displacement sensitive (flat) region of the spectrum (
Figure 13a). As a consequence, the equal displacement rule does not hold for long-period systems (
Figure 13b). In the same way, a 1% offset in the mean force shifts the displacement spectrum and narrows the displacement-sensitive region.

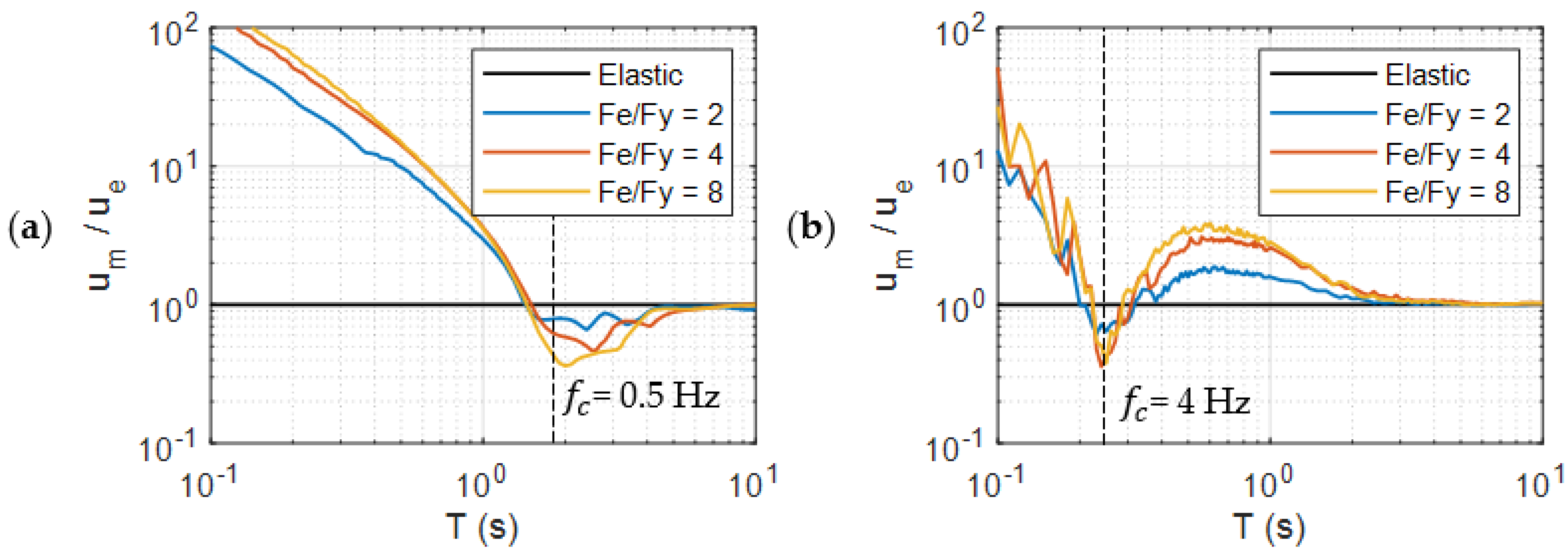

The effect of frequency content on the B-spline wavelet response is shown in
Figure 14. Frequency content has a significant effect, as expected. The frequency content alters the extent of the acceleration and displacement-controlled regions. Frequency content additionally affects the smoothness of the response. High frequency content produces a rough response, and low frequency content produces a smooth response. Gravity loads affect the response of short-period systems more than long-period systems, as shown in

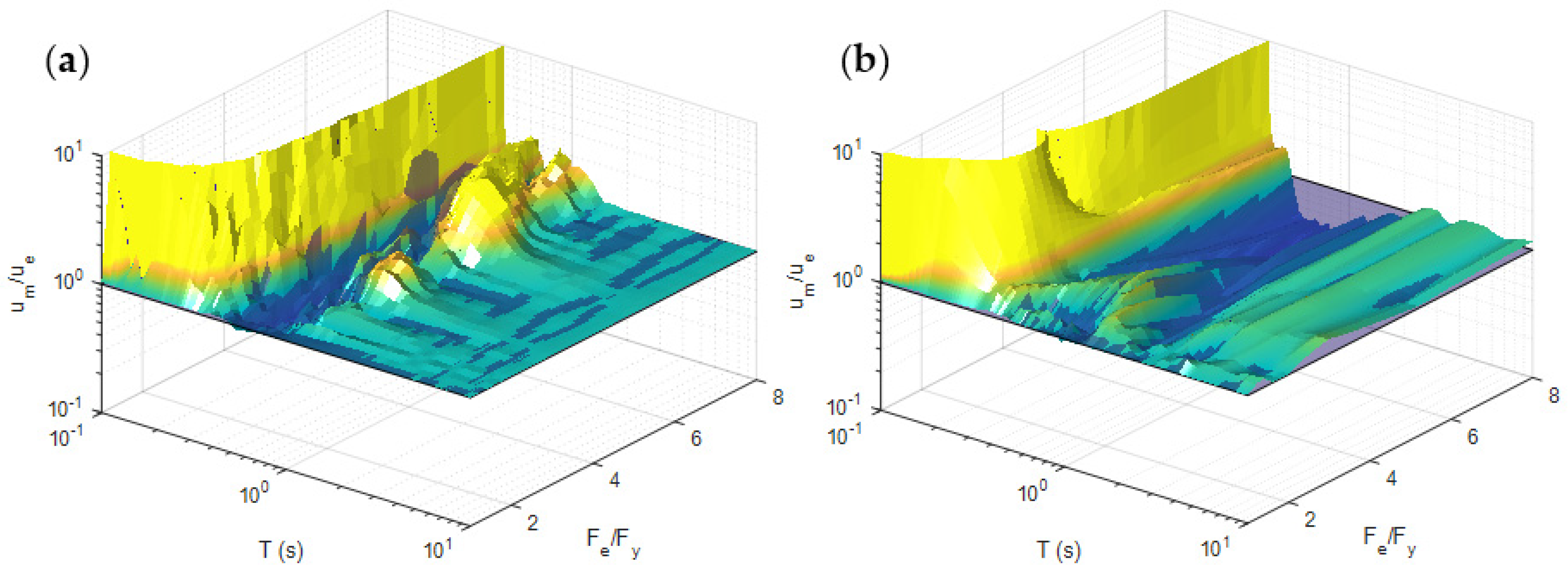

Figure 15.

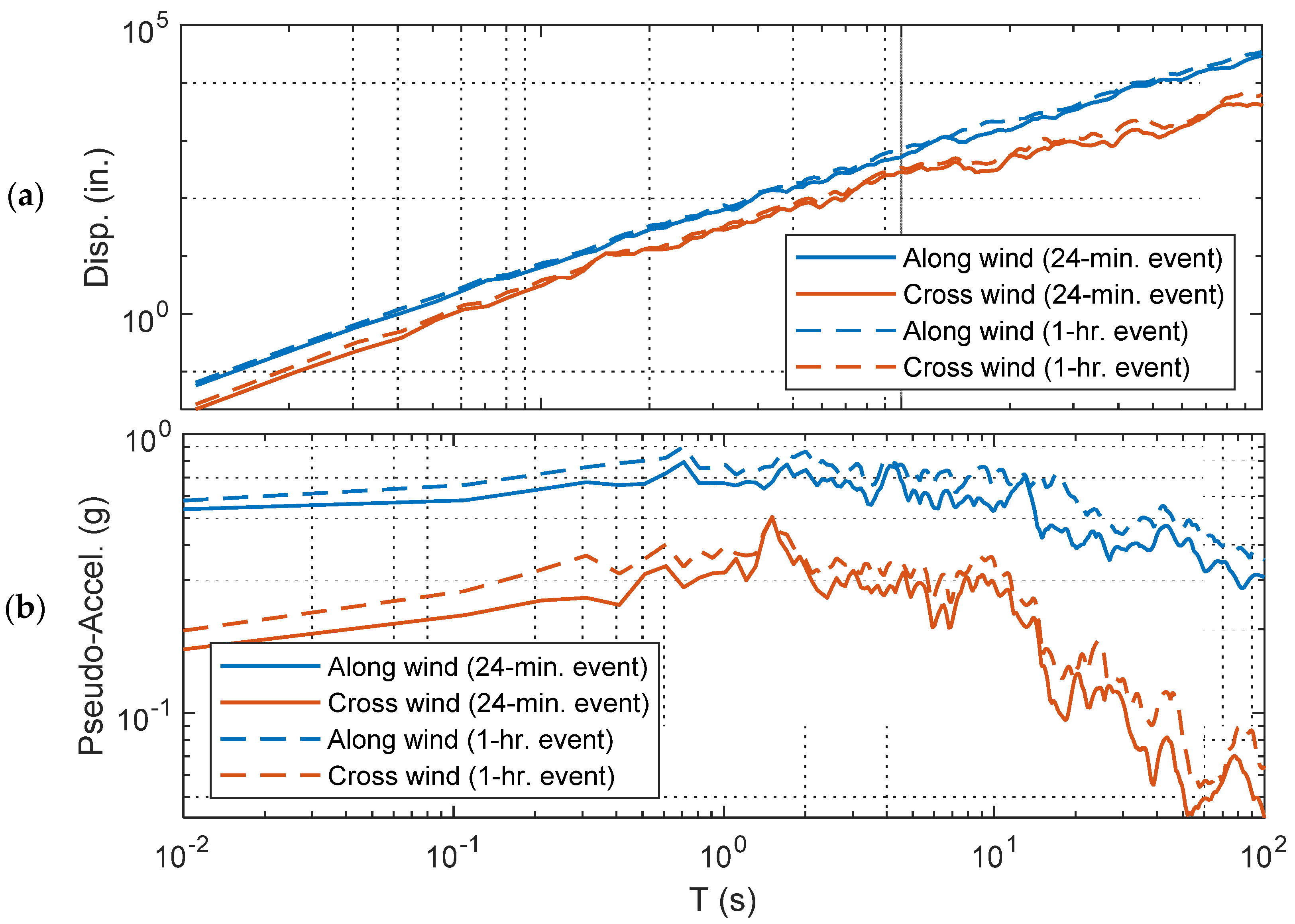

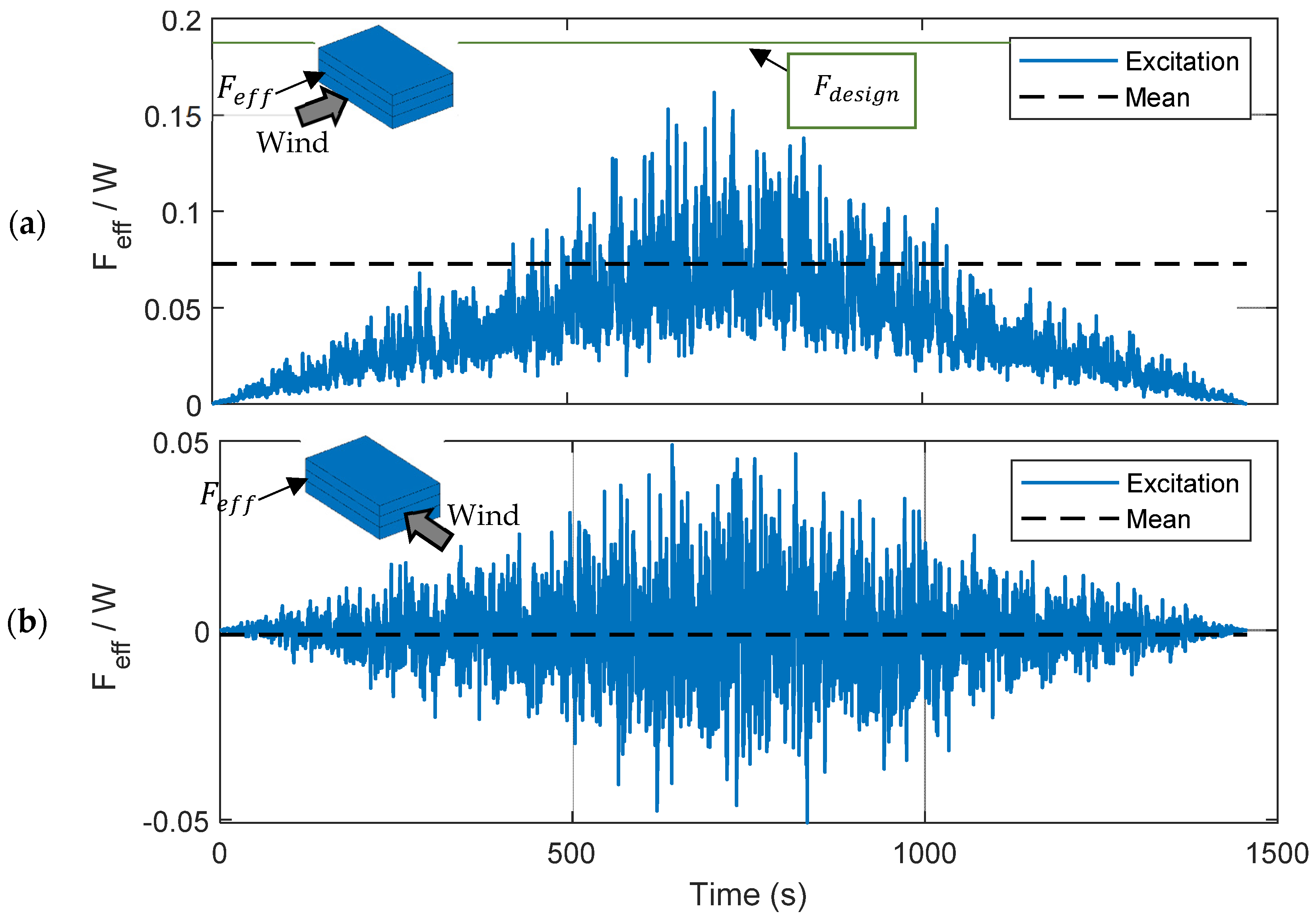

3.2. Wind Force Excitation

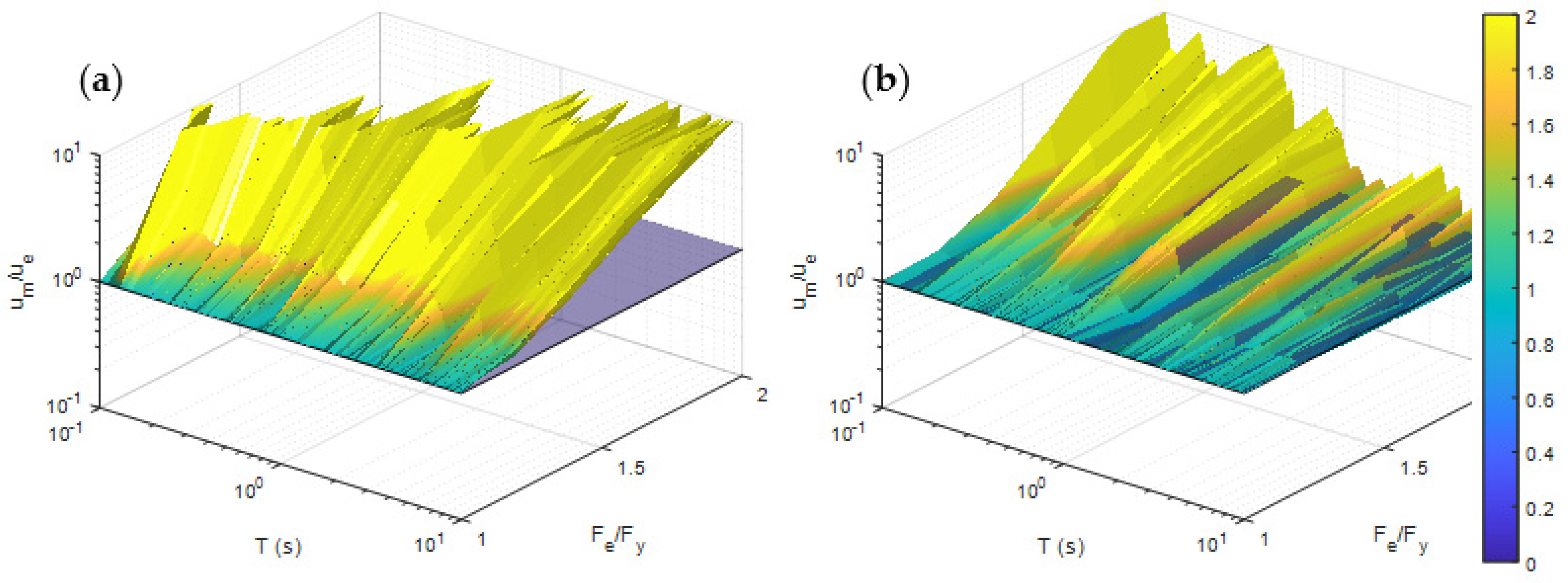

The results for the wind force excitations are shown in
Figure 16 and
Figure 17. The results indicate that the equal displacement rule does not hold for along-wind forces (
Figure 16a); however, the rule holds in a limited sense for cross-wind forces (
Figure 16b), with an increased fidelity for long-period systems. The primary factor contributing to the deviation from the equal displacement rule in the along-wind direction is the lack of neutral polarity (the mean wind force is not zero). The results for the peak inelastic energy ratio (

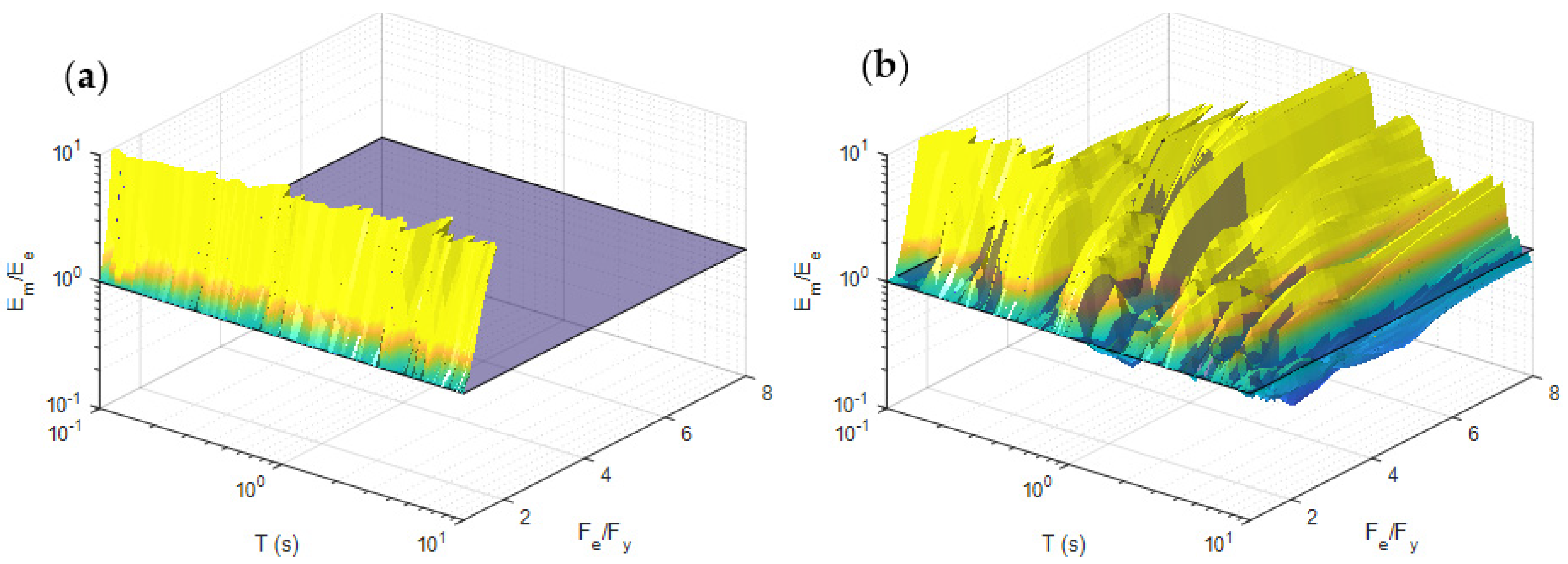

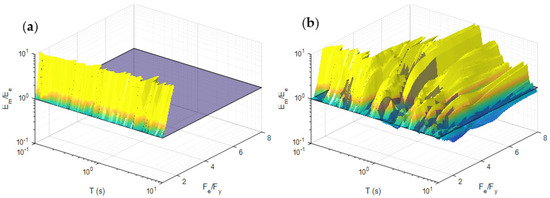

Figure 17) follow this pattern, however with less fidelity to the equal energy rule. The ribbed topography of the surfaces reflects the broad band of frequency content inherent in wind excitation. The results indicate that the equal displacement rule might not hold for other orientations of wind because the mean wind force will probably not be zero.

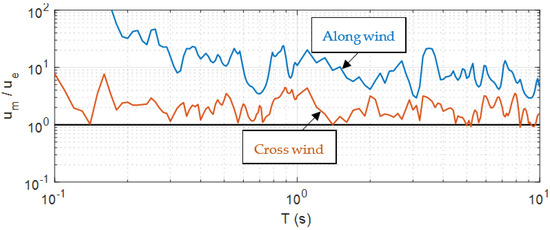

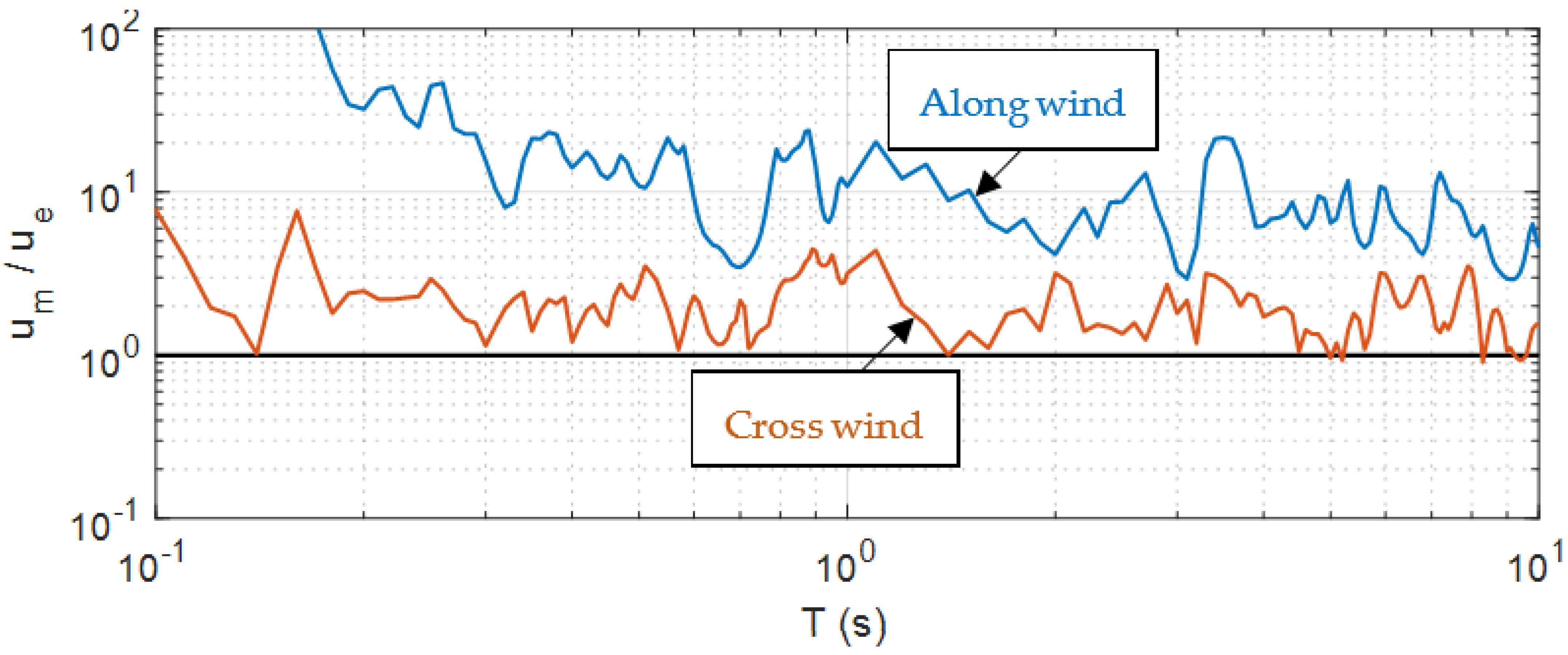

The implication of polarity for wind loading is demonstrated in
Figure 18. The results indicate that an excitation with a non-zero mean effective force generates an inelastic response that deviates from the equal displacement rule. For cross-wind loads, the inelastic displacement, even for long-period structures, is five to ten times the elastic displacement, depending on the period and yield strength of the system. These results suggest that ductility does not play as important a role in wind response as it does in seismic response. The results infer the design and safety of buildings in wind-prone regions depends more on strength and stiffness and less on ductility.
The results demonstrate that the duration of the excitation has an important effect on the response. For example,

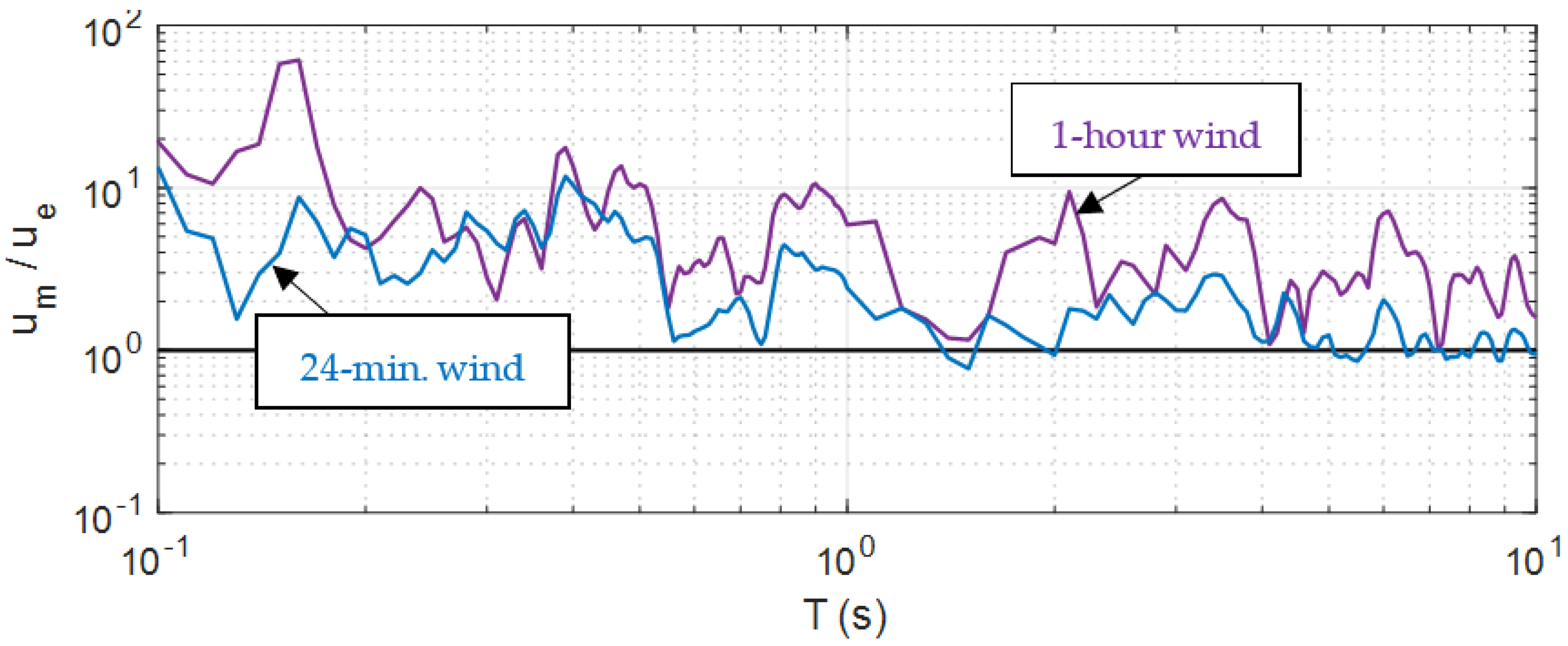

Figure 19 shows the peak inelastic displacement ratio for systems with a yield strength ratio of 2 that are subjected to short and long duration cross direction wind loads. The longer duration excitation produces larger inelastic displacements. In fact, duration has a similar effect on ground motion excitations. For example,

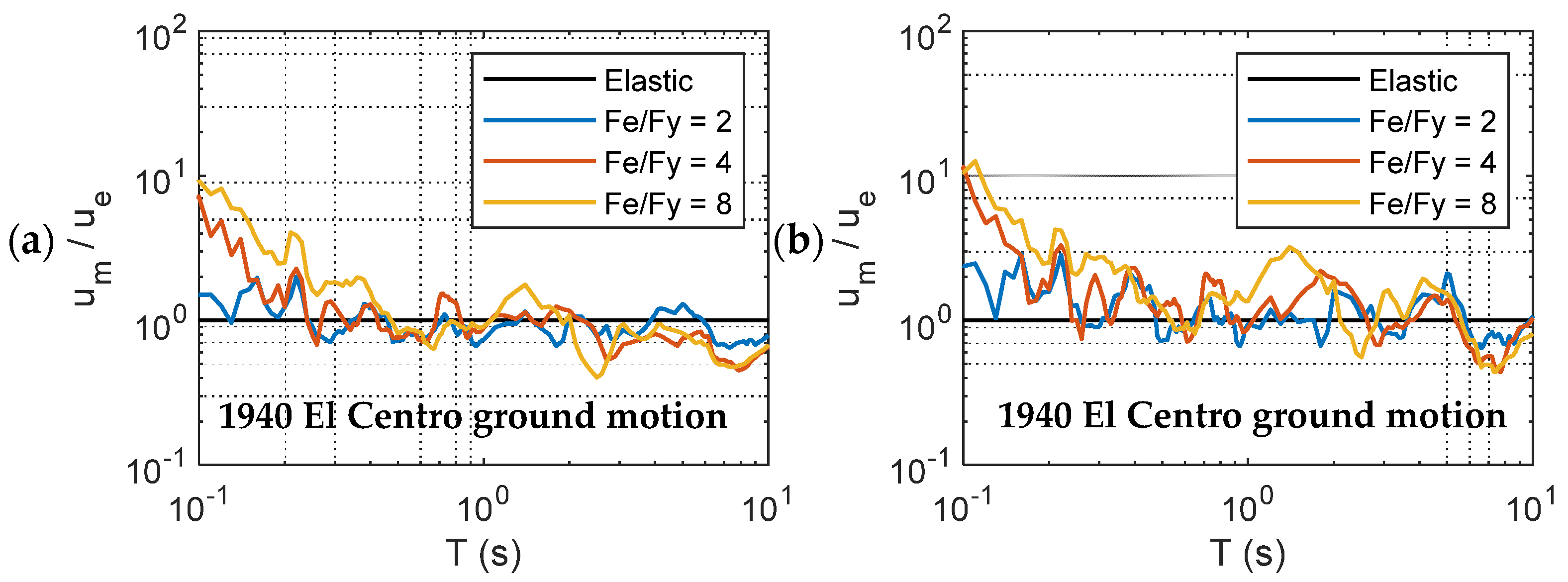

Figure 20 shows the response for a single ground motion record compared to a sequential (repeated) ground motion. To the authors’ knowledge, the effect of the duration of ground motion on the equal displacement rule has not previously been known.

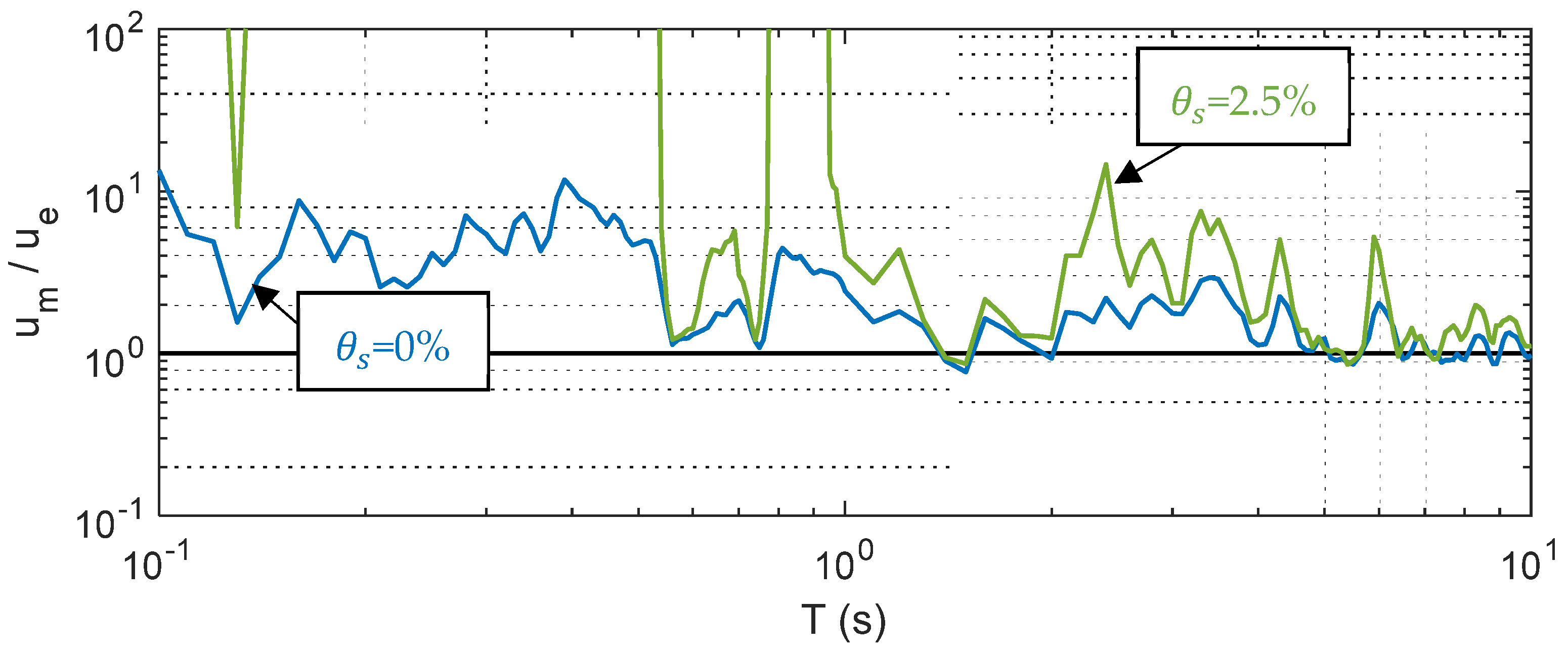

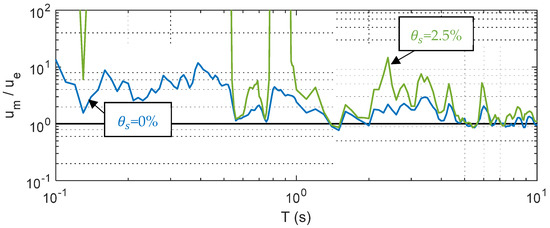

The effect of gravity loads is shown in
Figure 21. Gravity load effects are more severe for short-period structures because the second order displacement is large compared to the first order displacement. The equal displacement concept generally does hold in the presence of moderate (
= 2.5%) gravity load effects for cross-wind forces because the excitation is approximately neutral in polarity.
The physical explanation for this behavior is that as the building displaces, a neutral excitation brings the building back to the undeformed position. At the end of the excitation, the building has zero residual displacement. Thus, gravity load effects do not come into play when the excitation has neutral polarity, and the yield strength ratio is low.
The wind force analysis confirmed the behavior observed in the wavelet analysis. The results showed that the equal displacement concept generally holds for cross-wind excitation, however not for along-wind excitation. The inelastic behavior for cross-wind forces is similar to the inelastic behavior for ground motions, except the equal displacement rule does not hold as well for cross-winds due to the effect of duration. The inelastic behavior for along-wind forces follows the equal displacement rule for a yield strength ratio of 1.2 or less; however, the response is additionally sensitive to duration. The effect of duration is more pronounced for systems with a higher yield strength ratio and a smaller period of vibration. Stiffness and strength degradation due to gravity load effects has a more significant effect on short-period structures compared to long-period structures because second order displacement in stiff structures is relatively large compared to the elastic displacement.
The results demonstrate that the peak inelastic displacement is only equal to the elastic displacement in the displacement-controlled region of the response spectrum (long-period structures). The frequency content of the excitation has a significant effect on the response because it shifts the location of this region. The peak inelastic displacement is only approximately equal to the elastic displacement for long-period structures subjected to excitations with neutral polarity. The results for both wavelet and wind excitations show that the equal energy rule generally does not hold.
Although the focus of this study was on wind excitations, the results from this study illuminate the effect of polarity on the response of seismic ground motions. The results from this study additionally support the findings from earthquake engineering studies [
32,
33] that show the equal displacement rule does not always hold for spectrum matched ground motions with pulse or non-pulse-like characteristics.
4. Conclusions
Single-degree-of-freedom systems with a bilinear force versus deformation relationship were subjected to wavelet-based excitations and to wind force excitations, based on wind tunnel tests of a low-rise building. Two types of wavelets, B-spline and Fejér–Korovkin wavelets, were used to examine four fundamental characteristics: the polarity (mean amplitude), the frequency content, and the duration of the excitation to be considered. The destabilizing effect of gravity loads was additionally considered. Along-wind and cross-wind force excitations were developed for a three-story building, based on wind tunnel test data. A total of 2 durations were examined: a 24 min wind force excitation and a 1 h wind force excitation. The following are the main findings:
The polarity of the excitation dominates the inelastic response of the system. The results indicate that a bias of only 1% in the amplitude causes inelastic displacements to grow without bounds, for highly ductile systems for a broad range of a period of vibration. A similar effect is observed for an excitation with only a 1% offset in the mean force;
The frequency content of the excitation has a significant effect on the inelastic response because it shifts the extent of the displacement-controlled region of the response spectrum;
The duration of the excitation has a mild effect, compared to polarity and frequency content, for excitations with neutral polarity (a mean amplitude force equal to zero). A repeated excitation has a minor effect on the response, compared to a single excitation;
The effect of stiffness and strength degradation due to gravity loads on the inelastic response is more pronounced for short-period structures.
These findings suggest that for wind forces, the equal displacement rule could be applied in the cross-wind direction however not in the along-wind or oblique wind directions. If there is even a slight bias to the excitation, the equal displacement concept does not hold. Inelastic displacements increase significantly when the mean-force is not zero. This occurs regardless of gravity loads, whose effect is dwarfed by the effect of polarity. These findings are limited to low-rise buildings with wind events of similar duration and stationarity. Additional research is needed to determine the response of multi-degree-of-freedom systems.
The implication of the findings is that ductility plays less of a role in wind response, compared to seismic response. Furthermore, a reduced wind design force as part of a performance-based design may be applicable in high-rise buildings where cross-wind loads, due to vortex shedding, govern the design of the lateral system; however, in low-rise buildings, where along-wind loads dominate, a reduced design force based on ductility may not be justified in the same way that it is in earthquake engineering.
