Innovative Equivalent Elastic Modulus Based Stress Calculation Methodology for Reinforced Concrete Columns
Abstract
:1. Introduction

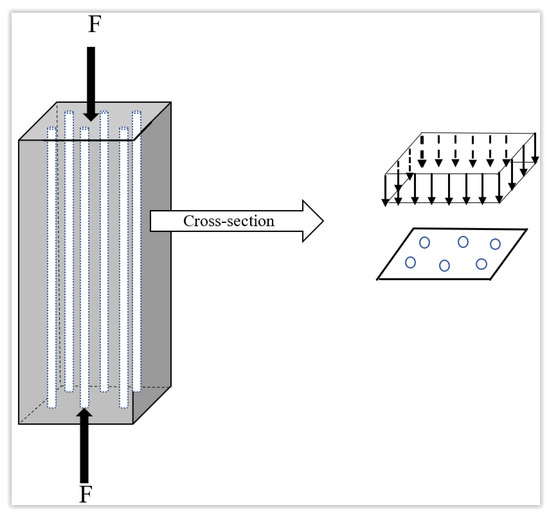

2. Composite Elasticity Model
- The total cross-sectional area, AT, is composed of a concrete area, AC, and the steel bars’ area, AS;
- The steel bars’ area, AS, or the concrete area, AC, are expressible as follows;AS = AT − ACAC = AT – AS
- The total area can be calculatable provided that the cross-section shape of the column is given as circular, rectangular, or square with two-dimensional measures;
- As for the stress distribution, concrete and steel areas are subjected to the same stress amount;
- As for the strain, both materials will react equally, where concrete will be a dependent material to steel or vice versa. Thus, each material will have the same strain under the force, F, in a column (see Figure 1).

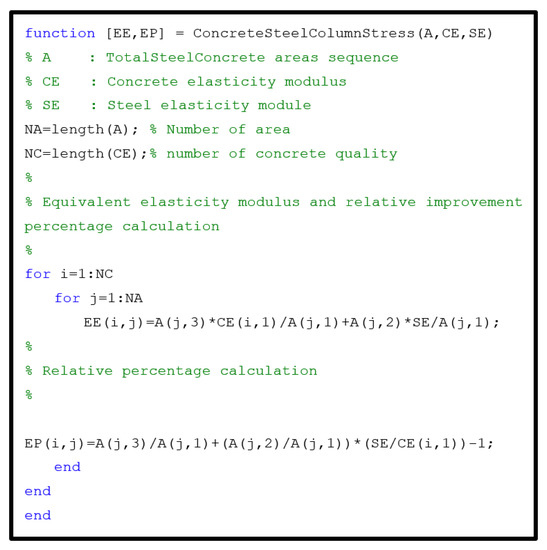

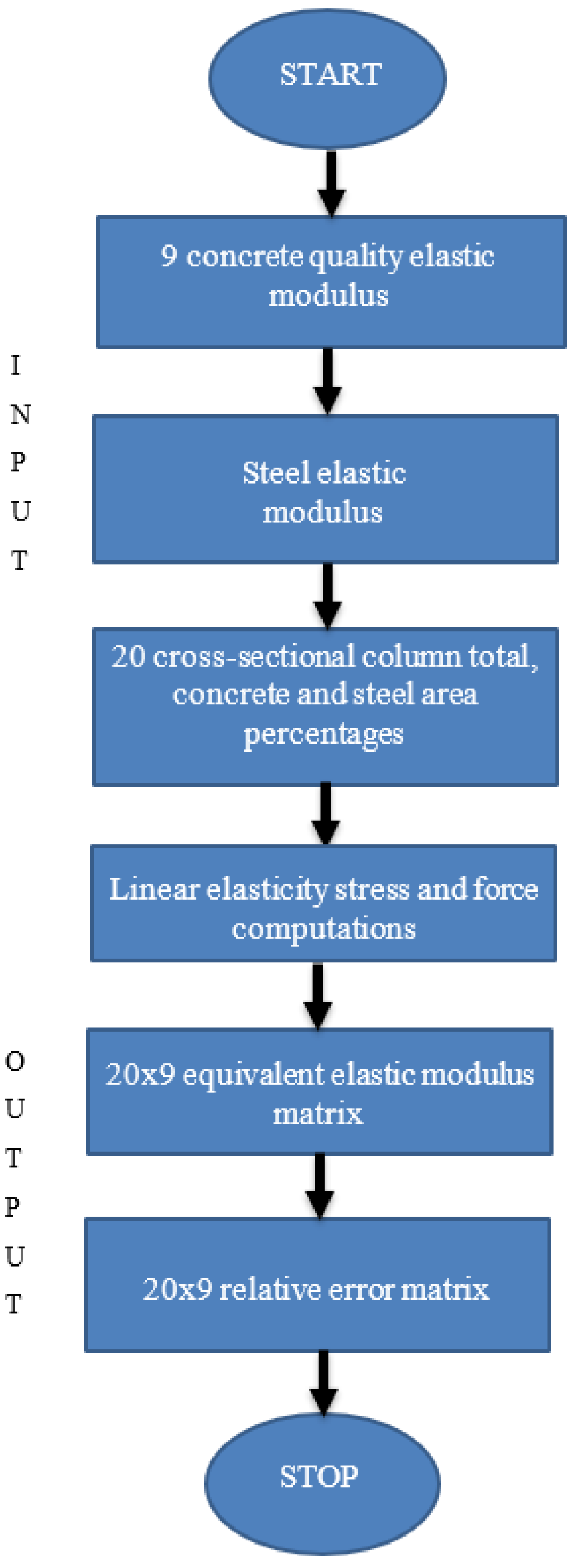

3. Application and Results
4. Discussion

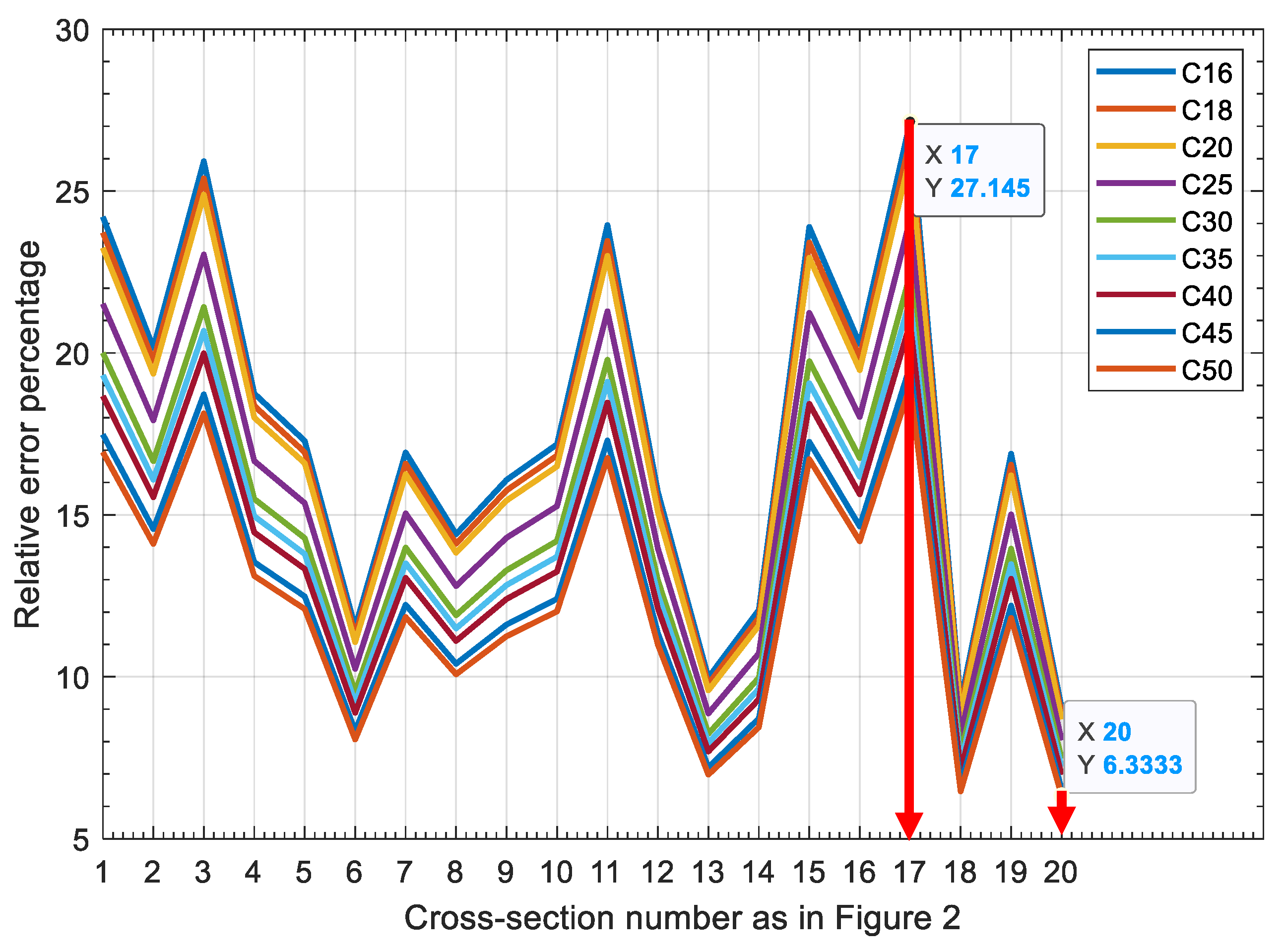

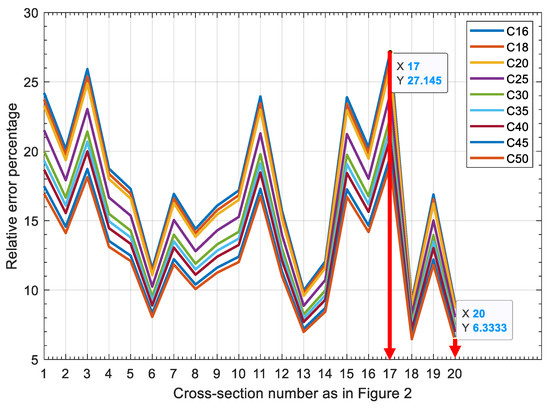

- The applications indicate that the relative improvement percentages over the classical Hooke’s Law calculations vary between 6% and 27% (see Figure 6). The steel reinforcement consideration is the main improvement factor, together with areal and elastic modulus contributions of various cross-section shapes with different concrete qualities;
- As the concrete quality increases (from C16 to C50), the improvement percentage also increases, and other concrete quality improvement percentages are confined between these two concrete qualities;
- The minimum percentage improvement is with a square cross-sectional area coupled with C50, whereas the maximum is with a slightly rectangular cross-sectional area coupled with C16 concrete quality;
- Increasing the relative improvement percentage on behalf of the steel is possible by increasing the steel area percentage. Thus, there is an optimum reinforcement possibility for the column design. In such optimization work, the budget (economic) conditions also play a restrictive role;
- Steel reinforcement contribution calculations augment the strength of the column, and thus some part of the “safety factor” can be reduced according to the proposed methodological calculation. With the newly proposed methodology, the SF amount becomes closer to 1.
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Inge, L. The Modular Ratio in Reinforced Concrete Design (Manuscript). A.K.A: The Modular Ratio—A New Method of Design. Concrete and Constructional Engineering, (England), Reprint No. 41 (37-4) (1937). Fritz Laboratory Reports. Paper 1202. Available online: http://preserve.lehigh.edu/engr-civil-environmental-fritz-lab-reports/1202 (accessed on 1 June 2023).
- Qiang, Z.; Li, Y.; Kolozvari, K. Numerical modelling of steel–concrete composite structures. Struct. Concr. 2018, 19, 1727–1739. [Google Scholar] [CrossRef]
- Askeland, D.R.; Fulay, P.P.; Wright, W.J. The Science and Engineering of Materials, 6th ed.; Cengage Learning: Boston, MA, USA, 2010. [Google Scholar]
- Alsomiri, M.; Jiang, X.; Liu, Z. Elastic Restraint Effect of Concrete Circular Columns with Ultrahigh-Performance Concrete Jackets: An Analytical and Experimental Study. Materials 2021, 14, 3278. [Google Scholar] [CrossRef] [PubMed]
- Denavit, M.D.; Hajjar, J.F.; Perea, T.; Leon, R.T. Elastic Flexural Rigidity of Steel-Concrete Composite Columns. 2018. Available online: https://www.sciencedirect.com/science/article/abs/pii/S0141029617321107 (accessed on 1 June 2023).
- Anwar, N.; Najam, F.A.S. Structural Cross-Sections, Analysis and Design; Butterworth-Heinemann: Cambridge, MA, USA, 2017; 588p. [Google Scholar]
- Bresler, B. Design criteria for reinforced columns under axial load and biaxial bending. ACI J. Amer. Concr. 1969, 57, 481–490. [Google Scholar]
- Mirza, S.A. Flexural stiffness of rectangular reinforced concrete columns. ACI Struct. J. 1990, 87, 425–435. [Google Scholar]
- Tikka Timo, K.; Mirza, S.A. Effective flexural stiffness of slender structural concrete columns. Canad. J. Civil. Eng. 2008, 35, 384–399. [Google Scholar] [CrossRef]
- Raza, S.; Khan, M.K.; Menegon, S.J.; Tsang, H.-H.; Wilson, J.L. Strengthening and Repair of Reinforced Concrete Columns by Jacketing: State-of-the-Art Review. Sustainability 2019, 1, 3208. [Google Scholar] [CrossRef] [Green Version]
- Ehsani, M.R.; Alameddine, F. Refined stiffness of slender circular reinforced concrete columns. Struct. J. 1987, 84, 419–427. [Google Scholar]
- Sigmon, G.R.; Ahmad, S.H. Flexural rigidity of circular reinforced concrete sections. Struct. J. 1990, 87, 548–557. [Google Scholar]
- Bonet, J.L.; Miguel, P.F.; Fernandez, M.A.; Romero, M.L. Biaxial bending moment magnifier method. Eng. Struct. 2004, 26, 2007–2019. [Google Scholar] [CrossRef]
- Building Code Requirements for Structural Concrete (ACI-318-02), Committee 318; American Concrete Institute: Detroit, MI, USA, 2002.
- Bonet, J.L.; Romero, M.L.; Miguel, P.F. Effective flexural stiffness of slender reinforced concrete columns under axial forces and biaxial bending. Eng. Struct. 2011, 33, 881–893. [Google Scholar] [CrossRef] [Green Version]
- EN 1992-1-1; Eurocode 2: Design of Concrete Structures—Part 1: General Rules and Rules for Buildings. European Committee for Standardization: Brussels, Belgium, 2004.
- Park, R.; Paulay, T. Ductile reinforced concrete frames: Some comments on the special provisions for seismic design of ACI 318-71 and on capacity design. Bull. N. Zealand Soc. Earthq. Eng. 1975, 8, 70–90. [Google Scholar] [CrossRef]
- Cai, Y.; Jiang, H.; Lai, Z. A unified design equation for square and rectangular concrete-filled steel tubular short columns. J. Constr. Steel Res. 2023, 207, 107949. [Google Scholar] [CrossRef]
- Nocera, F.; Wang, J.; Faleschini, F.; Demartino, C.; Gardoni, P. Probabilistic models of concrete compressive strength and elastic modulus with rubber aggregates. Constr. Build. Mater. 2022, 322, 126145. [Google Scholar] [CrossRef]
- Khalel, H.H.Z.; Khan, M. Modelling Fibre-Reinforced Concrete for Predicting Optimal Mechanical Properties. Materials 2023, 16, 3700. [Google Scholar] [CrossRef] [PubMed]
- Gandomi, A.H.; Faramarzifar, A.; Rezaee, P.G.; Asghari, A. New design equations for elastic modulus of concrete using multi expression programming. J. Civ. Eng. Manag. 2015, 21, 761–774. [Google Scholar] [CrossRef] [Green Version]
- Chen, J.; Zhou, Y.; Nad Yin, F. A Practical Equation for the Elastic Modulus of Recycled Aggregate Concrete. Buildings 2022, 12, 187. [Google Scholar] [CrossRef]
- Felix, E.; Possan, E.; Carrazedo, R. A new formulation to estimate the elastic modulus of recycled concrete based on regression and ANN. Sustainability 2021, 13, 8561. [Google Scholar] [CrossRef]

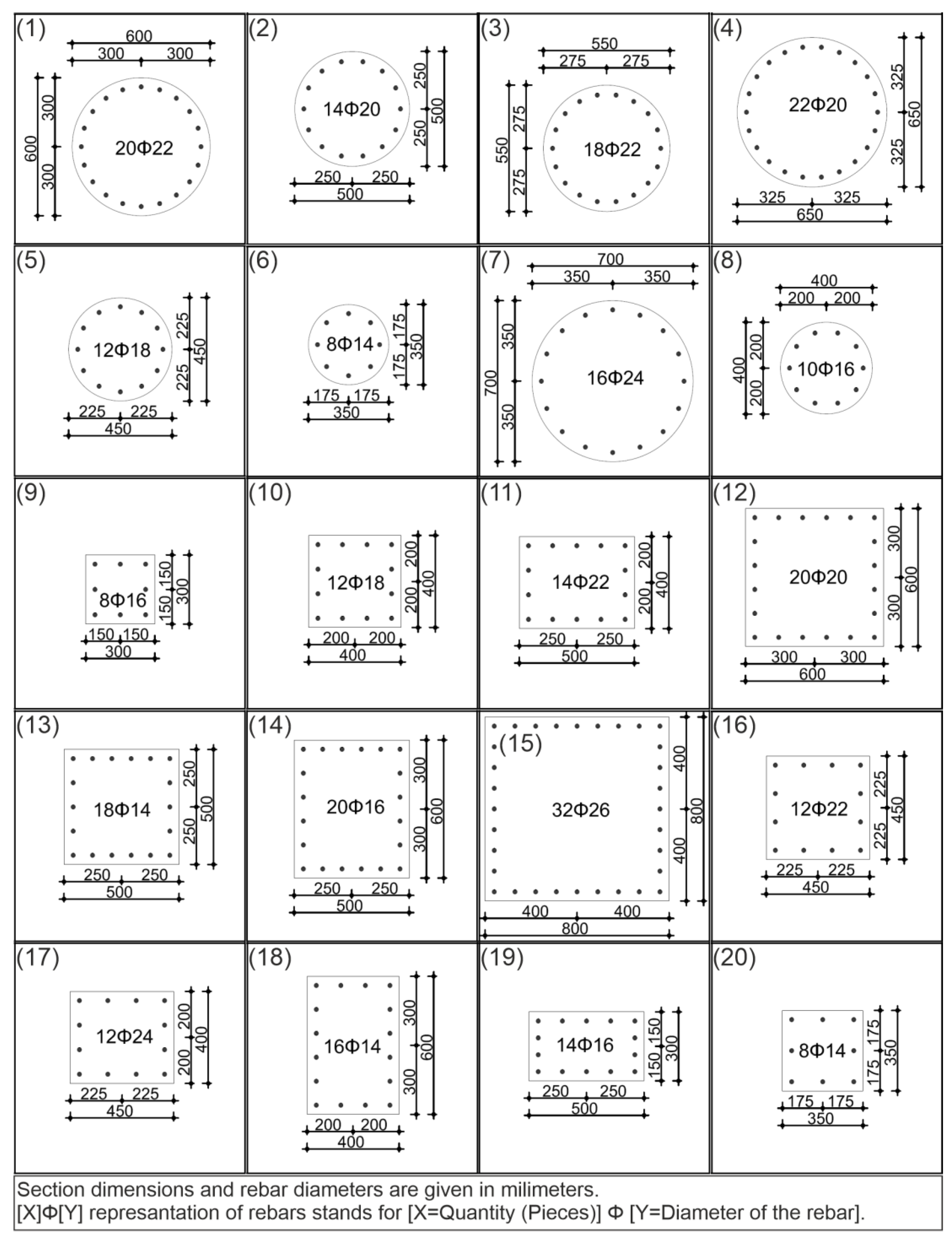

Cross-Section No | Section Geometric Details | Rebar Details | Area Calculations | |||||||
---|---|---|---|---|---|---|---|---|---|---|
Shape | Width | Length | Diameter | Quantity | Diameter | AT | AS | AC | ρ | |
mm | mm | mm | Pieces | mm | mm2 | mm2 | mm2 | % | ||
1 | Circular | - | - | 600 | 20 | 22 | 282,743 | 7603 | 275,141 | 2.69% |
2 | Circular | - | - | 500 | 14 | 20 | 196,350 | 4398 | 191,951 | 2.24% |
3 | Circular | - | - | 550 | 18 | 22 | 237,583 | 6842 | 230,741 | 2.88% |
4 | Circular | - | - | 650 | 22 | 20 | 331,831 | 6912 | 324,919 | 2.08% |
5 | Circular | - | - | 450 | 12 | 18 | 159,043 | 3054 | 155,990 | 1.92% |
6 | Circular | - | - | 350 | 8 | 14 | 96,211 | 1232 | 94,980 | 1.28% |
7 | Circular | - | - | 700 | 16 | 24 | 384,845 | 7238 | 37,7607 | 1.88% |
8 | Circular | - | - | 400 | 10 | 16 | 125,664 | 2011 | 123,653 | 1.60% |
9 | Rectangular | 300 | 300 | - | 8 | 16 | 90,000 | 1608 | 88,392 | 1.79% |
10 | Rectangular | 400 | 400 | - | 12 | 18 | 160,000 | 3054 | 156,946 | 1.91% |
11 | Rectangular | 500 | 400 | - | 14 | 22 | 200,000 | 5322 | 194,678 | 2.66% |
12 | Rectangular | 600 | 600 | - | 20 | 20 | 360,000 | 6283 | 35,3717 | 1.75% |
13 | Rectangular | 500 | 500 | - | 18 | 14 | 250,000 | 2771 | 247,229 | 1.11% |
14 | Rectangular | 500 | 600 | - | 20 | 16 | 300,000 | 4021 | 295,979 | 1.34% |
15 | Rectangular | 800 | 800 | - | 32 | 26 | 640,000 | 16,990 | 623,010 | 2.65% |
16 | Rectangular | 450 | 450 | - | 12 | 22 | 202,500 | 4562 | 197,938 | 2.25% |
17 | Rectangular | 450 | 400 | - | 12 | 24 | 180,000 | 5429 | 174,571 | 3.02% |
18 | Rectangular | 400 | 600 | - | 16 | 14 | 240,000 | 2463 | 237,537 | 1.03% |
19 | Rectangular | 500 | 300 | - | 14 | 16 | 150,000 | 2815 | 147,185 | 1.88% |
20 | Rectangular | 350 | 350 | - | 8 | 14 | 122,500 | 1232 | 121,268 | 1.01% |
Concrete Class | Compressive Strength | Tensile Strength | Modulus of Elasticity | Metal Alloy | Modulus of Elasticity | Shear Modulus | Poisson Ratio |
---|---|---|---|---|---|---|---|
MPa | MPa | MPa | GPa | GPa | - | ||
C16 | 16 | 1.4 | 27,000 | Aluminium | 69 | 25 | 0.33 |
C18 | 18 | 1.5 | 27,500 | Brass | 97 | 37 | 0.34 |
C20 | 20 | 1.6 | 28,000 | Copper | 110 | 46 | 0.34 |
C25 | 25 | 1.8 | 30,000 | Magnesium | 45 | 17 | 0.29 |
C30 | 30 | 1.9 | 32,000 | Nickel | 207 | 76 | 0.31 |
C35 | 35 | 2.1 | 33,000 | Cast iron | 120 | 46 | 0.30 |
C40 | 40 | 2.2 | 34,000 | Steel (rebars) | 207 | 83 | 0.30 |
C45 | 45 | 2.3 | 36,000 | Titanium | 107 | 45 | 0.34 |
C50 | 50 | 2.5 | 37,000 | Wolfram | 407 | 160 | 0.28 |
C16 | C18 | C20 | C25 | C30 | C35 | C40 | C45 | C50 | ||
---|---|---|---|---|---|---|---|---|---|---|

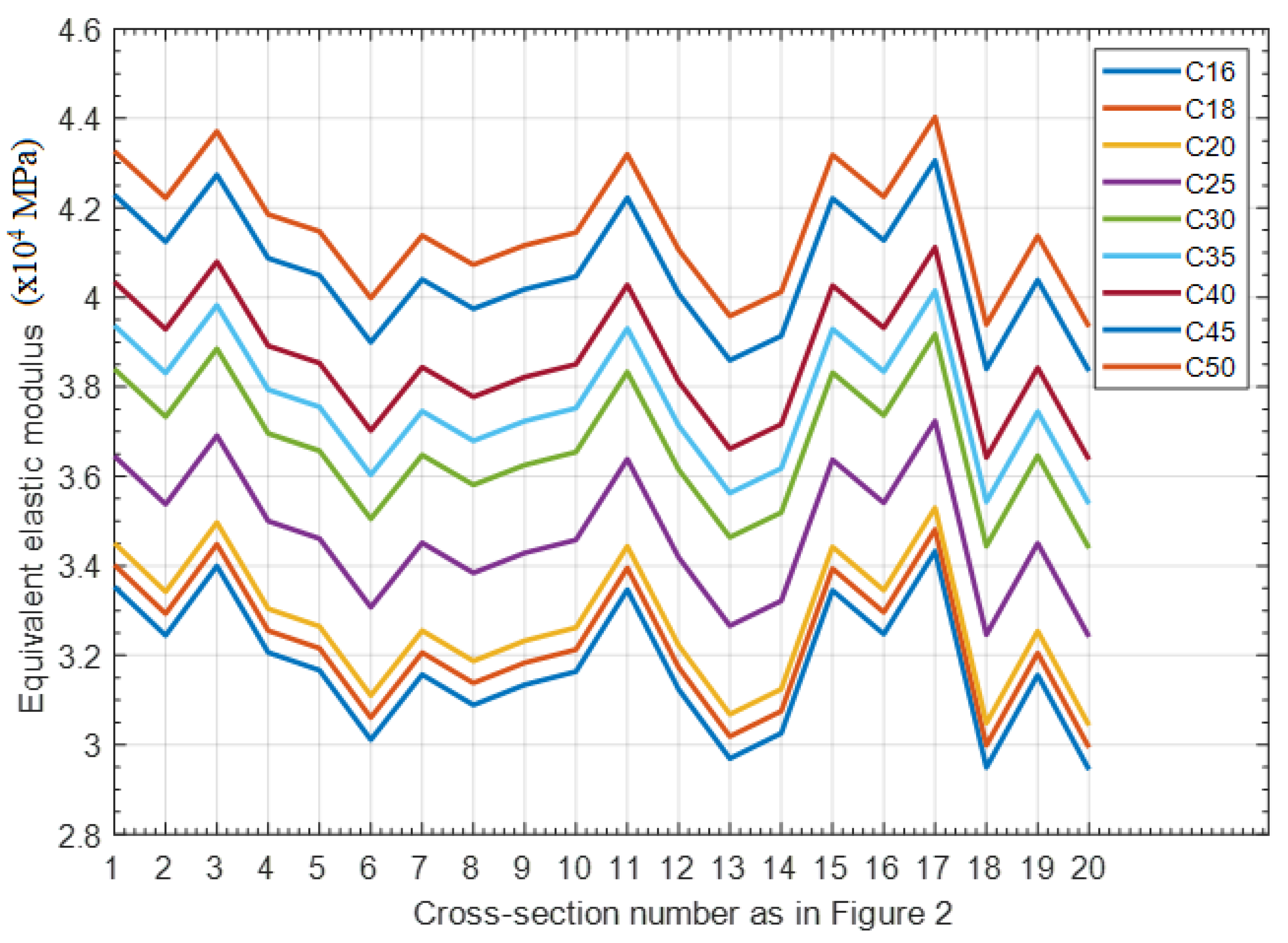

EQUIVALENT ELASTICITY MODULUS (×104 MPa) | ||||||||||
CROSS-SECTION AREA | 1 | 3.35 | 3.40 | 3.45 | 3.65 | 3.84 | 3.94 | 4.03 | 4.23 | 4.33 |
2 | 3.24 | 3.29 | 3.34 | 3.54 | 3.73 | 3.83 | 3.93 | 4.12 | 4.22 | |
3 | 3.40 | 3.45 | 3.50 | 3.69 | 3.89 | 3.98 | 4.08 | 4.27 | 4.37 | |
4 | 3.21 | 3.26 | 3.30 | 3.50 | 3.70 | 3.79 | 3.89 | 4.09 | 4.19 | |
5 | 3.17 | 3.22 | 3.26 | 3.46 | 3.66 | 3.76 | 3.85 | 4.05 | 4.15 | |
6 | 3.01 | 3.06 | 3.11 | 3.31 | 3.50 | 3.60 | 3.70 | 3.90 | 4.00 | |
7 | 3.16 | 3.21 | 3.26 | 3.45 | 3.65 | 3.75 | 3.84 | 4.04 | 4.14 | |
8 | 3.09 | 3.14 | 3.19 | 3.38 | 3.58 | 3.68 | 3.78 | 3.97 | 4.07 | |
9 | 3.13 | 3.18 | 3.23 | 3.43 | 3.63 | 3.72 | 3.82 | 4.02 | 4.12 | |
10 | 3.16 | 3.21 | 3.26 | 3.46 | 3.65 | 3.75 | 3.85 | 4.05 | 4.14 | |
11 | 3.35 | 3.40 | 3.44 | 3.64 | 3.83 | 3.93 | 4.03 | 4.22 | 4.32 | |
12 | 3.12 | 3.17 | 3.22 | 3.42 | 3.62 | 3.71 | 3.81 | 4.01 | 4.11 | |
13 | 2.97 | 3.02 | 3.07 | 3.27 | 3.46 | 3.56 | 3.66 | 3.86 | 3.96 | |
14 | 3.03 | 3.08 | 3.12 | 3.32 | 3.52 | 3.62 | 3.72 | 3.91 | 4.01 | |
15 | 3.35 | 3.39 | 3.44 | 3.64 | 3.83 | 3.93 | 4.03 | 4.22 | 4.32 | |
16 | 3.25 | 3.30 | 3.35 | 3.54 | 3.74 | 3.83 | 3.93 | 4.13 | 4.22 | |
17 | 3.43 | 3.48 | 3.53 | 3.72 | 3.92 | 4.01 | 4.11 | 4.31 | 4.40 | |
18 | 2.95 | 3.00 | 3.05 | 3.25 | 3.44 | 3.54 | 3.64 | 3.84 | 3.94 | |
19 | 3.16 | 3.21 | 3.25 | 3.45 | 3.65 | 3.74 | 3.84 | 4.04 | 4.14 | |
20 | 2.94 | 2.99 | 3.04 | 3.24 | 3.44 | 3.54 | 3.64 | 3.84 | 3.93 |
C16 | C18 | C20 | C25 | C30 | C35 | C40 | C45 | C50 | ||
---|---|---|---|---|---|---|---|---|---|---|
RELATIVE IMPROVEMENT PERCENTAGE (RIP) | ||||||||||
CROSS-SECTION AREA | 1 | 24.20 | 23.71 | 23.24 | 21.51 | 20.00 | 19.31 | 18.67 | 17.48 | 16.93 |
2 | 20.16 | 19.75 | 19.36 | 17.92 | 16.66 | 16.09 | 15.55 | 14.56 | 14.10 | |
3 | 25.92 | 25.39 | 24.89 | 23.04 | 21.42 | 20.68 | 19.99 | 18.72 | 18.14 | |
4 | 18.75 | 18.37 | 18.00 | 16.66 | 15.49 | 14.96 | 14.46 | 13.54 | 13.12 | |
5 | 17.28 | 16.93 | 16.60 | 15.36 | 14.28 | 13.79 | 13.33 | 12.48 | 12.09 | |
6 | 11.53 | 11.29 | 11.07 | 10.25 | 9.52 | 9.20 | 8.89 | 8.32 | 8.06 | |
7 | 16.93 | 16.58 | 16.26 | 15.05 | 13.99 | 13.51 | 13.05 | 12.22 | 11.84 | |
8 | 14.40 | 14.11 | 13.83 | 12.80 | 11.90 | 11.49 | 11.11 | 10.40 | 10.08 | |
9 | 16.08 | 15.76 | 15.44 | 14.29 | 13.29 | 12.83 | 12.40 | 11.61 | 11.25 | |
10 | 17.18 | 16.83 | 16.50 | 15.27 | 14.20 | 13.71 | 13.25 | 12.41 | 12.02 | |
11 | 23.95 | 23.47 | 23.00 | 21.29 | 19.79 | 19.11 | 18.47 | 17.30 | 16.76 | |
12 | 15.71 | 15.39 | 15.08 | 13.96 | 12.98 | 12.53 | 12.11 | 11.34 | 10.99 | |
13 | 9.98 | 9.77 | 9.58 | 8.87 | 8.24 | 7.96 | 7.69 | 7.20 | 6.98 | |
14 | 12.06 | 11.82 | 11.58 | 10.72 | 9.97 | 9.63 | 9.30 | 8.71 | 8.44 | |
15 | 23.89 | 23.41 | 22.94 | 21.24 | 19.74 | 19.07 | 18.43 | 17.26 | 16.72 | |
16 | 20.28 | 19.87 | 19.47 | 18.02 | 16.76 | 16.18 | 15.64 | 14.64 | 14.19 | |
17 | 27.15 | 26.60 | 26.07 | 24.13 | 22.43 | 21.66 | 20.94 | 19.60 | 18.99 | |
18 | 9.24 | 9.05 | 8.87 | 8.21 | 7.63 | 7.37 | 7.12 | 6.67 | 6.46 | |
19 | 16.89 | 16.55 | 16.22 | 15.01 | 13.96 | 13.48 | 13.03 | 12.20 | 11.82 | |
20 | 9.05 | 8.87 | 8.69 | 8.05 | 7.48 | 7.22 | 6.98 | 6.54 | 6.33 |
