An Open Database to Evaluate the Fundamental Frequency of Historical Masonry Towers through Empirical and Physics-Based Formulations

Abstract

The fundamental frequency plays a primary role in the dynamic assessment of Cultural Heritage towers. Local and global features may impact its value: geometric, material features, interaction with the soil and adjacent buildings, aging, the construction phase, and repairs. A database is assembled to study the relationship between the fundamental frequency and the slender masonry structure features. Empirical and physics-based approaches were developed to assess the fundamental frequency from different sources of information. A Rayleigh–Ritz approach is proposed and compared with a 3D finite element model. A sensitivity analysis is then performed to quantify the contribution of each feature. As expected, it is shown that the height of the tower contributes the most to the fundamental frequency. The other tower features have a second-order impact on both the fundamental frequency and the mode shape. A comparison between the different approaches shows that the Rayleigh–Ritz drastically minimizes the difference between numerical and experimental frequencies when all information is available. Empirical relations are a good compromise when less information is available.

1. Introduction

Masonry towers belong to a peculiar structural typology in Cultural Heritage buildings. They are mainly diffused in the form of defensive towers, bell towers, clock towers, watch towers, etc., and can be found in every place in the world. Because they bear witness to a history spanning several centuries, they are a capital of irreplaceable cultural, social, environmental, and economic values. However, science can play a fundamental role in increasing and disseminating knowledge about heritage towers’ history, composition, and behavior. This work is an opportunity to share with the community a database of historic slender heritage structures, as well as tools to help protect them, following on from previous pioneering works, e.g., [1,2,3].

The historical structures were mainly designed to withstand only vertical loads. They are, however, particularly vulnerable to seismic activity. The last Italian earthquakes in L’Aquila (April 2009), Emilia-Romagna (May 2012), and Amatrice (August 2016), highlighted the high seismic vulnerability of the specific typology of slender masonry structures. The weak mechanical properties, the geometric features of the structure, and the soil–structure interaction generally explain this vulnerability.

Since the first mode of slender structures generally exhibits the highest mass participation, the value of the fundamental frequency plays a prominent role in assessing its dynamic behavior [4]. Its evaluation is suggested in some codes and provisions, such as the Italian guidelines for the assessment and mitigation of the seismic risk to cultural heritage [5], where their dynamic behavior is roughly comparable to either a cantilever equivalent beam or those that can be obtained from trustworthy simplified formulations.

On the other hand, modal parameters may be extracted from vibration measurements through operational modal analysis (see [6] for a review). This non-invasive dynamic identification is particularly suitable for Cultural Heritage structures. In the last decade, databases of the dynamic properties, materials, and geometric features of slender masonry structures have been assembled [1,2,3,7]. It has opened new opportunities to challenge the classical simple formulations and to design empirical formulations to estimate the fundamental frequency of slender masonry towers. The contribution of other parameters like the interaction with adjacent buildings [8] and the openings have been evaluated [2]. Despite considering many global features, we note the persistent variability of the fundamental frequency, which prompts us to consider more local features. Cultural heritage buildings may be strongly affected by the construction history, aging, repairs, retrofitting actions, bell systems, etc., e.g., [9].

In this work, we propose to quantify the contribution of global and local features when evaluating the fundamental frequency of slender masonry towers. The first step aims to gather existing databases [1,2,3,7], extended by a survey performed by the authors and isolated studies identified from an exhaustive literature review. Additional features have been added, such as the construction periods, local geometric features (thickness, openings geometry), and details about the measured fundamental frequency, the setup of the vibration analysis survey, and the technique used to identify modal parameters. The Towers featURes & fRequencIes databaSe (TURRIS) database is first described. Descriptive statistics provide information on the parameters well constrained by the data, which is necessary to study their impact on the fundamental frequency using the models proposed in the following section. Instrumentation practices and the extraction of modal characteristics also make it possible to discuss potential sources of uncertainty in fundamental frequency identification. We update empirical and physics-based models derived from existing relations found in the literature [1,10,11,12,13,14,15] to consider the tower dynamic features. The regression coefficients of the empirical formulations are updated. Empirical and physics-based models are then tested and discussed in light of the collected database. Additional parameters, such as the interaction with the soil, adjacent buildings, and the bells system, are then used in the Euler–Bernoulli beam formulation to test their impact on the dynamic properties. A semi-analytical Rayleigh–Ritz approach is then introduced to evaluate the dynamic properties of slender masonry structures. The formulation is calibrated through a comparison with a 3D finite element model. The results of evaluating the fundamental frequencies using empirical, physics-based, and Rayleigh–Ritz approaches are discussed. A sensitivity analysis based on the Random Balance Design Fourier-Amplitude Sensitivity Test (RBD-FAST) is used to test the sensitivity of the fundamental frequency to the structural features when using the Rayleigh–Ritz approach. The limits of the values of the parameters tested are taken from the descriptive statistical analysis of the database. It allows us to discuss future experimental efforts required to constrain the evaluation of the fundamental frequency. A significant result of this work is sharing a database and codes for evaluating the fundamental frequency of slender structures using empirical, physics-based models and Rayleigh–Ritz formulation. Both are available at the following GitHub link: https://github.com/MArnaud/TURRIS [16].

2. Masonry Towers Database

2.1. Parameters Describing the Towers

In the TURRIS database, the towers are described in terms of the associated literature reference; tower location (town, geographic coordinates); tower name; modal, geometric, and material parameters; construction period; details about the instrumental survey; and type of modal parameter identification technique. Modal parameters consist of the measured natural frequencies and the nature of the mode shape described in each reviewed paper. The geometry of each tower is simply described from its total and effective height (i.e., the height of the portion of the tower that is free from the restraint offered by adjacent buildings); the dimension of the ground section (length, width); the minimum and maximum thickness of walls; dimensions of openings (altitude, height, and width); its relation with adjacent buildings (isolated or bounded); and the mass of bells. Material parameters are described with the density, Young modulus, and Poisson’s ratio. When available, the year or the century of construction is specified. The instrumental surveys are detailed with the type of instruments, the campaign duration, and the sampling of records.

2.2. Compilation of Data Collection

The data is assembled through an extensive literature review, including previously compiled data collections, isolated studies, and the authors’ recent measurements (references, e.g., [1,2,3,7,8,12,13,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126,127,128,129,130,131,132,133,134,135,136,137,138,139,140,141,142,143,144,145,146,147,148,149,150,151,152,153,154,155,156,157,158,159,160,161,162,163,164,165,166,167,168,169,170,171,172,173,174,175,176,177,178,179,180,181]). Values from previous data collection have been cross-checked, and additional information from the original papers has been included. Figure 1 highlights the number of instrumented slender masonry structures through time. The first instrumentation of a masonry tower was performed in 1989 [24]. We note some remarkable data collection. In 1995, Lund et al. [7] reported the vibration results of 19 old masonry towers in the Northeast of England to investigate the impact of the English bells system on the bell towers’ behaviors (LU collection). In 2007 and 2009, Schmidt [17,18] presented experimental investigations of 16 twin bell towers in Saxony-Anhalt (Germany) and investigated the relationship between the natural frequencies and the geometric parameters of the towers (SC collection). In 2011, Rainieri and Fabbrocino [19] conducted an output-only modal identification of nine masonry towers (RF collection) in the Molise Region (Southern Italy) and compared the measured fundamental frequencies with the empirical relation provided by the Italian Seismic Code (NTC2008, [182]). In 2016, Limoge [20] reported an extensive dynamic identification survey of 20 baroque churches in French Savoy (France) to conduct a large-scale vibration-based model updating process (LI collection). In 2017, the Ziegler consultant group [21] published a report for the dynamic assessment of 18 masonry towers in Switzerland (Z collection). In 2020, Ruiz-Jaramillo et al. [22] conducted a large-scale survey of 21 watchtowers along the Southeast Spanish coast, providing valuable data for low-rise masonry towers (RJ collection). As part of the ACROSS ANR project, Mercerat et al. [23] identify the modal parameters of six medieval bell towers in the Mugello area (Tuscany, Italy). Some of the collections have been used in the compiled database proposed by Shakya et al. [1], Bartoli et al. [8], and Pallarès et al. [3].

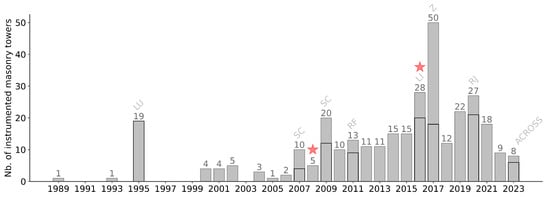

Before 2011, dynamic identification is mainly performed to investigate the structural response of old towers under service loads, such as bell loads (e.g., [7]). However, the Italian earthquakes (L’Aquila and Amatrice) have led to increasing attention to the seismic behavior of historical structures, inducing an increase in dynamic identification studies.

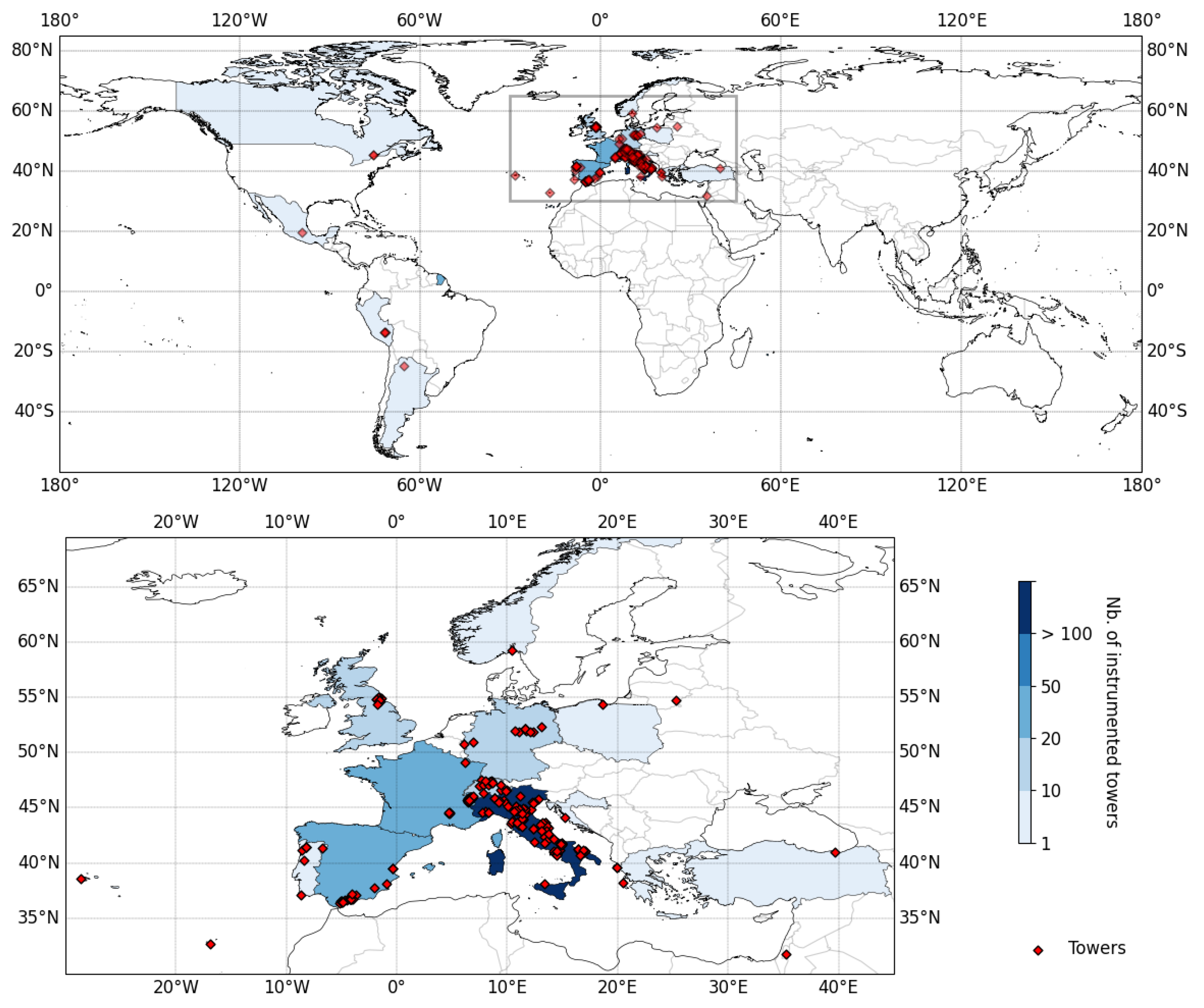

Figure 2 shows the location of the 244 instrumented Cultural Heritage towers. Italy contributes most extensively to the collection of instrumented towers (44% of instrumented towers), resulting from a dense slender heritage, one of Europe’s most significant seismic activities, and a preservation policy since the last damaging Italian earthquakes.

2.3. Statistical Description

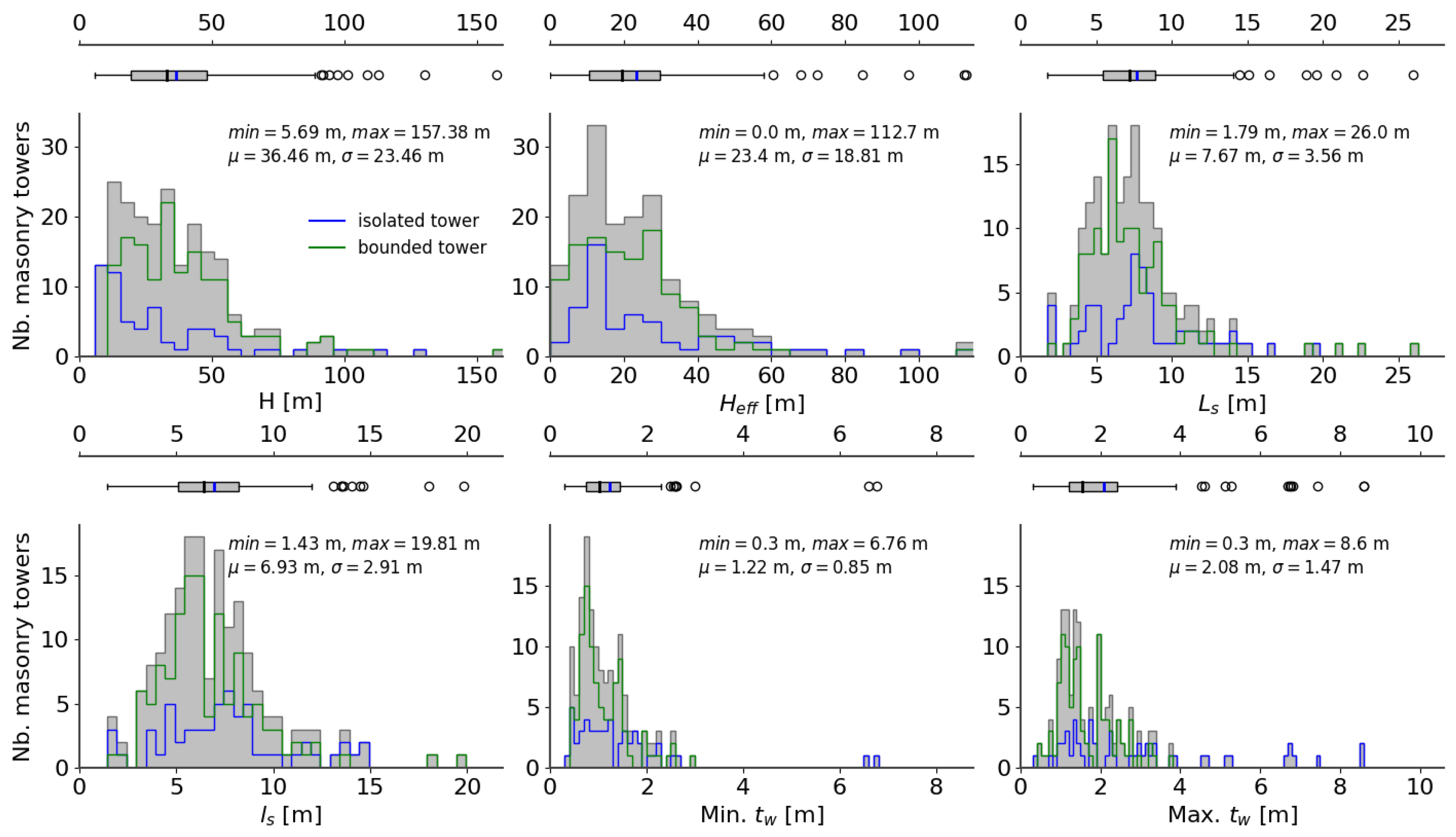

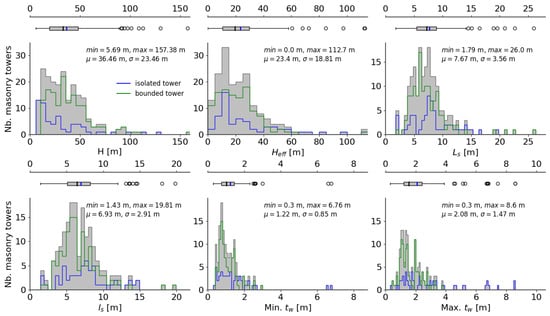

Figure 3 depicts the distribution of six geometric parameters of the database: the height H, the effective height $H_{eff}$ (defined by [8] as the difference between the absolute height of the tower and the height of its constrained portion), the length $L_s$, the width ${\mathcal{l}}_s$, and the minimum and maximum thickness of walls $t_w$. The dimensions were reported from the articles’ descriptions or plans when available. When both pieces of information are available, an error in the order of a decimeter is generally observed, which can impact the dynamic properties and then motivate a sensitivity analysis in the rest of the study.

The six parameters highlight a right-skewed bimodal distribution. The bimodal distribution can be explained when distinguishing between isolated and bounded towers. We generally observe small and wide isolated towers but large and narrow linked towers.

The distribution asymmetry reveals only a few historical masonry towers with large dimensions (therefore, insufficient sampling for towers with important geometric characteristics). Indeed, most of the towers ($75\%$) have a height between 5.69 m (water tower number 3 in Pompeii, in [134]) and 48.0 m, an effective height lower than 29.97 m (the database contains 65 isolated towers and 177 bounded towers), a length between 1.79 m and 8.75 m, a width between 1.43 m and 8.2 m, and a wall thickness between 0.3 m and 2.5 m. We note the presence of a few outliers for each parameter. The highest tower (157.38 m) corresponds to the Northern tower of the Cologne cathedral, known as the tallest twin-spired church in the world. The tower of the Universidad Laboral (130.0 m), the Torrazzo di Cremona (112.70 m), the Guglia Maggiore tower of the Duomo (108.50 m), and the twin bell towers of the cathedral in Magdeburg (101.0 m) are among the tallest instrumented towers of this study, and are not representative of the standard dimension of ancient masonry towers. The towers mentioned above also classify as outliers when considering the effective height.

Some remarkable Cultural buildings such as the Tower of Pisa (Italy), the Giotto’s bell tower (Italy), the North Tower of the Cologne Cathedral (Germany), the Guglia Maggiore Tower of the Duomo (Italy), the twin bell towers of the Cathedral in Halberstadt (Germany), the Calbe Stephani church (Germany), the Moya tower (Spain), and the Umong pagoda (China) highlight huge section (length and width). The outliers for the wall thickness are mainly composed of the watchtowers along the Spanish coast, since many are filled towers.

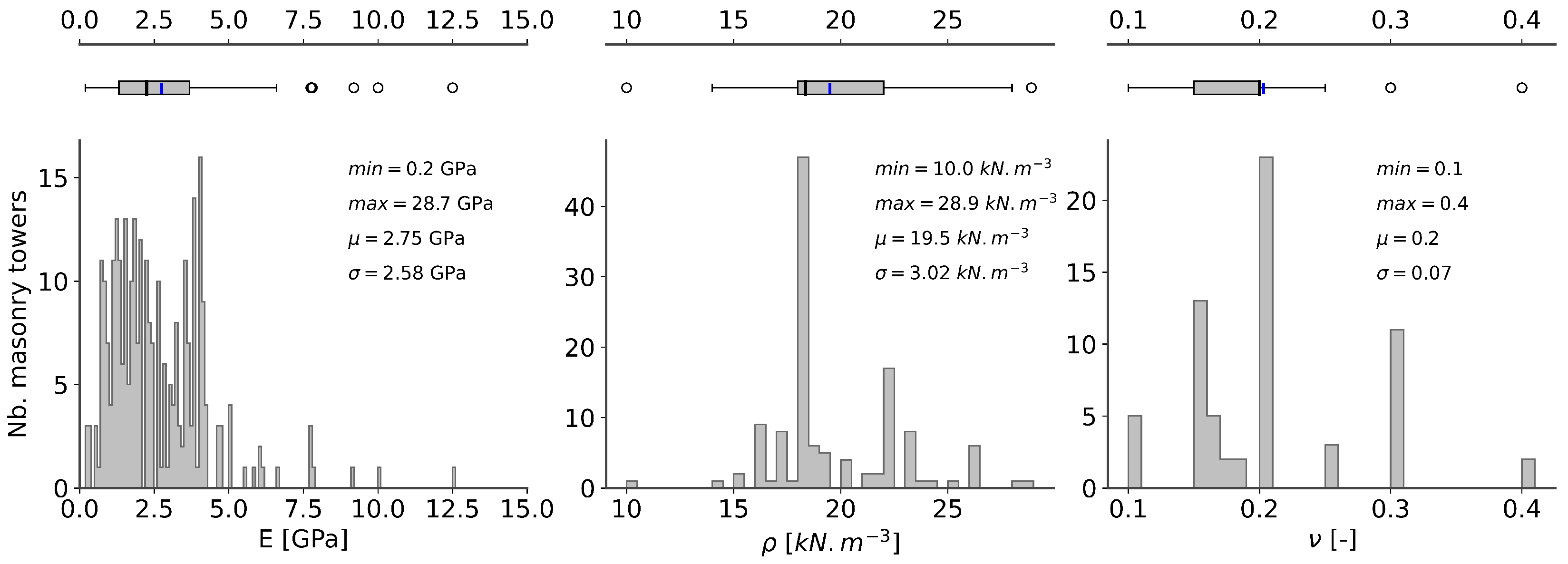

Figure 4 shows the material parameter distributions of the masonry towers when available. Most values come from building codes or model updating processes, minimizing the difference between the measured and numerical modal parameters. These values are then indirectly identified. Such an origin should be kept in mind in the rest of the study. Only 42.4% of the reviewed studies provide a value for the Young modulus, 12.5% for the Poisson ratio, and 28% for the density. The Young modulus highlights a right-skewed bimodal distribution. The highest Young modulus values are related to retrofitting actions using concrete that have been considered in the model updating process. They may induce a bias in the distribution, since they are not masonry. The two modes are observed around 1.52 GPa and 3.96 GPa. Despite the limited number of values, the Poisson ratio and the density have a more symmetric distribution. It is important to note that most studies impose the value of the Poisson ratio.

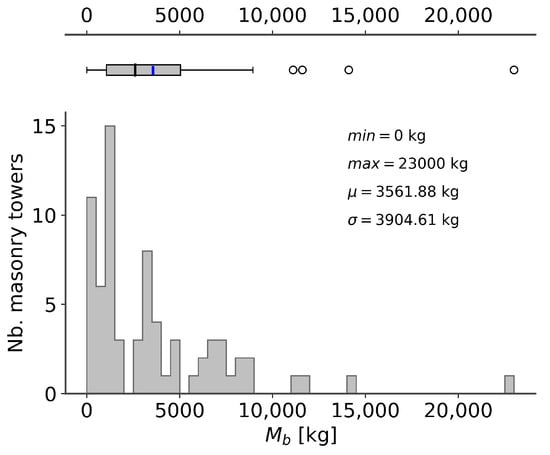

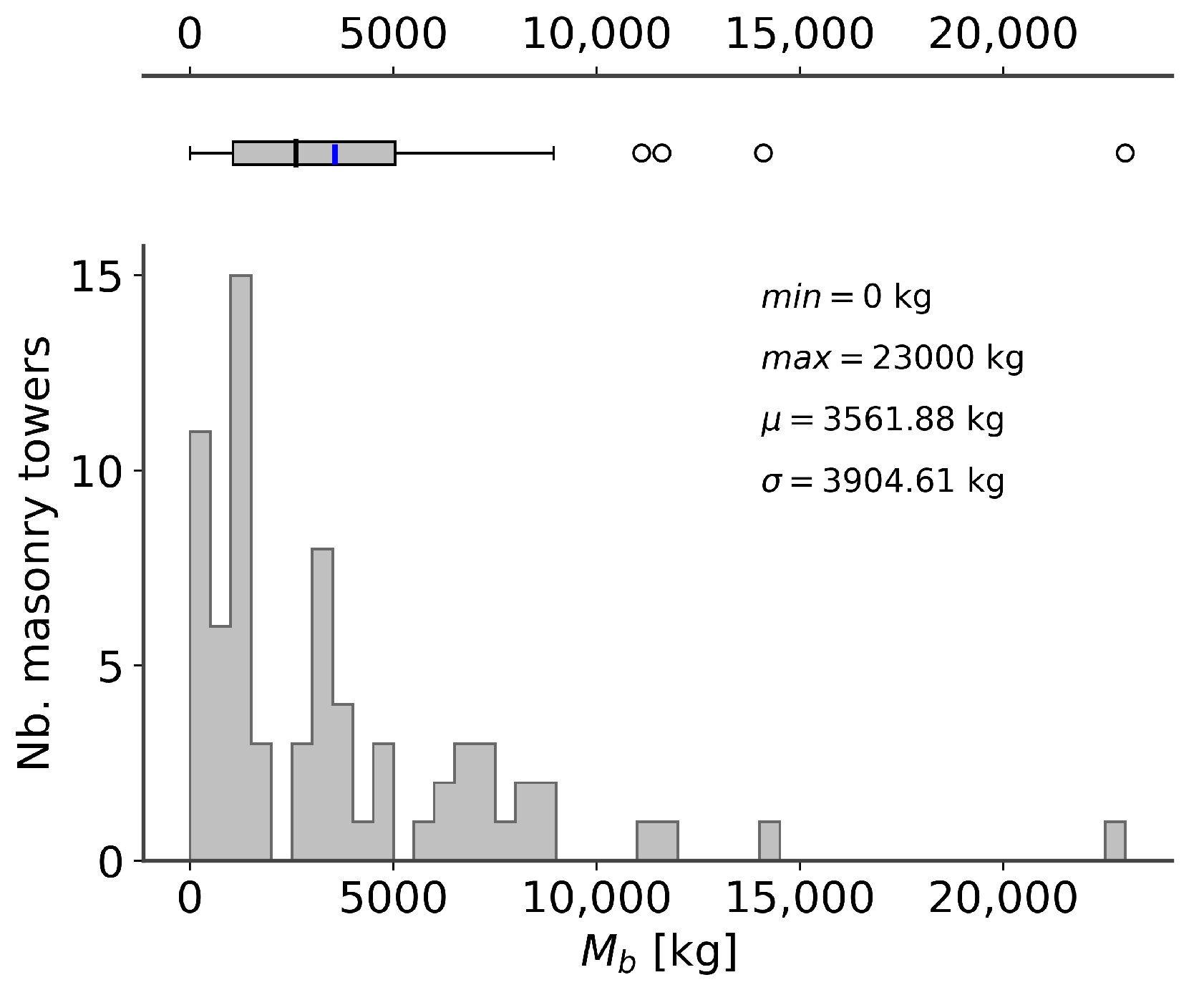

When the values are available, the mass of the bells is reported in the database. It constitutes an essential mass on top that can impact the modal behavior of the slender structures. The bells are usually located at the top of the tower. Figure 5 again shows an asymmetric distribution of the bell’s mass. Among the outliers (over 10,000 kg), there are the church of Nuestra Señora Candelaria de la Viã (Argentina), as well as three bell towers of the French Savoy (LI collection).

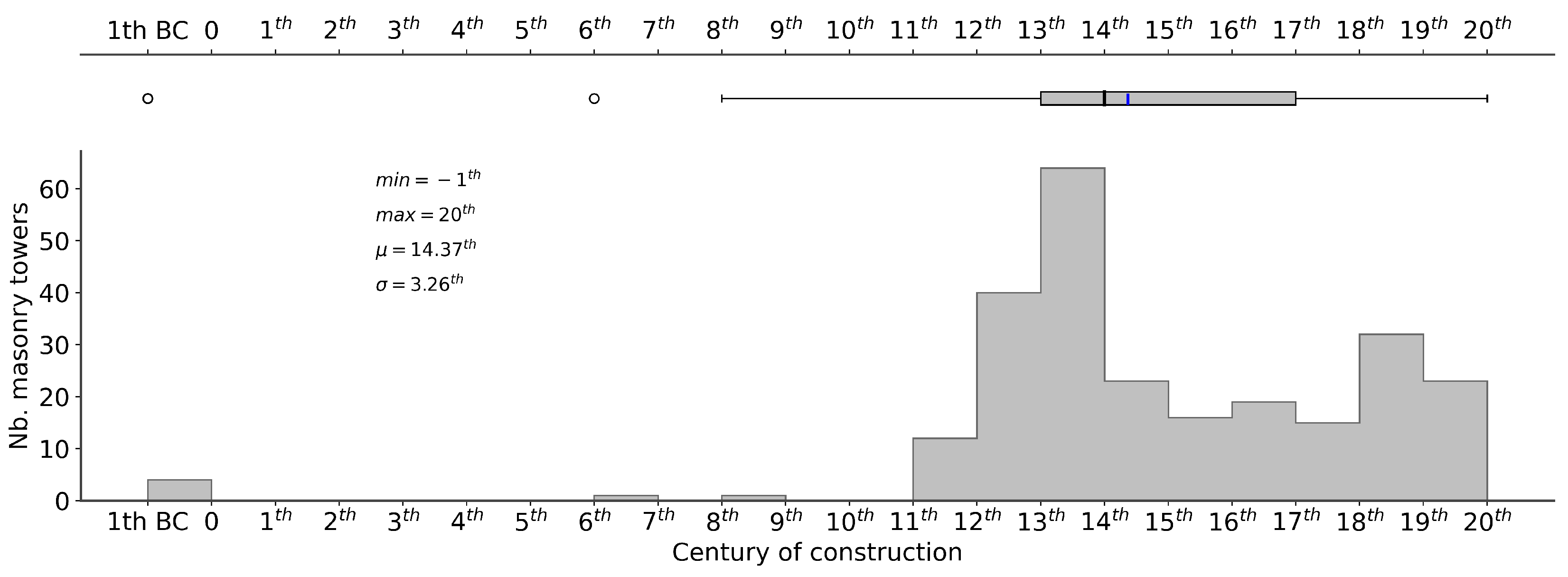

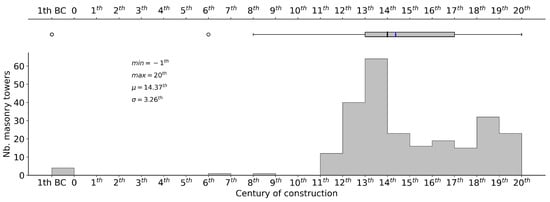

Figure 6 shows that most of the instrumented towers were built in the medieval period, which induced a potential vulnerability of the structures studied due to the decay of the mechanical properties (mortar and bricks). We note a second group of structures built between the 19th and 20th centuries. The oldest masonry towers are Pompeii’s water towers, which date from the 1st century BC.

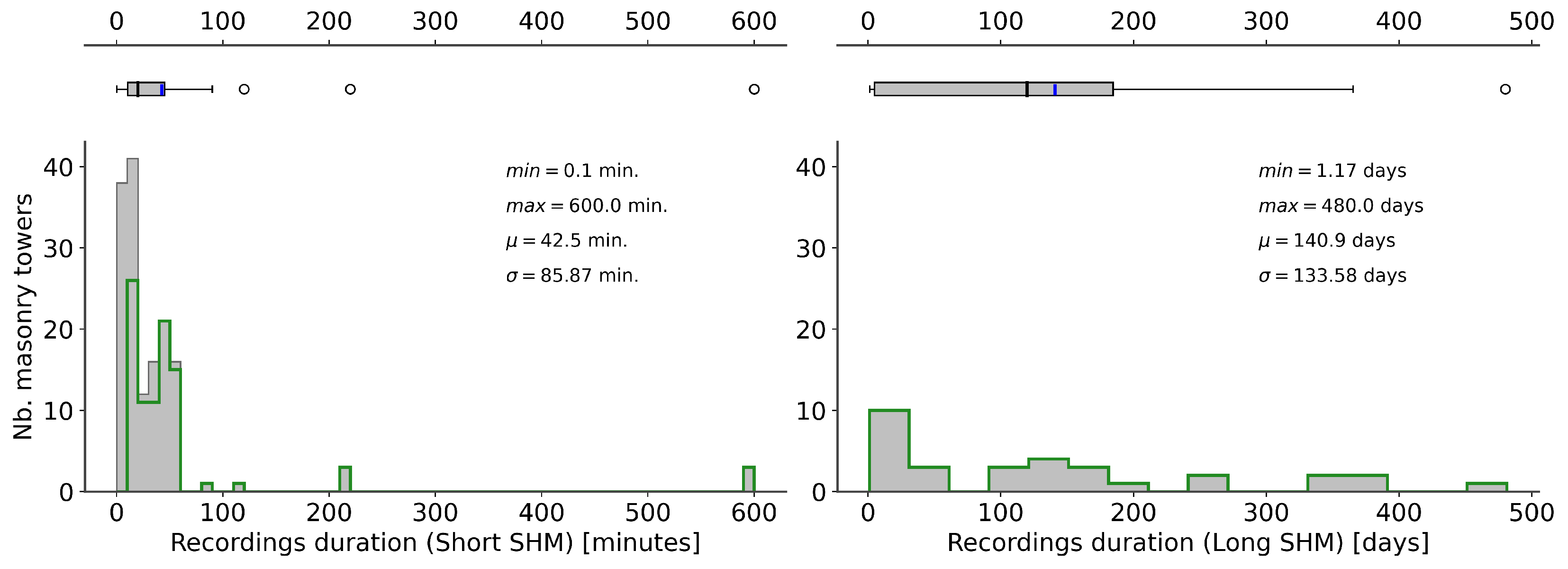

Figure 7 shows the distribution of the recording times during the OMA survey. Short and long SHM are, respectively, plotted on left and right (long SHM concern surveys lasted more than one day). Most of the studies (83%) consist of a short SHM. The white noise hypothesis in OMA is still debated and may impact dynamic identification. Rodriguez et al. [183] and Cantieni [184] recommended the measurement duration to be at least 2000 times the natural period of interest in the case of slender masonry structures in order to reduce uncertainties. Studies respecting this empirical law are shown in green in Figure 7.

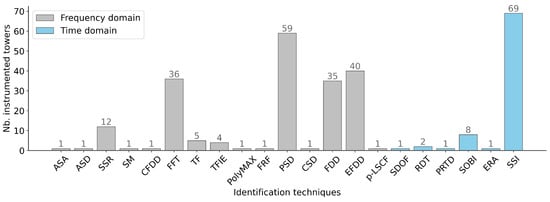

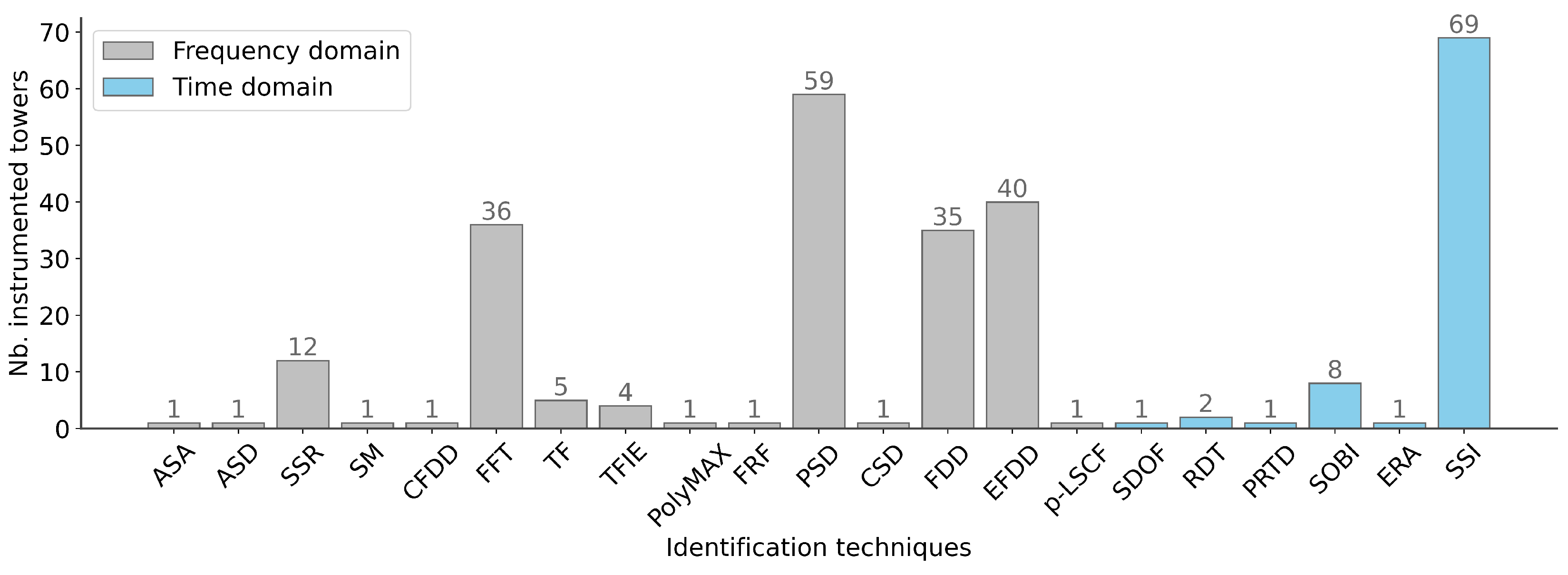

Many OMA techniques have been developed in recent decades (

Table 1. Acronyms of methods used to extract modal parameters described in this section.

Glossary
TFIE	Time Frequency Instantaneous Estimators
PRTD	Polyreference time domain
DSPI	Direct system parameter identification
SSI	Stochastic Subspace Identification
CC-SSI	Crystal Clear Stochastic Subspace Identification method
SSI-COV-PC	Principal Component Covariance-Driven Stochastic Subspace Identification
SSI-DATA	Data-Driven Stochastic Subspace Identification
SSI-DATA-UPC	Unweighted Principal Component Stochastic Subspace Identification
SSI-DATA-CVA	Canonical Variate Analysis
ASA	Acceleration Spectral Amplitudes
ASD	Auto-Spectrum Displacement
ERA	Eigensystem realization algorithm
SM	stretching method
TF	Transfer function
SOBI	Second Order Blind Identification
PSD	Power Spectral Density
SSR	Standard Spectral Ratio
SDOF	Single Degree of Freedom technique
p-LSCF	Poly-reference Least Squares Complex Frequency-domain

) due to their many advantages: they are a non-invasive, non-destructive method, easy to deploy, and no external source is required. The output-only method is particularly adapted in the context of Cultural Heritage Monitoring since it allows model parameter tracking in a non-invasive way. However, these techniques have different precision to identify natural frequencies. Figure 8 shows the use of the OMA techniques in the dynamic identification of slender masonry structures. Generally, they can be classified into two categories: frequency domain and time domain (in gray and blue, respectively, in Figure 8). Frequency domain techniques have been largely used in masonry towers (69.1%) compared to time domain techniques. The earliest methods are based on a peak-picking algorithm from diverse frequency representations of the record: the power spectral density (PSD), the fast Fourier transform (FFT), the acceleration spectral amplitude (ASA) or displacement (ASD), and the transfer function (TF). The natural frequency is then directly obtained from the choice of the peak. Despite its simplicity, the technique suffers from difficulty in distinguishing close modes, and its limitation of the spectrum frequency resolution contributes to an increase in the uncertainty of the natural frequency identification [185,186]. Peak picking from frequency graphs represents 3% of the data in the masonry tower database. Consequently, the frequency domain decomposition (FDD) was developed to meet the challenge when identifying close modes [187], and is used in 12.5% of the instrumented towers. The structure’s response is derived into a set of single-degree-of-freedom systems by introducing a decomposition of the spectral density function matrix. The enhanced FDD (EFDD) has also been introduced to extract the damping ratios, representing 14.23% of the case studies. However, these frequency domain methods are under the assumption that the input signals are stationary Gaussian white noise, and the structure is very lightly damped. At the same time, methods in the time domain have been developed. Techniques from the experimental modal analysis, such as Random Decrement Technique (RDT) and eigen realization algorithm (ERA), were also successfully extended for the OMA, but have rarely been applied to the dynamic identification of slender masonry towers (one case for the ERA method, and two cases for the RDT technique). Furthermore, much research was spent on subspace identification techniques [188], which constitute 21.5% of the measured frequencies in the masonry towers database. The two primary forms of Stochastic Subspace Identification (SSI) techniques used in the database are Covariance-Driven Stochastic Subspace Identification (COV-SSI) and Data-Driven Stochastic Subspace Identification (DATA-SSI), in 10% and 3%, respectively. A total of 46% of studies using SSI techniques do not specify which method is used (they only mention SSI).

Figure 9 shows the distribution of the experimental fundamental frequency variation for each instrumented masonry tower. Masonry towers for which there is only a single value of the fundamental frequency are excluded from the figure, as they do not provide any information about the variations in the dynamic properties of the structure studied (83% of the studies). Most of the main frequency variation is between 0.13% and 32.39% (the San Luzi bell tower) and has several origins. Considerable variations in the fundamental frequency are observed before and after restoration works. The SS. Annunziata church bell tower, significantly damaged by an earthquake, shows a fundamental frequency of 1.66 Hz [127] and 1.97 Hz after restoration [32], an increase of 18.7%. In 2005, the Mogadouro Clock Tower was characterized by large cracks, deterioration, and material loss in some parts. Following restoration work in 2005, the fundamental frequency was raised from 2.15 to 2.56 Hz (an increase of 19%). The same phenomenon is observed in the tower of the S. Giorgio church in Trignano. Following the 1996 Reggio Emilia earthquake, restoration works led to the main frequency from 2.43 Hz to 2.7 Hz (an increase of 11% on the fundamental frequency). The bell tower of Sant Andrea Apostolo highlights an increase in its fundamental frequency of 27.08% after retrofitting actions [102,103]. The tower of Notre Dame de l’Assomption, damaged after Le Teil earthquake, highlights a double fundamental frequency peak (Mercerat, personal communication). Structure monitoring over long periods shows significant variations. Monitoring of the San Luzi bell tower over a whole year shows a variation of 32.29% between winter and summer [87]. The bell tower of the church of San Frediano highlights a variation of 14% due to the impact of environmental parameters [67].

3. Model for the Evaluation of the Fundamental Frequency of the Tower

3.1. Empirical Models

The models exposed here propose to estimate the fundamental frequency of slender masonry structures according to the global geometric parameters expressed in

Table 2. Set of geometric parameters and regression coefficients used in the empirical formulation of geometric models.

Nomenclature
Symbol	Unit	Description
Geometric parameters
$\mathit{p}$		Set of global geometric parameters
H	[m]	Height of the tower
${\mathcal{l}}_s$	[m]	Width, lowest size of the tower’s section
$h_n$	[m]	Height of interaction between the tower and any adjacent structures
system
$f_0$	[Hz]	Eigenfrequency
Dimensionless parameters
${\alpha }_{\mathcal{l}}$	[-]	Slenderness
${\alpha }_{h_n}$	[-]	Interaction factor
Regression coefficients
$b_1$	[-]	Regression coefficient related to the height
$a_1^s$, $b_1^s$, $b_2^s$, $a_2^s$, $a_3^s$	[-]	Regression coefficient related to the section geometry
$b_1^e$	[-]	Regression coefficient related to lateral interaction

. To analyze these models, let us define a set of global geometric parameters $\mathit{p}$ that characterize the structures: $\mathit{p}$ = {H,${\mathcal{l}}_s$,$h_n$}. The height of interaction $h_n$ between the tower and any adjacent structures is expressed as $h_n=H-H_{eff}$. Dimensionless parameters are introduced: ${\alpha }_{\mathcal{l}}={\mathcal{l}}_s/H$ and ${\alpha }_{h_n}=h_n/H$.

In the empirical model’s category, we consider models that integrate the main parameters that influence the fundamental frequency of the structures without deriving their expression from mechanical models (e.g., a power law with an exponent identified from a regression process). We introduce the empirical model derived from the reference summarized in

Table 3. Parameters of existing and updated empirical models. Line labeled from Empirical model 1 to 7 correspond to this study.

Id. Model	Ref.	${\mathit{a}}_1$	${\mathit{b}}_1$	${\mathit{a}}_1^{\mathit{s}}$	${\mathit{b}}_1^{\mathit{s}}$	${\mathit{b}}_2^{\mathit{s}}$	${\mathit{a}}_2^{\mathit{s}}$	${\mathit{a}}_3^{\mathit{s}}$	${\mathit{b}}_1^{\mathit{e}}$
1	[10]	20	−3/4	0	0	0	0	0	0
1	[11]	1/0.0187	−1	0	0	0	0	0	0
1	[12]	1/0.01137	−1.138	0	0	0	0	0	0
1	[1]	1/0.0151	−1.08	0	0	0	0	0	0
1	[13] ${}^b$	28.35	−0.83	0	0	0	0	0	0
1	[13] ${}^i$	135.343	−1.32	0	0	0	0	0	0
Empirical model 1		22.55	2.818	0	0	0	0	0	0
2	[1]	3.58	0	0	0.57	0	0	0	0
Empirical model 2		7.608	0	0	0.817	0	0	0	0
3	[13] ${}^i$	208.54	−1.18	0	0.55	0	0	0	0
Empirical model 3		17.113	−0.369	0.538	0	0	0	0	0
4	[14]	1/0.06	−0.5	2	0.5	0.5	0	0	0
4	[1]	1/0.03	−0.83	1	0.17	0.5	0	0	0
Empirical model 4		7.361	−0.46	−0.03	0	3053.821	0	0	0
5	[15]	1/0.0117	0	−9.632	3	−1	94.786	144.461	0
Empirical model 5		0.1	0	−26.78	188.47	29.40	−34.47	13.93	0
6	[13] ${}^b$	12.96	−0.686	0	0	0	0	0	−0.686
Empirical model 6		23.322	−0.695	0	0	0	0	0	−0.028
7	[13] ${}^b$	14.61	−0.811	0	−0.254	0	0	0	−0.341
Empirical model 7		17.619	−0.365	0.616	0	0	0	0	−0.171

^b Bounded tower. ⁱ Isolated tower.

as follows:

$$f_0\left(\mathit{p}\right)=a_1·H^{b_1}·f_s\left({\alpha }_{\mathcal{l}}\right)·f_e\left({\alpha }_{h_n}\right)$$

(1)

The function associated with the influence of the geometric characteristics of the section $f_s$ is as follows:

$$f_s={\left({\alpha }_{\mathcal{l}}\right)}^{b_1^s}·{\left(1+a_1^s{\alpha }_{\mathcal{l}}+a_2^s{\alpha }_{\mathcal{l}}^2+a_3^s{\alpha }_{\mathcal{l}}^3\right)}^{b_2^s}$$

(2)

The function associated with the interaction with adjacent structures $f_e$ is as follows:

$$f_e={\left(1-{\alpha }_{h_n}\right)}^{b_1^e}$$

(3)

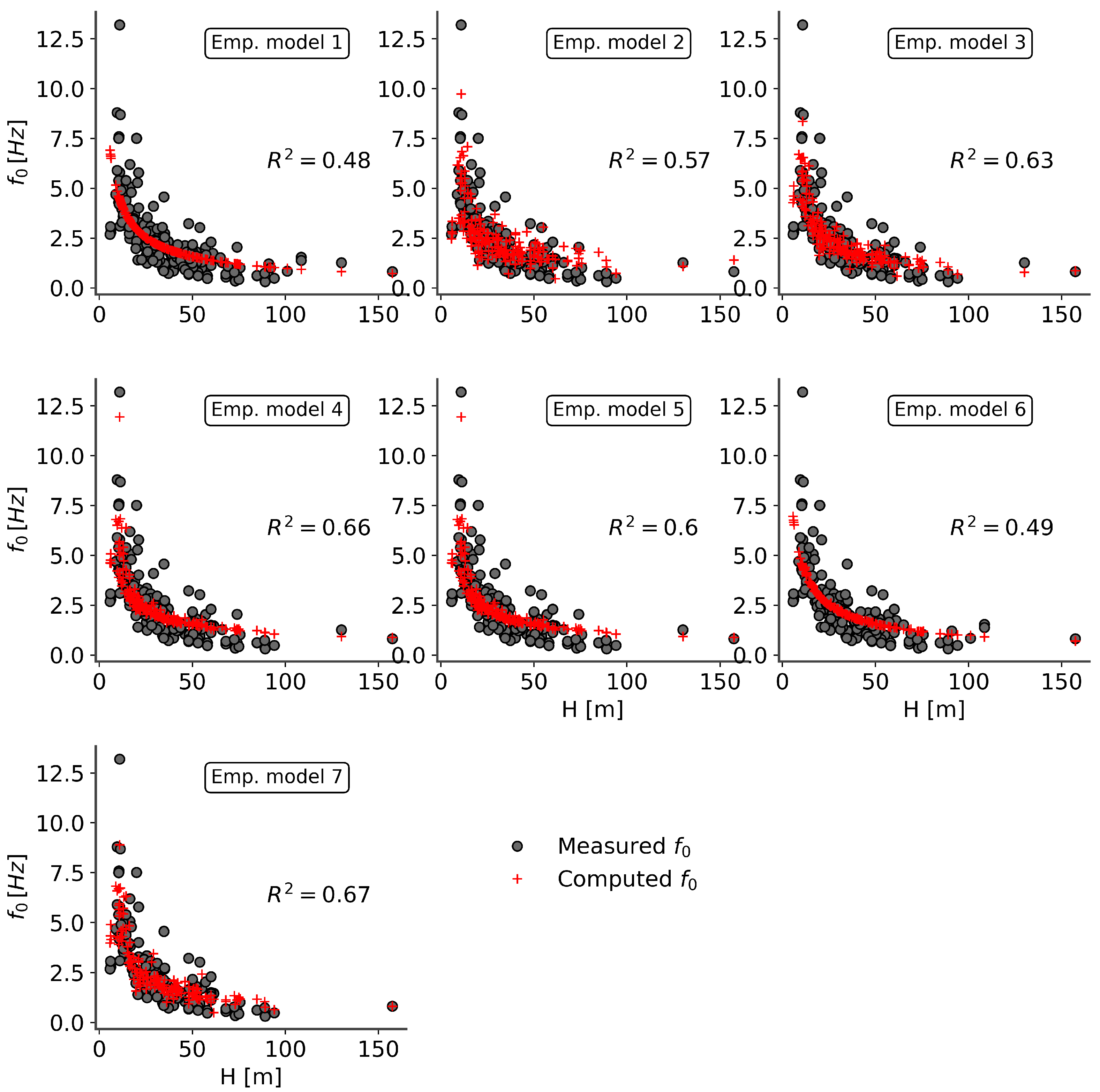

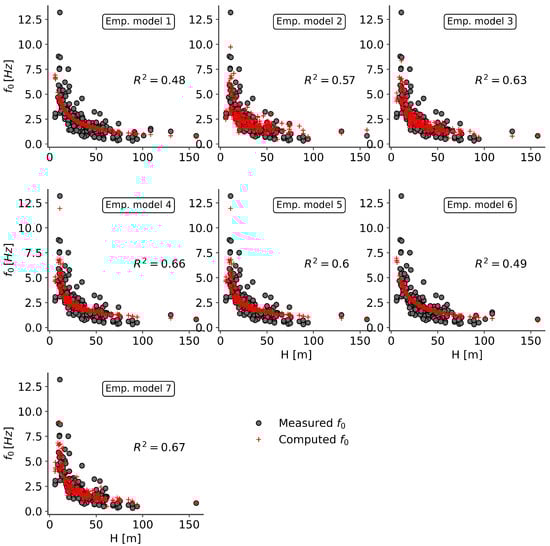

Table 3 lists the coefficient of Equation (1) obtained through regression in the dedicated studies. Empirical models may be separated into seven models based on the parameters used and the power of the monomials. Each model is updated based on the assembled database. The results of the seven regression models (labeled from Empirical model 1 to Empirical model 7 in Table 3) are shown in Figure 10 with their associated coefficient of determination. They range from 0.48 (Empirical model 1) to 0.67 (Empirical model 7). The best prediction is obtained for model 7, taking into account the height of interaction $h_n$. However, this model depicts a coefficient of determination very close to the empirical model 4 that considered only H and $l_s$.

3.2. Physics Based Models

The models exposed here propose to estimate the fundamental frequency of slender masonry structures according to global geometric parameters, geometric section, and material characteristics.

Table 4. Set of geometric and material parameters and regression coefficients used for the physics-based approach.

Nomenclature
Symbol	Unit	Description
Geometrical and material parameters
$\mathit{p}$		Set of global geometric parameters
H	[m]	Height of the tower
${\mathcal{l}}_s$	[m]	Width, lowest size of the tower’s section
$h_n$	[m]	Height of interaction between the tower and any adjacent structures
$f_0$	[Hz]	Fundamental frequency
$L_s$	[m]	Length, largest size of the tower’s section
$t_w$	[m]	Wall thickness
$h_b$	[m]	Altitude of the bell system
S	[m2]	Surface area
$I_{G_x}$, $I_{G_y}$	[m4]	Second moment of area
r	[m]	Radius of inertia
E	[MPa]	Young modulus
$\rho$	[kg·m−3]	Volumetric mass density
Dimensionless parameters
${\alpha }_{\mathcal{l}}$	[-]	Slenderness
${\alpha }_{h_n}$	[-]	Interaction factor
${\alpha }_t$	[-]	Thickness factor
${\alpha }_L$	[-]	Length factor
${\alpha }_{sh}$, ${\alpha }_{sh}^I$, ${\alpha }_{\mathcal{l}}$,	[-]	Section factor
$\theta$	[rad.]	Angle of bending direction with respect to x axis
Regression coefficients
$C_1$, $C_2$, $C_3$	[-]	Regression coefficient

summarizes the parameters considered in these models. The set of global parameters is defined as $\mathit{p}$ = {H,${\mathcal{l}}_s$,$h_n$, $t_w$, $L_s$, E, $\rho$}. Additional dimensionless parameter are introduced: ${\alpha }_t=\frac{t_w}{{\mathcal{l}}_s}$ and ${\alpha }_L=\frac{L_s}{{\mathcal{l}}_s}$.

This second category of models originates from the dynamic characteristics of an equivalent beam model. For a cantilever Euler–Bernoulli beam with homogeneous geometric and material properties, the fundamental frequency is expressed as:

$$f_0\sim \frac{1.{875}^2}{2\pi }·\frac{r}{H^2}·\sqrt{\frac{E}{\rho }}$$

(4)

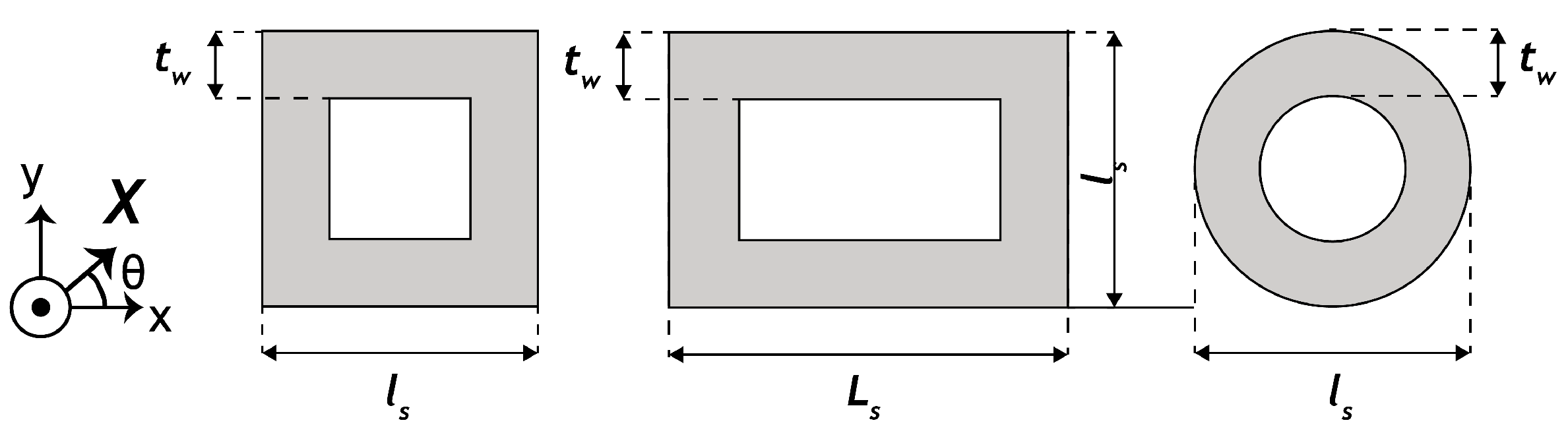

Considering classical shapes for the hollow section of the slender structures (see Figure 11, and

Table 5. Surface and second moment of area for different classical hollow sections of masonry tower (square (SQ), rectangular (REC), and circular (CIR)).

Parameters	SQ	REC	CIR
${\alpha }_{sh}^S$	1	1	$\pi$/4
${\alpha }_{sh}^I$	1/12	1/12	$\pi$/64
${\alpha }_{\mathcal{l}}$	1	>1	1

), a generic formula can be derived for the radius of inertia r.

$$I_{G_x}={\alpha }_{sh}^I·{\mathcal{l}}_s^4·\left({\alpha }_L-{\left(1-2{\alpha }_t\right)}^3·\left({\alpha }_L-2{\alpha }_t\right)\right)={\mathcal{l}}_s^4·{\alpha }_{I_x}\left({\alpha }_{sh}^I,{\alpha }_L,{\alpha }_t\right)$$

(5)

$$I_{G_y}={\alpha }_{sh}^I·{\mathcal{l}}_s^4·\left({\alpha }_L^3-\left(1-2{\alpha }_t\right)·{\left({\alpha }_L-2{\alpha }_t\right)}^3\right)={\mathcal{l}}_s^4·{\alpha }_{I_y}\left({\alpha }_{sh}^I,{\alpha }_L,{\alpha }_t\right)$$

(6)

$$S=2·{\alpha }_{sh}^S·{\mathcal{l}}_s^2·{\alpha }_t·\left({\alpha }_L+1-2{\alpha }_t\right)={\mathcal{l}}_s^2·{\alpha }_A\left({\alpha }_{sh}^I,{\alpha }_L,{\alpha }_t\right)$$

(7)

The radius of inertia for simple hollow sections is

$$r_{G_X}={\mathcal{l}}_s·\sqrt{\frac{1}{{\alpha }_A}}·\sqrt{\frac{{\alpha }_{I_x}+{\alpha }_{I_y}}{2}+\frac{{\alpha }_{I_y}-{\alpha }_{I_y}}{2}·cos\left(2\theta \right)}$$

(8)

The models in this category are derived from the formula of the fundamental frequency of a cantilever beam with some simplification regarding the radius of inertia or the influence of the material characteristics. A generic formula for these models is expressed as:

$$f_0=C_1·\frac{1.{875}^2}{2\pi }·\frac{\tilde{r}}{H^2}·{\left(\frac{1}{1-{\alpha }_{h_n}}\right)}^{C_2}·{\left(\sqrt{\frac{E}{\rho }}\right)}^{C_3}$$

(9)

with the value of $C_1$, $C_2$, $C_3$, and $\tilde{r}$ summarised in

Table 6. Parameters of the physics-based models.

Id Model	Ref.	${\mathit{C}}_1$	${\mathit{C}}_2$	${\mathit{C}}_3$	$\tilde{\mathit{r}}$
1	[1]	$\sqrt{1.375}$	0	1	$r_{G_X}$
2	[8] (Equation (22))	0.8	1	1	$\frac{{\mathcal{l}}_s}{\sqrt{12}}·1.5·\left(1-{\alpha }_t\right)$
3	[8] (Equation (23))	0.8	0	1	$\frac{{\mathcal{l}}_s}{\sqrt{12}}·1.125$
4	[8] (Equation (24))	800	0	0	$\frac{{\mathcal{l}}_s}{\sqrt{12}}·1.125$

.

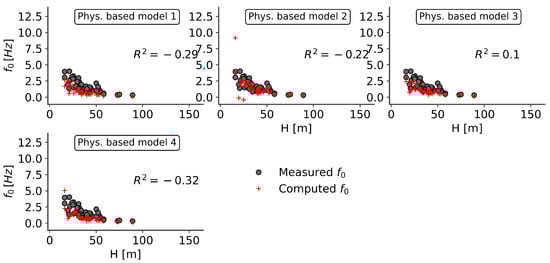

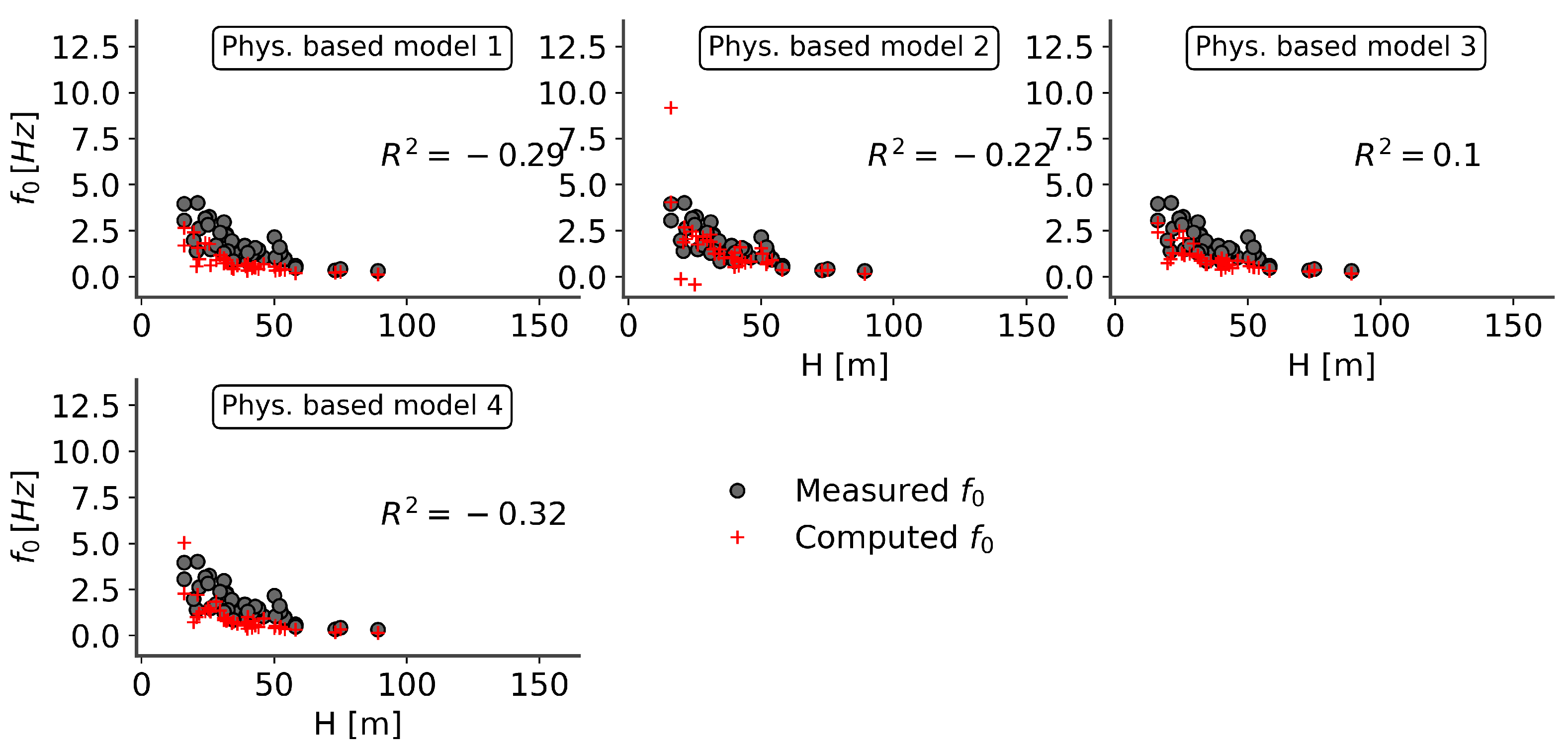

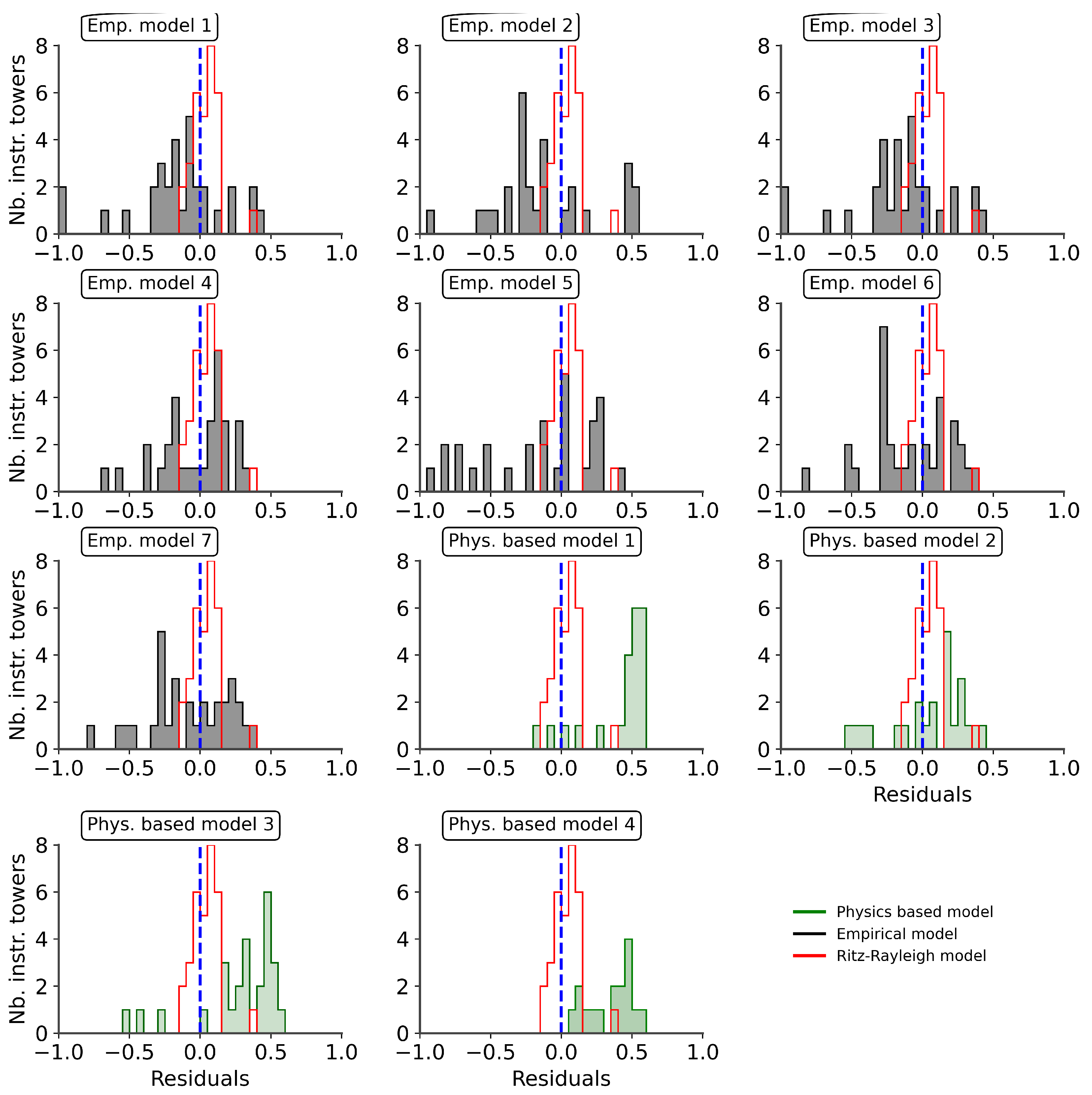

The results of evaluating the fundamental frequency using physics-based relation are shown in Figure 12, restrained to the available data. It is important to note that the material properties used (and recorded in the database) are derived from calibrating finite element models based on vibration measurements. The second physics-based model shows the best prediction. The performance of these methods is inferior to that of the empirical formulation. One reason could be the incompatibility of material property values calibrated from more complex models.

3.3. Description of the Timoshenko Beam

In this section, we propose introducing additional parameters to the physics-based models to consider the influence of the environment of the slender structures and the bell system (

Table 7. Parameters and symbols used to describe the Rayleigh–Ritz approach.

Nomenclature
Symbol	Unit	Description
$\mathit{p}$		Set of global geometric parameters
H	[m]	Height of the tower
${\mathcal{l}}_s$	[m]	Width, lowest size of the tower’s section
$h_n$	[m]	Height of interaction between the tower and any adjacent structures
$f_0$	[Hz]	Eigenfrequency
$L_s$	[m]	Length, largest size of the tower’s section
$t_w$	[m]	Wall thickness
$h_b$	[m]	Altitude of the bell system
S	$\left[{\mathrm{m}}^2\right]$	Surface area
E	[MPa]	Young modulus
$\rho$	$[\mathrm{kg}·{\mathrm{m}}^{-3}]$	Volumetric mass density
$\nu$	[-]	Poisson ratio
$I_z$	$\left[{\mathrm{m}}^4\right]$	Second moment of inertia
$k_s$	$[\mathrm{N}·{\mathrm{m}}^{-1}]$	Soil/structure translational stiffness
$k_r$	[N]	Soil/structure rotational stiffness
$k_n$	$[\mathrm{N}·{\mathrm{m}}^2]$	Nave/structure translational stiffness
$M_b$	[kg]	Mass of the bell system
G	[Pa]	Shear modulus
k	[-]	Shear coefficient
$v(x,t)$	[m]	Transversal deflection
$\theta (x,t)$	[rad.]	Normal rotation
$\mathcal{V}$	[J]	Potential energy
$\mathcal{T}$	[J]	Kinetic energy
${\mathcal{V}}_{beam}$	[J]	Potential energy associated with the beam system
${\mathcal{V}}_{SSI}$	[J]	Potential energy associated with the soil–structure interaction
${\mathcal{V}}_{TNI}$	[J]	Potential energy associated with the tower-nave interaction system
${\mathcal{T}}_{beam}$	[J]	Kinetic energy associated with the beam system
$\mathit{\phi }\left(x\right)$, $\mathit{\vartheta }\left(x\right)$	[-]	Polynomial functions to approximate the displacement and rotation field
$\mathit{q}$	[-]	Generalized coordinates system
$\mathit{M}$, $\mathit{K}$		Mass and Stiffness matrix

). The influence of the soil/structure interaction on the dynamic properties of the tower has been studied, for instance, in [189,190]. Furthermore, this model is used later to evaluate these properties’ sensitivity to interactions parameters (soil/tower interaction, nave/tower interaction) and bell system. The model illustrated in Figure 13 is limited to describing flexural bending modes. All parameters are summarized in Table 7.

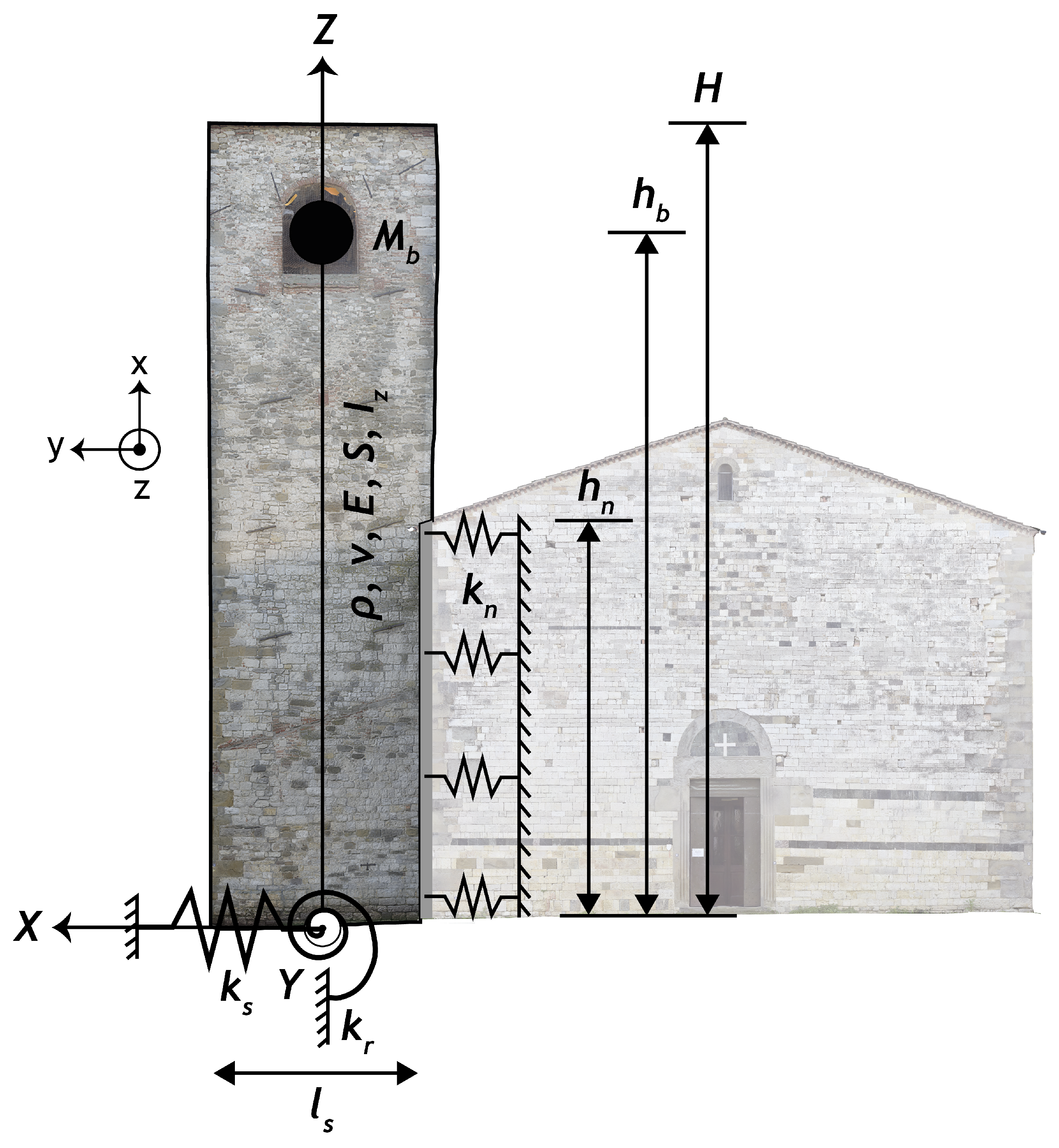

The dynamic response of the tower alone is described by a Timoshenko beam model. Indeed, as it has been observed in [191], the Euler–Bernoulli beam model tends to overestimate the eigenfrequency of non-slender structures.

The structural parameters $\mathit{p}$ for the tower of height H are

$$\mathit{p}=\left\{H,S,I_y,k,E,\nu ,\rho ,k_s,k_r,k_n,h_n,M_b,h_b\right\}$$

(10)

3.4. Rayleigh–Ritz Method

The Rayleigh–Ritz method has been successfully used to approximate the dynamic characteristics of the Euler–Bernoulli (EB) beam (e.g., [192]) or Timoshenko (TIMO) beam (e.g., [28]) with additional masses or springs.

The potential energy $\mathcal{V}$ and the kinetic energy $\mathcal{T}$ for the model described in Figure 13 are: $\mathcal{V}={\mathcal{V}}_{beam}+{\mathcal{V}}_{SSI}+{\mathcal{V}}_{TNI}$, $\mathcal{T}={\mathcal{T}}_{beam}+{\mathcal{T}}_{bell}$. The energies associated with the beam ${\mathcal{V}}_{beam}$ and ${\mathcal{T}}_{beam}$ are

$$\begin{array}{cc}\hfill {\mathcal{V}}_{beam}& =\frac{1}{2}{\int }_0^H\left\{E{I}_z{\left(\frac{\partial \theta }{\partial x}\right)}^2+kGS{\left(\theta -\frac{\partial v}{\partial x}\right)}^2\right\}\mathrm{d}x\hfill \end{array}$$

(11)

$$\begin{array}{cc}\hfill {\mathcal{T}}_{beam}& =\frac{1}{2}{\int }_0^H\left\{\rho S{\left(\frac{\partial v}{\partial t}\right)}^2+\rho I_z{\left(\frac{\partial \theta }{\partial t}\right)}^2\right\}\mathrm{d}x\hfill \end{array}$$

(12)

where $v(x,t)$ is the transversal deflection and $\theta (x,t)$ is the normal rotation. For the sake of simplicity, the shear coefficient is estimated with the formulas for thin-walled structures in [193].

The energy for the soil–structure interaction ${\mathcal{V}}_{SSI}$ is

$${\mathcal{V}}_{SSI}=\frac{1}{2}\left(k_r{\left({\left.\frac{\partial v}{\partial x}\right|}_0\right)}^2+k_s{\left({\left.v\right|}_0\right)}^2\right)$$

(13)

The energy for the tower-nave interaction ${\mathcal{V}}_{TNI}$ is

$${\mathcal{V}}_{TNI}=\frac{1}{2}{\int }_0^{h_n}{k}_n{v}^2\mathrm{d}x$$

(14)

The energy for the bell system ${\mathcal{V}}_{bell}$ is

$${\mathcal{T}}_{bell}=\frac{1}{2}{M}_b{\left({\left.\frac{\partial v}{\partial t}\right|}_{h_b}\right)}^2$$

(15)

The displacement v and the rotation $\theta$ fields of the beam are approximated over simple polynomial functions $\mathit{\phi }\left(x\right)$ and $\mathit{\vartheta }\left(x\right)$, and their coordinates in the polynomial basis $\mathit{R}\left(t\right)$, and $\mathit{V}\left(t\right)$,

$$v(x,t)\approx \sum _{i=0}^{n_H}{V}_i\left(t\right){\phi }_i\left(x\right),\theta (x,t)\approx \sum _{i=0}^{n_r}{R}_i\left(t\right){\vartheta }_i\left(x\right)$$

(16)

For the sake of simplicity, admissible functions (functions satisfying all the geometric boundary conditions) [194] are considered as the basis. For the cantilever beam, the following functions are used [195]:

$${\phi }_i\left(x\right)={\left(\frac{x}{H}\right)}^2·{\left(1-\frac{x}{H}\right)}^{i-1},{\vartheta }_i\left(x\right)=\left(\frac{x}{H}\right)·{\left(1-\frac{x}{H}\right)}^{i-1}$$

(17)

In the presence of soil–structure interaction, the functions corresponding to free–free boundary conditions are considered [195],

$${\phi }_i\left(x\right)={\left(1-\frac{x}{H}\right)}^{i-1},{\vartheta }_i\left(x\right)={\left(1-\frac{x}{H}\right)}^{i-1}$$

(18)

The size of the system for the Rayleigh–Ritz model is equal to $n_H+n_r$.

By considering $\mathit{q}(\mathit{V},\mathit{R})$ as a generalized coordinates system, the equation of Lagrange is

$$\frac{\mathrm{d}}{\mathrm{d}}\left(\frac{\partial \mathcal{T}}{\partial \dot{\mathit{q}}}\right)+\left(\frac{\partial \mathcal{V}}{\partial \mathit{q}}\right)=\mathbf{0}$$

(19)

After some mathematical developments, the equation of motion is

$$\mathit{M}.\ddot{\mathit{q}}+\mathit{K}.\mathit{q}=\mathbf{0}$$

(20)

Finally, the approximation of the eigenfrequencies $f_{mod}^{\left(i\right)}$ and the mode shapes ${\mathcal{F}}_i({\mathit{\varphi }}^{\left(i\right)},x)$ are obtained by solving the generalized eigenvalues problem,

$$\left(\mathit{K}-{\left(2·\pi ·f_{mod}^{\left(i\right)}\right)}^2\mathit{M}\right){\mathit{\varphi }}^{\left(i\right)}=\mathbf{0}$$

(21)

3.5. Model Validation

3.5.1. Characteristics of the Reference Tower

To evaluate the Rayleigh–Ritz model’s capacity to estimate the tower’s dynamic properties, a referenced case computed with a 3D finite element model is considered. The finite element code Cast3M has been used for this study. The 3D FE model of the tower is composed of 104,400 elements and 122,500 nodes. A total of 700 nodes are involved in the SSI, and 2368 nodes in the interaction with an adjacent structure. Three degrees of freedom per node are used. Additional stiffness and displacement boundary conditions are managed by dual Lagrange multipliers. Figure 14a gives the mesh of the reference computation made with the finite element code Cast3M [196], (see: http://www-cast3m.cea.fr/ accessed on 1 October 2021).

The geometric and material characteristics considered for the tower are: H = 17.6 m (isolated tower), H = 35 m (bounded tower), $l_s$ = 7.39 m (isolated tower), $l_s$ = 6.17 m (bounded tower), $L_s$ = 1.01$·{\mathcal{l}}_s$, $t_w$ = 0.2$·{\mathcal{l}}_s$, E = 2.2 GPa, $\nu$ = 0.2, $\rho$ = 1800 kg/m³, $k_s$ = 10⁷ N/m, $k_r$ = 10⁸ N·m, $k_n$ = 10⁸ N/m², $h_n$ = 0.42$·H$, $M_b$ = 2600 kg, and $h_b$ = H. Except for the soil, these values correspond to the median values in the database.

3.5.2. Evaluation of the Error

The consistency can be evaluated by comparing the frequencies:

$$\Delta f\left(f_{mod}^{\left(i\right)},f_{FE}^{\left(i\right)}\right)=\frac{f_{FE}^{\left(i\right)}-f_{mod}^{\left(i\right)}}{f_{FE}^{\left(i\right)}}$$

(22)

The degree of consistency between the mode shapes of the Rayleigh–Ritz model $f_{mod}^{\left(i\right)}$ and the ones of the finite element reference $f_{FE}^{\left(i\right)}$ can be measured with the Modal Assurance Criterion (MAC),

$$MAC\left(f_{mod}^{\left(i\right)},f_{FE}^{\left(j\right)}\right)=\frac{{\left[{\mathit{f}}_{mod}^{\left(i\right)}\left({\mathit{x}}_p\right)\right]}^T{\mathit{f}}_{FE}^{\left(j\right)}\left({\mathit{x}}_p\right)}{\left({\left[{\mathit{f}}_{mod}^{\left(i\right)}\left({\mathit{x}}_p\right)\right]}^T{\mathit{f}}_{mod}^{\left(i\right)}\left({\mathit{x}}_p\right)\right)\left({\left[{\mathit{f}}_{FE}^{\left(j\right)}\left({\mathit{x}}_p\right)\right]}^T{\mathit{f}}_{FE}^{\left(j\right)}\left({\mathit{x}}_p\right)\right)}$$

(23)

where ${\mathit{x}}_p$ is the set of points for which the mode shapes are computed. From the MAC, one can define an error ${\Delta }_{MAC}$ as

$${\Delta }_{MAC}=\frac{1}{N_m}\sum _{i=1}^{N_m}\left[1-MAC\left(f_{mod}^{\left(i\right)},f_{FE}^{\left(i\right)}\right)\right]$$

(24)

where $N_m$ is the number of modes considered.

3.5.3. Results

Three cases are considered to evaluate the capacity of the Rayleigh–Ritz model to describe the dynamic properties of slender structures: (1) a fixed base without interaction with the nave, (2) a fixed base with interaction with the nave, and (3) soil–structure interaction and nave interaction.

Table 8. Evaluation of the eigenfrequencies using the Rayleigh–Ritz model. Case 1: fixed base without interaction with the nave. Case 2: fixed base with interaction with the nave. Case 3: soil–structure interaction and nave interaction.

	Case 1			Case 2			Case 3
Mode	${\mathit{f}}_{\mathit{F}\mathit{E}}$	${\mathit{f}}_{\mathit{m}\mathit{o}\mathit{d}}$	$\mathbf{\Delta }\mathit{f}$	${\mathit{f}}_{\mathit{F}\mathit{E}}$	${\mathit{f}}_{\mathit{m}\mathit{o}\mathit{d}}$	$\mathbf{\Delta }\mathit{f}$	${\mathit{f}}_{\mathit{F}\mathit{E}}$	${\mathit{f}}_{\mathit{m}\mathit{o}\mathit{d}}$	$\mathbf{\Delta }\mathit{f}$
	[Hz]	[Hz]	[%]	[Hz]	[Hz]	[%]	[Hz]	[Hz]	[%]
1	2.40	2.39	0.42	4.88	4.87	0.2	4.49	4.40	2.00
2	12.26	12.27	0.08	15.83	16.00	1.07	11.77	11.74	0.25
3	28.27	28.34	0.02	29.76	29.92	0.54	16.80	16.31	2.92

gives the three first eigenfrequencies for global bending modes along the direction X in the three case studies.

An excellent estimation is obtained for the eigenfrequencies for the three case studies with relative errors lower than 3%.

To compute the MAC between the modal basis of the Rayleigh–Ritz model and the reference with volumic finite element, the mode shapes should be described on the same set of point ${\mathit{x}}_p$. The mode shapes obtained with the Rayleigh–Ritz model are thus considered to move the nodes of the 3D finite element mesh by using the beam kinematic,

$$u_X\left(x_p^i\right)=v\left(X\left(x_p^i\right)\right),u_Y\left(x_p^i\right)=0,u_Z\left(x_p^i\right)=-Z\left(x_p^i\right)·\theta \left(X\left(x_p^i\right)\right)$$

(25)

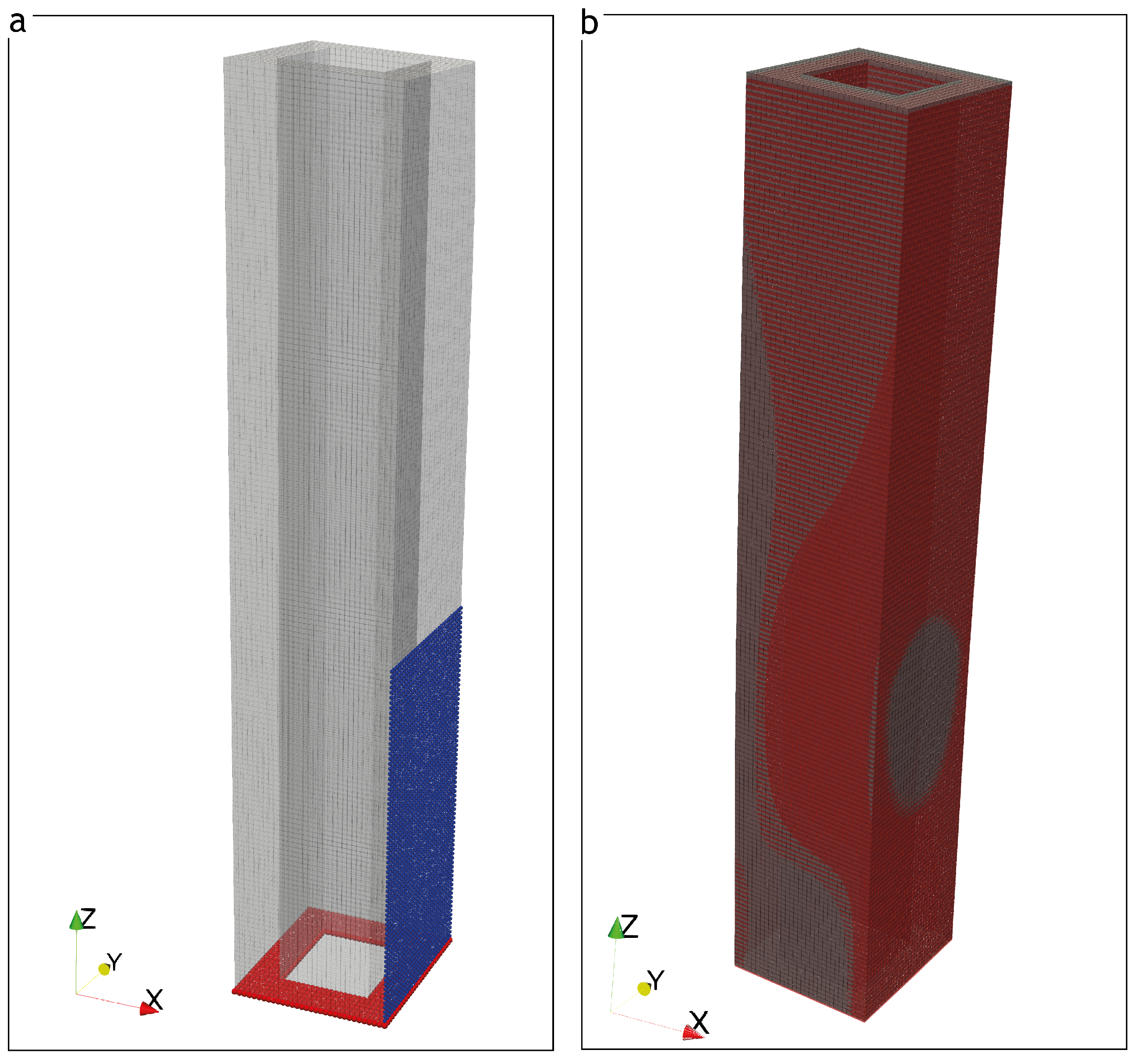

Figure 14b compares the mode shape of the first mode for the third case study between the finite Element reference and the Rayleigh–Ritz model. The two mode shapes appeared similar. The non-consideration of the Poisson effect with the beam model can explain the slight discrepancy.

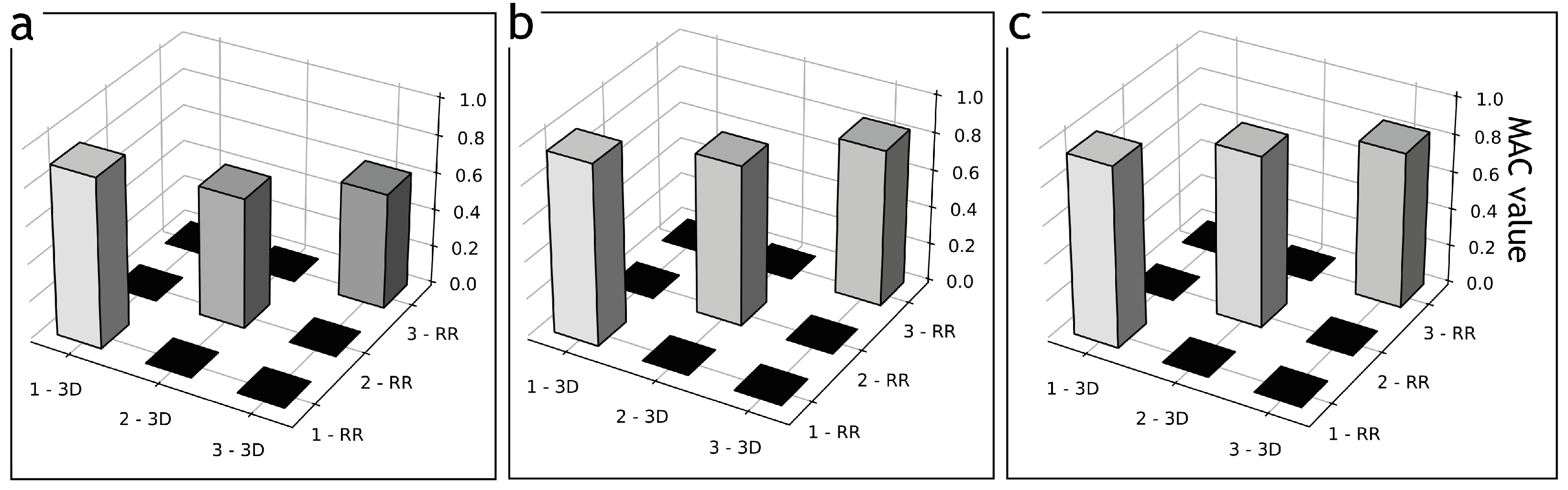

Figure 15 gives the MAC matrix obtained for the three case studies regarding the three first bending modes in the X direction.

The MAC error ${\Delta }_{MAC}$ between the three first bending modes of the Rayleigh–Ritz model and the reference FE model in the X direction for the three case studies are ${\Delta }_{MAC}^{\left(1\right)}$ = 13.32%, ${\Delta }_{MAC}^{\left(2\right)}$ = 15.36%, ${\Delta }_{MAC}^{\left(3\right)}$ = 12.93%. The slight difference between the two models expressed in terms of eigenfrequency and MAC error highlights the Rayleigh–Ritz model’s efficiency in describing the system’s main dynamic properties, considering local features and interaction.

3.6. Sensitivity Analysis

In this last part, sensitivity analyses are performed to quantify the contribution of each of the parameters on the dynamic properties of the Rayleigh–Ritz model. This analysis aims to identify the main parameters influencing the fundamental frequency estimation. It aims to help identify the main parameters to measure on an actual structure when characterizing the dynamic properties of the structure with the model.

3.6.1. The FAST Method

Global sensitivity analysis is a method used to decompose the uncertainty in the output of a computational model according to the input sources of uncertainty [197]. In this kind of sensitivity analysis, the space of the input factors is explored within an infinite region [198].

The Fourier amplitude sensitivity test (FAST), [198,199] and the Random balance designs Fourier amplitude sensitivity test (RBD-FAST) [200,201] are some of the most robust global sensitivity analysis techniques, e.g., [201,202,203,204]. This last technique sampled all input parameters from a periodic function with a different characteristic frequency. Thus, the output model becomes a periodic function. The Fourier spectrum is then calculated on the model output at specific frequencies to obtain the first-order Sobol sensitivity index ($S_i$) of each $p_i$ parameter.

Let us consider a computer model $Y=\mathcal{M}(p_1,\dots ,p_n)$ treated as a black box, where n is the number of independent input parameters. The parametric curve assigned to each input parameter is defined as:

$$\begin{array}{ccc}\hfill p_i\left(s\right)& =& \frac{1}{2}+\frac{1}{\pi }arcsin(sin(w_i·s))\hfill \end{array}$$

(26)

where $p_i\left(s\right)\in {[0,1]}^n$ and $s=2·\pi \frac{j-1}{N}$; $\forall j=1,\dots ,N$. The Y model is then evaluated N times over the sample of size N. If the model output Y is expanded with a Fourier series, the marginal variance (V) can be obtained as:

$$\begin{array}{ccc}\hfill {\mathcal{M}}_0& =& E\left[Y\right]\hfill \end{array}$$

(27)

$$\begin{array}{ccc}\hfill {\mathcal{M}}_0& =& \underset{T\to \infty }{lim}\frac{1}{2\pi }{\int }_{-\pi }^{\pi }f\left(\mathrm{p}\left(\mathrm{s}\right)\right)ds\hfill \end{array}$$

(28)

$$\begin{array}{ccc}\hfill V& =& \frac{1}{2\pi }{\int }_{-\pi }^{\pi }{\mathcal{M}}^2\left(\mathrm{p}\left(\mathrm{s}\right)\right)ds-{\mathcal{M}}_0^2\hfill \end{array}$$

(29)

$$\begin{array}{ccc}\hfill V& \simeq & 2\sum _{j=1}^{\infty }(A_j^2+B_j^2)\hfill \end{array}$$

(30)

where $A_j$ and $B_j$ are the Fourier coefficients defined as:

$$\begin{array}{ccc}\hfill A_j& =& \frac{1}{2\pi }{\int }_{-\pi }^{\pi }\mathcal{M}\left(\mathrm{p}\left(\mathrm{s}\right)\right)cos\left(js\right)ds\hfill \end{array}$$

(31)

$$\begin{array}{ccc}\hfill B_j& =& \frac{1}{2\pi }{\int }_{-\pi }^{\pi }\mathcal{M}\left(\mathrm{p}\left(\mathrm{s}\right)\right)sin\left(js\right)ds\hfill \end{array}$$

(32)

The marginal partial variance of an individual input parameter ($V_i$) is obtained from the Fourier coefficients $A_{k{w}_i}$ and $B_{k{w}_i}$ at the harmonics of $w_i$ as follows:

$$\begin{array}{ccc}\hfill V_i& =& 2\sum _{k=1}^{\infty }(A_{k{w}_i}^2+B_{k{w}_i}^2)\hfill \end{array}$$

(33)

Finally, the first-order Sobol index ($S_i$) of each $p_i$ parameters is defined as:

$$\begin{array}{ccc}\hfill S_i& =& \frac{V_i}{V}\hfill \end{array}$$

(34)

The number of simulations $N_s$ needed in FAST and the ${\omega }_i$ values for Equation (26) are provided in

Table 9. Minimum number of model runs required by FAST [198].

Input Factors	${\mathit{N}}_{\mathit{s}}$	${\mathit{\omega }}_{\mathit{i}}$
5	626	$\{11,21,27,35,39\}$
6	786	$\{1,21,31,37,45,49\}$
7	1394	$\{17,39,59,69,75,83,87\}$
$N_s=(2·M·{\omega }_{max}+1)·2$

. It is noted that even for a problem with a few numbers of input variables, the minimum number of simulations required to obtain reliable data is high.

The advantage of RBD-FAST is that each random variable may be sampled from a periodic search function considering a single frequency $w_i$ for all input variables, which will reduce the number of simulations $N_s$. However, only the first-order sensitivity index ($S_i$) could be calculated. This is possible thanks to a randomization procedure used in RBD-FAST [201]. The randomization procedure consists of the following:

• Randomly permutes the set of samples for each input variable;
• Run the model using those permuted sets of input variables;
• Reorder the model output according to the input permutation for each input variable.

Then, for each reordered output set, the single frequency $w_i$ is restored, and the sensitivity indices may be evaluated using the same procedure as in FAST. The reader may refer to [198,201,204,205] or [206], among others, for further details about the FAST and RBD-FAST methods.

3.6.2. Sensitivity Analysis of the Rayleigh–Ritz Model

The first-order Sobol indices [207] are computed for the case of bounded towers without soil–structure interaction and with a rectangular hollow section. For this computation, a combination of the Random Balance Design (RBD) and the Fourier Amplitude Sensitivity Analysis Test (FAST) [200] is used. The sampling is made by considering Latin Hypercube Sampling (LHS). These analyses have been made with the Python library SALib [208].

Table 10. Range of values for the parameters of the Rayleigh–Ritz approach for the sensitivity analysis.

Parameters [Unit]	Range
H [m]	13.1–56.8
${\mathcal{l}}_s$ [m]	3.2–10.2
$\frac{t_w}{{\mathcal{l}}_s}$ [%]	100–130
$\frac{L_s}{{\mathcal{l}}_s}$ [%]	25–36
E [GPa]	0.2–5.3
$\nu$ [-]	0.13–0.27
$\rho$ [kg·m−3]	1500–2100
$\frac{h_n}{H}$ [%]	25–59
$k_n$ [N·m2]	10${}^4$–10${}^9$
$M_b$ [kg]	0–6500

lists the range of the values for the different parameters. The ranges have been constructed according to the descriptive statistics of the database in the first part of this work.

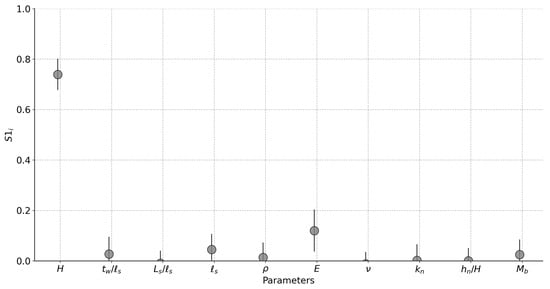

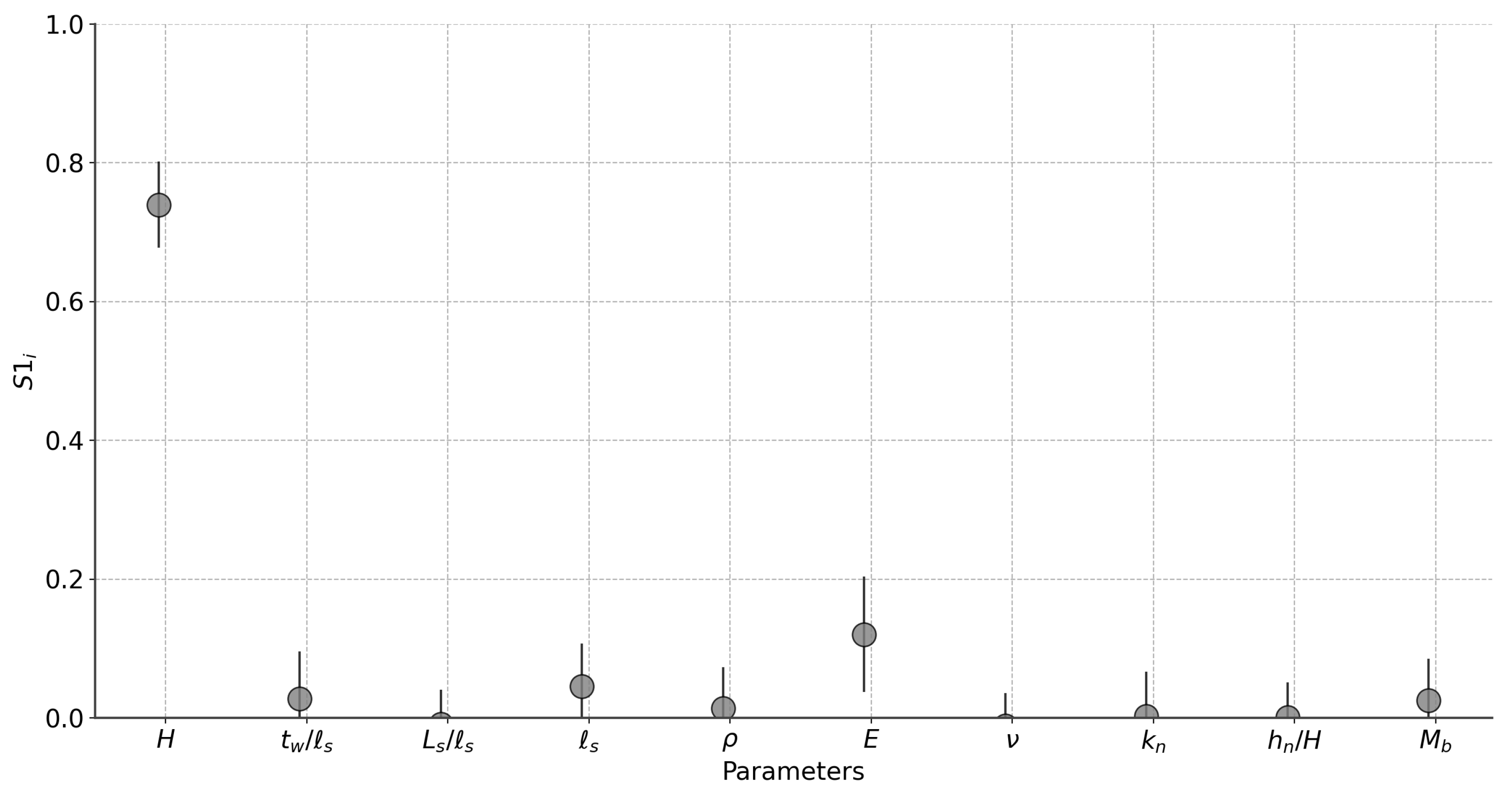

The first-order Sobol indices are computed for the fundamental frequency associated with the first bending mode. Figure 16 gives these first-order Sobol indices with a confidence interval.

Figure 16 shows that the fundamental frequency is mainly sensitive to the tower’s height ($S_1$ = 0.74). This result justifies the choice of H as the single or as one of the parameters for the empirical models. This shows that particular care needs to be taken when evaluating this parameter to minimize the fundamental frequency evaluation error. The modulus of elasticity plays a second-order role ($S_1$ = 0.12). The width and height of the interaction between the bell tower and the nave have a lesser impact, but can be used to refine the evaluation of the fundamental frequency (to a hundredth of a Hz).

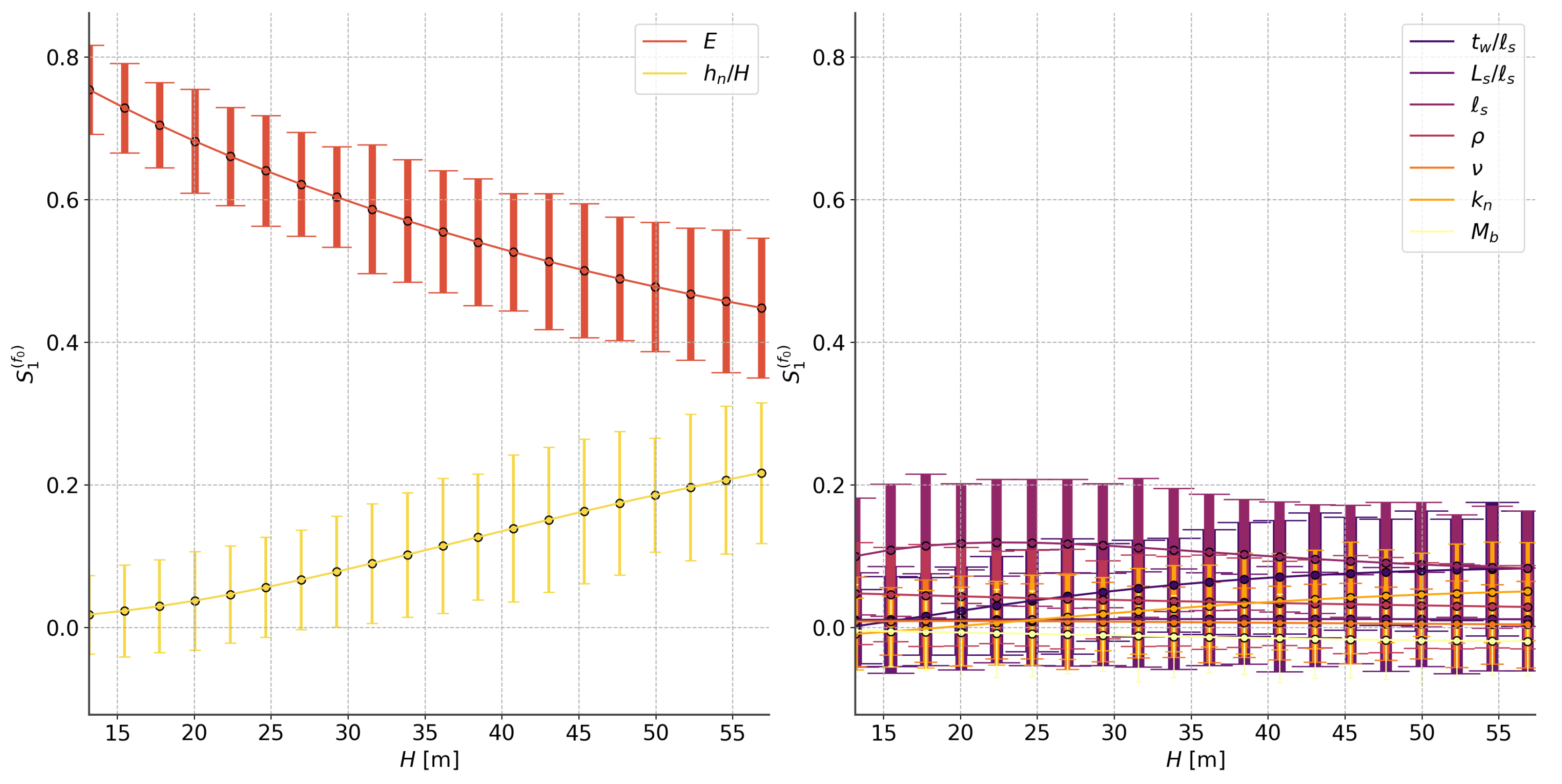

However, the impact of characteristics other than height on the fundamental frequency can vary according to the height range of the structure. To assess this, the Sobol index of each parameter is evaluated as a function of the tower’s height. The sensitivity analysis was carried out using interval values for the nine parameters as shown in Table 10. Figure 17 (on the left) shows a decreasing contribution of Young’s modulus with increasing height. On the contrary, the interaction height between the tower and adjacent buildings increases proportionally with the height. The other parameters have a more constant and minor role in the selected range of values (Figure 17, on the right).

3.6.3. Sensitivity Analysis for Key Parameter Identification

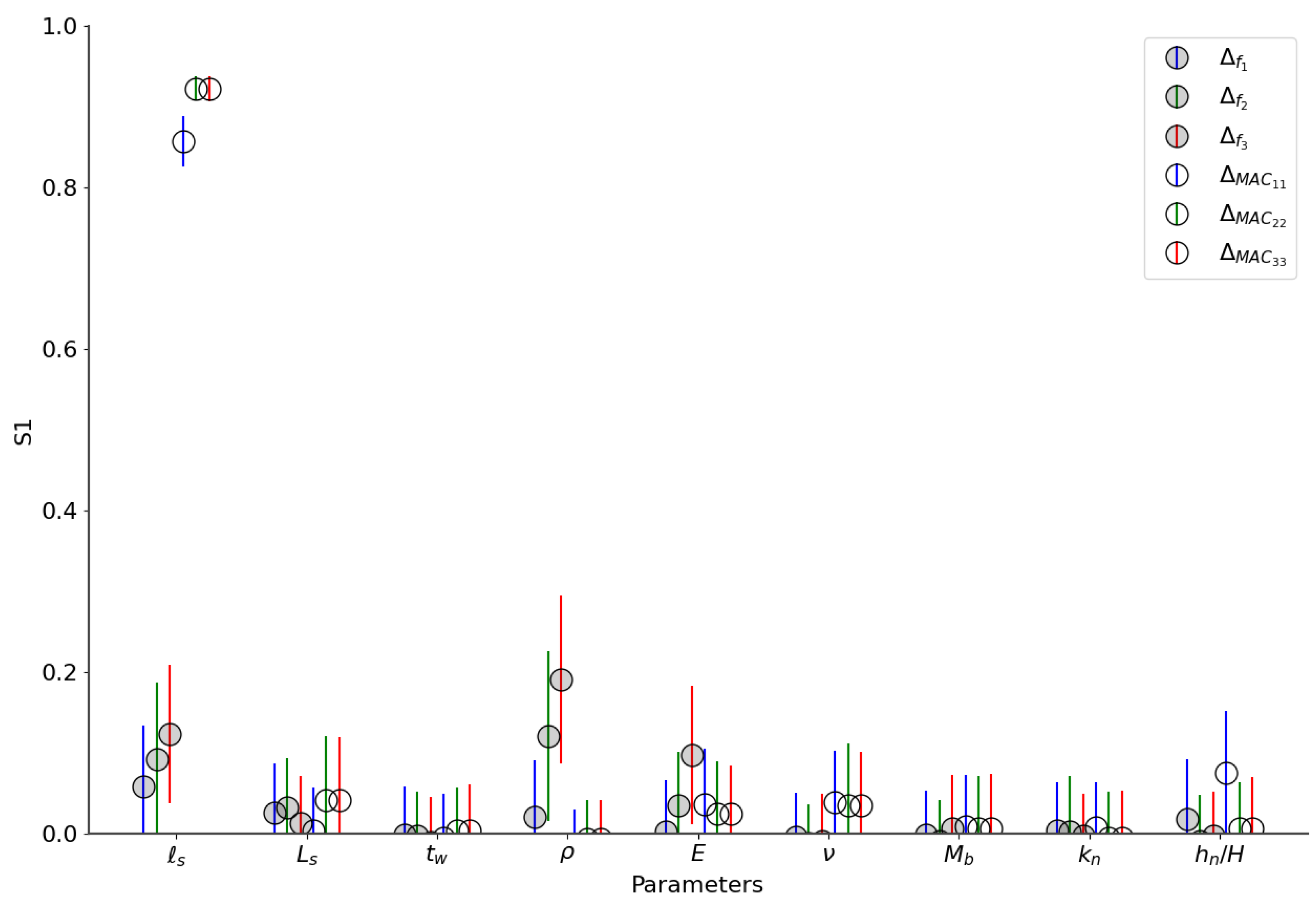

This section proposes to go a step further and quantify the impact of errors in field measurements of geometric characteristics and material properties on the modal frequencies and strains of the first three bending modes of the tower evaluated using the Rayleigh–Ritz approach. To do this, we use a numerical framework. A 3D Finite Element Model is used as a reference model (Figure 15, on the left). The value of geometric and material characteristics considered are the same as those of the bounded tower discussed in Section 3.5.1 (height, wall thickness, width, length, density, interface stiffness, and height). The Rayleigh–Ritz approach is used to propagate the errors of nine parameters: $t_w$, ${\mathcal{l}}_s$, $L_s$, $\rho$, E, $\nu$, $k_s$, $h_n$, and $M_b$. The tower’s height is kept fixed. To simulate the error, each parameter varies between plus and minus 10 % of the reference value. The consistency between the frequencies and the modes shapes identified with the Rayleigh–Ritz approach and the reference 3D Finite Element Model is evaluated through ${\Delta }_{f_i}\left(\mathit{p}\right)$ and ${\Delta }_{MA{C}_i}\left(\mathit{p}\right)$, as defined in Equation (22) and Equation (23), respectively. The first-order Sobol indices are computed, and results are shown in Figure 18. The breath measurement error contributes most to the mode shape error of the first three modes. The density and the Young modulus uncertainties impact higher frequencies (the second and third bending modes). The measurement error on the interaction height mainly affects the fundamental frequencies and their associated mode shape.

3.7. Comparing Empirical, Physics-Based, and Rayleigh–Ritz Approach for the Evaluation of the Fundamental Frequency

In this final section, we compare the performance of the empirical, physics-based, and Rayleigh–Ritz approaches for evaluating the fundamental frequency of slender historical structures. The analysis is carried out on a set of towers for which the geometric characteristics, the mass of the bell system, and the material properties are available (31 towers). Figure 19 shows the results expressed in terms of residuals computed as follows: $\frac{f_0^{exp}-f_0^{model}}{f_0^{exp}}$. The physics-based formulations constantly underestimate the experimental frequency. This discrepancy could be related to the value of the selected material parameters found in the literature, primarily identified through the FE model updating processes. The results of the empirical formulation are spread out, and failed to minimize the discrepancy between the estimated and the experimental frequencies. This result is consistent with those shown in Figure 10 and Figure 12. On the contrary, the figure clearly shows that the Rayleigh–Ritz model minimizes the best deviation from the measured frequency. However, this difference does not converge to zero, and this can be explained by several factors. Sensitivity analyses show that the tower’s height impacts the fundamental frequency most. This height is often defined with precision about decimeters, or even meters in some cases, and could explain these discrepancies. In addition, the presence of complex and imposing roofs (sometimes made of wood, sometimes of masonry) complicates the definition of the height to be retained. It has been observed that a low value (height at the base of the roof) and a high value (height at the top of the roof) systematically frame the value of the experimental frequency. The presence of an opening in the roof can also have a significant impact by significantly reducing the mass. The material parameters also need to be better known. These are often the result of updating the process with a finite element model that is more complex than the model considered in this study. However, the model proposed here remains a reasonable compromise, given the uncertainties in masonry towers’ physical and geometric parameters.

4. Conclusions

The fundamental frequency is crucial in assessing slender masonry structures’ dynamic properties. In recent decades, simple formulations have been proposed based on global features avoiding difficult and time-consuming modeling. At the same time, the growing number of OMA campaigns provides information on actual modal characteristics, and this is an opportunity to revisit and investigate the behavior of old masonry structures. This work’s contributions are:

• Compiling 244 instrumented masonry towers assembled from an extensive literature review. Worldwide masonry towers are described in terms of geometric, material features, interaction with adjacent buildings, aging, construction phase, repairs, and instrumentation condition;
• Describing the range of each parameter essential for the sensitivity analysis;
• Proposing a generic formulation for empirical and physical models summarizing the ones from the literature (available in the Python script);
• Expressing each feature contribution through a Rayleigh–Ritz formulation (available in the Python script);
• Conducting a sensitivity analysis to quantify how much each feature’s tower impacts the fundamental frequency.

The main results of this work show that:

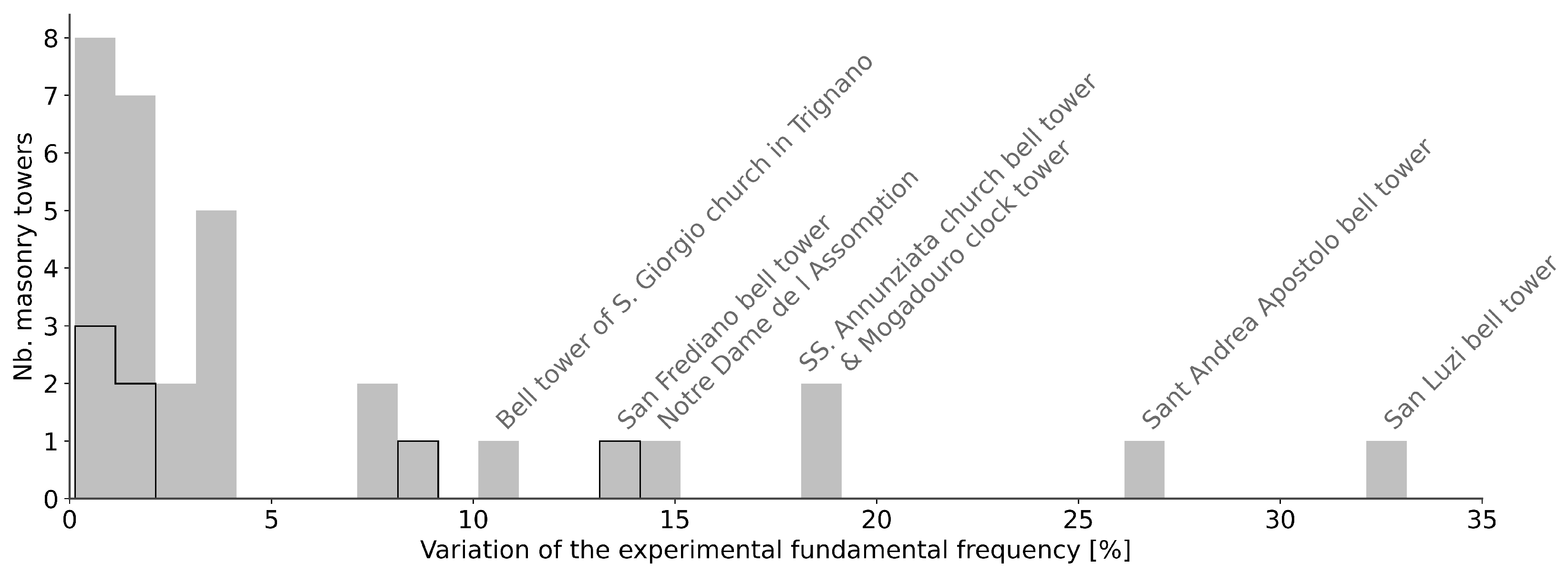

• The variability of the identified experimentally for the same historic tower. When available, most of the repeated OMA surveys highlight a discrepancy of up to 0.05 Hz. This difference is in the range of the contribution of tower features, inviting us to reduce in the uncertainties when evaluating both the fundamental frequency and the tower’s features;
• Empirical relations provide a suitable evaluation of the fundamental frequency compared to physics-based formulations regarding a small number of parameters;
• The Rayleigh–Ritz formulation allows the best fit between experimental and computed fundamental frequency when all information about the towers’ features are available;
• The height of the tower is the critical parameter to evaluate the fundamental frequency. It invites us to take some precautions when evaluating the height of the building. Moreover, the impact of the interaction between the slender structure and the adjacent structure on the fundamental frequency increase with the tower’s height, although as a second-order parameter;
• The width significantly impacts the mode shapes of the three first bending modes. The density and Young modulus impact the frequencies of the second and higher modes. The impact of the height interaction is limited to the first bending modes. The tower’s other features play a second-order role. These values are generally taken as known in model updating processes, which prefer to focus on calibrating unknown material properties. They are measured by visual inspection or more advanced techniques (laser measurements, etc.). We recommend particular attention to minimizing the uncertainty associated with measuring these two parameters.

Cultural Heritage buildings are complex, but of inestimable value, which requires our synergy. We believe this work is an initial contribution that invites sharing data relating to OMA (the fundamental frequency in the first instance). The database and the script of this work are available to the community. We encourage the community to send us the characteristics of new instrumented masonry towers so that we can increase our understanding of their behavior and work towards their preservation.
