Mechanical Performance of Hybrid Fibre Reinforced Magnesium Oxychloride Cement-Based Composites at Ambient and Elevated Temperature
Abstract
:1. Introduction

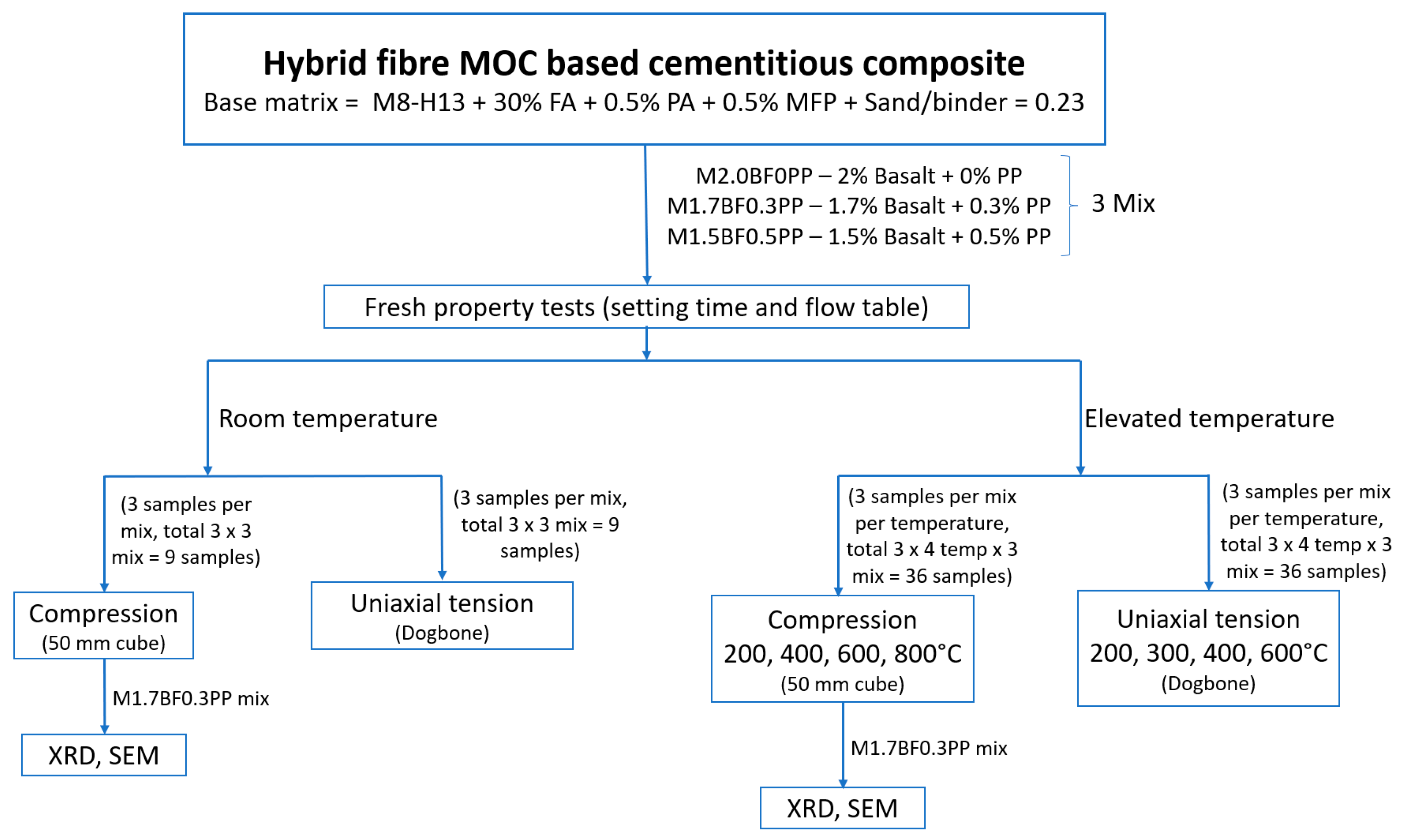

2. Experimental Program
2.1. Materials
2.2. Mix Design
2.3. Mixing Procedure and Sample Preparation
2.4. Testing Procedures
2.4.1. Flowability, Setting Time and Hardened Density

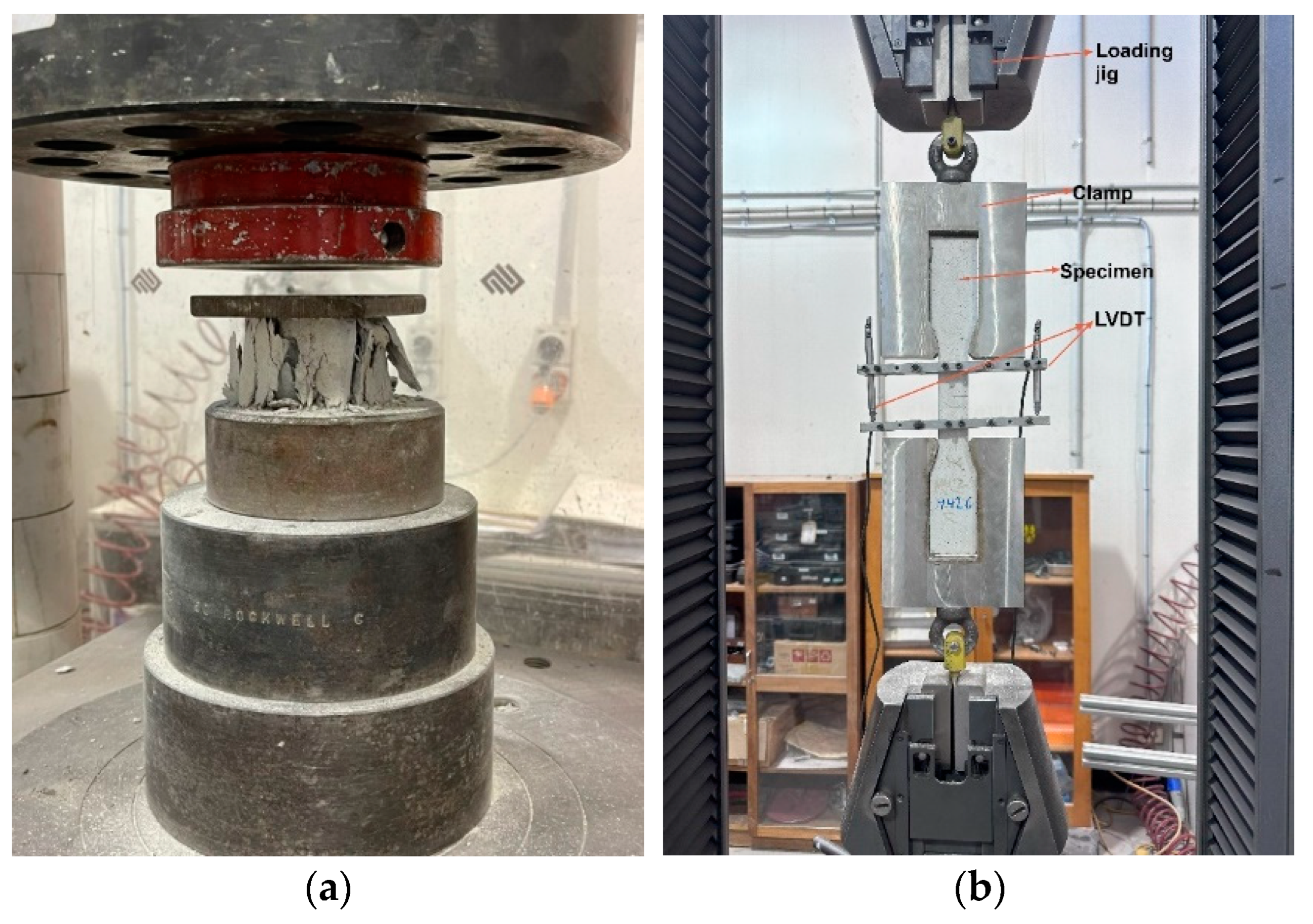

2.4.2. Compressive and Tensile Tests

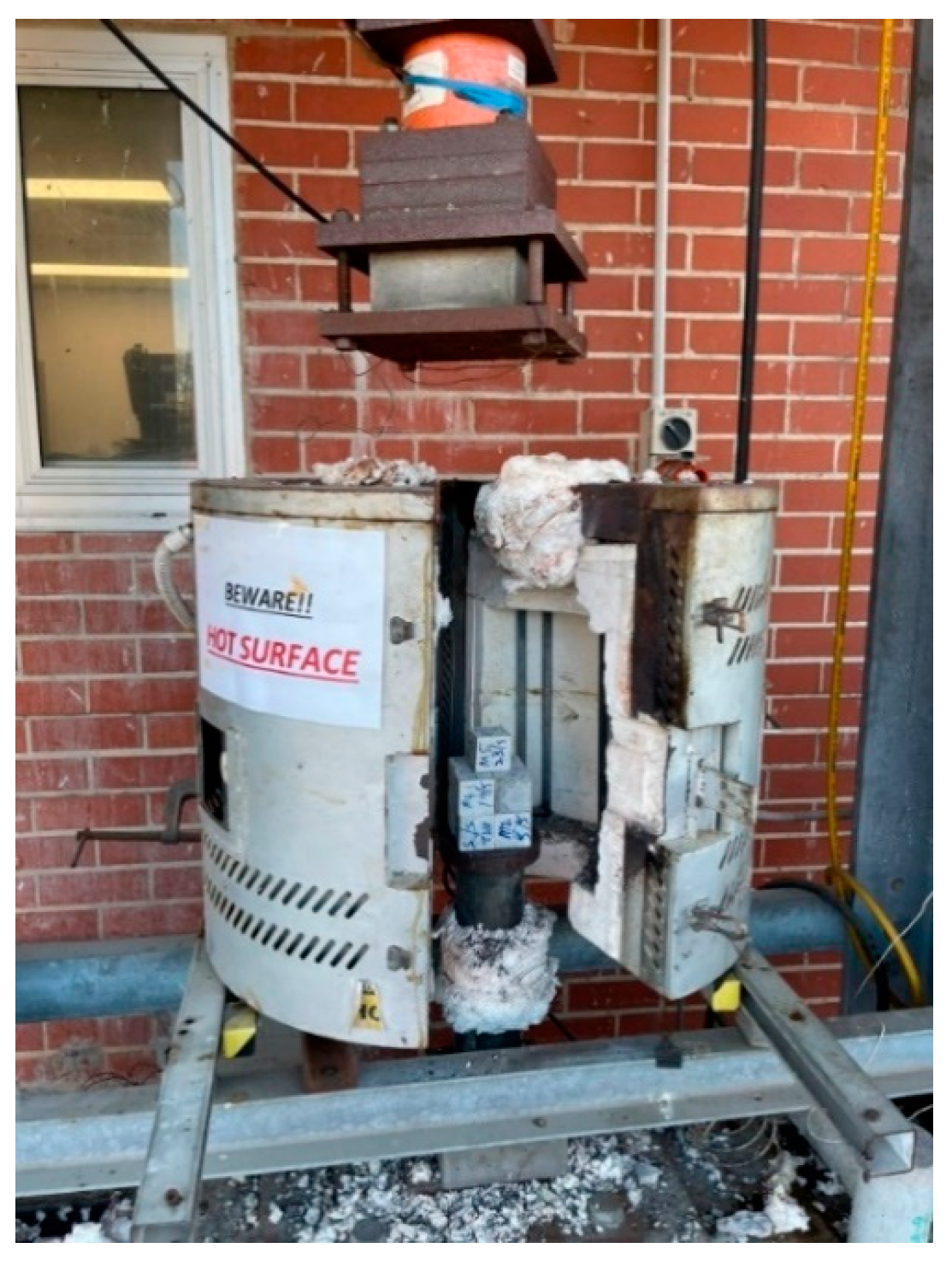

2.4.3. Elevated Temperature Testing
2.4.4. Microstructural Tests
3. Results and Discussion
3.1. Fresh Properties
3.2. Hardened Density
3.3. Mechanical Properties
3.3.1. Mechanical Performance of FRMOCC at Ambient (Room) Temperature
3.3.2. Mechanical Performance of FRMOCC at Elevated Temperatures
Compressive Strength
Tensile Strength

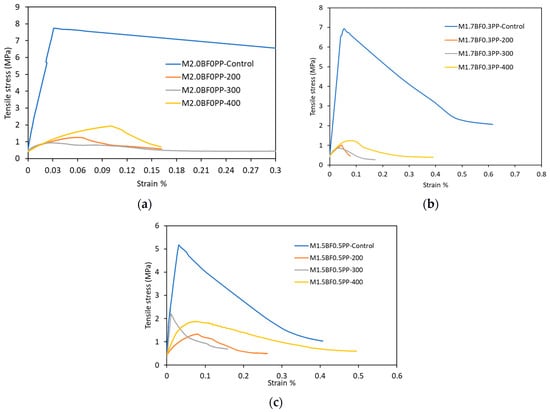

Tensile Stress–Strain Behaviour
3.4. Qualitative and Microstructural Characterisation
3.4.1. Surface Appearance
3.4.2. Mass Loss

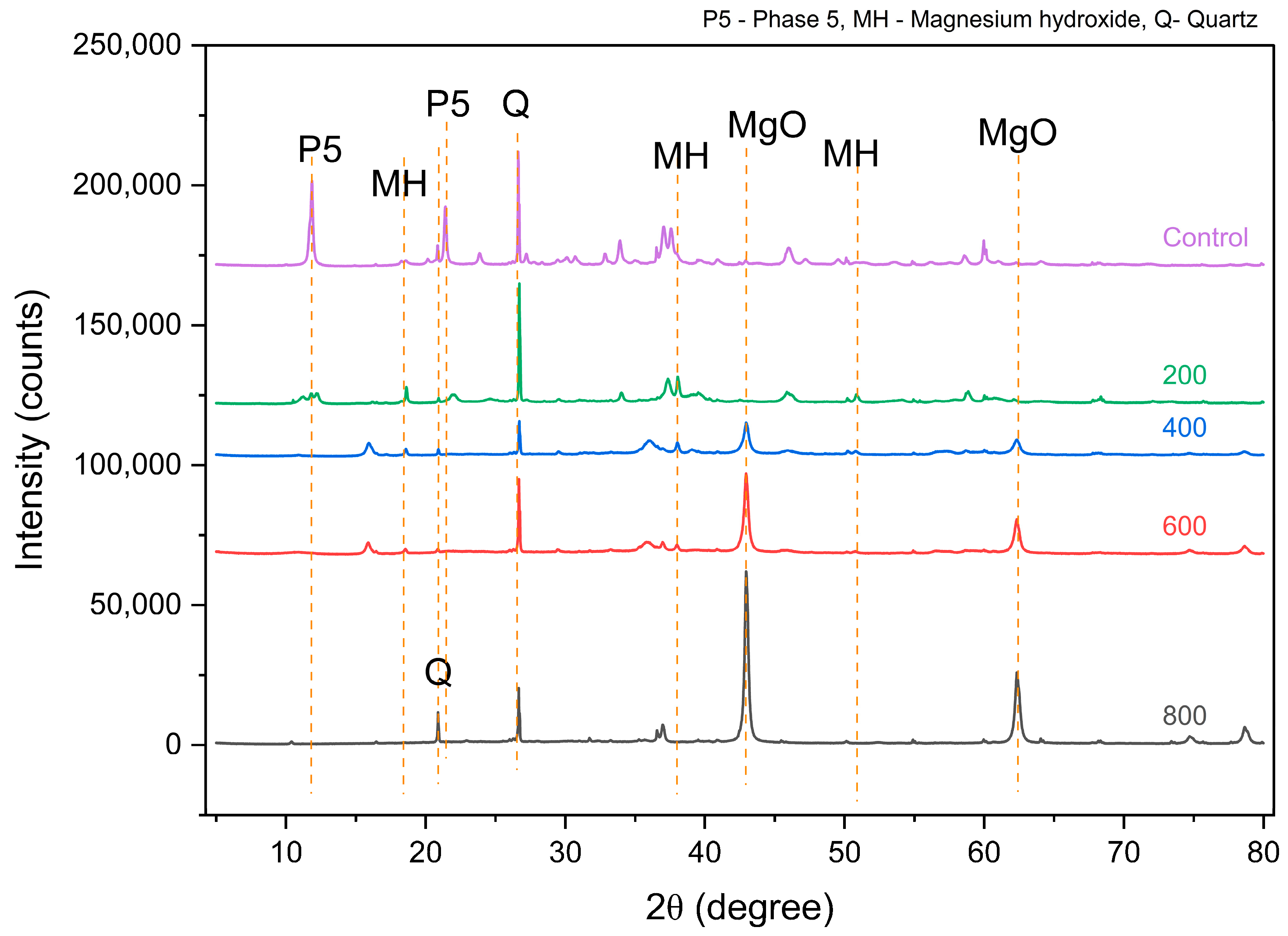

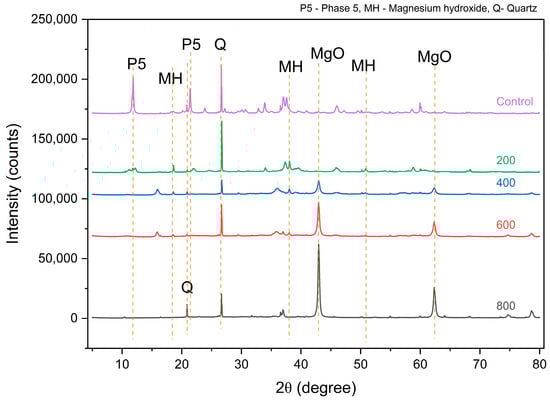

3.4.3. Microstructural Characteristics
4. Conclusions
- The addition of fibres adversely affected flowability and setting time, resulting in decreased flowability and increased setting time. However, the flow value remained within a similar range (150–160 mm) as OPC-based cementitious composites.

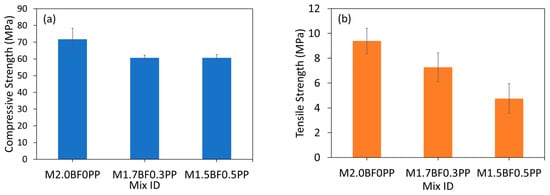

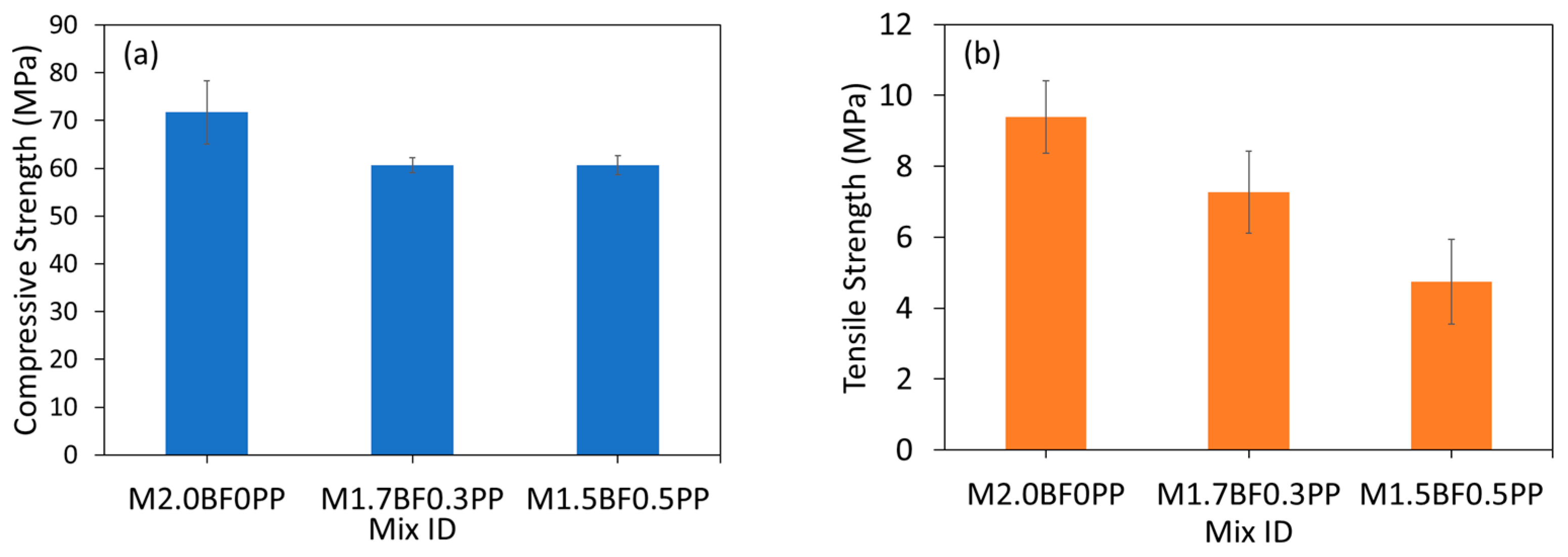

- Mix M2.0BF0PP exhibited the highest compressive strength (71.71 MPa) and tensile strength (9.39 MPa) at room temperature, indicating that basalt fibres contribute positively to strength. However, the strength relatively reduced with increase in PP fibre content.

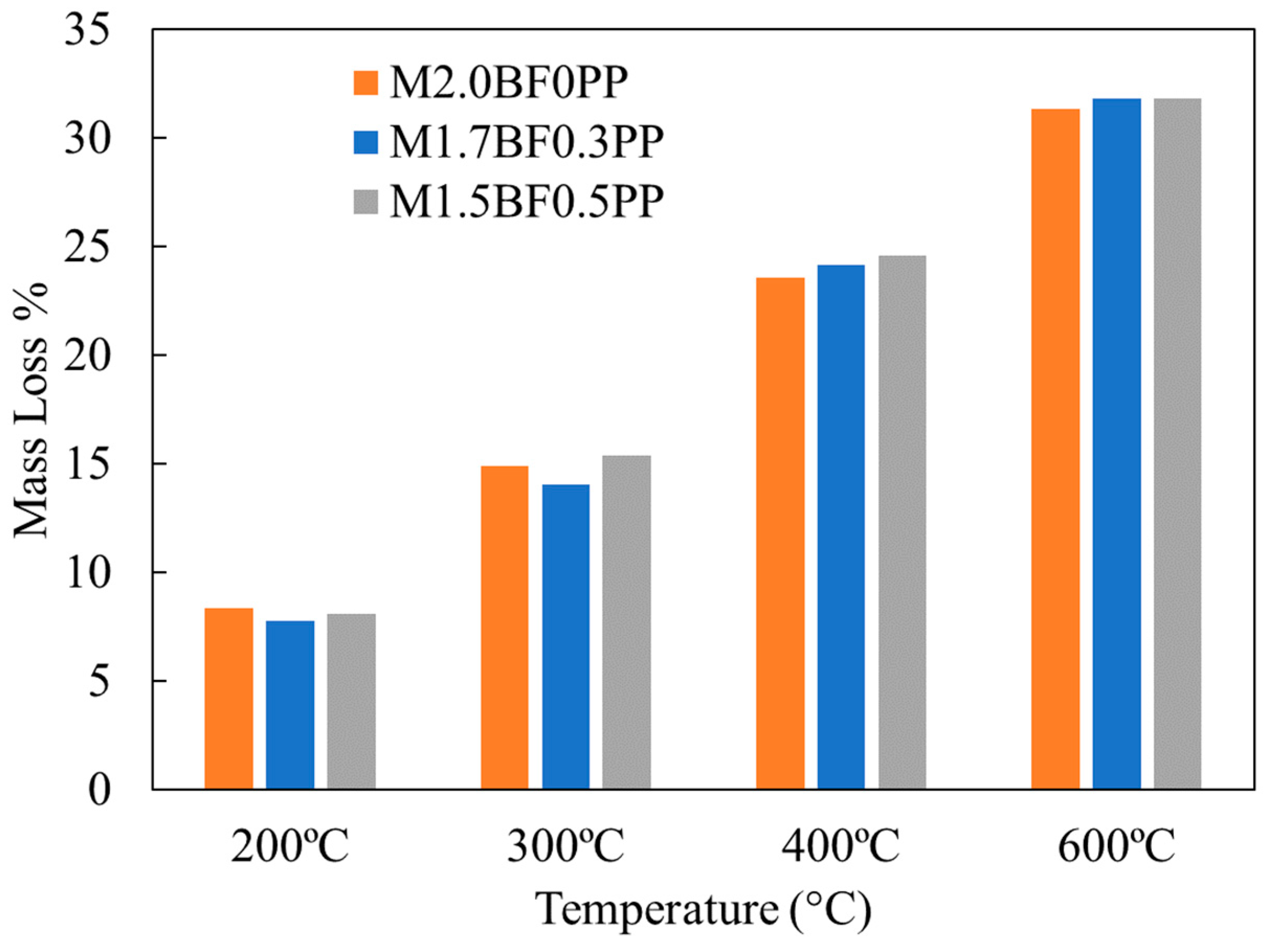

- All FRMOCC specimens suffered significant mass loss with increase in temperature, with mass loss exceeding 31% at 600 °C. This was found to be substantially higher than mass loss observed in OPC-based cementitious composites and was due to the continuous decomposition of main hydration phases which was further confirmed through XRD and SEM analysis.

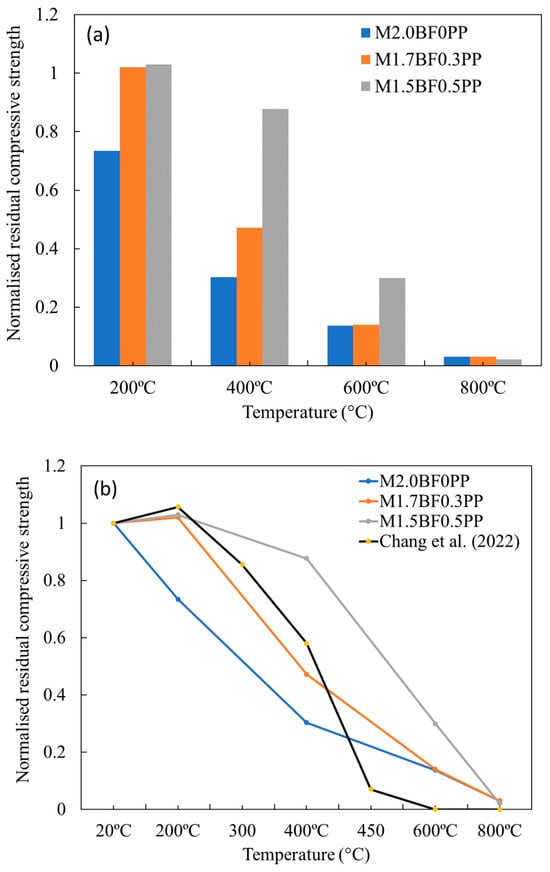

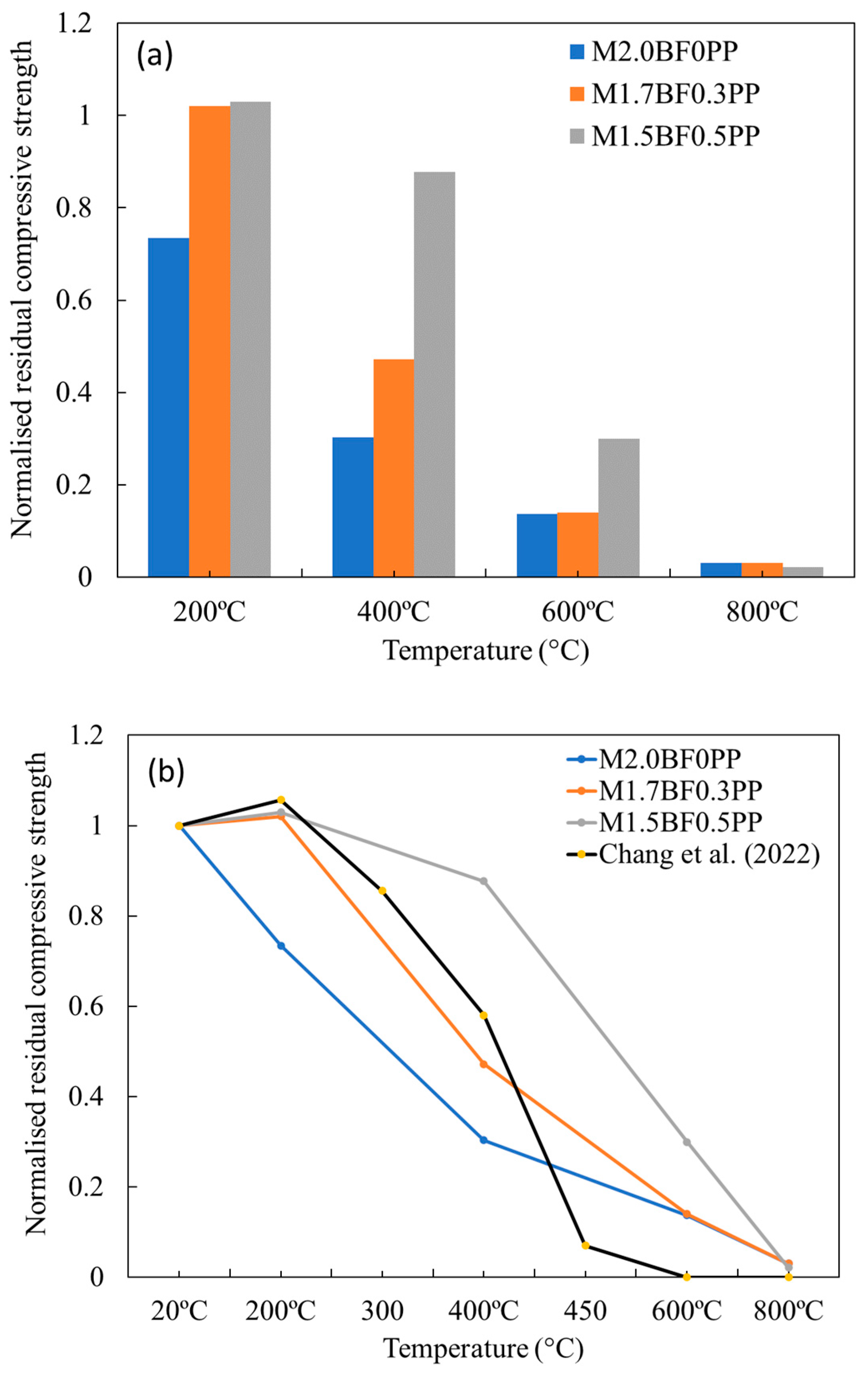

- Compressive strength significantly decreased with increase in temperatures, especially at 800 °C, where it reduced by over 95%. Specimen with the highest volume of PP fibre (M1.5BF0.5PP) demonstrated the best overall performance, potentially due to the melting effect of PP fibres, which aided in vapor pressure release and reduced internal stresses. Furthermore, the performance of this mix was found to be substantially better than the previously reported residual strength of MOC without fibres, providing additional confirmation of the beneficial effect of fibre addition in improving fire performance.

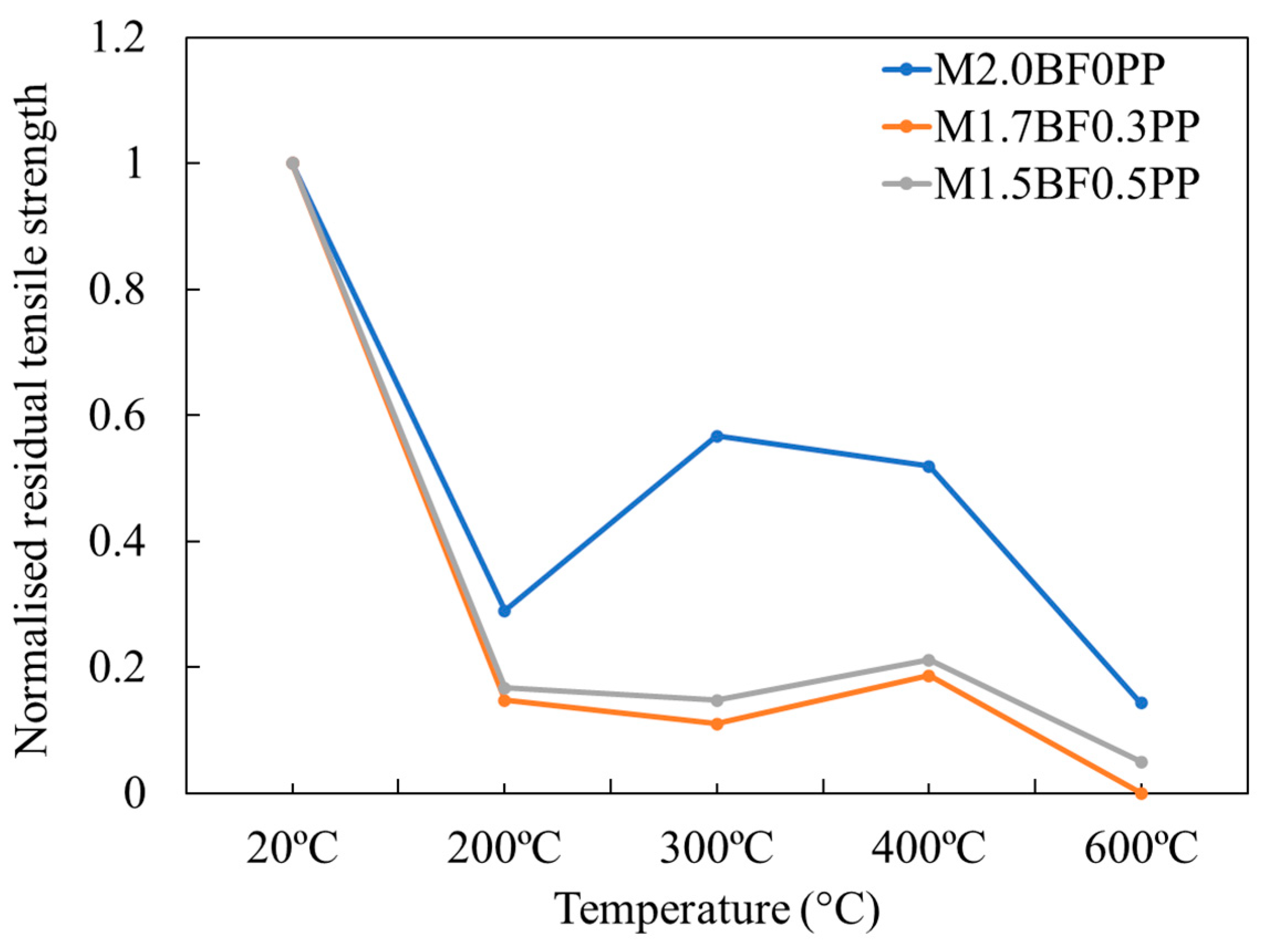

- Tensile strength also suffered significant loss with an increase in temperature. A decrease of 71–85% was observed at 200 °C. Contrary to compressive strength, the specimens with PP fibre suffered a higher decrease as a result of their melting. Mix M2.0BF0PP showed the best performance in terms of tensile strength followed by mixes M1.5BF0.5PP and M1.7BF0.3PP.

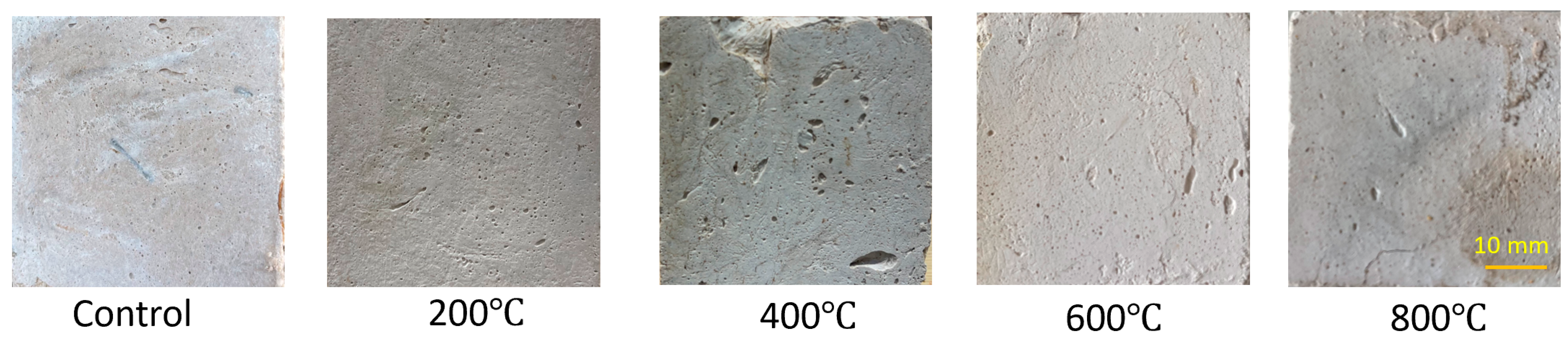

- No significant cracks or spalling were observed in any of the specimens exposed to temperatures ranging from 200 to 800 °C. This might be due to the adopted low heating rate and positive influence of fibres.
- Considering the substantial performance loss in FRMOCC specimens at elevated temperatures, it is recommended that future studies should be directed towards addition of binders to generate more thermally stable hydration phases. This could enhance performance, allowing for broader application in various structural elements and non-structural uses, such as cladding panels.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Soufeiani, L.; Nguyen, K.T.Q.; White, N.; Foliente, G.; Wang, H.; Aye, L. Fire safety performance of 3D GFRP nanocomposite as a cladding material. Fire Saf. J. 2022, 133, 103670. [Google Scholar] [CrossRef]
- Nguyen, K.T.; Weerasinghe, P.; Mendis, P.; Ngo, T. Performance of modern building facades in fire: A comprehensive review. Electron. J. Struct. Eng. 2016, 16, 69–87. [Google Scholar] [CrossRef]
- Cockburn, H. Russia Hotel Fire: Two Dead after Blaze Engulfs 10-Storey Building in Rostov on Don; Independent Digital News & Media: London, UK, 2017. [Google Scholar]
- Kirkpatrick, D.D.; Hakim, D.; Glanz, J. Why Grenfell Tower Burned: Regulators Put Cost Before Safety. New York Times, 24 June 2017. [Google Scholar]
- Environmental Planning and Assessment Amendment (Identification of Buildings with External Combustible Cladding) Regulation. The Environmental Planning and Assessment Act 1979. 2018. Available online: https://legislation.nsw.gov.au/view/pdf/asmade/sl-2018-499 (accessed on 14 December 2023).
- Watermeyer, R.P.E.; Strydom, K. The fire safety performance of internal and external walls in multi-storey buildings. Civ. Eng. Mag. S. Afr. Inst. Civ. Eng. 2020, 28, 28–31. [Google Scholar]
- Li, K.; Wang, Y.S.; Yao, N.; Zhang, A. Recent progress of magnesium oxychloride cement: Manufacture, curing, structure and performance. Constr. Build. Mater. 2020, 255, 119381. [Google Scholar] [CrossRef]
- Huang, T.; Yuan, Q.; Deng, D. The role of phosphoric acid in improving the strength of magnesium oxychloride cement pastes with large molar ratios of H2O/MgCl2. Cem. Concr. Compos. 2019, 97, 379–386. [Google Scholar] [CrossRef]
- Cole, W.; Demediuk, T. X-ray, thermal, and Dehydration studies on Magnesium oxychlorides. Aust. J. Chem. 1955, 8, 234–251. [Google Scholar] [CrossRef]
- Demediuk, T.; Cole, W.; Hueber, H. Studies on magnesium and calcium oxychlorides. Aust. J. Chem. 1955, 8, 215–233. [Google Scholar] [CrossRef]
- He, P.; Poon, C.S.; Tsang, D.C. Effect of pulverized fuel ash and CO2 curing on the water resistance of magnesium oxychloride cement (MOC). Cem. Concr. Res. 2017, 97, 115–122. [Google Scholar] [CrossRef]
- Guo, Y.; Zhang, Y.; Soe, K.; Hutchison, W.D.; Timmers, H.; Poblete, M.R. Effect of fly ash on mechanical properties of magnesium oxychloride cement under water attack. Struct. Concr. 2019, 21, 1181–1199. [Google Scholar] [CrossRef]
- Yu, H.F.; Liu, P.Q.; Wang, W.H. The properties of silica fume-magnesium oxychloride cement materials. Acta Met-Allurgica Sin. Engl. Lett. 1999, 12, 1038. [Google Scholar]
- Chau, C.; Chan, J.; Li, Z. Influences of fly ash on magnesium oxychloride mortar. Cem. Concr. Compos. 2009, 31, 250–254. [Google Scholar] [CrossRef]
- Chan, J.; Li, Z. Influence of fly ash on the properties of magnesium oxychloride cement. In Measuring, Monitoring and Modeling Concrete Properties: An International Symposium Dedicated to Professor Surendra P. Shah, Northwestern University, USA; Springer: Amsterdam, The Netherlands, 2006; pp. 347–352. [Google Scholar]
- Li, Y.; Li, Z.; Pei, H.; Yu, H. The influence of FeSO4 and KH2PO4 on the performance of magnesium oxychloride cement. Constr. Build. Mater. 2016, 102, 233–238. [Google Scholar] [CrossRef]
- Dehua, D.; Chuanmei, Z. The effect of aluminate minerals on the phases in magnesium oxychloride cement. Cem. Concr. Res. 1996, 26, 1203–1211. [Google Scholar] [CrossRef]
- Chen, X.; Zhang, T.; Bi, W.; Cheeseman, C. Effect of tartaric acid and phosphoric acid on the water resistance of magnesium oxychloride (MOC) cement. Constr. Build. Mater. 2019, 213, 528–536. [Google Scholar] [CrossRef]
- Deng, D. The mechanism for soluble phosphates to improve the water resistance of magnesium oxychloride cement. Cem. Concr. Res. 2003, 33, 1311–1317. [Google Scholar] [CrossRef]
- Gomes, C.M.; Cheung, N.; Gomes, G.M.; Sousa, A.K.; Peruzzi, A.P. Improvement of water resistance in magnesia cements with renewable source silica. Constr. Build. Mater. 2020, 272, 121650. [Google Scholar] [CrossRef]
- Guo, Y. Development of Water-Resistant Magnesium Oxychloride Cement; UNSW Sydney: Sydney, Australia, 2020. [Google Scholar]
- di Prisco, M.; Plizzari, G.; Vandewalle, L. Fibre reinforced concrete: New design perspectives. Mater. Struct. 2009, 42, 1261–1281. [Google Scholar] [CrossRef]
- Li, V.C. On engineered cementitious composites (ECC) a review of the material and its applications. J. Adv. Concr. Technol. 2003, 1, 215–230. [Google Scholar] [CrossRef]
- Yu, K.; Guo, Y.; Zhang, Y.; Soe, K. Magnesium oxychloride cement-based strain-hardening cementitious composite: Mechanical property and water resistance. Constr. Build. Mater. 2020, 261, 119970. [Google Scholar] [CrossRef]
- Wang, Y.; Wei, L.; Yu, J.; Yu, K. Mechanical properties of high ductile magnesium oxychloride cement-based composites after water soaking. Cem. Concr. Compos. 2019, 97, 248–258. [Google Scholar] [CrossRef]
- Chang, C.; An, L.; Lin, R.; Wen, J.; Dong, J.; Zheng, W.; Yan, F.; Xiao, X. Effect of Calcination Temperature on Mechanical Properties of Magnesium Oxychloride Cement. Materials 2022, 15, 607. [Google Scholar] [CrossRef]
- Alghamdi, H.; Shoukry, H.; Perumal, P.; Khawaji, M.; Abadel, A.A. Enhanced mechanical, thermal and fire resistance performance of expanded polystyrene-based fiber-reinforced mortar made with limestone-calcined clay cement (LC3). Innov. Infrastruct. Solutions 2023, 8, 1–12. [Google Scholar] [CrossRef]
- Rawat, S.; Lee, C.; Zhang, Y. Performance of fibre-reinforced cementitious composites at elevated temperatures: A review. Constr. Build. Mater. 2021, 292, 12338. [Google Scholar] [CrossRef]
- Tangirala, A.; Rawat, S.; Lahoti, M. High volume fly ash and basalt-polypropylene fibres as performance enhancers of novel fire-resistant fibre reinforced cementitious composites. J. Build. Eng. 2023, 78, 107586. [Google Scholar] [CrossRef]
- WB/T1019-2002; Caustic Burned Magnesia for Magnesium Oxychloride Cement Products. Professional Standard of the People’s Republic of China, State Commission for Economic and Trade: Beijing, China, 2002. (In Chinese)
- Xu, M.; Song, S.; Feng, L.; Zhou, J.; Li, H.; Li, V.C. Development of basalt fiber engineered cementitious composites and its mechanical properties. Constr. Build. Mater. 2020, 266, 121173. [Google Scholar] [CrossRef]
- Missemer, L.; Ouedraogo, E.; Malecot, Y.; Clergue, C.; Rogat, D. Fire spalling of ultra-high performance concrete: From a global analysis to microstructure investigations. Cem. Concr. Res. 2018, 115, 207–219. [Google Scholar] [CrossRef]
- ASTM C1437; Standard Test Method for Flow of Hydraulic Cement Mortar. ASTM International: West Conshohocken, PA, USA, 2007.
- ASTM C191-21; Standard Test Methods for Time of Setting of Hydraulic Cement by Vicat Needle. ASTM International: West Conshohocken, PA, USA, 2013.
- Xia, D.; Chen, R.; Zhang, D.; Cheng, J. Relationship between Fractal Dimension and Properties of Engineered Cementitious Composites with Different Aggregates. Materials 2022, 15, 7666. [Google Scholar] [CrossRef]
- Chen, Z.; Li, J.; Yang, E.-H. Development of Ultra-Lightweight and High Strength Engineered Cementitious Composites. J. Compos. Sci. 2021, 5, 113. [Google Scholar] [CrossRef]
- Blazy, J.; Blazy, R. Polypropylene fiber reinforced concrete and its application in creating architectural forms of public spaces. Case Stud. Constr. Mater. 2021, 14, e00549. [Google Scholar] [CrossRef]
- Noumowe, A. Mechanical properties and microstructure of high strength concrete containing polypropylene fibres exposed to temperatures up to 200 °C. Cem. Concr. Res. 2005, 35, 2192–2198. [Google Scholar] [CrossRef]
- Akca, A.H.; Zihnioğlu, N. High performance concrete under elevated temperatures. Constr. Build. Mater. 2013, 44, 317–328. [Google Scholar] [CrossRef]
Fibre Type | Length (mm) | Diameter (μm) | Tensile Strength (MPa) | Elastic Modulus (GPa) | Density (g/cm3) | Melting Point (°C) |
---|---|---|---|---|---|---|
PP | 12 | 23 | 585 | 5.1 | 0.91 | 165 |
Basalt | 12 | 13 | 3300–4840 | 91–110 | 2.65 | 269–700 (operating temperature) |
Mix ID | Molar Ratio of All Mixes | Sand/Binder | FA | PA | MFP | Basalt | PP | |
---|---|---|---|---|---|---|---|---|
MgO/MgCl2 | H2O/MgCl2 | |||||||
M2.0BF0PP | 8 | 13 | 0.23 | 30% | 0.5% | 0.5% | 2.0% | - |
M1.7BF0.3PP | 8 | 13 | 0.23 | 30% | 0.5% | 0.5% | 1.7% | 0.3% |
M1.5BF0.5PP | 8 | 13 | 0.23 | 30% | 0.5% | 0.5% | 1.5% | 0.5% |
M2.0BF0PP | M1.7BF0.3PP | M1.5BF0.5PP | |
---|---|---|---|
Flow value (mm) | 158 | 160 | 152 |
Initial setting time (hours) | 5.5 | 5.15 | 5.75 |
Final setting time (hours) | 6.75 | 7 | 7.15 |
M2.0BF0PP | M1.7BF0.3PP | M1.5BF0.5PP | |
---|---|---|---|
Density (kg/m3) | 1920 ± 8.83 | 1902 ± 4.81 | 1813 ± 3.41 |
