Article

Structural, Exterior, and Interior Medium of Wood as a Holistic Museum Experience: A Case Study of OMM (Odunpazarı Modern Museum)

by
Meryem Yalçın
* and
Esin Fakıbaba Dedeoğlu
Faculty of Architecture and Design, Department of Interior Architecture and Environmental Design, TOBB University of Economics and Technology, Ankara 06560, Turkey
*
Author to whom correspondence should be addressed.
Buildings 2024, 14(3), 649; https://doi.org/10.3390/buildings14030649
Submission received: 26 December 2023 / Revised: 18 February 2024 / Accepted: 21 February 2024 / Published: 1 March 2024

Abstract

:
The fundamental research inquiry in this study revolves around wood materials’ diverse facets, including structural identities, contextual considerations, interior and external spatial applications, and their user experiences. To address this research, a comprehensive literature review, case study, and survey were conducted. The objective being to elucidate technical, functional, sensory, perceptual, and psychological impacts of wood in a sample structure where it is the primary material in the overarching user experience. The Odunpazarı Modern Museum (OMM), conceptualized by architect Kengo Kuma and inaugurated in 2019 in Eskişehir, stands as a testament to the historical significance of the timber trade in the region. The deliberate choice of wood as the primary construction material serves as a tribute to this historical narrative. The conspicuous incorporation of wooden lath materials into both the external and interior spaces signify a conscious reference to the region’s historical heritage and aligns with sustainability principles in design. Factors such as form characteristics, dimensional distinctions, spatial arrangements, and the extent of surface interactions collectively contribute to the compelling effect of this integrative approach. Within the confines of the museum, unconventional partitioning is implemented, and the strategic arrangement of masses results in multiple facades, even in the absence of overt wooden surfaces. The exterior impact of the wooden shell complements its interior application. For this reason, OMM enabled the understanding and explanation of all dimensions of the wooden material, including physical, technical, and psychosocial.

1. Introduction

Wood emerges as a multifaceted material within the construction industry, presenting designers with a myriad of possibilities. However, beyond its structural integrity, wood encompasses a diverse array of attributes, including technical specifications, application domains, typologies, and significances. Therefore, it is imperative for designers to cultivate a comprehensive understanding that encapsulates the entirety of wood’s dimensions.
The molecular, chemical, and microscopic characteristics of wood have enabled its use for a wide range of purposes. In addition to these features, its fibrous structure contributes to its high strength and flexibility in engineering applications. Furthermore, its insulation properties often make it a preferred choice [1]. Despite the extensive history of wooden constructions across Europe and globally, end-users often harbor concerns that a wooden building may not endure as well as structures made of steel or concrete. There is a specific worry that wooden buildings may be more vulnerable to factors such as fire, water damage, and biological activity or may not exhibit the same level of load resistance. Despite these concerns, wood possesses inherent properties, including a high strength-to-density ratio, a tendency to char rather than burn, and good biological resistance, which counteract these apprehensions. However, it is crucial to acknowledge that not all types of timber can meet all criteria simultaneously [2,3]. Managed woodlands are cultivated to meet the high demand for construction timber. While generally faster-growing and, therefore, considered sustainable, managed woodlands may have a lower building standard than virgin forests. Consequently, they are often chemically treated to enhance their construction grade [3]. With technological advancements and shifting societal needs, construction materials are continually undergoing diversification and renewal within their structural applications. The selection of material assumes a critical role in the development of spatial design, influencing facets such as form, surface texture, physical and chemical structure, fluidity, and the foundational philosophies embedded in design approaches [4]. Therefore, a thorough examination of the physical and psychological effects of these materials is imperative. Understanding the impact of material features on users and recognizing the opportunities this impact presents are pivotal. This study examines wood as a construction material that boasts extensive and diverse global usage and presents advantages in production, availability, trade, and ecological impact, positioning it as a renewable natural resource characterized by a commendable strength-to-mass ratio [5]. Moreover, its positive contribution to carbon storage aligns with the growing emphasis on eco-friendly construction practices [6]. The surge in green construction has underscored the importance of utilizing renewable materials, with wood emerging as a key component of environmentally sustainable structures [7]. Wood’s ready availability, lightness, durability, and ease of processing, coupled with its diverse natural characteristics, further differentiate its applicability based on spatial, environmental, and structural objectives.
The psychological considerations pertaining to the interplay between the physical environment and human well-being constitute a focal point within the academic domain of environmental psychology [8]. As articulated by Ulrich (1983), the contemplation of a setting incorporating natural elements can instigate a response characterized by aesthetic affinity, thereby engendering heightened positive affective states [9]. In-depth studies of the technical and functional properties of wood extend beyond its physical characteristics to encompass its effects on user experience, spatial perception, and sensory engagement. Wood, as a material, not only contributes to spatial creation but also holds cultural and historical significance, providing aesthetic satisfaction and influencing psychological and physical aspects [4].
This study comprehensively explores the multifaceted aspects of wood through a literature review and a case study of the Odunpazarı Modern Museum (OMM). The OMM, designed by Kengo Kuma, serves as a unique structure that exemplifies the various applications and influences of wood on one structure. The investigation involved a questionnaire to assess users’ spatial experiences within the OMM. Beyond the OMM’s impact on its physical identity, encompassing location, design applications, and urban integration, modern museums significantly contribute to the social life of their surroundings by evoking diverse feelings and emotions among users.
In contrast, situated in Eskisehir with a historical background of wood sources, OMM’s thick laminated wooden beams reflect the street texture from the Ottoman period. The formal features of OMM align with Kengo Kuma’s architectural style, emphasizing “Addition and Integration” in form creation, and utilizing wood to add comfort and warmth to its surroundings. Kuma’s preference for natural materials, particularly wood, reflects a deliberate effort to establish a sustainable connection between people and their living environments, diverging from the predominant use of concrete and steel in contemporary architecture [10].

Research Question

This study focused on a comprehensive analysis of the physical attributes of wooden materials, encompassing considerations related to interior and exterior spaces, built-in furniture applications, and user experience. Correspondingly, it examined the cultural, psychological, and esthetic sensory effects of wood material within the context of a museum, utilizing it as a case study. Many studies have been conducted on the impact of wooden materials on users. In many of these studies, positive and/or negative concepts related to users’ subjective judgments have been addressed. Rice et al. (2007) used similar concepts in the questionnaire administered to participants in their study [5]. Likewise, Masuda (2004) [11], Sakuragawa et al. (2005) [12], Sakuragawa (2006) [13], and Zhang et al. (2016) [14] posed inquiries regarding participants’ experiences and emotions in the surveys conducted as part of their respective studies.
Consequently, this study uncovered and analyzed the interior, exterior spatial, and built-in furniture wood material experiences and involved impact assessments of visitors situated in the sample area. The present study aims to explore how they found wood material impact throughout the museum in terms of continuity, interior-exterior harmony, identity, atmosphere, welcoming, flexible, monotone, natural, simple, unity?
The hypotheses were as follows:
H1:
The perception of wood material will be more pronounced when observed from the exterior rather than the interior spaces of the OMM.
H2:
Participants will perceive the OMM more as a unique rather than symbolic structure.
H3:
Most visitors will express that the repetition of wood in the exterior, interior, and built-in furniture of the OMM is monotonous or boring.

2. Odunpazarı Modern Museum (OMM)

The OMM assumes a pivotal role as a transportation axis for Eskişehir, Akin to Atatürk Boulevard, solidifying its connection with the city by strategically situating itself on this thoroughfare. Encompassing approximately 4500 m2, the museum integrates exhibition spaces, event venues, cafés, workshops, and museum shops. Entrances to the three-floor museum are provided from the +3.50 level, featuring a cafeteria and museum shop, with works exhibited at elevations of 0.0–+8.00 and +13.80, and warehouses located at the −5.00 level [15] (Figure 1).
Upon closer examination of the OMM, it becomes evident that the guiding design principles or concepts—specifically “geometry”, “light”, “clustering”, and “wood”—are thoughtfully implemented in the completion of the structure. The deliberate inclusion of wood among these thematic elements indicates a purposeful integration of natural materials indigenous to the geographical context, suggesting that the utilization of wood goes beyond a semantic connection with Odunpazarı [10,16]. Physical structures within the built environment are subject to numerous variables that collectively shape the experience of individuals. These variables encompass specific qualities of the structures, their functional values, integration into the urban fabric, visibility, accessibility, and the impressions and associations they evoke for the observer.
Odunpazarı is the sole area in Eskisehir where traditional neighborhood characteristics persistently concentrate. Kurşunlu Külliye, constructed in 1516, serves as a landmark evidencing the area’s historical significance during the Ottoman Period. Most houses in this region exhibit traditional architectural characteristics utilizing timber-frame construction systems. Identified as one of the central districts of Eskisehir, Odunpazarı thrives not only on tourism facilitated by the concept of “Odunpazarı Houses”—a trademark resulting from renovation and restoration projects within the district—but also maintains its historical prominence through the city’s ongoing development [17] (Figure 2).
The design of the OMM intricately weaves the historical urban texture and cultural heritage of the region with the aim of establishing a new focal point that supports the traditional street texture [18]. Upon scrutinizing user perspectives within well-defined conceptual frameworks, namely comfort level, satisfaction level, and perceptual benefit level, investigations unveil discernible distinctions across diverse age groups, occupational categories, educational levels, and socio-demographic characteristics. Specifically, crafted wooden exterior-covering materials envelop the museum, underscoring the significance of wood in the city’s heritage, which is known to provide comfort and a warm atmosphere [17,18,19]. This architectural endeavor seeks to forge a symbiotic link between society and art, positioning itself at the heart of the structure. By focusing on the Odunpazarı street texture and human scale, the building creates diverse experiential dimensions within itself, leaving a lasting impact on the city’s historical narrative and aspiring to be recognized as a landmark carrying its memory [16,18]. Beyond its physical attributes, such as location, design decisions, and integration with the urban fabric, the OMM significantly shapes the social space in its immediate surroundings by evoking a range of emotions and sentiments from users.

2.1. Structural Effect of Wood on OMM

In addition to tracing the historical evolution of wooden material utilization in construction, its cultural entanglements, and the psychological and aesthetically gratifying effects it imparts on daily life, its physical attributes are significant in shaping spatial and environmental characteristics.
OMM’s structural system comprises three distinct sections: a masonry base, a timber-framed upper section, and a timber roof section. The foundation and basement floors are constructed using rubble stone or mud brick, incorporating horizontal timber beams for reinforcement. The timber-framed upper section is characterized by the integration of horizontal, vertical, and diagonal elements, forming continuous panels and boxes [10,16]. Notably, the structural joints employed include the full lap joint, utilized to create a “T” joint from timbers of varying depths, while the half-lap joint (also known as the “halving” joint) is employed to join timbers of similar depths [20] (Figure 3).
The differentiation in the natural texture of wood is contingent upon various factors, including the tree type, climatic exposure, harvesting conditions, drying methods, baking duration, and post-harvest storage [21]. The OMM employs an intricate interplay of wooden elements in both interior and exterior spaces, revealing distinctive characteristics. Although typically differentiated, the discussion allows for the consideration of interior surfaces as analogous to facades, elucidating the exceptional craftsmanship evident in the OMM [18]. Comprising yellow-laminated Russian pine, each surface, approximately 14 m long and weighing 350 kg, plays a pivotal role in both exterior and interior spaces, offering a natural material conducive to light-shadow effects due to its inherent texture and physical properties [15,18]. The repetitive arrangement of these wooden elements, coupled with their alignment, geometric form, and response to light conditions, yields diverse textures shaped by the interplay between light and shadow [18,21]. The impeccable attention to manufacturing details, from precise assembly to decorative elements resembling energy outputs on the floor, underscores this meticulous approach. In interior spaces, the structure yields numerous facades that transcend conventional museum walls. Remarkably, the building’s facade remains perceptible from the interior to the exterior space, even when considering the disassembly of the masses [16,18].

2.2. Environmental Effect of Wood on OMM

Environmental identity is a component of an individual’s self-concept, and represents a sense of connection to a specific segment of the non-human natural environment. This connection is established through factors such as historical ties, emotional attachments, and perceived similarities. The formation of environmental identity influences individuals’ perceptions and behaviors toward the world, shaping their sense of self in relation to their natural surroundings [22].
In the contemporary urban milieu, the re-evaluation of cities necessitates collaborative efforts from architectural disciplines, local governments, and urban planning to articulate and brand cities within the global system. Architects Kengo Kuma and Peter Rich, aligned with the principles of “anti-object”, underscore the ease of creating forms and the rediscovery of traditional architecture for 21st-century design [23]. The OMM aligns with this philosophy, assuming a distinctive identity through its physical environment and contributing to the city’s brand by accentuating aspects that add value. Beyond its physical attributes such as location, design decisions, and urban texture integration, OMM significantly shapes the social space in its vicinity by eliciting diverse emotions and sentiments from users [10,21,23].
The claim that the OMM “recreates the traditional street” within its interior circulation may provoke debate. Nevertheless, the undeniable spatial richness within 3582 square meters is evident, characterized by non-uniform sub-units in the plan, elevation differences, and triangular staircases, all of which contribute to curator satisfaction. The building’s consistent engagement with the city and the integration of semi-open spaces deviate from the conventional “white walls” adopted by modern museums [23] (Figure 4).
Functioning as a determinant of cosmic order in the interplay between interior and exterior realms, the OMM allows for the direct perception of seasonal, daily, and instantaneous changes through the senses.

2.3. Spatial Effect of Wood on OMM

As a fundamental aspect of design principles, interior design assigns significant importance to the effective utilization of materials. This importance is attributed to the OMM design setup, such as the characteristics of the wood materials used in the structural surfaces and furniture within the space [18]. The significance is contingent on elements such as the nature of the material used, the manner in which the material is employed, and the distribution of light [24].
Various types of wood exhibit distinct characteristics in terms of texture, scent, and appearance. Solid wood, employed as a veneer, accessory, and furniture material, is sourced domestically and internationally and is now finding applications in interior spaces [20]. Recognizing the diverse dimensions of wood usage in the OMM—cultural, historical, sociological, psychological, and demographic—through which the visual qualities of this material interact with individuals and societies and considering an interdisciplinary approach, research has gained significance. The establishment of relationships that influence perception, meaning, and behavior is crucial, as is the utilization of applied techniques (Figure 5).
As previously mentioned, in response to advancing technology and evolving demand, there is continuous diversification and renewal of construction materials. The application areas of interior design, encompassing walls, floors, cladding, and furniture, are entirely constituted by the utilization of these materials. The OMM also includes various species of wood that possess textures, scents, and visual attributes derived from nature.
Solid woods that are both domestically sourced and imported are employed as coverings, accessories, and furniture materials, thus expanding their utility in interior spaces. The adaptability of wood to various applications is contingent on its physical attributes, including its resistance to environmental conditions [21]. Conceptualizing the “courtyard” as the foundational element of the microcosmic space, the design seamlessly incorporates natural elements, fostering continual reconsideration of the dynamic interaction between nature and humanity [10,16,18] (Figure 6).
The articulation of wooden elements heightens the spatial density, and their dynamic effect, which is influenced by their grouped arrangement and the interplay of light, results in a visually intricate braiding effect (Figure 7).

3. Materials and Methods

The research design was shaped through a comprehensive analysis of the literature, comprising a case study (observation and analyses) and questionnaire, aiming to understand the interior, exterior spatial, and built-in furniture wood materials. By amalgamating the findings from the research and the insights gathered, a design framework was established to obtain psychosocial data regarding one unique material as a whole.
A literature review was initially conducted on wood material and the effects of wood as a building material, physical and psychological effects on the user, advantages of the material, and so forth. Consistent with the information and criteria obtained, a case study was considered appropriate. Survey data were examined by document analysis.
Survey questions were developed based on a comprehensive literature review. The survey, comprising four sections, began with four questions that collected participants’ demographic information. The second section consisted of three questions targeting the research questions, utilizing various concepts to measure the participants’ perceptions of the field. The third section assessed the impact of wooden material usage through two questions, which were evaluated on a five-point Likert scale ranging from 1 to 5. The final section presented an open-ended question that invited participants to provide qualitative insights. This methodologically sound survey design and its application underscored a commitment to rigorous research practices, ensuring the collection of diverse and meaningful insights from participants.
This study was conducted in 2023, between 1 June and 21 December, with visitors to the OMM who were living in or outside Eskişehir. The survey was created using Google Forms, and participants accessed the survey by scanning the QR code. Respondents were randomly selected from among the visitors to the OMM; 117 completed questionnaires were obtained. The analyses of statistical measurements have been conducted using the SPSS program.

4. Results

The survey, which focused on the use of wooden materials, was administered to a randomly sampled selection of 117 individuals who visited the OMM. The Case Processing Summary reveals the absence of any discarded or invalidated data points, thereby affirming the inclusion of a total of 117 valid survey responses for further analysis. The Cronbach’s Alpha value exceeding 0.8 indicates a high level of reliability in the data. In the conducted study, the Cronbach’s Alpha value was determined to be 0.897, further affirming the robustness and internal consistency of the collected data. The significance of these statistics is underscored by their pivotal role in assessing the reliability of the survey study. They serve as critical instruments for gauging the robustness and credibility of the research findings, offering a quantitative lens through which the data’s dependability can be scrutinized and validated.
The demographic information of the participants is presented in Table 1. Among the participants, a notable sex difference was observed, with 76.9% being women and 23.1% being men. It is noteworthy that all respondents had educational qualifications at the university level or beyond. In terms of age demographics, 45% of the participants fell within the 18–25 age bracket, 41% were in the 26–35 age range, 18% were in the 36–45 age category, and 9% were in the 46–55 age cohort. Of the visitors, 87.2% did not live in Eskişehir. The demographic data provide a valuable foundation for subsequent analyses and interpretation, contributing to a nuanced understanding of the impact of wooden material usage in the context of the museum visitation experience.
Table 2 provides a comprehensive breakdown of the participant demographics, delineating the percentage distribution based on their respective residential status and distinguishing between individuals residing in Eskişehir and those domiciled outside of the locale. Approximately 87.2% of respondents are not living in Eskişehir. A predominant trend among participants is their inclination towards visiting the city. This heightened ratio can be attributed directly to the strategic positioning of the structure within a historically significant region.
Participants were asked, “How important was it for you to visit OMM on your trip to Eskişehir?” Approximately 61.5% of respondents articulated the importance of including a visit to OMM in their itineraries when traveling to Eskişehir. This underscores the institutional significance of the museum for these individuals and elucidates its pivotal role within the framework of their visits to the city (Table 3).
Table 4 delineates the responses and corresponding values elicited from the participants in the study, focusing on the nuanced effects of wooden material utilization pertaining to the interior-exterior nexus and the experiential and perceptual dimensions of movable and structural furniture within the interior milieu. The scale used to evaluate the impact of wooden material usage on the interior-exterior relationship ranged from 1 (Strongly Disagree) to 5 (Strongly Agree). Participants rated descriptors such as “material continuity”, “interior-exterior harmony”, “identity”, “natural”, and “unique”, all of which collectively underscore the substantive import of wooden material employment within the architectural framework. Notably, expressions such as “natural” garnered predominantly affirmative ratings, with participants overwhelmingly indicating robust agreement (5) regarding its pivotal role in augmenting the interior-exterior synergy.
Concurrently, the ramifications of wooden material usage on the experiential and perceptual dimensions of interior spaces, specifically within the purview of movable and structural furniture, were examined using a scale ranging from 1 to 5. Participants rated terms such as “material continuity”, “interior-exterior harmony”, “identity”, “warm atmosphere”, “welcoming”, and “natural”, which underscore the intrinsic significance of wooden material applications in imparting these transformative effects to the occupant. Of particular note is the consistent attribution of affirmative evaluations, particularly for the term “warm atmosphere”, with participants predominantly concurring and rating it as “Agree (4)” in the context of assessing wooden material utilization within the realm of movable and structural furniture. However, participants expressed that the use of wooden materials in both indoor and outdoor spaces, as well as in furniture, was perceived as non-monotonous.
Participants were asked, “For what reason or reasons would you visit OMM?” The answers to the question are shown in Figure 8. The main reason for visiting was “cultural”, with 93% of respondents endorsing this response. The architectural and interior value of the building were also among the reasons for visiting the OMM, as reported by 75% and 72% of the participants, respectively. In contrast, the lowest percentage was found for the criterion of “being different” in the structure.
The answers to the question “Describe the effect of the building and its environment on you” are shown in Figure 9. “The value the building adds to the city” was found important by 72% of the participants. Most participants had the same opinion regarding the harmony of the building with its environment. In this context, the option “Incompatibility with its environment”, which is among the effects, had the lowest rate of endorsement among the options, with 6% of the participants concurring. “Being a city symbol”, “Identity value”, and “Material” were endorsed by 60% of the participants.
The last question asked of the participants was, “Is there any topic(s) you would like to add, other than those mentioned above, regarding the structural, environmental and spatial properties of wood material on the structure”. With an open-ended question, the following commands are given in Table 5. Out of the 117 participants in the survey, 30 did not provide any comments on this question. According to the results, 23 individuals expressed opinions similar to those specified in C1. 17 people similarly agreed with the comment in C2. The number of participants who used comments similar to C3 in their responses is 15. 12 participants supported the comment in C4. While 10 participants expressed comments similar to those in C5 and its equivalents, 9 participants shared parallel thoughts regarding the comment in C6. Only one participant provided feedback on the comment in C7.
Responses highlight key design considerations observed in the structure. First, emphasis is placed on investigating the semantic, structural, environmental, and spatial dimensions of the building. Participants state that the integration of wooden materials with the exterior, interior, and furniture involves important and complementary relationships to obtain a holistic experience. Innovative interpretations of wood contribute to establishing a harmonious connection between the building and its surroundings. The design also focuses on creating harmony between the interior and exterior by incorporating features such as the facade, amphitheater, and wooden lattice in the core. Attention to detail, especially in combining the wooden columns, enhances the sculptural appearance of the building. In addition, the use of wooden materials goes beyond aesthetics and creates a cultural bond with the environment. One of the participants expressed concerns about the fire risk of the structure in their comments. In fact, since a significant portion of the structure is made of wood, the combustible nature of this material underscores a noteworthy concern, particularly in the context of fire safety for buildings. Therefore, the architectural plan mandates the incorporation of fire-resistant materials, along with the installation of sprinkler systems and other relevant fire protection measures. This is imperative to address the considerable apprehension regarding fire safety, as highlighted by the nature of the construction material [25]. In this context, specific measures have been taken in the examined structure to mitigate the risk of fire. Finally, considering the concerns expressed by participants, designers took precautions to minimize the risk of fire. Overall, the comments made by participants provide a comprehensive guide to an efficient and thoughtful design approach.

5. Discussion

As ecological apprehensions intensify and the global populace undergoes rapid urbanization, a growing proportion of individuals are opting to dwell in urban locales. In tandem with this trend, there is a burgeoning interest and momentum surrounding mass timber solutions [26]. Given the evaluations, an analysis was performed on how the usage of wood material affects the structural, spatial, and interior atmospheric conditions, in what manner OMM is affected by the environmental conditions within which it exists, and how it contributes to its context. Four main elements stood out in the design of the OMM: form organization, incorporation of natural light into the structure, and material selection. The architectural language of the structure emphasizes the interpretation and utilization of local architectural elements, materials, and construction techniques. The design is site-specific, considering harmony with the terrain, environmental context, human scale, and tactility from an international perspective.
A notable 87.2% of survey participants revealed that they do not reside in Eskişehir. This demographic characteristic lends significance to the role of OMM as a cultural institution in fostering an understanding of the building’s importance for the city among non-local visitors. Moreover, a substantial portion of respondents, comprising 61.5% expressing it as “Important” and 15.4% as “Very Important”, underscored the significance of incorporating a visit to OMM into their itineraries when journeying to Eskişehir. This attests to the perceived value and relevance of OMM as a destination of cultural interest for travelers exploring the city.
In the second segment, the utilization of wood in OMM’s structural, interior, and exterior spaces was assessed employing the ‘Likert technique’. The evaluation encompassed key aspects such as material continuity, interior-exterior harmony, identity, a warm atmosphere, a welcoming ambiance, flexibility, monotony, natural aesthetics, simplicity, and uniqueness. The recorded values exhibited a noteworthy convergence, ranging closely between 3.7 and 4.2 for criteria other than monotony. However, the monotony criterion received ratings of 2.44 and 2.77. Consequently, it is deducible that visitors deem the incorporation of wood significant across all assessed criteria within this architectural framework, with the exception of the monotony aspect, where opinions are somewhat more divided.
In the comparison tables, diverse reasons for visiting OMM, such as cultural exploration, educational enrichment, entertainment, the uniqueness of its materials, and the thematic quality of its interior and exterior spaces, were subject to evaluation through the assignment of ratings to multiple criteria. Similarly, assessments regarding the building and its environmental impact, including symbolic value, identity, distinctiveness, surprise factor, perceived value for the city, harmony, amazement, and innovation, were appraised across various dimensions.
Notably, the rationale behind visiting OMM that received the lowest ratings was identified as ‘entertainment’ in the first table, coupled with the perception of ‘inharmonious surroundings’. In the second table, the aspects with the least impact on OMM were determined to be ‘surprising’ and ‘inharmonious’. Despite these lower ratings in specific categories, the majority of respondents regarded all other criteria mentioned in both tables as significant. This underscores a prevailing acknowledgment of OMM’s importance across diverse factors, with only isolated considerations receiving comparatively lower ratings.
In hypothesis 1, it is given that the exterior perception has been rated at 4.15 and the interior perception at 4.05 by visitors, the very slight difference between these values suggests that, from a statistical standpoint, the variation is not deemed significant in terms of people’s perception. The marginal discrepancy in ratings indicates a close alignment in how visitors perceive both the exterior and interior aspects of the facility, with no substantial difference in their assessments. This lack of significant variance underscores a consistency in the positive perception of both the exterior and interior components of the space by the surveyed individuals.
Hypothesis 2 was supported. Visitors rated OMM material with an average score of 51, and the theme of the exhibition as 34. Thus, the structural materials were of interest. According to visitor ratings, OMM’s material received a score of 51, while the theme of the exhibition garnered a rating of 34. This discrepancy in scores suggests that visitors find the structural material of OMM more captivating or interesting compared to the theme of the exhibition. The higher rating for the material aspect may indicate a particular appreciation for the architectural or construction elements of OMM, emphasizing the significance of the physical and tangible aspects of the museum’s structure in the eyes of the visitors.
Hypothesis 3 was rejected. Visitors rated the OMM’s continuous wood material as having the lowest value among all the criteria. On the contrary, the opinions of the visitors reveal a distinct perspective, with 54 participants expressing their admiration by rating OMM as “amazing” and an even larger number, 59 individuals, acknowledging the museums’ innovation. This signifies a substantial portion of the audience finding OMM to be not only impressive but also recognizing its innovative characteristics. Such positive assessments underscore the museums’ ability to captivate and engage visitors through their remarkable and forward-thinking attributes.

6. Conclusions

The predominant response to the question of whether the structure has a unique relationship with the environment indicates that the building is perceived as having an original and interesting style. However, the participants seemed hesitant about its compatibility with the surroundings. This hesitation was attributed to the building’s perceived large scale and height. Additionally, feedback suggested that the visually striking modern and new expressions of the structure do not align well with the city’s identity. The reasons for this mismatch were identified in the responses to the open-ended questions, indicating a limited degree of suitability in terms of formal and scale-related compatibility with the surrounding structures.
In the open-ended part of the questionnaire, many valuable commands have been added, such as OMM’s emphasis on semantic value in addition to its structural, environmental, and spatial features and wooden material, which is complementary and provides a holistic experience. The structure adeptly establishes a harmonious relationship with its environment, a concept further echoed in the analogous use of the facade design in both the amphitheater and the internal wooden cage. The meticulous detailing of the wooden pillars, interpreted as a sculptural manifestation, not only enhances the aesthetic appeal but also serves as an illuminating addition, aligning seamlessly with OMM’s objectives centered around the integration and thoughtful utilization of wood as a prominent material in the architectural narrative. This nuanced approach not only contributes to the overall visual cohesiveness of the design but also underscores the deliberate and meaningful incorporation of wood in realizing the artistic and functional aspirations of the OMM project.
The detailed research conducted on the wooden material within the Odunpazarı Modern Museum has unveiled its multifaceted dimensions. Both the interior and exterior spaces of the museum, along with its cultural integration into the surrounding environment, showcase an intricate and integral relationship between structural elements, furniture, and the utilization of wooden materials. In essence, the museum functions as an open laboratory for scholarly investigation, encompassing a myriad of layered and comprehensive components. In this manner, the application methods of the material in a single structure can be examined, allowing for an exploration of the user experience, technical details, and atmospheric properties of wood in both indoor and outdoor spaces simultaneously.
The material, wood, emerges as more than a mere building block; it serves as a conduit for exploring and understanding cultural, environmental, psychological, sociological, technical, detailed, colorful, textured, user-centered, meaningful, perceptual, design-oriented, and identity-driven aspects. It becomes a lens through which one can examine principles of design, sustainability, and a host of other considerations.
In the contemporary landscape, diverse design approaches, technologies, and the incorporation of smart and up-cycled materials are continually evolving. However, the essence lies in comprehending and harnessing the full spectrum of each material, technique, or application. The study exemplifies this imperative by vividly demonstrating how wood, in its myriad dimensions, serves as a rich source for exploration and understanding across a broad spectrum of disciplines and considerations. Future studies could prioritize investigating the structural aspects of wood in both exterior and interior applications, as well as its utilization in furnishing. The research would delve into the mechanical and physical properties.

Author Contributions

Conceptualization, M.Y. and E.F.D.; methodology, M.Y. and E.F.D.; software, M.Y. and E.F.D.; validation, M.Y. and E.F.D.; formal analysis, M.Y. and E.F.D.; investigation, M.Y. and E.F.D.; resources, E.F.D.; data curation, M.Y.; writing—original draft preparation, M.Y. and E.F.D.; writing—review and editing, M.Y. and E.F.D.; visualization, M.Y. and E.F.D.; supervision, E.F.D.; project administration, M.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The authors confirm that the data supporting the findings of this study are available within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Dueer, A.W. Timber—Problems, Prospects, Policies; Iowa State University Press: Ames, IA, USA, 1973. [Google Scholar]
  2. Guo, J.; Song, K.; Salmén, L.; Yin, Y. Changes of wood cell walls in response to hygro-mechanical steam treatment. Carbohydr. Polym. 2015, 115, 207–214. [Google Scholar] [CrossRef] [PubMed]
  3. Walsh-Korb, Z.; Avérous, L. Recent developments in the conservation of materials properties of historical wood. Prog. Mater. Sci. 2019, 102, 167–221. [Google Scholar] [CrossRef]
  4. Gezer, H. Malzemenin gizil güçlerinin mimariye katkısı. İstanbul Ticaret Üniversitesi Fen Bilim. Derg. 2012, 10, 97–118. [Google Scholar]
  5. Rice, J.; Kozak, R.A.; Meitner, M.J.; Cohen, D.H. Appearance wood products and psychological well-being. Wood Fiber Sci. 2006, 38, 644–659. [Google Scholar]
  6. Suh, W.D.; Nam, J.; Kim, Y.U.; Choi, J.Y.; Kim, S. Thermal, structural, and chemical characteristics evaluation of wood/phase change material composites for applying as a finishing material in floor radiant heating systems. Constr. Build. Mater. 2023, 406, 133367. [Google Scholar] [CrossRef]
  7. Nasir, V.; Ayanleye, S.; Kazemirad, S.; Sassani, F.; Adamopoulos, S. Acoustic emission monitoring of wood materials and timber structures: A critical review. Constr. Build. Mater. 2022, 350, 128877. [Google Scholar] [CrossRef]
  8. Gifford, R. Environmental Psychology: Principles and Practice, 4th ed.; Optimal Books: Colville, WA, USA, 2007; p. 599. [Google Scholar]
  9. Ulrich, R.S. Aesthetic and affective response to natural environments. In Behavior and the Natural Environment; Altman, I., Wohlwill, J.F., Eds.; Plenum: New York, NY, USA, 1983; pp. 85–126. [Google Scholar]
  10. Erkara, B. Odunpazarı Modern Müze; Eskişehir Odunpazarı Modern Müze: Istanbul, Turkey, 2019; pp. 105–200. [Google Scholar]
  11. Masuda, M. Why wood is excellent for interior design? From vision physical point of view. In Proceedings of the 8th World Conference on Timber Engineering, Lahti, Finland, 14–17 June 2004; pp. 101–106. [Google Scholar]
  12. Sakuragawa, S.; Miyazaki, Y.; Kaneko, T.; Makita, T. Influence of wood wall panels on physiological and psychological responses. J. Wood Sci. 2005, 51, 136–140. [Google Scholar] [CrossRef]
  13. Sakuragawa, S. Change in the impression of rooms with interior wood finishes arranged differently: Questionnaire survey with the use of photographs for the analysis of impressions of rooms concerning living activities. J. Wood Sci. 2006, 52, 290–294. [Google Scholar] [CrossRef]
  14. Zhang, X.; Lian, Z.; Ding, Q. Investigation variance in human psychological responses to wooden indoor environments. Build. Environ. 2016, 109, 58–67. [Google Scholar] [CrossRef]
  15. URL. Odunpazari Modern Art Museum/ Kengo Kuma& Associates. Available online: https://www.archdaily.com/924542/odunpazari-modern-art-museum-kengo-kuma-and-associates (accessed on 8 January 2024).
  16. Kızılkan, G.; Yeşildal, Ö. Visual impact evaluation of a contemporary building in a historical pattern: Odunpazarı Modern Museum sampling area. J. Urban Stud. 2021, 32, 471–491. [Google Scholar] [CrossRef]
  17. Kolsal, F.; Koca, G. Historical, physical, and social development of Odunpazarı. Int. J. Soc. Sci. Humanit. 2015, 5, 557–560. [Google Scholar] [CrossRef]
  18. Savaş, A. OMM: Modern müze nedir? Mimar. Derg. 2019, 410, 64–70. [Google Scholar]
  19. Nyrud, A.Q.; Bringslimark, T. Is interior wood use psychologically beneficial? A review of psychological responses toward wood. Wood Fiber Sci. 2009, 42, 202–218. [Google Scholar]
  20. Ashcroft, R. Construction for Interior Designers; The Longman Group UK Limited: London, UK, 1992; pp. 271–272. [Google Scholar]
  21. Erkara, B. (Ed.) Odunpazarı Modern Müze/Museum; MAS Matbaacılık: Istanbul, Turkey, 2009. [Google Scholar]
  22. Clayton, S.; Opotow, S. Identity and the Natural Environment: The Psychological Significance of Nature; The MIT Press: Cambridge, MA, USA, 2003; p. 368. [Google Scholar]
  23. Kuyrukçu, Y.; Elitok, M.K.A. Contextual approach to contemporary museum architecture: Odunpazarı Modern Museum example. J. Acad. Soc. Sci. 2021, 116, 187–201. [Google Scholar]
  24. Ashby, M.; Johnson, K.F. Materials and Design: The Art and Science of Material Selection in Product Design; Butterworth-Heinemann: Oxford, UK, 2002; p. 78. [Google Scholar]
  25. Kincelova, K.; Boton, C.; Blanchet, P.; Dagenais, C. Fire safety in tall timber building: A BIM-based automated code-checking approach. Buildings 2020, 10, 121. [Google Scholar] [CrossRef]
  26. Ilgın, H.E. High-Rise Residential Timber Buildings: Emerging Architectural and Structural Design Trends. Buildings 2024, 14, 25. [Google Scholar] [CrossRef]

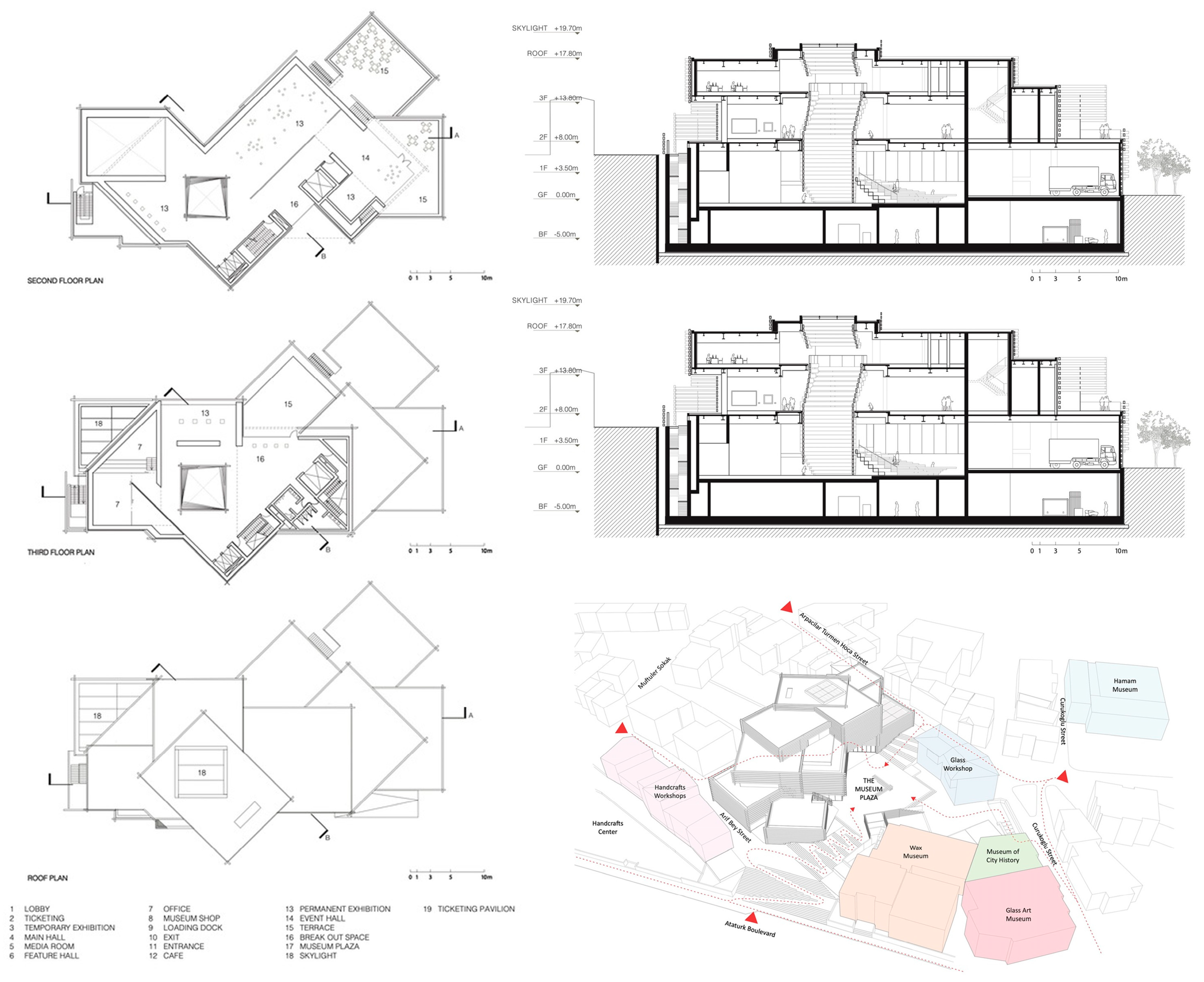

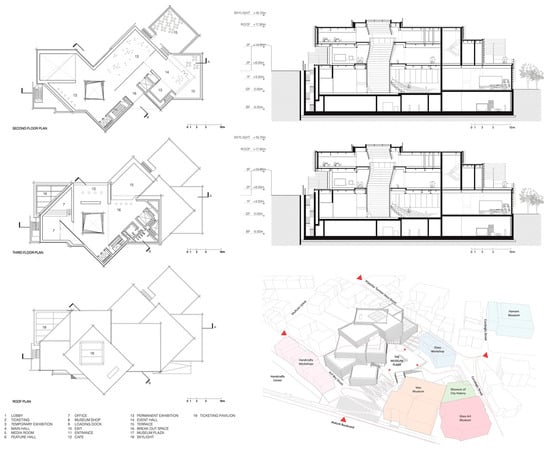

Figure 1. Odunpazarı Modern Museum plan and section drawings [15].
Figure 1. Odunpazarı Modern Museum plan and section drawings [15].
Buildings 14 00649 g001

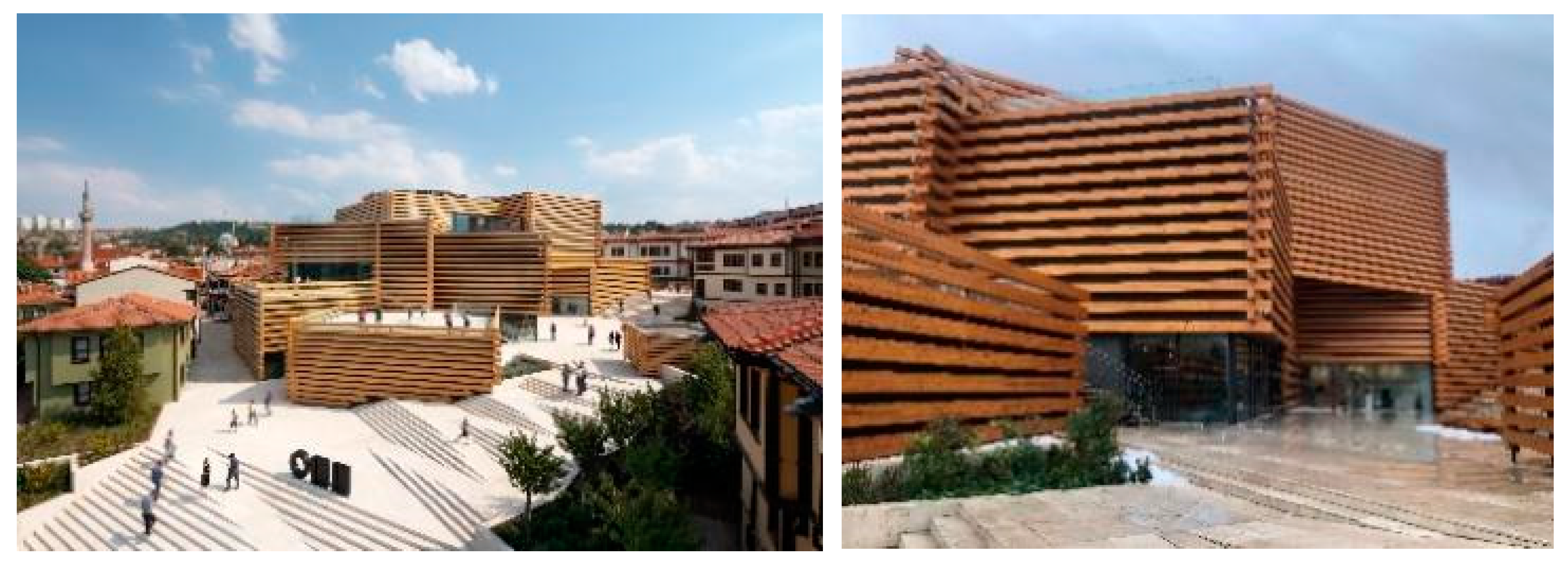

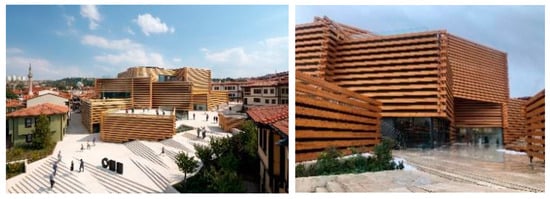

Figure 2. Exterior view of Odunpazarı Modern Museum [15] and historical texture.
Figure 2. Exterior view of Odunpazarı Modern Museum [15] and historical texture.
Buildings 14 00649 g002

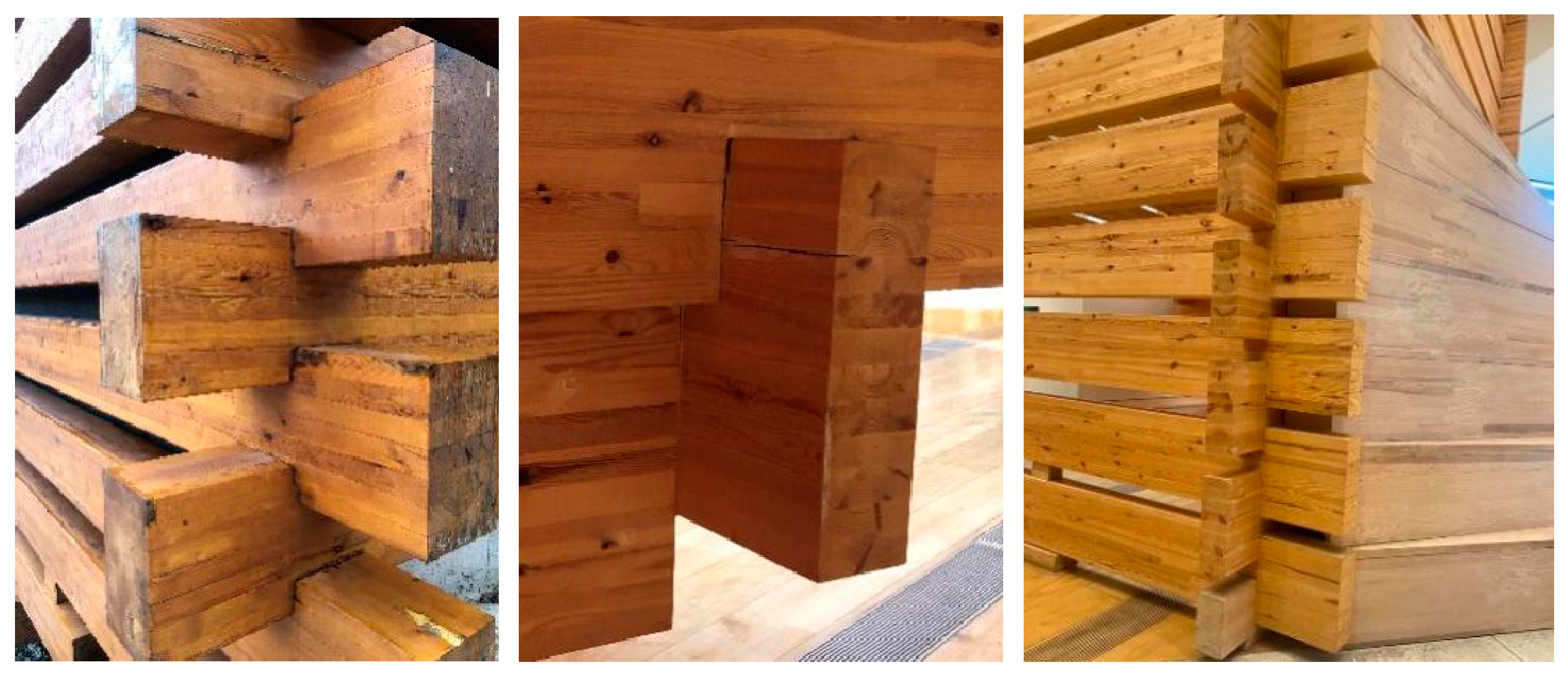

Figure 3. Interior and exterior structural timber “T” joint details.
Figure 3. Interior and exterior structural timber “T” joint details.
Buildings 14 00649 g003

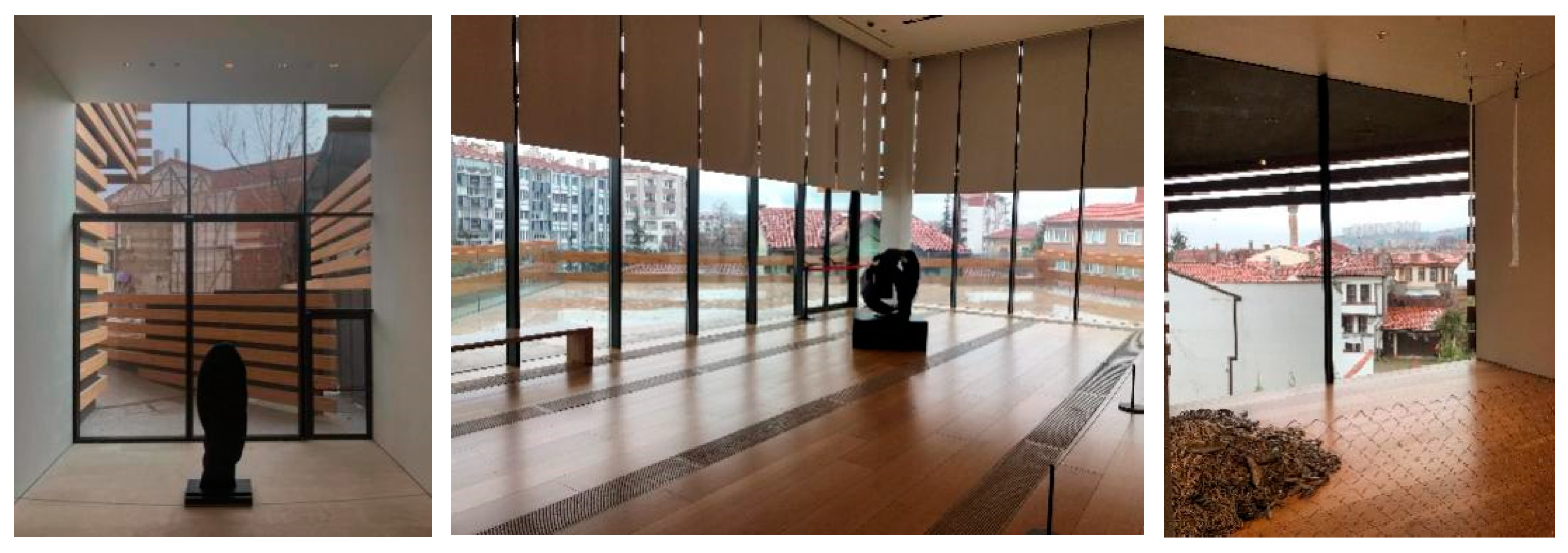

Figure 4. The structure yields numerous facades, transcending conventional museum walls.
Figure 4. The structure yields numerous facades, transcending conventional museum walls.
Buildings 14 00649 g004

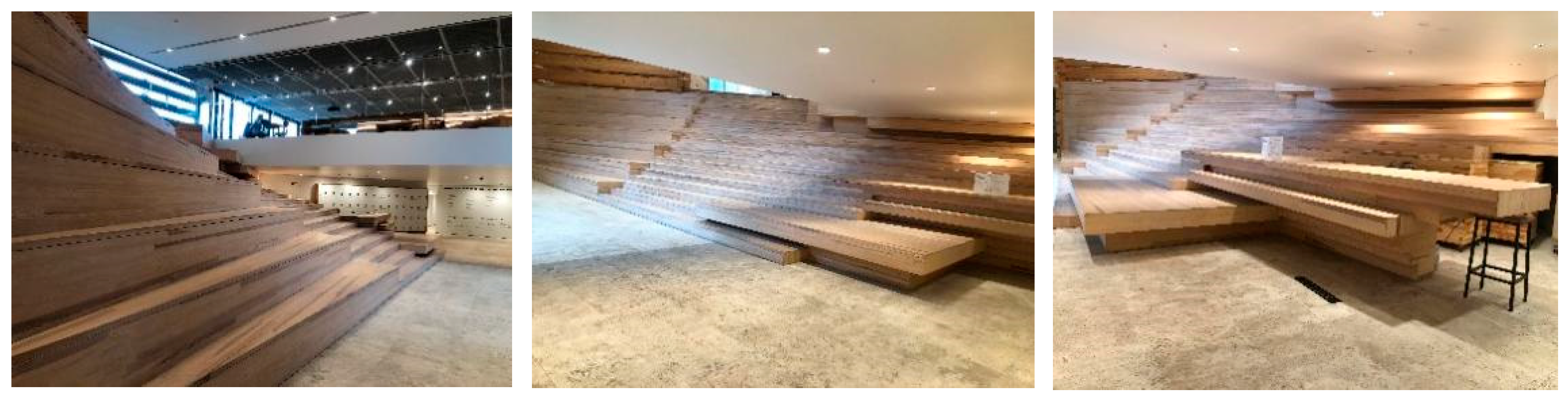

Figure 5. Structural timber built-in furniture in the interior.
Figure 5. Structural timber built-in furniture in the interior.
Buildings 14 00649 g005

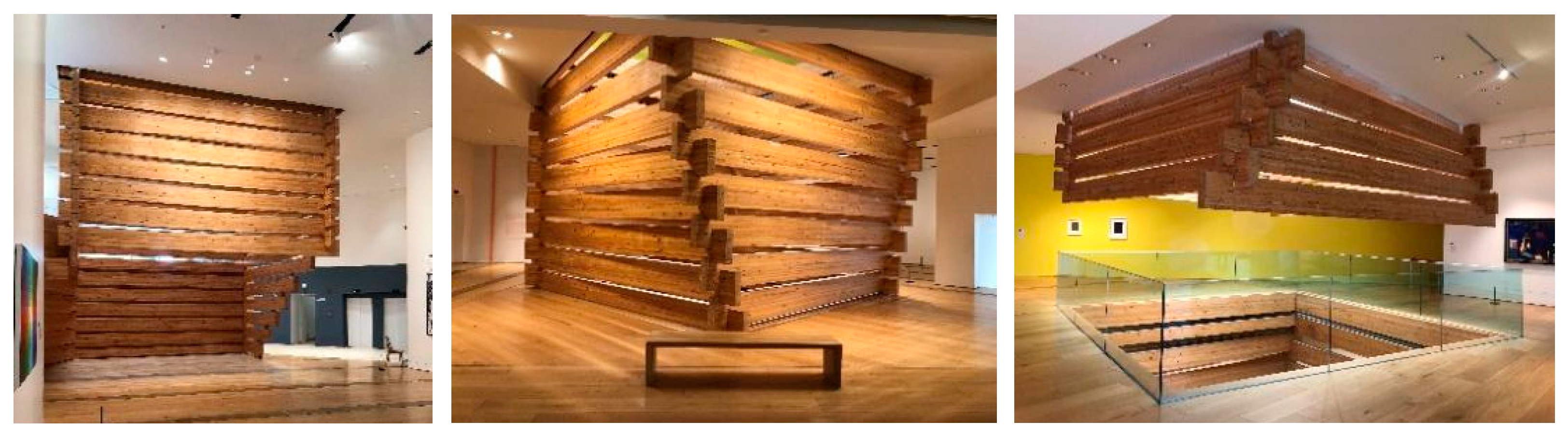

Figure 6. Timber “courtyard” in OMM. The wooden core goes from the first floor to the third floor.
Figure 6. Timber “courtyard” in OMM. The wooden core goes from the first floor to the third floor.
Buildings 14 00649 g006

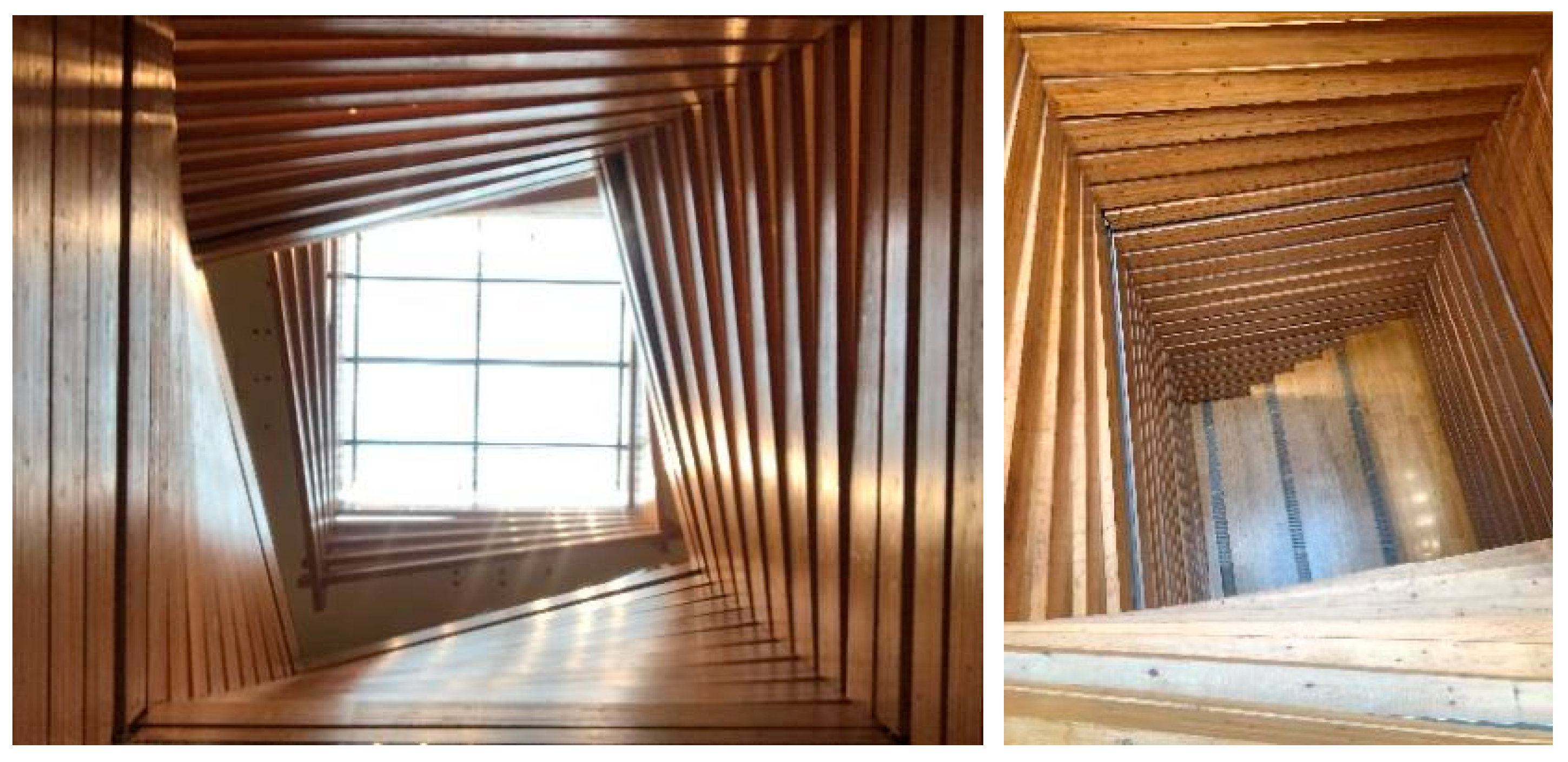

Figure 7. Interior of timber “courtyard” in OMM extending from the ground to the third floor.
Figure 7. Interior of timber “courtyard” in OMM extending from the ground to the third floor.
Buildings 14 00649 g007

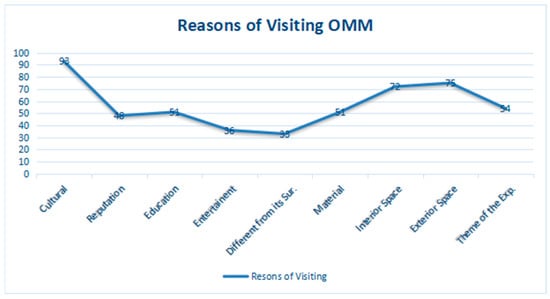

Figure 8. Reasons for visiting OMM.
Figure 8. Reasons for visiting OMM.
Buildings 14 00649 g008

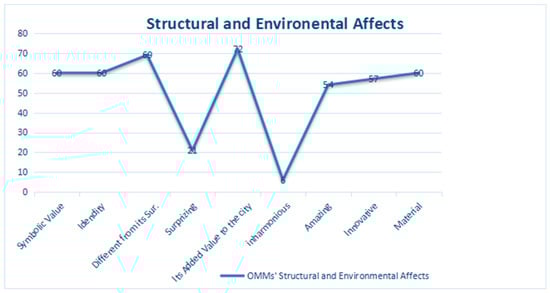

Figure 9. Evaluations of the building and its environmental impact.
Figure 9. Evaluations of the building and its environmental impact.
Buildings 14 00649 g009
Table 1. Demographic Information.
Table 1. Demographic Information.
Demographic CharacteristicValueTotal
F%F
GenderFemale9076.9117
Male2723.1
Age18–254538.5117
26–354135.0
36–451815.4
46–5597.7
56 and over43.4
EducationUndergraduate6353.8117
Master3630.8
PhD1815.4
Notes: F: Frequency.
Table 2. The percentage of participants residing in Eskişehir and outside.
Table 2. The percentage of participants residing in Eskişehir and outside.
n = 117PercentageNumber
Yes12.8%15
No87.2%102
Table 3. Importance of visiting OMM.
Table 3. Importance of visiting OMM.
N = 117Strongly DisagreeDisagreeNeither Agree Nor Disagree AgreeStrongly Agree
Percentage2.65.115.461.515.4
Number36187218
Table 4. Results for the dependent variables show the experiential and perceptual dimensions of interior/exterior and furniture.
Table 4. Results for the dependent variables show the experiential and perceptual dimensions of interior/exterior and furniture.
Dependent VariablesWood Application VariablesANOVA Results
Interior-Exterior SpaceFurniture-Material
MSDMSDFSig.
Material Continuity4.15 a0.904.050.970.2330.631
Interior-Exterior Harmony4.080.904.180.970.2340.630
Identity4.260.994.131.060.3050.582
Warm Atmosphere3.971.044.100.880.3450.559
Welcoming3.970.994.000.920.0140.906
Flexible3.770.993.850.960.1220.728
Monotone2.441.312.771.331.2430.268
Natural4.151.014.030.960.3290.568
Simple3.771.063.691.030.1050.746
Unique4.081.043.821.021.2100.275
Notes: M: Mean value; SD: Standard deviation; Sig.: significance (p < 0.05 denotes significance). a Variable means ranged from 1 to 5, with higher numbers representing more positive responses.
Table 5. The Commands Provided by the Open-Ended Questions.
Table 5. The Commands Provided by the Open-Ended Questions.
The Commands Provided by the Open-Ended Questions
C1The building has a semantic value as well as its structural, environmental, and spatial features
C2The material and structure are highly integrated, and it is stated that the wooden material used in the exterior, interior, and furniture are complementary and provides a holistic experience
C3The building establishes a harmonious relationship with its environment and the wooden material, an innovative interpretation.
C4The harmony of the interior-exterior relationship with the experience provided on the façade with the amphitheater area is also provided in the interior with the wooden cage constructed in the core.
C5Displaying the joining details of the wooden pillars gives the building a sculptural appearance.
C6Wooden material used in the building creates a cultural bond with its environment.
C7One of the participants drew attention to the fire risk of the building.
C: Command.
