Machine-Learning-Based Predictive Models for Punching Shear Strength of FRP-Reinforced Concrete Slabs: A Comparative Study

Abstract

This study is focused on the punching strength of fiber-reinforced polymer (FRP) concrete slabs. The mechanical properties of reinforced concrete slabs are often constrained by their punching shear strength at the column connection regions. Researchers have explored the use of fiber-reinforced polymer reinforcement as an alternative to traditional steel reinforcement to address this limitation. However, current codes poorly calculate the punching shear strength of FRP-reinforced concrete slabs. The aim of this study was to create a robust model that can accurately predict its punching shear strength, thus improving the analysis and design of composite structures with FRP-reinforced concrete slabs. In this study, 189 sets of experimental data were collected, and six machine learning models, including linear regression, support vector machine, BP neural network, decision tree, random forest, and eXtreme Gradient Boosting, were constructed and evaluated based on goodness of fit, standard deviation, and root-mean-square error in order to select the most suitable model for this study. The optimal model obtained was compared with the models proposed by codes and the researchers. Finally, a model explainability study was conducted using SHapley Additive exPlanations (SHAP). The results showed that random forests performed best among all machine learning models and outperformed existing models suggested by codes and researchers. The effective depth of the FRP-reinforced concrete slabs was the most important and proportional to the punching shear strength. This study not only provides guidance on the design of FRP-reinforced concrete slabs but also informs future engineering practice.

1. Introduction

The use of reinforced concrete in combination with composite structures has become increasingly popular. Reinforced concrete slabs, as a crucial component in modern building structures, not only bear the load of the building but also exemplify the seamless integration of material science and structural engineering [1,2,3,4]. In the composite material system of reinforced concrete, high-strength steel and durable concrete work together to resist external forces, ensuring the safety and stability of the structure [5,6,7]. Reinforced concrete slabs are widely used in flooring, roofing, and special structures such as staircases and bridge slabs, owing to their unique mechanical properties and ease of construction [8,9,10,11].

To enhance the punching shear strength of reinforced concrete slabs, various techniques such as enclosed loops, bent steel reinforcements, and shear connectors have been widely implemented. Recently, there has been a surge in scholarly attention toward using fiber-reinforced polymers (FRPs) as a reinforcing medium in concrete slabs, aiming to improve their capacity to resist punching shear forces. This innovative approach addresses some of the limitations associated with traditional steel reinforcement. The use of FRPs in concrete slabs represents a significant advancement in construction materials technology, providing enhanced durability and performance in structural applications. Researchers have conducted numerous studies and experiments to investigate the behavior and benefits of FRP-reinforced concrete slabs under various loading conditions. These efforts have led to a deeper understanding of how to effectively incorporate FRPs into concrete structures, optimizing their strength and longevity [12,13,14,15,16]. Compared with traditional concrete slabs, FRP-reinforced slabs offer several advantages, including being lightweight, having excellent corrosion resistance, high strength, insulation properties, and fatigue resistance. These characteristics make them particularly suitable for building structures with specific requirements, such as a high load-bearing capacity, enhanced corrosion resistance, or electrical insulation, and they have promising prospects for broader application [17,18].

Various models have been proposed by both codes and researchers to estimate the punching shear strength of concrete slabs reinforced with FRP. CSA, JSCE, and ACI have proposed punching shear strength prediction models considering the effect of loading area dimensions, effective depth, and concrete strength [19,20,21]. In addition, Deifalla [17] proposed a punching shear strength prediction model based on critical shear crack theory. These models have significantly advanced the study of FRP-reinforced concrete slabs. However, the complex structure of these slabs, coupled with the interplay of multiple parameters, makes it challenging to accurately predict their punching shear strength using existing mathematical models. The applicability of these models remains limited, as their coefficients of variation are large compared with experimental values, indicating a need for further refinement. In addition, Badra et al. [18] constructed a predictive model for the punching strength of FRP-reinforced concrete slabs using ANN and SVM. Although the accuracy of this model is better than that of the codes’ and Deifalla’s model, its coefficient of variation is large (0.25 for ANN and 0.2 for SVM), which makes it difficult to guarantee the reliability of the application and lacks explainability. Based on this, a predictive model for punching shear strength of FRP-reinforced concrete slabs with higher accuracy and explainability is required to be proposed.

In recent years, ensemble learning has gained popularity in structural engineering due to its superior performance compared with single learning methods and its enhanced explainability [22,23]. For instance, Khodadadi et al. [10] introduced a pioneering machine learning approach for predicting the compressive strength of Carbon-Fiber-Reinforced Polymer-Confined Concrete (CFRP-CC) specimens. Utilizing a Particle Swarm Optimization-Categorical Boosting (PSO-CatBoost) algorithm, their model, based on an extensive database of 916 experimental outcomes from 105 scholarly articles, demonstrated superior predictive performance compared with six contemporary machine learning models and six empirical models. Their approach uniquely incorporated SHapley Additive exPlanations (SHAP) and Permutation Feature Importance (PFI) methodologies to elucidate feature importance, establishing a new benchmark in CFRP-CC predictive modeling. Taffese et al. [24] collected 170 sets of data, used CatBoost to predict the ultimate moment of UHPC-strengthened beams, and conducted a feature importance study based on SHAP. Sapkota et al. [25] collected 226 data sets, used five ensemble learning models to predict the effective stiffness of rectangular reinforced concrete columns, and used SHAP to study the sensitivity between input and output parameters. Pal et al. [26] predicted a slump of fiber-reinforced concrete containing waste rubber and recycled aggregates based on 464 data sets using 12 models, including single and ensemble learning. The results showed that XGBoost performed best among all the models. Alyami et al. [27] predicted the compressive strength of concrete containing rice husk based on 348 data sets using three ensemble models and one single model. They carried out an interpretable study of the model using SHAP. The results showed that the ensemble model outperformed the single model, and SHAP explained the key indicators affecting the compressive strength.

This research explored the application of artificial intelligence algorithms in predicting the punching shear strength of concrete slabs reinforced with FRP materials. Advanced machine learning techniques were employed, building upon previous studies, with a particular emphasis on model interpretability. Methodologies such as SHAP and importance and sensitivity analyses were utilized to clarify the ML results. Specifically, 189 sets of experimental data were collected, and six machine learning models, including linear regression, support vector machine, BP neural network, decision tree, random forest, and eXtreme Gradient Boosting, were constructed and evaluated based on goodness of fit, standard deviation, and root-mean-square error in order to select the most suitable model for this study. The optimal model obtained was compared with the models proposed by codes and the researchers. Finally, a model explainability study was conducted using SHapley Additive exPlanations (SHAP). The developed ML model was compared against existing formulas. Ultimately, the study identified the paramount variables influencing punching shear capacity and formulated enhanced predictive equations with improved accuracy.

The follow-up study consists of the following sections: Section 2 is the database construction, including statistical analysis and distribution of features. Section 3 is the model construction and evaluation, including the selection of models most applicable to this study, the evaluation of the codes and the researcher’s model, and the interpretable study of the features. The last section is the conclusion, which evaluates the codes and the researcher’s model and specifies the machine learning model that is most applicable to this study.

2. Database Construction

2.1. Parametric Study

Researchers have analyzed the parameters affecting the punching shear strength of FRP-reinforced concrete slabs through a number of experiments. Ahmad and Banthia et al. showed that the punching strength of FRP-reinforced concrete slabs decreased with increasing concrete strength. Bank and Ospina found that the punching strength increased with increasing FRP reinforcement ratio. Louka and El-gendy investigated the relationship between the modulus of elasticity and the punching strength, and the results showed that a positive relationship between the modulus of elasticity and the punching strength. Bouguerra’s study showed that the punching strength increased with an increase in loading area dimensions. In addition, Bouguerra and Tom’s study showed that the punching strength increased with an increase in effective depth.

2.2. Data Collection

In conjunction with the researcher’s findings in Section 2.1 and taking into account the collectability of data, an aggregation of 189 experimental data sets was compiled from a thorough examination of 36 distinct research endeavors [12,13,14,15,16,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57], including key input variables: loading area shape (A, B), loading area dimensions (b, c), effective depth (d), concrete strength (f’c), FRP Young’s modulus (E), FRP reinforcement ratio (ρ); and output variable: punching shear strength (V). The statistical analysis of the data is shown in

Table 1. Statistical characterization of features.

	A	B	b	c	d	f’c	ρ	E
Unit	mm	mm	mm	mm	mm	MPa	%	GPa
skew	−0.43	−0.28	0.69	−0.97	0.94	3.43	1.74	1.31
max	3000	4000	635	300	284	179	3.76	230
min	300	300	25	25	45	22.2	0.18	28.4
mean	1960.90	1735.77	300.95	212.20	131.43	45.78	0.94	79.91

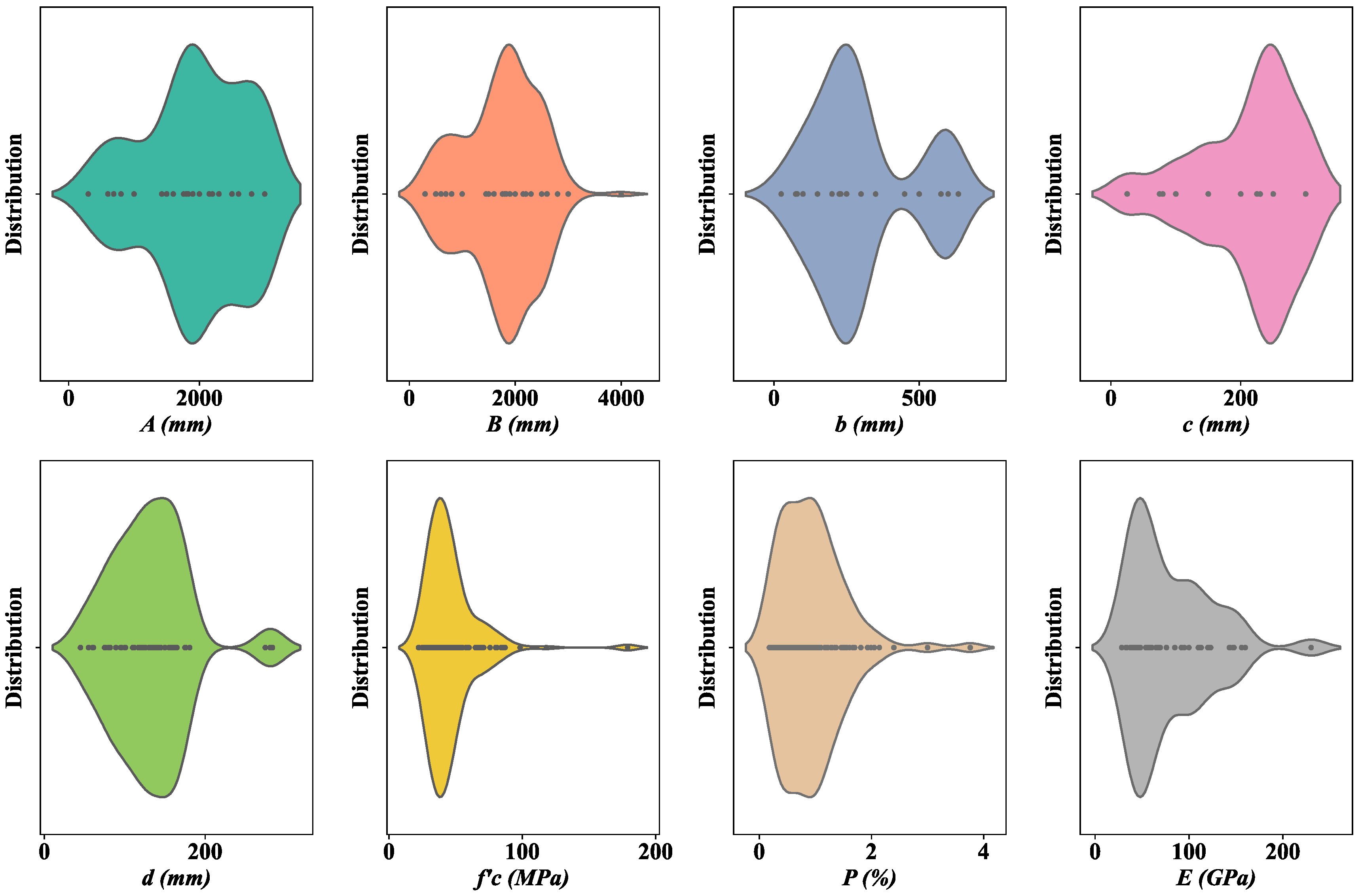

. The distribution of the data is shown in Figure 1.

As can be seen in Figure 1, the distribution of the features is wide but uneven across the intervals.

3. Model Construction and Evaluation

3.1. Modeling

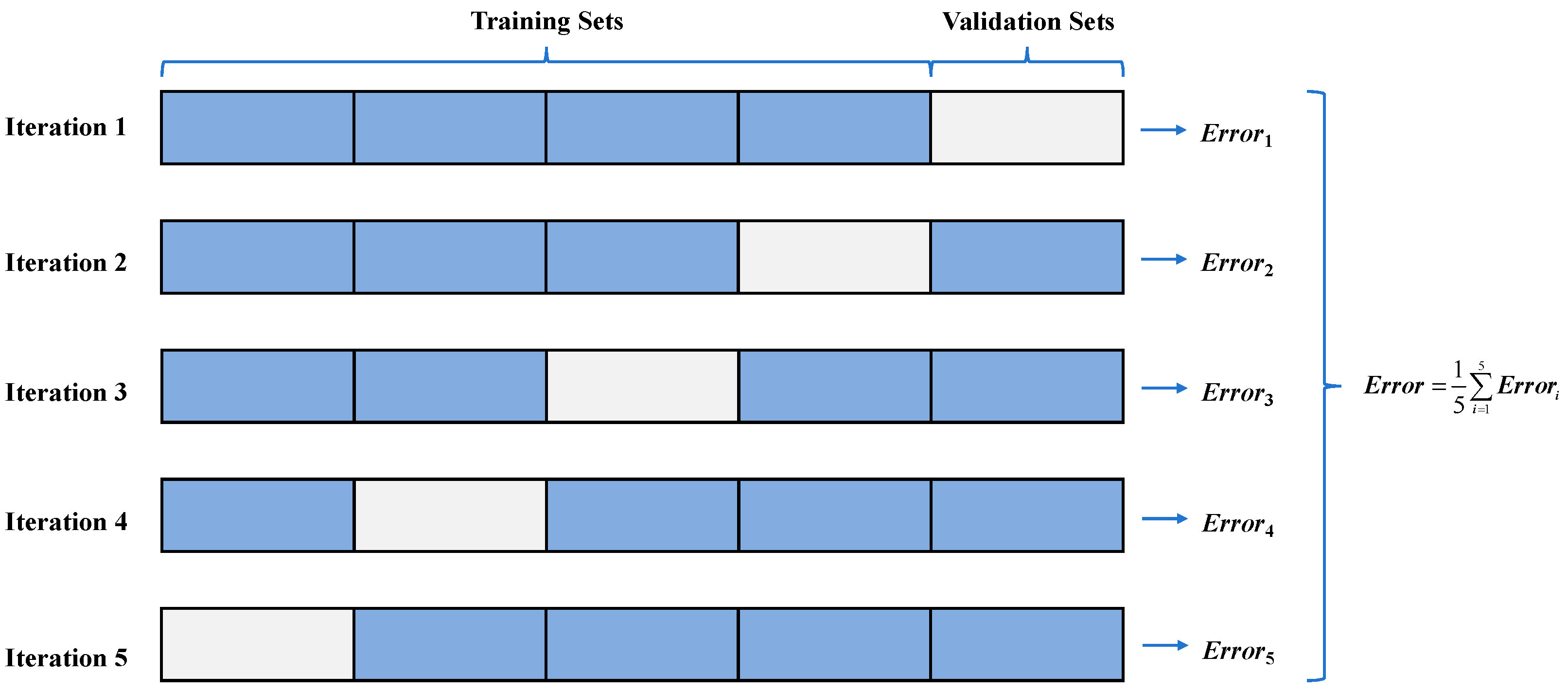

The 189 sets of data collected in Section 2.2 were used for model construction, of which 80% of the data were used as the training set and 20% as the test set. Six machine learning algorithms, linear regression (LR), support vector machine (SVM), BP neural network (BPNN), decision tree (DT), random forest (RF), and eXtreme Gradient Boosting (XGBoost), were used to construct the machine learning model. The reason for choosing these models is that the above six models have been widely used, and LR, SVM, and BP are the early classical machine learning models. DT, RF, and XGBoost, on the other hand, are all tree-based models; XGBoost was proposed in 2016 and is widely used due to its excellent performance on different data sets. All the above models were run on Python. The hyperparameters for each machine learning were obtained using grid search and five-fold cross-validation. Grid search is a method to find the best model hyperparameters by traversing different parameter combinations. Five-fold cross-validation is a commonly used method for model evaluation, and its principle is shown in Figure 2. The data set is partitioned into five equally sized segments, where four portions serve as the training dataset, and the residual segment constitutes the test set. The iteration process is repeated five times to get the average of the five sets of model performance evaluation results, which can be more accurate in evaluating model performance.

3.2. Machine Learning Model Evaluation

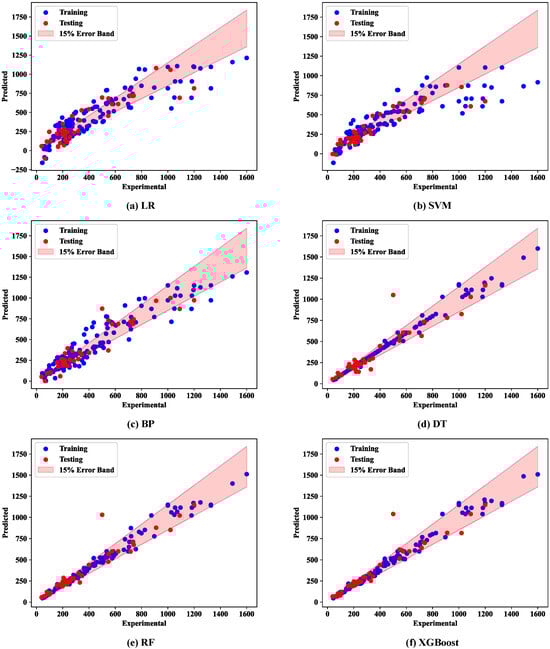

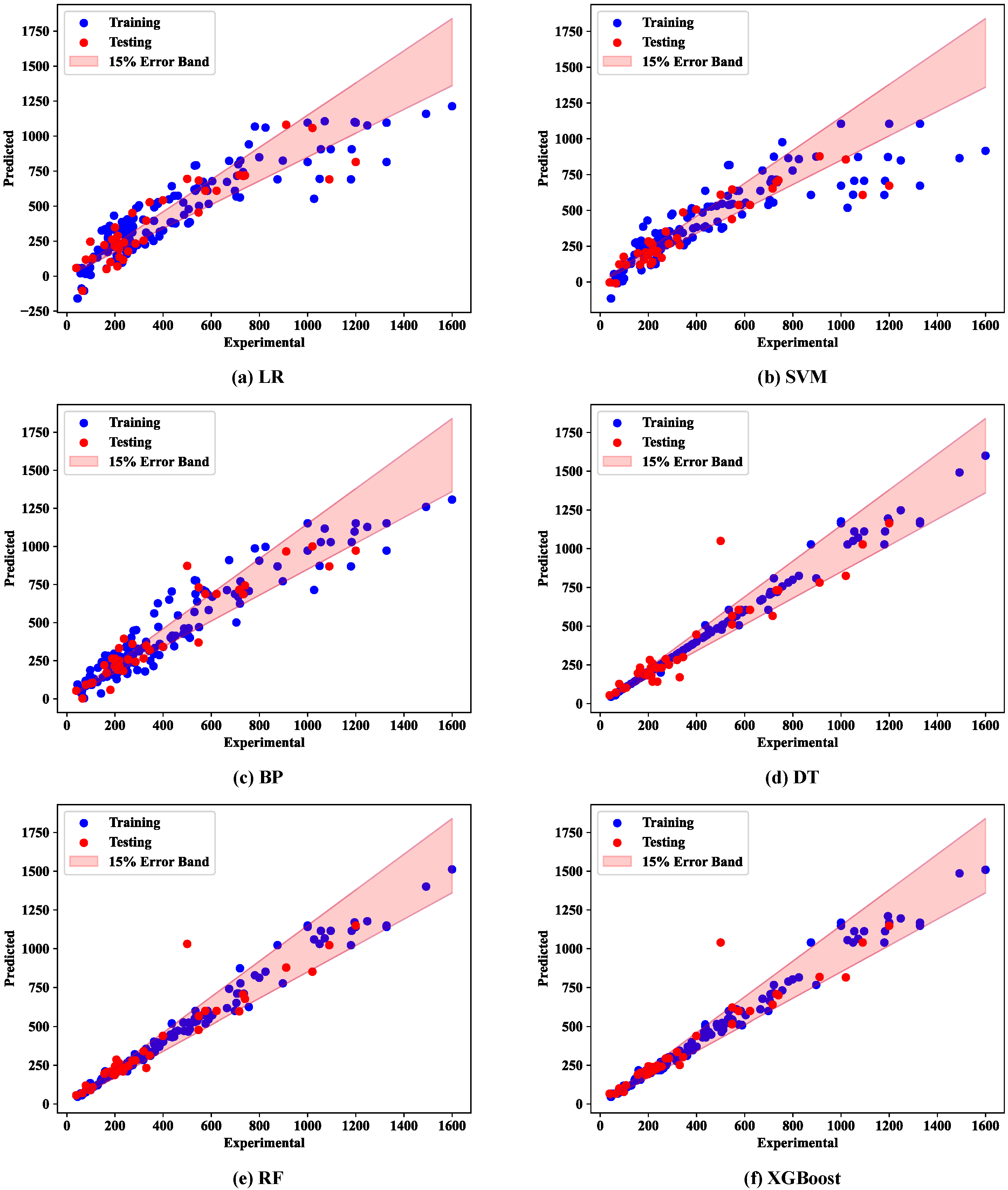

The comparison of the predicted and experimental values of each machine learning model is shown in Figure 3. The performance evaluation metrics are shown in

Table 2. Performance of machine learning models.

	Training			Test
	R2	SD	RMSE	R2	SD	RMSE
LR	0.81	91.34	143.76	0.8	90.81	131.81
SVM	0.75	132.25	166.53	0.79	105.94	134.81
BP	0.89	106.98	107.13	0.87	104.89	105.34
DT	0.98	35.15	37.27	0.86	93.1	109.34
RF	0.98	37.35	46.30	0.89	86.75	99.24
XGBoost	0.98	34.55	42.67	0.88	88.61	100.34

.

3.3. Codes’ and Researcher’s Model Evaluation

The existing models for calculating the punching shear strength of FRP-reinforced concrete slabs are shown in

Table 3. Existing models.

Ref.	Formula	Symbols
JSCE	$V={\beta }_d{\beta }_{\rho }{\beta }_r{f}_{Pcd}{b}_{0.5d}d$	$\begin{array}{l}{\beta }_d={\left({\displaystyle \frac{1000}{d}}\right)}^{{\displaystyle \frac{1}{4}}}\le 1.5{\beta }_{\rho }={\left(100\rho E/E_S\right)}^{{\displaystyle \frac{1}{3}}}\le 1.5{\beta }_r\\ =1+{\displaystyle \frac{1}{\left(1+\frac{0.25b_{0.5d}}{d}\right)}}{f}_{Pcd}=0.2\sqrt{f_c^{\text{'}}}\le 1.2b_{0.5d}=4\left(c+d\right)\end{array}$
CSA	$V=b_{0.5d}d\left\{\begin{array}{c}0.028(1+{\displaystyle \frac{2}{{\beta }_c}}{\left(E\rho f_c^{\text{'}}\right)}^{{\displaystyle \frac{1}{3}}}\\ 0.147{\left(E\rho f_c^{\text{'}}\right)}^{{\displaystyle \frac{1}{3}}}\left(0.19+{\alpha }_s{\displaystyle \frac{d}{b_{0.5d}}}\right)\\ 0.056{\left(E\rho f_c^{\text{'}}\right)}^{{\displaystyle \frac{1}{3}}}\end{array}\right.$ $\begin{array}{c}{\beta }_c=1,{\alpha }_s=4\\ b_{0.5d}=4\left(c+d\right)\end{array}$
ACI	$V=0.8\sqrt{f_c^{\text{'}}}kd{b}_{0.5d}$	$k=\sqrt{2\rho n+{\left(\rho n\right)}^2}-\rho nn=4750\sqrt{f_c^{\text{'}}}{b}_{0.5d}=4\left(c+d\right)$
ECSCT	$\psi =0.28{\displaystyle \frac{r_s}{d}}{\displaystyle \frac{f_f}{E}}{\left({\displaystyle \frac{V}{V_{flex}}}\right)}^{0.4}$	$V_{flex}=2\pi m_R{\displaystyle \frac{r_s}{r_q-r_c}},m_R=d^2\rho f_f\left(1-{\displaystyle \frac{\rho f_f}{2f_c^{\text{'}}{\left(\frac{30}{f_c^{\text{'}}}\right)}^{\frac{1}{3}}}}\right)$

.

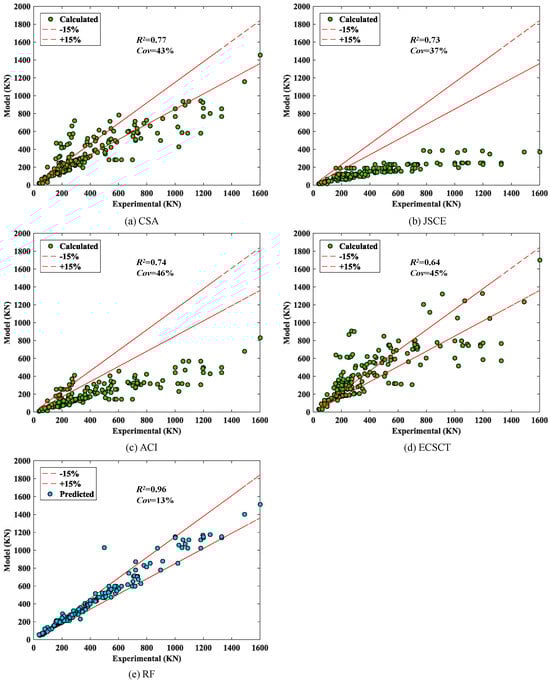

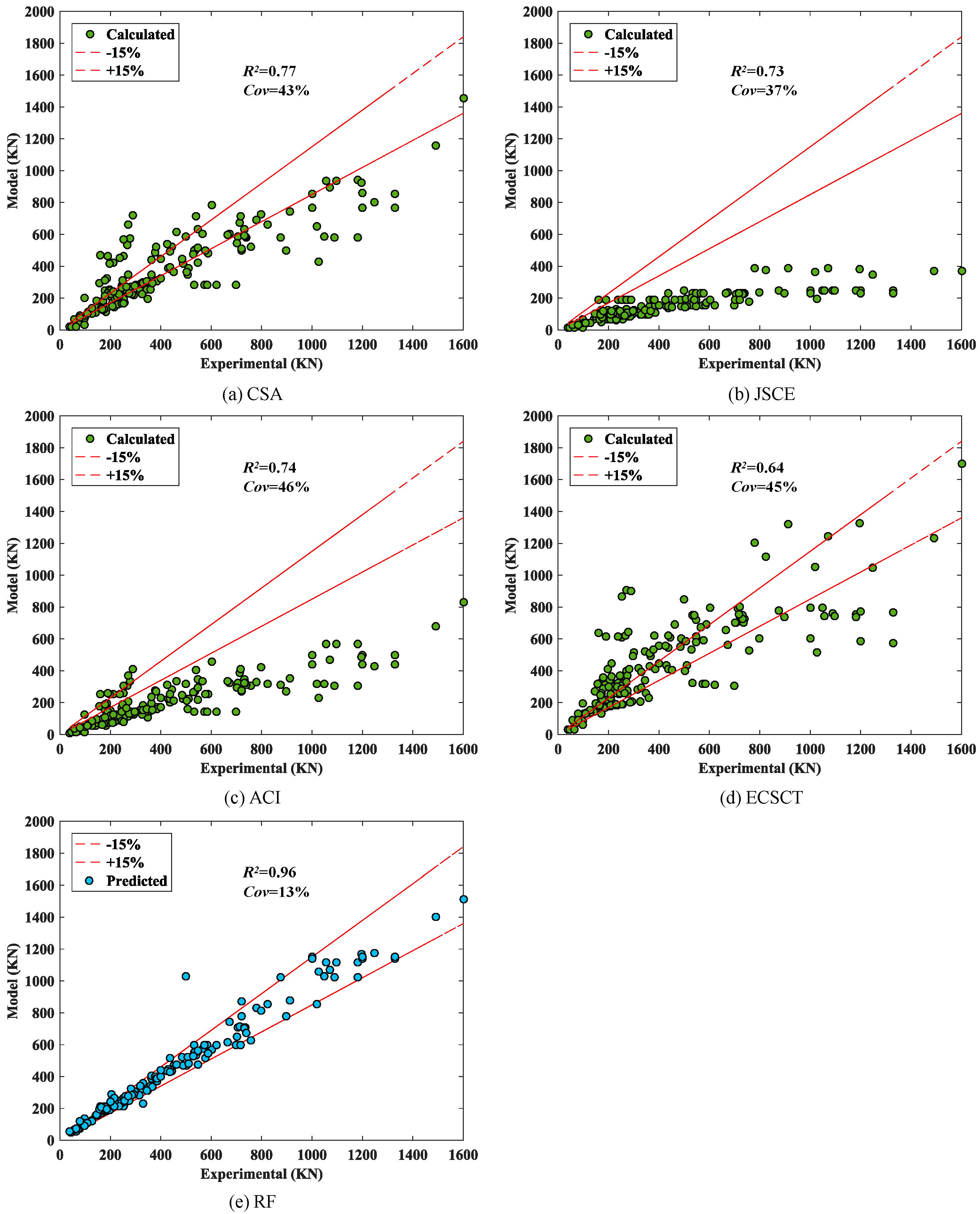

Figure 4 illustrates the comparative performance of the model developed within this research against existing models.

As can be seen in Figure 4, the goodness of fit of both the codes and the researcher’s model is below 0.8. In addition, the coefficient of variation between the calculated and experimental values of their models is more than 60%. However, the RF model constructed in this study has a very high goodness of fit and coefficients of variation within 20%, which is much better than existing models.

3.4. Model Explainability

From Section 3.2, it can be seen that RF performs the best among all machine learning models, and therefore, an explainable study of the model is performed using RF. The explainability of the model is performed through SHAP, a method for interpreting machine learning models that combines Shapley values from game theory and local interpretive techniques to provide global and local interpretations of model predictions. The global explainability of RF is shown in Figure 5 and Figure 6, and the local explainability is shown in Figure 7 using the SHAP force plot. It is important to note that in these figures, yellow indicates a positive impact, and green indicates a negative impact.

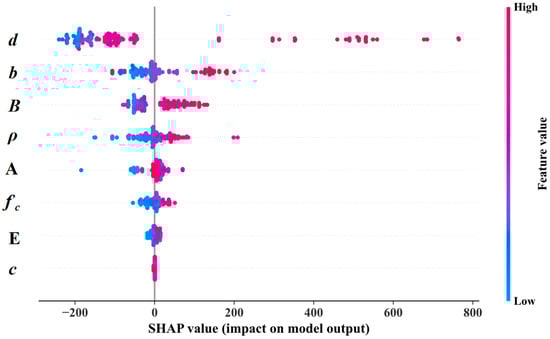

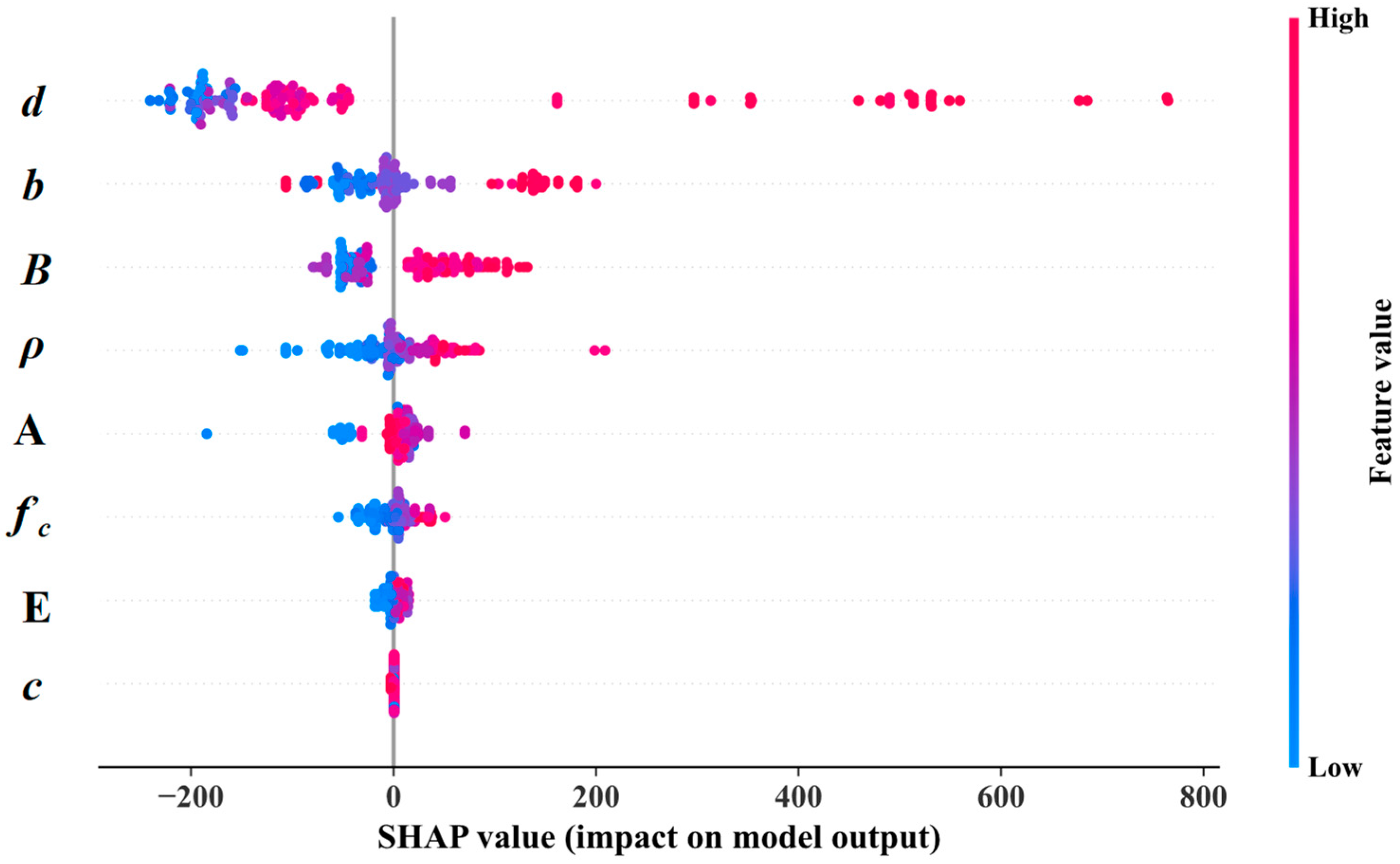

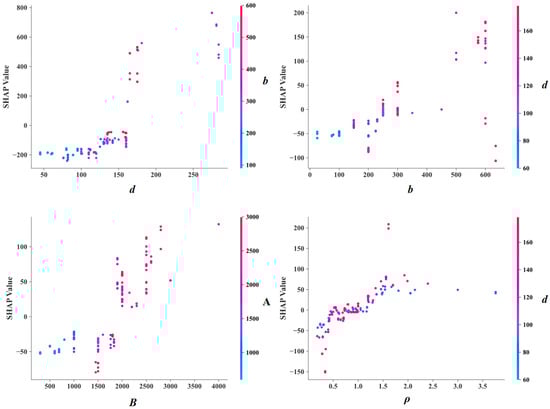

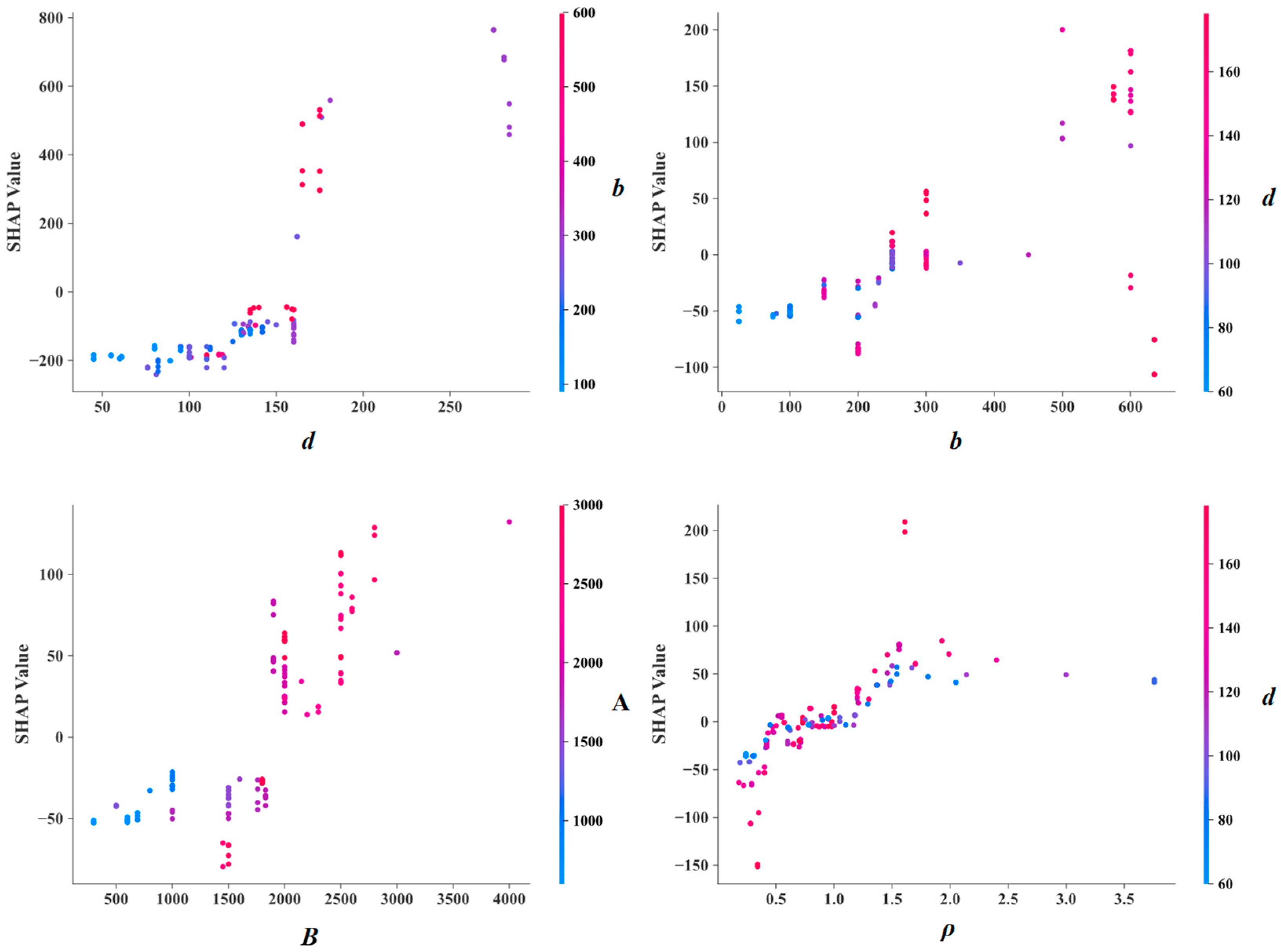

Figure 5 analyzes the importance of the parameters in terms of the entire data set. As can be seen in Figure 5, overall, effective depth (d) had the greatest impact on punching shear strength, while FRP Young’s modulus (E) and loading area dimensions (c) had a lesser impact on punching shear strength. Figure 6, on the other hand, provides a sensitivity analysis of the parameters from the perspective of the entire dataset. Taking the first four parameters with higher importance as an example, it can be seen from Figure 6 that all four parameters with higher importance had a positive effect on the punching shear strength, i.e., the punching shear strength improved as d, b, B, and ρ increased.

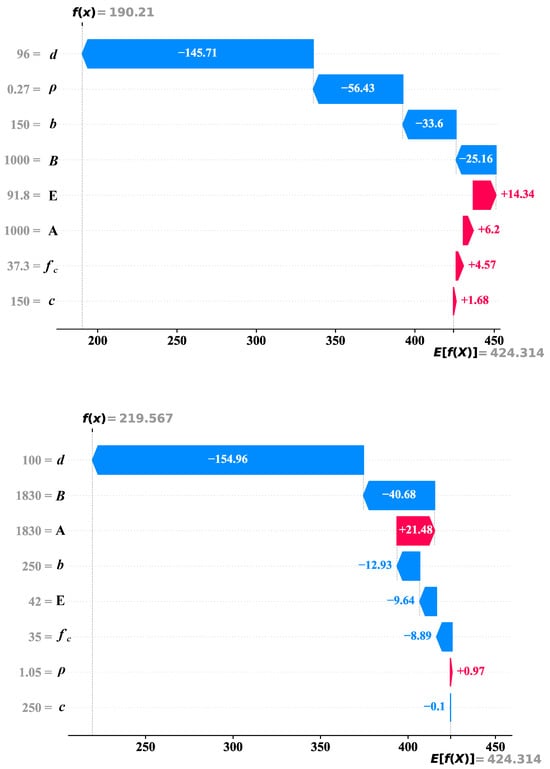

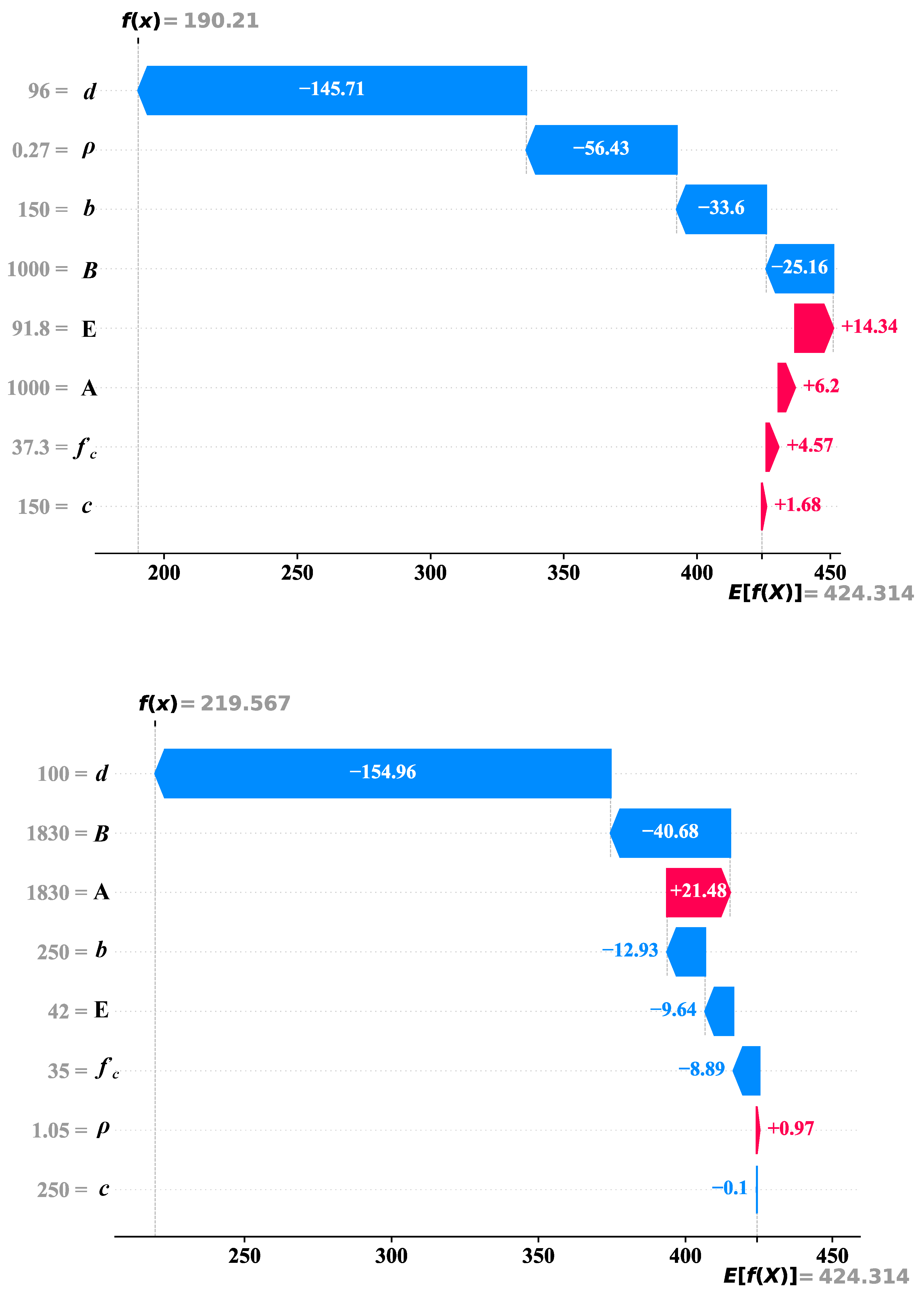

Figure 5 and Figure 6 analyze the importance and sensitivity of the parameters from a global point of view. However, the parameters’ importance and sensitivity tended to differ for different samples. Figure 7 gives the predicted overlay for two different samples. The former sample is from Bouguerra [16], and the latter is from Hussein [57].

Figure 7 demonstrates that the importance and sensitivity of features to punching shear strength are different in different samples. For example, for the two samples mentioned above, ρ was inversely related to punching shear strength in the first sample and the opposite in the second sample. Similarly, E had a positive effect on punching shear strength in the first sample but a negative effect in the second sample. It is important to note that even though the effects of the features were not exactly the same in both samples, RF predicted them both better. The experimental value of the first sample was 181 KN, and the model predicted 190.21 KN with an error of 5.08%. The second sample had an experimental value of 218 KN, and the model predicted 219.567 KN with an error of 0.72%.

4. Conclusions

In this study, a punching shear strength prediction model for FRP-reinforced RC slabs was constructed using six machine learning algorithms, and an explainable study of the model was carried out using SHapley Additive exPlanations (SHAP). The following conclusions were obtained:

(1)

SVM performs worst among all models, and tree-based models (DT, RF, XGBoost) performed significantly better than LR, SVM, and BP on training and test sets. RF is the most suitable model for predicting the punching shear strength of FRP-reinforced RC slabs. Among all the machine learning models, its performance was the most balanced on the training and test sets.

(2)

The existing codes and the models suggested by researchers for calculating the punching shear strength of FRP-reinforced concrete slabs had low goodness of fit (below 0.8) and coefficients of variation exceeding 60%, which are not conducive to practical engineering applications. The RF prediction model constructed in this study had a high goodness of fit (0.96) and a low coefficient of variation (13%).

(3)

The effective depth (d) of the FRP-reinforced concrete slabs was the most important and proportional to the punching shear strength. FRP Young’s modulus (E) and loading area dimensions (c) had less influence on punching shear strength and had a more complex relationship with punching shear strength.

The conclusions on the significance and sensitivity of the features obtained in this study can be used as a reference for code revision and engineering design of FRP-reinforced concrete slabs. However, this study is data-driven and does not incorporate knowledge of the mechanics of FRP-reinforced concrete slabs, and further refinement of the model with professional knowledge is required in the future.
