Mechanistic Understanding of the Non-Uniform Corrosion of Steel Bridges: From the Perspective of Micro-Environments

Abstract

The prevention of non-uniform corrosion in steel bridges remains a global challenge. Addressing this gap, the present study investigates atmospheric corrosion in steel bridges and introduces a non-uniform corrosion rate prediction process based on micro-environments, including the temperature and relative humidity of the air near the steel bridge surface (T_S and RH_S) and the deposition of pollutants on the steel bridge (D_P). Using a CFST arch bridge as a case study, this research examines the causes of non-uniform corrosion and explores effective protective measures. The findings reveal a maximum of 1.48 °C for the T_S and 15.7% for the RHs in different parts of the arch ribs. Significant disparities of the D_P are observed in different parts of the arch ribs. The largest D_P at the upper chord is up to 44.3 mg/m²/day (mdd), and the smallest amount of deposition at the lower chord is close to 0 mdd. Under the influence of the aforementioned factors, significant non-uniform corrosion of the ribs was found, with the fastest corrosion rate being up to 18.5 μm/year and the slowest corrosion rate being close to 0 μm/year. Uneven pollutant deposition is the primary cause of the non-uniform corrosion of the CFST arch bridge. By conducting the regular cleaning of the ribs, non-uniform corrosion could be mitigated.

1. Introduction

Steel bridges endure alternating cycles of cold and heat, sunlight, rainfall, and pollutant erosion, all of which contribute to atmospheric corrosion [1,2]. Atmospheric corrosion reduces the thickness of steel bridge components, thereby compromising their load-bearing capacity and structural stability [3,4,5]. Preventing severe atmospheric corrosion is therefore crucial to ensuring the long-term service life of steel bridges.

Weathering steel and coatings are widely used to mitigate atmospheric corrosion in steel bridges. However, even with these protective measures, severe corrosion damage can still occur, potentially leading to structural failures or engineering disasters. For instance, Dounoki River Bridge [6] and the Pittsburgh Bridge [7] collapsed after 38 and 49 years of service, respectively, due to severe atmospheric corrosion. Other notable bridge failures caused by atmospheric corrosion include Japan’s Wakayama Aqueduct Bridge, the silver Bridge [7] in the United States, and the Seongsu Bridge [8] in South Korea. In most of these cases, significant non-uniform corrosion was observed prior to the collapse. The rapid deterioration of individual components led to substantial reductions in the overall load-bearing capacities of the structures, ultimately resulting in catastrophic failures. Thus, despite the adoption of various atmospheric corrosion protection strategies, the persistent issue of non-uniform corrosion undermines their effectiveness. To prevent severe performance degradation or even structural failure caused by non-uniform atmospheric corrosion, it is essential to identify and understand the root causes of this phenomenon.

In recent years, researchers have increasingly focused on non-uniform corrosion in steel bridges. Jin-Hee Ahn studied the buckling modes and load-carrying capacity of steel plate composite girders affected by non-uniform corrosion [9]. Shigenobu Kainuma investigated the impact of non-uniform corrosion in steel–concrete composite bridges on stress concentration [10]. Similarly, Huajie Wang analyzed the strength reduction in circular steel tubes subjected to non-uniform corrosion [11]. However, most existing studies primarily focus on the performance degradation of steel components or entire structures after non-uniform corrosion has occurred. Few studies provide explanations for the underlying causes of non-uniform corrosion in steel bridges.

From the author’s perspective, variations in the service environments across different parts of a steel bridge may be a critical factor contributing to non-uniform corrosion. The design criteria for coating systems and the application conditions for weathering steel are typically based on the macro-environment surrounding the bridge site. Zhi assessed the atmospheric corrosion rate of low-alloy steel using six environmental factors, including chloride concentration, SO₂ concentration, relative humidity, temperature, rainfall, and pH [12]. Hao calculated the corrosion rate of steel hangers in various regions of China based on four environmental parameters and utilized GIS to perform the classification and spatial mapping of atmospheric corrosion across China [13]. Kim predicted the atmospheric corrosion rate of carbon steel in different regions of the Korean Peninsula using three macro-environmental parameters: sulfur dioxide, chloride particles, and wetness duration [14]. However, the actual service environment of a steel bridge often differs significantly from the macro-environment. Jin monitored the corrosion rate at different locations on steel plate girders using ACM sensors. The experimental results showed that the corrosion rate of the top plate could be up to six times that of the bottom plate [15]. Ahn investigated the atmospheric corrosion damage of steel plate composite girder bridges. The findings revealed that the corrosion rate of the bottom plate and web plates was significantly higher than that of other parts [16]. Ha monitored the corrosion rate of different components of steel truss girders and found that the corrosion rate of the chord members could be more than three times greater than that of the web members [17,18]. When the most severe service conditions within a bridge are more corrosive than the macro-environment, the anti-corrosion measures designed with macro-environmental conditions may prove inadequate for ensuring long-term corrosion resistance.

To represent the true service environment of steel bridges, researchers have introduced the concept of micro-environments, which has been adopted by standards such as AASHTO, SHRP 2, and ACI [7]. Based on this concept, these standards characterize the micro-environment of steel bridges through micro exposure zones. For example, the ribs of a through-arch bridge are classified into atmospheric exposure zones and indirect de-icing salt exposure zones. However, in practical engineering, even within the same micro-exposure zone, the corrosion levels at different locations can vary significantly, as shown in Figure 1. This suggests that the classification based on engineering experience cannot fully reflect the true service environment of steel bridges. Therefore, more specific methods are needed to describe and quantify the actual service environment of steel bridges in order to comprehensively understand the differences in atmospheric corrosion environments at various parts of the bridge.

This study explores the causes of non-uniform corrosion in steel bridges from a novel perspective, emphasizing the role of variations in service environments and using a CFST arch bridge in Shaanxi Province, China, which was dismantled due to non-uniform corrosion, as a case study. The bridge’s service environment and non-uniform corrosion rate are analyzed. Based on the findings, targeted protective measures are proposed to mitigate non-uniform corrosion in similar steel bridge structures. The results provide valuable insights for identifying locations prone to rapid corrosion and developing effective corrosion protection strategies for similar types of bridges. Moreover, the methodology in this study offers a new approach to predicting non-uniform corrosion rates in various steel bridge structures.

2. Micro-Environment of Steel Bridge

Atmospheric corrosion occurs at the interface between the surface of steel bridge and the surrounding air. The primary factors influencing the atmospheric corrosion rate include the temperature of the air nearby the steel surface (denoted as T_S), the relative humidity of the air nearby the steel surface (denoted as RH_S), and the amount of pollutant deposition on the steel surface (denoted as D_P). These factors are referred to as the micro-environment of the steel bridge in this study.

2.1. Pollutant Deposition on the Steel Surface (D_P)

Airborne pollutants primarily consist of sulfur dioxide and chlorides. Sulfur dioxide is usually emitted from the combustion of industrial and domestic fuels. Chlorides primarily originate from marine environments or deicing salts. As shown in Figure 2, pollutants can collide with and deposit onto the steel surface under the influence of the surrounding airflow. The distribution characteristics of pollutants deposited on the steel surface can be quantified using the pollutant deposition per unit area.

The influence of the D_P on the corrosion rate varies depending on the type of pollutant. For example, atmospheric corrosion caused by sulfur dioxide exhibits autocatalytic behavior. In contrast, chlorides can penetrate the passivation film on steel, thereby accelerating the atmospheric corrosion process.

2.2. Temperature of Air Nearby Steel Surface (T_S)

The air temperature varies significantly along the direction normal to the surface, within the thermal boundary layer of height ${\delta }_t$ near the steel surface. The air temperature immediately adjacent to the surface (denoted as T_S) is equal to the temperature of the steel surface. Beyond the boundary layer, in the mainstream region, the air temperature gradient becomes nearly zero. The temperature in this region, commonly measured using sensors installed at meteorological stations, is referred to as the ambient temperature (denoted as T_a).

The influence of the T_S on the corrosion rate can be observed in three key aspects. First, a higher T_S accelerates the rate of chemical reactions. Second, the T_S affects the solubility of gases such as oxygen and sulfur dioxide, thereby influencing the corrosion rate. Finally, the T_S indirectly impacts the corrosion rate by altering relative humidity.

2.3. Relative Humidity of Air Nearby Steel Surface (RH_S)

Rapid temperature variations within the thermal boundary layer leads to changes in the relative humidity of the air. Similarly to the T_S, the relative humidity of the air adjacent to the steel surface is referred to as RH_S. In contrast, the relative humidity in the mainstream region is termed the ambient relative humidity (RH_a).

Relative humidity can be characterized by the relative proportion of water vapor. Relative humidity increases with an increase in the relative proportion of water vapor. As illustrated in Figure 3, the physical relationship among the RH_S, RH_a, T_a, and T_S can be described as follows: When T_S > T_a, the relative proportion of water vapor reduces due to the air adjacent to the steel surface being able to hold a greater amount of water vapor. The relative proportion of water vapor decreases in the air adjacent to the steel surface. Therefore, RH_S < Rh_a. Conversely, when T_S < T_a, RH_S > RH_a.

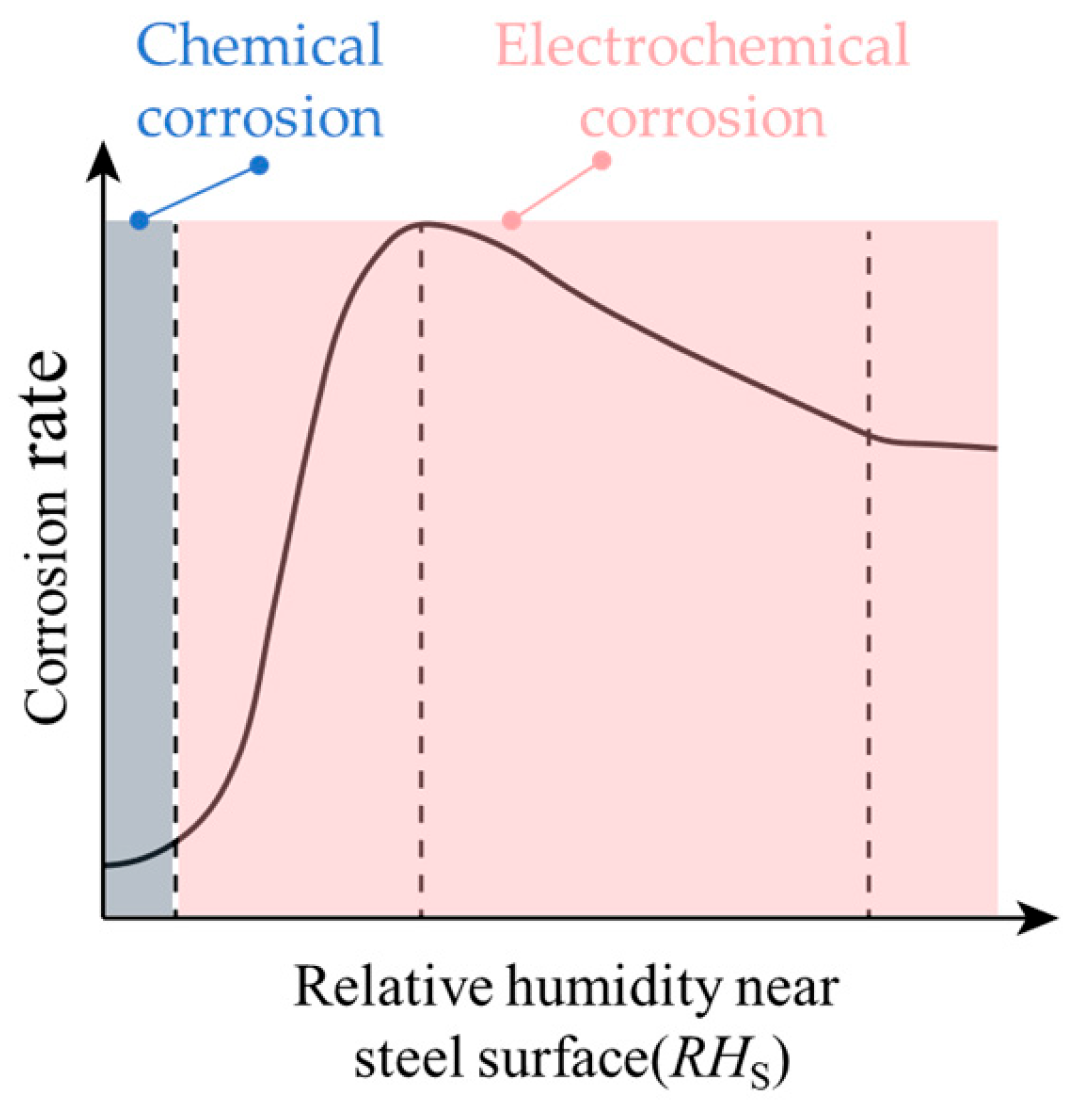

The impact of the RH_S on the corrosion rate is illustrated in Figure 4. When the RH_S is low, the steel bridge experiences slow chemical corrosion. As the RH_S increases, the kind of the corrosion transitions from chemical to electrochemical, causing a significant rise in the corrosion rate. With a further increase in the RH_S, a visible water film forms on the steel surface, limiting oxygen contact with the steel. This leads to a gradual decline in the corrosion rate.

3. Numerical Simulation Method of Micro-Environment

As discussed in the previous section, the environmental factors influencing the atmospheric corrosion rate of steel bridges primarily include the T_S, RH_S, and D_P. This section focuses on numerical simulation methods for analyzing the micro-environment. Specifically, the D_P can be analyzed using computational fluid dynamics (CFD), while the T_S and RH_S can be studied using the finite element method (FEM).

3.1. D_P

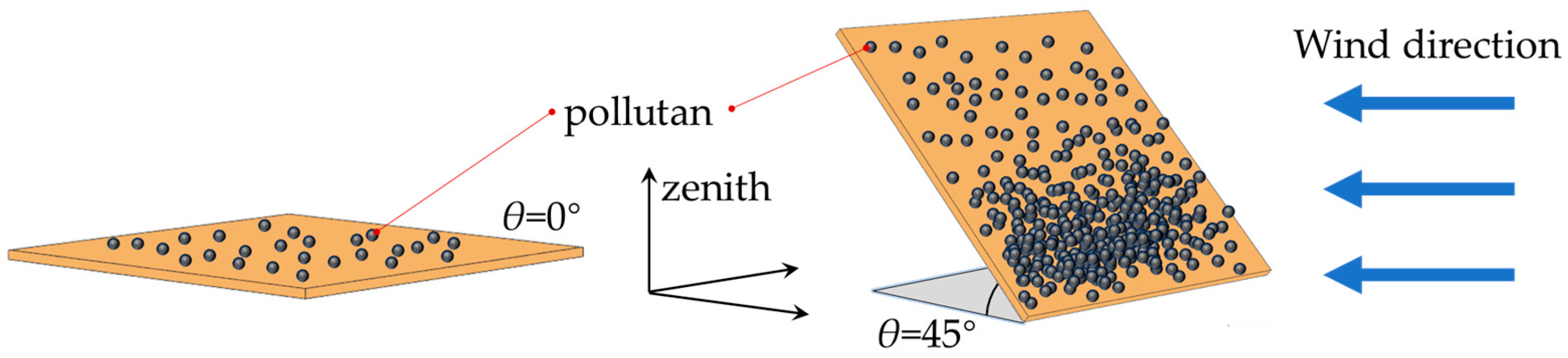

The pollutant deposition on the steel surface is closely associated with the movement of surrounding fluids and pollutant particles. The behavior of fluids can be analyzed by solving equations for momentum conservation, mass conservation, and other fundamental principles of fluid dynamics. The motion of pollutant particles in the air is influenced by forces such as gravity, drag, pressure gradient force, and Saffman lift. The particle motion is described by the particle motion equilibrium, shown in Equation (1). Typically, the discrete phase model (DPM) in fluid dynamics software is used to calculate the forces acting on particles within the flow field and to determine their trajectories.

$$m_{\mathrm{p}}{\displaystyle \frac{d{\overrightarrow{u}}_{\mathrm{p}}}{dt}}=m_{\mathrm{p}}{\displaystyle \frac{\overrightarrow{u}-{\overrightarrow{u}}_{\mathrm{p}}}{{\tau }_{\mathrm{r}}}}+m_p{\displaystyle \frac{\overrightarrow{g}\left({\rho }_{\mathrm{p}}-\rho \right)}{{\rho }_{\mathrm{p}}}}+{\overrightarrow{F}}_{\mathrm{S}}$$

(1)

In this equation, m_p is the mass of the particle, $\overrightarrow{u}$ is the velocity of the continuous phase, ${\overrightarrow{u}}_p$ is the velocity of the particle, $\rho$ is the fluid density, ${\rho }_p$ is the particle density, ${\overrightarrow{F}}_{\mathrm{S}}$ is the Saffman lift force, and $m_{\mathrm{p}}{\displaystyle \frac{\overrightarrow{u}-{\overrightarrow{u}}_{\mathrm{p}}}{{\tau }_{\mathrm{r}}}}$ is the drag force.

3.2. T_S

As described in Section 2.2, the temperature of the air nearby steel bridge surface is equal to the temperature of the steel surface. Therefore, the T_S can be obtained by solving the temperature field of steel bridges. The temperature field of steel bridges exposed to natural environments adheres to the heat conduction differential equation. Solving the heat conduction differential equation requires defining the thermal boundary conditions of the bridge. These thermal boundaries include solar radiation, radiation heat transfer, and convective heat transfer. Solar radiation is influenced by factors such as the bridge’s longitude, latitude, altitude, spatial orientation of components, and absorption rate. Convective heat transfer depends on atmospheric temperature, wind speed, and the convective heat transfer coefficient. Radiation heat transfer includes both sky radiation and ground radiation. The calculation methods for these thermal boundaries can be referenced in the literature [19,20]. Once the thermal boundaries are defined, the steel bridge surface temperature can be determined using the heat conduction module in commercial finite element software.

3.3. RH_S

Previous research by the authors demonstrates that the RH_S can be calculated using the T_a, T_S, and RH_a, as expressed in Equations (2)–(4). This calculation process can be implemented using the USFLED subroutine in ABAQUS (2019) software. Detailed computational methods are available in reference [21].

$$RH\mathrm{s}=R{H}_{\mathrm{e}}\times E_{\mathrm{a}}/E_{\mathrm{s}}$$

(2)

$$\begin{array}{cc}\hfill \lg E_{\mathrm{a}}& =10.7957\times (1-{\displaystyle \frac{{\mathrm{T}}_1}{T_{\mathrm{a}}+273.15}})-5.028\times \lg {\displaystyle \frac{{\mathrm{T}}_1}{T_{\mathrm{a}}+273.15}})\hfill \\ & +1.50475\times {10}^{-4}\times (1-{10}^{-8.2969\times (T_{\mathrm{a}}/{\mathrm{T}}_1)})\hfill \\ & +0.42873\times {10}^{-3}\times ({10}^{4.76955\times (1-{\displaystyle \frac{{\mathrm{T}}_1}{T_a+273.15}})}-1)+0.78614\hfill \end{array}$$

(3)

$$\begin{array}{cc}\lg E_{\mathrm{s}}\hfill & =10.7957\times (1-{\displaystyle \frac{{\mathrm{T}}_1}{T_{\mathrm{S}}+273.15}})-5.028\times \lg {\displaystyle \frac{{\mathrm{T}}_1}{T_{\mathrm{S}}+273.15}})\hfill \\ & +1.50475\times {10}^{-4}\times (1-{10}^{-8.2969\times (T_{\mathrm{s}}/{\mathrm{T}}_1)})\hfill \\ & +0.42873\times {10}^{-3}\times ({10}^{4.76955\times (1-{\displaystyle \frac{{\mathrm{T}}_1}{T+273.15}})}-1)+0.78614\hfill \end{array}$$

(4)

In the equation, RH_S is the relative humidity of air nearby the steel bridge surface, E_a is the saturated vapor pressure of ambient, E_s is the saturated vapor pressure of the air adjacent to the steel bridge surface, T₁ is the triple point temperature of water, taken as 273.16 K, Ts is the temperature of the air adjacent to the steel bridge surface, and T_a is the ambient temperature.

4. Validation of Numerical Simulation Method

4.1. D_P

The accuracy of the simulation method for the D_P is validated using the case study from reference [22]. The dry plate was suspended beneath the bridge to collect chloride particles from the air. The dimensions of the dry plate were 100 mm × 100 mm. Noguchi measured the air salinity concentration and the chloride particle deposition on the dry plate from September 2015 to August 2016 [22]. The average wind speed during the test period was 0.6 m/s. As show in Figure 5, the pollutant deposition model for the dry plate was established in FLUENT software, with a computational domain of 1 m × 1 m and a grid size of 5 mm.

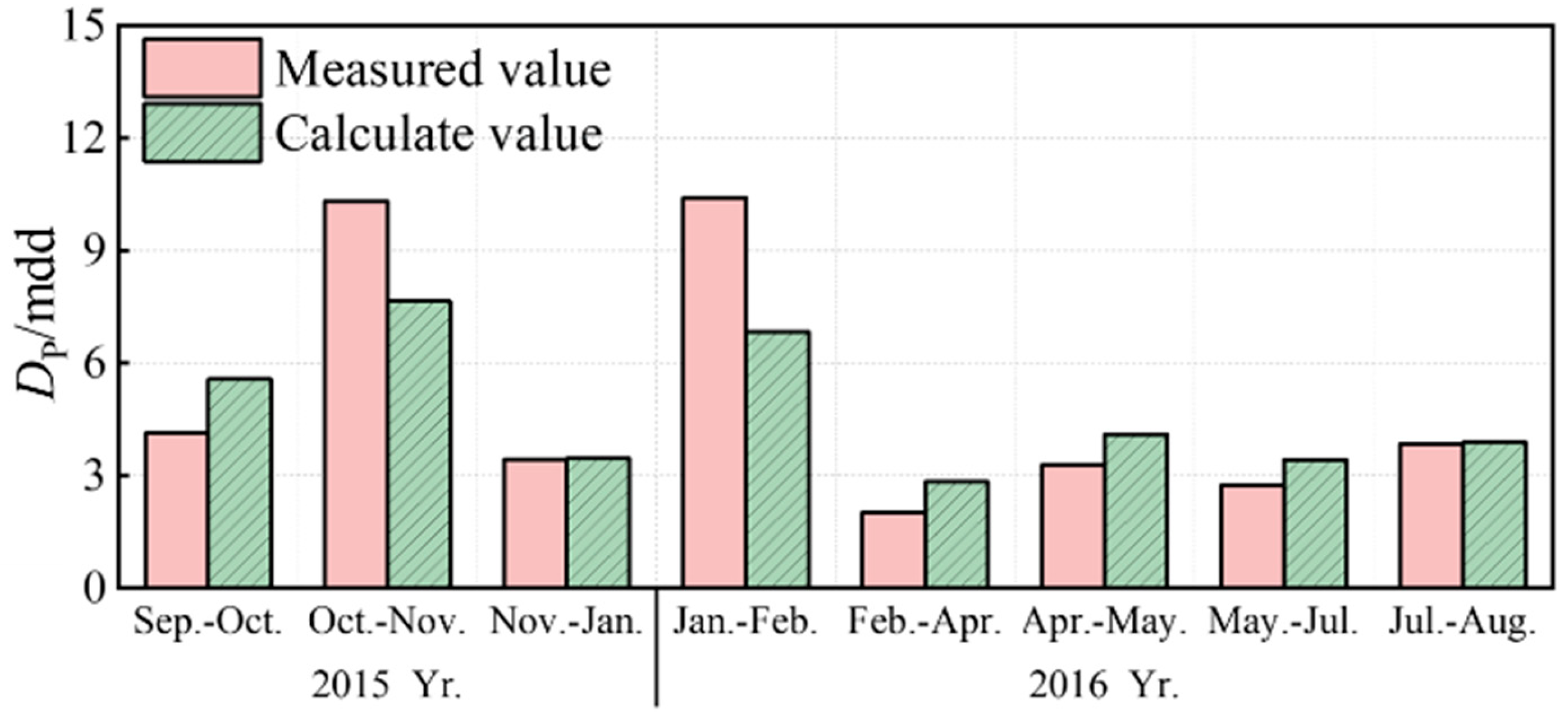

Figure 6 shows the measured and calculated values of the D_P. As shown in Figure 6, the trends of the measured and calculated values are generally consistent. The average deviation between the measured and calculated values is 3.58 mg·(m²·day)⁻¹ (mdd), with an average relative error of 19%. Except for November and February, the calculated values were generally slightly higher than the measured values. This is due to phenomena such as rainfall and condensation, which may wash away the pollutants deposited on the surface. The maximum deviation occurred in November 2015 and February 2016. This discrepancy is attributed to the occurrence of typhoons in Japan during these periods, causing the measured values to be significantly higher than the calculated values. From the perspective of exploring the differences in corrosion environments, the accuracy of the numerical simulation meets the requirements for the analysis.

4.2. Ts and RHs

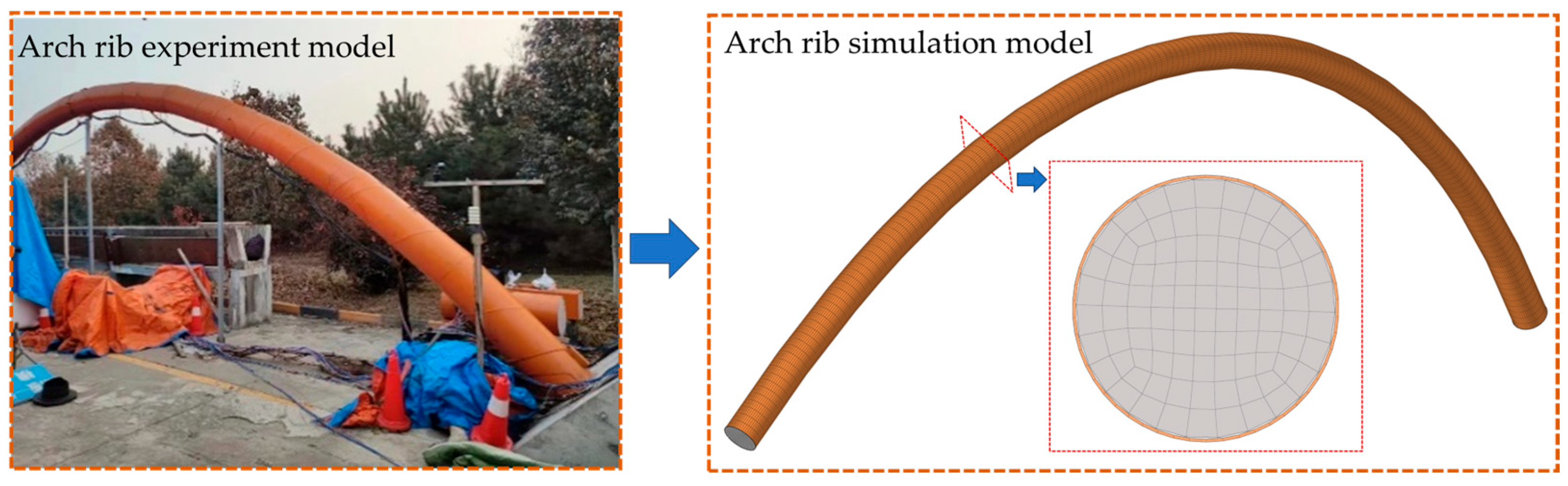

The accuracy of simulation method for the Ts and RHs is validated using the arch rib model from reference [21]. The arch rib model is located at 108° E longitude and 34° N latitude, with a north–south orientation. The span of the arch rib is 15 m, with a rise of 3.75 m and a rise-to-span ratio of 1/4. The arch axis follows a catenary curve, with an arch axis coefficient of 2.0. The cross-section of the arch rib is a circular steel tube with an outer diameter of 426 mm, using Q345 steel. The simulation model is shown in Figure 7. The element size along the cross-sectional direction is 200 mm, and along the longitudinal direction of the arch rib, the element size is 500 mm.

The measured and calculated values for the T_S and RH_S at the top of the arch rib are shown in Figure 8. As can be seen from the figure, the trends of the calculated and measured values are generally consistent. The T_S shows a higher value during the day and a lower value at night, while the RH_S shows the opposite, with a lower value during the day and a higher value at night. The maximum deviation for the T_S is 4.3 °C, with an average deviation of 2.4 °C. For the RH_S, the maximum deviation is 15.1%, with an average deviation of 3.5%. Therefore, the measured and calculated values for the T_S and RH_S are relatively close, indicating that the numerical simulation methods for the T_S and RH_S are suitable for the analysis of bridge corrosion environments.

5. Case Study of a CFST Bridge

5.1. Engineering Background

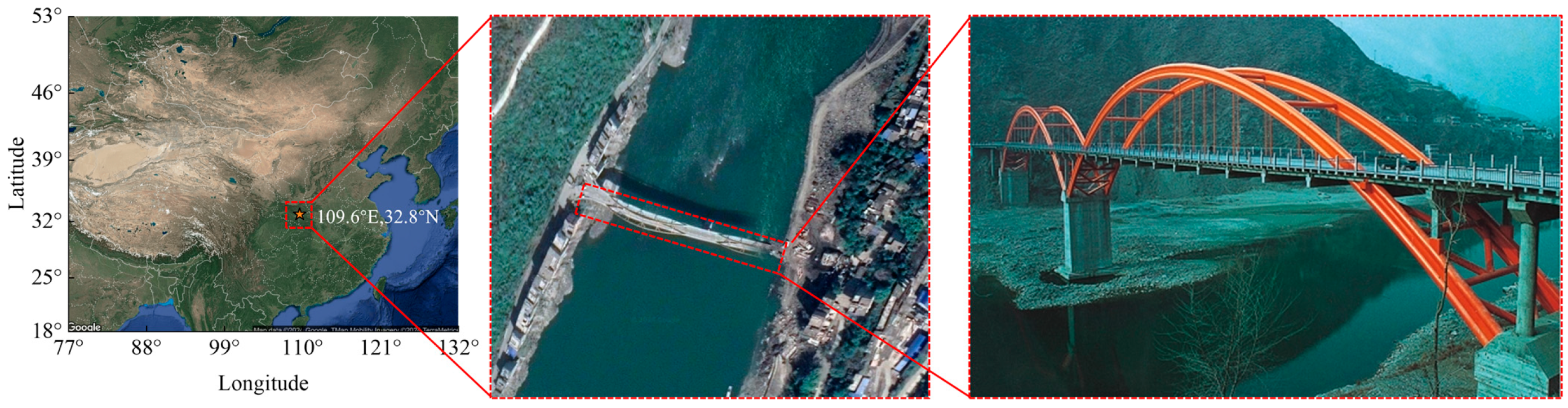

As shown in Figure 9, the case study examines a concrete-filled steel tube (CFST) arch bridge located in Ankang City, Shaanxi Province, China, at a longitude of 109.6° E and a latitude of 32.8° E. The superstructure of the main bridge comprises a 2 × 120 m CFST arch design with a mid-span support configuration. The arch ribs feature a dumbbell-shaped cross-section, and the hangers are constructed from parallel steel wire bundles. The bridge includes a total of 44 hangers, spaced 16 m apart. The dimensions of the bridge are detailed in Figure 10.

The bridge was completed and opened to traffic in 1999. During its service life, the arch ribs suffered severe corrosion damage. Ultimately, the bridge was dismantled in 2020. Notably, no coating maintenance was performed on the arch ribs throughout its operational period.

5.2. Simulation Model of P_d

The primary source of pollutants near the bridge site is the deicing salt applied during the winter. In this study, FLUENT (2020 R2) is used to simulate the movement and deposition of deicing salt. To simplify the computational process, only the ribs near the crown of the arch is considered, while the effects of cross-bracing is neglected. The computational domain and mesh division of the model are illustrated in Figure 11.

To minimize the influence of boundary conditions on the computational results, the length and width of the computational domain are set to 6 times the arch rib height and 17 times the arch rib width, respectively. A grid independence analysis is performed to determine the most appropriate mesh size. Five different mesh scales are used to calculate the wind speed near the arch rib, including case1 (with 41,309 grids), case2 (with 53,520 grids), case3 (with 76,272 grids), case4 (with 113,524 grids), and case5 (with 152,323 grids). The wind speed at a point 20 cm above the south arch crown is used as the criterion for comparison. The wind speed results for different mesh scales are shown in Figure 12. As can be seen from Figure 12, the calculated results are nearly identical when using case3, case4, and case5. To maximize computational efficiency, case3 is selected as the analysis model. The mesh size near the arch rib is refined to 10 mm, while the mesh size in the outer region is set to 100 mm. To accurately capture the airflow characteristics near the arch rib, a detailed boundary layer is established in its vicinity. The first layer of the mesh is set at 0.01 mm, with a total of 15 boundary layers.

The boundary conditions of the model are illustrated in Figure 13. The boundary conditions for the continuous phase (air) are abbreviated as CPBs, while those for the discrete phase (deicing salt) are abbreviated as DPB. For the inlet and outlet, the DPB are defined as a velocity inlet and a pressure outlet, respectively. The inlet velocity is set to the average winter wind speed of 0.50 m/s, while the outlet pressure is set to standard atmospheric pressure. All remaining CPBs are defined as the symmetry boundary.

The DPB at the inlet is defined as the injection boundary, assuming that deicing salt particles are emitted from the center of the inlet grid. The DPB of the arch rib surface is defined as the wall–film boundary, meaning that seven particles are assumed to adhere to the surface upon contact. To reduce the computational effort, particles are assumed to pass through other boundaries upon collision. Thus, the escape boundary is used for the DPB of other surfaces.

Relevant studies indicate that deicing salt can persist over an extended period within a horizontal range of 8 m from the road and up to 20 m in height [23]. According to statistics from the Shaanxi Provincial Department of Transportation, the usage rate of deicing salt in Shaanxi Province is approximately 0.39 tons per kilometer, with the sodium chloride concentration in the deicing salt being around 20%.

To simplify the calculations, it is assumed that the concentration of deicing salt remains constant during its retention period. The concentration of deicing salt in the model can be determined using Equation (5). For this case study, the NaCl concentration near the bridge site is calculated as 0.89 g/m³.

$$p_{\mathrm{nacl}}={\displaystyle \frac{m_{\mathrm{SALT}}\times n_{\mathrm{NACL}}}{h_{\mathrm{d}}\times l_{\mathrm{d}}}}$$

(5)

In the equation, p_nacl is the concentration of NaCl in the air (g∙m⁻³), m_salt is the sage of deicing salt per unit length (g∙m), h_d is the diffusion height of the deicing salt (m), and l_d is the diffusion width of the deicing salt (m).

According to the findings of Liu [24], deicing salt particles with a diameter of 30 μm are the most likely to deposit on structures. To simplify the calculations, the particle size in this study is uniformly set to 30 μm. The numerical analysis is performed using a transient simulation and the calculation timestep size is set to 0.01 s, with a total simulation time of 110 s. The SST k-ω model is selected to solve the turbulent flow within the flow field due to its excellent adaptability in similar analyses.

5.3. Simulation Model of T_S and RH_S

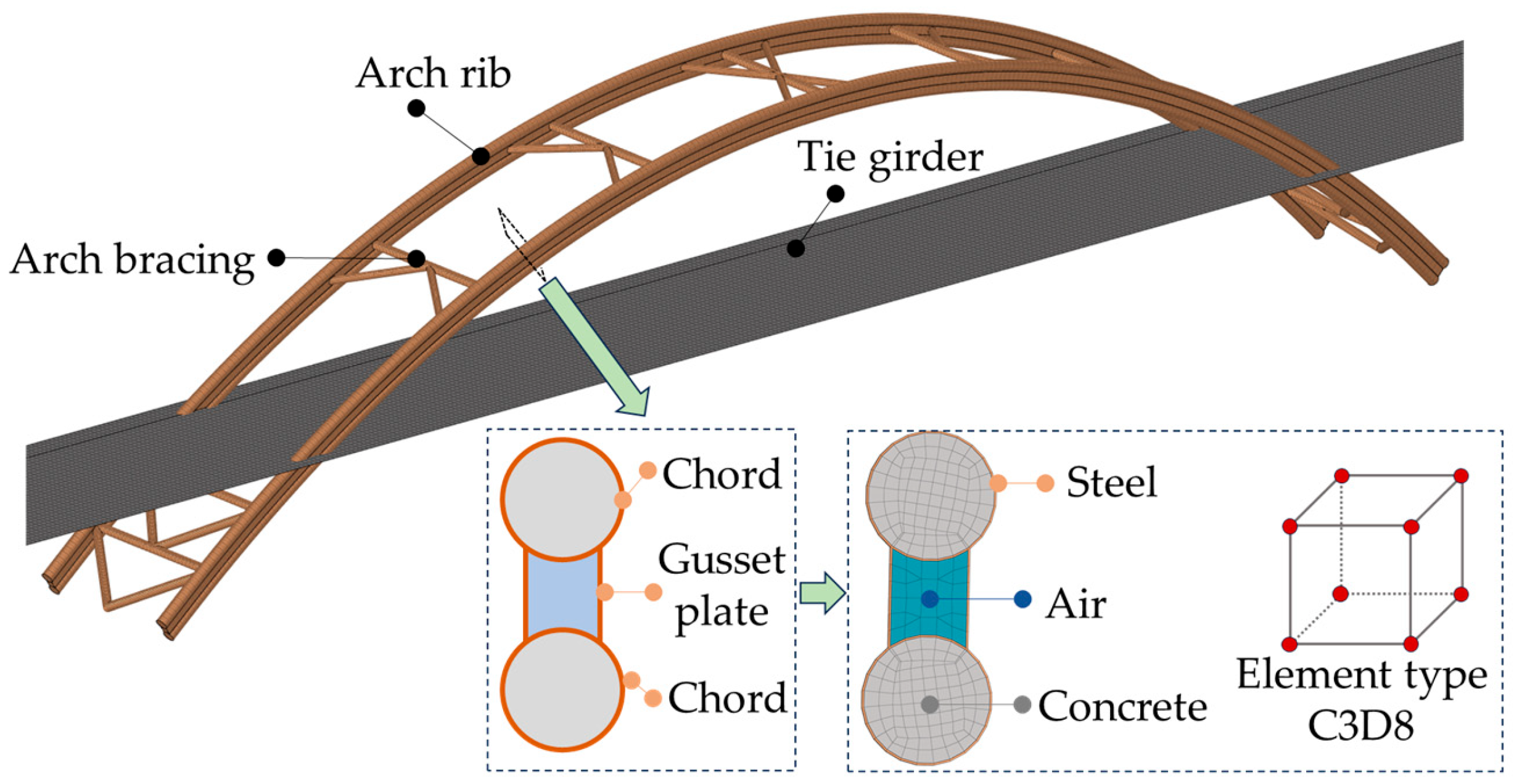

Based on the prior numerical simulation experience of the T_S and RH_S, the mesh division for the case study is illustrated in Figure 14. Steel tubes, concrete, and air were modeled using the C3D8 element. To ensure continuous heat transfer between the cross-bracing and the arch ribs, a tie constraint was utilized. The thermal properties of steel, concrete, and air are summarized in

Table 1. Thermal parameter.

Property	Unit	Steel	Air	Concrete
Density (20 °C)	kg∙m−3	7850	1.205	2500
Specific heat	J/(kg·°C)	460	1005	970
Thermal conductivity	W/(m·°C)	52	0.026	2.5
Absorptivity	/	0.80	/	/
Long-wave radiation coefficient	/	0.85	/	/

.

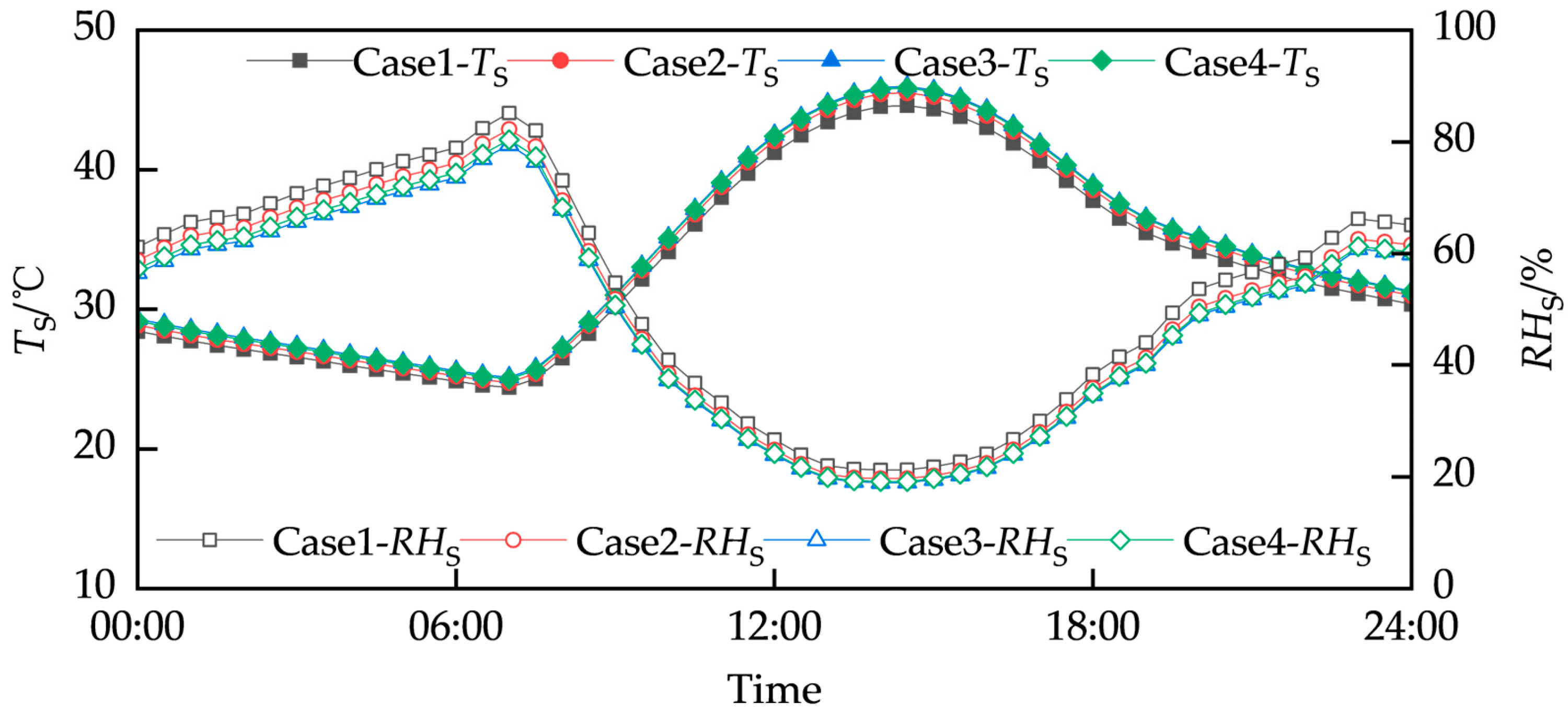

Four different kinds of mesh size were used to calculate the Ts and RHs for the arch bridge on 1 August 2021. The mesh sizes for case1 to case4 are as follows: 400 mm, 500 mm, 600 mm, and 700 mm, respectively. The calculation results are presented in Figure 15. As shown in Figure 15, the results for the other three cases are generally consistent, except for case1. For case2, a further reduction in the mesh size has little impact on the calculation results. Therefore, the element size is selected as 500 mm for the simulation.

The numerical analysis is performed using a transient simulation, and the calculation timestep size is set to 1800 s, with a total simulation time of 1 year. Meteorological data near the bridge site in 2020 were collected to serve as input parameters for the simulation model. These data include wind speed, solar radiation, ambient temperature, and ambient relative humidity. Additionally, the effective sky temperature is required to accurately account for long-wave radiation heat transfer between the steel bridge and the sky.

Relevant research indicates that the effective sky temperature was influenced by parameters such as ambient temperature (T_a) and ambient humidity (RH_a). The sky temperature is calculated using the method described in reference [21]. The meteorological data used in the model are illustrated in Figure 16.

6. Results of Micro-Environment

6.1. D_P

Figure 17 illustrates the motion of deicing salt particles around the arch ribs. At the start of the simulation, deicing salt particles are continuously emitted from the inlet and moved under the influence of wind. When the simulation time = 6 s and 8 s, the particles reach the windward and leeward sides of the arch rib, respectively. When the simulation time > 10 s, the particles fill the entire computational domain and their motion become essentially stable. Consequently, the results after the simulation time = 10 s were selected for analysis in this study.

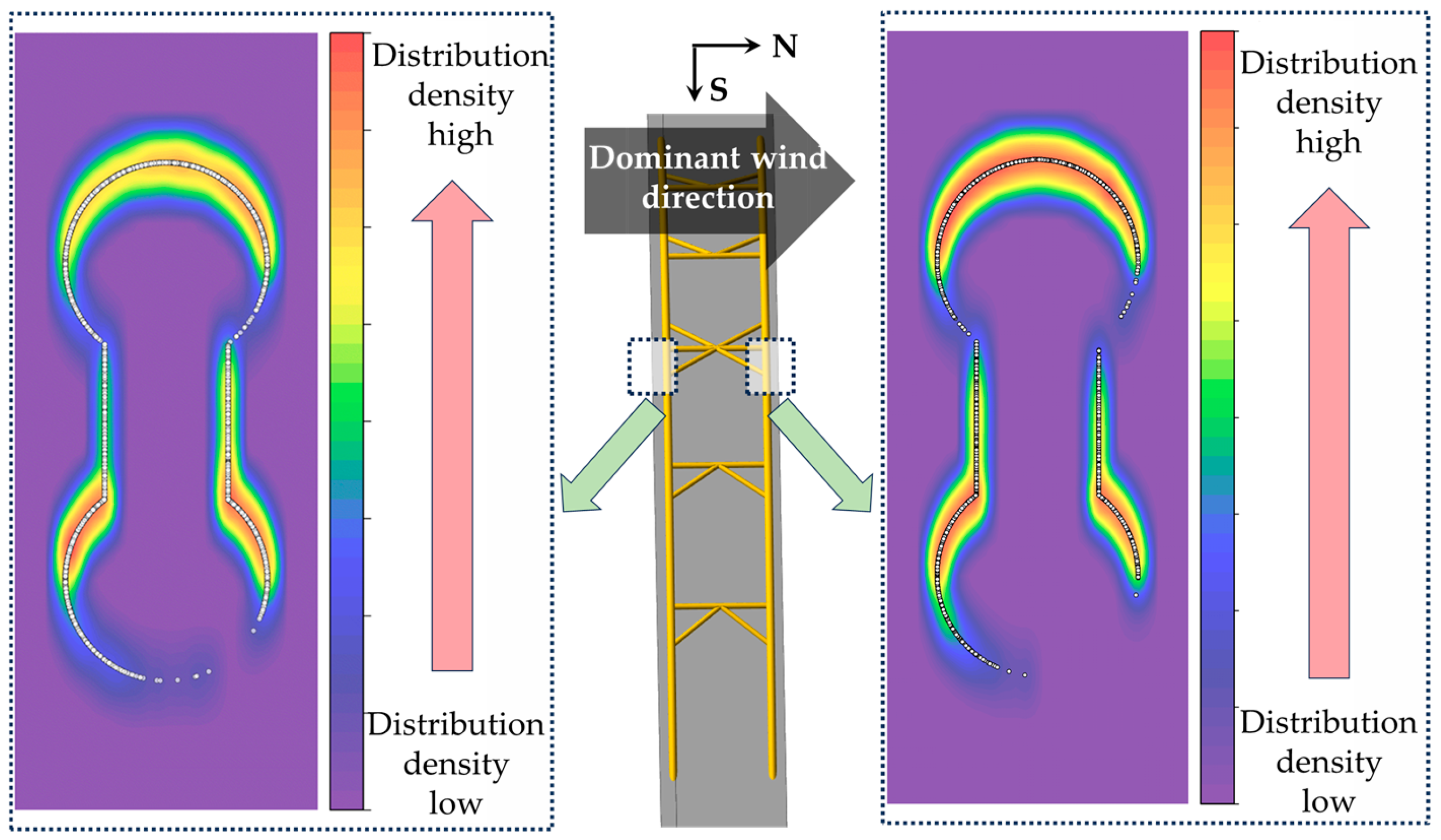

Figure 18 depicts the residual deicing salt on the arch ribs at the end of the simulation. The white dots represent the deicing salt particles adhering to the arch ribs. To differentiate the deposition of deicing salt particles across various locations on the arch rib, a background map illustrating the particle distribution density is overlaid on the image. In the map of distribution density, red indicates areas with high distribution density, while purple represents areas with sparse particle distribution.

Figure 18 reveals that the distribution pattern of deicing salt on the windward and leeward sides of the arch rib is generally similar. Deposition is most pronounced on the top of the upper chord and the top of the lower chord, while the bottom of the chords exhibits relatively less deposition. Notably, on the bottom of the leeward side of the lower chord, almost no pollutant particles are deposited.

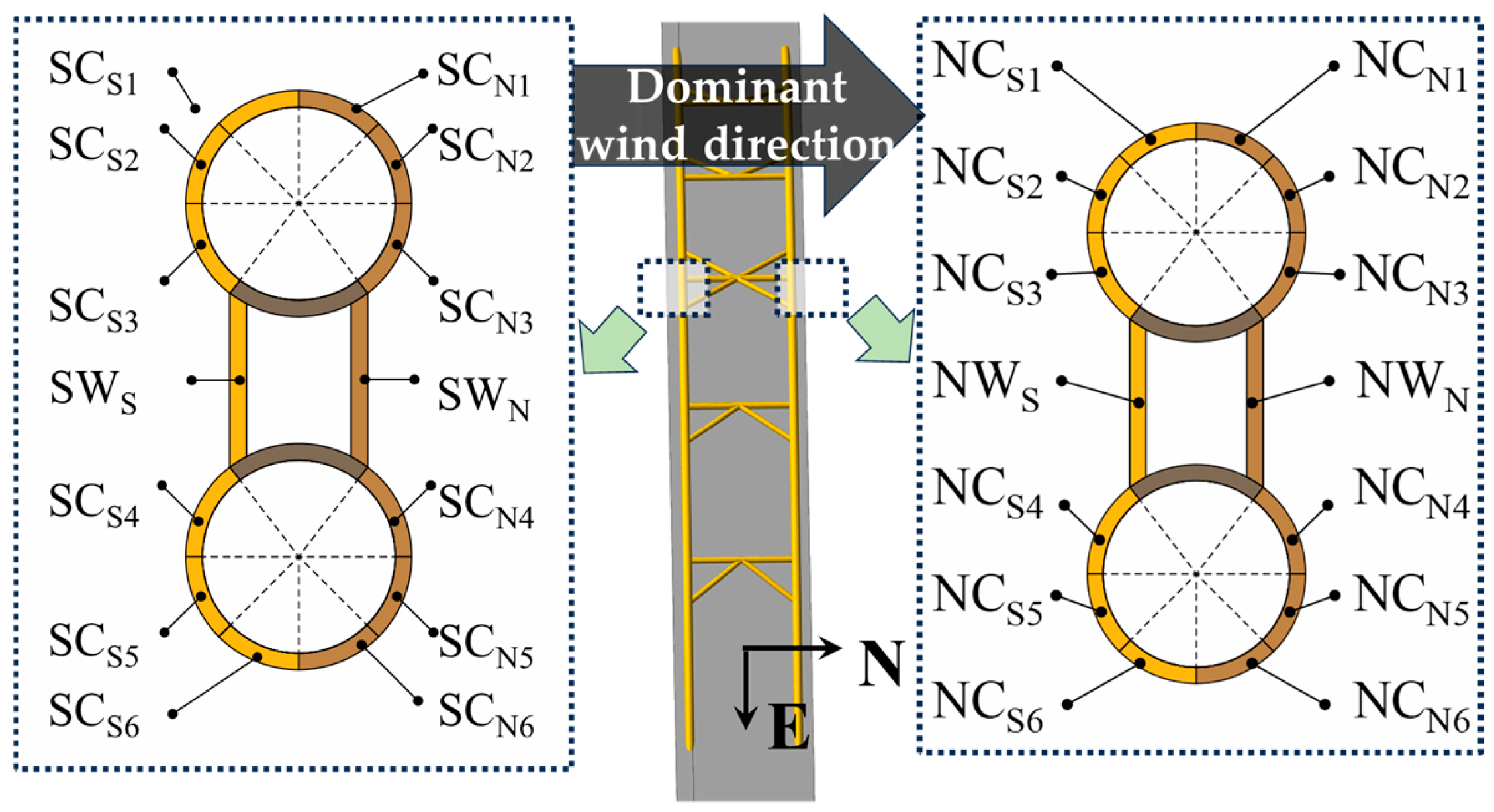

To conveniently analyze the deicing salt deposition of different position, the rib is divided into distinct regions. The partitioning and numbering method of each part is illustrated in Figure 19. The first letter identifies the arch ribs, with “S” and “N” representing the southern and northern arch ribs, respectively. In the second letter, “C” and “W” correspond to the arch rib and the batten plate, respectively. The subscript letters “S” and “N” indicate the southern and northern halves of the arch rib, respectively. The top of the upper chord and the bottom of the lower chord are excluded from the analysis due to the absence of deicing salt deposition. Consequently, each arch rib is divided into 14 regions in total.

Chloride ions from deicing salt had the most significant impact on atmospheric corrosion. The deposition rate of chloride ions was a critical parameter for characterizing atmospheric corrosivity and was expressed in milligrams per square meter per day. Existing studies have shown that deicing salt could persist near the bridge site for approximately one month after application. The deposition rate of chloride ions in different regions could be determined using Equation (6).

$$P_{\mathrm{cl}}={\displaystyle \frac{t_c\times n\times \frac{4}{3}\pi R^3\times \rho \times \frac{M_{cl}}{M_{nacl}}\times t_{\mathrm{r}}}{365}}$$

(6)

$$t_{\mathrm{c}}=t_{\mathrm{sp}}\times t_{\mathrm{r}}/t_{\mathrm{y}}$$

(7)

In the equation, P_cl is the deposition rate of chloride ions, where the unit is mg·(m²·day)⁻¹; n is the number of deposited pollutant particles; R is diameter of the particle, set to 30 μm in this study; ρ is the particle density, taken as 2160 kg m⁻³; M_cl is the molar mass of chloride ions; M_nacl is the molar mass of sodium chloride; and t_c is a time correction factor, which can be determined by Equation (7). In Equation (7), t_sp represents the proportion of simulation time within one day. In this paper, the simulation time is 100 s and t_sp is 100/86400, t_r is the retention time of deicing salt in the air, assumed to be 30 days in this study, and t_y is the total number of days in a year.

Table 2. Deposition rate of chloride ions.

Position	Deposition (Mdd)	Position	Deposition (Mdd)
NCN1	3.872 × 101	SCN1	2.500 × 101
NCN2	1.970 × 101	SCN2	1.871 × 101
NCN3	6.238 × 10−2	SCN3	3.829 × 10−1
NWN	3.025 × 100	NWN	6.400 × 100
NCN4	2.332 × 101	SCN4	2.813 × 101
NCN5	2.486 × 10−3	SCN5	1.591 × 10−1
NCN6	1.500 × 10−6	SCN6	9.943 × 10−3
NCS1	4.429 × 101	SCS1	1.916 × 101
NCS2	2.885 × 101	SCS2	1.056 × 101
NCS3	9.185 × 10−1	SCS3	1.091 × 100
NWS	4.5117 × 100	NWS	1.665 × 100
NCS4	2.990 × 101	SCS4	3.143 × 101
NCS5	1.983 × 100	SCS5	8.650 × 10−1
NCS6	5.468 × 10−2	SCS6	1.193 × 10−1

presents the deposition rate of chloride particles. As shown in the table, the differences in deposition rate across different parts are significant. For the northern arch rib, the maximum deposition amount is 4.429 × 10¹ mmd, recorded at NC_S1, while the minimum deposition is just 1.500 × 10⁻⁶ mmd, observed at NC_N6. Similarly, for the southern arch rib, the highest deposition amount is 3.143 × 101 mmd, recorded at SC_S4, whereas the lowest deposition is only 9.9 × 10⁻⁴ mmd, observed at SC_N6.

For the southern arch rib, the maximum deposition occurs at the intersection of the lower arch rib and the gusset plate, whereas for the northern arch rib, it is recorded at the arch crown. This phenomenon is closely related to the airflow patterns around the arch ribs.

Figure 20 illustrates the streamlines of airflow surrounding the arch ribs. The airflow diverges around the southern arch rib and forms vortices at its trailing edge. At the intersection of the gusset plate and the lower chord, the airflow is directed downward. Combined with the gravitational settling of deicing salt particles, this results in increased deposition at the junction of the lower chord and the gusset plate. In traditional understanding, vortices around bridges can trigger vortex-induced vibrations, which may lead to excessive structural displacement and even collapse [25,26,27]. In the case presented in this study, the vortices around the structure affect the direction of the surrounding airflow, influencing the deposition of chlorides. Therefore, accurately identifying the vortices around bridges should be given attention in corrosion environment assessments.

In contrast, the wind speed around the northern arch rib is significantly lower than that around the southern arch rib, reducing the influence of wind on particle deposition. Consequently, the particles deposited on the northern arch rib are primarily driven by gravity. Horizontal surfaces facing the sky exhibit greater levels of chloride accumulation.

6.2. T_S

As the bridge is oriented along a north–south axis, the amount of solar radiation received by the southern and northern arch ribs is similar. Consequently, the surface temperature differences between the southern and northern arch ribs are negligible. This section, therefore, focuses on analyzing the cross-section at the crown of the southern arch rib.

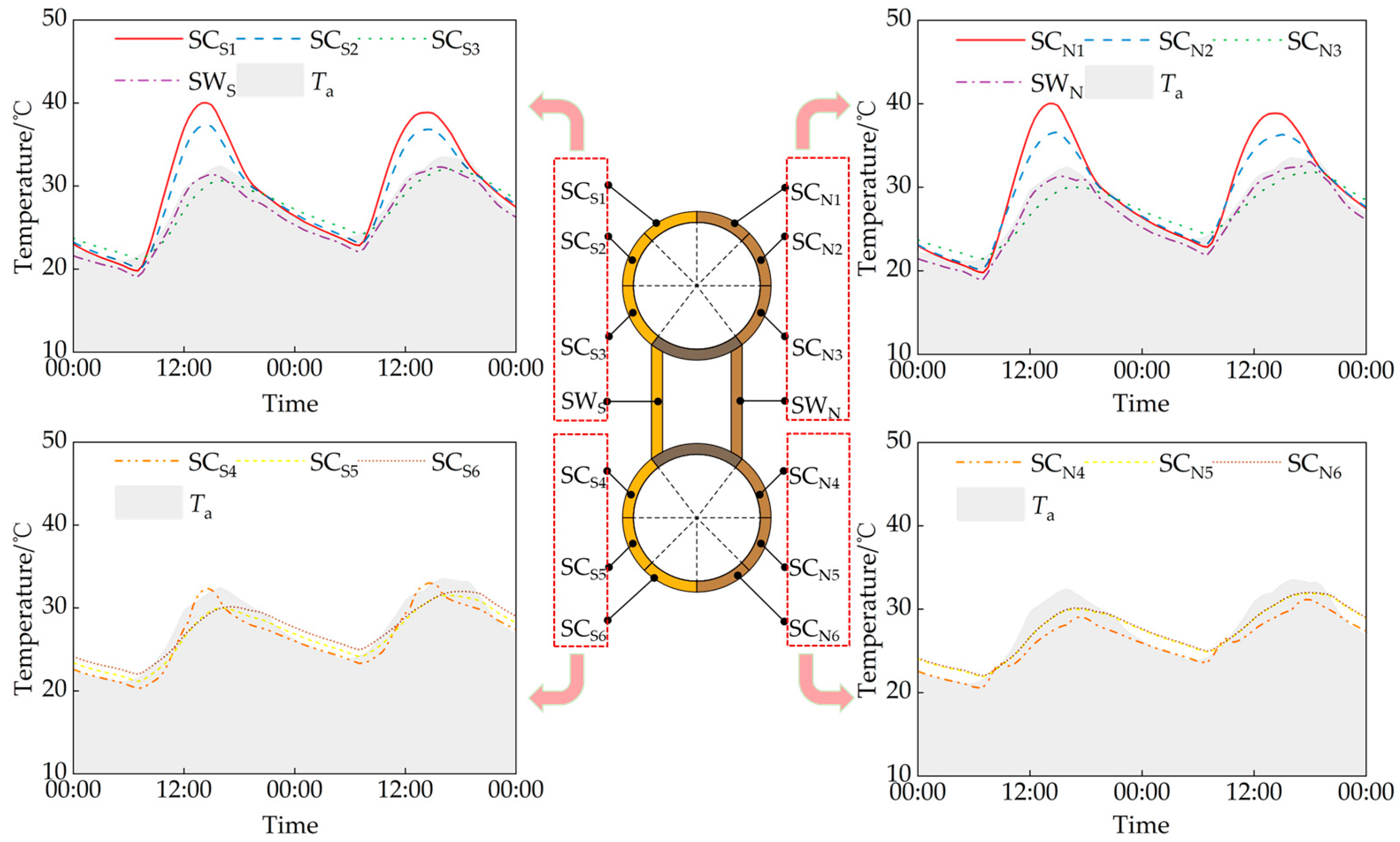

Figure 21 presents the time–history curves of the average T_S for different parts of the arch rib compared to the ambient temperature (T_a). As shown in Figure 21, the T_S and T_a exhibit a sinusoidal variation pattern over the course of a day, with higher temperatures during the daytime and lower temperatures at night. However, the amplitude of variation between the T_S and T_a changes throughout the day.

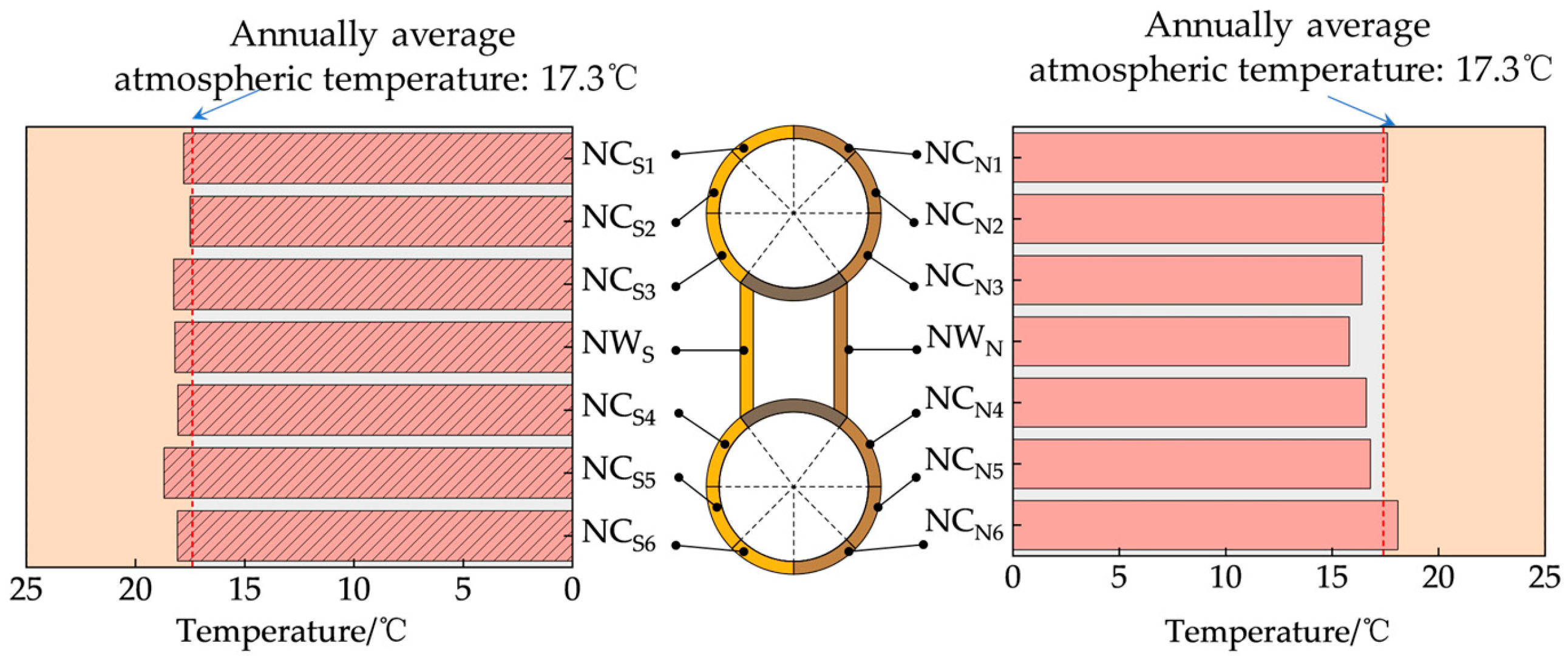

The annual average temperature is often considered a key parameter for characterizing atmospheric corrosion environments. To quantify the differences between the T_S and T_a over the course of a year, Equation (8) is used to calculate the annual average T_S for different regions of the arch ribs. The results of the annual average T_S are illustrated in Figure 22. The annual average T_S of the southern arch rib are consistently higher than the annual average T_a. The location with the highest annual average temperature is NC_S5, reaching 18.70 °C, which is 1.4 °C higher than the annual average T_a. Except for NC_N1 and NC_N6 on the northern arch rib, the annual average T_S at other locations on the northern arch rib are lower than the annual average T_a. The lowest annual average temperature is observed at NW_N, reaching 15.82 °C, which is 1.48 °C lower than the annual average T_a.

$$\Delta T_{\mathrm{S}\text{-}\mathrm{A}}={\displaystyle \frac{{\displaystyle \sum _{t=1}^{t_{\max }}{\displaystyle \sum _{i=1}^j{T}_{\mathrm{St}i}\times A_i}}}{t_{\max }\times {\displaystyle \sum _{i=1}^j{A}_i}}}$$

(8)

In the equation, t is the analysis steps during the numerical calculation process and t_max is the maximum analysis step in the calculation. In this study, the numerical simulation period is 1 year, with an analysis step size of 1800 s and a maximum analysis step of 17,521; i is the index of an element within the domain; j is the total number of elements in the domain; T_Sti is the T_S of the i-th element at the t-th analysis step; and A_i is the area of the i-th element.

The above analysis indicates that the T_S of the arch rib and the T_a generally exhibit similar diurnal variation patterns, though with differences in amplitude. This phenomenon leads to discrepancies in the daily temperature extremes of the arch rib and the air. However, over the course of a year, the difference between the annual average T_S of the arch rib and the annual average T_a is minimal. This may be attributed to the relatively large diameter of the chord members, where the internal concrete provided excellent insulation. Relevant studies suggested that when the concrete thickness exceeds 0.5 m, internal temperature variations become essentially stable [28]. In the case of the chord members being 0.82 m, the insulating effect on the structure is even more pronounced.

6.3. RH_S

Similarly to the T_S, the cross-section at the crown of the southern arch rib is selected to analyze the RH_S. Figure 23 presents the time–history curves of the RH_S and RH_a. Both the RH_S and RH_a exhibit a sinusoidal diurnal variation, with lower values during the day and higher values at night. On the sunlit side, the amplitude of surface humidity variation at the top of the arch rib is greater than that at the bottom. This phenomenon is attributed to direct solar radiation on the top of the arch rib, where intense temperature fluctuations lead to significant surface humidity variations. During the daytime, the RH_S of the south side is higher than that on the north side, with the difference being particularly pronounced at the top of the lower chord.

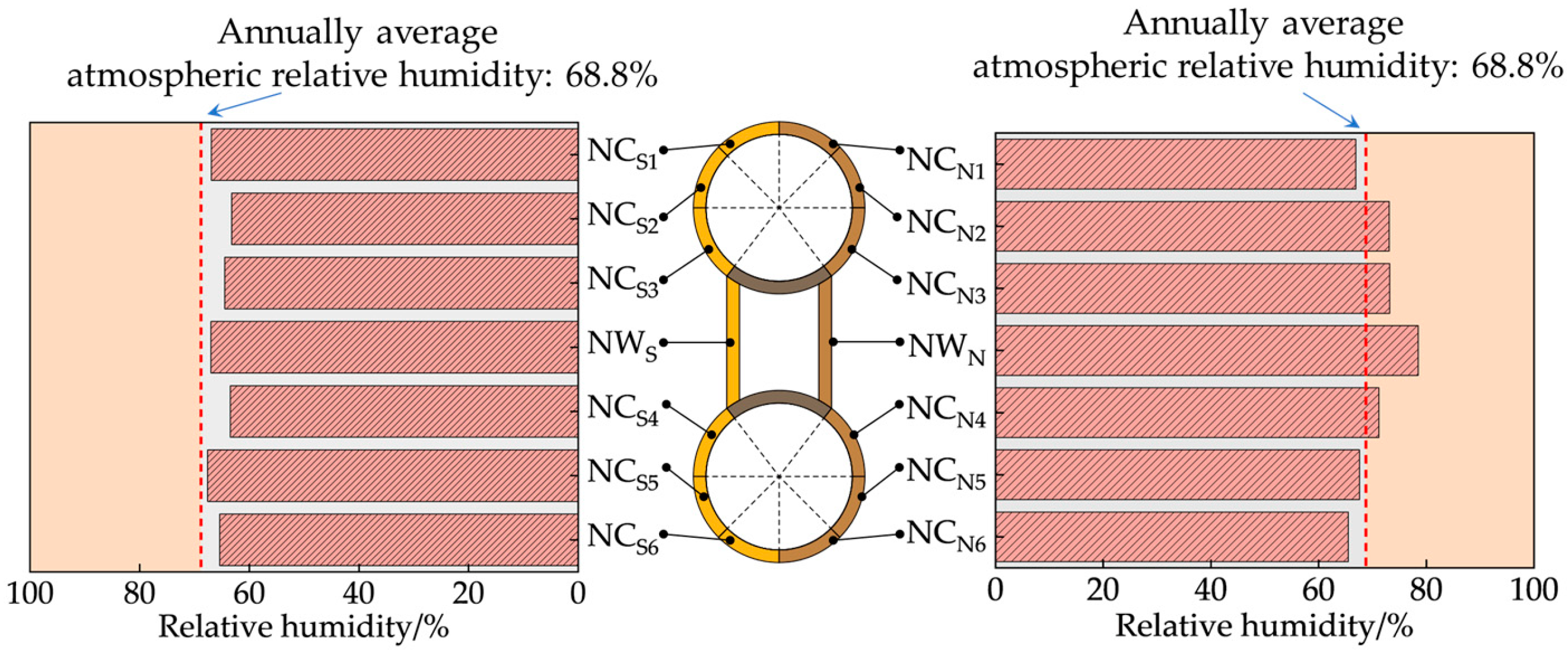

The annual average humidity is another critical parameter for characterizing atmospheric corrosion environments. To quantify the differences between the RH_S and RH_a over a year, Equation (9) is used to calculate the annual average RH_S. The results of the RH_S and RH_a are plotted in Figure 24. The annual average RH_S of the southern side is consistently lower than that of the northern side and also lower than the annual average RH_a. This is because the southern sides of the arch ribs are exposed to sunlight for most of the year, which reduces the RH_S. The lowest RH_S is observed at SC_S2, reaching 62.9%, which is 5.9% lower than the annual average RH_a. As for the northern arch rib, except for SC_N1, SC_N5, and SC_N6, the RH_S at all other locations is higher than the RH_a. The highest RHS is 78.6%, exceeding the average ambient RH_a by 9.8%.

$$\Delta R{H}_{\mathrm{S}\text{-}\mathrm{A}}={\displaystyle \frac{{\displaystyle \sum _{t=1}^{t_{\max }}{\displaystyle \sum _{i=1}^{j}R{H}_{\mathrm{St}i}\times A_i}}}{t_{\max }\times {\displaystyle \sum _{i=1}^j{A}_i}}}$$

(9)

In the equation, RH_Sti is the surface humidity of the i-th element at the t-th analysis step. The meanings of the other parameters are identical to those in Equation (7).

7. Atmospheric Corrosion Rate Prediction

The first-year corrosion rate is generally influenced by factors such as temperature, relative humidity, and the deposition of pollutants. The standard recommends using Equation (8) to calculate the first-year corrosion rate of steel.

$$r_{\mathrm{corr}}=1.77\cdot P_{\mathrm{d}}^{0.52}\cdot \exp \left(0.020\cdot \mathrm{RH}+f_{\mathrm{St}}\right)+0.102\cdot S_{\mathrm{d}}^{0.62}\cdot \exp (0.033\cdot \mathrm{RH}+0.040\cdot T)$$

(10)

In the equation, r_corr is first-year corrosion rate of metal, expressed in micrometers per year (μm·a⁻¹); T is the annual average temperature, expressed in degrees Celsius (°C); RH is the annual average relative humidity, expressed as a percentage (%); P_d is the annual average SO₂ deposition, expressed in mmd; and S_d is the annual average cl⁻ deposition, expressed in mmd.

Most researchers commonly use relative humidity and temperature values as RH_a and T_a, respectively, as these parameters are easily obtained from sensors at meteorological stations. For structures in non-industrial areas, researchers typically assume chloride ion originate from sea salt deposition. Based on relevant engineering experience, the amount of sea salt deposition is correlated with the distance from the coastline and could be determined using the following formula:

$$P_{\mathrm{d}}=43.23\times x^{-0.47}$$

(11)

In the equation, P_d is deposition of cl⁻ and x is the distance from the sea (km).

The average T_a and RH_a near the bridge site are collected, and the deposition of cl⁻ is calculated using Equation (9). Based on the empirical formula recommended by the standards (Equation (9)), the first-year corrosion rate is determined to be 2.9 μm/y.

The analysis in Section 5 revealed significant differences in the annual average T_S, RH_S, and S_d across various locations on the arch rib. The corrosion rate of the arch rib accounting for the micro-environment could be determined using these parameters. And the results of the corrosion rate are plotted in Figure 25. When the micro-environment was uniform, that is when the corrosion prediction was based on the T_a, the RH_a, and Equation (9), the corrosion rate is uniform. However, after accounting for the micro-environment, the maximum corrosion rate on the leeward side of the chord member reaches 18.5 μm/y, which is 4.4 times greater than the uniform corrosion rate.

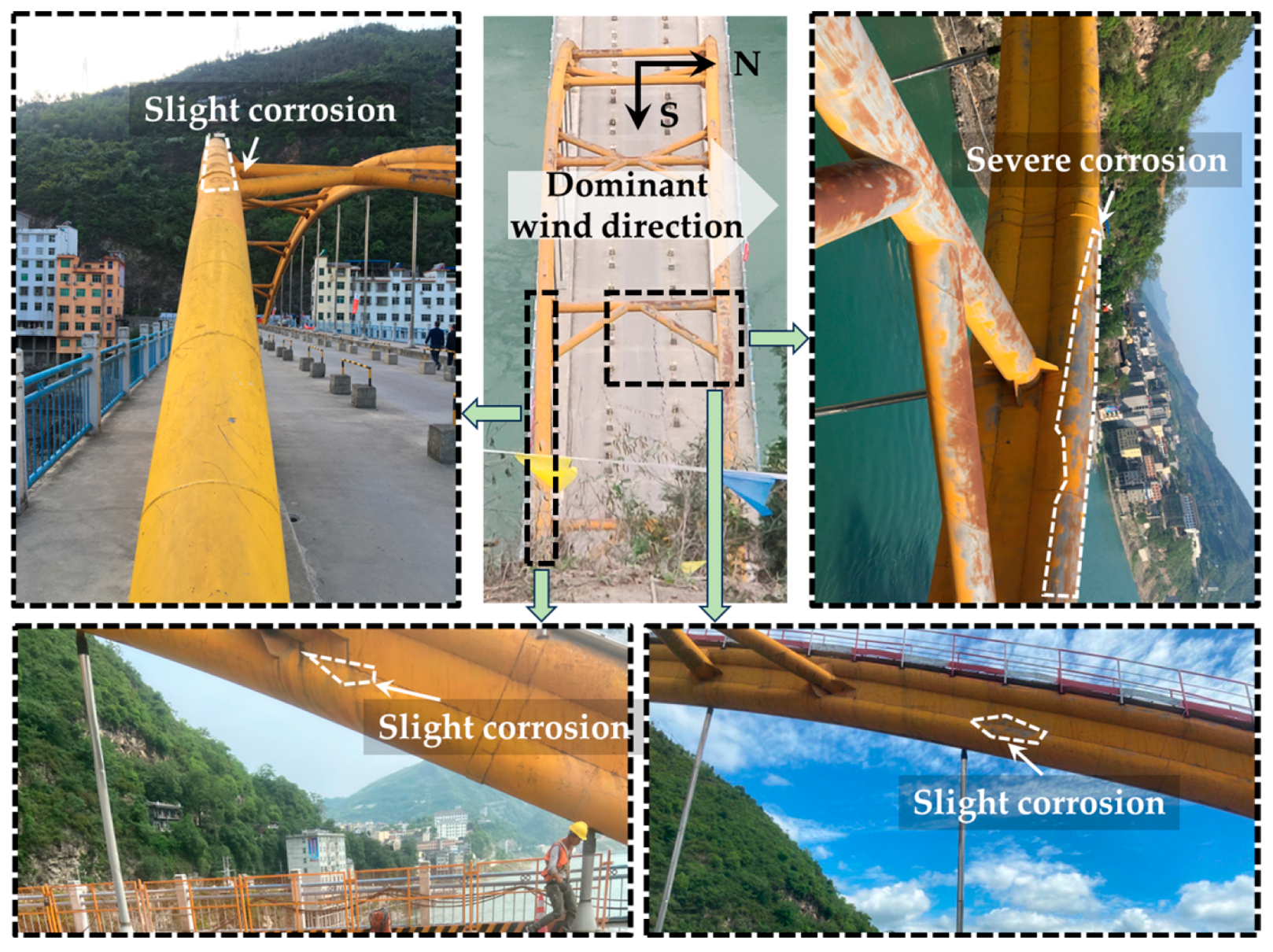

Figure 26 illustrates the corrosion state of the engineering structure prior to its demolition. Compared to the windward side, the top of the upper chord on the leeward side of the arch rib exhibits significant corrosion. Additionally, isolated corrosion spots are observed at the junction between the gusset plate and the lower chord. The results of the corrosion rate demonstrates that the highest corrosion rate occurs at the top of the leeward-side chord, ranging from 11.9 to 18.5 μm/y. The corrosion rates at the junction between the gusset plate and the lower chord are slightly lower, ranging from 14.1 to 14.6 μm/y.

The above analysis indicated that corrosion rates ignoring the micro-environment tend to be uniform. However, in reality, atmospheric corrosion on steel bridges is often non-uniform. This non-uniform corrosion phenomenon is primarily associated with variations in the micro-environment across different locations on the steel bridge. The influence of the micro-environment should be considered to ensure an accurate assessment of environmental corrosivity.

For this bridge, the annual average T_S and RH_S across different parts of the arch rib does not exhibit significant differences. The primary cause of the non-uniform corrosion is the uneven deposition of deicing salts. Although many researchers recommend bridge washing after the application of de-icing salts, unfortunately, no maintenance facilities are designed for arch ribs. Therefore, it is difficult to implement washing measures for the arch ribs. The prolonged and cumulative deposition of chloride ions ultimately leads to an unfortunate situation where the bridge has to be dismantled due to severe corrosion. As shown in Figure 27, drawing from the experiences and lessons of the previous bridge, the new design incorporates convenient inspection pathways to mitigate the influence of chloride ions by regularly cleaning the new bridge.

8. Conclusions

(1)

For steel bridges, micro-environmental factors, such as pollutant deposition on the steel surface (D_P), the temperature of the air nearby the steel surface (T_S), and the relative humidity of the air nearby the steel surface (RH_S), are the primary contributors to atmospheric corrosion rates.

(2)

Within a single day, the T_S exhibits a sinusoidal variation, with higher temperatures during the day and lower temperatures at night. The concrete of the dumbbell-shaped chord effectively provides thermal insulation for the structure. Across different sections of the arch rib, the annual average T_S deviates from the average ambient temperature by no more than 1.48 °C.

(3)

Both the ambient relative humidity and RH_S exhibit sinusoidal variations throughout the day. The RH_S remains low during the day and increases significantly at night. The annual average RH_S on the illuminated side is lower than that on the shaded side, with a maximum difference of up to 15.7%.

(4)

Wind direction causes differences in pollutant deposition between the two arch ribs. The windward arch rib experiences less deicing salt deposition compared to the leeward side. Variations in the inclination angle of components also contribute to differences in deposition across different sections of the arch ribs. Areas with an inclination angle close to 0° and facing the sky tend to accumulate higher amounts of pollutants.

(5)

After considering the micro-environment, the corrosion rate becomes non-uniform and is more aligned with reality. For the case in this paper, the primary cause of the non-uniform corrosion is the uneven deposition of deicing salts. Designing accessible maintenance facilities and conducting the regular cleaning of the bridge may help alleviate the non-uniform corrosion phenomenon.

The micro-environment numerical simulation method established in this paper helps to understand the phenomenon of the non-uniform atmospheric corrosion of steel bridges from a mechanism level. Using this method, the harsh service environment of steel bridges could be predicted, which helps to find the rapid corrosion locations of steel bridges in advance during the design stage. Establishing the relationship between the micro-environment and the corrosion rate of steel is expected to provide a basis for the prediction of the non-uniform atmospheric corrosion rate of steel bridges. In addition, this method provides an analytical means for the atmospheric corrosion disease analysis of all infrastructure exposed to the atmosphere, such as transmission towers, sluice gates, signal towers, etc.
