Host EPAC1 Modulates Rickettsial Adhesion to Vascular Endothelial Cells via Regulation of ANXA2 Y23 Phosphorylation

by
Zhengchen Su
1,
Thomas R. Shelite
2,
Yuan Qiu
1,
Qing Chang
1,
Maki Wakamiya
3,
Jiani Bei
1,
Xi He
1,
Changcheng Zhou
1,
Yakun Liu
1,
Emmanuel Nyong
1,
Yuejin Liang
4,
Angelo Gaitas
5,
Tais B. Saito
6,* and
Bin Gong
1,7,8,*
1
Department of Pathology, University of Texas Medical Branch, Galveston, TX 77555, USA
2
Division of Infectious Disease, Department of Internal Medicine, University of Texas Medical Branch, Galveston, TX 77555, USA
3
Department of Neurology, University of Texas Medical Branch, Galveston, TX 77555, USA
4
Department of Microbiology and Immunology, University of Texas Medical Branch, Galveston, TX 77555, USA
5
The Estelle and Daniel Maggin Department of Neurology, Icahn School of Medicine at Mount Sinai, 1468 Madison Ave, New York, NY 10029, USA
6
The Vector-Pathogen-Host Interaction Unit, Laboratory of Bacteriology, Rocky Mountain Laboratories, National Institute of Allergy and Infectious Diseases, National Institutes of Health, Hamilton, MT 59840, USA
7
Sealy Center for Vector Borne and Zoonotic Diseases, University of Texas Medical Branch, Galveston, TX 77555, USA
8
The Center of Biodefense and Emerging Infectious Diseases, University of Texas Medical Branch, Galveston, TX 77555, USA
*
Authors to whom correspondence should be addressed.
Pathogens 2021, 10(10), 1307; https://doi.org/10.3390/pathogens10101307
Submission received: 25 September 2021 / Revised: 6 October 2021 / Accepted: 10 October 2021 / Published: 12 October 2021
(This article belongs to the Special Issue Cutting-Edge Approaches in Pathogen Study)
Browse Figures
Versions Notes

Abstract

:
Introduction: Intracellular cAMP receptor exchange proteins directly activated by cAMP 1 (EPAC1) regulate obligate intracellular parasitic bacterium rickettsial adherence to and invasion into vascular endothelial cells (ECs). However, underlying precise mechanism(s) remain unclear. The aim of the study is to dissect the functional role of the EPAC1-ANXA2 signaling pathway during initial adhesion of rickettsiae to EC surfaces. Methods: In the present study, an established system that is anatomically based and quantifies bacterial adhesion to ECs in vivo was combined with novel fluidic force microscopy (FluidFM) to dissect the functional role of the EPAC1-ANXA2 signaling pathway in rickettsiae–EC adhesion. Results: The deletion of the EPAC1 gene impedes rickettsial binding to endothelium in vivo. Rickettsial OmpB shows a host EPAC1-dependent binding strength on the surface of a living brain microvascular EC (BMEC). Furthermore, ectopic expression of phosphodefective and phosphomimic mutants replacing tyrosine (Y) 23 of ANXA2 in ANXA2-knock out BMECs results in different binding force to reOmpB in response to the activation of EPAC1. Conclusions: EPAC1 modulates rickettsial adhesion, in association with Y23 phosphorylation of the binding receptor ANXA2. Underlying mechanism(s) should be further explored to delineate the accurate role of cAMP-EPAC system during rickettsial infection.

1. Introduction

Rickettsioses are devastating human infections [1]. These arthropod-borne diseases are caused by obligate intracellular bacteria of the genus Rickettsia (R.), including R. rickettsii [2,3] and R. parkeri [4,5,6] that cause Rocky Mountain spotted fever and R. parkeri rickettsiosis [7], respectively; R. conorii, the causative agent of Mediterranean spotted fever [8]; and R. australis, which is a part of the transitional group (TRG) [9] and causes Queensland tick typhus [10]. A licensed vaccine is not available. Microvascular endothelial cells (ECs) are the primary targets of infection, and edema resulting from EC barrier dysfunction occurs in brain and lung in most cases of lethal spotted fever group (SFG) and TRG rickettsial infections in humans [1,2,9]. Typically, rickettsial infections are controlled by appropriate broad-spectrum antibiotic therapy if diagnosed early [2,3]. However, rickettsial infections can cause nonspecific signs and symptoms rendering early clinical diagnosis difficult [11,12]. Untreated or misdiagnosed R infections are frequently associated with severe morbidity and mortality [1,3,13,14,15]. Although doxycycline is the antibiotic of choice for R infections, it only stops bacteria from reproducing, but does not kill the rickettsiae. A fatality rate as high as 32% has been reported in hospitalized patients with Mediterranean spotted fever [15]. It is forecasted that global climate change will lead to more widespread distribution of rickettsioses [16,17]. Comprehensive understanding of rickettsial pathogenesis is urgently needed for the development of novel therapeutics [6,14,18,19,20,21,22].
cAMP is one of the most common and universal second messengers. cAMP regulates a myriad of important biological processes under physiological and pathological conditions. Therefore, current pharmaceutical medications target the cAMP signaling pathway more than any other [23]. cAMP translates environmental signals into regulatory effects in cells [24,25,26,27,28]. As such, several microbial pathogens have evolved a set of diverse virulence-enhancing strategies that exploit the cAMP signaling pathways of their hosts [29,30,31,32,33,34]. cAMP-based cell signaling mediated by intracellular cAMP receptors, exchange proteins directly activated by cAMP (EPAC)1 and 2, is one of major contributors to the transduction of the effects of cAMP [35,36,37]. In ECs, EPAC1, not EPAC2, is the dominant isoform [38,39,40]. We have been interested in host cAMP signaling pathways for their possible roles in rickettsial infection and reported that both genetic depletion and pharmacological inactivation of the host EPAC1 protected mice from fatal rickettsioses [29]. Our ex vivo and in vitro evidence further support that the inhibition of intracellular EPAC1 suppressed rickettsial adherence to and invasion into ECs [29]. However, underlying precise mechanism(s) remain to be dissected.
The mechanism(s) underlying bacterial adherence to vascular endothelial cells (ECs) under shear stress from flowing blood is critical to our understanding the initial stages of the pathogenesis of endovascular bacterial infections. The constitutively expressed native proteins on and/or in the mammalian host plasma membrane play crucial functional role(s) during the initial stage of infection, just prior to EC activation. Recently we reported that endothelial surface annexin A2 (ANXA2), a well-characterized plasminogen and plasminogen activator receptor [41,42], functions as a receptor for SFG [9] and TRG [43] rickettsial adhesin outer membrane protein B (OmpB) binding and is also involved in establishing Staphylococcus aureus adhesion to EC surfaces [44]. Meanwhile, we reported that intracellular EPAC1 modulates ANXA2 tyrosine (Y) 23 phosphorylation, and inactivation of EPAC1 suppresses ANXA2 expression on the EC luminal surface by downregulating Y23 phosphorylation [45]. We are now extending these works to determine whether the identified EPAC1-ANXA2 signaling pathway is involved in the regulation of rickettsial adhesion to ECs.
In the present study, an established, anatomically based, in vivo quantitative system that measures bacterial adhesion to ECs [44] was combined with novel fluidic force microscopy (FluidFM) to dissect the functional role of the EPAC1-ANXA2 signaling pathway during initial adhesion of rickettsiae to EC surfaces. We corroborate that the deletion of the EPAC1 gene impedes rickettsial binding to endothelium in vivo. A study coupling FluidFM and site-directed mutagenesis with a single, living brain microvascular EC (BMEC) provides evidence to support that EPAC1 governs rickettsial adhesion to EC surfaces in association with regulation of ANXA2 Y23 phosphorylation.

2. Results

2.1. In Vivo Corroborating Rickettsial Adhesion to EC Surfaces in an EPAC1-Dependent Manner

Our previous work provided in vitro and ex vivo evidence that EPAC1 plays a critical regulatory role in the early stage of rickettsial invasion into nonphagocytic host cells [29]. Using our recently established in vivo quantitative system to measure bacterial adhesion to vascular ECs [44] in our EPAC1-knock out (KO) mouse model [45], we can now verify the regulatory role of EPAC1 during rickettsial adhesion. Plaque assays reveal that the number of viable rickettsiae in circulating blood was higher in EPAC1-KO mice (n = 11) than wild-type (WT) mice (n = 10) at 30 min and 1 hr post-infection (p.i.) when the bacteria were given by the intravenous route (Figure 1A). Similar as our previous report [44], immunofluorescence staining showed that, in WT mice, rickettsiae were mainly detected on the luminal surface or tunica intima of the vascular wall (Figure 1B). However, in EPAC1-KO mice, fewer rickettsiae were detected in the same areas. In contrast, unattached rickettsiae were visible in blood clots in the lumen of these blood vessels (Figure 1B).
These observations suggest that rickettsial adhesion to the vascular luminal surface occurs in a host EPAC1-dependent manner.

2.2. Rickettsial OmpB Shows a Host EPAC1-Dependent Binding Strength on the Surface of a Living EC

Employing our in vivo model and atomic force microscopy (AFM), we found that rickettsiae mediate adhesion to the surface of ECs via host ANXA2 [44]. Compared to traditional AFM using a protein-functionalized colloid cantilever to evaluate the protein–protein interaction, the micropipette cantilever of FluidFM enables us to use exchangeable colloid probes with the same cantilever for the quantification of irreversible interacting forces, drastically increasing the experiment throughput. Moreover, it reduces the bias from excessive usage of a single functionalized colloid (Figure 2) [46].
OmpB is a rickettsial adhesin responsible for host invasion [47,48]. Using recombinant OmpB (reOmpB)-functionalized single microbead, we employed the force spectroscopy capacity of the FluidFM system to determine the binding strength between reOmpB and the surface of single living BMEC (Figure 3). A BSA-coated microbead was used as negative control [49]. As expected, reOmpB-coated single microbead generally exhibit higher adhesion forces to WT BMECs (p < 0.01). To examine whether EPAC1 contributes to reOmp and BMEC binding, we compared the adhesion forces generated in WT versus EPAC1-KO BMECs; reduced adhesion forces between a reOmpB and a EPAC1-KO BMEC were recorded (p < 0.01) (Figure 3). Furthermore, we utilized mouse BMECs from WT and EPAC1-KO mice to compare endothelial surface-associated rickettsiae, which were examined by impermeable immunofluorescence (IF) microscopy [44]. All ECs were fixed with 4% paraformaldehyde as impermeable fixation for the impermeable IF microscopy. Compared to WT, cell surface-associated bacteria were decreased in EPAC1-KO BMECs at 15 min p.i. with 10 MOI rickettsiae (Figure S1).
Taking advantage of a recently developed non-cAMP analogue, an EPAC1 specific activator named I942 that competitively binds the cyclic nucleotide-binding domain of EPAC1 [50,51,52], we observed that I942 at 5 µM in culture media enhanced the interacting force between reOmpB and a live WT BMEC (p < 0.05) (Figure 4). Depletion of ANXA2 in ECs diminished reOmpB binding forces to the ANXA2-KO BMEC surface (p < 0.01) (Figure 4), corroborating our previous report that anti-ANXA2 antibody weakens the interacting force between reOmpB and a living EC [44]. Interestingly, depletion of ANXA2 in ECs reduced the enhanced binding force between reOmpB and ECs in the presence of I942 (versus the WT group, p = 0.09), independent of its concentration in the culture medium (Figure S2).
Collectively, these data suggest that the EPAC1-ANXA2 pathway is involved in the interaction of OmpB with ECs during the initial stages of bacterial binding.

2.3. Ectopic Expression of Phosphodefective and Phosphomimic Mutants Replacing Y23 of ANXA2 in ANXA2-KO BMECs Results in the Display of Different Binding Force to reOmpB in Response to the Activation of EPAC1

Our previous study suggested that EPAC1 regulates endothelial luminal surface ANXA2 expression by modulating the phosphorylation of Y23 [45]. To identify whether Y23 is an EPAC1-targeted site in the N-terminus of ANXA2 that leads to regulation of rickettsial adhesion, we transfected ANXA2-KO BMECs with mouse WT ANXA2 construct, phosphodefective ANXA2 mutant Y23F, or phosphomimic ANXA2 mutant Y23E, respectively, which were generated by site-directed mutagenesis using their respective mutant oligonucleotides [53]. Expressions of ANXA2 in these constructs-transfected ANXA2-KO BMECs were detected, respectively (Figure S3).
Ectopic expression of the WT construct (versus no construct group, p = 5.36 × 10−8) and phosphomimic Y23E (versus no construct group, p = 6.70 × 10−5) in ANXA2-KO BMECs rescued the diminished reOmpB and cell binding force, respectively, whereas the phosphodefective mutant Y23F (p = 0.90) failed to do so (Figure 5). Furthermore, ectopic expression of the mouse WT ANXA2 construct also rescued EPAC1-specific activator I942-induced enhancement of the binding force in ANXA2-KO BMECs, while no such effect occurred in the empty vector controls.
We reported that depletion of ANXA2 reduces endothelial surface-associated rickettsiae [44]. In the present study we also utilized mouse BMECs from ANXA2-KO mice to compare the quantities of endothelial surface-associated rickettsiae. The amount of ANXA2-KO cell surface-associated bacteria were recovered at different levels after transfections with WT constructs or mutant Y23 constructs (Figure S1).
Collectively, these data suggest that host EPAC1 governs rickettsial adhesion to EC surfaces via regulation of phosphorylation of Y23 in ANXA2.

3. Discussion

As an obligate intracellular bacterium, rickettsiae need to initiate adherence to host cells prior to infection. OmpB is the most abundant membranous protein in SFG and TRG rickettsia and functions as an adhesin during attachment and invasion [43,54]. Recently, we reported that EPAC1 plays a critical role during rickettsial invasion [29] and identified endothelial ANXA2 as a novel receptor for rickettsial OmpB binding to [44]. In the present study, we corroborated rickettsial adhesion to EC surfaces in an ANXA2- and EPAC1-dependent manner in vivo. Our FluidFM assay, employing a single exchangeable colloid-based micropipette, provided further evidence of host EPAC1-dependent binding of rickettsial OmpB on the surface of a living EC. In addition, our single living cell study that coupled FluidFM and site-directed mutagenesis showed that Y23 in the N-terminus of ANXA2 is an EPAC1-targeted site involved in modulating rickettsial adhesion.
ANXA2 in the cellular membrane compartment is believed to be regulated mainly via phosphorylation/dephosphorylation of the N-terminal domain of ANXA2, including S11, Y23, and S25 [55,56]. Phosphorylation of Y23 was identified as a regulatory switch during association of ANXA2 with lipid rafts [45,57] and translocation of ANXA2 between different subcellular compartments [45,58]. After phosphorylation of Y23 via the Src family tyrosine kinase(s)-dependent pathway, ANXA2 is translocated to the cell surface in the format of heterotetramer with S100A10 by a yet unknown mechanism [57,58,59]. We reported that inactivation of EPAC1 down-regulates Y23 phosphorylation of ANXA2, associated with ANXA2 endothelial surface translocation, and does not impact the constitutive level of von Willebrand factor (vWF) in the plasma or other major hematological parameters [45]. Specifically, another ANXA2 phosphodefective mutant Y23A, not ANXA2 phosphomimic mutant Y23E, yields a predominantly negative effect for the translocation of ANXA2 to the membrane surface. The Y23A mutant can still bind to S100A10 but only in the cytosol, not in the plasma membrane [60]. Given that ANXA2 functions as a binding receptor for rickettsial OmpB, in the present study we further reveal that EPAC1 regulates rickettsial adhesion to EC surfaces by targeting the ANXA2 Y23. Depletion of ANXA2 in ECs reduced the enhanced binding force between reOmpB and ECs in the presence of I942. The WT ANXA2 construct rescued EPAC1-specific activator I942-induced enhancement of reOmpB binding forces to a ANXA2-KO BMEC surface. Furthermore, Y23E mutant rescued the diminished reOmpB and cell binding force in ANXA2-KO BMEC, whereas the Y23F mutant failed. However, there was no increasing in the binding force in the phosphomimic Y23E mutant-transfected ANXA2-KO BMEC in response to I942, further suggesting that EPAC1 modulates Y23 phosphorylation of the binding receptor ANXA2. Currently the accurate pathway how EPAC1 modulates the phosphorylation of specific residues(s) in ANXA2 remains to be identified. Furthermore, the potential crosstalk between cAMP-EPAC1 system and other identified factors involved in rickettsial adhesion and/or invasion should be investigated in future studies.
The colloidal probe-based AFM assay was developed to study protein–protein interactions and to quantify the interacting forces in the range from picoNewtons to nanoNewtons [46]. During manufacture, a colloid probe of different sizes is attached to a tipless cantilever by gluing and coated with recombinant proteins or antibodies by the user [44,45]. Entire colloidal probe-based cantilevers must be exchanged between experiments to measure different biomolecular interactions on the same sample with different protein functionalization. Contamination and degradation of colloid surfaces limits the lifetime of a colloid probe and induces potential bias when the probe is reused to measure the same biomolecule in a different sample. FluidFM was developed to conquer these limitations. A microfluidic pressure controller applies negative pressure to a connected hollow cantilever to quickly grab a functionalized microbead, and the microbead can be released by applying positive pressure through the micropipette channel [46]. Thus, FluidFM offers the following advantages: (1) it allows for the use of single exchangeable colloid for the quantification of irreversible and long-term protein-protein interactions, (2) it provides strong connections between the colloid and cantilever, (3) rapid exchange between microbeads with different protein coatings is possible, and (4) the method consistently uses the same reflex side of the same cantilever between different colloidal probes [46]. In the present study we use a reOmpB-coated microbead-based FluidFM cantilever to quantify the interaction between reOmpB and single, living cell in multiple experimental groups.
The binding forces between reOmpB and EPAC1-KO BMEC is still higher than the forces between BSA and EPAC1-KO BMEC. These data may suggest that intracellular EPAC1 is not the sole regulator on endothelial surface receptor for OmpB-mediated rickettsial binding. Such unknown host surface protein(s) remain to be identified. Furthermore, although BSA has been widely employed as a mock control using AFM or FluidFM to measure protein-protein interaction in studying bacterial adhesion [49], identification of another recombinant Omp protein that exerts no binding force to a living BMEC will benefit establishing a sufficiently relevant negative control during FluidFM assay.
In conclusion, we have revealed a novel mechanism by which EPAC1 modulates rickettsial adhesion, involving regulation of tyrosine 23 phosphorylation of the binding receptor ANXA2. This finding provides experimental and theoretical support for therapeutic strategies for rickettsiosis targeting the host cAMP-EPAC system.

4. Materials and Methods

4.1. Mice

All animal experiments were performed according to protocols approved by the Institutional Animal Care and Use Committee of the University of Texas Medical Branch (UTMB). Wild-type (WT) mice (C57BL/6J) were obtained from The Jackson Laboratory (Bar Harbor, ME, USA). C57BL/6 EPAC1-KO mice were derived as described previously [45]. ANXA2-KO mice on the C57BL/6J background were a generous gift from Dr. Katherine Hajjar (Weill Cornell Medicine, New York, NY, USA) [61]. All mice used in this study were 8- to 12-week-old males. C57BL/6J mice are highly susceptible to R. australis. Therefore, this organism was chosen as the TRG rickettsial agent of choice [10].

4.2. Rickettsia and Cell Culture

R. australis (strain Cutlack) was prepared as described [29]. Uninfected Vero cells were processed as mock control material using the same procedure. All biosafety level (BSL-) 3 or ABSL-3 experiments were performed in CDC-certified facilities in the Galveston National Laboratory at UTMB (Galveston, TX, USA), using established procedures and precautions which were approved by the Institutional Biosafety Committee at UTMB.
Mouse brain microvascular endothelial cells (BMECs) were isolated from wild-type, EPAC1-KO, and ANXA2-KO mice using established protocol [44,51,62].

4.3. Antibodies and Other Reagents

A rabbit polyclonal antibody against SFG/TRG rickettsiae was obtained from the laboratory of Dr. David Walker (UTMB, Galveston, TX, USA). AlexaFluor 594-conjugated goat anti-rabbit IgG and ProLong Gold Antifade Reagent with DAPI were purchased from Invitrogen (Carlsbad, CA, USA). Recombinant rickettsial OmpB (reOmpB) (amino acids 1363–1655) was purchased from MyBioSource (San Diego, CA, USA). Unless otherwise indicated, all reagents were purchased from Thermo Fisher Scientific. Expression constructs for GFP-tagged mouse WT ANXA2, ANXA2 mutant Y23E, and ANXA2 mutant Y23F were purchased from GENEWIZ (South Plainfield, NJ, USA).

4.4. Cell Transfection

Transfections were performed using a published protocol [55]. Cells were transfected with of WT ANXA2, ANXA2 Y23E, and ANXA2 Y23F constructs (1 µg/500 µL for 1 × 105 cells), respectively, using Magnetofection PolyMag and PolyMag Neo (OZ Biosciences, San Diego, CA, USA). The efficacy of transfection was evaluated with GFP fluorescent microscopy [55].

4.5. WT Construct Sequence (1020 bps)

5’-ATGTCTACTGTCCACGAAATCCTGTGCAAGCTCAGCCTGGAGGGTGATCATTCTACACCCCCAAGTGCCTACGGGTCAGTCAAACCCTACACCAACTTCGATGCTGAGAGGGATGCTCTGAACATTGAGACAGCAGTCAAGACCAAAGGAGTGGATGAGGTCACCATTGTCAACATCCTGACAAACCGCAGCAATGTGCAGAGGCAGGACATTGCCTTCGCCTATCAGAGAAGGACCAAAAAGGAGCTCCCGTCAGCGCTGAAGTCAGCCTTATCTGGCCACCTGGAGACGGTGATTTTGGGCCTATTGAAGACACCTGCCCAGTATGATGCTTCGGAACTAAAAGCTTCCATGAAGGGCCTGGGGACTGACGAGGACTCCCTCATTGAGATCATCTGCTCACGAACCAACCAGGAGCTGCAAGAGATCAACAGAGTGTACAAGGAAATGTACAAGACTGATCTGGAGAAGGACATCATCTCTGACACATCTGGAGACTTCCGAAAGCTGATGGTCGCCCTTGCAAAGGGCAGACGAGCAGAGGATGGCTCAGTTATTGACTACGAGCTGATTGACCAGGATGCCCGGGAGCTCTATGATGCCGGGGTGAAGAGGAAAGGAACCGACGTCCCCAAGTGGATCAGCATCATGACTGAGCGCAGTGTGTGCCACCTCCAGAAAGTGTTCGAAAGGTACAAGAGCTACAGCCCTTATGACATGCTGGAGAGCATCAAGAAAGAGGTCAAAGGGGACCTGGAGAACGCCTTCCTGAACCTGGTCCAGTGCATCCAGAACAAGCCCCTGTACTTCGCTGACCGGCTGTACGACTCCATGAAGGGCAAGGGGACTCGAGACAAGGTCCTGATTAGAATCATGGTCTCTCGCAGTGAAGTGGACATGCTGAAAATCAGATCTGAATTCAAGAGGAAATATGGCAAGTCCCTGTACTACTACATCCAGCAAGACACCAAGGGTGACTACCAGAAGGCACTGCTGTACCTGTGTGGTGGGGATGACTGA-3’.
For ANXA2 mutant Y23E, the sequence of bases encoding Y23 is replaced with GAA. For ANXA2 mutant Y23F, the sequence of bases encoding Y23 is replaced with UUC.

4.6. Mouse In Vivo, Anatomically-Based, Quantitative Rickettsial Adhesion Measurement System

The quantitative mouse in vivo rickettsial adhesion assay was performed as described [44]. The approach consists of two assays, the plaque assay to quantitatively measure viable bacteria in circulating blood, and the immunofluorescence staining (IF) assay to visualize the location of bacteria in the blood vessels 60 min p.i. The principal concept of the quantitative part is that the more rickettsiae adhere to the luminal surfaces of the blood vessels, the fewer rickettsiae are detected in peripheral blood samples. Multiple visceral organs are fixed without perfusion rinse (to keep blood in the vessel lumens) for IF-based histological studies to identify unattached rickettsiae, which are trapped in clots in vessel lumens [44]. The rule for the IF-based histological assay is to exclude capillaries during assessment because borders between blood and ECs were invisible in some capillaries after fixation. Briefly, after an ordinarily lethal dose of R. australis (1 × 107 PFU/0.2 mL; the LD50 is 1 × 106 PFU) was injected through the tail vein, rickettsial virulence (by plaque assay) was measured in a 1 µL blood sample collected from the orbital venous sinus (OVS) at different times until 1 h post-infection (p.i.). Rickettsial antigens and mouse EPAC1 were detected with a rabbit polyclonal antibody against SFG/TRG rickettsiae (1:1000) and mouse monoclonal antibody against EPAC1 (1:500) (clone 5D3, Cell Signaling Technology, Danvers, MA, USA), respectively, overnight at 4 °C, followed by incubation with AlexaFluor 594 goat anti-rabbit (1:1000) and AlexaFluor 488 goat anti-mouse (1:2000) antibodies for 15 min. Normal mouse or rabbit IgG was used as an antibody negative control during IF staining (Figure S4). Nuclei were counter-stained with DAPI. Fluorescent images were analyzed using an Olympus BX51 epifluorescence or Olympus IX81 confocal microscope.

4.7. FluidFM Adhesion Assay

Carboxylate modified latex microbeads (Invitrogen, Waltham, MA, USA) were coated with reOmpB using published protocols [63,64]. Briefly, microbeads were suspended in 2-(N-morpholino) ethanesulfonic acid (MES) buffer. Freshly made, water-soluble 1-ethyl-3-(3-dimethylaminopropyl) carbodiimide (EDAC) in MES (50 mg/mL) was added to the beads and incubated for 30 minutes. The beads were then washed twice in MES buffer with centrifugation. EDAC-activated beads were incubated with purified reOmpB at 50 µg/mL in phosphate-buffered saline (PBS) with gentle mixing at room temperature for 4 h. The vol/vol ratio between the beads and coating solution was 1/9 [63]. The bead-protein mixture was centrifuged and the supernatant was removed. The beads were then washed with PBS three times to completely remove free protein. Then, 0.4% glycine in 0.1M PBS was added to the beads for 10 min to deactivate the crosslinking, followed by one washing in 0.1M PBS. The beads were then resuspended in 0.1% glycine storage buffer. The coating procedure was performed under sterile conditions. Negative control BSA coated beads were created using the same procedure, but replacing reOmpB with BSA.
The FluidFM system coupling Nanosurf Core AFM (NanoSurf, Liestal, Switzerland) and Fluidic Pressure Controller (Cytosurge AG, Glattbrugg, Switzerland) was used for this assay. A micropipette (2 µm, 0.3 N/m) (Cytosurge AG) was coated with 0.1 mg/ml poly(L-lysine)-g-poly(ethylene glycol) (PLL-g-PEG) to block nonspecific adhesions prior to calibration using the method of Sander et al. [65] and pre-set functions of the Nanosurf software. The air in the reservoir on the backside of the micropipette microchannel was removed by PBS prior to being connected to the Pneumatic Connector (Cytosurge AG). After subsequent connection to the Fluidic Pressure Controller, positive pressure (20 mBar) was applied to enable PBS to flow through the microchannel within the micropipette. The micropipette was then functionalized with an reOmpB-coated latex microbead by applying negative fluid pressure (−800 mBar) to trap the bead on the aperture of the micropipette. To measure the adhesion force between the layer of proteins that was coated on the surface of the bead and the surface of the single living cell, the bead-loaded micropipette was driven to approach the cell monolayer with 2 nN as the setpoint force, and paused on the surface of the cell for 0.5 min. This defined time established the interaction on the surface of the living cell [46]. The force spectroscopy was performed in the designated area (10 × 10 µm) to measure the unbinding force during rupture of the interaction between the ligands expressed in the designated areas at the apical surface of the single living cell and the reOmpB-coated microbead [45]. Ten cells were sampled per group. The bead was replaced following measurements of three cells to avoid nonspecific contamination.

4.8. Statistical Analysis

Values are reported as mean ± SEM. The data were analyzed using the Student’s t-test or One-Way ANOVA (Sigmaplot, Sigma Stat, Jandel Scientific Software, San Rafael, CA, USA). p values are as follows: ** p < 0.01 and * p < 0.05. Statistical significance is considered as p < 0.05.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/pathogens10101307/s1, Figure S1: (A) Representative dual-target IF staining of rickettsiae (R.) (red) and EPAC1 (green) in mouse WT, EPAC1-KO, and ANXA2-KO BMECs 15 min post-infection (p.i.) using R. australis at a MOI of 10. Nuclei of BMECs were counterstained with DAPI (blue). The signals of EPAC1 are visualized (arrow heads) mainly in the nuclei. Scale bars: 100 µm. (B) Extracellular adhesive bacteria in WT and EPAC1-KO BMECs were enumerated by IF microscopy at 15 minutes p.i. using R. australis at a MOI of 10. Samples were blinded to the researcher doing the counting to avoid bias. All ECs were fixed with 4% paraformaldehyde as impermeable fixation for IF microscopy. n = 5 for all groups. **, compared to the WT group, p < 0.01. (C) Extracellular adhesive bacteria in WT and ANXA2-KO BMECs, which were transfected with different ANXA2 constructs, were enumerated by IF microscopy at 15 minutes p.i. using R. australis at a MOI of 10. All ECs were fixed with 4% paraformaldehyde as impermeable fixation for IF microscopy. n = 5 for all groups. Data are represented as mean ± SEM. *, compared to ANXA2-KO BMECs, p < 0.05, Figure S2: FluidFM studies measuring the binding forces (nanoNewton, nN) between a reOmpB-coated microbead and single living ANXA2-KO mouse BMEC, Figure S3: Expression of ANXA2 was examined using Western immunoblotting in mouse BMECs, Figure S4: Normal rabbit and mouse IgGs were used as reagent controls during the IF assay for tissues (left) and BMECs (right).

Author Contributions

Designed the study, performed experiments, analyzed data, and wrote the manuscript: B.G. and T.B.S. Performed experiments. Z.S., T.R.S., Y.Q., Q.C., M.W., X.H., Y.L. (Yakun Liu), Y.L. (Yuejin Liang) and E.N. Prepared experiments and analyzed data, and helped prepare the manuscript: Z.S., Y.Q., J.B. and C.Z. Designed the study and analyzed data: A.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by NIH grant R01AI121012 (BG), R21AI137785 (BG), R21AI154211 (BG), R03AI142406 (BG), R21AI144328 (TS and BG), SCVB and ZD pilot FY21 (BG), and CBEID pilot FY21 (BG).

Institutional Review Board Statement

All biosafety level (BSL)-3 or animal BSL-3 experiments were performed in CDC-certified facilities in the Galveston National Laboratory at UTMB using standard operating procedures and precautions. All animal experiments were performed according to protocols approved by the UTMB Institutional Animal Care and Use Committee (IACUC 9505045).

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

We gratefully acknowledge Edward Nelson for his contributions for establishing the capacity of the FluidFM system. We gratefully acknowledge Volker Gerke for providing human ANXA2 constructs for the preliminary study. We gratefully acknowledge David Walker, Juan Olano, and Jia Zhou for providing reagents and Donald Bouyer for BSL-3 facility support. We thank Kimberly Schuenke for her critical review and editing of the manuscript. The sponsors had no role in the study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dumler, J.S.; Walker, D.H. Rocky Mountain spotted fever-changing ecology and persisting virulence. N. Engl. J. Med. 2005, 353, 551–553. [Google Scholar] [CrossRef]
  2. Chapman, A.S.; Murphy, S.M.; Demma, L.J.; Holman, R.C.; Curns, A.T.; McQuiston, J.H.; Krebs, J.W.; Swerdlow, D.L. Rocky mountain spotted fever in the United States, 1997–2002. Ann. N. Y. Acad. Sci. 2006, 1078, 154–155. [Google Scholar] [CrossRef]
  3. Walker, D.H.; Paddock, C.D.; Dumler, J.S. Emerging and re-emerging tick-transmitted rickettsial and ehrlichial infections. Med. Clin. N. Am. 2008, 92, 1345–1361. [Google Scholar] [CrossRef] [PubMed]
  4. Drexler, N.A.; Dahlgren, F.S.; Heitman, K.N.; Massung, R.F.; Paddock, C.D.; Behravesh, C.B. National Surveillance of Spotted Fever Group Rickettsioses in the United States, 2008–2012. Am. J. Trop. Med. Hyg. 2016, 94, 26–34. [Google Scholar] [CrossRef] [PubMed]
  5. Saito, T.B.; Bechelli, J.; Smalley, C.; Karim, S.; Walker, D.H. Vector Tick Transmission Model of Spotted Fever Rickettsiosis. Am. J. Pathol. 2019, 189, 115–123. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Lamason, R.L.; Bastounis, E.; Kafai, N.M.; Serrano, R.; Del Álamo, J.C.; Theriot, J.A.; Welch, M.D. Rickettsia Sca4 Reduces Vinculin-Mediated Intercellular Tension to Promote Spread. Cell 2016, 167, 670–683.e10. [Google Scholar] [CrossRef] [Green Version]
  7. Whitman, T.J.; Richards, A.L.; Paddock, C.D.; Tamminga, C.L.; Sniezek, P.J.; Jiang, J.; Byers, D.K.; Sanders, J.W. Rickettsia parkeri infection after tick bite, Virginia. Emerg. Infect Dis. 2007, 13, 334–336. [Google Scholar] [CrossRef] [PubMed]
  8. Chan, Y.G.; Riley, S.P.; Martinez, J.J. Adherence to and invasion of host cells by spotted Fever group rickettsia species. Front. Microbiol. 2010, 1, 139. [Google Scholar] [CrossRef] [Green Version]
  9. Walker, D.H.; Ismail, N. Emerging and re-emerging rickettsioses: Endothelial cell infection and early disease events. Nat. Rev. Genet. 2008, 6, 375–386. [Google Scholar] [CrossRef]
  10. Feng, H.M.; Wen, J.; Walker, D.H. Rickettsia australis infection: A murine model of a highly invasive vasculopathic rickettsiosis. Am. J. Pathol. 1993, 142, 1471–1482. [Google Scholar]
  11. Valbuena, G.; Walker, D.H. Infection of the endothelium by members of the order Rickettsiales. Thromb. Haemost. 2009, 102, 1071–1079. [Google Scholar]
  12. Paris, D.H.; Dumler, J.S. State of the art of diagnosis of rickettsial diseases: The use of blood specimens for diagnosis of scrub typhus, spotted fever group rickettsiosis, and murine typhus. Curr. Opin. Infect. Dis. 2016, 29, 433–439. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Openshaw, J.J.; Swerdlow, D.L.; Krebs, J.W.; Holman, R.C.; Mandel, E.; Harvey, A.; Haberling, D.; Massung, R.F.; McQuiston, J.H. Rocky mountain spotted fever in the United States, 2000–2007: Interpreting contemporary increases in incidence. Am. J. Trop. Med. Hyg. 2010, 83, 174–182. [Google Scholar] [CrossRef] [Green Version]
  14. Botelho-Nevers, E.; Socolovschi, C.; Raoult, D.; Parola, P. Treatment of Rickettsia spp. infections: A review. Expert. Rev. Anti. Infect 2012, 10, 1425–1437. [Google Scholar] [CrossRef] [PubMed]
  15. de Sousa, R.; Nóbrega, S.D.; Bacellar, F.; Torgal, J. Mediterranean spotted fever in Portugal: Risk factors for fatal outcome in 105 hospitalized patients. Ann. N. Y. Acad. Sci. 2003, 990, 285–294. [Google Scholar] [CrossRef] [PubMed]
  16. Parola, P.; Socolovschi, C.; Jeanjean, L.; Bitam, I.; Fournier, P.E.; Sotto, A.; Labauge, P.; Raoult, D. Warmer weather linked to tick attack and emergence of severe rickettsioses. PLoS Negl. Trop. Dis. 2008, 2, e338. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Salje, J.; Weitzel, T.; Newton, P.N.; Varghese, G.M.; Day, N. Rickettsial infections: A blind spot in our view of neglected tropical diseases. PLoS Negl. Trop. Dis. 2021, 15, e0009353. [Google Scholar] [CrossRef]
  18. Kim, H.K.; Premaratna, R.; Missiakas, D.M.; Schneewind, O. O antigen is the target of bactericidal Weil-Felix antibodies. Proc. Natl. Acad. Sci. USA 2019. [Google Scholar] [CrossRef] [Green Version]
  19. Rennoll, S.A.; Rennoll-Bankert, K.E.; Guillotte, M.L.; Lehman, S.S.; Driscoll, T.P.; Beier-Sexton, M.; Rahman, M.S.; Gillespie, J.J.; Azad, A.F. The cat flea (Ctenocephalides felis) immune deficiency signaling pathway regulates rickettsia typhi infection. Infect. Immun. 2018, 86. [Google Scholar] [CrossRef] [Green Version]
  20. Hillman, R.D.; Baktash, Y.M.; Martinez, J.J. OmpA-mediated rickettsial adherence to and invasion of human endothelial cells is dependent upon interaction with α2β1 integrin. Cell Microbiol. 2013, 15, 727–741. [Google Scholar] [CrossRef] [Green Version]
  21. Felsheim, R.F.; Kurtti, T.J.; Munderloh, U.G. Genome sequence of the endosymbiont Rickettsia peacockii and comparison with virulent Rickettsia rickettsii: Identification of virulence factors. PLoS ONE 2009, 4, e8361. [Google Scholar] [CrossRef] [PubMed]
  22. Suwanbongkot, C.; Langohr, I.M.; Harris, E.K.; Dittmar, W.; Christofferson, R.C.; Macaluso, K.R. Spotted fever group. Infect Immun 2019, 87. [Google Scholar] [CrossRef] [Green Version]
  23. Raker, V.K.; Becker, C.; Steinbrink, K. The cAMP pathway as therapeutic target in autoimmune and inflammatory diseases. Front. Immunol. 2016, 7, 123. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Beavo, J.A.; Brunton, L.L. Cyclic nucleotide research—Still expanding after half a century. Nat. Rev. Mol. Cell Biol. 2002, 3, 710–718. [Google Scholar] [CrossRef] [PubMed]
  25. Lefkimmiatis, K.; Zaccolo, M. cAMP signaling in subcellular compartments. Pharmacol. Ther. 2014, 143, 295–304. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Gold, M.G.; Gonen, T.; Scott, J.D. Local cAMP signaling in disease at a glance. J. Cell Sci. 2013, 126, 4537–4543. [Google Scholar] [CrossRef] [Green Version]
  27. Di Benedetto, G.; Pendin, D.; Greotti, E.; Pizzo, P.; Pozzan, T. Ca2+ and cAMP cross-talk in mitochondria. J. Physiol. 2014, 592, 305–312. [Google Scholar] [CrossRef] [PubMed]
  28. Hofer, A.M. Interactions between calcium and cAMP signaling. Curr. Med. Chem. 2012, 19, 5768–5773. [Google Scholar] [CrossRef]
  29. Gong, B.; Shelite, T.; Mei, F.C.; Ha, T.; Hu, Y.; Xu, G.; Chang, Q.; Wakamiya, M.; Ksiazek, T.G.; Boor, P.J.; et al. Exchange protein directly activated by cAMP plays a critical role in bacterial invasion during fatal rickettsioses. Proc. Natl. Acad. Sci. USA 2013, 110, 19615–19620. [Google Scholar] [CrossRef] [Green Version]
  30. McDonough, K.A.; Rodriguez, A. The myriad roles of cyclic AMP in microbial pathogens: From signal to sword. Nat. Rev. Genet. 2011, 10, 27–38. [Google Scholar] [CrossRef] [Green Version]
  31. Tao, X.; Mei, F.; Agrawal, A.; Peters, C.J.; Ksiazek, T.G.; Cheng, X.; Tseng, C.T. Blocking of exchange proteins directly activated by cAMP leads to reduced replication of Middle East respiratory syndrome coronavirus. J. Virol. 2014, 88, 3902–3910. [Google Scholar] [CrossRef] [Green Version]
  32. Xayarath, B.; Freitag, N.E. Uncovering the nonessential nature of an essential second messenger. Cell Host Microbe 2015, 17, 731–732. [Google Scholar] [CrossRef] [Green Version]
  33. Jin, L.; Hill, K.K.; Filak, H.; Mogan, J.; Knowles, H.; Zhang, B.; Perraud, A.L.; Cambier, J.C.; Lenz, L.L. MPYS is required for IFN response factor 3 activation and type I IFN production in the response of cultured phagocytes to bacterial second messengers cyclic-di-AMP and cyclic-di-GMP. J. Immunol. 2011, 187, 2595–2601. [Google Scholar] [CrossRef] [Green Version]
  34. Colonne, P.M.; Winchell, C.G.; Voth, D.E. Hijacking host cell highways: Manipulation of the host actin cytoskeleton by obligate intracellular bacterial pathogens. Front. Cell Infect. Microbiol. 2016, 6, 107. [Google Scholar] [CrossRef] [Green Version]
  35. Borland, G.; Smith, B.O.; Yarwood, S.J. EPAC proteins transduce diverse cellular actions of cAMP. Br. J. Pharm. 2009, 158, 70–86. [Google Scholar] [CrossRef] [Green Version]
  36. Cheng, X.; Ji, Z.; Tsalkova, T.; Mei, F. Epac and PKA: A tale of two intracellular cAMP receptors. Acta Biochim. Biophys. Sin. 2008, 40, 651–662. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. de Rooij, J.; Zwartkruis, F.J.; Verheijen, M.H.; Cool, R.H.; Nijman, S.M.; Wittinghofer, A.; Bos, J.L. Epac is a Rap1 guanine-nucleotide-exchange factor directly activated by cyclic AMP. Nature 1998, 396, 474–477. [Google Scholar] [CrossRef]
  38. Kooistra, M.R.; Corada, M.; Dejana, E.; Bos, J.L. Epac1 regulates integrity of endothelial cell junctions through VE-cadherin. FEBS Lett. 2005, 579, 4966–4972. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Cullere, X.; Shaw, S.K.; Andersson, L.; Hirahashi, J.; Luscinskas, F.W.; Mayadas, T.N. Regulation of vascular endothelial barrier function by Epac, a cAMP-activated exchange factor for Rap GTPase. Blood 2005, 105, 1950–1955. [Google Scholar] [CrossRef] [Green Version]
  40. Fukuhara, S.; Sakurai, A.; Sano, H.; Yamagishi, A.; Somekawa, S.; Takakura, N.; Saito, Y.; Kangawa, K.; Mochizuki, N. Cyclic AMP potentiates vascular endothelial cadherin-mediated cell-cell contact to enhance endothelial barrier function through an Epac-Rap1 signaling pathway. Mol. Cell Biol. 2005, 25, 136–146. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Hajjar, K.A. The biology of annexin A2: From vascular fibrinolysis to innate immunity. Trans. Am. Clin. Clim. Assoc. 2015, 126, 144–155. [Google Scholar]
  42. Gerke, V.; Moss, S.E. Annexins: From structure to function. Physiol. Rev. 2002, 82, 331–371. [Google Scholar] [CrossRef]
  43. Stenos, J.; Walker, D.H. The rickettsial outer-membrane protein A and B genes of Rickettsia australis, the most divergent rickettsia of the spotted fever group. Int. J. Syst. Evol. Microbiol. 2000, 50, 1775–1779. [Google Scholar] [CrossRef] [Green Version]
  44. He, X.; Zhang, W.; Chang, Q.; Su, Z.; Gong, D.; Zhou, Y.; Xiao, J.; Drelich, A.; Liu, Y.; Popov, V. A new role for host annexin A2 in establishing bacterial adhesion to vascular endothelial cells: Lines of evidence from atomic force microscopy and an in vivo study. Lab. Investig. 2019, 99, 1650–1660. [Google Scholar] [CrossRef] [PubMed]
  45. He, X.; Drelich, A.; Yu, S.; Chang, Q.; Gong, D.; Zhou, Y.; Qu, Y.; Yuan, Y.; Su, Z.; Qiu, Y. Exchange protein directly activated by cAMP plays a critical role in regulation of vascular fibrinolysis. Life Sci. 2019, 221, 1–12. [Google Scholar] [CrossRef] [PubMed]
  46. Dorig, P.; Ossola, D.; Truong, A.M.; Graf, M.; Stauffer, F.; Voros, J.; Zambelli, T. Exchangeable colloidal AFM probes for the quantification of irreversible and long-term interactions. Biophys. J. 2013, 105, 463–472. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Chan, Y.G.-Y.; Riley, S.P.; Chen, E.; Martinez, J.J. Molecular basis of immunity to rickettsial infection conferred through outer membrane protein B. Infect. Immun. 2011, 79, 2303–2313. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Chan, Y.G.; Cardwell, M.M.; Hermanas, T.M.; Uchiyama, T.; Martinez, J.J. Rickettsial outer-membrane protein B (rOmpB) mediates bacterial invasion through Ku70 in an actin, c-Cbl, clathrin and caveolin 2-dependent manner. Cell Microbiol. 2009, 11, 629–644. [Google Scholar] [CrossRef] [Green Version]
  49. Gomand, F.; Borges, F.; Guerin, J.; El-Kirat-Chatel, S.; Francius, G.; Dumas, D.; Burgain, J.; Gaiani, C. Adhesive interactions between lactic acid bacteria and β-Lactoglobulin: Specificity and impact on bacterial location in whey protein isolate. Front. Microbiol. 2019, 10, 1512. [Google Scholar] [CrossRef] [Green Version]
  50. Wiejak, J.; van Basten, B.; Luchowska-Stańska, U.; Hamilton, G.; Yarwood, S.J. The novel exchange protein activated by cyclic AMP 1 (EPAC1) agonist, I942, regulates inflammatory gene expression in human umbilical vascular endothelial cells (HUVECs). Biochim. Biophys. Acta Mol. Cell Res. 2019, 1866, 264–276. [Google Scholar] [CrossRef] [PubMed]
  51. Drelich, A.; Judy, B.; He, X.; Chang, Q.; Yu, S.; Li, X.; Lu, F.; Wakamiya, M.; Popov, V.; Zhou, J. Exchange protein directly activated by cAMP modulates ebola virus uptake into vascular endothelial cells. Viruses 2018, 10, 563. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Shao, H.; Mohamed, H.; Boulton, S.; Huang, J.; Wang, P.; Chen, H.; Zhou, J.; Luchowska-Stańska, U.; Jentsch, N.G.; Armstrong, A.L.; et al. Mechanism of Action of an EPAC1-Selective Competitive Partial Agonist. J. Med. Chem. 2020, 63, 4762–4775. [Google Scholar] [CrossRef] [PubMed]
  53. Rescher, U.; Ludwig, C.; Konietzko, V.; Kharitonenkov, A.; Gerke, V. Tyrosine phosphorylation of annexin A2 regulates Rho-mediated actin rearrangement and cell adhesion. J. Cell Sci. 2008, 121, 2177–2185. [Google Scholar] [CrossRef] [Green Version]
  54. Uchiyama, T.; Kawano, H.; Kusuhara, Y. The major outer membrane protein rOmpB of spotted fever group rickettsiae functions in the rickettsial adherence to and invasion of Vero cells. Microbes Infect. 2006, 8, 801–809. [Google Scholar] [CrossRef]
  55. Brandherm, I.; Disse, J.; Zeuschner, D.; Gerke, V. cAMP-induced secretion of endothelial von Willebrand factor is regulated by a phosphorylation/dephosphorylation switch in annexin A2. Blood 2013, 122, 1042–1051. [Google Scholar] [CrossRef] [Green Version]
  56. He, K.L.; Sui, G.; Xiong, H.; Broekman, M.J.; Huang, B.; Marcus, A.J.; Hajjar, K.A. Feedback regulation of endothelial cell surface plasmin generation by PKC-dependent phosphorylation of annexin A2. J. Biol. Chem. 2011, 286, 15428–15439. [Google Scholar] [CrossRef] [Green Version]
  57. Valapala, M.; Vishwanatha, J.K. Lipid raft endocytosis and exosomal transport facilitate extracellular trafficking of annexin A2. J. Biol. Chem. 2011, 286, 30911–30925. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Deora, A.B.; Kreitzer, G.; Jacovina, A.T.; Hajjar, K.A. An annexin 2 phosphorylation switch mediates p11-dependent translocation of annexin 2 to the cell surface. J. Biol. Chem. 2004, 279, 43411–43418. [Google Scholar] [CrossRef] [Green Version]
  59. Matsuda, D.; Nakayama, Y.; Horimoto, S.; Kuga, T.; Ikeda, K.; Kasahara, K.; Yamaguchi, N. Involvement of Golgi-associated Lyn tyrosine kinase in the translocation of annexin II to the endoplasmic reticulum under oxidative stress. Exp. Cell Res. 2006, 312, 1205–1217. [Google Scholar] [CrossRef]
  60. Zheng, L.; Foley, K.; Huang, L.; Leubner, A.; Mo, G.; Olino, K.; Edil, B.H.; Mizuma, M.; Sharma, R.; Le, D.T.; et al. Tyrosine 23 phosphorylation-dependent cell-surface localization of annexin A2 is required for invasion and metastases of pancreatic cancer. PLoS ONE 2011, 6, e19390. [Google Scholar] [CrossRef] [Green Version]
  61. Ling, Q.; Jacovina, A.T.; Deora, A.; Febbraio, M.; Simantov, R.; Silverstein, R.L.; Hempstead, B.; Mark, W.H.; Hajjar, K.A. Annexin II regulates fibrin homeostasis and neoangiogenesis in vivo. J. Clin. Investig. 2004, 113, 38–48. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Liu, Y.; Zhou, C.; Su, Z.; Chang, Q.; Qiu, Y.; Bei, J.; Gaitas, A.; Xiao, J.; Drelich, A.; Khanipov, K.; et al. Endothelial exosome plays functional role during rickettsial infection. mBio 2021. [Google Scholar] [CrossRef] [PubMed]
  63. Coupling, C. TechNote 205. Available online: https://www.bangslabs.com/sites/default/files/imce/docs/TechNote%20205%20Web.pdf (accessed on 20 August 2021).
  64. Gounaris, A.D.; Perlmann, G.E. Succinylation of pepsinogen. J. Biol. Chem. 1967, 242, 2739–2745. [Google Scholar] [CrossRef]
  65. Sader, J.E.; Sanelli, J.A.; Adamson, B.D.; Monty, J.P.; Wei, X.; Crawford, S.A.; Friend, J.R.; Marusic, I.; Mulvaney, P.; Bieske, E.J. Spring constant calibration of atomic force microscope cantilevers of arbitrary shape. Rev. Sci. Instrum. 2012, 83, 103705. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Pathogens 10 01307 g001 550
Figure 1. Global depletion of EPAC1 blocks rickettsial adherence to blood vessel luminal surfaces in vivo. (A) Plaque assay for R. australis using blood samples collected from the orbital venous sinus of wild-type (WT) (n = 10) and EPAC1-knock out (KO) (n = 11) mice at different times p.i. with 10 LD50 doses (1 × 107 PFU) of R. australis given by the intravenous route. Data are represented as mean ± SEM. The data were analyzed using One- Way ANOVA. **: compared to the control group, p < 0.01. (B) Representative IF-based identification of rickettsiae (red) in WT (n = 5) and EPAC1-KO (n = 5) mice 60 min p.i. with 10 LD50 doses of R. australis given by the intravenous route. EPAC1 is stained with green signals. Rickettsiae adhere to the intima layer of blood vessels (arrows) or wrap in blood clots (arrowheads) in the lumens of blood vessels. Nuclei are stained blue. Scale bars, 50 µm.
Figure 1. Global depletion of EPAC1 blocks rickettsial adherence to blood vessel luminal surfaces in vivo. (A) Plaque assay for R. australis using blood samples collected from the orbital venous sinus of wild-type (WT) (n = 10) and EPAC1-knock out (KO) (n = 11) mice at different times p.i. with 10 LD50 doses (1 × 107 PFU) of R. australis given by the intravenous route. Data are represented as mean ± SEM. The data were analyzed using One- Way ANOVA. **: compared to the control group, p < 0.01. (B) Representative IF-based identification of rickettsiae (red) in WT (n = 5) and EPAC1-KO (n = 5) mice 60 min p.i. with 10 LD50 doses of R. australis given by the intravenous route. EPAC1 is stained with green signals. Rickettsiae adhere to the intima layer of blood vessels (arrows) or wrap in blood clots (arrowheads) in the lumens of blood vessels. Nuclei are stained blue. Scale bars, 50 µm.
Pathogens 10 01307 g001
Pathogens 10 01307 g002 550

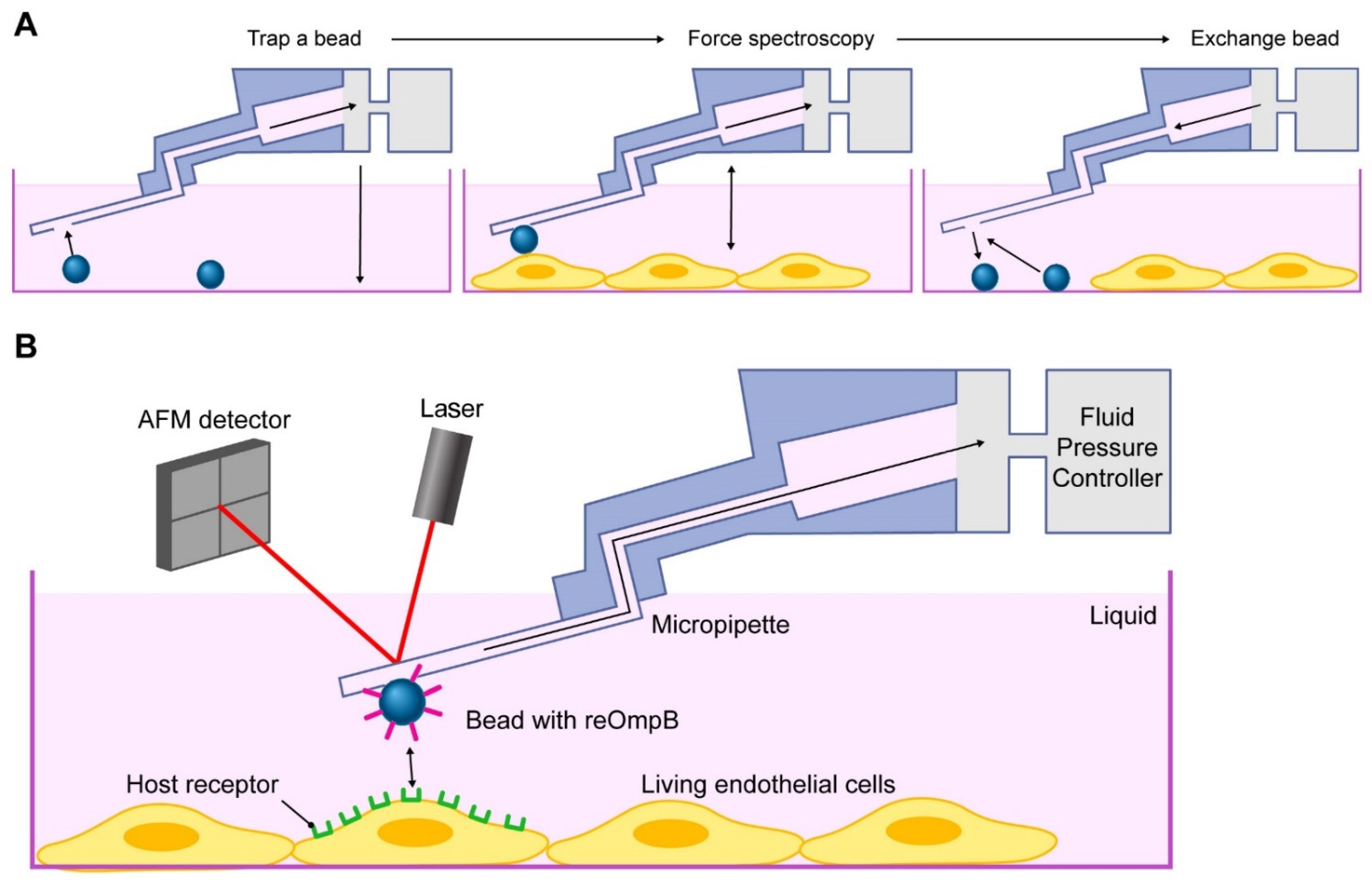

Figure 2. Fluidic force microscopy (FluidFM). Contamination and degradation of colloid surfaces limits the lifetime of a colloid probe and induces potential bias when the probe is reused to measure the same biomolecule in a different sample. A simple replacement of the colloid probe after experiments or contamination is impossible for conventional AFM. FluidFM was developed to conquer these limitations. (A) Operation moods of FluidFM system using micropipette-based cantilever, providing strong connections between the colloid and cantilever to use exchangeable colloid probes with the same cantilever. (B) Schematic representation of the quantification of irreversible interacting forces between the protein-coated colloid probe and the target living cell by the FluidFM system, mainly composed of fluid pressure controller and AFM detector.
Figure 2. Fluidic force microscopy (FluidFM). Contamination and degradation of colloid surfaces limits the lifetime of a colloid probe and induces potential bias when the probe is reused to measure the same biomolecule in a different sample. A simple replacement of the colloid probe after experiments or contamination is impossible for conventional AFM. FluidFM was developed to conquer these limitations. (A) Operation moods of FluidFM system using micropipette-based cantilever, providing strong connections between the colloid and cantilever to use exchangeable colloid probes with the same cantilever. (B) Schematic representation of the quantification of irreversible interacting forces between the protein-coated colloid probe and the target living cell by the FluidFM system, mainly composed of fluid pressure controller and AFM detector.
Pathogens 10 01307 g002
Pathogens 10 01307 g003 550

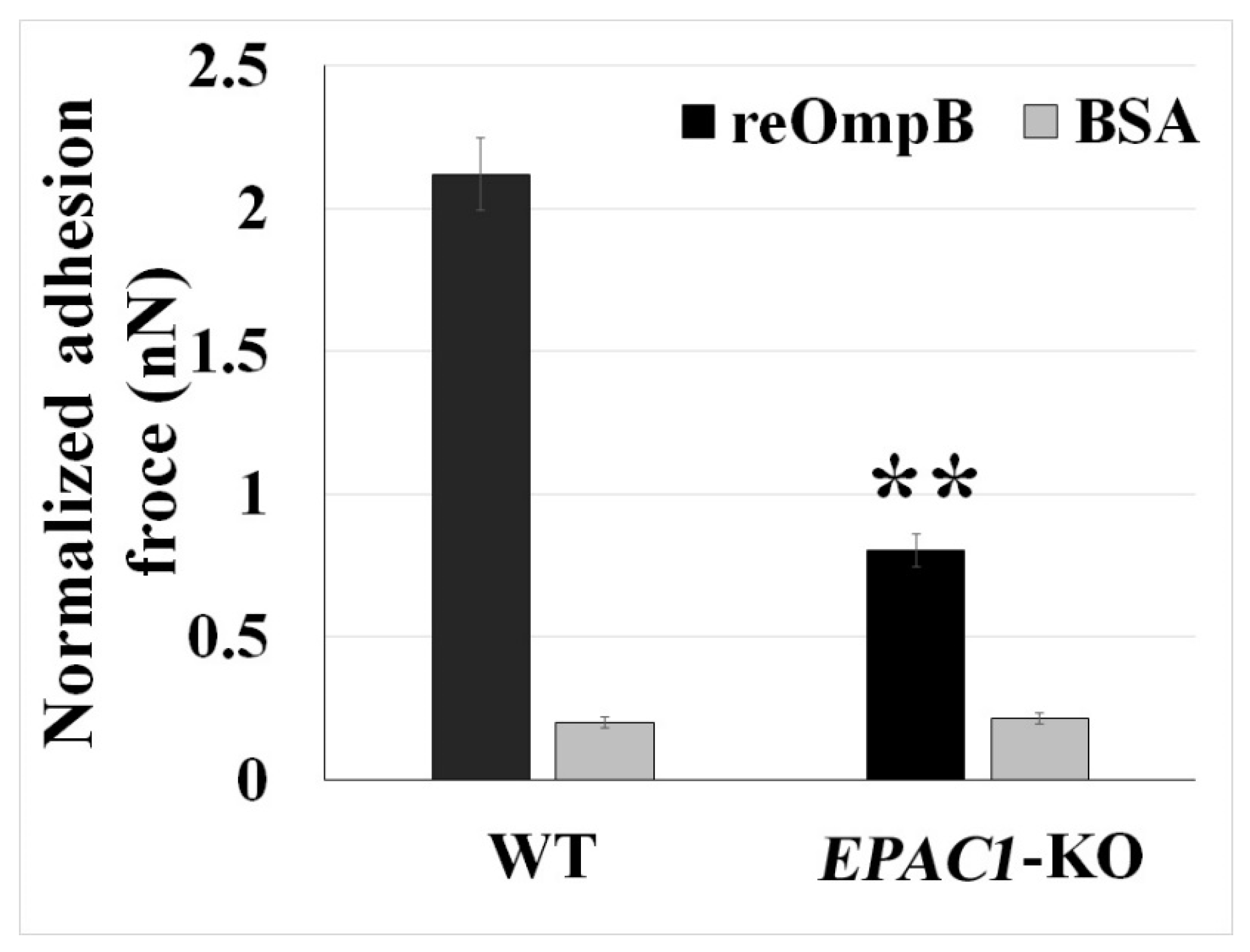

Figure 3. Rickettsial OmpB shows a host EPAC1-dependent binding strength on the surface of a living EC. FluidFM studies measure the binding forces (nanoNewton, nN) between reOmpB-coated microbead and a single living WT or EPAC1-KO mouse BMEC. Data are represented as mean ± SEM. The data were analyzed using One-Way ANOVA. **: compared to the group of WT, p < 0.01. At least three different detection areas were measured in one cell. Ten cells were sampled per group.
Figure 3. Rickettsial OmpB shows a host EPAC1-dependent binding strength on the surface of a living EC. FluidFM studies measure the binding forces (nanoNewton, nN) between reOmpB-coated microbead and a single living WT or EPAC1-KO mouse BMEC. Data are represented as mean ± SEM. The data were analyzed using One-Way ANOVA. **: compared to the group of WT, p < 0.01. At least three different detection areas were measured in one cell. Ten cells were sampled per group.
Pathogens 10 01307 g003
Pathogens 10 01307 g004 550

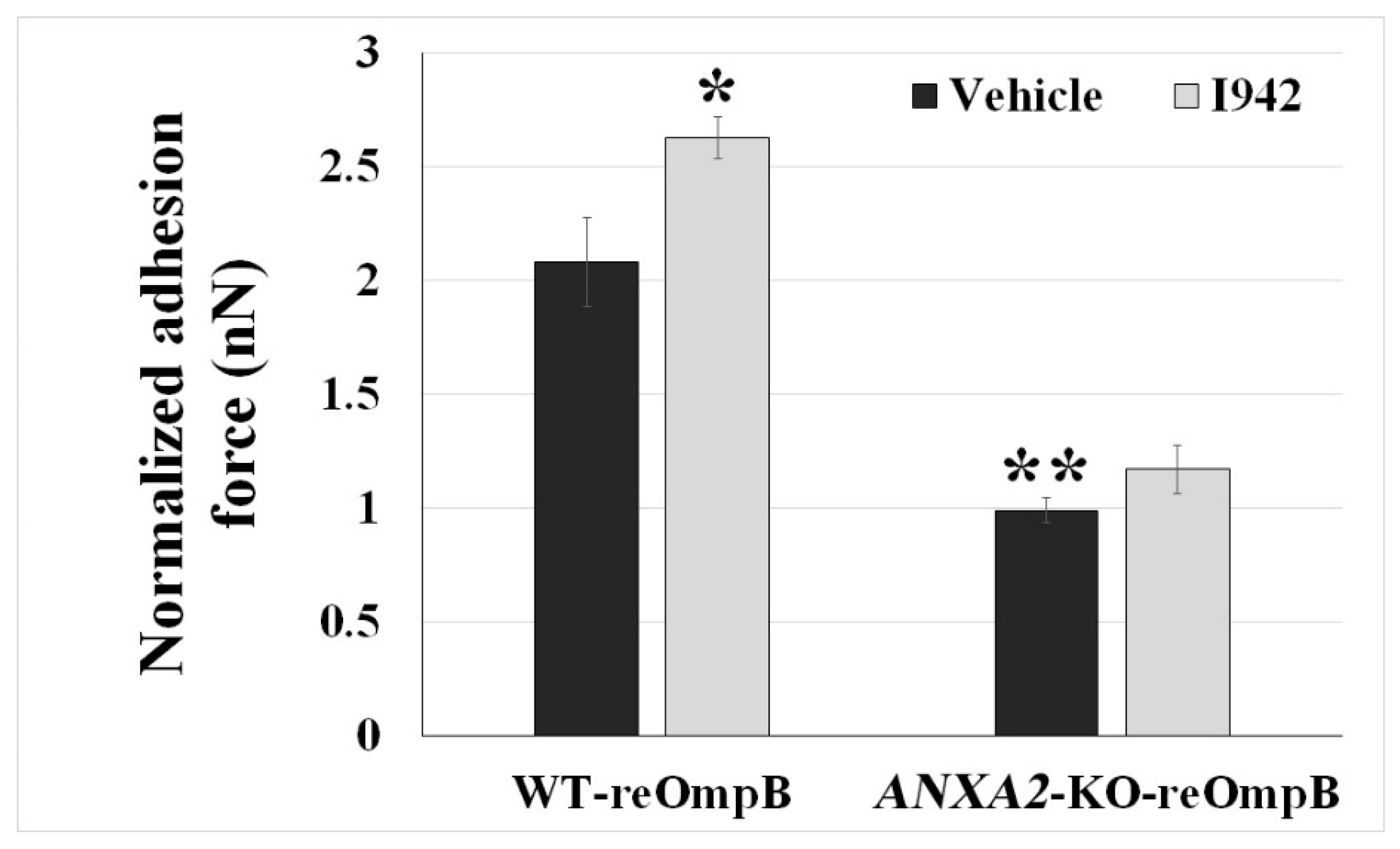

Figure 4. EPAC1 specific activator enhances reOmpB binding force to single living EC dependent of ANXA2. FluidFM studies measured the binding forces (nanoNewton, nN) between reOmpB-coated microbead and single living WT or ANXA2-KO mouse BMEC, which was exposed to I942 (5 µM) or vehicle (DMSO at same amount as the I942 preparation in the media) for 24 h. Stock solution of I942 (5 mM) was added into culture media to a final concentration at 5 µM. Data are represented as mean ± SEM. The data were analyzed using One-Way ANOVA. *: compared to the group of WT-vehicle, p < 0.05. **: compared to the group of WT-vehicle, p < 0.01. At least three different detection areas were measured in one cell. Ten cells were sampled per group.
Figure 4. EPAC1 specific activator enhances reOmpB binding force to single living EC dependent of ANXA2. FluidFM studies measured the binding forces (nanoNewton, nN) between reOmpB-coated microbead and single living WT or ANXA2-KO mouse BMEC, which was exposed to I942 (5 µM) or vehicle (DMSO at same amount as the I942 preparation in the media) for 24 h. Stock solution of I942 (5 mM) was added into culture media to a final concentration at 5 µM. Data are represented as mean ± SEM. The data were analyzed using One-Way ANOVA. *: compared to the group of WT-vehicle, p < 0.05. **: compared to the group of WT-vehicle, p < 0.01. At least three different detection areas were measured in one cell. Ten cells were sampled per group.
Pathogens 10 01307 g004
Pathogens 10 01307 g005 550

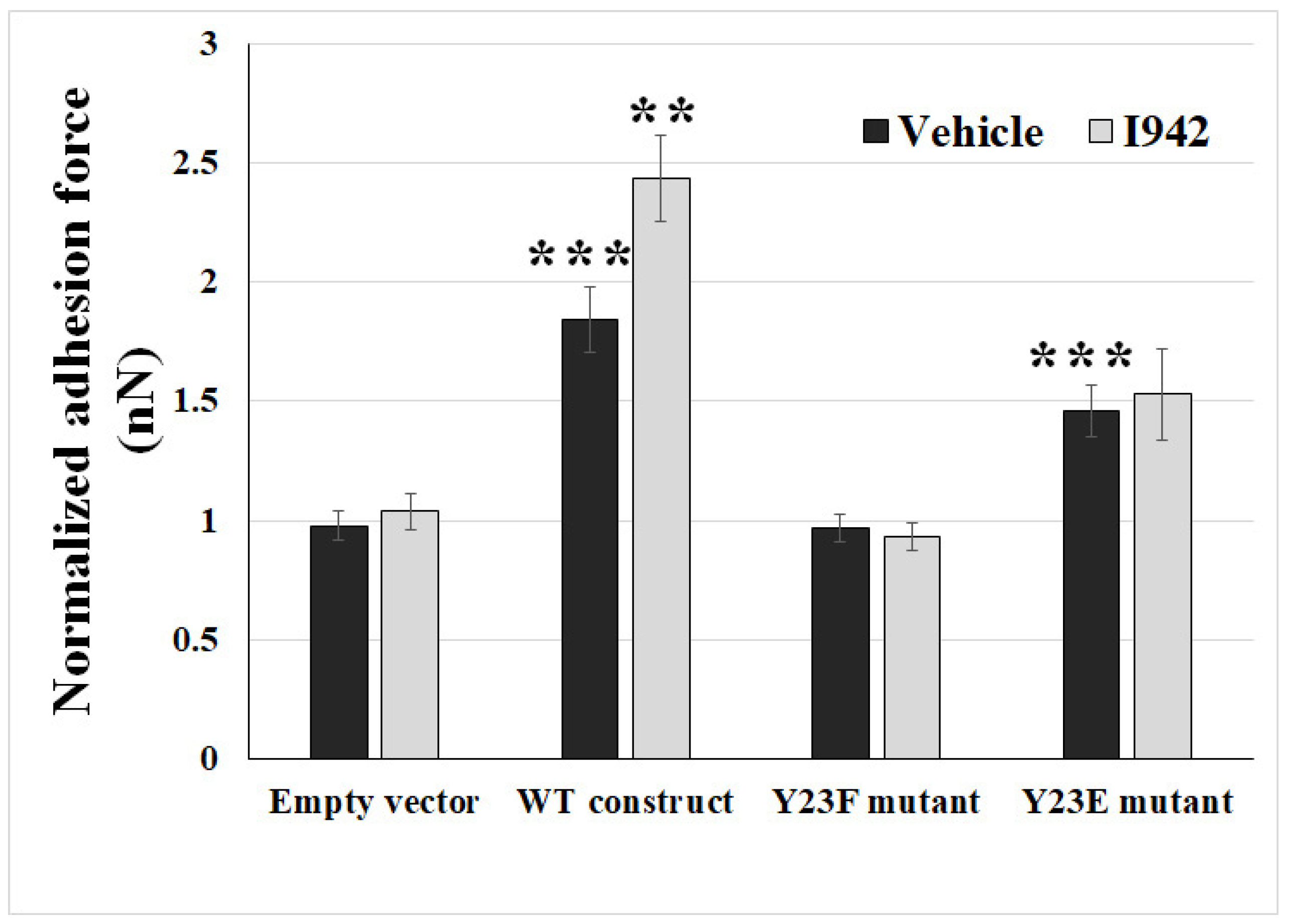

Figure 5. Host EPAC1 governs rickettsial adhesion to EC surface via regulation on phosphorylation of Y23 in ANXA2. FluidFM studies measured the binding forces (nanoNewton, nN) between reOmpB-coated microbead and single living ANXA2-KO mouse BMEC, which was transfected with WT ANXA2 construct, phosphodefective ANXA2 mutant Y23F, or phosphomimic ANXA2 mutant Y23E, after exposure to I942 (5 µM) or vehicle for 24 h. The cells were transfected with empty vectors were used as negative controls. Data are represented as mean ± SEM. The data were analyzed using One-Way ANOVA. **: compared to the group of WT construct-vehicle, p < 0.01; ***: compared to the group of Empty vector-vehicle, p < 0.001. At least three different detection areas were measured in one cell. Ten cells were sampled per group.
Figure 5. Host EPAC1 governs rickettsial adhesion to EC surface via regulation on phosphorylation of Y23 in ANXA2. FluidFM studies measured the binding forces (nanoNewton, nN) between reOmpB-coated microbead and single living ANXA2-KO mouse BMEC, which was transfected with WT ANXA2 construct, phosphodefective ANXA2 mutant Y23F, or phosphomimic ANXA2 mutant Y23E, after exposure to I942 (5 µM) or vehicle for 24 h. The cells were transfected with empty vectors were used as negative controls. Data are represented as mean ± SEM. The data were analyzed using One-Way ANOVA. **: compared to the group of WT construct-vehicle, p < 0.01; ***: compared to the group of Empty vector-vehicle, p < 0.001. At least three different detection areas were measured in one cell. Ten cells were sampled per group.
Pathogens 10 01307 g005
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Su, Z.; Shelite, T.R.; Qiu, Y.; Chang, Q.; Wakamiya, M.; Bei, J.; He, X.; Zhou, C.; Liu, Y.; Nyong, E.; et al. Host EPAC1 Modulates Rickettsial Adhesion to Vascular Endothelial Cells via Regulation of ANXA2 Y23 Phosphorylation. Pathogens 2021, 10, 1307. https://doi.org/10.3390/pathogens10101307

AMA Style

Su Z, Shelite TR, Qiu Y, Chang Q, Wakamiya M, Bei J, He X, Zhou C, Liu Y, Nyong E, et al. Host EPAC1 Modulates Rickettsial Adhesion to Vascular Endothelial Cells via Regulation of ANXA2 Y23 Phosphorylation. Pathogens. 2021; 10(10):1307. https://doi.org/10.3390/pathogens10101307

Chicago/Turabian Style

Su, Zhengchen, Thomas R. Shelite, Yuan Qiu, Qing Chang, Maki Wakamiya, Jiani Bei, Xi He, Changcheng Zhou, Yakun Liu, Emmanuel Nyong, and et al. 2021. "Host EPAC1 Modulates Rickettsial Adhesion to Vascular Endothelial Cells via Regulation of ANXA2 Y23 Phosphorylation" Pathogens 10, no. 10: 1307. https://doi.org/10.3390/pathogens10101307

APA Style

Su, Z., Shelite, T. R., Qiu, Y., Chang, Q., Wakamiya, M., Bei, J., He, X., Zhou, C., Liu, Y., Nyong, E., Liang, Y., Gaitas, A., Saito, T. B., & Gong, B. (2021). Host EPAC1 Modulates Rickettsial Adhesion to Vascular Endothelial Cells via Regulation of ANXA2 Y23 Phosphorylation. Pathogens, 10(10), 1307. https://doi.org/10.3390/pathogens10101307

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
