Identification of Phytoplasmas Representing Multiple New Genetic Lineages from Phloem-Feeding Leafhoppers Highlights the Diversity of Phytoplasmas and Their Potential Vectors

by
Wei Wei
1,*,
Valeria Trivellone
2,
Christopher H. Dietrich
2,
Yan Zhao
1,
Kristi D. Bottner-Parker
1 and
Algirdas Ivanauskas
1
1
Beltsville Agricultural Research Center, Molecular Plant Pathology Laboratory, Agricultural Research Service, United States Department of Agriculture, Beltsville, MD 20705, USA
2
Illinois Natural History Survey, Prairie Research Institute, University of Illinois, Champaign, IL 61820, USA
*
Author to whom correspondence should be addressed.
Pathogens 2021, 10(3), 352; https://doi.org/10.3390/pathogens10030352
Submission received: 2 February 2021 / Revised: 10 March 2021 / Accepted: 13 March 2021 / Published: 16 March 2021
(This article belongs to the Section Bacterial Pathogens)
Browse Figures
Versions Notes

Abstract

:
Phytoplasmas are obligate transkingdom bacterial parasites that infect a variety of plant species and replicate in phloem-feeding insects in the order Hemiptera, mainly leafhoppers (Cicadellidae). The insect capacity in acquisition, transmission, survival, and host range directly determines the epidemiology of phytoplasmas. However, due to the difficulty of insect sampling and the lack of follow-up transmission trials, the confirmed phytoplasma insect hosts are still limited compared with the identified plant hosts. Recently, quantitative polymerase chain reaction (qPCR)-based quick screening of 227 leafhoppers collected in natural habitats unveiled the presence of previously unknown phytoplasmas in six samples. In the present study, 76 leafhoppers, including the six prescreened positive samples, were further examined to identify and characterize the phytoplasma strains by semi-nested PCR. A total of ten phytoplasma strains were identified in leafhoppers from four countries including South Africa, Kyrgyzstan, Australia, and China. Based on virtual restriction fragment length polymorphism (RFLP) analysis, these ten phytoplasma strains were classified into four distinct ribosomal (16Sr) groups (16SrI, 16SrIII, 16SrXIV, and 16SrXV), representing five new subgroups (16SrI-AO, 16SrXIV-D, 16SrXIV-E, 16SrXIV-F, and 16SrXV-C). The results strongly suggest that the newly identified phytoplasma strains not only represent new genetic subgroup lineages, but also extend previously undiscovered geographical distributions. In addition, ten phytoplasma-harboring leafhoppers belonged to seven known leafhopper species, none of which were previously reported insect vectors of phytoplasmas. The findings from this study provide fresh insight into genetic diversity, geographical distribution, and insect host range of phytoplasmas. Further transmission trials and screening of new potential host plants and weed reservoirs in areas adjacent to collection sites of phytoplasma harboring leafhoppers will contribute to a better understanding of phytoplasma transmission and epidemiology.

1. Introduction

Phytoplasmas are a large group of phloem-restricted, cell wall-less bacteria that infect nearly a thousand plant species and cause serious economic loss worldwide. In nature, phytoplasmas are transmitted by phloem sap feeding insect vectors, mainly leafhoppers, in a persistent-propagative manner [1,2,3]. First, phloem feeding insects obtain phytoplasmas from diseased plants during feeding, and then the phytoplasmas penetrate the intestinal wall of the insect (the first barrier) and circulate in the hemolymph. The phytoplasmas further enter the salivary glands (the second barrier) and multiply there. At this point, the insects become vectors. Once they feed on healthy plants, the plants become infected [1,2,3]. The life cycle of phytoplasma involves phytoplasma, plant (healthy and infected), and vector (egg, larva, pupa, and adult stages), which collectively determines the complex relationships and interactions among tri-partite components of phytoplasma pathosystem in a broad ecological context.
Despite numerous efforts, pure phytoplasma culture has not been established in vitro thus far. Like many other unculturable bacteria, higher rank taxa of phytoplasmas (Tenericutes/Mollicutes/Acholeplasmatales/incertae sedis—Family II) were named in the absence of type genus and species, and the Candidatus status is used for reserving the putative lower rank taxa (Genus and Species). Phytoplasmas are currently assigned in the provisional genus ‘Candidatus Phytoplasma’ [4]. So far, 45 ‘Candidatus Phytoplasma’ species have been formally named under this provisional genus based on the 16S rRNA gene sequence [5,6,7,8,9]. Phytoplasmas are phylogenetically coherent and belong to a single clade, but they are also highly diverse. Phytoplasmas have been classified into 36 ribosomal groups, and more than 150 subgroups based on mutually distinct 16S rRNA gene restriction fragment length polymorphism (RFLP) patterns [6,8,10,11,12,13]. In addition to the 16S rRNA gene marker, multi-locus sequence analysis (MLSA) using other genetic markers has also been widely used for finer differentiation of closely related phytoplasmas. These markers include genes encoding ribosomal proteins (rp), protein translocase subunit SecY, and translation elongation factor Tu-EF [8,14]. For example, MLSA characterization based on 16S rRNA, rp, and secY genes revealed azalea little leaf phytoplasmas belonged to a distinct lineage within the aster yellows phytoplasma group [14].
In plants, phytoplasma infection induces various symptoms including virescence (flower petals turning green), phyllody (leafy flowers), cauliflower-like inflorescence, and witches’-broom, thereby altering plant morphology, growth patterns, and architecture [15,16,17,18]. A phytoplasma effector protein, SAP54, identified in aster yellows witches’-broom phytoplasma, can manipulate plant host morphology such as turning normal flowers into leafy and virescent ones, and increase feeding and egg laying of leafhoppers [19]. In insect hosts, phytoplasma can induce host range expansion and host shift of the vector. For instance, the host range of the corn leafhopper, Dalbulus maidis expanded after acquiring an aster yellows phytoplasma strain [20]. In addition, host shift of stolbur phytoplasma vector, Hyalesthes obsoletus from field bindweed to stinging nettle was observed in northern Italy [21,22]. Due to possible vector-mediated host range expansion and host shift, phytoplasma may “infect” nonspecific plants without showing symptoms. However, most known phytoplasmas have been discovered in symptomatic plants (mainly crops and ornamental plants) in managed agroecosystems and plantation forests with low biodiversity and high inputs. Subsequent insect vector surveys have always been conducted in the same agroecosystems and plantations where the phytoplasmas were found. Compared with the number of known plant hosts, far less phytoplasma insect vectors have been identified because of the difficulty of insect sampling and the lack of follow-up transmission trials. These facts indicate that phytoplasma studies in natural habitats (non-crop and non-plantation areas) and asymptomatic plants have been largely overlooked [23].
Recently, Trivellone et al. [24] used quantitative polymerase chain reaction (qPCR) to screen 227 leafhopper specimens collected worldwide in natural habitats and reported the presence of six phytoplasma strains not yet characterized. The purpose of the present study is to characterize and classify phytoplasmas present in the collection. A total of 76 specimens, including 56 specimens analyzed by qPCR [24] and 20 unexamined new specimens, were subjected to semi-nested PCR, a widely used phytoplasma detection and molecular diagnostic approach. The results showed that a total of ten insect specimens harbored phytoplasmas, nine of which were previously unknown strains. The newly discovered phytoplasma strains represented five new subgroups of four distinct ribosomal (16Sr) groups. In addition, ten phytoplasma-harboring leafhoppers were revealed as phytoplasma insect ”hosts” although they belonged to seven known leafhopper species. The findings from this study provided insight into phytoplasma genetic diversity and the phytoplasma disease pathosystem. The findings will have the guiding significance for in-depth screening of new plant hosts and weed reservoirs of phytoplasmas. Most importantly, the findings strongly suggest that screening leafhoppers is also a very feasible strategy for detecting and predicting potential phytoplasma diseases, especially in the native or cultivated areas of asymptomatic phytoplasma plant hosts.

2. Results and Discussion

2.1. Phytoplasma Detection in Leafhopper Samples

The presence of phytoplasma in 76 leafhopper samples collected in natural habitats was investigated by semi-nested PCR amplification employing phytoplasma specific primers. Amplicons of around 1.5 kb were obtained from ten single leafhopper specimens (Table 1, Supplementary Figure S1 and Table S1); among them, six specimens were phytoplasma-positive in qPCR-based prescreening [24]. The ten phytoplasma-positive leafhopper specimens were collected from South Africa, Kyrgyzstan, Australia, and China, respectively (Table 1 and Figure 1, [24]). These leafhoppers belonged to seven leafhopper species, Leofa dispar, Pravistylus exquadratus, Neoaliturus opacipennis, Macrosteles sordidipennis, Mayawa capitata, Mayawa affinifacialis, and Acharis ussuriensis (Table 1, [24,25]).

2.2. Candidatus Phytoplasma’ Species Affiliation of the Leafhopper Harbored Phytoplasmas

PCR products amplified from ten leafhopper samples were sequenced and the obtained sequences covered a nearly full-length 16S rRNA gene and a partial 16S-23S RNA intergenic region. The sequences were deposited to the GenBank (Accession numbers MW281484-MW281493, Table 1). Each phytoplasma strain was given a strain name. For example, the phytoplasma strain identified from LH102-1 leafhopper sample was named as PLH102-1. PLH represents Phytoplasma strain identified in LeafHopper, and numbers are the leafhopper sample codes (please see Materials and Methods). Sequence BLAST search against the iPhyClassifier database [13] revealed that strains PLH102-1, PLH098-1, and PLH133-1 were most closely related to the reference strains of ‘Candidatus Phytoplasma asteris’, ‘Candidatus Phytoplasma pruni’ (rrnA and rrnB), and ‘Candidatus Phytoplasma brasiliense’, respectively. The similarity of 16S rRNA sequence was 98.7%, 99.1% and 97.7%, respectively. Strains PLH078-1, PLH078-12, PLH082-1, PLH082-2, PLH139-1, PLH143-1, and PLH143-5 were closely related to the reference strain of ‘Candidatus Phytoplasma cynodontis’, sharing 98.2–98.6% sequence similarity in 16S rRNA gene.

2.3. Virtual RFLP Analysis of PLH Phytoplasma Strains

The virtual RFLP analysis of F2nR2 (1.25 kb) 16S rRNA gene fragment was conducted by iPhyClassifier [13], and six mutually distinct RFLP patterns were identified from ten PLH strains (Figure 2). The RFLP profiles of strains PLH078-1, PLH078-12, PLH082-1, and PLH082-2 were identical (Figure 2a), and strains PLH143-1 and PLH143-5 also had the same RFLP pattern (Figure 2f). Strains PLH098-1, PLH102-1, PLH133-1, and PLH139-1 had distinct RFLP patterns (Figure 2b–e). These ten phytoplasma strains belonged to four different phytoplasma classification groups including (i) Aster yellow (16SrI) group, (ii) X-disease (16SrIII) group, (iii) Bermudagrass white leaf (16SrXIV) group, and (iv) Hibiscus witches’-broom (16SrXV) group. The phytoplasmas were further classified into six subgroups as detailed below; five of them represented new subgroups (Table 1 and Figure 3).
Strain PLH102-1 belonged to 16SrI group and exhibited a collective RFLP profile different from those of all 33 previously established subgroups in the group 16SrI. As shown in Figure 3a, virtual digestion with restriction enzyme HhaI alone was able to distinguish strain PLH102-1 from 23 previously established 16SrI subgroups. Virtual RFLP patterns from MseI, AluI, and HpaII digestions separated strain PLH102-1 from the remaining ten 16SrI subgroups. Similarity coefficients derived from virtual RFLP analysis of 16S rRNA genes of strain PLH102-1 and other 16SrI subgroups were less than or equal to 0.97, the threshold for a new subgroup delineation [26]. Therefore, strain PLH102-1 was designated as a new subgroup 16SrI-AO (Table 2 [10,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50], some of previously reported 16SrI subgroups were reassigned due to duplication).
Pathogens 10 00352 g002 550

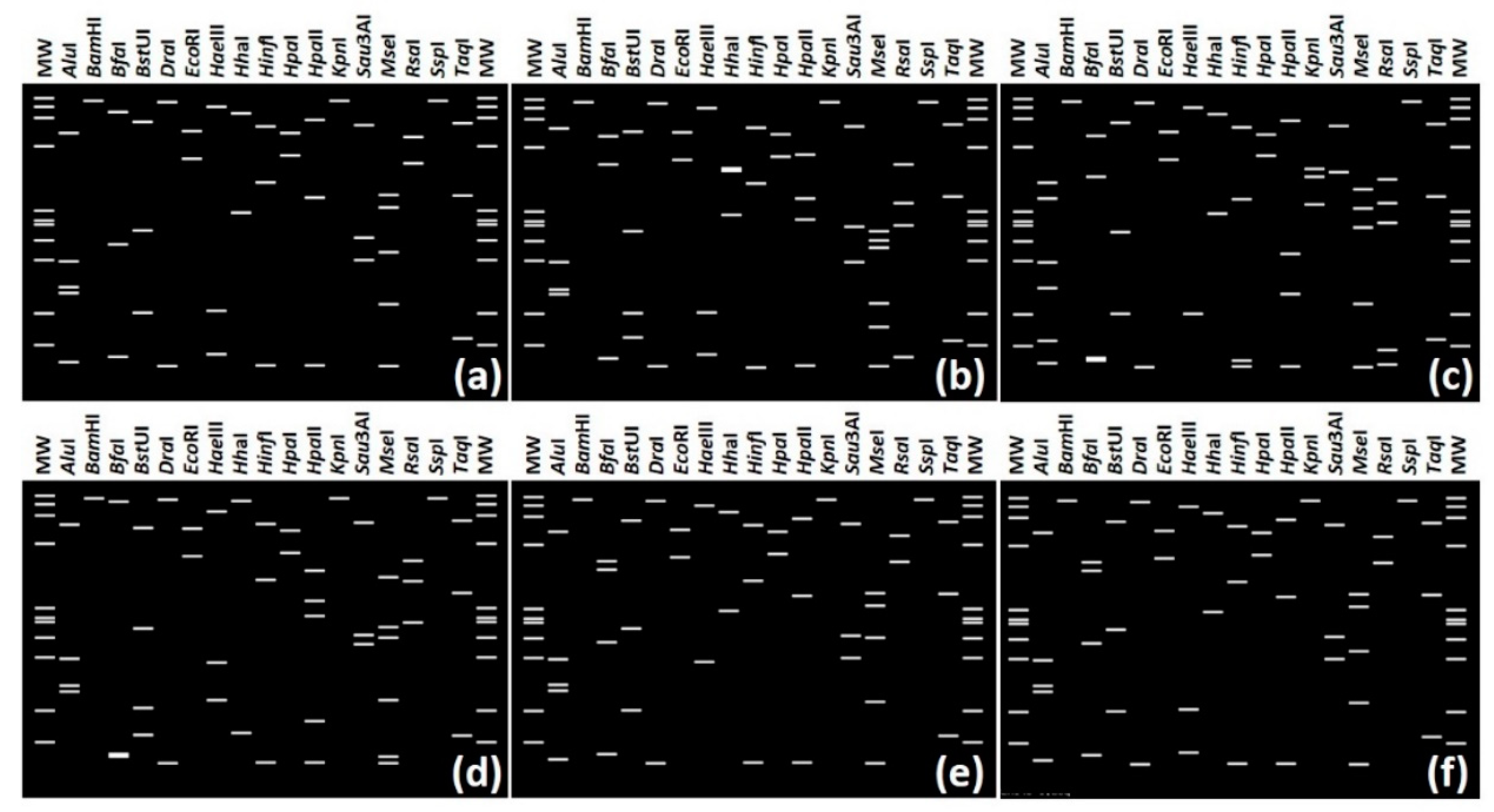

Figure 2. Distinct virtual restriction fragment length polymorphism (RFLP) patterns from in silico digestions of 16S rRNA gene F2nR2 fragments from ten phytoplasma strains. (a) PLH078-1, PLH078-12, PLH082-1, PLH082-2, (b) PLH098-1, (c) PLH102-1, (d) PLH133-1, (e) PLH139-1, (f) PLH143-1, and PLH143-5. Recognition sites for the following 17 restriction enzymes were used in the simulated digestions: AluI, BamHI, BfaI, BstUI (ThaI), DraI, EcoRI, HaeIII, HhaI, HinfI, HpaI, HpaII, KpnI, Sau3AI (MboI), MseI, RsaI, SspI, and TaqI. MW, ϕX174 DNA-HaeIII digestion as a marker.
Figure 2. Distinct virtual restriction fragment length polymorphism (RFLP) patterns from in silico digestions of 16S rRNA gene F2nR2 fragments from ten phytoplasma strains. (a) PLH078-1, PLH078-12, PLH082-1, PLH082-2, (b) PLH098-1, (c) PLH102-1, (d) PLH133-1, (e) PLH139-1, (f) PLH143-1, and PLH143-5. Recognition sites for the following 17 restriction enzymes were used in the simulated digestions: AluI, BamHI, BfaI, BstUI (ThaI), DraI, EcoRI, HaeIII, HhaI, HinfI, HpaI, HpaII, KpnI, Sau3AI (MboI), MseI, RsaI, SspI, and TaqI. MW, ϕX174 DNA-HaeIII digestion as a marker.
Pathogens 10 00352 g002
Pathogens 10 00352 g003 550

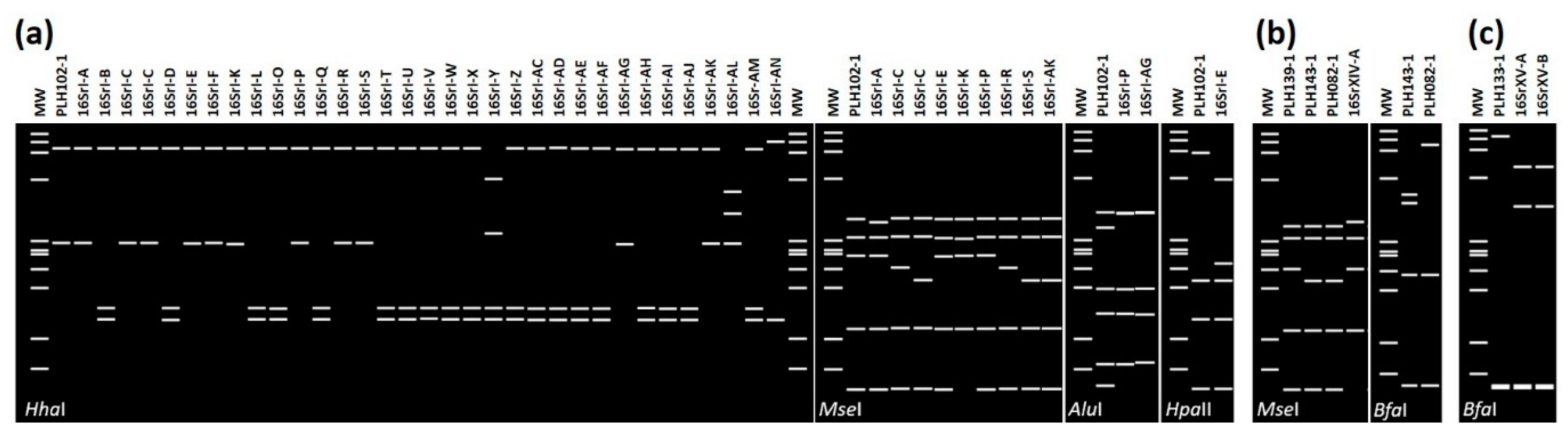

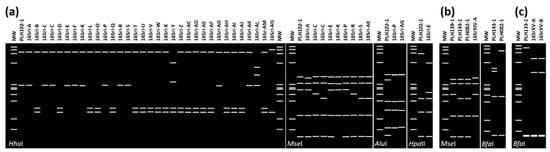

Figure 3. Identification of five new subgroups belonging to different phytoplasma classification groups based on the in silico RFLP patterns derived from key restriction enzyme digestions. (a) The new subgroup pattern 16SrI-AO (PLH102-1) can be differentiated from the other 33 subgroup patterns of the 16rI group by HhaI, MseI, AluI, and HpaII enzyme digestions (first separated from 23 subgroups, and then from 7, 2, and 1 16SrI subgroups, respectively). (b) Three new subgroup patterns 16SrXIV-D (PLH139-1), 16SrXIV-E (PLH143-1 and PLH143-5), and 16SrXIV-F (PLH078-1, PLH078-2, PLH082-1, and PLH082-2) can be differentiated from previously reported 16SrXIV-A subgroup by MseI digestion alone. 16SrXIV-E and 16SrXIV-F can be separated by BfaI digestion. Subgroups 16SrXIV-B and 16SrXIV-C were abolished in this study due to same RFLP pattern with that of 16SrXIV-A (details see Table 3). (c) Distinction of new subgroup pattern 16SrXV-C (PLH133-1) from previously reported 16SrXV-A and 16SrXV-B subgroup patterns can be accomplished by BfaI digestion alone. MW, ϕX174 DNA-HaeIII digestion as a marker.
Figure 3. Identification of five new subgroups belonging to different phytoplasma classification groups based on the in silico RFLP patterns derived from key restriction enzyme digestions. (a) The new subgroup pattern 16SrI-AO (PLH102-1) can be differentiated from the other 33 subgroup patterns of the 16rI group by HhaI, MseI, AluI, and HpaII enzyme digestions (first separated from 23 subgroups, and then from 7, 2, and 1 16SrI subgroups, respectively). (b) Three new subgroup patterns 16SrXIV-D (PLH139-1), 16SrXIV-E (PLH143-1 and PLH143-5), and 16SrXIV-F (PLH078-1, PLH078-2, PLH082-1, and PLH082-2) can be differentiated from previously reported 16SrXIV-A subgroup by MseI digestion alone. 16SrXIV-E and 16SrXIV-F can be separated by BfaI digestion. Subgroups 16SrXIV-B and 16SrXIV-C were abolished in this study due to same RFLP pattern with that of 16SrXIV-A (details see Table 3). (c) Distinction of new subgroup pattern 16SrXV-C (PLH133-1) from previously reported 16SrXV-A and 16SrXV-B subgroup patterns can be accomplished by BfaI digestion alone. MW, ϕX174 DNA-HaeIII digestion as a marker.
Pathogens 10 00352 g003
Strains PLH078-1, PLH078-12, PLH082-1, PLH082-2, PLH139-1, PLH143-1, and PLH143-5 (Table 1) were classified into bermudagrass white leaf (16SrXIV) group, representing three new subgroups. So far, three 16SrXIV subgroups (16SrXIV-A, 16SrXIV-B, and 16SrXIV-C) have been reported [51,52,53]. However, RFLP profiles of 16SrXIV-A, 16SrXIV-B, and 16SrXIV-C are identical and similarity coefficient between them is 1.00 (Table 3). This means they are same subgroup (16SrXIV-B and 16SrXIV-C are also 16SrXIV-A). Therefore, 16SrXIV-B, and 16SrXIV-C were abolished in this study (Table 3). Similarity coefficients between the representative strains of each of the three new 16SrXIV subgroups and the representative strain of 16SrXIV-A were 0.81-0.90 (Table 3). The scores were less than or equal to 0.97, which is the threshold for a new subgroup delineation [26]. The three new 16SrXIV subgroups were designated as 16SrXIV-D, 16SrXIV-E, and 16SrXIV-F. Strain PLH139-1, PLH143-5, and PLH082-1 represent three new subgroups, respectively. They can be differentiated from previously reported 16SrXIV-A subgroup by MseI digestion alone, and 16SrXIV-E and 16SrXIV-F can be separated by BfaI digestion (Figure 3b).

2.4. Phylogenetic Positions of Newly Identified PLH Strains

Strain PLH133-1 belonged to Hibiscus witches’-broom (16SrXV) group and represented a new subgroup 16SrXV-C. 16SrXV-C and previously reported 16SrXV-A and 16SrXV-B subgroups can be differentiated by BfaI digestion alone (Figure 3c).
Strain PLH098-1 exhibited a collective virtual RFLP profile identical to that of subgroup J of the X-disease (16SrIII) group (Figure 2b). Therefore, PLH098-1 is a new member of the subgroup, 16SrIII-J.

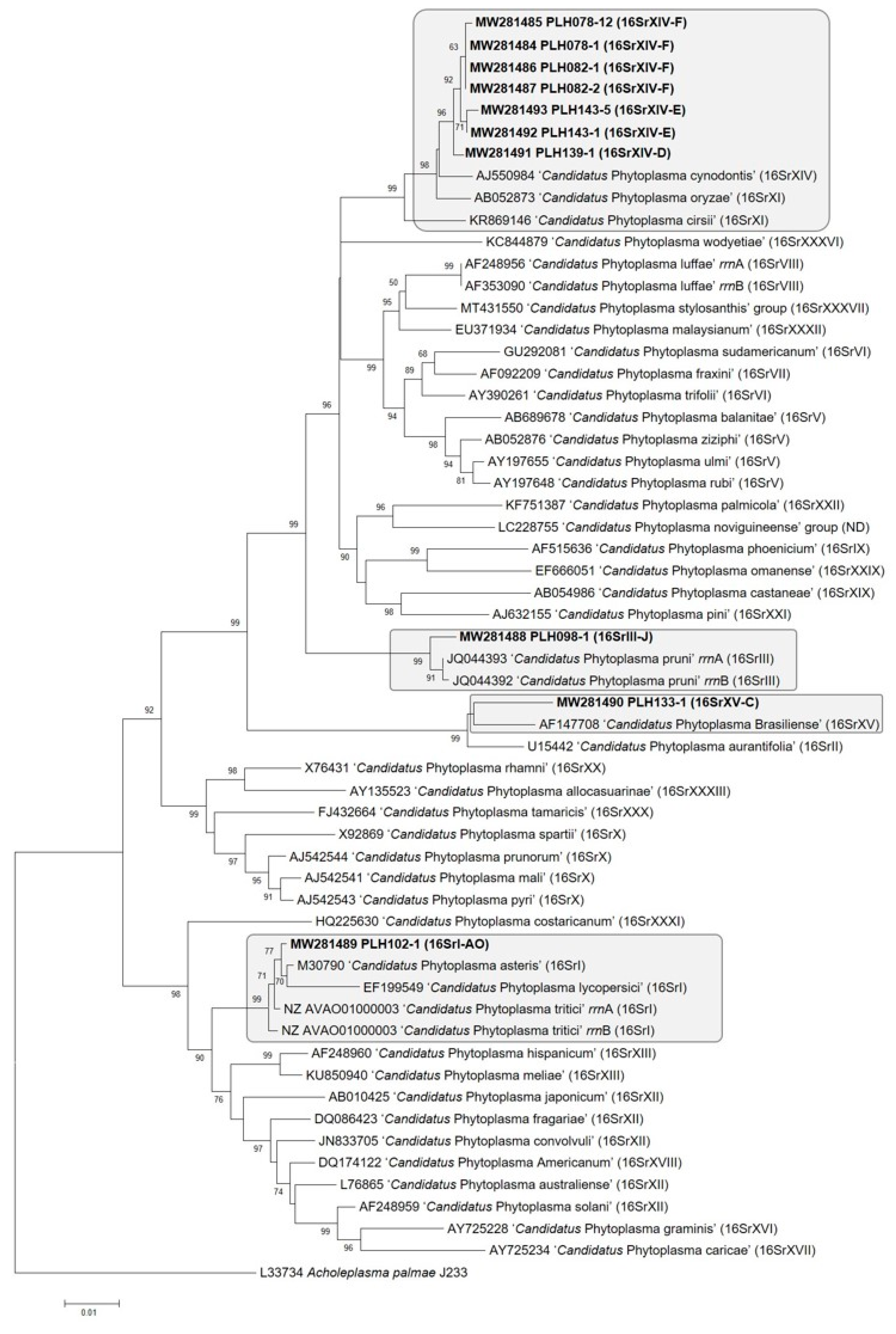

The relationships between individual PLH strains and reference strains of previously described ‘Candidatus Phytoplasma’ species were examined by phylogenetic analysis of 16S rRNA gene sequences using Mega 6 [54]. The tree topology demonstrated that the ten PLH strains belonged to the monophyletic phytoplasma clade and were phylogenetically related to four different subclades (Figure 4). Strain PLH102-1 clustered with reference strains of ‘Candidatus Phytoplasma asteris’, ‘Candidatus Phytoplasma lycopersici’, and ‘Candidatus Phytoplasma tritici’ (rrnA and rrnB), which are classified in 16SrI group. Strain PLH098-1 and ‘Candidatus Phytoplasma pruni’ (rrnA and rrnB) reference strains grouped together and fell into 16SrIII group (Figure 4).
Strains PLH078-1, PLH078-12, PLH082-1, PLH082-2, PLH139-1, PLH143-1, and PLH143-5 were most closely related to ‘Candidatus Phytoplasma cynodontis’ reference strain (16SrXIV group), and then ‘Candidatus Phytoplasma oryzae’ reference strain (16SrXI group), and ‘Candidatus Phytoplasma cirsii’ reference strain (16SrXI group). In the process of updating the phytoplasma classification, it was difficult to determine the classification of some phytoplasma strains that are related to the groups 16SrXI and 16SrXIV. This is because the similarity coefficients between two groups of strains are not always less than 0.85 (the threshold for a new group, [12]). We propose to combine these two groups into one group [55].
Strain PLH133-1 was closely related to the ‘Candidatus Phytoplasma brasiliense’ reference strain, which belongs to 16SrXV group. The result from the phylogenetic analysis was consistent with that of sequence BLAST and virtual RFLP analyses.

2.5. The Geographical Distribution and Potential Vector Relationship between the Newly Identified PLH Strains and the Known Phytoplasma Strains

PLH phytoplasma strains were found in leafhoppers collected from four different countries. The individual sampling locations were marked in Figure 1 based on the coordinates (Table 1), and the distance between two locations was calculated by Latitude/Longitude Distance Calculator, respectively.

2.5.1. Kyrgyzstan

Two Kyrgyzstan strains (PLH098-1 and PLH102-1) were detected in two different leafhopper species, Neoaliturus opacipennis, and Macrosteles sordidipennis, which were collected from Jct. Kokerim and Kugart Rivers, and Ak-Shyrrak (244 km apart, Table 1 and Figure 1b). These two phytoplasma strains belonged to two different subgroups in two distinct groups (a new subgroup, 16SrI-AO, and an existing subgroup 16SrIII-J, Table 1 and Table 2, Figure 2c and Figure 3a). Neither group 16SrI nor group 16SrIII phytoplasma has been reported in Kyrgyzstan. In fact, the only phytoplasma disease previously reported in the country was potato Stolbur disease [56]. In Europe, the same potato disease was known to be associated with a group 16SrXII phytoplasma.

2.5.2. China

Two strains, PLH143-1 and PLH143-5 were detected in the leafhopper species, Acharis ussuriensis, in Zhouzhi county, Shaanxi, China (Table 1; Figure 1d). The virtual RFLP patterns of the two strains were identical (Figure 2f), and they represented a new subgroup 16SrXIV-E (Figure 3b). To date, more than ten different groups (16SrI, 16SrII, 16SrIII, 16SrV, 16SrVI, 16SrXI, 16SrXII, 16SrXIV, 16SrXIX, 16SrXXI, 16SrXXX, and 16SrXXXII) of phytoplasma strains have been found in China [57,58]. Interestingly, a ‘Candidatus Phytoplasma cynodontis’-related phytoplasma strain (EU999999, a 16SrXIV-A variant, unpublished) which induces white leaf disease in bermudagrass (Cynodon dactylon) was found in Yangling, Shaanxi, China (Figure 1d). Zhouzhi County and Yangling are about 25 km apart. Namely, the two PLH143 strains and the bermudagrass white leaf phytoplasma (BGWL) Yangling strain were discovered in the same geographical area. In addition, BGWL strains were also found in Kaifeng and Luoyang, Henan, China [59], 600 km away from Zhouzhi county (Figure 1d). These facts increased the possibility of Acharis ussuriensis as a potential insect vector of bermudagrass white leaf disease in Shaanxi and Henan provinces, China.

2.5.3. Australia

Genetic diversity of Australian phytoplasma strains is also very significant and known strains have been classified into many existing 16Sr groups (16SrI, 16SrII, 16SrIII, 16SrX, 16SrXI, 16SrXII, 16SrXIV, 16SrXXIII, 16SrXXV, and 16SrXXIX [57,58]). Among them, there are many economically important strains such as Australian grapevine yellows phytoplasma, strawberry lethal yellowing phytoplasma, and tomato big bud phytoplasma. One Australian strain PLH133-1, which was identified in Mayawa capitata represented a new subgroup 16SrXV-C (Table 1; Figure 3c) and shared 97.7% similarity in 16S rRNA gene sequence with that of ‘Candidatus Phytoplasma brasiliense’. This is the first report of a 16SrXV phytoplasma strain in Australia.
The other Australian strain PLH139-1 was found in Mayawa affinifacialis [24], which was collected in Flagstone Creek Protection Park, Eastern Queensland (Figure 1c and Table 1). It shared 98.6% similarity with that of the ‘Candidatus Phytoplasma cynodontis’ reference strain (16SrXIV-A) and represented a new subgroup 16SrXIV-D (Figure 3b; Table 3). Interestingly, strain PLH139-1 shared 98.5% similarity in 16S rRNA gene sequence with a known Australian BGWL strain (AF509321, [60]). The BGWL strain was discovered during field surveys of sugarcane in the Darwin and Palmerston regions of Australia’s Northern Territory (Figure 1c). The insect vector that transmits Australian BGWL strain has not been identified, and Mayawa affinifacialis should be a good candidate for further verification of transmission trials.

2.5.4. South Africa

Four South African strains (PLH078-1, PLH078-12, PLH082-1, and PLH082-2) were detected in leafhoppers collected from Arthurs Seat Hill, KwaZulu-Natal Province, and Wemmershoek Dam, North of Franschhoek in Western Cape province (Figure 1a and Table 1). Although the two sampling sites are 1120 km apart, the four strains shared 98.2-98.5% 16S rRNA gene sequence similarity with that of the ‘Candidatus Phytoplasma cynodontis’ reference strain (16SrXIV-A). They all belonged to a new subgroup 16SrXIV-F (Figure 3b; Table 3). These phytoplasma strains were found in two different leafhopper species, Leofa dispar, and Pravistylus exquadraus. Neither of these leafhopper species were previously identified as phytoplasma insect vectors.
Phytoplasma disease is rarely reported in South Africa. Prior to this study, only two reports had been published. One reported a mixed infection of 16SrII and 16SrXII groups of phytoplasmas in grapevine [61] (sequences are not available in NCBI database). The other one reported aster yellows phytoplasma strain SA-Vdal (GQ365729, [62]), which belongs to 16SrI group and also infects grapevine. In addition, there is one more unpublished strain, sugarcane yellows phytoplasma type I strain ScYP I-Afr (AF056095) in 16SrIII group. Different from China and Australia, no BGWL phytoplasma has been reported in South Africa although bermudagrass is native to savannas of Africa. In conclusion, this is the first time that ‘Candidatus Phytoplasma cynodontis’-related phytoplasma strains have been found in South Africa.

2.6. An Overview of Widespread BGWL Phytoplasma Disease and Its Possibility in South Africa

Among ten newly identified PLH phytoplasma strains, seven strains were within Bermudagrass white leaf (16SrXIV) group and represented three distinct genetic subgroup lineages (16SrXIV-D, 16SrXIV-E, and 16SrXIV-F). Bermudagrass is a fast-growing grass that is spread by seeds and its vegetative propagules, stolons, and rhizomes, and quickly colonize new areas where it grows into dense mats [63,64]. As such, it is one of the most widely used turf grasses for sports fields, golf courses, and general use lawns in tropical and subtropical areas [63,64]. It is therefore not surprising that BGWL disease is widespread in many countries on different continents including (1) Asia: Singapore [65], Iran [52], Turkey [66], Thailand [67], India [68,69,70], Malaysia [71,72], Myanmar [73], Saudi Arabia [74], China [59], and Vietnam (unpublished); (2) Africa: Sudan [75], Kenya, Tanzania and Uganda [76], and Ethiopia (unpublished); (3) Europe: Italy [77], Serbia and Albania [53]; (4) North America: Cuba [78]; and (5) Australia: Australia [79]. All BGWL strains belong to 16SrXIV group with minor genetic variations except for an Ethiopian strain (DQ305983) and a Cuban strain (AY742327). They are classified into 16SrIII and 16SrXVI group, respectively. In South Africa, the potential risk of BGWL disease should not be underestimated because bermudagrass is native to Africa. In addition, ‘Candidatus Phytoplasma cynodontis’-related BGWL strains (16SrXIV group) have been reported in several African countries, such as Sudan [75], Kenya, Tanzania, and Uganda [76]. Identification of ‘Candidatus Phytoplasma cynodontis’-related phytoplasmas (16SrXIV-F) in leafhopper samples collected at two geographical locations in South Africa (Figure 2a) further indicate the presence of such risk.
On the other hand, bermudagrass is also considered as one of the most “troublesome” agricultural and environmental invasive weeds in the world. This is because bermudagrass is drought tolerant, flood resistant and can regenerate quickly after fire, and compete for space and nutrients with many crops, especially, sugarcane (Saccharum officinarum, [80]). Sugarcane, a large perennial grass species in the genus Saccharum, is one of the important sources of raw materials for sugar and ethanol production [81]. Bermudagrass has been recognized as a host for many sugarcane diseases, such as sugarcane ratoon stunting disease [82], and sugarcane mosaic disease [83]. In addition, BGWL phytoplasma strains are also very closely associated with strains that cause sugarcane white leaf (SCWL, 16SrXI-B), sugarcane grassy shoot (SCGS) diseases (16SrXI-B). The studies on BGWL, SCWL, and SCGS diseases have always been inseparable [51,59,77,79]. In this study, five leafhoppers that harbor ‘Candidatus Phytoplasma cynodontis’-related strains were found in South Africa, Australia, and China. Considering that BGWL disease has already occurred in Australia and China, it is likely to occur in South Africa. The bermudagrass and sugarcanes in the vicinity of the collection sites where the leafhoppers tested positive for BGWL phytoplasma strains should be investigated as a priority in future studies.

2.7. An Expansion of Potential Insect Host Range and Phytoplasma Genetic Diversity

Although phytoplasma-harboring leafhoppers examined in the present study are not new species, none of the them were unveiled as phytoplasma “hosts”. It is worth mentioning that phytoplasma detection in the present study was based on the DNA extraction from the dissected abdomen of a single insect specimen, instead of pooled insect specimens commonly adopted to screen insect vectors. Nine of the ten phytoplasma-positive leafhoppers could be detected by direct PCR (the first step of two-step semi-nested PCR, Supplemental Figure S1). This indicated that phytoplasma titers in the leafhopper body were relatively high; that is, these leafhopper species are likely to be phytoplasma insect vectors, which needs to be confirmed by further transmission trials.
Phytoplasmas are believed to be highly diverse. This is mainly due to their complex life cycle of living in two different hosts, plants, and insects as well as their long evolutionary history [84]. In this study, the ten PLH strains were identified in 76 leafhoppers collected from previously overlooked natural habitats. Nine of them (90%) represent five new subgroups and one of them (10%) is a known subgroup (Table 1, Table 2 and Table 3; Figure 1, Figure 2 and Figure 3). The results strongly indicate that these phytoplasmas represent multiple new subgroup lineages, which broadens our understanding in phytoplasma genetic diversity, especially those of insect host origin.
In summary, the new PLH strains identified in this study either represent a new genetic subgroup lineage or mark an extension of the geographic distribution of known phytoplasmas. All PLH-harboring leafhopper species are new insect “hosts” of phytoplasmas. The findings provide insight into the genetic diversity, geographical distribution, and potential insect host range of phytoplasmas. Further transmission trials and screening of new potential host plants and weed reservoirs in the vicinity of phytoplasma-harboring leafhoppers will help us to gain a better understanding of phytoplasma transmission and epidemiology. The findings from this study also support the possibility of screening insect “hosts “of phytoplasmas as a viable strategy for discovery of potential phytoplasma diseases.

3. Materials and Methods

3.1. Leafhopper Samples and DNA Templates

A total of 76 leafhopper specimens collected in natural habitats were used in this study (Supplemental Table S1). Among the 76 specimens, 56 of them had previously been screened for the presence of phytoplasmas by qPCR and six tested positive [24]; the remaining 20 were previously untested leafhopper specimens from the same collection sites where six phytoplasma-positive leafhoppers were found. The leafhopper DNA was extracted from single insect specimens by employing a non-destructive method described by Trivellone et al. [24] The dissected abdomen of each specimen was incubated overnight in 400 µL 1X TES buffer (20 mM Tris, 10 mM EDTA, 0.5% SDS, pH 7.8) and 4 µL Proteinase K (20 mg/µL) at 56 °C. After incubation, the abdomen was removed, and the remaining solution was transferred to a new tube. The same volume of chloroform (400 µL) was added to the tube, vortexed, and centrifuged at 11,000 rpm for 10 min at 4 °C. The upper aqueous layer is transferred to a new tube and chloroform extracted again. The upper aqueous layer was transferred to another new tube, and 400 µL of ice-cold isopropanol was added, vortexed and centrifuged for 15 min at 4 °C at 12,000 rpm. The supernatant was discarded, and the pellet was washed twice with 500 µL of ice-cold 96% ethanol and centrifuged again. The DNA pellet was dried for 20 min and re-suspended in 50 µL of TE buffer (pH 7.8). The DNA was used for semi-nested PCR amplification. Each collected leafhopper sample was coded, for example, LH078-1, LH represents LeafHopper, and numbers before and after hyphen (-) indicate collection event number, and randomly selected insect specimen number during the same collection. According to the coordinates of the sampling sites, the distance between different sites was calculated by Latitude/Longitude Distance Calculator (https://www.nhc.noaa.gov/gccalc.shtml) accessed on 29 November 2019.

3.2. PCR Detection and Sequencing of PCR Products

Detection of phytoplasmas was performed by semi-nested PCR amplification of 16S rRNA gene using universal primer pair P1/16S-SR (Direct PCR, the first step of semi-nested PCR, P1: 5′-AAGAGTTTGATCCTGGCTCAGGATT-3′/16S-SR: 5′-GGTCTGTCAAAACTGAAGATG-3′, [85]) followed by P1A/16S-SR (semi-nested PCR, P1A: 5′-AACGCTGGCGGCGCGCCTAATAC-3′, [86]). Each PCR reaction mixture (25 μL) contains 1 μL extracted insect DNA, 200 μM of each dNTP, 4 μM of each primer, 15 mM MgCl2, 2.5 units of LATaq DNA polymerase (Takara Bio USA, Madison, WI). PCRs were operated for 38 cycles and the following conditions were used: denaturation at 94 °C for 1 min, annealing at 55 °C for 2 min and extension at 72 °C for 3 min (10 min in the final extension). Diluted PCR product (1:20) from the first amplification was used as template in the semi-nested PCR. Amplicons were analyzed by electrophoresis through an agarose gel, incorporated with SYBR Safe DNA Gel Stain (Invitrogen, Carlsbad, CA, USA) and visualized with a UV transilluminator. PCR amplified products were cleaned by gel extraction using the QIAquick Gel Extraction Kit (Qiagen, Germantown, MD, USA) and sequenced with an automated DNA sequencer (Macrogen Inc., Rockville, MD USA). Raw sequence assembly and analysis was conducted by Seqman, an application of DNAStar LaserGene software package (DNAStar, Madison, WI). All sequences were deposited into NCBI nucleotide database (Accession numbers MW281484-MW281493, Table 1).

3.3. Virtual RFLP Analysis and Phylogenetic Analysis

In order to further identify and classify the phytoplasma strains, computer simulated virtual RFLP analysis and similarity coefficient calculations were performed for the obtained 16S rRNA gene sequences by using the online tool, iPhyClassifier [13]. Digestions of 17 key restriction enzymes (AluI, BamHI, BfaI, BstUI (ThaI), DraI, EcoRI, HaeIII, HhaI, HinfI, HpaI, HpaII, KpnI, Sau3AI (MboI), MseI, RsaI, SspI, and TaqI) were simulated. A phylogenetic tree was constructed using the Minimum Evolution (ME) method implemented in the software package MEGA-6 [54]. The ME tree was searched using the Close Neighbour Interchange (CNI) algorithm at a search level of 2. The neighbor-joining algorithm was used to generate the initial tree. The reliability of the analysis was subjected to a bootstrap test with 1000 replicates. The percentage values of replicate trees in which the associated taxa clustered together in the bootstrap test are shown next to the branches. The taxa used in the phylogenetic tree construction included reference strains of all previously described ‘Candidatus Phytoplasma’ species except for a new Candidatus species because the sequence has not been released yet. Acholeplasma palmae served as an out-group during the phylogenetic tree construction.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-0817/10/3/352/s1, Supplementary Figure S1: Phytoplasma detection in ten leafhoppers by semi-nested polymerase chain reaction (PCR) amplification of 16S rRNA gene with universal primer pair P1/16S-SR (Direct PCR), followed by amplification with primers P1A/16S-SR (Seminested PCR); Supplementary Table S1: Detection of phytoplasmas in 76 leafhopper samples by semi-nested polymerase chain reaction (PCR), including 56 quantatitive PCR (qPCR) screend and 20 untested leafhopper samples.

Author Contributions

Conceptualization: W.W.; Methodology: W.W., V.T., C.H.D., Y.Z., K.D.B.-P., and A.I.; Formal analysis: W.W., and Y.Z.; Data curation: W.W., K.D.B.-P., and Y.Z.; Writing—original draft preparation: W.W.; Writing—review and editing: All authors. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the US Department of Agriculture, Agricultural Research Service (Project number 8042-22000-306-00D). This study was partially supported by the Swiss National Science Foundation (P2NEP3_168526) and US NSF grant DEB-1639601.

Institutional Review Board Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, I.M.; Davis, R.E.; Gundersen-Rindal, D.E. Phytoplasma: Phytopathogenic mollicutes. Annu. Rev. Microbiol. 2000, 54, 221–255. [Google Scholar] [CrossRef] [Green Version]
  2. Weintraub, P.G.; Beanland, L. Insect vectors of phytoplasmas. Annu. Rev. Entomol. 2006, 51, 91–111. [Google Scholar] [CrossRef] [PubMed]
  3. Hogenhout, S.A.; Oshima, K.; Ammar, E.D.; Kakizawa, S.; Kingdom, H.N.; Namba, S. Phytoplasmas: Bacteria that manipulate plants and insects. Mol. Plant Pathol. 2006, 9, 403–423. [Google Scholar] [CrossRef]
  4. IRPCM Phytoplasma/Spiroplasma Working Team–Phytoplasma Taxonomy Group. ‘Candidatus Phytoplasma’, a taxon for the wall-less, non-helical prokaryotes that colonize plant phloem and insects. Int. J. Syst. Evol. Microbiol. 2004, 54, 1243–1255. [Google Scholar] [CrossRef] [Green Version]
  5. Šafářová, D.; Zemánek, T.; Válová, P.; Navrátil, M. ‘Candidatus Phytoplasma cirsii’, a novel taxon from creeping thistle [Cirsium arvense (L.) Scop.]. Int. J. Syst. Evol. Microbiol. 2016, 66, 1745–1753. [Google Scholar] [CrossRef]
  6. Naderali, N.; Nejat, N.; Vadamalai, G.; Davis, R.E.; Wei, W.; Harrison, N.A.; Kong, L.; Kadir, J.; Tan, Y.H.; Zhao, Y. ‘Candidatus Phytoplasma wodyetiae’, a new taxon associated with yellow decline disease of foxtail palm (Wodyetia bifurcata) in Malaysia. Int. J. Syst. Evol. Microbiol. 2017, 67, 3765–3772. [Google Scholar] [CrossRef]
  7. Kirdat, K.; Tiwarekar, B.; Thorat, V.; Sathe, S.; Shouche, Y.; Yadav, A. ‘Candidatus Phytoplasma sacchari’, a novel taxon-associated with Sugarcane Grassy Shoot (SCGS) disease. Int. J. Syst. Evol. Microbiol. 2020, 71, 004591. [Google Scholar]
  8. Rodrigues Jardim, B.; Kinoti, W.M.; Tran-Nguyen, L.T.; Gambley, C.; Rodoni, B.; Constable, F.E. ‘Candidatus Phytoplasma stylosanthis’, a novel taxon with a diverse host range in Australia, characterised using multilocus sequence analysis of 16S rRNA, secA, tuf, and rp genes. Int. J. Syst. Evol. Microbiol. 2020, 71, 004589. [Google Scholar]
  9. Zhao, Y.; Wei, W.; Davis, R.E.; Lee, I.M.; Bottner-Parker, K.D. The agent associated with blue dwarf disease in wheat represents a new phytoplasma taxon, ‘Candidatus Phytoplasma tritici’. Int. J. Syst. Evol. Microbiol. 2020, 71, 004604. [Google Scholar]
  10. Lee, I.-M.; Gundersen-Rindal, D.E.; Davis, R.E.; Bartoszyk, I.M. Revised classification scheme of phytoplasmas based on RFLP analyses of 16S rRNA and ribosomal protein gene sequences. Int. J. Syst. Bacteriol. 1998, 48, 1153–1169. [Google Scholar] [CrossRef] [Green Version]
  11. Seemüller, E.; Marcone, C.; Lauer, U.; Ragozzino, A.; Göschl, M. Current status of molecular classification of the phytoplasmas. J. Plant Pathol. 1998, 80, 3–26. [Google Scholar]
  12. Wei, W.; Davis, R.E.; Lee, I.-M.; Zhao, Y. Computer simulated RFLP analysis of 16S rRNA genes: Identification of ten new phytoplasma groups. Int. J. Syst. Evol. Microbiol. 2007, 57, 1855–1867. [Google Scholar] [CrossRef]
  13. Zhao, Y.; Wei, W.; Lee, I.-M.; Shao, J.; Suo, X.; Davis, R.E. Construction of an interactive online phytoplasma classification tool, iPhyClassifier, and its application in analysis of the peach X-disease phytoplasma group (16SrIII). Int. J. Syst. Evol. Microbiol. 2009, 59, 2582–2593. [Google Scholar] [CrossRef]
  14. Wei, W.; Cai, H.; Jiang, Y.; Lee, I.M.; Davis, R.E.; Ding, Y.; Yuan, E.; Chen, H.; Zhao, Y. A new phytoplasma associated with little leaf disease in azalea: Multilocus sequence characterization reveals a distinct lineage within the aster yellows phytoplasma group. Ann. Appl. Biol. 2011, 158, 318–330. [Google Scholar] [CrossRef]
  15. Wei, W.; Davis, R.E.; Nuss, D.L.; Zhao, Y. Phytoplasmal infection derails genetically preprogrammed meristem fate and alters plant architecture. Proc. Natl. Acad. Sci. USA 2013, 110, 19149–19154. [Google Scholar] [CrossRef] [Green Version]
  16. Wei, W.; Davis, R.E.; Bauchan, G.R.; Zhao, Y. New symptoms identified in phytoplasma-infected plants reveal extra stages of pathogen-induced meristem fate-derailment. Mol. Plant Microbe Interact. 2019, 32, 1314–1323. [Google Scholar] [CrossRef] [PubMed]
  17. MacLean, A.M.; Sugio, A.; Makarova, O.V.; Findlay, K.C.; Grieve, V.M.; Tóth, R.; Nicolaisen, M.; Hogenhout, S.A. Phytoplasma effector SAP54 induces indeterminate leaf-like flower development in Arabidopsis plants. Plant Physiol. 2011, 157, 831–841. [Google Scholar] [CrossRef] [Green Version]
  18. MacLean, A.M.; Orlovskis, Z.; Kowitwanich, K.; Zdziarska, A.M.; Angenent, G.C.; Immink, R.G.; Hogenhout, S.A. Phytoplasma effector SAP54 hijacks plant reproduction by degrading MADS-box proteins and promotes insect colonization in a RAD23-dependent manner. PLoS Biol. 2014, 12, e1001835. [Google Scholar] [CrossRef]
  19. Orlovskis, Z.; Hogenhout, S.A. A bacterial parasite effector mediates insect vector attraction in host plants independently of developmental changes. Front. Plant Sci. 2016, 7, 885. [Google Scholar] [CrossRef]
  20. Purcell, A.H. Increased survival of Dalbulus maidis, a specialist on maize, on non-host plants infected with mollicute plant pathogens. Entomol. Exp. Appl. 1988, 46, 187–196. [Google Scholar] [CrossRef]
  21. Maixner, M.; Albert, A.; Johannesen, J. Survival relative to new and ancestral host plants, phytoplasma infection, and genetic constitution in host races of a polyphagous insect disease vector. Ecol. Evol. 2014, 4, 3082–3092. [Google Scholar] [CrossRef]
  22. Imo, M.; Maixner, M.; Johannesen, J. Sympatric diversification vs. immigration: Deciphering host-plant specialization in a polyphagous insect, the stolbur phytoplasma vector Hyalesthes obsoletus (C ixiidae). Mol. Ecol. 2013, 22, 2188–2203. [Google Scholar] [CrossRef] [PubMed]
  23. Trivellone, V.; Dietrich, C.H. Evolutionary Diversification in Insect Vector–Phytoplasma–Plant Associations. Ann. Entomol. Soc. Am. 2020, 114, 137–150. [Google Scholar] [CrossRef]
  24. Trivellone, V.; Wei, W.; Filippin, L.; Dietrich, C.H. Screening potential insect vectors in a museum biorepository reveals undiscovered diversity of plant pathogens in natural areas. Ecol. Evol. 2021. preprint. [Google Scholar] [CrossRef]
  25. Dietrich, C.H. New species of Mayawa Fletcher and description of a related new Australian leafhopper genus (Hemiptera: Cicadellidae: Deltocephalinae: Paralimnini). Zootaxa 2021, 4933, 575–585. [Google Scholar] [CrossRef]
  26. Wei, W.; Lee, M.; Davis, R.E.; Suo, X.; Zhao, Y. Automated RFLP pattern comparison and similarity coefficient calculation for rapid delineation of new and distinct phytoplasma 16Sr subgroup lineages. Int. J. Syst. Evol. Microbiol. 2008, 58, 2368–2377. [Google Scholar] [CrossRef]
  27. Bai, X.; Zhang, J.; Ewing, A.; Miller, S.A.; Radek, A.J.; Shevchenko, D.V.; Tsukerman, K.; Walunas, T.; Lapidus, A.; Campbell, J.W.; et al. Living with genome instability: The adaptation of phytoplasmas to diverse environments of their insect and plant hosts. J. Bacteriol. 2006, 188, 3682–3696. [Google Scholar] [CrossRef] [Green Version]
  28. Oshima, K.; Kakizawa, S.; Nishigawa, H.; Jung, H.Y.; Wei, W.; Suzuki, S.; Arashida, R.; Nakata, D.; Miyata, S.I.; Ugaki, M.; et al. Reductive evolution suggested from the complete genome sequence of a plant-pathogenic phytoplasma. Nat. Genet. 2004, 36, 27–29. [Google Scholar] [CrossRef] [Green Version]
  29. Lee, I.M.; Gundersen-Rindal, D.E.; Davis, R.E.; Bottner, K.D.; Marcone, C.; Seemüller, E. ‘Candidatus Phytoplasma asteris’, a novel phytoplasma taxon associated with aster yellows and related diseases. Int. J. Syst. Evol. Microbiol. 2004, 54, 1037–1038. [Google Scholar] [CrossRef] [Green Version]
  30. Jomantiene, R.; Davis, R.E.; Maas, J.; Dally, E.L. Classification of new phytoplasmas associated with diseases of strawberry in Florida, based on analysis of 16S rRNA and ribosomal protein gene operon sequences. Int. J. Syst. Evol. Microbiol. 1998, 48, 269–277. [Google Scholar] [CrossRef] [Green Version]
  31. Jomantiene, R.; Davis, R.E.; Lee, I.M.; Zhao, Y.; Bottner-Parker, K.; Valiunas, D.; Petkauskaite, R. Onion is host for two phytoplasma lineages, subgroups 16SrI-a and 16SrI-(B/L) L, in Lithuania: A HinfI site revealed a SNP marking divergent branches of evolution. J. Plant Pathol. 2010, 92, 461–470. [Google Scholar]
  32. Lee, M.E.; Grau, C.R.; Lukaesko, L.A.; Lee, I.M. Identification of aster yellows phytoplasmas in soybean in Wisconsin based on RFLP analysis of PCR-amplified products (16S rDNAs). Can. J. Plant Pathol. 2002, 24, 125–130. [Google Scholar] [CrossRef]
  33. Šeruga, M.; Škorić, D.; Botti, S.; Paltrinieri, S.; Juretić, N.; Bertaccini, A.F. Molecular characterization of a phytoplasma from the aster yellows (16SrI) group naturally infecting Populus nigra L ‘Italica’trees in Croatia. For. Pathol. 2003, 33, 113–125. [Google Scholar] [CrossRef]
  34. Valiunas, D.; Jomantiene, R.; Davis, R.E. Establishment of a new phytoplasma subgroup, 16SrI-Q, to accommodate a previously undescribed phytoplasma found in diseased cherry in Lithuania. J. Plant Pathol. 2009, 91, 71–75. [Google Scholar]
  35. Jomantiene, R.; Zhao, Y.; Lee, M.; Davis, R.E. Phytoplasmas infecting sour cherry and lilac represent two distinct lineages having close evolutionary affinities with clover phyllody phytoplasma. Eur. J. Plant Pathol. 2011, 130, 97–107. [Google Scholar] [CrossRef]
  36. Santos-Cervantes, M.E.; Chávez-Medina, J.A.; Acosta-Pardini, J.; Flores-Zamora, G.L.; Mendez-Lozano, J.; Leyva-Lopez, N.E. Genetic diversity and geographical distribution of phytoplasmas associated with potato purple top disease in Mexico. Plant Dis. 2010, 94, 388–395. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Acosta, K.; Silva, F.N.; Zamora, L.; Quiñones, M.; Martínez, R.; Piñol, B.; Urquiza, G.P.C.; Carvalho, C.M.; Zerbini, F.M. Detection and molecular characterization of an aster yellows group phytoplasma associated with soybean and evidence of two new 16SrI subgroups in Cuba. J. Plant Pathol. 2015, 97, 339–344. [Google Scholar]
  38. Acosta, K.; Zamora, L.; Piñol, B.; Fernández, A.; Chávez, A.; Flores, G.; Méndez, J.; Santos, M.E.; Leyva, N.E.; Arocha, Y. Identification and molecular characterization of phytoplasmas and rickettsia pathogens associated with ‘Bunchy Top Symptom’(BTS) and ‘Papaya Bunchy Top’(PBT) of papaya in Cuba. Crop Prot. 2013, 45, 49–56. [Google Scholar] [CrossRef]
  39. Jones, P.; Arocha, Y.; Antesana, O.; Montellano, E.; Franco, P. ‘Brotes grandes’ (big bud) of potato: A new disease associated with a 16SrI-B subgroup phytoplasma in Bolivia. Plant Pathol. 2005, 54, 234. [Google Scholar] [CrossRef]
  40. Pérez-López, E.; Luna-Rodríguez, M.; Olivier, C.Y.; Dumonceaux, T.J. The underestimated diversity of phytoplasmas in Latin America. Int. J. Syst. Evol. Microbiol. 2016, 66, 492–513. [Google Scholar] [CrossRef]
  41. Perilla-Henao, L.M.; Dickinson, M.; Franco-Lara, L. First report of ‘Candidatus Phytoplasma asteris’ affecting woody hosts (Fraxinus uhdei, Populus nigra, Pittosporum undulatum, and Croton spp.) in Colombia. Plant Dis. 2012, 96, 1372. [Google Scholar] [CrossRef] [PubMed]
  42. Arocha, Y.; Piñol, B.; Picornell, B.; Almeida, R.; Jones, P.; Boa, E. Basil little leaf: A new disease associated with a phytoplasma of the 16SrI (Aster Yellows) group in Cuba. Plant Pathol. 2006, 55, 822. [Google Scholar] [CrossRef]
  43. Arocha, Y.; Piñol, B.; Picornell, B.; Almeida, R.; Jones, P. Broad bean and sweet pepper: Two new hosts associated with Candidatus Phytoplasma asteris (16SrI phytoplasma group) in Cuba. Plant Pathol. 2007, 56, 345. [Google Scholar] [CrossRef]
  44. Rojas-Martínez, R.I.; Zavaleta-Mejía, E.; Lee, M.; Martini, M.; Aspiros, H.S. Detection and characterization of the phytoplasma associated with marigold phyllody in Mexico. J. Plant Pathol. 2003, 85, 81–86. [Google Scholar]
  45. Perez-Lopez, E.; Vincent, C.; Moreau, D.; Hammond, C.; Town, J.; Dumonceaux, T.J. A novel ‘Candidatus Phytoplasma asteris’ subgroup 16SrI-(E/AI) AI associated with blueberry stunt disease in eastern Canada. Int. J. Syst. Evol. Microbiol. 2019, 69, 322–332. [Google Scholar] [CrossRef] [PubMed]
  46. Tseng, Y.W.; Deng, W.L.; Chang, C.J.; Shih, H.T.; Su, C.C.; Jan, F.J. The phytoplasma associated with purple woodnettle witches’-broom disease in Taiwan represents a new subgroup of the aster yellows phytoplasma group. Ann. Appl. Biol. 2016, 169, 298–310. [Google Scholar] [CrossRef]
  47. Zhang, L.; Sun, P.P.; Ma, Q.; Xu, X.Z.; Zhou, H.Y.; Li, Z.N. Molecular detection and identification of phytoplasmas in a novel 16SrI subgroup in sunflowers and cocklebur weeds. J. Plant Pathol. 2019, 101, 701–706. [Google Scholar] [CrossRef]
  48. Fernández, F.D.; Galdeano, E.; Conci, L.R. Phytoplasmas diversity and identification of new aster yellows subgroup (16SrI) associated with weed species in Argentina. Int. J. Syst. Evol. Microbiol. 2020, 70, 35–43. [Google Scholar] [CrossRef]
  49. Li, Z.N.; Sun, P.P.; Zhang, L. Campsisgrandiflora as a new host species harbouring two novel 16SrI subgroups of phytoplasmas. For. Pathol. 2020, 50, e12619. [Google Scholar] [CrossRef]
  50. Santos-Cervantes, M.E.; Camacho-Bojórquez, J.E.; Escobedo-Rivera, U.R.; Méndez-Lozano, J.; Leyva-López, N.E. Molecular characterization of group 16SrI and 16SrIII phytoplasmas associated with loofah witches’ broom disease in Sinaloa, Mexico. Can. J. Plant Pathol. 2020, 1–8. [Google Scholar] [CrossRef]
  51. Marcone, C.; Schneider, B.; Seemüller, E. ‘Candidatus Phytoplasma cynodontis’, the phytoplasma associated with Bermuda grass white leaf disease. Int. J. Syst. Evol. Microbiol. 2004, 54, 1077–1082. [Google Scholar] [CrossRef] [Green Version]
  52. Salehi, M.; Izadpanah, K.; Siampour, M.; Taghizadeh, M. Molecular characterization and transmission of Bermuda grass white leaf phytoplasma in Iran. J. Plant Pathol. 2009, 91, 655–661. [Google Scholar]
  53. Mitrović, J.; Smiljković, M.; Seemüller, E.; Reinhardt, R.; Huttel, B.; Bertaccini, A.; Kube, M.; Duduk, B. Differentiation of ‘Candidatus Phytoplasma cynodontis’ based on 16S rRNA and groEL genes and identification of a new subgroup, 16SrXIV-C. Plant Dis. 2015, 99, 1578–1583. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular Evolutionary 477 Genetics Analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [Green Version]
  55. Wei, W. (Molecular Plant Pathology Laboratory, Beltsville Agricultural Research Center, Agricultural Research Service, United States Department of Agriculture, Beltsville, MD 20705, USA). A proposal for merge two groups (16SrXI and 16SrXIV) into one. 2021; Unpublished work. [Google Scholar]
  56. Sukhov, K.C.; Vovk, A.M. Potato stolbur. Rep. All-Union Acad. Agric. Sci. 1946, 1–2, 24–29. (In Russian) [Google Scholar]
  57. Wei, W. (Molecular Plant Pathology Laboratory, Beltsville Agricultural Research Center, Agricultural Research Service, United States Department of Agriculture, Beltsville, MD 20705, USA). The updated classification scheme of phytoplasmas. 2021; Unpublished work. [Google Scholar]
  58. Trivellone, V. An online global database of Hemiptera-Phytoplasma-Plant biological interactions. Biodivers. Data J. 2019, 7, e32910. [Google Scholar] [CrossRef] [PubMed]
  59. Tan, W.; Chen, Y.; Zhang, W.; Han, C.; Tan, Z.; Zhang, J. Association of phytoplasma with Bermuda grass white-leaf disease. Acta Microbiol. Sin. 2008, 48, 1393–1397. [Google Scholar]
  60. Blanche, K.R.; Tran-Nguyen, L.T.T.; Gibb, K.S. Detection, identification and significance of phytoplasmas in grasses in northern Australia. Plant Pathol. 2003, 52, 505–512. [Google Scholar] [CrossRef]
  61. Botti, S.; Bertaccini, A. First report of phytoplasmas in grapevine in South Africa. Plant Dis. 2006, 90, 1360. [Google Scholar] [CrossRef]
  62. Engelbrecht, M.; Joubert, J.; Burger, J.T. First report of aster yellows phytoplasma in grapevines in South Africa. Plant Dis. 2010, 94, 373. [Google Scholar] [CrossRef]
  63. CABI. Invasive Species Compendium. In Cynodon Nlemfuensis (African Bermuda-Grass); CAB International: Wallingford, UK, 2019; Available online: www.cabi.org/isc (accessed on 29 November 2019).
  64. Double, R.L. Bermudagrass: The sports turf of the South. Aggie Horticulture. Available online: https://aggie-horticulture.tamu.edu/plantanswers/turf/publications/Bermuda.html (accessed on 29 November 2019).
  65. Koh, L.H.; Yap, M.L.; Yik, C.P. First report of phytoplasma infection of grasses in Singapore. Plant Dis. 2008, 92, 317. [Google Scholar] [CrossRef] [PubMed]
  66. Çağlar, B.K.; Satar, S.; Elbeaino, T. Detection and molecular characterization of Bermuda grass (Cynodon dactylon) white leaf phytoplasma from Turkey. Int. J. Agric. Biol. 2013, 15, 90–94. [Google Scholar]
  67. Sunpapao, A. Association of ‘Candidatus Phytoplasma cynodontis’ with the yellow leaf diseases of ivy gourd in Thailand. Australs Plant Dis. Notes 2014, 9, 127. [Google Scholar] [CrossRef]
  68. Rao, G.P.; Raj, S.K.; Nehi, S.K.; Mall, S.; Singh, M.; Marcone, C. Molecular evidence for the presence of ‘Candidatus Phytoplasma cynodontis’ the Bermuda grass white leaf agent, in India. Bull. Insectol. 2007, 60, 145–146. [Google Scholar]
  69. Snehi, S.K.; Khan, M.S.; Raj, S.K.; Mall, S.; Singh, M.; Rao, G.P. Molecular identification of ‘Candidatus Phytoplasma cynodontis’ associated with Bermuda grass white leaf disease in India. Plant Pathol. 2008, 57, 770. [Google Scholar] [CrossRef]
  70. Kumar, S.; Jadon, V.; Tiwari, A.K.; Rao, G.P. Exitianus indicus (Distant): A putative vector for ‘Candidatus Phytoplasma cynodontis’ in India. Phytopathog. Mollicutes 2015, 5, S51–S52. [Google Scholar] [CrossRef]
  71. Nejat, N.; Sijam, K.; Abdullah, S.N.A.; Vadamalai, G.; Dickinson, M. First report of a 16Sr XIV ‘Candidatus Phytoplasma cynodontis’ group phytoplasma associated with coconut yellow decline in Malaysia. Plant Pathol. 2009, 58, 389. [Google Scholar] [CrossRef]
  72. Naderali, N.; Nejat, N.; Vadamalai, G.; Tan, Y.H. First report of two distinct phytoplasma species, ‘Candidatus Phytoplasma cynodontis’ and ‘Candidatus Phytoplasma asteris’, simultaneously associated with yellow decline of Wodyetia bifurcata (foxtail palm) in Malaysia. Plant Dis. 2013, 97, 1504. [Google Scholar] [CrossRef]
  73. Win, N.K.K.; Kim, Y.H.; Jung, H.Y.; Ohga, S. Molecular characterization of white leaf phytoplasma associated with the Graminae in Myanmar. J. Fac. Agric. Kyushu Univ. 2013, 58, 225–229. [Google Scholar]
  74. Omar, A.F. Association of ‘Candidatus Phytoplasma cynodontis’ with Bermuda grass white leaf disease and its new hosts in Qassim province, Saudi Arabia. J. Plant Interact. 2016, 11, 101–107. [Google Scholar] [CrossRef] [Green Version]
  75. Dafalla, G.A.; Cousin, M.T. Fluorescence and electron microscopy of Cynodon dactylon affected with a white leaf disease in Sudan. J. Phytopathol. 1988, 122, 25–34. [Google Scholar] [CrossRef]
  76. Asudi, G.O.; Van den Berg, J.; Midega, C.A.O.; Schneider, B.; Seemüller, E.; Pickett, J.A.; Khan, Z.R. Detection, identification, and significance of phytoplasmas in wild grasses in East Africa. Plant Dis. 2015, 100, 108–115. [Google Scholar] [CrossRef] [PubMed]
  77. Marcone, C.; Ragozzino, A. Detection of Bermuda grass white leaf disease in Italy and characterization of the associated phytoplasma by RFLP analysis. Plant Dis. 1997, 81, 862–866. [Google Scholar] [CrossRef] [PubMed]
  78. Arocha, Y.; Lopez, M.; Pinol, B.; Fernandez, M.; Picornell, B.; Almeida, R.; Palenzuela, I.; Wilson, M.R.; Jones, P. ‘Candidatus Phytoplasma graminis’ and ‘Candidatus Phytoplasma caricae’, two novel phytoplasmas associated with diseases of sugarcane, weeds and papaya in Cuba. Int. J. Syst. Evol. Microbiol. 2005, 55, 2451–2463. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  79. Tran-Nguyen, L.; Blanche, K.R.; Egan, B.; Gibb, K.S. Diversity of phytoplasmas in northern Australian sugarcane and other grasses. Plant Pathol. 2000, 49, 666–679. [Google Scholar] [CrossRef]
  80. Holm, L.G.; Plucknett, D.L.; Pancho, J.V.; Herberger, J.P. The World’s Worst Weeds. Distribution and Biology; University Press of Hawaii: Honolulu, HI, USA, 1977. [Google Scholar]
  81. Girolamo-Neto, C.D.; Sanches, I.D.A.; Neves, A.K.; Prudente, V.H.R.; Körting, T.S.; Picoli, M.C.A. Assessment of Texture Features for Bermudagrass (Cynodon Dactylon) Detection in Sugarcane Plantations. Drones 2019, 3, 36. [Google Scholar] [CrossRef] [Green Version]
  82. Davis, M.J.; Gillaspie, A.G., Jr.; Vidaver, A.K.; Harris, R.W. Clavibacter: A new genus containing some phytopathogenic coryneform bacteria, including Clavibacter xyli subsp. xyli sp. nov., subsp. nov. and Clavibacter xyli subsp. cynodontis subsp. nov., pathogens that cause ratoon stunting disease of sugarcane and bermudagrass stunting disease. Int. J. Syst. Evol. Microbiol. 1984, 34, 107–117. [Google Scholar]
  83. Harmon, P. Mosaic Disease of St. Augustinegrass Caused by Sugarcane Mosaic Virus. Plant Pathol. Dep. UF/IFAS Ext. 2014, 313. Available online: https://edis.ifas.ufl.edu/pp313 (accessed on 29 November 2019).
  84. Cao, Y.; Trivellone, V.; Dietrich, C.H. A timetree for phytoplasmas (Mollicutes) with new insights on patterns of evolution and diversification. Mol. Phylogenet. Evol. 2020, 149, 106826. [Google Scholar] [CrossRef] [PubMed]
  85. Deng, S.; Hiruki, C. Amplification of 16S rRNA genes from culturable and nonculturable Mollicutes. J. Microbiol. Methods 1991, 14, 53–61. [Google Scholar] [CrossRef]
  86. Lee, M.; Martini, M.; Marcone, C.; Zhu, S.F. Classification of phytoplasma strains in the elm yellows group (16SrV) and proposal of ‘Candidatus Phytoplasma ulmi’for the phytoplasma associated with elm yellows. Int. J. Syst. Evol. Microbiol. 2004, 54, 337–347. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Pathogens 10 00352 g001 550

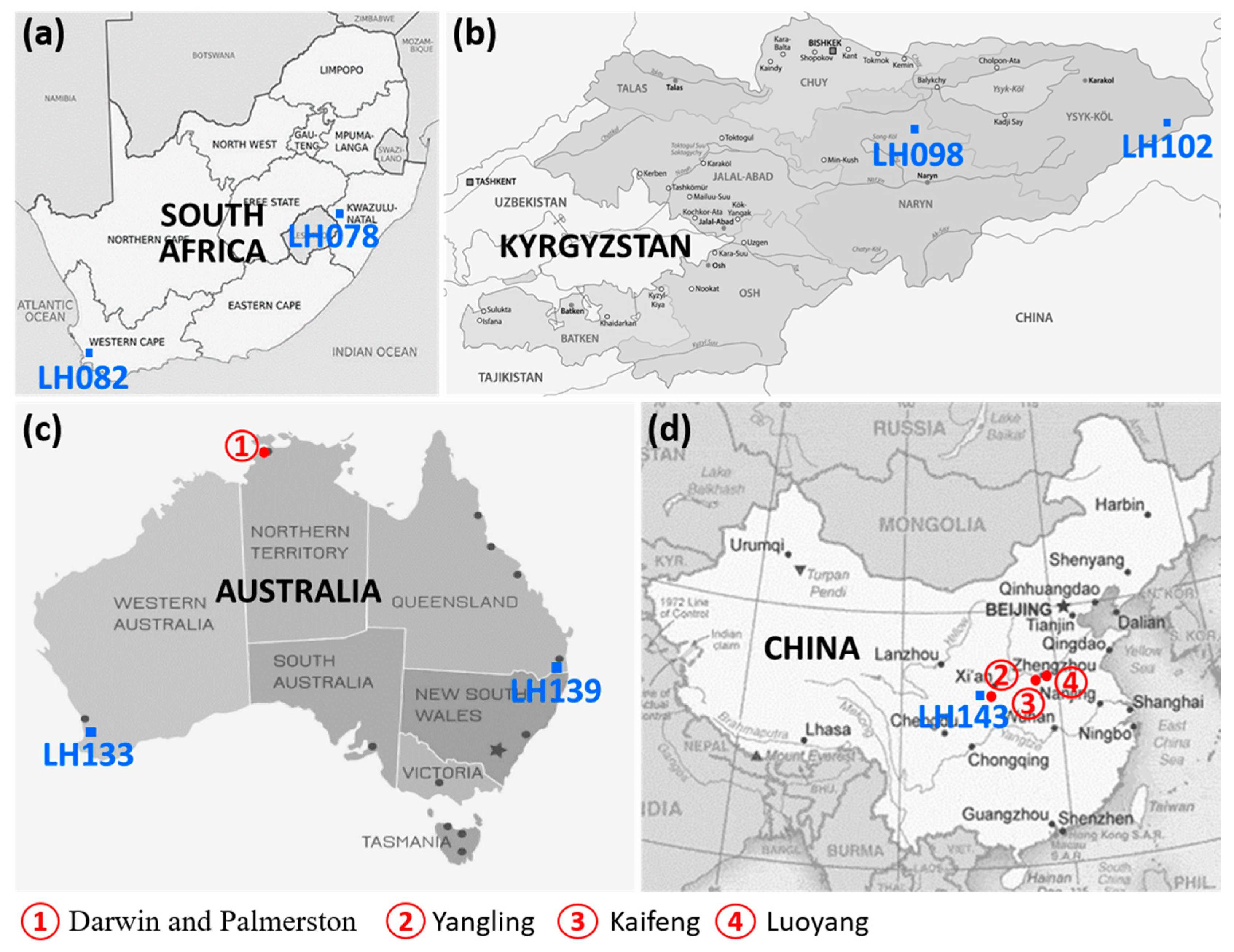

Figure 1. A summary map of seven leafhopper collection sites in four countries where phytoplasmas were detected. (a) South Africa; (b) Kyrgyzstan; (c) Australia, and (d) China. Seven sites (blue squares) include LH078, LH082, LH098, LH102, LH133, LH139, and LH143. LH represents LeafHopper, and the number after LH indicates collection event number. Red dots and red numbers 1–4 in the circles indicate where bermudagrass white leaf diseases were found.
Figure 1. A summary map of seven leafhopper collection sites in four countries where phytoplasmas were detected. (a) South Africa; (b) Kyrgyzstan; (c) Australia, and (d) China. Seven sites (blue squares) include LH078, LH082, LH098, LH102, LH133, LH139, and LH143. LH represents LeafHopper, and the number after LH indicates collection event number. Red dots and red numbers 1–4 in the circles indicate where bermudagrass white leaf diseases were found.
Pathogens 10 00352 g001
Pathogens 10 00352 g004 550
Figure 4. A phylogenetic tree inferred from minimum evolution (ME) analysis of 16S rRNA gene sequences. The evolutionary distances were computed using the maximum composite likelihood method implemented in the software package MEGA-6 [54]. The ME tree was searched using the Close Neighbor Interchange (CNI) algorithm at a search level of 3. The neighbor-joining algorithm was used to generate the initial tree. The reliability of the analysis was subjected to a bootstrap test with 1000 replicates. The percentage values of replicate trees in which the associated taxa clustered together in the bootstrap test are shown next to the branches. The taxa used in the phylogenetic tree construction included reference strains of 44 previously described ‘Candidatus Phytoplasma’ species (The sequence of one new ‘Candidatus Phytoplasma’ species has not been released yet); phytoplasma strains identified in the current study are highlighted in bold. Acholeplasma palmae served as an out-group during the phylogenetic tree construction. The scale bar represents evolutionary distance in nucleotide substitutions per base position. Ten newly identified phytoplasma strains fell in four distinct subclades, highlighted in gray boxes.
Figure 4. A phylogenetic tree inferred from minimum evolution (ME) analysis of 16S rRNA gene sequences. The evolutionary distances were computed using the maximum composite likelihood method implemented in the software package MEGA-6 [54]. The ME tree was searched using the Close Neighbor Interchange (CNI) algorithm at a search level of 3. The neighbor-joining algorithm was used to generate the initial tree. The reliability of the analysis was subjected to a bootstrap test with 1000 replicates. The percentage values of replicate trees in which the associated taxa clustered together in the bootstrap test are shown next to the branches. The taxa used in the phylogenetic tree construction included reference strains of 44 previously described ‘Candidatus Phytoplasma’ species (The sequence of one new ‘Candidatus Phytoplasma’ species has not been released yet); phytoplasma strains identified in the current study are highlighted in bold. Acholeplasma palmae served as an out-group during the phylogenetic tree construction. The scale bar represents evolutionary distance in nucleotide substitutions per base position. Ten newly identified phytoplasma strains fell in four distinct subclades, highlighted in gray boxes.
Pathogens 10 00352 g004
Table
Table 1. Identification and classification of phytoplasmas detected in leafhopper samples collected from natural habitats.
Table 1. Identification and classification of phytoplasmas detected in leafhopper samples collected from natural habitats.
Phytoplasma Strain *Leafhopper SpeciesGenBank Accession Number (This Study)Phytoplasma 16Sr Group
/Subgroup Classification		CountryGenBank Accession Number (Trivellone et al. [24])Coordinate X/
Coordinate Y
PLH078-1Leofa disparMW28148416SrXIV-FSouth AfricaMW47366928°53′59.1″ S/
29°26′05.0″ E
PLH078-12Leofa disparMW28148516SrXIV-FSouth Africanot analyzed28°53′59.1″ S/
29°26′05.0″ E
PLH082-1Pravistylus exquadratusMW28148616SrXIV-FSouth AfricaMW47367333°51′01.7″ S/
19°03′16.3″ E
PLH082-2Pravistylus exquadratusMW28148716SrXIV-FSouth Africanot analyzed33°51’01.7″ S/
19°03′16.3″ E
PLH098-1Neoaliturus opacipennisMW28148816SrIII-JKyrgyzstannot sequenced41°59′11.0″ N/
75°43′08.0″ E
PLH102-1Macrosteles sordidipennisMW28148916SrI-AOKyrgyzstanMW47367441°47′52.0″ N/
78°39′44.0″ E
PLH133-1Mayawa capitataMW28149016SrXV-CAustraliaMW47367132°57′20.8″S/
115°54′40.5″ E
PLH139-1Mayawa affinifacialisMW28149116SrXIV-DAustraliaMW47367227°56′03.4″ S/
153°04′42.6″ E
PLH143-1Acharis ussuriensisMW28149216SrXIV-EChinaMW47367033°58′52.8″ N/
108°09′49.8″ E
PLH143-5Acharis ussuriensisMW28149316SrXIV-EChinanot analyzed33°58′52.8″ N/
108°09′49.8″ E
* PLH represents Phytoplasma strain identified in LeafHopper, and numbers before and after hyphen (-) indicate collection event number, and randomly selected insect specimen number during the same collection, respectively.
Table
Table 2. Similarity coefficients derived from virtual RFLP analysis of 16S rRNA genes of PLH102-1 (new subgroup 16SrI-AO) and other 16SrI subgroups.
Table 2. Similarity coefficients derived from virtual RFLP analysis of 16S rRNA genes of PLH102-1 (new subgroup 16SrI-AO) and other 16SrI subgroups.
StrainGenBank Accession (16SrI Subgroup)Similarity Coefficient between PHL102-1 and Known 16SrI SubgroupReferences
PLH102-1, KyrgyzstanMW281489 (16SrI-AO)1.00this study
AYWB, aster yellows witches’-broom, USACP000061 (16SrI-A)0.95[10,25]
OYM, onion yellows mild, JapanAP006628 (16SrI-B)0.97[10,26]
CPh, clover phyllody, CanadaAF222065 (rrnA, 16SrI-C) (a)0.96[10]
CPh, clover phyllody, CanadaAF222066 (rrnB, 16SrI-C) (a)0.95[10]
PaWB, paulownia witches’-broom, TaiwanAY265206 (16SrI-D)0.94[27]
BBS3, blueberry stunt, USAAY265213 (16SrI-E)0.96[27]
ACLR-AY, apricot chlorotic leaf roll, SpainAY265211 (16SrI-F)0.91[27]
STRAWB2, strawberry multiplier, USAU96616 (16SrI-K)0.89[28]
OnP2, onion proliferation, LithuaniaGU223209 (16SrI-L)0.94[29]
98UW166B, aster yellows, USAAF268405 (16SrI-O)0.83[30]
AYIP, aster yellows, CroatiaAF503568 (16SrI-P)0.97[31]
CherLL, cherry little leaf, LithuaniaAY034089 (16SrI-Q)0.89[32]
ChBL, cherry bunchy leaf, LithuaniaHM067754 (16SrI-R)0.96[33]
LcLL, lilac little leaf, LithuaniaHM067755 (16SrI-S)0.95[33]
AzLL, azalea little leaf, ChinaHQ285917 (16SrI-T)0.89[34]
PPT-JAL6, potato purple top, MexicoFJ914650 (16SrI-U)0.90[35]
PPT-SON18, potato purple top, MexicoFJ914642 (16SrI-V)0.90[35]
SoySTp-1, Soybean stunt, CubaKJ413093 (16SrI-W)0.94[36]
BTS, Papaya bunchy top, CubaJF781308 (16SrI-X)0.92[37]
SoySTp-2, Soybean stunt, CubaKJ413094 (16SrI-Y)0.91[36]
PBBB, Potato Brotes big bud, BoliviaAY725209 (16SrI-Z)0.89[38,39]
Fraxinus uhdei witches’-broom, ColombiaJQ730859 (16SrI-AC)0.92[39,40]
BLL, basil little leaf, CubaDQ286577 (16SrI-AD)0.91[39,41]
Broad bean phytoplasma, CubaDQ286953 (16SrI-AE)0.94[39,42]
MgPh, Marigold phyllody, MexicoAY249247 (16SrI-AF)0.91[39,43]
NS1P1cB, BS, blueberry stunt, CanadaMH279522 (16SrI-AG) (b)0.88[44]
PWWB, Purple woodnettle witches’-broom, TaiwanKF923395 (16SrI-AH)0.94[45]
SFDP, sunflower fasciation, ChinaJX035903 (16SrI-AI)0.87[46]
Bidens-Cba, ’Bidens subalternans’ phytoplasma, ArgentinaMH497011 (16SrI-AJ)0.91[47]
CgWB1, Campsis grandiflora witches’-broom, ChinaMT106667 (16SrI-AK)0.90[48]
CgWB2, Campsis grandiflora witches’-broom, ChinaMT106668 (16SrI-AL)0.90[48]
LoofWB-1U4, loofah witches’-broom, MexicoMN807428 (16SrI-AM) (c)0.88[49]
LoofWB-21J9, loofah witches’-broom, MexicoMN807432 (16SrI-AN) (d)0.90[49]
(a) GenBank submission in 2001 by Dally, E.L.,Bottner, K.D. and Davis, R.E. (b) This is a re-designation of a subgroup pattern (16SrI-AI) established by Perez-Lopez et al. [40]. The reason for the re-designation is that the subgroup letter 16SrI-AI had been previously published by Zhang et al. [47]. (c) This is re-designation of the subgroup 16SrI-AG reported by Santos-Cervantes et al. [36] as the subgroup letter 16SrI-AG (MH279522) had already been assigned to NS1P1cB, BS, blueberry stunt, Canada. (d) This is re-designation of the subgroup 16SrI-H reported by Santos-Cervantes et al. [36] as the subgroup letter 16SrI-H (KF923395) had already been published by Tseng et al. [46].
Table
Table 3. Similarity coefficients derived from virtual RFLP analysis of 16S rRNA genes of 16SrXIV subgroups.
Table 3. Similarity coefficients derived from virtual RFLP analysis of 16S rRNA genes of 16SrXIV subgroups.
PhytoplasmaCountryGenBank AccessionSubgroupReference1234567891011
1‘Candidatus Phytoplasma cynodontis’ItalyAJ55098416SrXIV-A[50]1.00
2PLH139-1AustraliaMW28149116SrXIV-Dthis study0.901.00
3PLH143-1ChinaMW28149216SrXIV-Ethis study0.840.941.00
4PLH082-1South AfricaMW28148616SrXIV-Fthis study0.810.910.971.00
5Bermuda grass white leaf phytoplasma JuyomIranEF44448616SrXIV-B *
(abolished)		[51] 1.00 0.910.860.821.00
6Bermuda grass white leaf phytoplasma FiroozabadIranEF44448516SrXIV-B *
(abolished)		[51] 1.00 0.900.840.811.001.00
7‘Candidatus Phytoplasma cynodontis’ strain 306/13SerbiaKJ00002116SrXIV-C *
(abolished)		[52] 1.00 0.900.840.811.001.001.00
8‘Candidatus Phytoplasma cynodontis’ strain 123/13SerbiaKJ00002416SrXIV-C *
(abolished)		[52] 1.00 0.900.840.811.001.001.001.00
9‘Candidatus Phytoplasma cynodontis’ strain 304/13SerbiaKP01933916SrXIV-C *
(abolished)		[52] 1.00 0.900.840.811.001.001.001.001.00
10‘Candidatus Phytoplasma cynodontis’ strain 305/13SerbiaKP01934016SrXIV-C *
(abolished)		[52] 1.00 0.900.840.811.001.001.001.001.001.00
11‘Candidatus Phytoplasma cynodontis’ strain 59/11SerbiaKF38398116SrXIV-C *
(abolished)		[52] 1.00 0.900.840.811.001.001.001.001.001.001.00
* Subgroups 16SrXIV-B and 16SrXIV-C were abolished because similarity coefficient between 16SrXIV-B, 16SrXIV -C and previously named 16SrXIV-A is 1.00 (underscored), which means 16SrXIV-B and 16SrXIV-C are also 16SrXIV-A.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wei, W.; Trivellone, V.; Dietrich, C.H.; Zhao, Y.; Bottner-Parker, K.D.; Ivanauskas, A. Identification of Phytoplasmas Representing Multiple New Genetic Lineages from Phloem-Feeding Leafhoppers Highlights the Diversity of Phytoplasmas and Their Potential Vectors. Pathogens 2021, 10, 352. https://doi.org/10.3390/pathogens10030352

AMA Style

Wei W, Trivellone V, Dietrich CH, Zhao Y, Bottner-Parker KD, Ivanauskas A. Identification of Phytoplasmas Representing Multiple New Genetic Lineages from Phloem-Feeding Leafhoppers Highlights the Diversity of Phytoplasmas and Their Potential Vectors. Pathogens. 2021; 10(3):352. https://doi.org/10.3390/pathogens10030352

Chicago/Turabian Style

Wei, Wei, Valeria Trivellone, Christopher H. Dietrich, Yan Zhao, Kristi D. Bottner-Parker, and Algirdas Ivanauskas. 2021. "Identification of Phytoplasmas Representing Multiple New Genetic Lineages from Phloem-Feeding Leafhoppers Highlights the Diversity of Phytoplasmas and Their Potential Vectors" Pathogens 10, no. 3: 352. https://doi.org/10.3390/pathogens10030352

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
