Review

Engineered Oncolytic Adenoviruses: An Emerging Approach for Cancer Therapy

by
Ee Wern Tan
1,
Noraini Abd-Aziz
2,
Chit Laa Poh
2 and
Kuan Onn Tan
1,*
1
Department of Biological Sciences, School of Medical and Life Sciences, Sunway University, No. 5 Jalan Universiti, Petaling Jaya 47500, Selangor Darul Ehsan, Malaysia
2
Centre for Virus and Vaccine Research (CVVR), School of Medical and Life Sciences, Sunway University, No. 5 Jalan Universiti, Petaling Jaya 47500, Selangor Darul Ehsan, Malaysia
*
Author to whom correspondence should be addressed.
Pathogens 2022, 11(10), 1146; https://doi.org/10.3390/pathogens11101146
Submission received: 10 August 2022 / Revised: 29 September 2022 / Accepted: 29 September 2022 / Published: 4 October 2022
(This article belongs to the Special Issue Oncolytic Mechanisms of Viruses: Effect on Tumor Cells and Role of the Tumor Microenvironment)
Browse Figures
Review Reports Versions Notes

Abstract

:
Cancer is among the major leading causes of mortality globally, and chemotherapy is currently one of the most effective cancer therapies. Unfortunately, chemotherapy is invariably accompanied by dose-dependent cytotoxic side effects. Recently, genetically engineered adenoviruses emerged as an alternative gene therapy approach targeting cancers. This review focuses on the characteristics of genetically modified adenovirus and oncology clinical studies using adenovirus-mediated gene therapy strategies. In addition, modulation of the tumor biology and the tumor microenvironment as well as the immunological responses associated with adenovirus-mediate cancer therapy are discussed.

1. Introduction

Cancer is one of the leading causes of human mortality worldwide. To date, chemotherapy is one of the most reliable treatments against cancers. Unfortunately, treatments with chemotherapeutic drugs are often associated with adverse side effects that are related to dose-dependent cytotoxicity. In addition, cancer metastasis and early recurrence remained significant among cancer patients after chemotherapy [1]. Therefore, alternative cancer therapeutics, including virus-mediated gene therapy, are well sought after to increase clinical benefits and minimize treatment-associated off-target effects.
Oncolytic viruses (OVs) are viruses that target and destroy cancer cells while minimizing the negative impact on normal cells. The anti-tumor efficacy of OVs is achieved by direct viral lysis of cancer cells and stimulation of the host’s anti-tumor immunity. The dissemination of infectious OVs from lysed tumor cells to adjacent uninfected tumor cells amplifies the oncolytic activity of the OVs [2]. Following the approval of Imlygic® (Talimogene laherparepvec; T-VEC) by the US Food and Drug Administration (FDA), OVs are gaining substantial attention as the first class of anti-cancer treatments. This is evidenced by the fact that over 40 OVs are now being evaluated in clinical studies as monotherapy or combination treatment for a variety of malignancies [3].
Virus-mediated gene therapy consists of the construction of a gene expression construct with the therapeutic gene in the viral vector, followed by the generation of the recombinant viral particles in human packaging cell lines. The recombinant viral particles are highly effective in mediating gene expression in highly permissive human cells, inducing the expression of therapeutic genes in the host’s cancerous cells to enhance oncolytic effects [4]. In addition, viral-mediated gene therapy can be developed to induce cytotoxic T cells’ response to enhance immunity against tumor cells [5]. Oncolytic adenovirus (OAV) is one of the most extensively studied OVs due to its high potential in oncolysis and immune response stimulation. Immunostimulatory transgenes may be readily inserted onto OAVs to modify the tumor microenvironment (TME) and stimulate the immune effector responses.

2. Adenovirus: Structure, Genome, and Serotype

Adenovirus is formed of an icosahedral protein shell measuring 90 nm and harboring linear double-stranded DNA (dsDNA) that belongs to the genus Mastadenovirus of the Adenoviridae family [6]. The icosahedral capsid outer shell is composed of three primary types of proteins including hexon, penton, and fiber [7]. Interestingly, the hexon, which comprises the majority of the adenovirus capsid, is made up of up to 240 homotrimers to encapsidate the adenovirus [7]. In addition, the fibers arise from the 12 vertices of the icosahedron, whereas the penton base is located at the base of each fiber [8]. The genome of the virus encodes approximately 35 proteins that are produced in two phases, the early and late phases. The early phase corresponds to the start of viral DNA replication seven hours after infection, whereas the late phase refers to the incidence of post-DNA replication. The first 20 synthesized proteins have regulatory functions that allow the virus to gain control of the cells, followed by viral DNA replication activity.
In contrast, the proteins synthesized at a later stage are mainly structural proteins of the virus [9]. As early as one day post-infection, the virions are assembled at the nucleus of the host cell, and for several days, the host cells lyse and release the infectious virus. As reported in a previous study, more than 57 serotypes and over 100 genotypes of human adenoviruses consist of 7 species from A to G (HADV-A to HADV-G) [9]. Species A, B, C, D, E, and F are widely circulating and have been associated with human infection outbreaks [6,10]. Serotype refers to the ability of specific antisera to neutralize infected cells. Despite the diversity of its serotype, the structure and protein activities of all serotypes are similar. However, specific protein activities lead up to the distinctive characteristics of each serotype. For instance, the packaging domain of the adenovirus is serotype specific [11]. In a previous study, it was reported that IVa2 and 22K proteins complement the activity of their corresponding human adenovirus C5 protein, but not L1 52/55K protein of human adenovirus 17 serotypes [12]. This suggests that 52/55K protein is important for serotype specificity of adenovirus DNA packaging.

3. Adenovirus: Pathogenicity and Immunogenicity

Most people have been infected by adenovirus, leading to lifelong immunity. In general, adenovirus species C, consisting of Ad 1, 2, 5, and 6, is the most common to infect humans, especially in early childhood, consequently causing infection of the upper respiratory tract [13]. In addition, adenovirus species B, such as Ad 3, 7, 11, 14, 16, 21, 34, 35, and 50, contributes to 5% of common cold cases, involving infection of the upper respiratory, gastrointestinal, and urinary tract [9]. In most adenovirus infections, the symptoms are minor, but they might be fatal for immunocompromised individuals [9]. However, despite low pathogenicity, some adenoviruses result in severe symptoms, especially in children. For instance, human adenovirus (HAdV) types F40 and F41 are a leading cause of diarrhea and diarrhea-related mortality in infants and toddlers worldwide [14]. Adenovirus can be propagated, replicated, and grown to achieve high viral titers of up to 1 × 1013 virus particles per mL [15]. Immunocompetent individuals can develop minor, self-limiting clinical pathologies due to the immunogenicity of adenovirus. The host immune response to adenoviral infection limits the use of adenovirus in gene therapy; however, immune stimulation such as the induction of a systemic pro-inflammatory state, the recruitment of cytotoxic immune cell populations to the infection sites to eradicate virus-containing cells, and the alerting of adjacent uninfected cells of viral infection is beneficial for the development of immunotherapies against cancer [16]. Additionally, oncolytic adenoviruses are designed to precisely deliver therapeutic transgenes to tumor cells without affecting healthy cells [17]. Both replicative and nonreplicating adenoviruses (Figure 1) are used as in situ cancer vaccines due to their high immunogenicity [18].

3.1. Innate Immune Responses

Due to pathogen-associated molecular patterns (PAMPs) components of the viral capsid and viral nucleic acids, adenovirus infections elicit an innate immune response comprised of cellular components such as pattern recognition receptors (PRR) [18]. The interaction of adenovirus fiber and knob capsid proteins with the coxsackie and adenovirus receptor as well as the v integrins induces activation of nuclear factor-kB, leading to the expression of chemokines and interleukins (ILs) [19]. In addition, according to a prior study, an innate immune response to capsid proteins is elicited immediately after intravenous administration in a murine model for up to six hours [9]. However, the response was lethal at high dosages of more than 1010 viral particles. This leads to the stimulation of biphasic synthesis of pro-inflammatory proteins, including IL-6, TNF-α, IFN-γ, IL-1β, and IL-12, along with chemokines [9].
In addition, following viral entry, PRRs include Toll-like receptor (TLR) 9 in endosomes, and cytosolic sensors such as DNA-dependent activator of IFN-regulatory factors (DAIs) or cytosolic inflammasome (NALP3) recognize viral DNA [20,21,22]. For this, the interferon response is stimulated [23]. The interferon response eliminates the virions from the cells and inhibits the E1A transcription, subsequently blocking the replication of adenovirus [20,24].

3.2. Adaptive Immune Responses

Adenovirus infection that causes upper respiratory infections induces anti-adenovirus serotype-specific antibodies and cross-reactive T cell responses [25]. As reported in a previous study, serotype 5 is known to be the most prevalent adenovirus strain, which has a seroprevalence of approximately 50% in North America and close to 100% in Africa [26]. In addition, the seroprevalence of adenovirus serotype 35 ranges from 3% to 22% in the United States [26].
Adenovirus is strongly immunogenic, consisting of the three major capsid protein antigens, which are the hexon, penton base, and fiber. The majority of neutralizing antibodies are targeted against the capsid proteins and non-conserved loops that differ across serotypes and are exposed on the surface of hexon [27]. Interestingly, the presence of adenovirus-specific CD4+ T cells in peripheral blood lymphocytes has been reported in nearly all individuals of all ages, where the CD4+ T cell epitopes are in the hexon region [28]. In addition, cytotoxic T lymphocytes (CTL) specific to the hexon were also reported to be protective against adenovirus infections in humans [29].

4. Genetically-Modified Adenoviruses for Cancer Therapy

The majority of genetically engineered adenovirus vectors are serotype 5, either replication-defective or replication-competent adenovirus (Figure 1), and have been studied extensively (Table 1). Replication-competent adenoviruses such as OAV can replicate and lyse tumor cells without harming healthy cells, as OAVs were mainly developed to facilitate efficient tumor cell lysis and virus spreading, hence providing reliable control of viral replication in normal cells [3]. For this, the therapeutic effect is amplified by virus replication and reinfection of adjacent tumor cells [30]. Replicative adenovirus is reported to be more effective for gene therapy [31]. Kim et al. have reported that immunocompetent mice with intracranial glioma require replication-competent adenoviral vectors to elicit a significant antitumor immune response and lifespan advantages compared to replication-defective adenovirus [32].

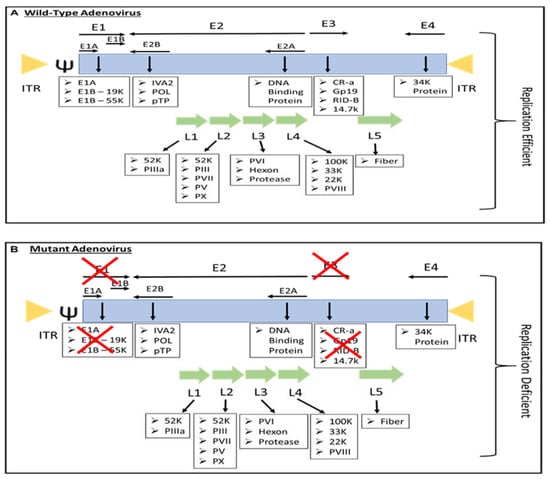

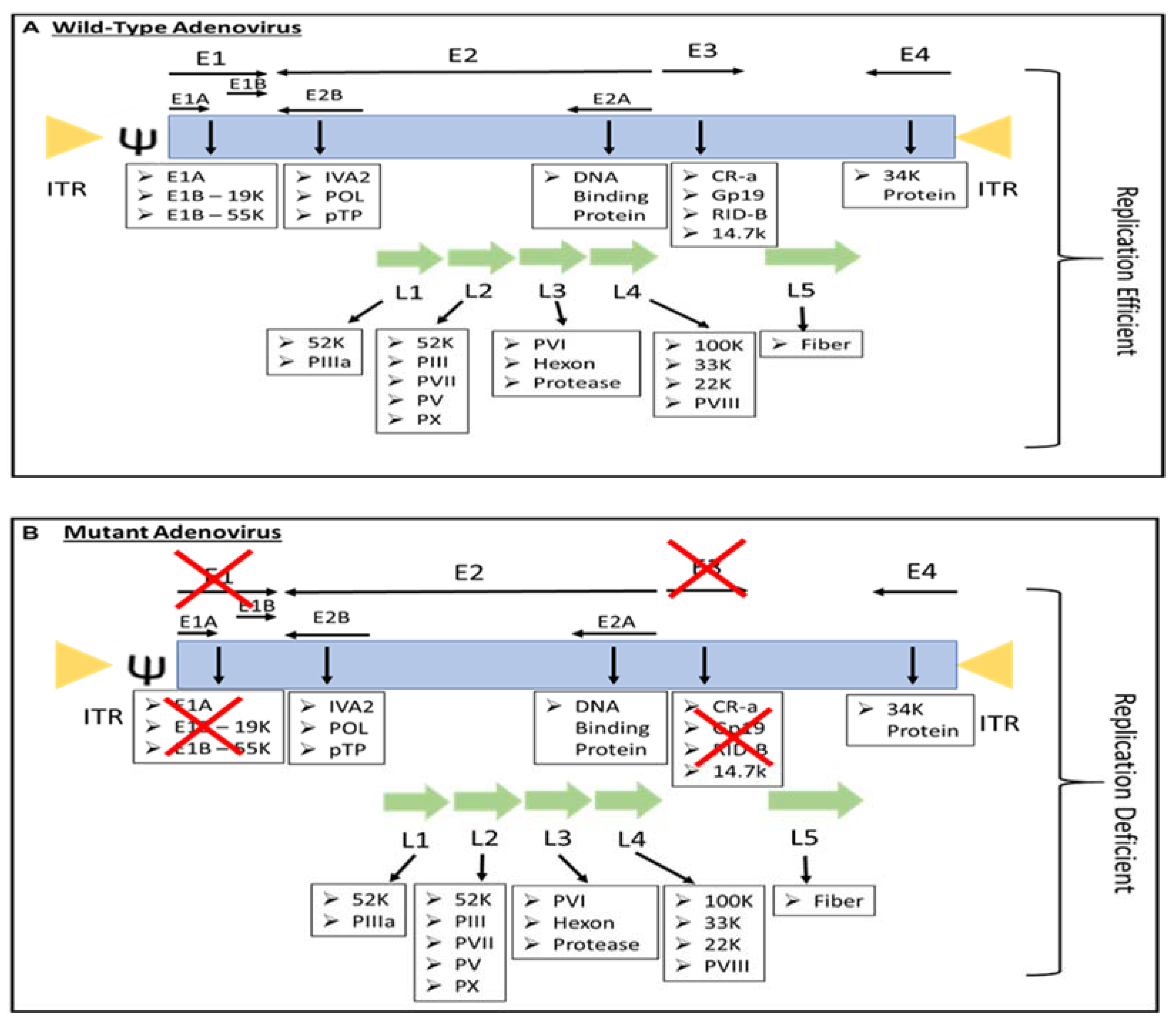

Replication-defective vectors are genetically modified by deleting E1A and E1B genes (Figure 1), resulting in defective virus replication and inhibition of the host cell’s apoptotic response to adenovirus infection. E1A encodes the E1A protein required for adenovirus replication, which induces the expression of E1B, E2, E3, and E4 transcription units that affect the expression of a large variety of cellular genes to promote adenovirus replication [9]. Adenovirus infection with a deletion in the E1 gene does not cause a cytotoxic effect; therefore, it is approved to be administered in humans for gene therapy [33]. Most of the recombinant adenoviruses used now are E1 deleted [9]. These deleted genes are replaced by an expression cassette harboring a highly active promoter, such as the cytomegalovirus immediate-early (CMV) promoter, that induces the expression of the foreign transgenes. In addition, vectors are constructed from plasmid or adenovirus DNA and are maintained in cell lines such as HEK293, PER.C6, or N52.E6 to express the E1A and E1B genes [34]. The incorporation of the transgene in the adenovirus genome allowed the adenovirus-mediated gene expression to be investigated in human cells, including cancer cells, as targeted cancer therapy (Table 1). However, recent development in adenovirus technology have led to the generation of a gutless adenovirus that can accommodate up to 36 kb transgenes without the use of helper adenovirus in its production, and immune response against the virus is likely to be minimized [35]. The large transgene capacity of gutless adenovirus allows the expression of multiple transgenes in an expression construct such as the bicistronic or tricistronic expression of transgenes [36,37] In addition, the high-capacity adenovirus is categorized as a third generation of replication-defective adenovirus, which is known as helper-dependent or gutless adenovirus [38]. High-capacity adenovirus possesses certain characteristics such as genetic stability, excellent in vivo transduction efficiency, and high titer production. Unlike the first and second generations of replication-defective adenovirus, high-capacity adenovirus only retains short non-coding regions from the adenovirus genome, such as ITRs and ψ signal [38]. With this respect, the absence of viral coding regions in the genomes of high-capacity adenovirus increases the cloning capacity to 36 Kb and permits the long-term episomal survival of transgenes in non-dividing cells.
Table
Table 1. Adenovirus-mediated gene expression targets various types of cancer.
Table 1. Adenovirus-mediated gene expression targets various types of cancer.
Targeted TherapyType of AdenovirusGene DeliveryRoute of AdministrationReference
Carcinoembryonic antigen (CEA)Replication-defective ETBX-011 containing epitope CAP1-6D (Ad5-CEA)Subcutaneous[39]
Prostate cancerReplication-defective Human prostate-specific antigen (PSA)Subcutaneous[40]
Human papillomavirus (HPV)Replication-defective Combination of Ad5-E6E7 and oncolytic maraba virus MG1-E6E7 Intravenous[41]
MelanomaReplication-defectiveMelanoma-associated antigen A3 (MAGEA3)Subcutaneous[42]
Brain tumour and glioblastomaReplication-defective Transgenic human IL-12 p70 under the control of the RheoSwitch Therapeutic System (RTS) (Ad-RTS-hIL-12)Oral[43]
Ovarian Cancer; Colorectal CancerReplication-competent GM-CSFIntravenous[44]
Colorectal, ovarian, pancreatic cancersReplication-competentTMZ-CD40L and 41BBL biliaryIntratumorally[45]
Ovarian cancer; peritonealcancerReplication-defectivep53Intraperitoneal[46]
MelanomaReplication-competentTNF-alpha and IL-2Intravenous[47]
Prostate CancerReplication-competent ORCA-010Intratumorally[48]
GliomaReplication-competentNSC-CRAd-S-pk7Intratumorally[49]
TNBC *; Lung CancerReplication-competentADV/HSV-tkIntratumorally[50]
Breast, prostate, and testicular cancersReplication-defectiveREIC/Dickkopf-3 (Dkk-3)Intratumorally[51]
Pancreatic CancerReplication-defectiveREIC/Dickkopf-3 (Dkk-3)Intra and peritumorally[52]
Hepatocellular carcinomaReplication-defectiveSGE-REICSubcutaneous[53]
Biliary cancerReplication-defectiveSGE-REIC-[54]
Bile duct CancerReplication-defectiveSOX17-[55]
* TNBC—Triple-Negative Breast Cancer.

4.1. Tumor Carcinoembryonic Antigen (CEA)

An adenovirus vaccine serotype 5 encoding modified carcinoembryonic antigen (CEA), known as ETBX-011, which contains the epitope CAP1-6D (Ad5-CEA), carcinoembryonic antigen Peptide 1–6D, has progressed in several phase I and II trials [39]. This modified Ad5-CEA lacked the E1-, E2b region, and its expression is regulated by the CMV promoter to induce CEA-specific cell-mediated immune responses with anti-tumor activity. This Ad5-CEA virotherapy was reported for patients with metastatic colorectal cancer, and CEA-directed T cell responses were elicited, resulting in an 11-month overall survival advantage [56]. However, the real impact of this novel approach on survival rates will not be determined until a randomized, controlled trial with a greater number of patients is conducted.

4.2. Prostate Cancer

The efficacy of the replication-defective adenovirus serotype 5 encoding human prostate-specific antigen (Ad5-PSA) was evaluated in prostate cancer [40]. This recombinant adenovirus was reported to induce an anti-PSA T cell response, leading to the destruction of PSA-secreting tumor cells in a pre-clinical mouse model. This approach has advanced to phase I and phase II clinical trials, in both of which patients exhibited anti-PSA T cell responses [57,58].

4.3. Human Papillomavirus (HPV)

MG1-E6-E7, consisting of oncolytic maraba virus strain MG1 vaccine and replication-defective adenovirus encoding human papillomavirus (HPV) genes E6 and E7 (Ad5-E6E7), was evaluated in HPV-positive cancers followed by sequential treatment with atezolizumab, an anti-PD-L1 antibody [42]. The results showed tumor-specific responses, which significantly prolonged survival in the pre-clinical study and progressed to phase 1 clinical trial with atezolizumab in HPV-associated cancer patients [41,42].

4.4. Melanoma

Patients with advanced MAGE-A3-positive solid tumors were administered melanoma-associated antigen A3 (MAGEA3) using adenovirus in the clinical trial [42]. Furthermore, a previous clinical trial was also reported to assess oncolytic MG1-MAGEA3 with Ad-MAGEA3 vaccination in combination with pembrolizumab, an anti-PD-L1 agent, in patients with metastatic non-small cell lung tumors that were previously treated [42,57].

4.5. Adenoviruses Expressing Immune Modulators and Cytokines

Adenovirus was manipulated to produce immune modulators and cytokines. For instance, OVs were utilized to express granulocyte-macrophage colony-stimulating factor (GM-CSF) in promoting dendritic cell migration and maturation, consequently activating T cells (Table 2) [59]. In addition, adenovirus armed with IL-12 demonstrated an anti-tumor effect and enhanced immune stimulation in pre-clinical and clinical trials (Table 2) [59,60]. Another study demonstrated that adenovirus-enhanced IL-12 reduced the toxicity of systemic accumulation by cleaving the N-terminus of IL-12 peptides that were not released but were delivered directly to the tumor [61].
Ad-RTS-hIL-12 is a replication-defective adenovirus harboring the human IL-12 p70 transgene under the control of the RheoSwitch Therapeutic System (RTS). Veledimex, an activator ligand, is essential for the transcription of the IL-12 transgene. This approach has advanced to a phase I clinical trial involving patients with brain tumors and glioblastoma [43]. Other interleukins, including IL-2, IL-24, and IL-13, have been utilized to arm oncolytic adenovirus and have shown immune-stimulating capabilities in cancers [62].
Table
Table 2. Armed oncolytic adenovirus expressing immune modulators and cytokines in clinical trials.
Table 2. Armed oncolytic adenovirus expressing immune modulators and cytokines in clinical trials.
Oncolytic Adenovirus Type of
Adenovirus		BackboneTransgenesType of treatmentReference/IdentifierPhase statusReference
CG0070Replication competentAd5GM-CSFSafety and effectiveness of CG0070 in high-grade non-muscle invasive bladder cancer patients who failed BCG treatment.NCT02143804Phase II
(Withdrawn: Change in trial design)		[63]
ONCOS-102 Ad5; Ad3 fiber knobGM-CSFOpen-label trial of GM-CSF coding oncolytic adenovirus CGTG-102 with low-dose cyclophosphamide in patients with refractory solid tumors.NCT01598129Phase I
(Completed)		[64]
To assess the safety of DCVAC/PCa with ONCOS-102 in males with castration-resistant advanced metastatic prostate cancer who have progressed after initial hormone or chemotherapy treatment.NCT03514836 Phase II
Terminated
(insufficient
accrual)		NA
Replication competentDose escalation and dose expansion study of GM-CSF encoding adenovirus, ONCOS-102, in combination with anti-programmed death ligand-1 (PDL1) antibody, durvalumab, in adults with peritoneal disease who have failed prior standard chemotherapy and have platinum-resistant or refractory epithelial ovarian cancer or colorectal cancer.NCT02963831Phase I/II
(Completed)		[44]
Determine the safety, tolerability, and effectiveness of ONCOS-102 with chemotherapy.NCT02879669Phase I/II
(Active,
not recruiting)		[65]
Sequential ONCOS-102 and pembrolizumab therapy safety.NCT03003676Phase I
(Completed)		[66]
Ad-RTS-hIL-12Replication
defective		Ad5IL-12Safety and tolerability of a single Ad-RTS-hIL-12 tumor injection with oral veledimex.NCT02026271Phase I
(Completed)		[43]
LOAd703 Ad54-1BB CD40LTo evaluate LOAd703 in pancreatic, biliary, colorectal, or ovarian cancer patients with conventional chemotherapy or gemcitabine immune-conditioning.NCT03225989 Phase I/II
(Recruiting)		[67]
Replication competentTo determine whether intratumoral LOAd703 injections can reduce tumor growth and increase patient survival.NCT02705196 Phase I/II
(Recruiting)		[68]
To assess the safety and efficacy of delolimogene mupadenorepvec (LOAd703) and atezolizumab in melanoma patients.NCT04123470Phase I/II
(Recruiting)		NA
TILT-123Replication competentAd5; Ad3 fiber knobTNFα-IRES-IL-2To study the safety of oncolytic adenovirus TILT-123 as monotherapy and with TILs in metastatic melanoma patients.NCT04217473Phase I
(Recruiting)		[47]
DNX-2440Replication competentAd5-delta24OX40LFirst or second GBM recurrence patients will be treated with DNX-2440.NCT03714334Phase I
(Recruiting)		NA
NG-641NAAd11/3IFNα, CXCL9, CXCL10,
FAP-BiTE		Safety and tolerance of NG-641 in metastatic or advanced epithelial tumor patients.NCT04053283Phase I
(Recruiting)		[69]
NG-350ANAAd11/3CD40 agonist mAbEvaluating the safety, tolerability, preliminary effectiveness, pharmacokinetics, immunogenicity, and other pharmacodynamic effects of NG-350A in patients with advanced or metastatic epithelial tumors.NCT03852511Phase I
(Completed)		[70]
Abbreviations: BCG, Bacillus Calmette-Guerin; FAP-BiTE, Fibroblast Activation Protein-Bispecific T cell Engager; GBM, glioblastoma; GM-CSF, Granulocyte Macrophage Colony Stimulating Factor; IFNα, interferon alpha; IL-12, interleukin 12; mAb, monoclonal antibody; PCa, prostate cancer; TIL, tumor-infiltrating lymphocytes; TNFα, tumor necrosis factor alpha; NA, Information not available.

5. Strategies for Modulation of the Tumor Microenvironment (TME)

5.1. Characteristics of TME

TME is critical for the development or suppression of tumor progression. TME is composed of cellular components such as tumor cells, tumor stromal cells, immune cells, and the extracellular matrix (ECM) of non-cellular components [71]. These components of TME together constitute an environment that allows tumor cells to continue to thrive. As the tumor develops, tumor cell metabolism is affected, leading to hypoxia, oxidative stress, and a low pH value TME, which is loaded with immune cells and soluble cytokines. The resulting localized hypoxia and low pH microenvironment may increase angiogenesis, stimulate tumor growth factors, potentially inhibit tumor cell apoptosis, and increase the resistance of tumor cells to standard therapeutic modalities, including radiation, cytotoxic drugs, as well as immunotherapy [72]. Immunological phenotypes of the TME are mainly categorized into three primary categories: (1) immune desert TMEs, (2) immune exclusion TMEs, and (3) inflamed TMEs [73]. Inflamed TMEs, also known as “hot” tumors, are characterized by an abundance of cytokine-secreting CD4+ and cytotoxic CD8+ T cells, myeloid cells, and monocytes in the tumor core. Inflammatory tumors are frequently associated with cancer immunotherapy patient responses [74]. The excluded TMEs are also very prevalent in immune cells, even though the immune effector cells are scarce in the tumor core. Due to the absence of particular chemokines and the availability of major barriers or specific inhibitors, it is hypothesized that these immune cells are mostly localized in the tumor’s periphery [75]. The deserted TMEs are classified as immunologically "cold" tumors, which are often characterized by the absence of immune cells and cytokines in the tumor’s core or stroma. Considering TMEs as the “regulator” and “target” when developing and selecting therapeutic genes shows significant benefits for enhancing the accuracy and efficiency of cancer gene therapy [76].

5.2. Modulation of TME with OAVs and Small Molecule Drugs

Solid tumor development requires tumor cell and microenvironment collaboration. The intimate interaction between viruses and the immune system can strengthen the immunological compartment of the TME. Due to a high level of antiviral defense conservation within the adaptive immune system, virus-infected tumor cells will become more susceptible to destruction by neighboring immune cells. Thereafter, virus-mediated oncolysis occurs, resulting in the generation of pathogen-associated molecular patterns (PAMPs) and danger-associated molecular patterns (DAMPs), which are both well-established sensors of immunogenic cell death [77]. Moreover, the apoptosis of tumor cells enhances the availability of tumor antigens, facilitating CD4+ and CD8+ T lymphocytes to be activated by dendritic cells [78].
In addition to the intrinsic ability of viruses to substantially affect the TME, it is also possible to induce tumor cells to produce therapeutic proteins before death [79]. This is accomplished by including transgenes that encode pro-apoptotic or tumor suppressor proteins in the oncolytic virus’s genome [80].
Interference of anti-tumor immunity by adoptive T cell therapy was a pioneering approach to achieving significant and long-lasting therapeutic advantages in patients with solid metastatic malignancies by employing patient-derived tumor-infiltrating lymphocytes (TILs) that were triggered and grown in large numbers before being reinfused into the patient [81]. Generally, T cell infusion is accompanied by lymphodepleting preconditioning with high-dose chemotherapy to target suppressive cells and increase the availability of systemic and intratumoral cytokines essential for T cell transplant activity [81].
In addition, TIL-based adoptive cell transfer has exhibited significant therapeutic outcomes with high objective response rates. Interestingly, the efficacy of TIL immunotherapy is associated with or enhanced by viruses [82]. Therefore, targeting primarily intratumoral T cell rejuvenation to promote cancer cell death is a sensible method for enhancing the immunogenicity of solid tumors. For example, IL-2 and tumor necrosis factor-alpha (TNF-α) are two cytokines with these characteristics.
The possibility of T cells being entrapped in stromal barriers or inactivated when exposed to an immunosuppressive microenvironment is a key issue that could compromise the efficacy of conventional TIL transfer. Additionally, OAVs expressing TNF-α and IL-2 and other cytokines or chemokines (highlighted in Section 5.3 and Section 6.1) can reduce local immunosuppression by increasing the production of pro-inflammatory components essential for T cell maintenance and activating costimulatory markers on dendritic cells in substitution of lymphodepleting preconditioning. Therefore, by substituting lymphodepletion with the virus, effectiveness was not only preserved but enhanced [62].
To extend the therapeutic advantages of adoptive cell therapy to a wider proportion of patients, pre-clinical research has shown that the immunological characteristics and engineering adaptability of OVs can be exploited to reprogram the TME. However, before the clinical translation of these strategies, it is crucial to analyze these data in considering the microenvironmental heterogeneity across tumor types, the origin and location of the tumor, and whether it is a subcutaneous or metastatic tumor which can have an impact on the tumor’s microenvironment [83].
To facilitate the penetration of the adenovirus into the tumor, the protective tumor microenvironment can be weakened or destroyed by small molecule inhibitors that target specific features of the TME, including the hypoxia and acidic environment of the TME that supported the growth and progression of the tumor cells [84,85,86,87]. Moreover, the TME is enriched in cancer-associated fibroblasts (CAF), which secrete growth factors, cytokines, and other protein factors that promote the growth of the tumor cells. In addition, endothelial cells (EC), which play an important role in the angiogenesis of blood vessels in the tumor, support the tumor cells growth. Thus, adenovirus-mediated gene therapy is likely to be efficacious without these tumor-promoting cells. In addition, it has been reported that drugs targeting CAF and EC exhibit potency in the growth inhibition or migration of these cells [88,89,90,91,92]. The TME is fortified with extracellular matrix proteins consisting of collagen, fibronectin, and other fibrous proteins which might hinder the penetration of the adenovirus into the tumor microenvironment. Specific drugs to inhibit the activity of enzymes involved in the synthesis of these proteins or remodeling of extracellular matrix were reported [88,93,94,95].

5.3. Strategies for Using Armed OAVs to Target the TME

Effective oncolytic virotherapy is hampered by immunosuppressive TME. Generally, tumor cells release immunosuppressive chemokines and cytokines, hence minimizing the amplitude of anticancer immune responses induced by OVs. Over the past two decades, gene therapy has made enormous progress. Early cancer gene therapy research mainly concentrated on delivering tumor suppressor genes, primarily wild-type p53, but subsequent efforts used the tumor phenotype to engineer a targeted cytotoxic effect. Thus, gene therapy strategies that modulate the relatively genetically stable TME, including stimulation of the local immune system, have recently been established. For instance, progress has been produced in depleting cancer stroma, degrading tumor vasculature, and boosting the anti-tumor response or suppressing tumor tolerance with cytokine-based gene therapies [96,97,98]. In addition, armed OVs are becoming highly desirable as therapeutic agents as they drive tumor-specific oncolytic cell death by lysing tumor cells to disclose PAMPs and DAMPs as well as tumor antigens and expressing encoded immunomodulatory transgenes. The TME could be modulated by OVs to make it less immunosuppressive.
To resolve the immunosuppressive TME, various OVs, including adenovirus, have been genetically engineered to express GM-CSF to promote the development and differentiation of innate immune cells, hence triggering immunostimulatory signals within the TME [78]. In addition, several studies have engineered OVs to express immune-activating cytokines (such as interleukin) or chemokines, promoting T cell proliferation, differentiation, and effector activity in the TME [99]. Moreover, some OVs have been designed to express T cell costimulatory molecules, including CD40, 4-1BB, or OX40 (CD134), to stimulate tumor-specific T cell activation and strengthen anti-tumor immunity [100,101,102,103,104].

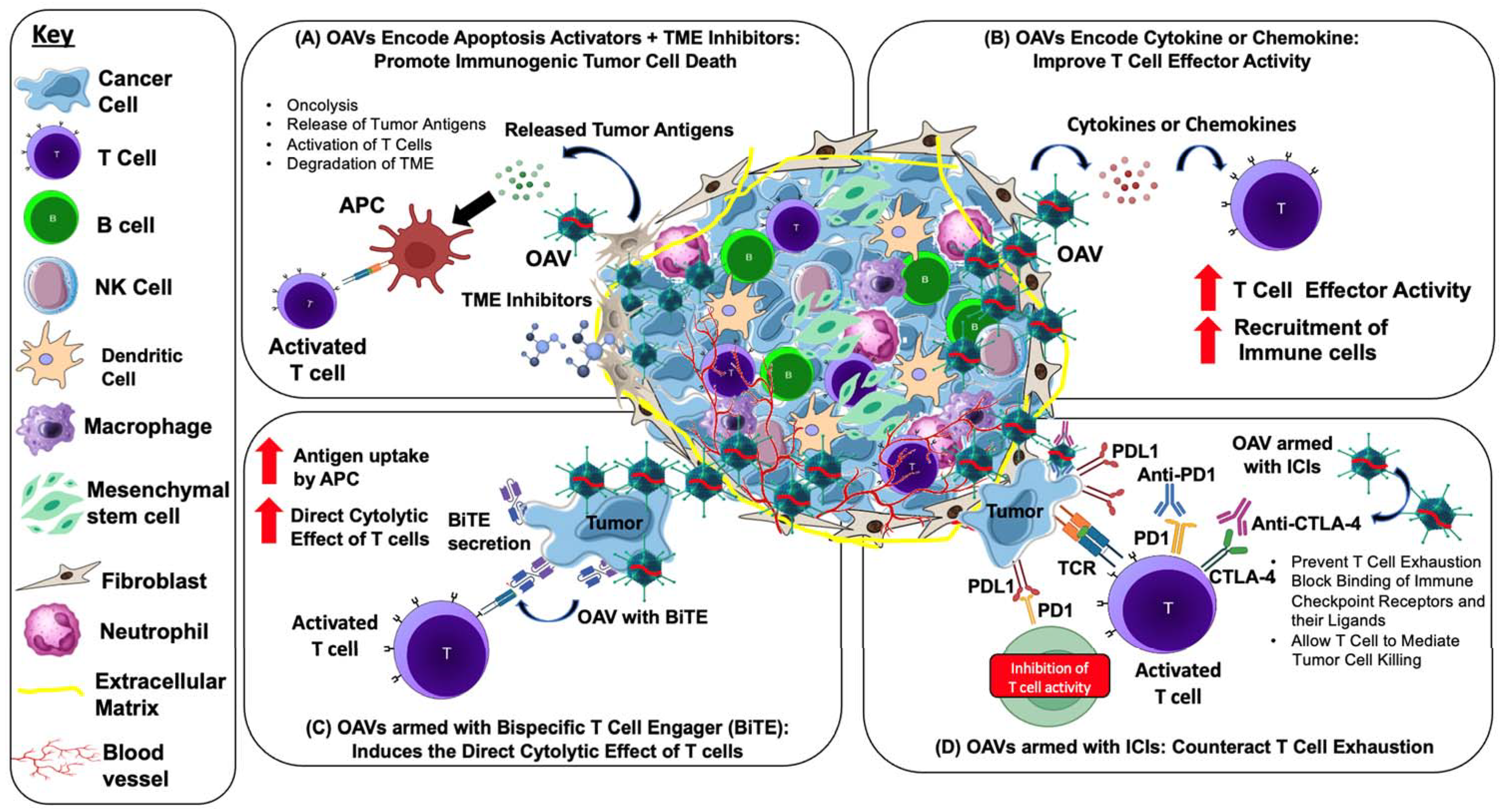

6. Strategic Design of OAVs Targeting Tumors

6.1. OAVs Armed with Cytokines and Chemokines

Cytokines are soluble proteins that facilitate cell-to-cell communication and maintain immune system homeostasis. They play a crucial function in the regulation of the innate and adaptive immune systems. Cytokines can inhibit tumor cell proliferation in the TME by anti-proliferative and pro-apoptotic activity or detection by cytotoxic effector cells. Several cytokines, including GM-CSF, IL-2, IL-12, IL-15, IFN-α, IFN-β, and IFN-γ, have shown anti-tumor properties in pre-clinical studies as well as in clinical trials. Among these cytokines, GM-CSF, IL-2, IL-12, TNF-α, and IFN-γ have been the most extensively investigated.
One of the most prevalent cytokines used to arm OVs is GM-CSF. Different cell types, including activated T and B cells, macrophages, fibroblasts, and endothelial cells, have been shown to secrete GM-CSF [105]. GM-CSF aids antigen presentation through the recruitment and activation of DCs and macrophages [106]. The incorporation of a GM-CSF transgene into the adenoviral genome elevated DC activity, hence enhancing tumor antigen presentation to T cells [78]. For instance, CG0070 and ONCOS-102 are two OAV5 armed with GM-CSF in clinical trials [107]. In a phase I trial of CG0070, 35 patients with non-invasive bladder cancer who had previously failed bacillus Calmette-Guerin (BCG) treatment were enrolled. The median duration of treatment for patients was 10.4 months, with a response rate of 48.6%. The overall response rate among patients who received numerous intravenous infusions of CG0070 increased to 63.6% [63]. ONCOS-102 (Ad5/3-D24-GMCSF), a novel OAV encoding GM-CSF, effectively eradicated human melanoma cells and achieved total tumor regression in a nude mice xenograft model [107]. Virus-expressed GM-CSF promoted the differentiation of monocytes into macrophages. Due to encouraging results in pre-clinical experiments, ONCOS-102 was evaluated in a phase I clinical trial that involved 12 patients with refractory solid tumors (NCT01598129) [64]. A short-term surge in the tumor-infiltrating lymphocytes, particularly CD8+ T cells, as well as systemic pro-inflammatory cytokines, was seen in 11 out of 12 patients treated with ONCOS-12. Two patients exhibited both tumor-specific CD8+ T cell infiltration and systemic stimulation of tumor-specific CD8+ T cells.
IL-12 promotes the production of tumor-specific CTLs and the activation of NK cells and T cells, hence initiating anti-tumor immune responses [108]. IL-12 therapy is often regarded as a highly effective treatment for tumor-induced immune suppression, but the anti-tumor efficacy was unsatisfactory due to inadequate IL-12 delivery to the TME, lymphocytes depletion in the TME, or systemic IL-12 accumulation that could lead to potentially toxic inflammatory responses [109,110]. Thus, OAV administration seems essential for raising the level of IL-12 that targets tumors while minimizing toxicity. For example, Wang et al. (2017) formulated a tumor-targeted OAV (Ad-TD-nsIL12) to deliver nonsecreting IL-12 to tumor cells, which significantly improved the survival of Syrian hamster pancreatic ductal adenocarcinoma while reducing off-target toxicity and minimizing the spreading of IL-2 to the local TME [61]. A recent study has shown that an adenoviral vector harboring the RheoSwitch Therapeutic System (RTS) comprising the murine IL-12 gene (Ad-RTS-mIL-12) and regulated by the oral activator ligand veledimex (VDX) may extend survival in an orthotopic glioma model [111]. In a multicenter phase 1 dose-escalation trial (NCT02026271), it was shown that intratumoral injection of Ad-RTS-mIL12 and oral VDX induces local IL-12 expression dose-dependently and are associated with an increase in TIL [43].
IL-2, which has been used for the treatment of metastatic melanoma and renal cell carcinoma, is the prevalent component required for T cell proliferation and differentiation [112]. TNF-α is a multifunctional cytotoxic agent that can trigger apoptosis and necrosis in tumor cells as well as increase the production of other cytokines and activate immune cells [113]. Havunen et al. (2017) constructed Ad5/3-E2F-d24-based OAVs (TILT-123 or Ad5/3-E2F-d24-TNFa-IRES-hIL2) expressing human IL-2, and TNF-α was utilized to enhance adoptive TIL transfer. Combining TILT-123 and TILs cured all malignancies in animal models with immune competence [47]. On day 90, following the administration of TILT-123 into mouse melanoma models concurrently receiving anti-PD-1 treatment, all tumors were completely eradicated, and all animals remained alive [114].

6.2. OAVs Armed with Costimulatory Molecules

The absence of costimulatory molecules on the surface of cancer cells suppresses immunity in TME. Thus, targeting costimulatory pathways, such as CD40 and 4-1BB, appears to be an intriguing strategy for enhancing anti-tumor immunity [115]. Costimulatory receptor CD40 is expressed on APCs, including B cells, macrophages, and DCs. It has been demonstrated that the association between CD40 and its ligand CD40L enhances the release of cytokines, accelerates MHC class II-dependent antigen presentation, increases T cell priming, and induces cancer cell death [116]. Zafar et al. (2018) reported that an adenoviral vector expressing CD40L (Ad3-hTERT-CMV-hCD40L) enhanced the activation of DCs, which in turn led to the induction of Th1 immune responses. The OV inhibited the expression of CD40L on cancer cells, hence minimizing systemic exposure and suppressing the systemic immune response [117]. LOAd703 is an adenovirus Ad5/35 that is associated with costimulatory factors CD40L and 4-1BBL to activate the CD40 and 4-1BB pathways that elicit efficient anti-tumor immune responses. In a mouse xenograft model of multiple myeloma, LOAd703 was recently shown to enhance the activation of cytotoxic T cells and suppress tumor development [118]. LOAd703 enhanced cytotoxic T cell activation in a co-culture of immune and multiple myeloma cells, as evidenced by increased CD69, CD107a, and IFN-γ expression. In addition, they reported that LOAd703 enhanced the immunogenic profile by enhancing the production of costimulatory molecules CD80, CD86, CD70, MHC molecules, death receptor Fas, and adhesion molecule ICAM-1 [118]. LOAd703 is currently being investigated in clinical trials phase I/II. The studies involved patients with pancreatic cancer (NCT02705196) and patients with a variety of cancers, including biliary, colorectal, and pancreatic, to evaluate the toxicity and tolerability, as well as monitor tumor response, immune response, viral shedding, and survival rate (NCT0322598, NCT03225989).
Adenovirus has also been combined with OX40 (CD134), a costimulatory molecule, to enhance the efficacy of virotherapy. Antigen interaction with OX40 is required for efficient T cell activation and T cell receptor-mediated antigen-specific signal transduction [119]. The interaction between OX40 and its corresponding ligand OX40L could enhance T cell survival, induce the secretion of cytokines, and promote T cell migration [120]. A pre-clinical study by Jiang et al. (2019) with Delta-24-RGDOX, a replication-competent OAV armed with OX40L, observed stimulation and replication of tumor-specific lymphocytes in mice models of syngeneic glioma [121,122]. Local therapy with Delta-24-RGDOX induced the proliferation and migration of tumor-specific T cells, substantially enhancing the immune system and providing an abscopal anti-melanoma response [122].

6.3. OAVs Armed with Immune Checkpoint Inhibitors

Despite the remarkable effectiveness of immune checkpoint inhibitors (ICIs) for some tumor types, poor responses in cold tumors and systemic autoimmune effects have prompted the use of OAVs to administer ICIs. Immune checkpoints are the key regulators of the immune system and are important in maintaining self-tolerance reducing tissue damage and inhibiting an autoimmune reaction by regulating the duration and strength of the immune response [123,124]. The production of immunological checkpoint molecules suppresses the host’s immune cell function as the host cannot mount a successful anti-tumor immune response. These molecules suppress T cell activity and are expressed on cells in the TME [125]. To avoid being eliminated by the immune system’s immunological checkpoint pathways, tumor cells disguise themselves as regular components of the human body [126]. Thus, ICIs could inactivate the immune system’s brake and trigger anti-tumor immune responses [127]. By inhibiting the immunological checkpoint to enhance T cell-mediated immune response against tumor cells, ICIs have considerably improved clinical outcomes in several malignancies. Anti-cytotoxic T lymphocyte-associated antigen 4 (CTLA-4), anti-programmed cell death (PD-1), and its ligand, PD-L1, are the most notable checkpoint inhibitors used in ICI therapy.
Zhang et al. (2019) designed an OAV (Ad5-PC) that released a soluble fusion protein with the extracellular domains of PD-1 and CD137L at each terminus. Ad5-PC demonstrated significantly enhanced anti-tumor activity in both ascitic and subcutaneous hepatocellular carcinoma (HCC) tumor models, with survival rates improved by 70% and 60%, respectively, and a sustained high level of T lymphocyte activation and IFN-γ the TME [128]. In addition, anti-CTLA-4 monoclonal armed with Ad5/3-24-CTLA and SKL002119 enhanced anti-tumor activity in lung and prostate mouse xenograft tumor models without affecting antiviral immunity or viral titers [129,130].
PD-1/PD-L1 is an inhibitory checkpoint that modulates peripheral T cell activity. Tanoue et al. (2017) demonstrated that OAV conjugated with helper-Ad expressing a PD-L1 blocking mini-antibody augments the anti-tumor effects of adoptively transplanted chimeric antigen receptor T (CAR-T) cells [131]. Local expression of the PD-L1-blocking mini body was preferable to systemic injection of PD-L1 IgG, confirming the unique advantage of viral delivery. A comparable method using helper-dependent adenoviruses for production of the PD-L1 blocking mini-antibody and IL-12-p70 for immune activation increased the activity and durability of CAR T cells in mice models of head and neck squamous cell carcinoma (HNSCC) [132]. In vivo results from Garofalo et al. (2021) showed that the combination of AdV-D24-ICOSL-CD40L and anti-PD-1 reduces tumor volume and increases survival by one hundred percent, indicating enhanced effectiveness and survival due to the complementary anti-tumor effects of these drugs in melanoma therapy [133]. Overall, the new oncolytic vector AdV-D24-ICOSL-CD40L, either individually or in combination with anti-cancer treatments such as checkpoint inhibitors, could offer promising therapeutic strategies for the treatment of melanoma.

6.4. OAVs Armed with Bispecific T cell Engager (BiTE) Molecule

Bispecific T cell engager (BiTE) molecules are the most common immunotherapeutic agents that could induce the direct cytolytic effect of T cells to lyse target cells independently of MHC expression. The BiTE molecule comprises two arms, one of which binds to CD3-epsilon on the T cell receptor and the other to a particular target antigen. Both arms, adhering to their respective target antigens, stimulate T cell activation, which induces apoptosis in target cells [134]. Freedman et al. (2017) armed OAV with a BiTE molecule that adheres to the epithelial cell adhesion molecule (EpCAM) on target cancer cells and bridges them to CD3 on T cells (EnAd-SA-EpCAM BiTE), enabling both CD4+ and CD8+ T cells to cluster and become activated. Interestingly, EnAd-SA-EpCAM BiTE demonstrated tumor cell death in the immunosuppressive TME of liquid cancer biopsies [133]. NG-641 is one of the recent developments of oncolytic adenovirus group B that incorporates BiTE molecules. NG-641 is a modified variant of the adenovirus enadenotucirev, an Ad11p/Ad3, that still exhibits all of enadenotucirev functional characteristics while also harboring transgenes that aim to disrupt the stromal barrier and impair the immune system in the tumor microenvironment [69]. NG-641 encoding fibroblast activation protein-targeting bispecific T cell activators (FAP-TAc) and immunological enhancers (IFN-α, CXCL9, and CXCL10) further enhance T cell activation by arming BiTE molecules. The production of FAP-Tac by virus-infected tumor cells ought to result in T cell-mediated destruction of CAFs, thereby altering TME to promote efficient anti-tumor immunity. Immune enhancer molecules, including IFN-α, CXCL9, and CXCL10, were developed to be encoded by NG-641 to enhance the activity of tumors with inadequate immune cell infiltration [69]. In 2020, NG-641 safety and tolerability in patients with metastatic or advanced epithelial tumors began to be studied. This phase I a/b study examined increasing intravenous or intramuscular doses in several epithelial cancer types before comparing the safety and effectiveness of single therapy or in combinations with checkpoint inhibitors and/or chemotherapy agents and is ongoing (NCT04053283). Together, the armed OAVs mediated anti-tumor strategies are highlighted in Figure 2.

7. Methodology

The literature selection was conducted by performing searches in PubMed (2012–2022) and Google Scholar (2012–2022) using a series of keywords, terms, and subject headings consisting of “Adenovirus, Cancer, and/or Gene Therapy”. Selected articles were evaluated by the authors based on certain criteria such as completeness and robustness of the relevant information that was available from the articles, including articles reporting case reports, experimental studies, and clinical trials. Relevant data were collected from the selected articles followed by the organization of the data into the manuscript.

8. Conclusions

Adenovirus has many benefits over other vectors, including effective gene transfer, large transgene capacity, and low pathogenicity. The strategic design of the OAVs aims to address key challenges associated with tumor biology, including chemo-drug resistant tumors and the protective barrier function of the TME. The OAVs that induce the activation of immune system and the recruitment of anti-tumor T cells are likely to provide tangible benefits in combating chemo-drug resistant tumors. The destruction of the TME by the OAVs and small molecule drugs offers added benefits to enhance the treatment efficacy of the OAVs. However, key challenges remain to be solved, including whether the OAVs could effectively eliminate the tumor stem cells, which are known to undergo cellular differentiation in response to anti-cancer treatment, leading to the generation of chemo-drug resistant tumor cells and metastasis of the tumor cells. Future research investigations are required to address these issues, including the design of OAVs to specifically target tumor stem cells.

Author Contributions

The authors confirm their contribution to the paper as follows: study conception and design: K.O.T. and C.L.P. Data collection: E.W.T. and N.A.-A. Draft manuscript preparation: E.W.T., N.A.-A. and K.O.T. All authors have read and agreed to the published version of the manuscript.

Funding

The research was supported by Sunway University Research Grant (EXT-SST-DBS-BWH-2018-01) and FRGS (Ministry of Higher Education, Malaysia) Research Grant (FRGS/1/2020/SKK06/SYUC/01/1).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available upon request by contacting the corresponding author.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

References

  1. Wong, F.H.; Palanirajan, V.K.; Ng, E.S.C.; Tan, C.K.; Tan, E.S.S.; Amini, F. Combination of Talazoparib and Calcitriol Enhanced Anticancer Effect in Triple-Negative Breast Cancer Cell Lines. Pharmaceuticals 2022, 15, 1075. [Google Scholar] [CrossRef]
  2. Sprague, L.; Braidwood, L.; Conner, J.; Cassady, K.A.; Benencia, F.; Cripe, T.P. Please Stand by: How Oncolytic Viruses Impact Bystander Cells. Future Virol. 2018, 13, 671–680. [Google Scholar] [CrossRef]
  3. Lawler, S.E.; Speranza, M.-C.; Cho, C.-F.; Chiocca, E.A. Oncolytic Viruses in Cancer Treatment: A Review. JAMA Oncol. 2017, 3, 841–849. [Google Scholar] [CrossRef] [Green Version]
  4. Luo, J.; Luo, Y.; Sun, J.; Zhou, Y.; Zhang, Y.; Yang, X. Adeno-Associated Virus-Mediated Cancer Gene Therapy: Current Status. Cancer Lett. 2015, 356, 347–356. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Gujar, S.; Pol, J.G.; Kroemer, G. Heating It up: Oncolytic Viruses Make Tumors ‘Hot’ and Suitable for Checkpoint Blockade Immunotherapies. Oncoimmunology 2018, 7, e1442169. [Google Scholar] [CrossRef]
  6. Lynch, J.P.; Kajon, A.E. Adenovirus: Epidemiology, Global Spread of Novel Serotypes, and Advances in Treatment and Prevention. Semin. Respir. Crit. Care Med. 2016, 37, 586–602. [Google Scholar] [CrossRef] [Green Version]
  7. Van Oostrum, J.; Smith, P.R.; Mohraz, M.; Burnett, R.M. The Structure of the Adenovirus Capsid III. Hexon Packing Determined from Electron Micrographs of Capsid Fragments. J. Mol. Biol. 1987, 198, 73–89. [Google Scholar] [CrossRef] [PubMed]
  8. Medina-Kauwe, L.K. Development of Adenovirus Capsid Proteins for Targeted Therapeutic Delivery. Ther. Deliv. 2013, 4, 267–277. [Google Scholar] [CrossRef] [Green Version]
  9. Wold, W.S.M.; Toth, K. Adenovirus Vectors for Gene Therapy, Vaccination and Cancer Gene Therapy. Curr. Gene Ther. 2013, 13, 421–433. [Google Scholar] [CrossRef]
  10. Lynch, J.P.; Fishbein, M.; Echavarria, M. Adenovirus. Semin. Respir. Clin. Care Med. 2011, 32, 494–511. [Google Scholar] [CrossRef]
  11. Ahi, Y.S.; Mittal, S.K. Components of Adenovirus Genome Packaging. Front. Microbiol. 2016, 7, 1503. [Google Scholar] [CrossRef] [Green Version]
  12. Wohl, B.P.; Hearing, P. Role for the L1-52/55K Protein in the Serotype Specificity of Adenovirus DNA Packaging. J. Virol. 2008, 82, 5089–5092. [Google Scholar] [CrossRef] [Green Version]
  13. Kunz, A.N.; Ottolini, M. The Role of Adenovirus in Respiratory Tract Infections. Curr. Infect. Dis. Rep. 2010, 12, 81–87. [Google Scholar] [CrossRef]
  14. Rafie, K.; Lenman, A.; Fuchs, J.; Rajan, A.; Arnberg, N.; Carlson, L. The Structure of Enteric Human Adenovirus 41-A Leading Cause of Diarrhea in Children. Sci. Adv. 2021, 7, eabe0974. [Google Scholar] [CrossRef]
  15. Vemula, S.V.; Mittal, S.K. Production of Adenovirus Vectors and Their Use as a Delivery System for Influenza Vaccines. Expert Opin. Biol. Ther. 2010, 10, 1469–1487. [Google Scholar] [CrossRef]
  16. Atasheva, S.; Shayakhmetov, D.M. Adenovirus Sensing by the Immune System. Curr. Opin. Virol. 2016, 21, 109–113. [Google Scholar] [CrossRef] [Green Version]
  17. Naumenko, V.A.; Stepanenko, A.A.; Lipatova, A.V.; Vishnevskiy, D.A.; Chekhonin, V.P. Infection of Non-Cancer Cells: A Barrier or Support for Oncolytic Virotherapy? Mol. Ther. Oncolytics 2022, 24, 663–682. [Google Scholar] [CrossRef]
  18. Shaw, A.R.; Suzuki, M. Immunology of Adenoviral Vectors in Cancer Therapy. Mol. Ther. Methods Clin. Dev. 2019, 15, 418–429. [Google Scholar] [CrossRef] [Green Version]
  19. Witherden, D.A.; Verdino, P.; Rieder, S.E.; Garijo, O.; Mills, R.E.; Teyton, L.; Fischer, W.H.; Wilson, I.A.; Havran, W.L. The Junctional Adhesion Molecule JAML Is a Costimulatory Receptor for Epithelial Γδ T Cell Activation. Science 2010, 329, 1210–1214. [Google Scholar] [CrossRef] [Green Version]
  20. Muruve, D.A.; Pétrilli, V.; Zaiss, A.K.; White, L.R.; Clark, S.A.; Ross, P.J.; Parks, R.J.; Tschopp, J. The Inflammasome Recognizes Cytosolic Microbial and Host DNA and Triggers an Innate Immune Response. Nature 2008, 452, 103–107. [Google Scholar] [CrossRef]
  21. Takaoka, A.; Wang, Z.; Choi, M.K.; Yanai, H.; Negishi, H.; Ban, T.; Lu, Y.; Miyagishi, M.; Kodama, T.; Honda, K.; et al. DAI (DLM-1/ZBP1) Is a Cytosolic DNA Sensor and an Activator of Innate Immune Response. Nature 2007, 448, 501–505. [Google Scholar] [CrossRef]
  22. Zhu, J.; Huang, X.; Yang, Y. Innate Immune Response to Adenoviral Vectors Is Mediated by Both Toll-Like Receptor-Dependent and -Independent Pathways. J. Virol. 2007, 81, 3170–3180. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Suzuki, M.; Bertin, T.K.; Rogers, G.L.; Cela, R.G.; Zolotukhin, I.; Palmer, D.J.; Ng, P.; Herzog, R.W.; Lee, B. Differential Type i Interferon-Dependent Transgene Silencing of Helper-Dependent Adenoviral vs. Adeno-Associated Viral Vectors in Vivo. Mol. Ther. 2013, 21, 796–805. [Google Scholar] [CrossRef] [Green Version]
  24. Zheng, Y.; Stamminger, T.; Hearing, P. E2F/Rb Family Proteins Mediate Interferon Induced Repression of Adenovirus Immediate Early Transcription to Promote Persistent Viral Infection. PLoS Pathog. 2016, 12, e1005415. [Google Scholar] [CrossRef] [Green Version]
  25. Seregin, S.S.; Aldhamen, Y.A.; Appledorn, D.M.; Hartman, Z.C.; Schuldt, N.J.; Scott, J.; Godbehere, S.; Jiang, H.; Frank, M.M.; Amalfitano, A. Adenovirus Capsid-Display of the Retro-Oriented Human Complement Inhibitor DAF Reduces Ad Vector-Triggered Immune Responses in Vitro and in Vivo. Blood 2010, 116, 1669–1677. [Google Scholar] [CrossRef]
  26. Mennechet, F.J.D.; Paris, O.; Ouoba, A.R.; Salazar Arenas, S.; Sirima, S.B.; Takoudjou Dzomo, G.R.; Diarra, A.; Traore, I.T.; Kania, D.; Eichholz, K.; et al. A Review of 65 Years of Human Adenovirus Seroprevalence. Expert Rev. Vaccines 2019, 18, 597–613. [Google Scholar] [CrossRef]
  27. Roberts, D.M.; Nanda, A.; Havenga, M.J.E.; Abbink, P.; Lynch, D.M.; Ewald, B.A.; Liu, J.; Thorner, A.R.; Swanson, P.E.; Gorgone, D.A.; et al. Hexon-Chimaeric Adenovirus Serotype 5 Vectors Circumvent Pre-Existing Anti-Vector Immunity. Nature 2006, 441, 239–243. [Google Scholar] [CrossRef]
  28. Serangeli, C.; Bicanic, O.; Scheible, M.H.; Wernet, D.; Lang, P.; Rammensee, H.G.; Stevanovic, S.; Handgretinger, R.; Feuchtinger, T. Ex Vivo Detection of Adenovirus Specific CD4+ T-Cell Responses to HLA-DR-Epitopes of the Hexon Protein Show a Contracted Specificity of THELPER Cells Following Stem Cell Transplantation. Virology 2010, 397, 277–284. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Leen, A.M.; Christin, A.; Khalil, M.; Weiss, H.; Gee, A.P.; Brenner, M.K.; Heslop, H.E.; Rooney, C.M.; Bollard, C.M. Identification of Hexon-Specific CD4 and CD8 T-Cell Epitopes for Vaccine and Immunotherapy. J. Virol. 2008, 82, 546–554. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Mantwill, K.; Klein, F.G.; Wang, D.; Hindupur, S.V.; Ehrenfeld, M.; Holm, P.S.; Nawroth, R. Concepts in Oncolytic Adenovirus Therapy. Int. J. Mol. Sci. 2021, 22, 10522. [Google Scholar] [CrossRef] [PubMed]
  31. Lee, C.S.; Bishop, E.S.; Zhang, R.; Yu, X.; Farina, E.M.; Yan, S.; Zhao, C.; Zeng, Z.; Shu, Y.; Wu, X.; et al. Adenovirus-Mediated Gene Delivery: Potential Applications for Gene and Cell-Based Therapies in the New Era of Personalized Medicine. Genes Dis. 2017, 4, 43–63. [Google Scholar] [CrossRef]
  32. Kim, J.W.; Miska, J.; Young, J.S.; Rashidi, A.; Kane, J.R.; Panek, W.K.; Kanojia, D.; Han, Y.; Balyasnikova, I.V.; Lesniak, M.S. A Comparative Study of Replication-Incompetent and -Competent Adenoviral Therapy-Mediated Immune Response in a Murine Glioma Model. Mol. Ther. Oncolytics 2017, 5, 97–104. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Von Seggern, D.J.; Nemerow, G.R. Adenoviral Vectors For Protein Expression. Gene Expr. Syst. 1999, 5, 111–156. [Google Scholar] [CrossRef]
  34. Brunetti-Pierri, N.; Ng, P. Helper-Dependent Adenoviral Vectors for Liver-Directed Gene Therapy. Hum. Mol. Genet. 2011, 20, R7–R13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Lee, D.; Liu, J.; Junn, H.J.; Lee, E.J.; Jeong, K.S.; Seol, D.W. No More Helper Adenovirus: Production of Gutless Adenovirus (GLAd) Free of Adenovirus and Replication-Competent Adenovirus (RCA) Contaminants. Exp. Mol. Med. 2019, 51, 1–18. [Google Scholar] [CrossRef] [PubMed]
  36. Lee, Y.H.; Pang, S.W.; Revai Lechtich, E.; Shah, K.; Simon, S.E.; Ponnusamy, S.; Narayanan, R.; Poh, C.L.; Tan, K.O. Tricistronic Expression of MOAP-1, Bax and RASSF1A in Cancer Cells Enhances Chemo-Sensitization That Requires BH3L Domain of MOAP-1. J. Cancer Res. Clin. Oncol. 2020, 146, 1751–1764. [Google Scholar] [CrossRef]
  37. Krause, C.D.; Izotova, L.S.; Ren, G.; Yuan, Z.R.; Shi, Y.; Chen, C.C.; Ron, Y.; Pestka, S. Efficient Co-Expression of Bicistronic Proteins in Mesenchymal Stem Cells by Development and Optimization of a Multifunctional Plasmid. Stem Cell Res. Ther. 2011, 2, 15. [Google Scholar] [CrossRef] [Green Version]
  38. Ricobaraza, A.; Gonzalez-Aparicio, M.; Mora-Jimenez, L.; Lumbreras, S.; Hernandez-Alcoceba, R. High-Capacity Adenoviral Vectors: Expanding the Scope of Gene Therapy. Int. J. Mol. Sci. 2020, 21, 3643. [Google Scholar] [CrossRef]
  39. Gabitzsch, E.S.; Xu, Y.; Balint, J.P.; Hartman, Z.C.; Lyerly, H.K.; Jones, F.R. Anti-Tumor Immunotherapy despite Immunity to Adenovirus Using a Novel Adenoviral Vector Ad5 [E1-, E2b-]-CEA. Cancer Immunol. Immunother. 2010, 59, 1131–1135. [Google Scholar] [CrossRef]
  40. Elzey, B.D.; Siemens, D.R.; Ratliff, T.L.; Lubaroff, D.M. Immunization with Type 5 Adenovirus Recombinant for a Tumor Antigen in Combination with Recombinant Canarypox Virus (ALVAC) Cytokine Gene Delivery Induces Destruction of Establish Prostate Tumors. Int. J. Cancer 2001, 94, 842–849. [Google Scholar] [CrossRef]
  41. Pol, J.; Atherton, M.; Bridle, B.; Stephenson, K.; le Boeuf, F.; Hummel, J.; Martin, C.; Pomoransky, J.; Breitbach, C.; Diallo, J.-S.; et al. Development and Applications of Oncolytic Maraba Virus Vaccines. Oncolytic Virother. 2018, 7, 117–128. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Sato-Dahlman, M.; Larocca, C.J.; Yanagiba, C.; Yamamoto, M. Adenovirus and Immunotherapy: Advancing Cancer Treatment by Combination. Cancers 2020, 12, 1295. [Google Scholar] [CrossRef] [PubMed]
  43. Chiocca, E.A.; Yu, J.S.; Lukas, R.V.; Solomon, I.H.; Ligon, K.L.; Nakashima, H.; Triggs, D.A.; Reardon, D.A.; Wen, P.; Stopa, B.M.; et al. Regulatable Interleukin-12 Gene Therapy in Patients with Recurrent High-Grade Glioma: Results of a Phase 1 Trial. Sci. Transl. Med. 2019, 11, eaaw5680. [Google Scholar] [CrossRef] [PubMed]
  44. Zamarin, D.; Odunsi, K.; Slomovitz, B.M.; Duska, L.R.; Nemunaitis, J.J.; Reilley, M.; Bykov, Y.; Holland, A.; Hubbard-Lucey, V.M.; Shohara, L.; et al. Phase I/II Study to Evaluate Systemic Durvalumab + Intraperitoneal (IP) ONCOS-102 in Patients with Peritoneal Disease Who Have Epithelial Ovarian (OC) or Metastatic Colorectal Cancer (CRC): Interim Phase I Clinical and Translational Results. J. Clin. Oncol. 2020, 38, 3017. [Google Scholar] [CrossRef]
  45. Musher, B.L.; George Smaglo, B.; Abidi, W.; Othman, M.; Patel, K.; Jing, J.; Stanietzky, N.; Lu, J.; Brisco, A.; Wenthe, J.; et al. A Phase I/II Study Combining a TMZ-CD40L/4-1BBL-Armed Oncolytic Adenovirus and Nab-Paclitaxel/Gemcitabine Chemotherapy in Advanced Pancreatic Cancer: An Interim Report. J. Clin. Oncol. 2020, 38, 716. [Google Scholar] [CrossRef]
  46. Buller, R.E.; Shahin, M.S.; Horowitz, J.A.; Runnebaum, I.B.; Mahavni, V.; Petrauskas, S.; Kreienberg, R.; Karlan, B.; Slamon, D.; Pegram, M. Long Term Follow-up of Patients with Recurrent Ovarian Cancer after Ad P53 Gene Replacement with SCH 58500. Cancer Gene Ther. 2002, 9, 567–572. [Google Scholar] [CrossRef]
  47. Havunen, R.; Kalliokoski, R.; Siurala, M.; Sorsa, S.; Santos, J.M.; Cervera-carrascon, V.; Anttila, M.; Hemminki, A. Cytokine-Coding Oncolytic Adenovirus TILT-123 Is Safe, Selective, and Effective as a Single Agent and in Combination with Immune Checkpoint Inhibitor Anti-PD-1. Cells 2021, 10, 246. [Google Scholar] [CrossRef]
  48. Brachtlova, T.; Abramovitch, A.; Giddens, J.; Incze, P.; Jansz, K.; Casey, R.; van Beusechem, V.; Dong, W. Clinical Results from a Phase I Dose Escalation Study in Treatment-Naïve Early Stage Prostate Cancer Patients with ORCA-010, a Potency Enhanced Oncolytic Replication Competent Adenovirus. J. Immunother. Cancer 2021, 9, A1004. [Google Scholar] [CrossRef]
  49. Fares, J.; Ahmed, A.U.; Ulasov, I.V.; Sonabend, A.M.; Miska, J.; Lee-Chang, C.; Balyasnikova, I.V.; Chandler, J.P.; Portnow, J.; Tate, M.C.; et al. Neural Stem Cell Delivery of an Oncolytic Adenovirus in Newly Diagnosed Malignant Glioma: A First-in-Human, Phase 1, Dose-Escalation Trial. Lancet Oncol. 2021, 22, 1103–1114. [Google Scholar] [CrossRef]
  50. Guerrero, C.; Ensor, J.E.; Sun, K.; Farach, A.M.; Nair, S.; Zhang, J.; Singh, M.; Darcourt, J.G.; Ramshesh, P.V.; Butler, E.B.; et al. Stereotactic Body Radiation Therapy and in Situ Oncolytic Virus Therapy Followed by Immunotherapy in Metastatic Non-Small Cell Lung Cancer. J. Clin. Oncol. 2021, 39, 9115. [Google Scholar] [CrossRef]
  51. Kawasaki, K.; Watanabe, M.; Sakaguchi, M.; Ogasawara, Y.; Ochiai, K.; Nasu, Y.; Doihara, H.; Kashiwakura, Y.; Huh, N.H.; Kumon, H.; et al. REIC/Dkk-3 Overexpression Downregulates P-Glycoprotein in Multidrug-Resistant MCF7/ADR Cells and Induces Apoptosis in Breast Cancer. Cancer Gene Ther. 2009, 16, 65–72. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Uchida, D.; Shiraha, H.; Kato, H.; Nagahara, T.; Iwamuro, M.; Kataoka, J.; Horiguchi, S.; Watanabe, M.; Takaki, A.; Nouso, K.; et al. Potential of Adenovirus-Mediated REIC/Dkk-3 Gene Therapy for Use in the Treatment of Pancreatic Cancer. J. Gastroenterol. Hepatol. 2014, 29, 973–983. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Sawahara, H.; Shiraha, H.; Uchida, D.; Kato, H.; Nagahara, T.; Iwamuro, M.; Kataoka, J.; Horiguchi, S.; Watanabe, M.; Sakaguchi, M.; et al. Novel REIC/Dkk-3-Encoding Adenoviral Vector as a Promising Therapeutic Agent for Pancreatic Cancer. Cancer Gene Ther. 2016, 23, 278–283. [Google Scholar] [CrossRef] [Green Version]
  54. Tanaka, E.; Uchida, D.; Shiraha, H.; Kato, H.; Ohyama, A.; Iwamuro, M.; Watanabe, M.; Kumon, H.; Okada, H. Promising Gene Therapy Using an Adenovirus Vector Carrying REIC/Dkk-3 Gene for the Treatment of Biliary Cancer. Curr. Gene Ther. 2020, 20, 64–70. [Google Scholar] [CrossRef]
  55. Irie, N.; Weinberger, L.; Tang, W.W.C.; Kobayashi, T.; Viukov, S.; Manor, Y.S.; Dietmann, S.; Hanna, J.H.; Surani, M.A. SOX17 Is a Critical Specifier of Human Primordial Germ Cell Fate. Cell 2015, 160, 253–268. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Morse, M.A.; Chaudhry, A.; Gabitzsch, E.S.; Hobeika, A.C.; Osada, T.; Clay, T.M.; Amalfitano, A.; Burnett, B.K.; Devi, G.R.; Hsu, D.S.; et al. Novel Adenoviral Vector Induces T-Cell Responses despite Anti-Adenoviral Neutralizing Antibodies in Colorectal Cancer Patients. Cancer Immunol. Immunother. 2013, 62, 1293–1301. [Google Scholar] [CrossRef] [Green Version]
  57. Zhao, Y.; Liu, Z.; Li, L.; Wu, J.; Zhang, H.; Zhang, H.; Lei, T.; Xu, B. Oncolytic Adenovirus: Prospects for Cancer Immunotherapy. Front. Microbiol. 2021, 12, 1951. [Google Scholar] [CrossRef]
  58. Melero, I.; Gaudernack, G.; Gerritsen, W.; Huber, C.; Parmiani, G.; Scholl, S.; Thatcher, N.; Wagstaff, J.; Zielinski, C.; Faulkner, I.; et al. Therapeutic Vaccines for Cancer: An Overview of Clinical Trials. Nat. Rev. Clin. Oncol. 2014, 11, 509–524. [Google Scholar] [CrossRef]
  59. Bhattacharya, P.; Budnick, I.; Singh, M.; Thiruppathi, M.; Alharshawi, K.; Elshabrawy, H.; Holterman, M.J.; Prabhakar, B.S. Dual Role of GM-CSF as a Pro-Inflammatory and a Regulatory Cytokine: Implications for Immune Therapy. J. Interferon Cytokine Res. 2015, 35, 585–599. [Google Scholar] [CrossRef] [Green Version]
  60. Sangro, B.; Mazzolini, G.; Ruiz, J.; Herraiz, M.; Quiroga, J.; Herrero, I.; Benito, A.; Larrache, J.; Pueyo, J.; Subtil, J.C.; et al. Phase I Trial of Intratumoral Injection of an Adenovirus Encoding Interleukin-12 for Advanced Digestive Tumors. J. Clin. Oncol. 2004, 22, 1389–1397. [Google Scholar] [CrossRef] [PubMed]
  61. Wang, P.; Li, X.; Wang, J.; Gao, D.; Li, Y.; Li, H.; Chu, Y.; Zhang, Z.; Liu, H.; Jiang, G.; et al. Re-Designing Interleukin-12 to Enhance Its Safety and Potential as an Anti-Tumor Immunotherapeutic Agent. Nat. Commun. 2017, 8, 1395. [Google Scholar] [CrossRef] [Green Version]
  62. Santos, J.M.; Cervera-Carrascon, V.; Havunen, R.; Zafar, S.; Siurala, M.; Sorsa, S.; Anttila, M.; Kanerva, A.; Hemminki, A. Adenovirus Coding for Interleukin-2 and Tumor Necrosis Factor Alpha Replaces Lymphodepleting Chemotherapy in Adoptive T Cell Therapy. Mol. Ther. 2018, 26, 2243–2254. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Burke, J.M.; Lamm, D.L.; Meng, M.V.; Nemunaitis, J.J.; Stephenson, J.J.; Arseneau, J.C.; Aimi, J.; Lerner, S.; Yeung, A.W.; Kazarian, T.; et al. A First in Human Phase 1 Study of CG0070, a GM-CSF Expressing Oncolytic Adenovirus, for the Treatment of Nonmuscle Invasive Bladder Cancer. J. Urol. 2012, 188, 2391–2397. [Google Scholar] [CrossRef]
  64. Ranki, T.; Pesonen, S.; Hemminki, A.; Partanen, K.; Kairemo, K.; Alanko, T.; Lundin, J.; Linder, N.; Turkki, R.; Ristimäki, A.; et al. Phase I Study with ONCOS-102 for the Treatment of Solid Tumors—An Evaluation of Clinical Response and Exploratory Analyses of Immune Markers. J. Immunother. Cancer 2016, 4, 17. [Google Scholar] [CrossRef] [Green Version]
  65. Borghaei, H.; Boyer, M.; Johnson, M.; Govindan, R.; Rodrigues, L.P.-A.; Blackhall, F.; Boosman, R.; Champiat, S.; Hummel, H.-D.; Victoria Lai, W.; et al. 361 A Randomised Open-Label Phase I/II Study Adding ONCOS-102 to Pemetrexed/Cisplatin in Patients with Unresectable Malignant Pleural Mesothelioma—12 Month Analysis of Biomarkers and Clinical Outcomes. J. Immunother. Cancer 2020, 8, A219–A220. [Google Scholar] [CrossRef]
  66. Shoushtari, A.; Olszanski, A.J.; Nyakas, M.; Hornyak, T.J.; Wolchok, J.D.; Levitsky, V.; Kuryk, L.; Hansen, T.B.; Jäderberg, M. Pilot Study of ONCOS-102 and Pembrolizumab: Remodeling of the Tumor Micro-Environment and Clinical Outcomes in Anti-PD1-Resistant Advanced Melanoma. Clin. Cancer Res. 2022, CCR-22-2046. [Google Scholar] [CrossRef]
  67. Wenthe, J.; Eriksson, E.; Sandin, L.; Lövgren, T.; Jarblad, J.L.; Dahlstrand, H.; Olsson-Strömberg, U.; Schiza, A.; Sundin, A.; Irenaeus, S.; et al. Abstract PO-018: Inflaming Advanced Solid Tumors Including Pancreatic Cancer Using LOAd703, a TMZ-CD40L/4-1BBL-Armed Oncolytic Virus. Cancer Res. 2021, 81, PO-018. [Google Scholar] [CrossRef]
  68. Musher, B.L.; Smaglo, B.G.; Abidi, W.; Othman, M.; Patel, K.; Jawaid, S.; Jing, J.; Brisco, A.; Wenthe, J.; Eriksson, E.; et al. A Phase I/II Study of LOAd703, a TMZ-CD40L/4-1BBL-Armed Oncolytic Adenovirus, Combined with Nab-Paclitaxel and Gemcitabine in Advanced Pancreatic Cancer. J. Clin. Oncol. 2022, 40, 4138. [Google Scholar] [CrossRef]
  69. Champion, B.R.; Besneux, M.; Patsalidou, M.; Silva, A.; Zonca, M.; Marino, N.; di Genova, G.; Illingworth, S.; Fedele, S.; Slater, L.; et al. Abstract 5013: NG-641: An Oncolytic T-SIGn Virus Targeting Cancer-Associated Fibroblasts in the Stromal Microenvironment of Human Carcinomas. Cancer Res. 2019, 79, 5013. [Google Scholar] [CrossRef]
  70. Eigentler, T.; Heinzerling, L.; Krauss, J.; Weishaupt, C.; Ochsenreither, S.; Lebbe, C.; Mohr, P.; Oliva, M.; Oberoi, H.K.; Terheyden, P.; et al. 1010P Intratumorally Administered CV8102 in Patients with Advanced Solid Tumors: Preliminary Results from Completed Dose Escalation in Study 008. Ann. Oncol. 2021, 32, S853. [Google Scholar] [CrossRef]
  71. Thomas, D.; Radhakrishnan, P. Tumor-Stromal Crosstalk in Pancreatic Cancer and Tissue Fibrosis. Mol. Cancer 2019, 18, 14. [Google Scholar] [CrossRef] [PubMed]
  72. Nayyar, G.; Chu, Y.; Cairo, M.S. Overcoming Resistance to Natural Killer Cell Based Immunotherapies for Solid Tumors. Front. Oncol. 2019, 9, 51. [Google Scholar] [CrossRef] [Green Version]
  73. Chen, D.S.; Mellman, I. Elements of Cancer Immunity and the Cancer-Immune Set Point. Nature 2017, 541, 321–330. [Google Scholar] [CrossRef] [PubMed]
  74. Lee, H.J.; Park, I.A.; Song, I.H.; Shin, S.J.; Kim, J.Y.; Yu, J.H.; Gong, G. Tertiary Lymphoid Structures: Prognostic Significance and Relationship with Tumour-Infiltrating Lymphocytes in Triple-Negative Breast Cancer. J. Clin. Pathol. 2016, 69, 422–430. [Google Scholar] [CrossRef]
  75. Beatty, G.L.; Winograd, R.; Evans, R.A.; Long, K.B.; Luque, S.L.; Lee, J.W.; Clendenin, C.; Gladney, W.L.; Knoblock, D.M.; Guirnalda, P.D.; et al. Exclusion of T Cells From Pancreatic Carcinomas in Mice Is Regulated by Ly6CLow F4/80+ Extratumoral Macrophages. Gastroenterology 2015, 149, 201–210. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Wu, J.; Chen, J.; Feng, Y.; Tian, H.; Chen, X. Tumor Microenvironment as the “Regulator” and “Target” for Gene Therapy. J. Gene Med. 2019, 21, e3088. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Cerullo, V.; Koski, A.; Vähä-Koskela, M.; Hemminki, A. Oncolytic Adenoviruses for Cancer Immunotherapy. Data from Mice, Hamsters, and Humans. In Advances in Cancer Research; Academic Press Inc.: Cambridge, MA, USA, 2012; Volume 115, pp. 265–318. [Google Scholar]
  78. Kanerva, A.; Nokisalmi, P.; Diaconu, I.; Koski, A.; Cerullo, V.; Liikanen, I.; Tähtinen, S.; Oksanen, M.; Heiskanen, R.; Pesonen, S.; et al. Antiviral and Antitumor T-Cell Immunity in Patients Treated with GM-CSF-Coding Oncolytic Adenovirus. Clin. Cancer Res. 2013, 19, 2734–2744. [Google Scholar] [CrossRef] [Green Version]
  79. Veerasamy, T.; Eugin Simon, S.; Tan, K.O. Emerging Strategies for Sensitization of Therapy Resistant Tumors toward Cancer Therapeutics by Targeting the Bcl-2 Family, TGF-β, Wnt/β-Catenin, RASSF and MiRNA Regulated Signaling Pathways. Int. J. Biochem. Cell Biol. 2021, 137, 106016. [Google Scholar] [CrossRef]
  80. Wong, H.H.; Lemoine, N.R.; Wang, Y. Oncolytic Viruses for Cancer Therapy: Overcoming the Obstacles. Viruses 2010, 2, 78–106. [Google Scholar] [CrossRef] [PubMed]
  81. Rosenberg, S.A.; Restifo, N.P. Adoptive Cell Transfer as Personalized Immunotherapy for Human Cancer. Science 2015, 348, 62–68. [Google Scholar] [CrossRef] [PubMed]
  82. Santos, J.M.; Havunen, R.; Hemminki, A. Modulation of the Tumor Microenvironment with an Oncolytic Adenovirus for Effective T-Cell Therapy and Checkpoint Inhibition. Methods Enzymol. 2020, 635, 205–230. [Google Scholar] [PubMed]
  83. Salmon, H.; Remark, R.; Gnjatic, S.; Merad, M. Host Tissue Determinants of Tumour Immunity. Nat. Rev. Cancer 2019, 19, 215–227. [Google Scholar] [CrossRef] [PubMed]
  84. Papadopoulos, K.P.; Goel, S.; Beeram, M.; Wong, A.; Desai, K.; Haigentz, M.; Milián, M.L.; Mani, S.; Tolcher, A.; Lalani, A.S.; et al. A Phase 1 Open-Label, Accelerated Dose-Escalation Study of the Hypoxia-Activated Prodrug AQ4N in Patients with Advanced Malignancies. Clin. Cancer Res. 2008, 14, 7110–7115. [Google Scholar] [CrossRef] [Green Version]
  85. Weiss, G.J.; Infante, J.R.; Chiorean, E.G.; Borad, M.J.; Bendell, J.C.; Molina, J.R.; Tibes, R.; Ramanathan, R.K.; Lewandowski, K.; Jones, S.F.; et al. Phase 1 Study of the Safety, Tolerability, and Pharmacokinetics of TH-302, a Hypoxia-Activated Prodrug, in Patients with Advanced Solid Malignancies. Clin. Cancer Res. 2011, 17, 2997–3004. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Luciani, F.; Spada, M.; de Milito, A.; Molinari, A.; Rivoltini, L.; Montinaro, A.; Marra, M.; Lugini, L.; Logozzi, M.; Lozupone, F.; et al. Effect of Proton Pump Inhibitor Pretreatment on Resistance of Solid Tumors to Cytotoxic Drugs. J. Natl. Cancer Inst. 2004, 96, 1702–1713. [Google Scholar] [CrossRef] [PubMed]
  87. Robey, I.F.; Baggett, B.K.; Kirkpatrick, N.D.; Roe, D.J.; Dosescu, J.; Sloane, B.F.; Hashini, A.I.; Morse, D.L.; Raghunand, N.; Gatenby, R.A.; et al. Bicarbonate Increases Tumor PH and Inhibits Spontaneous Metastases. Cancer Res. 2009, 69, 2260–2268. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  88. Zeitlin, B.D.; Spalding, A.C.; Campos, M.S.; Ashimori, N.; Dong, Z.; Wang, S.; Lawrence, T.S.; Nör, J.E. Metronomic Small Molecule Inhibitor of Bcl-2 (TW-37) Is Antiangiogenic and Potentiates the Antitumor Effect of Ionizing Radiation. Int. J. Radiat. Oncol. Biol. Phys. 2010, 78, 879–887. [Google Scholar] [CrossRef] [Green Version]
  89. Bid, H.K.; Oswald, D.; Li, C.; London, C.A.; Lin, J.; Houghton, P.J. Anti-Angiogenic Activity of a Small Molecule STAT3 Inhibitor LLL12. PLoS ONE 2012, 7, e35513. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  90. Jain, A.; Lai, J.C.K.; Bhushan, A. Biochanin A Inhibits Endothelial Cell Functions and Proangiogenic Pathways: Implications in Glioma Therapy. Anticancer Drugs 2015, 26, 323–330. [Google Scholar] [CrossRef]
  91. Chan, J.S.K.; Sng, M.K.; Teo, Z.Q.; Chong, H.C.; Twang, J.S.; Tan, N.S. Targeting Nuclear Receptors in Cancer-Associated Fibroblasts as Concurrent Therapy to Inhibit Development of Chemoresistant Tumors. Oncogene 2018, 37, 160–173. [Google Scholar] [CrossRef]
  92. Kock, A.; Larsson, K.; Bergqvist, F.; Eissler, N.; Elfman, L.H.M.; Raouf, J.; Korotkova, M.; Johnsen, J.I.; Jakobsson, P.J.; Kogner, P. Inhibition of Microsomal Prostaglandin E Synthase-1 in Cancer-Associated Fibroblasts Suppresses Neuroblastoma Tumor Growth. eBioMedicine 2018, 32, 84–92. [Google Scholar] [CrossRef]
  93. Yoshihara, S.; Kon, A.; Kudo, D.; Nakazawa, H.; Kakizaki, I.; Sasaki, M.; Endo, M.; Takagaki, K. A Hyaluronan Synthase Suppressor, 4-Methylumbelliferone, Inhibits Liver Metastasis of Melanoma Cells. FEBS Lett. 2005, 579, 2722–2726. [Google Scholar] [CrossRef] [Green Version]
  94. Hoffman, A.; Qadri, B.; Frant, J.; Katz, Y.; Bhusare, S.R.; Breuer, E.; Hadar, R.; Reich, R. Carbamoylphosphonate Matrix Metalloproteinase Inhibitors 6: Cis-2-Aminocyclohexylcarbamoylphosphonic Acid, a Novel Orally Active Antimetastatic Matrix Metalloproteinase-2 Selective Inhibitor-Synthesis and Pharmacodynamic and Pharmacokinetic Analysis. J. Med. Chem. 2008, 51, 1406–1414. [Google Scholar] [CrossRef]
  95. Revert, F.; Revert-Ros, F.; Blasco, R.; Artigot, A.; López-Pascual, E.; Gozalbo-Rovira, R.; Ventura, I.; Gutiérrez-Carbonell, E.; Roda, N.; Ruíz-Sanchis, D.; et al. Selective Targeting of Collagen IV in the Cancer Cell Microenvironment Reduces Tumor Burden. Oncotarget 2018, 9, 11020–11045. [Google Scholar] [CrossRef] [Green Version]
  96. Kakarla, S.; Song, X.-T.; Gottschalk, S. Cancer-Associated Fibroblasts as Targets for Immunotherapy. Immunotherapy 2012, 4, 1129–1138. [Google Scholar] [CrossRef] [Green Version]
  97. Toro Bejarano, M.; Merchan, J.R. Targeting Tumor Vasculature through Oncolytic Virotherapy: Recent Advances. Oncolytic Virother. 2015, 4, 169–181. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  98. Marchand, J.-B.; Semmrich, M.; Fend, L.; Rehn, M.; Silvestre, N.; Teige, I.; Foloppe, J.; Mårtensson, L.; Quéméneur, E.; Frendeus, B. Abstract 5602: BT-001, an Oncolytic Vaccinia Virus Armed with a Treg-Depletion-Optimized Recombinant Human Anti-CTLA4 Antibody and GM-CSF to Target the Tumor Microenvironment. Cancer Res. 2020, 80, 5602. [Google Scholar] [CrossRef]
  99. De Graaf, J.F.; de Vor, L.; Fouchier, R.A.M.; van den Hoogen, B.G. Armed Oncolytic Viruses: A Kick-Start for Anti-Tumor Immunity. Cytokine Growth Factor Rev. 2018, 41, 28–39. [Google Scholar] [CrossRef]
  100. Ylösmäki, E.; Ylösmäki, L.; Fusciello, M.; Martins, B.; Ahokas, P.; Cojoc, H.; Uoti, A.; Feola, S.; Kreutzman, A.; Ranki, T.; et al. Characterization of a Novel OX40 Ligand and CD40 Ligand-Expressing Oncolytic Adenovirus Used in the PeptiCRAd Cancer Vaccine Platform. Mol. Ther. Oncolytics 2021, 20, 459–469. [Google Scholar] [CrossRef]
  101. Eriksson, E.; Milenova, I.; Wenthe, J.; Ståhle, M.; Leja-Jarblad, J.; Ullenhag, G.; Dimberg, A.; Moreno, R.; Alemany, R.; Loskog, A. Shaping the Tumor Stroma and Sparking Immune Activation by CD40 and 4-1BB Signaling Induced by an Armed Oncolytic Virus. Clin. Cancer Res. 2017, 23, 5846–5857. [Google Scholar] [CrossRef]
  102. Andarini, S.; Kikuchi, T.; Nukiwa, M.; Pradono, P.; Suzuki, T.; Ohkouchi, S.; Inoue, A.; Maemondo, M.; Ishii, N.; Saijo, Y.; et al. Adenovirus Vector-Mediated in Vivo Gene Transfer of OX40 Ligand to Tumor Cells Enhances Antitumor Immunity of Tumor-Bearing Hosts. Cancer Res. 2004, 64, 3281–3287. [Google Scholar] [CrossRef] [Green Version]
  103. Huang, J.H.; Zhang, S.N.; Choi, K.J.; Choi, I.K.; Kim, J.H.; Lee, M.G.; Lee, M.; Kim, H.; Yun, C.O. Therapeutic and Tumor-Specific Immunity Induced by Combination of Dendritic Cells and Oncolytic Adenovirus Expressing IL-12 and 4-1BBL. Mol. Ther. 2010, 18, 264–274. [Google Scholar] [CrossRef] [PubMed]
  104. Autio, K.; Knuuttila, A.; Kipar, A.; Pesonen, S.; Guse, K.; Parviainen, S.; Rajamäki, M.; Laitinen-Vapaavuori, O.; Vähä-Koskela, M.; Kanerva, A.; et al. Safety and Biodistribution of a Double-Deleted Oncolytic Vaccinia Virus Encoding CD40 Ligand in Laboratory Beagles. Mol. Ther. Oncolytics 2014, 1, 14002. [Google Scholar] [CrossRef] [PubMed]
  105. Shiomi, A.; Usui, T. Pivotal Roles of GM-CSF in Autoimmunity and Inflammation. Mediat. Inflamm. 2015, 2015, 568543. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  106. Egea, L.; Hirata, Y.; Kagnoff, M.F. GM-CSF: A Role in Immune and Inflammatory Reactions in the Intestine. Expert Rev. Gastroenterol. Hepatol. 2010, 4, 723–731. [Google Scholar] [CrossRef] [Green Version]
  107. Bramante, S.; Kaufmann, J.K.; Veckman, V.; Liikanen, I.; Nettelbeck, D.M.; Hemminki, O.; Vassilev, L.; Cerullo, V.; Oksanen, M.; Heiskanen, R.; et al. Treatment of Melanoma with a Serotype 5/3 Chimeric Oncolytic Adenovirus Coding for GM-CSF: Results in Vitro, in Rodents and in Humans. Int. J. Cancer 2015, 137, 1775–1783. [Google Scholar] [CrossRef]
  108. Peter, M.; Kühnel, F. Oncolytic Adenovirus in Cancer Immunotherapy. Cancers 2020, 12, 3354. [Google Scholar] [CrossRef]
  109. Leonard, J.P.; Sherman, M.L.; Fisher, G.L.; Buchanan, L.J.; Larsen, G.; Atkins, M.B.; Sosman, J.A.; Dutcher, J.P.; Vogelzang, N.J.; Ryan, J.L. Effects of Single-Dose Interleukin-12 Exposure on Interleukin-12-Associated Toxicity and Interferon-Gamma Production. Blood 1997, 90, 2541–2548. [Google Scholar]
  110. Nguyen, K.G.; Vrabel, M.R.; Mantooth, S.M.; Hopkins, J.J.; Wagner, E.S.; Gabaldon, T.A.; Zaharoff, D.A. Localized Interleukin-12 for Cancer Immunotherapy. Front. Immunol. 2020, 11, 575597. [Google Scholar] [CrossRef] [PubMed]
  111. Barrett, J.A.; Cai, H.; Miao, J.; Khare, P.D.; Gonzalez, P.; Dalsing-Hernandez, J.; Sharma, G.; Chan, T.; Cooper, L.J.N.; Lebel, F. Regulated Intratumoral Expression of IL-12 Using a RheoSwitch Therapeutic System® (RTS®) Gene Switch as Gene Therapy for the Treatment of Glioma. Cancer Gene Ther. 2018, 25, 106–116. [Google Scholar] [CrossRef] [Green Version]
  112. Rosenberg, S.A. IL-2: The First Effective Immunotherapy for Human Cancer. J. Immunol. 2014, 192, 5451–5458. [Google Scholar] [CrossRef] [Green Version]
  113. Hirvinen, M.; Rajecki, M.; Kapanen, M.; Parviainen, S.; Rouvinen-Lagerström, N.; Diaconu, I.; Nokisalmi, P.; Tenhunen, M.; Hemminki, A.; Cerullo, V. Immunological Effects of a Tumor Necrosis Factor Alpha-Armed Oncolytic Adenovirus. Hum. Gene Ther. 2015, 26, 134–144. [Google Scholar] [CrossRef] [PubMed]
  114. Cervera-Carrascon, V.; Siurala, M.; Santos, J.M.; Havunen, R.; Tähtinen, S.; Karell, P.; Sorsa, S.; Kanerva, A.; Hemminki, A. TNFa and IL-2 Armed Adenoviruses Enable Complete Responses by Anti-PD-1 Checkpoint Blockade. Oncoimmunology 2018, 7, e1412902. [Google Scholar] [CrossRef]
  115. Capece, D.; Verzella, D.; Fischietti, M.; Zazzeroni, F.; Alesse, E. Targeting Costimulatory Molecules to Improve Antitumor Immunity. J. Biomed. Biotechnol. 2012, 2012, 926321. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  116. Korniluk, A.; Kemona, H.; Dymicka-Piekarska, V. Multifunctional CD40L: Pro- and Anti-Neoplastic Activity. Tumor Biol. 2014, 35, 9447–9457. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  117. Zafar, S.; Sorsa, S.; Siurala, M.; Hemminki, O.; Havunen, R.; Cervera-Carrascon, V.; Santos, J.M.; Wang, H.; Lieber, A.; de Gruijl, T.; et al. CD40L Coding Oncolytic Adenovirus Allows Long-Term Survival of Humanized Mice Receiving Dendritic Cell Therapy. Oncoimmunology 2018, 7, e1490856. [Google Scholar] [CrossRef] [Green Version]
  118. Wenthe, J.; Naseri, S.; Labani-Motlagh, A.; Enblad, G.; Wikström, K.I.; Eriksson, E.; Loskog, A.; Lövgren, T. Boosting CAR T-Cell Responses in Lymphoma by Simultaneous Targeting of CD40/4-1BB Using Oncolytic Viral Gene Therapy. Cancer Immunol. Immunother. 2021, 70, 2851–2865. [Google Scholar] [CrossRef] [PubMed]
  119. Hewitt, S.L.; Bai, A.; Bailey, D.; Ichikawa, K.; Zielinski, J.; Karp, R.; Apte, A.; Arnold, K.; Zacharek, S.J.; Iliou, M.S.; et al. Durable Anticancer Immunity from Intratumoral Administration of IL-23, IL-36γ, and OX40L MRNAs. Sci. Transl. Med. 2019, 11, eaat9143. [Google Scholar] [CrossRef]
  120. Webb, G.J.; Hirschfield, G.M.; Lane, P.J. OX40, OX40L and Autoimmunity: A Comprehensive Review. Clin. Rev. Allergy Immunol. 2016, 50, 312–332. [Google Scholar] [CrossRef]
  121. Jiang, H.; Rivera-Molina, Y.; Gomez-Manzano, C.; Clise-Dwyer, K.; Bover, L.; Vence, L.M.; Yuan, Y.; Lang, F.F.; Toniatti, C.; Hossain, M.B.; et al. Oncolytic Adenovirus and Tumor-Targeting Immune Modulatory Therapy Improve Autologous Cancer Vaccination. Cancer Res. 2017, 77, 3894–3907. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  122. Jiang, H.; Shin, D.H.; Nguyen, T.T.; Fueyo, J.; Fan, X.; Henry, V.; Carrillo, C.C.; Yi, Y.; Alonso, M.M.; Collier, T.L.; et al. Localized Treatment with Oncolytic Adenovirus Delta-24-RGDOX Induces Systemic Immunity against Disseminated Subcutaneous and Intracranial Melanomas. Clin. Cancer Res. 2019, 25, 6801–6814. [Google Scholar] [CrossRef]
  123. Li, K.; Tian, H. Development of Small-Molecule Immune Checkpoint Inhibitors of PD-1/PD-L1 as a New Therapeutic Strategy for Tumour Immunotherapy. J. Drug Target. 2019, 27, 244–256. [Google Scholar] [CrossRef]
  124. Zhang, Y.; Zheng, J. Functions of Immune Checkpoint Molecules Beyond Immune Evasion. Regul. Cancer Immune Checkp. 2020, 1248, 201–226. [Google Scholar] [CrossRef]
  125. Pardoll, D.M. The Blockade of Immune Checkpoints in Cancer Immunotherapy. Nat. Rev. Cancer 2012, 12, 252–264. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  126. Li, B.; Chan, H.L.; Chen, P. Immune Checkpoint Inhibitors: Basics and Challenges. Curr. Med. Chem. 2019, 26, 3009–3025. [Google Scholar] [CrossRef]
  127. Abril-Rodriguez, G.; Ribas, A. SnapShot: Immune Checkpoint Inhibitors. Cancer Cell 2017, 31, 848–848.e1. [Google Scholar] [CrossRef]
  128. Zhang, Y.; Zhang, H.; Wei, M.; Mou, T.; Shi, T.; Ma, Y.; Cai, X.; Li, Y.; Dong, J.; Wei, J. Recombinant Adenovirus Expressing a Soluble Fusion Protein PD-1/CD137L Subverts the Suppression of CD8+ T Cells in HCC. Mol. Ther. 2019, 27, 1906–1918. [Google Scholar] [CrossRef] [PubMed]
  129. Dias, J.D.; Hemminki, O.; Diaconu, I.; Hirvinen, M.; Bonetti, A.; Guse, K.; Escutenaire, S.; Kanerva, A.; Pesonen, S.; Löskog, A.; et al. Targeted Cancer Immunotherapy with Oncolytic Adenovirus Coding for a Fully Human Monoclonal Antibody Specific for CTLA-4. Gene Ther. 2012, 19, 988–998. [Google Scholar] [CrossRef] [Green Version]
  130. Du, T.; Shi, G.; Li, Y.M.; Zhang, J.F.; Tian, H.W.; Wei, Y.Q.; Deng, H.; Yu, D.C. Tumor-Specific Oncolytic Adenoviruses Expressing Granulocyte Macrophage Colony-Stimulating Factor or Anti-CTLA4 Antibody for the Treatment of Cancers. Cancer Gene Ther. 2014, 21, 340–348. [Google Scholar] [CrossRef] [PubMed]
  131. Tanoue, K.; Rosewell Shaw, A.; Watanabe, N.; Porter, C.; Rana, B.; Gottschalk, S.; Brenner, M.; Suzuki, M. Armed Oncolytic Adenovirus-Expressing PD-L1 Mini-Body Enhances Antitumor Effects of Chimeric Antigen Receptor T Cells in Solid Tumors. Cancer Res. 2017, 77, 2040–2051. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  132. Rosewell Shaw, A.; Porter, C.E.; Watanabe, N.; Tanoue, K.; Sikora, A.; Gottschalk, S.; Brenner, M.K.; Suzuki, M. Adenovirotherapy Delivering Cytokine and Checkpoint Inhibitor Augments CAR T Cells against Metastatic Head and Neck Cancer. Mol. Ther. 2017, 25, 2440–2451. [Google Scholar] [CrossRef]
  133. Freedman, J.D.; Hagel, J.; Scott, E.M.; Psallidas, I.; Gupta, A.; Spiers, L.; Miller, P.; Kanellakis, N.; Ashfield, R.; Fisher, K.D.; et al. Oncolytic Adenovirus Expressing Bispecific Antibody Targets T-Cell Cytotoxicity in Cancer Biopsies. EMBO Mol. Med. 2017, 9, 1067–1087. [Google Scholar] [CrossRef]
  134. Scott, E.M.; Duffy, M.R.; Freedman, J.D.; Fisher, K.D.; Seymour, L.W. Solid Tumor Immunotherapy with T Cell Engager-Armed Oncolytic Viruses. Macromol. Biosci. 2018, 18, 1700187. [Google Scholar] [CrossRef]
Pathogens 11 01146 g001 550
Figure 1. The genome of (A) replication-efficient adenovirus and (B) replication-deficient adenovirus. ITR—inverted terminal repeat; Ψ—viral packaging element; K—glycoprotein; P—pre-protein, X—Deleted.
Figure 1. The genome of (A) replication-efficient adenovirus and (B) replication-deficient adenovirus. ITR—inverted terminal repeat; Ψ—viral packaging element; K—glycoprotein; P—pre-protein, X—Deleted.
Pathogens 11 01146 g001
Pathogens 11 01146 g002 550
Figure 2. Strategies and mechanism of action for using armed OAVs to target the TME and enhance anti-tumor activity. OAVs selectively infect and replicate in the tumor. (A) Oncolysis caused by OAVs via apoptosis or immunogenic cell death (ICD) releases multiple molecules such as pathogen-associated molecular patterns (PAMPs), danger-associated molecular pattern signals (DAMPs), and tumor-associated antigens (TAAs), which are taken up by antigen-presenting cells (APCs) for T cell activation and ICD. The infection of OAVs is facilitated by the degradation of TME by small molecules’ TME inhibitors. (B) OAVs can be engineered to encode transgenes such as cytokines and chemokines, enabling targeted delivery to the TME and further activation of the anti-tumor immune response. OAVs encoding chemokines promote the secretion of chemokines into the TME that induces T cell trafficking to tumors, while OAVs encoding cytokines enhance effector function and maintain T cell survival and expansion. (C) OAVs encoding bispecific T cell engager (BiTE) induce lysis of tumor cells by redirecting T cells to tumor surface antigens, bidirectionally connecting T cells and tumor cells. (D) Mechanism of OAV combined with immune checkpoint inhibitor (ICI) antibodies. OAVs lyse tumor cells and attract CD8+ T cells into the TME, thus transforming a “cold tumor” into a “hot tumor”. Treatment with anti-PD-1/PD-L1 or anti-CTLA-4 antibodies prevents T cell exhaustion by blocking the binding of immune checkpoint receptors and their ligands such as PD-1/PD-L1 and allowing the T cell to mediate tumor cell killing.
Figure 2. Strategies and mechanism of action for using armed OAVs to target the TME and enhance anti-tumor activity. OAVs selectively infect and replicate in the tumor. (A) Oncolysis caused by OAVs via apoptosis or immunogenic cell death (ICD) releases multiple molecules such as pathogen-associated molecular patterns (PAMPs), danger-associated molecular pattern signals (DAMPs), and tumor-associated antigens (TAAs), which are taken up by antigen-presenting cells (APCs) for T cell activation and ICD. The infection of OAVs is facilitated by the degradation of TME by small molecules’ TME inhibitors. (B) OAVs can be engineered to encode transgenes such as cytokines and chemokines, enabling targeted delivery to the TME and further activation of the anti-tumor immune response. OAVs encoding chemokines promote the secretion of chemokines into the TME that induces T cell trafficking to tumors, while OAVs encoding cytokines enhance effector function and maintain T cell survival and expansion. (C) OAVs encoding bispecific T cell engager (BiTE) induce lysis of tumor cells by redirecting T cells to tumor surface antigens, bidirectionally connecting T cells and tumor cells. (D) Mechanism of OAV combined with immune checkpoint inhibitor (ICI) antibodies. OAVs lyse tumor cells and attract CD8+ T cells into the TME, thus transforming a “cold tumor” into a “hot tumor”. Treatment with anti-PD-1/PD-L1 or anti-CTLA-4 antibodies prevents T cell exhaustion by blocking the binding of immune checkpoint receptors and their ligands such as PD-1/PD-L1 and allowing the T cell to mediate tumor cell killing.
Pathogens 11 01146 g002
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tan, E.W.; Abd-Aziz, N.; Poh, C.L.; Tan, K.O. Engineered Oncolytic Adenoviruses: An Emerging Approach for Cancer Therapy. Pathogens 2022, 11, 1146. https://doi.org/10.3390/pathogens11101146

AMA Style

Tan EW, Abd-Aziz N, Poh CL, Tan KO. Engineered Oncolytic Adenoviruses: An Emerging Approach for Cancer Therapy. Pathogens. 2022; 11(10):1146. https://doi.org/10.3390/pathogens11101146

Chicago/Turabian Style

Tan, Ee Wern, Noraini Abd-Aziz, Chit Laa Poh, and Kuan Onn Tan. 2022. "Engineered Oncolytic Adenoviruses: An Emerging Approach for Cancer Therapy" Pathogens 11, no. 10: 1146. https://doi.org/10.3390/pathogens11101146

APA Style

Tan, E. W., Abd-Aziz, N., Poh, C. L., & Tan, K. O. (2022). Engineered Oncolytic Adenoviruses: An Emerging Approach for Cancer Therapy. Pathogens, 11(10), 1146. https://doi.org/10.3390/pathogens11101146

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
