Article

Antimicrobial Activity of Pinus wallachiana Leaf Extracts against Fusarium oxysporum f. sp. cubense and Analysis of Its Fractions by HPLC

by
Qurat Ul Ain
1,2,*,
Shahzad Asad
2,
Karam Ahad
3,
Muhammad Naeem Safdar
4 and
Atif Jamal
2,*
1
PARC Institute of Advanced Studies in Agriculture, National Agricultural Research Centre, Islamabad 45500, Pakistan
2
Crop Diseases Research Institute, National Agricultural Research Centre, Islamabad 45500, Pakistan
3
Institute of Plant and Environmental Protection, National Agricultural Research Centre, Islamabad 45500, Pakistan
4
Food Science Research Institute, National Agricultural Research Centre, Islamabad 45500, Pakistan
*
Authors to whom correspondence should be addressed.
Pathogens 2022, 11(3), 347; https://doi.org/10.3390/pathogens11030347
Submission received: 4 February 2022 / Revised: 21 February 2022 / Accepted: 8 March 2022 / Published: 12 March 2022
(This article belongs to the Section Fungal Pathogens)
Browse Figure
Review Reports Versions Notes

Abstract

:
Fusarium wilt has ruined banana production and poses a major threat to its industry because of highly virulent Fusarium oxysporum f. sp. cubense (Foc) race 4. The present study focused on the efficacy of Pinus wallachiana leaf extracts and its organic fractions against Foc in in vitro and greenhouse experiments. The presence of polyphenols in the fractions was also investigated using high performance liquid chromatography (HPLC). The in vitro tests carried out for the leaf extract of P. wallachiana showed its inhibitory effect on the mycelial growth and, based on this evidence, further characterization of fractions were done. Complete mycelial inhibition and the highest zone of inhibition against Foc was observed for the n-butanol fraction in vitro, while the n-hexane and dichloromethane fractions showed lower disease severity index (DSI) in greenhouse experiments. The fractions were further analysed by HPLC using nine polyphenolic standards, namely quercitin, myrecitin, kaempferol, rutin, gallic acid, trans-ferulic acid, coumeric acid, epicatechin and catechin. The highest content of polyphenols, based on standards used, was quantified in the n-butanol fraction followed by the ethyl acetate fraction of the leaf extract. This is the first report of antimicrobial activity of Pinus wallachiana extracts against Foc to the best of our knowledge.

1. Introduction

Banana (Musa spp.) is tremendously important for millions of cultivators and corporate growers, both for export and subsistence. The yield of commercial bananas across the world is staggeringly affected by Fusarium wilt (Panama disease) of bananas. It is a soil-borne disease whose causative agent is a hyphomycete i.e., Fusarium oxysporum f. sp. cubense [1,2,3]. Obliteration of Gros Michel by Foc race 1 led to its substitution with resistant Cavendish cultivars that are now susceptible to Foc race 4, specifically Foc TR4, which gained an emplacement from South East Asia to Africa and recently became entrenched in Latin America, thereby jeopardizing intercontinental banana production [4,5,6]. Management actions including crop rotation, flood fallowing, organic amendments, intercropping, molecular and biological control, etc. have been applied to combat this disease, but these measures provide short-term or little success under field conditions that advocate for continuous exploitation of belligerent methodologies that are antagonistic to the disease [6,7,8,9,10].
Various research investigations of plant crude extracts revealed their inhibitory activities against phytopathogens that account for the presence of antimicrobial secondary metabolites as their compositional constituents. Additionally, these secondary metabolites e.g., terpenoids, alkaloids, tannins, saponins, phenylpropanoids and flavanoids etc. are vital materials in the manufacture of sundry fungicides and pesticides [11,12,13,14,15]. Secondary metabolites signify the adaptive potential of plants against biotic and abiotic stresses [16]. Secondary metabolites’ structure, optimized through evolution, interferes with microbes molecular targets, hence acting as a mechanism for plant defense [17]. Phenolics are the profusely found secondary metabolites in plants [18]. Detection and identification of phenolics have now become an extensive research area because of the evidence that they have an indispensable role in the avoidance of the diseases that are linked to oxidative stress [19,20,21]. The plant phenolic compounds are studied as vital sources of novel antibiotics, insecticides, natural drugs and herbicides [22,23]. Continuous exploitation of botanicals from various plants and their different parts would be productive in discovering innovative, environmentally safe antimicrobials that can vanquish the complications of multi-drug resistance and bioaccumulation of pesticides.
Being used as folk medicines, gymnosperm botanicals have also been extensively studied for their anti-inflammatory and antimicrobial potential in recent decades. The presence of diverse chemical constituents in these extracts is thought to be responsible for microbial growth inhibition [24,25,26,27]. The P. wallachiana (commonly called Biar or Blue Pine) is a large cone-bearing evergreen tree belonging to the family Pinaceae of gymnosperms with a height up to 35–50 m and a diameter of 1–1.5 m, having down-curved branches with a straight trunk. Leaves are long (15–20 cm), slender, in fascicles of five, and flexible, the adaxial side having multiple bluish-white stomatal lines and the abaxial side green ones [28,29]. It is one of the principal conifers, mostly growing in the upper region of mountains associated with other gymnosperms, and is regarded as an important medicinal plant [30]. The majority of the research and pharmacognostic studies conducted on P. wallachiana have strongly supported its antioxidant efficacies [31,32,33,34] and the anticancerous potential of P. wallachiana needle extract [35]. The antibacterial activity of P. wallachiana essential oil against tested bacterial strains [36] and antifungal efficacy of its essential oil against Fusarium verticillioides [37], antimicrobial activity of its hydroalcoholic extracts against tested bacterial strains and fungi [38], and antibacterial activity against Acinetobacter baumannii [29] demonstrate its antimicrobial potential. Phytochemical studies have reported the antioxidant activity of P. wallachiana extracts that accounts for the presence of plentiful flavanoids and polyphenols in their phytochemical composition [32,39]. Phenolic compounds, i.e., chlorogenic acid, catechins, ferulic acid, and caffeic acid are well-known toxic compounds that are much faster concentrated in resistant varieties after their infection by the pathogen [40]. Cell wall phenolics, e.g., coumaric acid and trans ferulic acid, play a crucial role during plant growth by defending it against stresses including infections and wounding, etc. [41]. The antiviral potential of catechins and (-)-epicatechin gallate against the influenza virus had been noted. These polyphenols alter the membrane’s physical properties of the virus [42]. The antimicrobial potential of polyphenols e.g., catechin, gallic acid, ferulic acid, p-coumaric acid, quercitin, and rutin against Xylella fastidiosa had also been described earlier [43]. Similarly, the antifungal activities of polyphenolics e.g., phenol, catechin, quercetin, ο-coumaric acid, gallic acid, pyrogallic acid, ρ-coumaric acid, ρ-hydroxy benzoic acid, protocatechuic, salicylic acid, coumarin, and cinnamic acid had been noted [44]. Moreover, powerful antimicrobial activities by polyphenol compounds including kaempferol, gallic acid, quercetin and ellagic acid have been reported [45]. Extracts abundant in antioxidants, i.e., ascorbic acid, polyphenols and flavonoids, are a source of cell damage and the leaking of biomolecules from the impaired microbial membranes. The present study was designed to investigate the antifungal potential of Pinus wallachiana botanicals against Foc and evaluating its various fractions for the presence of some important polyphenols that might be beneficial for combating the Fusarium wilt problem.

2. Results

2.1. Fungicidal Analysis

The MIC and MFC of P. wallachiana extract against Foc were determined to be 20 mg/mL and 40 mg/mL respectively, while IC50 was calculated to be 6.09 mg/mL using regression equation (Table 1).

2.2. Effects on Biomass Production

Although P. wallachiana extract supplemented treatments (IC50, MIC, MFC) showed considerable reduction in Foc biomass compared to the control, maximum biomass reduction and 100% inhibition was found for MFC i.e., 40 mg/mL (Table 2).

2.3. Fractions of P. wallachiana

2.3.1. The Percentage Yield of Fractions

Maximum yield was recorded for dichloromethane fraction (27.8%), followed by the n-butanol (25.12%), ethyl acetate (24.68%), and n-hexane (21.8%) fractions (Table 3).

2.3.2. Antifungal Assays of Fractions

In the food poisoning assay, all fractions of P. wallachiana effectively inhibited mycelial growth of Foc compared to the solvent controls. The n-butanol fraction of P. wallachiana completely inhibited mycelial growth (i.e., 100%) followed by dichloromethane fraction (75.96%), n-hexane fraction (68.93), and ethyl acetate (57.26%) fraction (Table 3 and Supplementary Tables S1 and S2). In well diffusion assay, the maximum zone of inhibitions was measured for n-butanol (24.4 mm) and dichloromethane fraction (23.8 mm), while n-hexane and ethyl acetate recorded 21 mm and 18.6 mm ZOI respectively (Table 4 and Supplementary Tables S3 and S4).

2.3.3. Greenhouse Experiment of Fractions

First severity scoring (based on a 1–5 scale) was performed after a month of first drenching. The highest disease severity index (DSI) value, calculated from the severity scores, was recorded for the n-butanol fraction (40 mg/mL) while the n-hexane fraction (20 mg/mL) along with the dichloromethane fraction (20 mg/mL) displayed the lowest DSI. Second drenching was applied after recording the first severity scoring and second severity scoring was performed after two months of second drenching. Maximum DSI i.e., 100% value was calculated by all solvent control treatments including fungicide (200 µg/mL) and n-butanol fraction (20 mg/mL). After second severity scoring, third drenching was applied. Third severity scoring was performed after four months of third drenching. The lowest DSI was noted for dichloromethane (20 mg/mL) and hexane (40 mg/mL) fractions with 60% values. Comparison of the DSI of different treatments, calculated at three different intervals, revealed that the progress of wilting was delayed in the case of dichloromethane (20 mg/mL) and hexane (40 mg/mL) fractions. Except for n-hexane, all the other fractions recorded maximum DSI in their higher concentration, i.e., 40 mg/mL (Table 5 and Supplementary Tables S5–S10).

2.4. HPLC of Fractions

The identification and quantification of polyphenolic compounds i.e., phenolic acids and flavonoids, were determined in the four fractions of P. wallachiana using HPLC analysis. Identification and quantification of phenolics (285 nm) and flavanoids (370 nm) was undertaken according to retention time (RT) and peak spectral characteristics against those of standards. Detection of polyphenolic compounds compared to standards and the overall polyphenolic content of P. wallachiana leaf extract varied in different fractions, as evident from the data (Table 6 and Supplementary Table S11). The HPLC chromatograms of polyphenolic standards and two fractions of P. wallachiana i.e., ethyl acetate and n-butanol showed that all the polyphenolic compounds were detected in the n-butanol and ethyl acetate fractions except for rutin. Likewise, only quercitin and ferulic acid were detected in the n-hexane fraction, while the dichloromethane fraction detected all polyphenolic compounds except rutin, myrecitin and catechin (Figure 1 and Supplementary Figure S1).
Highest gallic acid (11.57 mg/g), catechin (33.44 mg/g), epicatechin (16.74 mg/g) and coumeric acid (4.33 mg/g) were detected in n-butanol fraction whereas highest ferulic acid (2.84 mg/g), myrecitin (2.15 mg/g), quercitin (7.9 mg/g) and kaempferol (7.81 mg/g) were quantified in ethyl acetate fraction. Maximum polyphenolic content, based on 9 polyphenol standards, were determined for n-butanol fraction of P. wallachiana (68.52 mg/g of extract) followed by ethyl acetate fraction (43.90 mg/g of extract) (Table 6).

3. Discussion

Due to the ethnopharmacological properties of plants, up to 50% of novel drugs are procured from natural sources [46,47]. Distinct plants and their different parts are administered in various modes for the treatment of infectious pathologies [48,49,50]. The active constituents of botanicals may take direct action on the pathogen or induce systemic resistance in the host plant that results in the decrement of disease development [51,52]. In the present investigation, the antimicrobial potential of Pinus walliachina; a gymnosperm, was explored against one of the most devastating pathogens, Fusarium oxysporum f. sp. cubense. Initial screening was carried out with P. walliachina leaf extracts for testing the antimicrobial potential. Results indicated that the extract effectively inhibited the growth of Foc, and based on these observations, further experiments were initiated which included the extraction of fractions using four solvents viz. hexane, dichloromethane, ethyl acetate and n-butanol and their potential to inhibit fungus in in vitro and in greenhouse. Both assay results verified the effectiveness of P. walliachina and, therefore, this study constitutes the first report of the antimicrobial activity of P. walliachina against Foc to the best of our knowledge. HPLC was also carried to further characterize all fractions, and nine standards were used for the said purpose.
The leaf extract completely inhibited the mycelial growth of Foc, and this observation was similar to the ones made previously where antifungal efficacy of extracts from distinct species associated with different families of gymnosperms was demonstrated [26] and also the efficacy of botanicals extracted from P. walliachina exhibited prominent antifungal, antibacterial and insecticidal activities [31,37,38,53]. The four fractions of P. walliachina leaf extract recorded significant percent inhibition and zone of inhibition against Foc in the poisoned food and well diffusion assays, respectively. These results are inconsistent with another study where fractions of P. walliachina crude leaf extract showed insecticidal (ethyl acetate) and antimicrobial (n-hexane) activities against Rhyzopertha dominica and Microsporum cannis, respectively [54]. The n-butanol (followed by the dichloromethane fraction) was found to be the most efficient treatment. However, the inhibitory potential of the four fractions was variable, which might be due to the different types of solvents used. It has been reported that the type of plant/plant part and type of extraction solvent are the reason for the variation of the phytochemical composition of various extracts [55].
In the greenhouse assay, the n-hexane fraction treatment with 40 mg/mL and dichloromethane fraction treatment with 20 mg/mL concentrations were found to be effective. The complete mycelial inhibition of Foc in the in vitro assay was observed in the n-butanol fraction, whereas in a greenhouse experiment the same fraction (40 mg/mL) recorded 100% DSI after one month of its very first drenching. It was noticed that polar fractions with their higher concentrations recorded comparatively higher DSI values, suggesting that with the high polarity of fraction its phytotoxicity to banana plantlets also increases. Polar fractions might have such phytochemicals that were not only detrimental to Foc but also had a phytotoxic effect on banana plantlets. A similar phytotoxicity phenomenon was described in an earlier study while working with different concentrations of chemical treatments (sterilant and fungicide) such as soil drenching. All chemicals with 50 μg/mL concentration developed severe phytotoxicity symptoms, while at lower concentrations none of the banana plantlets expressed phytotoxicity [56]. Similarly, in another study, significant phytotoxicity of various fractions of P. wallachiana leaves at 500 µg/mL were observed [54]. It can be concluded therefore that polar fractions should be used with comparatively lower concentrations i.e., less than 20 mg/mL, in order to decrease the DSI values.
The HPLC analysis of P. wallachiana fractions was done for the identification and quantification of polyphenolics using nine standards, and it confirmed the presence of most of the polyphenolic compounds in P. wallachiana fractions. All polyphenolic compounds except rutin were detected in the ethyl acetate and n-butanol fraction of P. wallachiana which corresponds with a past study that described that all pine extracts contain a high number of polyphenols [57,58,59]. The dichloromethane fraction detected all polyphenolic compounds except rutin, myrecitin and catechin, while the n-hexane fraction only detected ferulic acid and quercitin. Epicatechin, gallic acid, coumeric acid, and catechin were recorded the highest in n-butanol fraction, while kaempferol, ferulic acid, quercitin and myrecitin were detected highest in the ethyl acetate fraction. The highest polyphenolic content based on the nine polyphenolic standards was quantified for the P. wallachiana n-butanol fraction followed by ethyl acetate. An earlier study found quercetin as the most abundant flavonol in the n-butanol fraction (15.714%) of P. wallachiana methanol leaf extract using HPLC [60,61]. Similarly high amounts of polyphenolics, mainly taxifolin and catechins, were found to be the main reason for the antioxidant and biological activity of the Pinus species [62]. Moreover, phenolics and sulfur present in the plant extract contributed to the cell death of Foc TR4 by inducing oxidative bursts, mitochondrial impairment, and depolarization of the plasma membrane [63]. The production of phenolics in the resistant varieties of banana restricts pathogens to infected vessels due to lignifications of obstructions that result from the initial pathogen-induced occlusion reaction [64]. There is evidence that trans-ferulic acid and p-coumaric acid significantly inhibit the mycelial growth of Foc TR4 [65]. The presence of the polyphenolic compounds quantified in the fractions of P. wallachiana is the most probable reason for its mycelial inhibition activity against Foc.

4. Materials and Methods

4.1. Acquisition, Revival, and Confirmation of Fungal Culture

Fusarium oxysporum f. sp. cubense (Foc; TR4) was acquired from the Tissue culture department of National Agricultural Research Centre (NARC), Islamabad, the identity of which has been molecularly confirmed [66]. After the revival of Foc culture on potato dextrose agar (PDA), its morphology was examined, showing 3–5 septate, hyaline, sickle-shaped, macroconidia pointed at both ends and borne on single phialides, whereas microconidia were found to be mostly hyaline, kidney-shaped, aseptate produced on false heads.

4.2. Plant Sample and Extraction

A fresh leaf sample of P. wallachiana was collected from Ghora gali, Murree (altitude: 2291 m, coordinates 33°54′15″ N 73°23′25″ E) and after its disinfection with 5% Clorox, it was shade dried for 30 days and then was mechanically toiled. A powdered leaf sample was stored in labeled plastic jars for the in vitro assays that were performed in the fungal pathology laboratory of NARC. The leaf powder was mixed with ethanol using Erlenmeyer flasks, shaken at 60 rpm (revolution per minute) for 48 h and after its filtration, excess solvent was removed by the rotary evaporator [67], thereby dried extract was deposited in a glass vial [68].

4.3. Fungicidal Analysis

Twofold concentrations of the P. wallachiana leaf extract (1.25, 2.50, 5.0, 10, 20, and 40 mg/mL) were amended in autoclaved PDA media for the determination of minimum inhibitory concentration (MIC) and minimum fungicidal concentration (MFC) [69]. With the help of a plunger, 6 mm wells were made in the center of poisoned plates and Foc plugs were aseptically placed followed by the incubation (25 ± 2 °C) and recording of MIC and MFC after a week’-long interval. The half minimal inhibitory concentration (IC50) was also calculated using the regression equation [70].

4.4. Effect on Foc Biomass Production

The liquid culture was used to evaluate the effect of the extract on the production of Foc biomass [71]. Four treatments viz. control (no extract), IC50, MIC, MFC of the extract were separately dissolved in Potato Dextrose Broth (50 mL). Each flask aseptically received three to four plugs of Foc and placed on a rotary shaker (90 revolutions/min) and incubated (25 ± 2 °C) for a month. Mycelia-containing flasks were autoclaved and the media was filtered and mycelia were dried overnight (40 °C) after their washing with distilled water. Dry mycelia containing filter paper were then weighed and the percentage of growth inhibition was calculated by Equation (1) for each treatment as:
P.I. = Dry weight of control − Dry weight of sample/Dry weight of control × 100
where, P.I. = Percent inhibition

4.5. Fractionation

Liquid-liquid fractionation was performed for partitioning of P. wallachiana extract using a separating funnel [72]. The n-butanol, n-hexane, ethyl acetate, and dichloromethane were used as partitioning solvents. Fractionation was done in order of increasing polarity i.e., n-hexane > dichloromethane > ethyl acetate > n-butanol. The P. wallachiana extract was dissolved in water and sequential partitioning with n-hexane, dichloromethane, ethyl acetate, and n-butanol was done. Each fraction obtained was dried using a rotary evaporator and after calculation of its percentage yield using Equation (2), stored in labeled glass vials.
Yield = weight of dried fraction/initial weight of extract × 100

4.6. Antifungal Assay of Fractions

4.6.1. Food Poisoning Assay

Sterilized PDA plates poisoned with each fraction (10% conc.) and their 5% respective solvents that served as control were inoculated with Foc plugs (6 mm) and incubated at 25 ± 2 °C in five replicates [73]. When Foc mycelial growth completely covered all the control plates, radial mycelial growth was measured as the percentage inhibition of Foc using Equation (3).
P.I. = Radial mycelial growth of control − Radial mycelial growth of treatment/Radial mycelial growth of control × 100
where, P.I. = Percent Inhibition

4.6.2. Well Diffusion Assay

Spore suspension (106) of Foc was spread on the entire surface of sterilized PDA as described earlier [74]. With the help of a cork borer, a hole with a diameter of 6 mm was punched aseptically in the center of 9 cm Petri plates (NEST, UK), and 100 µL from each fraction (10%) was introduced into the wells. Plates were incubated at 25 ± 2 °C in five replicates for all the treatments. The zone of inhibition (ZOI) started appearing after three days of incubation and was measured after one month.

4.7. Greenhouse Experiment

Dwarf Cavendish banana plantlets (six weeks old) were acquired from a tissue culture laboratory, NARC. A double pot system (15 cm × 15 cm × 12 cm) was used for banana plantation with a potting mixture of soil, sand, and peat moss in a 2:1:4 ratio. Millet grains colonized with Foc (50 g) were packed in the middle of potting mix in each double pot system [75] to serve as inoculum. Treatments were applied as soil drenching [56] after banana plantlet sowing. Two concentrations of fractions (20 mg/mL and 40 mg/mL) and propiconazole (100 µg/mL and 200 µg/mL) along with their respective controls were used as soil drench treatments.
Three drenchings were applied during the greenhouse experiment and assessment of visual symptoms was done after each drenching. Evaluation of disease severity based on visual symptoms was measured, [76] and the Disease Severity Index (DSI) for each treatment was calculated.

4.8. HPLC Analysis of Fractions

Nine polyphenolic standards were used in HPLC analysis for their detection and quantification in P. wallachiana fractions [77]. Fractions (1 mg/mL concentration) were filtered with the help of a Membrane filter (0.45 µm) and analyzed on a Perkin Elmer HPLC system equipped with a LC 295 UV/VIS detector, binary LC pump, and a reverse phase C18 column (4.6 mm × 250 mm, 5 µm). Solvent A (acetonitrile) and solvent B (distilled water/acetic acid, 99:1 v/v, pH 3.30 ± 0.1) were used in combination to serve as a mobile phase. Linear gradient mobile phase with a flow rate of 1 mL/min and 20 µL injection volume of the sample was employed with detector setting at 285 nm and 370 nm for phenolics and flavanoids, respectively. Gallic acid, epicatechin, catechin, trans-ferulic acid, and trans-p-coumaric acid were used as phenolic standards (Λ max: 285 nm). The conditions of gradient program used for phenolic acid separation were 20% A (5 min), 20% A (5 min), 80% A (10 min), 20% A (5 min). Flavonoids standards (Λ max: 370 nm) used were Rutin, Myrecitin, Quercitin and Kaempferol, and flavanoids were separated using the program: 20% A (5 min), 20% A (5 min), 80% A (7 min), 20% A (8 min). The analytes were identified by comparing the Rt (retention time), and spike samples with polyphenolic standards and subsequent quantification of phenolic compounds was determined.

5. Conclusions

This study exclusively evaluated P. wallachiana and its fractions efficacy against Foc and noted significant antifungal activity using in vitro and greenhouse assays, suggesting their potential role in the management of the vascular wilt of bananas. It was established that polyphenolic compounds have potent efficacy against phytopathogens, as we know that phenolic compounds are active in plant defense response. HPLC analysis of P. wallachiana fractions revealed the presence of most of the compounds (based on nine polyphenolic standards), with their maximum quantification in n-butanol and ethyl acetate fractions. The existence of such important polyphenols with known antimicrobial properties accounts for the antifungal efficacy of the P. wallachiana fractions against Foc and this scientific finding has not been reported prior to this study. The research study strongly recommends that P. wallachiana and its fractions be exploited further for the presence of valuable compounds that can make a breakthrough for the control of Panama wilt disease soon.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pathogens11030347/s1; Supplementary Table S1: Completely randomized analysis of variance for percent inhibition of Foc mycelial growth using four fractions of P. wallachiana, prepared from liquid-liquid fractionation Supplementary Table S2: Pairwise Comparisons Test of Percent Inhibition for four fractions of P. wallachiana against Foc; Supplementary Table S3: Completely randomized analysis of variance for zone of inhibition produced by four different fractions of P. wallachiana against Foc; Supplementary Table S4: Pairwise Comparisons Test of ZOI for four fractions of P. wallachiana against Foc; Supplementary Table S5: Completely randomized analysis of variance for first severity scoring of banana plants drenched with different fractions of P. wallachiana in green house experiment; Supplementary Table S6: Pairwise Comparisons Test of 1st Severity Score for P. wallachiana fractions treatments used in green house experiment; Supplementary Table S7: Completely randomized analysis of variance for 2nd severity scoring of banana plants drenched with different fractions of P. wallachiana in green house experiment; Supplementary Table S8: Pairwise Comparisons Test of 2nd Severity Score for P. wallachiana fractions treatments used in green house experiment; Supplementary Table S9: Completely randomized analysis of variance for 3rd severity scoring of banana plants drenched with different fractions of P. wallachiana in green house experiment; Supplementary Table S10: Pairwise Comparisons Test of 3rd Severity Score for P. wallachiana fractions treatments used in green house experiment; Supplementary Table S11: Correlation coefficient and linear regression equation of each phenolic and flavanoid standards, at 285nm and 370nm, respectively; Supplementary Figure S1: HPLC chromatograms obtained for (a) n-hexane fraction at 285nm. 1 = Gallic acid, 4 = Coumeric acid, 5 = trans-ferulic acid, (b) n-hexane fraction at 370 nm. 3 = Quercitin, (c) Dichloromethane fraction at 285nm. 1 = Gallic acid, 3 = Epicatechin, 4 = Coumeric acid, 5 = trans-Ferulic acid, (d) Dichloromethane fraction at 370 nm. 3 = Quercitin, 4 = Kaempferol.

Author Contributions

Conceptualization, Q.U.A., S.A. and A.J.; methodology, Q.U.A., S.A., K.A., M.N.S. and A.J.; resources, Q.U.A.; writing—original draft preparation, Q.U.A.; writing—review and editing, Q.U.A. and A.J.; supervision, S.A. and A.J.; funding acquisition, Q.U.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Higher Education Commission (HEC), Pakistan. Grant ID/PIN No. 112-26842-2BM1-406.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Qurat Ul Ain is thankful to Higher Education Commission, for their financial support. Special thanks to Plant and Environmental Protection department and Ecotoxicology department, NARC for arrangement of laboratory facilities for current study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Grimm, D. Plant genomics. A bunch of trouble. Science 2008, 322, 1046–1047. [Google Scholar] [CrossRef] [PubMed]
  2. Ploetz, R.C. Fusarium wilt of banana is caused by several pathogens referred to as Fusarium oxysporum f. sp. cubense. Phytopathology 2006, 96, 653–656. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Ploetz, R.C. Management of Fusarium wilt of banana: A review with special reference to tropical race 4. Crop Prot. 2015, 73, 7–15. [Google Scholar] [CrossRef]
  4. Wen, T.; Huang, X.; Zhang, J.; Zhu, T.; Meng, L.; Cai, Z. Effects of water regime, crop residues, and application rates on control of Fusarium oxysporum f. sp. cubense. J. Environ. Sci. 2015, 31, 30–37. [Google Scholar] [CrossRef] [PubMed]
  5. Maymon, M.; Sela, N.; Shpatz, U.; Galpaz, N.; Freeman, S. The origin and current situation of Fusarium oxysporum f. sp. cubense tropical race 4 in Israel and the Middle East. Sci. Rep. 2020, 10, 1590. [Google Scholar] [CrossRef] [PubMed]
  6. Viljoen, A.; Ma, L.-J.; Molina, A.B. Fusarium wilt (Panama disease) and monoculture in banana production: Resurrgence of a century-old disease. In Emerging Plant Diseases and Global Food Security; Ristaino, J.B., Records, A., Eds.; American Phytopathological Society: Saint Paul, MN, USA, 2020. [Google Scholar]
  7. Zhang, H.; Mallik, A.; Zeng, R.S. Control of Panama disease of banana by rotating and intercropping with chineese chive (Allium tuberosum Rottler): Role of plant volatiles. J. Chem. Ecol. 2013, 39, 243–252. [Google Scholar] [CrossRef] [PubMed]
  8. Gnanasekaran, P.; Salique, S.M.; Panneerselvam, A.; Umamagheswari, K. In vitro biological control of Fusarium oxysporum f. sp. cubense by using some Indian medicinal plants. Int. J. Curr. Res. Acad. Rev. 2015, 3, 107–116. [Google Scholar]
  9. Katan, J. Diseases caused by soil-borne pathogens: Biology, management and challenges. J. Plant Pathol. 2017, 99, 305–315. [Google Scholar]
  10. Bubici, G.; Kaushal, M.; Prigigallo, M.I.; Cabanas, C.G.-L.; Mercado-Blanco, J. Biological control agents against Fusarium wilt of banana. Front. Microbiol. 2019, 10, 616. [Google Scholar] [CrossRef] [Green Version]
  11. Doughari, J.H.; Human, I.S.; Bennade, S.; Ndakidemi, P.A. Phytochemicals as chemotherapeutic agents and antioxidants: Possible solution to the control of antibiotic resistant verocytotoxin producing bacteria. J. Med. Plants Res. 2009, 3, 839–848. [Google Scholar]
  12. Saravanakumar, D.; Karthiba, L.; Ramjegathesh, R.; Prabakar, K.; Raguchander, T. Characterization of bioactive compounds from botanicals for the management of plant diseases. In Sustainable Crop Disease Management Using Natural Products; Ganesan, S., Vadivel, K., Jayaraman, J., Eds.; CAB International: Wallingford, UK, 2015. [Google Scholar]
  13. Thorat, P.; Kshirsagar, R.; Sawate, A.; Patil, B. Effect of lemongrass powder on proximate and phytochemical content of herbal cookies. J. Pharmacogn. Phytochem. 2017, 6, 155–159. [Google Scholar]
  14. Masarirambi, M.T.; Nxumalo, K.A.; Kunene, E.N.; Dlamini, D.V.; Mpofu, M.; Manwa, L.; Earnshaw, D.M.; Bwembya, G.C. Traditional/indigenous vegetables of the kingdom of eswatini: Biodiversity and their importance: A review. J. Exp. Agric. Int. 2020, 42, 204–215. [Google Scholar] [CrossRef]
  15. Nxumalo, K.A.; Aremu, A.O.; Fawole, O.A. Potentials of medicinal plant extracts as an alternative to synthetic chemicals in postharvest protection and preservation of horticultural crops: A review. Sustainability 2021, 13, 5897. [Google Scholar] [CrossRef]
  16. Stefanovic, O.; Comic, L. Synergistic antibacterial interaction between Melissa officinalis extracts and antibiotics. J. Appl. Pharm. Sci. 2012, 2, 1–5. [Google Scholar]
  17. Wink, M.; Ashour, M.L.; El-Readi, M.Z. Secondary metabolites from plants inhibiting ABC transporters and reversing resistance of cancer cells and microbes to cytotoxic and antimicrobial agents. Front. Microbiol. 2012, 3, 1–15. [Google Scholar] [CrossRef] [Green Version]
  18. Pereira, D.M.; Valentao, P.; Pereira, J.A.; Andrade, P.B. Phenolics: From chemistry to biology. Molecules 2009, 14, 2202–2211. [Google Scholar] [CrossRef]
  19. Marchand, L.L.; Murphy, S.P.; Hankin, J.H.; Wilkens, L.R.; Kolonel, L.N. Intake of flavonoids and lung cancer. J. Natl. Cancer Inst. 2000, 92, 154–160. [Google Scholar] [CrossRef] [Green Version]
  20. Chanwitheesuk, A.; Teerawutgulrag, A.; Rakariyatham, N. Screening of antioxidant activity and antioxidant compounds of some edible plants of Thailand. Food Chem. 2005, 92, 491–497. [Google Scholar] [CrossRef]
  21. Dai, J.; Mumper, R.J. Plant phenolics: Extraction, analysis and their antioxidant and anticancer properties. Molecules 2010, 15, 7313–7352. [Google Scholar] [CrossRef]
  22. Cozier, A.; Cifford, M.N.; Ashihara, H. Plant Secondary Metabolites–Occurrence, Structure and Role in the Human Diet; Blackwell Publishing: Hoboken, NJ, USA, 2006; pp. 1–13. [Google Scholar]
  23. Jalaj, A.V.; Radhamany, P.M. Identification and quantification of phenolic compounds from Operculina turpethum (L.) Silva manso leaf by HPLC method. Int. J. Pharm. Sci. Res. 2016, 7, 1656–1661. [Google Scholar]
  24. Harborne, J.B.; Baxter, H. The Chemical Dictionary of Economic Plants; Wiley and Sons: Chichester, UK, 2001; p. 582. [Google Scholar]
  25. Watanabe, K.; Fukao, T. Antibacterial effects of unripe Cephalotaxus harringtonia fruit extract on gram-positive bacteria. J. Jpn. Soc. Food Sci. Tech. 2009, 56, 533–540. [Google Scholar] [CrossRef] [Green Version]
  26. Joshi, S.; Sati, S.C. Antifungal potential of gymnosperms: A review. In Contribution to the Mycological Progress; Sati, S.C., Belwal, M., Eds.; Daya Publishing House: New Delhi, India, 2012; pp. 333–345. [Google Scholar] [CrossRef]
  27. Joshi, S.; Sati, S.C.; Kumar, P. Antibacterial potential and ethnomedical relevance of Kumaun himalayan gymnosperms. J. Phytopharm. 2016, 5, 190–200. [Google Scholar] [CrossRef]
  28. Orwa, C.; Mutua, A.; Kindt, R.; Jamnadass, R.; Anthony, S. Agroforestree Database: A Tree Reference and Selection Guide Version 4.0. 2009. Available online: http://www.worldagroforestry.org/sites/treedbs/treedatabases.asp (accessed on 4 August 2018).
  29. Khan, N.; Khan, I.; Nadhman, A.; Azam, S.; Ullah, I.; Ahmad, F.; Khan, H.A. Pinus wallichiana-synthesized silver nanoparticles as biomedical agents: In-Vitro and in-vivo approach. Green Chem. Lett. Rev. 2020, 13, 69–82. [Google Scholar] [CrossRef]
  30. Rahman, I.U.; Khan, N.; Ali, K. Variability assessment of some morphological traits among blue pine (Pinus wallichiana) communities in Hindukush ranges of SWAT, Pakistan. Pak. J. Bot. 2017, 49, 1351–1357. [Google Scholar]
  31. Sharma, A.; Sharma, L.; Goyal, R. A review on Himalayan pine species: Ethnopharmacological, phytochemical and pharmacological aspects. Pharmacogn. J. 2018, 10, 611–619. [Google Scholar] [CrossRef] [Green Version]
  32. Sinha, D. A review on ethnobotanical, phytochemical and pharmacological profile of Pinus wallichiana A.B. Jacks. Pharmacogn. J. 2019, 11, 624–631. [Google Scholar] [CrossRef] [Green Version]
  33. Khan, N.; Khan, I.; Azam, S.; Ahmad, F.; Khan, H.A.; Shah, A.; Ullah, M. Potential cytotoxic and mutagenic effect of Pinus wallichiana, Daphne oleiodes and Bidens chinensis. Saudi J. Biol. Sci. 2021, 28, 4793–4799. [Google Scholar] [CrossRef]
  34. Emami, S.A.; Shahani, A.; Khayyat, M.H. Antioxidant activity of leaves and fruits of cultivated conifers in Iran. Jundishapur J. Nat. Pharm. Prod. 2013, 8, 113–117. [Google Scholar] [CrossRef] [Green Version]
  35. Joshi, S.; Painuli, S.; Rai, N.; Meena, R.C.; Misra, K.; Kumar, N. Aqueous extract of Pinus wallichiana inhibits proliferation of cervical cancer cell line HeLa and represses the transcription of angiogenic factors HIF1α and VEGF. Ecol. Environ. Conserv. 2020, 26, S12–S19. [Google Scholar]
  36. Qadir, M.; Shah, W.A. Comparative GC-MS analysis, antioxidant, antibacterial and anticancer activity of essential oil of Pinus wallichaina from Kashmir, India. Elixir Appl. Chem. 2014, 72, 25819–25823. [Google Scholar]
  37. Dambolena, J.S.; Gallucci, M.N.; Luna, A.; Gonzalez, S.B.; Guerra, P.E.; Zunino, M.P. Composition, antifungal and antifumonisin activity of Pinus wallichiana, Pinus monticola and Pinus strobus essential oils from Patagonia Argentina. J. Essent. Oil Bear. Plants 2016, 19, 1769–1775. [Google Scholar] [CrossRef]
  38. Sharma, A.; Goyal, R.; Sharma, L. Potential biological efficacy of Pinus plant species against oxidative, inflammatory and microbial disorders. BMC Complementary Altern. Med. 2016, 16, 35. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Sharma, P.; Gupta, S.; Bhatt, N.; Ahanger, S.H.; Gupta, D.; Singh, P.; Lochan, R.; Bhagat, M. Antioxidant and phytochemical analysis of volatile oil and extracts of Pinus wallichiana. MOJ Biol. Med. 2019, 4, 37–40. [Google Scholar] [CrossRef]
  40. Agrios, G.N. How plants defend themselves against pathogens. In Plant Pathology, 5th ed.; Academic Press: Cambridge, MA, USA, 2005. [Google Scholar]
  41. Naczk, M.; Shahidi, F. Review: Extraction and analysis of phenolics in food. J. Chromatogr. A 2004, 1054, 95–111. [Google Scholar] [CrossRef]
  42. Song, J.M.; Lee, K.H.; Seong, B.L. Antiviral effect of catechins in green tea on influenza virus. Antiviral Res. 2005, 68, 66–74. [Google Scholar] [CrossRef] [PubMed]
  43. Maddox, C.E.; Laur, L.M.; Tian, L. Antibacterial activity of phenolic compounds against the phytopathogen Xylella fastidiosa. Curr. Microbiol. 2010, 60, 53–58. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. El-Khateeb, A.Y.; Elsherbiny, E.A.; Tadros, L.K.; Ali, S.M.; Hamed, H.B. Phytochemical analysis and antifungal activity of fruit leaves extracts on the mycelial growth of fungal plant pathogens. J. Plant Pathol. Microbiol. 2013, 4, 1–6. [Google Scholar]
  45. Dua, A.; Garg, G.; Mahajan, R. Polyphenols, flavonoids and antimicrobial properties of methanolic extract of fennel (Foeniculum vulgare Miller). Eur. J. Exp. Biol. 2013, 3, 203–208. [Google Scholar]
  46. Gurib-Fakim, A. Medicinal plants: Traditions of yesterday and drugs of tomorrow. Mol. Asp. Med. 2006, 27, 1–93. [Google Scholar] [CrossRef]
  47. Yuan, H.; Ma, Q.; Ye, L.; Piao, G. The traditional medicine and modern medicine from natural products. Molecules 2016, 21, 559. [Google Scholar] [CrossRef] [Green Version]
  48. Adekunle, A.S.; Adekunle, O.C. Preliminary assessment of antimicrobial properties of aqueous extract of plants against infectious diseases. Biol. Med. 2009, 1, 20–24. [Google Scholar]
  49. Lengai, G.M.W.; Muthomi, J.W.; Mbega, E.R. Phytochemical activity and role of botanical pesticides in pest management for sustainable agricultural crop production. Sci. Afr. 2020, 7, e00239. [Google Scholar] [CrossRef]
  50. Raveau, R.; Fontaine, J.; Sahraoui, A.L.-H. Essential oils as potential alternative biocontrol products against plant pathogens and weeds: A review. Foods 2020, 9, 365. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Srivastava, S.; Singh, V.P.; Kumar, R.; Srivastava, M.; Sinha, A.; Simon, S. In vitro evaluation of carbendazim 50% WP, antagonists and botanicals against Fusarium oxysporum f.sp. psidii associated with rhizosphere soil of guava. Asian J. Plant Pathol. 2011, 5, 46–53. [Google Scholar]
  52. Yuliar, N.Y.A.; Toyota, K. Recent trends in control methods for bacterial wilt diseases caused by Ralstonia solanacearum. Microbes Environ. 2015, 30, 1–11. [Google Scholar] [CrossRef] [Green Version]
  53. Sharma, A.; Joshi, S.; Kumar, N. Antioxidant and antibacterial properties of leaves of Elaeocarpus sphaericus Roxb. and Pinus wallichiana from Uttarakhand region of India. Int. J. Green Pharm. 2015, 9, 246. [Google Scholar]
  54. Rahman, T.U.; Uddin, G.; Khattak, K.F.; Liaqat, W.; Choudhary, M.I. Antibacterial, antifungal, insecticidal and phytotoxic activities of leaves of Pinus wallachiana. J. Chem. Pharm Res. 2016, 8, 420–424. [Google Scholar]
  55. Khoddami, A.; Wilkes, M.A.; Roberts, T.H. Techniques for analysis of plant phenolic compounds. Molecules 2013, 18, 2328–2375. [Google Scholar] [CrossRef] [PubMed]
  56. Nel, B.; Steinberg, C.; Labuschagne, N.; Viljoen, A. Evaluation of fungicides and sterilants for potential application in the management of fusarium wilt if banana. Crop Prot. 2007, 26, 697–705. [Google Scholar] [CrossRef] [Green Version]
  57. Dziedzinski, M.; Kobus-Cisowska, J.; Stachowiak, B. Pinus species as prospective reserves of bioactive compounds with potential use in functional food—Current state of knowledge. Plants 2021, 10, 1306. [Google Scholar] [CrossRef]
  58. Willför, S.; Ali, M.; Karonen, M.; Reunanen, M.; Arfan, M.; Harlamow, R. Extractives in bark of different conifer species growing in Pakistan. Holzforschung 2009, 63, 551–558. [Google Scholar] [CrossRef]
  59. Karapandzova, M.; Stefkov, G.; Cvetkovikj, I.; Stanoeva, J.P.; Stefova, M.; Kulevanova, S. Flavonoids and other phenolic compounds in needles of Pinus peuce and other pine species from the Macedonian flora. Nat. Prod. Commun. 2015, 10, 987–990. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Naeem, I.; Taskeen, A.; Mubeen, H.; Maimoona, A. Characterization of flavonols present in barks and needles of Pinus wallichiana and Pinus roxburghii. Asian J. Chem. 2010, 22, 41–44. [Google Scholar]
  61. Maimoona, A.; Naeem, I.; Saddiqe, Z.; Ali, N.; Ahmed, G.; Shah, I. Analysis of total flavonoids and phenolics in different fractions of bark and needle extracts of Pinus roxburghii and Pinus wallachiana. J. Med. Plants Res. 2011, 5, 2724–2728. [Google Scholar]
  62. Yesil-Celiktas, O.; Ganzera, M.; Akgun, I.; Sevimli, C.; KS, K.; Erdal, B. Determination of polyphenolic constituents and biological activities of bark extracts from different Pinus species. J. Sci. Food Agric. 2009, 89, 1339–1345. [Google Scholar] [CrossRef]
  63. Zuo, C.; Li, C.; Li, B.; Wei, Y.; Hu, C.; Yang, Q.; Yang, J.; Sheng, O.; Kuang, R.; Deng, G.; et al. The toxic mechanism and bioactive components of chinese leek root exudates acting against Fusarium oxysporum f. sp. cubense tropical race 4. Eur. J. Plant Pathol. 2015, 143, 447–460. [Google Scholar] [CrossRef]
  64. Mackesy, D.; Sullivan, M. CPHST Pest Datasheet for Phytophthora kernoviae; 2015. Available online: http://download.ceris.purdue.edu/file/2780 (accessed on 24 February 2018).
  65. Moses, A.O. Diversity of Fusarium oxysporum f. sp. cubense in Mozambique and Associated In Vitro Response to Fungicides, Biocontrol-Agents and Phenolic Compounds. Master’s Thesis, Eduardo Mondlane University, Maputo, Mozambique, 2016. [Google Scholar]
  66. Muhammad, A.; Hussain, I.; Khanzada, K.A.; Kumar, L.; Ali, M.; Yasmin, T.; Hyder, M.Z. Molecular characterization of Fusarium oxysporum f. sp. cubense (FOC) tropical race 4 causing panama disease in cavendish banana in Pakistan. Pak. J. Agri. Sci. 2017, 54, 1–8. [Google Scholar] [CrossRef]
  67. Sati, S.C.; Joshi, S. Antibacterial potential of leaf extracts of Juniperus communis L. from Kumaun Himalaya. Afr. J. Microbiol. Res. 2010, 4, 1291–1294. [Google Scholar]
  68. Bajpai, V.K.; Kang, S.C. Antifungal activity of leaf essential oil and extracts of Metasequoia glyptostroboides Miki ex Hu. J. Am. Oil Chem. Soc. 2010, 87, 327–336. [Google Scholar] [CrossRef]
  69. Al-Rahmah, A.N.; Mostafa, A.A.; Abdel-Megeed, A.; Yakout, S.M.; Hussein, S.A. Fungicidal activities of certain methanolic plant extracts against tomato phytopathogenic fungi. Afr. J. Microbiol. Res. 2013, 7, 517–524. [Google Scholar] [CrossRef]
  70. Georgopoulos, S.G.; Dekker, J. Detection and measurement of fungicide resistance general principles. FAO Plant Prot. Bull. 1982, 30, 39–42. [Google Scholar]
  71. Siripornvisal, S. Antifungal activity of ajowan oil against Fusarium oxysporum. Curr. Appl. Sci. Technol. 2010, 10, 45–51. [Google Scholar]
  72. Egua, M.O.; Etuk, E.U.; Bello, S.O.; Hassan, S.W. Antidiabetic potential of liquid-liquid partition fractions of ethanolic seed extract of Corchorus olitorious. J. Pharmacogn. Phytother. 2014, 6, 4–9. [Google Scholar] [CrossRef] [Green Version]
  73. Bouson, S.; Krittayavathananon, A.; Phattharasupakun, N.; Siwayaprahm, P.; Sawangphruk, M. Antifungal activity of water-stable copper-containing metal-organic frameworks. R. Soc. Open Sci. 2017, 4, 170654. [Google Scholar] [CrossRef] [Green Version]
  74. Magaldi, S.; Mata-Essayag, S.; Capriles, C.H.D.; Perez, C.; Colella, M.T.; Olaizola, C.; Ontiveros, Y. Well diffusion for antifungal susceptibility testing. Int. J. Infect. Dis. 2004, 8, 39–45. [Google Scholar] [CrossRef] [Green Version]
  75. Smith, L.J.; Smith, M.K.; Tree, D.; Keefe, D.O.; Galea, V.J. Development of small-plant bioassay to assess banana grown from tissue culture for consistent infection by Fusarium oxysporum f. sp. cubense. Australas. Plant Pathol. 2008, 37, 171–179. [Google Scholar] [CrossRef]
  76. Vicente, L.P.; Dita, M.A.; Martínez de la Parte, E. Prevention and diagnostic of fusarium Wilt (Panama disease) of banana caused by Fusarium oxysporum f. sp. cubense tropical race 4 (TR4). Technical Manual Prepared for the Regional Training Workshop on the Diagnosis of Fusarium Wilt Organized by FAO Re-Gional Office of the Caribbean and CARDI on 5–9 May in St. Augustine, Trinidad and Tobago. 2014, p. 74. Available online: http://www.fao.org/fileadmin/templates/agphome/documents/Pests_Pesticides/caribbeantr4/13ManualFusarium.pdf (accessed on 24 February 2018).
  77. Safdar, M.N.; Kausar, T.; Jabbar, S.; Mumtaz, A.; Ahad, K.; Saddozai, A.A. Extraction and quantification of polyphenols from kinnow (Citrus reticulate L.) peel using ultrasound and maceration techniques. J. Food Drug Anal. 2017, 25, 488–500. [Google Scholar] [CrossRef] [Green Version]
Pathogens 11 00347 g001 550

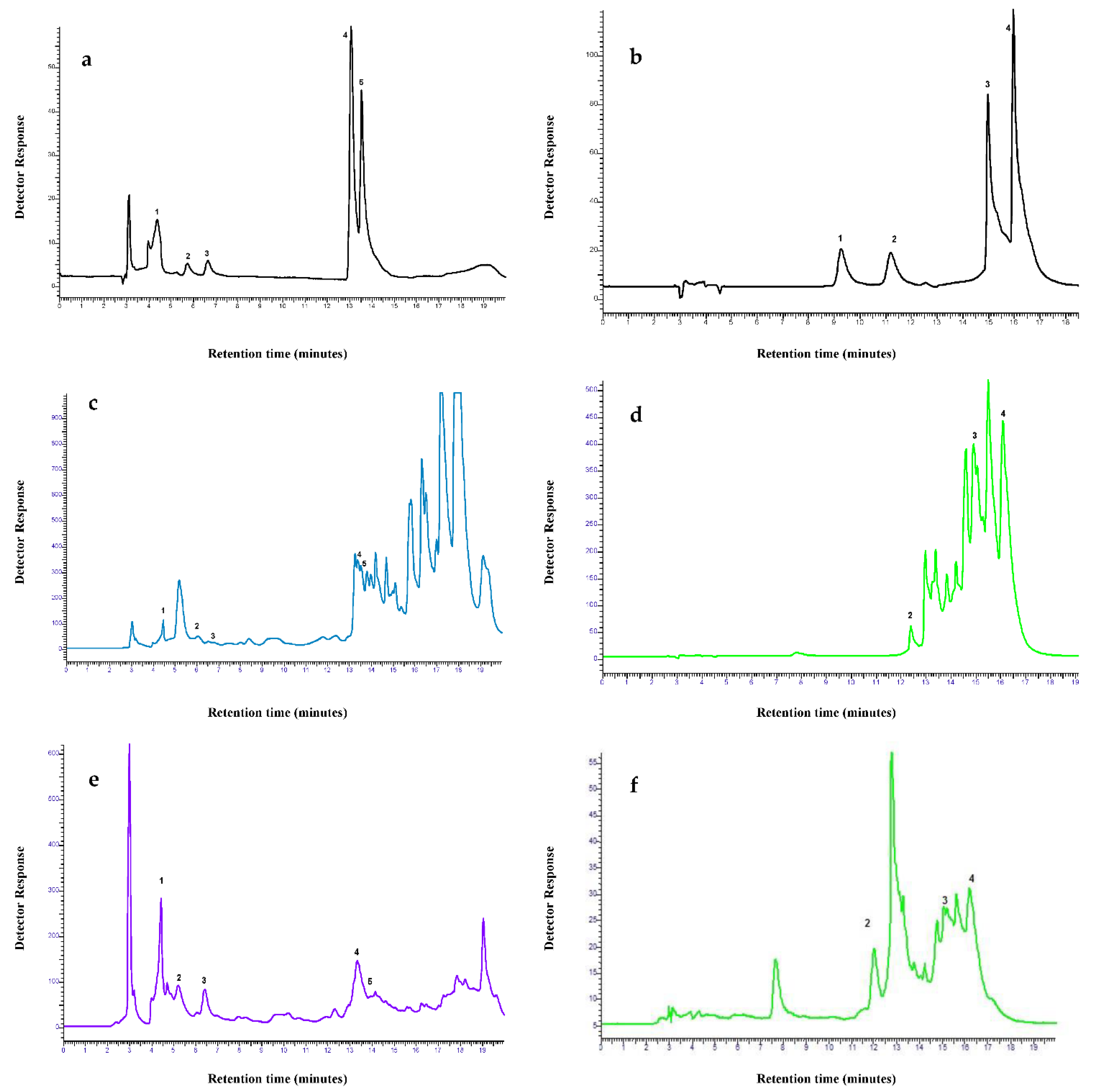

Figure 1. (a) Typical chromatogram of polyphenol standards (100 ppm) at 285 nm. 1 = Gallic acid, 2 = Catechin, 3 = Epicatechin, 4 = Coumaric acid, 5 = trans-Ferulic acid. (b) Typical chromatogram of flavanoids (100 ppm) at 370 nm. 1 = Rutin, 2 = Myrecitin, 3 = Quercetin, 4 = Kaempferol (c) Chromatogram obtained for ethyl acetate fraction at 285 nm. 1 = Gallic acid, 2 = Catechin, 3 = Epicatechin, 4 = Coumaric acid, 5 = trans-Ferulic acid, (d) Chromatogram obtained for ethyl acetate fraction of at 370 nm. 2 = Myrecitin, 3 = Quercitin, 4 = Kaempferol, (e) Chromatogram obtained for n-butanol fraction at 285 nm. 1 = Gallic acid, 2 = Catechin, 3 = Epicatechin, 4 = Coumaric acid, 5 = trans-Ferulic acid, (f) Chromatogram obtained for n-butanol fraction at 370 nm. 2 = Myrecitin, 3 = Quercitin, 4 = Kaempferol.
Figure 1. (a) Typical chromatogram of polyphenol standards (100 ppm) at 285 nm. 1 = Gallic acid, 2 = Catechin, 3 = Epicatechin, 4 = Coumaric acid, 5 = trans-Ferulic acid. (b) Typical chromatogram of flavanoids (100 ppm) at 370 nm. 1 = Rutin, 2 = Myrecitin, 3 = Quercetin, 4 = Kaempferol (c) Chromatogram obtained for ethyl acetate fraction at 285 nm. 1 = Gallic acid, 2 = Catechin, 3 = Epicatechin, 4 = Coumaric acid, 5 = trans-Ferulic acid, (d) Chromatogram obtained for ethyl acetate fraction of at 370 nm. 2 = Myrecitin, 3 = Quercitin, 4 = Kaempferol, (e) Chromatogram obtained for n-butanol fraction at 285 nm. 1 = Gallic acid, 2 = Catechin, 3 = Epicatechin, 4 = Coumaric acid, 5 = trans-Ferulic acid, (f) Chromatogram obtained for n-butanol fraction at 370 nm. 2 = Myrecitin, 3 = Quercitin, 4 = Kaempferol.
Pathogens 11 00347 g001
Table
Table 1. Determination of Half minimal inhibitory concentration (IC50) of P. wallachiana against Foc.
Table 1. Determination of Half minimal inhibitory concentration (IC50) of P. wallachiana against Foc.
P. wallachiana Leaf Extract
(Concentration in mg/mL)		Percent InhibitionIC50R2Regression Equation
1.2525 ± 1.206.090.9435y = 3.7999x + 26.853
2.532.2 ± 0.7
554.5 ± 0.5
1071.6 ± 0.3
2098.3 ± 0.4
Table
Table 2. Effect of P. wallachiana extract on the biomass production of Foc.
Table 2. Effect of P. wallachiana extract on the biomass production of Foc.
TreatmentsBiomass Production
Dry Weight (mg)Percent Inhibition
Control (0)1580.00
IC50 (6.09)58.762.9
MIC (20)2.498. 5
MFC (40)0100
Table
Table 3. Percentage yield of four fractions of P. wallachiana prepared through liquid-liquid fractionation.
Table 3. Percentage yield of four fractions of P. wallachiana prepared through liquid-liquid fractionation.
FractionsPercentage Yield (%)
n-Hexane fraction21.8
Dichloromethane fraction27.8
Ethyl acetate fraction24.68
n-Butanol fraction25.12
Table
Table 4. Percent inhibition and zone of inhibition values recorded for P. wallachiana fractions against Foc using in vitro assays.
Table 4. Percent inhibition and zone of inhibition values recorded for P. wallachiana fractions against Foc using in vitro assays.
TreatmentsPercent InhibitionZone of Inhibition (ZOI)
n-Hexane control0.00 ± 0.00 E0.00 ± 0.00 D
n-Hexane fraction 68.93 ± 0.47 C21.0 ± 0.92 B
Dichloromethane control0.00 ± 0.00 E0.00 ± 0.00 D
Dichloromethane fraction 75.96 ±0.30 B23.80 ± 1.12 A
Ethyl acetate control0.00 ± 0.00 E0.00 ± 0.00 D
Ethyl acetate fraction 57.26 ± 0.39 D18.60 ± 0.51 C
n-butanol control0.00 ± 0.00 E0.00 ± 0.00 D
n-butanol fraction 100 ± 0.00 A24.40 ± 0.43 A
Data presented as mean value of five replicates ± represents standard error. Significant differences among treatments were indicated by different superscript letters within individual columns.
Table
Table 5. Comparison of the three severity scorings and their respective disease severity indices calculated for banana plants drenched with fraction treatments in three different intervals during a greenhouse experiment.
Table 5. Comparison of the three severity scorings and their respective disease severity indices calculated for banana plants drenched with fraction treatments in three different intervals during a greenhouse experiment.
TreatmentsFirst DrenchingSecond DrenchingThird Drenching
1st Severity ScoreDSI2nd Severity ScoreDSI3rd Severity ScoreDSI
Simple Control4.286 ± 0.29 BC85.715.000 ± 0.00 A1005.000 ± 0.00 A100
Fungicide (100 µg/mL) Conc. 13.429 ± 0.20 DE68.574.000 ± 0.31 BC803.857 ± 0.34 B77.14
Fungicide (200 µg/mL) Conc. 24.286 ± 0.29 BC85.75.000 ± 0.00 A1005.000 ± 0.00 A100
Hexane Control3.714 ± 0.29 CDE74.285.000 ± 0.00 A1005.000 ± 0.00 A100
Hexane (20 mg/mL) Conc. 12.286 ± 0.18 G45.712.571 ± 0.37 F51.433.571 ± 0.37 BC71.43
Hexane (40 mg/mL) Conc. 22.571 ± 0.20 G51.432.571 ± 0.30 F51.433.000 ± 0.22 C60
Dichloromethane Control4.286 ± 0.36 BC85.715.000 ± 0.00 A1005.000 ± 0.00 A100
Dichloromethane (20 mg/mL) Conc. 12.286 ± 0.29 G42.852.857 ± 0.26 EF57.143.000 ± 0.38 C60
Dichloromethane (40 mg/mL) Conc. 23.571 ± 0.20 DE71.433.714 ± 0.29 CD74.283.571 ± 0.53 BC71.43
Ethyl acetate Control4.000 ± 0.22 BCD805.000 ± 0.00 A1005.000 ± 0.00 A100
Ethyl acetate (20 mg/mL) Conc. 12.714 ± 0.18 FG54.284.571 ± 0.30 AB604.286 ± 0.29 AB71.43
Ethyl acetate (40 mg/mL) Conc. 23.286 ± 0.29 EF65.715.000 ± 0.00 A65.715.000 ± 0.00 A74.28
n-butanol Control4.571 ± 0.20 AB91.435.000 ± 0.00 A1005.000 ± 0.00 A100
n-butanol (20 mg/mL) Conc. 14.429 ± 0.20 AB88.573.000 ± 0.31 EF91.433.571 ± 0.37 BC85.71
n-butanol (40 mg/mL) Conc. 25.000 ± 0.00 A1003.286 ± 0.29 DE1003.714 ± 0.36 BC100
Same superscript letters within an individual severity scores column do no differ statistically and a common letter sharing between the treatments indicates non-significant difference. The disease severity index (DSI) was calculated by using formula. Seven replicates for each treatment.
Table
Table 6. Phenolic compound profile of the four fractions of P. wallachiana quantified through HPLC analysis.
Table 6. Phenolic compound profile of the four fractions of P. wallachiana quantified through HPLC analysis.
Phenolic Compounds
(mg/g of Extract)		n-Hexane FractionDichloromethane FractionEthyl Acetate Fractionn-Butanol Fraction
Gallic acidN.D.0.10 ± 0.00333.57 ± 0.01611.57 ± 0.0089
CatechinN.D.N.D.13.46 ± 0.00733.44 ± 0.0087
EpicatechinN.D.1.19 ± 0.00533.23 ± 0.009016.74 ± 0.0074
Coumeric acidN.D.0.61 ± 0.00432.94 ± 0.00684.33 ± 0.0034
Trans-Ferulic acid0.13 ± 0.00040.61 ± 0.00372.84 ± 0.00390.52 ± 0.0018
RutinN.D.N.D.N.D.N.D.
MyrecitinN.D.N.D.2.15 ± 0.00440.74 ± 0.0064
Quercitin0.04 ± 0.000010.06 ± 0.00057.9 ± 0.00560.52 ± 0.0041
KaempferolN.D.0.09 ± 0.00347.81 ± 0.0110.66 ± 0.0058
Total Polyphenolic Content0.17 mg/g2.66 mg/g43.90 mg/g68.52 mg/g
Values are mean of three replications. N.D. = Not detected.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ain, Q.U.; Asad, S.; Ahad, K.; Safdar, M.N.; Jamal, A. Antimicrobial Activity of Pinus wallachiana Leaf Extracts against Fusarium oxysporum f. sp. cubense and Analysis of Its Fractions by HPLC. Pathogens 2022, 11, 347. https://doi.org/10.3390/pathogens11030347

AMA Style

Ain QU, Asad S, Ahad K, Safdar MN, Jamal A. Antimicrobial Activity of Pinus wallachiana Leaf Extracts against Fusarium oxysporum f. sp. cubense and Analysis of Its Fractions by HPLC. Pathogens. 2022; 11(3):347. https://doi.org/10.3390/pathogens11030347

Chicago/Turabian Style

Ain, Qurat Ul, Shahzad Asad, Karam Ahad, Muhammad Naeem Safdar, and Atif Jamal. 2022. "Antimicrobial Activity of Pinus wallachiana Leaf Extracts against Fusarium oxysporum f. sp. cubense and Analysis of Its Fractions by HPLC" Pathogens 11, no. 3: 347. https://doi.org/10.3390/pathogens11030347

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
