Review

Phage Therapy for Cardiac Implantable Electronic Devices and Vascular Grafts: A Targeted Literature Review

by
Matteo Passerini
1,2,3,
Francesco Petri
2,4 and
Gina A. Suh
3,4,*
1
Department of Pathophysiology and Transplantation, University of Milano, 20122 Milan, Italy
2
Department of Infectious Disease, ASST FBF Sacco Milano, 20157 Milan, Italy
3
ESGNTA–ESCMID Study Group for Non-Traditional Antibacterials, 4051 Basel, Switzerland
4
Division of Public Health, Infectious Diseases and Occupational Medicine, Department of Medicine, Mayo Clinic, Rochester, 55905 MN, USA
*
Author to whom correspondence should be addressed.
Pathogens 2024, 13(5), 424; https://doi.org/10.3390/pathogens13050424
Submission received: 25 March 2024 / Revised: 12 May 2024 / Accepted: 13 May 2024 / Published: 17 May 2024
(This article belongs to the Special Issue Updates in Infective Endocarditis)

Abstract

:
Infections of cardiac implantable electronic devices (CIEDs) and vascular grafts are some of the most dreaded complications of these otherwise life-saving devices. Many of these infections are not responsive to conventional treatment, such as systemic antibiotics and surgical irrigation and debridement. Therefore, innovative strategies to prevent and manage these conditions are warranted. Among these, there is an increasing interest in phages as a therapeutical option. In this review, we aim to collect the available evidence for the clinical application of phage therapy for CIED and vascular graft infections through literature research. We found 17 studies for a total of 34 patients. Most of the indications were left ventricular assist device (LVAD) (n = 20) and vascular graft infections (n = 7). The bacteria most often encountered were Staphylococcus aureus (n = 18) and Pseudomonas aeruginosa (n = 16). Clinical improvements were observed in 21/34 (61.8%) patients, with microbiological eradication in 18/21 (85.7%) of them. In eight cases, an adverse event related to phage therapy was reported. Phage therapy is a promising option for difficult-to-treat CIED and vascular graft infections by means of an individualized approach. Clinical trials and expanded access programs for compassionate use are needed to further unveil the role of phage therapy in clinical application.

1. Introduction

The introduction of cardiac implantable electronic devices (CIEDs) and vascular grafts has indeed revolutionized the treatment landscape for various cardiovascular conditions. These advancements provide valuable therapeutic options for patients suffering from advanced heart failure [1], cardiac arrhythmias [2], valvular [3], and vascular dysfunctions [4]. Nevertheless, CIEDs are not devoid of complications, with infections being particularly formidable among them. This is owing to their substantial influence on morbidity, mortality, and the associated costs within the healthcare system. One of the main challenges in treating CIED and vascular graft infections is the presence of the biofilm matrix, which acts as a protective shield, hindering the efficacy of antimicrobial agents and host immune responses. Moreover, biofilm’s presence heightens the risk of systemic dissemination of pathogens, complicating treatment and necessitating more aggressive interventions [5,6]. Thus, CIED and vascular graft infections are often managed with the removal of some or all parts of the device, when possible, and often with long-term antimicrobial suppression with implant retention [7]. Despite important advances addressing the prevention, diagnosis, and management of these infections, in some clinical scenarios, the standard of care is not sufficient to obtain clinical cure and microbiological eradication. Therefore, innovative approaches, such as bacteriophages, are worthy of exploration.
Bacteriophages, or phages, are viruses that infect and replicate within bacterial cells. They consist of genetic material—either DNA or RNA—encased in a protein coat. Phages are highly specific to certain bacterial strains, targeting and infecting them with precision. The potential of phages in addressing difficult-to-treat infections, particularly biofilm-associated infections, stems from their unique ability to penetrate the protective matrix of biofilms [8]. Furthermore, phages exhibit the capacity to circumvent antibiotic resistance through unique and distinct mechanisms [9].
In recent years, CIED and vascular graft infections have presented a compelling avenue for investigating the effectiveness and safety of phage therapy. Some contemporary clinical cases posed significant challenges in treatment, stemming from issues such as antimicrobial resistance, constraints related to performing appropriate surgical procedures due to comorbidities or technical limitations, and the persistence of infections. Consequently, we conducted this targeted literature review to consolidate the existing clinical insights into phage therapy for managing CIED and vascular graft infections. The emphasis is placed on elucidating the challenges and opportunities inherent in this innovative therapeutic approach for addressing such infections.

2. Methods

A PubMed search was performed on 2 December 2023, using the following terms: “bacteriophage” OR “phage therapy” AND “CIED” OR “cardiac implantable electronic device” OR “VAD” OR “LVAD” OR “ventricular assistant device” OR “prosthetic valve” OR “vascular graft” OR “pacemaker” OR “ICD” OR “implantable cardioverter defibrillator” (Figure 1). Results were limited to human studies. There was no restriction on language and date. We also searched the references of the included records and the online repository of the European Congress of Clinical Microbiology and Infectious Diseases (ECCMID) 2023 and IDweek 2023. Furthermore, we included results from references of the included papers, pre-print papers, and papers published during the writing process. In the case of records where the same case report was reported, we included the clinical information reported in the latest published paper. For each case, we extracted demographic (age and sex), microbiological (type of bacteria involved), and clinical data (devices infected, adverse events, clinical outcome, and microbiological eradication). We also reported information regarding the treatment course (concomitant surgical procedures or antimicrobial therapy, number and type of phages, route of phages administration, highest dose of phages). Screening was performed using Covidence, while data extraction was through Microsoft Excel 16.83.

3. Results

A total of 17 reports were included in this review for a total of 34 patients. Eight studies reported more than one clinical case [10,11,12,13,14,15,16,17]. The remaining nine studies reported the experience of a single patient [18,19,20,21,22,23,24,25,26]. The characteristics of the included patients are reported in Table 1 and Table 2. Four patients were described in two different studies.

3.1. Demographic, Clinical, and Microbiological Characteristics

Twenty-six out of thirty-four cases came from Europe or the United States. The mean age was 55.5 (SD 18.6) years, and most of the patients were male (28/31, 90.3%, of the available data). Most clinical indications were due to infections of a left ventricular assistant device (LVAD) (20/34, 58.8%), followed by vascular graft infections (7/34, 20.6%). The two most reported microorganisms were S. aureus (n = 18/38, 47.4%, of the total isolates) and P. aeruginosa (n = 16/38, 42.1%, of the total isolates).

3.2. Phage Therapy and Concomitant Treatment

Seven patients were treated with just one type of phage, while the others with multiple phages. We observed the following routes of phage administration: in twelve cases, the route was only systemic (intravenous infusion); in thirteen cases, the route of the administration was topical (direct application on the lesion, in situ through a catheter, intraoperative); the remaining nine patients received both applications. The duration of treatment was variable, ranging from one single day to 16 weeks. Eighteen out of twenty-nine patients with available data were treated also with a surgical procedure, while all the patients received concomitant antimicrobial therapy.

3.3. Efficacy and Safety

Regarding the reported safety data, three patients reported an increase in liver tests associated with nausea (n = 1) [13], fever (n = 1) [2,16], or no symptoms (n = 1) [14]. One patient suffered from fever, wheezing, and shortness of breath after the phage infusion [11,16]. All these four patients did not withdraw from the phage treatment since the symptoms were not judged to be severe and improved spontaneously. One patient, treated with in situ infusion of phage through a CT-guided needle, experienced an aortic perforation after the procedure [18]. One patient died due to heart failure after the start of the treatment [19]. Three patients experienced breakthrough bacteremia [11,16]. Twenty-one out of thirty-four cases (61.8%) improved clinically. Among these, the bacteria were eradicated in 18/21 (85.7%) patients.

4. Discussion

The current review included 17 studies covering 34 patients with CIED and vascular graft infection treated with phage therapy. Our findings align with a recent study, which investigated the safety and efficacy of phage therapy in cardiac and peripheral vascular surgery by means of a systematic review encompassing 14 reports and 40 patients [27]. All 14 reports but one [28] were also included in our targeted literature review, which expands upon this with the inclusion of four additional studies [16,17,20,21], given the more recent literature review and the inclusion of pre-print papers. The only study not included in our review is a report of 550 cases, among whom seven developed pyopericardium after heart surgery [28]. However, we could not extract individual data, and we were not able to discern if a CIED or vascular graft had been used for these patients. Our investigation is a targeted literature review with the primary aim of addressing some questions arising from initial experiences with phage therapy used for CIED or vascular graft infections. Consequently, we also incorporate preliminary findings from notable studies, which we deemed capable of offering valuable insights given the researchers’ expertise in this domain. By contrast, the work by Simpsonet et al. constitutes a systematic review that extensively searches multiple databases with the aim to “review the evidence base for safety and efficacy” of the use of phage therapy in cardiovascular surgery [27].
In our study, phage administration was heterogeneous. The proportion of clinical and microbiological cures was significant; however, the limited sample size precludes drawing definitive conclusions in this regard. Nevertheless, the data obtained may help to address some common questions regarding the clinical use of phage therapy. It is important to acknowledge the potential for publication bias in our review. While we included 17 studies covering 34 patients with CIED and vascular graft infections treated with phage therapy, it is possible that cases where phage therapy failed may not have been reported. Thus, the findings presented here should be interpreted in light of this potential bias, recognizing the need for further investigation and reporting of both successful and unsuccessful outcomes in phage therapy for such infections.

4.1. Which Patients with CIED and Vascular Graft Infections Were Treated?

While clinical trials are ongoing, phage therapy is available through compassionate use programs in many countries. Therefore, the clinical choice for an intervention with an unproven efficacy should balance risks and benefits. Therefore, national regulatory frameworks governing the use of unproven (or unlicensed) interventions on a compassionate basis should be followed.
In this review, we found that most of the clinical indications were LVAD infections, which are usually affected by higher mortality [29] compared to other CIED infections [30], and prosthetic vascular graft infections, which can be challenging to treat given the high risk of surgical re-intervention [31]. Moreover, the two most common bacteria treated were S. aureus and P. aeruginosa. Although these bacteria are not the most frequent causes of such infections [7], they often cause difficult-to-treat infections due to biofilm formation [32,33] and other mechanisms of resistance [34]. In addition, some biobanks store phage targeting especially difficult-to-treat microorganisms such as S. aureus and P. aeruginosa [35]. The availability of already stored phage strains with a proven in vitro lytic activity may help save time for acute conditions such as some of the CIED and vascular graft infections.
Hence, challenging cases of difficult-to-treat infections associated with CIED and vascular grafts, particularly those caused by pathogens such as S. aureus and P. aeruginosa, represent potential candidates for phage therapy.

4.2. How Were Phages Administered?

Regarding the route of phage administration, our review found a heterogeneous approach. However, this should not be interpreted only as a limitation. Due to the narrow host range, phage therapy is, per se, an individualized treatment, and the possibility to administer phages in different preparations [36] enables a more tailored approach, especially for compassionate use. Twenty-three patients received the phages directly into the infected site, by direct application, through a catheter, or in the operating room; this may enable phages to easily reach the infected device and replicate in the bacterial biofilm [37].

4.3. What Is the Role of Concomitant Antibiotics?

All the patients in this review were also treated with conventional antibiotics. According to current knowledge, phage therapy for CIED and vascular graft infections may be an adjunct to conventional treatment rather than an alternative. Two noteworthy insights from the included studies merit attention. For a broader discussion on interactions between phage and antibiotics, we refer to a more comprehensive work [38].
First, Green and colleagues employed a methodology termed “synography” to discern the optimal phage–antibiotic combination [15], drawing from prior findings suggesting the potential for synergy, antagonism, or additive effects between phage and antibiotics [39]. The essence of the “synogram” entails subjecting isolated bacteria to escalating concentrations of phage and diverse antibiotics, followed by quantifying bacterial concentration reduction at distinct time intervals via a heatmap visualization. This method enables researchers to visually evaluate the impact of combining varying concentrations of phage and antibiotics on bacterial growth dynamics over time. Through analysis of the resulting heat map derived from synography, researchers can discern synergistic, antagonistic, or additive interactions between the phage and antibiotics, facilitating the selection of optimal combinations for clinical application in bacterial infection treatment. Second, Blasco and colleagues described a case of vascular graft infection due to multidrug-resistant P. aeruginosa [25]. After the application of the phage treatment, a new P. aeruginosa infection occurred, but involving a wild-type strain being susceptible to ß-lactams and quinolones. This resensitization was postulated to be due to phage action, which downregulated membrane receptors, regulators, and efflux pumps involved with antibiotic resistance.
These two findings suggest that the interaction between phages and antibiotics is complex and may not be limited to a simple additive effect of phages and antibiotic therapy. Given the complexity inherent in phage/antibiotic interactions, their efficacy is likely to vary by dose, specific phage, and antibiotic used. Further investigation into these interactions is crucial for optimizing treatment strategies in complex infections.

4.4. What Is the Role of Surgery?

Surgery is one of the mainstays of the management of CIED and vascular graft infections. In our review, 18/34 (52.9%) patients underwent surgery. All these patients also received topical administration of the phage therapy directly in the operating room or through an in situ catheter to allow administration in the days following the procedures. Therefore, surgery can first provide a therapeutic option for the patients with an indication for surgical procedures. Second, it can also provide a way to administer phages directly into the infected site, potentially increasing the chance of microbiological eradication and preventing the colonization of new devices inserted. An optimal example of this dual role of surgery can be found in a study [23] where the physicians performed a three-step approach for both extra- and endovascular application of phage therapy to treat a complex aortic stent graft infection.

4.5. Is There a Pattern between Management and Outcomes?

Regarding efficacy and safety, determining the true effect of this innovative therapy is challenging at the present state due to the small number of patients included and the high risk of confounders. Nevertheless, it is interesting to present the data obtained. Among the patients undergoing surgery, clinical improvement was observed in 15/18 (83.3%) versus patients without surgery in 6/16 (37.5%). This suggests the great impact of surgery on the clinical cure, but also the potential role of phage in patients not deemed candidates for surgery. Overall, the proportion of clinical improvement (21/34, 61.8%) was considerable, given that all the patients failed conventional treatment. Importantly, 18/21 (85.7%) patients with clinical improvement also showed microbiological eradication.

4.6. Is Phage Therapy Safe?

Eight patients reported adverse events. Two severe adverse events were related to the surgical procedure or concomitant heart failure rather than the phage administration, although in the latter, endotoxin release could not be excluded as a contributing factor to the patient’s decompensation 36 h after initial phage administration [19]. Whether there was causality between the reported adverse events and the administration of phage therapy is difficult to discern, given the lack of large-scale data. However, this cannot be ruled out, especially considering the time correlation. As suggested by Aslam et al., even if the source of the fever was unclear, it was plausible that pyrogens could have been present in the bacteriophage solution, potentially linked to solvents utilized during dilution or manufacturing processes [11]. These pyrogens might have been subsequently diluted with lower concentrations, leading to the absence of further adverse events in the patient. In the study by Tkhilaishvili et al., the laboratory values normalized following a reduction in intravenous bacteriophage dosage [13]. Consequently, the authors found it challenging to ascertain whether continuing intravenous phage therapy at the same dosage would have worsened liver function or resulted in adaptation and resolution. These two cases may potentially indicate a dose-dependent increase in adverse events; however, drawing conclusions from such limited experience is unfounded. These two cases might possibly suggest a dose-dependent increase in adverse events, but no conclusions can be drawn from such limited experience. In addition, the interplay between the immune system of the host and the phage preparation, as well as the predictability and the cause–effect relationship of such adverse events, still need further research. However, high-quality manufacturing is paramount for the prevention of future adverse events. Three patients reported breakthrough bacteremia during the phage treatment. All these patients were affected by LVAD infections due to P. aeruginosa. The authors proposed that the phenomenon might stem from pathogen release into the bloodstream due to the rapid degradation of the device biofilm by phages, given the susceptibility of the isolates to the administered phages. Alternatively, they suggested that the phages might swiftly eliminate certain isolates, creating space for less susceptible ones to dominate the ecological niche [11,16].

5. Conclusions

Phage therapy is a promising complementary tool against CIED and vascular graft infections. As new data are emerging and while clinical trials are conducted, some patients can be considered for phage therapy via compassionate use. This selection should especially consider patients with recurrent infections due to bacteria resistant to conventional antibiotics and potentially amenable to surgical debridement. Attention to the potential emergence of adverse events, including unexpected ones, and the investigation of potential failure factors are warranted.

Author Contributions

Conceptualization, G.A.S. and M.P.; methodology, M.P. and F.P.; formal analysis, M.P.; writing—original draft preparation, M.P.; writing—review and editing, G.A.S. and F.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

G.S. declares a financial agreement with Precisio Biotix Therapeutics, Inc. (unrelated to this work) and an unpaid advisory role for Phiogen. M.P. and F.P. declare no conflicts of interest.

References

  1. Zinoviev, R.; Lippincott, C.K.; Keller, S.C.; Gilotra, N.A. In Full Flow: Left Ventricular Assist Device Infections in the Modern Era. Open Forum Infect. Dis. 2020, 7, ofaa124. [Google Scholar] [CrossRef] [PubMed]
  2. Glikson, M.; Nielsen, J.C.; Kronborg, M.B.; Michowitz, Y.; Auricchio, A.; Barbash, I.M.; Barrabés, J.A.; Boriani, G.; Braunschweig, F.; Brignole, M.; et al. 2021 ESC Guidelines on cardiac pacing and cardiac resynchronization therapy. Eur. Heart J. 2021, 42, 3427–3520. [Google Scholar] [CrossRef] [PubMed]
  3. Pibarot, P.; Dumesnil, J.G. Prosthetic Heart Valves. Circulation 2009, 119, 1034–1048. [Google Scholar] [CrossRef]
  4. Pennel, T.; Zilla, P. Clinical Applications and Limitations of Vascular Grafts. In Tissue-Engineered Vascular Grafts; Springer International Publishing: Cham, Switzerland, 2020; pp. 3–34. [Google Scholar]
  5. Mostafavi, E.; Dubey, A.K.; Walkowiak, B.; Kaushik, A.; Ramakrishna, S.; Teodori, L. Antimicrobial surfaces for implantable cardiovascular devices. Curr. Opin. Biomed. Eng. 2022, 23, 100406. [Google Scholar] [CrossRef]
  6. Caldara, M.; Belgiovine, C.; Secchi, E.; Rusconi, R. Environmental, Microbiological, and Immunological Features of Bacterial Biofilms Associated with Implanted Medical Devices. Clin. Microbiol. Rev. 2022, 35, e0022120. [Google Scholar] [CrossRef]
  7. Blomströ M-Lundqvist, C.; Traykov, V.; Erba, P.A.; Burri, H.; Nielsen, J.C.; Bongiorni, M.G.; Poole, J.; Boriani, G.; Costa, R.; Deharo, J.C.; et al. European Heart Rhythm Association (EHRA) international consensus document on how to prevent, diagnose, and treat cardiac implantable electronic device infections-endorsed of Clinical Microbiology and Infectious Diseases (ESCMID) in collaboration with the European Association for Cardio-Thoracic Surgery (EACTS). Europace 2020, 22, 515–549. [Google Scholar]
  8. Totten, K.M.C.; Patel, R. Phage Activity against Planktonic and Biofilm Staphylococcus aureus Periprosthetic Joint Infection Isolates. Antimicrob. Agents Chemother. 2022, 66, e0187921. [Google Scholar] [CrossRef]
  9. Chegini, Z.; Khoshbayan, A.; Moghadam, M.T.; Farahani, I.; Jazireian, P.; Shariati, A. Bacteriophage therapy against Pseudomonas aeruginosa biofilms: A review. Ann. Clin. Microbiol. Antimicrob. 2020, 19, 45. [Google Scholar] [CrossRef] [PubMed]
  10. Rubalskii, E.; Ruemke, S.; Salmoukas, C.; Boyle, E.C.; Warnecke, G.; Tudorache, I.; Shrestha, M.; Schmitto, J.D.; Martens, A.; Rojas, S.V.; et al. Bacteriophage therapy for critical infections related to cardiothoracic surgery. Antibiotics 2020, 9, 232. [Google Scholar] [CrossRef]
  11. Aslam, S.; Lampley, E.; Wooten, D.; Karris, M.; Benson, C.; Strathdee, S.; Schooley, R.T. Lessons Learned from the First 10 Consecutive Cases of Intravenous Bacteriophage Therapy to Treat Multidrug-Resistant Bacterial Infections at a Single Center in the United States. Open Forum Infect. Dis. 2020, 7, ofaa389. [Google Scholar] [CrossRef]
  12. Petrovic Fabijan, A.; Lin, R.C.; Ho, J.; Maddocks, S.; Ben Zakour, N.L.; Iredell, J.R. Safety of bacteriophage therapy in severe Staphylococcus aureus infection. Nat. Microbiol. 2020, 5, 465–472. [Google Scholar] [CrossRef] [PubMed]
  13. Tkhilaishvili, T.; Potapov, E.; Starck, C.; Mulzer, J.; Falk, V.; Trampuz, A.; Schoenrath, F. Bacteriophage therapy as a treatment option for complex cardiovascular implant infection: The German Heart Center Berlin experience. J. Hear. Lung Transplant. 2022, 41, 551–555. [Google Scholar] [CrossRef] [PubMed]
  14. Onallah, H.; Hazan, R.; Nir-Paz, R. Compassionate Use of Bacteriophages for Failed Persistent Infections During the First 5 Years of the Israeli Phage Therapy Center. Open Forum Infect. Dis. 2023, 10, ofad221. [Google Scholar] [CrossRef] [PubMed]
  15. Green, S.I.; Clark, J.R.; Santos, H.H.; Weesner, K.E.; Salazar, K.C.; Aslam, S.; Campbell, J.W.; Doernberg, S.B.; Blodget, E.; Morris, M.I.; et al. A Retrospective, Observational Study of 12 Cases of Expanded-Access Customized Phage Therapy: Production, Characteristics, and Clinical Outcomes. Clin. Infect. Dis. 2023, 77, 1079–1091. [Google Scholar] [CrossRef] [PubMed]
  16. Aslam, S.; Roach, D.; Nikolich, M.P.; Biswas, B.; Schooley, R.T.; Lilly-Bishop, K.A.; Rice, G.K.; Cer, R.Z.; Hamilton, T.; Henry, M.; et al. Pseudomonas aeruginosa ventricular assist device infections: Findings from ineffective phage therapies in five cases. Antimicrob. Agents Chemother. 2024, 68, e0172823. [Google Scholar] [CrossRef] [PubMed]
  17. Pirnay, J.P.; Djebara, S.; Steurs, G.; Griselain, J.; Cochez, C.; De Soir, S.; Glonti, T.; Spiessens, A.; Vanden Berghe, E.; Green, S.; et al. Retrospective, observational analysis of the first one hundred consecutive cases of personalized bacteriophage therapy of difficult-to-treat infections facilitated by a Belgian consortium. medRxiv 2023. [Google Scholar] [CrossRef]
  18. Chan, B.K.; Turner, P.E.; Kim, S.; Mojibian, H.R.; Elefteriades, J.A.; Narayan, D. Phage treatment of an aortic graft infected with Pseudomonas aeruginosa. Evol. Med. Public Heal. 2018, 2018, 60–66. [Google Scholar] [CrossRef] [PubMed]
  19. Duplessis, C.; Biswas, B.; Hanisch, B.; Perkins, M.; Henry, M.; Quinones, J.; Wolfe, D.; Estrella, L.; Hamilton, T. Refractory Pseudomonas Bacteremia in a 2-Year-Old Sterilized by Bacteriophage Therapy. J. Pediatric Infect. Dis. Soc. 2018, 7, 253–256. [Google Scholar] [CrossRef]
  20. Mulzer, J.; Trampuz, A.; Trampuz, A.; Potapov, E.V.; Potapov, E.V. Treatment of chronic left ventricular assist device infection with local application of bacteriophages. Eur. J. Cardio-Thorac. Surg. 2020, 57, 1003–1004. [Google Scholar] [CrossRef]
  21. Gilbey, T.; Ho, J.; Cooley, L.A.; Fabijan, A.P.; Iredell, J.R. Adjunctive bacteriophage therapy for prosthetic valve endocarditis due to Staphylococcus aureus. Med. J. Aust. 2019, 211, 142–143.e1. [Google Scholar] [CrossRef]
  22. Püschel, A.; Skusa, R.; Bollensdorf, A.; Gross, J. Local Treatment of Driveline Infection with Bacteriophages. Antibiotics 2022, 11, 1310. [Google Scholar] [CrossRef]
  23. Grambow, E.; Junghans, S.; Kröger, J.C.; Reisinger, E.C.; Krause, B.J.; Groß, J. Treatment of an Infected TEVAR with Extra- and Endovascular Bacteriophage Application. EJVES Vasc. Forum 2022, 56, 20–23. [Google Scholar] [CrossRef] [PubMed]
  24. Rojas, S.V.; Junghans, S.; Fox, H.; Lazouski, K.; Schramm, R.; Morshuis, M.; Gummert, J.F.; Gross, J. Bacteriophage-Enriched Galenic for Intrapericardial Ventricular Assist Device Infection. Antibiotics 2022, 11, 602. [Google Scholar] [CrossRef] [PubMed]
  25. Blasco, L.; López-Hernández, I.; Rodríguez-Fernández, M.; Pérez-Florido, J.; Casimiro-Soriguer, C.S.; Djebara, S.; Merabishvili, M.; Pirnay, J.P.; Rodríguez-Baño, J.; Tomás, M.; et al. Case report: Analysis of phage therapy failure in a patient with a Pseudomonas aeruginosa prosthetic vascular graft infection. Front. Med. 2023, 10, 1199657. [Google Scholar] [CrossRef] [PubMed]
  26. Racenis, K.; Lacis, J.; Rezevska, D.; Mukane, L.; Vilde, A.; Putnins, I.; Djebara, S.; Merabishvili, M.; Pirnay, J.P.; Kalnina, M.; et al. Successful Bacteriophage-Antibiotic Combination Therapy against Multidrug-Resistant Pseudomonas aeruginosa Left Ventricular Assist Device Driveline Infection. Viruses 2023, 15, 1210. [Google Scholar] [CrossRef] [PubMed]
  27. Simpson, E.A.; MacLeod, C.S.; Stacey, H.J.; Nagy, J.; Jones, J.D. The Safety and Efficacy of Phage Therapy for Infections in Cardiac and Peripheral Vascular Surgery: A Systematic Review. Antibiotics 2023, 12, 1684. [Google Scholar] [CrossRef]
  28. Slopek, S.; Weber-Dabrowska, B.; Dabrowski, M.; Kucharewicz-Krukowska, A. Results of Bacteriophage Treatment of Supparative Bacterial Infections in the Years 1981–1986. Arch. Immunol. Ther. Exp. 1987, 35, 569–583. [Google Scholar]
  29. Hannan, M.M.; Xie, R.; Cowger, J.; Schueler, S.; de By, T.; Dipchand, A.I.; Chu, V.H.; Cantor, R.S.; Koval, C.E.; Krabatsch, T.; et al. Epidemiology of infection in mechanical circulatory support: A global analysis from the ISHLT Mechanically Assisted Circulatory Support Registry. J. Heart Lung Transplant. 2019, 38, 364–373. [Google Scholar] [CrossRef]
  30. Greenspon, A.J.; Eby, E.L.; Petrilla, A.A.; Sohail, M.R. Treatment patterns, costs, and mortality among Medicare beneficiaries with CIED infection. Pacing Clin. Electrophysiol. 2018, 41, 495–503. [Google Scholar] [CrossRef]
  31. Chakfé, N.; Diener, H.; Lejay, A.; Assadian, O.; Berard, X.; Caillon, J.; Fourneau, I.; Glaudemans, A.W.; Koncar, I.; Lindholt, J.; et al. Editor’s Choice-European Society for Vascular Surgery (ESVS) 2020 Clinical Practice Guidelines on the Management of Vascular Graft and Endograft Infections. Eur. J. Vasc. Endovasc. Surg. 2020, 59, 339–384. [Google Scholar] [CrossRef]
  32. Peng, Q.; Tang, X.; Dong, W.; Sun, N.; Yuan, W. A Review of Biofilm Formation of Staphylococcus aureus and Its Regulation Mechanism. Antibiotics 2022, 12, 12. [Google Scholar] [CrossRef] [PubMed]
  33. Kamali, E.; Jamali, A.; Ardebili, A.; Ezadi, F.; Mohebbi, A. Evaluation of antimicrobial resistance, biofilm forming potential, and the presence of biofilm-related genes among clinical isolates of Pseudomonas aeruginosa. BMC Res. Notes 2020, 13, 27. [Google Scholar] [CrossRef] [PubMed]
  34. Hernando-Amado, S.; Martínez, J.L. Special Issue: ‘Antimicrobial Resistance in Pseudomonas aeruginosa’. Microorganisms 2023, 11, 744. [Google Scholar] [CrossRef] [PubMed]
  35. Yerushalmy, O.; Khalifa, L.; Gold, N.; Rakov, C.; Alkalay-Oren, S.; Adler, K.; Ben-Porat, S.; Kraitman, R.; Gronovich, N.; Shulamit Ginat, K.; et al. The Israeli Phage Bank (IPB). Antibiotics 2020, 9, 269. [Google Scholar] [CrossRef] [PubMed]
  36. Rosner, D.; Clark, J. Formulations for Bacteriophage Therapy and the Potential Uses of Immobilization. Pharmaceuticals 2021, 14, 359. [Google Scholar] [CrossRef] [PubMed]
  37. Nang, S.C.; Lin, Y.W.; Fabijan, A.P.; Chang, R.Y.; Rao, G.G.; Iredell, J.; Chan, H.K.; Li, J. Pharmacokinetics/pharmacodynamics of phage therapy: A major hurdle to clinical translation. Clin. Microbiol. Infect. 2023, 29, 702–709. [Google Scholar] [CrossRef] [PubMed]
  38. Łusiak-Szelachowska, M.; Międzybrodzki, R.; Drulis-Kawa, Z.; Cater, K.; Knežević, P.; Winogradow, C.; Amaro, K.; Jończyk-Matysiak, E.; Weber-Dąbrowska, B.; Rękas, J.; et al. Bacteriophages and antibiotic interactions in clinical practice: What we have learned so far. J. Biomed. Sci. 2022, 29, 23. [Google Scholar] [CrossRef]
  39. Gu Liu, C.; Green, S.I.; Min, L.; Clark, J.R.; Salazar, K.C.; Terwilliger, A.L.; Kaplan, H.B.; Trautner, B.W.; Ramig, R.F.; Maresso, A.W. Phage-Antibiotic Synergy Is Driven by a Unique Combination of Antibacterial Mechanism of Action and Stoichiometry. MBio 2020, 11, 10–1128. [Google Scholar] [CrossRef]

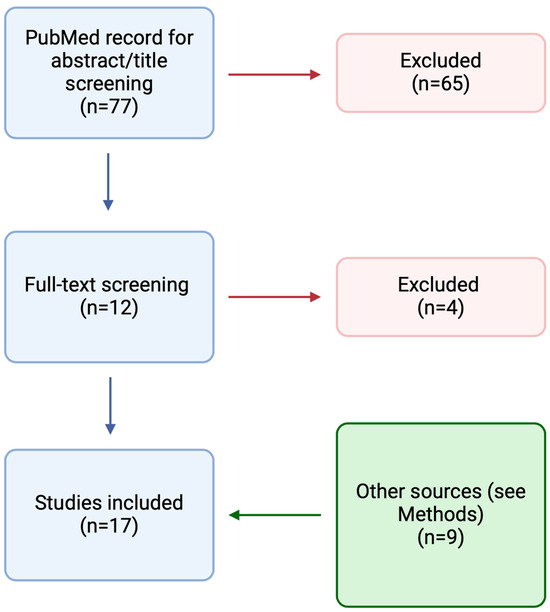

Figure 1. Results of the PubMed search resulting in the inclusion of 17 studies.
Figure 1. Results of the PubMed search resulting in the inclusion of 17 studies.
Pathogens 13 00424 g001
Table 1. Demographic, microbiological, and clinical characteristics of the 34 patients included, combined with the features of the phage treatment.
Table 1. Demographic, microbiological, and clinical characteristics of the 34 patients included, combined with the features of the phage treatment.
PatientArticle ReferenceYearCountryAgeSexPathogenType InfectionNumber/Type of Phage(s)Route of Phage AdministrationHighest Dose of Phage Administered (PFU/mL)Duration
1Chan, BK [18]2018US76MP. aeruginosaVascular graft infectionOne (OMKO1)In situ through a CT-guided needle1 × 107Once
2Duplessis, C [19]2018US2MP. aeruginosabacteremia after the ASD/VSD closuresTwo (not specified)iv3.5 × 105q6h for six doses, resumed after 11 days
3Rubalskij, E (1) [10]2020Germany52MS. aureus
E. faecium
P. aeruginosa
Vascular graft infectionFour (CH1, Enf1, PA5, PA10)Topically + iv + intraoperative1 × 108 q24h for 2 separate days
4Rubalskij, E (2) [10]2020Germany59MS. aureusVascular graft infectionOne (CH1)In situ through a chest tube1 × 109 q12h for 2 days
5Rubalskij, E (3) [10]2020Germany62MS. aureusPleural empyema after LVAD implantationOne (CH1)In situ through a drainage1 × 109q12h (14 doses)
6Rubalskij, E (4) [10]2020Germany51MS. aureusLVADFour (Sa30, CH1, SCH1, SCH111)In situ through a catheter + intranasal + per os1 × 1099 + 6 days
7Rubalskij, E (5) [10]2020Germany45MS. aureusImplantable infusion pumpOne (Sa30)Intraoperative (new pump covered)4 × 1010 Once
8Rubalskij, E (6) [10]2020Germany66ME. coliSternal wall healing disorder after mitral valve replacement and AoCo bypass surgeryTwo (ECD7, V18)Intraoperative5 × 1010Once
9Aslam, S (1) [11]2020US65MS. aureusLVADThree (AB-SA01)iv3 × 109q12 for 28 days
10Aslam, S (2) [11]2020US64MP. aeruginosaVascular graft infectionThree (PPM2)iv2.6 × 106q12h for 6 weeks
11Mulzer, J [20]2020Germany67MS. aureusLVADTwo (PYO, Sb-1) In situ through a catheter1 × 107 q8h for 10 days
12Gilbey, T
[21] and Petrovic Fabijan, A (1) [12]
2019
and
2020
Australia65MS. aureusProsthetic valve endocarditisThree (AB-SA01)iv1 × 109q12h for 14 days
13Petrovic Fabijan, A (2) [12]2020Australia69FS. aureusProsthetic valve endocarditisThree (AB-SA01)iv1 × 109q12h for 14 days
14Petrovic Fabijan, A (3) [12]2020Australia21MS. aureusProsthetic valve endocarditisThree (AB-SA01)iv1 × 109q12h for 28 days
15Petrovic Fabijan, A (4) [12] 2020Australia81MS. aureusProsthetic valve endocarditisThree (AB-SA01)iv1 × 109q12h for 14 days
16Puschel, A [22]2022Germany57MP.mirabilis
S. aureus
LVADCocktail (SniPha 360) In situ in the interface between driveline and coating1 × 107 Once
17Grambow, E [23]2022Germany67FS. aureusVascular graft infectionCocktail (SniPha 360) Intraoperative + in situ through VAC system + hydrogel at the second stage of the surgery + stent graft covered with hydrogelNA6 days
18Rojas, SV
[24]
2022Germany49MS. aureusLVADCocktail (SniPha 360) Intraoperative1 × 107Once
19Tkhilaishvili, T (1)
[13]
2022Germany41MS. aureus
C.acnes
LVAD + vascular graft infectionTwo (PYO, Sb-1) In situ through a drainage + intraoperative1 × 107q8h for 14 days
20Tkhilaishvili, T (2)
[13]
2022Germany67MS. aureusAbscess at the thoracotomy scar site with connection to the LVAD pumpTwo (Sb-1, Pyo)In situ through a drainage + intraoperative1 × 107q8h, 10 days
21Tkhilaishvili, T (3)
[13]
2022Germany68MP. aeruginosaLVADTwo (Autophage [personalized phage], PYO)Topically1 × 108q12h for 12 days (Autophage), q12h for 5 days (PYO)
22Tkhilaishvili, T (4)
[13]
2022Germany53MP. aeruginosaLVADThree (PNM, 14/1, PT07)Topically + iv + intraoperative1 × 108 q12h for 5 days topical + once iv
23Onallah, H (1) [14]2023NA29MP. aeruginosaLVADThree (PASA16, SaWIQ0488Phi, PaWRA02Phi87)Topically + iv + intraoperative4.7 × 1010q24h for 2 weeks
24Blasco, L
[25]
2023Spain50MP. aeruginosaVascular graft infectionThree (PNM, 14/1, PT07)iv2.1 × 109 q24h for 7 days
25Racenis, K
[26]
2023Latvia50MP. aeruginosaLVADTwo (PNM, PT07) In situ through a catheter + iv1 × 107q24h for 8 days (iv) + q24h for 4 days (topical)
26Green, SI
[15]
2023US67MS. aureusLVADTwo (SA4, DUD2)iv + intraoperative3 × 1010q12h for 6 weeks
27Green, SI
[15]
2023US73MP. aeruginosaLVADTwo (6917, 6959)iv + in situ1 × 1011q12h for 6 weeks
28Green, SI
[15]
2023NANANAS. aureusLVADOne (SA4)iv1 × 109q12h for 6 weeks
29Aslam, S (3) [11] and Aslam, S (1) [16] 2020 and
2024
US60MP. aeruginosaLVADThree (GD-1)iv1.9 × 107q8h for 6 weeks
30Aslam, S (4) [11] and Aslam, S (2) [16]2020
and
2024
US82MP. aeruginosaLVADFirst treatment
(i) initially two (PAK_P1, E127)
(ii) then one (PAK_1)
(iii) then two (PAK_P1, PAK_P5)
Second treatment
(iv)four (PPM3)
First treatment
topically + iv
Second treatment
iv
4 × 1010First treatment
(i) q8h for 2 weeks
(ii) q4h for 11 weeks
(iii) q12h for 3 weeks
Second treatment
(iv) q12h for 6 weeks
31Onallah, H (2) [14], Aslam, S (3) [16]2023
and 2024
Israel10FP. aeruginosaLVADOne (PASA16)iv1.72 × 1011 q12h for 49 days
32Aslam, S (4) [16]2024Israel52MP. aeruginosaLVADOne (PASA16)iv5 × 1010q24h for 2 weeks
33Pirnay, JP (1) [17]pre-printBelgiumNANAP. aeruginosaLVADThree (14-1, PNM, PT07)Intraoperative + iv + topical through a dressing1 × 108 q24h for 10 days (iv) + q12h for 5 days (topical)
34Pirnay, JP (2) [17]pre-printBelgiumNANAP. aeruginosaLVADTwo (PNM, PT07) iv + intralesional1 × 107q24h for 8 days (iv) + q24 for 5 days (intralesional)
Acronyms: PFU: plaque-forming unit; CT: computed tomography; iv: intravenously; LVAD: left ventricular assistant device; AoCo: aortocoronary; VAC: vacuum-assisted closure; NA: not available; ASD: atrial septal defect; VSD: ventricular septal defect.
Table 2. Clinical and microbiological outcomes.
Table 2. Clinical and microbiological outcomes.
PatientArticle ReferenceConcomitant SurgeryConcomitant AntibioticsAdverse Events (Type)Clinical ImprovementEradication of the Targeted BacteriaFollow-UpOn Antimicrobial Suppression at Follow-Up
1Chan, BK [18]NoYesYes (aortic perforation due to the CT-guided procedure)NoYes18 monthsNo
2Duplessis, C [19]NoYesYes (heart failure)NoYesPatient died during treatment courseNA
3Rubalskij, E (1)
[10]
YesYesNoNoYes2 months, patient died due to a new infectionNA
4Rubalskij, E (2)
[10]
NoYesNoYesYes7 months after bacteriophage therapy, no signs of infection at PET/CTNA
5Rubalskij, E (3)
[10]
YesYesNoYesYes20 months. Patient died after heart transplant due to transplant failureNA
6Rubalskij, E (4)
[10]
NoYesNoNoNoPatient died 1.5 months after beginning phage therapy due to S. aureus sepsisNA
7Rubalskij, E (5)
[10]
YesYesNoYesYes1.5 months after phage therapy, no signs of infection were observedNA
8Rubalskij, E (6)
[10]
YesYesNoYesYesAlive at last follow-upNA
9Aslam, S (1) [11]NoYesNoYesNo7 monthsNo
10Aslam, S (2) [11]NoYesNoYesYes3 monthsNA
11Mulzer, J [20]YesYesNoYesYes9 months after discharge, no local signs of infectionNA
12Gilbey, T [21] and Petrovic Fabijan, A (1) [12]NoYesNoNoYes3 monthsNo
13Petrovic Fabijan, A (2) [12] NoYesNoYesYes3 months (additional surgery day 50, death day 90)NA
14Petrovic Fabijan, A (3) [12]YesYesNoNoNo3 months (additional surgery day 15 followed by a subsequent phage cycle)NA
15Petrovic Fabijan, A (4) [12]NoYesNoNoNAPatient died day 27 of respiratory failureNA
16Puschel, A [22]YesYesNoYesNo2 months after discharge, patient readmitted for mild local infection at the driveline exit by S. aureus onlyNo
17Grambow, E [23]YesYesNoYesYes12 monthsNo
18Rojas, SV [24]YesYesNoYesNo3 months, PET/CT with significant decrease of the outflow graft infection. Patient readmitted 6 months later with local infection of the driveline exit with S. aureus without interrelation to the former focusNo
19Tkhilaishvili, T (1) [13]YesYesNoYesYes12 monthsNo
20Tkhilaishvili, T (2) [13]YesYesNoYesYes30 monthsNo
21Tkhilaishvili, T (3) [13]YesYesNoYesYesRelapsedNA
22Tkhilaishvili, T (4) [13]YesYesYes (slight increase in GGT and direct bilirubin, mild nausea)YesYesPatient died 4 months after bacteriophage therapy due to LVAD pump thrombosis, no signs of infectionNo
23Onallah, H (1)
[14]
NoYesYes (elevated ALK)YesYes3 monthsNo
24Blasco, L [25]NoYesNoNoNo 10 monthsNo
25Racenis, K [26]YesYesNoYesYes6 weeks after driveline repositioning, slight residual metabolic activity at PET/CT; no signs of inflammation at the wound. PET/CT negative at 34 months. No clinical recurrence at 21 monthsNo
26Green, SI (1) [15]YesYesNoYesYes32 monthsNo
27Green, SI (2) [15]YesYesNoYesYes27 monthsNo
28Green, SI (3) [15]NAYesNoNoNoBacteremia recurred after the end of phage and antibiotic therapyYes
29Aslam, S (3) [11] and Aslam, S (1) [16]NoYesNoNoNo7 months (when it was performed a heart transplant with surgical cultures positive for P. aeruginosa)Yes
30Aslam, S (4) [11] and Aslam, S (2) [16]YesYesYes (fever, wheezing, and shortness of breath)NoNo4.5 months (when the patient died due to a septic event)Yes
31Onallah, H (2)
[14] and Aslam, S (3) [16]
NoYesYes (elevated LFT 2xULN, high fever)NoNo2 months (when the patient died)No
32Aslam, S (4) [16]NoYesNoNoNo0.5 monthsYes
33Pirnay, JP (1) [17]YesYesNoYesYesNANA
34Pirnay, JP (2) [17]NoYesNoYesYesNANA
Acronyms: CT: computed tomography; NA: not available; PET: positron emission tomography; GGT: gamma glutamyl transferase; LVAD: left ventricular assistant device; ALK: alkaline phosphatase; LFT: liver function tests; ULN: upper limit normal.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Passerini, M.; Petri, F.; Suh, G.A. Phage Therapy for Cardiac Implantable Electronic Devices and Vascular Grafts: A Targeted Literature Review. Pathogens 2024, 13, 424. https://doi.org/10.3390/pathogens13050424

AMA Style

Passerini M, Petri F, Suh GA. Phage Therapy for Cardiac Implantable Electronic Devices and Vascular Grafts: A Targeted Literature Review. Pathogens. 2024; 13(5):424. https://doi.org/10.3390/pathogens13050424

Chicago/Turabian Style

Passerini, Matteo, Francesco Petri, and Gina A. Suh. 2024. "Phage Therapy for Cardiac Implantable Electronic Devices and Vascular Grafts: A Targeted Literature Review" Pathogens 13, no. 5: 424. https://doi.org/10.3390/pathogens13050424

APA Style

Passerini, M., Petri, F., & Suh, G. A. (2024). Phage Therapy for Cardiac Implantable Electronic Devices and Vascular Grafts: A Targeted Literature Review. Pathogens, 13(5), 424. https://doi.org/10.3390/pathogens13050424

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
