Identification of Haemaphysalis longicornis Genes Differentially Expressed in Response to Babesia microti Infection

by
Weiqing Zheng
1,2,
Rika Umemiya-Shirafuji
2,*,
Shengen Chen
1,
Kiyoshi Okado
2,
Paul Franck Adjou Moumouni
2,
Hiroshi Suzuki
2,
Shu Yang
1,*,
Mingming Liu
2 and
Xuenan Xuan
2,*
1
The Collaboration Unit for Field Epidemiology of State Key Laboratory for Infectious Disease Prevention and Control, Jiangxi Provincial Key Laboratory of Animal-Origin and Vector-Borne Diseases, Nanchang Center for Disease Control and Prevention, Honggutan New District, Nanchang, Jiangxi 330038, China
2
National Research Center for Protozoan Diseases, Obihiro University of Agriculture and Veterinary Medicine, Inada-Cho, Obihiro, Hokkaido 080-8555, Japan
*
Authors to whom correspondence should be addressed.
Pathogens 2020, 9(5), 378; https://doi.org/10.3390/pathogens9050378
Submission received: 14 April 2020 / Revised: 2 May 2020 / Accepted: 12 May 2020 / Published: 14 May 2020
(This article belongs to the Section Human Pathogens)
Browse Figures
Review Reports Versions Notes

Abstract

:
Haemaphysalis longicornis is a tick and a vector of various pathogens, including the human pathogenetic Babesia microti. The objective of this study was to identify female H. longicornis genes differentially expressed in response to infection with B. microti Gray strain by using a suppression subtractive hybridization (SSH) procedure. A total of 302 randomly selected clones were sequenced and analyzed in the forward subtracted SSH cDNA library related to Babesia infection, and 110 clones in the reverse cDNA library. Gene ontology assignments and sequence analyses of tick sequences in the forward cDNA library showed that 14 genes were related to response to stimulus or/and immune system process, and 7 genes had the higher number of standardized sequences per kilobase (SPK). Subsequent real-time PCR detection showed that eight genes including those encoding for Obg-like ATPase 1 (ola1), Calreticulin (crt), vitellogenin 1 (Vg1) and Vg2 were up-regulated in fed ticks. Compared to uninfected ticks, infected ticks had six up-regulated genes, including ola1, crt and Vg2. Functional analysis of up-regulated genes in fed or Babesia-infected ticks by RNA interference showed that knockdown of crt and Vg2 in infected ticks and knockdown of ola1 in uninfected ticks accelerated engorgement. In contrast, Vg1 knockdown in infected ticks had delayed engorgement. Knockdown of crt and Vg1 in infected ticks decreased engorged female weight. Vg2 knockdown reduced B. microti infection levels by 51% when compared with controls. The results reported here increase our understanding of roles of H. longicornis genes in blood feeding and B. microti infection.

1. Introduction

Haemaphysalis longicornis Neumann, 1901, is a three-host tick that occupies a broad ecological niche [1], resulting from its toleration of a wide range of environmental temperatures, its feeding on a wide range of mammalian and avian hosts, and its ability to survive various environmental conditions [2]. The tick was found in China, Japan, Korea and Russia and then invaded southern Pacific region countries, such as New Zealand and Australia, and now have established populations in the United States [3]. H. longicornis can reproduce through parthenogenesis, which facilitates its rapid emergence in nature, especially where there is a challenge for the ticks reproducing sexually to seek a sexual partner for mating [4]. The tick is an ectoparasite of importance in public health and domestic animal production, and it vectors a variety of pathogens such as bacteria, viruses and protozoa [5,6,7], which are transstadially and/or transovarially transmitted to other developmental stages [8,9].
Chemical acaricides have been the cornerstone of tick control for many years, but the application of chemicals on a vast and increasing scale has led to several serious adverse effects, including acaricide-resistance development [10,11]. It is reported that ticks develop resistance to several types of acaricides including organochlorines, organophosphates, carbamates, formamidines, pyrethroids, and macrocyclic lactones in many places [12]. To make things worse, ticks in some places have cross-drug resistance and a typical pattern of cross resistance has been documented among carbamates (such as carbaryl) and organophosphates (such as diazinon). In addition, tick resistance to more than one drug has also been shown in Mexico and Brazil [12,13]. To reduce their negative impact, a vaccine application may be an alternative means of tick control. Furthermore, a vaccine targeting both tick fitness and pathogen competence is an economical choice for the identification of tick molecules with a dual effect, namely simultaneous control of tick infestation and pathogen infection [14]. Suppression subtractive hybridization (SSH) is a technique for high-throughput anti-tick or/and pathogen vaccine screening and is considered to be an important procedure to find various vaccine candidates [15].
Until now, more than 100 Babesia species have been chosen to focus on due to the greatest emerging threats to animal health. High mortality and abortions caused by Babesia infection pose a great impact on livestock breeding around the globe [16,17,18]. In the case of human babesiosis, hundreds of cases have been reported in the world since the first case of human babesiosis was described in the United States in 1968. In the United States, the overwhelming majority of cases were caused by Babesia microti, and the rest by B. duncani and B, divergens-like organisms have also seen documented increases in recent years. In Europe, most reported cases have been caused by B. divergens, especially in splenectomized individuals, while a few have been attributed to Babesia venatorum (formerly called EU1) [19]. Sporadic cases of babesiosis incurred by B. microti and unidentified Babesia species have also been reported in Africa (Egypt), Australia, and South America [20]. Human babesiosis has been reported in Asian countries including Japan, Korea, India, and China. The B. microti Kobe Strain was responsible for human babesiosis in a Japanese patient who received a blood transfusion before the onset of babesiosis. Thereafter, the agent was also detected in blood donors who donated its blood to units where the patient was infected [21,22]. The emergence of human babesiosis in Korea has primarily been attributed to the contraction of a novel type of Babesia sp. (KO1) similar to ovine Babesia [23]. In India, a human babesiosis case is reported in a fifty-one-year-old male patient with a complaint of fever, anorexia, and vomiting [24]. In China, B. microti appears to be the dominant pathogen causing human babesiosis and it has caused babesiosis in more than 100 patients from Zhejiang, Yunnan, and Guangxi provinces over the past twenty years [25].
The objective of this study was to identify H. longicornis genes differentially expressed in response to B. microti infection and to evaluate tick gene functions in tick infestation and pathogen infection. Recently, we established an H. longicornis-Babesia microti infection model [26]. In the present study, differentially expressed genes in B. microti-infected H. longicornis ticks were screened by using the SSH procedure to subtract expressed genes in uninfected ticks. The results of the SSH studies were verified by real-time PCR. Functional analyses were carried out on selected H. longicornis genes by RNA interference (RNAi) to examine the potential role of these genes in blood feeding and B. microti burdens.

2. Results

2.1. Annotation of Forward and Reverse Subtracted SSH cDNA Library

The forward and reverse subtracted SSH cDNA libraries were successfully established (Figure A1, Figure A2, Figure A3, Figure A4 and Figure A5). Three hundred and eighty eight clones were randomly selected for sequencing and analyzed in the forward SSH cDNA library—the data concerning sequenced clones are presented in a Supplementary File (Table S1). After eliminating poor quality sequences, 302 sequences (average length ± S.D., 417 ± 183 bp) were assembled into 254 unigenes (32 contigs and 222 singlets) (Sheet “Forward subtracted cDNA library” in Table S1). On average, the number of sequences per unigene was 1.19, which suggests a high diversity in our dataset. Sequence grouping resulted in 78 (25.83%) expressed sequence tags (ESTs) with an unknown function or without any identity to sequence databases. Significant identity to genes with functional annotation was confirmed for 224 sequences. They included the sequences from ticks, Babesia, hosts, and bacteria. Among them, ticks had the highest number of sequences, accounting for 61.59% (Figure 1).

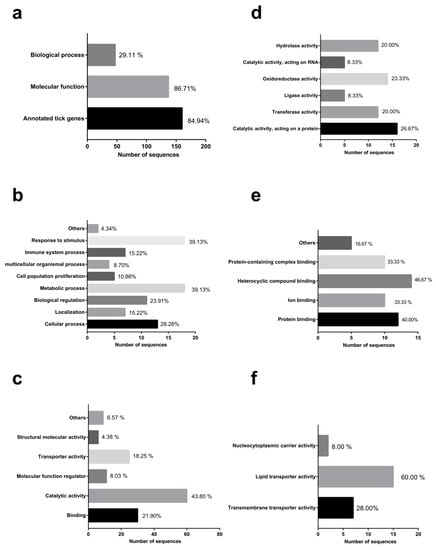

Among the 186 tick gene sequences from the forward subtracted SSH cDNA library, 158 sequences (84.94%) were gene ontology (GO)-annotated with 86.71% sequences related to molecular function (MF), and 29.11% to biological process (BP) (Figure 2a). The highly represented BP included response to stimulus (39.13% of sequences) and metabolic process (39.13% of sequences) (Figure 2b). In the case of MF sequences, the gene class with a higher representation was catalytic activity (43.80%), followed by binding (21.90%) and transporter activity (18.25%) (Figure 2c). Catalytic activities were highly grouped into oxidoreductase activity (23.33%) and catalytic activity acting on protein (26.67%) (Figure 2d). The highly represented binding types were heterocyclic compound binding (46.67%) and protein binding (40.00%) (Figure 2e). The transporter activity sequences dominated by the lipid transporter activity genes (60.00%) were found (Figure 2f).
In the reverse subtracted SSH cDNA libraries, 143 clones were randomly selected, sequenced, and analyzed (Table S1). After eliminating clones with poor quality sequences, 110 sequences (average length ± S.D., 341 ± 158 bp) were obtained. Sequence grouping resulted in 48 ESTs (43.46%) classified as “Unknown” due to an absence of annotation. Significant identity to genes with functional annotation was confirmed for 62 sequences, and the sequences from ticks were abundant with 59 ESTs (53.64%) (Figure 3).

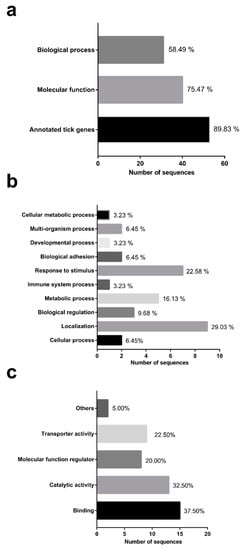

GO analysis contributed to the annotation of 89.83% less expressed tick gene sequences (n = 53) in B. microti-infected H. longicornis (Figure 4a). The level 2 GO terms for BP and MF are shown in Figure 4b,c. The highly represented BP GO terms were localization (29.03%), response to stimulus (22.58%), and metabolic process (16.13%) (Figure 4b). Regarding the MFs, binding (37.50%) and catalytic activity (32.50%) were found to be highly represented (Figure 4c).

2.2. Analysis of Contig Repeats and Characterization of Response to Stimulus- and Immune System Process-Related Genes in Forward Suppression Subtraction cDNA Library

Out of 254 unigenes from the forward subtracted SSH cDNA library, 186 tick sequences were assembled into 150 unigenes (Sheet “Forward subtracted cDNA library” in Table S1). Seven tick unigenes with a higher number of standardized sequences per kilobase (SPK) included neutrophil elastase inhibitor (nei), cytochrome c oxidase VII, cytochrome b5, acyl-CoA-binding protein, Cathepsin L-like cysteine protease (clcp), and Cathepsin B-like cysteine protease (cbcp1), and nei had the largest standardized SPK (Table 1).
After GO BP annotation of the tick genes highly expressed in response to B. microti infection, 14 genes were related to response to stimulus or/and immune system process. Two genes, namely cbcp1 and Ubiquitin-like protein FUBI (fubi), play roles in both response to stimulus and immune system process. Nine genes including calreticulin (crt), chemosensory protein CSP5, heat shock 70 kDa protein 5(hsp5), nei, Obg-like ATPase 1(ola1), and Vgs (four vitellogenin analogues) were related to response to stimulus. Three genes, namely leukocyte receptor cluster member 8 (lr8), IgE-dependent histamine release factor (ihr), and YTH domain-containing family protein 1(yth) are responsible for immune system process (Table 2).

2.3. Expression Levels of the Less and Highly Represented Genes in Infected Ticks

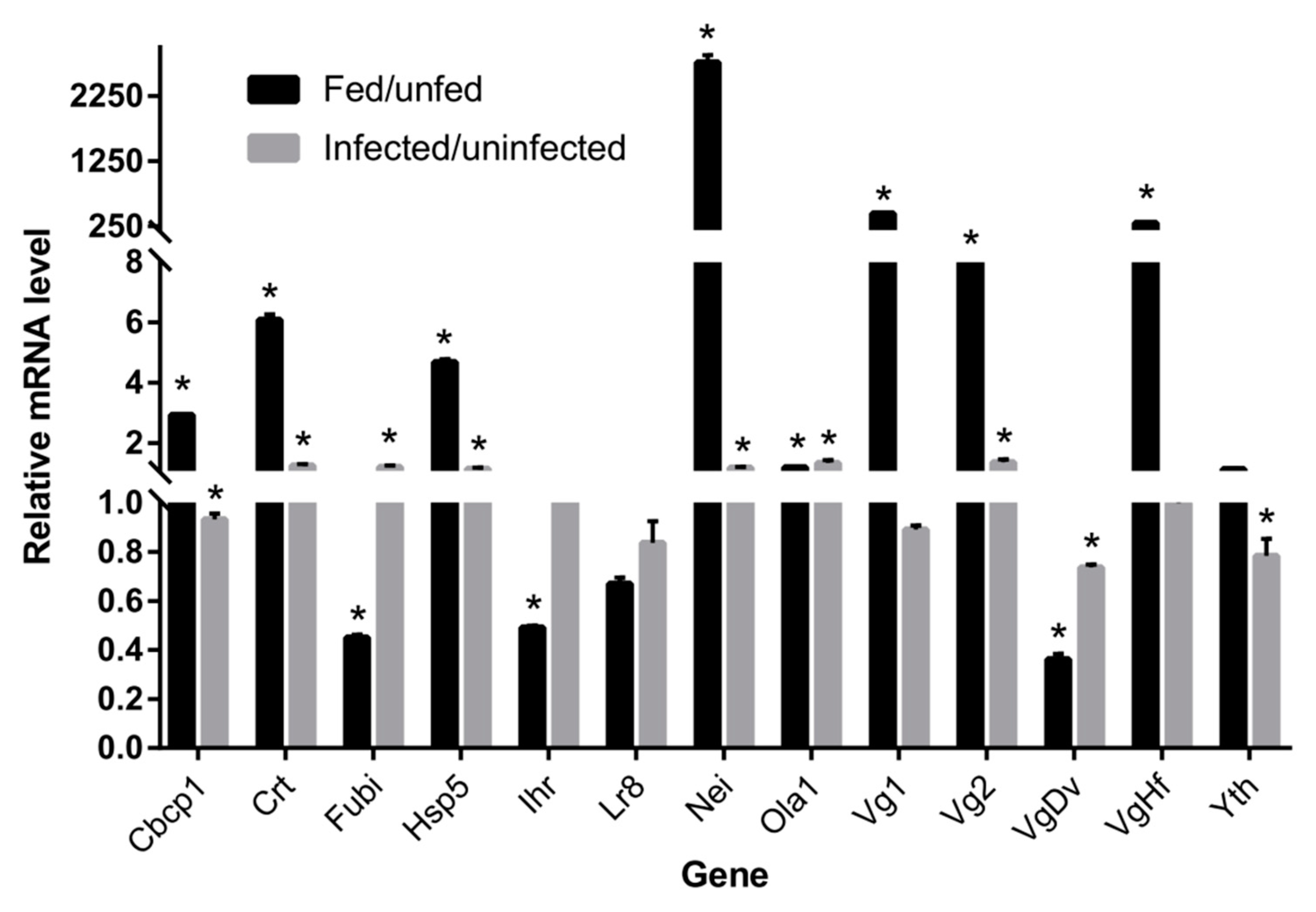

Thirteen tick genes among the more expressed genes with putative functions in tick–pathogen interactions were selected on the basis of high standardized SPK value and association with immune system process and/or response to stimulus. The selection genes were then used for real-time PCR using total RNA from unfed, uninfected engorged, and B. microti-infected engorged ticks (Figure 5). These genes included cbcp1, crt, fubi, hsp5, ihr, lr8, nei, ola1, Vg1, Vg2, VgDv, VgHf, and yth. Of the genes analyzed, all except lr8 and yth were confirmed as differentially expressed in fed ticks in comparison with unfed ticks. Genes encoding for cbcp1, crt, hsp5, nei, ola1, VgHf, Vg1, and Vg2 were over-expressed in fed ticks while fubi, ihr, and VgDv mRNA levels were down-regulated in fed ticks. Compared to uninfected ticks, infected ticks had six upregulated genes, including crt, hsp5, fubi, nei, ola1, and Vg2, and three less-represented genes, namely cbcp1, VgDv, and yth (Figure 5).

2.4. RNA Interference Analysis of Upregulated Genes

The four genes confirmed to be highly expressed in infected or fed ticks (ola1, crt, Vg1, and Vg2) were selected for functional studies using dsRNA-mediated RNAi in H. longicornis. Under the conditions undertaken in this study, gene knockdown after dsRNA-mediated RNAi was demonstrated for all genes in B. microti-infected and uninfected H. longicornis, and silencing efficiencies of genes ranged from 65.83% to 96.48% in B. microti-infected ticks, and from 93.91% to 98.82% in uninfected ticks (Table 3).
The knockdown of crt and Vg2 in infected ticks and ola1 in uninfected ticks accelerated the engorgement of the ticks. However, Vg1 silencing in infected ticks delayed the engorgement. Crt and Vg1 knockdown in the infected ticks decreased the engorged female weight (EFW) of the ticks (Table 3). Vg2 knockdown reduced the B. microti infection level by 51%. For other genes such as ola1, crt and Vg1, gene knockdown did not alter B. microti infection levels compared with controls (Table 4).

3. Discussion

Several studies on pathogen–tick interactions have showed that pathogens could modulate tick molecules for infection [27]. A pathogen might induce cytoskeletal rearrangement to maintain infection. For example, the alteration of the ratio between monomeric globular G actin and filamentous F actin of Ixodes scapularis has been shown to facilitate Anaplasma phagocytophilum infection. Likewise, A. phagocytophilum infection has been linked to the up-regulation of spectrin alpha chain or Alpha-fodrin of I. scapularis [28,29,30]. In the present study, we also found that spectrin alpha chain transcripts were over-expressed in B. microti-infected H. longicornis ticks. Additionally, previous studies showed that A. phagocytophilum may benefit from the tick cells’ ability to limit pathogen infection through phosphoenolpyruvate carboxykinase (PEPCK) and voltage-dependent anion channel (VDAC) inhibition [28,30,31,32,33]. Other tick molecules facilitating pathogen acquisition include Kunitz-type protease inhibitors, Bm86, subolesin, crt, and serum amyloid A [34]. However, when ticks are infected by a pathogen, they activate an immune or stress response to combat against pathogen infection including heat shock protein (HSP) [34,35,36]. HSP response might help to increase tick survival by protecting from stress and preventing desiccation at high temperatures. In agreement with those reports, our previous data showed that VDAC was less expressed in B. microti-infected engorged female H. longicornis ticks [26] and in the present study, HSP was over-represented in the transcripts of B. microti-infected engorged female H. longicornis ticks. In addition, our results indicate that ola1, crt, and vitellogenin family proteins such as Vg1, Vg2 may have important roles in blood feeding and Babesia infection in H. longicornis female ticks.
The GTPase superfamily proteins interact with rRNA and/or ribosomes to bind and hydrolyze GTP through the P-loop NTPase fold. They are involved in many cellular processes including protein synthesis, vesicular traffic, intracellular transport, cell signaling, and differentiation [37,38,39]. Ola1 shares some of the most important features including the G domain of the GTPases [40]. However, unlike other GTPases, the ola1 protein preferentially binds to and hydrolyzes ATP rather than GTP [41]. Ola1 acts as a molecular chaperone to regulate cellular stress responses, including oxidative stress and heat shock [42,43,44]. In addition, ola1 regulates cell adhesion and migration, and cellular apoptosis through the polymerization and S-glutathionylation of actin, and mediation of anti-apoptotic proteins such as cellular inhibitor of apoptosis protein 1 (cIAP1), cIAP2, and B cell lymphoma extra-large (Bcl-xL), respectively [45,46]. The knockdown of ola1 mRNA by RNAi inhibits the growth of procyclic forms of the protozoan Trypanosoma cruzi [40,43]. In our study, H. longicornis ticks fed on B. microti-infected hamsters, confronted two adverse conditions, namely, oxidative stress resulting from blood feeding, and Babesia infection. The two conditions might have upregulated ola1 expression in infected fed ticks, which likely explains why the ola1 transcript was present in the forward suppression subtraction cDNA library.
Crts are secreted in tick saliva and the saliva of other blood-sucking arthropods. They are suggested to play a critical role in blood feeding by preventing blood clotting through binding to Ca2+ and clotting factors [47,48,49,50]. In our study, crt mRNA was upregulated in engorged/infected ticks, and crt dsRNA injection to replete ticks infected with Babesia caused a reduction in EFW and shortened BFP. On the other hand, crts have also been reported to have a role in response to infection. Crts from some parasites are known to bind to the first component of the classical complement system (C1q) to maintain an immunosuppressive and anticomplement state of the infested animals for the parasite’s survival [51]. It was demonstrated that vaccination of sheep with Haemaphysalis qinghaiensis recombinant crt (rHqcrt) conferred protective immunity against H. qinghaiensis ticks [52]. In contrast, despite high amino acid identity to homologs in other organisms, Amblyomma americanum tick calreticulin (Aamcrt) is apparently functionally different. Aamcrt bind to C1q, but does not inhibit activation of this pathway. Furthermore, recombinant Aamcrt does not bind to factor Xa, an important protease in the blood-clotting system [53]. In addition, feeding with artificial blood supplemented with anti-rcrt serum does not cause significant reductions in tick and egg weight in R. microplus. Crt protein has also been identified as being involved in B. bigemina infection in R. annulatus, and crt knockdown had a significant effect on the pathogen infection in R. microplus, but not in R. annulatus ticks. Furthermore, B. bigemina infection levels did not show any statistically significant decrease when ticks were fed with anti-rcrt antibodies [54]. Herein, crt mRNA was upregulated in B. microti-infected ticks, but crt dsRNA injection did not change Babesia burdens. Taken together, our data and previous studies suggest that crts from different tick species may have complex machineries in association with blood feeding and Babesia infection in hosts.
Vgs, the precursor proteins of egg yolk vitellin (Vn), are largely present in females of all animals with yolky eggs and thus have been called female-specific proteins. Vg might participate in defense reactions and possesses antibacterial activities, which is likely explained by the involvement of the molecule in damaging bacterial cell walls, reducing nuclear translocation of the forkhead transcription factor DAF-16, and increasing anti-oxidative capacity in a steroidal-signaling pathway-dependent manner [44,55,56]. Furthermore, these reproductive proteins act as a pattern recognition molecule capable of binding to fungi and enhancing macrophage phagocytosis, high concentrations of Vgs in host hemolymph may help the host neutralize an invading virus, and nematode and protozoan infections are likely to transform the patterns of Vg mRNA transcription and protein translation in hosts [57,58,59,60,61]. Three homologs of Vgs namely Vg1, Vg2, and Vg3 have previously been described in H. longicornis. When H. longicornis ticks suck blood, Vg1 is expressed in the midgut and Vg2 in the fat body and ovary [62]. In Babesia-infected ticks, Vg is intensively produced in basophilic cells of the midgut which Babesia protozoans are known to infect [63]. In the present study, Vg1, Vg2, and two other homologs of Vgs were present in the transcripts of the infected H. longicornis ticks after subtraction of those of the uninfected ticks. However, only Vg2 was highly expressed in B. microti-infected ticks, and Vg2 knockdown shortened BFP and reduced B. microti infection levels. Further clarification of how Vg1 and Vg2 affect Babesia invasion and binding, and penetration into host cells and migration from the midgut to other organs like the ovary and salivary gland is required. In future studies, we will characterize the expression profiles of Vg1 and Vg2 in different organs of the infected ticks, such as Vg1 in the midgut and Vg2 in the fat body and ovary.

4. Materials and Methods

4.1. Unfed, Uninfected, and B. microti-Infected Ticks

In our study, the uninfected/fed ticks designate female H. longicornis ticks infesting and engorging on the uninfected hamsters, and the B. microti-infected ticks denote female H. longicornis ticks infesting and engorging on the B. microti-infected hamsters. B. microti-infected and -uninfected ticks were produced to construct SSH libraries. Unfed or uninfected ticks were used for comparison to uninfected or infected ticks respectively for analyses of mRNA expression levels. Parthenogenetic H. longicornis (Okayama strain) ticks have been maintained by feeding on the ears of Japanese white rabbits (Japan SLC, Shizuoka, Japan) for generations at the National Research Center for Protozoan Diseases (NRCPD), Obihiro University of Agriculture and Veterinary Medicine, Obihiro, Japan [64]. To obtain B. microti-infected ticks, 8-week-old female Syrian hamsters (Japan SLC, Shizuoka, Japan) were administrated orally with a daily dosage of 2 mg of cortisone for three days, and thereafter inoculated intraperitoneally with B. microti (Gray strain) parasites using the methods mentioned in The Global Bioresource Center (ATCC® 30221™). When approximately 5% parasitemia was reached, 12 female ticks were put into a chamber attached to the shaved back of a Syrian hamster, and the practice was repeated three times. Conventional PCR using KOD-Plus-Neo DNA polymerase (Toyobo, Osaka, Japan) and B. microti β-tubulin-specific primers and H. longicornis actin-specific primers (control gene) was performed on nymphal samples to detect B. microti DNA [26]. Simultaneously, three naïve hamsters were used to obtain uninfected female ticks. Unfed female ticks were collected from the same batch as uninfected and B. microti-infected ticks, and kept at 25 °C under air at 85–90% RH pending the test. The rabbits and hamsters were reared in a temperature- and humidity-regulated room under controlled lighting, water, and regular commercial chow. All procedures were carried out according to ethical guidelines for the use of animal and pathogen samples permitted by Obihiro University of Agriculture and Veterinary Medicine (Animal exp.: 19-74 for rabbits and 19-77 for hamsters; DNA experiment approval number: 1704-4; pathogen experiment approval number: 201709-5).

4.2. SSH cDNA Library Construction

B. microti-infected and -uninfected ticks were used to construct the forward and reverse subtracted SSH libraries. Engorged female ticks were thrice rinsed individually in distilled water, once in water, once in 70% (v/v) ethanol, and once more in water. Engorged ticks of a similar size were screened by body weight and each was dissected individually in cold nuclease-free PBS buffer. Host blood in tick body was removed as much as possible by washing the midgut tissues several times with cold nuclease-free PBS buffer. After several washes, whole internal organs were ground in a 1.5 mL sterile plastic tube with 200 µL of RA1 cell lysis buffer (Macherey-Nagel GmbH & Co KG, Duren, Germany) and 2 µL of β-mercaptoethanol. Homogenates from 15 ticks of the B. microti-infected or uninfected group were pooled in a 15 mL sterile tube, and 100 µL of homogenate was collected into a 1.5 mL tube for DNA isolation by using NucleoSpin® Tissue Kit (Macherey-Nagel GmbH & Co KG, Duren, Germany). A mixture containing 3 mL of RA1 cell lysis buffer plus 30 µL of β-mercaptoethanol was added to the rest of the homogenate and the mixture was used to isolate total RNA with NucleoSpin® RNA Midi Kit (Macherey-Nagel GmbH & Co KG, Duren, Germany). Total RNA and genomic DNA were isolated according to the manufacturer’s protocol. The DNA sample was subjected to conventional PCR for detection of B. microti burdens in the sampled ticks using B. microti β-tubulin-specific primers (Table A1) [65]. RNA was quantified with Thermo Scientific™ NanoDrop 2000 (Thermo Fisher Scientific Inc., Waltham, MA, USA) and its quality was examined by gel electrophoreses to confirm the integrity of RNA preparations. Two pools corresponding to the infected and uninfected tick populations were made. Poly A+ RNA was separated from total RNA using NucleoTrap® mRNA Midi Kit (Macherey-Nagel GmbH & Co KG, Duren, Germany) and concentrated with NucleoSpin® RNA Clean-up XS (Macherey-Nagel GmbH & Co KG, Duren, Germany). The cDNA was synthesized and the SSH library was constructed using the PCR-Select™ cDNA subtraction Kit (Clontech, Mountain View, CA, USA). Briefly, double-stranded cDNA from both groups (infected and uninfected ticks) was digested with RsaI. Two µL of the digested cDNA was ligated with 2 µL of 10 µM Adapter 1 in a mixture containing 3 µL of sterile H2O, 2 µL of 5X Ligation Buffer and 1 µL of T4 DNA Ligase (400 units/µL) at 16 °C overnight, and 2 µL of the other digested cDNA was ligated with 2 µL of 10 µM Adapter 2R in the same manner. Ligation efficiency analysis was performed by PCR with PCR primer 1 and primers (Table A1) targeting porin which is expressed in infected and uninfected engorged female ticks [14]. The remainder of the cDNA was saved to be used as a driver in hybridization. The forward subtracted library was made by hybridizing adapter-ligated cDNA from B. microti-infected ticks as the tester in the presence of surplus uninfected tick cDNA as the driver. The reverse subtracted library was prepared by hybridizing adapter-ligated cDNA from uninfected ticks as the tester with excess B. microti-infected tick cDNA as the driver. Analysis of subtraction efficiency was carried out by PCR with a primer set showed in Table A1. Differentially expressed cDNAs were subject to primary and secondary PCR with Advantage PCR polymerase mix, and cloned using pGEM®-T Easy Vector Systems (Promega, Madison, WI, USA) for sequencing.

4.3. Gene Ontology Analysis

Nucleotide sequences of forward and reverse subtracted libraries clones were trimmed and utilized for annotation and gene ontology (GO) assignment. Plasmid DNAs were purified using the NucleoSpin® Plasmid EasyPure Kit (Macherey-Nagel GmbH & Co KG, Duren, Germany). Three hundred and eighty eight clones from the forward subtracted library and 143 clones from the reverse subtracted library were randomly selected and sequenced with primer set SP6 and T7 on an ABI PRISM 3100 DNA sequencer (Applied Biosystems, Waltham, MA, USA). Raw sequence data were loaded to DNASTAR SeqMan and vector contamination filtering was done by scanning each fragment with the preassembly and assembly options program. The fragments without the pGEM®-T Easy vector were manually trimmed to remove adaptors at 5′ and 3′ ends. Trimmed nucleotide sequences with sizes greater than 80 bp were blasted against online sequence databases of National Center for Biotechnology Information (NCBI) [66], Kyoto Encyclopedia of Genes and Genomes (KEGG) [67], and Bioinformatics Resource for Invertebrate Vectors of Human Pathogens (VectorBase) [68]. An E value <10−10 was set as a condition for successful gene assignments. GO terms were assigned to differentially expressed genes with the online Software Tool MGI (http://www.informatics.jax.org/vocab/gene_ontology), Uniprot (https://www.uniprot.org/) (version 2020), and Quick GO (EMBL-EBI) (https://www.ebi.ac.uk/QuickGO/) (version 2020). For analysis, two categories of GO terms, namely Biological Process (BP) and Molecular Function (MF) were evaluated.

4.4. Sequence Analysis

For the unigene cluster formation, the nucleotide sequences from NCBI, KEGG, and VectorBase databases with hits to the nucleotide sequences in the forward suppression subtraction cDNA library, were compared with the nucleotide sequences in the cDNA library. For genes with more than one sequence, the longer sequence was considered. The sequences per kilobase (SPK) was calculated to normalize the sequence counts for each unigene according to gene length. SPK of a unigene was calculated as the sequence counts divided by the length of the longer sequence in kilobase. Standardized SPK for a unigene was computed as SPK of the unigene divided by total SPK (Sheet “Forward subtracted cDNA library” in Table S1). After gene ontology assignments, genes related to a response to stimulus or immune system process in the forward suppression subtraction cDNA library were screened and characterized.

4.5. Real-Time PCR for Analysis of Differential Gene Expression

The expression levels of screened genes were analyzed in unfed, fed/uninfected, or B. microti-infected ticks. Three independent biological replicates were made for each group of tick samples. After two washes with double distilled water and one wash with 70% ethanol, 3 unfed female ticks and 3 engorged female ticks with host blood removed were homogenized in TRI reagent (Sigma-Aldrich, St. Louis, MO, USA). RNA extraction, cDNA synthesis, and real-time PCR were performed as described elsewhere [64]. Glyceraldehyde-3-phosphate dehydrogenase (GAPDH) was used as an internal control gene in real-time PCR analysis [26] and all primers are shown in Appendix A Table A1. The PCR reaction system was set as follows: 5% of the volume of cDNA solution, 0.5 μM of the forward and reverse primers, 10 μL of THUNDERBIRD®SYBR®qPCR Mix (Toyobo, Osaka, Japan, and 0.04 μL of 50X ROX reference dye, and sterile water was added up to a final volume of 20 μL. The PCR conditions were as follows: 95 °C for 10 min, 40 cycles of denaturation at 95 °C for 15 s, and annealing/extension at the temperatures shown in Table A1 for 35 s. The mRNA levels were normalized separately against mRNA levels of internal control gene using the ∆CT (2^(−(CTtarget gene−CTinternal control gene))) method.

4.6. RNA Interference for Functional Analysis of Tick Genes Differentially Expressed in Response to Babesia Infection

RNA interference (RNAi) was used to analyze the effect of target gene knockdown on blood feeding and Babesia infection. The double-strand RNA (dsRNA) of target genes was constructed with the T7 RiboMAX express RNAi system (Promega, Madison, WI, USA) and the primer sets shown in Table A1. Female ticks were used for RNAi experiments [69]. In the test group, unfed female ticks were injected with 1 µg of target gene dsRNA/tick in 0.5 µL of RNase-free water at the fourth coxae using a grass capillary equipped with IM-300 Microinjector (Narishige, Tokyo, Japan). The same amount of firefly luciferase dsRNA constructed from a vector DNA of pGEM-luc (Promega, Madison, WI, USA) was injected into unfed ticks as a control [70]. The dsRNA-injected ticks were allowed to rest 1 day and were then put in chambers attached to the back of a hair-shaved hamster. Each hamster was challenged with 15 dsRNA-injected ticks for the control group or test group, and two hamsters were used in each group. RNA silencing efficiency was evaluated by comparison of the normalized mRNA levels of target genes against GAPDH between the test group and the control group. In order to examine knockdown efficiency after dsRNA injection, two 2-day-fed ticks were removed from each of the infested hamsters and the practice was repeated three times. Engorged ticks were dissected to collect whole internal organs. Host blood in the midguts was removed as much as possible by washing the internal organ tissues several times with cold PBS, and resultant organs were ground using a pestle. In order to test whether silencing of target genes affected Babesia infection levels, B. microti burdens assay was performed. This was done by B. microti 18S rRNA real-time PCR using genomic DNA from the whole internal organs of three engorged ticks, and duplicated thrice. The genetic amounts of B. microti 18S rRNA were normalized against that of H. longicornis ITS-2 (Table A1) using the ∆CT (2^(−(CTtarget gene−CTinternal control gene))) method. B. microti infection levels were calculated using the relative amount of Babesia 18S rRNA against tick ITS-2 in infected ticks, standardized by those observed in uninfected ones. The feeding success of ticks was investigated by measuring the blood feeding period (BFP) and engorged female weight (EFW).

4.7. Statistical Analysis

In all experiments, the mean of relative mRNA levels of target genes was computed and data from unfed, uninfected, and infected ticks were compared using the Student’s t-test. The differences in the mean of B. microti burdens and EFW between target gene dsRNA-injected group and luciferase dsRNA-injected group were also analyzed with the Student’s t-test. The difference in BFP between the dsRNA-injected and control groups was analyzed using the Mann-Whitney test. A p value of < 0.05 was considered statistically significant.

5. Conclusions

In the present study, many genes from H. longicornis were involved in B. microti infection. These genes included cbcp1, crt, fubi, hsp5, ihr, lr8, nei, ola1, Vg1, Vg2, VgDv, VgHf, and yth. Among them, ola1, crt, Vg1, and Vg2 could contribute to the interference with blood feeding and Vg2 might assist B. microti infection in ticks.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-0817/9/5/378/s1, Table S1.

Author Contributions

Conceptualization, X.X., H.S., S.C., and R.U.-S.; methodology, S.Y., K.O., and W.Z.; software, W.Z.; validation, R.U.-S., X.X., and H.S.; writing—original draft preparation, W.Z.; writing—review and editing, P.F.A.M., K.O., and M.L.; supervision, X.X. and R.U.-S.; project administration, X.X.; funding acquisition, R.U.-S. and W.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported financially by Jiangxi Provincial Department of Science and Technology, grant number 20192BBHL80013 and 2016BBG70005; Health Commission of Jiangxi Province, grant number 20162007, and the Ministry of Education, Culture, Sports, Science and Technology (MEXT) of Japan as a project for Joint Usage/Research Center. The author W.Z. was supported by Sasakawa Medical Fellowship through Japan-China Medical Association.

Acknowledgments

We appreciate Hiroyuki Sugawara for providing a big job in rabbit and hamster rearing, and for help attaching chambers to the backs of hamsters. We thank Maki Kuniyori for offering technical assistance. We express our gratitude to Carvalho Leonardo and Adeyemi Oluyomi Stephen for their valuable comments and excellent English editing.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

Table
Table A1. Sequences of primers used in the study.
Table A1. Sequences of primers used in the study.
GoalGene/PrimerSequence (5′ to 3′)
Forward/Reverse		Length
(bp)		Annealing Temperature/Extension TimeReferences
Real-time PCRNeutrophil elastase inhibitorTCCGCGAGTCTCCTCACTCACG13362 °C/35 sThis study
/TGTCGTCGCCCTCGCCTTCTTC
Leukocyte receptor cluster member 8GGCCGCAAGGCCAACAAGAAGC18862 °C/35 sThis study
/AGGCTGGGACCGCAGTTGATGC
Haemaphysalis flava vitellogenin-likeAGGCTCGCTGAACGACAGCACG14662 °C/35 sThis study
/AGCACTTCCTGGAGCACCTGGC
Dermacentor variabilis vitellogenin-likeCGGCACCCTGGTCAAGCACTTC17262 °C/35 sThis study
/AAGGTAGGCAGACACCACGGGC
IgE-dependent histamine release factorATCGAGGACGCCAAGGCCAAGC10162 °C/35 sThis study
/CCATCGGCATTGCAGGACTCGC
YTH domain-containing family protein 1AAGGACGTGCCCAACTCGCAGC24662 °C/35 sThis study
/ACCAAAAGGAGCACCTGGGCCG
Cathepsin B-like cysteine protease form 1TGGGCATTTGGAGCGGTGGAGG15862 °C/35 sThis study
/TAGTACTCCCACGCTGCCGACG
Heat shock 70 kDa protein 5TCACGCTGTCGTCACTGTGCCC19062 °C/35 sThis study
/TGTTCCTCCGCCCAGGTCGAAG
Obg-like ATPase 1GAAAAAGGAAGATGAGTCCGAG12162 °C/35 sThis study
/GGCTGTCAACACGTTGAAG
Ubiquitin-like protein FUBIGAAGCCTGGTTGGCGTTGGGTC12062 °C/35 sThis study
/TGATGGGGGCAAGCCGCTGAAC
CalreticulinTGCACCCCGAGATCGACAACCC10562 °C/35 sThis study
/TGCCCGACTTGACCTGCCACAG
Vitellogenin 1ATGTCGCCACCAAGTACTTCAACTACCT40862 °C/35 s[71]
/TCTGGAACATTCGTGTAAACGA
Vitellogenin 2ATCTACTACCTTGCTTTGAACCCCCACTGG42162 °C/35 s[71]
/AGAATGTCGCCATGTCCTTC
GAPDHTGTCCGTGGTAGACCTGACCTG20362 °C/35 s[72]
/GGTCTTGGACAGAGCGATGCCA
B. microti 18S rRNATTGACGGAAGGGCACCACCAGG14352 °C/35 s[26]
/AAGAACGGCCATGCACCACCAC
ITS-2TCCGCCGGTACTCCGGTTTCAG16362 °C/35 s[26]
/CGTCAAAGAAACGTGCGCCCCC
Double-stranded RNA synthesis 1CalreticulinGCACCAAGAAGGTTCACGTC40964 °C/35 sThis study
/TTCCACTCGCCCTTGTACTC
Obg-like ATPase 1CGCCGAGAACTTTCCTTTC33262 °C/35 sThis study
/ACTCCTCGTCTTTCTTCCG
Vitellogenin 1GCAGTACAATTCCATGTACAG53068 °C/35 s[62]
/ACTTGTCGGGCCCGATGAACTC
Vitellogenin 2CTTTGGAGAGTACTCCAAGAAC51568 °C/15 s[62]
/GGCCGTCGGGCCCGCTCAGGT
Luciferase (control)GCTTCCATCTTCCAGGGATACG66368 °C/15 s[70]
/CGTCCACAAACACAACTCCTCC
Babesia detection B. microti β-tubulinATGAGAGARATYGTACACATYCAAGC137254 °C/2 min[65]
/TAYTGYTGGTAYTCGCTRACYA
Ligation/subtraction efficiency analysisPorinGGATCCTTCGCGCCGCAGACCGGGAG26768 °C/15 s[26]
/AAGCTTCTGGAACTCTTGCCCGTCGTTC
PCR primer 1CTAATACGACTCACTATAGGGC 65 °C/15 s
1 All primers in double-stranded RNA synthesis contained T7 promoter sequences (TAATACGACTCACTATAGG) at the 5′ end. All PCRs except real-time PCRs were carried out with KOD-Plus-Neo DNA polymerase (Toyobo, Osaka, Japan).

Appendix B. Forward and Reverse Subtracted SSH cDNA Libraries Were Successfully Established

Pathogens 09 00378 g0a1 550

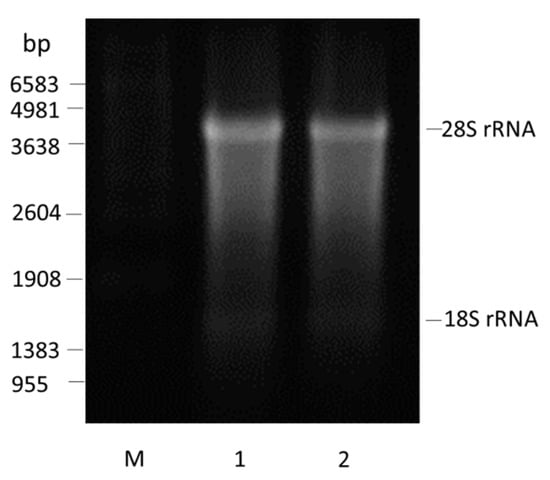

Figure A1. RNA integrity examination by electrophoresing samples on a denaturing, formaldehyde 1% agarose/EtBr gel. Lane 1, total RNA of infected ticks; Lane 2, total RNA of uninfected ticks.
Figure A1. RNA integrity examination by electrophoresing samples on a denaturing, formaldehyde 1% agarose/EtBr gel. Lane 1, total RNA of infected ticks; Lane 2, total RNA of uninfected ticks.
Pathogens 09 00378 g0a1
Pathogens 09 00378 g0a2 550

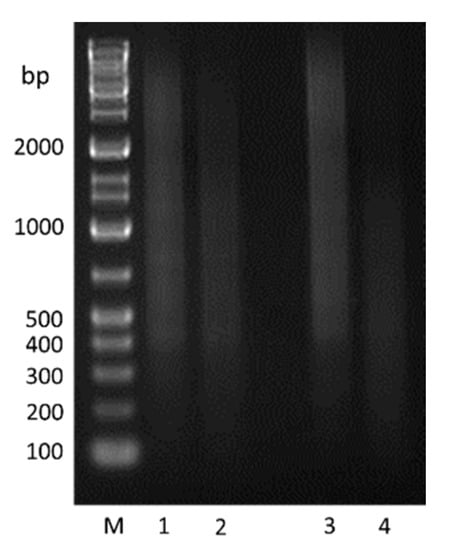

Figure A2. Electrophoresis of undigested, ds cDNA and Rsa I-digested cDNA on a 1.5% agarose/EtBr gel in 1X TAE buffer side-by-side. Lane 1, cDNA of infected ticks before Rsa I digestion; Lane 2, cDNA of infected ticks after Rsa I digestion; Lane 3, cDNA of uninfected ticks before Rsa I digestion; Lane 4, cDNA of uninfected ticks after Rsa I digestion.
Figure A2. Electrophoresis of undigested, ds cDNA and Rsa I-digested cDNA on a 1.5% agarose/EtBr gel in 1X TAE buffer side-by-side. Lane 1, cDNA of infected ticks before Rsa I digestion; Lane 2, cDNA of infected ticks after Rsa I digestion; Lane 3, cDNA of uninfected ticks before Rsa I digestion; Lane 4, cDNA of uninfected ticks after Rsa I digestion.
Pathogens 09 00378 g0a2
Pathogens 09 00378 g0a3 550

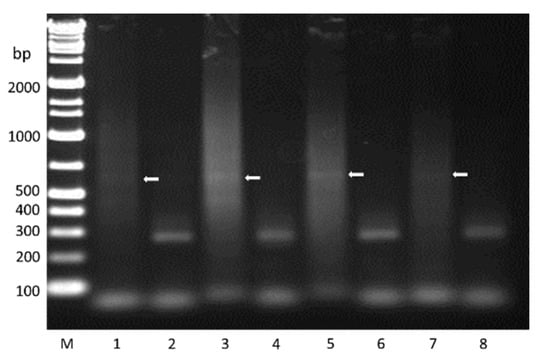

Figure A3. Ligation efficiency analysis. Lane 1: PCR products using Adaptor 1-ligated ds DNA of infected ticks as the template and the porin 3′ Primer and PCR Primer 1. Lane 2: PCR products using Adaptor 1-ligated ds DNA of infected ticks as the template, and the porin 3′ and 5′ Primers. Lane 3: PCR products using Adaptor 2R-ligated ds DNA of infected ticks as the template, and the porin 3′ Primer and PCR Primer 1. Lane 4: PCR products using Adaptor 2R-ligated ds DNA of infected ticks as the template, and the porin 3′ and 5′ Primers. 1.5% agarose/EtBr gel. Lane M: markers. Lanes 5–8 correspond to Lanes 1–4, but PCR products using ds DNA of uninfected ticks, not infected ticks as the template. The bands marked with white arrows are PCR products of ds DNA ligated with Adaptor 1 or Adaptor 2R.
Figure A3. Ligation efficiency analysis. Lane 1: PCR products using Adaptor 1-ligated ds DNA of infected ticks as the template and the porin 3′ Primer and PCR Primer 1. Lane 2: PCR products using Adaptor 1-ligated ds DNA of infected ticks as the template, and the porin 3′ and 5′ Primers. Lane 3: PCR products using Adaptor 2R-ligated ds DNA of infected ticks as the template, and the porin 3′ Primer and PCR Primer 1. Lane 4: PCR products using Adaptor 2R-ligated ds DNA of infected ticks as the template, and the porin 3′ and 5′ Primers. 1.5% agarose/EtBr gel. Lane M: markers. Lanes 5–8 correspond to Lanes 1–4, but PCR products using ds DNA of uninfected ticks, not infected ticks as the template. The bands marked with white arrows are PCR products of ds DNA ligated with Adaptor 1 or Adaptor 2R.
Pathogens 09 00378 g0a3
Pathogens 09 00378 g0a4 550

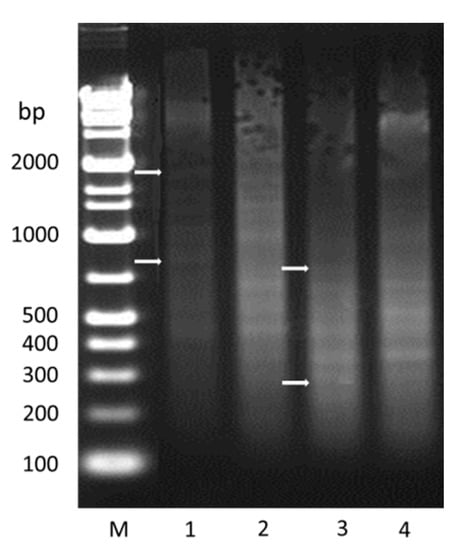

Figure A4. Agarose/EtBr Gel Electrophoresis of secondary PCR. Lane 1, secondary PCR products of subtracted cDNA of infected ticks. Lane 2, secondary PCR products of unsubtracted infected tick cDNA ligated with both Adaptors 1 and 2R. Lane 3, secondary PCR products of subtracted cDNA of uninfected ticks. Lane 4, secondary PCR products of unsubtracted uninfected tick cDNA ligated with both Adaptors 1 and 2R. White arrows show the typical additional bands appearing in PCR products of forward and reverse subtracted cDNA (lane 1 and lane 3) in comparison with those of unsubtracted cDNA (lane 2 and lane 4).
Figure A4. Agarose/EtBr Gel Electrophoresis of secondary PCR. Lane 1, secondary PCR products of subtracted cDNA of infected ticks. Lane 2, secondary PCR products of unsubtracted infected tick cDNA ligated with both Adaptors 1 and 2R. Lane 3, secondary PCR products of subtracted cDNA of uninfected ticks. Lane 4, secondary PCR products of unsubtracted uninfected tick cDNA ligated with both Adaptors 1 and 2R. White arrows show the typical additional bands appearing in PCR products of forward and reverse subtracted cDNA (lane 1 and lane 3) in comparison with those of unsubtracted cDNA (lane 2 and lane 4).
Pathogens 09 00378 g0a4
Pathogens 09 00378 g0a5 550

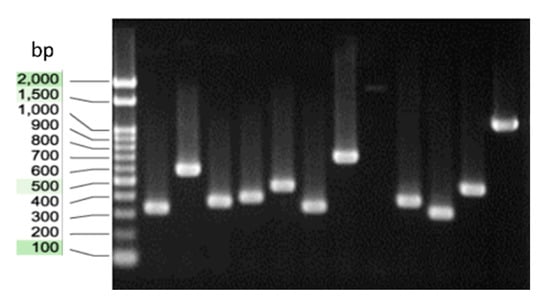

Figure A5. Typical results of the clones from differentially expressed cDNAs of infected ticks.
Figure A5. Typical results of the clones from differentially expressed cDNAs of infected ticks.
Pathogens 09 00378 g0a5

References

  1. Heath, A. Biology, ecology and distribution of the tick, Haemaphysalis longicornis Neumann (Acari: Ixodidae) in New Zealand. N. Z. Vet. J. 2016, 64, 10–20. [Google Scholar] [CrossRef] [PubMed]
  2. Tufts, D.M.; Van Acker, M.C.; Fernandez, M.P.; De Nicola, A.; Egizi, A.; Diuk-Wasser, M. Distribution, host-seeking phenology, and host and habitat associations of Haemaphysalis longicornis ticks, Staten Island, New York, USA. Emerg. Infect. Dis. 2019, 25, 792–7964. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Rainey, T.; Occi, J.L.; Robbins, R.G.; Egizi, A. Discovery of Haemaphysalis longicornis (Ixodida: Ixodidae) parasitizing a sheep in New Jersey, United States. J. Med. Entomol. 2018, 55, 757–759. [Google Scholar] [CrossRef] [PubMed]
  4. Oliver, J.J. Parthenogenesis in mites and ticks. Am. Zool. 1971, 11, 283–299. [Google Scholar] [CrossRef]
  5. Fang, L.Q.; Liu, K.; Li, X.L.; Liang, S.; Yang, Y.; Yao, H.W.; Sun, R.X.; Sun, Y.; Chen, W.J.; Zuo, S.Q.; et al. Emerging tick-borne infections in mainland China: An increasing public health threat. Lancet Infect. Dis. 2015, 15, 1467–1479. [Google Scholar] [CrossRef] [Green Version]
  6. Zheng, W.Q.; Xuan, X.N.; Fu, R.L.; Tao, H.Y.; Liu, Y.Q.; Liu, X.Q.; Li, D.M.; Ma, H.M.; Chen, H.Y. Tick-borne pathogens in ixodid ticks from Poyang Lake Region, southeastern China. Korean J. Parasitol. 2018, 56, 589–596. [Google Scholar] [CrossRef] [Green Version]
  7. Zhuang, L.; Du, J.; Cui, X.M.; Li, H.; Tang, F.; Zhang, P.H.; Hu, J.G.; Tong, Y.G.; Feng, Z.C.; Liu, W. Identification of tick-borne pathogen diversity by metagenomic analysis in Haemaphysalis longicornis from Xinyang, China. Infect. Dis. Poverty 2018, 7, 45. [Google Scholar] [CrossRef]
  8. Zhuang, L.; Sun, Y.; Cui, X.M.; Tang, F.; Hu, J.G.; Wang, L.Y.; Cui, N.; Yang, Z.D.; Huang, D.D.; Zhang, X.A.; et al. Transmission of severe fever with thrombocytopenia syndrome virus by Haemaphysalis longicornis ticks, China. Emerg. Infect. Dis. 2018, 24, 868–871. [Google Scholar] [CrossRef] [Green Version]
  9. Luo, L.M.; Zhao, L.; Wen, H.L.; Zhang, Z.T.; Liu, J.W.; Fang, L.Z.; Xue, Z.F.; Ma, D.Q.; Zhang, X.S.; Ding, S.J.; et al. Haemaphysalis longicornis ticks as reservoir and vector of severe fever with thrombocytopenia syndrome virus in China. Emerg. Infect. Dis. 2015, 21, 1770–1776. [Google Scholar]
  10. Kunz, S.E.; Kemp, D.H. Insecticides and acaricides: Resistance and environmental impact. Rev. Sci. Tech. 1994, 13, 1249–1286. [Google Scholar] [CrossRef]
  11. Corrigan, P.J.; Seneviratna, P. Occurrence of organochlorine residues in Australian meat. Aust. Vet. J. 1990, 67, 56–58. [Google Scholar] [CrossRef] [PubMed]
  12. Abbas, R.Z.; Zaman, M.A.; Colwell, D.D.; Gilleard, J.; Iqbal, Z. Acaricide resistance in cattle ticks and approaches to its management: The state of play. Vet. Parasitol. 2014, 203, 6–20. [Google Scholar] [CrossRef] [PubMed]
  13. Reck, J.; Klafke, G.M.; Webster, A.; Dall’Agnol, B.; Scheffer, R.; Souza, U.A.; Corassini, V.B.; Vargas, R.; dos Santos, J.S.; Martins, J.R. First report of fluazuron resistance in Rhipicephalus microplus: A field tick population resistant to six classes of acaricides. Vet. Parasitol. 2014, 201, 128–136. [Google Scholar] [CrossRef] [PubMed]
  14. De la Fuente, J.; Merino, O. Vaccinomics, the new road to tick vaccines. Vaccine 2013, 31, 5923–5929. [Google Scholar] [CrossRef]
  15. Antunes, S.; Galindo, R.C.; Almazán, C.; Rudenko, N.; Golovchenko, M.; Grubhoffer, L.; Shkap, V.; do Rosário, V.; de la Fuente, J.; Domingos, A. Functional genomics studies of Rhipicephalus (Boophilus) annulatus ticks in response to infection with the cattle protozoan parasite, Babesia bigemina. Int. J. Parasitol. 2012, 42, 187–195. [Google Scholar] [CrossRef]
  16. Boozer, A.L.; Macintire, D.K. Canine babesiosis. Vet. Clin. Small Anim. 2003, 33, 885–904. [Google Scholar] [CrossRef]
  17. Bock, R.; Jackson, L.; Vos, A.D.; Jorgensen, W. Babesiosis of cattle. Parasitology 2004, 129, S247–S269. [Google Scholar] [CrossRef]
  18. Homer, M.J.; Aguilar-Delfin, I.; Telford, S.R.; Krause, P.J.; Persing, D.H. Babesiosis. Clin. Microbiol. Rev. 2000, 13, 451–469. [Google Scholar] [CrossRef]
  19. Vannier, E.; Krause, P.J. Human babesiosis. N. Engl. J. Med. 2012, 366, 2397–2407. [Google Scholar] [CrossRef] [Green Version]
  20. Krause, P.J. Human babesiosis. Int. J. Parasitol. 2019, 49, 165–174. [Google Scholar] [CrossRef]
  21. Wei, Q.; Tsuji, M.; Zamoto, A.; Kohsaki, M.; Matsui, T.; Shiota, T.; Telford, S.; Ishihara, C. Human babesiosis in Japan: Isolation of Babesia microti-like parasites from an asymptomatic transfusion donor and from a rodent from an area where babesiosis is endemic. J. Clin. Microbiol. 2001, 39, 2178–2183. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Tsuji, M.; Wei, Q.; Zamoto, A.; Morita, C.; Arai, S.; Shiota, T.; Fujimagari, M.; Itagaki, A.; Fujita, H.; Ishihara, C. Human babesiosis in Japan: Epizootiologic survey of rodent reservoir and isolation of new type of Babesia microti-like parasite. J. Clin. Microbiol. 2001, 39, 4316–4322. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Kim, J.Y.; Cho, S.H.; Joo, H.N.; Tsuji, M.; Cho, S.R.; Park, I.J.; Chung, G.T.; Ju, J.W.; Cheun, H.I. First Case of Human babesiosis in Korea: Detection and characterization of a novel type of Babesia sp. (KO1) similar to ovine Babesia. J. Clin. Microbiol. 2007, 45, 2084–2087. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Marathe, A.; Tripathi, J.; Handa, V.; Date, V. Human babesiosis-a case report. Indian J. Med. Microbiol. 2005, 23, 267–269. [Google Scholar] [PubMed]
  25. Chen, Z.; Li, H.; Gao, X.; Bian, A.; Yan, H.; Kong, D.; Liu, X. Human babesiosis in China: A systematic review. Parasitol. Res. 2019, 118, 1103–1112. [Google Scholar] [CrossRef]
  26. Zheng, W.; Umemiya-Shirafuji, R.; Zhang, Q.; Okado, K.; Adjou Moumouni, F.P.; Suzuki, H.; Chen, H.; Liu, M.; Xuan, X. Porin expression profiles in Haemaphysalis longicornis ticks infected with Babesia microti. Front. Physiol. 2020, 11, 502. [Google Scholar]
  27. Hovius, J.W.; Van dam, A.P.; Fikrig, E. Tick-host-pathogen interactions in Lyme borreliosis. Trends Parasitol. 2007, 23, 434–438. [Google Scholar] [CrossRef]
  28. De la Fuente, J.; Antunes, S.; Bonnet, S.; Cabezas-Cruz, A.; Domingos, A.G.; Estrada-Peña, A.; Johnson, N.; Kocan, K.M.; Mansfield, K.L.; Nijhof, A.M.; et al. Tick-pathogen interactions and vector competence: Identification of molecular drivers for tick-borne diseases. Front. Cell. Infect. Microbiol. 2017, 7, 114. [Google Scholar] [CrossRef] [Green Version]
  29. Cabezas-Cruz, A.; Alberdi, P.; Valdes, J.J.; Villar, M.; de la Fuente, J. Remodeling of tick cytoskeleton in response to infection with Anaplasma phagocytophilum. Front. Biosci. 2017, 22, 1830–1844. [Google Scholar]
  30. Ayllón, N.; Villar, M.; Busby, A.T.; Kocan, K.M.; Blouin, E.F.; Bonzón-Kulichenko, E.; Galindo, R.C.; Mangold, A.J.; Alberdi, P.; Lastra, J.L.; et al. Anaplasma phagocytophilum inhibits apoptosis and promotes cytoskeleton rearrangement for infection of tick cells. Infect. Immun. 2013, 81, 2415–2425. [Google Scholar] [CrossRef] [Green Version]
  31. Ayllón, N.; Villar, M.; Galindo, R.C.; Kocan, K.M.; Šíma, R.; López, J.A.; Vázquez, J.; Alberdi, P.; Cabezas-Cruz, A.; Kopáček, P.; et al. Systems biology of tissue-specific response to Anaplasma phagocytophilum reveals differentiated apoptosis in the tick vector Ixodes scapularis. PLoS Genet. 2015, 11, e1005120. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Villar, M.; Ayllón, N.; Alberdi, P.; Moreno, A.; Moreno, M.; Tobes, R.; Mateos-Hernández, L.; Weisheit, S.; Bell-Sakyi, L.; de la Fuente, J. Integrated metabolomics, transcriptomics and proteomics identifies metabolic pathways affected by Anaplasma phagocytophilum infection in tick cells. Mol. Cell. Proteomics 2015, 14, 3154–3172. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Alberdi, P.; Ayllón, N.; Cabezas-Cruz, A.; Bell-Sakyi, L.; Zweygarth, E.; Stuen, S.; Cabezas-Cruz, J.L. Infection of Ixodes spp. tick cells with different Anaplasma phagocytophilum isolates induces the inhibition of apoptotic cell death. Ticks Tick. Borne Dis. 2015, 6, 758–767. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Antunes, S.; Rosa, C.; Couto, J.; Joana, F.; Domingos, A. Deciphering Babesia-vector interactions. Front. Cell. Infect. Microbiol. 2017, 7, 1–8. [Google Scholar] [CrossRef]
  35. Antunes, S.; Couto, J.; Ferrolho, J.; Sanches, G.S.; Charrez, J.M.; Cruz, H.L.; Mazuz, M.; Villar, M.; Shkap, V.; de la Fuente, J.; et al. Transcriptome and proteome response of Rhipicephalus annulatus tick vector to Babesia bigemina infection. Front. Physiol. 2019, 10, 318. [Google Scholar] [CrossRef]
  36. Espinosa, P.J.; Alberdi, P.; Villar, M.; Cabezas-Cruz, A.; de la Fuente, J. Heat shock proteins in vector-pathogen interactions: The Anaplasma phagocytophilum model in Asea, A. In Heat Shock Proteins in Veterinary Medicine and Sciences; Kaur, P., Ed.; Springer: Cham, Switzerland, 2018; pp. 375–398. [Google Scholar]
  37. Bourne, H.R.; Sanders, D.A.; McCormick, F. The GTPase superfamily: A conserved switch for diverse cell functions. Nature 1990, 348, 125–132. [Google Scholar] [CrossRef]
  38. Sprang, S.R. G protein, effectors and GAPs: Structure and mechanism. Curr. Opin. Struct. Biol. 1997, 7, 849–856. [Google Scholar] [CrossRef]
  39. Vetter, I.R.; Wittinghofer, A. The guanine nucleotide-binding switch in three dimensions. Science 2001, 294, 1299–1304. [Google Scholar] [CrossRef] [Green Version]
  40. Gradia, D.F.; Rau, K.; Umaki, A.C.; de Souza, F.S.; Probst, C.M.; Correa, A.; Holetz, F.B.; Avila, A.R.; Krieger, M.; Goldenberg, S.; et al. Characterization of a novel Obg-like ATPase in the protozoan Trypanosoma cruzi. Int. J. Parasitol. 2009, 39, 49–58. [Google Scholar] [CrossRef]
  41. Koller-Eichhorn, R.; Marquardt, T.; Gail, R.; Wittinghofer, A.; Kostrewa, D.; Kutay, U.; Kambach, C. OLA1 defines an ATPase subfamily in the Obg family of GTP-binding proteins. J. Biol. Chem. 2007, 282, 11993–19928. [Google Scholar] [CrossRef] [Green Version]
  42. Mao, R.F.; Rubio, V.; Chen, H.; Bai, L.; Mansour, O.C.; Shi, Z.Z. OLA1 protects cells in heat shock by stabilizing HSP70. Cell Death Dis. 2013, 4, e491. [Google Scholar] [CrossRef] [PubMed]
  43. Schultz, A.; Olorundami, O.A.; Teng, R.J.; Jarzembowski, J.; Shi, Z.Z.; Kumar, S.N.; Pritchard, K.J.; Konduri, G.G.; Afolayan, A.J. Decreased OLA1 (Obg-Like ATPase-1) expression drives ubiquitin-proteasome pathways to downregulate mitochondrial SOD2 (superoxide dismutase) in persistent pulmonary hypertension of the newborn. Hypertension 2019, 74, 957–966. [Google Scholar] [CrossRef] [PubMed]
  44. Zhang, J.; Rubio, V.; Lieberman, M.W.; Shi, Z.Z. OLA1, an Obg-like ATPase, suppresses antioxidant response via nontranscriptional mechanisms. Proc. Natl. Acad. Sci. USA 2009, 106, 11536–15356. [Google Scholar] [CrossRef] [Green Version]
  45. Jeyabal, P.V.; Rubio, V.; Zhang, J.W.; Shi, Z.Z. Role of OBG like ATPase 1 (OLA1) in F-actin polymerization and cell adhesion. In Proceedings of the 104th Annual Meeting of the American Association for Cancer Research, Washington, DC, USA, 6 April 2013. [Google Scholar]
  46. Balasingam, N. Elucidating the Role of Human Obg Like ATPase1 (hOLA1) in Apoptosis. Master’ Thesis, University of Lethbridge, Lethbridge, AB, Canada, 2017. [Google Scholar]
  47. Jaworski, D.C.; Higgins, J.A.; Radulovic, S.; Vaughan, J.A.; Azad, A.F. Presence of calreticulin in vector fleas (Siphonaptera). J. Med. Entomol. 1996, 33, 482–489. [Google Scholar] [CrossRef] [PubMed]
  48. Ferreira, C.A.; Da Silva, V.I.; da Silva, S.S.; Haag, K.L.; Valenzuela, J.G.; Masuda, A. Cloning and partial characterization of a Boophilus microplus (Acari: Ixodidae) calreticulin. Exp. Parasitol. 2002, 101, 25–34. [Google Scholar] [CrossRef]
  49. Valenzuela, J.G.; Pham, V.M.; Garfield, M.K.; Francischetti, I.M.; Ribeiro, J.M. Toward a description of the sialome of the adult female mosquito Aedes aegypti. Insect Biochem. Mol. Biol. 2002, 32, 1101–1122. [Google Scholar] [CrossRef]
  50. Suchitra, S.; Joshi, P. Characterization of Haemonchus contortus calreticulin suggests its role in feeding and immune evasion by the parasite. Biochim. Biophys. Acta 2005, 1722, 293–303. [Google Scholar] [CrossRef]
  51. Suchitra, S.; Anbu, K.A.; Rathore, D.K.; Mahawar, M.; Singh, B.P.; Joshi, P. Haemonchus contortus calreticulin binds to C-reactive protein of its host, a novel survival strategy of the parasite. Parasite Immunol. 2008, 30, 371–374. [Google Scholar] [CrossRef]
  52. Gao, J.; Luo, J.; Fan, R.; Fingerle, V.; Guan, G.; Liu, Z.; Li, Y.; Zhao, H.; Ma, M.; Liu, J.; et al. Cloning and characterization of a cDNA clone encoding calreticulin from Haemaphysalis qinghaiensis (Acari: Ixodidae). Parasitol. Res. 2008, 102, 737–746. [Google Scholar] [CrossRef]
  53. Kim, T.K.; Ibelli, A.M.; Mulenga, A. Amblyomma americanum tick calreticulin binds C1q but does not inhibit activation of the classical complement cascade. Ticks Tick Borne Dis. 2015, 6, 91–101. [Google Scholar] [CrossRef] [Green Version]
  54. Antunes, S.; Merino, O.; Lérias, J.; Domingues, N.; Mosqueda, J.; de la Fuente, J.; Domingos, A. Artificial feeding of Rhipicephalus microplus female ticks with anti calreticulin serum do not influence tick and Babesia bigemina acquisition. Ticks Tick Borne Dis. 2015, 6, 47–55. [Google Scholar] [CrossRef] [PubMed]
  55. Shi, X.; Zhang, S.; Pang, Q. Vitellogenin is a novel player in defense reactions. Fish Shellfish. Immunol. 2006, 20, 769–772. [Google Scholar] [CrossRef] [PubMed]
  56. Fischer, M.; Regitz, C.; Kull, R.; Boll, M.; Wenzel, U. Vitellogenins increase stress resistance of Caenorhabditis elegans after Photorhabdus luminescens infection depending on the steroid-signaling pathway. Microbes Infect. 2013, 15, 569–578. [Google Scholar] [CrossRef] [PubMed]
  57. Renshaw, M.; Hurd, H. The effects of Onchocerca lienalis infection on vitellogenesis in the British blackfly, Simulium ornatum. Parasitology 1994, 109, 337–343. [Google Scholar] [CrossRef]
  58. Ahmed, A.M.; Maingon, R.; Romans, P.; Hurd, H. Effects of malaria infection on vitellogenesis in Anopheles gambiae during two gonotrophic cycles. Insect Mol. Biol. 2001, 10, 347–356. [Google Scholar] [CrossRef]
  59. Li, Z.; Zhang, S.; Liu, Q. Vitellogenin functions as a multivalent pattern recognition receptor with an opsonic activity. PLoS ONE 2008, 3, e1940. [Google Scholar] [CrossRef] [Green Version]
  60. Garcia, J.; Munro, E.S.; Monte, M.M.; Fourrier, M.C.; Whitelaw, J.; Smail, D.; Ellis, A.E. Atlantic salmon (Salmo salar L.) serum vitellogenin neutralises infectivity of infectious pancreatic necrosis virus (IPNV). Fish Shellfish Immunol. 2010, 29, 293–297. [Google Scholar] [CrossRef]
  61. Guo, Y.J.; Dong, S.Z.; Yang, X.L.; Cheng, L.; Wan, F.H.; Liu, S.S.; Zhou, X.P.; Ye, G.Y. Enhanced vitellogenesis in a whitefly via feeding on a begomovirus-infected plant. PLoS ONE 2012, 7, e43567. [Google Scholar] [CrossRef] [Green Version]
  62. Boldbaatar, D.; Umemiya-Shirafuji, R.; Liao, M.; Tanaka, T.; Xuan, X.; Fujisaki, K. Multiple vitellogenins from the Haemaphysalis longicornis tick are crucial for ovarian development. J. Insect Physiol. 2010, 56, 1587–1598. [Google Scholar] [CrossRef]
  63. Agbede, R.; Kemp, D.H.; Hoyte, H.M. Babesia bovis infection of secretory cells in the gut of the vector tick Boophilus microplus. Int. J. Parasitol. 1986, 16, 109–114. [Google Scholar] [CrossRef]
  64. Umemiya-Shirafuji, R.; Mihara, R.; Fujisaki, K.; Suzuki, H. Intracellular localization of vitellogenin receptor mRNA and protein during oogenesis of a parthenogenetic tick, Haemaphysalis longicornis. Parasit. Vectors 2019, 12, 205. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Hirata, H.; Kawai, S.; Maeda, M.; Jinnai, M.; Fujisawa, K.; Katakai, Y.; Hikosaka, K.; Tanabe, K.; Yasutomi, Y.; Ishihara, C. Identification and phylogenetic analysis of Japanese Macaque Babesia-1 (JM-1) detected from a Japanese Macaque (Macaca fuscata fuscata). Am. J. Trop. Med. Hyg. 2011, 85, 635–638. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. National Center for Biotechnology Information. Available online: https://blast.ncbi.nlm.nih.gov/Blast.cgi?PROGRAM=blastn&PAGE_TYPE=BlastSearch&LINK_LOC=blasthome (accessed on 15 January 2020).
  67. Kyoto Encyclopedia of Genes and Genomes. Available online: https://www.genome.jp/tools/blast/ (accessed on 15 January 2020).
  68. Bioinformatics Resource for Invertebrate Vectors of Human Pathogens. Available online: https://www.vectorbase.org/blast (accessed on 15 January 2020).
  69. Liao, M.; Zhou, J.; Gong, H.; Boldbaatar, D.; Shirafuji, R.; Battur, B.; Nishikawa, Y.; Fujisaki, K. Hemalin, a thrombin inhibitor isolated from a midgut cDNA library from the hard tick Haemaphysalis longicornis. J. Insect Physiol. 2009, 55, 164–173. [Google Scholar] [CrossRef] [PubMed]
  70. Hatta, T.; Umemiya, R.; Liao, M.; Gong, H.; Harnnoi, T.; Tanaka, M.; Miyoshi, T.; Boldbaatar, D.; Battsetseg, B.; Zhou, J.; et al. RNA interference of cytosolic leucine aminopeptidase reduces fecundity in the hard tick, Haemaphysalis longicornis. Parasitol. Res. 2007, 100, 847–854. [Google Scholar] [CrossRef] [PubMed]
  71. Boldbaatar, D.; Battur, B.; Umemiya-Shirafuji, R.; Liao, M.; Tanaka, T.; Fujisaki, K. GATA transcription, translation and regulation in Haemaphysalis longicornis tick: Analysis of the cDNA and an essential role for vitellogenesis. Insect Biochem. Mol. Biol. 2010, 40, 49–57. [Google Scholar] [CrossRef] [PubMed]
  72. Kawano, S.; Umemiya-Shirafuji, R.; Boldbaatar, D.; Matsuoka, K.; Tanaka, T.; Fujisaki, K. Cloning and characterization of the autophagy-related gene 6 from the hard tick, Haemaphysalis longicornis. Parasitol. Res. 2011, 109, 1341–1349. [Google Scholar] [CrossRef]
Pathogens 09 00378 g001 550
Figure 1. Representation of up-regulated tick sequences in B. microti-infected H. longicornis females.
Figure 1. Representation of up-regulated tick sequences in B. microti-infected H. longicornis females.
Pathogens 09 00378 g001
Pathogens 09 00378 g002 550
Figure 2. Functional grouping of tick genes highly expressed in B. microti-infected H. longicornis based on gene ontology (GO), molecular function (MF), and biological process (BP) assignments. (a) GO, MF, and BP assignments. (b) GO and BP assignments (level 2). (c) GO and MF assignments (level 2). (d) GO catalytic activity assignments. (e) GO binding assignments. (f) GO transporter activity assignments.
Figure 2. Functional grouping of tick genes highly expressed in B. microti-infected H. longicornis based on gene ontology (GO), molecular function (MF), and biological process (BP) assignments. (a) GO, MF, and BP assignments. (b) GO and BP assignments (level 2). (c) GO and MF assignments (level 2). (d) GO catalytic activity assignments. (e) GO binding assignments. (f) GO transporter activity assignments.
Pathogens 09 00378 g002
Pathogens 09 00378 g003 550
Figure 3. Representation of down-regulated tick sequences in B. microti-infected H. longicornis females.
Figure 3. Representation of down-regulated tick sequences in B. microti-infected H. longicornis females.
Pathogens 09 00378 g003
Pathogens 09 00378 g004 550
Figure 4. Functional grouping of tick genes less expressed in B. microti-infected H. longicornis based on GO, MF, and BP assignments. (a) GO, MF, and BP assignments. (b) GO and BP assignments (level 2). (c) GO and MF assignments (level 2).
Figure 4. Functional grouping of tick genes less expressed in B. microti-infected H. longicornis based on GO, MF, and BP assignments. (a) GO, MF, and BP assignments. (b) GO and BP assignments (level 2). (c) GO and MF assignments (level 2).
Pathogens 09 00378 g004
Pathogens 09 00378 g005 550
Figure 5. Differential gene expression in Babesia microti-infected and -uninfected Haemaphysalis longicornis ticks. The mRNA levels of selected differentially expressed genes were determined by real-time reverse transcription-PCR. The mRNA levels were normalized against tick GAPDH transcripts using the ddCT method (2^(−(CTtarget−CTGAPDH))). The infected/uninfected (fed/unfed) ratios represent the expression fold-change in the infected (fed) ticks calculated by dividing the mean of normalized mRNA levels in infected ticks (three ticks as a biological replicate, three replicates were done) by the mean of the normalized mRNA level in uninfected (unfed) control ticks (nine ticks in three independent biological replicates). In all tests, the mean of the duplicate values was used and data from B. microti-infected and uninfected ticks were compared using the Student’s t-test. * p < 0.05.
Figure 5. Differential gene expression in Babesia microti-infected and -uninfected Haemaphysalis longicornis ticks. The mRNA levels of selected differentially expressed genes were determined by real-time reverse transcription-PCR. The mRNA levels were normalized against tick GAPDH transcripts using the ddCT method (2^(−(CTtarget−CTGAPDH))). The infected/uninfected (fed/unfed) ratios represent the expression fold-change in the infected (fed) ticks calculated by dividing the mean of normalized mRNA levels in infected ticks (three ticks as a biological replicate, three replicates were done) by the mean of the normalized mRNA level in uninfected (unfed) control ticks (nine ticks in three independent biological replicates). In all tests, the mean of the duplicate values was used and data from B. microti-infected and uninfected ticks were compared using the Student’s t-test. * p < 0.05.
Pathogens 09 00378 g005
Table
Table 1. The unigene expression pattern in forward suppression subtraction cDNA library.
Table 1. The unigene expression pattern in forward suppression subtraction cDNA library.
Unigene(s)Sequences for the Unigene
(FSN 1)		Standardized SPK 2
Neutrophil elastase inhibitor (nei)5 sequences (46,60, 99, 203, 371)0.0717
Cytochrome c oxidase subunit VII1 sequence (87)0.0217
Cathepsin L-like cysteine protease (clcp)2 sequences (15, 31)0.0206
Acyl-CoA-binding protein1 sequence (287)0.0177
Putative secreted salivary peptide1 sequence (220)0.0156
Cytochrome b52 sequences (368, 388)0.0151
Cathepsin B-like cysteine protease (cbcp1)2 sequences (105, 380)0.0132
1 FSN, clone number in the forward suppression subtractive hybridization (SSH) cDNA library of Table S1. The numbers in the bracket are clone-specific numbers in the forward SSH cDNA. 2 SPK, standardized sequences per kilobase.
Table
Table 2. Response to stimulus- and immune system process-related tick genes in forward suppression subtraction cDNA library.
Table 2. Response to stimulus- and immune system process-related tick genes in forward suppression subtraction cDNA library.
GeneFunction
Calreticulin (crt)Response to stimulus
Cbcp1Response to stimulus/immune system process
Chemosensory protein CSP5Response to stimulus
Leukocyte receptor cluster member 8 (lr8)Immune system process
IgE-dependent histamine release factor (ihr)Immune system process
Heat shock 70 kDa protein 5(hsp5)Response to stimulus
NeiResponse to stimulus
Obg-like ATPase 1(ola1)Response to stimulus
Ubiquitin-like protein FUBI (fubi)Response to stimulus/immune system process
Vgs1Response to stimulus
YTH domain-containing family protein 1(yth)Immune system process
1Vgs include H. longicornis vitellogenin 1, H. longicornis vitellogenin 2, Haemaphysalis flava vitellogenin-like Vg(VgHf), and Dermacentor variabilis vitellogenin-like Vg (VgDv).
Table
Table 3. Evaluation of engorged female weight and blood feeding period of B. microti-infected and -uninfected H. longicornis female ticks injected with specific dsRNA.
Table 3. Evaluation of engorged female weight and blood feeding period of B. microti-infected and -uninfected H. longicornis female ticks injected with specific dsRNA.
GroupTarget Genes
for RNAi		nGene Silencing (%)
(Mean ± S.D.)		EFW (mg)
(Mean ± S.D.)		BFP (d)
(25% Percentile–75% Percentile)
InfectedCrt1684.97 ± 2.6765.44 ± 22.32 a 6.00–7.00 a
Ola11696.48 ± 0.37116.26 ± 12.586.75–9.00
Vg11465.83 ± 2.4668.71 ± 20.77 a7.00–9.00 a
Vg21682.04 ± 2.37110.89 ± 26.036.00–6.00 a
Control16-101.30 ± 7.847.00–7.00
Uninfected Crt1293.91 ± 1.2375.88 ± 5.605.75–7.00
Ola11297.44 ± 0.7488.30 ± 6.445.00–5.75 a
Vg11498.82 ± 0.1392.06 ± 7.626.00–7.00
Control16-82.52 ± 13.786.25–7.75
Gene knockdown was analyzed by real-time PCR in six ticks per group by comparing mRNA levels between specific dsRNA-injected and control ticks. EFW, engorged female weight; BFP, blood feeding period; a, statistical difference (p < 0.05) was analyzed in EFW by the Student′s t test and in BFP by the Mann-Whitney test when the dsRNA-injected group was compared to the control group.
Table
Table 4. Babesia microti infection levels after gene knockdown by RNAi in H. longicornis ticks.
Table 4. Babesia microti infection levels after gene knockdown by RNAi in H. longicornis ticks.
GeneB. microti Burdens (Mean ± S.D.)Test/Control
(Mean ± S.D.)
Crt0.26 ± 0.060.95 ± 0.21
Ola10.34 ± 0.081.25 ± 0.29
Vg 10.26 ± 0.080.94 ± 0.22
Vg 20.14 ± 0.030.51 ± 0.10 a
Control0.27 ± 0.05-
a, statistical difference (p < 0.05) when compared to the control group.

Share and Cite

MDPI and ACS Style

Zheng, W.; Umemiya-Shirafuji, R.; Chen, S.; Okado, K.; Adjou Moumouni, P.F.; Suzuki, H.; Yang, S.; Liu, M.; Xuan, X. Identification of Haemaphysalis longicornis Genes Differentially Expressed in Response to Babesia microti Infection. Pathogens 2020, 9, 378. https://doi.org/10.3390/pathogens9050378

AMA Style

Zheng W, Umemiya-Shirafuji R, Chen S, Okado K, Adjou Moumouni PF, Suzuki H, Yang S, Liu M, Xuan X. Identification of Haemaphysalis longicornis Genes Differentially Expressed in Response to Babesia microti Infection. Pathogens. 2020; 9(5):378. https://doi.org/10.3390/pathogens9050378

Chicago/Turabian Style

Zheng, Weiqing, Rika Umemiya-Shirafuji, Shengen Chen, Kiyoshi Okado, Paul Franck Adjou Moumouni, Hiroshi Suzuki, Shu Yang, Mingming Liu, and Xuenan Xuan. 2020. "Identification of Haemaphysalis longicornis Genes Differentially Expressed in Response to Babesia microti Infection" Pathogens 9, no. 5: 378. https://doi.org/10.3390/pathogens9050378

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
