A Novel Radially Closable Tubular Origami Structure (RC-ori) for Valves

Abstract

Cylindrical Kresling origami structures are often used in engineering fields due to their axial stretchability, tunable stiffness, and bistability, while their radial closability is rarely mentioned to date. This feature enables a valvelike function, which inspired this study to develop a new origami-based valve. With the unique one-piece structure of origami, the valve requires fewer parts, which can improve its tightness and reduce the cleaning process. These advantages meet the requirements of sanitary valves used in industries such as the pharmaceutical industry. This paper summarizes the geometric definition of the Kresling pattern as developed in previous studies and reveals the similarity of its twisting motion to the widely utilized iris valves. Through this analogy, the Kresling structure’s closability and geometric conditions are characterized. To facilitate the operation of the valve, we optimize the existing structure and create a new crease pattern, RC-ori. This novel design enables an entirely closed state without twisting. In addition, a simplified modeling method is proposed in this paper for the non-rigid foldable cylindrical origami. The relationship between the open area and the unfolded length of the RC-ori structure is explored based on the modeling method with a comparison with nonlinear FEA simulations. Not only limited to valves, the new crease pattern could also be applied to microreactors, drug carriers, samplers, and foldable furniture.

1. Introduction

In recent years, continuous manufacturing (CM) technology in the pharmaceutical industry has been a hot topic [1]. Continuous feeding, as the front-end process of CM, has an important influence on the uniformity of material, which in turn determines the quality of the resulting product. Most continuous feeding equipment are loss-in-weight feeders (Figure 1), including ConsiGma${}^{\circledR }$ [2], the powder-to-tablet CM solution developed by GEA Group, MODCOS [3], and Glatt GmbH’s concept. To maintain uninterrupted operations, a sufficient amount of material must be present in the hopper, which means the refilling process is essential. Additionally, this process is the main cause of deviation. When the refilling device is turned on, the rapid increase in material density causes the powder to flow uncontrollably through the screw, resulting in overfeeding. Engisch and Muzzio [4] analyzed various methods currently applied to address the problem and proposed that the deviation could be reduced by gently controlling the refill flow to replenish the feeder hopper.

There are several types of refill devices, including knife valves, modulating butterfly valves, and rotary valves [5]. The rotary valve can only roughly control the material flow, and it may tend to block when dealing with materials with poor fluidity [5]. Butterfly valves are not recommended for half-opening applications because their gaskets are prone to wear, and the valve disc is located in the middle of the flow path, which causes some damage to the product [6]. The same problems also exist in knife valves. In addition, on–off valves are not recommended to control flow [7]. Given the preceding, it is necessary to create a new flow control valve for pharmaceutical continuous feeders. It needs to comply with sanitary valve standards and avoid the above problems. A one-piece origami structure may provide an effective solution to these issues.

Origami technology, which originated in China and was popular in Japan, has been widely used in various fields. In addition to the typical applications used in aerospace (solar panels [8], inflatable booms [9], bellows for harsh environment [10], drilling-debris containment [11], and antennas [12]), medical support systems [13], robotic grippers [14], energy-absorbing devices [15,16], mechanical metamaterials [17], and even generators [18] also use origami for innovative research. Widely used origami crease patterns in engineering include Miura-ori, Yoshimura, waterbomb, Kresling, twist square, and Resch [19,20,21]. A variety of geometric forms can be created from these patterns, such as checkerboard, spiral, cylindrical, and spherical. Among them, cylindrical origami is highly suitable for valve design. Not only the structural shape is similar to the valve, but it can also support loads while offering tunable mechanical responses [22]. Typical cylindrical origami patterns include Yoshimura [23], Kresling [24], waterbomb [25], and Tachi–Miura [23] (Figure 2). Unlike the aerospace engineering field, which focuses on deployability, stowability, and portability [26], the valve is more concerned with the flat-foldability, radial closability, and the end shape’s consistency. The Kresling cylindrical structure can satisfy the above three points simultaneously.

The Kresling pattern was accidentally discovered in 1993 by a student of Biruta Kresling during a bionic class [27]. Almost simultaneously, Guest and Pellegrino also found a similar triangulated cylinder [28]. Over the past thirty years, the Kresling pattern has been used in many fields [8,9,10,11,12,13,14,15,16,17,18], and its monostable/bistable properties [29,30,31,32], non-rigid foldability [33,34,35,36], and flat-foldability [37,38] have attracted many researchers’ attentions. An analysis by Kidambi and Wang [30] showed that by changing the geometric parameters, the energy distribution of the Kresling pattern could be changed between monostable, asymmetric bistable, and symmetric bistable states. Masana and Daqaq [31] performed a detailed static analysis of the Kresling crease and constructed five springs with different properties. Cai et al. [29,34] demonstrated that the Kresling structure is non-rigid foldable and has a bistable behavior. Bhovad and Li [37] proposed a “generalized” Kresling pattern that can feature a non-zero length when fully folded. Apart from these, there are still many other characteristics to be explored, for example, radial closability, which is an essential feature when designing valves.

Twisting and folding the Kresling structure creates a diaphragm perpendicular to the tube axis [39]. Radial closability refers to the fact that, when the diaphragm intersects the tube axis, a complete barrier is created within the tube, which works similarly to the iris valve (Figure 3b). Iris valves, also known as diaphragm valves, are generally used for discharging the hoisted materials. They may be a good option for continuous feeding refill devices since they can ensure the integrity and uniformity of the material. However, their flexible sleeves make them impossible to support load and control flow accurately. Arora et al. [40] proposed a stiffness-based design approach for a compliant iris mechanism, but the sleeve is still a necessary component when used in valves. The Kresling structure may help to solve the problems. First, the inner diameter of the Kresling tube can be precisely adjusted by controlling the vertical length. Second, the Kresling panels can be rigid enough to withstand the load compared with the iris flexible sleeves, and the fully folded (unfolded) state of Kresling is a stable one without panel deformation. Additionally, the one-piece structure makes the valve easy to clean and assemble. To the best of our knowledge, the radial closability of the Kresling structure is rarely studied, and no one mentions its potential for valves when the diaphragm is fully closable.

Nevertheless, the inherent coupled twisting motion of the Kresling structure requires more parts and actuation design for the valve. Therefore, a new crease pattern is created in this paper, named RC-ori(radial closable origami). It enables a completely closed state without creating the undesired twisting, which reduces parts and simplifies assembly for easy cleaning and sealing. Moreover, this new structure is non-rigidly foldable like most cylindrical origami. Rigid foldability means that the small planes remain consistent during the continuous folding movement [23]. Cai et al. [34] conducted studies on the non-rigid foldability of cylindrical Kresling creases. Ma et al. [41] offered a mixed mode of mechanism–structure–mechanism transition in the folding process of the tubular waterbomb structure. Miura and Tachi [23] mentioned that the Yoshimura cylinder is not continuously foldable, and they created a rigid foldable cylindrical origami by combining Miura-ori and its mirror pattern. Non-rigid foldable structures often face challenges when modeling. Cai et al. [42] proposed to treat the crease as an axially deformed truss, which has been shown to be effective. Adding additional virtual folds to the triangular panels is also a good approach when studying the deformation of the panels [43]. In this paper, we propose a different method for the kinematic analysis of the new structure, which makes the structure a kirigami by eliminating the over-constraint of the connections between the elements.

The main contributions of this paper are summarized here:

i

The radial closability of the Kresling structure is first studied targeting for valve applications.

ii

A new crease pattern is created without twisting motion for the valve application.

iii

A simplified kinematic modeling method is proposed for the non-rigid foldable cylindrical origami.

This paper is organized as follows. Section 2 describes the geometric definition of the general Kresling pattern and its radial closability. Section 3 introduces a new crease pattern, RC-ori. By analyzing its non-rigid foldability, a simplified kirigami modeling method is proposed for the kinematic analysis. Section 4 is the conclusion. This new design can be used not only for valves but also for microreactors, drug carriers, samplers, and foldable furniture.

2. Radial Closability of the Kresling Pattern

2.1. Geometric Definition of the Kresling Pattern

The geometric definition of the Kresling pattern is established before exploring its radial closability. This paper only discusses the single-stacked Kresling structure and assumes that the tube ends remain parallel during the folding process. It is generally accepted that the Kresling structure is a cylinder composed of multiple parallelograms, each of which is separated diagonally by a valley crease (Figure 4). Biruta [24,39] narrowed this definition according to the shape generated by natural twist buckling:

(1)

The parallelograms are inclined and elongated;

(2)

The valley-folds are long diagonals;

(3)

The structure will create a two-dimensional diaphragm perpendicular to the axis of the cylinder when fully collapsed;

(4)

The axial length of the fully deployed diaphragm is less than the diameter of the cylinder (Figure 4b).

Under these conditions, Biruta [27] concluded that three parameters could fully define the natural Kresling pattern: modes, chirality, and the number of polygonal sides. However, most researchers use different parameters from a purely geometric perspective. For example, some researchers use the number of polygonal sides, the side length of the polygon (or the cylinder radius), and a planar angular fraction [32,33]. Similarly, Kidambi and Wang [30] considered the third parameter as a stress-free orientation angle, and Hunt and Ario [44] considered it as the axial length. Sargent et al. [13] and Herron [45] defined the Kresling structure by the outer diameter, folded-state inner diameter, and the number of polygonal sides.

Nevertheless, manual replication can create cylinders with different Kresling patterns [24]. In general, at least four parameters are needed to define the pattern in this case [31,35,46]. For example, when the valley-folds are short diagonals, four parameters are required to determine the crease uniquely. This structure can be applied to metamaterials [17] and non-volatile mechanical memory storage devices [47]. Meanwhile, four parameters are also required when the diaphragm thickness is non-zero in the fully folded state. Bhovad et al. [37] and Berre et al. [48] investigated the properties of this particular structure, which provided new ideas for Kresling’s design. A special case arises when using parallelograms such as rhombus [49] or rectangles [12]. Only three parameters are required since the basic elements only need two parameters to define. The rectangular Kresling pattern will be used in the next section on the Kresling structure’s radial closability.

The suitable parameters and their value range are defined here based on the above studies. Since a flat 2D diaphragm is easy to operate and control for the valve, conditions (2) and (3) are necessary. The diagonal length is a crucial parameter, as the diagonal is folded towards the tube axis and forms the inner polygon during the folding process [27]. When the diagonal length is larger than the cylinder diameter, the 2D diaphragm cannot be formed. Conversely, when the diagonal length is less than or equal to the diameter of the cylinder, it is possible to generate the 2D diaphragm. Still, it depends on the covered angle $\alpha$ because the panels will partially overlap when generating the diaphragm (Figure 4), then, we have the following expression:

$$\frac{(n-2)\pi }{n}=\pi -2\alpha$$

(1)

Thus,

$$\alpha =\frac{\pi }{n}$$

(2)

In this condition, three parameters can completely define the Kresling pattern: the number of polygonal sides n, the side length of the polygon c, and the diagonal length l. The following are their value ranges:

(a)

$n\ge 3,n\in N^{+}$;

(b)

$c>0$;

(c)

$0<l\le c/sin\frac{\pi }{n}$

2.2. Radial Closability of the Kresling Pattern

Radial closability refers to the intersection of the diagonal of each element with the tube axis when fully folded, which creates a barrier that completely closes the tube. It is different from the closure condition stated by Zhang et al. [50], which refers to the horizontal creases that constitute regular polygons from the initial planar configuration to the folded configuration. The radial closure conditions can be derived from the fully folded state since the diagonal’s midpoint falls at the polygon’s center (Figure 5). Then,

$$l=c/sin\frac{\pi }{n}$$

(3)

Only two parameters (n, c) are enough to fully define a radially closable Kresling structure. Substituting Equation (2) into Equation (3), we can see that the geometric element is a rectangle rather than an inclined and elongated parallelogram (Figure 6). This can also be verified with Thales’ theorem [51].

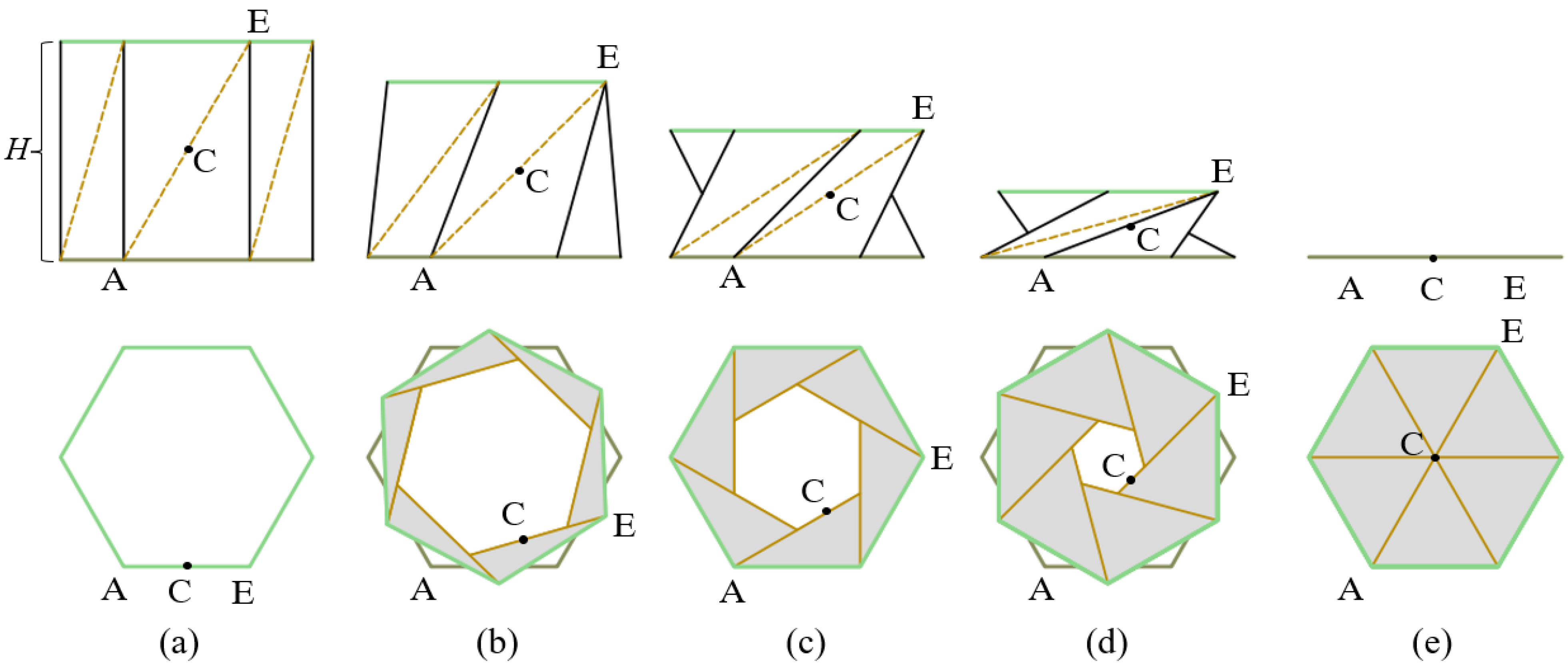

When this structure is applied to a valve, the unfolded length H between the two polygons can be used as a controllable variable (Figure 5a),

$$0\le H\le b$$

(4)

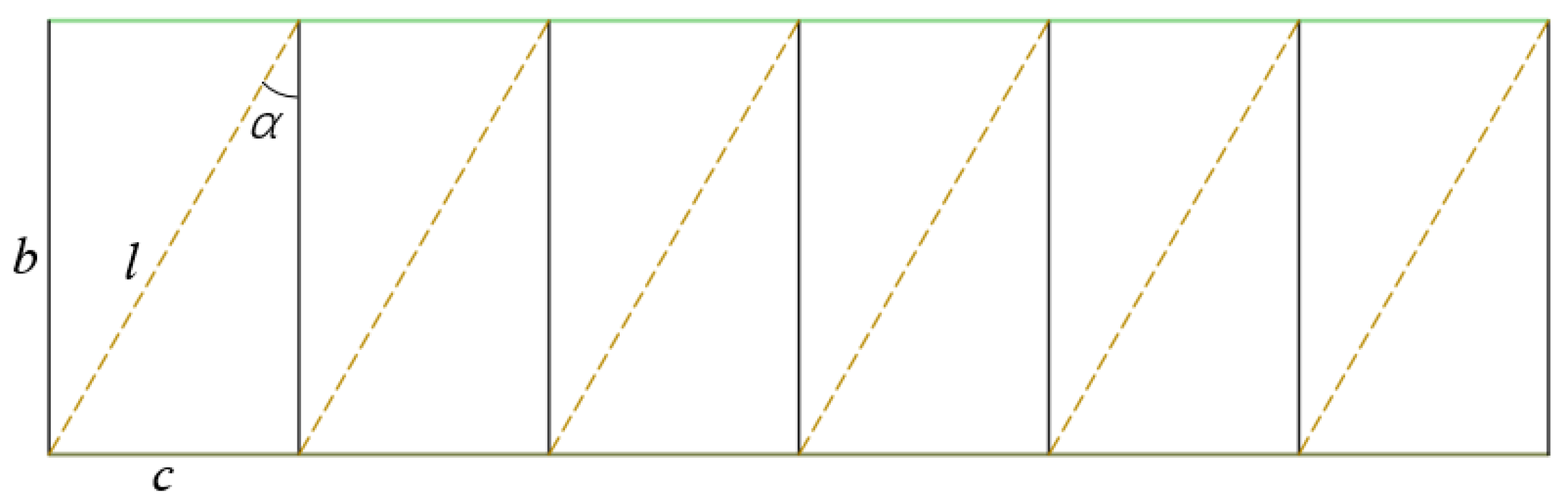

where b is the side length of the right angle (Figure 6).

$$b=\frac{c}{tan\alpha }$$

(5)

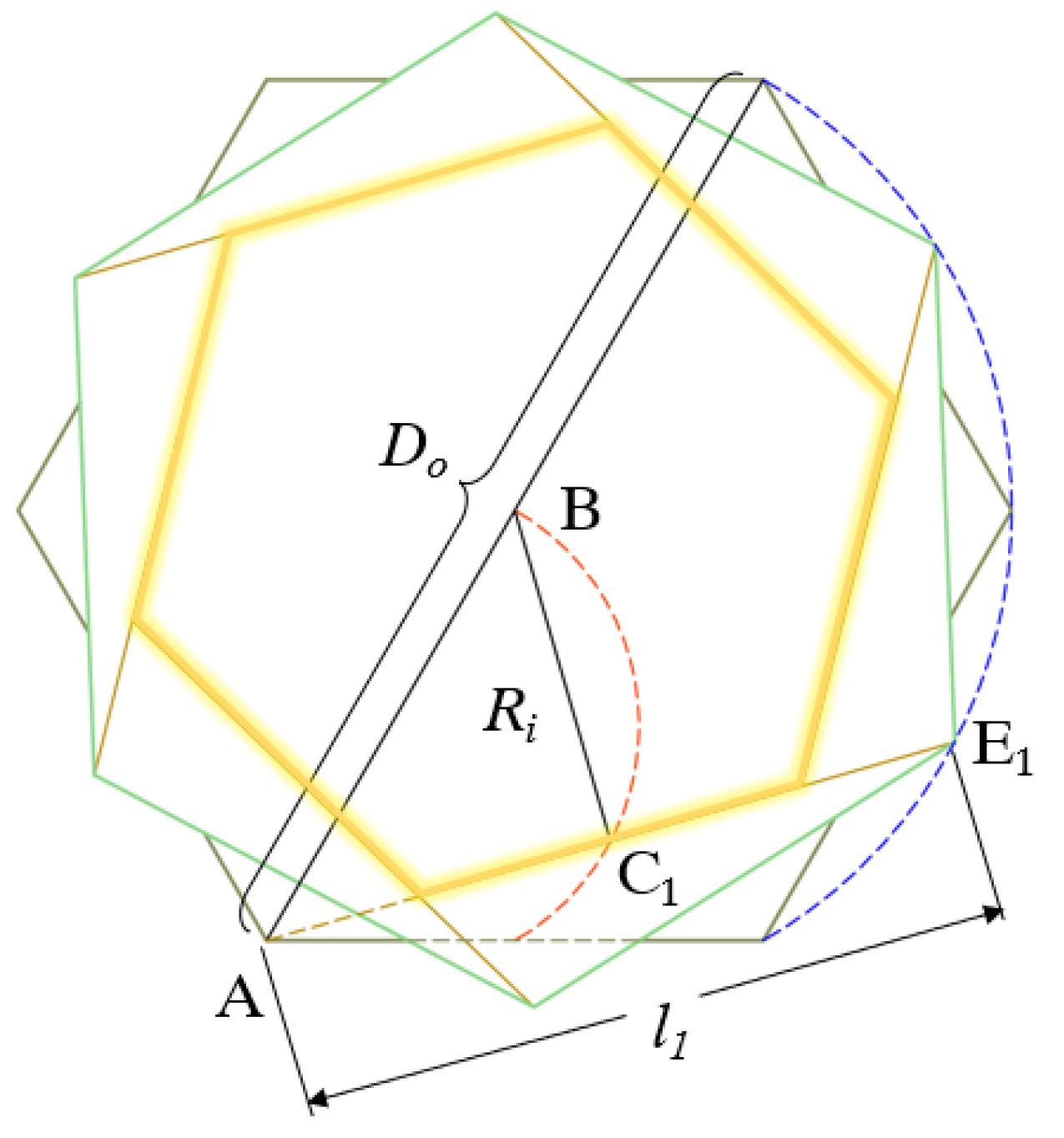

Since the Kresling structure is non-rigid foldable, we assume that the diagonal length l is constant when deriving the relationship between the inner radius $R_i$ and the unfolded length H, and the deformation only happens inside the panel. As shown in Figure 7, when point ${\mathrm{E}}_1$ moves along the big arc, the midpoint of the diagonal projection ${\mathrm{C}}_1$ moves along the small arc.

The inner radius $R_i$ equals the distance between the polygon center B and midpoint projection ${\mathrm{C}}_1$. Thus, $R_i$ can be expressed as:

$$R_i=\sqrt{{\left|\mathrm{AB}\right|}^2-{\left|\mathrm{A}{\mathrm{C}}_1\right|}^2}=\sqrt{{\left(\frac{D_o}{2}\right)}^2-{\left(\frac{l_1}{2}\right)}^2}$$

(6)

$$D_o=l$$

(7)

$$l_1=\sqrt{l^2-H^2}$$

(8)

$D_o$ is the diameter of the circumcircle, and $l_1$ is the projected length of the diagonal. Combining Equations (6)–(8), $R_i$ is written as:

$$R_i=\frac{H}{2}$$

(9)

As an important parameter in valve flow control, the area of the hollow polygonal region (inner yellow hexagon) $S_i$ can be obtained as:

$$S_i=\frac{n{H}^2}{4}tan\frac{\pi }{n}$$

(10)

The radial closability of the Kresling structure is well worth studying. In addition to the application potential of valves, other fields such as drug carriers, locking mechanisms, and folding furniture can also benefit from this feature. Multiple radially closable structures in series or parallel can even be used in microreactors or samplers. The same properties and applications are also applicable in the new crease pattern mentioned below.

3. New Radially Closable Structure(RC-ori)

Although the twisting motion of the Kresling structure has been used for many innovative designs such as generators [18], mechanical metamaterials [17], and crawling robots [33], it makes valves more difficult to manufacture and control. Avoiding the twisting motion could simplify the valve design. Although the already developed double-stacked symmetrical Kresling structure also requires no twisting, it increases the axial length. This paper, therefore, proposes a new closable mechanism that requires neither twisting motion nor additional axial length. This novel structure is named RC-ori.

The goal-directed creation process of the RC-ori is explained in detail as follows. The diaphragm consists of multiple identical isosceles triangles in the fully closed state (Figure 5e). When these isosceles triangles are drawn on flat paper, the pattern shown in Figure 8a can be obtained. The white area is folded into four overlapping right triangles along the centerline and sandwiched between the upper and lower isosceles triangles when the cylinder is fully folded. They help the isosceles triangles form the complete one-piece structure of the origami. So far, the single element of the new crease is similar to the waterbomb pattern, and the arrangement makes it look more like a Yoshimura pattern.

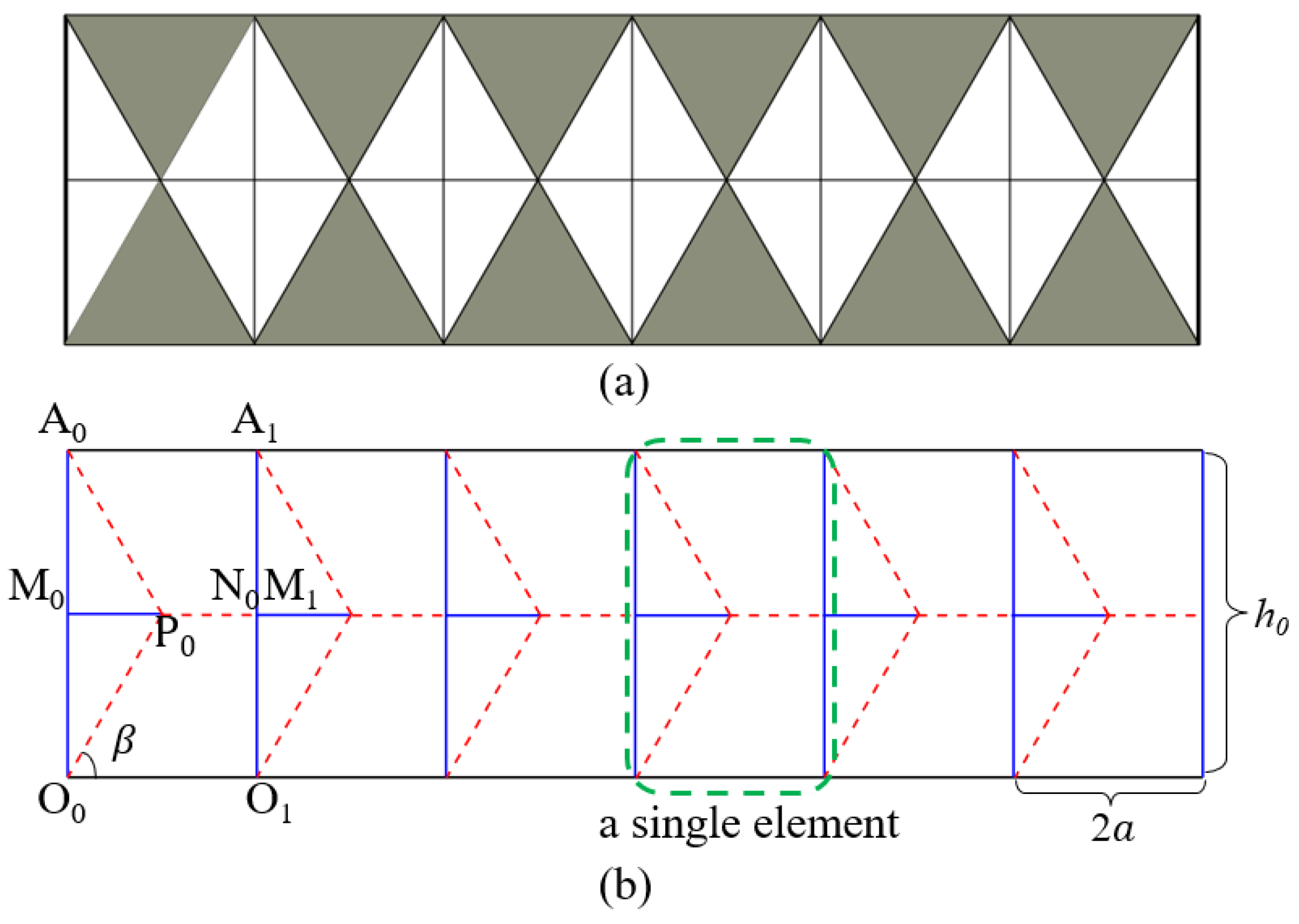

To avoid unnecessary overlap, the white areas are folded in the same direction, which means two creases are redundant in each element, as shown in Figure 8b. According to Kawasaki’s and Maekawa’s Theorems, every vertex of the RC-ori crease pattern is flat-foldable. Now, it looks like a combination of two truncated Kresling patterns with opposite chirality, which can also be used to explain why the twist motion is canceled. Meanwhile, the new crease pattern is also analogous to an irregular sequence of Miura-ori pattern. Two parameters can fully define the RC-ori crease pattern, the number of polygon sides n and the polygon side length 2a, other parameters can be derived by the following:

$$\beta =\frac{\pi }{2}-\frac{\pi }{n}$$

(11)

$$h_0=2atan\beta$$

(12)

$$d_{\mathrm{o}}=2a/cos\beta$$

(13)

where $\beta$ is the base angle of the isosceles triangle and is also half of the polygon interior angle, $h_0$ is the initial axial length of the diaphragm, and $d_o$ is the polygon circumcircle diameter.

3.1. Non-Rigid Foldability of RC-ori

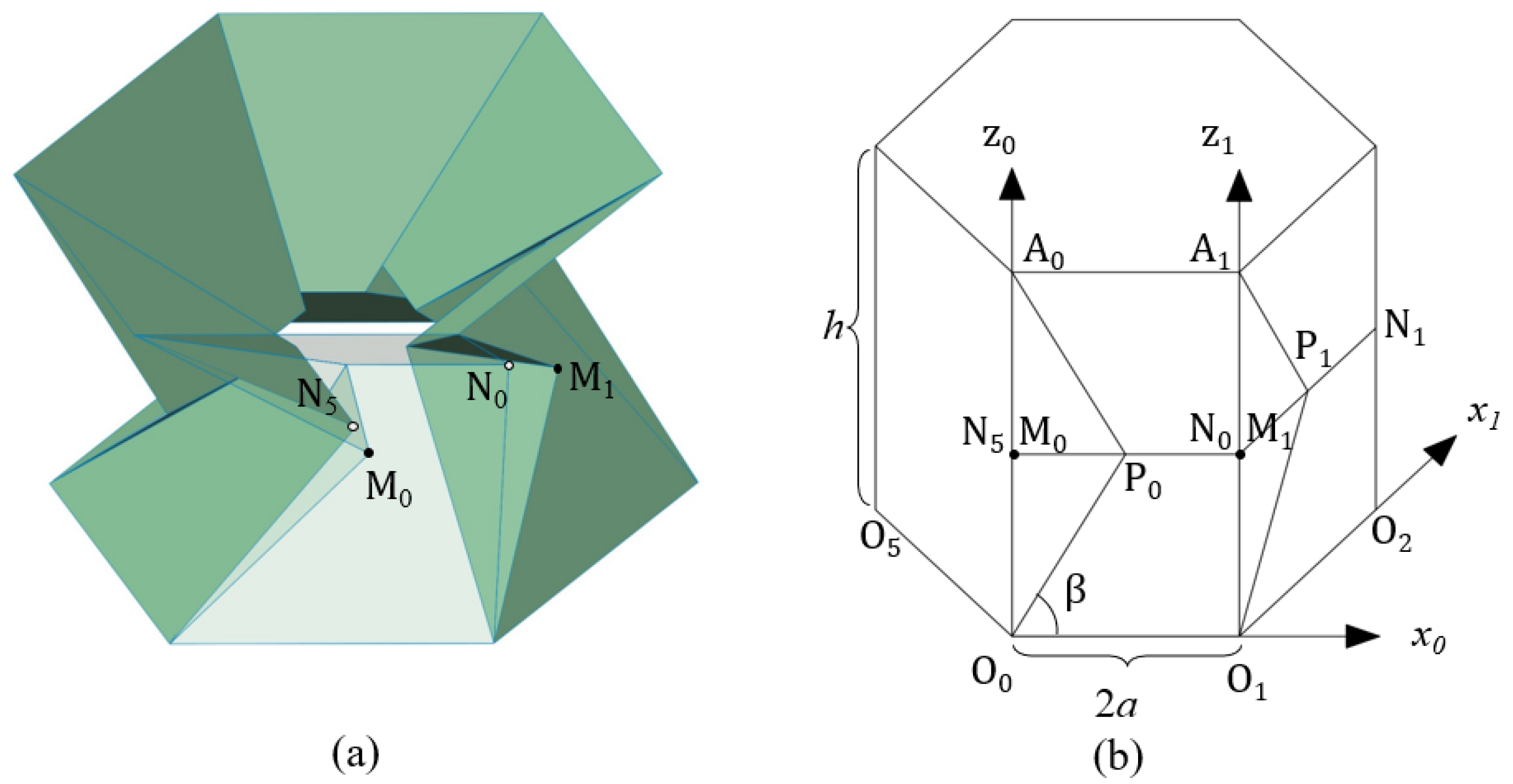

When considering a single element of RC-ori, it is a typical four-degree vertex crease pattern with one degree of freedom (Figure 8b). It is well-known that the four-degree vertex can be represented by a spherical four-bar linkage and is often used as the base model for thick origami research due to their commonality and simplicity [52,53,54,55,56,57]. By applying rigid material to the panel and revolute joints to the creases, we find that the RC-ori structure is not rigid foldable when all vertices are fixed to one another. However, it is easy to rigidly fold from a flat state to a polygonal prism. A similar feature can also be found in the Kresling structure [58]. This is because when fully defining the position of each vertex relative to its neighbors, additional constraints are created, which makes the design no longer have an available degree of freedom [33]. In short, each element has its own motion trajectory, and the motion trajectories of the connected edges do not always coincide during the folding process, as shown in Figure 9a. https://youtube.com/shorts/E0uF6XN1cNQ (accessed on 25 August 2022) (see video in Appendix A).This can be proved by establishing a coordinate system and analyzing the motion trajectories of the midpoints ${\mathrm{N}}_5$ and ${\mathrm{M}}_0$ separately. This makes the structure a kirigami model, where we cut the crease ${\mathrm{A}}_{\mathrm{i}}{\mathrm{M}}_{\mathrm{i}}\left({\mathrm{N}}_{\mathrm{i}-1}\right){\mathrm{O}}_{\mathrm{i}}$ while keeping the endpoints $({\mathrm{A}}_{\mathrm{i}}$/${\mathrm{O}}_{\mathrm{i}}$) connected. Figure 9b takes n = 6 as an example to establish the D-H coordinate system and obtains the position of each point during the folding motion, as shown in

Table 1. The position of each point in the coordinates.

Point	x	y	z
${\mathrm{A}}_0$	0	0	h
${\mathrm{A}}_1$	2a	0	h
${\mathrm{M}}_0$	$x_{M0}$	$y_{M0}$	h/2
${\mathrm{P}}_0$	a	$y_P$	h/2
${\mathrm{N}}_0$	2a	$y_P$	h/2
${\mathrm{O}}_1$	2a	0	0
${\mathrm{O}}_0$	0	0	0

.

h is the unfolded length of the diaphragm during the folding process, which is the only independent variable, and $y_P$ is the y coordinate value of point ${\mathrm{P}}_0$.

$$y_p=\sqrt{{\left(atan\beta \right)}^2-{(\frac{h}{2})}^2}$$

(14)

${\mathrm{M}}_{\mathrm{i}}$ moves around a sphere centered at ${\mathrm{O}}_{\mathrm{i}}$ and a sphere centered at ${\mathrm{P}}_{\mathrm{i}}$. ${\mathrm{N}}_{\mathrm{i}}$ is the midpoint of the connection side which moves around a sphere centered at ${\mathrm{O}}_{\mathrm{i}+1}$. The points ${\mathrm{M}}_{\mathrm{i}}$, ${\mathrm{N}}_{\mathrm{i}}$, and ${\mathrm{P}}_{\mathrm{i}}$ are at the same height. Therefore, the motion trajectory of point ${\mathrm{M}}_{\mathrm{i}}$ can be obtained by combining the Equations (15)–(17).

$$x_{M_i}{}^2+y_{M_i}{}^2+z_{M_i}{}^2={(h_0/2)}^2$$

(15)

$${\left(x_{M_i}-x_{P_i}\right)}^2+{\left(y_{M_i}-y_{P_i}\right)}^2+{\left(z_{M_i}-z_{P_i}\right)}^2=a^2$$

(16)

$$z_{M_i}=h/2$$

(17)

The position of ${\mathrm{N}}_5$ in the ${\mathrm{O}}_0$ coordinate system can be obtained by the transformation matrix (18) and Equation (19):

$${}^0{T}_1=\left[\begin{array}{cccc}cos(2\pi /n)& -sin(2\pi /n)& 0& 2a\\ sin(2\pi /n)& cos(2\pi /n)& 0& 0\\ 0& 0& 1& 0\\ 0& 0& 0& 1\end{array}\right]$$

(18)

$$N_5={\left({}^0{T}_1\right)}^5{N}_0$$

(19)

Since the z-axis coordinates of ${\mathrm{N}}_5$ and ${\mathrm{M}}_0$ are consistent, their trajectories can be expressed by the trajectories on the x–y plane. As shown in Figure 10c, we find that the position of ${\mathrm{N}}_5$ and ${\mathrm{M}}_0$ coincide in the fully folded and fully unfolded state, while their trajectories do not overlap during the folding process, which indicates that deformation occurs. Meanwhile, we suspect this is a bistable structure, but verification will need to be carried out through further analysis.

Researchers have used different methods to verify the rigid foldability of cylindrical origami [23,34,41,58,59]. This paper proposes another approach for the new structure RC-ori: under the condition that the cylindrical origami is composed of uniform elements and each element is working the same way, when a single element of the cylindrical origami structure has one degree of freedom, if the motion trajectories of the connection’s vertices do not always coincide during folding, then the design is non-rigid foldable. Although this method works well in the new structure, it may not suit all cylindrical origami.

3.2. Kinematic Analysis of RC-ori

The RC-ori structure presents different opening areas S at different unfolded lengths h, which meets the basic design requirements of flow control valves. Therefore, it is necessary to obtain the relationship between S and h to control the flow rate accurately. Since the overconstraints occurred at the connection of each element, we apply the kirigami model for the kinematic analysis, in which only the endpoints ${\mathrm{A}}_{\mathrm{i}}$ and ${\mathrm{O}}_{\mathrm{i}}$ of each element connection remain. To verify the feasibility of this arrangement, the motion trajectory of point P in the finite element analysis results and the rigidly foldable kirigami counterpart results (Equation (20)) are analyzed and compared, as shown in Figure 11. Additionally, for a better understanding, we also make some prototypes, as shown in Figure 12.

$$R_P=atan\beta -\sqrt{{\left(atan\beta \right)}^2-{(\frac{h_P}{2})}^2}$$

(20)

We set flexible material at the crease to make the structure fold along with the crease pattern in the simulation with ABAQUS. The model is a prism shell with a side length of 100 mm and a thickness of 1 mm. The crease width is 4 mm and its Young’s modulus is 0.1 MPa, while the Young’s modulus of the panels is 1 MPa (paper). We fix one end and apply a displacement of 160mm on the other end. Moreover, to make the crease fold in the desired direction, we apply a disturbance moment load of 0.005 Nmm (Figure 11a).

In Figure 11b, the x-axis is the height of the ${\mathrm{P}}_{\mathrm{i}}$ point $h_P$, and the y-axis is the distance from the ${\mathrm{P}}_{\mathrm{i}}$ point to the polygon axis $R_P$. It can be seen that there is only a small difference in the motion trajectories of the point ${\mathrm{P}}_{\mathrm{i}}$, indicating that this arrangement is applicable for the kinematic analysis.

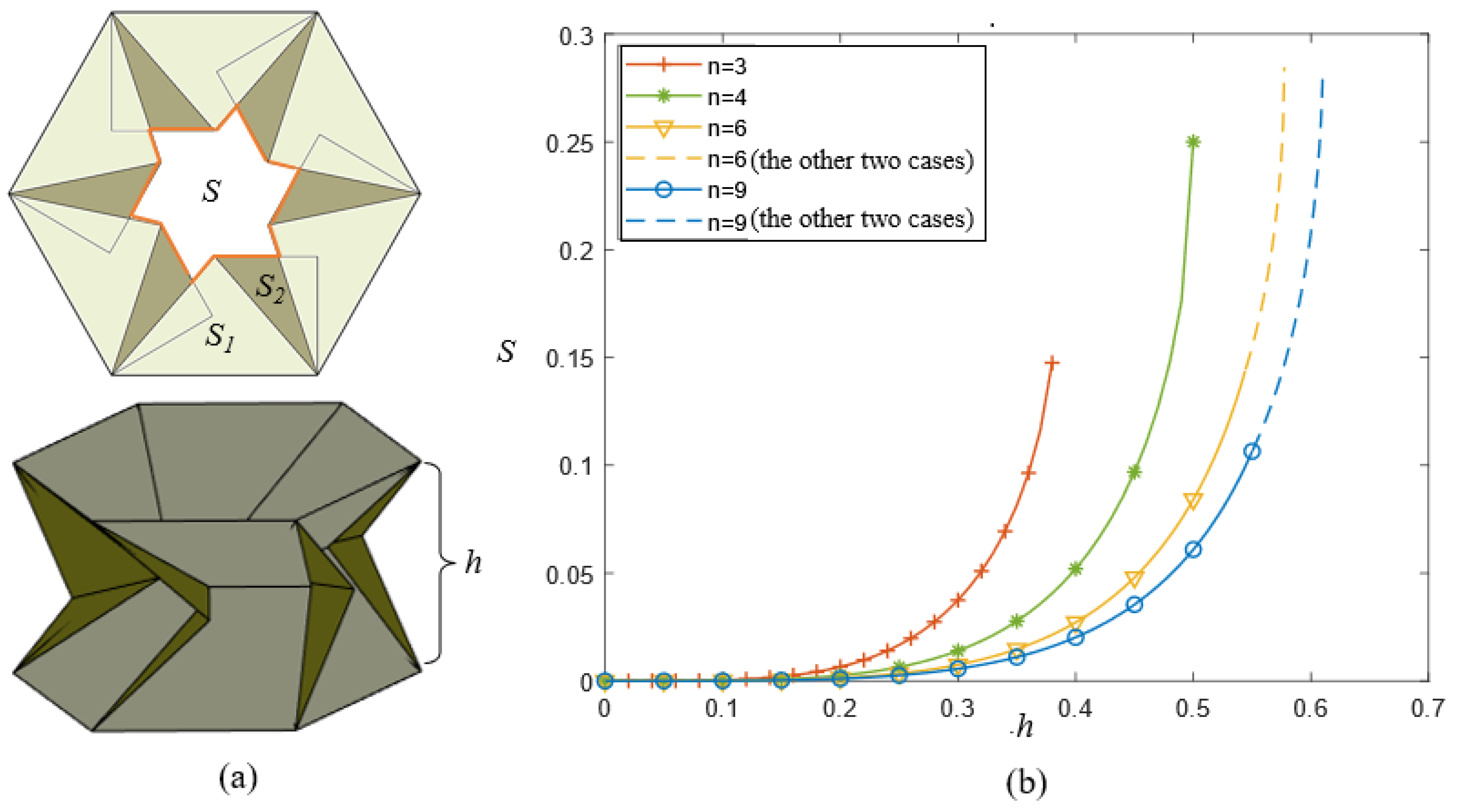

Therefore, the kinematic analysis is simplified by considering each element separately. As can be seen from Figure 13a, in the half-folded state, the open area is equal to the polygon area $S_0$ minus the covered area, which is

$$S=S_0-\left(S_1+S_2\right)$$

(21)

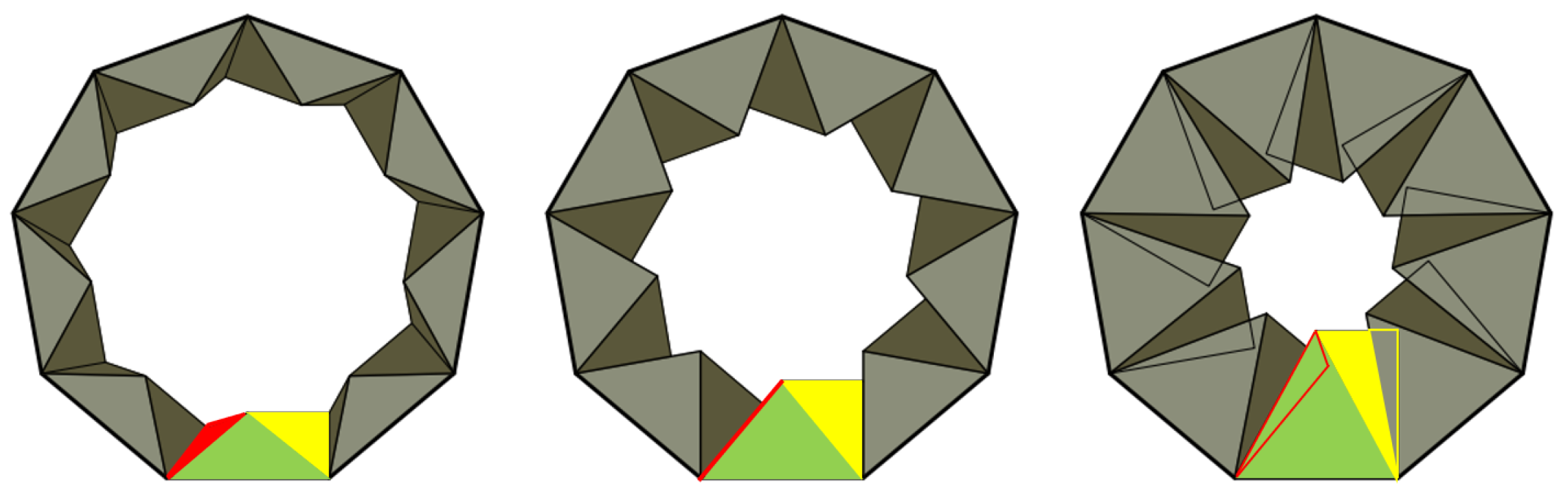

Figure 13b shows the relationship between h and S. It can be seen that there is only one circumstance for the open area when n = 3 and n = 4, while there are three cases when $n>4$, as shown in Figure 14. When it starts to fold, there are three covered triangles of each element in the top view. When it is folded to a certain extent, one of the covered triangles is overlapped. Nonetheless, the difference in the curve trend between the three cases is small. Meanwhile, when the structure is fully folded (h = 0), the tube is completely closed (S = 0), and when it is fully unfolded (h = $h_0$), the opening area is equal to the polygonal area (S = $S_0$), which meets the valve control requirement well. Figure 13b also shows that the adjustment range of the opening area expands with the increase in n, and the expansion is insignificant when $n>6$, which means the hexagonal prism(n = 6) is an ideal option for modeling.

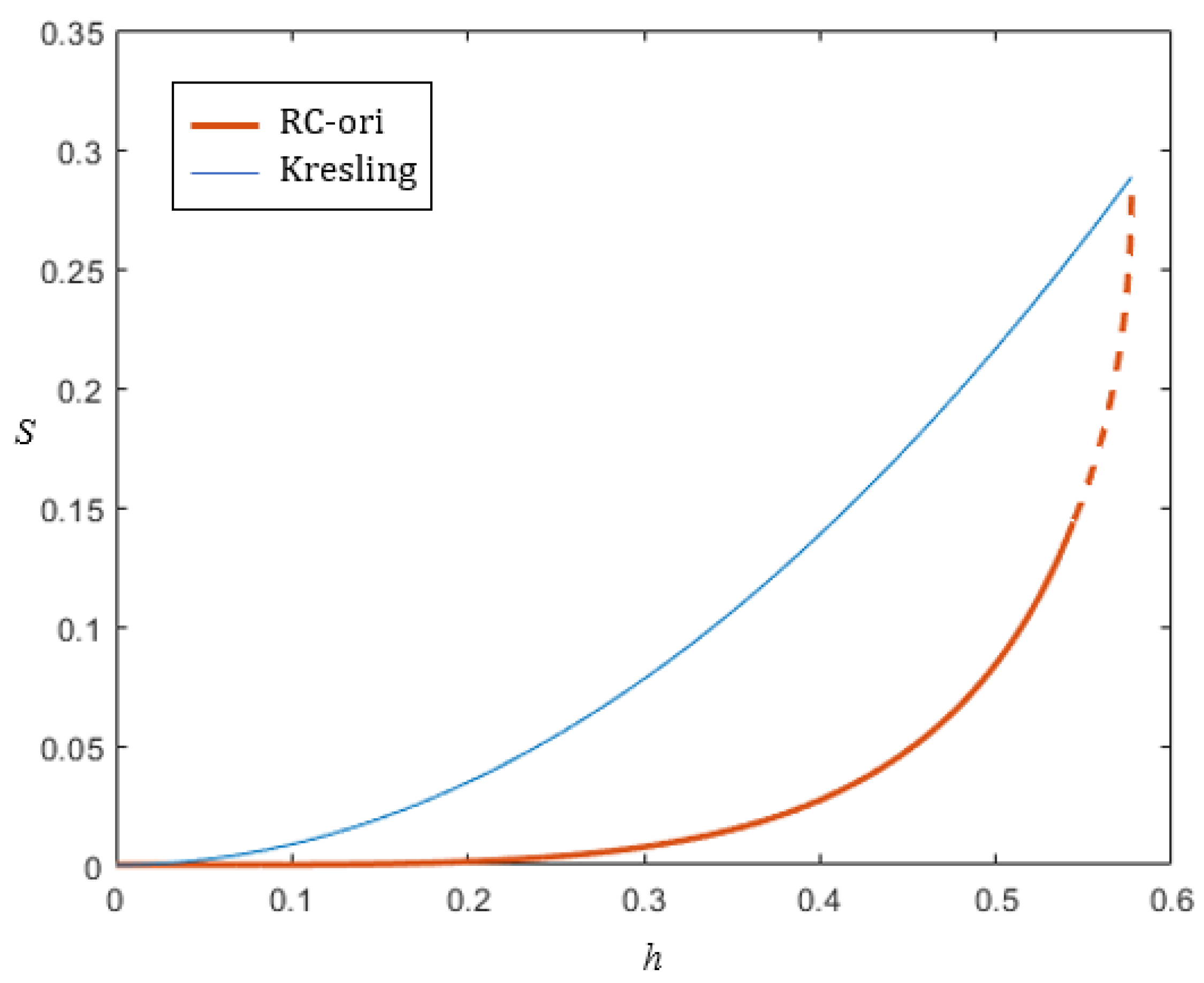

More importantly, when comparing with the Kresling structure, as shown in Figure 15, the RC-ori design is ideal for micro-feed control because there is little change in the opening area when the tube is folded to a certain extent.

4. Conclusions

Oriented by the application of the valve, this paper analyzes the geometry and the radial closability of the Kresling structure and proposes its potential for valve application. Additionally, a new crease pattern (RC-ori) is created to avoid a twisting motion, which can simplify valve operation without adding extra length to the tube. The new tubular structure is a combination of two symmetrical truncated Kresling patterns and a new method is proposed to check its non-rigid foldability. Inspired by the kirigami technique, the overconstrained connections are removed, which provides a new modeling method for non-rigid cylindrical origami in its kinematic analysis. Meanwhile, the relationship between the unfolded length and the open area of the RC-ori structure is obtained. The result shows little change in the opening area when the tube is nearly fully folded, making the new design a good choice for micro-flow control valves.

5. Future Works

This is very much the key component in future attempts to overcome the gap of the kirigami structure of the RC-ori and its non-rigid foldability. We will try to add virtual creases [20,33] or use flexible membrane [60,61] or compliant joints [62,63,64] to solve the above and convert the overall deformation to the local compliant joints deformation. A prototype for the valve application will be produced to verify its function and to optimize the structure design.
