Soft Robotics: A Review of Recent Developments of Pneumatic Soft Actuators

Abstract

This paper focuses on the recent development of soft pneumatic actuators for soft robotics over the past few years, concentrating on the following four categories: control systems, material and construction, modeling, and sensors. This review work seeks to provide an accelerated entrance to new researchers in the field to encourage research and innovation. Advances in methods to accurately model soft robotic actuators have been researched, optimizing and making numerous soft robotic designs applicable to medical, manufacturing, and electronics applications. Multi-material 3D printed and fiber optic soft pneumatic actuators have been developed, which will allow for more accurate positioning and tactile feedback for soft robotic systems. Also, a variety of research teams have made improvements to soft robot control systems to utilize soft pneumatic actuators to allow for operations to move more effectively. This review work provides an accessible repository of recent information and comparisons between similar works. Future issues facing soft robotic actuators include portable and flexible power supplies, circuit boards, and drive components.

1. Introduction

Robots are becoming ubiquitous in modern society. Robots have changed the way humanity manufactures our goods, performs surgery, and transport ourselves along with our possessions. However, the boundary between robots and humans remains hazardous [1] as the modern day hard robot requires a lot of precise control and while they excel at repetitive massive production functions, they struggle to interact with uncertain environments [2]. This is where the new field of soft robotics excels. A soft robot is primarily composed of stretchable, flexible materials, such as silicon rubber. While these softer materials have a lower rigidity when compared to metals used in hard robots, these softer robots have provided more flexibility and adaptability to the workspace creating safer environments, particularly in a human-robot integrated workspace. There have been many exciting developments and research around soft robotics recently, which will be chronicled in this review study.

The most important physical aspect of a robot is movement [3]. For soft robots, movement is conducted by using variable length tendons [3], by pneumatic actuations, or even more recently by twist-and-coil actuators [4], as seen in Figure 1. Many of the modern actuation methods have been designed to replicate biological movements, such as fish fins or octopus tentacles [5,6,7,8,9,10].

Many soft robots use pneumatics or hydraulics to actuate their bodies, but another way actuation has been implemented into soft robots is through the development of electroactive polymers which electrically activate soft actuators in order to cause movement [15,16,17,18]. The flexible nature of soft robots necessitates the development of stretchable electronics such as sensors and power sources. The compliance and morphology of soft robots prevent the use of many conventional sensors seen in hard robots, so there has been active research into stretchable electronic sensors and curvature sensors. Elastomer sensors allow for minimal impact to the actuation of the robot [19]. Along with these sensors, soft robots also have the capability of hosting chemical and biological sensors to sense environmental signals which could eventually allow them to be human-centered tools for the ideal workspace between humans and robots [5]. Power sources have also been a big point of emphasis with general compressors using a lot of electricity, alternative methods such as chemical reaction-based sources and combustible fuels have been looked at for solutions [6,20,21]. In turn, many soft robotics designs have been made using ‘2.5D’ designs, limited primarily by 3D printed capabilities and model complexity, or use abstract approaches with the current software available [22,23,24]. Fabrication has also been an area of interest; however, thanks to rapid growth in digital design and fabrication tools, there are now many ways to develop soft robots with different material selections and as well as embedded needed electronics into channels of the material for system use [11,25,26,27,28].

The movements of soft bodies can be described by an infinite number of degrees of freedom. Its intrinsic deformation such as bend, twist, stretch, compress, buckle, wrinkle, etc. makes the control of soft robots very challenging [7]. The muscle analogy of soft organisms is introduced to understand the working principle of soft bodies. An understanding of the principle of octopus has led to inspiration for modeling and control [7].

Due to its absent of rigid structure, the kinematics and dynamics of soft-robotic systems are different from that of conventional systems. Therefore, researchers have developed a new static, dynamic, and kinematic models for soft-robotic system. Designers model the kinematics of soft robots using piecewise constant curvature (PCC) [8]. In approaches of developing methods to connect the actuation space to the configuration space, the morphology of the robot body and the characteristics of the actuation system is studied and combined. Some forward kinematics basis approaches are a use of Bernoulli-Euler beam mechanics to predict deformation [8], a relationship between the joint variables and the curvature arc parameters of high and medium pressure robot. Existing solutions of the inverse-kinematics problem are neglecting the consideration of the pose of the end effector [9,29]. This limited computation creates difficulty in avoidance of autonomous obstacles and movement under restrained environment. Without consideration of the entire robot body including the end effector, task-space planning algorithms which allows a detailed tasks, such as maneuvers in confined circumstances and grasping or placing objects, are challenging [30].

When the robot is used in the environment, the use of compliance is key to the developed algorithms; using compliance, the robot can interact with objects with unknown geometry [4,5,31]. Soft robots are controlled in low-level using pressure transducers which provides differences in actuator compliance, or volume control using strain sensors. Volume control is very effective in configuration control and assists setting a maximum safe displacement [1,4,7,12,32]. Valve sequencing control is controlling the body-segment actuator by pressurizing the actuator for a period by turning the valve on and off [10]. Recent work has tried to develop more compact control elements for pneumatic soft robots that does not require electrical control signals. Without electrical control, the addressable control of actuators from a single pressure source is possible [33].

Applications for soft robotics include locomotion, manipulation, medical devices, and wearable applications [34]. Many of the locomotion techniques have been modeled after fluid moving creatures such as caterpillars [35], worms, octopus, and fish. Many of these, like the octopus, provide a model for morphological computations [36]. Most of locomotion has been enhanced by using electrical tethers, friction manipulation and motor-tendon actuation [37]. Another boon of soft robotics is the natural advantage they have with object deformation. Due to the flexibility of the soft robots, they can manipulate their bodies, especially a gripper or finger [15,38], to grab objects of varying size and shape. Since the material of soft robotics is modeled after biological systems, soft robotics make for a very good option in the field of medical and wearable devices due to their flexibility and absorption factors, such as seen in recent reverse pneumatic artificial muscle technology [12,13,39] and manipulators for minimally invasive surgery [40].

The recent advances of note in the field of soft robotics can be broken into four categories, control systems, materials and construction, modeling, and sensors, which will be explored in the following pages. These four subjects have been identified as pertaining most directly with the widespread adaptation of soft robotics both industrially and commercially, as they begin to solve the problems soft robotics have with repeatability, manufacturability, and control stability. Therefore, the recent research selected for this article have been chosen due to their contribution to solutions to the problems preventing the widespread application of soft robotics. Soft robotics could be deployed medically to improve patient care, domestically to provide safe and useful household robots, and industrially to provide flexible robots compatible with human coworkers [1,2,34,40]. Mobile soft robots could also provide search and rescue operations with scouting and extraction robots capable of moving through uneven and uncertain terrain without complex control algorithms because of their inherent compliance [4,5,31,41].

The field of soft robotics is so complex that a review of the field is necessary to provide newcomers an expedient entry to the research. Even for those familiar with the field, the amount of new research being generated makes it difficult to stay abreast of current events. This paper aims to provide a good entry point to the complex subject of soft robotics, specifically for recent developments in the four aforementioned topics, such that others may be able to use this review as a springboard for their independent research efforts. This review may also serve as a tool for experienced researchers to quickly identify interesting research related to their own projects. This paper also identifies some areas of soft robotics that have not received as much research, and therefore present opportunities for new meaningful research.

Sources for this paper were primarily found using the Georgia Southern University Library resources. Several rounds of search were conducted, first for non-specific soft robotics papers to establish background knowledge and an understanding of the history of the field. Key words included “soft robotics,” “design,” “fabrication,” “soft material,” “soft sensors,” “flexible robots,” and others. It was important that these papers be published prior to 2016 to properly identify the foundational technologies and traditional systems of soft robotics. After the establishment of foundational research, individual searches were conducted to identify recent and useful papers and articles regarding the four topics aforementioned. Key words included the previous keywords used for the general search as well as some keywords more specific to each topic. In order to ensure that these papers represent recent developments in the field, these papers were restricted to papers published after 2015. Studies that were not sourced from a reputable publisher, had significant conflicts of interest, or had too few citations were not considered for inclusion in this review article. The bibliography is primarily restricted to peer reviewed scholarly articles and papers.

2. Control Systems

Control Systems over the years have evolved, and now the standard for soft robotics is using pneumatic systems to move the structure of the robot, although some hydraulic systems [42,43,44] are used. In order to control pneumatic and hydraulic systems, either an open or closed loop must be implemented [16,45,46,47,48,49]. Which option, open or closed loop, is better depends on the application to be accomplished with the soft robotics [12,37,46,50,51,52,53,54].

There have been studies that show the pros and cons to both open and closed loops [55,56,57], but the most controversial part was dependent on the presence of a feedback system paired with the loops. In the original development of soft robots, the designs were intended to optimize performance and increase effectiveness while enabling safe interactions with the environment; however, the traditional feedback-only actions that have been developed for higher accuracy control of soft robotics do not satisfy all of these conditions. To answer this issue, an algorithm called Iterative Learning Control (ILC) was developed. When the ILC algorithm was used with a low stiffness robot, the robot was able to recognize an object in the environment and stop its own motion before moving the object [58]. There is also a control system known as a Proportional-Integral-Derivative (PID) controller, which is a control loop mechanism that utilizes feedback to keep a constant variable. Due to the fact that the PID controller only impacts one variable other control methods have been tested [59] A PID can be part of the control system, but there needs to be more hardware that effectively communicates to the servo motors or solenoids that activate the open or closed loops [60,61].

Usually an Arduino board is used to drive the control system due to its ability to come in different sizes along with the fact that it is easy to code as it accept many different languages [62]. It also allows the ability to control servo motors, biological muscles, and other actuators to move or have the ability to pick up objects, as seen in Figure 2 and Figure 3. The Arduino is not the only thing that can be used though, as long as the soft robotics has a microcontroller that is able to freely communicate through it to a PC using a system such as MATLAB, Simulink, etc. [63].

Using a microcontroller, for example an Arduino or a Raspberry Pi, there is an opportunity to control and utilize the magnetic field [15,16,18,65]. The magnetic fields allow for an electro-adhesive force on an object and to control it depending on how the positive and negative fields are positioned. The change in the magnetic field causes the compliant electrodes to deform, resulting in a deformation across the actuator. As seen in Figure 2, the electric field changes due to the location of the positive and negative fields are placed. If a negative is placed next to a negative it repels one another but if a positive is placed next to a negative they are attracted to one another. This causes the relationship to change more significantly when multiple positive or negative fields are utilized. Key points of control systems are summarized below in Figure 4, Figure 5 and Figure 6.

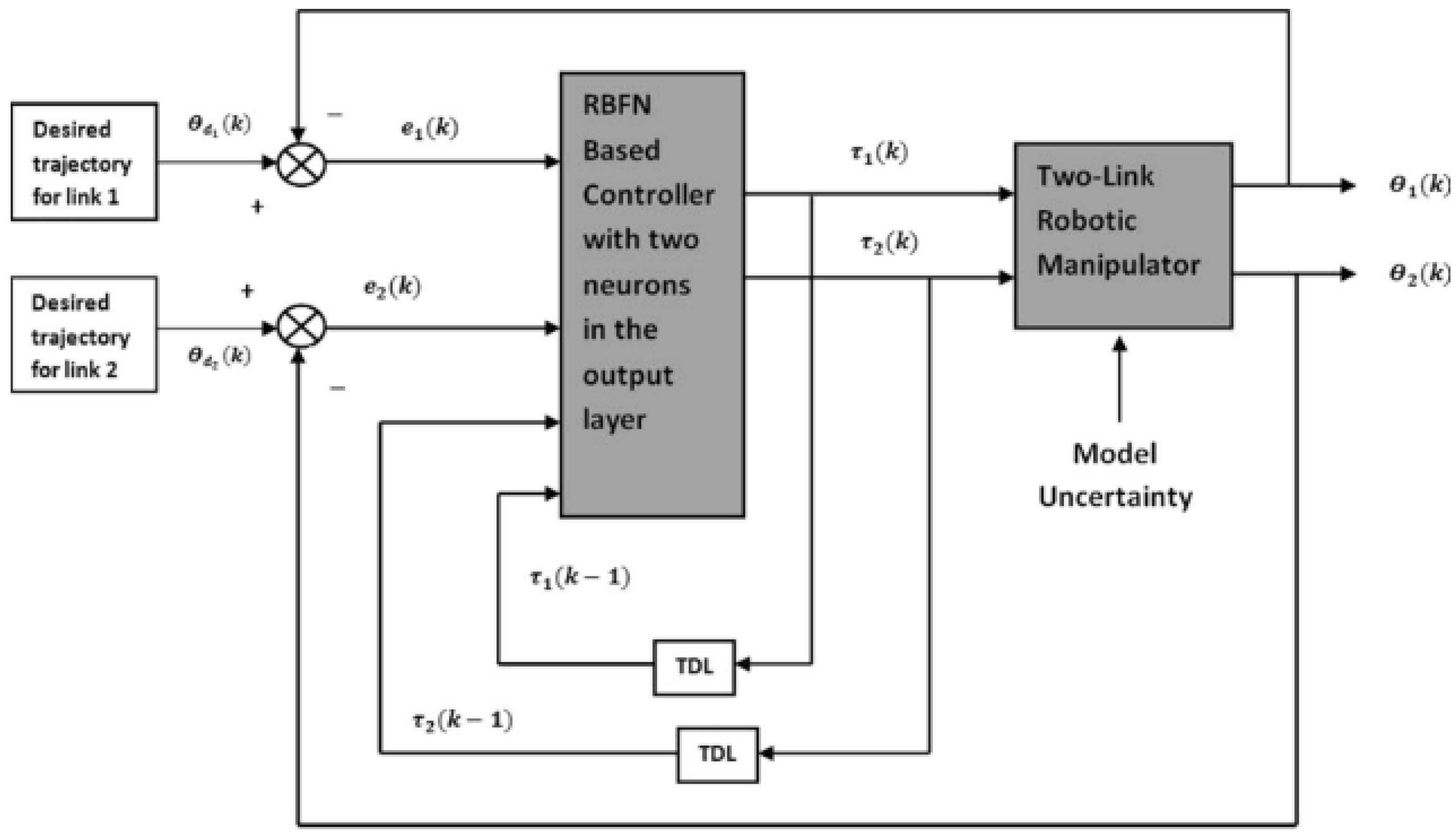

MLFFN and RBFN controllers both utilize predefined trajectory control to predict the position of a robotic manipulator and adjust input values accordingly to stabilize and bring a robotic manipulator to a desired position [59]. From Figure 5 above, The Instantaneous Mean Squared Error (MSE) was compared between a MLFFN Controller and RBFN Controller. The results showed the ability of the more complex RBFN controller’s ability to reduce error within the system much faster than the MLFFN controller [59]. However, the biggest disadvantage of the RBFN controller is its ability to control a simpler system when compared to a traditional PD system; RBFNs are more complicated than a simple system requires [59]. When comparing the two block diagrams in Figure 4 and Figure 6 between a PD controller and the RBFN block diagram, the PD controller can adequately control its system using a simpler model. A comparison between different types of control systems for soft robotics is in

Table 1. Comparison of different control systems.

Driving Systems	Controller	Advantage	Disadvantage
Cables and Servos	RBFN [59] Radial basis function network	Predefined trajectory of one-link and two-link robotic manipulators Non-linear Fixed structure complexity Instantaneous error converges to zero faster than MLFFN by approximately 1.5 s	Highly complex system
	Disturbance Observer (Dob) [67]	Ability to estimate plant uncertainties and external disturbances High Precision	Requires accurate estimation for range of disturbance frequency
	MLFFNN [59] Multilayer Feed-forward Neural Network	Smaller extrapolation errors Simpler structure High reliability	Not fixed of structure complexity Instantaneous error converges to zero slower than RBFN by approximately 1.5 s
	PD (Proportional-Derivative) [68,69,70]	Simplicity Versatility Closed Loop	Lacks fine motor control Trouble controlling higher order systems

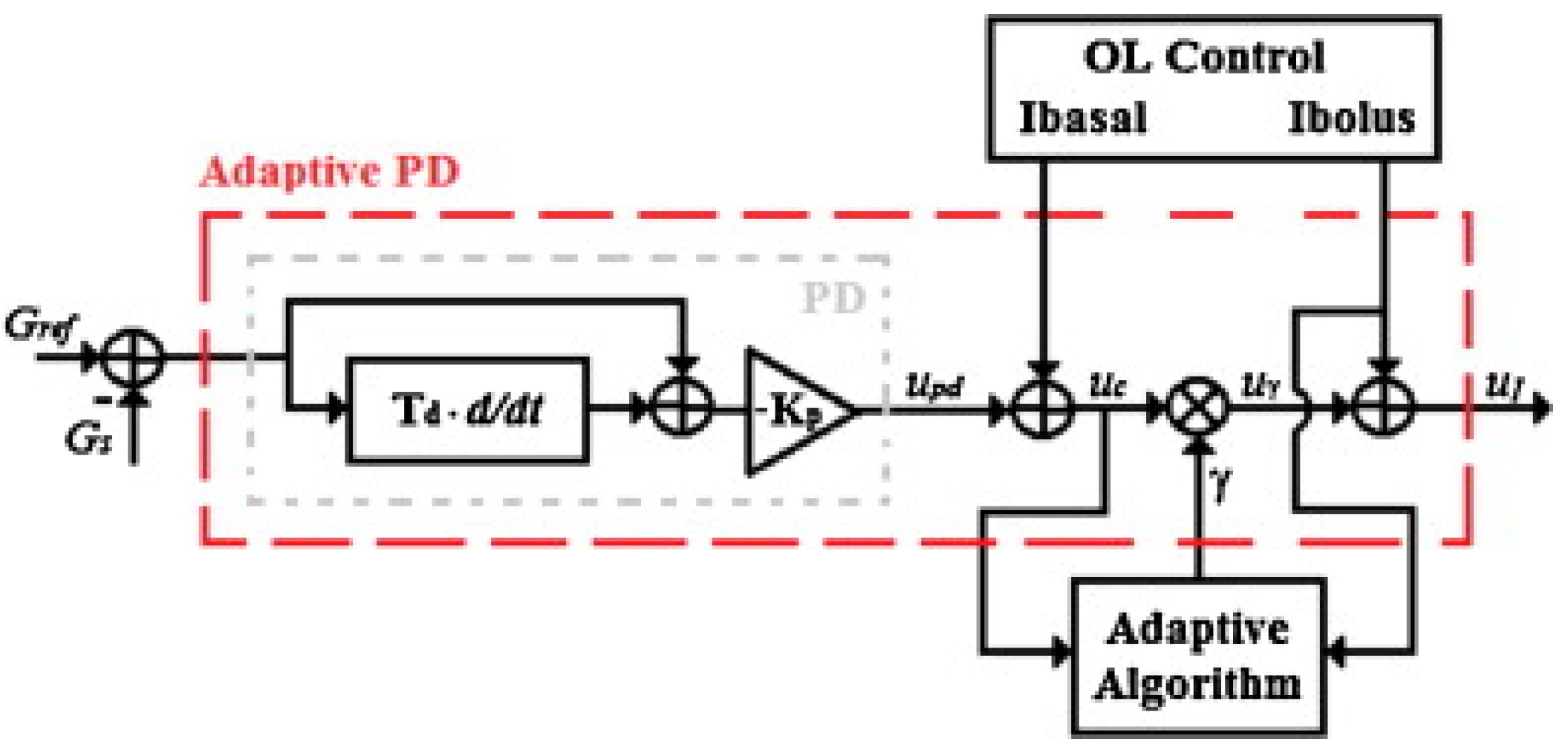

	PID [35,67] Proportional-Integral-Derivative	Works well with a feedback system Most other controllers use this as a base	Nonlinear Abrupt changes crash system
Electromagnetic & Electroactive polymers (EAP)	Microcontrollers [61]	Multiple different types (Arduino, raspberry pi, etc.) Different sizes available	Relays results to a computer to record
Pressure Sensor	PI [71] Proportional-Integral	Null position error under steady-state conditions Closed loop	Requires a low-pass filter
	Linear [72,73]	Closed loop	Cannot be by itself, must be in a bigger unit
None (Theoretical Model)	Extended Kalman Filter [74]	Accurate task space coordinates	Estimation for elongation rate poor when model is large

.

3. Materials and Construction

With the increasing advancement of technology, much progress has been made in the design and construction of soft robotics. Previous generations of soft robotics utilized silicone rubber as their primary mode of construction [75,76,77,78,79,80]. Silicone is a thoroughly explored material for soft robotics [81] and is generally cast into molds for fabrication [82,83,84]. However, in recent years, new fabrics, materials, and methods have been beneficial in the construction of soft robotics [22,30,85,86,87,88], including 3D printed actuators [23,24,25,26,89,90,91], and combining multiple small soft actuators can be stronger than a single large actuator [92]. Newer materials such as those used for single mass granular materials for grippers [93,94] and liquid-phase polydimethylsiloxane also called PDMS [95] for microscale usage have been in development. More environmentally conscience materials have also been developed, that are also more benign to work with than traditional silicone [96]. Another new type of material is a composite of reduced Graphene Oxide (rGO) which provides prospective outlooks for the construction of soft self-healing devices as shown in Figure 7 [97]. Safer polymers have also been developed that are environmentally friendly and biodegradable [98]. These materials branch away from the traditional silicone rubber material and offer new incentives of construction from the ability to self-repair, which would cut costs in case of damage to the structure, to more cost efficient materials so that they could be mass produced and readily available for more people to expand their field of research. Some materials can be variably stiffened, allowing more freedom and specificity of design [99].

One of the main focus areas in the material construction of soft robotics is regarding the movement of the mechanism. The material must emulate the body groups such as a muscle or tendon of the real-life counterpart [45,89,100,101,102] or the antagonistic relationship of both [103]. Many developments in the construction aspect has been on this criterion of the robotic mechanism [15,102]. This is especially in the medical field where improvements are always needed [104]. Fortunately, there have been advancements in the use of “hydrogels” to mimic the way that a real-life counterpart would move in nature [105,106]. These hydrogels have a better impact with more fluid and seamless movement as opposed to the traditional use of silicone rubber that can sometimes offer a more robotic, and unnatural sense of motion for the mechanism. The benefits of the hydrogel are that since it is a semi-solid material it can have more degrees of freedom of rotation as opposed to a rigid dynamic motion for the soft robotic mechanism. Other advanced materials being used in the field of soft robotics include electro-active polymers (EAP) which also provide excellent degrees of freedom and great compliance with its environments [31], and Diels-Alder Polymers which are able to “heal” microscopic and macroscopic damage [107]. Also, included in new material developments is an open-celled elastomeric foam which allows for great absorption by the material [108].

The main impact of what the improved technology with a more modern material design to soft robotics is in the benefit of undersea research explorations [109]. The current use of technology utilized by soft robotics is detrimental to the study and research of Deep Coral Reefs [109]. It cites the main reason being that the current material used for the soft robotics is often stiff and not as responsive under sea with high pressures as opposed to on land under normal atmospheric pressures commonplace to everyone. Resulting in the soft robotic destroying the coral reef sample, as it tries to interact with it. The solution proposed by the research staff discuss the use of sheet material such as “jet-cut aluminum” and “stacked layers of acrylic” these combinations of alloys results in the overall utility of the deep-sea robot to be able to gather and analyze better data without harming the coral habitat.

While there are many other materials on the market that can achieve the desired effect for the soft robot to achieve operation [94] in its intended field. Most materials offer a wide range of response times to control the robotic specimen, the tensile strength of the material, and the overall durability while on the field of use. Many factors often play a crucial role in the overall success and development of the soft robotic structure [18]. Outlined in

Table 2. Summary of Different Components of Testing for Soft Robotic Materials.

Material	Purpose/Functionality	Characteristic
Silicon Rubber [75,76,77,78,79,80,81,82,83,84]	Pneumatic Flexible Finger Tube; Robot leg and gripper; Bi-bellows actuator; Buckling Linear Actuators	Chamber; Bidirectional motion Locomotive and manipulative role; Ecoflex-50; Elastosil
Sheet Material [85]	Pouch Motor	Mass-fabricable; heat bonding;
3D printing materials (NinjaFlex, EP, Nylon 12, and EAA & AUD) [23,24,25,26,89,90,91]	Soft pneumatic actuator; Flexible fluidic actuator	Various 3D printing method type (FDM; DMP-SL; SLS; DLP); High degree of freedom
Polychloroprene-based membrane [93,94]	Single mass granular material gripper	Hold the object without sensory feedback
PDMS [95]	Microscale inward spiraling tentacle actuators	~185 μm radius, ~0.78 mN grabbing force
PGSI [98]	Environment friendly and biodegradable polymers	134 to 193 kPa UTS; 57 to 131 kPa moduli;
Smart material (Nitinol, PCL, Field’s metal) [99]	Smart composite finger	Discrete levels of stiffness
DN Hydrogels; Agrar/PAM [105,106]	Bending actuator	3-DOF; easily customizable; delicate in small millimeter scale; biocompatible
Electro Active Polymer [31]	OCTARM (artificial manipulator)	PVDF based and dielectric
Diels-Alder Polymer [107]	Self-healing elastomers	Thermo-reversible covalent network; heal micro and macroscopic damage
Open-celled elastomeric foam [108]	Fluidic elastomer actuators	Low density;

are the primary factors of the materials used in market soft robotic machines, how their composition is determined, and how the material is compared with other types.

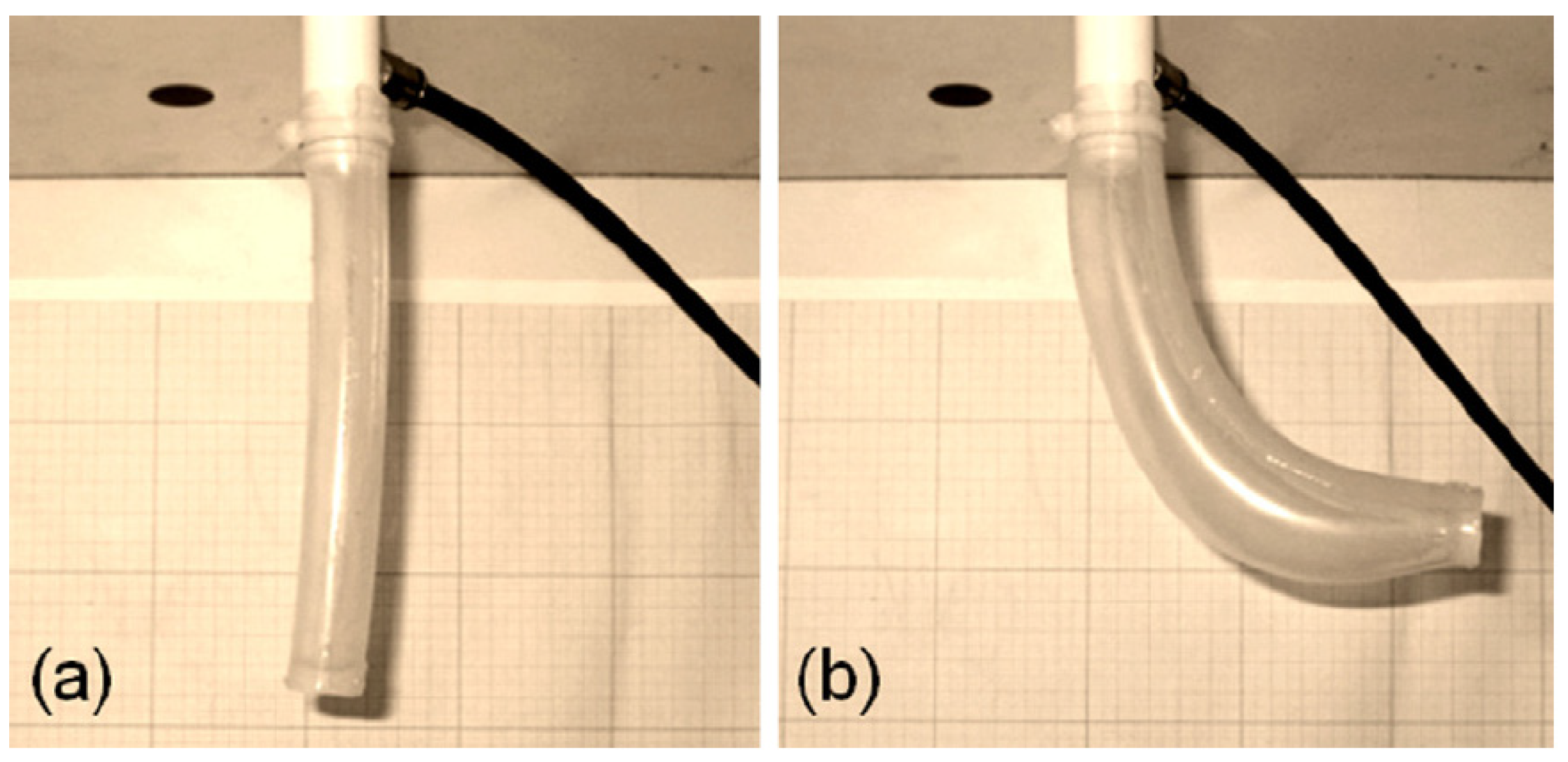

The primary material in the construction of soft robotics has historically been silicone [110]. Figure 8 is example of bending actuator that is made of silicone rubber. Many silicone-based materials have seen wide usage in industry [94] since the material is easily produced and very versatile. Although silicone is a versatile material, the longevity of the material is compromised when using silicone in a soft robot [105].

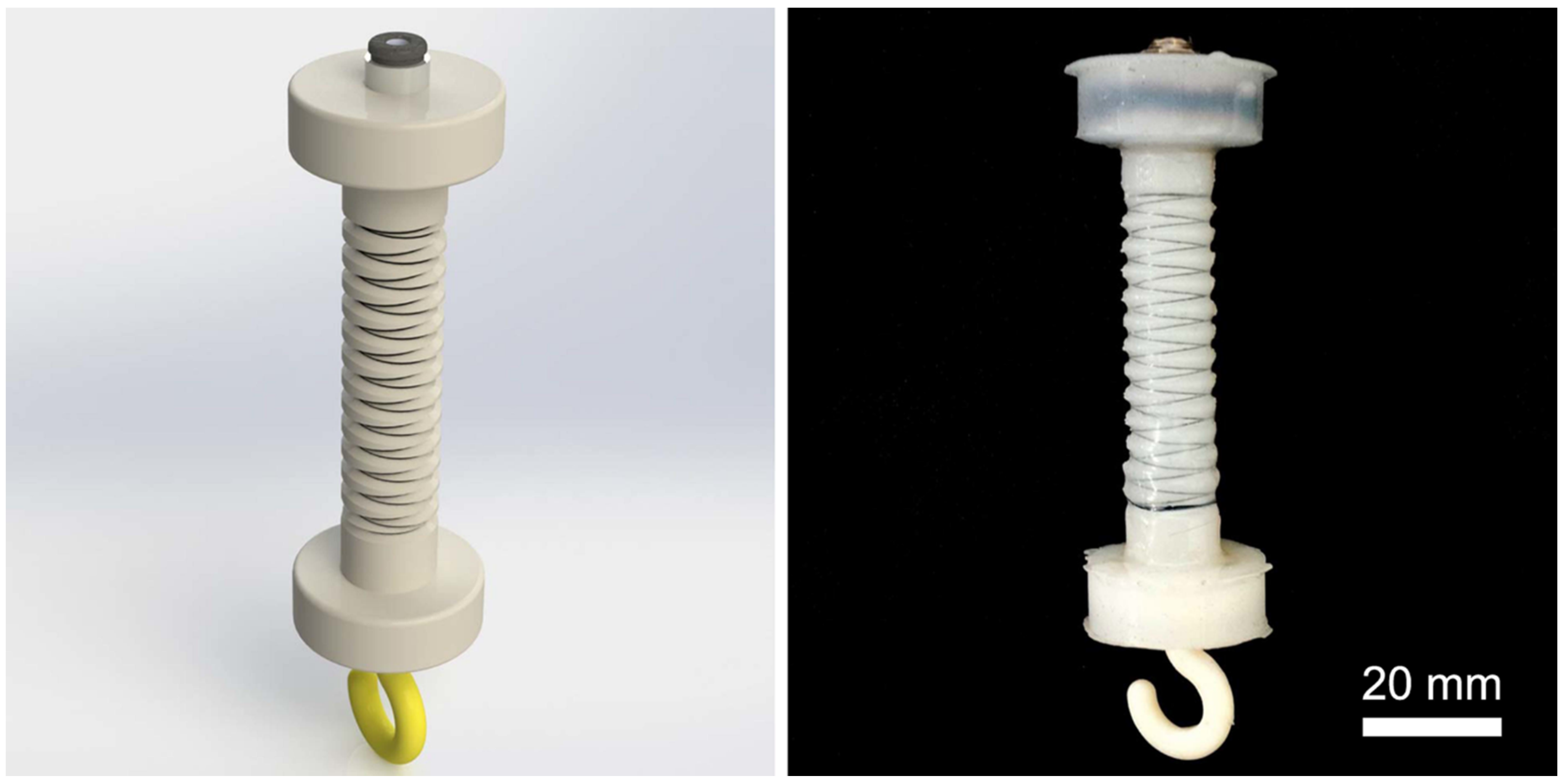

Another great soft robotic material is the 3D printed material as shown in Figure 9. 3D printed soft robots can be easily mass produced, and due to the cost-effective material more soft robots can be produced [22]. The drawback for a 3D printed material for a soft robotic part is that the tensile strength of the part is very low, and thus can break very easily as opposed to other materials for soft robotic parts [22]. However, with the advent of better 3D printing machines, new advances have been made to increase the tensile strength of 3D printed materials for soft robotics [13].

4. Modeling

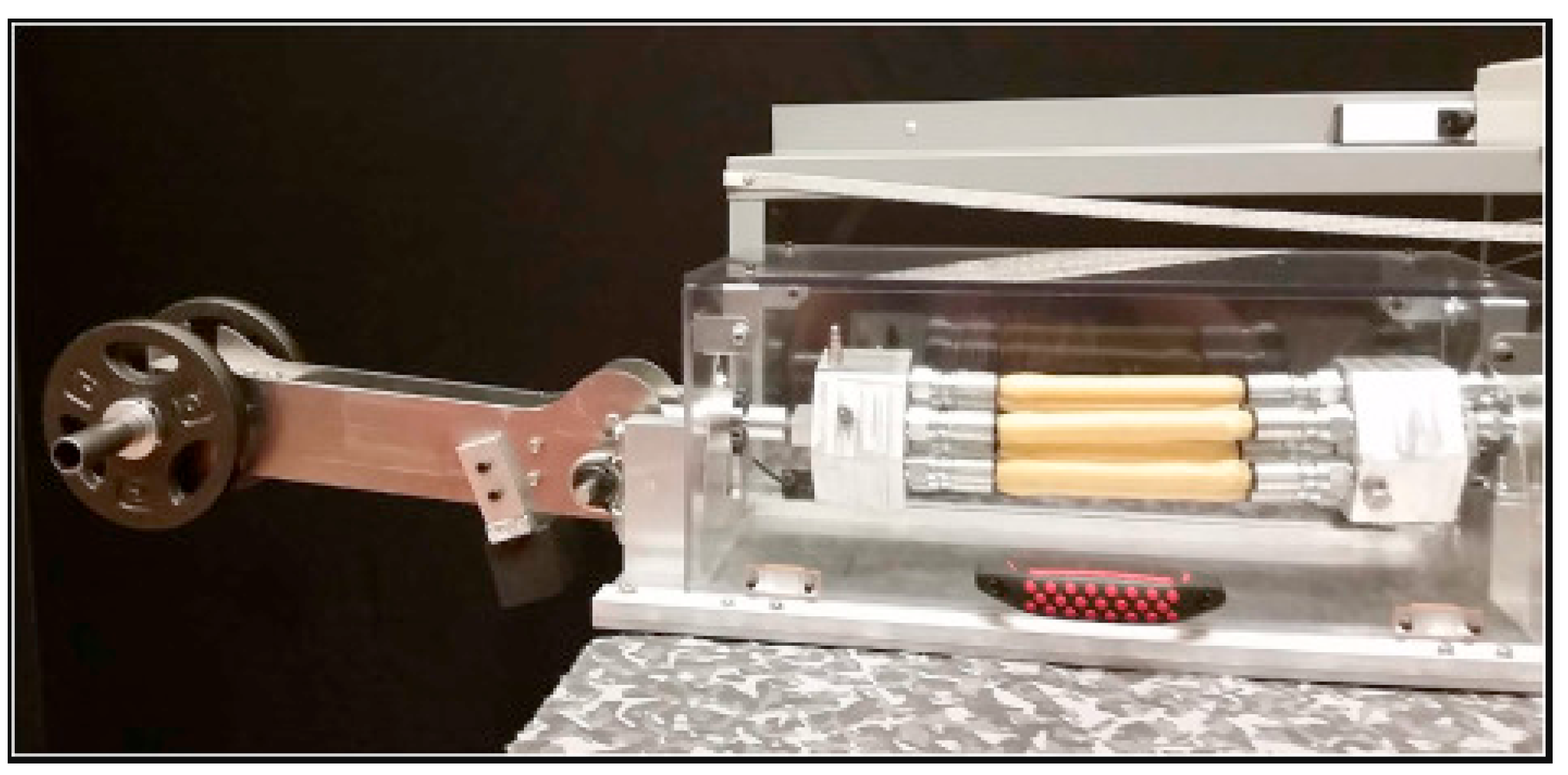

One of the biggest issues in the field of soft robotics is finding methods and models which are both accurate to experimental values and computationally viable [48,112,113,114,115,116,117]. Due to the deformable nature of under-actuated soft robotics, they are dynamically formulated using a system of infinite dimensions [23,58,93,118,119,120]. These designs are currently unable to be reduced to an exact model which often leads to rigid-body assumptions to create manageable dynamic equations [121]. Figure 10 below shows a McKibben muscle controlling a rigid body mechanism, allowing for the deformation of the actuator to be easily measured with rigid body dynamic equations [122].

Recently, sets of ordinary differential equations have been formulated to create a more mathematically accurate model to describe the dynamic motion of soft robotics [119]. Currently, Finite Element Analysis (FEA) meshes/models have been the most widely used method of simulating soft robotic dynamics, an example seen below in Figure 11.

However, using FEM/FEA there is an exponentially increasing computational burden for increasingly accurate models [90,124]. Which is why other areas of modeling have been explored, including the use of Artificial Neural Networks (ANNs) and Piecewise Constant Curvature (PCC) [32]. Another aspect to consider when developing these models is the non-conservative forces at play including frictional forces between materials as well as the resistive forces of the soft materials, usually silicone or rubber [125]. To ignore these forces in the computational model directly leads to systematic error between the model and the experimental results. To mitigate these differences, more accurate models which can account for the numerous forces that are often overlooked for simplicity purposes are being developed [125]. The impedance of the robot is considered for simplicity linear. However, most of the results proposed are easily generalizable to the nonlinear case [119].

In

Table 3. Summary comparing different soft robotic technologies.

Technology	Modeling Method	Gripper size (mm)	Object Mass (g)	Supplied Power	Force (N)	Surface Conditions (Dry, Wet)
Tendon-Based Stiffening [2]	Beam Theory (Mathematical Model)	47 × 23	No Object	N/A	3.3	Dry
Twisted-and-Coiled Actuator [3]	Physics-Based	N/A	1, 2 and 3	N/A	0.013	Dry
Pneumatic Finger [27]	ANSYS	67 × 3.2	15.3	12V	0.15	Dry
SMA Coils [128]	Physics-Based Kinematics	80 × 55	N/A	0-5V	N/A	Both
ECF (electro-conjugate fluid) [77]	Physics-Based	18 × 5	No Object	.5kV-4kV	0.007	Dry

, comparisons can be seen between different gripping technologies. This table seeks to show the range and versatility different technologies possess. In Figure 12, for example, ECF’s have very small applied forces from them for very precise movements at the cost of high power consumption due to the high pressurization requirement that inherently comes with ECF based actuators [77,123,126,127]. Knowing which situations certain soft robotic technologies are appropriate is beneficial to the ability to accurately model and create designs. As more unique and effective methods are developed at producing soft robotic actuators, the ability to accurately predict the forces they produce in more elaborate designs becomes easier to achieve [3,27].

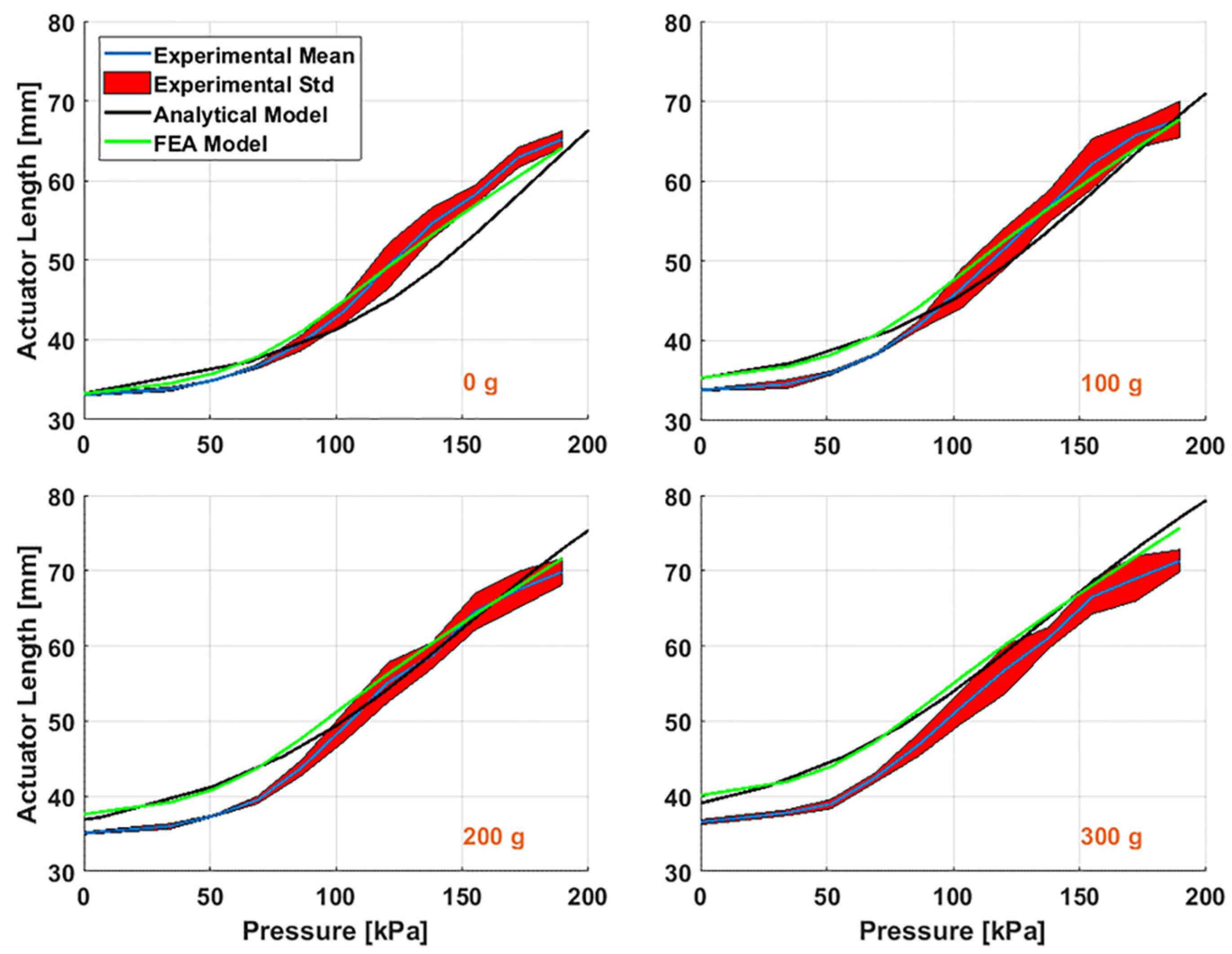

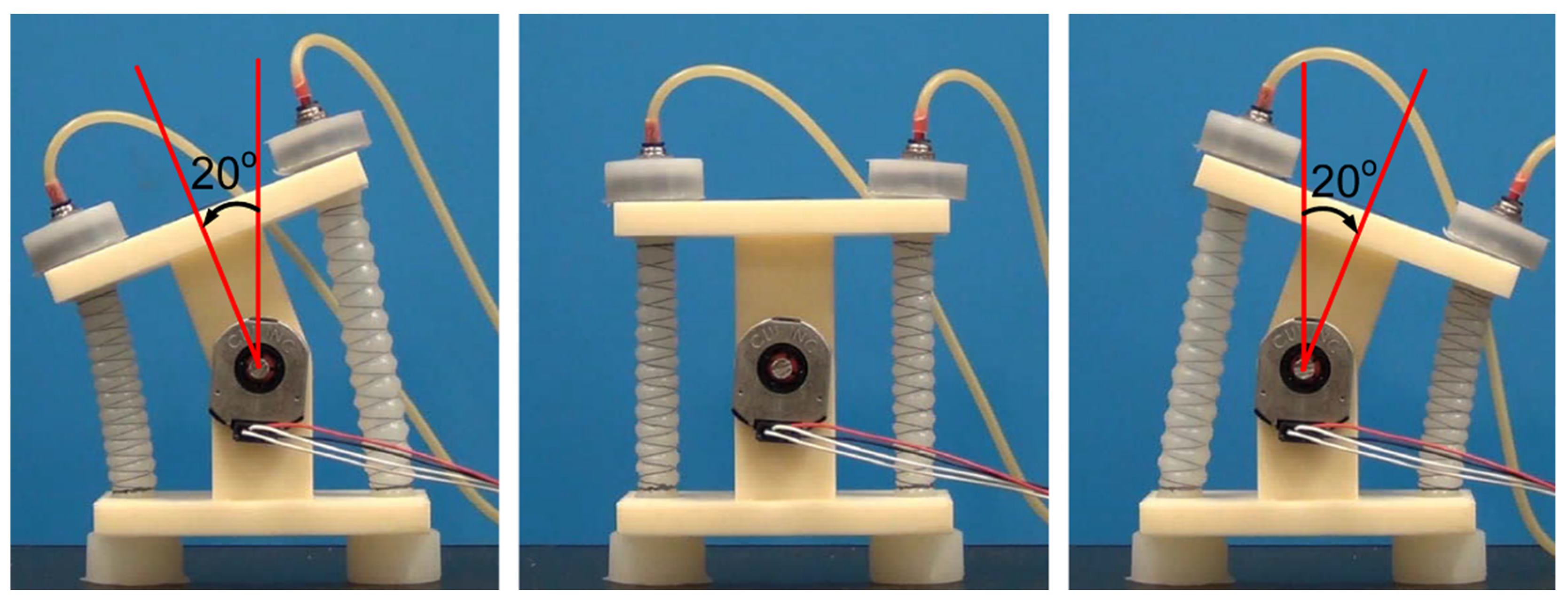

Figure 13, Figure 14 and Figure 15 show the accuracy of computationally efficient models to experimental results of soft robotic actuators. In this case to make the FEA model computationally viable, the silicone rubber was assumed to be incompressible and the helical thread surrounding the silicone to be a radial constraint rather than a helical constraint [12]. Even with those approximations made to the FEA model, Figure 13 shows the ability of FEA modeling techniques to represent the reverse pneumatic artificial muscles (rPAM) effectively. This viability of FEA models to predict the nature of the design will allow for more complex, intricate and economically viable designs to be accurately modeled in the future [12].

5. Sensors

Over the past four years sensing technology for soft robotics, the lack of which has delayed industrial and commercial adaptation, has been heavily researched [129]. There have been multiple research efforts exploring different curvature, tactile, and optical sensors for use with soft robotics yielding reliable sensors capable of a high degree of accuracy with minimal hysteresis [55,118,130]. Many of the studies emphasized the development of inexpensive, easily manufacturable sensors that can be integrated into flexible applications without affecting the performance of the stretching and deforming structure of the soft robots [33,85,131,132,133]. The primary avenues of recent research have been investigating liquid metal embedded elastic sensors, embedded magnetic sensors, semi-conductive polymer sensors, optical fiber curvature sensors, and even piezoelectric sensors [134,135].

Channels filled with liquid metal encased in an elastomer exhibit changes in resistance as they are deformed or stretched [136]. This behavior is similar to traditional strain gauges, though liquid metal embedded elastomers (LMEE) exhibit superior flexibility and are designed to operate in the same Young’s Modulus range as soft robots. In Figure 16, a sensor made by Edward White et al. [136] is depicted. Note how the sensor can flex into a tight curve without causing damage to itself.

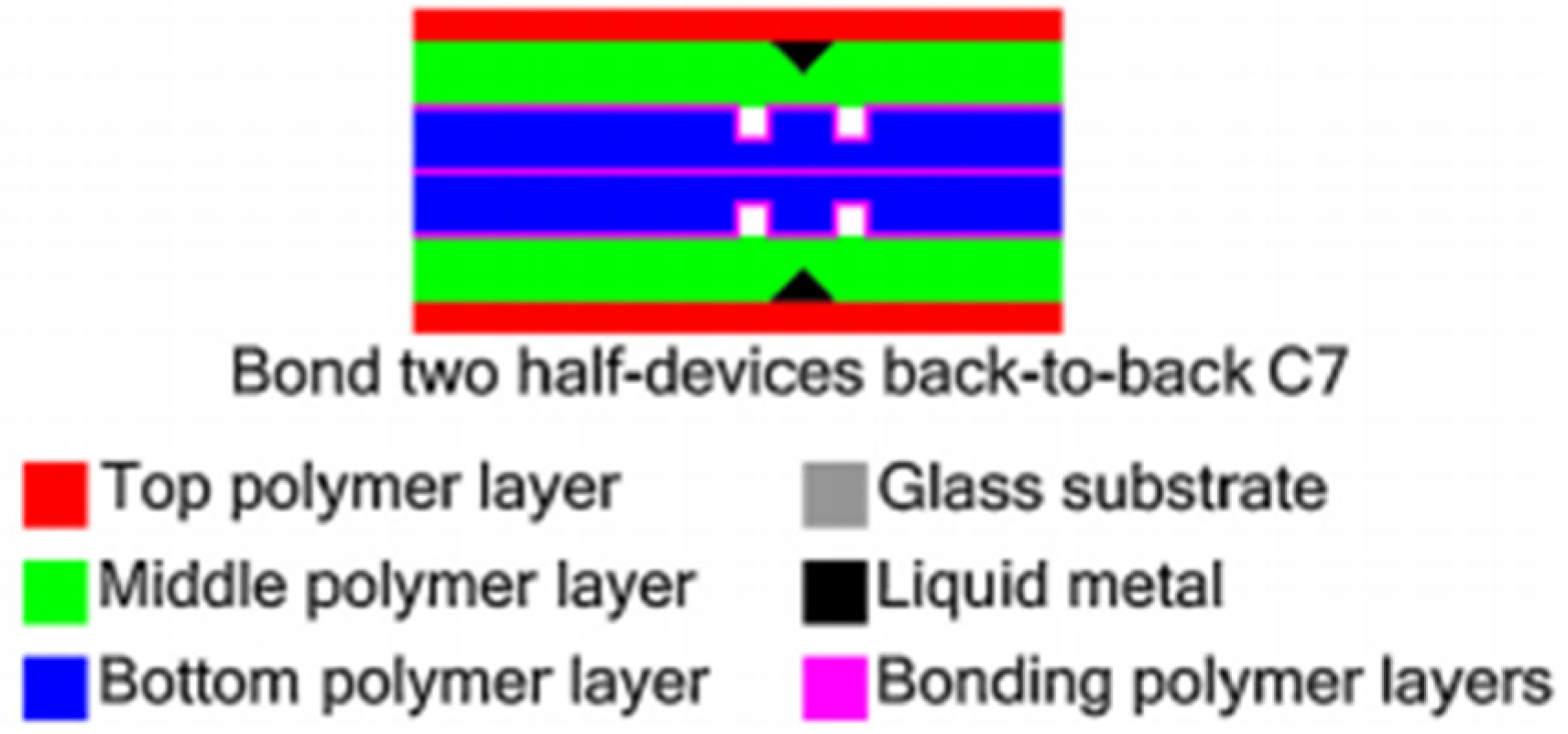

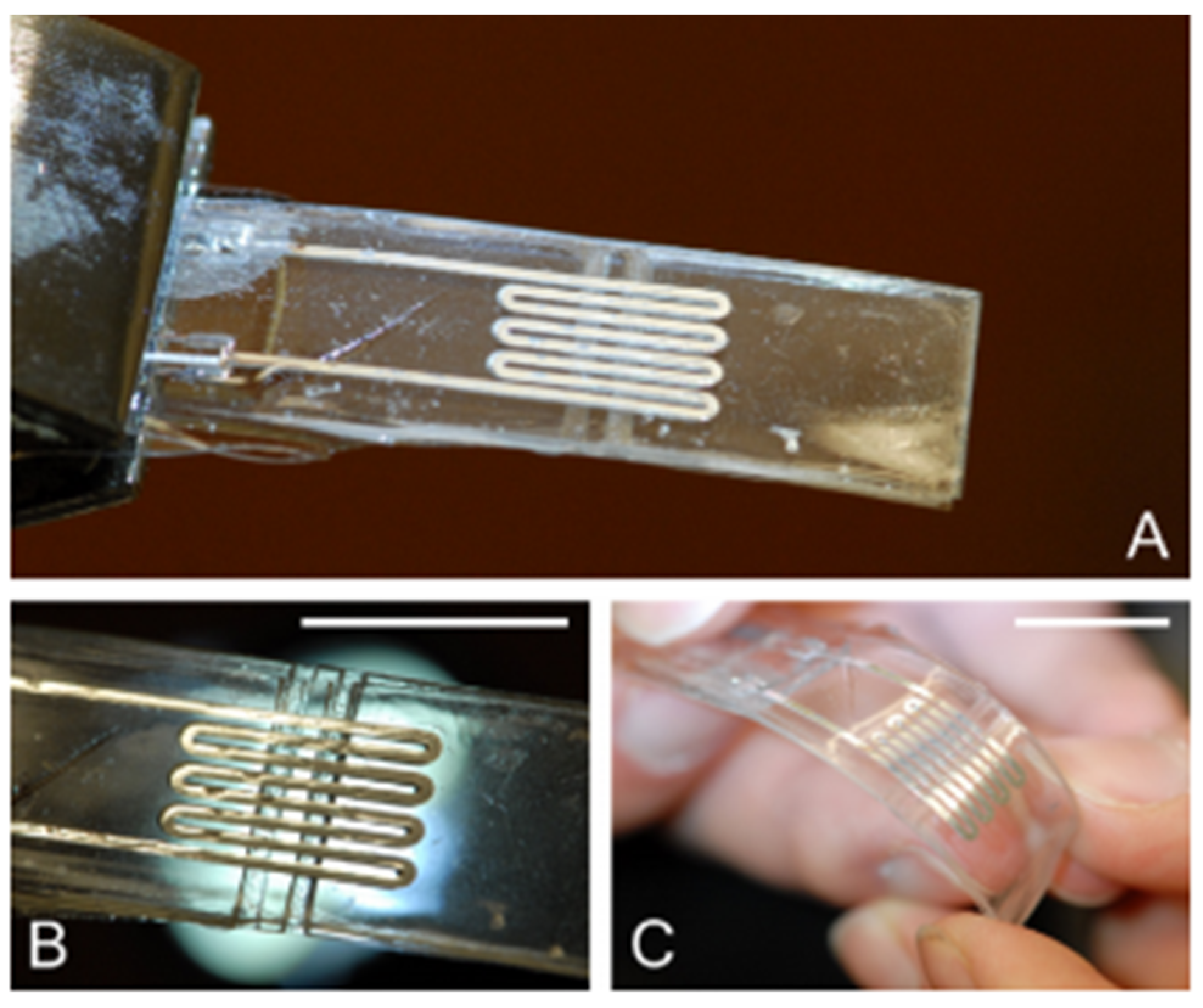

Traditionally the silicone used for LMEEs would be cast into a mold to form the channels; however, this fabrication method takes a long time to generate new sensor patterns and can result in castings of uneven thickness. Instead, White et al. [136] spin cast their silicone, and then used a laser engraver to burn in the channels for the liquid metal. This method allows for the rapid iteration of sensor design and precision manufacture of the sensor components. A layered design was used, as in Figure 17.

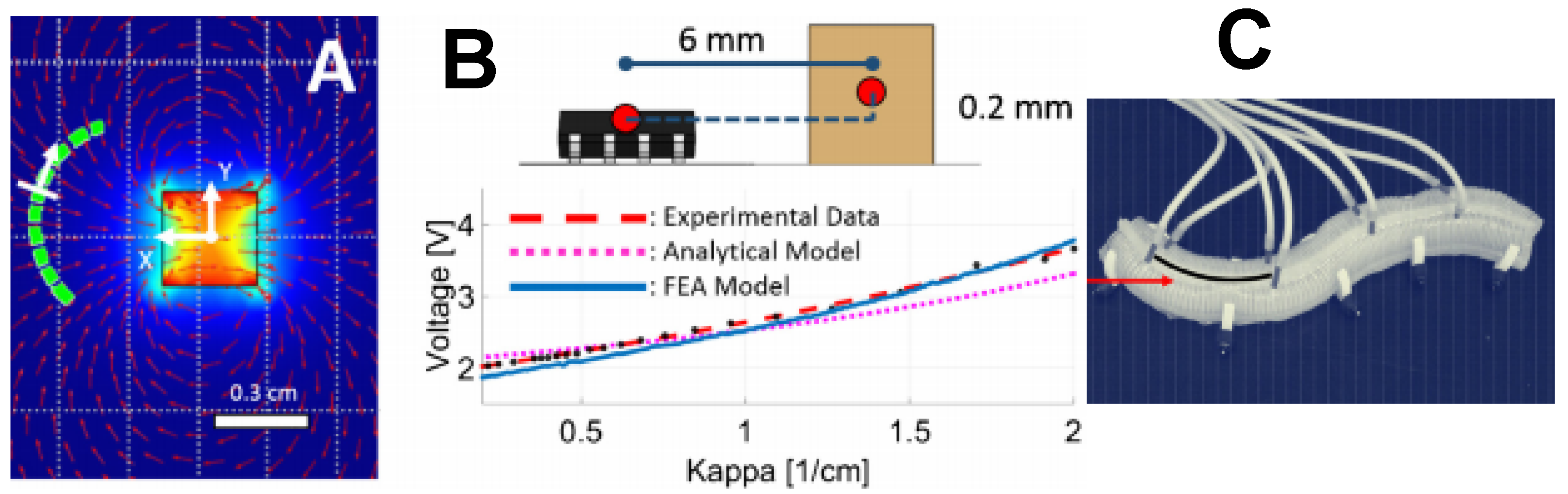

Embedded magnets coupled with Hall Effect sensors have proved to be an accurate method for providing tactile and curvature sensing. Small rare earth magnets and Hall Effect sensors are inexpensive and accessible, while also providing rapid feedback and precise measurement [137]. When integrated into a soft robotic hand, tactile 3 axis sensors provide accurate and detailed data regarding the contact forces, allowing the manipulation of delicate objects [138]. These types of sensors are generally manufactured using silicone rubber cast into 3D printed molds [137,138,139]. The magnets are suspended in the silicone, as in Figure 18.

Embedded magnet sensors (EMS) measure the displacement of the magnetic field to detect movement and are therefore sensitive to external forces as well as internal forces. EMS have proved to be highly accurate with minimal intrusion on the flexibility of the soft robot itself, and also to be highly model-able, allowing for good predictions of functionality, as in Figure 19.

Semi conductive polymers have been used to construct both tactile and curvature sensors. They operate under the function that compressing the matter of a semi-conductive matrix will drive the conductive particles either closer together, decreasing resistance, or farther apart, increasing resistance, as in Figure 20. Either change can be detected and utilized to locate the contact or estimate the curvature [78,110,140,141]. These sensors can be 3D printed with multi material printing [11,110], or by mixing carbon powder with silicone [140], or through the use of conductive hydrogels [141]. These sensors provide good consistency with a wide range of sensitivity and curvature constraints for different applications, as in Figure 21. A soft robotic gripper is constructed and tested using a similar sensor technology and fabrication method by Shih et al. [142].

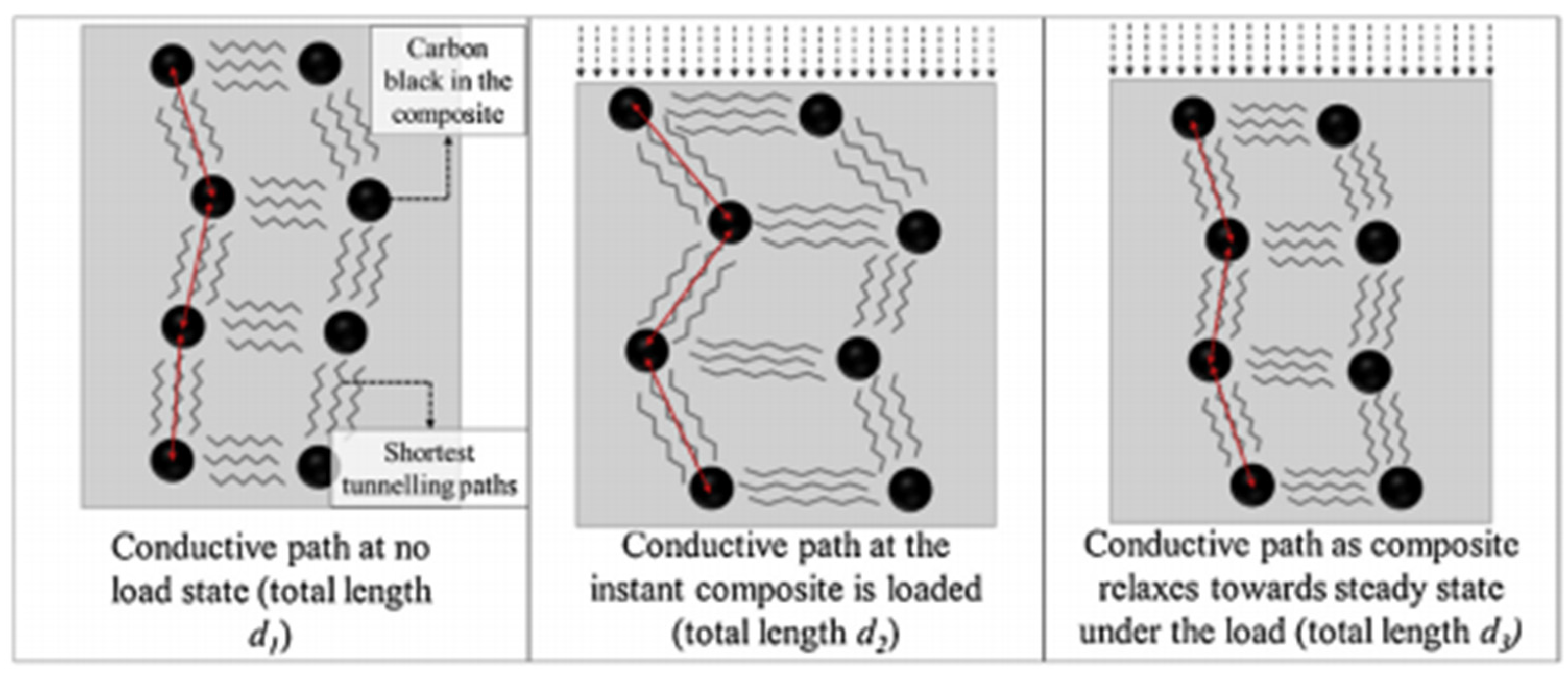

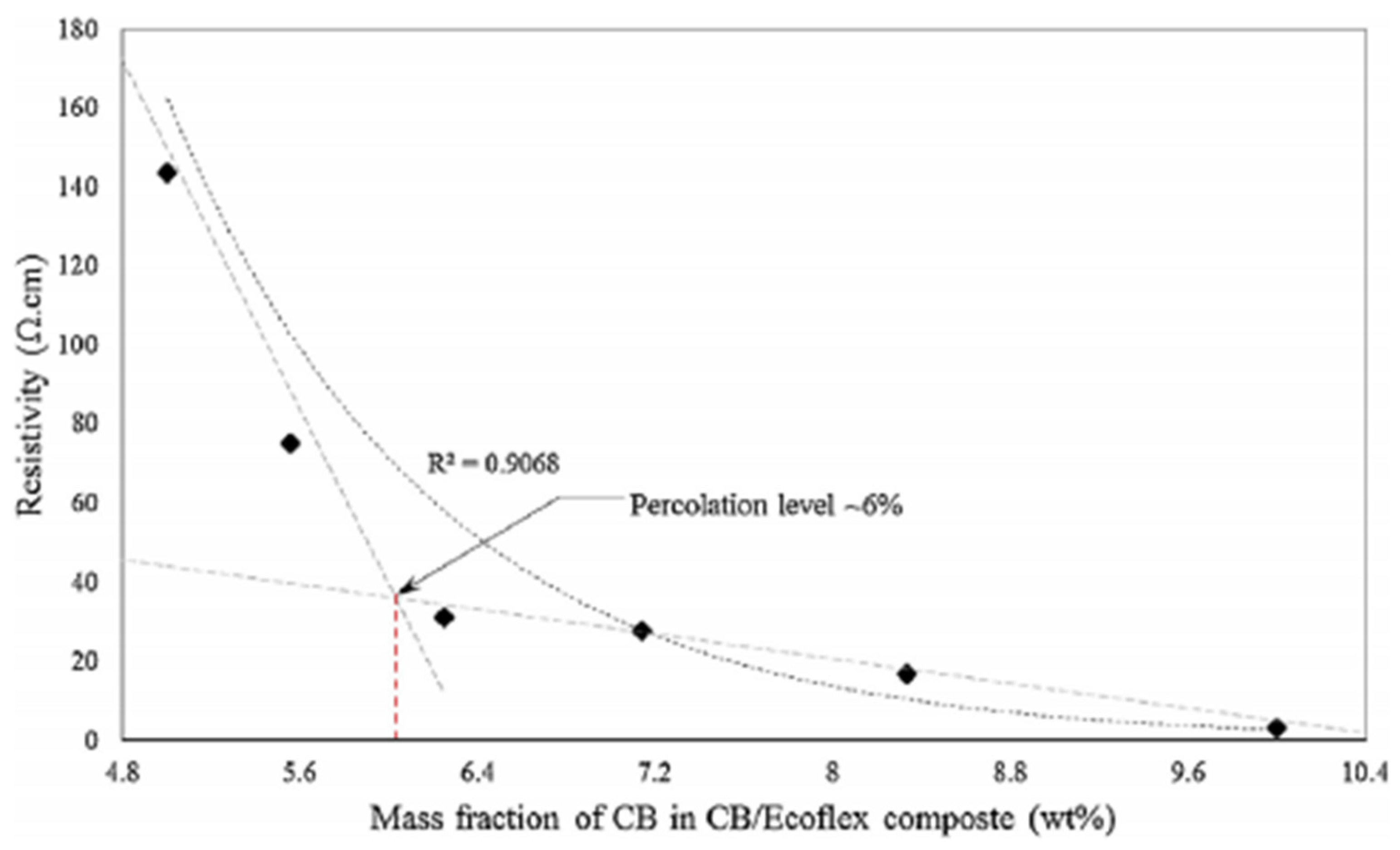

The use of carbon black suspended in silicone to construct contact sensors presents its own challenges. The foremost of these is the consistent homogeneity of the carbon-silicon blend [140], which is extremely important to the reliability of the sensor. Devaraj et al. found that different carbon concentrations in the mixture yielded different sensitivities to pressure and noise, the relation of which can be observed in Figure 22. Ultimately it was found that a 10% carbon black mixture provides a noisier response, but faster and with lower hysteresis than a 5% mixture [140].

Conductive hydrogels (CH) function similarly to the carbon black and silicone mixture, however, the capacitance of the material can be fine-tuned depending on the ions used to make the CH; additionally, CHs are biocompatible, allowing further exploration of soft robotics into the medical field [141]. CH structures are cast into molds for manufacture.

Fiber optic sensors are promising avenues of sensor research because of their flexibility, negligible hysteresis, and speed. Optical sensors may either visually track the soft robot [28], or may rely on detecting wavelength shift in a fiber optic cable due to the stretching and bending of the fiber optic [145,146]. Visual tracking tactile sensors rely on point capture systems on the interior of the sensor wall, as in the Tactip sensors [28]. These sensors are 3D printed using a dual extrusion process to print flexible black material and hard white material to provide accurate and detailed point-maps for the camera to detect. Any deviation from the normal pattern of white dots indicates contact, as in Figure 23. This method of contact sensing can be extremely accurate; however, it does require image processing, which must be handled with supplementary computers.

Fiber optic cables are used to detect curvature in a soft robot structure, and are known as Fiber Bragg Gratings, or FBGs [145]. FBGs operate based on detecting shifts in wavelength as the optic cable is bent [146]. Fiber optic cables are thin and flexible, and therefore do not reduce the freedom of the soft actuator itself. FBGs are also resistant to external interference, compared to electromagnetic sensors [145]. In Figure 24, the installation of an FBG sensor into a soft robotic actuator is presented.

As shown in the

Table 4. Summary of Different Soft Sensor Mechanisms and Materials.

Transducer Mechanism	Material	Functionality	Characteristic	Performance
Resistive sensors	Liquid metal [136]	Strain, Curvature	Laser engraved microchannel, Flexible system	Linearity and low coupling between summation and differential channels in response to strain and curvature.
	Conductive Hydrogel [141]	Touch location stretch	Location of touch points are determined by its polar radius	Conductive Hydrogel has tensile elastic modulus of 1.335 kPa; Gel resistance increases with stretching.
	Photopolymers (Tango+, Tangoblack+, VeroClear, SUP705) [11]	Strain	3D–printed, Multimaterial with various conductivities	–
Piezoresistive sensors	Composite (TPU & PLA–G) [110]	Tactile	3D–printed (FDM), high sensitivity, excellent recovery to bending strain, wide range of pressure detecting	Detectable pressure Range: 292 Pa to 487 kPa Bending angle range: 0.1 °–26.3°
	Composite (Carbon black) [140]	Elastomeric force	Controllable composite film thickness	Response rise time upon applied load: 600 ms
Magnetic	Hall sensors and permanent magnets [137]	Curvature	Contract–free	Sensitivity with noise filtering: 0.0012 cm−1 Sensitivity without noise filtering: 0.05 cm−1
	Hall sensors and permanent magnets [138]	Tactile	High sensitivity, low hysteresis, good repeatability, Easy fabrication	Minimum Sensed force: 7.2 mN; Recovery time: 0.3 s; Noise level: ± 2.5 mN
Optical	Photopolymer (TangoBlack+) [28]	Tactile	3D printed, Biomimetic Morphology, High accuracy	Sensor Localization accuracy average: ± 0.205
	FBG, Polyimide film [145]	Curvature	Reliable sensitivity, good repeatability	Range of sensitivity of the sensor: 1.96 to 50.65 pm/m−1 The curvature ranges up to 30 m−1
	FBG, Polyimide film [146]	Curvature	Flexible system	Range of sensitivity of the sensor: 9.73 to 212.8 pm/m−1 Sensor error average: 1.82%

, various sensors are compared based on different mechanisms, materials, functionalities. Four different types of mechanisms are reviewed in this paper: Resistive, Piezoresistive, Magnetic, and Optical. Even if the mechanism is the same, each paper that is referenced in the table uses different materials and aims for different functionality. The most common functionalities are curvature, tactile, and strain sensors.

6. Summary and Outlook

The goal of this review work is to provide various information of soft pneumatic actuators to new researchers and innovators in the field of soft robotics, and to help experienced researchers attempting to stay up to date on recent advances in their field. This review has covered some of the recent developments in soft robotics to serve as a compendium of knowledge and a springboard for others in the field. The developments facilitated the widespread adoption of soft robotics in the industry, primarily maximizing repeatability, manufacturability, and of adequate control and stability of the robot.

Soft robotics provided a solution to human-robot interfaces in a safe and effective manner and serve a multitude of functions in medical, industrial, or commercial applications [147,148,149,150]. Also, integration of various new technologies has helped push the boundaries of soft robotics. Many of soft robotics projects ultimately attempted to make soft robotics more controllable, more predictable, more robust, and more manufacturable through innovation and study [151,152,153,154]. In addition to various attempts, there is still much to learn and explore in the field of soft robotics, particularly in regards to flexible power supplies, flexible drive components [147], and onboard controllers, which represent the next obstacles to the commercialization of soft robotics [10,21].
