Article

Mineral Element Deposition and Gene Expression across Different Tissues of Cherry Valley Ducks

Joint International Research Laboratory of Agriculture and Agri-Product Safety, The Ministry of Education of China, Yangzhou University, Yangzhou 225009, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Animals 2021, 11(1), 238; https://doi.org/10.3390/ani11010238
Submission received: 27 November 2020 / Revised: 11 January 2021 / Accepted: 14 January 2021 / Published: 19 January 2021
(This article belongs to the Section Poultry)

Abstract

:

Simple Summary

Mineral elements play an important role in the human metabolism. However, they cannot be synthesized in the human body and must be obtained from food. Recently, improved food consumption and the pursuit of high-quality products have become common, and high-quality meat ducks have become well-recognized by consumers. In addition to its high-quality protein and vitamins, the meat of these ducks is also rich in a variety of mineral elements required for human health. Hence, the objective of the present study was to explore the deposition of the main mineral elements in different tissues as well as to explore the mRNA level of the related genes in cherry valley ducks. Our findings will provide a valuable insight into measuring breeding indices and breeding efficiency in high-quality meat ducks.

Abstract

This study was conducted to investigate the deposition of several mineral elements and the mRNA levels of mineral-related genes across different tissues of cherry valley ducks. The contents of magnesium (Mg), potassium (K), zinc (Zn), and selenium (Se) in ducks’ breast muscle, thigh muscle, liver, skin, and tibia at the age of 0, 21, 35, 49, and 63 days, respectively, were measured using an atomic fluorescence spectrophotometer, while the mRNA levels of mineral-related genes were detected by qRT-PCR. The results revealed that the dynamics of Mg and K were generally similar in each tissue, with a significant positive correlation (p < 0.05). In the breast muscle, thigh muscle, and liver, the contents of almost all mineral elements reached their peak values (p < 0.05) at the age of 49 to 63 days. Interestingly, the expression of most mineral-related genes was the highest at birth (p < 0.05). In addition, there was a significant negative correlation between the expression of ATP1A1 and the deposition of K (r = −0.957, p < 0.05), and a similar result was found for the expression of ATP8 and the deposition of Zn (r = −0.905, p < 0.05). Taken together, Mg and K could be used as joint indicators for the precise breeding of the high-quality strain of cherry valley ducks, while the age of 49 to 63 days could be used as the reference for the best marketing age. In addition, ATP1A1 and ATP8 could be used as the key genes to detect K and Zn, respectively. Hence, the findings of this study can be used to improve the production and breeding efficiency of high-quality meat ducks.

1. Introduction

Mineral elements such as magnesium (Mg), potassium (K), zinc (Zn), and selenium (Se) are important substances in body tissues and are indispensable nutrients in the process of metabolism. In addition, they are important components of cellular membranes that maintain the structure and function of cells [1]. They also play a critical role in many important enzymatic reactions by functioning as activators of various enzymes or directly participating in the composition of enzymes. For instance, Mg is involved in almost all metabolic processes in the human body [2], while K, besides regulating osmotic pressure, can maintain the excitability of nerves and muscles [3]. Zn is involved in the transformation of taste bud cells and directly affects the activity of digestive enzymes and functions [1,4], while the main function of Se is antioxidation, reducing the toxicity of some metals and tumors, and enhancing immunity [5]. Although these mineral elements are essential for maintaining life and normal metabolism, they cannot be synthesized by the human body itself and must be obtained from food sources. The meat of ducks is rich in proteins, vitamins, and a variety of mineral elements, and constitute one of the main mineral sources for people in some regions of Southeast Asia and Europe. As China is a major producer and consumer of meat ducks, with an annual output of more than 4.3 billion ducks and accounting for 68% of meat duck production worldwide [6], high-quality meat ducks play an important role in the Chinese poultry market and are an important field of interest for research.
A large number of studies have shown that the deposition of mineral elements is affected by positive and negative regulatory factors. Thus, several key genes are important for the deposition and metabolism of mineral elements. Previous studies have revealed that two transient receptor potential melastatin (TRPM) family members, TRPM6 and TRPM7, are the key genes in regulating Mg2+ balance in cells [7]. The sodium potassium pump (Na+/K+-ATPase) is an essential ion transport system in the cellular membrane and plays an important role in regulating both vascular tension and blood pressure [8,9]. However, ATPase Na+/K+ transporting subunit alpha 1 (ATP1A1) and beta 1 (ATP1B1) genes can affect the activity of Na+/K+-ATPase [10], where the key enzyme involved in the oxidative phosphorylation process is ATP synthase, which is located in the inner membrane of the mitochondria. The enhancement effect of Zn2+ on ATP synthase is related to its concentration. Thus, Zn2+ is considered as a modulator of ATP receptors, while the ATP synthase F0 subunit 6 (ATP6) and subunit 8 (ATP8) are important mitochondrial genes [11]. Furthermore, glutathione peroxidase is the first Se-dependent enzyme to be discovered and is the most abundant selenoprotein in animals. This family contains five types, and glutathione peroxidase 1 (GPX1) is the first identified selenoprotein that is important for the antioxidant defense system in the body [12]. In addition, GPX4 mainly catalyzes the catalytic reduction of the phospholipid hydrogen peroxide and has an antioxidant effect on biofilms [13].
Meat ducks are carriers and donors of various mineral elements, while the deposition and metabolism of mineral elements are closely related to the growth performance, meat quality, feed conversion rate, and disease resistance of meat ducks. Therefore, it is of great significance to study the deposition of mineral elements in meat ducks to promote their production and improve their quality. Hence, the objective of the present study was to explore the deposition of the main mineral elements in different tissues as well as to examine the mRNA level of related genes in cherry valley (CV) ducks at different ages. Our findings will provide valuable insight into measuring the breeding indices and breeding efficiency of high-quality meat ducks.

2. Materials and Methods

2.1. Ethics Statement

All the animal procedures were implemented in strict accordance with the guidelines proposed by the China Council on Animal Care and the Ministry of Science and Technology of the People’s Republic of China. In addition, all the experimental ducks were managed and handled according to the guidelines established and approved by the Animal Care and Use Committee of Yangzhou University (Approval number: 151-2014), where all efforts were made to minimize the suffering of the animals.

2.2. Animals and Experimental Design

A total of 300 CV duck hatchlings (high-quality strain, 150 males and 150 females) were obtained from the Ecolovo Group, China. All the ducks were randomly divided into five pens, which were set as five replicates, where each replicate had 60 birds and a male/female ratio of 1:1. The ducks were incubated contemporaneously and housed under the same environmental conditions in an experimental facility until they were 63 days old. All the facilities were equipped with a flat net rearing system, where in the birdhouse the lighting was continuous and the temperature was set initially at 32 °C and was gradually reduced by 1 °C per day until it reached 18 °C. The relative humidity was set initially at 75% and was gradually reduced by 5% per week until it reached 55%. During the experimental period, all the ducks had free access to feed and water on an ad libitum basis, while the mortalities and body weight of the dead birds in each pen were recorded daily. All the ducks were reared with the same diet (Table 1) from hatchings to 63 days old.

2.3. Sample Collection

At the end of 0, 21, 35, 49, and 63 days since hatching and after 12 h of fasting, three males and three females from each replicate were randomly selected and weighed and slaughtered in a poultry processing plant. The breast muscle, thigh muscle, liver, skin (in the middle of the back spine), and tibia were collected at the aforementioned five ages. Each sample was obtained at approximately 5 g and stored at −20 °C for mineral element determination. A total of 500 mg of the liver tissue (the most vigorous tissue of mineral metabolism) was also collected from each individual and stored in the RNAlater solution (Qiagen, Valencia, CA, USA) immediately at −80 °C until RNA extraction.

2.4. Experimental and Laboratory Procedures

2.4.1. Mineral Element Content Determination

The breast, thigh, liver, skin, and tibia samples were used to measure the Mg, K, Zn, and Se contents, where frozen samples were thawed at 4 °C for 24 h prior to analysis. Analyses of the Mg, K, Zn, and Se were performed by the microwave-assisted digestion of the sample, followed by an atomic fluorescence spectrophotometer analysis (AFS-2202a, Jitian, Beijing, China). The experimental conditions were as follows: atomizer flow, 0.80 L/min; auxiliary flow, 0.20 L/min; plasma flow, 15 L/min; radio frequency power generator, 1.3 KW; sample uptake rate, 1.5 mL/min. All the measurements were performed in triplicate, and the contents of Mg, K, Fe, and Zn were measured in milligrams per kilogram, while Se was measured in micrograms per kilogram.

2.4.2. Quantitative Real-Time Polymerase Chain Reaction (qRT-PCR)

Eight mineral-related genes, including TRPM6, TRPM7, ATP1A1, ATP1B1, GPX1, GPX4, ATP6, and ATP8, were selected for qRT-PCR detection. Gene-specific primers were designed using the Oligo 6 software (Table 2), while the housekeeping gene, β-actin, was used as an endogenous control. The total RNA was extracted from the liver tissue using the RNAiso Plus reagent (code no. 9109, Takara, Dalian, China) according to the manufacturer’s instructions. The cDNA synthesis from the total RNA and the one-step quantitative PCR were performed using the Applied Biosystems QuantStudio5 system (Applied Biosystems, Foster City, CA, USA). In addition, the qRT-PCR program was run as follows: pre-incubation (95 °C for 2 min), 40 cycles of amplification (95 °C for 15 s, 60 °C for 1 min), followed by thermal denaturing to generate melting curves to verify the amplification specificity. Finally, all the sample and blank control reactions were run as triplicates.

2.5. Statistical Analysis

The relative abundance of the transcripts was calculated using the 2−ΔΔCT method [14], and the data were analyzed by a one-way analysis of variance using the general linear model procedure in the SAS software v 9.4 (SAS Institute Inc., Cary, NC, USA). Duncan’s multiple comparison procedure was employed to test the significant differences, while bivariate correlation was used to analyze the correlation between the depositions of different mineral elements as well as the correlation between gene expression and mineral element deposition. All the graphically presented data are means ± standard errors of the mean, where the data were assumed to be statistically significant at p < 0.05.

3. Results

3.1. The Dynamics of Mineral Elements

The dynamics of the mineral elements in the tissues of the CV ducks at different ages are shown in Figure 1. In the breast muscle, the dynamics of the Mg and K were almost identical, showing a significant (p < 0.05) increase with age, where the contents of the two elements reached their peak values at 49 to 63 days old. In contrast, the deposition of Zn showed a significant (p < 0.05) decrease with age, while the deposition of Se had a decreasing then an increasing trend, where its content was the highest at birth (p < 0.05). In the thigh muscle, the dynamics of Mg, K, and Se were generally similar than those in the breast muscle. However, the deposition of Zn was completely different, showing a significant (p < 0.05) increase with age. In the liver, the dynamics of all four mineral elements showed a significant (p < 0.05) increasing trend with age, while in the dorsal skin the depositions of the four mineral elements were different from those in the aforementioned three tissues. All four elements had a decreasing then an increasing tendency with age. However, the contents of Mg and Se were the lowest at 35 days old, while the contents of K and Zn were the lowest at 49 days old (p < 0.05). In the tibia, the dynamics of Mg, K, Zn, and Se were generally identical, showing a significant (p < 0.05) decrease with age, which was opposite to the dynamics found in the thigh muscle and liver. Taken together, the dynamics of Mg and K were generally similar in each tissue, where the contents of Mg and K reached their peak values during the age of 49 to 63 days in the breast muscle, thigh muscle, and liver.

3.2. Correlations between Depositions of Different Mineral Elements

The correlations between the mineral element depositions in the breast muscle have been summarized in Table 3. We noted a positive correlation between Mg and K in the five growth stages of CV duck, which showed an extremely significant difference between 0 and 21 days old (p < 0.01), as well as a significant difference between 35 and 63 days old (p < 0.05). Moreover, the correlation between the depositions of mineral elements in the thigh muscle has been summarized in Table 4; a positive correlation between the Mg and K level was observed, and these levels differed extremely significantly between 35 and 49 days old (p < 0.01), as well as significantly between 0, 21, and 63 days old (p < 0.05). In addition, Mg and Zn had a highly significant negative correlation (p < 0.01) at 21 days old, while K and Se had a significant negative correlation (p < 0.05) at 49 days old. Table 5 shows the correlation between the depositions of mineral elements in the liver. There was also a significant positive correlation between Mg and K at 0, 21, 49, and 63 days old (p < 0.05). Furthermore, at 21 days old, Mg and K both had an extremely significant positive correlation with Se (p < 0.01), while at 35 days old the Se and Zn levels were significantly positively correlated (p < 0.05). At 63 days old, Mg and Zn had a highly significant positive correlation (p < 0.01), while K and Zn had a significant positive correlation (p < 0.05). Table 6 shows the correlation between the depositions of mineral elements in the skin. We noted a positive correlation between the Mg and K levels, which was extremely significant at 21 and 49 days old, respectively (p < 0.01), as well as was significant at 0, 35, and 63 days old (p < 0.05). Moreover, Zn and Se had a significant positive correlation at 0 and 49 days old, respectively (p < 0.05), while K and Se had a highly significant positive correlation (p < 0.01) at birth. Mg and Zn showed a highly significant positive correlation (p < 0.01) at 63 days old. Furthermore, Table 7 shows the correlation between the depositions of mineral elements in the tibia. We noted a significant positive correlation between the Mg and K levels in the tibia at 0, 21, 35, and 63 days old (p < 0.05), while the K and Zn levels had a highly significant negative correlation (p < 0.01) at 21 days old, as well as a significant positive correlation (p < 0.05) at 63 days old.

3.3. Expression Pattern of Mineral Element Related Genes

The expression patterns of mineral-related genes in the liver have been illustrated in Figure 2, where the expression of each gene at 63 days old was selected as a control. In addition, the expression of the Mg-related genes, TRPM6 and TRPM7, was highest at birth in both (p < 0.05), while the expression pattern of TRPM6 showed a significant (p < 0.05) decrease with age and the expression pattern of TRPM7 showed a declining trend. Moreover, the expression patterns of those two genes were opposing between 21 and 35 days old, while the expression pattern of the K-related gene, ATP1A1, showed a significant downward trend between 0 and 21 days old (p < 0.05), which then stabilized. Furthermore, the expression pattern of ATP1B1 showed a decreasing, increasing, and then decreasing tendency, and its expression was the highest at 49 days old and the lowest at 21 days old (p < 0.05). Moreover, the expression pattern of Zn-related genes, ATP6 and ATP8, showed a significant (p < 0.05) decline, which then stabilized, while the expression pattern of both Se-related genes, GPX1 and GPX4, showed a significant (p < 0.05) dynamic change with age, with opposing expression patterns between the ages of 0 and 35 days old and almost identical expression patterns between the ages of 35 and 63 days old.

3.4. Correlations between Gene Expression and Mineral Deposition

The correlations between gene expression and mineral element deposition in the liver have been summarized in Table 8, highlighting a significant negative correlation between the deposition of K and the expression of its related gene, ATP1A1 (p < 0.05). Similarly, a significant negative correlation was also found between the deposition of Zn and the expression of its related gene, ATP8 (p < 0.05), while the expression of the other genes had certain positive and negative correlations with mineral depositions, but without any significant differences (p > 0.05).

4. Discussion

4.1. Dynamics and Correlations of Mineral Elements

To meet the continuous increase in human consumption and provide high-quality products, the concept of high-quality meat ducks has been proposed in recent years, and is predicted to account for more than 50% of the market share in China. High-quality meat ducks have a unique flavor and great nutritional value because of their abundant nutrients and minerals as well as greater feeding age. However, a greater feeding age results in a reduced feed conversion rate and a higher feeding cost. Therefore, this study provided basic information regarding the mineral element depositions of high-quality meat ducks which can be used as a reference for the scientific and reasonable marketing age of high-quality meat ducks.
As an important component of bioactive substances such as enzymes, hormones, and vitamins, mineral elements participate in a series of material, energetic, and metabolic processes, which play a vital role in the growth and development of animals [15,16], as well as in the improvement of their meat quality [17]. Mg is an indispensable element for the growth and development of animals and can improve poultry meat quality [18,19]. Estevez and Petracci [20] reported that Mg can protect against protein oxidation in the liver and plasma and reduce the incidence of wooden breast and white striping myopathies in broilers. A previous study [21] showed that the concentration of Mg in the animal body increased rapidly with age, and a large amount (65% to 68%) of Mg was deposited in the bone tissue, while approximately 25% of Mg was deposited in the muscle tissue and 7% to 8% of Mg was deposited in other tissues, which is generally similar to the results of this study. In addition, K is another macroelement in animals besides Ca and P, and is also the first essential mineral in muscle tissue [22]. It is the main cation of intracellular metabolism and plays an important role in maintaining the acid–base balance; the osmotic pressure of body fluids; as well as the nerves, muscle reactions, and cell homeostasis [23]. Mg2+, together with Ca2+, Na+, and K+, cooperates with the corresponding negative ions to activate Na+/K+-ATPase, promote K+ to flow into the cell, maintain the acid–base balance and electrolyte balance, alleviate animal stress, reduce the occurrence of PSE meat, and improve meat quality [24]. In the present study, we noted that the dynamics of Mg and K were generally similar in each tissue, which is similar to the results of a previous study [25]. More importantly, they showed significant positive correlations across all five growth stages, indicating that Mg and K might jointly contribute to the normal metabolism and meat quality of CV ducks.
Another important microelement is Zn [26]. After binding with albumin, Zn is first transported to the liver through blood circulation and then distributed to other tissues and organs of the body, most of which are transported to the bones [27]. As is generally understood, the liver is the main metabolic organ that hosts Zn, where Zn metabolism is rapid in the liver and slow in the bones. This ultimately leads to a higher Zn content in the bones and liver of the animal body. Hence, the order of Zn deposition in this study was as follows: tibia > liver > thigh muscle > breast muscle > skin, which is consistent with the results of the aforementioned study. In addition, Se is an essential trace element for poultry and plays an important role in the immune response, antioxidation, and disease resistance of the animal body [28]. Se can also antagonizes and reduces the toxicity of certain toxic elements and substances, such as reducing the toxic effects of cadmium, lead, and mercury [29]. Burk et al. [30] revealed that Se was mainly distributed in the liver and kidneys, which is consistent with our results. Additionally, according to the results of the dynamics of the four mineral elements in different tissues, it was found that the contents of almost all the mineral elements in the breast muscle, thigh muscle, liver, and tibia tissues tended to stabilize at 49 to 63 days old, which provided basic data to select the best marketing age for the high-quality strain of CV ducks.

4.2. Genes and Depositions of Mineral Elements

Several genes are important for the deposition and metabolism of mineral elements. In this study, we examined the expression of Mg, K, Zn, and Se-related genes in the liver as well as the correlations between gene expression and mineral deposition. Firstly, the deposition and metabolism of Mg in the tissues depended on the regulation of many factors, including the TRPM family members, which are important for the cation channels that are located on the cell membrane and activated to regulate a series of cellular activities. There are eight genes in the TRPM family, of which TRPM6 and TRPM7 show high permeability to Mg2+ and play a critical role in maintaining intracellular Mg2+ homeostasis [31]. Voets et al. [32] showed that the TRPM6 gene can cause the affinity of Mg2+ to be five times higher than that of Ca2+, allowing epithelial cells to absorb all or part of the Mg2+. Similarly, TRPM7 can regulate the balance of Mg2+ in cells, where cells with a defected TRPM7 stop growing due to Mg deficiency in the cells, which then can be compensated for by supplementing with Mg2+ [33,34]. Secondly, an important ion transporter in the cellular membrane is the Na+/K+-ATPase, which is the main mediator of the transmembrane ion gradient. Its role is to maintain the balance between Na+ and K+ in the body [35,36]. Mallakh et al. [37] revealed that when the Na+/K+-ATPase activity of the erythrocytes decreased, the ATP1A1 gene would pump K+ into the cells and Na+ out of the cells, thus, increasing the cellular concentration of K+. In addition, Blostein et al. [38,39] showed that the ATP1B1 gene determines the permeability of K+ channels. Thirdly, Zn is involved in the synthesis of a variety of enzymes and is also an activator of more than 300 enzymes in the body [40]. One of the key enzymes involved in mitochondrial oxidative phosphorylation is ATP synthase, which is located in the inner membrane of the mitochondria [41]. ATP synthase is a molecular motor composed of two separable parts, F1 and F0, where the F1 portion contains the catalytic sites for ATP synthesis and protrudes into the mitochondrial matrix, while F0 forms a proton turbine that is embedded in the inner membrane and is connected to the rotor of F1 [42]. Both ATP6 and ATP8 are mitochondrial genes that encode part of the F0 subunit of the ATP synthase. In addition, ATP receptors are sensitive to many endogenous substances, including Zn2+ and Mg2+, and some neurotransmitters. Therefore, the enhancement effect of Zn2+ on ATP synthase is related to the concentration of Zn2+. Finally, Se mainly exists in animals in the form of selenoproteins, in which glutathione peroxidase was the first selenium-dependent enzyme to be discovered and is the most abundant selenoprotein in animals. This family includes five subtypes: GPX1, GPX2, GPX3, GPX4, and GPX6, where GPX1 participates in antioxidant defense mechanisms in vivo [43], while GPX4 participates in antioxidant protection, sperm development, and cerebral embryogenesis [44].
Hence, in this study, according to the depositions of four mineral elements in the liver tissues, we found that the expression of related genes changed dynamically with age, which correlated with mineral element deposition. Notably, there was a significant negative correlation between ATP1A1 expression and K deposition and between ATP8 expression and Zn deposition, suggesting that both ATP1A1 and ATP8 could be used for the detection of the K and Zn contents in ducks, respectively.

5. Conclusions

In conclusion, considering the depositions of the mineral elements, the expression of key genes, and their correlations, the results of this study indicate that Mg and K could be used as joint indicators for the precise breeding of the high-quality strain of cherry valley ducks. Moreover, the age of 49 to 63 days could be used as a reference for the best marketing age. In addition, ATP1A1 and ATP8 could be considered as key genes to detect K and Zn, respectively. Hence, our findings can provide a theoretical basis for estimating the breeding indices and breeding efficiency in high-quality meat ducks.

Author Contributions

Conception and design of study: G.C. (Guohong Chen), G.C. (Guobin Chang) and H.B.; acquisition of data: H.B. and L.Z.; analysis and interpretation of data: H.B., L.Z., Q.S. and X.L.; drafting the manuscript: Q.S., Y.Z. and H.B.; writing—review and editing, G.C. (Guobin Chang), H.B. and W.Z.; supervision, G.C. (Guohong Chen). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the China Agriculture Research System (CARS-42) and the Jiangsu agricultural science and technology innovation fund (CX(18)1004).

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

We are deeply grateful to all the donors who participated in this program. We thank all contributors of the present study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bettger, W.J.; O’Dell, B.L. A critical physiological role of zinc in the structure and function of biomembranes. Life Sci. 1981, 28, 1425–1438. [Google Scholar] [CrossRef]
  2. Fox, C.; Ramsoomair, D.; Carter, C. Magnesium: Its proven and potential clinical significance. South Med. J. 2001, 94, 1195–1201. [Google Scholar] [CrossRef]
  3. Kovesdy, C.P.; Appel, L.J.; Grams, M.E.; Gutekunst, L.; McCullough, P.A.; Palmer, B.F.; Pitt, B.; Sica, D.A.; Townsend, R.R. Potassium homeostasis in health and disease: A scientific workshop cosponsored by the National Kidney Foundation and the American Society of Hypertension. J. Am. Soc. Hypertens. 2017, 11, 783–800. [Google Scholar] [CrossRef]
  4. Scott, M.E.; Koski, K.G. Zinc deficiency impairs immune responses against parasitic nematode infections at intestinal and systemic sites. J. Nutr. 2000, 130, 1412s–1420s. [Google Scholar] [CrossRef] [Green Version]
  5. Kvicala, J. Selenium and the organism. Casopis Lekaru Ceskych 1999, 138, 99–106. [Google Scholar]
  6. Hou, S.S.; Liu, L.Z. Current situation, future development trend and suggestions of waterfowl industry in 2019. Chin. J. Anim. Sci. 2020, 56, 130–135. [Google Scholar]
  7. Schmitz, C.; Perraud, A.L.; Johnson, C.O.; Inabe, K.; Smith, M.K.; Penner, R.; Kurosaki, T.; Fleig, A.; Scharenberg, A.M. Regulation of vertebrate cellular Mg2+ homeostasis by TRPM7. Cell 2003, 114, 191–200. [Google Scholar] [CrossRef] [Green Version]
  8. Lainez, S.; Schlingmann, K.P.; van der Wijst, J.; Dworniczak, B.; van Zeeland, F.; Konrad, M.; Bindels, R.J.; Hoenderop, J.G. New TRPM6 missense mutations linked to hypomagnesemia with secondary hypocalcemia. Eur. J. Hum. Genet. 2014, 22, 497–504. [Google Scholar] [CrossRef]
  9. Chubanov, V.; Waldegger, S.; Mederos y Schnitzler, M.; Vitzthum, H.; Sassen, M.C.; Seyberth, H.W.; Konrad, M.; Gudermann, T. Disruption of TRPM6/TRPM7 complex formation by a mutation in the TRPM6 gene causes hypomagnesemia with secondary hypocalcemia. Proc. Natl. Acad. Sci. USA 2004, 101, 2894–2899. [Google Scholar] [CrossRef] [Green Version]
  10. Glorioso, N.; Herrera, V.L.; Bagamasbad, P.; Filigheddu, F.; Troffa, C.; Argiolas, G.; Bulla, E.; Decano, J.L.; Ruiz-Opazo, N. Association of ATP1A1 and dear single-nucleotide polymorphism haplotypes with essential hypertension: Sex-specific and haplotype-specific effects. Circ. Res. 2007, 100, 1522–1529. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Cloues, R.; Jones, S.; Brown, D.A. Zn2+ potentiates ATP-activated currents in rat sympathetic neurons. Pflugers Arch. 1993, 424, 152–158. [Google Scholar] [CrossRef] [PubMed]
  12. Jablonska, E.; Gromadzinska, J.; Reszka, E.; Wasowicz, W.; Sobala, W.; Szeszenia-Dabrowska, N.; Boffetta, P. Association between GPX1 Pro198Leu polymorphism, GPX1 activity and plasma selenium concentration in humans. Eur. J. Nutr. 2009, 48, 383–386. [Google Scholar] [CrossRef]
  13. Kelner, M.J.; Montoya, M.A. Structural organization of the human selenium-dependent phospholipid hydroperoxide glutathione peroxidase gene (GPX4): Chromosomal localization to 19p13.3. Biochem. Biophys. Res. Commun. 1998, 249, 53–55. [Google Scholar] [CrossRef]
  14. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  15. Yang, Y.; Gao, M.; Nie, W.; Yuan, J.; Zhang, B.; Wang, Z.; Wu, Z. Dietary Magnesium Sulfate Supplementation Protects Heat Stress-Induced Oxidative Damage by Restoring the Activities of Anti-oxidative Enzymes in Broilers. Biol. Trace Elem. Res. 2012, 146, 53–58. [Google Scholar] [CrossRef]
  16. Attia, Y.A.; Abd Al-Hamid, A.E.; Zeweil, H.S.; Qota, E.M.; Bovera, F.; Monastra, G.; Sahledom, M.D. Effect of dietary amounts of inorganic and organic zinc on productive and physiological traits of White Pekin ducks. Animal 2013, 7, 895–900. [Google Scholar] [CrossRef]
  17. He, R.F.; Li, S.Y.; Jin, H.T.; Wang, L.Y.; Yan, M.T. Effects of trace mineral on meat quality. China Anim. Husb. Vet. Med. 2008, 35, 12–15. [Google Scholar]
  18. Ding, B.Y.; Hou, Y.Q.; Wang, C. Effect of compound meat quality improver on duck meat quality. Heilongjiang Anim. Sci. Vet. Med. 2008, 9, 109–110. [Google Scholar]
  19. Shastak, Y.; Rodehutscord, M. A review of the role of magnesium in poultry nutrition. World’s Poult. Sci. J. 2015, 71, 125–138. [Google Scholar] [CrossRef]
  20. Estevez, M.; Petracci, M. Benefits of Magnesium Supplementation to Broiler Subjected to Dietary and Heat Stress: Improved Redox Status, Breast Quality and Decreased Myopathy Incidence. Antioxidants 2019, 8, 456. [Google Scholar] [CrossRef] [Green Version]
  21. Ma, X.H.; Huang, R.L.; Zhang, Z.Y.; Feng, Z.K. An essential mineral element for animals-magnesium. China Feed 2003, 18, 24–25. [Google Scholar]
  22. Suttle, N.F. Mineral Nutrition of Livestock; CABI Publishing: New York, NY, USA, 2010. [Google Scholar]
  23. Yao, Y.P.; Feng, H.B.; Zhao, L.P.; Wang, Y.L.; Xu, S.Q. The relationship between the distribution of intracellular and extracellular potassium and human health. J. Public Health Prev. Med. 2006, 17, 57–59. [Google Scholar]
  24. Peeters, E.; Driessen, B.; Geers, R. Influence of supplemental magnesium, tryptophan, vitamin C, vitamin E, and herbs on stress responses and pork quality. J. Anim. Sci. 2006, 84, 1827–1838. [Google Scholar] [CrossRef]
  25. Meyer, T.E.; Verwoert, G.C.; Hwang, S.J.; Glazer, N.L.; Smith, A.V.; van Rooij, F.J.; Ehret, G.B.; Boerwinkle, E.; Felix, J.F.; Leak, T.S.; et al. Genome-wide association studies of serum magnesium, potassium, and sodium concentrations identify six Loci influencing serum magnesium levels. PLoS Genet. 2010, 6, e1001045. [Google Scholar] [CrossRef] [Green Version]
  26. Hu, C.H.; Qian, Z.C.; Song, J.; Luan, Z.S.; Zuo, A.Y. Effects of zinc oxide-montmorillonite hybrid on growth performance, intestinal structure, and function of broiler chicken. Poult. Sci. 2013, 92, 143–150. [Google Scholar] [CrossRef]
  27. Tang, Z.G.; Wen, C.; Wang, L.C.; Wang, T.; Zhou, Y.M. Effects of zinc-bearing clinoptilolite on growth performance, cecal microflora and intestinal mucosal function of broiler chickens. Anim. Feed Sci. Technol. 2014, 189, 98–106. [Google Scholar] [CrossRef]
  28. Rotruck, J.T.; Pope, A.L.; Ganther, H.E.; Swanson, A.B.; Hafeman, D.G.; Hoekstra, W.G. Selenium: Biochemical role as a component of glutathione peroxidase. Science 1973, 179, 588–590. [Google Scholar] [CrossRef]
  29. Jamier, V.; Ba, L.A.; Jacob, C. Selenium- and tellurium-containing multifunctional redox agents as biochemical redox modulators with selective cytotoxicity. Chemistry 2010, 16, 10920–10928. [Google Scholar] [CrossRef]
  30. Burk, R.F.; Hill, K.E. Regulation of Selenium Metabolism and Transport. Annu. Rev. Nutr. 2015, 35, 109–134. [Google Scholar] [CrossRef]
  31. Touyz, R.M. Transient receptor potential melastatin 6 and 7 channels, magnesium transport, and vascular biology: Implications in hypertension. Am. J. Physiol. Heart Circ. Physiol. 2008, 294, H1103–H1118. [Google Scholar] [CrossRef] [Green Version]
  32. Voets, T.; Nilius, B.; Hoefs, S.; van der Kemp, A.W.; Droogmans, G.; Bindels, R.J.; Hoenderop, J.G. TRPM6 forms the Mg2+ influx channel involved in intestinal and renal Mg2+ absorption. J. Biol. Chem. 2004, 279, 19–25. [Google Scholar] [CrossRef] [Green Version]
  33. Bates-Withers, C.; Sah, R.; Clapham, D.E. TRPM7, the Mg2+ Inhibited Channel and Kinase. Adv. Exp. Med. Biol. 2011, 704, 173–183. [Google Scholar]
  34. Jiang, Z.P.; Newell, E.W.; Schlichter, L.C. Regulation of a TRPM7-like current in rat brain microglia. Biophys. J. 2004, 86, 429a. [Google Scholar] [CrossRef] [Green Version]
  35. Bab-Dinitz, E.; Albeck, S.; Peleg, Y.; Brumfeld, V.; Gottschalk, K.E.; Karlish, S.J. A C-terminal lobe of the beta subunit of Na,K-ATPase and H,K-ATPase resembles cell adhesion molecules. Biochemistry 2009, 48, 8684–8691. [Google Scholar] [CrossRef]
  36. Sweadner, K.J. Isozymes of the Na+/K+-ATPase. BBA Rev. Biomembr. 1989, 988, 185–220. [Google Scholar] [CrossRef]
  37. El-Mallakh, R.S.; Wyatt, R.J. The Na,K-ATPase hypothesis for bipolar illness. Biol. Psychiatry 1995, 37, 235–244. [Google Scholar] [CrossRef]
  38. Blostein, R.; Pu, H.X.; Scanzano, R.; Zouzoulas, A. Structure/function studies of the gamma subunit of the Na,K-ATPase. Ann. N. Y. Acad. Sci. 2003, 986, 420–427. [Google Scholar] [CrossRef]
  39. Xiao, B.; Zhang, Y.; Niu, W.; Gao, P.; Zhu, D. Association of ATP1B1 single-nucleotide polymorphisms with blood pressure and hypertension in a Chinese population. Clin. Chim. Acta 2009, 407, 47–50. [Google Scholar] [CrossRef]
  40. Johanning, G.L.; Browning, J.D.; Bobilya, D.J.; Veum, T.L.; O’Dell, B.L. Effect of Zinc Deficiency on Enzyme Activities in Rat and Pig Erythrocyte Membranes. Proc. Soc. Exp. Biol. Med. 1990, 195, 224–229. [Google Scholar] [CrossRef]
  41. Han, J.H.; Yang, Y.X.; He, M.; Men, J.H. Effect of zinc on the activities of ATPase of erythrocyte membrane. Wei Sheng Yan Jiu 2001, 30, 47–49. [Google Scholar]
  42. Xu, T.; Pagadala, V.; Mueller, D.M. Understanding structure, function, and mutations in the mitochondrial ATP synthase. Microb. Cell 2015, 2, 105–125. [Google Scholar] [CrossRef]
  43. Jerome-Morais, A.; Bera, S.; Rachidi, W.; Gann, P.H.; Diamond, A.M. The effects of selenium and the GPx-1 selenoprotein on the phosphorylation of H2AX. Biochim. Biophys. Acta 2013, 1830, 3399–3406. [Google Scholar] [CrossRef] [Green Version]
  44. Scheerer, P.; Borchert, A.; Krauss, N.; Wessner, H.; Gerth, C.; Hohne, W.; Kuhn, H. Structural basis for catalytic activity and enzyme polymerization of phospholipid hydroperoxide glutathione peroxidase-4 (GPX4). Biochemistry 2007, 46, 9041–9049. [Google Scholar] [CrossRef]

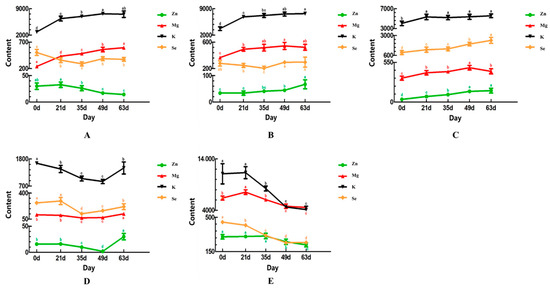

Figure 1. The dynamics of the mineral elements in the tissues at different ages. (A): breast muscle; (B): thigh muscle; (C): liver; (D): skin; (E): tibia. Note: different letters indicate significant differences (p < 0.05), the same as below.
Figure 1. The dynamics of the mineral elements in the tissues at different ages. (A): breast muscle; (B): thigh muscle; (C): liver; (D): skin; (E): tibia. Note: different letters indicate significant differences (p < 0.05), the same as below.
Animals 11 00238 g001

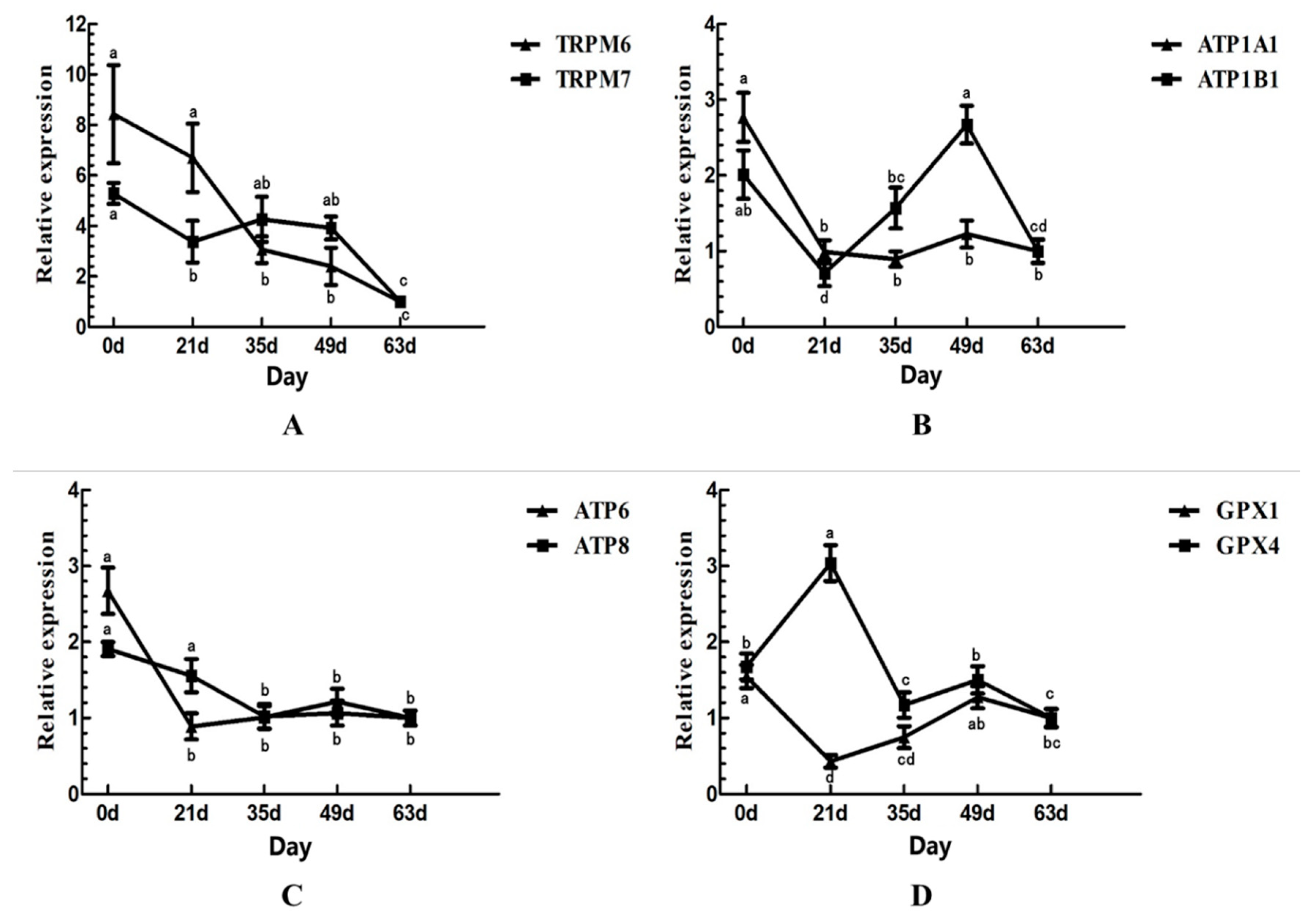

Figure 2. Relative expression of genes in liver. (A): Mg-related genes, TRPM6 and TRPM7; (B): K-related genes, ATP1A1 and ATP1B1; (C): Zn-related genes, ATP6 and ATP8; (D): Se-related genes, GPX1 and GPX4.
Figure 2. Relative expression of genes in liver. (A): Mg-related genes, TRPM6 and TRPM7; (B): K-related genes, ATP1A1 and ATP1B1; (C): Zn-related genes, ATP6 and ATP8; (D): Se-related genes, GPX1 and GPX4.
Animals 11 00238 g002
Table 1. Compositions and nutrients of the experimental diets (%, as fed).
Table 1. Compositions and nutrients of the experimental diets (%, as fed).
Item0–7 d8–21 d22–42 d43–63 d
Ingredient (%)
Corn10.3210.6347.1821.27
Wheat middling15.4115.006.8920.00
Wheat bran--20.0030.01
Rice noodles35.2134.99-10.00
Rice bran15.8115.003.005.00
Peanut meal--3.002.37
Corn gluten meal--5.00-
Soybean meal12.6313.705.942.50
Nucleotide slag2.002.00--
Limestone powder1.521.581.901.96
Calcium hydrogen phosphate1.101.101.010.84
Compound premix a6.006.006.006.00
Formulated nutrient profile (g/kg)
Crude protein185.00190.00170.00170.00
Crude fat20.0030.0035.0035.00
Crude fiber60.0050.0070.0070.00
Crude ash90.0080.00100.00100.00
Calcium10.0010.0010.0010.00
Phosphorus5.005.504.504.50
Sodium chloride6.006.006.006.00
Methionine4.004.002.802.80
Moisture140.00130.00130.00130.00
a Supplied per kilogram of total diet: Bentonite, 44.46 g; Lysine, 3.24 g; DL-MHA-FA (88%), 0.99 g; Threonine, 0.73 g; Sodium chloride, 4.40 g; Sodium Bicarbonate, 2.00 g; Sodium sulphate, 2.00 g; Herbalife, 0.20 g; Choline chloride (60%), 1.00 g; Jin Duowei, 0.53 g; Jin Yvkang, 0.15 g; C-811 enzyme (a commercial compound enzyme preparation manufactured by Guangdong VTR Bio-Tech Co., Ltd. in China, which can effectively help the animal body to decompose and absorb the nutrients that are difficult to utilize in feed), 0.30 g.
Table 2. Primer sequences used for quantitative real-time PCR.
Table 2. Primer sequences used for quantitative real-time PCR.
GeneThe Sequence of Primer (5′–3′)Length (bp)Tm/°C
TRPM6F: TTGCAAGGTGTTGGGGAAAAC19960
R: GCCTTTCCATTGTGCAGTCG
TRPM7F: TGATTGATGTGGGGCTGGTT12460
R: GCACCAGTGTCAATCCGACT
ATP1A1F: TGAGCCTACTGCAACATCCG16860
R: GCAGTAGTCAAACCCCGACT
ATP1B1F: TGTGCTCCCAAGAGAGACGA11260
R: GAAGCTTGCCGTAGTAGGGG
GPX1F: ACTTCCTGCAGCTCAACGAG10360
R: TTGGTGGCATTCTCCTGGTG
GPX4F: GACAACGCGCAGATTAAGGC15260
R: TTTATGGCATTGCCCAGGGT
ATP6F: TTGGCATCCCCCTGATCCTA16760
R: GGCTCATTTGTGGCCGTTTT
ATP8F: CCTGACTAACCCTCGCACTC11460
R: ATGGTCAGGCTCATGGTGTG
β-actinF: GTGCTATGTCGCCCTGGATT17160
R: CCACAGGACTCCATACCCAAG
Table 3. Correlation between the depositions of mineral elements in the breast muscle.
Table 3. Correlation between the depositions of mineral elements in the breast muscle.
Day0 dDay21 dDay35 d
ElementMgKSeZnElementMgKSeZnElementMgKSeZn
0 dMg1 21 dMg1 35 dMg1
K0.86 **1 K0.86 **1 K0.62 *1
Se0.25−0.011 Se−0.40−0.401 Se0.400.411
Zn0.390.170.101Zn−0.34−0.20−0.101Zn−0.050.210.071
Day49 dDay63 d
ElementMgKSeZnElementMgKSeZn
49 dMg1 63 dMg1
K0.85 *1 K0.72 *1
Se−0.18−0.101 Se0.220.141
Zn−0.63−0.200.521Zn0.130.530.101
Note: * indicates a significant correlation (p < 0.05) and ** indicates an extremely significant correlation (p < 0.01), the same as below.
Table 4. Correlation between the depositions of mineral elements in the thigh muscle.
Table 4. Correlation between the depositions of mineral elements in the thigh muscle.
Day0 dDay21 dDay35 d
ElementMgKSeZnElementMgKSeZnElementMgKSeZn
0 dMg1 21 dMg1 35 dMg1
K0.68 *1 K0.76 *1 K0.81 **1
Se0.02−0.301 Se−0.12−0.631 Se0.490.491
Zn−0.10−0.600.361Zn−0.85 **−0.600.181Zn0.170.390.741
Day49 dDay63 d
ElementMgKSeZnElementMgKSeZn
49 dMg1 63 dMg1
K0.81 **1 K0.67 *1
Se−0.37−0.60 *1 Se0.170.301
Zn−0.58−0.37−0.101Zn−0.46−0.400.501
Table 5. Correlation between the depositions of mineral elements in the liver.
Table 5. Correlation between the depositions of mineral elements in the liver.
Day0 dDay21 dDay35 d
ElementMgKSeZnElementMgKSeZnElementMgKSeZn
0 dMg1 21 dMg1 35 dMg1
K0.76 *1 K0.68 *1 K0.341
Se0.14−0.201 Se0.87 **0.84 **1 Se0.380.201
Zn0.150.07−0.601Zn0.340.290.221Zn0.520.560.67 *1
Day49 dDay63 d
ElementMgKSeZnElementMgKSeZn
49 dMg1 63 dMg1
K0.69 *1 K0.73 *1
Se0.22−0.401 Se−0.300.101
Zn0.080.11−0.101Zn0.87 **0.67 *0.101
Table 6. Correlation between the depositions of mineral elements in the skin.
Table 6. Correlation between the depositions of mineral elements in the skin.
Day0 dDay21 dDay35 d
ElementMgKSeZnElementMgKSeZnElementMgKSeZn
0 dMg1 21 dMg1 35 dMg1
K0.68 *1 K0.79 **1 K0.71 *1
Se0.610.87 **1 Se0.300.281 Se0.590.171
Zn0.210.630.68 *1Zn0.410.22−0.101Zn0.240.020.441
Day49 dDay63 d
ElementMgKSeZnElementMgKSeZn
49 dMg1 63 dMg1
K0.98 **1 K0.66 *1
Se0.580.651 Se0.19−0.101
Zn0.320.350.74 *1Zn0.82 **0.63−0.101
Table 7. Correlation between the depositions of mineral elements in the tibia.
Table 7. Correlation between the depositions of mineral elements in the tibia.
Day0 dDay21 dDay35 d
ElementMgKSeZnElementMgKSeZnElementMgKSeZn
0 dMg1 21 dMg1 35 dMg1
K0.85 *1 K0.61 *1 K0.59 *1
Se0.180.371 Se0.440.461 Se0.08−0.701
Zn−0.100.090.071Zn−0.10−0.96 **−0.301Zn0.730.60−0.401
Day49 dDay63 d
ElementMgKSeZnElementMgKSeZn
49 dMg1 63 dMg1
K0.511 K0.81 *1
Se0.49−0.201 Se0.710.791
Zn−0.500.39−0.101Zn0.710.88 *0.781
Table 8. The correlation analysis of gene expression and mineral element deposition in the liver.
Table 8. The correlation analysis of gene expression and mineral element deposition in the liver.
GeneMineral Elements
MgKZnSe
TRPM6−0.806---
TRPM7−0.424---
ATP1A1-−0.957 *--
ATP1B1-−0.339--
ATP6--−0.671-
ATP8--−0.905 *-
GPX1---−0.025
GPX4---−0.496
Note: * indicates a significant correlation (p < 0.05).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Song, Q.; Zhang, Y.; Bai, H.; Zhong, L.; Li, X.; Zhao, W.; Chang, G.; Chen, G. Mineral Element Deposition and Gene Expression across Different Tissues of Cherry Valley Ducks. Animals 2021, 11, 238. https://doi.org/10.3390/ani11010238

AMA Style

Song Q, Zhang Y, Bai H, Zhong L, Li X, Zhao W, Chang G, Chen G. Mineral Element Deposition and Gene Expression across Different Tissues of Cherry Valley Ducks. Animals. 2021; 11(1):238. https://doi.org/10.3390/ani11010238

Chicago/Turabian Style

Song, Qianqian, Yi Zhang, Hao Bai, Li Zhong, Xiaofan Li, Wenming Zhao, Guobin Chang, and Guohong Chen. 2021. "Mineral Element Deposition and Gene Expression across Different Tissues of Cherry Valley Ducks" Animals 11, no. 1: 238. https://doi.org/10.3390/ani11010238

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
