Cytokines That Serve as Embryokines in Cattle

by
Alan D. Ealy
1,*,
Savannah L. Speckhart
1 and
Lydia K. Wooldridge
2
1
Department of Animal and Poultry Sciences, Virginia Tech, Blacksburg, VA 24061, USA
2
The Jackson Laboratory, Bar Harbor, ME 04609, USA
*
Author to whom correspondence should be addressed.
Animals 2021, 11(8), 2313; https://doi.org/10.3390/ani11082313
Submission received: 22 June 2021 / Revised: 27 July 2021 / Accepted: 2 August 2021 / Published: 5 August 2021
(This article belongs to the Special Issue Maternal Influence on Animal Health and Performance)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

This review will explore how some cytokines also influence early embryonic development. We term these types of molecules as embryokines. Understanding how cytokines serve as embryokines could offer new opportunities to improve embryo development and the overall health of the embryo so that pregnancies will be retained after embryo transfer and so that viable offspring are produced. At least two cytokines may offer these benefits to bovine embryos produced in vitro. Additional cytokines also are identified in this review that may contain beneficial activities on bovine embryos.

Abstract

The term “embryokine” has been used to denote molecules produced by the endometrium, oviduct, or by embryo itself that will influence embryo development. Several cytokines have been identified as embryokines in cattle and other mammals. This review will describe how these cytokines function as embryokines, with special emphasis being placed on their actions on in vitro produced (IVP) bovine embryos. Embryokines are being explored for their ability to overcome the poor development rates of IVP embryos and to limit post-transfer pregnancy retention efficiencies that exist in IVP embryos. This review will focus on describing two of the best-characterized cytokines, colony-stimulating factor 2 and interleukin 6, for their ability to modify bovine embryo quality and confirmation, promote normal fetal development, and generate healthy calves. Additional cytokines will also be discussed for their potential to serve as embryokines.

1. Introduction

The dairy and beef industries are rapidly adopting the use of in vitro embryo production to produce calves of a desired genetic makeup. This is being achieved by coupling in vitro production (IVP) with ovum pickup (OPU) and embryo transfer (ET). These combined technologies maximize the number of calves that can be produced from genetically desirable dams and sires. Over 1 million transferrable IVP bovine embryos were produced globally in 2019 [1]. This represents a 2.5-fold increase in IVP bovine embryo production within the past 10 years.

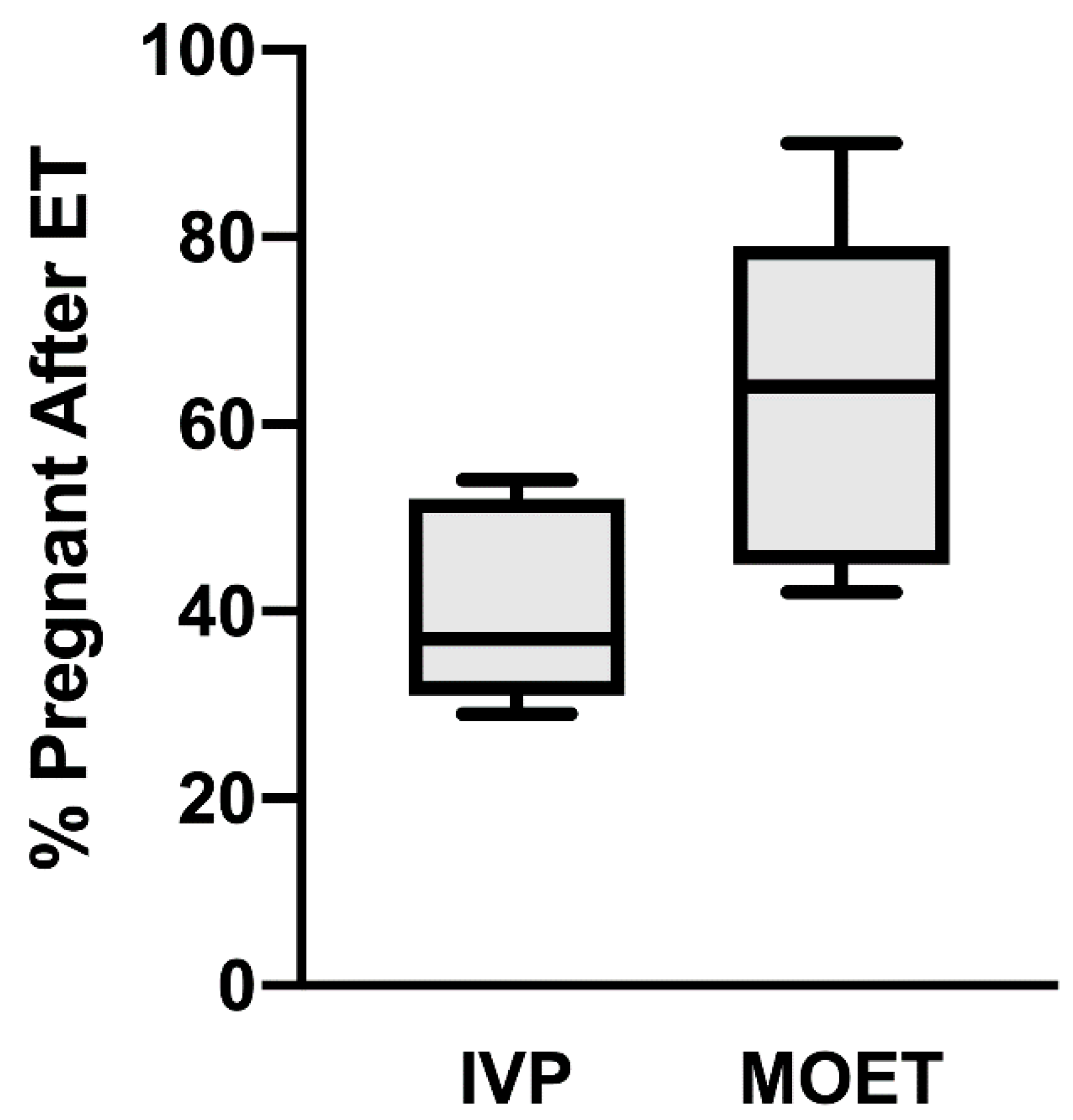

The generation of calves from IVP bovine embryos has been possible since 1981 [2], but in vitro embryo production systems suffer from two primary constraints. First, the efficiency of embryo production remains low. Embryo production rates can vary drastically depending on various factors, including media formulation, culture conditions (e.g., atmospheric oxygen tension), season, and technical expertise. However, it is generally accepted that only from 20 to 45% of oocytes entering in vitro embryo production systems will generate transferrable, blastocyst-stage embryos [3,4]. Second, a substantial subset of transferable IVP embryos will not survive after ET. A recent review of the literature found that only 27% of ETs using IVP embryos resulted in calves in dairy and beef cattle [5]. As illustrated in Figure 1, the percentage of pregnancies that result after ET is approximately 20% lower in cattle receiving an IVP embryo than in cattle receiving an in vivo-generated embryo from a superovulated donor cow. Most of these IVP pregnancy failures occur during the first month of gestation [5]. This suggests that a subset of IVP embryos is not properly programmed to elongate, signal their presence to the maternal system, or achieve adequate placentation.
Developmental problems also exist in IVP-generated pregnancies that survive past the first month of gestation. Alterations in epigenomic profiles are seen in various organs of some IVP fetuses [6,7,8,9], increased incidences of dystocia occur in IVP pregnancies [10], and IVP-derived neonates have increased morbidity and mortality rates and an increased incidence of congenital abnormalities [10,11]. However, in terms of productivity, IVP-derived calves that survive the first few months of life appear to be no different from calves generated through AI. No differences are detected in age at first service, pregnancy rate at first service, and milk yield and composition between IVP and AI-derived heifers [6,10].
One way we may be able to improve in vitro embryo production efficiency and post-transfer IVP embryo competency is by supplementing media formulations with biologically active molecules produced by the reproductive tract in early pregnancy. Hansen and colleagues introduced the term “embryokine” to describe molecules produced by the oviduct, uterus, or embryo that regulate embryo development [12]. Various growth factors and signaling factors have been identified as embryokines. For example, insulin-like growth factor 1 (IGF1) supplementation improves IVP blastocyst development rates, blastocyst cell number, and post-transfer pregnancy rates during summer months in dairy cows [13,14,15]. Supplementing multiple embryokines can also produce additive responses on in vitro embryo production. For example, providing epidermal growth factor (EGF), fibroblast growth factor 2 (FGF2), and IGF1 during in vitro bovine embryo culture has a greater impact on blastocyst formation and blastomere numbers than when using a single embryokine [15].
This review will focus solely on describing the actions of embryokines that were first recognized as cytokines. Cytokines (“cyto” for cell, “kinos” for movement) are a broad category of intracrine, autocrine, paracrine, and endocrine signaling agents that regulates the innate and adaptive immune responses [16]. These molecules include chemokines, interferons, interleukins, tumor necrosis factors, and lymphokines. Various non-immune actions of cytokines are known, and this review will highlight the embryokine activities of these cytokines.

2. Cytokines of Interest and Their Signaling Pathways

Two families of cytokines have been explored as embryokines in cattle and other mammals. The first is the β-common cytokine family. Three members exist in this family: colony-stimulating factor 2 (CSF2; granulocyte-macrophage colony-stimulating factor [GM-CSF]), interleukin 3 (IL3), and IL5. This family is so-named because each of these cytokines utilizes a shared β-subunit receptor coupled with a cytokine-specific α-subunit receptor [17]. These factors and their receptors mediate Signal Transducer and Activator of Transcription 5 (STAT5) activation, but they also stimulate other intracellular signaling molecules, including SRC family kinases, phosphoinositide 3-kinase (PI3K), and mitogen-activated protein kinases (MAPK) [18]. All three members of this family have been examined for their ability to mediate embryo, conceptus, and placental activity in ruminants, but as discussed in greater detail below, CSF2 has received the greatest attention for its actions as an embryokine in the bovine embryo.
The second family of cytokines are members of the interleukin 6 (IL6) family. These cytokines are structurally and functionally distinct from the β-common cytokines. Members of the IL6 family include IL6, IL11, IL27, IL31, leukemia inhibitory factor (LIF) oncostatin-M (OSM), and ciliary neurotropic factor (CNTF) [19,20]. Each member of this family utilizes receptors that contain a cytokine-specific, α-subunit receptor coupled to a common β-subunit receptor that was originally termed glycoprotein 130 (gp130) but is now referred to as IL6 signal transducer (IL6ST) [21]. IL6ST is structurally and functionally different from the β-common receptor used by CSF2, IL3, and IL5. Signaling molecules used by IL6 family cytokines include STAT3, MAPK, PI3K, and nuclear factor-kappa B (NFkB) [20]. The molecules that have received the greatest attention as embryokines within the IL6 family are IL6 and LIF.
The following sections will explore the embryokine-related actions for CSF2, IL6, and LIF, as well as additional cytokines that may have the capacity to serve as embryokines.

3. Colony Stimulating Factor 2

There is evidence that CSF2 supplementation will improve IVP blastocyst development in the mouse [22], pig [23,24], and human [25], but it is less clear whether CSF2 contains this activity in bovine embryos. Some of the initial work on CSF2 supplementation found that IVP bovine blastocyst formation could be improved with CSF treatment [26,27,28], but more recent work failed to consistently detect these effects [29,30,31,32]. One general observation is that CSF2 is more likely to improve blastocyst formation when development rates are low, suggesting that CSF2 may only function when embryos are under some type of developmental or environmental stress that limits developmental potential. Another explanation for this disparity in outcomes could stem from the concentrations of CSF2 tested and from the source of the commercial CSF2 preparations used for these various studies. The initial studies utilized the same recombinant bovine CSF2 preparation, whereas the more recent studies used recombinant bovine CSF2 proteins from other companies. Unfortunately, the first recombinant CSF2 preparation is no longer available, so the reason why this particular recombinant protein preparation produced distinct biological responses from others remains unclear. However, although these newer recombinant proteins routinely failed to improve IVP blastocyst development, several other benefits of supplementing these CSF2 preparations have been noted, including improvements in IVP embryo cryo-survival [33], increased resistance to heat shock [34], increased inner cell mass (ICM) cell numbers and ICM:trophectoderm (TE) ratios [26,35], reduced apoptosis of ICM cells [30], and improved ICM cell pluripotency in extended cultures [30]. Additionally, these new CSF2 protein preparations alter the expression of >900 genes in the ICM and >800 genes in the TE at the blastocyst stage [36].
There is also compelling evidence that CSF2 improves IVP embryo competency after ET in cattle. Several large-scale ET studies detected improvements in overall pregnancy retention rates and/or reductions in late embryonic and fetal losses in pregnancies derived from CSF2-supplemented IVP bovine embryos [26,35]. Additionally, CSF2 treatment does not affect calf birth weight, but calves derived from CSF2-treated embryos have greater postnatal growth rates than calves from non-treated IVP embryos [37]. The beneficial effects of CSF2 supplementation on pregnancy outcomes are also evident in the mouse [22], and benefits of CSF2 supplementation prior to transfer have been noted in human recipients in one study [38] but not another [39].
There is one report in cattle that failed to detect a positive effect of CSF2 supplementation on post-transfer pregnancy outcomes [29]. This study was completed in a commercial setting, and the lack of CSF2 effect may have occurred because fetal bovine serum (FBS) was included in the commercial culture medium formulation. The addition of FBS is common in commercial IVP laboratories because it improves IVP embryo production efficiency, and the outcome of this work may indicate that a factor within FBS can mimic the effects of CSF2. Unfortunately, if this was the case, one should not rely on there being similar effects in every batch of FBS. The composition of FBS is highly variable from batch to batch, and the concentration of this factor or set of factors could differ dramatically in different FBS preparations. Therefore, further investigation is needed to better explore the potential benefits of CSF2 supplementation to commercial IVP embryos.
The ways that CSF2 improves post-transfer IVP embryo competency have not been fully described, but several key developmental processes are influenced by CSF2, and improvements in any one of these processes could, at least conceptionally, lead to improved pregnancy retention rates. One way that CSF2 may act is by improving the development and elongation of the peri-implantation conceptus (i.e., the embryo proper and its extraembryonic tissues). A greater percentage of elongating conceptuses were developing normally at day 15 post-ovulation from CSF2-supplemented IVP embryos than untreated embryos [40]. Furthermore, CSF-treated conceptuses were larger than the control conceptuses, and corresponding interferon-tau (IFNT; the maternal recognition of pregnancy factor in ruminants) concentrations were greater in flush solution from CSF2-treated conceptuses [40]. There are conflicting reports whether CSF2 supplementation increases IFNT expression in bovine embryos and conceptuses [31,40,41,42], so it remains unclear if the increase in uterine IFNT content occurs solely because CSF2-treated conceptuses contain a greater number of TE cells, the tissue that produces IFNT, or if CSF2 may also directly influence IFNT expression. Nonetheless, these findings indicate that CSF2 improves conceptus survival and IFNT production around the time of maternal recognition of pregnancy.
A very interesting facet of CSF2 action is that bovine embryos also respond differently to CSF2 based on their sex. CSF2 treatment increases blastocyst development for female embryos but not male embryos, even though CSF2 is equally effective at increasing ICM cell numbers in both sexes [43]. Differential effects of CSF2 are also noted on day 15 conceptuses, where CSF2 decreased conceptus length and uterine IFNT content in female IVP embryos but increased conceptus length and IFNT content in CSF2-supplemented male IVP embryos [42]. Reasons for the opposing effects remains unclear, but male and female conceptuses have distinct transcript profiles and DNA methylation patterns [42,43], and this likely provides CSF2 with the opportunity to differentially affect embryos and conceptuses based on sex. The implications of these sex-dependent changes on embryo competency have not been explored further.
One set of studies explored how CSF2 supplementation before ET affects fetal development at day 86 of gestation [44,45]. CSF2 supplementation did not affect the prevalence of large for gestational age fetuses, but it did influence the expression of selected genes within the liver, muscle, and placenta so that CSF2-treated IVP pregnancies more closely resembled AI pregnancies than non-treated IVP pregnancies [44]. Similarly, CSF2 exposure before ET modified a subset of differentially methylated regions in fetal liver and muscle, so the methylation patterns of IVP-derived fetuses more closely resembled those of AI-derived fetuses [45].
To summarize thus far, CSF2 may not resemble a conventional embryokine as it does not greatly impact IVP blastocyst formation. However, there is compelling evidence that CSF2 supplementation improves post-transfer pregnancy retention and calf health. What remains largely unclear is how CSF2 reprograms the IVP bovine embryo, so it is better able to survive after transfer. In fact, it remains unclear mechanistically how CSF2 exerts its actions within the bovine embryo. Bovine embryos express the CSF2-specific α-subunit receptor (termed CSFR2A) but do not express the β-common subunit (termed CSF2RB) [26,46]. The β-common subunit receptor is also absent in pig, mice, and human embryos [23,47,48]. The lack of this receptor subunit indicates that CSF2 must utilize an unconventional signaling system to exert its biological activities in embryos. This alternate signal system has not been discovered, but recent findings indicate that CSF2RA is required for CSF2 activity in bovine embryos [47].

4. Interleukin 6

The bovine oviduct and endometrium as well as the embryo produce IL6 in pregnancy [48,49,50], and the bovine embryo contains both the IL6-specific α-subunit receptor, IL6R, and the shared β-receptor, IL6ST [49,50]. Only a subset of the studies that explored the effects of IL6 supplementation on IVP blastocyst development detected any effects of IL6 on blastocyst development [49,50,51,52]. The only circumstance when IL6 supplementation improved embryogenesis occurred when IL6 was supplemented to individual-cultured embryos [49]. Blastocyst rates were still low in IL6-supplemented embryos (9.2% versus 21.0% with IL6 versus group-cultured controls), but none of the non-treated individually cultured embryos went past the 8–16 cell stage. This may indicate that IL6 promotes embryo survival; however, a lack of IL6 effect in group culture suggests either that other embryo-derived factors can substitute for IL6 in this role.
We have classified IL6 as an embryokine because IL6 improves ICM cell numbers in bovine blastocysts [51,52,53,54]. There was nearly a doubling in ICM cell numbers when supplementing 100 ng/mL recombinant bovine IL6 compared to non-treated (control) embryos [51,52,53]. Less impressive improvements in ICM cell numbers could be seen when providing 1 and 10 ng/mL IL6 [49]. Sang et al. did not detect a positive effect of IL6 on ICM numbers in bovine embryos [51]. They used an IL6 concentration of 50 ng/mL. This and other differences in embryo medium composition or other culture conditions may have contributed to the variable responses observed here. Further work is needed to determine how repeatable the IL6 effect is on ICM cells.
It remains unclear whether IL6 influences TE cell numbers [51,52,53,54], but it was clear that any increases in TE cell numbers that were detected were minor by comparison to the ICM cell responses. A more noteworthy function of the TE as it relates to IL6 function is the possibility that the TE may act as a barrier for IL6 provided to the culture medium. Tight junctions between TE cells usually restrict molecule movement through the blastocyst [53], but there is evidence in other epithelial borders throughout the body that IL6 can pass through tight junctions by using passive and active diffusion mechanisms [54,55]. Thus, it seems likely that medium-derived IL6 is directly responsible for the actions observed within the ICM. However, large IL6 concentrations (100 ng/mL) are needed to induce this effect, so perhaps only a fraction of the IL6 supplemented to the medium reaches the ICM. Further investigations are needed to define exactly how medium-supplemented IL6 influences the ICM.
Another action of IL6 is to preferentially promote the primitive endoderm (PE) cell lineage in IVP bovine blastocysts [56]. There is a stepwise reduction in PE cell numbers as the blastocyst ages in vitro from day 8 to 10 post-fertilization, but IL6 supplementation increases PE cell numbers within this time period. It is not clear if IL6 improves PE cell proliferation or limits PE cell apoptosis, but there is evidence suggesting that IL6 does not function as a lineage-specifying agent, where it would facilitate the conversion of naïve ICM cells into either epiblast (EPI) or PE cell lineages, but rather that it functions after those lineages have been established [56]. The effects of IL6 on the EPI cell lineage remain unclear. Our previous research detected increases in EPI cell numbers when counting NANOG+ nuclei, a marker for EPI cells [56]. However, another research group failed to detect changes in the number of NANOG+ cells after treatment with 50 ng/mL IL6 [51].
The promotion of ICM size and expansion of the PE lineage could have positive implications on pregnancy outcomes. The size and morphology of the ICM are primary morphological indicators of bovine and human IVP embryo quality [57,58]. There also is compelling evidence supporting the contention that bovine IVP blastocysts have fewer total ICM cells than their in vivo-produced counterparts [59,60,61,62], and this compromises the size of the embryonic disk, the structure that develops from the ICM that contains EPI, PE, and other embryonic and extraembryonic tissues [63]. In fact, several research groups have noted that embryonic disks cannot be detected via stereomicroscope in a subset of day 15–17 IVP bovine conceptuses [40,64,65,66,67]. Conceptuses with undetectable embryonic disks truly are inferior as they are unlikely to retain pregnancies when transferred back into cattle [64]. IL6-induced improvements in ICM size could potentially improve the size of the embryonic disk in IVP conceptuses.
Improvements in PE cell numbers in IL6-treated IVP embryos are noteworthy because the PE lineage produces the yolk sac. The yolk sac is indispensable in early pregnancy because of its role in processing nutrients from the uterine histotroph during early pregnancy [68,69]. Placentomes are not well established in bovine pregnancies until ~day 40 of pregnancy, and prior to this time, the conceptus must rely on histotroph for nourishment, which is digested by the yolk sac [70,71]. A link also exists between yolk sac development and pregnancy loss is a subset of IVP-generated pregnancies. Microscopic anomalies in yolk sac villous formation and vascular development have been observed in IVP pregnancies [72,73]. Moreover, pregnancy losses coincide with the time when yolk sac function is crucial for pregnancy maintenance. The yolk sac can be detected by day 12 of gestation and is maximal in size and vascularity between days 20–30 of pregnancy [73,74,75,76].
Our recent work suggests that IL6 treatment may correct the reductions in embryo-proper and fetus size normally observed in pregnancies generated from IVP embryos [52]. Reductions in crown-rump length and other parameters of the embryo/fetal size were noted in IVP pregnancies [52,77]. However, treatment with IL6 before ET generated embryos/fetuses that more closely resembled the size of embryos/fetuses in pregnancies derived from inseminated cows [52]. Also, a numerical improvement in pregnancy retention at day 70 of gestation was observed in IL6-treated embryos when compared with IVP control embryos (42% versus 26%, respectively).
The mechanism of IL6 action in bovine embryos appears to require Janus Kinase (JAK) and STAT3 signaling. The JAK-STAT3 signaling module is essential for ICM and PE cell maintenance in bovine embryos [50,78]. Exposure to a pharmacological inhibitor of JAK1/2 before the blastocyst is formed does not prevent blastocyst formation but greatly reduces total ICM cell numbers to only a fraction of their normal numbers [50,78]. Providing the inhibitor after blastocyst formation also reduces total ICM numbers, and nearly all of these cell losses are PE cells [56]. In many cases, no PE cells were observed in blastocysts after 48 h exposure to the inhibitor, whereas EPI cell numbers are not greatly affected by this treatment [56]. There is also evidence that IL6 acts through JAK-STAT3 in bovine embryos. Specifically, IL6 stimulates STAT3 phosphorylation and nuclear localization in all cells at the 9–16 cell stage, but this IL6-dependent activation occurs only within ICM cells at the blastocyst stage [50]. As EPI and PE specification occurs, IL6-induced STAT3 activation occurs only within the PE cell lineage [56]. Unfortunately, since STAT3 is crucial for ICM maintenance [50,78], one cannot directly test whether IL6 acts solely through STAT3 or if it utilizes alternative pathways to regulate ICM development.
Lastly, it is interesting to note that the actions of IL6 on the embryo are not restricted to cattle, but rather, IL6 also contains biological activities in other species. The embryonic action of IL6 has been explored in the pig, where increases in ICM cell numbers have been reported in porcine blastocysts following IL6 supplementation [79]. IL6 is produced throughout early embryogenesis in the pig, and it is preferentially produced within the ICM at the blastocyst stage [80,81]. Like in the cow, IL6 supplementation stimulates STAT3 phosphorylation in both mouse and pig blastocysts [79,82]. Moreover, antibody-based immunoneutralization of embryo-derived IL6 reduces STAT3 activation in mouse blastocysts [83]. There also are some indications that IL6 may facilitate embryonic stem cell (ESC) and induced pluripotent stem cell (iPSC) pluripotency [83,84]. There is a 50-fold increase in IL6 mRNA during human fibroblast reprograming [85]. In the same report, IL6 supplementation stimulated several STAT3-induced targets, including c-Myc, one of the four factors required to induce pluripotency in human and mouse somatic cells [86]. Providing IL6 in place of c-Myc expression permitted cells to undergo pluripotency when the remaining three factors were overexpressed (Oct4, Klf4, Sox2).

5. Leukemia Inhibitory Factor

The positive effects of LIF on mouse embryo development and implantation are well described [87,88,89,90], but the effects of LIF on bovine embryos are less clearly defined. Several groups have reported the benefits of LIF supplementation on IVP bovine blastocyst formation rates [27,91,92], whereas other groups saw no benefits of LIF supplementation [91,92,93,94]. No studies have detected a positive effect of LIF supplementation on ICM cell numbers and PE development in bovine blastocysts [95,96,97]. It also is unclear whether LIF functions as a cryo-survival agent in bovine embryos [91,92,93,94,95,98]. At least some and perhaps a substantial portion of the disparity in these responses may have resulted from the wide range in LIF concentrations used (500–6000 IU [2–100 ng/mL]) and from the use of human and mouse recombinant proteins. Another contributing factor to these variable responses is the low-level expression of the LIF receptor (LIFR) during early embryonic development. One report found that LIFR transcripts could be detected in IVP bovine embryos whereas they were absent in in vivo produced embryos [97], suggesting that LIF actions may not exist unless embryos are being produced in vitro. Our laboratory detected LIFR mRNA in IVP bovine blastocysts, but the abundance of this transcript was 50-fold less than that of IL6R [50].
There is evidence that supports including LIF as an embryokine when considering its actions after blastocyst formation. The most convincing evidence of LIF acting as an embryokine has been reported in the mouse where LIF supplementation promotes PE cell development [98] and improves post-transfer implantation success [21]. Moreover, Lifr loss-of-function mutation produces a partial embryonic lethal phenotype in mice with fewer Lifr-/- embryos in litters from the blastocyst stage onward [99], suggesting that the loss of Lifr reduces embryo survivability. It is uncertain how these observations made in the mouse may relate to the bovine embryo. No work exists that has explored the actions of LIF on or after day 9 of IVP bovine embryo development.
Further investigation is needed to explore whether LIF serves as a pluripotency factor in bovine stem cells. There is ample evidence for LIF as a pluripotency factor in ESCs and iPSCs, and specifically that LIF is the primary ligand used to support naïve-state pluripotency in the pig, human, monkey, and mouse by stimulating the IL6ST-JAK-STAT3 signaling cascade [100,101]. It is not clear if LIF is needed to establish naïve-state pluripotency in bovine stem cells. To date, only bovine ESCs that resemble primed-state stem cells have been generated [102,103].

6. Other Cytokines That May Serve as Embryokines

The embryokine actions of CSF2 have received most of the attention within the β-common cytokine family, but some attention has been given to exploring whether IL3 also serves as an embryokine. It is expressed within the ovine endometrial epithelium during diestrus [104], but the sole study exploring IL3 effects on IVP bovine embryos failed to detect a positive effect of IL3 on cleavage or blastocyst rates [105]. However, there is evidence that IL3 increases IFNT production in ovine conceptuses [104]. No studies have explored whether IL5 acts on bovine or ovine embryos and conceptuses.
The only other cytokines we are aware of that have been explored as embryokines in bovine IVP embryos are interleukin-1α (IL1A), interleukin-1ß (IL1B), IL8, and stem cell factor (SCF, Kit ligand). Each of these ligands is expressed either by the endometrium or the embryo itself [48,106,107], and receptors, co-receptors, and receptor inhibitors for these cytokines have been detected in bovine embryos [46,50,51,108] (see Table 1). No definitive role for SCF as an embryokine has been found thus far. Positive effects of IL1B supplementation on bovine IVP development have been noted, although these positive effects were only detected when embryos were cultured in large groups, suggesting that IL1B may be acting indirectly by stimulating the production of an embryo-derived embryokine [109]. Supplementation with IL8 tended to improve blastocyst hatching but decreased ICM cell numbers [51].
Transcriptome profiling studies may offer new insights into additional cytokines that may be involved with early embryogenesis in cattle. Table 1 provides information about cytokine transcripts detected in the bovine endometrium at days 5 and 7 post-estrus [48] and in IVP bovine blastocysts harvested at day 8 post-fertilization [50]. A listing of cytokine receptor transcripts detected in the day 8 bovine blastocysts is also included [50].
Several interesting observations were detected when examining these data. First, several chemokines were identified in the bovine endometrium and blastocyst (abbreviated with the CXCL and CCL designations), but only one chemokine receptor was detected in bovine blastocysts (CCR10). It remains unknown if the chemokines that react with this receptor (CCL27, 28) [110] are produced by the bovine endometrium as these chemokines were not included in the endometrium study referenced in Table 1 [48]. Thus, it appears that many of the endometrial and blastocyst chemokines are not acting on bovine embryos, or at least not at the blastocyst stage, but it will be interesting to learn whether CCR10 receptor activation or inhibition plays any role in early embryogenesis in cattle.
Our global transcript profiling work in IVP bovine blastocysts detected several cytokines and cytokine receptors (Table 1) [50]. Arguably the most notable finding was observing several α-subunit receptors for members of the IL6 cytokine family (IL6R, IL6ST, IL11RA, CNTFR, and LIFR) [50]. The presence of IL11R in bovine blastocysts is particularly interesting because IL11 is expressed in bovine endometria, and its expression is greatest at day 7 post-estrus, coincident with blastocyst formation and initial ICM development in in vivo-generated bovine embryos [111]. The presence of CNTFR in bovine blastocysts may indicate that CNTF is biologically active in the embryo during early pregnancy, although there is no evidence of CNTF expression by either the endometrium or embryo during early pregnancy.

7. Concluding Remarks

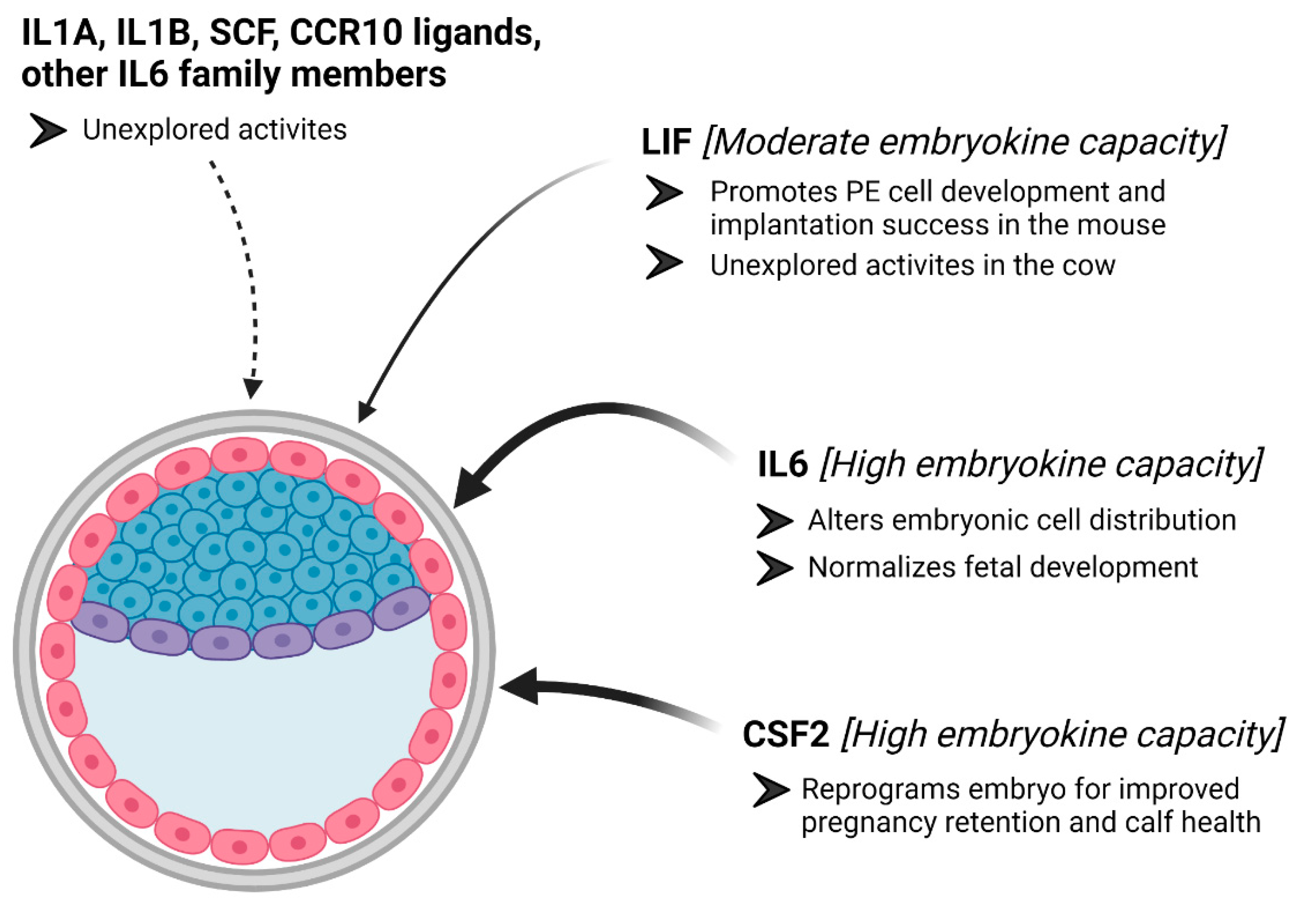

In the cow, there is convincing evidence that CSF2 serves as an embryokine, and recent evidence from our group supports the notion that IL6 should also be categorized as an embryokine (Figure 2). Both of these molecules are distinct from many of the other embryokines that have been studied because neither molecule consistently improves blastocyst formation rates in IVP bovine embryos. Rather, CSF2 appears to reprogram the IVP embryo, so it has greater survivability after ET and so that fetuses and calves more closely resemble those generated by AI. The actions of IL6 appear to be associated with modifying the cellular composition of the blastocyst in ways that we predict could improve pregnancy retention after ET and adjust fetal development, so it more closely resembles fetal development in AI-derived pregnancies. More work is needed to describe how LIF, IL1A, IL1B, SCF, and CCCR10 ligands may function as embryokines in cattle. Available evidence suggests that these molecules serve some purposes during embryogenesis, and it will be interesting to explore whether these activities may improve bovine embryo competency.
Two definitive conclusions that can be made at this point: (1) it is clear that some cytokines are serving as embryokines in cattle, and (2) the cytokines studied thus far appear to function primarily by improving IVP bovine embryo quality and competency rather than by increasing the number of transferrable IVP embryos. Further investigations are necessary to provide mechanistic knowledge of how these and other cytokines function as embryokines. Another gap in our knowledge is exploring other cytokines as embryokines. Cytokines that should be considered in future research include IL1A, IL1B, SCF, CCR10 ligands, and other IL6 family members.

Author Contributions

Conceptualization, A.D.E.; Validation, S.L.S. and L.K.W.; Data curation, S.L.S. and L.K.W.; Writing—original draft preparation, A.D.E.; Writing—review and editing, S.L.S. and L.K.W.; Visualization, A.D.E. and S.L.S.; Supervision, A.D.E.; Project administration, A.D.E.; Funding acquisition, A.D.E. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Agriculture and Food Research Initiative Competitive Grant numbers 2017-67015-26461 and 2021-67015-34485 from the USDA National Institute of Food and Agriculture and by the National Institute of Health grant number R21-OD026516-01.

Institutional Review Board Statement

The animal work in this manuscript has been approved by the Virginia Tech Animal Care and Use Committee (protocol#19-032).

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Viana, J.H. 2019 Statistics of embryo production and transfer in domestic farm animals. Embryo Technol. Newsl. 2019, 38, 1–15. [Google Scholar]
  2. Brackett, B.G.; Bousquet, D.; Boice, M.L.; Donawick, W.J.; Evans, J.F.; Dressel, M.A. Normal development following in vitro fertilization in the cow. Biol. Reprod. 1982, 27, 147–158. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Lonergan, P.; Rizos, D.; Gutierrez-Adan, A.; Fair, T.; Boland, M.P. Oocyte and embryo quality: Effect of origin, culture conditions and gene expression patterns. Reprod. Domest Anim. 2003, 38, 259–267. [Google Scholar] [CrossRef] [PubMed]
  4. Lonergan, P.; Fair, T. In vitro-produced bovine embryos: Dealing with the warts. Theriogenology 2008, 69, 17–22. [Google Scholar] [CrossRef]
  5. Ealy, A.D.; Wooldridge, L.K.; McCoski, S.R. BOARD INVITED REVIEW: Post-transfer consequences of in vitro-produced embryos in cattle. J. Anim. Sci. 2019, 97, 2555–2568. [Google Scholar] [CrossRef]
  6. Siqueira, L.G.B.; Dikmen, S.; Ortega, M.S.; Hansen, P.J. Postnatal phenotype of dairy cows is altered by in vitro embryo production using reverse X-sorted semen. J. Dairy Sci. 2017, 100, 5899–5908. [Google Scholar] [CrossRef] [Green Version]
  7. Hori, N.; Nagai, M.; Hirayama, M.; Hirai, T.; Matsuda, K.; Hayashi, M.; Tanaka, T.; Ozawa, T.; Horike, S. Aberrant CpG methylation of the imprinting control region KvDMR1 detected in assisted reproductive technology-produced calves and pathogenesis of large offspring syndrome. Anim. Reprod. Sci. 2010, 122, 303–312. [Google Scholar] [CrossRef]
  8. Suzuki, J., Jr.; Therrien, J.; Filion, F.; Lefebvre, R.; Goff, A.K.; Smith, L.C. In vitro culture and somatic cell nuclear transfer affect imprinting of SNRPN gene in pre- and post-implantation stages of development in cattle. BMC Dev. Biol. 2009, 9, 9. [Google Scholar] [CrossRef] [Green Version]
  9. Chen, Z.; Hagen, D.E.; Elsik, C.G.; Ji, T.; Morris, C.J.; Moon, L.E.; Rivera, R.M. Characterization of global loss of imprinting in fetal overgrowth syndrome induced by assisted reproduction. Proc. Natl. Acad. Sci. USA 2015, 112, 4618–4623. [Google Scholar] [CrossRef] [Green Version]
  10. Bonilla, L.; Block, J.; Denicol, A.C.; Hansen, P.J. Consequences of transfer of an in vitro-produced embryo for the dam and resultant calf. J. Dairy Sci. 2014, 97, 229–239. [Google Scholar] [CrossRef] [Green Version]
  11. van Wagtendonk-de Leeuw, A.M.; Aerts, B.J.; den Daas, J.H. Abnormal offspring following in vitro production of bovine preimplantation embryos: A field study. Theriogenology 1998, 49, 883–894. [Google Scholar] [CrossRef]
  12. Hansen, P.J.; Dobbs, K.B.; Denicol, A.C. Programming of the preimplantation embryo by the embryokine colony stimulating factor 2. Anim. Reprod. Sci. 2014, 149, 59–66. [Google Scholar] [CrossRef]
  13. Block, J.; Drost, M.; Monson, R.L.; Rutledge, J.J.; Rivera, R.M.; Paula-Lopes, F.F.; Ocon, O.M.; Krininger, C.E., 3rd; Liu, J.; Hansen, P.J. Use of insulin-like growth factor-I during embryo culture and treatment of recipients with gonadotropin-releasing hormone to increase pregnancy rates following the transfer of in vitro-produced embryos to heat-stressed, lactating cows. J. Anim. Sci. 2003, 81, 1590–1602. [Google Scholar] [CrossRef]
  14. Jousan, F.D.; Hansen, P.J. Insulin-like growth factor-I promotes resistance of bovine preimplantation embryos to heat shock through actions independent of its anti-apoptotic actions requiring PI3K signaling. Mol. Reprod. Dev. 2007, 74, 189–196. [Google Scholar] [CrossRef]
  15. Xie, M.; McCoski, S.R.; Johnson, S.E.; Rhoads, M.L.; Ealy, A.D. Combinatorial effects of epidermal growth factor, fibroblast growth factor 2 and insulin-like growth factor 1 on trophoblast cell proliferation and embryogenesis in cattle. Reprod. Fertil. Dev. 2017, 29, 419–430. [Google Scholar] [CrossRef] [PubMed]
  16. Kelso, A. Cytokines: Principles and prospects. Immunol. Cell. Biol. 1998, 76, 300–317. [Google Scholar] [CrossRef]
  17. Dougan, M.; Dranoff, G.; Dougan, S.K. GM-CSF, IL-3, and IL-5 Family of Cytokines: Regulators of Inflammation. Immunity 2019, 50, 796–811. [Google Scholar] [CrossRef] [PubMed]
  18. Becher, B.; Tugues, S.; Greter, M. GM-CSF: From Growth Factor to Central Mediator of Tissue Inflammation. Immunity 2016, 45, 963–973. [Google Scholar] [CrossRef] [Green Version]
  19. Eulenfeld, R.; Dittrich, A.; Khouri, C.; Muller, P.J.; Mutze, B.; Wolf, A.; Schaper, F. Interleukin-6 signalling: More than Jaks and STATs. Eur J. Cell Biol. 2012, 91, 486–495. [Google Scholar] [CrossRef]
  20. Rose-John, S. Interleukin-6 Family Cytokines. Cold Spring Harb. Perspect. Biol. 2018, 10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Nicola, N.A.; Babon, J.J. Leukemia inhibitory factor (LIF). Cytokine Growth Factor Rev. 2015, 26, 533–544. [Google Scholar] [CrossRef] [Green Version]
  22. Sjoblom, C.; Roberts, C.T.; Wikland, M.; Robertson, S.A. Granulocyte-macrophage colony-stimulating factor alleviates adverse consequences of embryo culture on fetal growth trajectory and placental morphogenesis. Endocrinology 2005, 146, 2142–2153. [Google Scholar] [CrossRef]
  23. Lee, K.; Redel, B.K.; Spate, L.; Teson, J.; Brown, A.N.; Park, K.W.; Walters, E.; Samuel, M.; Murphy, C.N.; Prather, R.S. Piglets produced from cloned blastocysts cultured in vitro with GM-CSF. Mol. Reprod. Dev. 2012. [Google Scholar] [CrossRef] [Green Version]
  24. Cui, X.S.; Lee, J.Y.; Choi, S.H.; Kwon, M.S.; Kim, T.; Kim, N.H. Mouse granulocyte-macrophage colony-stimulating factor enhances viability of porcine embryos in defined culture conditions. Anim. Reprod. Sci. 2004, 84, 169–177. [Google Scholar] [CrossRef] [PubMed]
  25. Sjoblom, C.; Wikland, M.; Robertson, S.A. Granulocyte-macrophage colony-stimulating factor promotes human blastocyst development in vitro. Hum. Reprod. 1999, 14, 3069–3076. [Google Scholar] [CrossRef] [Green Version]
  26. Loureiro, B.; Bonilla, L.; Block, J.; Fear, J.M.; Bonilla, A.Q.; Hansen, P.J. Colony-stimulating factor 2 (CSF-2) improves development and posttransfer survival of bovine embryos produced in vitro. Endocrinology 2009, 150, 5046–5054. [Google Scholar] [CrossRef] [Green Version]
  27. Neira, J.A.; Tainturier, D.; Pena, M.A.; Martal, J. Effect of the association of IGF-I, IGF-II, bFGF, TGF-beta1, GM-CSF, and LIF on the development of bovine embryos produced in vitro. Theriogenology 2010, 73, 595–604. [Google Scholar] [CrossRef]
  28. de Moraes, A.A.; Davidson, J.A.; Fleming, J.G.; Bazer, F.W.; Edwards, J.L.; Betts, J.G.; Hansen, P.J. Lack of effect of granulocyte-macrophage colony-stimulating factor on secretion of interferon-tau, other proteins, and prostaglandin E2 by the bovine and ovine conceptus. Domest. Anim. Endocrinol. 1997, 14, 193–197. [Google Scholar] [CrossRef]
  29. Tribulo, P.; Bernal Ballesteros, B.H.; Ruiz, A.; Tribulo, A.; Tribulo, R.J.; Tribulo, H.E.; Bo, G.A.; Hansen, P.J. Consequences of exposure of embryos produced in vitro in a serum-containing medium to dickkopf-related protein 1 and colony stimulating factor 2 on blastocyst yield, pregnancy rate, and birth weight. J. Anim. Sci. 2017, 95, 4407–4412. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Dobbs, K.B.; Khan, F.A.; Sakatani, M.; Moss, J.I.; Ozawa, M.; Ealy, A.D.; Hansen, P.J. Regulation of pluripotency of inner cell mass and growth and differentiation of trophectoderm of the bovine embryo by colony stimulating factor 2. Biol. Reprod. 2013, 89, 141. [Google Scholar] [CrossRef] [Green Version]
  31. Hickman, C.F.; Ainslie, A.; Ealy, A.D.; Ashworth, C.J.; Rooke, J.A. Effect of ovine granulocyte-macrophage colony-stimulating factor on bovine in vitro embryo development and blastocyst interferon-tau secretion. Reprod. Domest. Anim. 2011, 46, 608–615. [Google Scholar] [CrossRef]
  32. Zolini, A.M.; Block, J.; Rabaglino, M.B.; Tribulo, P.; Hoelker, M.; Rincon, G.; Bromfield, J.J.; Hansen, P.J. Molecular fingerprint of female bovine embryos produced in vitro with high competence to establish and maintain pregnancydagger. Biol. Reprod. 2020, 102, 292–305. [Google Scholar] [CrossRef]
  33. Sosa, F.; Block, J.; Xiao, Y.; Hansen, P.J. Determinants of survival of the bovine blastocyst to cryopreservation stress: Treatment with colony stimulating factor 2 during the morula-to-blastocyst transition and embryo sex. CABI Agric. Biosci. 2020, 1. [Google Scholar] [CrossRef]
  34. Loureiro, B.; Oliveira, L.J.; Favoreto, M.G.; Hansen, P.J. Colony-stimulating Factor 2 Inhibits Induction of Apoptosis in the Bovine Preimplantation Embryo. Am. J. Reprod. Immunol. 2011. [Google Scholar] [CrossRef]
  35. Denicol, A.C.; Block, J.; Kelley, D.E.; Pohler, K.G.; Dobbs, K.B.; Mortensen, C.J.; Ortega, M.S.; Hansen, P.J. The WNT signaling antagonist Dickkopf-1 directs lineage commitment and promotes survival of the preimplantation embryo. FASEB J. 2014, 28, 3975–3986. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Ozawa, M.; Sakatani, M.; Dobbs, K.B.; Kannampuzha-Francis, J.; Hansen, P.J. Regulation of gene expression in the bovine blastocyst by colony stimulating factor 2. BMC Res. Notes 2016, 9, 250. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Kannampuzha-Francis, J.; Denicol, A.C.; Loureiro, B.; Kaniyamattam, K.; Ortega, M.S.; Hansen, P.J. Exposure to colony stimulating factor 2 during preimplantation development increases postnatal growth in cattle. Mol. Reprod. Dev. 2015, 82, 892–897. [Google Scholar] [CrossRef] [PubMed]
  38. Ziebe, S.; Loft, A.; Povlsen, B.B.; Erb, K.; Agerholm, I.; Aasted, M.; Gabrielsen, A.; Hnida, C.; Zobel, D.P.; Munding, B.; et al. A randomized clinical trial to evaluate the effect of granulocyte-macrophage colony-stimulating factor (GM-CSF) in embryo culture medium for in vitro fertilization. Fertil. Steril. 2013, 99, 1600–1609. [Google Scholar] [CrossRef] [PubMed]
  39. Chu, D.; Fu, L.; Zhou, W.; Li, Y. Relationship between granulocyte-macrophage colony-stimulating factor, embryo quality, and pregnancy outcomes in women of different ages in fresh transfer cycles: A retrospective study. J. Obstet. Gynaecol. 2020, 40, 626–632. [Google Scholar] [CrossRef]
  40. Loureiro, B.; Block, J.; Favoreto, M.G.; Carambula, S.; Pennington, K.A.; Ealy, A.D.; Hansen, P.J. Consequences of conceptus exposure to colony-stimulating factor 2 on survival, elongation, interferon-{tau} secretion, and gene expression. Reproduction 2011, 141, 617–624. [Google Scholar] [CrossRef] [Green Version]
  41. Michael, D.D.; Wagner, S.K.; Ocon, O.M.; Talbot, N.C.; Rooke, J.A.; Ealy, A.D. Granulocyte-macrophage colony-stimulating-factor increases interferon-tau protein secretion in bovine trophectoderm cells. Am. J. Reprod. Immunol. 2006, 56, 63–67. [Google Scholar] [CrossRef] [PubMed]
  42. Dobbs, K.B.; Gagne, D.; Fournier, E.; Dufort, I.; Robert, C.; Block, J.; Sirard, M.A.; Bonilla, L.; Ealy, A.D.; Loureiro, B.; et al. Sexual dimorphism in developmental programming of the bovine preimplantation embryo caused by colony-stimulating factor 2. Biol. Reprod. 2014, 91, 80. [Google Scholar] [CrossRef]
  43. Siqueira, L.G.; Hansen, P.J. Sex differences in response of the bovine embryo to colony-stimulating factor 2. Reproduction 2016, 152, 645–654. [Google Scholar] [CrossRef] [Green Version]
  44. Siqueira, L.G.; Tribulo, P.; Chen, Z.; Denicol, A.C.; Ortega, M.S.; Negron-Perez, V.M.; Kannampuzha-Francis, J.; Pohler, K.G.; Rivera, R.M.; Hansen, P.J. Colony-stimulating factor 2 acts from days 5 to 7 of development to modify programming of the bovine conceptus at day 86 of gestationdagger. Biol. Reprod. 2017, 96, 743–757. [Google Scholar] [CrossRef]
  45. Li, Y.; Tribulo, P.; Bakhtiarizadeh, M.R.; Siqueira, L.G.; Ji, T.; Rivera, R.M.; Hansen, P.J. Conditions of embryo culture from days 5 to 7 of development alter the DNA methylome of the bovine fetus at day 86 of gestation. J. Assist. Reprod. Genet. 2020, 37, 417–426. [Google Scholar] [CrossRef]
  46. Jiang, Z.; Sun, J.; Dong, H.; Luo, O.; Zheng, X.; Obergfell, C.; Tang, Y.; Bi, J.; O’Neill, R.; Ruan, Y.; et al. Transcriptional profiles of bovine in vivo pre-implantation development. BMC Genom. 2014, 15, 756. [Google Scholar] [CrossRef] [Green Version]
  47. Xiao, Y.; Uh, K.; Negron-Perez, V.M.; Haines, H.; Lee, K.; Hansen, P.J. Regulation of gene expression in the bovine blastocyst by colony-stimulating factor 2 is disrupted by CRISPR/Cas9-mediated deletion of CSF2RA. Biol. Reprod. 2021, 104, 995–1007. [Google Scholar] [CrossRef] [PubMed]
  48. Tribulo, P.; Siqueira, L.G.B.; Oliveira, L.J.; Scheffler, T.; Hansen, P.J. Identification of potential embryokines in the bovine reproductive tract. J. Dairy Sci. 2018, 101, 690–704. [Google Scholar] [CrossRef] [Green Version]
  49. Wooldridge, L.K.; Ealy, A.D. Interleukin-6 increases inner cell mass numbers in bovine embryos. BMC Dev. Biol. 2019, 19, 2. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Wooldridge, L.K.; Johnson, S.E.; Cockrum, R.R.; Ealy, A.D. Interleukin-6 requires JAK to stimulate inner cell mass expansion in bovine embryos. Reproduction 2019. [Google Scholar] [CrossRef] [PubMed]
  51. Sang, L.; Ortiz, W.; Xiao, Y.; Estrada-Cortes, E.; Jannaman, E.A.; Hansen, P.J. Actions of putative embryokines on development of the preimplantation bovine embryo to the blastocyst stage. J. Dairy Sci. 2020, 103, 11930–11944. [Google Scholar] [CrossRef]
  52. Seekford, Z.K.; Wooldridge, L.K.; Dias, N.W.; Timlin, C.L.; Sales, A.F.; Speckhart, S.L.; Pohler, K.G.; Cockrum, R.R.; Mercadante, V.R.G.; Ealy, A.D. Interleukin-6 supplementation improves post-transfer embryonic and fetal development of in vitro-produced bovine embryos. Theriogenology 2021, 170, 15–22. [Google Scholar] [CrossRef]
  53. Eckert, J.J.; Fleming, T.P. Tight junction biogenesis during early development. Biochim. Biophys. Acta 2008, 1778, 717–728. [Google Scholar] [CrossRef] [Green Version]
  54. Al-Sadi, R.; Ye, D.; Boivin, M.; Guo, S.; Hashimi, M.; Ereifej, L.; Ma, T.Y. Interleukin-6 modulation of intestinal epithelial tight junction permeability is mediated by JNK pathway activation of claudin-2 gene. PLoS ONE 2014, 9, e85345. [Google Scholar] [CrossRef] [Green Version]
  55. Suzuki, T.; Yoshinaga, N.; Tanabe, S. Interleukin-6 (IL-6) regulates claudin-2 expression and tight junction permeability in intestinal epithelium. J. Biol. Chem. 2011, 286, 31263–31271. [Google Scholar] [CrossRef] [Green Version]
  56. Wooldridge, L.K.; Ealy, A.D. Interleukin-6 promotes primitive endoderm development in bovine blastocysts. BMC Dev. Biol. 2021, 21, 3. [Google Scholar] [CrossRef]
  57. Van den Abbeel, E.; Balaban, B.; Ziebe, S.; Lundin, K.; Cuesta, M.J.; Klein, B.M.; Helmgaard, L.; Arce, J.C. Association between blastocyst morphology and outcome of single-blastocyst transfer. Reprod. Biomed. Online 2013, 27, 353–361. [Google Scholar] [CrossRef] [Green Version]
  58. Maddox-Hyttell, P.; Gjorret, J.O.; Vajta, G.; Alexopoulos, N.I.; Lewis, I.; Trounson, A.; Viuff, D.; Laurincik, J.; Muller, M.; Tveden-Nyborg, P.; et al. Morphological assessment of preimplantation embryo quality in cattle. Reprod. Suppl. 2003, 61, 103–116. [Google Scholar] [CrossRef] [PubMed]
  59. Iwasaki, S.; Yoshiba, N.; Ushijima, H.; Watanabe, S.; Nakahara, T. Morphology and proportion of inner cell mass of bovine blastocysts fertilized in vitro and in vivo. J. Reprod. Fertil 1990, 90, 279–284. [Google Scholar] [CrossRef] [PubMed]
  60. Pomar, F.J.; Teerds, K.J.; Kidson, A.; Colenbrander, B.; Tharasanit, T.; Aguilar, B.; Roelen, B.A. Differences in the incidence of apoptosis between in vivo and in vitro produced blastocysts of farm animal species: A comparative study. Theriogenology 2005, 63, 2254–2268. [Google Scholar] [CrossRef] [PubMed]
  61. Gjorret, J.O.; Knijn, H.M.; Dieleman, S.J.; Avery, B.; Larsson, L.I.; Maddox-Hyttel, P. Chronology of apoptosis in bovine embryos produced in vivo and in vitro. Biol. Reprod. 2003, 69, 1193–1200. [Google Scholar] [CrossRef]
  62. Knijn, H.M.; Gjorret, J.O.; Vos, P.L.; Hendriksen, P.J.; van der Weijden, B.C.; Maddox-Hyttel, P.; Dieleman, S.J. Consequences of in vivo development and subsequent culture on apoptosis, cell number, and blastocyst formation in bovine embryos. Biol. Reprod. 2003, 69, 1371–1378. [Google Scholar] [CrossRef] [Green Version]
  63. Bertolini, M.; Beam, S.W.; Shim, H.; Bertolini, L.R.; Moyer, A.L.; Famula, T.R.; Anderson, G.B. Growth, development, and gene expression by in vivo- and in vitro-produced day 7 and 16 bovine embryos. Mol. Reprod. Dev. 2002, 63, 318–328. [Google Scholar] [CrossRef]
  64. Fischer-Brown, A.E.; Lindsey, B.R.; Ireland, F.A.; Northey, D.L.; Monson, R.L.; Clark, S.G.; Wheeler, M.B.; Kesler, D.J.; Lane, S.J.; Weigel, K.A.; et al. Embryonic disc development and subsequent viability of cattle embryos following culture in two media under two oxygen concentrations. Reprod. Fertil Dev. 2004, 16, 787–793. [Google Scholar] [CrossRef] [PubMed]
  65. Bertolini, M.; Mason, J.B.; Beam, S.W.; Carneiro, G.F.; Sween, M.L.; Kominek, D.J.; Moyer, A.L.; Famula, T.R.; Sainz, R.D.; Anderson, G.B. Morphology and morphometry of in vivo- and in vitro-produced bovine concepti from early pregnancy to term and association with high birth weights. Theriogenology 2002, 58, 973–994. [Google Scholar] [CrossRef]
  66. Block, J.; Fischer-Brown, A.E.; Rodina, T.M.; Ealy, A.D.; Hansen, P.J. The effect of in vitro treatment of bovine embryos with IGF-1 on subsequent development in utero to Day 14 of gestation. Theriogenology 2007, 68, 153–161. [Google Scholar] [CrossRef]
  67. Fischer-Brown, A.; Monson, R.; Parrish, J.; Rutledge, J. Cell allocation in bovine embryos cultured in two media under two oxygen concentrations. Zygote 2002, 10, 341–348. [Google Scholar] [CrossRef]
  68. Arman, E.; Haffner-Krausz, R.; Chen, Y.; Heath, J.K.; Lonai, P. Targeted disruption of fibroblast growth factor (FGF) receptor 2 suggests a role for FGF signaling in pregastrulation mammalian development. Proc. Natl. Acad. Sci. USA 1998, 95, 5082–5087. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Shalaby, F.; Rossant, J.; Yamaguchi, T.P.; Gertsenstein, M.; Wu, X.F.; Breitman, M.L.; Schuh, A.C. Failure of blood-island formation and vasculogenesis in Flk-1-deficient mice. Nature 1995, 376, 62–66. [Google Scholar] [CrossRef] [PubMed]
  70. Assis Neto, A.C.; Pereira, F.T.; Santos, T.C.; Ambrosio, C.E.; Leiser, R.; Miglino, M.A. Morpho-physical recording of bovine conceptus (Bos indicus) and placenta from days 20 to 70 of pregnancy. Reprod. Domest Anim. 2010, 45, 760–772. [Google Scholar] [CrossRef] [PubMed]
  71. Greenstein, J.S.; Murray, R.W.; Foley, R.C. Observations on the morphogenesis and histochemistry of the bovine preattachment placenta between 16 and 33 days of gestation. Anat. Rec. 1958, 132, 321–341. [Google Scholar] [CrossRef]
  72. Mess, A.M.; Carreira, A.C.O.; Marinovic de Oliveira, C.; Fratini, P.; Favaron, P.O.; Barreto, R.; Pfarrer, C.; Meirelles, F.V.; Miglino, M.A. Vascularization and VEGF expression altered in bovine yolk sacs from IVF and NT technologies. Theriogenology 2017, 87, 290–297. [Google Scholar] [CrossRef] [PubMed]
  73. Alberto, M.L.; Meirelles, F.V.; Perecin, F.; Ambrosio, C.E.; Favaron, P.O.; Franciolli, A.L.; Mess, A.M.; Dos Santos, J.M.; Rici, R.E.; Bertolini, M.; et al. Development of bovine embryos derived from reproductive techniques. Reprod. Fertil Dev. 2013, 25, 907–917. [Google Scholar] [CrossRef] [PubMed]
  74. Matsumoto, F.S.; Oliveira, V.C.; Mancanares, C.A.; Ambrosio, C.E.; Miglino, M.A. Characterization of yolk sac proteins of Bos indicus cattle embryos. Genet. Mol. Res. 2012, 11, 3942–3954. [Google Scholar] [CrossRef] [Green Version]
  75. Galdos-Riveros, A.C.; Favaron, P.O.; Will, S.E.; Miglino, M.A.; Maria, D.A. Bovine yolk sac: From morphology to metabolomic and proteomic profiles. Genet. Mol. Res. 2015, 14, 6223–6238. [Google Scholar] [CrossRef]
  76. Oliveira, V.C.; Mancanares, C.A.; Oliveira, L.J.; Goncalves, N.J.; Miglino, M.A.; Perecin, F.; Meirelles, F.V.; Piedrahita, J.; Ambrosio, C.E. Characterization of putative haematopoietic cells from bovine yolk sac. J. Tissue Eng. Regen. Med. 2017, 11, 1132–1140. [Google Scholar] [CrossRef] [PubMed]
  77. Vailes, M.T.; McCoski, S.R.; Wooldridge, L.K.; Reese, S.T.; Pohler, K.G.; Roper, D.A.; Mercadante, V.R.; Ealy, A.D. Post-transfer outcomes in cultured bovine embryos supplemented with epidermal growth factor, fibroblast growth factor 2, and insulin-like growth factor 1. Theriogenology 2019, 124, 1–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  78. Meng, F.; Forrester-Gauntlett, B.; Turner, P.; Henderson, H.; Oback, B. Signal Inhibition Reveals JAK/STAT3 Pathway as Critical for Bovine Inner Cell Mass Development. Biol. Reprod. 2015, 93, 132. [Google Scholar] [CrossRef] [PubMed]
  79. Shen, X.H.; Cui, X.S.; Lee, S.H.; Kim, N.H. Interleukin-6 enhances porcine parthenote development in vitro, through the IL-6/Stat3 signaling pathway. J. Reprod. Dev. 2012, 58, 453–460. [Google Scholar] [CrossRef] [Green Version]
  80. Mathialagan, N.; Bixby, J.A.; Roberts, R.M. Expression of interleukin-6 in porcine, ovine, and bovine preimplantation conceptuses. Mol. Reprod. Dev. 1992, 32, 324–330. [Google Scholar] [CrossRef]
  81. Cao, S.; Han, J.; Wu, J.; Li, Q.; Liu, S.; Zhang, W.; Pei, Y.; Ruan, X.; Liu, Z.; Wang, X.; et al. Specific gene-regulation networks during the pre-implantation development of the pig embryo as revealed by deep sequencing. BMC Genom. 2014, 15, 4. [Google Scholar] [CrossRef] [Green Version]
  82. Shen, X.H.; Han, Y.J.; Zhang, D.X.; Cui, X.S.; Kim, N.H. A link between the interleukin-6/Stat3 anti-apoptotic pathway and microRNA-21 in preimplantation mouse embryos. Mol. Reprod. Dev. 2009, 76, 854–862. [Google Scholar] [CrossRef] [PubMed]
  83. Do, D.V.; Ueda, J.; Messerschmidt, D.M.; Lorthongpanich, C.; Zhou, Y.; Feng, B.; Guo, G.; Lin, P.J.; Hossain, M.Z.; Zhang, W.; et al. A genetic and developmental pathway from STAT3 to the OCT4-NANOG circuit is essential for maintenance of ICM lineages in vivo. Genes Dev. 2013, 27, 1378–1390. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Tang, Y.; Tian, X.C. JAK-STAT3 and somatic cell reprogramming. JAKSTAT 2013, 2, e24935. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Brady, J.J.; Li, M.; Suthram, S.; Jiang, H.; Wong, W.H.; Blau, H.M. Early role for IL-6 signalling during generation of induced pluripotent stem cells revealed by heterokaryon RNA-Seq. Nat. Cell Biol. 2013, 15, 1244–1252. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Liu, X.; Huang, J.; Chen, T.; Wang, Y.; Xin, S.; Li, J.; Pei, G.; Kang, J. Yamanaka factors critically regulate the developmental signaling network in mouse embryonic stem cells. Cell Res. 2008, 18, 1177–1189. [Google Scholar] [CrossRef]
  87. Lavranos, T.C.; Rathjen, P.D.; Seamark, R.F. Trophic effects of myeloid leukaemia inhibitory factor (LIF) on mouse embryos. J. Reprod. Fertil 1995, 105, 331–338. [Google Scholar] [CrossRef] [Green Version]
  88. Fedorcsak, P.; Storeng, R. Effects of leptin and leukemia inhibitory factor on preimplantation development and STAT3 signaling of mouse embryos in vitro. Biol. Reprod. 2003, 69, 1531–1538. [Google Scholar] [CrossRef]
  89. Kimber, S.J. Leukaemia inhibitory factor in implantation and uterine biology. Reproduction 2005, 130, 131–145. [Google Scholar] [CrossRef] [Green Version]
  90. Stewart, C.L. Leukaemia inhibitory factor and the regulation of pre-implantation development of the mammalian embryo. Mol. Reprod. Dev. 1994, 39, 233–238. [Google Scholar] [CrossRef]
  91. Vejlsted, M.; Avery, B.; Gjorret, J.O.; Maddox-Hyttel, P. Effect of leukemia inhibitory factor (LIF) on in vitro produced bovine embryos and their outgrowth colonies. Mol. Reprod. Dev. 2005, 70, 445–454. [Google Scholar] [CrossRef]
  92. Fukui, Y.; Matsuyama, K. Development of in vitro matured and fertilized bovine embryos cultured in media containing human leukemia inhibitory factor. Theriogenology 1994, 42, 663–673. [Google Scholar] [CrossRef]
  93. Rodriguez, A.; De Frutos, C.; Diez, C.; Caamano, J.N.; Facal, N.; Duque, P.; Garcia-Ochoa, C.; Gomez, E. Effects of human versus mouse leukemia inhibitory factor on the in vitro development of bovine embryos. Theriogenology 2007, 67, 1092–1095. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  94. Sirisathien, S.; Hernandez-Fonseca, H.J.; Bosch, P.; Hollet, B.R.; Lott, J.D.; Brackett, B.G. Effect of leukemia inhibitory factor on bovine embryos produced in vitro under chemically defined conditions. Theriogenology 2003, 59, 1751–1763. [Google Scholar] [CrossRef]
  95. Kocyigit, A.; Cevik, M. Leucemia inhibitory factor; investigating the time-dependent effect on viability of vitrified bovine embryos. Reprod. Domest. Anim. 2017, 52, 1113–1119. [Google Scholar] [CrossRef]
  96. Morgani, S.M.; Brickman, J.M. LIF supports primitive endoderm expansion during pre-implantation development. Development 2015, 142, 3488–3499. [Google Scholar] [CrossRef] [Green Version]
  97. Eckert, J.; Niemann, H. mRNA expression of leukaemia inhibitory factor (LIF) and its receptor subunits glycoprotein 130 and LIF-receptor-beta in bovine embryos derived in vitro or in vivo. Mol. Hum. Reprod. 1998, 4, 957–965. [Google Scholar] [CrossRef] [Green Version]
  98. Kocyigit, A.; Cevik, M. Effects of leukemia inhibitory factor and insulin-like growth factor-I on the cell allocation and cryotolerance of bovine blastocysts. Cryobiology 2015, 71, 64–69. [Google Scholar] [CrossRef]
  99. Ware, C.B.; Horowitz, M.C.; Renshaw, B.R.; Hunt, J.S.; Liggitt, D.; Koblar, S.A.; Gliniak, B.C.; McKenna, H.J.; Papayannopoulou, T.; Thoma, B.; et al. Targeted disruption of the low-affinity leukemia inhibitory factor receptor gene causes placental, skeletal, neural and metabolic defects and results in perinatal death. Development 1995, 121, 1283–1299. [Google Scholar] [CrossRef] [PubMed]
  100. Telugu, B.P.; Ezashi, T.; Sinha, S.; Alexenko, A.P.; Spate, L.; Prather, R.S.; Roberts, R.M. Leukemia inhibitory factor (LIF)-dependent, pluripotent stem cells established from inner cell mass of porcine embryos. J. Biol. Chem. 2011, 286, 28948–28953. [Google Scholar] [CrossRef] [Green Version]
  101. Bourillot, P.Y.; Santamaria, C.; David, L.; Savatier, P. GP130 signaling and the control of naive pluripotency in humans, monkeys, and pigs. Exp. Cell Res. 2020, 386, 111712. [Google Scholar] [CrossRef]
  102. Xiao, Y.; Amaral, T.F.; Ross, P.J.; Soto, D.A.; Diffenderfer, K.E.; Pankonin, A.R.; Jeensuk, S.; Tribulo, P.; Hansen, P.J. Importance of WNT-dependent signaling for derivation and maintenance of primed pluripotent bovine embryonic stem cells. Biol. Reprod. 2021. [Google Scholar] [CrossRef]
  103. Bogliotti, Y.S.; Wu, J.; Vilarino, M.; Okamura, D.; Soto, D.A.; Zhong, C.; Sakurai, M.; Sampaio, R.V.; Suzuki, K.; Izpisua Belmonte, J.C.; et al. Efficient derivation of stable primed pluripotent embryonic stem cells from bovine blastocysts. Proc. Natl. Acad. Sci. USA 2018, 115, 2090–2095. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  104. Imakawa, K.; Tamura, K.; McGuire, W.J.; Khan, S.; Harbison, L.A.; Stanga, J.P.; Helmer, S.D.; Christenson, R.K. Effect of interleukin-3 on ovine trophoblast interferon during early conceptus development. Endocrine 1995, 3, 511–517. [Google Scholar] [CrossRef]
  105. Al Naib, A.; Mamo, S.; O’Gorman, G.M.; Lonergan, P.; Swales, A.; Fair, T. Regulation of non-classical major histocompatability complex class I mRNA expression in bovine embryos. J. Reprod. Immunol. 2011, 91, 31–40. [Google Scholar] [CrossRef] [PubMed]
  106. Lupicka, M.; Bodek, G.; Shpigel, N.; Elnekave, E.; Korzekwa, A.J. Identification of pluripotent cells in bovine uterus: In situ and in vitro studies. Reproduction 2015, 149, 317–327. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  107. Correia-Alvarez, E.; Gomez, E.; Martin, D.; Carrocera, S.; Perez, S.; Otero, J.; Peynot, N.; Giraud-Delville, C.; Caamano, J.N.; Sandra, O.; et al. Expression and localization of interleukin 1 beta and interleukin 1 receptor (type I) in the bovine endometrium and embryo. J. Reprod. Immunol. 2015, 110, 1–13. [Google Scholar] [CrossRef] [PubMed]
  108. Dinarello, C.A. Overview of the IL-1 family in innate inflammation and acquired immunity. Immunol. Rev. 2018, 281, 8–27. [Google Scholar] [CrossRef]
  109. Paula-Lopes, F.F.; de Moraes, A.A.; Edwards, J.L.; Justice, J.E.; Hansen, P.J. Regulation of preimplantation development of bovine embryos by interleukin-1beta. Biol. Reprod. 1998, 59, 1406–1412. [Google Scholar] [CrossRef] [Green Version]
  110. Balkwill, F. Cancer and the chemokine network. Nat. Rev. Cancer 2004, 4, 540–550. [Google Scholar] [CrossRef]
  111. Oliveira, L.J.; Mansouri-Attia, N.; Fahey, A.G.; Browne, J.; Forde, N.; Roche, J.F.; Lonergan, P.; Fair, T. Characterization of the Th profile of the bovine endometrium during the oestrous cycle and early pregnancy. PLoS ONE 2013, 8, e75571. [Google Scholar] [CrossRef] [PubMed]
Animals 11 02313 g001 550
Figure 1. Differences in pregnancy retention after embryo transfer (ET) of in vitro-produced (IVP) embryos or embryo transfer of in vivo-produced embryos (termed MOET). Both IVP and MOET were evaluated within the same study in seven independent studies. Day of pregnancy detection ranged from day 30 to term. Six studies used Bos taurus cattle, and one study used Bos indicus cattle. In vivo-produced embryos were generated by superovulation, AI and uterine flushing at d 7 post-breeding. Each box contains the minimum and maximum values for each group, and the mean is represented by the line within the box. The bars represent SEMs. Adapted from [5].
Figure 1. Differences in pregnancy retention after embryo transfer (ET) of in vitro-produced (IVP) embryos or embryo transfer of in vivo-produced embryos (termed MOET). Both IVP and MOET were evaluated within the same study in seven independent studies. Day of pregnancy detection ranged from day 30 to term. Six studies used Bos taurus cattle, and one study used Bos indicus cattle. In vivo-produced embryos were generated by superovulation, AI and uterine flushing at d 7 post-breeding. Each box contains the minimum and maximum values for each group, and the mean is represented by the line within the box. The bars represent SEMs. Adapted from [5].
Animals 11 02313 g001
Animals 11 02313 g002 550
Figure 2. Model of our current knowledge about embryokine actions for cytokines. Colony-stimulating factor 2 (CSF2) and interleukin 6 (IL6) contain embryokine activity in bovine embryos (an illustration of a bovine embryo is provided). Leukemia inhibitory factor (LIF) may contain embryokine activity, but this activity is suggested namely because of embryokine actions for LIF in the mouse embryo. Several other potential cytokines may serve as embryokines, but work is needed to describe these potential activities. The figure was created with BioRender.com.
Figure 2. Model of our current knowledge about embryokine actions for cytokines. Colony-stimulating factor 2 (CSF2) and interleukin 6 (IL6) contain embryokine activity in bovine embryos (an illustration of a bovine embryo is provided). Leukemia inhibitory factor (LIF) may contain embryokine activity, but this activity is suggested namely because of embryokine actions for LIF in the mouse embryo. Several other potential cytokines may serve as embryokines, but work is needed to describe these potential activities. The figure was created with BioRender.com.
Animals 11 02313 g002
Table
Table 1. Cytokines expressed by the bovine endometrium and cytokines and cytokine receptors expressed by IVP bovine blastocysts.
Table 1. Cytokines expressed by the bovine endometrium and cytokines and cytokine receptors expressed by IVP bovine blastocysts.
Cytokine Transcripts
Endometrium 1		Cytokine Transcripts
Blastocyst 2		Cytokine Receptor Transcripts
Blastocyst 2
CXCL3CCL17IL6R
IL8IFNTIL6ST
CXCL12IL18IL2RB
CSF2IL1RNIL10RB
IL1ACXCL5IL13RA
CXCL10CCL24IFNGR
CX3CL1IL6IL36RN
CXCL16CXCL16IFNAR
CCL14IL27IL11RA
IL18CTF1IL17RA
IL33CLCF1IL20RB
IL6 IL20RA
IL16 IL1R1
IL12A IL17RC
IL12B CSF2RA
IL34 CCR10
IL1B CNTFR
CCL21 LIFR
IL15 IL1RAP
Data taken from 1 [48] and 2 [50]. Transcripts are ranked from greatest to least expression within each column. The endometrial expression represents transcript abundance of 93 genes at days 5 and 7 post-estrus using the NanoString nCounter Analysis System (NanoString Technologies, Seattle, WA, USA). Values were normalized to RNA spike-in controls and 6 housekeeping genes [48]. The blastocyst data represent RNA-sequencing analysis (Illumina Platform) of bovine IVP blastocysts harvested at day 8 post-fertilization. Data are represented as reads per kilobase of transcript per million transcripts (RPKM) [50]. Only RPKM values that were greater than 0.5 are presented.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ealy, A.D.; Speckhart, S.L.; Wooldridge, L.K. Cytokines That Serve as Embryokines in Cattle. Animals 2021, 11, 2313. https://doi.org/10.3390/ani11082313

AMA Style

Ealy AD, Speckhart SL, Wooldridge LK. Cytokines That Serve as Embryokines in Cattle. Animals. 2021; 11(8):2313. https://doi.org/10.3390/ani11082313

Chicago/Turabian Style

Ealy, Alan D., Savannah L. Speckhart, and Lydia K. Wooldridge. 2021. "Cytokines That Serve as Embryokines in Cattle" Animals 11, no. 8: 2313. https://doi.org/10.3390/ani11082313

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
