Article

Simple and Efficient Chemically Defined In Vitro Maturation and Embryo Culture System for Bovine Embryos

by
María Elena Arias
1,2,
Tamara Vargas
1,
Victor Gallardo
1,
Luis Aguila
1 and
Ricardo Felmer
1,3,*
1
Laboratory of Reproduction, Centre of Reproductive Biotechnology (CEBIOR-BIOREN), Universidad de La Frontera, Temuco 4811322, Chile
2
Department of Agricultural Production, Faculty of Agriculture and Environmental Sciences, Universidad de La Frontera, Temuco 4811322, Chile
3
Department of Agricultural Sciences and Natural Resources, Faculty of Agriculture and Environmental Sciences, Universidad de La Frontera, Temuco 4811322, Chile
*
Author to whom correspondence should be addressed.
Animals 2022, 12(21), 3057; https://doi.org/10.3390/ani12213057
Submission received: 26 September 2022 / Revised: 21 October 2022 / Accepted: 27 October 2022 / Published: 7 November 2022
(This article belongs to the Special Issue Recent Advances in Reproductive Biotechnologies)
Browse Figure
Versions Notes

Abstract

:

Simple Summary

Supplementation of the culture media for the in vitro production of bovine embryos with fetal bovine serum (FBS) is associated with inconsistent outcomes. This study replaced FBS in both maturation and embryo culture media by different growth factors. The results show that FBS is dispensable for in vitro maturation, but not gonadotropins. In addition, embryos generated under completely defined conditions (absence of FBS and BSA during oocyte maturation and embryo culture) showed similar in vitro development and survival rate post thawing compared to undefined conditions carrying FBS. Thus, we report a simple defined IVP system for bovine species that generates developmental outcomes and embryos of similar quality than those produced under conditions containing FBS and BSA.

Abstract

Supplementation of the culture media for in vitro production (IVP) of bovine embryos with fetal bovine serum (FBS) is associated with inconsistent outcomes. The present study sought to replace FBS and BSA by insulin-like growth factor 1 (IGF1), fibroblast growth factor 2 (FGF2) and epidermal growth factor (EGF). In Experiment 1, absence of FBS from maturation medium (MM) did not affect the rate of in vitro maturation, as assessed by the extrusion of the first polar body. However, when gonadotropins and FBS were removed from the MM, the maturation rate was significantly reduced even in the presence of growth factors. Therefore, gonadotropin-supplemented MM medium was established as the base medium for the defined maturation condition. In Experiment 2, the addition of growth factors to gonadotropin-supplemented MM medium supported similar maturation (~90%) compared to the undefined condition (FBS-carrying). In Experiment 3, the addition of growth factors to embryo culture medium showed similar in vitro competence compared to the undefined (FBS) control. In Experiment 4, completely defined conditions (absence of FBS and BSA during in vitro maturation and embryo culture) were tested. A higher cleavage was observed with FGF2 (86%) compared to EGF (77%) and the FBS control (77%), but similar blastocyst rates were observed for FGF2 (24%), EGF (19%) and the FBS control (25%). Embryo quality was similar among groups. Finally, post-thawing survival was higher for FGF2 (94%) compared to the FBS control (77%). Thus, we report a simple defined IVP system for bovine species that generates developmental outcomes and embryos of similar quality than those produced under conditions containing FBS.

1. Introduction

In the last decades, bovine in vitro fertilization (IVF) has evolved from an experimental procedure for treating infertile animals to a tool for genetic selection and modification [1]. Currently with the aid of ultrasound-guided transvaginal oocyte retrieval, IVF has gained increasing interest by researchers as an alternative to multiple ovulation embryo transfer programs, particularly in South American countries [2]. Thus, it is not surprising that many researchers have put their effort seeking to improve in vitro culture conditions.
Culture media for in vitro production (IVP) of bovine embryos have been regularly supplemented with different growth factors, antioxidants, and macromolecules as a source of protein [3]. For instance, the main source of protein used to boost the developmental competence of in vitro produced embryos of non-rodent species is fetal bovine serum (FBS). However, its variable composition, due to the limited definition of their components, and the great variation of each batch or supplier [4], are the main factors associated with the lack of consistent outcomes observed among different research groups [5,6].
The addition of FBS to the culture medium has shown a biphasic effect on the developmental potential of the growing embryos, either inhibiting the early stages of development or stimulating morulae and blastocyst differentiation [4,7,8]. These include mitochondrial alterations [9,10], the presence of dark clusters [5,11], a high incidence of apoptosis [6], low protein synthesis [12], a lower ratio of inner cell mass: trophoblast cells [13] and changes in the expression pattern of genes important for early embryonic development [14]. In addition, it is suspected to contribute to the condition known as large offspring syndrome (LOS) [10].
Taken together, this background strongly suggests the need for a reliable serum-free culture system capable of producing results comparable to a conventional FBS-based system. Previous studies have reported the use of chemically defined serum-free culture conditions for bovine embryos through the replacement of FBS or BSA for polyvinyl pyrrolidone (PVP), polyvinyl alcohol (PVA), commercial serum replacers, or supplementing these media with different growth factors. These media include synthetic oviductal fluid (SOF) [15], CR1aa [16], bovine embryo culture medium (BECM) [17], IVD101 [18], and potassium simplex optimization medium (KSOM) [19,20]. Although these media support preimplantation embryonic development up to the blastocyst stage, their efficiency must be boosted by supplementing with FBS [21,22]. Furthermore, an efficient and economic defined IVP system in which maturation and embryo culture are carried out without FBS has not been reported in the bovine species. Because it has been recently described that insulin-like growth factor 1 (IGF1), fibroblast growth factor 2 (FGF2) and epidermal growth factor (EGF) have the potential to improve the developmental potential and quality of bovine embryos generated in vitro [23,24,25], the present study aimed to replace FBS and BSA of the culture media used during the IVP of bovine embryos by evaluating the addition of IGF1, FGF2 or EGF individually to the in vitro maturation and embryo culture media.

2. Materials and Methods

Unless stated otherwise, all chemicals were purchased from Sigma-Aldrich (St. Louis, MO, USA).

2.1. In Vitro Maturation (IVM)

Ovaries were collected from a local slaughterhouse (Frigorifico Temuco, Temuco, Chile). Cumulus oocyte complexes (COCs) were aspirated from 2 to 7 mm follicles using an 18-gauge needle. COCs were selected according to their morphology [26] and cultured in TCM-199 medium supplemented with 10% inactivated FBS (Hyclone Laboratories, Inc., Logan, UT, USA) or with growth factors and 6 µg/ml luteinising hormone (LH; Sioux Biochemical Inc., Sioux City, IA, USA), 6 µg/ml follicle-stimulating hormone (FSH; Sioux Biochemical Inc., Sioux City, IA, USA) and 1 µg/ml estradiol (E2). For some experiments, the maturation (TCM-base) medium was devoid of gonadotropins (LF, FSH, E2) and/or FBS. COCs were incubated for 22–24 h at 38.5 °C in 5% CO2 and saturation humidity. Maturation rate was calculated by considering the number of oocytes that extruded the first polar body in relation to total number of oocytes in culture.

2.2. In Vitro Fertilization (IVF)

In vitro-matured oocytes were co-incubated with 1 × 106 Percoll-separated frozen–thawed sperm per mL (Alta Genetics Inc., Alberta, Canada) for 18 h at 38.5 °C and 5% CO2 in IVF-TL supplemented with 0.2 mM sodium pyruvate, 6 mg fatty acid-free BSA and 0.025 mg gentamicin sulphate per ml [27]. Final IVF-TALP contained 80 µM penicillamine, 40 µM hypotaurine, 10 µM epinephrine and 2 µg/ml heparin.

2.3. In Vitro Embryo Culture

Groups of approximately 30 presumptive zygotes were cultured in 50 µL drops under mineral oil in the following culture medium: 1) KSOM (EmbryoMax®, Millipore Corp, Billerica, MA, USA) supplemented with 1% (v/v) BME-essential amino acids, 1% (v/v) MEM-nonessential amino acids and 4 mg/mL fatty acid free BSA. Culture was carried out at 38.5 °C with a gas mixture of 5% CO2, 5% O2, 90% N2 and saturation humidity. Cleavage rate was recorded on day 3 of culture, at which time embryos in the control group were supplemented with 5% FBS (undefined conditions). Embryos were further cultured until Day 7 and/or Day 9, depending on the experiment. Hatching rate was calculated regarding the number of hatched blastocysts in relation to the total number of blastocysts. For all chemically defined treatments (see experimental design below) embryos were cultured in one step until day 7 and/or 9 under the same temperature and gas conditions as described above. For the chemically defined embryo culture medium we modified our undefined KSOM culture recipe [28] by replacing BSA by PVA and supplementing with 1.5 mM Fructose, as it had been previously described that supplementation of fructose in chemically defined protein-free medium enhances the in vitro development in bovine transgenic cloned embryos [29]. Different growth factors (EGF, IGF1 and FGF2) diluted in PBS were added to this culture medium.

2.4. Total Number of Cells

Morphologically expanded blastocysts (200–250 μm in diameter) were used for quality assessment [13,30]. Briefly, expanded blastocysts were fixed and washed twice in PBS/BSA and incubated for 30 min at RT in 4% paraformaldehyde containing 10 μg/ml of Hoechst. Finally, the embryos were transferred to slides on drops of 10 μl of 1:1 glycerol/PBS and examined under an epifluorescence microscope (NIKON eclipse TS100F, equipped with UV-2E/C DAPI and/or EGFP filters).

2.5. Terminal Deoxynucleotidyl Transferase dUTP Nick-End Labelling

Terminal deoxynucleotidyl transferase dUTP nick-end labelling (TUNEL) was performed according to the manufacturer’s protocol using an In Situ Cell Death Detection Kit (Roche Diagnostics Corp.). Briefly, after fixation and permeabilization steps described above, embryos were washed twice with PVP–PBS and incubated in the dark with fluorescently conjugated terminal deoxynucleotide transferase dUTP for 1 h at 37 °C. TUNEL-stained embryos were then washed with PVP–PBS and incubated in PVP–PBS containing 10 μg/mL Hoechst 33,342 for 10 min. Embryos were mounted onto glass slides in 15 μL drops of glycerol:PBS (1:1, v/v), and visualized under an epifluorescence Eclipse TS-100F microscope (Nikon) equipped with appropriate ultraviolet filters.

2.6. OPS Vitrification and Warming

Vitrification was performed as previously described by Vajta et al. [31], with modifications. Day 7 expanded, and morphologically intact blastocysts were manipulated on a heated stage at 38 °C. Embryos (4–6/group) were incubated in 10% ethylene glycol (EG) and 10% dimethyl sulfoxide (DMSO) in holding medium with 10% FBS for 3 min, and then moved to a second vitrification solution of 20% EG, 20% DMSO, 0.15 M sucrose and 10% FBS. Embryos were then loaded by capillarity in a small volume into the narrow end of the OPS straw (Minitube, Valencia, Spain) and submerged immediately into liquid nitrogen for ~3 weeks until analysis. Warming was performed by immersing the end of the straw containing embryos into 38 °C holding medium plus 0.25 M sucrose for 1 min and then embryos were transferred into holding medium containing 0.15 M sucrose for another 5 min, then exposed twice (5 min each) to holding medium before the embryo culture that was carried out as described above.

2.7. Experimental Design

All experiments were carried out with the same batch of oocytes distributed randomly to each treatment. Experiment 1 analyzed the effects of removing FBS and/or the gonadotropins (LH, FSH, E2) from the maturation medium on in vitro maturation rate. Experiment 2 evaluated the effects of replacing FBS and BSA with different growth factors in gonadotropin-containing maturation medium. Oocyte maturation was assessed by the occurrence of extrusion of the first polar body after maturation in defined conditions: TCM-199 containing FSH, LH, E2, and the different growth factors: 10 ng/ml epidermal growth factor (EGF), 100 ng/ml insulin-like growth factor (IGF1) or 500 ng/ml fibroblast growth factor (FGF2). Control conditions included 10% FBS (undefined conditions) as described above. Experiment 3 evaluated the effect of supplementing the embryo culture medium with different growth factors. Oocytes matured in vitro in the presence of FBS were fertilized and presumptive zygotes were randomly allocated to chemically defined KSOM-based culture medium containing 10 ng/ml EGF, or 100 ng/ml IGF1 or 500 ng/ml FGF2, 0.01% PVA and 1.5 mM fructose. Cleavage (Day 3), blastocyst rate (Day 7) and hatched blastocyst rates (Day 9) were recorded and compared to undefined culture medium as described above. Experiment 4 evaluated the developmental potential and quality of bovine embryos generated in completely defined in vitro conditions by using oocytes matured in defined maturation conditions (Experiments 1 and 2) and then culturing these oocytes in defined embryo culture conditions (Experiment 3). Cleavage (Day 3), blastocyst rate (Day 7), hatched blastocyst rate (Day7) and embryo quality (Day 7) were recorded and compared to undefined conditions. Experiment 5 evaluated the cryotolerance of embryos generated under chemically defined conditions (KSOM+FGF2) compared to undefined conditions. Re-expansion, hatching and survival rates were evaluated at 24 and 48 h after warming. Total number of cells and TUNEL positive cells were also evaluated at 48 h. Blastocysts that regained their original shape with a fully re-expanded blastocele and those that only partially regained their spherical shape were regarded as viable blastocysts, as previously described by Men et al. (2006) [31]. Then, the blastocysts were culture for additional 48 h to investigate their ability to hatch in vitro.

2.8. Statistical Analysis

Data were analyzed using descriptive statistics based on the mean and standard error calculated for each of the variables using Stat Graphics Plus 5.1 software (Stat Point Technologies Inc., Warrenton, VA, USA). At least 3 biological replicates were performed in each experiment. Differences among treatments were analyzed using one-way ANOVA after arcsine transformation of the proportional data. Post-hoc analysis to identify differences between groups was performed using Scheffe’s test. Differences between groups were considered significant if p < 0.05.

3. Results

3.1. Effects of Removing FBS and/or Gonadotropins (LH, FSH, E2) from the Maturation Medium on In Vitro Maturation Rates (Experiment 1)

This experiment showed that the removal of FBS from the in vitro maturation medium (TCM medium carrying hormone cocktail) does not affect the ability of COC’s to undergo nuclear maturation in vitro, as evaluated by the extrusion of the polar body (Table 1). However, when gonadotropins and FBS were removed from the maturation medium, the maturation rate was lower even in the presence of growth factors (Table 1), suggesting that gonadotropins are essentials for the induction of in vitro maturation of bovine oocytes. Therefore, gonadotropin-supplemented TCM-199 medium was established as the base medium for the defined in vitro maturation condition.

3.2. Effect of Supplementing EGF, IGF1 and FGF2 in Defined Maturation Medium on the Maturation Rate of Bovine Oocytes (Experiment 2)

The results of eight replicates with a total of 802 oocytes randomly in vitro matured in gonadotropin-supplemented TCM-199 indicate similar maturation outcomes (range 88–90%) between culturing containing EGF, IGF1, or FGF2 and the undefined FBS medium (Table 2).

3.3. Effect of Supplementing EGF, IGF1 and FGF2 in Defined KSOM Culture Medium on In Vitro Developmental Potential of Bovine Embryos (Experiment 3)

The results of 10 replicates with a total of 1.000 IVF bovine oocytes showed no differences in the cleavage rate (range 79–85%) and blastocyst formation rates (range 25–30%) among groups (Table 3). Although the hatching rate was similar on Day 7 (data not shown), a higher hatching rate (p < 0.05) was recorded on Day 9 in the group of embryos cultured under defined KSOM medium supplemented with IGF1 compared to the undefined FBS group (Table 3).

3.4. Effect of EGF, IGF1 and FGF2 in Defined IVP System on the In Vitro Development and Embryo Quality of Bovine Embryos (Experiment 4)

The results of 12 replicates with a total of 1.188 IVF zygotes showed differences in the cleavage rate in embryos matured and cultured in defined IVP conditions (in vitro maturation and embryo culture) containing FGF2 (86%) compared to EGF (77%) and the undefined conditions (77%) (Table 4). The blastocyst rate was lower (p < 0.05) in embryos cultured in defined IVP conditions containing IGF1 compared to the undefined conditions (Table 4). However, no differences were observed between the undefined conditions (FBS/BSA) and the embryos produced in defined IVP system containing FGF2 or EGF (Table 4). Quality of embryos, according to the total cell number, was similar among all groups (Table 4).
Cell counts were recorded at 168 h in expanded blastocysts (12 blastocysts for each treatment). FBS: fetal bovine serum; IGF1: insulin-like growth factor 1, FGF2: fibroblast growth factor 2; EGF: epidermal growth factor; ICM: inner cell mass; TE: trophectoderm. No differences were observed between treatments (p > 0.05).

3.5. Post-Cryopreservation Survival and Embryo Quality (Experiment 5)

For this experiment the treatment with FGF2 was selected because it showed the highest blastocyst development among the different growth factors (Table 4). As control, embryos were generated under undefined conditions. A total of 120 expanded embryos were vitrified on day 7 of development, 71 were generated under undefined conditions and 49 under defined conditions (FGF2). The evaluation of embryos at 24 and 48 h post warming showed a similar re-expansion and hatching rate between groups (Figure 1A,B). Specifically, the survival rate assessed after 48 h post warming was higher in the group of embryos cultured under defined (FGF2) conditions (Figure 1C). Quality of embryos, as assessed by the total number of cells, was significantly higher in hatched-warmed embryos generated with FGF2 (199.8 ± 59.6) compared to the undefined FBS condition (146.6 ± 42.8; Figure 1D), while no differences were observed in the proportion of TUNEL-positive cells between groups (Figure 1D).

4. Discussion

In this study, we evaluated three different growth factors added individually to IVM and IVC media as a potential replacement for FBS. We were aiming to find one or more growth factors capable of giving similar or better IVP outcomes as compared to the FBS, the most popular additive used to boost the developmental competence in vitro. Our results confirm that gonadotropins are indispensable to induce nuclear maturation and the presence of growth factors is not enough to alleviate the lack of gonadotropins during the induction of in vitro maturation. In addition, by supplementing the embryo culture medium with different growth factors, it was possible to obtain similar developmental outcomes and survival after thawing to the FBS-based IVP system.
Previous studies have shown that EGF stimulates in vitro maturation in different mammalian species, including mouse, rat, human, porcine, and bovine [32,33,34,35]. Here, we have recorded a similar rate of nuclear maturation in TCM-199 containing gonadotropins compared to the same base-medium containing FBS, but maturation rate was lower when the medium was devoid of hormones, even in the presence of growth factors. In line with our data, a previous study indicated that the combination of EGF and gonadotropins during IVM improved the maturation rate and subsequent development in vitro; however, EGF in the absence of gonadotropins did not affect the percentage of oocytes reaching the MII stage [32]. Other studies have also demonstrated that EGF stimulates the expansion of cumulus cells and promotes nuclear maturation of bovine oocytes in vitro [34,36,37,38]. For instance, Cordova et al. (2022) supplemented the maturation medium with EGF (10 ng/ml) and found that blastocyst rates and expression of OCT4 were significantly increased in EGF-treated oocytes [39]. However, no significant differences in nuclear maturation have been reported in other domestic species, such as pigs and sheep [40,41], suggesting species-specific effects.
It has been also previously reported that IGF1 can stimulate oocyte maturation and embryonic development in vitro in several species, including bovine, mouse, pigs, and human [42,43,44,45]. The effect of adding IGF1 in the maturation medium was evaluated earlier by Lorenzo et. al, [38]. These authors observed that supplementation of TCM-199 with IGF1 in the absence of gonadotropins yielded higher nuclear maturation rate compared to a control without growth factors. Although our results show a lower maturation rate in the TCM medium supplemented with IGF1 compared to the TCM containing gonadotropins, the supplementation with IGF1 in the presence of gonadotropins showed similar levels of nuclear maturation and yielded a higher hatching rate. Other authors have indicated positive effects of IGF1 on nuclear and cytoplasmic maturation of oocytes [46,47]. Although, in line with our findings, the addition of IGF1 did not improve nuclear maturation of sheep oocytes in the absence of gonadotropins [41].
Regarding FGF2 supplementation, our data showed that FGF2 induced a similar maturation rate than undefined conditions composed by gonadotropins and FBS. Another study also reported that buffalo oocytes cultured with FGF2 in the presence of gonadotropins displayed a high rate of nuclear maturation [48]. These results agree with previous literature indicating that FGF2 added to regular IVM medium (carrying hormones) improves the degree of cumulus expansion and nuclear maturation [48,49]. Moreover, Barros et al. [50] observed that FGF2 enhanced meiotic resumption, decreased cumulus cell dissociation, and inhibited the apoptosis on cumulus cells. However, Kobayashi et al. [35] reported deficient cleavage rate after supplementation of the MM with FGF2 when the medium was lacking hormones. Therefore, previous literature and our data highlight the importance of gonadotropins for the induction of nuclear maturation of bovine oocytes in vitro.
In Experiment 3, we evaluated the in vitro competence of bovine embryos cultured in chemically defined KSOM medium supplemented with growth factors (EGF, IGF1, or FGF2) individually. The base embryo culture medium (KSOM) supports the in vitro development of IVF, ICSI and somatic cell nuclear transfer (SCNT) bovine embryos [28,51,52,53]. However, a defined embryo culture condition by replacing FBS or BSA with PVA has resulted in poor developmental potential compared to the base medium supplemented with BSA or FBS [54,55]. Our results show similar developmental competence in vitro among all treatments and the control group carrying BSA and FBS, and a higher hatching rate in embryos cultured with IGF1, highlighting the potential role of these growth factors on bovine early development. Similarly, other studies have reported a higher blastocyst rate and of IVF produced embryos cultured under a defined two-step culture medium supplemented with EGF [3]. In agreement with our results, Lott et al., [56] also reported similar development up to the blastocyst stage between undefined and defined embryo culture conditions supplemented with EGF and/or IGF1. A similar result was also described by Wang et al., [57] for bovine SCNT embryos in an embryonic defined medium containing EGF and PVA. In a similar fashion, the addition of IGF-I to the culture medium has also been associated to beneficial effects on the in vitro production of embryos in different species [58,59]. In bovines, the addition of IGF1 increased the morula/blastocyst yield [43,60,61], showed a thermoprotective effect against thermal shock [62], and accelerated the rate of development in vitro [63]. Saeed-Zidane et al. (2019) have indicated that the higher competence and quality of bovine embryos cultured with EGF is associated with changes on DNA methylation and expression of genes involved in the focal adhesion pathway [64].
Nonetheless, studies evaluating the effects of FGF2 in a chemically defined embryo culture medium are scarce. Remarkably, a recent study raised to this cytokine as a potential mediator of maternal and embryo interaction [65]. So far, the literature has shown positive effects on in vitro development when FGF2 is used alone or in combination with other factors. In accordance with our results, the studies of Neira et al., (2010) and Fields et al. (2011) reported positive effects on bovine embryonic development using FGF2 at levels comparable to base medium containing FBS [63,66]. Another study also showed that FGF2, along with TGF-β,1 improved the development of bovine zygotes to the blastocysts stage [67]. Finally, Kumar et al. [49] indicated that FGF2 improved the cleavage rate, but not the yield of morula and blastocysts. These positive effects have been associated with trophic actions of FGF2 on primitive endoderm formation and proliferation during early development [68].
Then, we evaluated the developmental potential of embryos generated in completely defined IVP conditions (during in vitro maturation and embryo culture) using these growth factors individually. The results of this experiment confirm the feasibility to replace FBS and BSA in the maturation and embryo culture media by EGF or FGF2. We observed a similar cleavage rate under defined conditions, except for FGF2, which showed higher cleaving compared to all other groups, including the undefined (FBS/BSA) conditions. Additionally, similar blastocyst rates were observed, except for IGF1, which showed the lowest competence. Only very few studies have assessed the effect of growth factors on the preimplantation development of bovine embryos in completely defined IVP conditions. Previously, Hernandez-Fonseca et al. [69] reported similar in vitro development and pregnancy outcomes after using chemically defined conditions supplemented with IGF1. Additionally, the same group reported that the addition of EGF and IGF1 boosted the developmental competence of bovine embryos [70]. George at al. [71] evaluated a serum-free maturation and embryo culture system supplemented with ITS (insulin, transferrin and selenium). This serum-free embryo culture system improved embryonic development and quality, and the addition of BSA (SOF-ITS-BSA) further improved blastocyst development. Although, the efficiency was inferior to that FBS-supplemented system.
Finally, we compared the post-thawing survival rate and quality of embryos generated under undefined and defined FGF2 conditions. Accordingly, we found a higher survival rate and total number of cells in hatched blastocysts at 48 h after warming in the FGF2 group. Indeed, a high survival was also observed in the undefined conditions. It is possible that the addition of FGF2 during maturation and embryo culture results in changes in lipid metabolism regulation and increased survivability following cryopreservation. Thus, further research is needed to study the effects of FGF2 on metabolism regulation in bovine early embryogenesis.
Cell count in the blastocyst is associated with embryo quality, resistance to cryopreservation, and ultimately with pregnancy and deliveries after transfer [14,72,73,74]. The evaluation of the total number of cells showed that the embryos generated under defined conditions showed a quality similar to that obtained in the presence of FBS/BSA. In fact, the quality was similar to previous data found in the literature [75]. In accordance with this, the study of Lee and Fukui [76], indicated improvements on the cell numbers of blastocyst after EGF, although several other reports have described that the numbers of cells were unaffected by the cytokines [18,70,77,78]. Likewise, the addition of IGF1 to embryo culture increased the cell count of bovine blastocysts [60,61,70].
The combination of EGF, IGF1 and/or FGF2 during IVM or embryo culture has also been reported to enhance in vitro embryo production [79,80] and embryo quality via activating mitogen-activated protein kinase pathway [24]. An additive effect was also observed when EGF and IGF1 were used in the maturation medium [38], and embryo culture medium [22]. Stoecklein et al., (2021) supplemented the maturation or embryo culture medium with a cocktail of FGF2, LIF and IGF1 (LFI). These factors improved in vitro maturation, the development competence to the blastocyst stage, and survival following slow freezing, as well as, decreased post-thaw cell apoptosis [25]. Therefore, our data and recent studies are encouraging to address future research on the combined use of EGF, FGF2 and/or IGF1 under defined conditions to further enhance the development potential of embryos generated in these conditions.

5. Conclusions

In conclusion, we reported a chemically defined in vitro production system (absence of FBS and BSA during oocyte maturation and embryo culture) based on the use of either EGF or FGF2, which supports the development of bovine embryos of similar quality and post-thawing survival rate to those generated under conditions containing FBS and BSA. These defined embryo production conditions can facilitate pharmacological, toxicological, or metabolic studies, for example, to elucidate nutritional requirements or to identify the molecular pathways that govern the early development in the bovine species. Future studies will aim to assess the effects of the defined conditions on gene expression analyses and/or on the in vivo developmental potential.

Author Contributions

M.E.A., L.A., T.V. and R.F. contributed to the conception and design of the study. T.V., V.G. and L.A. contributed to experimental procedures, including embryo production, manipulations, and analysis. M.E.A., R.F. and L.A. wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by ANID-Chile, grant FONDECYT 1201166 and Universidad de La Frontera, Programa de Formación de Investigadores Postdoctorales (PDT21-0001).

Institutional Review Board Statement

Not applicable. Only slaughterhouse material (ovaries) and commercial semen were used in the present study.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The provision of ovaries by our local slaughterhouse (Frigorifico Temuco, Temuco, Chile).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sirard, M.-A. 40 years of bovine IVF in the new genomic selection context. Reproduction 2018, 156, R1–R7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Baruselli, P.S.; Rodrigues, C.A.; Ferreira, R.M.; Sales, J.N.S.; Elliff, F.M.; Silva, L.G.; Viziack, M.P.; Factor, L.; D’Occhio, M.J. Impact of oocyte donor age and breed on in vitro embryo production in cattle, and relationship of dairy and beef embryo recipients on pregnancy and the subsequent performance of offspring: A review. Reprod. Fertil. Dev. 2022, 34, 36. [Google Scholar] [CrossRef] [PubMed]
  3. Lim, K.T.; Jang, G.; Ko, K.H.; Lee, W.W.; Park, H.J.; Kim, J.J.; Lee, S.H.; Hwang, W.S.; Lee, B.C.; Kang, S.K. Improved in vitro bovine embryo development and increased efficiency in producing viable calves using defined media. Theriogenology 2007, 67, 293–302. [Google Scholar] [CrossRef]
  4. Pinyopummintr, T.; Bavister, B.D. Development of bovine embryos in a cell-free culture medium: Effects of type of serum, timing of its inclusion and heat inactivation. Theriogenology 1994, 41, 1241–1249. [Google Scholar] [CrossRef]
  5. Bavister, B.D. Co-culture for embryo development: Is it really necessary? Human Reproduction 1992, 7, 1339–1341. [Google Scholar] [CrossRef] [PubMed]
  6. Byrne, A.T.; Southgate, J.; Brison, D.R.; Leese, H.J. Analysis of apoptosis in the preimplantation bovine embryo using TUNEL. Reproduction 1999, 117, 97–105. [Google Scholar] [CrossRef] [PubMed]
  7. Thompson, J.G.; Allen, N.W.; McGowan, L.T.; Bell, A.C.S.; Lambert, M.G.; Tervit, H.R. Effect of delayed supplementation of fetal calf serum to culture medium on bovine embryo development in vitro and following transfer. Theriogenology 1998, 49, 1239–1249. [Google Scholar] [CrossRef]
  8. Soto-Moreno, E.J.; Balboula, A.; Spinka, C.; Rivera, R.M. Serum supplementation during bovine embryo culture affects their development and proliferation through macroautophagy and endoplasmic reticulum stress regulation. PLoS ONE 2021, 16, e0260123. [Google Scholar] [CrossRef]
  9. Abe, H.; Yamashita, S.; Itoh, T.; Satoh, T.; Hoshi, H. Ultrastructure of bovine embryos developed from in vitro-matured and -fertilized oocytes: Comparative morphological evaluation of embryos cultured either in serum-free medium or in serum-supplemented medium. Mol. Reprod. Dev. 1999, 53, 325–335. [Google Scholar] [CrossRef]
  10. Farin, P.W.; Crosier, A.E.; Farin, C.E. Influence of in vitro systems on embryo survival and fetal development in cattle. Theriogenology 2001, 55, 151–170. [Google Scholar] [CrossRef]
  11. Krisher, R.L.; Lane, M.; Bavister, B.D. Developmental competence and metabolism of bovine embryos cultured in semi-defined and defined culture media. Biol. Reprod. 1999, 60, 1345–1352. [Google Scholar] [CrossRef] [Green Version]
  12. Kuran, M.; Robinson, J.J.; Staines, M.E.; McEvoy, T.G. Development and de novo protein synthetic activity of bovine embryos produced in vitro in different culture systems. Theriogenology 2001, 55, 593–606. [Google Scholar] [CrossRef]
  13. Fouladi-Nashta, A.; Alberio, R.; Kafi, M.; Nicholas, B.; Campbell, K.; Webb, R. Differential staining combined with TUNEL labelling to detect apoptosis in preimplantation bovine embryos. Reprod. Biomed. Online 2005, 10, 497–502. [Google Scholar] [CrossRef]
  14. Rizos, D.; Gutiérrez-Adán, A.; Pérez-Garnelo, S.; de La Fuente, J.; Boland, M.P.; Lonergan, P. Bovine embryo culture in the presence or absence of serum: Implications for blastocyst development, cryotolerance, and messenger RNA expression. Biol. Reprod. 2003, 68, 236–243. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Keskintepe, L.; Brackett, B.G. In Vitro Developmental Competence of in Vitro-Matured Bovine Oocytes Fertilized and Cultured in Completely Defined Media1. Biol. Reprod. 1996, 55, 333–339. [Google Scholar] [CrossRef] [Green Version]
  16. Rosenkrans, C.F.; Zeng, G.Q.; MCNamara, G.T.; Schoff, P.K.; First, N.L. Development of bovine embryos in vitro as affected by energy substrates. Biol. Reprod. 1993, 49, 459–462. [Google Scholar] [CrossRef] [Green Version]
  17. Lim, J.M.; Kim, J.H.; Okuda, K.; Niwa, K. The importance of NaCl concentration in a chemically defined medium for the development of bovine oocytes matured and fertilized in vitro. Theriogenology 1994, 42, 421–432. [Google Scholar] [CrossRef]
  18. Abe, H.; Hoshi, H. Evaluation of Bovine Embryos Produced in High Performance Serum-Free Media. J. Reprod. Dev 2003, 49, 193–202. [Google Scholar] [CrossRef] [Green Version]
  19. Erbach, G.T.; Lawitts, J.A.; Papaioannou, V.E.; Biggers, J.D. Differential Growth of the Mouse Preimplantation Embryo in Chemically Defined Media1. Biol. Reprod. 1994, 50, 1027–1033. [Google Scholar] [CrossRef]
  20. Liu, Z.; Foote, R.H. Effects of amino acids on the development of in-vitro matured/in-vitro fertilization bovine embryos in a simple protein-free medium. Hum. Reprod. 1995, 10, 2985–2991. [Google Scholar] [CrossRef]
  21. Holm, P.; Booth, P.J.; Callesen, H. Kinetics of early in vitro development of bovine in vivo- and in vitro-derived zygotes produced and/or cultured in chemically defined or serum-containing media. Reproduction 2002, 123, 553–565. [Google Scholar] [CrossRef] [PubMed]
  22. Sakagami, N.; Umeki, H.; Nishino, O.; Uchiyama, H.; Ichikawa, K.; Takeshita, K.; Kaneko, E.; Akiyama, K.; Kobayashi, S.; Tamada, H. Normal Calves Produced After Transfer of Embryos Cultured in a Chemically Defined Medium Supplemented with Epidermal Growth Factor and Insulin-like Growth Factor I Following Ovum Pick Up and In Vitro Fertilization in Japanese Black Cows. J. Reprod. Dev. 2012, 58, 140–146. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Lin, T.-C.; Yen, J.-M.; Gong, K.-B.; Hsu, T.-T.; Chen, L.-R. IGF-1/IGFBP-1 increases blastocyst formation and total blastocyst cell number in mouse embryo culture and facilitates the establishment of a stem-cell line. BMC Cell Biol. 2003, 4, 14. [Google Scholar] [CrossRef] [Green Version]
  24. Xie, M.; McCoski, S.R.; Johnson, S.E.; Rhoads, M.L.; Ealy, A.D. Combinatorial effects of epidermal growth factor, fibroblast growth factor 2 and insulin-like growth factor 1 on trophoblast cell proliferation and embryogenesis in cattle. Reprod. Fertil. Dev. 2017, 29, 419. [Google Scholar] [CrossRef] [PubMed]
  25. Stoecklein, K.S.; Ortega, M.S.; Spate, L.D.; Murphy, C.N.; Prather, R.S. Improved cryopreservation of in vitro produced bovine embryos using FGF2, LIF, and IGF1. PLoS ONE 2021, 16, e0243727. [Google Scholar] [CrossRef] [PubMed]
  26. Aguila, L.; Treulen, F.; Therrien, J.; Felmer, R.; Valdivia, M.; Smith, L.C. Animals Oocyte Selection for In Vitro Embryo Production in Bovine Species: Noninvasive Approaches for New Challenges of Oocyte Competence. Animals 2020, 10, 2196. [Google Scholar] [CrossRef]
  27. Parrish, J.J.; Susko-Parrish, J.L.; Leibfried-Rutledge, M.L.; Critser, E.S.; Eyestone, W.H.; First, N.L. Bovine in vitro fertilization with frozen-thawed semen. Theriogenology 1986, 25, 591–600. [Google Scholar] [CrossRef]
  28. Arias, M.E.; Risopatrón, J.; Sánchez, R.; Felmer, R. Intracytoplasmic sperm injection affects embryo developmental potential and gene expression in cattle. Reprod. Biol. 2015, 15, 34–41. [Google Scholar] [CrossRef]
  29. Uddin Bhuiyan, M.M.; Kang, S.-K.; Lee, B.-C. Supplementation of fructose in chemically defined protein-free medium enhances the in vitro development of bovine transgenic cloned embryos. Zygote 2007, 15, 189–198. [Google Scholar] [CrossRef]
  30. Felmer, R.N.; Arias, M.E.; Muñoz, G.A.; Rio, J.H. Effect of different sequential and two-step culture systems on the development, quality, and RNA expression profile of bovine blastocysts produced in vitro. Mol. Reprod. Dev. 2011, 78, 403–414. [Google Scholar] [CrossRef]
  31. Men, H.; Agca, Y.; Mullen, S.F.; Critser, E.S.; Critser, J.K. Osmotic tolerance of in vitro produced porcine blastocysts assessed by their morphological integrity and cellular actin filament organization. Cryobiology 2005, 51, 119–129. [Google Scholar] [CrossRef] [PubMed]
  32. Harper, K.M.; Brackett, B.G. Bovine Blastocyst Development after in Vitro Maturation in a Defined Medium with Epidermal Growth Factor and Low Concentrations of Gonadotropins1. Biol. Reprod. 1993, 48, 409–416. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Reed, M.L.; Estrada, J.L.; Illera, M.J.; Petters, R.M. Effects of epidermal growth factor, insulin-like growth factor-I, and dialyzed porcine follicular fluid on porcine oocyte maturation in vitro. J. Exp. Zool. 1993, 266, 74–78. [Google Scholar] [CrossRef] [PubMed]
  34. Lonergan, P.; Carolan, C.; van Langendonckt, A.; Donnay, I.; Khatir, H.; Mermillod, P. Role of epidermal growth factor in bovine oocyte maturation and preimplantation embryo development in vitro. Biol. Reprod. 1996, 54, 1420–1429. [Google Scholar] [CrossRef] [Green Version]
  35. Kobayashi, K.; Yamashita, S.; Hoshi, H. Influence of epidermal growth factor and transforming growth factor- on in vitro maturation of cumulus cell-enclosed bovine oocytes in a defined medium. Reproduction 1994, 100, 439–446. [Google Scholar] [CrossRef]
  36. Sakaguchi, M.; Geshi, M.; Hamano, S.; Yonai, M.; Nagai, T. Embryonic and calving losses in bovine mixed-breed twins induced by transfer of in vitro-produced embryos to bred recipients. Anim. Reprod. Sci. 2002, 72, 209–221. [Google Scholar] [CrossRef]
  37. Sakaguchi, M.; Dominko, T.; Leibfried-Rutledge, M.L.; Nagai, T.; First, N.L. A combination of EGF and IGF-I accelerates the progression of meiosis in bovine follicular oocytes in vitro and fetal calf serum neutrali zes the acceleration effect. Theriogenology 2000, 54, 1327–1342. [Google Scholar] [CrossRef]
  38. Lorenzo, P.L.; Illera, M.J.; Illera, J.C.; Illera, M. Enhancement of cumulus expansion and nuclear maturation during bovine oocyte maturation in vitro by the addition of epidermal growth factor and insulin-like growth factor I. Reproduction 1994, 101, 697–701. [Google Scholar] [CrossRef] [Green Version]
  39. Cordova, A.; Miranda, M.S.; King, W.A.; Mastromonaco, G.F. Effects of EGF and melatonin on gene expression of cumulus cells and further in vitro embryo development in bovines. Zygote 2022, 30, 600–610. [Google Scholar] [CrossRef]
  40. Abeydeera, L.R.; Wang, W.H.; Cantley, T.C.; Rieke, A.; Murphy, C.N.; Prather, R.S.; Day, B.N. Development and viability of pig oocytes matured in a protein-free medium containing epidermal growth factor. Theriogenology 2000, 54, 787–797. [Google Scholar] [CrossRef]
  41. Guler, A.; Poulin, N.; Mermillod, P.; Terqui, M.; Cognié, Y. Effect of growth factors, EGF and IGF-I, and estradiol on in vitro maturation of sheep oocytes. Theriogenology 2000, 54, 209–218. [Google Scholar] [CrossRef]
  42. Xia, P.; Tekpetey, F.R.; Armstrong, D.T. Effect of IGF-I on pig oocyte maturation, fertilization, and early embryonic development in vitro, and on granulosa and cumulus cell biosynthetic activity. Mol. Reprod. Dev. 1994, 38, 373–379. [Google Scholar] [CrossRef] [PubMed]
  43. Matsui, M.; Takahashi, Y.; Hishinuma, M.; Kanagawa, H. Insulin and insulin-like growth factor-I (IGF-I) stimulate the development of bovine embryos fertilized in vitro. J. Vet. Med. Sci. 1995, 57, 1109–1111. [Google Scholar] [CrossRef] [Green Version]
  44. Lighten, A.D.; Moore, G.E.; Winston, R.M.; Hardy, K. Routine addition of human insulin-like growth factor-I ligand could benefit clinical in-vitro fertilization culture. Hum. Reprod. 1998, 13, 3144–3150. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. O’Neill, C. Evidence for the requirement of autocrine growth factors for development of mouse preimplantation embryos in vitro. Biol. Reprod. 1997, 56, 229–237. [Google Scholar] [CrossRef] [PubMed]
  46. Toori, M.A. Influence of Insulin-Like Growth Factor-I on Maturation and Fertilization Rate of Immature Oocyte and Embryo Development in NMRI Mouse with TCM199 and α -MEM Medium. J. Clin. AND Diagn. Res. 2014, 8, AC05–AC08. [Google Scholar] [CrossRef]
  47. Sato, A.; Sarentonglaga, B.; Ogata, K.; Yamaguchi, M.; Hara, A.; Atchalalt, K.; Sugane, N.; Fukumori, R.; Nagao, Y. Effects of insulin-like growth factor-1 on the in vitro maturation of canine oocytes. J. Reprod. Dev. 2018, 64, 83–88. [Google Scholar] [CrossRef] [Green Version]
  48. Nandi, S.; Ravindranatha, B.M.; Gupta, P.S.P.; Raghu, H.M.; Sarma, P.V. Developmental competence and post-thaw survivability of buffalo embryos produced in vitro: Effect of growth factors in oocyte maturation medium and of embryo culture system. Theriogenology 2003, 60, 1621–1631. [Google Scholar] [CrossRef]
  49. Kumar, S.; Singla, S.K.; Manik, R.; Palta, P.; Chauhan, M.S. Effect of basic fibroblast growth factor (FGF2) on cumulus cell expansion, in vitro embryo production and gene expression in buffalo (Bubalus bubalis). Reprod. Biol. 2020, 20, 501–511. [Google Scholar] [CrossRef]
  50. Barros, R.G.; Lima, P.F.; Soares, A.C.S.; Sanches, L.; Price, C.A.; Buratini, J. Fibroblast growth factor 2 regulates cumulus differentiation under the control of the oocyte. J. Assist. Reprod. Genet. 2019, 36, 905–913. [Google Scholar] [CrossRef]
  51. Arias, M.E.; Ross, P.J.; Felnier, R.N. Culture medium composition affects the gene expression pattern and in vitro development potential of bovine somatic cell nuclear transfer (SCNT) embryos. Biol. Res. 2013, 46, 452–462. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Águila, L.; Felmer, R.; Arias, M.E.; Navarrete, F.; Martin-Hidalgo, D.; Lee, H.C.; Visconti, P.; Fissore, R. Defective sperm head decondensation undermines the success of ICSI in the bovine. Reproduction 2017, 154, 307–318. [Google Scholar] [CrossRef] [PubMed]
  53. Ross, P.J.; Rodriguez, R.M.; Iager, A.E.; Beyhan, Z.; Wang, K.; Ragina, N.P.; Yoon, S.-Y.; Fissore, R.A.; Cibelli, J.B. Activation of bovine somatic cell nuclear transfer embryos by PLCZ cRNA injection. Reproduction 2009, 137, 427–437. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Bhuiyan, M.M.U.; Cho, J.; Jang, G.; Park, E.; Kang, S.; Lee, B.; Hwang, W. Effect of protein supplementation in potassium simplex optimization medium on preimplantation development of bovine non-transgenic and transgenic cloned embryos. Theriogenology 2004, 62, 1403–1416. [Google Scholar] [CrossRef] [PubMed]
  55. Momozawa, K.; Fukuda, Y. Establishment of An Advanced Chemically Defined Medium for Early Embryos Derived from In Vitro Matured and Fertilized Bovine Oocytes. J. Reprod. Dev. 2011, 57, 681–689. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Lott, W.; Anchamparuthy, V.; McGilliard, M.; Mullarky, I.; Gwazdauskas, F. Influence of Cysteine in Conjunction with Growth Factors on the Development of In Vitro-Produced Bovine Embryos. Reprod. Domest. Anim. 2011, 46, 585–594. [Google Scholar] [CrossRef]
  57. Wang, L.-J.; Xiong, X.-R.; Zhang, H.; Li, Y.-Y.; Li, Q.; Wang, Y.-S.; Xu, W.-B.; Hua, S.; Zhang, Y. Defined media optimization for in vitro culture of bovine somatic cell nuclear transfer (SCNT) embryos. Theriogenology 2012, 78, 2110–2119. [Google Scholar] [CrossRef]
  58. Głabowski, W.; Kurzawa, R.; Wiszniewska, B.; Baczkowski, T.; Marchlewicz, M.; Brelik, P. Growth factors effects on preimplantation development of mouse embryos exposed to tumor necrosis factor alpha. Reprod Biol. 2005, 5, 83–99. [Google Scholar]
  59. Chen, P.; Pan, Y.; Cui, Y.; Wen, Z.; Liu, P.; He, H.; Li, Q.; Peng, X.; Zhao, T.; Yu, S. Insulin-like growth factor I enhances the developmental competence of yak embryos by modulating aquaporin 3. Reprod. Domest. Anim. 2017, 52, 825–835. [Google Scholar] [CrossRef]
  60. Prelle, K.; Stojkovic, M.; Boxhammer, K.; Motlik, J.; Ewald, D.; Arnold, G.J.; Wolf, E. Insulin-Like Growth Factor I (IGF-I) and Long R3IGF-I Differently Affect Development and Messenger Ribonucleic Acid Abundance for IGF-Binding Proteins and Type I IGF Receptors in in Vitro Produced Bovine Embryos*. Endocrinology 2001, 142, 1309–1316. [Google Scholar] [CrossRef]
  61. Makarevich, A.V.; Markkula, M. Apoptosis and Cell Proliferation Potential of Bovine Embryos Stimulated with Insulin-Like Growth Factor I During In Vitro Maturation and Culture1. Biol. Reprod. 2002, 66, 386–392. [Google Scholar] [CrossRef] [PubMed]
  62. Rodrigues, T.A.; Ispada, J.; Risolia, P.H.B.; Rodrigues, M.T.; Lima, R.S.; Assumpção, M.E.O.A.; Visintin, J.A.; Paula-Lopes, F.F. Thermoprotective effect of insulin-like growth factor 1 on in vitro matured bovine oocyte exposed to heat shock. Theriogenology 2016, 86, 2028–2039. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Neira, J.A.; Tainturier, D.; Peña, M.A.; Martal, J. Effect of the association of IGF-I, IGF-II, bFGF, TGF-β1, GM-CSF, and LIF on the development of bovine embryos produced in vitro. Theriogenology 2010, 73, 595–604. [Google Scholar] [CrossRef] [PubMed]
  64. Saeed-Zidane, M.; Tesfaye, D.; Mohammed Shaker, Y.; Tholen, E.; Neuhoff, C.; Rings, F.; Held, E.; Hoelker, M.; Schellander, K.; Salilew-Wondim, D. Hyaluronic acid and epidermal growth factor improved the bovine embryo quality by regulating the DNA methylation and expression patterns of the focal adhesion pathway. PLoS ONE 2019, 14, e0223753. [Google Scholar] [CrossRef] [Green Version]
  65. Noguchi, T.; Hayashi, T.; Inoue, Y.; Hara, S.; Shirasuna, K.; Iwata, H. Predicting of molecules mediating an interaction between bovine embryos and uterine epithelial cells. J. Reprod. Dev. 2022, 68, 2022–2046. [Google Scholar] [CrossRef]
  66. Fields, S.D.; Hansen, P.J.; Ealy, A.D. Fibroblast growth factor requirements for in vitro development of bovine embryos. Theriogenology 2011, 75, 1466–1475. [Google Scholar] [CrossRef]
  67. Lim, J.; Hansel, W. Roles of growth factors in the development of bovine embryos fertilized in vitro and cultured singly in a defined medium. Reprod. Fertil. Dev. 1996, 8, 1199. [Google Scholar] [CrossRef]
  68. Yang, Q.E.; Fields, S.D.; Zhang, K.; Ozawa, M.; Johnson, S.E.; Ealy, A.D. Fibroblast Growth Factor 2 Promotes Primitive Endoderm Development in Bovine Blastocyst Outgrowths1. Biol. Reprod. 2011, 85, 946–953. [Google Scholar] [CrossRef] [Green Version]
  69. Hernandez-Fonseca, H.J.; Sirisathien, S.; Bosch, P.; Cho, H.S.; Lott, J.D.; Hawkins, L.L.; Hollett, R.B.; Coley, S.L.; Brackett, B.G. Offspring resulting from direct transfer of cryopreserved bovine embryos produced in vitro in chemically defined media. Anim. Reprod. Sci. 2002, 69, 151–158. [Google Scholar] [CrossRef]
  70. Sirisathien, S.; Hernandez-Fonseca, H.J.; Brackett, B.G. Influences of epidermal growth factor and insulin-like growth factor-I on bovine blastocyst development in vitro. Anim. Reprod. Sci. 2003, 77, 21–32. [Google Scholar] [CrossRef]
  71. George, F.; Daniaux, C.; Genicot, G.; Verhaeghe, B.; Lambert, P.; Donnay, I. Set up of a serum-free culture system for bovine embryos: Embryo development and quality before and after transient transfer. Theriogenology 2008, 69, 612–623. [Google Scholar] [CrossRef] [PubMed]
  72. Hardy, K.; Handyside, A.H.; Winston, R.M. The human blastocyst: Cell number, death and allocation during late preimplantation development in vitro. Development 1989, 107, 597–604. [Google Scholar] [CrossRef] [PubMed]
  73. Iwasaki, S.; Nakahara, T. Cell number and incidence of chromosomal anomalies in bovine blastocysts fertilized in vitro followed by culture in vitro or in vivo in rabbit oviducts. Theriogenology 1990, 33, 669–675. [Google Scholar] [CrossRef]
  74. Aguila, L.; Suzuki, J.; Hill, A.B.T.; García, M.; de Mattos, K.; Therrien, J.; Smith, L.C. Dysregulated Gene Expression of Imprinted and X-Linked Genes: A Link to Poor Development of Bovine Haploid Androgenetic Embryos. Front. Cell Dev. Biol. 2021, 9. [Google Scholar] [CrossRef] [PubMed]
  75. Koo, D.-B.; Kang, Y.-K.; Choi, Y.-H.; Park, J.S.; Kim, H.-N.; Oh, K.B.; Son, D.-S.; Park, H.; Lee, K.-K.; Han, Y.-M. Aberrant Allocations of Inner Cell Mass and Trophectoderm Cells in Bovine Nuclear Transfer Blastocysts1. Biol. Reprod. 2002, 67, 487–492. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Lee, E.S.; Fukui, Y. Effect of various growth factors in a defined culture medium on in vitro development of bovine embryos matured and fertilized in vitro. Theriogenology 1995, 44, 71–83. [Google Scholar] [CrossRef]
  77. Yang, B.K.; Yang, X.; Foote, R.H. Effect of growth factors on morula and blastocyst development of in vitro matured and in vitro fertilized bovine oocytes. Theriogenology 1993, 40, 521–530. [Google Scholar] [CrossRef]
  78. Lonergan, P.; Gutierrez-Adan, A.; Pintado, B.; Fair, T.; Ward, F.; la Fuente, J.D.; Boland, M. Relationship between time of first cleavage and the expression of IGF-I growth factor, its receptor, and two housekeeping genes in bovine two-cell embryos and blastocysts produced in vitro. Mol. Reprod. Dev. 2000, 57, 146–152. [Google Scholar] [CrossRef]
  79. Yang, S.; Yang, Y.; Hao, H.; Du, W.; Pang, Y.; Zhao, S.; Zou, H.; Zhu, H.; Zhang, P.; Zhao, X. Supplementation of EGF, IGF-1, and Connexin 37 in IVM Medium Significantly Improved the Maturation of Bovine Oocytes and Vitrification of Their IVF Blastocysts. Genes (Basel) 2022, 13, 805. [Google Scholar] [CrossRef]
  80. Vailes, M.T.; McCoski, S.R.; Wooldridge, L.K.; Reese, S.T.; Pohler, K.G.; Roper, D.A.; Mercadante, V.R.; Ealy, A.D. Post-transfer outcomes in cultured bovine embryos supplemented with epidermal growth factor, fibroblast growth factor 2, and insulin-like growth factor 1. Theriogenology 2019, 124, 1–8. [Google Scholar] [CrossRef]
Animals 12 03057 g001 550

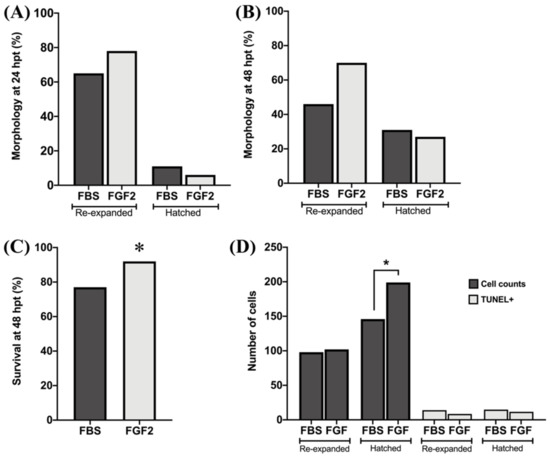

Figure 1. Effect of embryo culture system (defined vs. undefined) on the morphology, survival rate and cell count of vitrified embryos after warming. Embryos were analyzed at 24 h (A) and 48 h post thawing (B–D). FBS: fetal bovine serum; FGF2: fibroblast growth factor 2. Cell counts: total number of cells. TUNEL+: cells positives to the terminal deoxynucleotidyl transferase dUTP nick end labeling. * p < 0.05.
Figure 1. Effect of embryo culture system (defined vs. undefined) on the morphology, survival rate and cell count of vitrified embryos after warming. Embryos were analyzed at 24 h (A) and 48 h post thawing (B–D). FBS: fetal bovine serum; FGF2: fibroblast growth factor 2. Cell counts: total number of cells. TUNEL+: cells positives to the terminal deoxynucleotidyl transferase dUTP nick end labeling. * p < 0.05.
Animals 12 03057 g001
Table
Table 1. Effect of removing fetal bovine serum and/or hormones from TCM-199-based medium on the in vitro maturation of bovine oocytes.
Table 1. Effect of removing fetal bovine serum and/or hormones from TCM-199-based medium on the in vitro maturation of bovine oocytes.
TreatmentTotal OocytesMaturation Rate (% ± S.D.)
TCM + H + FBS334283 (84 ± 6.0) a
TCM + H 200157 (78 ± 17) a,b
TCM + EGF207128 (62 ± 6.5) b,c
TCM + IGF1204106 (51 ± 13) c
TCM + FGF2215132 (61 ± 8.4) b,c
Oocytes were randomly allocated to each experimental group and the experiments were replicated 5 times. FBS: fetal bovine serum; TCM: tissue culture medium; H: hormone cocktail (LH, FSH and Estradiol); IGF1: insulin-like growth factor 1, FGF2: fibroblast growth factor 2; EGF: epidermal growth factor. Data followed by different letters in the same column are significantly different (p < 0.05).
Table
Table 2. Effect of EGF, IGF1 and FGF2 in defined TCM-199 maturation medium on the maturation rate of bovine oocytes.
Table 2. Effect of EGF, IGF1 and FGF2 in defined TCM-199 maturation medium on the maturation rate of bovine oocytes.
TreatmentTotal OocytesMaturation Rate (% ± S.D.)
TCM + H + FBS221193 (88 ± 8.0)
TCM + H + EGF185167 (90 ± 5.8)
TCM + H + IGF1190166 (88 ± 3.6)
TCM + H + FGF2206182 (89 ± 5.5)
Oocytes were randomly allocated to each experimental group and the experiments were replicated 7 times. FBS: fetal bovine serum; TCM: tissue culture medium; H: hormone cocktail (LH, FSH and Estradiol); IGF1: insulin-like growth factor 1, FGF2: fibroblast growth factor 2; EGF: epidermal growth factor. No differences were observed between treatments (p > 0.05).
Table
Table 3. Effect of EGF, IGF1 and FGF2 in defined KSOM embryo culture medium on the in vitro embryonic development of bovine embryos.
Table 3. Effect of EGF, IGF1 and FGF2 in defined KSOM embryo culture medium on the in vitro embryonic development of bovine embryos.
TreatmentTotal Oocytes No. Cleaved (%)No. Blastocysts (%)Hatched Blastocysts (%)
FBS 243206 (85)72 (30)26 (36) a
EGF 258205 (79)61 (24)35 (57) a,b
IGF1 245213 (87)61 (25)42 (69) b
FGF2 254217 (85)66 (26)38 (58) a,b
Cleavage and blastocyst rates were recorded at 72 and 168 hpf, respectively. Hatched blastocyst rates were recorded at 216 hpf, respectively). Presumptive zygotes were randomly allocated to each experimental group and the experiments were replicated 10 times. FBS: fetal bovine serum; IGF1: insulin-like growth factor 1, FGF2: fibroblast growth factor 2; EGF: epidermal growth factor; KSOM: potassium optimized culture medium. Data followed by different letters in the same column are significantly different (p < 0.05).
Table
Table 4. Effect of EGF, IGF1 and FGF2 in defined IVP system (in vitro maturation and embryo culture) on developmental potential and total number of cells of bovine embryos.
Table 4. Effect of EGF, IGF1 and FGF2 in defined IVP system (in vitro maturation and embryo culture) on developmental potential and total number of cells of bovine embryos.
TreatmentTotal OocytesNo. Cleaved (%)No. Blastocysts (%)Total Cells (mean ± S.E.M)
FBS296228 (77) a75 (25) a165 ± 32
EGF294225 (77) a56 (19) a,b152 ± 34
IGF1 292227 (78) a,b52 (18) b155 ± 29
FGF2 306264 (86) b72 (24) a,b142 ± 35
Cleavage was recorded at 72 h and blastocyst rates were registered at 168 h (12 replicates). Cell counts were recorded at 168 h in expanded blastocysts (12 blastocysts for each treatment). FBS: fetal bovine serum; IGF1: insulin-like growth factor 1, FGF2: fibroblast growth factor 2; EGF: epidermal growth factor. Data followed by different letters in the same column are significantly different (p < 0.05).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Arias, M.E.; Vargas, T.; Gallardo, V.; Aguila, L.; Felmer, R. Simple and Efficient Chemically Defined In Vitro Maturation and Embryo Culture System for Bovine Embryos. Animals 2022, 12, 3057. https://doi.org/10.3390/ani12213057

AMA Style

Arias ME, Vargas T, Gallardo V, Aguila L, Felmer R. Simple and Efficient Chemically Defined In Vitro Maturation and Embryo Culture System for Bovine Embryos. Animals. 2022; 12(21):3057. https://doi.org/10.3390/ani12213057

Chicago/Turabian Style

Arias, María Elena, Tamara Vargas, Victor Gallardo, Luis Aguila, and Ricardo Felmer. 2022. "Simple and Efficient Chemically Defined In Vitro Maturation and Embryo Culture System for Bovine Embryos" Animals 12, no. 21: 3057. https://doi.org/10.3390/ani12213057

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
