Identification and Molecular Analysis of m6A-circRNAs from Cashmere Goat Reveal Their Integrated Regulatory Network and Putative Functions in Secondary Hair Follicle during Anagen Stage

by
Taiyu Hui
,
Yubo Zhu
,
Jincheng Shen
,
Man Bai
,
Yixing Fan
,
Siyu Feng
,
Zeying Wang
,
Junyin Zhao
,
Qi Zhang
,
Xingwang Liu
,
Tiantian Gong
and
Wenlin Bai
*
College of Animal Science and Veterinary Medicine, Shenyang Agricultural University, Shenyang 110866, China
*
Author to whom correspondence should be addressed.
Animals 2022, 12(6), 694; https://doi.org/10.3390/ani12060694
Submission received: 17 December 2021 / Revised: 5 March 2022 / Accepted: 7 March 2022 / Published: 10 March 2022
(This article belongs to the Section Animal Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Cashmere is a natural, high-end textile material. It is derived from the secondary hair follicle (SHFs) tissue in the skin of cashmere goats. Previous studies have indicated that m6A modifications in circRNA molecules play important roles in a variety of cells through multiple mechanisms. However, little information is available on the expression profile and functional regulatory characteristics of m6A-modified circRNA (m6A-circRNA) in SHFs of cashmere goats. In this study, a total of 15 m6A-circRNAs were identified. Six of these m6A-circRNAs were revealed to have significantly higher expression in skin at anagen than at telogen. To gain insight into the potential regulatory mechanisms of the anagen up-regulated m6A-circRNAs, we constructed the regulatory networks along with related pathways in SHFs of cashmere goats. In addition, we found that the expression trends of four m6A-circRNAs in the SHFs during SHF cycles were highly similar to their host genes. However, the expression patterns of two m6A-circRNAs were inconsistent with the linear RNAs from their host genes in the SHFs of cashmere goats. These results will provide new insights to elucidate the biological functions and regulatory features of m6A-circRNA in SHF development and cashmere growth in goats.

Abstract

N6-methyladenosine (m6A) is the most abundant modification in linear RNA molecules. Over the last few years, interestingly, many circRNA molecules are also found to have extensive m6A modification sites with temporal and spatial specific expression patterns. To date, however, little information is available concerning the expression profiling and functional regulatory characteristics of m6A modified circRNAs (m6A-circRNAs) in secondary hair follicles (SHFs) of cashmere goats. In this study, a total of fifteen m6A-circRNAs were identified and characterized in the skin tissue of cashmere goats. Of these, six m6A-circRNAs were revealed to have significantly higher expression in skin at anagen compared with those at telogen. The constructed ceRNA network indicated a complicated regulatory relationship of the six anagen up-regulated m6A-circRNAs through miRNA mediated pathways. Several signaling pathways implicated in the physiological processes of hair follicles were enriched based on the potential regulatory genes of the six anagen up-regulated m6A-circRNAs, such as TGF-beta, axon guidance, ribosome, and stem cell pluripotency regulatory pathways, suggesting the analyzed m6A-circRNAs might be essentially involved in SHF development and cashmere growth in cashmere goats. Further, we showed that four m6A-circRNAs had highly similar expression trends to their host genes in SHFs of cashmere goats including m6A-circRNA-ZNF638, -TULP4, -DNAJB6, and -CAT. However, the expression patterns of two m6A-circRNAs (m6A-circRNA-STAM2 and -CAAP1) were inconsistent with the linear RNAs from their host genes in the SHFs of cashmere goats. These results provide novel information for eluci-dating the biological function and regulatory characteristics of the m6A-circRNAs in SHF development and cashmere growth in goats.

1. Introduction

Cashmere, a kind of natural high-end textile material, is derived from the secondary hair follicles (SHFs) which are a dynamic mini-organ in the skin tissue of cashmere goats. The products made of cashmere, like sweaters, shawls, and scarves, are widely favored by consumers due to their unique characteristics, such as lightness, smoothness, brightness, softness, comfort and warmth retention [1]. The growth of cashmere fiber is controlled by the seasonal development of SHFs which undergo a periodic cycle (being mainly composed of three stages: anagen, catagen, and telogen) [2,3]. The growth cycle of SHFs in cashmere goats is mainly regulated by the endocrine system that changes with the photoperiod [4,5]. During the anagen stage, the SHFs are in a highly active state where many endogenous regulatory factors establish a highly coordinated regulatory network to promote the growth of cashmere fibers [6]. Therefore, it is essential to discover and characterize the novel regulatory factors implicated in cashmere growth in cashmere goats [1].
N6-methyladenosine (m6A) was found to be the most abundant modification in linear RNA molecules, accounting for about 80% of their methylation modifications [7,8,9]. Unlike linear RNA, circular RNA (circRNA) is formed by reverse splicing, and is a covalently closed loop without free 3′ and 5′ ends [10,11]. In recent years, it has been reported that many circRNA molecules also have extensive m6A modifications sites, and m6A modified circRNA (m6A-circRNA) exhibits temporal and spatial specific expression patterns during developmental processes of tissues and organs [12,13,14]. Increasing lines of evidence indicate that m6A modification in circRNA molecules play significant roles in a variety of cells, such as HeLa cells, liver cancer cells, and male germ cells [15,16,17,18].
Over the past few years, a considerable number of circRNAs were identified in hair follicles of cashmere goats, and many of them exhibited significantly different expression during SHF cycles [19,20,21]. Moreover, the circRNA-1926 was found to positively regulate the differentiation of SHF stem cells into hair lineages in cashmere goats through the miR-148a/b-3p/CDK19 axis [22]. More recently, the circRNA-1967 was also demonstrated to participate in the differentiation of SHF stem cells into the hair follicle lineage by sponging miR-93-3p, and as a result enhancing LEF1 expression in cashmere goats [23]. These findings suggested that circRNAs might play important regulatory roles in the development of SHFs and cashmere fiber growth in cashmere goats. Although the biological functions of the m6A-circRNAs in SHF development and cashmere growth need to be further clarified in cashmere goats, it is thought that the m6A modifications within circRNA molecules are deeply implicated in the functional roles of circRNAs through m6A-dependent mechanisms, such as regulating its miRNA “molecular sponge” effects [13,15,16], and its interaction with RNA binding proteins [17,18]. To date, however, little information is available concerning the expression profiling and functional regulatory characteristics of m6A-circRNAs in SHFs of cashmere goats.
In this study, a total of fifteen m6A-circRNAs were identified and characterized for the first time in the skin tissue of cashmere goats. Of them, six m6A-circRNAs were revealed to have significantly higher expression in skin at anagen compared with those at telogen of the SHF cycle. Further, we generated the competitive endogenous RNA (ceRNA) regulatory network of the anagen up-regulated m6A-circRNAs with related pathway enrichment analysis of their potential regulatory genes through bioinformatics analysis. Also, we characterized their expression pattern along with the corresponding host genes in SHFs of cashmere goats during the SHF cycle. The results will provide new and significant information for elucidating the biological function and regulatory characteristics of the m6A-circRNAs in SHF development and cashmere growth in cashmere goats.

2. Materials and Methods

2.1. Sequence Source and In-Silico Analysis

All experiments were performed under approved protocol guidelines by the Animal Experimental Committee of Shenyang Agricultural University (No. 201606005). The analyzed fifteen putative m6A-circRNA sequences were previously obtained from full-length transcriptome sequencing data of cashmere goat anagen skin tissue (three-year-old, female, Liaoning cashmere goat breed, and body side skin) by the single-molecule real-time (SMRT) sequencing technique (unpublished data). In the full-length transcriptome sequencing analysis, The SMRTbell™ libraries were prepared following the Isoform Sequencing protocol (Iso-Seq) as described by Pacific Biosciences (PN100-092-800-03). The complementary DNA (cDNA) was synthesized using the Clontech SMARTer PCR cDNA Synthesis Kit (Clontech, Mountain View, CA, USA). Fragments >4 kb were selected using the Blue Pippin Size Selection System protocol (Sage Science, Beverly, MA, USA). The >4 kb cDNA and normal cDNAs were mixed in equimolar amounts for SMRT sequencing. Sequencing libraries were prepared using NEBNext® Ultra™ RNA Library Prep Kit for Illumina® (NEB, Ipswich, MA, USA) according to manufacturer’s instructions. The Illumina libraries were sequenced on the Hiseq 4000 platform (Illumina, San Diego, CA, USA). For identifying potential circRNAs from the obtained sequencing data, three popular tools were used including Find_circ [24], CIRI [25], and CIRCexplorer2 [26], and ultimately, 876 circRNAs were obtained by selecting the intersection of the analyzed results from the three identifying tools as described in our previous publication [19].
To our knowledge, a circRNA molecule, that is greater than 3000 nt in spliced length, often fails in its overexpression analysis for gain of function experiments in cultured cells in vitro due to the technical limitations of constructing its overexpression vector. Therefore, as shown in Figure 1A, we firstly excluded the potential circRNAs ≥ 3000-nt in spliced length from the obtained 876 circRNAs. As a result, we obtained 157 potential circRNAs less than 3000-nt in spliced length. Subsequently, we further performed a prediction for potential m6A sites within the 157 obtained circRNA sequences using the SRAMP program (http://www.cuilab.cn/sramp, accessed on 11 July 2021). Finally, we obtained fifteen potential m6A-circRNAs, each of which contained ≥2 m6A sites with a very high confidence in SRAMP analysis (Figure 1A). The fifteen potential m6A-circRNAs were selected for further analysis in the present study.

2.2. Skin Tissue Collection and Total RNA Isolation

Skin tissue from the side body were collected from three healthy cashmere goats (belonging to the Liaoning cashmere goat breed, that were three years old, female, and had no common traceable genetic relationships) at anagen, catagen, and telogen using sterile scalpel blades. The SHFs were further isolated from the harvested skin tissues as described in previous publications [27,28]. The total RNA was isolated from each sample using the RNAiso reagent kit (TaKaRa, Dalian, China) following the manufacturer’s instructions. The integrity of isolated total RNA was verified by agarose gel (1.5%) electrophoresis. Also, the purity and quantity of isolated total RNA were assessed through an ultraviolet spectrophotometer (Hoefer, San Francisco, CA, USA). For the ratio of OD260/OD280, all total RNA samples were verified to range from 1.8 to 2.0. Subsequently, the obtained total RNA was stored at −80 °C prior to further analysis.

2.3. Methylation Immunoprecipitation of m6A-circRNA (Me-RIP) on Skin at Anagen and Telogen

The Me-RIP of m6A-circRNA was performed as described by Chen and colleagues [9]. In brief, the total RNA (40 μg) was treated using RNase R (Geneseed, Guangzhou, China) and concentrated using Monarch® RNA Cleanup Kit (NEB, Ipswich, MA, USA). Then, RNA was fragmented at 94 °C for 3 min with the NEBNext® Magnesium RNA Fragmentation Module (NEB, Ipswich, MA, USA), and concentrated using the Monarch® RNA Cleanup Kit (NEB, Ipswich, MA, USA). The 1/20 fragmented product was stored as the input control. Half fragmented RNA was incubated with 2 μg anti-m6A antibody (Synaptic Systems, Gottingen, Germany) or IgG (Cell Signaling Technology, Danvers, MA, USA) at 4 °C for 4 h. After pre-washing, 50 mL of the Dynabeads® Protein A (Thermo Scientific, Rockford, IL, USA) was incubated with RNA-antibody complex at 4 °C for 2 h. Finally, the pulled-down RNA was isolated by the RNAiso kit (TaKaRa, Dalian, China), and the expression level of each m6A-circRNA was measured by the RT-qPCR technique.

2.4. Primer Design and RT-qPCR Analysis on Skin (Anagen and Telogen) and SHFs (Anagen, Catagen and Telogen)

In this study, a total of 24 primer pairs were used for the expression analysis of m6A-circRNAs along with their host genes. For the m6A-circRNAs, 15 divergent primer pairs were designed based on the principles shown in Figure 1B through the use of the CircPrimer program [29]. For detecting host gene expression of the six m6A-circRNAs (up-regulated in skin at anagen) in SHFs of cashmere goats, six convergent primer pairs were designed using the Primer Premier 5.0 program (http://www.premierbiosoft.com, accessed on 12 May 2021). In addition, the UBC, YWHAZ, and SDHA genes were utilized as combined references to normalize the RT-qPCR detection data as recommended in a previous publication [30]. Therefore, we cited their corresponding primers from the publication [30]. All primer sequences are provided in Table 1.
For detecting the expression of the m6A-circRNA along with their respective host genes, we conducted the RT-qPCR assay in a light Cycler 480 real-time PCR system (Roche Diagnostics, Mannheim, Germany). The reverse-transcriptions were carried out on total RNA or Me-RIP pull down RNA using the PrimeScript™ reagent with gDNA Eraser Kit (TaKaRa, Dalian, China) according to the manufacturer’s guidance. In a 25 μL final volume, RT-qPCR reactions were conducted with TB Green Premix Ex Taq II (Tli RNaseH Plus, TaKaRa, Dalian, Chnia) containing 12.5 μL TB Green Premix Ex Taq II (Tli RNaseH Plus), 1.0 μL each primer (10 μM), 2.0 μL first-strand cDNA solution, and 8.5 μL PCR-grade ddH2O water. The thermal cycling reactions were set as initial single cycle (95 °C for 30 s), followed by 40 cycles: 95 °C for 5 s, 52–58 °C (Table 1) for 30 s, and 72 °C for 30 s. All reactions were performed in three replicates. The m6A relative enrichment of each m6A-circRNA was normalized to the input as described in a previous publication [31], and the relative expression level of the host gene of each m6A-circRNA was calculated with the 2−ΔΔCt method [32].

2.5. Regulatory Network Analysis of Putative m6A-circRNAs with Related Signaling Pathway Enrichment

Accumulating evidence revealed that circRNAs could function as competitive endogenous RNAs (ceRNAs) by sharing miRNA recognition elements that relieve the expression repression of miRNA target genes [33]. Thus, we constructed the ceRNA regulatory network of m6A-circRNAs up-regulated in skin tissue at anagen of cashmere goats. The potential target miRNAs of m6A-circRNAs were predicted by the online service database: miRDB (http://www.mirdb.org, accessed on 22 May 2021). The miRDB was developed for the prediction of miRNA targets with functional annotations. According to the developers, all targets in miRDB were analyzed by the MirTarget procedure based on thousands of miRNA-target interactions from high-throughput sequencing experiments [34]. Moreover, in miRDB, common features associated with both miRNA binding and target down-regulation have been identified through a machine learning approach. Here, the custom prediction sub-procedure of miRDB was used for target miRNAs of the m6A-circRNAs. Due to goat data being unavailable in miRDB, human data was used to perform the predictions instead. We also predicted the potential target genes of the resultant miRNAs using the custom prediction sub-procedure of miRDB with human data. Ultimately, the ceRNA regulatory network was constructed and visualized for the analyzed m6A-circRNAs via the Cyotoscape (Version 2.8) procedure [35].
The miRNA mediated regulatory genes targeted by the m6A-circRNAs were enriched into pathways using the CluePedia built-in plugin in the Cyotoscape program with default settings (http://www.ici.upmc.fr/cluepedia/, accessed on 12 October 2021). As claimed by its developers, the CluePedia can reveal novel markers potentially associated with the pathways through calculating linear and nonlinear statistical dependencies from experimentally obtained data [36]. Ultimately, CluePedia connects the analyzed genes and integrates them into a pathway network, revealing new potential regulatory relationships among the implicated genes and signaling pathways [36].

2.6. Statistical Analysis

Statistical analysis was conducted with the SPSS 17.0 program (SPSS Inc., Chicago, IL, USA). The RT-qPCR data measured from different samples (n = 3) was presented as mean ± SD. The difference between two groups was compared with the Student’s t-test, and the differences among multiple groups were compared with one way analysis of variance (ANOVA) along with Bonferroni’s test. The resulting p-values were adjusted for multiple testing with the Benjamini–Hochberg procedure (false discovery rate, FDR adjustment,), and an adjusted p-value less than 0.05 was considered statistically significant.

3. Results and Discussion

3.1. Discovery and Characterization of m6A-circRNAs from the Skin Tissue of Cashmere Goats with an Expression Pattern between Anagen and Telogen

Over the past few years, increasing lines of evidence indicate that many circRNAs contain m6A modification sites with essential roles in various cells [16,17,18]. Thus, with the aim of identifying m6A-circRNAs from the skin tissue of cashmere goat, a total of 15 potential m6A-circRNAs were obtained that contained ≥ two m6A sites with very high confidence through SRAMP analysis (Figure 2), such as circRNA-SCRN1 containing four potential m6A sites, circRNA-LOC1021885063 containing three potential m6A sites, and circRNA-TULP4 containing two potential m6A sites. On the other hand, we noted that each motif of the m6A sites in analyzed circRNA sequences is consistent with the m6A site motif: RRACH (R: A/G; H: A/C/U) found in linear RNA molecules [37,38,39].
We determined the genomic information of the 15 potential m6A-circRNAs by mapping their sequences onto the reference genome of goat (assembly ARS1:102, https://www.ncbi.nlm.nih.gov/genome/?term=goat), accessed on 27 April 2021. As shown in Table 2, we found that several potential m6A-circRNAs map to the same chromosome, such as circRNA-ZNF638, circRNA-AFTPH, and circRNA-PPP3R1 on chromosome 11, as well as, circRNA-F13A1 and circRNA-TNFRSF21 on chromosome 23. The potential m6A-circRNAs mapped to the same chromosome are transcribed from different host genes without any overlapping region that can be defined by the mapping location information on the same chromosome. The resting eight potential m6A-circRNAs were mapped onto different chromosomes, such as circRNA-STAM2 on chromosome 2, circRNA-TULP4 on chromosome 9, and circRNA-CAT on chromosome 15 (Table 2).
Using the Me-RIP-qPCR technique, we further analyzed the expression of the 15 putative m6A-circRNAs in goat skin tissue at anagen and telogen. As shown in Figure 3, the 15 analyzed m6A-circRNAs were verified in skin tissue of cashmere goat at both anagen and telogen. However, no significant expression difference was recorded in seven m6A-circRNAs between anagen and telogen, including m6A-circRNA-SCRN1, -F13A1, -HYDIN, -PPP3R1, -SLC12A2, -AFTPH, and -LOC102188506. The other eight m6A-circRNAs exhibited different expression between anagen and telogen with a significant difference (p < 0.05). Interestingly, there are six m6A-circRNAs having significantly higher expression at anagen compared with those at telogen including m6A-circRNA-ZNF638, -DNAJB6, -TULP4, -CAT, -CAAP1, and -STAM2 (Figure 3). In fact, the anagen phase, as a key highly active stage of cashmere goat SHFs, is rather pivotal for the morphogenesis of the cashmere fiber and its growth. During this phase, many cashmere-related molecules and regulatory factors, like inner root sheath components and various keratins, are expressed in SHFs of cashmere goat, and they coordinate closely to promote the morphogenesis and growth of cashmere fibers [19]. Therefore, we have reason to speculate that the six m6A-circRNAs, that exhibit significantly higher expression in anagen SHFs of cashmere goats, may be essentially implicated in the morphogenesis and growth of cashmere fibers, where they may exert their biological functions through m6A dependent mechanisms. This encouraged us to perform further investigations upon the six anagen up-regulated m6A-circRNAs, including integrated regulatory network and related pathway enrichment and expression patterns in SHFs of cashmere goat.

3.2. Regulatory Network of the Up-Regulated m6A-circRNAs at Anagen Stage

In recent years, studies have found that m6A modification in circRNA molecules can regulate the effect of circRNA as an miRNA sponge, thereby regulating the effect of miRNA on target genes. In other words, m6A modification in circRNA can play roles in regulating the effects of the circRNA-miRNA-mRNA axis [13,15,16]. In order to gain insight into the potential regulatory mechanism of the anagen up-regulated m6A-circRNAs, we constructed a competitive endogenous RNAs (ceRNAs, m6A-circRNA-miRNA-mRNA) network for the m6A-circRNAs based on in-silico analysis. As shown in Figure 4, each analyzed m6A-circRNA exhibited several m6A-circRNA-miRNA-mRNA regulatory pathways (Figure 4). As an example, the m6A-circRNA-ZNF638 may sponge five miRNAs (miR-1272, miR-6828-5, miR-361-5p, miR-3692-3p, and miR-5004-3p), to further regulate individually or cooperatively the expression of their target genes through a ceRNA network mechanism (Figure 4A).
In order to gain further comprehensive insight into the integrated regulatory relationships among the different types of RNA molecules (m6A-circRNAs, miRNAs and mRNAs), the six fractional networks (Figure 4A–F) were merged into an integrated ceRNA regulatory network (Figure 5). Figure 5 exhibited more diverse regulatory relationships among the different types of RNA molecules. As an example, the IGFBP5 was co-regulated by miR-3059-5p and miR-1252-3p, which were further regulated coordinately by m6A-circRNA-CAT and -CAAP1 (Figure 5). Interestingly, it was demonstrated that several miRNAs potentially regulated by single or multiple analyzed m6A-circRNAs exhibited significantly lower expression in SHFs at anagen compared with those at telogen, such as miR-20a-5p (p < 0.00001), miR-20b-5p (p = 0.00026), miR-106b-5p (p < 0.00001), miR-374a-5p (p = 0.01343), and miR-361-5p (p < 0.00001) [40].
On the other hand, we also found that many genes in this constructed ceRNA network were demonstrated to play important roles in the physiological processes of hair follicles. As an example, BNC2 (being potentially regulated by m6A-circRNA-ZNF638 through a miR-5004-3p mediated pathway, Figure 5), is mainly expressed in the matrix and the basal layer of outer root sheath at anagen, which is required for hair follicle regeneration [41]. This was similar to IGFBP5 (being potentially co-regulated by m6A-circRNA-TULP4 and -CAAP1 via miR-3059-5p and miR-1252-3p mediated pathways, respectively (Figure 5)). IGFBP5 was demonstrated to be a key regulator in the differentiation of hair shafts [42]. Additionally, in the constructed ceRNA network, several members of the ZNF family were revealed to be potentially regulated by the m6A-circRNAs via miRNA mediated pathways, such as ZNF652 being regulated by m6A-circRNA-DNAJB6 via miR-216a-5p, as well as ZNF28 being regulated by m6A-circRNA-ZNF638 via miR-1272. Interestingly, the ZNF family was shown to play roles in the physiological processes of cashmere goat SHFs [43]. Thus, we speculate that the m6A-circRNAs, act as “molecular sponges” of these miRNAs and may play essential roles in establishing an optimal expression balance of their target genes during the anagen stage of SHFs in cashmere goats. Therefore, m6A modifications may be required for the m6A-circRNAs to exert their functional significance in the morphogenesis and growth of cashmere fibers. The constructed ceRNA network provides significant information for revealing potential functional mechanisms of the m6A-circRNAs in anagen SHFs of cashmere goats via miRNA-mediated pathways.

3.3. Pathway Network of the Genes Potentially Regulated by the Anagen Up-Regulated m6A-circRNAs

During anagen, the SHF physiological processes of cashmere goats is regulated by many genes that are implicated in multiple signaling pathways [2]. This means that an integrated regulatory network of related signaling pathways along with regulatory genes will contribute to revealing the functional roles and regulatory mechanisms of the anagen up-regulated m6A-circRNAs in cashmere goats. Based on the use of the CluePedia plugin in Cytoscape software (http://www.ici.upmc.fr/cluepedia/, accessed on 12 October 2021), we generated an integrated network of significantly enriched pathways of potential regulatory genes of the anagen up-regulated m6A-circRNAs (Figure 6). In Figure 6, the enriched pathways and their corresponding genes were visualized with the same color nodes. Interestingly, we noted that several enriched signaling pathways are implicated in physiological processes of hair follicles, including TGF-beta, Axon guidance, Ribosome, and Stem cell pluripotency regulatory pathways (Figure 6). For example, in previous investigations, it was recorded that the TGF-beta and mTOR signals can contribute to the activation of hair follicle stem cells by counteracting BMP-mediated suppression [44,45], whereas, the mTOR signals can be activated through ribosome S6 kinase [46]. Also, the axon guidance signals play roles in promoting the morphogenesis of hair follicles via driving the rearrangement of localized cells [47]. In addition, the stem cell pluripotency regulatory pathway is also implicated in the differentiation of hair follicle stem cells into hair follicle lineages [48]. Thus, it can be suggested that the genes potentially regulated by the m6A-circRNAs might be implicated in the physiological processes of hair follicles (like SHF regeneration and cashmere fiber growth), where their function might be finely regulated by the m6A-circRNAs through m6A dependent approaches.

3.4. Expression Patterns of m6A-circRNAs and Their Host Genes in SHFs of Cashmere Goats

To gain better insight into the potential functional roles of the anagen up-regulated m6A-circRNAs in SHF development and cashmere growth in cashmere goats, we have examined their expression patterns along with the host genes in SHFs of cashmere goats during anagen, catagen and telogen stages. As observed from Figure 7, the analyzed m6A-circRNAs had significantly higher expression in SHFs at anagen in comparison to those at telogen, which is consistent with those recorded in skin tissue of cashmere goats (Figure 3). Additionally, the host genes of the analyzed m6A-circRNAs exhibited significantly higher expression in SHFs at anagen compared with those at telogen, which is highly similar to those of their corresponding m6A-circRNAs (Figure 7).
Our data indicated that four m6A-circRNAs had highly similar expression trends to their host genes including m6A-circRNA-ZNF638, -TULP4, -DNAJB6, and -CAT (Figure 7A–D). These observations are in line with those reported in several studies, that most circRNAs exhibited an expression pattern that is positively related with the linear RNAs from their host genes [19,49,50]. However, the expression patterns of two m6A-circRNAs (m6A-circRNA-STAM2 and -CAAP1) were inconsistent with the linear RNAs from their host genes in the SHFs of cashmere goats (Figure 7E,F). This does not seem surprising as some circRNAs were also revealed to be negatively related to the linear RNAs from their host genes in dynamic expression patterns [19,49,50].
ZNF638, the host gene of m6A-circRNA-ZNF638, is a member of the ZNF family. Although its biological significance in SHFs of cashmere goat is unknown, several members of this family (ZNFs) were thought to play roles in SHF physiological processes of cashmere goats including ZNF264, ZNF347, ZNF407, ZNF454, ZNF667, and ZNF704 [43]. TULP4 (the host gene of m6A-circRNA-TULP4) is a member of the tubby family proteins. Tubby family proteins are thought to coordinate SHH signals through their phosphoinositide-binding tubby and unique amino-terminal functional domains [51]. DNAJB6 (the host gene of m6A-circRNA-DNAJB6) is implicated in diverse cellular functions [52]. It was reported that DNAJB6 was involved in the activity of Wnt/β-catenin signals by controlling a regulatory loop in some manner [53]. Interestingly, SHH signaling is involved in morphogenesis and late stage differentiation of hair follicles [54]. Additionally, the Wnt/β-catenin pathway is heavily implicated in the development and induction ability of hair follicles [55,56,57]. In the present study, we showed that the expression of three m6A-circRNAs (m6A-circRNA-ZNF638, -TULP4, and -DNAJB6) and their corresponding host genes (ZNF638, TULP4, and DNAJB6) were significantly up-regulated at anagen in SHFs of cashmere goats (Figure 7A–C). Thus, it can be suggested that these three m6A-circRNAs (m6A-circRNA-ZNF638, -TULP4, and -DNAJB6) along with their respective host genes (ZNF638, TULP4, and DNAJB6) may be implicated in anagen SHF physiological processes of cashmere goats by constituting coordinated regulatory pairs. In this process, the m6A modifications within the circRNAs might play significant roles which may be significant for promoting SHF development and cashmere growth.
On the other hand, the anagen stage is typically characterized by the proliferation and growth of SHF cells in cashmere goats [19]. In the present study, we showed that CAT, STAM2, and CAAP1 (being the host genes of m6A-CAT, -STAM2, and -CAAP1, respectively) exhibited significantly higher expression in anagen SHFs than those of telogen (Figure 7D–F). It is reported that the CAT gene encodes a catalase protein that is identified as a growth-promoting factor with a wide target cell spectrum including melanoma cells, myeloid leukemia cells, mastocytoma cells, as well as normal and transformed fibroblast cells [58]. STAM2 is a phosphotyrosine protein that plays important roles in receptor signaling and trafficking of mammalian cells [59]. Although its role in hair follicle cells remains undiscovered, this protein is essentially involved in the proliferation and cell cycle of gastric cancer cells through regulating the JAK2/STAT3 signaling pathway [59]. Additionally, CAAP1 was identified as a negative regulator of intrinsic cell apoptosis through regulating the expression and activity of the caspase protein [60], and CAAP1 was found to promote the proliferation, migration and invasion of SMMC-7721 cells by an apoptotic inhibition of the cells [61]. Taken together with our results, it seems reasonable that CAT, STAM2, and CAAP1 along with their corresponding m6A-circRNAs (m6A-circRNA-CAT, -STAM2, and -CAAP1) may establish a m6A dependent regulatory pathway in the proliferation and growth of cashmere goat SHF cells during the anagen stage.
Additionally, it should be noted that m6A-circRNA-STAM2 exhibited the highest significant expression at catagen (Figure 7E), and this was also the case in the expression pattern of CAAP1 among the other analyzed stages: anagen, catagen, and telogen (Figure 7F). It is well known that the catagen stage is a SHF transition stage from anagen to telogen, lasting approximately 30 days in cashmere goats, which is typically characterized by a dramatic shrinkage of the SHF lower portion along with the end of cashmere fiber growth [62]. Thus, an intriguing possibility raised is that the m6A-circRNA-STAM2 and CAAP1 might also be implicated in the SHF transition process from catagen to telogen in cashmere goats.
In conclusion, a total of fifteen m6A-circRNAs were identified and characterized from skin tissue of cashmere goats. Of them, six m6A-circRNAs (m6A-circRNA-ZNF638, -DNAJB6, -TULP4, -CAT, -CAAP1, and -STAM2) were verified to have significantly higher expression in skin tissues and SHFs at anagen compared with those at telogen. Integrated regulatory networks suggest they have potential functional roles in SHFs at anagen in cashmere goats.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ani12060694/s1, Table S1: The resulting P value obtained from expression difference analysis of 15 m6A-circRNAs in skin tissue of cashmere goats between anange and telogen.; Table S2: The P value obtained from expression difference analysis of six anagen up-regulated m6A-circRNAs along with their host genes in SHFs of cashmere goats among anange, catagen, and telogen.

Author Contributions

Data curation, T.H., Y.Z. and J.S.; Formal analysis, M.B., Y.F. and S.F.; Funding acquisition, W.B.; Investigation, T.H., Y.Z., J.S., J.Z. and T.G.; Methodology, W.B., M.B. and Z.W.; Project administration, W.B.; Software, W.B. and M.B., J.S.; Supervision, W.B.; Validation, Q.Z. and X.L.; Writing—original draft, T.H.; Writing—review and editing, W.B. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by National Natural Science Foundation of China, grant numbers 32172705 and 31872325; The APC was funded by National Natural Science Foundation of China, grant number 32172705.

Institutional Review Board Statement

All experiments were performed under approved protocol guidelines by the Animal Experimental Committee of Shenyang Agricultural University (No. 201606005).

Data Availability Statement

The data presented in this study are not publicly available, and the data are available on request from the corresponding author.

Acknowledgments

The authors thank Yanxu Zhu for help in collecting skin samples from the goats.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Jiao, Q.; Wang, Y.R.; Zhao, J.Y.; Wang, Z.Y.; Guo, D.; Bai, W.L. Identification and molecular analysis of cashmere goat lncRNAs reveal their integrated regulatory network and potential roles in secondary hair follicle. Anim. Biotechnol. 2020, 32, 719–732. [Google Scholar] [CrossRef] [PubMed]
  2. Bai, W.L.; Zhao, S.J.; Wang, Z.Y.; Zhu, Y.B.; Dang, Y.L.; Cong, Y.Y.; Xue, H.L.; Wang, W.; Deng, L.; Guo, D.; et al. LncRNAs in Secondary Hair Follicle of Cashmere Goat: Identification, Expression, and Their Regulatory Network in Wnt Signaling Pathway. Anim. Biotechnol. 2018, 29, 199–211. [Google Scholar] [CrossRef] [PubMed]
  3. Su, R.; Gong, G.; Zhang, L.T.; Yan, X.C.; Wang, F.H.; Zhang, L.; Qiao, X.; Li, X.K.; Li, J.Q. Screening the key genes of hair follicle growth cycle in Inner Mongolian Cashmere goat based on RNA sequencing. Arch. Anim. Breed. 2020, 63, 155–164. [Google Scholar] [CrossRef] [PubMed]
  4. Kloren, W.R.L.; Norton, B.W.; Waters, M.J. Fleece growth in Australian cashmere goats. III. The seasonal patterns of cashmere and hair growth, and association with growth hormone, prolactin and thyroxine in blood. Aust. J. Agric. Res. 1993, 44, 1035–1050. [Google Scholar] [CrossRef]
  5. Wu, J.H.; Zhang, Y.J.; Zhang, J.X.; Chang, Z.L.; Li, J.Q.; Yan, Z.W.; Husile; Zhang, W.G. Hoxc13/β-catenin correlation with hair follicle activity in cashmere goat. J. Integr. Agric. 2012, 11, 1159–1166. [Google Scholar] [CrossRef]
  6. Geng, R.; Yuan, C.; Chen, Y. Exploring differentially expressed genes by RNA-Seq in cashmere goat (Capra hircus) skin during hair follicle development and cycling. PLoS ONE 2013, 8, e62704. [Google Scholar] [CrossRef] [Green Version]
  7. Chen, Y.G.; Chen, R.; Ahmad, S.; Verma, R.; Kasturi, S.P.; Amaya, L.; Broughton, J.P.; Kim, J.; Cadena, C.; Pulendran, B.; et al. N6-methyladenosine modification controls circular RNA immunity. Mol. Cell 2019, 76, 96–109. [Google Scholar] [CrossRef]
  8. Wu, Y.M.; Yang, X.L.; Chen, Z.J.; Tian, L.; Jiang, G.M.; Chen, F.; Li, J.X.; An, P.P.; Lu, L.L.; Luo, N.; et al. m6A-induced lncRNA RP11 triggers the dissemination of colorectal cancer cells via upregulation of Zeb1. Mol. Cancer 2019, 18, 87–102. [Google Scholar] [CrossRef]
  9. Chen, Z.; Ling, K.; Zhu, Y.; Deng, L.; Li, Y.; Liang, Z. circ0000069 promotes cervical cancer cell proliferation and migration by inhibiting miR-4426. Biochem. Biophys. Res. Commun. 2021, 551, 114–120. [Google Scholar] [CrossRef]
  10. Fischer, J.W.; Leung, A.K. CircRNAs: A regulator of cellular stress. Crit. Rev. Biochem. Mol. Biol. 2017, 52, 220–233. [Google Scholar] [CrossRef]
  11. Meng, X.W.; Li, X.; Zhang, P.J.; Wang, J.J.; Zhou, Y.C.; Chen, M. Circular RNA: An emerging key player in RNA world. Brief. Bioinform. 2017, 18, 547–557. [Google Scholar] [CrossRef]
  12. Zhou, C.; Molinie, B.; Daneshvar, K.; Pondick, J.V.; Wang, J.; Van, W.N.; Xing, Y.; Giallourakis, C.C.; Mullen, A.C. Genome-wide maps of m6A circRNAs identify widespread and cell-type-specific methylation patterns that are distinct from mRNAs. Cell Rep. 2017, 20, 2262–2276. [Google Scholar] [CrossRef] [Green Version]
  13. Su, H.; Wang, G.W.; Wu, L.F.; Ma, X.Q.; Ying, K.J.; Zhang, R.F. Transcriptome-wide map of m6A circRNAs identified in a rat model of hypoxia mediated pulmonary hypertension. BMC Genom. 2020, 21, 39–53. [Google Scholar] [CrossRef] [Green Version]
  14. Guo, M.; Yan, R.; Ji, Q.W.; Yao, H.M.; Sun, M.; Duan, L.Q.; Xue, Z.; Jia, Y.P. IFN regulatory Factor-1 induced macrophage pyroptosis by modulating m6A modification of circ_0029589 in patients with acute coronary syndrome. Int. Immunopharmacol. 2020, 86, 106800. [Google Scholar] [CrossRef]
  15. Xu, J.J.; Wan, Z.; Tang, M.Y.; Lin, Z.J.; Jiang, S.; Ji, L.; Gorshkov, K.; Mao, Q.J.; Xia, S.J.; Cen, D.; et al. N6-methyladenosine-modified CircRNA-SORE sustains sorafenib resistance in hepatocellular carcinoma by regulating beta-catenin signaling. Mol. Cancer 2020, 19, 163–178. [Google Scholar] [CrossRef]
  16. Rao, X.; Lai, L.; Li, X.; Wang, L.; Li, A.; Yang, Q. N6-methyladenosine modification of circular RNA circ-ARL3 facilitates Hepatitis B virus-associated hepatocellular carcinoma via sponging miR-1305. IUBMB Life 2021, 73, 408–417. [Google Scholar] [CrossRef]
  17. Yang, Y.; Fan, X.J.; Mao, M.W.; Song, X.W.; Wu, P.; Zhang, Y.; Jin, Y.F.; Yang, Y.; Chen, L.L.; Wang, Y.; et al. Extensive translation of circular RNAs driven by N6-methyladenosine. Cell Res. 2017, 27, 626–641. [Google Scholar] [CrossRef] [Green Version]
  18. Tang, C.; Xie, Y.M.; Yu, T.; Liu, N.; Wang, Z.Q.; Woolsey, R.J.; Tang, Y.G.; Zhang, X.Z.; Qin, W.B.; Zhang, Y.; et al. m6A-dependent biogenesis of circular RNAs in male germ cells. Cell Res. 2020, 30, 211–228. [Google Scholar] [CrossRef]
  19. Yin, R.; Wang, Y.; Wang, Z.; Zhu, Y.; Cong, Y.; Wang, W.; Deng, L.; Liu, H.; Guo, D.; Bai, W. Discovery and molecular analysis of conserved circRNAs from cashmere goat reveal their integrated regulatory network and potential roles in secondary hair follicle. Electron. J. Biotechnol. 2019, 41, 37–47. [Google Scholar] [CrossRef]
  20. Zheng, Y.Y.; Hui, T.Y.; Yue, C.; Sun, J.M.; Guo, D.; Guo, S.L.; Guo, S.P.; Li, B.J.; Wang, Z.Y.; Bai, W.L. Comprehensive analysis of circRNAs from cashmere goat skin by next generation RNA sequencing (RNA-seq). Sci. Rep. 2020, 10, 516–528. [Google Scholar] [CrossRef] [Green Version]
  21. Shang, F.Z.; Wang, Y.; Ma, R.; Di, Z.Y.; Wu, Z.H.; Hai, E.; Rong, Y.J.; Pan, J.F.; Liang, L.L.; Wang, Z.Y.; et al. Expression Profiling and Functional Analysis of Circular RNAs in Inner Mongolian Cashmere Goat Hair Follicles. Front. Genet. 2021, 12, 678825. [Google Scholar] [CrossRef]
  22. Yin, R.H.; Zhao, S.J.; Jiao, Q.; Wang, Z.Y.; Bai, M.; Fan, Y.X.; Zhu, Y.B.; Bai, W.L. CircRNA-1926 Promotes the Differentiation of Goat SHF Stem Cells into Hair Follicle Lineage by miR-148a/b-3p/CDK19 Axis. Animals 2020, 10, 1552. [Google Scholar] [CrossRef]
  23. Zhu, Y.B.; Wang, Y.R.; Zhao, J.Y.; Shen, J.C.; Wang, Z.Y.; Bai, M.; Fan, Y.X.; Yin, R.H.; Mao, Y.J.; Bai, W.L. CircRNA-1967 participates in the differentiation of goat SHF-SCs into hair follicle lineage by sponging miR-93-3p to enhance LEF1 expression. Anim. Biotechnol. 2021, 22, 1–13. [Google Scholar] [CrossRef]
  24. Memczak, S.; Jens, M.; Elefsinioti, A.; Torti, F.; Krueger, J.; Rybak, A.; Maier, L.; Mackowiak, S.D.; Gregersen, L.H.; Munschauer, M.; et al. Circular RNAs are a large class of animal RNAs with regulatory potency. Nature 2013, 495, 333–338. [Google Scholar] [CrossRef]
  25. Gao, Y.; Wang, J.F.; Zhao, F.Q. CIRI: An efficient and unbiased algorithm for de novo circular RNA identification. Genome Biol. 2015, 16, 4–19. [Google Scholar] [CrossRef] [Green Version]
  26. Dong, R.; Ma, X.K.; Chen, L.L.; Yang, L. Genome-wide annotation of circRNAs and their alternative back-splicing/splicing with CIRCexplorer pipeline. Methods Mol. Biol. 2019, 1870, 137–149. [Google Scholar] [CrossRef]
  27. Bai, W.L.; Dang, Y.L.; Wang, J.J.; Yin, R.H.; Wang, Z.Y.; Zhu, Y.B.; Cong, Y.Y.; Xue, H.L.; Deng, L.; Guo, D.; et al. Molecular characterization, expression and methylation status analysis of BMP4 gene in skin tissue of Liaoning cashmere goat during hair follicle cycle. Genetica 2016, 144, 457–467. [Google Scholar] [CrossRef]
  28. Zhu, Y.B.; Wang, Z.Y.; Yin, R.H.; Jiao, Q.; Zhao, S.J.; Cong, Y.Y.; Xue, H.L.; Guo, D.; Wang, S.Q.; Zhu, Y.X.; et al. A lncRNA-H19 transcript from secondary hair follicle of Liaoning cashmere goat: Identification, regulatory network and expression regulated potentially by its promoter methylation. Gene 2018, 641, 78–85. [Google Scholar] [CrossRef]
  29. Zhong, S.; Wang, J.; Zhang, Q.; Xu, H.Z.; Feng, J.F. CircPrimer: A software for annotating circRNAs and determining the specificity of circRNA primers. BMC Bioinform. 2018, 19, 292–296. [Google Scholar] [CrossRef]
  30. Bai, W.L.; Yin, R.H.; Yin, R.L.; Jiang, W.Q.; Wang, J.J.; Wang, Z.Y.; Zhu, Y.B.; Zhao, Z.H.; Yang, R.J.; Luo, G.B.; et al. Selection and validation of suitable reference genes in skin tissue of Liaoning Cashmere goat during hair follicle cycle. Livest. Sci. 2014, 161, 28–35. [Google Scholar] [CrossRef]
  31. Chen, J.B.; Tian, Y.H.; Zhang, Q.; Ren, D.P.; Zhang, Q.; Yan, X.; Wang, L.Z.; He, Z.J.; Zhang, W.; Zhang, T.Z.; et al. Novel Insights into the Role of N6-Methyladenosine RNA Modification in Bone Pathophysiology. Stem Cells Dev. 2021, 30, 17–28. [Google Scholar] [CrossRef] [PubMed]
  32. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCt method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, J.F.; Zhao, X.H.; Wang, Y.B.; Ren, F.H.; Sun, D.W.; Yan, Y.B.; Kong, X.L.; Bu, J.L.; Liu, M.F.; Xu, S.D. circRNA-002178 act as a ceRNA to promote PDL1/PD1 expression in lung adenocarcinoma. Cell Death Dis. 2020, 11, 32–42. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, Y.H.; Wang, X.W. miRDB: An online database for prediction of functional microRNA targets. Nucleic Acids Res. 2020, 48, D127–D131. [Google Scholar] [CrossRef] [Green Version]
  35. Smoot, M.E.; Ono, K.; Ruscheinski, J.; Wang, P.L.; Ideker, T. Cytoscape 2.8: New features for data integration and network visualization. Bioinformatics 2011, 27, 431–432. [Google Scholar] [CrossRef] [Green Version]
  36. Bindea, G.; Galon, J.; Mlecnik, B. CluePedia Cytoscape plugin: Pathway insights using integrated experimental and in silico data. Bioinformatics 2013, 29, 661–663. [Google Scholar] [CrossRef]
  37. Wang, S.Y.; Chai, P.W.; Jia, R.B.; Jia, R.B. Novel insights on m6A RNA methylation in tumorigenesis: A double-edged sword. Mol. Cancer 2018, 17, 101–110. [Google Scholar] [CrossRef] [Green Version]
  38. Yang, D.D.; Qiao, J.; Wang, G.Y.; Lan, Y.Y.; Li, G.P.; Guo, X.D.; Xi, J.J.; Ye, D.; Zhu, S.C.; Chen, W.; et al. N6-Methyladenosine modification of lincRNA 1281 is critically required for mESC differentiation potential. Nucleic Acids Res. 2018, 46, 3906–3920. [Google Scholar] [CrossRef] [Green Version]
  39. Zheng, Y.Y.; Nie, P.; Peng, D.; He, Z.H.; Liu, M.N.; Xie, Y.B.; Miao, Y.Y.; Zuo, Z.X.; Ren, J. m6AVar: A database of functional variants involved in m6A modification. Nucleic Acids Res. 2018, 46, D139–D145. [Google Scholar] [CrossRef]
  40. Zhou, G.; Kang, D.; Ma, S.; Wang, X.; Gao, Y.; Yang, Y.; Wang, X.; Chen, Y. Integrative analysis reveals ncRNA-mediated molecular regulatory network driving secondary hair follicle regression in cashmere goats. BMC Genom. 2018, 19, 222–237. [Google Scholar] [CrossRef] [Green Version]
  41. Vanhoutteghem, A.; Delhomme, B.; Herve, F.; Nondier, I.; Petit, J.M.; Araki, M.; Araki, K.; Djian, P. The importance of basonuclin 2 in adult mice and its relation to basonuclin 1. Mech. Dev. 2016, 140, 53–73. [Google Scholar] [CrossRef]
  42. Schlake, T. Segmental Igfbp5 expression is specifically associated with the bent structure of zigzag hairs. Mech. Dev. 2005, 122, 988–997. [Google Scholar] [CrossRef]
  43. Su, R.; Fan, Y.X.; Qiao, X.; Li, X.K.; Zhang, L.; Li, C.; Li, J.Q. Transcriptomic analysis reveals critical genes for the hair follicle of Inner Mongolia cashmere goat from catagen to telogen. PLoS ONE 2018, 13, e0204404. [Google Scholar] [CrossRef] [Green Version]
  44. Oshimori, N.; Fuchs, E. Paracrine TGF-β signaling counterbalances BMP-mediated repression in hair follicle stem cell activation. Cell Stem Cell 2012, 10, 63–75. [Google Scholar] [CrossRef] [Green Version]
  45. Deng, Z.; Lei, X.; Zhang, X.; Zhang, H.; Liu, S.; Chen, Q.; Hu, H.; Wang, X.; Ning, L.; Cao, Y.; et al. mTOR signaling promotes stem cell activation via counterbalancing BMP-mediated suppression during hair regeneration. J. Mol. Cell Biol. 2015, 7, 62–72. [Google Scholar] [CrossRef] [Green Version]
  46. Sardiña, L.A.; Rubin, B.; Jour, G.; Piliang, M.; Elston, C.; Bergfeld, W.F. Differential expression of phospho-S6 in hair follicle tumors: Evidence of mammalian target of rapamycin pathway activation. J. Cutan. Pathol. 2019, 4, 256–260. [Google Scholar] [CrossRef]
  47. Sennett, R.; Wang, Z.; Rezza, A.; Grisanti, L.; Roitershtein, N.; Sicchio, C.; Mok, K.W.; Heitman, N.J.; Clavel, C.; Ma’ayan, A.; et al. An Integrated Transcriptome Atlas of Embryonic Hair Follicle Progenitors, Their Niche, and the Developing Skin. Dev. Cell 2015, 34, 577–591. [Google Scholar] [CrossRef] [Green Version]
  48. Amoh, Y.; Hoffman, R.M. Hair follicle-associated-pluripotent (HAP) stem cells. Cell Cycle 2017, 16, 2169–2175. [Google Scholar] [CrossRef] [Green Version]
  49. Salzman, J.; Chen, R.E.; Olsen, M.N.; Wang, P.L.; Brown, P.O.; Moran, J.V. Cell-type specific features of circular RNA expression. PLoS Genet. 2013, 9, e1003777. [Google Scholar] [CrossRef]
  50. Rybak-Wolf, A.; Stottmeister, C.; Glažar, P.; Jens, M.; Pino, N.; Giusti, S.; Hanan, M.; Behm, M.; Bartok, O.; Ashwal-Fluss, R.; et al. Circular RNAs in the mammalian brain are highly abundant, conserved, and dynamically expressed. Mol. Cell 2015, 58, 870–885. [Google Scholar] [CrossRef] [Green Version]
  51. Mukhopadhyay, S.; Jackson, P.K. The tubby family proteins. Genome Biol. 2011, 12, 225–233. [Google Scholar] [CrossRef] [Green Version]
  52. Meng, E.; Shevde, L.A.; Samant, R.S. Emerging roles and underlying molecular mechanisms of DNAJB6 in cancer. Oncotarget 2016, 7, 53984–53996. [Google Scholar] [CrossRef] [Green Version]
  53. Menezes, M.E.; Mitra, A.; Shevde, L.A.; Samant, R.S. DNAJB6 governs a novel regulatory loop determining Wnt/β-catenin signalling activity. Biochem. J. 2012, 444, 573–580. [Google Scholar] [CrossRef] [Green Version]
  54. Rishikaysh, P.; Dev, K.; Diaz, D.; Qureshi, W.M.; Filip, S.; Mokry, J. Signaling involved in hair follicle morphogenesis and development. Int. J. Mol. Sci. 2014, 15, 1647–1670. [Google Scholar] [CrossRef] [Green Version]
  55. Reddy, S.; Andl, T.; Bagasra, A.; Lu, M.M.; Epstein, D.J.; Morrisey, E.E.; Millar, S.E. Characterization of Wnt gene expression in developing and postnatal hair follicles and identification of Wnt5a as a target of Sonic hedgehog in hair follicle morphogenesis. Mech. Dev. 2001, 107, 69–82. [Google Scholar] [CrossRef]
  56. Lowry, W.E.; Blanpain, C.; Nowak, J.A.; Guasch, G.; Lewis, L.; Fuchs, E. Defining the impact of beta-catenin/Tcf transactivation on epithelial stem cells. Genes Dev. 2005, 19, 1596–1611. [Google Scholar] [CrossRef] [Green Version]
  57. Lin, C.M.; Liu, Y.; Huang, K.; Chen, X.C.; Cai, B.Z.; Li, H.H.; Yuan, Y.P.; Zhang, H.; Li, Y. Long noncoding RNA expression in dermal papilla cells contributes to hairy gene regulation. Biochem. Biophys. Res. Commun. 2014, 453, 508–514. [Google Scholar] [CrossRef]
  58. Takeuchi, A.; Miyamoto, T.; Yamaji, K.; Masuho, Y.; Hayashi, M.; Hayashi, H.; Onozaki, K. A human erythrocyte-derived growth-promoting factor with a wide target cell spectrum: Identification as catalase. Cancer Res. 1995, 55, 1586–1589. [Google Scholar]
  59. Yang, Y.; Zhang, Q.; Liang, J.; Yang, M.; Wang, Z.; Tang, D.; Wang, D. STAM2 knockdown inhibits proliferation, migration, and invasion by affecting the JAK2/STAT3 signaling pathway in gastric cancer. Acta Biochim. Biophys. Sin. 2021, 53, 697–706. [Google Scholar] [CrossRef]
  60. Aslam, M.A.; Alemdehy, M.F.; Pritchard, C.E.J.; Song, J.Y.; Muhaimin, F.I.; Wijdeven, R.H.; Huijbers, I.J.; Neefjes, J.; Jacobs, H. Towards an understanding of C9orf82 protein/CAAP1 function. PLoS ONE 2019, 14, e0210526. [Google Scholar] [CrossRef]
  61. Su, J.H.; Lu, H.J.; Wang, Y.T.; Kong, Y.X.; Liu, Y.T.; Wang, M.M.; Xiong, Y.N.; Zhang, G.L. Effects of CAAP1 on Proliferation, Migration and Invasion of Hepatoma Cell Line SMMC-7721. Sichuan Da Xue Xue Bao Yi Xue Ban 2021, 52, 445–451. [Google Scholar] [CrossRef] [PubMed]
  62. Bai, W.L.; Dang, Y.L.; Yin, R.H.; Jiang, W.Q.; Wang, Z.Y.; Zhu, Y.B.; Wang, S.Q.; Zhao, Y.Y.; Deng, L.; Luo, G.B.; et al. Differential expression of microRNAs and their regulatory networks in skin tissue of Liaoning Cashmere goat during hair follicle cycles. Anim. Biotechnol. 2016, 27, 104–112. [Google Scholar] [CrossRef] [PubMed]
Animals 12 00694 g001 550

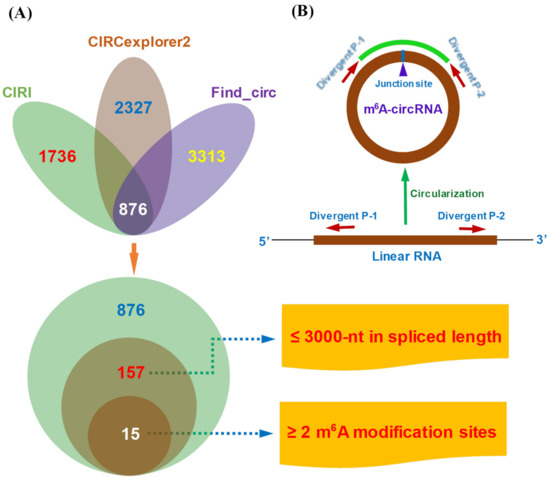

Figure 1. A schematic diagram of screening putative m6A-circRNAs with the design of divergent primer pairs. (A) A total of 15 putative m6A-circRNAs were screened out from full-length transcriptome sequencing data where the potential m6A sites were predicted using the SRAMP program (http://www.cuilab.cn/sramp, accessed on 11 July 2021); (B) The design scheme of divergent primer pairs for detecting the expression of putative m6A-circRNAs in skin tissue or SHFs of cashmere goat.
Figure 1. A schematic diagram of screening putative m6A-circRNAs with the design of divergent primer pairs. (A) A total of 15 putative m6A-circRNAs were screened out from full-length transcriptome sequencing data where the potential m6A sites were predicted using the SRAMP program (http://www.cuilab.cn/sramp, accessed on 11 July 2021); (B) The design scheme of divergent primer pairs for detecting the expression of putative m6A-circRNAs in skin tissue or SHFs of cashmere goat.
Animals 12 00694 g001
Animals 12 00694 g002 550

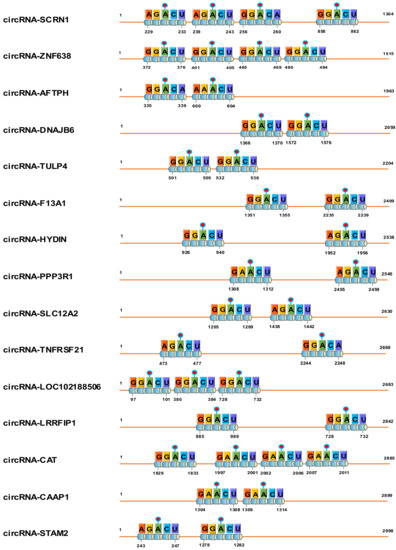

Figure 2. Diagram of putative m6A sites within 15 circRNA sequences from skin tissue of cashmere goat. The orange thin line represents circRNA sequence, and the motifs of m6A sites are shown within each circRNA sequence with the corresponding nucleotide positions. The putative m6A sites were predicted using the SRAMP program (http://www.cuilab.cn/sramp, accessed on 11 July 2021) and the only m6A site motifs are shown in each circRNA sequence with very high confidence in SRAMP analysis.
Figure 2. Diagram of putative m6A sites within 15 circRNA sequences from skin tissue of cashmere goat. The orange thin line represents circRNA sequence, and the motifs of m6A sites are shown within each circRNA sequence with the corresponding nucleotide positions. The putative m6A sites were predicted using the SRAMP program (http://www.cuilab.cn/sramp, accessed on 11 July 2021) and the only m6A site motifs are shown in each circRNA sequence with very high confidence in SRAMP analysis.
Animals 12 00694 g002
Animals 12 00694 g003 550

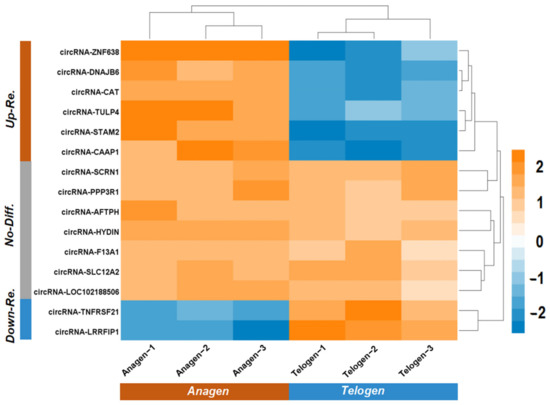

Figure 3. Expression analysis of 15 putative m6A-circRNAs in skin tissue of cashmere goats at both anagen and telogen stages presented as a hierarchical clustering heatmap. The “Up-Re” indicates the expression mean of putative m6A-circRNAs being significantly up-regulated in skin tissue at anagen of cashmere goats in comparison to telogen (p < 0.05). The “Down-Re” indicates the expression mean of putative m6A-circRNAs being significantly down-regulated in skin tissue at anagen of cashmere goats in comparison to telogen (p < 0.05). The “No-Diff” indicates no significant difference in expression mean of putative m6A-circRNAs in skin tissue of cashmere goats between anagen and telogen stages (p > 0.05). The resulting p-value for each comparison is presented in Table S1.
Figure 3. Expression analysis of 15 putative m6A-circRNAs in skin tissue of cashmere goats at both anagen and telogen stages presented as a hierarchical clustering heatmap. The “Up-Re” indicates the expression mean of putative m6A-circRNAs being significantly up-regulated in skin tissue at anagen of cashmere goats in comparison to telogen (p < 0.05). The “Down-Re” indicates the expression mean of putative m6A-circRNAs being significantly down-regulated in skin tissue at anagen of cashmere goats in comparison to telogen (p < 0.05). The “No-Diff” indicates no significant difference in expression mean of putative m6A-circRNAs in skin tissue of cashmere goats between anagen and telogen stages (p > 0.05). The resulting p-value for each comparison is presented in Table S1.
Animals 12 00694 g003
Animals 12 00694 g004 550

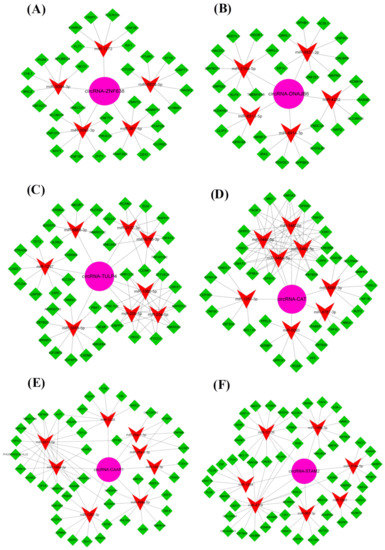

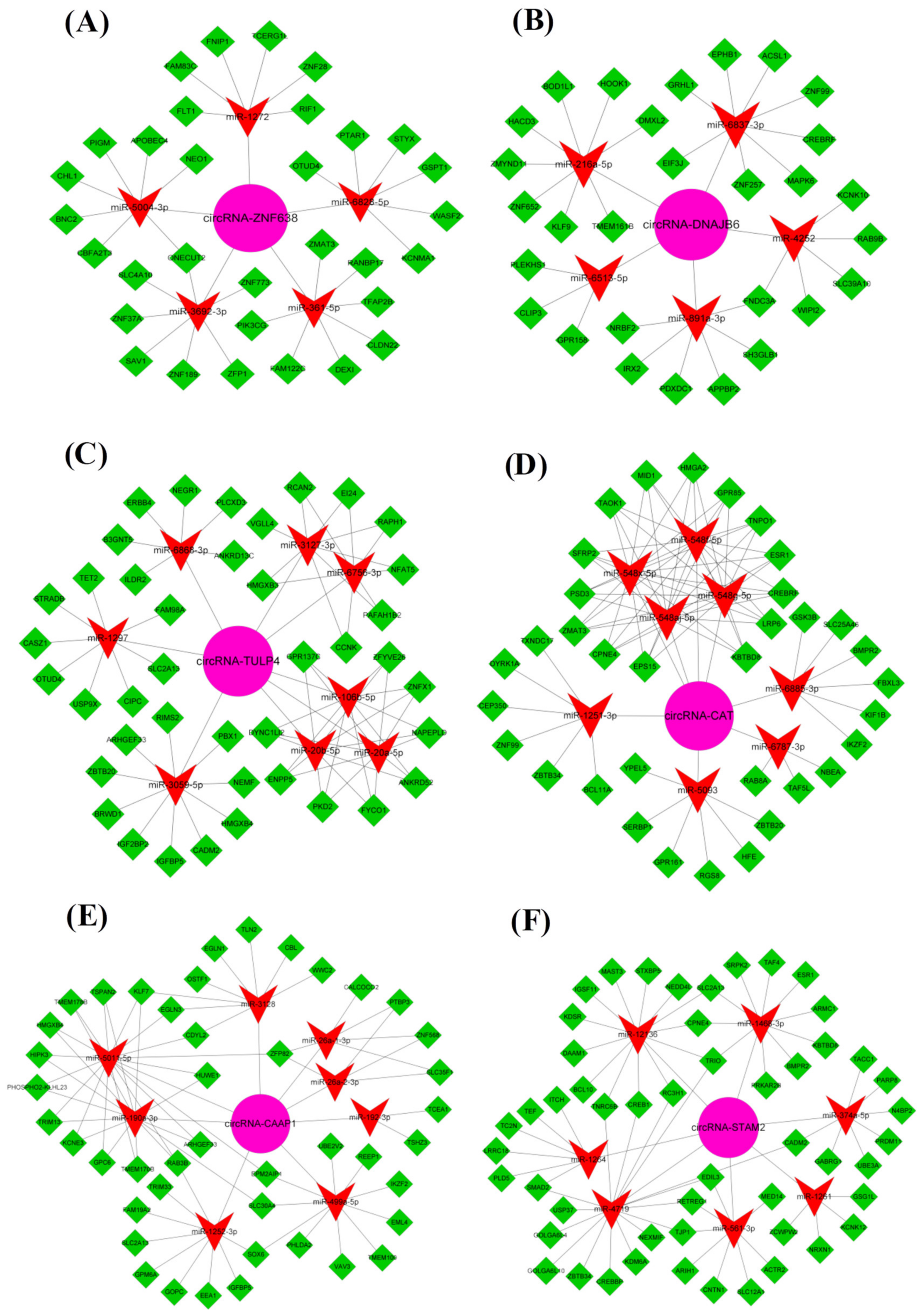

Figure 4. The ceRNA regulatory network of each putative m6A-circRNA with higher expression in anagen skin tissue of cashmere goats in comparison to telogen. The pink circle, red “V”, green diamond shapes represent m6A-circRNAs, miRNAs and target genes, respectively. (A) circRNA-ZNF638 = m6A-circRNA-ZNF638; (B) circRNA-DNAJB6 = m6A-circRNA-DNAJB6; (C) circRNA-TULP4 = m6A-circRNA-TULP4; (D) circRNA-CAT = m6A-circRNA-CAT; (E) circRNA-CAAP1 = m6A-circRNA-CAAP1; (F) circRNA-STAM2 = m6A-STAM2.
Figure 4. The ceRNA regulatory network of each putative m6A-circRNA with higher expression in anagen skin tissue of cashmere goats in comparison to telogen. The pink circle, red “V”, green diamond shapes represent m6A-circRNAs, miRNAs and target genes, respectively. (A) circRNA-ZNF638 = m6A-circRNA-ZNF638; (B) circRNA-DNAJB6 = m6A-circRNA-DNAJB6; (C) circRNA-TULP4 = m6A-circRNA-TULP4; (D) circRNA-CAT = m6A-circRNA-CAT; (E) circRNA-CAAP1 = m6A-circRNA-CAAP1; (F) circRNA-STAM2 = m6A-STAM2.
Animals 12 00694 g004
Animals 12 00694 g005 550

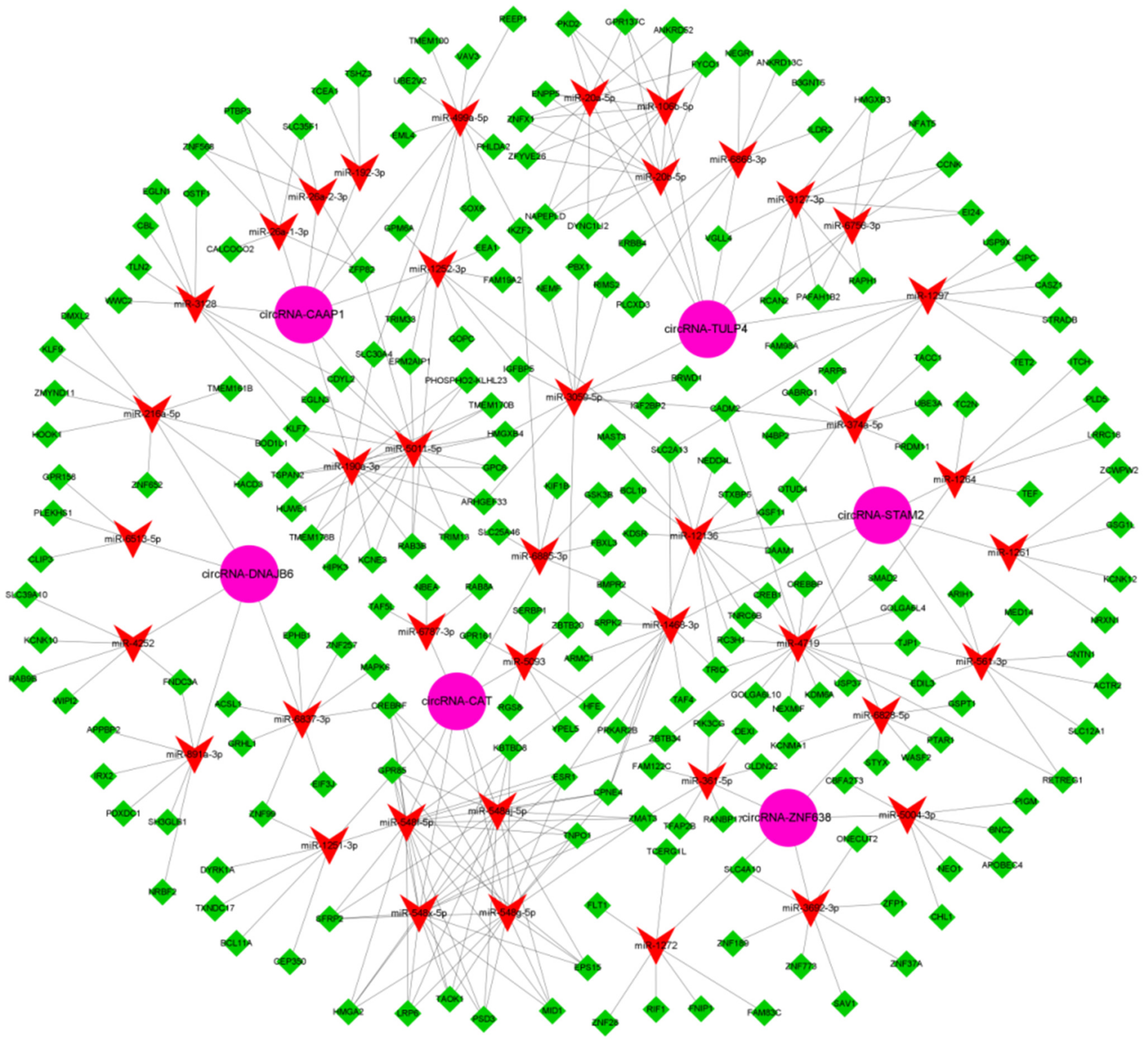

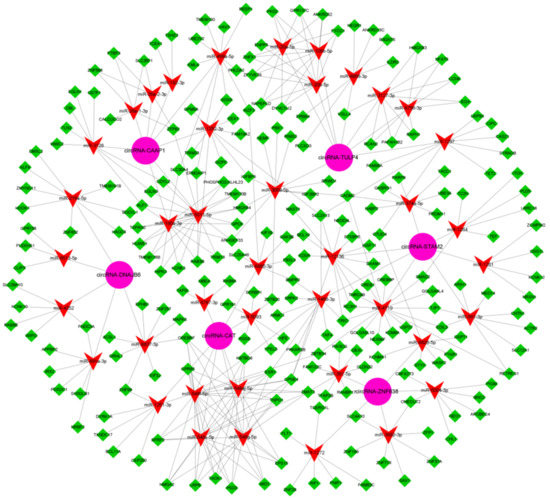

Figure 5. Integrated ceRNA network of the six putative m6A-circRNAs with higher expression in skin tissue at anagen of cashmere goats in comparison to telogen. The pink circle, red “V”, and green diamond shapes represent m6A-circRNAs, miRNAs and target genes, respectively. circRNA-ZNF638 = m6A-circRNA-ZNF638, circRNA-DNAJB6 = m6A-circRNA-DNAJB6, circRNA-TULP4 = m6A-circRNA-TULP4, circRNA-CAT = m6A-circRNA-CAT, circRNA-CAAP1 = m6A-circRNA-CAAP1, circRNA-STAM2 = m6A-STAM2. This integrated ceRNA network was constructed and visualized using the Cyotoscape (Version 2.8) procedure [35].
Figure 5. Integrated ceRNA network of the six putative m6A-circRNAs with higher expression in skin tissue at anagen of cashmere goats in comparison to telogen. The pink circle, red “V”, and green diamond shapes represent m6A-circRNAs, miRNAs and target genes, respectively. circRNA-ZNF638 = m6A-circRNA-ZNF638, circRNA-DNAJB6 = m6A-circRNA-DNAJB6, circRNA-TULP4 = m6A-circRNA-TULP4, circRNA-CAT = m6A-circRNA-CAT, circRNA-CAAP1 = m6A-circRNA-CAAP1, circRNA-STAM2 = m6A-STAM2. This integrated ceRNA network was constructed and visualized using the Cyotoscape (Version 2.8) procedure [35].
Animals 12 00694 g005
Animals 12 00694 g006 550

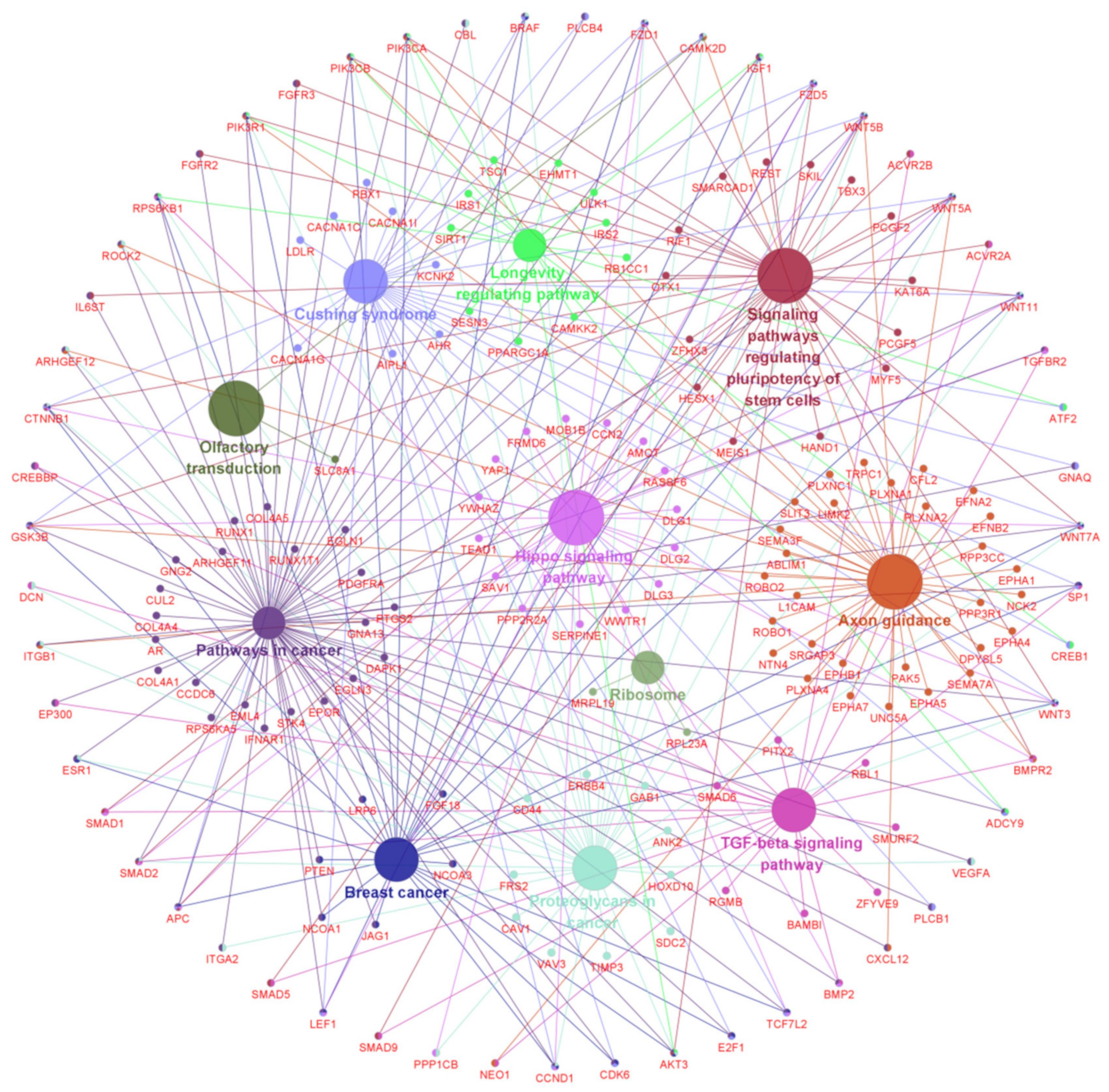

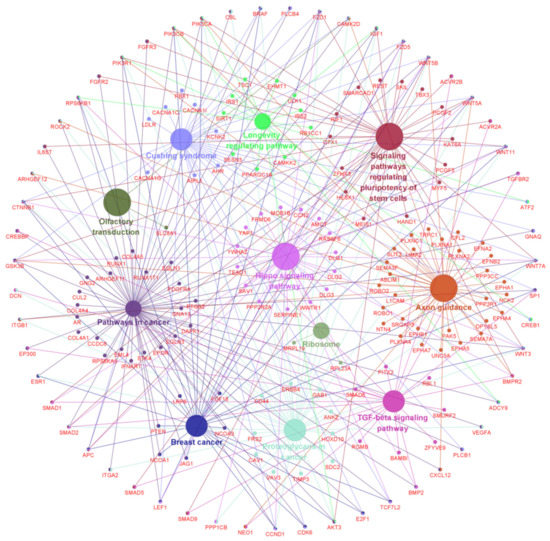

Figure 6. Pathway enrichment for the ceRNA regulatory genes of the six putative m6A-circRNAs with higher expression in anagen skin tissue of cashmere goats in comparison to telogen. The pathway enrichment was conducted using the CluePedia (a built-in plugin in Cytoscape procedure (http://www.ici.upmc.fr/cluepedia/, 12 October 2021). the enriched pathways and their corresponding genes were visualized with the same color nodes.
Figure 6. Pathway enrichment for the ceRNA regulatory genes of the six putative m6A-circRNAs with higher expression in anagen skin tissue of cashmere goats in comparison to telogen. The pathway enrichment was conducted using the CluePedia (a built-in plugin in Cytoscape procedure (http://www.ici.upmc.fr/cluepedia/, 12 October 2021). the enriched pathways and their corresponding genes were visualized with the same color nodes.
Animals 12 00694 g006
Animals 12 00694 g007 550

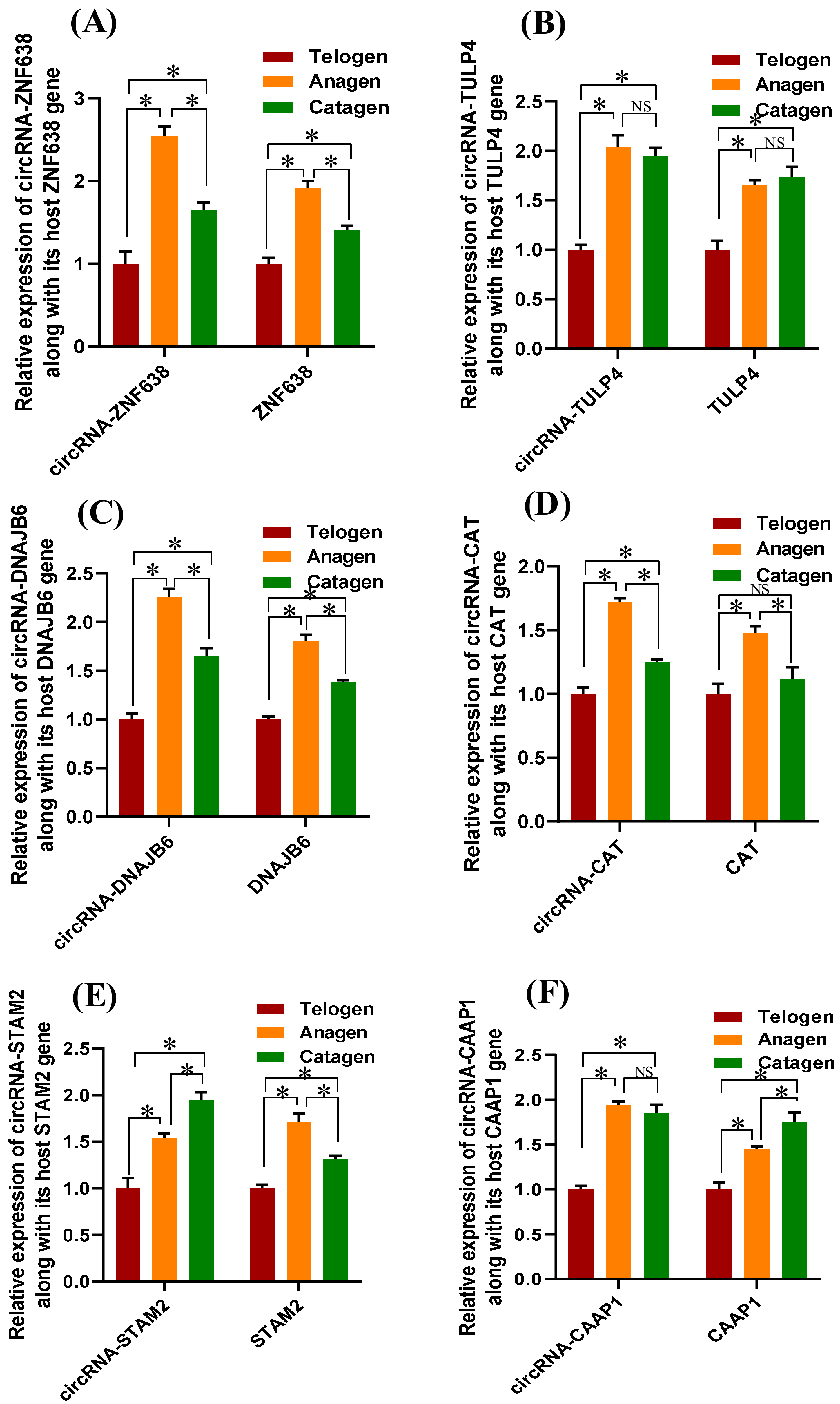

Figure 7. Expression analyses of the six anagen up-regulated m6A-circRNAs along with their host genes in SHFs of cashmere goats at telogen, anagen, and catagen stages. (A): circRNA-ZNF638 and its host gene ZNF638, (B): circRNA-TULP4 and its host gene TULP4, (C): circRNA-DNAJB6 and its host gene DNAJB6, (D): circRNA-CAT and its host gene CAT, (E): circRNA-STAM2 and its host gene STAM2, and (F): circRNA-CAAP1 and its host gene CAAP1. The expression difference was compared for each m6A-circRNA and corresponding host gene at telogen, anagen, and catagen, where the telogen expression data of both m6A-circRNA and the corresponding host gene was normalized to 1. The star symbol “*” stands for a significant difference (p < 0.05), and the “NS” stands for no significant difference (p > 0.05). The obtained p-value for each comparison is presented in Table S2. circRNA-ZNF638 = m6A-circRNA-ZNF638, circRNA-TULP4 = m6A-circRNA-TULP4, circRNA-DNAJB6 = m6A-circRNA-DNAJB6, circRNA-CAT = m6A-circRNA-CAT, circRNA-STAM2 = m6A-STAM2, and circRNA-CAAP1 = m6A-circRNA-CAAP1.
Figure 7. Expression analyses of the six anagen up-regulated m6A-circRNAs along with their host genes in SHFs of cashmere goats at telogen, anagen, and catagen stages. (A): circRNA-ZNF638 and its host gene ZNF638, (B): circRNA-TULP4 and its host gene TULP4, (C): circRNA-DNAJB6 and its host gene DNAJB6, (D): circRNA-CAT and its host gene CAT, (E): circRNA-STAM2 and its host gene STAM2, and (F): circRNA-CAAP1 and its host gene CAAP1. The expression difference was compared for each m6A-circRNA and corresponding host gene at telogen, anagen, and catagen, where the telogen expression data of both m6A-circRNA and the corresponding host gene was normalized to 1. The star symbol “*” stands for a significant difference (p < 0.05), and the “NS” stands for no significant difference (p > 0.05). The obtained p-value for each comparison is presented in Table S2. circRNA-ZNF638 = m6A-circRNA-ZNF638, circRNA-TULP4 = m6A-circRNA-TULP4, circRNA-DNAJB6 = m6A-circRNA-DNAJB6, circRNA-CAT = m6A-circRNA-CAT, circRNA-STAM2 = m6A-STAM2, and circRNA-CAAP1 = m6A-circRNA-CAAP1.
Animals 12 00694 g007
Table
Table 1. Details of the primers used in this study and their real-time PCR reaction conditions.
Table 1. Details of the primers used in this study and their real-time PCR reaction conditions.
GenePrimer Type/Reference in GenBank or PublicationSequence (5′–3′) aAmplicon Size (bp)Ta b (°C)
circRNA-SCRN1Divergent primer/this studyF: ATGCACTTTGGAAGCTGTGG, R: TGCTCAGAGTCAAGGTTGGT24653
circRNA-ZNF638Divergent primer/this studyF: TTTGCAATGCCCAGGTTCAA, R: CTGACATCCCCATTCGGTCT25053
circRNA-AFTPHDivergent primer/this studyF: TGCACAGTGTCTCCTTAGCA, R: ATTGTCTAGTGGTGGTGGGG16254
circRNA-DNAJB6Divergent primer/this studyF: ATGAAAGAAGCCTGCACTGG, R: GGAAGTTGAAGAAGACGGCC23553
circRNA-TULP4Divergent primer/this studyF: GGGACAGAAACACTCCACAG, R: CACACTCTTCAAACGGCACA15154
circRNA-F13A1Divergent primer/this studyF: AACCCCGATGTCATTCAGGA, R: ACTTGCCTGTACGTGATGGA15155
circRNA-HYDINDivergent primer/this studyF: TCATCCAGCTCTCCACCAAG, R: CCCGTTTCCTCTTGCTCAAC15954
circRNA-PPP3R1Divergent primer/this studyF: TCTCCATTCCCATCGGTGTC, R: CAGATAAGGATGGGGATGGA21054
circRNA-SLC12A2Divergent primer/this studyF: AGGCTCAGATTGTTCTTTTGGT, R: CAAAAGCGAAGATCAGGCCA18553
circRNA-TNFRSF21Divergent primer/this studyF: TGGTGATAGTGGTGTGCAGT, R: GGTCGACGTGGTGGTATTTG23453
circRNA-LOC102188506Divergent primer/this studyF: GGATGAAAAGCAGAGTGGCC, R: CTGAGTTATGCCTTGGCGTC22654
circRNA-LRRFIP1Divergent primer/this studyF: GAAACCACACACGGCTAAGG, R: CAGGCTGCTGAAAATGCTGA23654
circRNA-CATDivergent primer/this studyF: TCTCTCCCGGTCAAAGTGAG, R: TCGTGGCTTTGCAGTGAAAT23154
circRNA-CAAP1Divergent primer/this studyF: AGGTGACAATGGTATGGACTCT, R: GCCACAGTCAGGTCTAATCC16953
circRNA-STAM2Divergent primer/this studyF: TGGGTAATGTGCTGGATGGT, R: GACAACACAGCCTGCTCAAA15954
ZNF638Convergent primer/XM_005686375.3F: TTCAAGTCAAGCAGAATCCAC, R: AGACAACTCTCCCTCAACCAC13155
DNAJB6Convergent primer/XM_018046635.1F: GTTCAGTTCCTTCGGTTCGCT, R: CCTGCCGTTCACCACTTTTGT12757
TULP4Convergent primer/XM_018053415.1F: CCGACTCTTGCCTATGTTCCA, R: TCACTCCTCCCCTTTCTGCTC16553
CATConvergent primer/XM_005690077.3F: GAGCATATTGGAAAGAGGACG, R: AAGGACGGAAACAGTAGAGCA19153
CAAP1Convergent primer/XM_018051896.1F: AACTCTACAGCCAACCTCCGC, R: ATCCCACTCCAGCAACCATCC19958
STAM2Convergent primer/XM_005676127.3F: GATGGGGATGTCTGTGGATA, R: AAAGGAGAGGCTGCTGTTGA14053
UBC cConvergent primer/[30]F: GCATTGTTGGGTTCCTGTGT, R: TTTGCATTTTGACCTGTGAG9052
YWHAZ cConvergent primer/[30]F: TGTAGGAGCCCGTAGGTCATCT, R: TCTCTCTGTATTCTCGAGCCATCT10256
SDHA cConvergent primer/[30]F: AGCACTGGAGGAAGCACAC, R: CACAGTCGGTCTCGTTCAA10553
a F= forward, R= reverse. b Ta = annealing temperature. c The primers were cited in a previous study (Bai et al., 2014).
Table
Table 2. Genomic location information of the 15 analyzed m6A-circRNAs with their host genes a.
Table 2. Genomic location information of the 15 analyzed m6A-circRNAs with their host genes a.
circRNA NameSpliced Length (nt)Number of ChromosomeSequence ID in Goat GenomeLocation on ChromosomeHost Gene
circRNA-SCRN11304chromosome 4NC_030811.153829779 to 53831082SCRN1
circRNA-ZNF6381515chromosome 11NC_030818.113101422 to 13102936ZNF638
circRNA-AFTPH1963chromosome 11NC_030818.162684628 to 62686590AFTPH
circRNA-DNAJB62059chromosome 4NC_030811.11238643 to 1240701DNAJB6
circRNA-TULP42204chromosome 9NC_030816.182114863 to 82117066TULP4
circRNA-F13A12409chromosome 23NC_030830.116784531 to 16786939F13A1
circRNA-HYDIN2538chromosome 18NC_030825.141207111 to 41209648HYDIN
circRNA-PPP3R12540chromosome 11NC_030818.166320976 to 66323515PPP3R1
circRNA-SLC12A22630chromosome 7NC_030814.184793912 to 84796541SLC12A2
circRNA-TNFRSF212669chromosome 23NC_030830.128430416 to 28433084TNFRSF21
circRNA-LOC1021885062683chromosome 10NC_030817.116319392 to 16322074LOC102188506
circRNA-LRRFIP12842chromosome 3NC_030810.13505854 to 3508695LRRFIP1
circRNA-CAT2885chromosome 15NC_030822.117940546 to 17943430CAT
circRNA-CAAP12899chromosome 8NC_030815.117288789 to 17291687CAAP1
circRNA-STAM22998chromosome 2NC_030809.192139671 to 92142668STAM2
a The genomic location information of the m6A-circRNAs was determined by mapping them to the goat reference genome, assembly ARS1:102, https://www.ncbi.nlm.nih.gov/genome/?term=goat, accessed on 27 April 2021.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hui, T.; Zhu, Y.; Shen, J.; Bai, M.; Fan, Y.; Feng, S.; Wang, Z.; Zhao, J.; Zhang, Q.; Liu, X.; et al. Identification and Molecular Analysis of m6A-circRNAs from Cashmere Goat Reveal Their Integrated Regulatory Network and Putative Functions in Secondary Hair Follicle during Anagen Stage. Animals 2022, 12, 694. https://doi.org/10.3390/ani12060694

AMA Style

Hui T, Zhu Y, Shen J, Bai M, Fan Y, Feng S, Wang Z, Zhao J, Zhang Q, Liu X, et al. Identification and Molecular Analysis of m6A-circRNAs from Cashmere Goat Reveal Their Integrated Regulatory Network and Putative Functions in Secondary Hair Follicle during Anagen Stage. Animals. 2022; 12(6):694. https://doi.org/10.3390/ani12060694

Chicago/Turabian Style

Hui, Taiyu, Yubo Zhu, Jincheng Shen, Man Bai, Yixing Fan, Siyu Feng, Zeying Wang, Junyin Zhao, Qi Zhang, Xingwang Liu, and et al. 2022. "Identification and Molecular Analysis of m6A-circRNAs from Cashmere Goat Reveal Their Integrated Regulatory Network and Putative Functions in Secondary Hair Follicle during Anagen Stage" Animals 12, no. 6: 694. https://doi.org/10.3390/ani12060694

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
