Application of Precision Technologies to Characterize Animal Behavior: A Review

Simple Summary

The information that can be deduced from animal behaviors is diverse. Unlike in the past, these behaviors can now be monitored for extended periods of time, thanks to the many advanced tools and sensors. The changes in behavioral patterns can provide many indications and clues about various aspects of the animals’ needs and status. In this review, we evaluate three types of technology used to identify the behaviors of three types of ruminants. These tools have the potential to significantly assist farmers in the continuous development of their practices.

Abstract

This study aims to evaluate the state of precision livestock farming (PLF)’s spread, utilization, effectiveness, and evolution over the years. PLF includes a plethora of tools, which can aid in a number of laborious and complex tasks. These tools are often used in the monitoring of different animals, with the objective to increase production and improve animal welfare. The most frequently monitored attributes tend to be behavior, welfare, and social interaction. This study focused on the application of three types of technology: wearable sensors, video observation, and smartphones. For the wearable devices, the focus was on accelerometers and global positioning systems. For the video observation, the study addressed drones and cameras. The animals monitored by these tools were the most common ruminants, which are cattle, sheep, and goats. This review involved 108 articles that were believed to be pertinent. Most of the studied papers were very accurate, for most tools, when utilized appropriate; some showed great benefits and potential.

1. Introduction

The use of grasslands and forest pastures is an ancestral practice. They are mainly utilized for grazing by ruminants. In fact, this is a consistent aspect of different production systems, especially when there are sufficient pastoral resources. This will ensure the fulfillment of most of their daily needs [1], either in the pastures or on the farm. Animals need feeding until fulfilled, but how do we understand and address their hunger, fatigue, thirst, and sickness?

Animals are complex creatures; they cannot convey in words their needs; nevertheless, different studies have shown that they have patterns that they follow, and variations in these patterns have meaning [2,3,4], which could give insight into their needs, preferences, and other physical and biological states [5]. This highlights the importance and the merits of studying their behaviors.

Research on behavior and activity budgets in different livestock systems has been carried out for a long time. More than forty years ago, Anderson and Kothmann analyzed cattle travel and the factors that could affect it using pedometers [6]. Since then, many studies have been carried out on diverse behaviors, such as basic daily activities (walking, resting, lying, etc.) [7,8,9]; feeding activities [10,11]; welfare [12]; lameness [13]; estrus and parturition detection [14,15]; livestock distribution [16]; sexual actions [17]; and nursing [18]. These studies and others have elaborated upon different types of monitoring devices, because there is a limit to what the herder can detect and monitor regarding animals’ behaviors. As is known, the visual approach is extremely subjective, and it is a very limited and time-consuming method [19]. It is also worth noting that visual observation is the oldest approach to monitoring animals’ behaviors. To this day, it is still used, but mainly in the validation of data recorded by other precision and smart tools [20].

Precision livestock farming (PLF) refers to the use of several technologies to manage and optimize various aspects of livestock farming [21]. PLF involves applying process engineering principles and techniques to livestock farming, enabling the automated monitoring, modeling, and management of animal production [22]. A large set of sensors are used in a separate or combined way [23]—for example, accelerometers [24], global positioning systems (GPS) [25], unmanned aerial vehicles (UAVs) [26], cameras [27], smartphones [28], microphones [29], tags [30], and ruminal boluses [31]. These tools have distinct operating instructions; they could be wearable on different parts of the body, static or movable, or inserted into the animal itself.

This review attempts to describe the development and application of the most commonly used technologies and their potential: wearable sensors—more precisely, GPS and accelerometer-based sensors—video observation tools such as drones and cameras, and smartphones. These technologies offer the most benefits because they can monitor the majority of animal behaviors. This study focuses on three types of ruminants, cattle, sheep, and goats, as they are the most common in livestock production systems around the world.

2. Methods

The methodology of the research in this systematic literature review was based on the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines [32]. The bibliographic research was conducted in the month of July 2023 using different combinations of the following keywords: livestock, goat, cattle, sheep, precision farming, precision livestock farming, sensor, GPS, accelerometer, pedometer, icetag, eartag, smartphone, drones, video observation, video monitoring, PLF, UAV. The databases used in the search were mainly Google Scholar, Science Direct, PubMed, and Scopus. Mendeley was also used in managing the references and organizing our research.

In this study, the selection criteria were as follows:

▪

Only peer-reviewed articles and conference papers were selected;

▪

Studies had to be within the research objective;

▪

The literature had to be in English;

▪

The full text study had to be accessible;

▪

Cattle, sheep, and goats were taken into consideration;

▪

The technologies of sensors, video observation, and smartphones were considered.

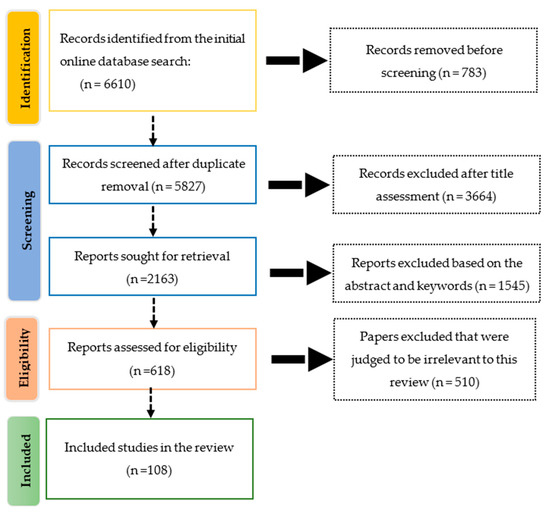

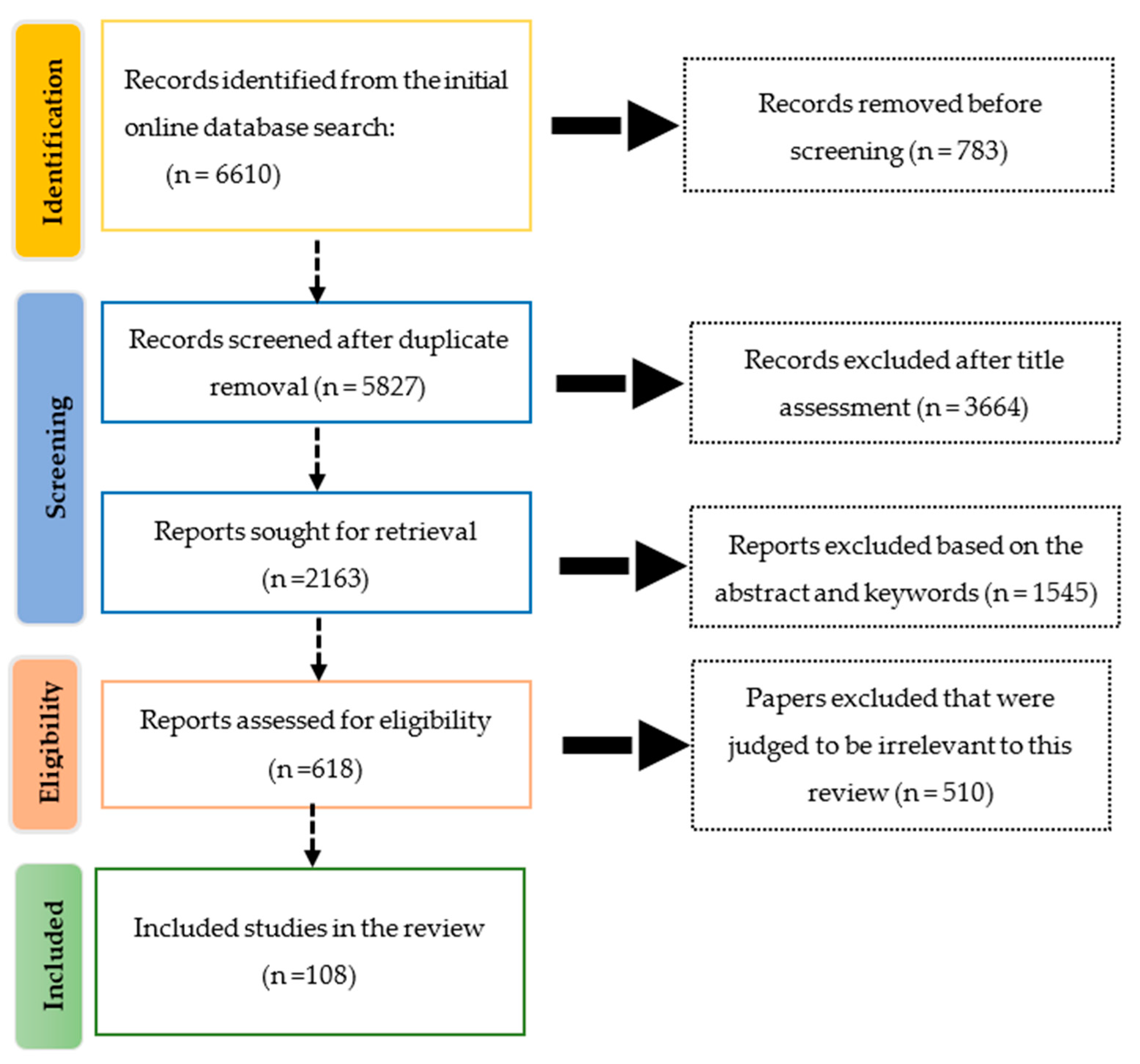

After the initial online database search, 6610 studies were obtained, which, after duplicate removal, were reduced to 5827. In the screening phase, based on titles, 3664 documents were excluded because they were about other animals or other technologies beyond the scope of this study. Abstracts and keywords were then examined, leaving 618 articles for further analyses, where the complete texts were checked to determine whether they satisfied the objective criteria. Ultimately, 108 articles were judged to be relevant to this review. The procedure of the filtration of the papers is summarized in Figure 1, based on the PRISMA guidelines.

3. Wearable Devices

In this section, two common tools were discussed: accelerometers and GPS-based sensors. The accelerometer monitors one of the most important aspects of the animals’ behavior, namely their acceleration, while GPS is capable of tracking their continued movements and locations, even when they are out of sight. This enables managers or farmers to know their exact position at any given time. There are many precision tools, like accelerometers, pedometers, GPS, and other motion sensors, which are used to monitor animals’ movements [33]. Recently, several devices equipped with accelerometers have been developed, such as SenseHub. The SenseHub monitoring technology is a complex yet user-friendly animal monitoring solution. It includes sensors to monitor vital signs or detect signs of illness. It allows for the unique identification of each tagged animal. This helps farmers to detect several parameters related to animal welfare, reproductive performance, health, and the nutritional status of individual animals and groups. The prospect of combining the accelerometer and GPS in studying animals’ behaviors will be discussed.

Sensors in general need to be attached correctly with the appropriate positioning, aiming to optimize the results by taking into account the animal’s well-being [34]. They are attached to some part of the body while aligned with its axes. This direct attachment prevents the sensor from moving independently of the animal, which may improve the recorded results [35].

3.1. Animal Activity and Behavior Using Accelerometers

As the name implies, the accelerometer is a device that measures acceleration, which is, by definition, the change in velocity over time [36]. Their utilization in monitoring animal behaviors started in the previous decade [36], and many studies have used this device to evaluate the physical activities of different species. The accelerometer can be distinguished based on the number of used axes, such as a 1-axis accelerometer that measures acceleration in a single direction, i.e., up or down; a 2-axis accelerometer that measures acceleration in two perpendicular directions, typically up/down and left/right; and a 3-axis accelerometer that assesses acceleration in all three dimensions, providing a more comprehensive view of the movement in 3-dimensional space [37]. This can help to sense orientation, coordinate acceleration, vibration, shock, and falling in a resisting medium [37]. In its application in monitoring animals, this tool could be attached to different parts of the body [38], and it can detect distinct changes and variations in the animal’s patterns and status [39]. The studies discussed in this review using accelerometers were mostly performed in the United States and Europe (Table 1, Table 2 and Table 3). Other countries have shown interest in this field of research, such as Australia, New Zealand, China, and Brazil.

3.1.1. Cattle Behavior

Accelerometers are mostly used in recording animals’ daily activities, such as walking, ruminating, and lying, at different times of the day, seasons, and conditions for different species, with each study focusing on a set of behaviors, aiming to be as precise as possible. Studies tend to validate their results using visual observation by experts. Results usually vary from moderately to highly accurate. Cattle and the changes in their behavior have been the topic of several studies. Riaboff et al. [40] were successful in predicting cattle behaviors (grazing, walking, ruminating lying, ruminating while standing, resting while lying, and resting while standing) using a neck-collar accelerometer in a pasture-based system, with accuracy of 98%. Rumination behavior was monitored with an ear-tag accelerometer in a semi-enclosed barn. This behavior was detected with 98.4% accuracy [41] (Table 1a). Another type of behavior was monitored with a neck-collar and ear-tag accelerometer in an intensive system, which considered licking, where the overall performance of both types was acceptable (88 and 98% in accuracy) but with a small advantage in favor of the neck collar [42]. Calves’ behaviors were also monitored, such as suckling behaviors. Kour et al. [18] successfully identified and estimated more than 95% of suckling bouts and durations in a pasture-based system.

3.1.2. Cattle Health and Welfare

Another important matter is cattle health and welfare. Jaeger et al. [43] aimed at assessing cattle’s welfare under a normal production system (rotational grazing scheme) with an ear-tag accelerometer, which was found to be impacted by many factors, such as hygiene, aggressiveness, basic behaviors, and intra-herd rank. Lameness can affect cattle behaviors according to Thorup et al. [19], who used a leg-mounted accelerometer to prove that lame cows in intensive systems tend to spend more time lying down and less time walking. In a rotational grazing system, Tobin et al. [12] aimed at detecting illness before symptoms appeared, which was successful as they noticed a movement decrease in ill heifers 24 h previously. On the other hand, Sutherland et al. [44] considered diarrhea prediction with neonatal calves, noticing changes in behavior 4 days before the diagnosis.

3.1.3. Cattle Reproduction: Estrus and Calving

The accurate detection of estrus and calving is very important for farmers; many researchers have attempted to predict them and observe changes in these periods. Benaissa et al. [45] used several combinations of accelerometers in a free-stall barn environment to detect estrus. This method was successful but was more accurate in the case of using one sensor on the same animal. A sudden behavior change could also indicate the time of calving. Borchers et al. [46] monitored cattle behaviors in a pasture-based environment and precisely detected these changes with sensitivity and specificity of more than 80%.

3.1.4. Accelerometer Accuracy

Comparing accelerometers’ accuracy, or even the validation of new ones by tested devices, has been the subject of numerous studies. In an intensive system, Borchers et al. [47] compared six commercially available accelerometers for different behaviors (lying, feeding, and rumination). Each sensor type was better adapted to some studied behaviors than others (Table 1a). An ear-tag accelerometer for the monitoring of calves’ drinking behavior was evaluated under an intensive system with accuracy of 96.2%. The early detection of changes in this behavior would prevent complications [48] (Table 1a). A noninvasive accelerometer for the monitoring of cattle sleep, attached to the harness, was evaluated, which was very accurate (92.2 ± 0.8%) [49]. The sensor’s position is also a variable that may affect its performance. Aloo et al. [50] studied this factor by placing the device between the dewlap, leg, and harness. They found that the latter was the most adequate. Van Erp-Van Der Kooij et al. [51] compared leg and neck placement and found a good correlation for both sensors for the studied behaviors (with a correlation coefficient of >0.85) except walking.

3.1.5. Sheep Activity and Behavior

Sheep have been the subject of several extensive studies of behavior (Table 1b). Ikurior et al. [52] monitored sheep’s common behaviors using different accelerometer placements in an extensive system, and the overall accuracy was 89.6% for grazing, walking, and resting. Some specific behaviors may also be of interest, such as lying behaviors, which were successfully monitored by a leg-mounted accelerometer in an extensive system, and it has been concluded that many factors can affect sleep, namely sex, age, weight, and pregnancy [9]. Lamb suckling behaviors were investigated by Kuźnicka and Gburzyński [53] using a neck-mounted accelerometer; the detection rate was 95%. The monitoring of behaviors in relation to the diet, like chewing and biting activities, was achieved in a pasture-based environment, with sensitivity for biting and chewing activity (95.5% and 93%, respectively) improving as the time interval increased [54]. Monitoring the herd as a whole, by monitoring some animals and then using the data to predict or deduce the others’ behaviors and classify their behaviors with a neck-mounted accelerometer in a rectangular field, had a success rate of 74.8% [55], which is reasonable given that it is not possible or convenient to study every animal in the herd.

An important task is to evaluate the effectiveness of the sensor on sheep. A comparison between three types of accelerometers with variable configurations was conducted in a pasture-based environment. It was found that behaviors were successfully identified, with the best performance for the ear-mounted device (86% to 95% accuracy) [56]. Another sensor was evaluated to determine which behaviors could be detected easily. In a semi-improved pasture, the authors placed the sensor under the jaw and found that the detection of grazing behavior was the easiest. Another factor that alters the results is the placement of the sensor. Decandia et al. [57] considered three different placements (mouth, nape, and neck) under an extensive system. The neck-mounted device had the best results (90% of accuracy). Various sensors were also evaluated in recording some specific behaviors—for instance, urination events—with an accurate estimation rate of 100% [58], or lameness with three different placements (leg, ear, and neck), with the best results (87% of accuracy) for the leg deployment [13].

In the livestock industry, most research seems to be focused on reproduction and, therefore, parturition and lambing. Gurule et al. [59] studied the variations in ewes’ behaviors around parturition, in an intensive system, and achieved the monitoring of activity with 87.2% accuracy; the system was very helpful in predicting the approach of lambing. A similar study, but in an extensive system, showed that, around lambing time, grazing decreased in favor of other behaviors, such as lying and being active [60]. Concerning the sexual activities of rams, in a pasture-based environment, mounting and service detection were monitored successfully, with overall sensitivity of 77.9% [17].

Accelerometers, as sensors, offer valuable insights into various aspects of ruminant behavior, health, and management; nevertheless, it is important to mention certain challenges associated with accelerometer use, such as the data processing complexity, device attachment considerations, and battery life (Table 4). Farmers, as end users, need to approve and accept the technology, which, in general, can be complex as they tend to prefer the visual approach [61]. According to a study by Van De Gucht et al. [61], farmers were reluctant to use an automatic lameness detection system, but this changed when they were informed about the serious consequences of lameness. Farmers’ interpretation and evaluation of data is a strategic procedure that aims to lead to informed decisions and improve overall livestock management. Key steps include ensuring the accuracy and quality of various sensor data, understanding the key capabilities of PLF technology, and setting benchmarks and goals for performance improvement. Farmers analyze patterns and trends over time, identify correlations between variables, and integrate PLF data into their farm management systems. Using PLF data to support decision making, farmers can adapt their practices, such as reproduction and welfare practices, while continuous training ensures effectiveness. A commitment to constant improvement with regular evaluation is necessary to be able to adapt to future demands.

3.2. Animal Tracking Using GPS

A GPS sensor is a device that can be placed on different parts of the body to track and record animals’ real-time locations, and thus their movement, especially in large pastures [38]. This information on the animal’s position could provide details about the topography, vegetation type, water source locations, grazing locations, calving sites, and temperature [1,62]. GPS is especially useful in large pastures. The position and other data are communicated to a user’s server via global satellites. Therefore, one of its main uses is in monitoring livestock behaviors under pasture conditions. Several authors [63,64,65] have studied different aspects of cattle behavior. Castillo-Garcia et al. [25] evaluated the sheep’s grazing effects on vegetation to determine whether they were beneficial or not for pastures.

The cattle diet was monitored by Orr et al. [66], by tracking their preferred paths. They concluded that cattle favored shorter, easy-to-digest material during the day, while they selected material with higher crude fiber in the evening.

Social interaction with other species was examined by Brown et al. [67]. They studied the influence of the presence of cattle on the behavior of bighorn sheep. The latter stayed vigilant in the presence of cattle, with a noticeable decrease in foraging bite rates.

Ganskopp [3] manipulated the water and salt distribution, in a very large pasture, to determine which was more important to cattle. He found that water was more important, as they shifted towards it whenever they moved, which can be a very effective way to alter the cattle distribution with minimal interference.

There are also studies interested in developing GPS-based systems, such as Halasz et al. [68], who provided near-real-time monitoring with a constructed GPS tracking collar.

These studies and others clearly show the limited potential of GPS. Position data are indeed very helpful in many aspects but combining them with other sensors will allow their full potential to realized. This may include accelerometers, which will be the subject of the next section.

3.3. Accelerometer and GPS Sensor Combination

The combination of accelerometers and GPS increases the accuracy and sensitivity of detailed animal behavior detection [62]. Combining positioning data with other sensors, in general, would provide higher prediction accuracy as different behaviors emerge in different locations. Even with the same movement patterns, the animal’s real behavior could be deduced [69]. The purpose of the combination of different sensors is to obtain higher accuracy in detecting behaviors. For instance, Cabezas et al. [70] successfully classified cattle behaviors with a GPS and accelerometer integrated sensor attached to the neck in a pasture-based environment. The results were quite accurate, with grazing having the highest accuracy (93%) and ruminating (88.1%) having the lowest.

Goat behavioral classification, in an extensive system, was performed during different seasons with this combination, which confirmed that this ruminant tends to spend more time grazing during the spring but travels greater distances during the summer and autumn [23] (Table 1c). The set of data collected from two types of sensors may lead researchers to unexpected results, like Tobin et al. [71], who concluded, while surveying water malfunctioning based on cow behaviors, that the ones that experienced water shortages due to failure tended to stay closer to the water source.

This type of association between sensors is not fully understood. Researchers are still evaluating and testing their optimal use. Sprinkle et al. [72] tested this combination in a pasture-based environment, and patterns of grazing behaviors were accurately identified. In another study, the authors constructed a GPS collar combined with a three-axis accelerometer, and they tested this tool on steers. They had accurate results concerning grazing locations and timings, which tended to be during the morning and evening for 8.67 to 10.49 h per day [73].

There are also some studies of specific behaviors, such as Barker et al. [74], who developed a position- and activity-based system that detected lame cows successfully (accuracy ranged from 80.8% to 94.2%) based on changes in normal behavior. Another application was developed to detect sheep’s parturition. Fogarty et al. [15] used a global navigation satellite system (GNSS) tracking collar and an accelerometer ear-tag in their study. They had moderate accuracy at first, but it could be increased to 91% if an earlier false alert was permissible.

The combination of accelerometers and GPS results in a synergistic relationship that exploits the strengths of both sensors to provide a good understanding of ruminants.

Table 1. (a) Studies on cattle behavior and activity budget in different livestock systems. (b) Studies on sheep behavior and activity budget in different livestock systems. (c) Studies on goat behavior and activity budget in different livestock systems.

(a)
Aim	Technology	Livestock System	Country	Main Result	Reference
Behavior	Accelerometer	Intensive	United Kingdom	Accuracy of 83% in classifying behavior	[24]
			Australia	Accuracy of 88% to 98% in monitoring licking behavior	[42]
			Australia	4-month-old calves suckled fewer times, but for longer	[73]
			United Kingdom	Classification of rumination, eating, and other behaviors with precision of 0.83	[74]
		Pasture-based	France	The accuracy of prediction of the main behaviors was 98%	[40]
		Semi-enclosed barn	United States	Accuracy of rumination detection was 86.2%	[41]
		Three dairy farms	Italy	Accuracy of behavior detection was 85.12%	[75]
		Dairy farm	Italy	Accuracy of classifying behavior was 96%	[76]
	GPS	Extensive	United States	Cattle followed water more than salt	[3]
			Hungary	Weather fronts affected the herd’s route	[64]
		Pasture-based	Malaysia	Observation of the grazing patterns was accurate	[63]
			England	Cattle tended to favor shorter material during the day and material of higher crude fiber in the evening	[66]
		Commercial farm	Spain	Sensor was able to detect hotspots of dung deposition	[77]
	GPS-GPRS	Extensive	Spain	Distance traveled daily was 3147 m	[65]
	Accelerometer, GPS	Pasture-based	Australia	Description of the animals’ movement and some behaviors was successful	[78]
			Spain	Accuracy of classification of behavior was 93%	[70]
	Accelerometer, RFID	Pasture-based	Australia	Accelerometer correlated highly with the observed duration of drinking events	[79]
	Accelerometer, magnetometer	Intensive	Tasmania	Grazing, ruminating, and resting were identified accurately	[80]
	Accelerometer, cameras	Intensive	China	Accuracy of 94.9% in recognizing behavior	[81]
Sensor evaluation	Accelerometer	Intensive	United States	The correlation was high between results of the sensor and visual observations in monitoring behavior	[7]
			Australia	Heavy breathing detected by the sensor correlated well with visual observations	[82]
			Japan	Precision of classifying behavior was 99.2%	[83]
			Germany	Accuracy was 70.8% in monitoring selected behaviors	[84]
			Germany	Accuracy was 96.2% in monitoring drinking behavior	[44]
			United States	Each sensor had high correlation with visual observations for a specific behavior	[43]
			United States	Accuracy was over 92.2% in monitoring sleep	[45]
			Netherlands	The sensor had a correlation of over 0.85 with the visual observation in monitoring behaviors	[47]
			Netherlands	Sensor’s results and visual observations correlated well for monitoring of behavior	[85]
			Netherlands	Sensitivity was over 96.1% for monitoring of behavior	[86]
		Extensive	Brazil	Over-sampling increased accuracy in prediction of grazing behavior	[87]
			Kenya	The harness was more accurate	[46]
		Pasture-based	United States	RumiWatch had accurate results for the studied behaviors	[20]
			Ireland	MooMonitor+, RumiWatch, and visual observation had high correlation for measurement of grazing behavior	[88]
			Australia	Accuracy was 95% to 98.8% in measuring suckling behavior	[18]
			Germany	Rumination and eating behavior were monitored accurately	[89]
			Australia	Grazing, resting, and ruminating were accurately detected	[90]
		Loose-house system	Denmark	The AfiTagII correlated very highly with direct observations and IceQube recordings in monitoring lying behavior	[91]
		Housed in an outdoor dirt floor pen	Canada	Sensitivity and specificity were 95% and 76% for feeding and 49% and 96% for rumination	[92]
	GPS	Pasture-based	United States	The Clark ATS provided real-time tracking	[68]
	Pedometer	A 0.2-ha sown pasture	Japan	Correlation coefficients between the pedometer values and the number of bites were all over 0.9	[8]
		Pasture-based	United States	Distance traveled increased with larger pasture	[6]
	Accelerometer, GPS	Intensive	United Kingdom	Accuracy was 80.8% to 94.2% in detecting variations in feeding behavior	[93]
		Pasture-based	United States	Patterns of behavior were accurately identified	[72]
			United States	Time spent grazing from 8.67 to 10.49 h daily	[94]
	Accelerometer, pedometer	Extensive	Italy	Accelerometer and direct observations for ruminating, feeding, standing, and lying correlated well	[95]
Health and welfare	Accelerometer	Intensive	New Zealand	Change in behaviors began 4 days before the diagnosis	[49]
			Denmark	Lying duration increased by 40 min but walking decreased for lame cows	[19]
		Intensive system with constant access to pasture	United States	The diseases had negative effects on ruminating and walking	[96]
		Rotational grazing system	Australia	24 h before the symptoms, heifers moved less	[12]
		Pasture-based	Germany	Associations found between sensor behavior traits and monitored cow behavior	[48]
	Pedometer	Individual pens (3 m2) in a calf barn	United States	Activity drop before the diagnosis	[2]
Estrus and calving	Accelerometer	Pasture-based	United States	100% sensitivity, 86.8% specificity in detecting changes in behavior	[51]
			New Zealand	Monitoring of behavior was successful	[97]
		Free-stall barn environment	Belgium	Performance increase with more sensors	[50]
		Lactating cows were housed in 2 free-stall pens	United States	Sensors were at least as successful as visual observation in detecting estrus	[98]
	Pedometer, accelerometer	Dairy cattle farms	Germany and Italy	Estrus detection was accurate	[99]
	GNSS	Commercial farms	Spain	Sensor provided indicators on the occurrence of calving	[100]
	Accelerometer, GNSS	32 ha paddock	Australia	Accuracy of 98.6% in calving detection	[101]
Bite rate	Accelerometer	Intensive	Australia	Semi-supervised linear regression model predicted bite rate well	[102]
(b)
Aim	Technology	Livestock System	Country	Main Result	Reference
Behavior	Accelerometer	Extensive	New Zealand	Accuracy of 89.6% for grazing, walking, and resting	[52]
			Wales	Accelerometers correlated perfectly with video observations for lying behavior	[9]
			Poland	Suckling episode detection rate of 95%	[53]
		Pasture-based	Australia	5 s time interval was best in identifying biting and chewing	[54]
		A rectangular field of 110 × 80 m	Denmark	Classification of behavior success was 74.8% for the entire herd	[55]
		Sheep alternating between intensive and extensive system	Italy	Accuracy of 93% in prediction of bite rate	[103]
	GPS	Extensive	Canada	Livestock’s presence had an effect on bighorn sheep’s behavior	[67]
	Accelerometer, gyroscope	Three pasture paddocks of 72 m2	Australia	Behavior classification had accuracy of 87.8%	[104]
Sensor evaluation	Accelerometer	Extensive	Italy	Collar attached was the best with accuracy of 90%	[57]
			Wales	100% accuracy for urination events	[58]
			Australia	Accuracy was best (87%) for the leg deployment	[13]
		Pasture-based	Australia	Ear-mounted sensor was the most accurate with 86% to 95%	[56]
		Semi-improved pasture for the 1st study and a small pen in the 2nd study	Australia	Grazing behavior was the easiest to detect	[105]
		Pasture-based but they were gradually removed from pasture	Italy	The device performed well and the number of bites was accurate	[106]
Parturition and sexual activity	Accelerometer	Intensive	United States	Accuracy of behaviors was 66.7%, and that for activity was 87.2%	[59]
		Extensive	New Zealand	Ewes were more restless around parturition	[60]
		Pasture-based	Spain	Sensitivity for mounting detection was 77.9% and for service detection was 94%	[17]
	GNSS logger, accelerometer	Extensive	New Zealand	Detection of parturition events and lambing activity was accurate	[15]
Effects of grazing on vegetation	GPS	Extensive	Spain	Grazing, depending on its intensity, may benefit or not the pastures	[25]
Health and welfare	Accelerometer	5.5 ha paddock	Australia	Accelerometer-based sensor can identify changes in sheep activity associated with H. contortus infections	[107]
(c)
Aim	Technology	Livestock System	Country	Main Result	Reference
Behavior and activity	GPS, accelerometer	Extensive	Morocco	Sensors monitored accurately the grazing activities of dairy goats	[1,108]
			Morocco	Sensors monitored accurately the grazing activities of meat goats	[23]
		Pasture-based	Germany and Oman	Recognition of eating 87% to 93%, 68% to 90% for resting, and 20% to 92% for walking	[109]
	Accelerometer, gyroscope	Extensive	Argentina	Prediction of behaviors had precision of 85% and recall rate of 84%	[110]

GPS, global positioning system; GPRS, general packet radio service; RFID, radio frequency identification; GNSS, global navigation satellite system; the number of animals (cattle) in the research varied between 3 and 348; the number of animals (sheep) in the research varied between 1 and 96; the number of animals (goats) in the research varied between 1 and 8; Intensive system, continuous supplementation of animals by cereal-based feed or industrial supplements is the standard; extensive system, mainly involves small ruminants and resource-constrained breeders, depending on rangeland; pasture-based, a system that relies significantly on pastures, which include grasses, legumes, and herbs [111].
