Carbon Isotopic Signature and Organic Matter Composition of Cenomanian High-Latitude Paleosols of Southern Patagonia

by
Augusto Nicolás Varela
1,2,
María Sol Raigemborn
2,3,
Patricio Emmanuel Santamarina
4,
Sabrina Lizzoli
3,
Thierry Adatte
5 and
Ulrich Heimhofer
6,*
1
Y-TEC S.A., Consejo Nacional de Investigaciones Científicas y Técnicas (CONICET), Av. Del Petróleo s/n, Berisso, Buenos Aires 1923, Argentina
2
Cátedra de Micromorfología de Suelos, Facultad de Ciencias Naturales y Museo, Universidad Nacional de La Plata, Calle 122 y 60 s/n, La Plata 1900, Argentina
3
CONICET—UNLP, Centro de Investigaciones Geológicas, Diagonal 113 275, La Plata B1904DPK, Argentina
4
División Paleobotánica, Museo Argentino de Ciencias Naturales “Bernardino Rivadavia” (MACN-CONICET), Av. Angel Gallardo 470, Buenos Aires C1405DJR, Argentina
5
Institute of Geology and Paleontology, Université de Lausanne, 1015 Laussane, Switzerland
6
Institute of Geology, Leibniz Universität Hannover, 30167 Hannover, Germany
*
Author to whom correspondence should be addressed.
Geosciences 2021, 11(9), 378; https://doi.org/10.3390/geosciences11090378
Submission received: 20 July 2021 / Revised: 30 August 2021 / Accepted: 1 September 2021 / Published: 8 September 2021
(This article belongs to the Special Issue Terrestrial Paleoclimatology and Paleohydrology of the Cretaceous Greenhouse World)
Browse Figures
Versions Notes

Abstract

:
The Cenomanian Mata Amarilla Formation (MAF) in southern Patagonia (~55° S paleolatitude, Austral-Magallanes Basin, Argentina) is composed mainly of stacked fluvial deposits with intercalated paleosols, which document Cenomanian environments at high-paleolatitudes in the Southern Hemisphere. We performed a multiproxy study of the paleosols and sediments of the MAF in order to (1) understand the composition of the soil- and sediment-derived organic matter (OM), (2) apply carbon isotope stratigraphy as a tool to correlate patterns obtained from the MAF with existing marine and non-marine δ13Corg records worldwide, and (3) investigate the relationship between variations in spore-pollen assemblages of the MAF and the climatic conditions prevailing in the Cenomanian Southern Hemisphere. An integrated dataset was generated, including total organic carbon content, Rock-Eval pyrolysis data, stable isotope (δ13Corg) composition, and palynological data, combined with published paleosol-derived mean annual temperatures and mean annual precipitations. The results indicated that the OM preserved in the MAF paleosols allowed its use as a chemostratigraphic tool. The MAF δ13Corg curve showed the rather stable pattern characteristic for the Early to Late Cenomanian interval. The absence of the major positive carbon isotope excursion associated with oceanic anoxic event 2 provided an upper limit for the stratigraphic range of the MAF. The palynological data suggested the development of fern prairies during warmer and moister periods at the expense of the background gymnosperm-dominated forests. Overall, the multiproxy record provided new insights into the long-term environmental conditions during the Cenomanian in the high latitudes of the Southern Hemisphere.

1. Introduction

The early Late Cretaceous (Cenomanian–Turonian; 100.5–89.4 Ma) was an interval characterized by exceptional warmth, caused by enhanced atmospheric pCO2 concentrations, probably related to elevated rates of continental fragmentation and increased oceanic crust production, together with the formation of large igneous provinces [1]. The pronounced greenhouse climate was marked by globally averaged mean annual temperatures (MATs) being ~8 °C warmer than present day MATs [2,3,4,5,6,7,8,9,10]. Exceptionally warm temperatures and the acceleration of the hydrological cycle [11,12,13,14,15] led to increased primary productivity, causing oceanic anoxia [16,17], expressed in the widespread deposition of organic carbon-rich strata representing the so-called oceanic anoxic events (OAEs; [18,19,20]). Cretaceous OAEs are typically associated with relatively long-lasting positive and/or negative carbon isotope excursions (CIEs) in the range of several per mil (‰), which are interpreted to record shifts in the global carbon cycle [6,19,21,22]. The Mid-Cenomanian Event (MCE) and the Ocean Anoxic Event 2 (OAE2), which span the Cenomanian-Turonian boundary (ca. 94.1 Ma, [14,23,24]), both show a distinct positive CIE well documented from marine successions worldwide [9,25,26,27]. The prominent CIE (3–4‰) associated with the OAE2 has also been documented in the carbon isotopic composition of land plant-derived terrestrial organic matter (OM) obtained from deep marine [28,29] or paralic and continental strata [30,31].
The MCE is a smaller-scale positive CIE (1–1.2‰) recorded in hemipelagic basins of the western Tethyan Sea, North and Tropical Atlantic Ocean [27,32,33,34,35,36] and in continental deposits from Japan [37,38]. Integrated astronomical age models from the Western Interior Seaway of North America date the onset of the MCE to 96.57 ± 0.12 Ma, the peak of the MCE 1a at 96.49 ± 0.15 Ma, and the end of the MCE to 96.36 ± 0.12 Ma [24,39,40].
Herein, we have presented total organic carbon (TOC) contents, Rock-Eval pyrolysis data and organic carbon isotope (δ13Corg) analyses of the sedimentary OM combined with palynological analyses from a Cenomanian high-latitude non-marine succession located in Southern Patagonia, Argentina. We discussed the composition of the soil-derived OM, as well as its preservation, decomposition and transformation in the different types of paleosols. We used carbon isotope stratigraphy as a tool to correlate patterns observed in the Cenomanian terrestrial δ13Corg record from Patagonia, with published δ13C records from successions located in North America and Europe. Finally, we compared the organic geochemical and palynological data with published results of paleosol-derived MATs and mean annual precipitation (MAP) from the same succession in order to understand the relationship between variations in spore-pollen assemblages and the climatic conditions prevailing in the mid-Cretaceous Southern Hemisphere.

2. Sedimentological-Paleopedological Context

The Austral-Magallanes Basin is located on- and off-shore of the southernmost tip of South America (Argentina and Chile), in the area of southern Patagonia (Figure 1) and contains mainly siliciclastic deposits (e.g., [41,42]). The basin formed during two major phases including (i) a rift stage during the Early Cretaceous and (ii) a foreland stage during the Late Cretaceous and Cenozoic (e.g., [41,43]). In response to the regional change from an extensional towards a compressive regime, the Cardiel-Tres Lagos depocenter of the Austral-Magallanes Basin was infilled with estuarine-terrestrial deposits of the Mata Amarilla Formation (MAF) [42,44,45]. The paleolatitude of the study site is estimated at ~55° S during the early Late Cretaceous [46].

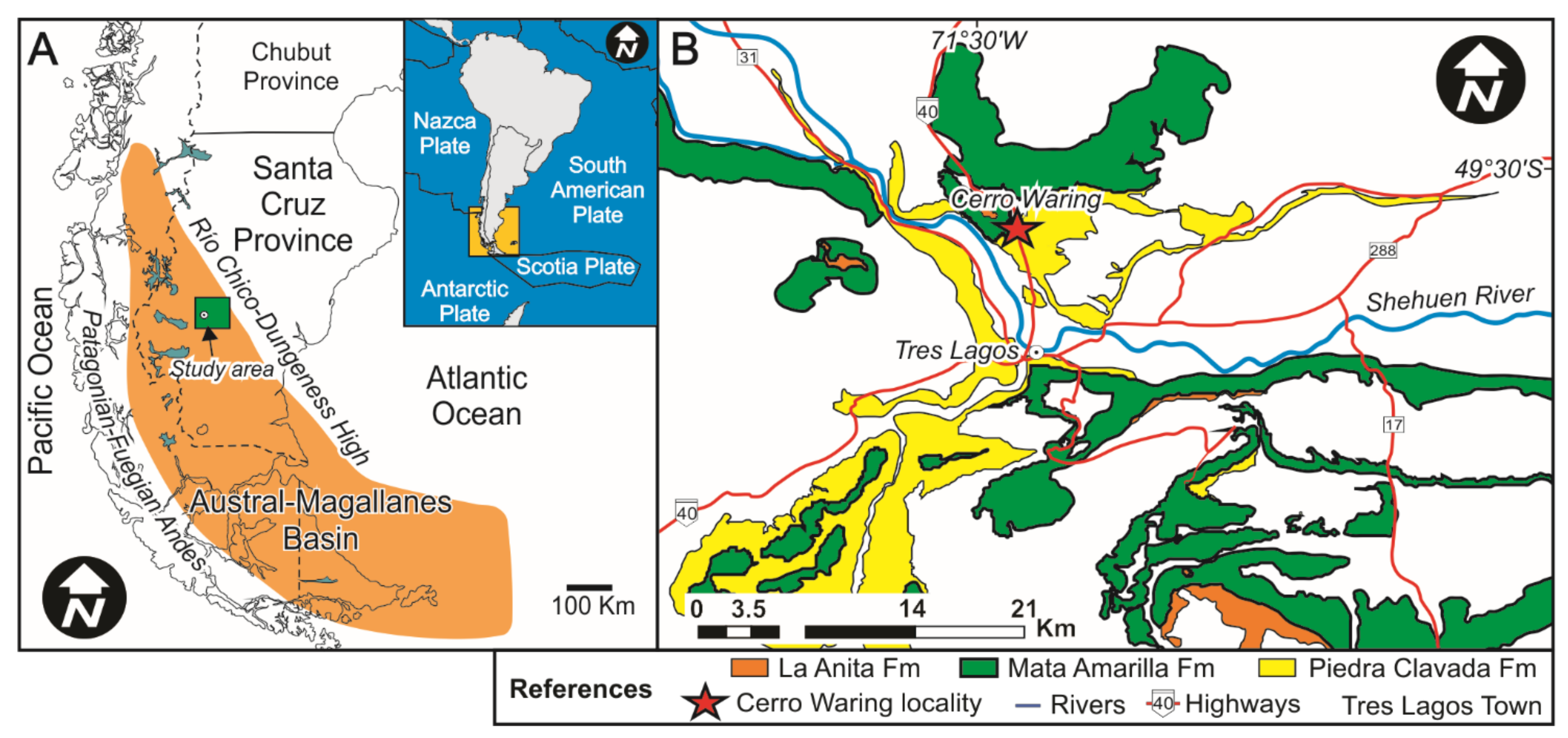

The MAF crops out extensively in southwestern Santa Cruz Province (Figure 1) and is composed mainly of stacked fluvial deposits intercalated with paleosols [8,44,47,48]. The succession is characterized by an alternation of grey and black mudstones and thick white fine- to medium-grained sandstones [47,48]. Based on sedimentological observations and sequence stratigraphic analysis, the MAF was divided informally [48] into three units. The lower unit represents a coastal plain and lagoon environment, the middle one a fluvial meandering system, and the upper unit is characterized by more distal fluvial meandering/coastal plain deposits.
In the study area (Cerro Waring locality; Figure 1 and Figure 2a), the MAF covers ~125 m in thickness and the entire sequence is exposed (i.e., lower, middle and upper sections/units; [44]). The contact between the underlying Piedra Clavada Formation and the base of the MAF was assigned to the Albian-Cenomanian boundary (~100 Ma; [44]) based on the occurrence of Mohria-like spores [49]. Recent U/Pb radiometric age dates based on zircons from the uppermost Piedra Clavada Formation in the Cerro Waring locality constrain the age to 101 ± 0.9 Ma ([50]; Figure 2A). A U/Pb zircon age obtained from the middle section of the MAF gave an age of 96.23 ± 0.71 Ma (Middle Cenomanian; [44]; Figure 2A). The MAF succession at Cerro Waring was erosionally truncated by an unconformity surface. Above, the Campanian La Anita Formation was deposited, according to detrital zircon maximum depositional ages ([51,52,53]; Figure 2A).
In the Cerro Waring area, the MAF contained a succession of stacked paleosols that showed a trend from Histosols and Vertisols in the lower section towards Vertisols, Inceptisols and vertic Alfisols in the middle section and finally ended with Histosols and Vertisols in the upper section ([8,44]; Figure 2A). Macro- and micromorphological analyses together with clay mineralogical, and geochemical data (Table 1) indicated that vertization (shrink-swell processes related to Vertisol formation), hydromorphism, clay illuviation, and bioturbation were the main pedogenic processes that took place in the MAF’s paleosols [8]. Histosols (25% of all paleosols in the measured sections) represent wetland paleosols (i.e., paleosols developed in lowland coastal areas) formed under impeded drainage conditions, which conditioned the hydromorphism that was the primary pedogenic process. Vertisols and Inceptisols (60 and 12%, respectively) developed within the fluvial system and formed paleocatenas (i.e., Vertisols developed in proximal floodplain settings, and Inceptisols formed in distal floodplain areas). Although vertization constituted the main pedogenic processes in these Vertisols, hydromorphism was evident in both Vertisols and Inceptisols. Vertic Alfisols (3%) exclusively developed right above the sequence boundary between the lower and the middle section of the MAF (Figure 2A), and were related to a forced regressive surface associated with the widespread preservation of a podocarp-dominated fossil forest over a vast area (more than 5400 km2) [54,55]. Clay illuviation and vertization were the principal pedogenic processes that formed the vertic Alfisol ([55]; Table 1). Paleosol features (see Table 1) and paleosol-derived climofunctions (see below) suggested that they developed under moderate hydrolysis and under a wide range of weathering conditions. The abiotic-based reconstructed climate was considered as subtropical temperate—warm and seasonally humid with MATs throughout the sequence averaging 12 ± 2.1 °C, with mean annual precipitations (MAP) averaging 1404 ± 108 mm/yr [8]. Biotic (i.e., paleobotanical) proxies indicated similar climatic conditions [55,56,57,58].

3. Materials and Methods

All samples were taken from ~30 cm deep trenches in order to obtain fresh, nonweathered material and avoid contamination with modern organic carbon (OC) sources. A total of 97 bulk rock samples were collected, including all types of paleosols (with sampling focusing on the B-horizons) and channel, crevasse splay and lacustrine deposits to determine the δ13Corg of the sedimentary OC. In addition, TOC content measurements and Rock-Eval pyrolysis were carried out on 68 bulk samples derived from Histosols, Inceptisols, Vertisols, and lacustrine deposits. A total of 13 samples were processed for palynology and the spore-pollen assemblage was analyzed.
The sedimentary OM analysis was performed using a Rock-Eval 6 pyrolysis (Vinci Technology), available at the University of Lausanne, Switzerland, described in [59,60]. About 50–60 mg of sample powder was analyzed for each paleosols horizon and lacustrine deposit. The method is based on the stepwise pyrolysis and combustion of OM, releasing CO and CO2 gases monitored by a flame ionization detector (FID) for pyrolysis and an infrared detector (IR) for combustion under an artificial air supply (N2O2 20/80). TOC content, Hydrogen Index (HI) and Oxygen Index (OI) were calculated by integrating the amounts of hydrocarbon compounds (HC), CO, and CO2 produced during thermal cracking of OM and oxidative decomposition of carbonate, between defined temperature limits [59,60]. Although 69 bulk samples of the MAF were analyzed, two of them were dismissed because TOC values were extremely high (29.77 and 27.38%, respectively). These off-scale TOC values may reflect the presence of pieces of coal or large plant debris within the samples. On the other hand, samples with TOC contents below 0.11 wt% and OI higher than 500 (n = 26) exhibited poor reproducibility and consequently, they were excluded from further interpretation.
Measurements of δ13Corg were carried out on decarbonated samples. Powdered samples were treated twice with 6M HCl for 12 h to remove any carbonate phases and rinsed subsequently with deionized H2O until neutrality was reached. The δ13C composition of bulk OC was determined using an organic elemental analyzer (Thermo Scientific Flash 2000) connected online to a Thermo Fisher Scientific Delta V Advantage IRMS, available at the Leibniz University Hannover, Germany. The analytic accuracy and reproducibility are checked by replicate analyses of international standards (NBS 22). Reproducibility was better than ±0.1‰ for δ13Corg. Values are expressed in conventional delta notation relative to the Vienna-Pee Dee Formation belemnite (VPDB) international standard, in per mil (‰).
For palynological analysis, rock samples were treated with HCl to remove carbonates and with HF for silicate removal. Residues were sieved, dehydrated with alcohol, and mounted in a UV-curable acrylate following procedures described by [61]. Strew mounts were investigated using a Leica DM500 transmitted light microscope and photographed with a Leica ICC50 HD camera. For palynomorph quantification, a minimum of 250 individual sporomorphs were counted (average 299 sporomorphs). The individual spore-pollen grains were assigned to floral groups according to their botanical affinity [62]. The stratigraphic frequency distribution of the palynomorphs is shown as a percentage of the total assemblage.
MAT proxies were calculated based on the salinization ratio (SAL) (MAT = −18,516 (SAL) + 17,298), where SAL = (Na + K)/Al); and PWI (Paleosol Weathering Index) based (MAT = 2.74 ln (PWI) + 21.39, where PWI = 100 × [(4.20 × Na) + (1.66 × Mg) + (5.54 × K) + (2.05 × Ca)] [8]. MAP was calculated with different quantitative proxies. (i) MAP estimation based on ΣBases/Al where MAP = −259.3 ln (ΣBases/Al) + 759; (ii) MAP proxy based on the CIA-K index where MAP = 221.12e 0.0197(CIA-K); and (iii) MAP proxy based on the CALMAG index, where MAP = 22.69 (CALMAG)–435.8 [8].

4. Results

All organic geochemical analyses (including δ13Corg, TOC, Rock-Eval pyrolysis), paleosol-derived geochemical climofunctions (MAT and MAP; [8]) and palynological investigations were carried out using the same bulk rock sample (see Figure 2) in order to provide a consistent data-set and to eliminate potential stratigraphic errors.

5. TOC and Rock Eval Pyrolysis

The TOC content of the MAF deposits ranged from 0.02% to 0.81%, with an average value of 0.22% (Figure 2A and Figure 3A). Samples of the same type of lithology showed considerable variability in TOC contents (see Figure 3A), suggesting significant heterogeneity of organic richness of the paleosols/sedimentary deposits. Lower mean TOC contents were recorded in Inceptisols samples, while highest mean TOC contents were observed in Histosols and lacustrine deposits (Figure 3A). The stratigraphic TOC trend across the MAF showed several intervals characterized by increased TOC (Figure 2a). In the lower part of the MAF (between 0 and 30 m) there were two intervals (1 and 2 in Figure 2A) with TOC maxima reaching up to ~0.60 wt. %. In the middle section (between 45 and 60 m) another interval was identified (interval 3 in Figure 2A) with TOC values of up to 0.81 wt. % TOC. Finally, in the upper part of the section (between 105 and 130 m) TOC content reached up to 0.70 wt. %.
Rock-Eval pyrolysis of the kerogen yielded HI values ranging from 9 to 123 mg HC/g TOC (avg. 73 mg HC/g TOC), OI values ranging from 47 to 479 mg CO2/g TOC (avg. 178 mg CO2/g TOC), and Tmax values fluctuating from 400 to 601 °C (avg. 452 °C). HI and OI values showed certain variability between samples of the same type of paleosol (Figure 3B). The highest and lowest HI and OI values were recorded in Vertisols. The average HI value of Histosols (~56), Vertisols (~53) and Inceptisols (~71) were close to the general average (~73) and lower than the HI value of the lacustrine deposits (~111). On the other hand, OI values of lacustrine strata (~198), and average values of Vertisols and Inceptisols (~198 and ~189, respectively) were similar to the general OI average (~178). The average OI of Histosols (~129) was lower.

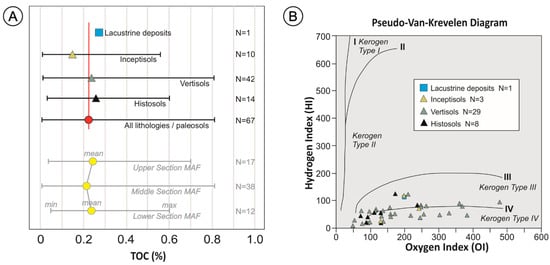

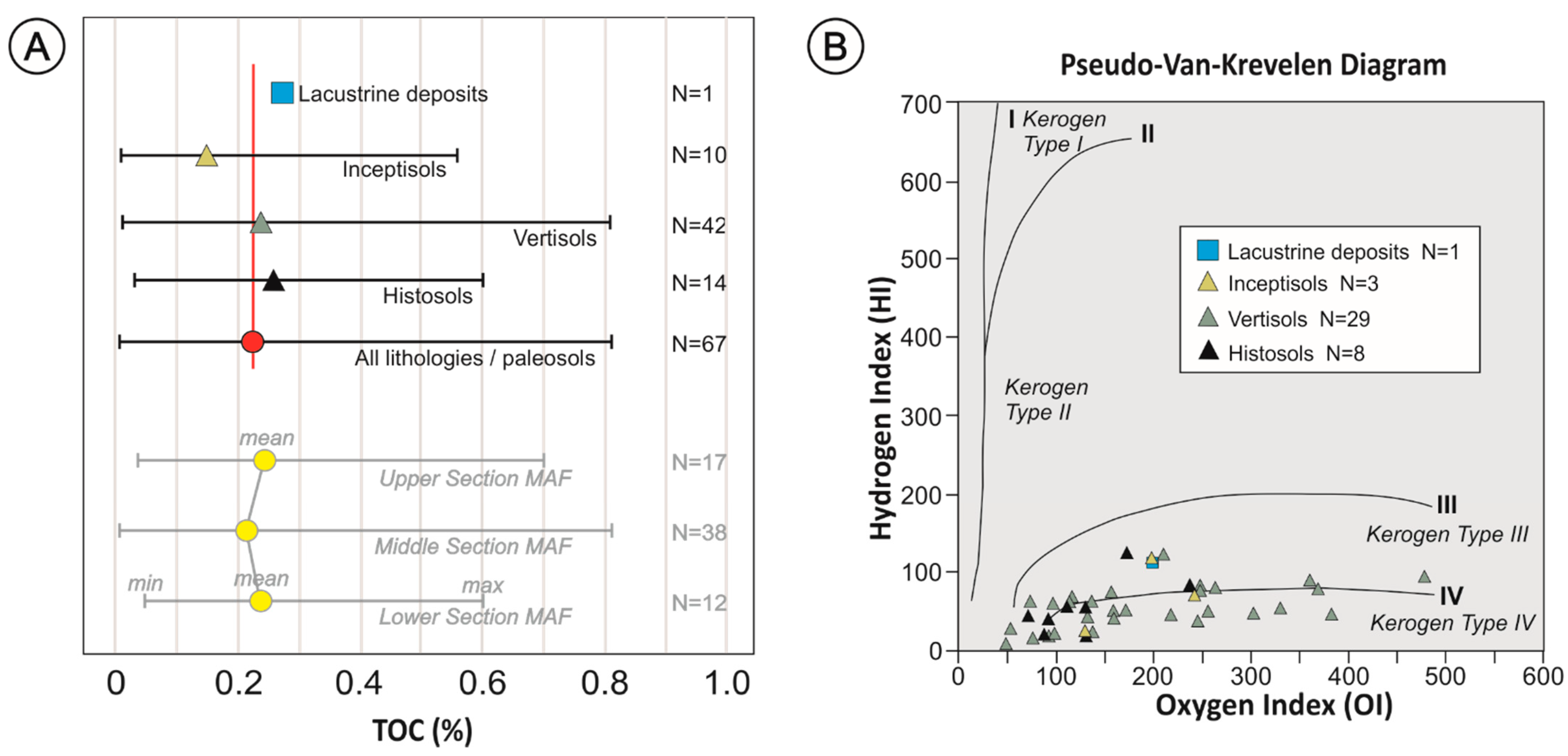

The assessment of the kerogen type was based on a pseudo-Van-Krevelen diagram (Figure 3B). The sedimentary OM preserved in the MAF can predominantly be assigned to kerogen types III and IV (e.g., [63,64]).

5.1. Carbon Isotope Analysis

The average δ13C composition of the sedimentary OM in the analyzed MAF succession was −24.5‰, with values ranging from −23.3‰ to −30.2‰ (Figure 2A). The different sediment types and paleosols were all characterized by a rather similar average δ13Corg composition but showed differences in their isotopic variability (Figure 2B). Amongst paleosols, Inceptisols showed the smallest internal variability (−23.7‰ to −26.1‰, avg. −24.7‰) whereas Histosols showed a much larger scatter (−23.5‰ to −30.3‰, avg. −24.8‰). Vertisols showed moderate variation in their δ13Corg composition (−23.3‰ to −28.2‰, avg. −24.3‰). Alfisols (−23.8‰, single analysis) were less negative compared to the average pedogenic OM. The OM preserved in lacustrine deposits showed considerable variation (−24.6‰ to −28.2‰) and comparatively low values (avg. −25.9‰). In contrast, crevasse-splay and channel deposits showed values of −24.7‰ and −23.9‰, respectively. The δ13C signature of the bulk OM did not show a covariance with TOC content (Figure 2C).

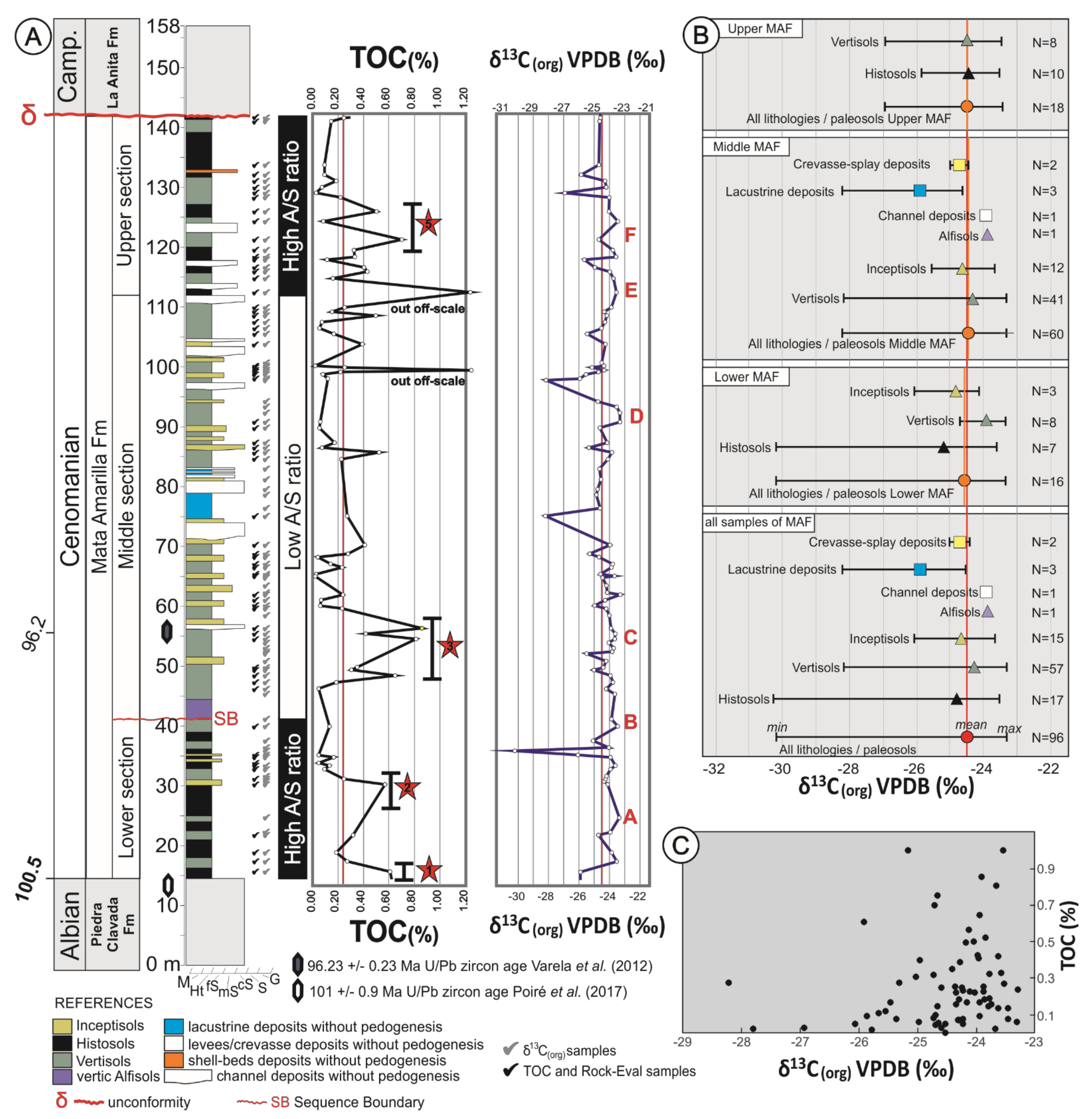

The stratigraphic δ13Corg trend was relatively stable throughout the succession, interrupted only by a few distinctive negative peaks (Figure 2A). Positive shifts (>1‰ above average) were labeled with capital letters from “A” to “F” (Figure 2A). The lower section of MAF showed a positive trend “A” (1.1‰) with maximum δ13Corg values reaching −23.4‰ (at 25 m), which was abruptly terminated by a distinct negative peak reaching values of −30.2‰ (at 36 m). The middle section of the MAF was characterized by positive trends “B” (−23.4‰; at 40 m) and “C” (−23.6‰; at 55 m), which coincided with the radiometric age of 96.23 ± 0.71 Ma [44]. This was followed by a negative peak (−28.20‰) at 75m, which coincided with the onset of lacustrine strata. Then, values remained stable until the positive trend “D” (−23.3‰, at 92 m), which gave way to a negative peak (−28.16‰, at 97 m). The upper section of the MAF started with a positive shift “E” (−23.5‰, at 103 m), which was followed by a second positive shift “F” (−23.6‰, at 118 m). The uppermost part of the MAF ends with a negative peak (−26.9‰, at 129 m).

5.2. Palynology

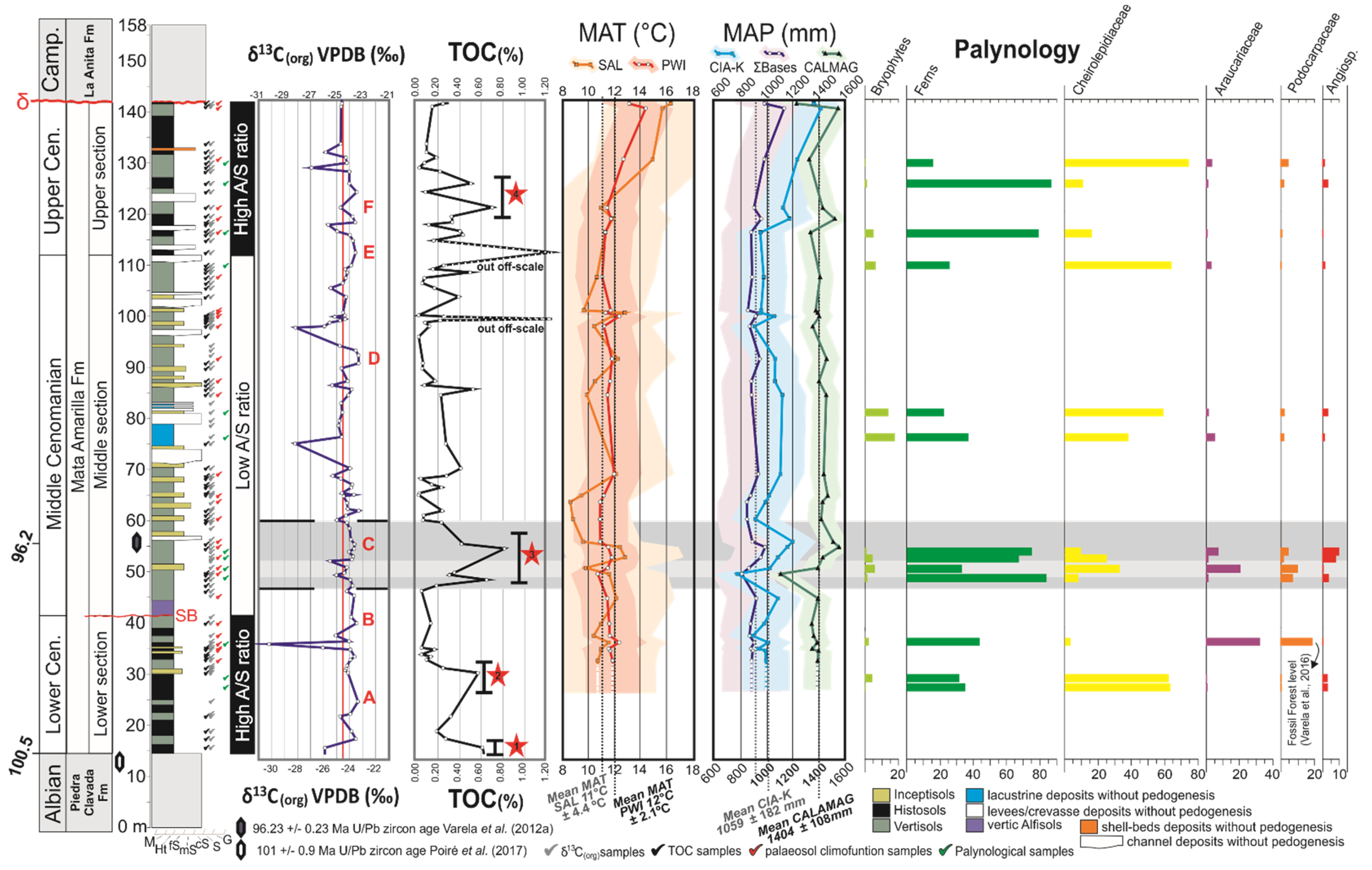

The spore-pollen assemblage obtained from the MAF (Figure 4) was dominated by different pteridophyte spores (mainly Cyathidites sp., avg. 48.4%), and pollen grains produced by Cheirolepidiaceae (Classopollis spp.; avg. 35.1%). Other sporomorphs assigned to Bryophyta accounted for only 4.5% on average. Araucariaceae (Cyclusphaera ssp.) and Podocarpaceae (mainly Podocarpidites spp.) pollen grains also showed low values on average, with 5.5% and 3.8%, respectively. Angiosperm pollen represented the smallest fraction of the assemblage, with an average of 2.6%.
Cheirolepidiaceae pollen and fern spores showed opposing stratigraphic trends. When the Cheirolepidiaceae rose in abundance, ferns decreased in their proportions, and on the contrary, when the Cheirolepidiaceae receded, ferns showed high proportions (Figure 4). Podocarpaceae and Araucariaceae were more abundant in the uppermost lower section and the base of the middle section. In the upper half of the succession, the proportions of Podocarpaceae and Araucariaceae decreased significantly. Angiosperm proportions were low throughout the succession (0.4–1.5%), with the highest proportion concentrated toward the base of the middle section (6.8–13.8%) (Figure 4).

6. Discussion

6.1. Composition of the Paleosol-Derived (and Sedimentary) Organic Matter

The accumulation of OC in fossil soils was influenced by an array of preservation and degradation factors, including redox state as a primary control. Additionally, depth of the soil horizon, texture and type of horizon, clay mineralogy, sulfur content, abundance of amorphous mineral phases and diagenetic alteration were identified as important factors affecting the composition and distribution of OM in paleosols [65,66]. The dominant source of OC in soils is plant litter, microbial biomass and/or metabolites. Selective microbial decomposition of the more labile OM fraction results in OC loss and relative enrichment of the more recalcitrant compounds and particles in fossil soils (e.g., [67]). Compared to modern soil counterparts, paleosols contained only a fraction of the original soil OC due to burial decomposition [65].
Fossil soils developed in alluvial/fluvial depositional environments represent favorable settings for the storage of OC [66]. The MAF is composed of stacked fluvial deposits intercalated with abundant paleosols, which account for 81% of the total succession. Paleosol types represent Histosols, Vertisols, Inceptisols and subordinate vertic Alfisols, which formed under a temperate–warm, seasonally humid climate at a paleolatitude of 55° S [8,54].
The particulate OM observed in the MAF paleosols was essentially composed of translucent and opaque woody fragments, charcoal particles, and cuticle debris, as well as spores and pollen grains. The good preservation of the OM indicated that the level of diagenesis did not overprint the primary pedogenic signature. A well preserved palynological assemblage of the MAF was described by [58] with individual sporomorphs showing delicate wall ornamentation, which illustrated the overall good preservation state of the particulate OM fraction. The OM is considered to be mainly autochthonous in origin with only limited contribution from detrital OC inputs via eolian transport or from weathering/erosion of pre-Cretaceous strata in the hinterland. Average TOC content of 0.25% of the MAF paleosols are similar to Cenomanian paleosols from SW Japan, where the average TOC content is 0.2% [68], and Cenomanian paleosols of the Western Interior Basin (USA), where the average TOC is < 0.3% [31]. TOC content varies depending on paleosol type, with the highest average TOC contents of 0.26% observed in Histosols and interpreted to reflect attenuated burial decomposition due to soil formation under reducing and waterlogged conditions. In contrast, lower average TOC contents of 0.14% have been observed in Inceptisols, which represent weakly developed and poorly structured paleosols formed over relatively coarse textures in levees and crevasse-splay deposits under well drained conditions. Under such conditions, soil OM is more rapidly oxidized. Vertisols occur in the MAF in the form of moderately developed smectite-rich soils that formed under moderate to poor drainage conditions. Average TOC contents of 0.23% indicated preservation of a certain particulate OM fraction. All MAF paleosols showed strong variability in TOC contents, which may reflect the fragmentary preservation/fossilization of original surface-to-depth TOC gradients [65]. Additionally, lacustrine strata lacking pedogenesis was characterized by moderate TOC contents of 0.27%, interpreted to reflect OM accumulation under predominantly oxic/dysoxic conditions.
Based on Rock-Eval pyrolysis, small-scale variations in HI and OI average values of the MAF paleosols were observed. Inceptisols showed, on average, slightly higher HI values (~71) compared to other paleosols (~53 and 56 for Vertisols and Histosols, respectively). These relatively slightly high HI values could be due to the fact that the Inceptisols formed rapidly during a short time-span, which was not sufficient to allow the transformation of organics into humic and fluvic acids. Similarly, the moderate OI values of the Inceptisols (~189) could reflect their formation over relatively coarse-textured sediments (i.e., levees and crevasse splay deposits) under well drained conditions [8], which allowed the rapid oxidation of the OM. These HI and OI values of the Inceptisols indicated that the kerogen essentially derived from land plants deposited under predominantly oxic conditions (Type III) and from refractory OM (Type IV) (e.g., [69]). Although Vertisols and Histosols presented similar HI average values, Vertisols showed a wider range compared to Histosols. Relatively low HI in the Vertisols is in agreement with their formation under shrinking and swelling of smectite clays, which allowed the transformation of OM into humic acids and, to a lesser extent, into fulvic acids. Meanwhile, low HI in Histosols attested to a low modification of organics. Vertisols showed the highest OI average value (~198), which could be due to their formation under moderate−poor drainage conditions with subordinate oxidation during dry seasons [8]. Such conditions could have prevented the extensive oxidation of the OM that is reflected in high OI values. In the case of the Histosols, waterlogged conditions, typically of this paleosol type, were reflected in the lowest OI average values (~129) of the MAF’s paleosols. Subtle differences between Vertisols and Histosols can also be attributed to different analyzed horizons being organo-mineral (O or A horizons) in Histosols and mineral (B horizons) ones in Vertisols (e.g., [70]). In general, the low HI and the variable OI of the Vertisols and Histosols typically represent the kerogen Type IV, which is derived from refractory OM that may have been altered by subaerial weathering and/or microbial oxidation in swamps or soils (e.g., [63]). Kerogen Type IV with relatively low OI as those of the Histosols and some Vertisols reflects more anoxic conditions than soils with moderate–high OI (i.e., several Vertisols). However, a small population of Vertisols corresponded to kerogen Type III (e.g., [63,64]). The OM in the lacustrine deposits of the MAF came mainly from the fluvial system; small HI values may reflect a predominantly terrestrial origin, but it is possible that in situ production of algae could have contributed to the total sedimentary OM. In summary, all analyzed paleosols showed only minor variations in HI and OI values, indicating a similar OM composition throughout the MAF.
In general, no significant transformation of the primary plant-derived δ13C signature occurs during decomposition of plant litter and subsequent incorporation of organic byproducts into the soil OM pool [71]. Hence, the δ13C composition of soil OC was expected to predominantly reflect the isotopic signature of the original plant community contributing OC to the soil. The fluvial settings and coastal plains preserved in the MAF were covered by a conifer-dominated vegetation with a fern understory as indicated by palynological findings and by remnants of a podocarp-dominated fossil forest [55,58]. The overall average δ13C composition of paleosol-derived OM in the MAF was −24.5‰, which corresponded well to reported values for mid-Cretaceous C3 plant vegetation. Similar δ13C signatures have been reported for Cenomanian (pre-OAE2) fossil wood fragments derived from deep-water siliciclastics deposited along the NE and NW Pacific margin [29] as well as from time-equivalent bulk terrestrial (plant-derived) OM deposited in the Western Interior Basin [31]. The stratigraphic carbon isotope trend of the MAF was punctuated by several isolated negative δ13Corg shifts reaching values as low as −30.2‰. Such significantly depleted values in the bulk OM signature may indicate higher contributions from aquatic sources (i.e., algae) and/or incorporation of methanotrophs (i.e., organisms which consume isotopically negative methane; [72,73]), or marine-derived OM contribution in coastal plain environments [31]. Alternatively, the negative OM signature may reflect extreme aerobic microbial degradation in carbon-poor soils or might be related to closed canopy conditions and enhanced CO2 recycling in the understory [72,73,74]. An isolated negative peak at 75m corresponded to lacustrine strata, which is often characterized by rather negative δ13Corg signatures.
However, based on more recent observations from modern soils and Cenozoic paleosols, [72] were able to demonstrate substantial δ13C fractionation during OC decomposition resulting in preferential enrichment of 13C of up to ~6‰ in the residual OC preserved. Despite the observed scatter in δ13C values obtained from the MAF paleosols, no values exceeding −23.3‰ were observed, which contradicted strong fractionation due to progressive decomposition and 12C removal. The absence of a clear relationship between paleosol TOC and δ13C values in the MAF (Figure 2C) did not support the idea of enhanced OC decomposition paralleled by 13C enrichment. Visual and geochemical inspection provided no evidence for strong alteration of the δ13C signature during deep burial diagenesis since the overall preservation was good and the OM was thermally immature. In general, it is assumed that variations in δ13C signatures of plant/soil OC caused by ecological and physiological vital effects are averaged spatially due to incorporation of plant debris from various sources into floodplain sediments and soils [75]. The carbon isotope measurements from the MAF were independent of paleosol type and depositional environment, which demonstrated that the δ13C signature of pedogenic OC, although altered, was not strongly biased due to taphonomic/pedogenic processes. Therefore, isotopic analyses of bulk OC in the MAF deposits approximate the many-species average sample that best minimize physiological vital effect bias [75] and can serve as a tool to track changes in the global ocean-atmosphere δ13C reservoir.

6.2. Comparison with Existing Marine and Terrestrial Carbon Isotope Records

CIEs are widely used as stratigraphic markers and considered to record isotopic variations isochronous on a global scale [22,76]. Some major CIEs have been reported from both, marine and non-marine sedimentary successions, which indicates involvement of the entire ocean-atmosphere system (e.g., [31,77,78]). Common substrates used for carbon isotope studies in continental environments are pedogenic nodules, lacustrine or palustrine carbonates [77,79,80] as well as fossil wood or other plant-derived particles [81,82,83,84,85]; meanwhile, bulk OC from terrestrial sediment or paleosol is less frequently used (e.g., [79,86,87]). Despite variations in absolute values and an often higher stratigraphic variability in terrestrial substrates, the overall trends and changes observed in marine reference curves are well reproduced in continent-derived δ13C records (e.g., [33,37,78]). Due to the lack of carbonate nodules or fossil wood particles in the paleosols of the MAF, and in order to obtain regularly spaced sampling throughout the studied succession, a δ13Corg record based on bulk OM was established. The carbon isotope trend of the paleosol-derived OM elucidated a detailed chemostratigraphy for the Cenomanian stage of southernmost South America. The pattern visible in the δ13Corg record was independent of changes in lithology and not strongly affected by the type of paleosol or TOC content.

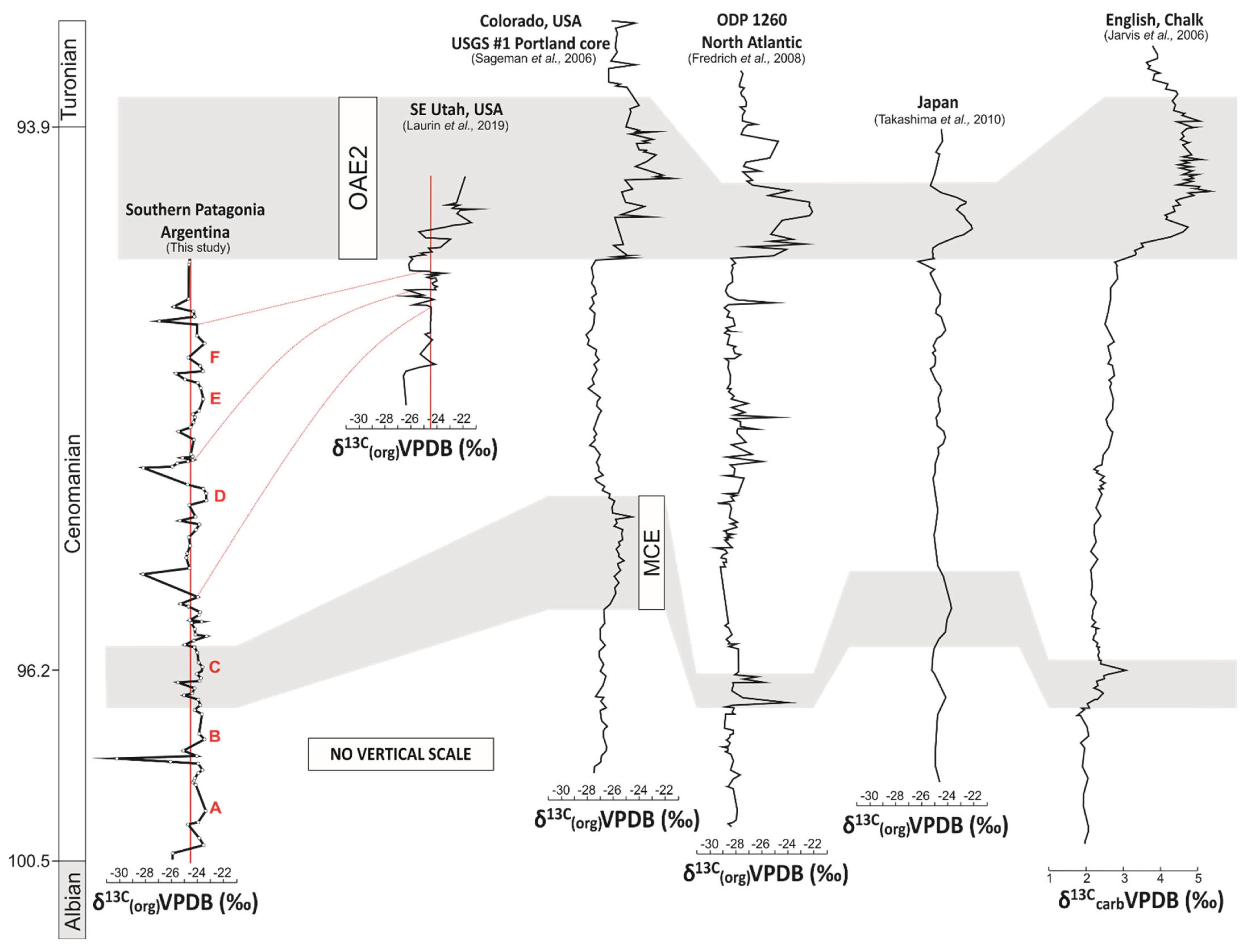

Detailed Cenomanian δ13Ccarb records have been established for certain parts of Europe, including those from the United Kingdom [32,88,89] and from the Vocontian Basin of SE France [90] which are regularly used as references in global comparisons [36]. The Early Cenomanian δ13Ccarb trend from European records is characterized by a relatively stable pattern [25,32], which is replicated also in the δ13Corg stratigraphic record obtained from the Western Interior Basin of North America [91]. Likewise, stable Early Cenomanian carbon isotope values have been reported from Japan [37,38] and from sections in Peru [92]. A similar stable pattern has been observed in the Lower Cenomanian part of the paleosol-based δ13Corg curve from southern Patagonia (Figure 5).
The stable Early Cenomanian δ13C global trend is terminated by a short-lasting, small-amplitude positive CIE located at the onset of the Middle Cenomanian at ~96 Ma [25,26,89]. This so-called MCE [93] is recognized globally and typically composed of two closely spaced positive δ13C peaks, MCE Ia and MCE Ib [26]. Although the MCE Ia is characterized by the occurrence of black shale deposits in ODP Leg 207 [94], it is not considered as an OAE. The MCE also differs from OAEs by its lower amplitude CIE of about 1‰ compared to about 3‰ for OAE2 [26,36]. The positive δ13Ccarb anomaly of the MCE observed in Europe, North America and Asia is not well expressed in the MAF δ13C record. Its stratigraphic position can be approximately constrained based on the U-Pb age of 96.23 ± 0.71 Ma at ~55 m [44]. The presence of two low-amplitude positive δ13Corg shifts “B” and “C” (0.9 and 1.8‰, respectively) may correspond to the reported δ13Ccarb shifts of 0.8 and 1.2‰, which are associated with the MCE in sections of the English Chalk ([88]; Figure 5). Similarly, positive shifts in δ13Corg in the order of 0.9 and 1.2‰ have been recorded for the MCE in Japan ([37,38]; Figure 5). In a δ13Ccarb curve obtained from northern Peru, similar tendencies are displayed and have been assigned to the MCE [92].
The absence of further geochronological data or of higher-resolving terrestrial biostratigraphy for the upper part of the studied section hampered any detailed stratigraphic correlations. However, when comparing the trends of the paleosol-derived δ13C record from southern Patagonia with global curves, some general statements can be made.
The remaining part of the Middle Cenomanian and the early Late Cenomanian showed a gentle increase in δ13Ccarb, which abruptly gave way to the prominent positive CIE associated with OAE2 [36,95]. For the same interval, the δ13Corg records showed a slightly different stratigraphic pattern, characterized by a stable or gradual trend toward more negative δ13Corg values [34,36]. A significant and abrupt increase of carbon isotopes values (~2–3‰) was the main characteristic feature of the OAE2 (e.g., [31,33,34,36,38,88,89,92,96,97] among others) and could be correlated in stratigraphic sections distributed worldwide (Figure 5). Comparisons of the δ13Corg curve from southern Patagonia with high-resolution curves from North America, the equatorial Atlantic, Europe and Asia revealed the absence of the characteristic positive MCE and Late Cenomanian-Turonian CIE in the studied MAF (Figure 5).
The absence of the MCE and Late Cenomanian-Turonian CIE could be explained due to (i) a preservation issue, (ii) masking of the CIE due to changes on OM composition, or (iii) erosion/non-deposition. The pronounced CIE associated with the OAE2 has been recorded previously in various types of continent-derived substrates including fossil wood, terrestrial particulate OM and plant wax-derived n-alkanes [28,29,31,96,98]. This clearly illustrated that the carbon cycle perturbation associated with the Late Cenomanian-Turonian event did affect the entire ocean-atmosphere system, including the δ13C composition of atmospheric carbon species. Since the dominant source for OM in paleosols is plant-derived debris, a δ13C change in the order of several per mil (‰) of atmospheric CO2 would be expected to be recorded in this type of substrate.
Changes in the composition of sedimentary bulk OM (e.g., change in the ratio of aquatic vs. land plant-derived OM) can have a significant impact on its δ13C composition [31,73,82]. A local and persistent shift towards OC with a more negative carbon isotopic composition (e.g., [31]) could theoretically counterbalance the impact of a global positive anomaly. However, neither optical inspection nor RockEval pyrolysis results provided evidence for a major change in OM composition in the upper stratigraphic interval of the MAF.
The studied succession of the MAF in the Austral-Magallanes Basin was predominantly composed of nonmarine strata, essentially represented by fluvial siliciclastic alternating with paleosols [8,44]. Continental deposits are known to be highly fragmentary and prone to erosion; stratigraphic continuity cannot be expected (e.g., [99]). The top of the MAF is marked by an erosive unconformity, which forms the base of the Campanian deposits of the La Anita Formation ([51,52,53]; Figure 2A. This unconformity has been related to the foreland stage in the Austral-Magallanes Basin and the growth of the proto-Andes [100]. The absence of the Late Cenomanian-Turonian CIE in the MAF is best explained by non-deposition and/or post-depositional erosion due to regional tectonic activity [42,48].
From the comparison with the global curves, it was suggested that the uppermost part of the MAF would be restricted to the Upper Cenomanian, just before the onset of the OAE2 (Figure 5), generating a temporary stratigraphic constraint that was not available until now.

6.3. The Mata Amarilla Formation as Environmental Archive

Palynological data from the Lower Cenomanian of the MAF indicated a conifer forest dominated by Cheirolepideaceae with a lush understory composed of ferns and bryophytes (Figure 4). [101] proposed that the xeromorphic characteristics present in the leaves of Cheirolepidiaceae helped them to reduce loss through respiration and transpiration during the long periods of winter darkness in higher latitudes. These features would make the Cheirolepidiaceae the most suitable conifer group to flourish in the MAF, since the study area was located at ~55° S paleolatitude during the Cenomanian, resulting in long and dark winters [8]. However, other factors must have affected the abundance of the Cheirolepidiaceae in the MAF (e.g., mean annual precipitation), since their abundances varied strongly throughout the succession (Figure 4). Subsequently, the Cheirolepidiaceae proportion decreased sharply and the proportions of ferns, Araucariaceae and Podocarpaceae rose. This type of vegetation is similar to the extensive open conifer-dominated forests developed in wet lowland areas under a warm climate described by [55] for the Middle Cenomanian of the MAF. Large forest glades resulted in multiple open spaces that were occupied mainly by ferns.
During the early Middle Cenomanian, low abundances of gymnosperm pollen were accompanied by the highest fern spore and angiosperm pollen proportions recorded in the section. This could be interpreted as a reduction of the gymnosperm density, allowing the development of a fern prairie: a system dominated by ferns as thicket-forming plants (e.g., [102,103,104]). A strong drop in MAP values (from 1400 to 1100 mm/year) during this interval was coincident with a short-lasting decline in ferns and angiosperms and a modest recovery of gymnosperms (Figure 4). In the late Middle Cenomanian, the spore and conifer pollen proportions showed similar values compared to those recorded in the Early Cenomanian. During the early Late Cenomanian, alternating conditions may be suggested for the fluctuating proportions of ferns and Cheirolepidiaceae (Figure 4).
Throughout the section, there were two intervals interpreted to reflect the expansion of fern prairies at the expense of Cheirolepidiaceae-dominated forest: the early Middle Cenomanian and the early Late Cenomanian. Both intervals were associated with a similar rise in MAP values, but showed significant differences in the abundance of angiosperm pollen. The highest proportion of angiosperms was recorded during the early Middle Cenomanian (6.8–13.8%), probably related to ideal conditions during this phase [35,94]. During intervals considered as climatic optima, the abundance and diversity of angiosperm pollen rose (e.g., [105,106,107,108]). Alternatively, besides climatic variations, changes in the depositional environment may also have affected the distribution of vegetation.
Ref [58] compared the palynoflora obtained from the MAF with existing mid- and high-latitude Albian-Turonian formations from the Southern Hemisphere (eastern and western Gondwana). These authors found that the Patagonian palynofloras showed different affinities depending on their paleolatitude. Palynofloras from high-latitude areas of Patagonia (MAF, Piedra Clavada/Kachaike formations ([57,58,109,110,111,112,113,114,115,116,117]) were related with Antarctica (Whisky Bay; [118,119]) and New Zealand (Tupuangi; [120,121]) palynofloras, based on the presence of widespread taxa, including Classopollis, Podocarpidites, Cyathidites, Microcachryidites, Tricolpites and Clavatipollenites. On the other hand, mid-latitude palynofloras from northern Patagonia (Cañadón Seco and Huincul formations; [122,123,124,125]) had similarities with Australian palynofloras (Toolebuc, Mackunda, Winton, Allaru and Bathurst Island formations; [126,127,128,129]). The reasons for this clustering are still unclear.
During the Late Cretaceous in the Northern Hemisphere, the Normapolles Province extended from southern and eastern North America (including northernmost Mexico) via Europe to West Siberia [130]. This palynological province was characterized by the abundance of angiosperm pollen grains assigned to the Normapolles complex, together with conifer-derived bisaccate and Classopollis pollen as quantitatively significant elements. Gleicheniaceae, Anemiaceae, and Matoniaceae are the most common spores found in those regions (e.g., [97,131,132,133,134]). However, higher latitude regions show a different microfloral composition during the Cenomanian, dominated by gymnosperms [135,136,137,138] and/or ferns [139,140], with angiosperm pollen forming only a minor component. In this sense, the MAF palynoflora from Patagonia shows certain similarities with high-latitude Northern Hemisphere assemblages, but lacks the typical Normapolles elements.

7. Conclusions

  • This study provided a new detailed δ13Corg Cenomanian record for a continental sedimentary succession from southern South America.
  • The carbon isotope record from the MAF was largely independent of paleosol type and depositional environment, demonstrating that the δ13C signature of soil-derived OC was not strongly biased due to taphonomic/pedogenic processes.
  • Comparisons of the δ13Corg curve of southern Patagonia with high-resolution trends from elsewhere in the world revealed the absence of the characteristic positive CIE expected to mark the Cenomanian-Turonian boundary. The absence of the Cenomanian-Turonian CIE was interpreted to reflect erosional processes and/or non-deposition as indicated by an unconformity surface at the very base of the overlying Campanian deposits of the La Anita Formation.
  • The comparison of the δ13Corg record, TOC values, and palynological data with paleosol-derived MAP provided a better understanding of the mid-Cretaceous climate/biota interaction in the Southern Hemisphere. During warmer and moister periods, fern prairies developed at the expense of the background conifer-dominated forest. Angiosperms formed only a minor component of the Cenomanian Southern Hemisphere high-latitude vegetation.
