Article

Core Flooding Experiments on the Impact of CO2-EOR on the Petrophysical Properties and Oil Recovery Parameters of Reservoir Sandstones in Kazakhstan

1
Oil and Gas Faculty, Atyrau University of Oil and Gas, Atyrau 060000, Kazakhstan
2
KazMunayGas Engineering, Atyrau 060000, Kazakhstan
*
Author to whom correspondence should be addressed.
Geosciences 2024, 14(7), 185; https://doi.org/10.3390/geosciences14070185
Submission received: 4 June 2024 / Revised: 2 July 2024 / Accepted: 4 July 2024 / Published: 11 July 2024

Abstract

:
This study investigates the impact of CO2-enhanced oil recovery (CO2-EOR) on the petrophysical properties and oil recovery potential of sandstone reservoirs in the oilfields located in the east-southern Precaspian region of Kazakhstan. Despite the recognized potential of CO2-EOR for improving oil recovery and aiding carbon sequestration, there is limited understanding of how CO2-EOR specifically affects the petrophysical properties of sandstone reservoirs in this region. Laboratory experiments were conducted using two core samples from the selected oilfields to examine changes in porosity, permeability, and oil recovery coefficients. The results demonstrated that porosity changes ranged from a slight increase of 1.1% to a decrease of 1.5%, while permeability reduction was significant, with decreases ranging from 29% to 50% due to clay alteration and halite precipitation. The oil recovery coefficient after CO2 flooding was found to be between 0.49 and 0.54. These findings underscore the complex interactions between CO2 and reservoir rocks, emphasizing the need for tailored EOR strategies in different geological settings.

1. Introduction

Greenhouse gases, CO2 in particular, are considered as the main cause of climate change and global warming. They significantly influence regional climates, health, agriculture, water resources, and ecosystems. According to the Intergovernmental Panel on Climate Change [1], global temperatures could rise between 1.5 °C and 4.5 °C by 2100. The rapid warming of polar regions, especially the Arctic, which is heating four times faster than the rest of the planet, is a major concern. This warming reduces critical ice habitats and disrupts weather patterns, leading to more extreme and unpredictable weather globally. Higher temperatures increase evaporation, intensifying droughts, and can lead to heavier precipitation and stronger storms. The Clausius–Clapeyron equation explains that each 1 °C rise in temperature increases the air’s moisture capacity by 7%, which can enhance storm intensity [2]. Additionally, GHGs degrade air quality, exacerbating respiratory and cardiovascular diseases. For instance, ground-level ozone, formed from CO2 and CH4, causes respiratory issues. In agriculture, climate change alters temperature and precipitation patterns, reducing crop yields and shortening growing seasons [3]. Water resources are also affected, with shifts in precipitation patterns leading to more frequent and intense droughts and floods, impacting water supply and quality [4]. In water-scarce regions like Central Asia, the decrease in soil moisture is closely linked to variations in regional precipitation and temperature-driven evapotranspiration [5]. According to the United Nations Sustainable Development Goals (UN SDGs) Report [6], energy-related CO2 emissions increased by 6% in 2021 worldwide. In Kazakhstan, greenhouse gases (GHGs) lead to an excess concentration of suspended particles (NO2, SO2, and O3) in the air [7]. Their concentration exceeds the limits set by the World Health Organization in 18 out of 21 cities and likely is linked to the increased mortality rates across the country.
The use of carbon capture, utilization, and storage (CCUS) might play a significant role in helping Kazakhstan achieve its carbon reduction targets. As oil production declines, Kazakhstan is exploring the development of CO2-enhanced oil recovery (EOR) techniques in its oil fields as a strategy to reduce carbon emissions and boost oil output simultaneously [8,9,10]. The IEA reports [11,12] that Kazakhstan possesses 3226 million metric barrels of oil that can be technically recovered using CO2-enhanced oil recovery methods, with the potential to store up to 1.1 gigatons of CO2.
CO2-EOR is particularly significant as it also has the potential for carbon sequestration, contributing to greenhouse gas mitigation efforts. This CO2-EOR process is divided into two main categories: miscible CO2 displacement, where CO2 mixes completely with the oil, and immiscible CO2 displacement, where it does not [13,14]. Several factors impact the efficiency of CO2 in displacing crude oil, such as the pressure and temperature of the reservoir, the composition of the crude oil, the phase behavior of the CO2-oil mix, and the rock heterogeneity [15,16,17,18]. When the reservoir pressure exceeds the minimum miscibility pressure (MMP), making the injected CO2 and the remaining oil miscible, the barrier created by interfacial tension effectively vanishes. This results in the enhanced transfer (extraction/vaporization) of light to intermediate hydrocarbons, thereby diminishing the saturation of residual immobile oil. Moreover, the expansion or swelling of the CO2-enriched oil phase improves its mobility. Enhancements in mass transfer are observed with higher pressures, cooler reservoir temperatures, and lighter oil. Additionally, lowering the viscosity of mobile oil and increasing pressure can further reduce oil saturation [19]. CO2 trapping during the CO2-EOR process happens through various mechanisms, including physical barriers, dissolution in formation fluids, residual saturation trapping, and mineralization within the rock pores [20,21,22,23,24,25,26]. Mineralization, in particular, plays a crucial role in the long-term storage and sequestration of CO2. Several types of mineralization processes contribute to CO2 storage: (1) Carbonate mineralization: CO2 reacts with calcium, magnesium, and iron-bearing minerals to form stable carbonate minerals. The process not only traps CO2 but also contributes to the permeability reduction by filling the pores with these newly formed minerals. (2) Silicate mineralization: silicate minerals react with CO2 to form carbonate minerals and silica. This type of mineralization is typically slower than carbonate mineralization but can significantly contribute to long-term CO2 sequestration. (3) Clay mineral alteration: CO2 can cause the alteration of clay minerals, resulting in the formation of new minerals that trap CO2. (4) Precipitation of salts: the injection of CO2 can lead to changes in the chemical equilibrium of formation waters, causing the precipitation of salts such as halite. This process is primarily associated with permeability reduction.
Various preparatory tasks must be undertaken before initiating a field-scale CO2-enhanced oil recovery (EOR) operation. These include preliminary experimental investigations to estimate the potential oil recovery and to assess potential issues such as mineral deposition, asphaltene precipitation, and other related problems.
Experiments investigating CO2 injection and its behavior have been carried out using core flooding equipment [27]. A typical core flooding apparatus includes a core holder and tanks for water, oil, CO2, and other liquids, depending on the experiment. The diversity in experimental designs enables the testing of various CO2-EOR technologies, such as Water Alternating Gas (WAG) and CO2 foam injection, allowing researchers to identify the most suitable technology for specific oil field conditions.
These experiments aim to (1) assess the injection potential and storage capacity of subsurface geological formations at a field scale; (2) track the movement of CO2 plumes in laboratory experiments; (3) evaluate the petrophysical parameters and their variations under multiphase flow conditions; (4) explore the impact of supercritical CO2 dissolution on fluid displacement and imbibition processes; (5) observe the behavior and rate of CO2 mass transfer; (6) analyze the effects of different CO2 concentrations in injected water on dissolution and displacement processes; and (7) study the impact of chemical reactions and mineral alteration on the efficiency of CO2 flooding [28,29,30,31,32,33,34,35,36].
In general, the effect of CO2 injection on oil recovery is influenced by several factors, including the mineral composition of the rock, oil composition, and temperature and pressure conditions. Consequently, results can vary significantly depending on specific oil field conditions. Thus, porosity increase was observed in Latrobe shales due to K-feldspar dissolution [37]. On the other hand, the precipitation of  C a ( H C O 3 ) 2  and  N a C l  leads to porosity and permeability reduction in Midyat carbonates [38]. A decrease in permeability also was observed in Indiana limestones due to asphaltene precipitation and mineral precipitation [39]. Authors in [40] showed the significance of pore structure and pressure dependence of the oil recovery in tight sandstones. Clays within sandstone formations play a crucial role in CO2-enhanced gas recovery and the adsorption of CO2 in exhausted gas reservoirs [41]. The distribution of minerals on the sandstone surface, along with its heterogeneity, governs the adsorption of CO2.
As can be seen, the complex composition of reservoirs and their interactions with reservoir fluids and CO2 can lead to unexpected results that cannot be predicted based on previous studies of different reservoirs. The feasibility of CO2 sequestration in Kazakhstan [9] ranked the Precaspian basin as the top candidate. However, the analytical nature of the study required further experimental verifications. The current study in turn stands as a pioneering laboratory effort in the investigation of the CO2-EOR method using core samples sourced from two oilfields in the Precaspian basin in Kazakhstan. This study investigates the changes in reservoir properties of core samples from these oilfields caused during CO2-EOR experiments, aiming to conduct a preliminary assessment of the process at a laboratory scale.

2. Materials and Methods

2.1. Geological Settings

The two candidate fields selected in this study are the Dos and Akk oilfields situated in the east-southern part of the Precapsian region (Figure 1). The region is mostly known for Paleozoic oilfields; however, Mesozoic sediments have also been known for hosting oil and gas fields for more than a century. The strata of the region is associated with pre-salt and post-salt reservoir rocks with a Kungurian salt layer separating them (Figure 2) with a thickness of up to 3 km.
The selected Dos and Akk oilfields are found within post-salt layers and both reservoirs are hosted in Jurassic rocks. Jurassic, Cretaceous, and Paleogene-Neogene layers are composed of terrigenous and carbonate rocks in different combinations [43].
Middle Jurassic deposits of the Dos field are composed of gray coarse- and fine-grained sandstones [44,45], with isolated interlayers of clay and coal. Jurassic deposits of Akk are composed of sandstones of various grain sizes, from fine-grained to coarse-grained, siltstones, clays, mudstones, coals, and their interlayering [46].

2.2. Materials and Sample Preparation/Characterization

2.2.1. Core Samples

Two sandstone core samples were selected for this study, one from each field (Table 1). The samples were cleaned using a Soxhlet extractor with organic solvents for rinsing. An alcohol-benzene mixture was used as the solvent. After thorough cleaning, all samples were dried in a drying oven (DKN 600) at a temperature of 60 °C to a constant weight. After obtaining the basic parameters of volume and weight, the samples were placed in a glass desiccator to reduce the adsorption of atmospheric moisture. A calibrated helium porosimeter (ULTRA-PORE 300) and nitrogen permeameter (ULTRA-PERM 600) were used to measure the porosity and permeability of the core samples, respectively. Table 1 shows the initial petrophysical properties of the core samples before flooding, clearly indicating that the chosen samples have a similar porosity, but sample #1 has higher permeability.
Additionally, a thin disk, approximately 5 mm thick, was sliced from the center of each core sample. This disk was examined with SEM (Scanning Electron Microscopy) before and after the flooding experiments to identify any changes in microstructure the samples may have experienced as a result of the flooding process. The ends of the disks were polished to ensure the production of high-quality SEM images. X-ray diffraction (XRD) analyses were conducted on both samples to ascertain their precise mineral composition and concentrations.

2.2.2. Oil and Brine Used for Core Flooding

Two types of oil from each oilfield were used in the experiments. The properties and composition of each oil type are shown in Table 2 and Table 3.
Table 4 shows the composition of the brine used in the experiments.

2.3. Minimum Miscible Pressure Estimation

Minimum miscibility pressure values were determined for each core sample, taking into account the specific oil composition of each oilfield.
Three different empirical correlations were used to estimate MMP adopted from the studies by Cronquist [47]; Li, Qin, and Yang [48]; and [49], respectively:
M M P = 0.11027 · T ( 0.744206 + 0.0011038 · M C 5 + )
M M P = 7.30991 × 10 5 [ ln ( 1.8 T + 32 ) ] 5.33647 · [ ln ( M C 7 + ) ] 2.08836 · ( 1 + m v o l m i n t ) 0.201658
M M P = 0.101386 e ( 10.91 2015 255.372 + 0.5556 ( 1.8 T + 32 ) )
where  T  is reservoir temperature in °C,  M C 5 +  is the molecular weight of the C5+ fraction,  M C 7 +  is the molecular weight of the C7+ fraction,  m v o l  is the mole fraction of volatile components including N2 and CH4, and  m i n t  is the mole fraction of intermediate components including CO2, H2S, and C2–C4.
Table 5 shows the estimated MMP values for samples #1 and #2. The average estimated MMP values are less than the corresponding reservoir pressures for both samples, thus, CO2 injection can be conducted under reservoir conditions to have miscible displacement.

2.4. Core Flooding Setup and Procedure

Figure 3 shows a schematic representation of the core flooding setup used in this study. This equipment is engineered to accommodate experiments at pressures up to 100 MPa and temperatures up to 200 °C. The core holder, fluid accumulators, and the flow lines that transport the fluids are all housed within a convection oven to maintain a steady temperature throughout the experiments. The core flooding experiments were conducted under reservoir conditions. The specific values for temperature and confining pressure are provided in Table 6.
The sequence of the experiment was as follows:
  • The sample was placed in a core holder and the confining pressure was increased to the set value, then brine was pumped into the sample under the determined pressure and temperature.
  • Next, oil was pumped into the core sample at reservoir pressure and temperature until no water came out. After this, the system was in standby mode for 24 h.
  • CO2 was injected under the reservoir pressure at a constant rate. The volume of the displaced liquid was measured.

3. Results and Discussion

3.1. Core Samples’ Characterization before CO2 Flooding

Core sample #1 is a fine-grained, silty sandstone with clay cement and a homogeneous texture. The detrital component predominantly consists of quartz grains, with a lesser amount of feldspar and mica fragments ranging from angular to sub-rounded shapes, with linear and point contacts between grains. The cement is primarily represented by clay minerals of the kaolinite group (Al4[Si4O10](OH)8) and illite group (K1-1.5Al4[Si7-6.5Al1-1.5O20](OH)4), with weak crystallization, appearing as massive clusters of irregularly shaped scaly plates filling the pore space.
Core sample #2 is a fine-grained, polymictic gray sandstone with clay cement and a homogeneous texture. The detrital component mainly consists of quartz grains, with a substantial amount of feldspar and mica fragments. Quartz sometimes exhibits a microquartzite texture. Feldspar fragments are subject to processes of dissolution. The cement is a mix of clay and carbonate. The clay cement is represented by the illite group clays and smectites ((1/2 Ca, Na)0.7(Al, Mg, Fe)4(Si, Al)8O204*n H2O). The carbonate cement is represented by crystalline calcite. Table 7 shows the composition of the samples before the experiment.

3.2. Core Samples’ Characterization after CO2 Flooding

Table 8 compiles the outcomes of the flooding experiments in terms of porosity and permeability changes after the experiment and oil recovery coefficient.
As can be seen from Table 8, after the CO2 flooding, a slight increase in porosity (from 24.6% to 25.7%) and a larger reduction in permeability (from 348.8 mD to 247 mD) were observed for sample #1. On the other hand, a small drop in porosity (from 23.7% to 22.2%) and a substantial reduction in permeability were observed for sample #2 after the experiment. The oil recovery coefficient after CO2 flooding in this study was 0.49 and 0.54 for sample #1 and sample #2, respectively.
Figure 4 shows SEM images of sample #1 before and after the experiment. It can be seen that most pores were clogged. The higher-magnification images of the particle surface and pore space and the corresponding EDS graphs are shown in Figure 5 and Figure 6. The results show that kaolinite dissolution takes place on the particle surface and more clay forms the pore space.
Figure 7 shows SEM images of sample #2 before and after the experiment. Similarly to sample #1, one can see a clogging of the pore space. However, unlike in sample #1, halite (NaCl) precipitation covered the particle surface of sample #2, as shown in Figure 7d. EDS graphs in Figure 8 and Figure 9 confirm the presence of sodium chloride on the particle surface and only clay formation in pore space.
Permeability reduction in both samples can be attributed to clay alteration and halite precipitation as a result of the chemical reaction between CO2 and rock minerals (Figure 10). The mineralogical changes observed can be attributed to the formation of carbonic acid (H2CO3). As K-feldspar dissolves, kaolinite is produced and silica is liberated, following this reaction [37]:
2 K A l S i 3 O 8 + 2 H + + H 2 0 A l 2 S i 2 O 5 ( O H ) 4 + 4 S i O 2 ( a q . ) + 2 K +
Thus, more clay minerals occupy the pore space in addition to the initial clay cement in both samples. When the phase equilibrium is changed by injected CO2 sodium salts in formation, brine can precipitate (Figure 10). In addition, the interaction of CO2 with carbonate minerals results in the precipitation of CaCO3 and NaCl [16,38]. Thus, the carbonate cement in sample #2 led to the halite precipitation on the particle surface, which resulted in a substantial permeability reduction along with clay alteration.
Possible permeability reduction mechanisms for sample #1 and sample #2 are shown in Figure 10. Precipitates reduce permeability through various mechanisms, including solid deposition on pore walls due to attractive forces between particles and pore surfaces, individual particles blocking pore throats, and several particles forming bridges across pore throats. The permeability drop in sample #1 can be attributed to the clay formation in the pore space, while the permeability reduction in sample #2 can be attributed to both clay formation in the pore space and halite precipitation on the particle surface.
The permeability reduction in the samples due to CO2-rock interaction during miscible CO2 flooding led to moderate values of the oil recovery coefficient—0.49 and 0.54 for sample 1 and sample 2, respectively.

4. Conclusions and Future Recommendation

This experimental investigation reveals significant insights into the influence of CO2-EOR on the petrophysical properties and oil recovery in sandstone reservoirs. The study highlights that while CO2 injection can enhance oil recovery, the extent of its effectiveness is closely tied to the specific mineralogical and geochemical characteristics of the reservoir. The following conclusions can be made:
  • The Dos and Akk samples exhibited contrasting responses to CO2 flooding, with permeability reduction being a common outcome due to clay mineral alteration and halite precipitation.
  • The observed oil recovery coefficients suggest that CO2-EOR can be an effective method for enhancing oil production in Kazakhstan’s Precaspian region. However, the variability in the results underscores the necessity for site-specific assessments and optimizations.
  • Future research will focus on Water Alternating Gas (WAG) experiments to further elucidate the combined effects of CO2 and water injection on oil recovery, providing a more comprehensive understanding of EOR processes in diverse reservoir conditions.

Author Contributions

Conceptualization, A.S., A.K. and D.S.; methodology, A.S., A.K. and D.S.; formal analysis, A.S. and A.K.; investigation, A.S., A.K. and D.S.; resources, Y.S., A.N. and R.M.; writing—original draft preparation, A.S.; writing—review and editing, A.S. and A.K.; visualization, A.K.; supervision, D.S.; project administration, D.S.; funding acquisition, A.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Ministry of Science and Higher Education of the Republic of Kazakhstan, grant number AP19576974. The APC was funded by grant number AP13068648.

Data Availability Statement

The research data are available upon request.

Conflicts of Interest

Author Rinat Merbayev was employed by the company KazMunayGas Engineering. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. IPCC. Global Warming of 1.5 °C. An IPCC Special Report on the Impacts Of Global Warming of 1.5 °C above Pre-Industrial Levels and Related Global Greenhouse Gas Emission Pathways, in the Context of Strengthening The Global Response to the Threat of Climate Change. 2018. Available online: www.environmentalgraphiti.org (accessed on 5 February 2024).
  2. Coumou, D.; Rahmstorf, S. A decade of weather extremes. Nat. Clim. Chang. 2012, 2, 491–496. [Google Scholar] [CrossRef]
  3. Lobell, D.B.; Gourdji, S.M. The influence of climate change on global crop productivity. Plant Physiol. 2012, 160, 1686–1697. [Google Scholar] [CrossRef] [PubMed]
  4. Milly, P.C.D.; Betancourt, J.; Falkenmark, M.; Hirsch, R.M.; Kundzewicz, Z.W.; Lettenmaier, D.P.; Stouffer, R.J. Climate change: Stationarity is dead: Whither water management? Science 2008, 319, 573–574. [Google Scholar] [CrossRef]
  5. Jiang, J.; Zhou, T. Agricultural drought over water-scarce Central Asia aggravated by internal climate variability. Nat. Geosci. 2023, 16, 154–161. [Google Scholar] [CrossRef]
  6. UN. The Sustainable Development Goals Report 2022; UN: San Francisco, CA, USA, 2022. [CrossRef]
  7. Kerimray, A.; Assanov, D.; Kenessov, B.; Karaca, F. Trends and health impacts of major urban air pollutants in Kazakhstan. J. Air Waste Manag. Assoc. 2020, 70, 1148–1164. [Google Scholar] [CrossRef] [PubMed]
  8. Bealessio, B.A.; Alonso, N.A.B.; Mendes, N.J.; Sande, A.V.; Hascakir, B. A review of enhanced oil recovery (EOR) methods applied in Kazakhstan. Petroleum 2021, 7, 1–9. [Google Scholar] [CrossRef]
  9. Abuov, Y.; Seisenbayev, N.; Lee, W. CO2 storage potential in sedimentary basins of Kazakhstan. Int. J. Greenh. Gas Control. 2020, 103, 103186. [Google Scholar] [CrossRef]
  10. Брекешoв, С.; Бачурин, А. Лoвушки для захoрoнения СО2, или как дoстичь углерoднoй нейтральнoсти. АО НК “КазМунайГаз”. 2023. Available online: https://qazaqgreen.com/journal-qazaqgreen/expert-opinion/1408/ (accessed on 7 February 2024). (In Russian).
  11. Eide, L.I.; Batum, M.; Dixon, T.; Elamin, Z.; Graue, A.; Hagen, S.; Hovorka, S.; Nazarian, B.; Nøkleby, P.H.; Olsen, G.I.; et al. Enabling large-scale carbon capture, utilisation, and storage (CCUS) using offshore carbon dioxide (CO2) infrastructure developments—A review. Energies 2019, 12, 1945. [Google Scholar] [CrossRef]
  12. IEA Greenhouse Gas R&D Programme (IEA GHG). CO2 Storage in Depleted Oilfields: Global Application Criteria for Carbon Dioxide Enhanced Oil Recovery. 2009. Available online: https://ieaghg.org/docs/General_Docs/Reports/2009-12.pdf (accessed on 5 February 2024).
  13. Gozalpour, F.; Ren, S.R.; Tohidi, B. CO2 EOR and storage in oil reservoirs. Oil Gas Sci. Technol. 2005, 60, 537–546. [Google Scholar] [CrossRef]
  14. Orr, F.M.; Jessen, K. An analysis of the vanishing interfacial tension technique for determination of minimum miscibility pressure. Fluid Phase Equilib. 2007, 255, 99–109. [Google Scholar] [CrossRef]
  15. Gabrienko, A.A.; Martyanov, O.N.; Kazarian, S.G. Behavior of Asphaltenes in Crude Oil at High-Pressure CO2 Conditions: In Situ Attenuated Total Reflection-Fourier Transform Infrared Spectroscopic Imaging Study. Energy Fuels 2016, 30, 4750–4757. [Google Scholar] [CrossRef]
  16. Khurshid, I.; Choe, J. Analysis of asphaltene deposition, carbonate precipitation, and their cementation in depleted reservoirs during CO2 injection. Greenh. Gases Sci. Technol. 2015, 5, 657–667. [Google Scholar] [CrossRef]
  17. Jamil, M.; Siddiqui, N.A.; Rahman, A.H.B.A.; Ibrahim, N.A.; Ismail, M.S.B.; Ahmed, N.; Usman, M.; Gul, Z.; Imran, Q.S. Facies heterogeneity and lobe facies multiscale analysis of deep-marine sand-shale complexity in the west crocker formation of sabah basin, nw borneo. Appl. Sci. 2021, 11, 5513. [Google Scholar] [CrossRef]
  18. Jamil, M.; Siddiqui, N.A.; Usman, M.; Wahid, A.; Umar, M.; Ahmed, N.; Haq, I.U.; El-Ghali, M.; Imran, Q.S.; Rahman, A.H.B.A.; et al. Facies analysis and distribution of Late Palaeogene deep-water massive sandstones in submarine-fan lobes, NW Borneo. Geol. J. 2022, 57, 4489–4507. [Google Scholar] [CrossRef]
  19. Walsh, M.P.; Lake, L.W. Applying fractional flow theory to solvent flooding and chase fluids. J. Pet. Sci. Eng. 1989, 2, 281–303. [Google Scholar] [CrossRef]
  20. Bolster, D. The fluid mechanics of dissolution trapping in geologic storage of CO2. J. Fluid Mech. 2014, 740, 1–4. [Google Scholar] [CrossRef]
  21. Cohen, Y.; Rothman, D.H. Mechanisms for mechanical trapping of geologically sequestered carbon dioxide. Proc. R. Soc. A Math. Phys. Eng. Sci. 2015, 471, 20140853. [Google Scholar] [CrossRef] [PubMed]
  22. Huppert, H.E.; Neufeld, J.A. The fluid mechanics of carbon dioxide sequestration. Annu. Rev. Fluid Mech. 2014, 46, 255–272. [Google Scholar] [CrossRef]
  23. Manceau, J.; Ma, J.; Li, R.; Audigane, P.; Jiang, P.; Xu, R.; Tremosa, J.; Lerouge, C. Two-phase flow properties of a sandstone rock for the CO2/water system: Core-flooding experiments, and focus on impacts of mineralogical changes. Water Resour. Res. 2015, 51, 2885–2900. [Google Scholar] [CrossRef]
  24. Wang, D.; Dong, B.; Breen, S.; Zhao, M.; Qiao, J.; Liu, Y.; Zhang, Y.; Song, Y. Review: Approaches to research on CO2/brine two-phase migration in saline aquifers. Hydrogeol. J. 2015, 23, 1–18. [Google Scholar] [CrossRef]
  25. Pentland, C.H.; El-Maghraby, R.; Georgiadis, A.; Iglauer, S.; Blunt, M.J. Immiscible displacements and capillary trapping in CO2 storage. Energy Procedia 2011, 4, 4969–4976. [Google Scholar] [CrossRef]
  26. Shi, J.Q.; Xue, Z.; Durucan, S. Supercritical CO2 core flooding and imbibition in Tako sandstone-Influence of sub-core scale heterogeneity. Int. J. Greenh. Gas Control. 2011, 5, 75–87. [Google Scholar] [CrossRef]
  27. Ghedan, S. SPE 125581 Global Laboratory Experience of CO2-EOR Flooding. Paper Presented at the SPE/EAGE Reservoir Characterization and Simulation Conference, Abu Dhabi, United Arab Emirates, 19–21 October 2009; pp. 1–15. [Google Scholar]
  28. Chang, C.; Zhou, Q.; Guo, J.; Yu, Q. Supercritical CO2 dissolution and mass transfer in low-permeability sandstone: Effect of concentration difference in water-flood experiments. Int. J. Greenh. Gas Control. 2014, 28, 328–342. [Google Scholar] [CrossRef]
  29. Mulyadi, H.; Amin, R.; Kennaird, T.; Bakker, G.; Palmer, I.; Van Nispen, D. Measurement of Residual Gas Saturation in Water-Driven Gas Reservoirs: Comparison of Various Core Analysis Techniques. In Proceedings of the International Oil and Gas Conference and Exhibition in China IOGCEC, Beijing, China, 8–10 June 2000; pp. 451–458. [Google Scholar] [CrossRef]
  30. Kovscek, A.R.; Tang, G.Q.; Vega, B. Experimental investigation of oil recovery from siliceous shale by CO2 injection. In Proceedings of the SPE Annual Technical Conference and Exhibition, Denver, CO, USA, 4–8 September 2008; Volume 3, pp. 1814–1830. [Google Scholar] [CrossRef]
  31. Tang, G.Q.; Kovscek, A.R. An experimental investigation of the effect of temperature on recovery of heavy oil from diatomite. SPE J. 2008, 9, 163–179. [Google Scholar] [CrossRef]
  32. Tovar, F.D.; Eide, Ø.; Graue, A.; Schechter, D.S. Experimental investigation of enhanced recovery in unconventional liquid reservoirs using CO2: A look ahead to the future of unconventional EOR. In Proceedings of the SPE Unconventional Resources Conference, The Woodlands, TX, USA, 1–3 April 2014; Volume 1986, pp. 723–731. [Google Scholar] [CrossRef]
  33. Ellafi, A.; Jabbari, H. Understanding the mechanisms of Huff-n-Puff, CO2-EOR in liquid-rich shale plays: Bakken Case Study. In Proceedings of the SPE Canada Unconventional Resources Conference, URCC 2020, Virtually, 28 September–2 October 2020. [Google Scholar] [CrossRef]
  34. Perrin, J.C.; Falta, R.W.; Krevor, S.; Zuo, L.; Ellison, K.; Benson, S.M. Laboratory experiments on core-scale behavior of CO2 exolved from CO2- Saturated brine. Energy Procedia 2011, 4, 3210–3215. [Google Scholar] [CrossRef]
  35. Gutierrez, M.; Katsuki, D.; Almrabat, A. Effects of CO2 Injection on the Seismic Velocity of Sandstone Saturated with Saline Water. Int. J. Geosci. 2012, 03, 908–917. [Google Scholar] [CrossRef]
  36. Gunde, A.C.; Bera, B.; Mitra, S.K. Investigation of water and CO2 (carbon dioxide) flooding using micro-CT (micro-computed tomography) images of Berea sandstone core using finite element simulations. Energy 2010, 35, 5209–5216. [Google Scholar] [CrossRef]
  37. Rezaee, R.; Saeedi, A.; Iglauer, S.; Evans, B. Shale alteration after exposure to supercritical CO2. Int. J. Greenh. Gas Control 2017, 62, 91–99. [Google Scholar] [CrossRef]
  38. Izgec, O.; Demiral, B.; Bertin, H.; Trefle, L.; Akin, S. CO2 Injection in Carbonates. In Proceedings of the SPE Western Regional Meeting, Irvine, CA, USA, 30 March–1 April 2005. [Google Scholar]
  39. Khather, M.; Saeedi, A.; Myers, M.B.; Verrall, M. An experimental study for carbonate reservoirs on the impact of CO2-EOR on petrophysics and oil recovery. Fuel 2019, 235, 1019–1038. [Google Scholar] [CrossRef]
  40. Li, X.; Xue, J.; Wang, Y.; Yang, W.; Lu, J. Experimental study of oil recovery from pore of different sizes in tight sandstone reservoirs during CO2 flooding. J. Pet. Sci. Eng. 2022, 208, 109740. [Google Scholar] [CrossRef]
  41. Hamza, A.; Hussein, I.A.; Al-Marri, M.J.; Mahmoud, M.; Shawabkeh, R. Impact of clays on CO2 adsorption and enhanced gas recovery in sandstone reservoirs. Int. J. Greenh. Gas Control 2021, 106, 103286. [Google Scholar] [CrossRef]
  42. Rekacewicz, P.; Bournay, E. Kazakhstan, Topographic Map. UNEP/GRID-Arendal. 2005. Available online: https://www.grida.no/resources/5348 (accessed on 1 July 2024).
  43. Lee, Y. Geological Structure and Oil and Gas Prospects of the Southeastern Side of the Caspian Depression and Its Framework; M.V.Lomonosov Moscow State University: Moscow, Russia, 2006. (In Russian) [Google Scholar]
  44. Bulekbayev, Z.E.; Iskuzhiyev, B.A.; Kamalov, S.M. Oil and Gas Fields of Kazakhstan: A Catalogue, 3rd ed.; Kazakhstan Mineral Resources: Almaty, Kazakhstan, 1996. (In Russian) [Google Scholar]
  45. Daukeev, S.Z.; Uzhkenov, B.S.; Abdulin, A.A.; Bespayev, H.A.; Votsalevskiy, E.S.; Lubetskiy, V.N.; Mazurov, A.K.; Miroshnichenko, L.A. The Deep Structure and Mineral Resources of Kazakhstan; National Science Academy of the Republic of Kazakhstan: Almaty, Kazakhstan, 2002. (In Russian) [Google Scholar]
  46. Pronin, N. Determination of sediment conditions of the Jurassic deposits of the Akkuduk field based on the analysis of ichnofossils. SOCAR Proc. 2023, 2, 66–73. [Google Scholar] [CrossRef]
  47. Cronquist, C. Carbon dioxide dynamic miscibility with light reservoir oils. In Proceedings of the 4th Annual U.S. DOE Symposium, Tulsa, OK, USA, 29–31 August 1978. [Google Scholar]
  48. Li, H.; Qin, J.; Yang, D. An improved CO2-oil minimum miscibility pressure correlation for live and dead crude oils. Ind. Eng. Chem. Res. 2012, 51, 3516–3523. [Google Scholar] [CrossRef]
  49. Orr, F.M.; Jensen, C.M. Interpretation of Pressure-Composition Phase Diagrams for CO2/Crude-Oil Systems. Soc. Pet. Eng. J. 1984, 24, 485–497. [Google Scholar] [CrossRef]
  50. Yusof, M.A.M.; Neuyam, Y.A.S.; Ibrahim, M.A.; Saaid, I.M.; Idris, A.K.; Mohamed, M.A. Experimental study of CO2 injectivity impairment in sandstone due to salt precipitation and fines migration. J. Pet. Explor. Prod. Technol. 2022, 12, 2191–2202. [Google Scholar] [CrossRef]
  51. Abbasi, P.; Madani, M.; Abbasi, S.; Moghadasi, J. Mixed salt precipitation and water evaporation during smart water alternative CO2 injection in carbonate reservoirs. J. Pet. Sci. Eng. 2022, 208, 109258. [Google Scholar] [CrossRef]

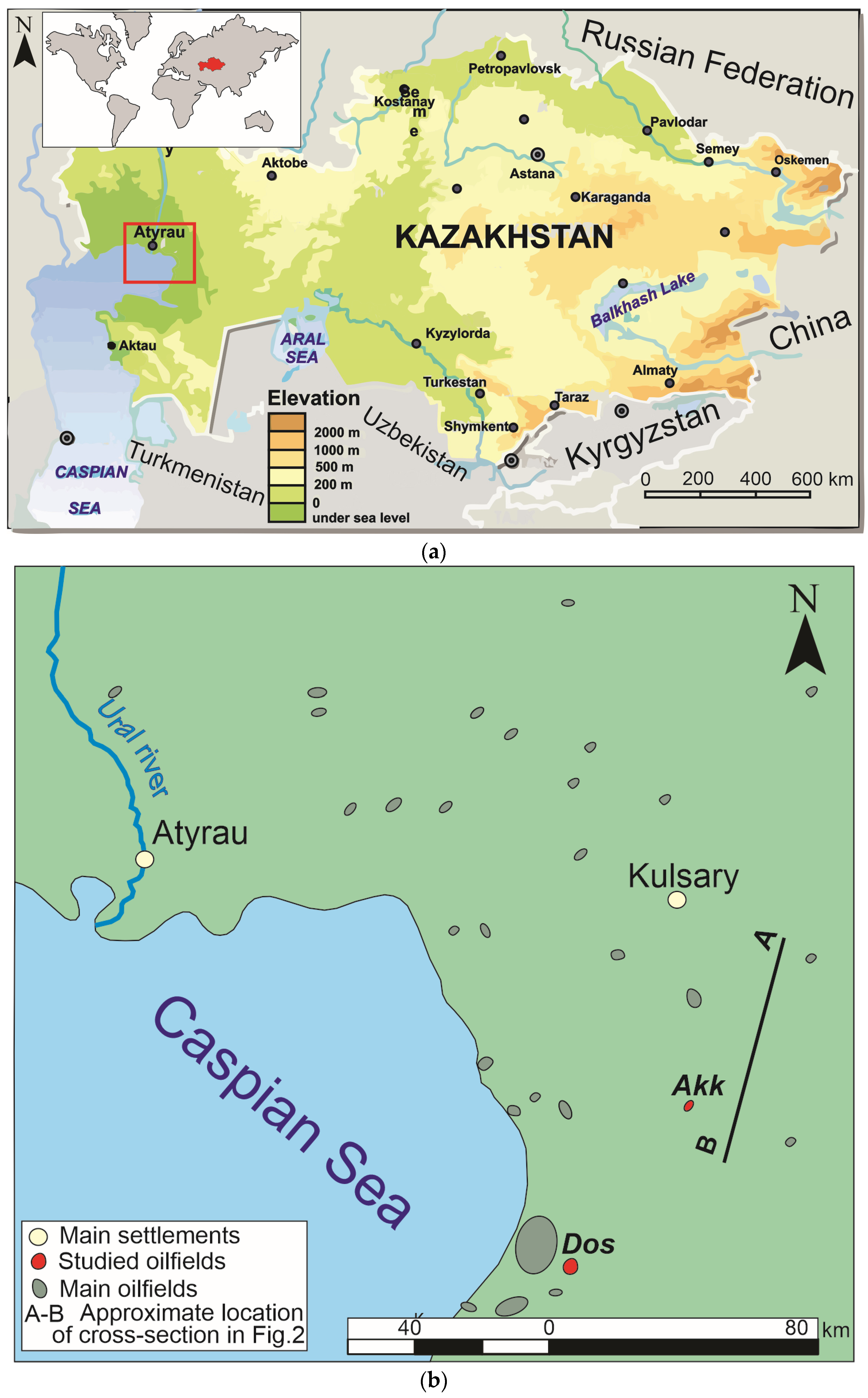

Figure 1. (a) The location of the study area in the east-southern Precaspian region (red rectangular) within Kazakhstan (the map is modified after [42], the inset shows the location of Kazakhstan on the world map). (b) Overview map of the east-southern Precaspian region. The study oilfields are indicated as Dos and Akk. Note: location of the A-B cross section is approximate.
Figure 1. (a) The location of the study area in the east-southern Precaspian region (red rectangular) within Kazakhstan (the map is modified after [42], the inset shows the location of Kazakhstan on the world map). (b) Overview map of the east-southern Precaspian region. The study oilfields are indicated as Dos and Akk. Note: location of the A-B cross section is approximate.
Geosciences 14 00185 g001

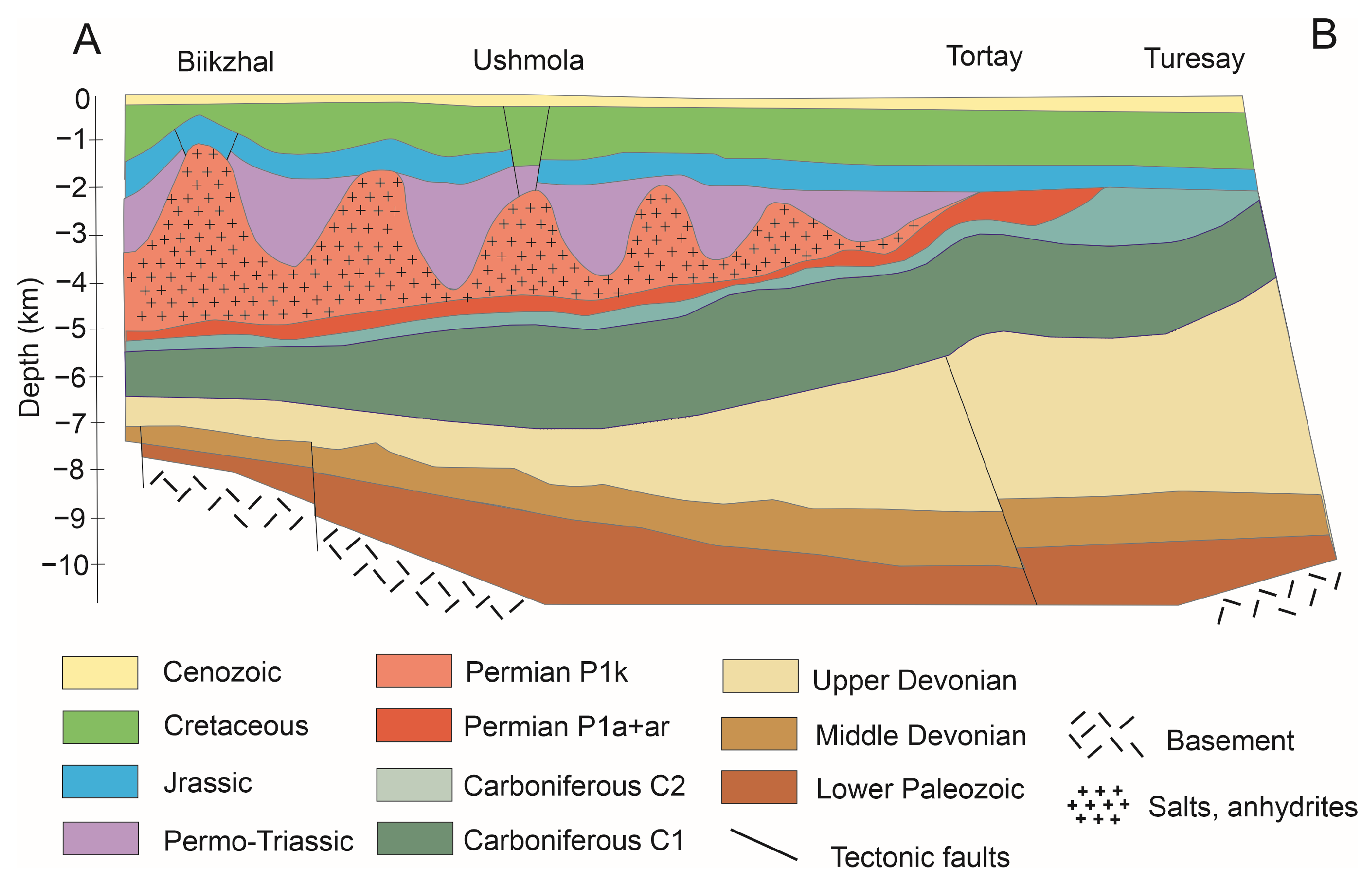

Figure 2. Regional cross-section of the east-southern Precaspian basin adapted from [43].
Figure 2. Regional cross-section of the east-southern Precaspian basin adapted from [43].
Geosciences 14 00185 g002

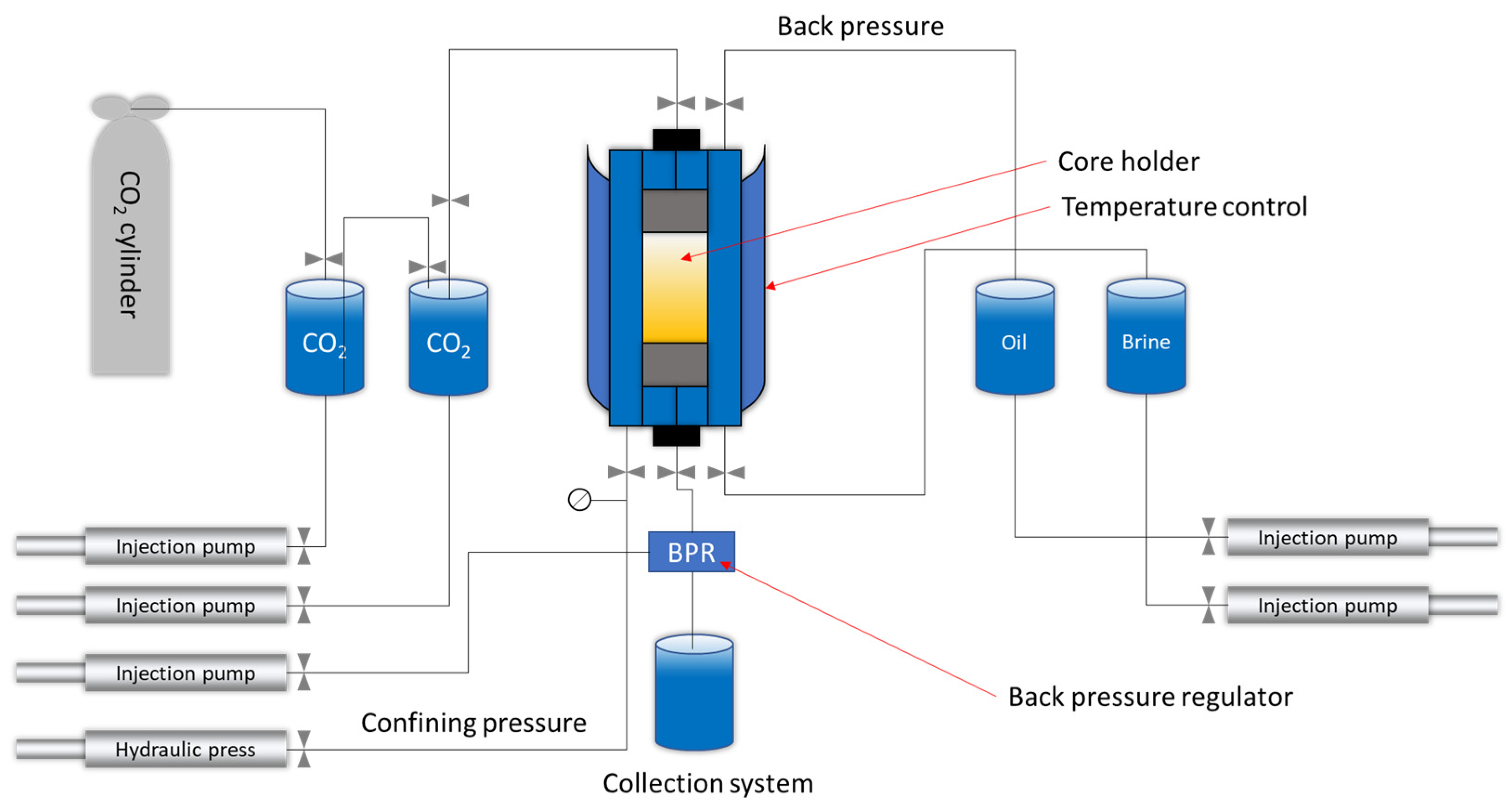

Figure 3. Core flooding setup.
Figure 3. Core flooding setup.
Geosciences 14 00185 g003

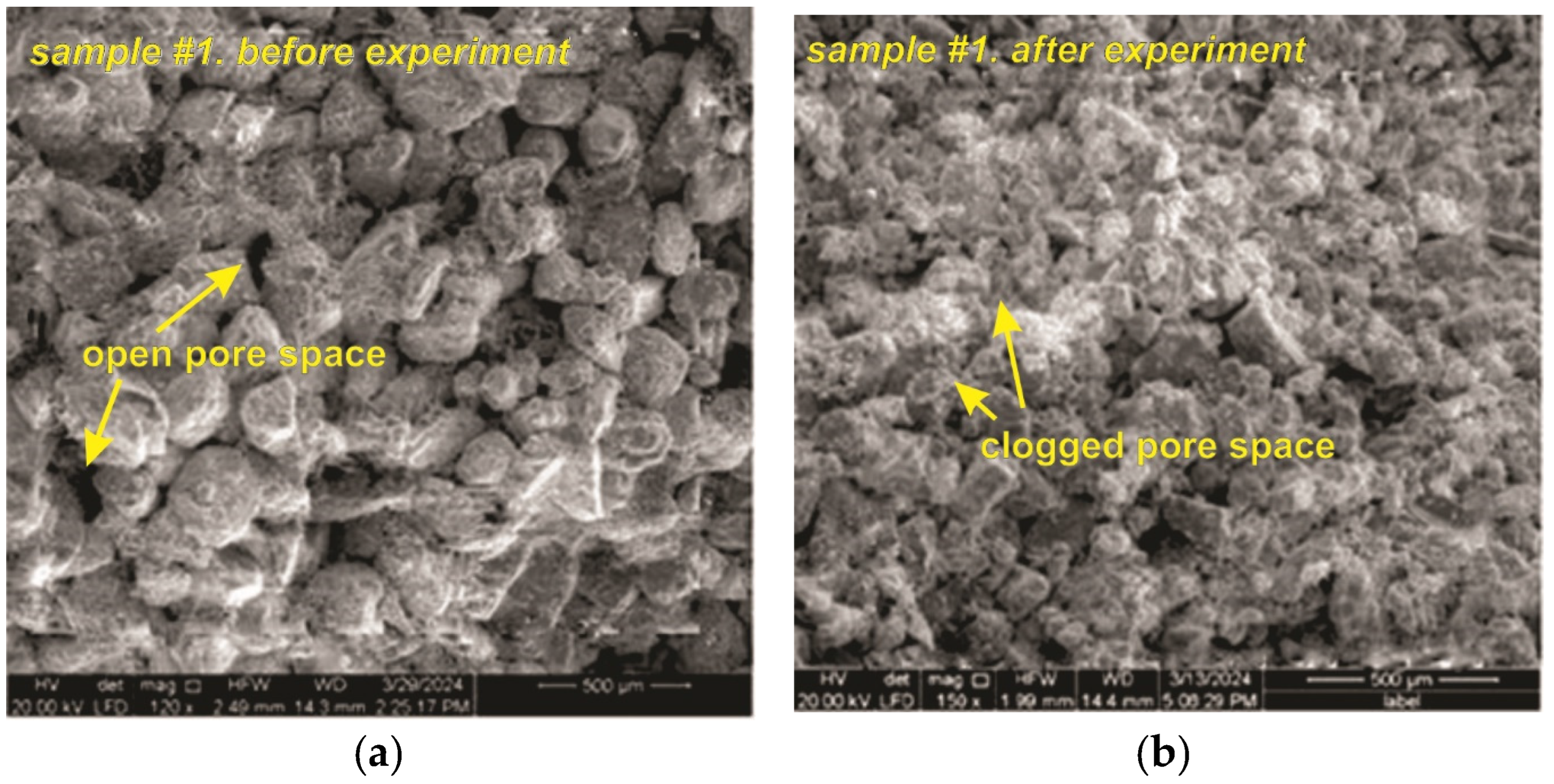

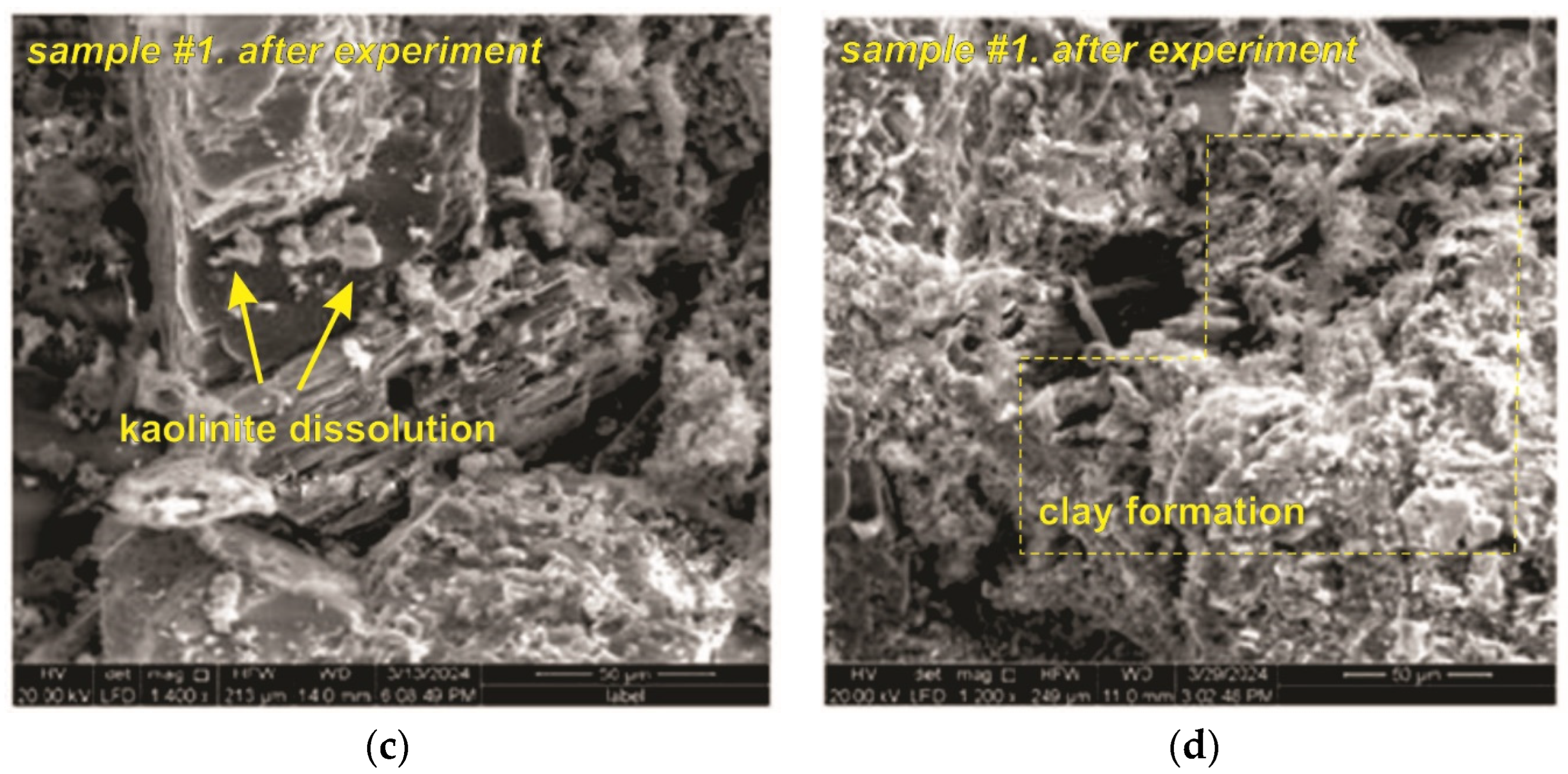

Figure 4. Sample #1: (a) before the experiment with open pore spaces; (b) after the experiment with clogged pores; (c) particle surface after the experiment; (d) pore space after the experiment.
Figure 4. Sample #1: (a) before the experiment with open pore spaces; (b) after the experiment with clogged pores; (c) particle surface after the experiment; (d) pore space after the experiment.
Geosciences 14 00185 g004aGeosciences 14 00185 g004b

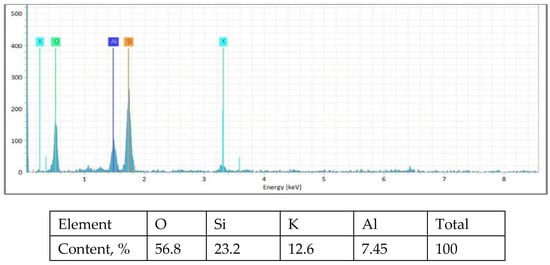

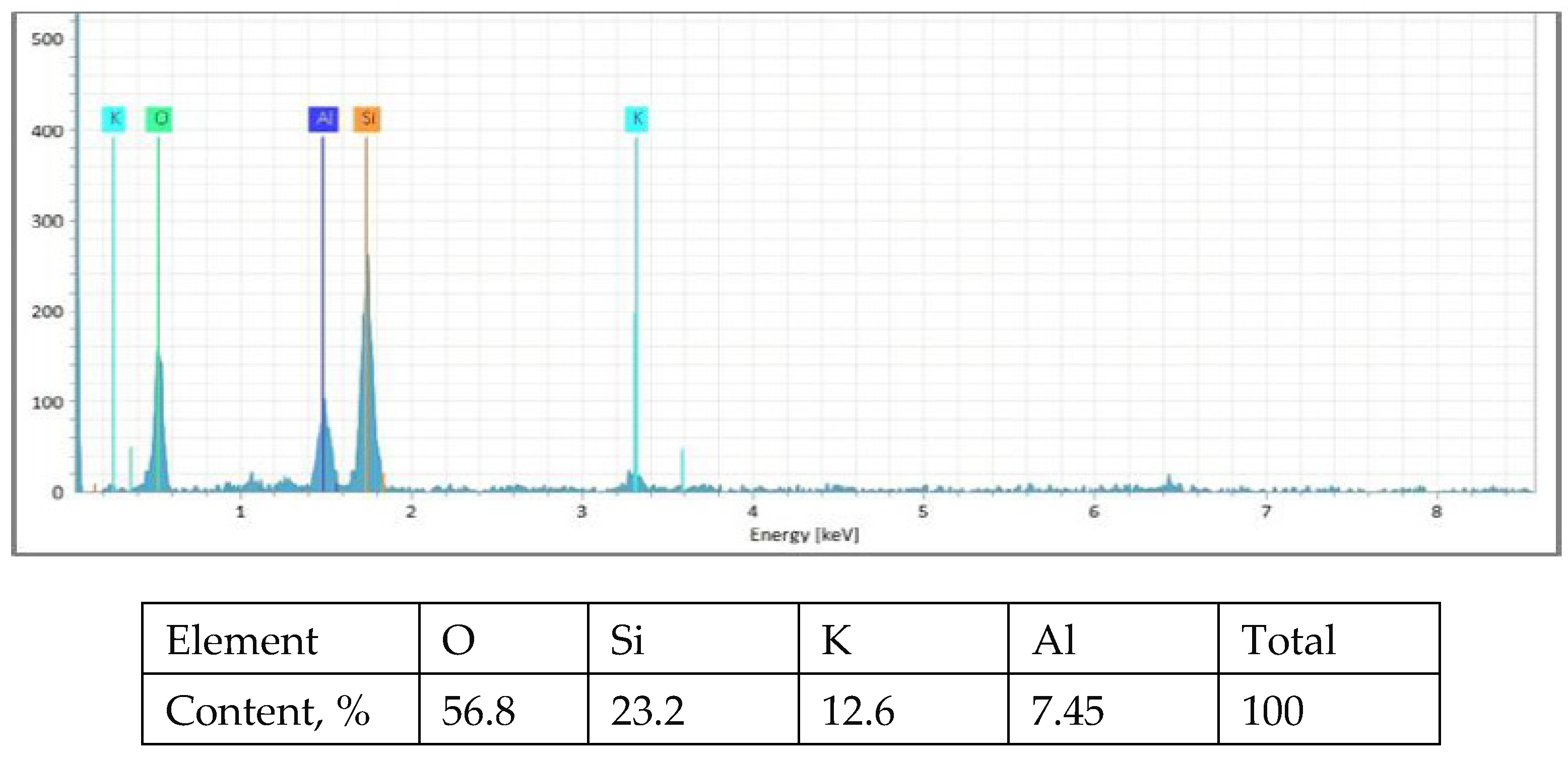

Figure 5. EDS of sample #1 after the experiment: particle surface.
Figure 5. EDS of sample #1 after the experiment: particle surface.
Geosciences 14 00185 g005

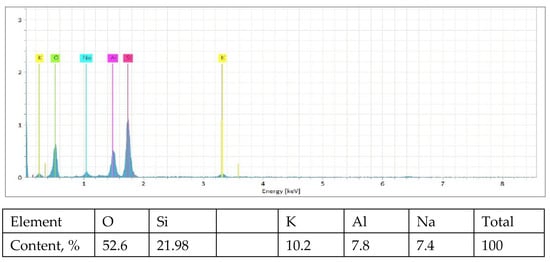

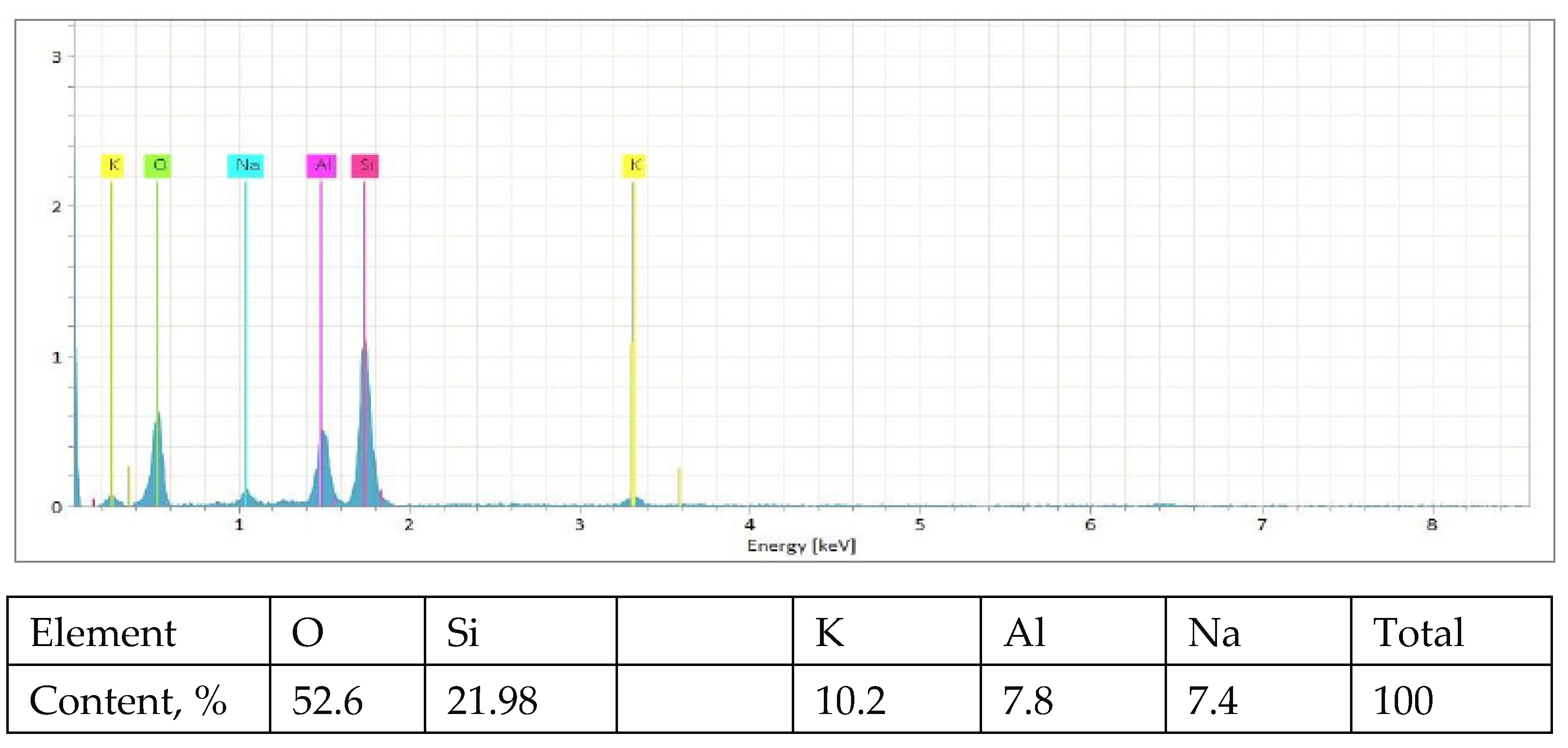

Figure 6. EDS of sample #1 after the experiment: pore space.
Figure 6. EDS of sample #1 after the experiment: pore space.
Geosciences 14 00185 g006

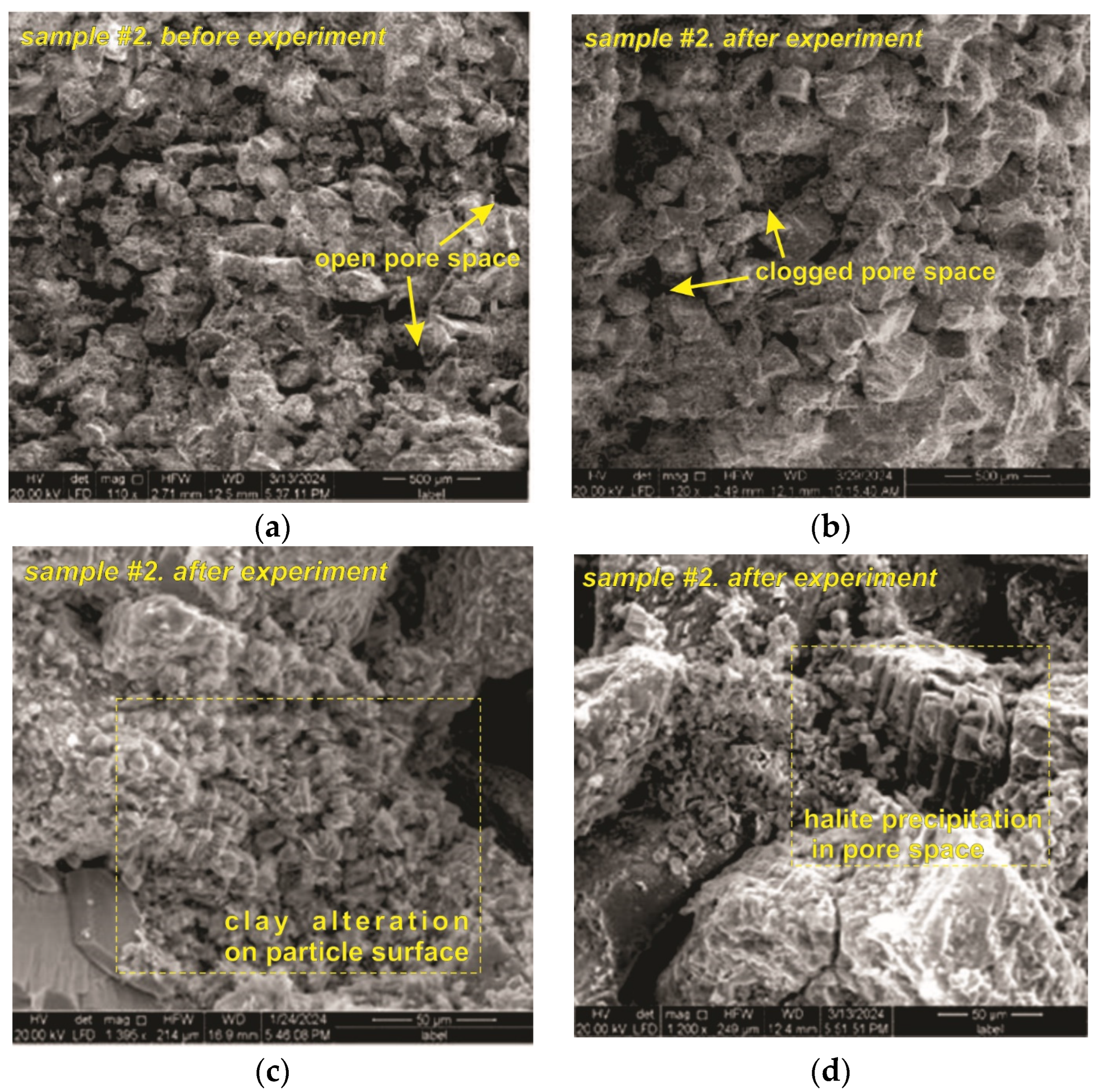

Figure 7. Sample #2: (a) before the experiment with open pore spaces; (b) after the experiment with clogged pores; (c) particle surface after the experiment; (d) pore space after the experiment.
Figure 7. Sample #2: (a) before the experiment with open pore spaces; (b) after the experiment with clogged pores; (c) particle surface after the experiment; (d) pore space after the experiment.
Geosciences 14 00185 g007

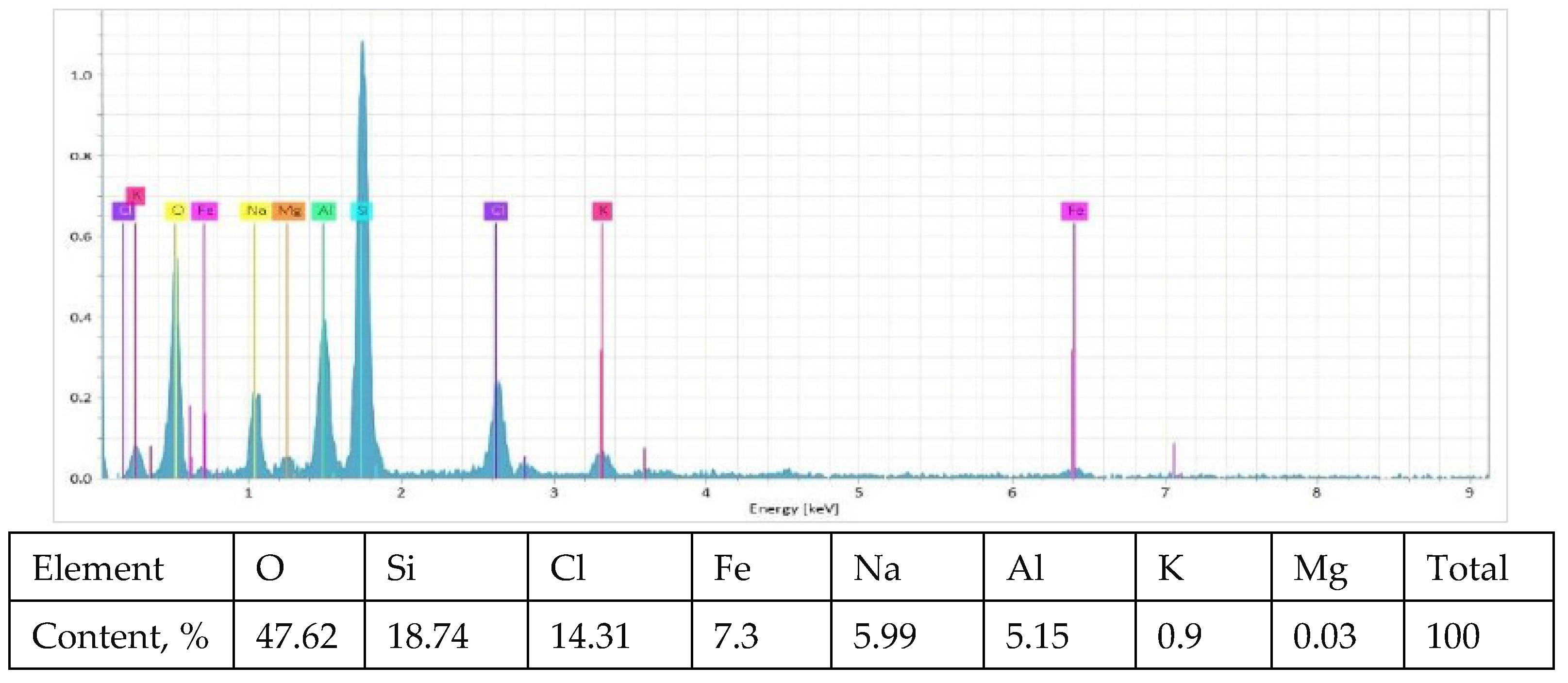

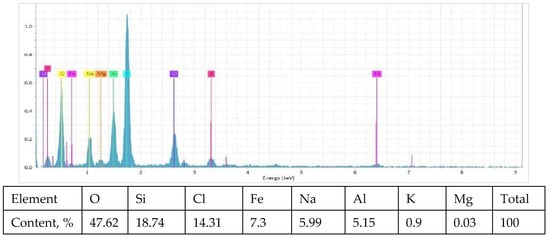

Figure 8. EDS sample #2 after the experiment: particle surface.
Figure 8. EDS sample #2 after the experiment: particle surface.
Geosciences 14 00185 g008

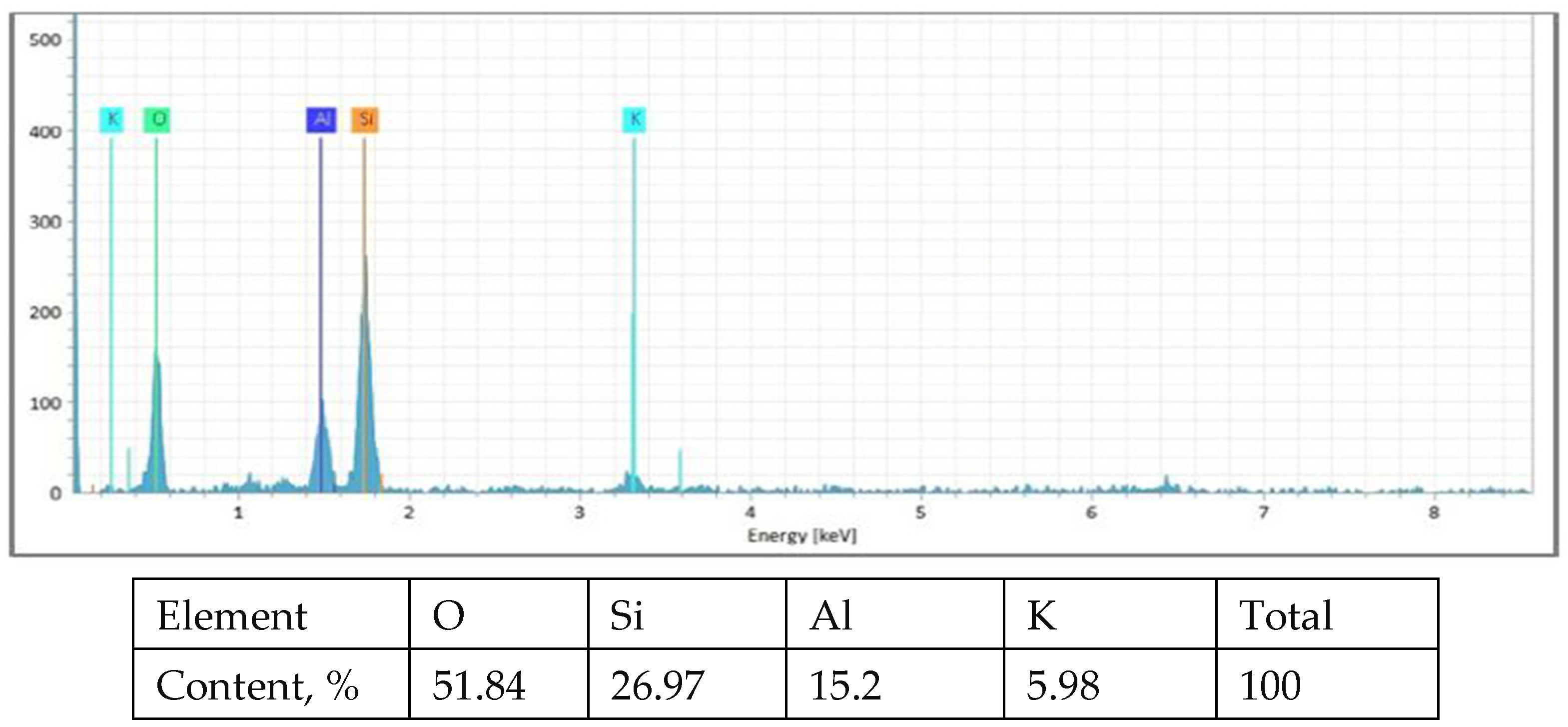

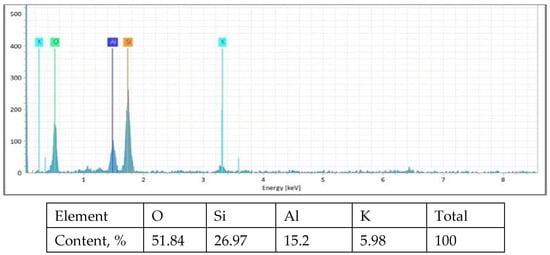

Figure 9. EDS of sample #2 after the experiment: pore space.
Figure 9. EDS of sample #2 after the experiment: pore space.
Geosciences 14 00185 g009

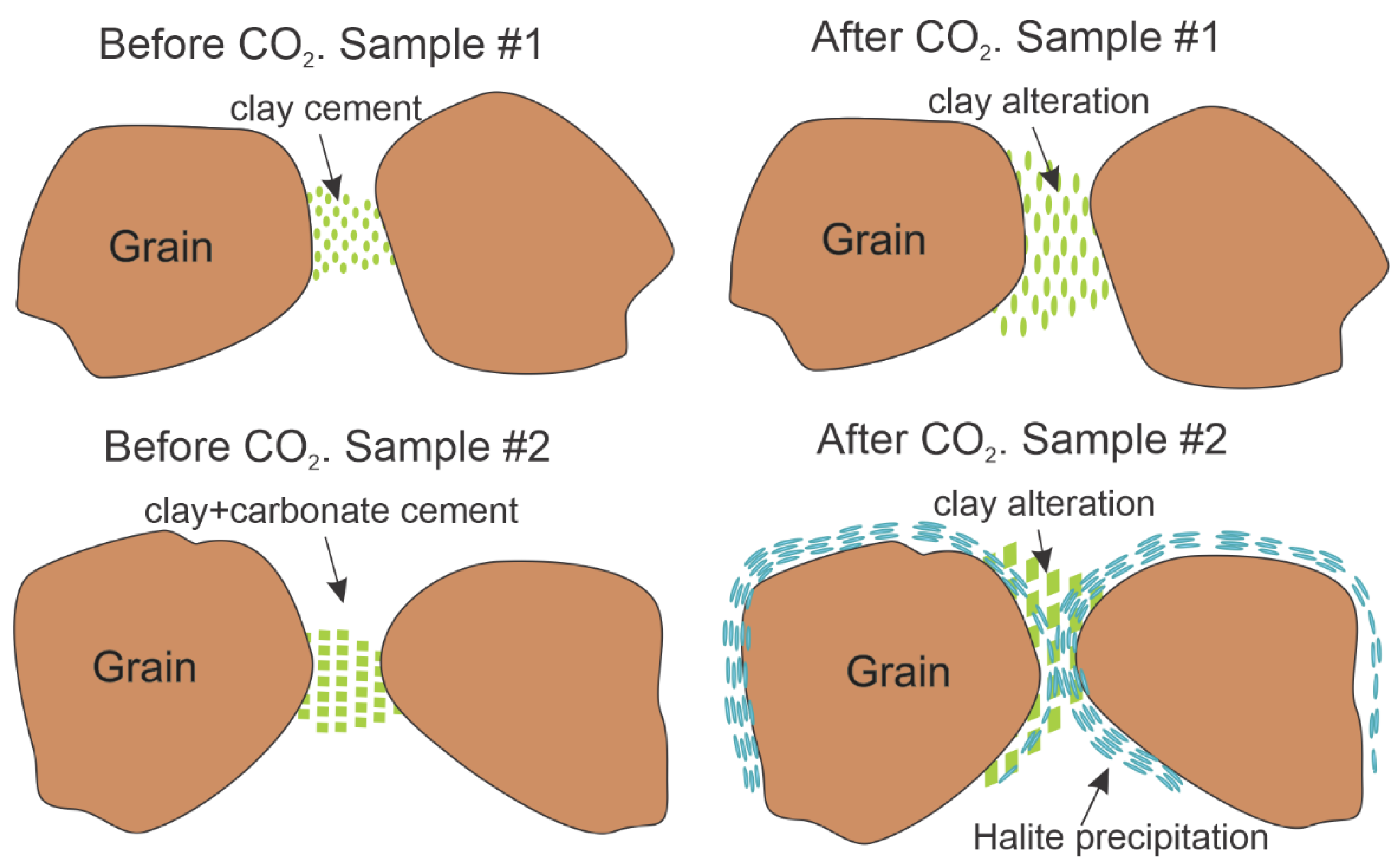

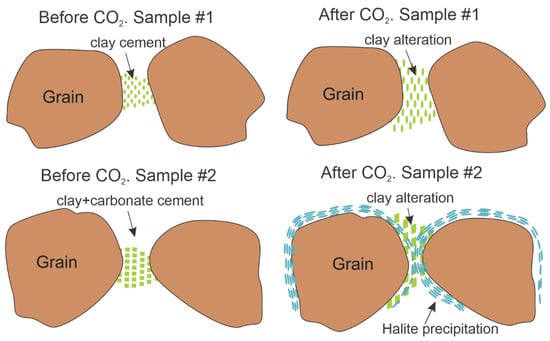

Figure 10. A simplified diagram displaying pore clogging and halite precipitation during CO2 injection modified after Yusof et al. [50] and Abbasi et al. [51].

Figure 10. A simplified diagram displaying pore clogging and halite precipitation during CO2 injection modified after Yusof et al. [50] and Abbasi et al. [51].
Geosciences 14 00185 g010
Table 1. Petrophysical properties of the core samples before the CO2 flooding.
Table 1. Petrophysical properties of the core samples before the CO2 flooding.
OilfieldDepth, mPorosity before the Experiment, %Permeability before the Experiment, mD
Sample #1Dos2171.4324.6348.8
Sample #2Akk1904.6123.7233.3
Table 2. Component composition of oil gas, degassed, and reservoir oil (mole content, %) for sample #1.
Table 2. Component composition of oil gas, degassed, and reservoir oil (mole content, %) for sample #1.
ItemOne-Stage Degassing under Standard ConditionsReservoir Oil
Released GasOil
H2S000
CO20.800.1
N2+rare3.800.89
Methane41.4012.99
Ethane10.80.012.96
Propane 18.90.715.3
Iso-butane6.80.532.19
n-butane9.61.393.43
Iso-pentane8.12.151.84
n-pentane02.681.83
Hexane07.63.28
Heptane010.624.08
C8+074.6761.04
The molecular weight32.9255.9-
Table 3. Component composition of oil gas, degassed, and reservoir oil (mole content, %) for sample #2.
Table 3. Component composition of oil gas, degassed, and reservoir oil (mole content, %) for sample #2.
ItemOne-Stage Degassing under Standard ConditionsReservoir Oil
Released GasOil
H2S000
CO20.200.2
N2+rare2.800.7
Methane000
Ethane49.6012
Propane 8.102
Iso-butane13.50.593.7
n-butane5.30.691.8
Iso-pentane10.12.134.1
n-pentane102.352.8
Hexane02.863
Heptane05.874.9
C8+010.498.1
H2S075.0256.9
The molecular weight34209.75-
Table 4. Composition of the brine.
Table 4. Composition of the brine.
MineralsContent, g/L
NaHCO30.289
Na2SO31.065
MgCl2*6H2O15.475
CaCl214.898
NaCl196.953
Table 5. The estimated MMP values.
Table 5. The estimated MMP values.
Cronquist, 1978 [47]Orr and Jensen, 1984 [49]Li, Qin, and Yang, 2012 [48]Average Estimated MMP
Sample #120.74161517.25
Sample #214.2414.31313.85
Table 6. Experiment conditions.
Table 6. Experiment conditions.
ParameterSample #1Sample #2
Temperature, °C 72 65
Confining pressure, MPa22 20
Table 7. Composition of core samples.
Table 7. Composition of core samples.
MineralSample #1Sample #2
Quartz7059
Albite1933
Kaolinite5-
Illite61
Smectite-1
Calcite-7
Table 8. Outcomes of the flooding experiments.
Table 8. Outcomes of the flooding experiments.
Porosity after the Experiment, %Permeability after the Experiment, mDOil Recovery Coefficient (CO2 Flooding)
Sample #125.72470.49
Sample #222.2116.60.54
