Chemical Composition of Bulk Precipitation and Its Toxicity Potential Index in the Metropolitan Area of Monterrey, Northeastern Mexico

Abstract

The rainwater chemistry within the Metropolitan Area of Monterrey (MAM) was studied during a one-year period (January 2019–January 2020) in seven sampling sites. The metal concentration of Zn, Fe, Cd, Cu, Ni, and Mn was analyzed in bulk samples and the toxicity potential (TP) was calculated for each metal. A canonical correspondence analysis (CCA) was applied to identify the relationship between environmental variables and metals concentrations. An average of 26.6 ± 10 mm of rainfall was obtained. A mean pH of 7.2 ± 0.3 and a mean electrical conductivity of 177.8 ± 8.7 µS cm⁻¹ were observed. The average concentration of metals in all sites follows a descending order of Fe> Zn > Mn > Cu > Ni > Cd. The university site shows the highest averages of Fe, Zn, Cu, and Mn, which is attributed to its proximity to the metallurgical industry. The TP value of Cd reflects a risk in all sites and Fe only for the Universidad, Obispado, Pastora, and Santa Catarina sites, using as a reference value the Environmental Protection Agency (EPA) Drinking Water Regulations and Mexican norm NOM-127-SSA1-1994. The CCA analysis showed that only Ni and Cd had a strong correlation with the environmental variable of relative humidity of air.

1. Introduction

The chemical composition of rainwater is highly dependent on the concentration of atmospheric pollutants and particulate matter; therefore, it can be used as an indicator of air quality in a given area [1]. The analysis of rainwater provides important information for the atmospheric chemical composition, mechanisms that influence the distribution and transport of atmospheric chemical species and their possible source of origin [2]. In recent decades, a large number of studies have been conducted in this regard, to determine the chemical composition of rainwater in different regions, the local and regional dispersal mechanisms, the contributing emission sources, and the environmental effects of the deposition of substances into the surface [1,2,3,4,5]. Chemical compounds transferred from the atmosphere to the soil surface through rain, called wet deposition, interact with water vapor molecules during cloud formation or can be washed away by rain, thus mobilizing some pollutants to the ground or aquatic surfaces, triggering alterations within forest or urban ecosystems (acid deposition, deposition of trace metals and eutrophication) and in the biogeochemical cycles [6]. Furthermore, the chemical composition of rainwater not only depends on the concentrations and the type of substances but also on the collection processes of chemical species by rain and meteorological factors [7]. The type and concentrations of chemical species in rainwater vary between locations and regions. In addition, it reflects the influence of local sources, atmospheric transport conditions, atmospheric temporal development, and its level of contamination [8]. Airmass trajectories combined with chemical composition of precipitation data provide valuable information about the origin of air pollutants. The understanding of patterns of air contamination distribution is necessary to protect the local air quality and ecosystems [9]. In some regions, the local emissions are not significant for the levels of air contamination reported, or in some cases the chemical compounds found in the air do not correspond to local emission sources; this is because the air mass transports pollutants from other regions [10]. In order to improve the policies that regulate the emission of air pollutants and to understand the behavior of the movement of regional or global emissions, some studies in recent decades have focused on the analysis of long-range transport of pollutants, potential sources, and meteorological conditions, combing these parameters to provide a precise modeling of air mass and contaminant trajectories [1,5,11].

At the international level, studies on the flow of major ions (Ca²⁺, K⁺, Mg²⁺, Na⁺, NH₄⁺, Cl⁻, NO₃⁻, SO₄²⁻, and HCO₃⁻) have been widely reported, showing their abundance, deposition patterns, and principal emission sources, showing the relationship between the acid and alkaline components and their effect on the environment [12,13]. In addition, trace metals in rainwater have been widely documented, mainly for metals or metalloids that represent a risk due to their toxicity to health and ecosystems, such as mercury (Hg), lead (Pb), cadmium (Cd), among others [14,15]. These potentially toxic metals have increased their presence in the atmosphere due to industrialization and urban growth. On a regional scale, it has been identified that atmospheric deposition is the main source of metal input, especially in agricultural or natural systems [15].

The Metropolitan Area of Monterrey (MAM) located in the Northeast of Mexico, in Nuevo Leon state, contributes with 7.4% of the national Gross Domestic Product (GDP). It is the third most important industrial city in Mexico and its GDP is acquired through the manufacturing industry located in the North and Northeast area of the MAM (around 24%) [16]. In addition, the accelerated growth of the region and its industrial activity has identified this area as one of the most populated and polluted cities in Latin America [17], which regularly exhibits problems of air pollution caused by particulate matter and ozone [18]. Few studies regarding the chemistry of rain have been carried out in this city [19,20,21]. However, these studies have been performed taking into account a single sampling point or a few areas in the city. Moreover, there is no clear correlation between environmental parameters (such as humidity or suspended particulate material) with the concentration of elements and the relationships have not been carried out using precise statistical techniques (such as canonical correlation analysis). There were only some inferences regarding the wind direction and its influence on the movement of the emissions. Furthermore, these studies were carried out several years ago and a complete interpretation of the current situation of the city has not yet been achieved. In addition, none have evaluated the toxicity of metals that can be deposited on the surface.

This research reports a case study conducted in the MAM, northeastern Mexico. The study area was chosen because it is characterized by high industrialization and to the extent of our knowledge, there are no data relating to the metal concentration in bulk precipitation and their toxicity potential. Thus, the aim of this study was (1) to analyze the concentrations and trends of metals (Zn, Fe, Cu, Ni, Mn, Cd, Pb, and Cr) in the rainfall within different sites along a one-year period, (2) to evaluate if the metals concentrations in rainwater represent a potential for toxicity and (3) to identify the relationship between metal deposition through rainwater and environmental variables. Hence, this study was able to identify environmental patterns that favor the presence of certain elements like cadmium in rainwater and its potential risk for human health and ecosystems.

2. Materials and Methods

2.1. Study Area

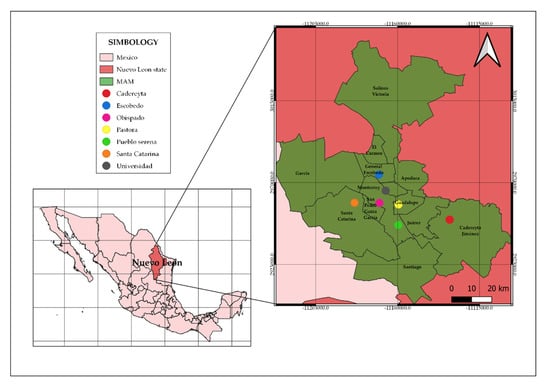

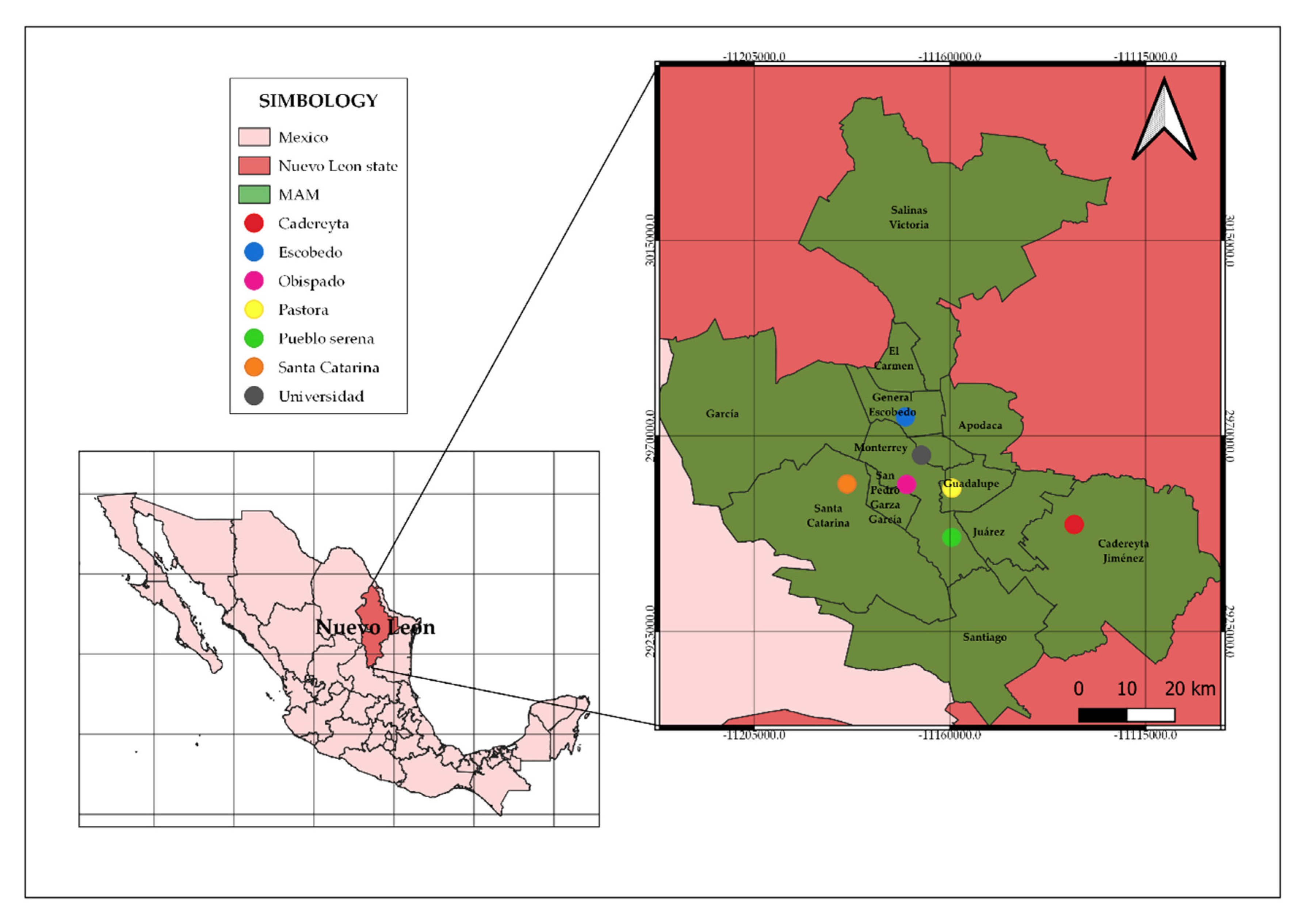

The sampling sites are located in the MAM (25°40′ N, 100°18′ O, Elevation 540 m), which has an area of 7657 km². The MAM is the most industrialized and populated (4, 106, 054 inhabitants in 2015 [22])urban center in northeast Mexico, with more than two million vehicles, around two hundred industries of various branches (cement, glass, steel, textile, chemical, oil refinery, among others) and medium or small businesses/factories [18]. The climate is semidry and warm, with an average annual precipitation of 623 mm and a mean annual temperature of 32 °C, which can reach 40 °C in summer and −2 °C in winter. The prevailing winds come from the east and southeast during summer and from the northeast during winter. It is surrounded by the Sierra Madre Oriental Mountain range, the Cerro de la Silla, the Cerro de las Mitras, and the Cerro del Topo Chico, which constitute a natural orographic barrier, which prevents the flow of air to the outside of the MAM and thus allowing for atmospheric pollutants to remain trapped within the urban basin [22]. Due to the orographic conditions of the region, its industrial and population growth, its increase in vehicle fleet, and the lack of an adequate urban development planning, this area shows air pollution problems [22,23]. The MAM is integrated by 13 municipalities that have different land use characteristics: preferably residential-commercial areas located in the south-southeast, areas with a high presence of industries in north-northwest, and commercial areas in central-northwest zone.

Thus, to carry out this study, six of the thirteen municipalities of the MAM were selected (General Escobedo, San Nicolás de los Garza, Monterrey, Guadalupe, Santa Catarina, and Cadereyta Jiménez) to establish a sampling site in each county. However, within the municipality of Monterrey, which is the state capital, two sampling sites were selected, one in the central area and another in the southernmost point of the city. The sampling sites were located at the stations of the environmental monitoring network of the Nuevo Leon state government. Figure 1 shows the municipalities of the MAM and the monitoring sites selected for this study.

The monitoring sites selected in the present study have different gradients of urbanization or industrialization. Cadereyta site (urban/industrial) highlights the oil refinery and the broom factories. Escobedo site (industrial/high traffic) stands out for its industrial manufacturing activity and its proximity to a high vehicular load avenue (Northeast highway loop). Obispado site (urban/high traffic) corresponds to the downtown area, which is characterized by its commercial activity and many relevant avenues connecting the city. Pueblo Serena (urban/high traffic) is the southern monitoring point, located near National Highway 85, which connects central and southern Mexico to the border city of Nuevo Laredo. Pastora site (urban) is located in the La Pastora Zoo of the MAM near Cerro de la Silla. Santa Catarina site (industrial/high traffic) is characterized by industrial activity (paints, ceramics, plastics, agricultural, aluminum, etc.) and high vehicular traffic since this site connects the MAM with the neighboring state of Coahuila. Finally, Universidad site (urban/industrial), receives its name thanks to the fact that the sampling point is located within the Autonomous University of Nuevo León, which is located near metallurgical industries and avenues that connect the city with the university campus area.

2.2. Sampling Method

The rainwater collectors were nonautomatic. The sample collector comprised a 10-L capacity plastic cylinder, in which a funnel of 22.5 cm of diameter was placed, filling the free space between the funnel and the lid with cold silicone to avoid sample contamination. A plastic mesh was also placed over the funnel to prevent the entry of insects or debris. With the objective of obtaining replications at each selected site, three collectors were placed on the roof of the environmental monitoring station. The collectors remained open during the experimental period, for which it was considered that the quantified deposition was the bulk deposition (wet and dry). The names of the monitoring sites are denoted according to the station location nomenclature given by the state government environmental monitoring system (SIMA). The monitoring period ranged from 30 January 2019 to 30 January 2020. The collection of rainwater samples was carried out on a rainfall event basis. A singular rain event was considered to be that in which the fall of water remained uninterrupted for less than eight hours. When a dry period of more than 8 h was reached, it was considered a new event. Each sample was collected taking care of not mixing different rainfall events [24].

After each rainfall event, the volume of rainwater was measured. Then, the sample was transferred into sterilized polyethylene bottles with a capacity of 125 mL. The collected samples were immediately placed in a cooler to be transported to the laboratory for further analysis. The sample collectors were thoroughly rinsed with deionized water several times and then placed back at their fixed sampling sites after each sample collection. All those rainfall events in which the rain collectors did not attain a minimum of 125 mL of sample were discarded, because they did not fulfill the minimum amount required for chemical analyses.

2.3. Environmental Variables and Particulate Matter Concentrations in the MAM

Some environmental variables and the concentrations of particulate matter in suspension (PM₁₀ and PM_2.5) were used to describe the conditions of the monitoring sites, which will be referred on the document as the set of environmental variables. The environmental variables were obtained directly from the website of the National Institute of Ecology and Climate Change, through its SINAICA platform for the environmental monitoring stations corresponding to the sampling sites [25]. The wind rose was obtained using the WRPLOT software (WRPLOT, version 8.0.2 © Lakes Environmental Software, Waterloo, ON, Canada). Then the environmental variables considered for the study (relative humidity, wind direction and speed, and for air quality the concentration of PM₁₀ and PM_2.5) were correlated to the concentrations found in the rainwater.

To identify the possible origin of the air masses that reached the MAM during the rain events analyzed for the period of January 2019–January 2020, the movement of the air masses’ trajectories was tracked, taking as reference two specific rain events (5 March 2019 and 11 July 2019) and a center point in the MAM that corresponds to the Obispado site, taking into account 24 h before the rain event and the prevailing conditions during the rain event. For the air mass trajectory simulations modeling the Hybrid Single-Particle Lagrangian Integrated Path Model (HYSPLIT) was used, based on 1° × 1° meteorological data (GDAS—Global Data Assimilation System).

2.4. Chemical Analyses

The pH and electrical conductivity (EC) were measured using an Oakton Waterproof pH/CON 10 digital meter after each event. Previous to the pH and EC determinations, the Oakton meter was calibrated using pH buffer solutions with values of 4, 7, and 10. In the case of conductivity, a conductivity standard with a value of 1413 µS cm⁻¹ was used. Later 125 mL of samples were taken (in triplicate) and stored in containers of polyethylene, for their conservation they were acidified with nitric acid (HNO₃) and refrigerated at 4 °C prior to chemical analysis. To determine the concentration of the elements in rainwater, the samples were treated by acid digestion using ultra-pure nitric acid (HNO₃), following the method of the US Environmental Protection Agency (EPA) 3010A, in order to eliminate the presence of organic matter. To proceed with the measurement and to maintain the integrity of the instrument analysis equipment, the samples were filtered through Whatman^® no. 42 cellulose membranes to remove particles. For selected elements (Zn, Fe, Cu, Ni, Mn, Pb, Cd, and Cr), their concentrations and the corresponding multielement calibration standard curves were constructed. Values from 10 to 400 µg L⁻¹ were used for each element. An atomic emission spectroscopy equipment (Agilent MP-AES, model 4200, ©Agilent Technologies Inc., Sta Clara, CA, USA) was used. The rainwater samples were analyzed in triplicate to ensure precision in the determination of the elements. Additionally, samples that fell outside the working range of the calibration curve were adequately diluted to achieve their reading. For QA/QC, blanks and standards were run in duplicate after every 10 samples.

2.5. Toxicity Potential Index

The toxicity potential index (TP) of rainwater and heavy metal chemistry in wet deposition was calculated using the recommended upper limits for metal values to the observed median values in wet deposition as described by Keresztesi et al. (2020), according to the following equation:

$$\mathrm{TP}=\frac{Concentration of metal in wet deposition }{Recommended upper limits for metal concentration}$$

(1)

where a TP value greater than 1 implies a toxic deposition potential. In order to know this value for each monitoring site, the maximum permissible Mexican limit for drinking water (NOM-127-SSA1-1994) was selected as a reference value: for Cd (0.005 mg L⁻¹), Cu (2 mg L⁻¹), Fe (0.30 mg L⁻¹)Mn (0.15 mg L⁻¹) and Zn (5 mg L⁻¹) [26], which represents the measured concentration in water (in suspension or diluted) that should not be exceeded for human use and consumption. In addition, the EPA´s standard for drinking water was also employed, in order to compare the indexes achieved, taking into account that reference values have different levels of restrictions; for the EPA, MCL (Maximum Concentration Levels) values were used: for Cd (0.005 mg L⁻¹) and for the rest of the elements (Zn, Fe, Cu and Mn) the values that the EPA considers as Secondary Drinking Water Regulation (5, 0.3, 1, 0.05 mg L⁻¹, respectively). For studied metals at each monitoring site, the average concentration value was used as denoted above.

2.6. Statistical Analyses

The concentration of studied metals, pH, EC, and precipitations values were used to perform the statistical analyses. First, the Kolmogorov–Smirnov test (α = 95%) was carried out to verify the normal distribution assumptions of data. Results showed lack of normality for all investigated variables. Thus, the Kruskal–Wallis test (α = 95%) was performed in order to detect significant differences in the studied variables among sampling sites and sampling dates. A descriptive statistical analysis (mean, variance, standard deviation, standard error, minimum, and maximum value) for the concentrations of each metals analyzed at each site, as well as pH and electrical conductivity, were carried out. The Spearman correlation analysis was performed to determine relationships between all metal concentration values. The SPSS^® software (Statistical Package for Social Sciences, version 22 for Windows, SPSS Inc., Chicago, IL, USA) was used to carry out all statistical procedures.

A canonical correlation analysis was applied to determine the relationships between the prevailing environmental variables one day before the rain event and the presence of the metals found in the rainwater. Data was analyzed using the RStudio© software (RStudio, version 1.2.5033 for Windows, 2009–2019, RStudio, Inc., Boston, MA, USA). For the correlation graph display between environmental variables and element concentration, the CANOCO Software for Windows version 4.56 was used (Canonical Community Ordination, version 4.5 for Windows, Microcomputer Power. Ithaca, New York, NY, USA).

3. Results

3.1. Environmental Variables

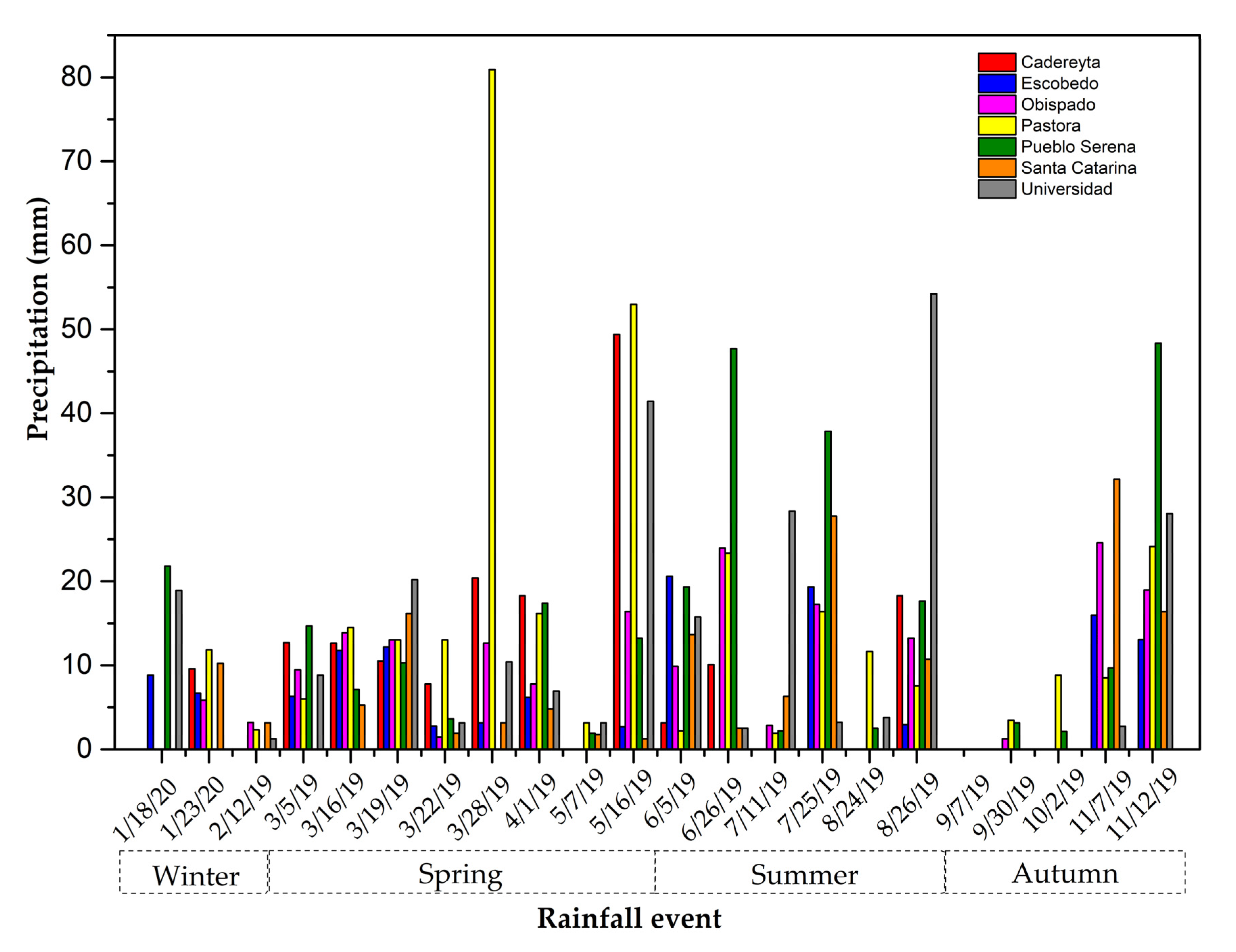

A total of 12, 15, 18, 21, 19, 17, and 18 rain events were collected for the sites of Cadereyta, Escobedo, Obispado, Pastora, Pueblo Serena, Santa Catarina, and Universidad, respectively. An annual accumulated average precipitation of 448.23 mm (2019–2020) was registered. The average precipitation between collected events was 26.62 ± 10.22 mm. A minimum value of 1.26 mm and a maximum of 252.21 mm corresponding to the event related to the tropical storm Fernand were noted. The amount of precipitation by rainfall event is shown in Figure 2. The amount of precipitation corresponding to tropical storm Fernand (7 September 2019) was no shown in this figure since it breaks the tendency in rain events. The Kruskal–Wallis test shows no significant differences for rainfall amount between sites, but the differences are significant between one rain event and another.

Average relative humidity for all the sites during the study period was 60.37 ± 0.28%, with a minimum value of 0% and a maximum of 97%. The sites Pueblo Serena and Obispado registered the higher and lower mean relative humidity values with figures of 63.50% and 57.76%, respectively.

The wind speed showed a mean value of 6.53 ± 0.05 m s⁻¹, with a minimum of 0.1 m s⁻¹ (calm winds) and a maximum of 100 m s⁻¹. The extreme values of strong winds could be related to the presence of the tropical storm Fernand in the month of September 2019. During the experimental period, the site with the highest (12.43 m s⁻¹) and lowest (2.48 m s⁻¹) wind mean speeds were Pastora and Pueblo Serena, respectively. The dominant annual winds blow from the Northeast, East, and Southeast for most of the monitoring stations.

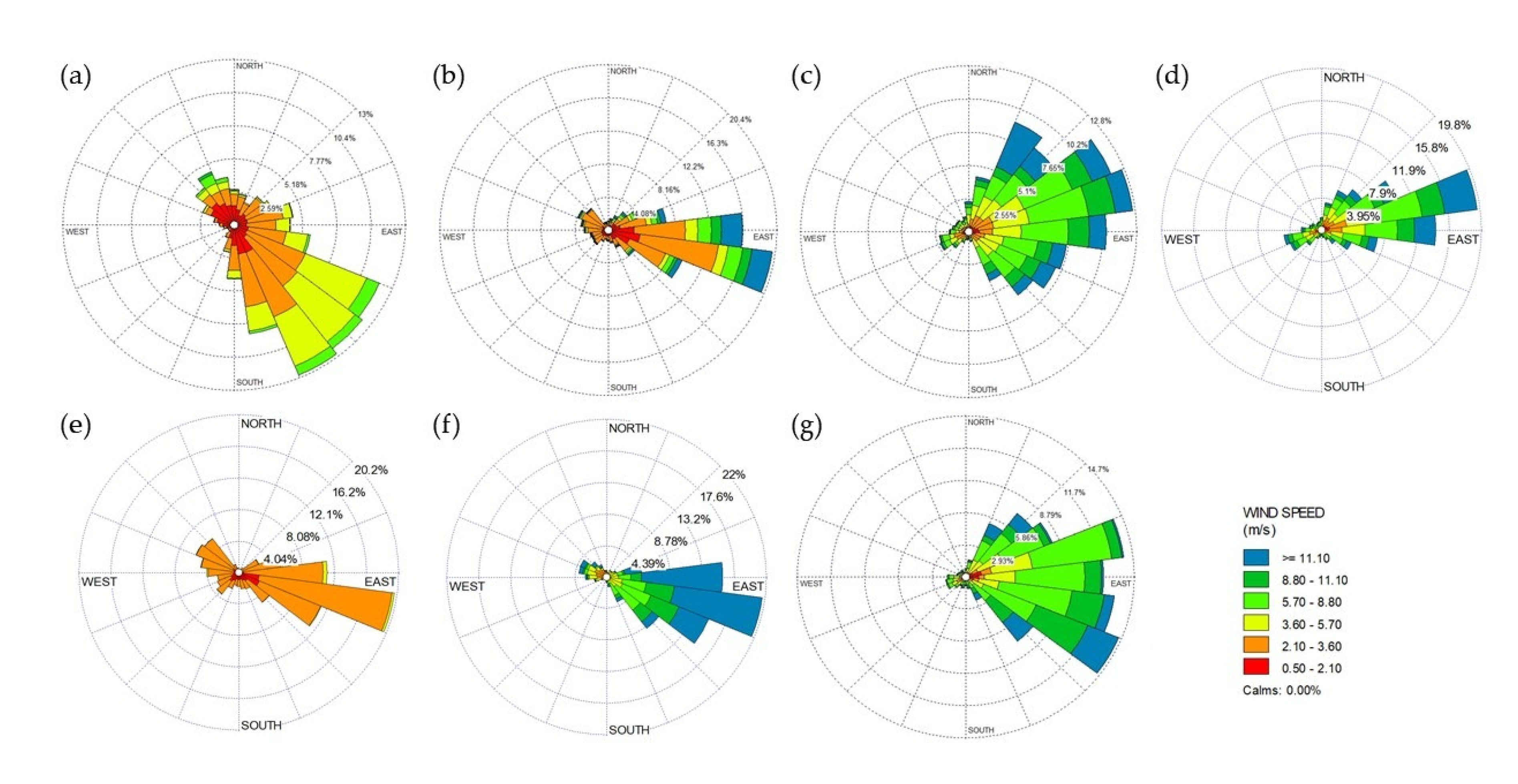

The wind direction and speed were represented through the wind rose that comprises the entire study period; from January 2019 to January 2020 as shown in Figure 3. It should be noted that tropical storm Fernand caused an alteration in the annual average of rain and wind speed. Given the nature of the storm, the results for the event in which the tropical storm influenced the data were not taken into consideration.

The concentration of suspended particles less than 10 µm (PM₁₀) showed an annual average for all sites of 53.66 ± 0.38 µg m⁻³, with a minimum of 2 µg m⁻³ and a maximum of 600 µg m⁻³. The site with the highest average PM₁₀ concentration (62.16 µg m⁻³) was Santa Catarina and the one that showed the lowest concentration (44.94 µg m⁻³) was Pueblo Serena.

Likewise, for the concentration of suspended particles less than 2.5 µm (PM_2.5), the average of all sites was 20.88 ± 0.17 µg m⁻³, with a minimum value of 1 µg m⁻³ and a maximum of 175 µg m⁻³. The site with the highest average concentration of PM_2.5 was Obispado (25.45 µg m⁻³) and Pueblo Serena registered the lowest concentration (15.33 µg m⁻³).

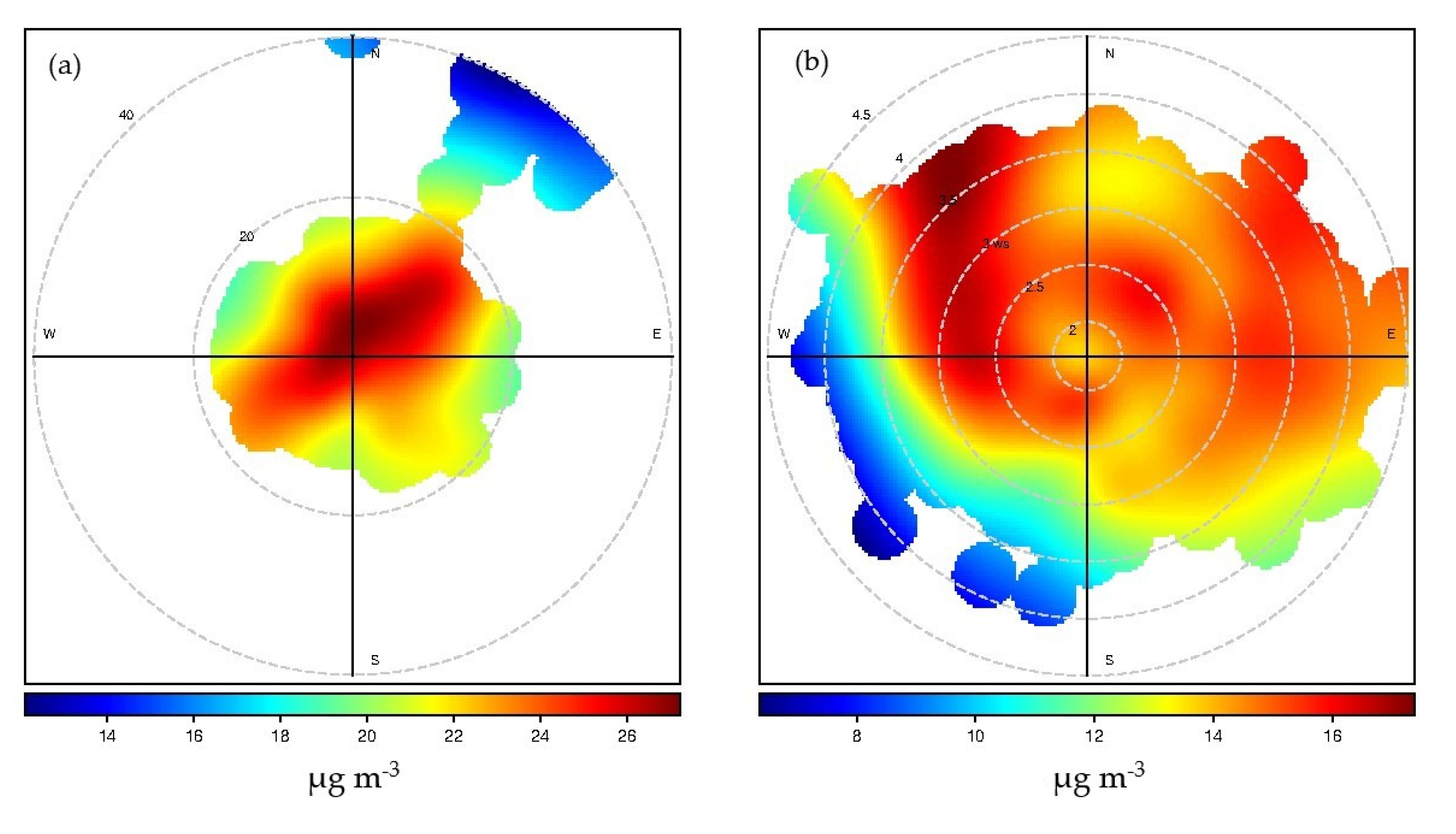

Figure 4 shows pollution roses for two sites (Obispado and Pueblo Serena). Obispado site showed that during strong winds (about 50 m s⁻¹) the concentrations of PM_2.5 observed were the lowest, and the winds come from Northeast. Meanwhile, the higher concentrations observed in Obispado site were prevalent during low-speed winds (10 m s⁻¹), which indicate that local emission was the main source that caused elevated concentrations episodes of PM_2.5. In contrast, Pueblo Serena site shows that when PM_2.5 concentrations are low the winds come from the Southwest (Sierra Madre Oriental Mountain range). Although the highest concentrations come from the Northwest (MAM), the wind is really low (breeze) for this site throughout the year, given that the site is in the middle of two large orographic barriers (Sierra Madre Oriental Mountain range and the Cerro de la Silla), which indicates that the high concentrations did not arrive at Pueblo Serena by the wind’s drag, but were being generated locally, due to the proximity of the PM_2.5 sensor with National Highway 85.

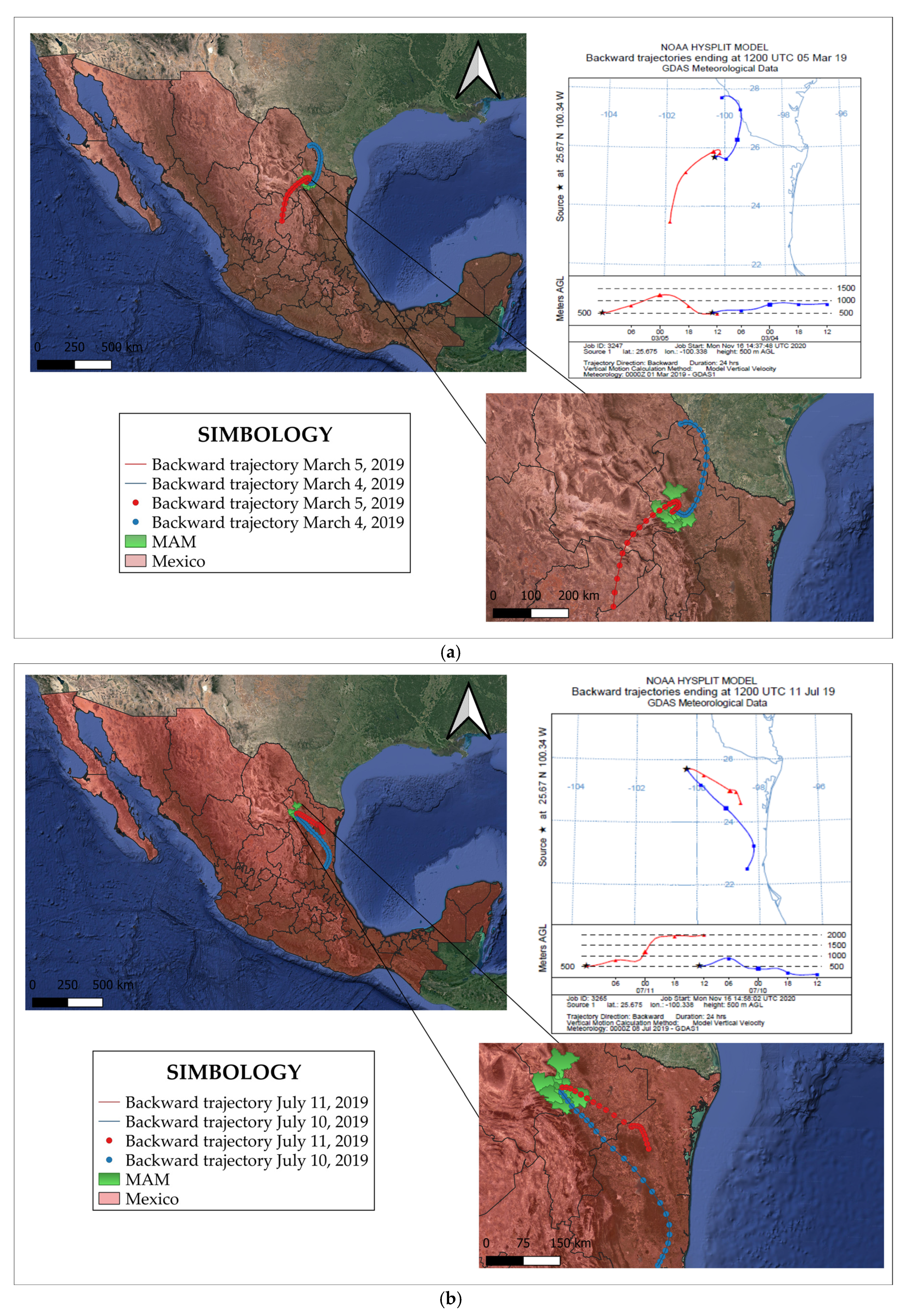

The air mass backward trajectories make it possible to identify the contributions of long-distance emissions and separate their effects from local emissions. Figure 5 shows the air mass backward trajectories in order to identify where the air masses came from before occurrence of the rain events and how the air masses moved on during, using 24-h return trajectories, at a height of 500 m above ground level. The air mass for the Obispado site on 5 March 2019 came from the North of the country (blue line) one day before the rainfall event, which even coincides with the cold fronts season for this zone. In addition, air mass from central Mexico (red line) was observed on the rainfall event day. The air mass during 11 July 2019 came from the East of the country, from the state of Tamaulipas both trajectories, one day before and the day of the rainfall event. These trajectories can be influenced by the prevailed conditions on the Gulf of Mexico.

3.2. Chemical Composition and Seasonal Variation

The descriptive statistical values per monitoring site for pH, EC, precipitation, and concentration of the studied metals are shown in

Table 1. Descriptive statistics for pH, EC (µS cm⁻¹), and annual metal concentration (µg L⁻¹) by monitoring site.

Monitoring Site	pH	EC	Precipitation	Zn	Cd	Fe	Cu	Ni	Mn
				LOQ = 10 *, LOD = 5 *
Cadereyta (N = 32)
Mean	7.2	138.2	35.4	199.4	10.2	224.3	12.8	10.5	10.8
Standard error	0.1	14.6	20	14.5	0.1	56	1.3	0.3	0.4
Standard deviation	0.6	82.9	69.3	81.8	0.6	316.8	7.2	1.6	2.1
Minimum value	6.4	20	3.2	80	10	19	9	9	10
Maximum value	8.4	410	252.2	415.4	11.9	1318	45	16	17
Escobedo (N = 36)
Mean	7.1	154.2	25.6	173.7	10.2	109.8	12.1	10	11
Standard error	0.1	16.4	16.3	16.7	0.1	19.7	0.7	0	0.6
Standard deviation	0.7	98.6	63	100.1	0.6	118.4	4.2	0	3.6
Minimum value	6.2	10	2.7	25.7	10	10	10	10	10
Maximum value	8.6	391	252.2	440	11.9	400	24	10	31.3
Obispado (N = 50)
Mean	7.2	182.2	22.1	263.4	12.6	443.7	25.7	10.7	21.3
Standard error	0.1	22.8	2.5	23.4	1.4	126	6.8	0.4	3.6
Standard deviation	0.5	161	45.4	165.7	9.8	891	48.1	2.8	25.7
Minimum value	6.5	20	1.3	12.4	10	10	10	9	10
Maximum value	9.2	744	201.8	644	51	4396	214	21.5	127
Pastora (N = 52)
Mean	7.1	206.9	23	210.1	10.3	299.6	14.9	10	20.3
Standard error	0.1	26.2	1.8	15	0.1	76.8	1.1	0	3.6
Standard deviation	0.5	188.9	36.8	108.5	0.8	553.5	7.8	0.3	26
Minimum value	5.9	10	1.8	15.8	10	10	10	10	10
Maximum value	8.7	814	161.4	452	13.6	3337	34	12	155
Pueblo Serena (N = 52)
Mean	7.1	104.9	28	204.5	14	277.3	10.8	10	16.9
Standard error	0.1	10.3	3	12.6	2.1	67.8	0.5	0	2.6
Standard deviation	0.4	74	56.2	91	15.2	488.6	3.5	0	18.6
Minimum value	6.4	10	1.9	15.3	10	9.5	9	10	10
Maximum value	8.3	350	252.2	402	74.6	2949	31	10	103
Santa Catarina (N = 42)
Mean	7.3	222.1	24.1	241.1	10.2	465.4	15	21.9	22.9
Standard error	0.1	24	14.4	24.1	0.1	146.8	1.3	8.3	5.5
Standard deviation	0.7	155.6	59.5	156.2	0.6	951.6	8.6	53.8	35.6
Minimum value	6.2	10	1.3	12.4	10	10	10	10	10
Maximum value	9.3	701	252.2	669	11.9	3712	37	26	149
Universidad (N = 37)
Mean	7.2	240.8	28.1	405.3	10.1	1090.8	28.4	10.7	35.6
Standard error	0.1	30.8	13.6	46	0.1	358	9.3	0.5	12
Standard deviation	0.5	187.2	57.9	280.1	0.5	2177.5	56.4	3.3	72.7
Minimum value	6.4	10	1.3	110.4	9.7	20	10	10	10
Maximum value	8.2	720	252.2	1492	11.9	9329	345	30	424

* Analytical method limits of quantification (LOQ) and detection (LOD).

.

The average pH value for all sampling sites was 7.2 ± 0.3, with a minimum value of 5.9 and a maximum of 9.3. The electrical conductivity (EC) showed an average of 177.8 ± 8.7 µS cm⁻¹, with a minimum of 10 µS cm⁻¹ and a maximum of 814 µS cm⁻¹.

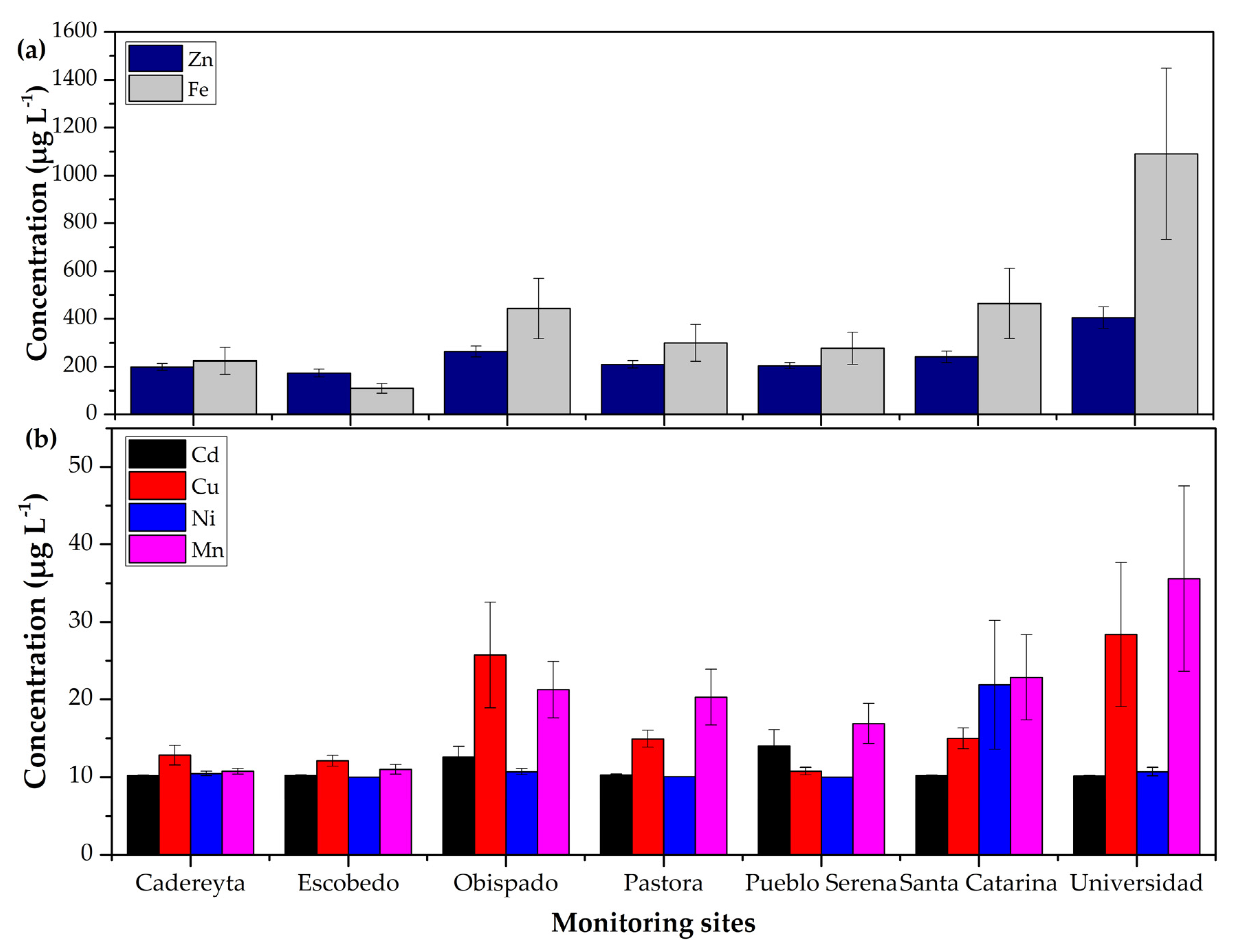

The concentrations of Zn and Fe showed the highest values in all studied sites with respect to the rest of the metals. In addition, it could be noted that the Universidad site registered the highest average values for these two elements, as well for Cu and Mn (Zn = 405.3 ± 46 µg L⁻¹, Fe = 1090.8 ± 358 µg L⁻¹, Cu = 28.4 ± 9.3 µg L⁻¹, and Mn = 35.6 ± 12 µg L⁻¹) with respect to the remaining sites. The site that showed the highest average value for the concentration of Cd (14 ± 2.1 µg L⁻¹) was Pueblo Serena and the highest Ni concentration (21.9 ± 8.3 µg L⁻¹) was found in Santa Catarina site.

The descending order of monitoring sites for the average concentrations of Fe was as follows: Universidad > Santa Catarina > Obispado > Pastora > Pueblo Serena > Cadereyta > Escobedo, and for Zn the descending order of sites was: Universidad > Obispado > Santa Catarina > Pastora > Pueblo Serena > Cadereyta > Escobedo.

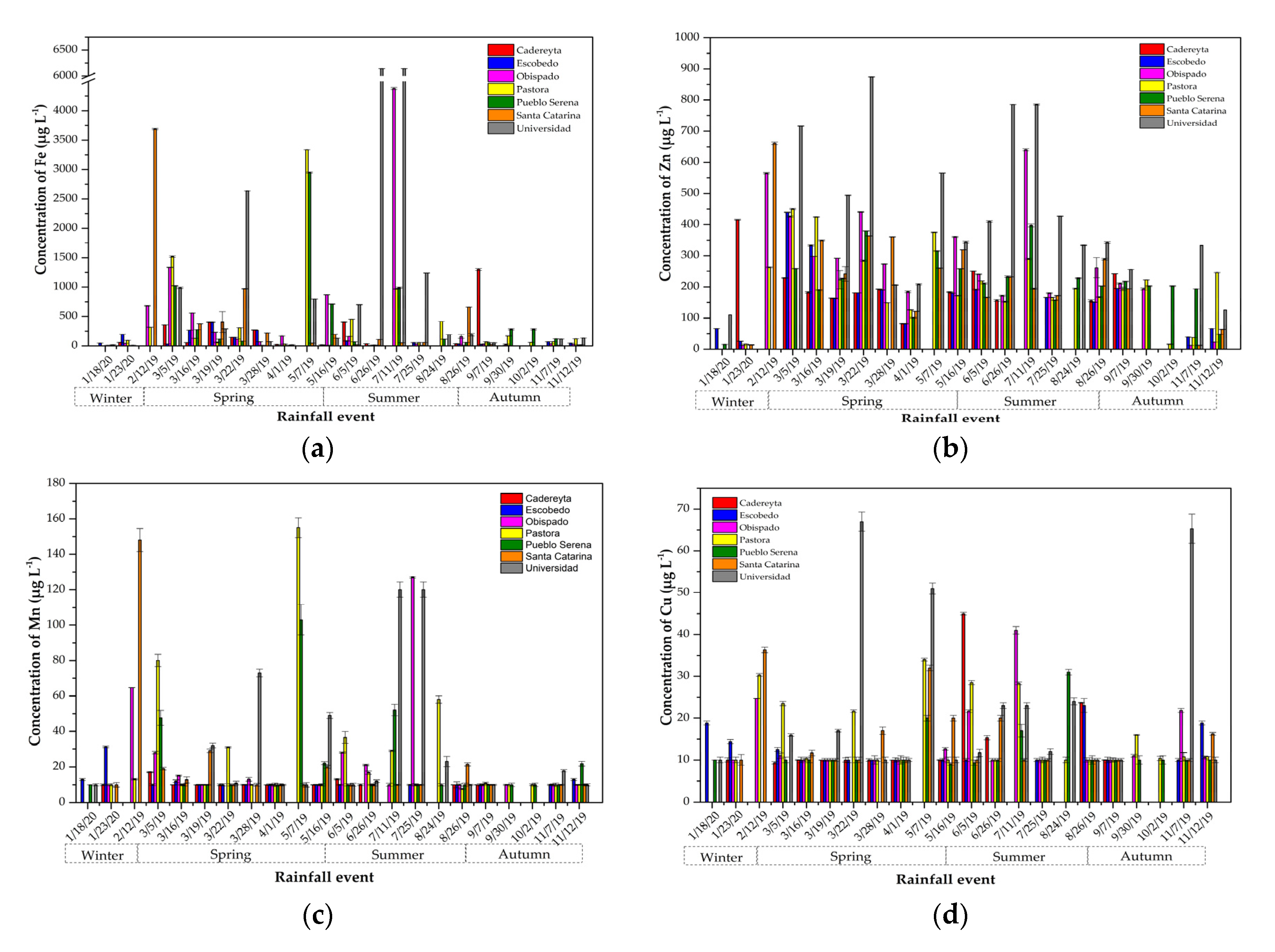

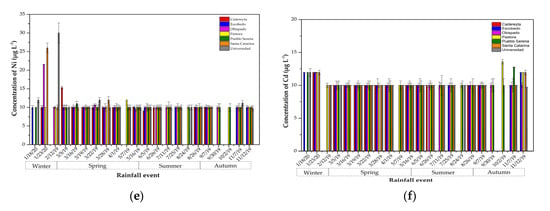

Fe, Zn, Cu, and Mn concentrations showed a clear seasonal variation, while Ni and Cd did not exhibit any seasonal variability. Iron and zinc concentrations were the highest and most variable along the monitoring period for all sites. Nickel and Cadmium showed the lowest concentrations, which were constant throughout the study period. Spatial and temporal distribution concentrations of metals bulk precipitation in MAM are shown in Figure 6.

The global descending order for analyzed metals was as follows: Fe > Zn > Mn > Cu > Ni > Cd. The trend and extent of the mean values for studied metals can be observed for each monitoring site in Figure 7.

The Kruskal–Wallis test showed no significant differences in the mean values of the variable precipitation, pH, Cd, and Ni among sampling sites. In contrast, the analysis indicated significant differences for the mean values of EC, Zn, Fe, Cu, and Mn among sampling sites (

Table 2. Statistics of the Kruskal–Wallis analysis of variance between the monitoring sites and between rainfall events.

Statistic	Precipitation	pH	CE	Zn	Cd	Fe	Cu	Ni	Mn
	Grouping by monitoring sites (df = 6)
χ2	9.623	3.69	26.56	38.11	6.23	13.35	34.72	8.70	17.32
p-value	0.141 NS	0.72 NS	<0.001 ***	<0.001 ***	0.40 NS	0.04 *	<0.001 ***	0.19 NS	0.01 **
	Grouping by rainfall events (df = 21)
χ2	156.51	195.68	183.33	143.30	168.53	128.97	109.06	62.22	121.25
p-value	<0.001 ***	<0.001 ***	<0.001 ***	<0.001 ***	<0.001 ***	<0.001 ***	<0.001 ***	<0.001 ***	<0.001 ***

* (p ≤ 0.05) significant differences. ** (p ≤ 0.01) significant differences. *** (p ≤ 0.001) highly significant differences. ^NS (p> 0.05) not significant differences.

). Regarding the rainfall events, significant differences were found among sampling dates for all the parameters analyzed (precipitation, pH, EC, and studied metals).

In pollution analysis, the correlations between two heavy metals regularly indicates that these elements come from the same source when the correlation is positive, while a negative correlation shows that they come from different sources [27]. Spearman correlation test was used to evaluate the relationship between metals concentrations in bulk precipitation as shown in

Table 3. Spearman correlations coefficients for the metal concentration in bulk precipitation (moderate to strong correlations >0.5 are shown in bold).

	Zn	Cd	Fe	Cu	Ni	Mn
Zn		−0.22 **	0.691 **	0.373 **	0.003	0.582 **
Cd			−0.172 **	0.026	0.141 *	0.012
Fe				0.336 **	−0.002	0.675 **
Cu					0.051	0.533 **
Ni						0.113
Mn

* Correlations is significant at the 0.05 level (2 tails). The highest correlations found are shown in bold. ** Correlations is significant at the 0.01 level (2 tails).

. The analysis showed significant but positive moderate correlations between Zn-Fe, Zn-Mn, Fe-Mn, and Cu-Mn, suggesting that these species could be emitted from a common source of origin. In addition, significant but negative low correlations were found for Zn-Cd and Cd-Fe, and positive low exist for Zn-Cu, Fe-Cu, and Cd-Ni.

3.3. Toxicity Potential Index (TP)

The calculated values for toxicity potential for the MAM are shown in

Table 4. Toxicity potential (TP) values of studied metals evaluated under two different upper limits (EPA—Environmental Protection Agency and NOM—Mexican regulations) by monitoring sites.

Site	Cd		Fe		Zn		Cu		Mn
	EPA	NOM	EPA	NOM	EPA	NOM	EPA	NOM	EPA	NOM
Cadereyta	2.036	2.036	0.748	0.748	0.040	0.040	0.013	0.006	0.215	0.072
Escobedo	2.043	2.043	0.366	0.366	0.035	0.035	0.012	0.006	0.220	0.073
Obispado	2.515	2.515	1.479	1.479	0.053	0.053	0.026	0.013	0.425	0.142
Pastora	2.059	2.059	0.999	0.999	0.042	0.042	0.015	0.007	0.406	0.135
Pueblo Serena	2.799	2.799	0.924	0.924	0.041	0.041	0.011	0.005	0.338	0.113
Santa Catarina	2.037	2.037	1.551	1.551	0.048	0.048	0.015	0.007	0.457	0.152
Universidad	2.027	2.027	3.636	3.636	0.081	0.081	0.028	0.014	0.711	0.237

Values of TP > 1 are shown in bold.

. TP values greater than one (TP > 1) were observed only for Cd and Fe, which were obtained using upper limits of drinking water from both countries (Mexico and USA), since the maximum permissible limit for these metals are consistent in both regulations. Cd showed toxicity potential risk in all monitoring sites, while TP values of Fe showed potential risk only for Universidad (TP = 3.64), Obispado (TP = 1.48), Pastora (TP = 1) and Santa Catarina (TP = 1.55) sites. On the other hand, Zn, Cu, and Mn did not represent a toxicity potential risk according to TP values obtained which were smaller than one (TP < 1).

3.4. Canonical Correlation Analysis (CCA)

The canonical correlation analysis (CCA) was used to determine the relationships between two sets of variables: deposition of metals (Fe, Zn, Mn, Cu, Ni, and Cd, mg m⁻²) and the environmental variables (relative humidity, wind direction and speed, and particulate matter). The linear combinations of each set were maximized in such a way that the correlation between both sets was as high as possible. The CCA shows how the presence of metals in rainwater can be explained by environmental variables. Figure 8 shows the diagram obtained from the canonical correlations between the two groups, which includes the data from all monitoring sites and all the analyzed events.

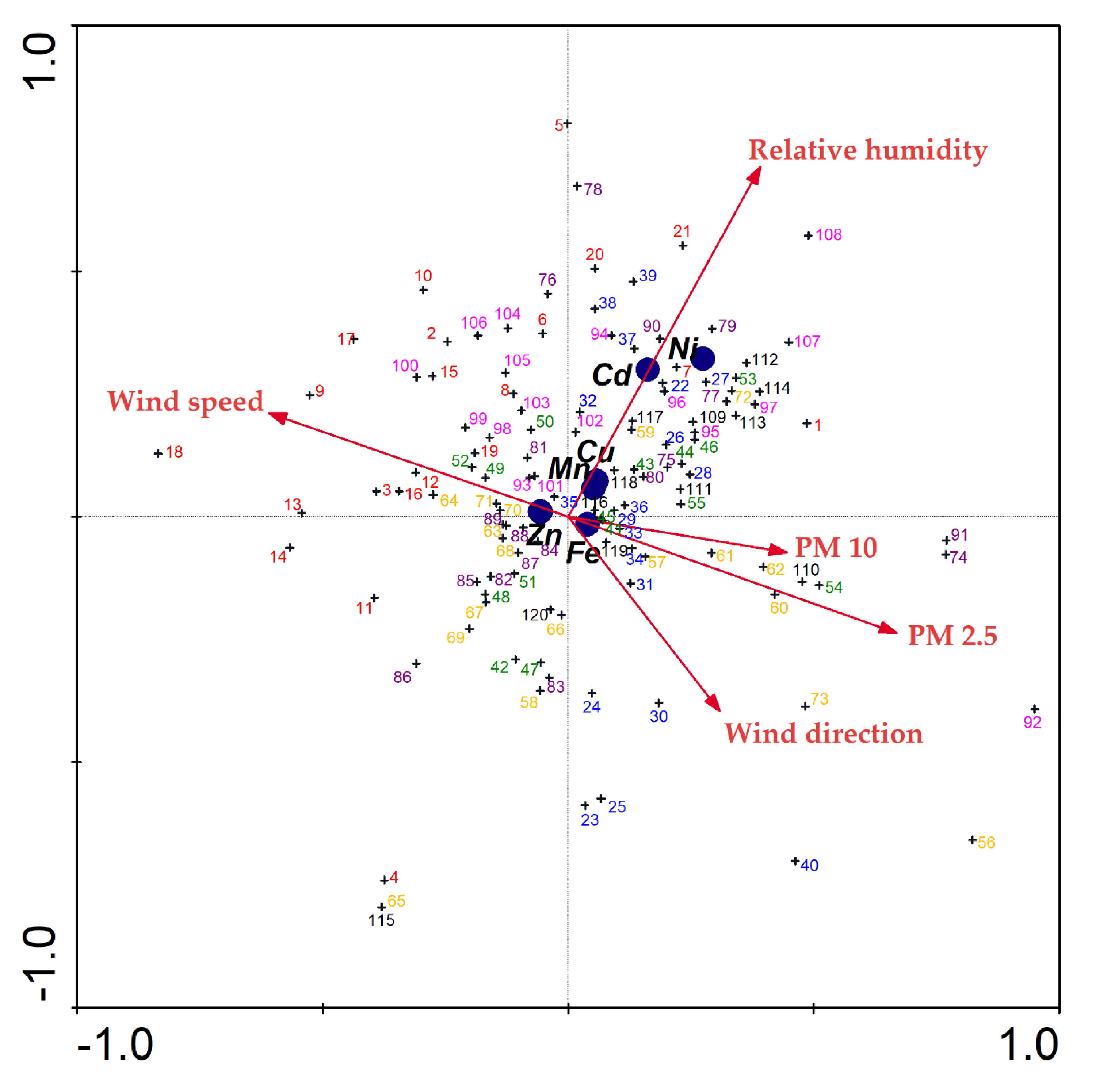

CCA analysis for the entire data set shows that the highest correlations were found between Ni and Cd with relative humidity, Fe is associated with particles, although its relationship was low because it was found very close to the plot origin. With respect to Zn, it seems to be more closely related to wind speed, although the relationship was also low. Finally, Mn and Cu were also more related to relative humidity, although this relationship was lower than that shown by Cd and Ni. The values of the axes and the canonical correlations are also illustrated in

Table 5. Axis values of global canonical correlation analysis.

Axes	1	2	3	4	Total Inertia
Eigenvalues	0.061	0.024	0.012	0.002	1.163
Metals-environment correlations	0.398	0.248	0.184	0.249
Cumulative percentage of variance
Of metals data	5.2	7.2	8.2	8.4
Of metals-environment relation	62.2	86.4	98.3	100
Sum of all eigenvalues					1.163
Sum of all canonical eigenvalues					0.098

. Axis 1 (horizontal), which explains the phenomenon in a higher percentage, shows a correlation between the metals analyzed and the environmental variables of 0.398, and this axis explains 62% of the variability of the phenomenon. The next most relevant axis is axis 2 (vertical), which shows a correlation of 0.248. Both axes explain a total of 86% of the variability of the phenomenon. The correlation between metals and environmental variables is relatively low, despite reaching 86% of the variation of the phenomenon. This happens due to the fact that only two metals (Ni and Cd) are correlated with an environmental variable (relative humidity) of the entire set of metals analyzed (6) and the environmental variables (5), therefore, the global correlations of the axes are low.

4. Discussion

4.1. Environmental Variables

The rainfall events showed the highest precipitation amount during March, September, and October. The accumulated monthly precipitation was higher in September, due to the influence of tropical storm Fernand. Despite the fact that the MAM or the state of Nuevo Leon are not close to the coastline, torrential rains are common due to tropical storms that enter via the Gulf of Mexico, mainly during the months of August and September, as occurs within the reported sampling year.

The backward trajectories calculated for the MAM show that the predominant air mass influence during the summer comes from the Gulf of Mexico, and from the Northeast during the winter, where the cold air masses have great influence on the local atmospheric dynamic. However, given the elements analyzed and the previously described particle characteristics of the MAM, it can be understood that the influence of long-distance sources of emission have little relevance when compared to local emission sources, at least for the metals investigated in this study. The MAM is a potential source of emissions when compared to regional emission sources, from where prevailing air masses arrive. Thus, the MAM should be analyzed according to the forward trajectories to know their possible effects on other areas.

In the case of the Obispado site, according to the respective pollution rose, the highest concentration of suspended particulate matter is generated locally, due to the high vehicular load of this site. Study of the composition of PM_2.5 at this monitoring site showed a high percentage of total carbon content (44%), as well as a high Fe content (1242.30 ng m⁻³), Cu (603.33 ng m⁻³), Zn (226.76 ng m⁻³), and Pb (35.75 ng m⁻³). Likewise, Santa Catarina site showed a high concentration of PM₁₀ for our period of study. The reported study about composition of this particulate matter also indicated high concentrations of total carbon content (49%), as well as a high Fe content (1643.26 ng m⁻³), Cu (1416.89 ng m⁻³), Zn (189 ng m⁻³), and Pb (57.54 ng m⁻³) [17]. In contrast, Pueblo Serena site shows the lowest concentrations of suspended particulate matter (PM_2.5 and PM₁₀) for this study; no information about particulate matter composition is reported.

4.2. Chemical Composition and Seasonal Variation

Rain samples collected during the study period showed a pH (7.2 ± 0.3) above the natural background value for rain pH of 5.6, in all monitoring sites [28]. This tendency towards alkalinity is consistent within the MAM due to the dominance of calcareous soil (Calcisol), which influences atmospheric dynamics neutralizing the pH of the rain [20]. The electrical conductivity varied from 10 to 814 µS cm⁻¹. This high variation could be explained due to the natural changing conditions with respect to seasonality and the pollution dynamics in the MAM, which can become highly variable among sites and rain events.

The concentrations of Fe and Zn showed the highest values for all the sites as already mentioned, where the Universidad site acquired the highest values for these metals, as well as for Cu and Mn. The high concentrations for these elements in the site could be related to its proximity to emission sources of the metallurgical industry. Important concentration values in rainwater for Fe and Zn have been associated with this monitoring site [29]. In addition, a previous study of particulate matter in the Universidad site showed that Fe suspended particles came from natural and anthropogenic sources due to their morphology type characteristics since its spherical shape is associated with natural emissions while particles of more irregular shape-type to anthropogenic sources [25].

The Spearman correlation showed moderate positive relationships between Zn-Fe, Zn-Mn, Fe-Mn, and Cu-Mn. The correlation between these elements suggests that they have a common source, which could be of natural origin (soil resuspension) or anthropogenic, mainly metallurgical industry or vehicular emissions [27,30,31].

The element concentrations observed in this study are higher than those reported for the Metropolitan Area of Mexico City (MAMC) for all the analyzed metals, where the average documented values for MAMC were: Fe = 77.3, Cd = 0.8, Mn = 14.3 and Ni = 3.2 µg L⁻¹ [32]. In addition, comparing results of the present study with a research carried out for several cities in south-central Mexico, the Fe values observed in this study for the Universidad site (1090.8 µg L⁻¹) exceed the values of all the cities monitored in the central-southern Mexico study (292 at 448 µg L⁻¹). Likewise, the Cd concentration reported for cities in central-southern Mexico (1 to 4 µg L⁻¹) were lower than the values reported in the present study (10 to 13 µg L⁻¹), as well as the concentrations values of Cu and Mn [8]. This means that the MAM in general shows higher concentrations of Fe and Cd in rainwater compared to other Mexican cities that also have a high population load and industrialization. Moreover, the MAM is above all the values reported by García-Martínez (2007) for the metropolitan area of Mexico City, which is the largest urban center in the country, the most-populous city in North America, and one of the most populated urban cities in the world.

Studies carried out in Gadanki, India, a tropical rural area near cities such as Bengaluru and Chennai showed average Cd values (50 µg L⁻¹) five times higher than those reported by this study, and average values for Ni (600 to 1200 µg L⁻¹) and Mn (30 to 100 µg L⁻¹) that exceed the concentrations analyzed for the metals within the MAM. However, regarding the Zn values, Gadanki reports mean values of 50 to 80 µg L⁻¹ which are lower than those found for the MAM (199 to 405 µg L⁻¹) [27]. On the other hand, studies carried out in Yatta, Palestine, in an arid area where rainwater is important for human consumption and agriculture, for which it was considered that the load of heavy metals could directly affect human health, showed values for Fe of 137.6 µg L⁻¹, which are below those reported for the MAM, where values of up to 1090.8 µg L⁻¹ were reached. Despite the low values found in Yatta for Fe, they reported that those Fe values exceeded the limit of the carcinogenic risk index. Hence placing local residents, especially children, at risk [28].

In this study, Cd was the least abundant element in the rainwater samples and Pueblo Serena site (urban/high traffic site) showed the highest average value, although Kruskal–Wallis analysis does not report significant differences between sites. Cd had been previously reported in soil samples collected from streets in downtown and south of the MAM, attributing its presence not only to vehicular traffic but also to industrial activity [18,33]. For Ni, the site with the highest mean value was Santa Catarina, where this metal was associated with emissions from a power plant and the burning of fossil fuels [17]. However, the Kruskal–Wallis analysis showed that there were no significant differences for the values of Cd and Ni among sampling sites. This could be because these elements are associated to common emission sources along the entire urban basin of the MAM, as could be the emissions derived from vehicular traffic, which maintain a high flow load all over the urban area throughout the year.

4.3. Toxicity Potential Index (TP)

The 2019 European report on air quality articulates the concerns of the countries of the European Union regarding the environmental threat posed by air pollution to ecosystems and to human health.

Despite environmental regulations, the entry of toxic metals through rain remains a relevant issue, especially due to the bioaccumulation capacity that these elements represent when they are incorporated into the environment [34]. The metals such as Cr, As, Cd, and Pb stand out for their high toxicity at relatively low concentrations. For this reason, their bioavailability in the environment represents a high risk to the health of wildlife and people. Furthermore, other metals that are considered less harmful such as Fe, Zn, and Cu may cause adverse health effects at moderate concentrations [31].

As already mentioned above, Fe showed the highest concentrations and the highest TP value (3.64) for the Universidad site; these values are related to the nearby metallurgical industry and represent a potential risk to the University community and the neighborhood.

The values obtained for TP > 1 apply for Cd, which show a potential risk of toxicity due to the deposition of this element by rain along the MAM. Keresztesi et al. (2020) established cadmium TP values for the city of Baile Herculane, Romania, of 14.33 and for the Moldova Noua city of 7.49, which are well above those reported by this study.

The cadmium content of soil was studied in 2011 and 2015 in the MAM, reporting average values of 7.5 mg kg⁻¹ dry soil and 0.38 mg kg⁻¹ dry soil, respectively. In addition, the 2015 analysis determined that the most affected zones are south and northeast of the MAM and that according to the geoaccumulation indices, the Cd showed risk values between moderate and considerable. These levels were related to the influence of industrial activity, mechanical workshops, and gas stations [18,33]. However, in the present study, the site that showed the highest cadmium TP values was Pueblo Serena, which is a residential and commercial site, where its residents recognize that the air is less polluted than the rest of the MAM, since low levels of the criteria air pollutants (PM₁₀ and PM_2.5), according to the applicable regulations (NOM-172-SEMARNAT-2019), have been regularly observed. Over the past few years, that area of the MAM has experienced a “boom” in housing expansion, and it should be noted that the National Highway 85 may also influence the atmospheric conditions of this site. This could explain the high levels of Cd in Pueblo Serena, since its residential and commercial growth has led to a dramatic increase in traffic, and it is known that Cd has been associated with the burning of fossil fuels by vehicles [35]. It is important to highlight that more studies are required to evaluate the presence of cadmium and more specifically its potential for toxicity in water bodies and cropping soils in the region.

Mexican regulations are commonly less strict than regulations in other countries like the USA and European countries. In some cases, the implementation and enforcement of the regulations is scarce. In addition, the control of metal deposition that can affect crops, water bodies, and ecosystems lacks any type of regulation or surveillance by the government agencies. The Metropolitan Area of Mexico City is the only one that has a constant and standardized deposition monitoring system (dry and wet) [36]. This monitoring system has not been implemented in other Mexican cities, like in highly contaminated ones such as the MAM.

4.4. Canonical Correlation Analysis (CCA)

The CCA analysis performed with the environmental variables and metal mass deposition (mg m⁻²) for all sites has shown a strong correlation linking to Cd and Ni with relative humidity. Although it was expected, given the nature of the analyzed phenomenon and because of the global deposition (wet and dry), that the deposition of metals would be influenced by particulate material and wind, the higher correlations were found with relative humidity, while lower correlations were found with wind or particulate matter. This could indicate that depositions of Cd and Ni were not related to particulate matter but associated with mist or cloud precursor phenomena, because of their correlation with relative humidity. This trend could be explained by studies that showed that there are metals that tend to have higher wet deposition fluxes than others, given their nature of solubility, where the dilution potential is considered to be as follows: Zn > Cd > Cu > Ni > Pb > Cr [35,37]. Therefore, it could be stated that relative humidity and solubility are acting together to promote the deposition of Ni and Cd within the MAM in a greater proportion than the rest of the environmental variables that could influence the presence of these metals in rainwater.

For Pueblo Serena (urban/high traffic site), the highest values of TP, the tendency of relations between environmental variables and metals was similar to the global CCA (for all sites), and the results of one year of analysis have shown that the concentrations of particulate matter were the lowest inside the MAM. This statement confirms the idea that Cd and Ni could be deposited because they may have evolved from a local source and then interacted with cloud precursor phenomena. However, a more extensive research is required inside the MAM and Pueblo Serena to determine the most precise sources of Cd emissions to the atmosphere.

Limitations of the study: the concentrations of Pb and Cr were not included in this study, because their concentrations in the rainwater samples were below the LOD(5 for Pb and 5 for Cr; μg L⁻¹) of the method used. The TP values for Ni were not calculated because there was no reference value for Ni by the regulations for water for human consumption used.

5. Conclusions

The metals concentrations found in bulk precipitation in the MAM could represent a potential risk to population, due to TP calculated values for Cd and Fe showing values greater than one. The difference is that Cd represents a risk throughout the entire MAM while Fe only represents a risk for certain sites (Universidad, Obispado, Pastora y Santa Catarina) according to Mexican and USA regulations. In addition, Pueblo Serena Site showed a higher value of TP for Cd (2.799) and Universidad for Fe (6.636). The mean values found for concentrations in all the sampling sites followed a descending order of Fe > Zn > Mn > Cu > Ni > Cd. While Fe, Zn, Cu, and Mn concentrations showed a clear seasonal variation, Ni and Cd did not present any seasonal variability. On the other hand, Universidad site exhibited the highest average concentrations for Fe, Zn, Cu, and Mn, with respect to other sites, which could indicate an influence from nearby emission sources, such as the metallurgical industry. Pueblo Serena site showed the highest average concentration of Cd, while at the Santa Catarina site the highest observed was Ni. However, no significant differences were found for Cd and Ni values among sampling sites. Besides, moderate positive relationships between Zn-Fe, Zn-Mn, Fe-Mn, and Cu-Mn suggest that they have a common source, which could be of natural origin (soil resuspension) or anthropogenic (metallurgical industry or vehicular emissions).

The total precipitation collected through the year had an average of 448.23 mm. The tropical storm Fernand caused an alteration to the annual average of rain and wind speed for the study period. A range of 12 to 21 rain events were collected and analyzed, in which an average pH of 7.2 ± 0.3 and a mean electrical conductivity of 177.8 ± 8.7 µS cm⁻¹ were found. The relationships established by the CCA analysis for metals in bulk precipitations and the environmental variables (relative humidity, wind direction and speed, and particulate matter) showed a strong correlation only for Cd and Ni with relative humidity.

The backward trajectories simulated for the MAM showed that the predominant air mass influence during the summer comes from the Gulf of Mexico and from the Northeast during the winter, where the cold air masses have great influence on the local atmospheric dynamics. However, the MAM acts mainly as an emitting site and not as a receptor site since the influence of local industrial emissions is more dominant than the influence of emissions from the surrounding areas.
