Factors Affecting Alkali Activation of Laterite Acid Leaching Residues

by
Konstantinos Komnitsas
1,*,
Georgios Bartzas
2,
Vasiliki Karmali
1 and
Evangelos Petrakis
1
1
School of Mineral Resources Engineering, Technical University of Crete, 73100 Chania, Greece
2
School of Mining and Metallurgical Engineering, National Technical University of Athens, 15780 Zografos, Greece
*
Author to whom correspondence should be addressed.
Environments 2021, 8(1), 4; https://doi.org/10.3390/environments8010004
Submission received: 11 December 2020 / Revised: 2 January 2021 / Accepted: 7 January 2021 / Published: 10 January 2021
(This article belongs to the Special Issue Feature Papers in Environments in 2020)
Browse Figures
Versions Notes

Abstract

:
In this experimental study, the alkali activation of acid leaching residues using a mixture of sodium hydroxide (NaOH) and alkaline sodium silicate solution (Na2SiO3) as activators is investigated. The residues were also calcined at 800 and 1000 °C for 2 h or mixed with metakaolin (MK) in order to increase their reactivity. The effect of several parameters, namely the H2O/Na2O and SiO2/Na2O ratios present in the activating solution, the pre–curing time (4–24 h), the curing temperature (40–80 °C), the curing time (24 or 48 h), and the ageing period (7–28 days) on the properties of the produced alkali activated materials (AAMs), including compressive strength, porosity, water absorption, and density, was explored. Analytical techniques, namely X-ray diffraction (XRD), Fourier transform infrared (FTIR) spectroscopy, scanning electron microscopy (SEM), and elemental mapping analysis were used for the identification of the morphology and structure of the final products. The experimental results show that the laterite acid leaching residues cannot be alkali activated in an unaltered state, and the compressive strength of the produced AAMs barely reaches 1.4 MPa, while the mixing of the residues with 10 wt% metakaolin results in noticeably higher compressive strength (41 MPa). Moreover, the calcination of residues at 800 and 1000 °C has practically no beneficial effect on alkali activation. Alkali activated materials produced under the optimum synthesis conditions were subjected to high temperature firing for 2 h and immersed in distilled water or acidic solution (1 mol L−1 HCl) for 7 and 30 days in order to assess their structural integrity under different environmental conditions. This study explores the potential of alkali activation of laterite leaching residues amended with the addition of metakaolin for the production of AAMS that can be used as binders or in several construction applications in order to enable their valorization and also improve the environmental sustainability of the metallurgical sector.

1. Introduction

Heap leaching is one of the oldest low-cost hydrometallurgical processes that can be used for the extraction of base and precious metals, mainly from low-grade ores and secondary resources [1,2,3,4]. The recovery of the metals from the pregnant leach solution (PLS) generated after leaching is mainly accomplished with the use of solvent extraction and electrowinning (SX/EW). Heap leaching can be applied for the treatment of various sulphide and oxide ores, while its efficiency depends on the mineralogical characteristics of the raw materials, the overall design of the process, and the selectivity of the leaching agent [5,6,7,8,9]. One of the major environmental concerns associated with heap leaching is the management of the final leaching residues, the so-called spent ore, which may contain residual metal values and chemicals. The current industrial practice indicates that these residues are mainly disposed/stockpiled on site or leached at later periods for additional metal extraction. However, if residues are not properly managed, e.g., are left un-lined or unmonitored, they may cause severe contamination of nearby soils and water resources, especially in regions with favorable climatic conditions (e.g., high precipitation and temperature). So far, only a few studies have been carried out to predict or assess risk in waste disposal areas, while no studies are available for their valorization [10,11,12,13].
Laterite ores consist mainly of iron oxides (goethite (FeO(OH)) and hematite (Fe2O3)), aluminum oxides (Al2O3), quartz (SiO2), kaolinite (Al2Si2O5(OH)4), nontronite (Na0.3Fe2((Si,Al)4O10(OH)2.nH2O), serpentine ((Mg,Fe,Ni,Al,Zn,Mn)2−3.(Si,Al,Fe)2O5(OH)4), and chlorite ((Mg,Fe,Al)6(Si,Al)4O10(OH)8). They account for more than 70% of the world’s nickel reserves and more than 50% of total Ni production [14,15,16]. In Greece, the major laterite deposits are located on the island of Evia and the Lokris region in central Greece, as well as in Kastoria in northwestern Greece [17]. These deposits are classified into two main types, namely limonitic, with high iron and low magnesium content (on Evia and in Lokris), and saprolitic, with high magnesium and low iron content (in Kastoria). Greek laterites have been treated pyrometallurgically for over 50 years for the production of ferronickel (FeNi) at the Larco General Mining & Metallurgical Co. S.A (LARCO) plant, located in Larymna (central Greece) [18]. Due to the decreasing grade of the Greek laterite ores and the urgent need to reduce environmental impacts, several studies have been carried out over the last 35 years for the development of alternative treatment techniques involving atmospheric [19,20], pressure [21], and heap leaching [22,23,24]. Geopolymers, inorganic polymers, or alkali activated materials (AAMs) are partially amorphous materials that are produced by chemical reactions between aluminosilicate raw materials, alkaline (NaOH and KOH), and/or silicate solutions. They contain Si-O-Al bonds, while the tetrahedral AlO4 and SiO4 units are built in three dimensional structures [25,26,27,28,29].
Alkali activated materials are partially amorphous and consist of a network of SiO4 and AlO4 tetrahedra, which are linked alternately by sharing all oxygen atoms. Their production requires reactions between aluminosilicate raw materials and concentrated alkaline and silicate solutions, often at ambient temperature. The release of Si and Al ions results in the formation of Mx(AlO2)y(SiO2)z.nMOH.mH2O gel (M: K+ or Na+), which hardens within a few hours. The degree of polymerization of silicate species is mainly affected by the alkalinity of the activating solution, the temperature, and the liquid to solid ratio in the starting mixture [30,31]. Raw materials and reagents are mixed together in order to optimize the SiO2:Al2O3 ratio in the reactive paste and then cast and cured for a few hours at mild temperature so that matrices with the desired microstructure and properties are obtained [32,33,34,35,36]. Several factors affect the efficiency of alkali activation and the production of AAMs with beneficial properties, mainly the H2O/Na2O and the SiO2/Na2O molar ratios present in the alkali activating solution [33,36,37] and the curing temperature [38,39,40]. Alkali activation can be used for the valorization of several industrial wastes and the production of end-products with tailored physical and chemical properties, which can be used as building elements or binders, or in several other applications in various sectors [41,42,43,44,45,46].
So far, several studies have been carried out, mainly by African scientists, in order to investigate the alkali activation potential of lateritic soils, which are often used for the construction of roads and houses in African countries [47,48]. On the other hand, only a few studies pertinent to valorization of leaching residues through alkali activation are available [49]. Thus, the objective of the present study was to explore the alkali activation potential of laterite acid leaching residues in the presence of metakaolin (MK) and develop an integrated approach that will result in their valorization and the production of high added value products that can be used as binders or construction elements, in line with the zero-waste approach and circular economy principles.

2. Materials and Methods

2.1. Materials

The leaching residues (LR) were obtained after the implementation of laboratory column leaching tests using Greek laterites and H2SO4 as a leaching medium. The experimental conditions used are similar to those described in previous recent studies [24,49]. For the production of AAMs, the leaching residues that were used as precursors were first subjected to solid:liquid separation and were then washed to remove any remaining acidity and dried at 80 °C for 1 day. In addition, in order to study the effect of calcination of the precursors on alkali activation, the LR were calcined at 800 and 1000 °C for 2 h. In order to regulate the Si/Al ratio in the precursors and thus increase their reactivity during alkali activation, metakaolin (ΜΚ) was mixed with the residues in different proportions, e.g., 5 and 10 wt%. Metakaolin was obtained after calcination of kaolin (Al2Si2O5(OH)4, Fluka) at 750 °C for 2 h in a laboratory oven (N–8L Selecta, Abrera, Spain). The use of metakaolin is considered beneficial during alkali activation due to its high amorphous content and its pozzolanic nature. Care should be taken during the selection of the kaolin’s calcination temperature because, if the temperature is lower than 700 °C, the produced metakaolin contains unreactive kaolin and exhibits low reactivity, while, if the calcination temperature exceeds 850 °C, crystallization occurs and, as a result, lower amorphicity and reactivity are anticipated [50,51,52].
The chemical composition of the raw materials used, in the form of oxides, and their particle size (expressed as percentage smaller than a specific size) are presented in Table 1. Loss on ignition (LOI) was determined by heating the materials at 1050 °C for 4 h. Particle size analysis was determined using a laser particle size analyzer (Mastersizer S, Malvern Instruments, Malvern, UK).
As seen from this table, the leaching residues mainly consist of SiO2 and Fe2O3, while their low content in Al2O3 (2.7 wt%) indicates poor potential for successful alkali activation. Thus, the addition of metakaolin with high SiO2 (54.2 wt%) and Al2O3 (40.3 wt%) content is anticipated to regulate the SiO2/Al2O3 ratio and increase the reactivity of the starting mixture. Table 1 also shows that both raw materials have adequate and compatible size for alkali activation because their d90 values are lower than 50 μm [43].

2.2. Synthesis AAMs

The alkali activating solution used for the synthesis of AAMs consisted of sodium hydroxide (NaOH) and sodium silicate (7.5–8.5 wt% Na2O and 25.5–28.5 wt% SiO2, Merck) solutions. Sodium hydroxide was prepared by dissolving anhydrous pellets of NaOH (Sigma–Aldrich, St. Louis, MO, USA) in distilled water so that solutions with different molarity (6−10 mol L−1, M) were obtained. The alkali activating solution was left overnight prior to use.
The synthesis of AAMs was carried out by continuous mixing of the raw materials and the activating solution for about 10 min in a laboratory mixer until a homogenous paste was obtained, which was then cast in cubic molds 50 × 50 × 50 mm3. The molds were mechanically vibrated for 5 min to eliminate the air voids and then left at room temperature for 4 to 24 h (pre-curing time) to enable initiation of alkali activating reactions and early solidification of the paste. The sufficiently hardened specimens were removed from the molds, wrapped in plastic bags to avoid fast evaporation of water, and cured at 40, 60, and 80 °C for 24 or 48 h in a laboratory oven (Jeio Tech ON−02G, Seoul, Korea). After curing, the specimens were allowed to cool at room temperature for a period of 7 and 28 days. The AAM codes of all tests carried out, the mixing proportions, and the different H2O/Na2O and SiO2/Na2O ratios in the activating solution are given in Table 2.
For all specimens, the determined properties were compressive strength (MPa), porosity (%), water absorption (%), and density (g cm−3). The durability of the selected ΑΑΜs was evaluated after firing them at 200, 400, 600, and 800 °C for 2 h in a laboratory furnace (N–8L Selecta) as well as after immersion in distilled water or 1 mol L−1 HCl solution for 7 and 30 days.
All tests were carried out in triplicate, and the values given for each parameter are average; it is mentioned that the difference in measurements was marginal and did not exceed ±3.8%.

2.3. Characterization of Raw Materials and the Produced AAMs

The laterite leaching residues were first pulverized using a Bico type pulverizer (Type UA, Fritsch, Dresden, Germany). Prior to alkali activation, their reactivity of raw materials was assessed through the leaching of 1.0 g of each raw material with 100 mL of 8 mol L−1 (M) NaOH solution for 24 h at room temperature (~20 °C) in 250 mL conical flasks under continuous stirring. After solid and liquid separation with the use of 0.45 μm pore size membrane filters (PTFE, Chromafil), the Al and Si concentration in the eluate was determined using an Inductively Coupled Plasma Mass Spectrometry (ICP MS, Agilent 7500cx) equipped with an Agilent ASX–500 Autosampler (Agilent, Santa Clara, CA, USA).
The chemical composition of the raw materials and the produced AAMs was determined using a Bruker S2 Ranger–energy dispersive X–ray fluorescence spectrometer (ED–XRF, Bruker, Karlsruhe, Germany), while their mineralogical analysis using an X-ray diffractometer (Bruker AXS, D8–Advance, Bruker, Karlsruhe, Germany) with a Cu tube and a scanning range from 4° to 70° 2theta (θ) and a step of 0.02°, and 0.2 s/step measuring time. The crystalline phases present in the raw materials and the produced specimens were identified with the use of the DiffracPlus Software (EVA v. 2006, Bruker, Karlsruhe, Germany) and the PDF database. Fourier transform infrared (FTIR) analysis was carried out using pellets produced by mixing the pulverized raw material or AAM with KBr at a ratio of 1:100 w/w. The analysis was carried out at atmospheric pressure under nitrogen atmosphere, with a flow rate of 100 mL min−1 and heating rate of 10 °C min−1 using a PerkinElmer 1000 spectrometer (PerkinElmer, Akron, OH, USA), in the spectra range of 400 to 4000 cm−1. Microstructural analysis of the produced AAMs was performed with the use of scanning electron microscopy (SEM) and energy dispersive X–ray spectroscopy (EDS). For that purpose, a JEOL–6380LV scanning microscope (JEOL Ltd., Tokyo, Japan), operating at an accelerating voltage of 20 kV equipped with an Oxford INCA EDS microanalysis system (Oxford Instruments, Abingdon, UK), was used.
The Brunauer–Emmett–Teller (BET) nitrogen adsorption method (using a Quantachrome Nova 2200 analyser (Anton Paar QuantaTec Inc., Boynton Beach, FL, USA) was considered for the determination of the specific surface area of the raw materials. The compressive strength of the produced AAMs was determined with the use of a MATEST C123N load frame (compression and flexural machine, Matest S.p.A, Treviolo, Bergamo, Italy) with dual range 500/15 kN. Finally, the apparent density (g cm−3), the porosity (%), and the water absorption (%) of the selected AAMs were determined according to the BS EN 1936 standard; 3 measurements using specimens 50 ± 5 mm × 50 ± 5 mm × 50 ± 5 mm were taken, and average values are given in the paper [53].

3. Results

3.1. Reactivity of Raw Materials

So far, most studies carried out to assess the reactivity and subsequently the potential of various raw materials (i.e., virgin materials, by-products, and wastes) for alkali activation focused on the calculation of SiO2/Al2O3 molar ratios in the raw materials (precursors) [54,55,56,57,58]. However, this ratio provides only an indication of the reactivity rather than defines the actual dissolution of the Si and Al that participate during alkali activation in the formation of Si-O-Al bonds [59,60,61,62,63]. The concentration of Al and Si (in mg L−1) in the eluate after alkaline leaching, using 8 mol L−1 NaOH solution, indicates the reactivity of the raw materials used in the present study (Table 3); in the same Table, the Si/Al molar ratio in the eluate is also provided.
It is observed from this data that, after alkaline leaching of laterite residues, the concentrations of Si and Al in the eluate were 20.1 and 2.4 mg L−1, respectively. Calcination of laterite residues at 800 °C significantly reduced the concentration of Si and Al in the eluate to 12.9 and 0.6 mg L−1, respectively, while the increase of the calcination temperature to 1000 °C resulted in a much lower concentration of both elements in the eluate. Previous studies have shown that, after calcination of laterite at temperature higher than 800 °C, structural modifications occur, mainly due to the formation of spinels (Si3Al4O12) [64,65]. On the other hand, metakaolin exhibits much higher reactivity, as also indicated in earlier studies [66,67,68]. In our case, the concentration of Si and Al in the eluate after alkaline leaching of metakaolin was 58.7 and 41.9 mg L−1, respectively, values that indicate high reactivity during alkali activation and provision of sufficient Si and Al ions that can participate in the formation of aluminosilicate bonds.

3.2. Properties of AAMs

3.2.1. Alkali Activation of Laterite Leaching Residues

Figure 1 shows the compressive strength of laterite residue based AAMs as a function of curing temperature (40, 60, and 80 °C) in relation to the H2O/Na2O molar ratios (21.2 for LR1, 17.4 for LR2, and 14.8 for LR3) in the activating solution. The difference in H2O/Na2O molar ratios is due to the slightly different S/L ratios used in each case to obtain a paste with optimum flowability. In all tests, the curing and ageing periods were 24 h and 7 days, respectively, while the SiO2/Na2O molar ratio in the activating solution was kept constant at 1. It can be seen from this figure that the effect of temperature is important for all H2O/Na2O molar ratios tested, but the maximum compressive strength recorded is only 1.4 MPa for LR2 (curing temperature, 80 °C, and H2O/Na2O molar ratio in the activating solution, 17.4). It is therefore evident that the laterite leaching residues cannot be effectively alkali activated in an unaltered state, mainly due to their low content of Al2O3 (2.7 wt%.), as shown in Table 1. As a result of this, the concentration of Al ions in the alkaline solution is low and, thus, the Si/Al molar ratio in the produced paste is unfavorable for alkali-activation (Table 3). It is also important to note that the increase of the ageing period from 7 to 28 days has only a marginal beneficial effect on the compressive strength of the produced specimens, which increases slightly to 1.7 MPa (data not shown).

3.2.2. Effect of the Addition of Metakaolin—Calcination of Leaching Residues

Figure 2 shows the effect of the addition of metakaolin in the starting mixture as well as th effect of the calcination of leaching residues on the compressive strength of the produced AAMs. It is seen from this data that the compressive strength of the LR95MK5 specimen, for which the metakaolin addition in the staring mixture was only 5 wt%, increased from 1.4 MPa to 12 MPa. When the metakaolin addition increased to 10 wt% (LR90MK10 specimen), a much higher compressive strength value was recorded, i.e., 41 MPa. This is due to the high alkali activation potential of metakaolin for which the compressive strength of the respective AAM (MK specimen) reached 55 MPa. The beneficial effect of the addition of metakaolin on the compressive strength of the produced AAMs was anticipated by taking into consideration its chemical analysis, as shown in Table 1 (SiO2, 54.2 wt%; Al2O3, 40.3 wt%) as well as the concentration of Si and Al in the eluate produced after its alkaline leaching, as shown in Table 3 (58.7 mg L−1 Si and 41.9 mg L−1 Al, respectively).
Another issue that has to be underlined is that both laterite residues and metakaolin had similar grain size, as shown in Table 1, a factor that is considered beneficial during alkali activation. The specific surface area of laterite leaching residues was 2.1 m2/g, while that of metakaolin was 2.4 m2/g, similar to the value determined in another recent study [68]. On the other hand, it is seen that calcination of the laterite leaching residues has a detrimental effect on the compressive strength of the produced specimens. This is mainly due to the decreased dissolution of Si and Al ions from the calcined residues (Table 2), which does not enable efficient alkali activation and production of a matrix with beneficial properties. It is mentioned that the specific surface area of calcined laterite leaching residues increased to 15 m2/g, but its reactivity was not increased due to the occurred phase transformations; it is also noted that materials with high surface areas often require more water during alkali activation and, thus, higher liquid to solid ratios need to be used to obtain a paste with beneficial properties. The only specimens (800LR90MK10 and 1000LR90MK10) that retained a good to moderate compressive strength were the ones produced after alkali activation of mixtures containing 90 wt% laterite residues calcined at 800 °C or 1000 °C and 10 wt% metakaolin; the respective compressive strength values recorded were 26 and 13 MPa.

3.2.3. Effect of SiO2/Na2O and H2O/Na2O Molar Ratios in the Activating Solution

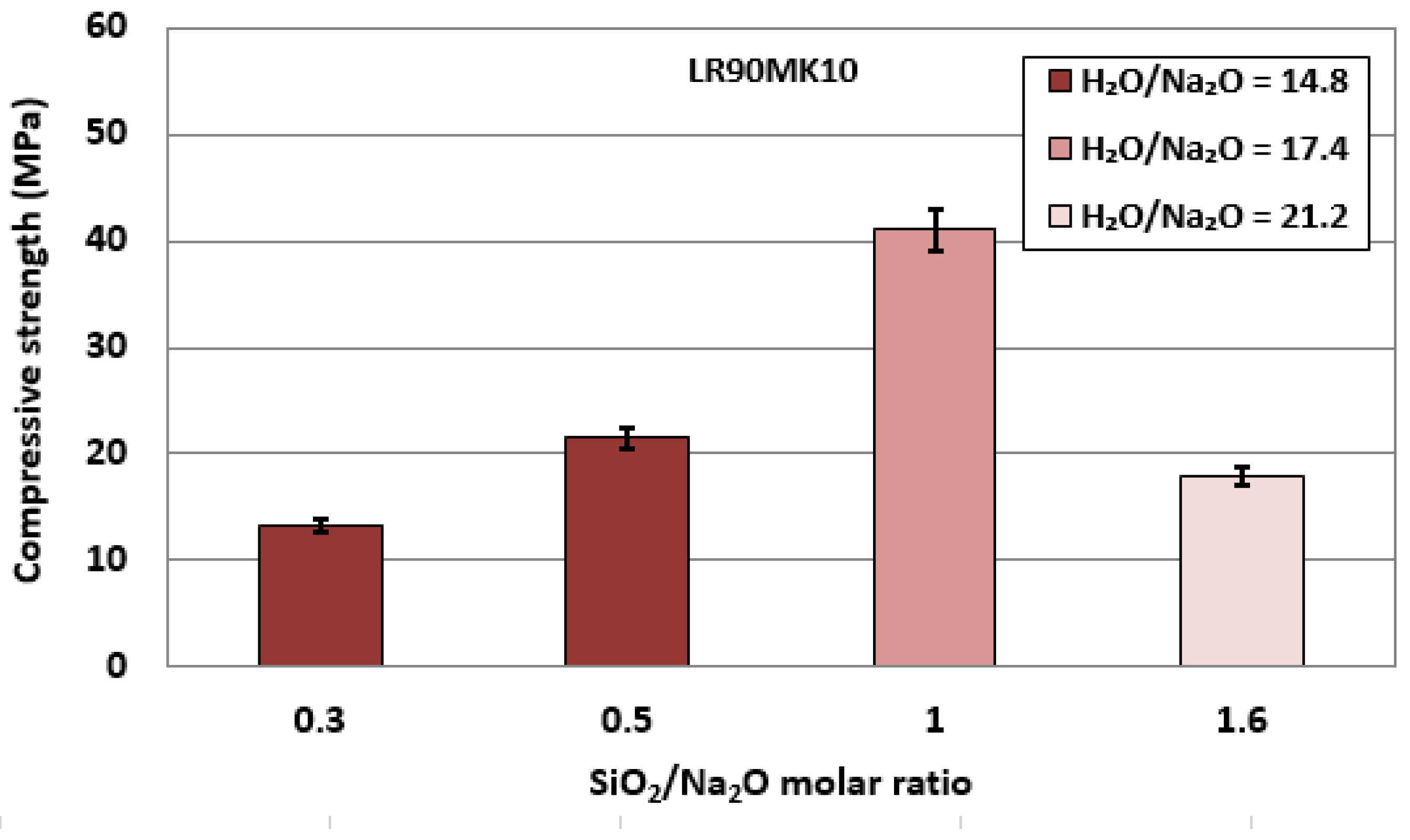

The effect of SiO2/Na2O molar ratio in relation to the corresponding H2O/Na2O molar ratios in the alkali activating solution on the compressive strength of LR90MK10 AAM are shown in Figure 3. The H2O/Na2O ratios shown in this figure are the optimum ones for each case examined. The use of a starting mixture containing 90 wt% laterite leaching residue and 10 wt% metakaolin was selected because the respective AAM acquired the highest compressive strength (41 MPa), as shown in Figure 2.
The results indicate that the maximum compressive strength (41 MPa) was obtained for a SiO2/Na2O molar ratio equal to 1.0. Higher or lower SiO2/Na2O molar ratios resulted in the production of specimens with lower strength, which did not exceed 21 MPa, a value 50% lower compared to the maximum one obtained. This may be explained by the presence of deficient or excessive alkalinity in the reactive paste, which affects the formation of aluminosilicate bonds and, thus, the microstructure and the strength of the produced specimens. Optimum alkalinity in the reactive paste results in the formation of sufficient Si(OH)4 and Al(OH)4 oligomers and enables polycondensation, which improves the strength of the produced specimens. On the other hand, lower alkalinity, expressed by high SiO2/Na2O molar ratios, slows down the rate of alkali activation reactions while very high alkalinity, expressed by lower SiO2/Na2O molar ratios, results in early precipitation of aluminosilicate gel and increased viscosity of the paste.
The trend shown in the evolution of the compressive strength vs. the SiO2/Na2O molar ratio in this study is very similar to the trend shown in an earlier study investigating the effect of the SiO2/K2O molar ratio on the performance of metakaolin based geopolymers [69].

3.2.4. Effect of Pre-Curing and Curing Time

Figure 4a,b shows the effect of pre-curing (4 to 24 h) and curing time (24 to 48 h) on the compressive strength of LR90MK10 AAM, respectively.
It is seen from these results that the compressive strength decreases with increasing pre-curing and curing time. The maximum value obtained was 41 MPa after a pre-curing period of 4 h and a curing period of 24 h. The duration of the pre-curing period of the paste defines the extent to which alkali activation reactions proceed so that bonds are developed and specimens acquire sufficient early strength. Longer pre-curing periods may cause higher evaporation of water, which in turn results in incomplete reactions, development of internal stresses, and voids, which hinder the development of high strength during curing. Similar issues are anticipated after prolonged curing periods. It is mentioned that optimum pre-curing and curing periods, which play a major role in the properties of the produced AAMs, depend on the characteristics of the precursors, the S/L ratio during mixing, and the curing temperature, need to be carefully defined during alkali activation [36,70,71,72,73].

3.2.5. Porosity, Water Absorption, and Apparent Density of Selected AMMs

Table 4 shows the porosity (%), water absorption (%), and apparent density (g cm−3) of the selected AMMs, i.e., LR2, LR95MK5, and LR90MK10; the compressive strength values are also given. It can be observed from this data that the LR90MK10 specimen, which acquires the maximum compressive strength (41 MPa), has the lowest porosity (21.3%) and water absorption (5.1%), while its apparent density (2.3 g cm−3) is almost identical to the one obtained by LR95MK5. The LR2 specimen, produced by alkali activation of laterite residues using a H2O/Na2O molar ratio in the 17.4activating solution is characterized by the highest porosity (36.8%) and water adsorption (30.7%) and the lowest apparent density (1.8 g cm−3). These values are anticipated by considering the poor alkali activation potential of leaching residues and the very low compressive strength acquired by the respective AAM.

3.2.6. Structural Integrity of LR90MK10 AAM

The structural integrity of LR90MK10 AAMs was assessed after firing for a period of 2 h at a broad temperature range varying between 200 and 800 °C and after immersion in distilled water and acidic solution (1 mol L−1 HCl) for 7 and 30 days. All AAMs tested were produced under the optimal conditions, i.e., H2O/Na2O molar ratio, 17.4; curing temperature, 80 °C; and ageing period, 7 days.

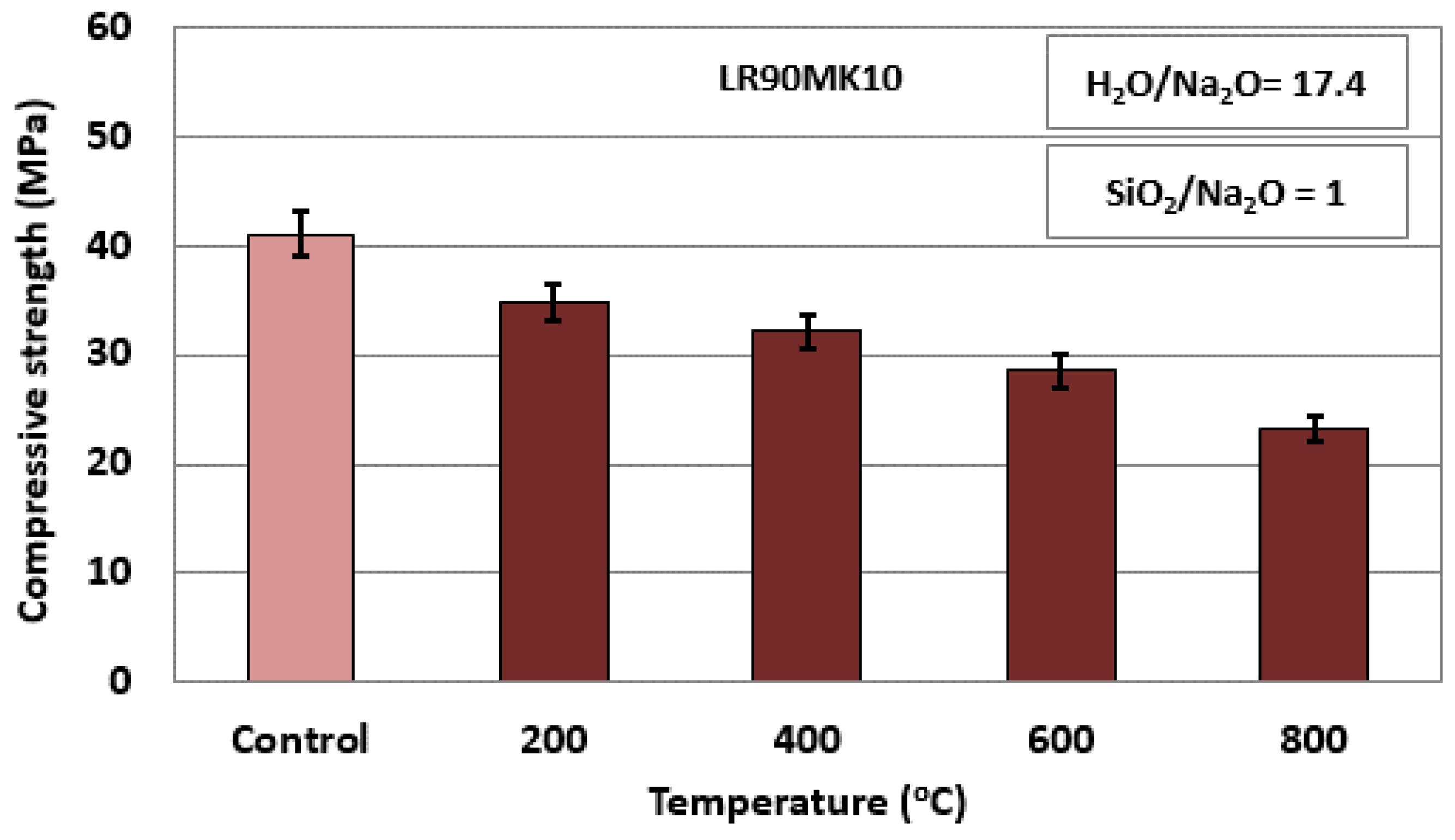

Figure 5 presents the evolution of the compressive strength of LR90MK10 AAMs after firing. The compressive strength of the control specimen, which was not subjected to firing, is also shown for comparison. It is seen from this data that the compressive strength decreases gradually with the increase of firing temperature and finally drops to 23.1 MPa at 800 °C, which is considered sufficient for the use of these AAMs as fire resistant materials. It is mentioned for comparison that thermal-stressing (from ambient temperature to 1000 °C) results in a reduction of the unconfined compressive strength (UCS) of high-strength concrete by 96%, from about 110 MPa to about 5 MPa [74].
Table 5 presents the evolution of weight loss (%), volumetric shrinkage (%), porosity (%), water absorption (%), and apparent density (g cm−3) of the fired AAMs. It is seen from this data that the specimens after firing at 800 °C acquire the lowest compressive strength (23.1 MPa) and apparent density (1.8 g cm−3), and on the other hand the highest weight loss (12. 1%), shrinkage (7.5%), porosity (27.2%), and water adsorption (14.8%). As Duxson et al. [75] mention, the increase of shrinkage takes place stepwise in four temperature regions: in Region I, at temperatures below 100 °C, which is attributed to the release of free water; at Region II, between 100–250 °C, due to pore water released from the formed gel; at Region III, between 250–600 °C, due to the loss of bound hydroxyls; and at Region IV, at temperatures higher than 700 °C due to a viscous sintering–like process. As a result of these processes, the specimens also acquire the lowest density.
Figure 6 shows the compressive strength of LR90MK10 AAMs after immersion in distilled water or acidic solution (1 mol L−1 HCl) for 7 and 30 days. The compressive strength of the control specimen is also provided for comparison. As seen from this data, the compressive strength of the specimens drops slightly to 37.5 MPa and 34.5 MPa (23.3% decrease) after their immersion in distilled water for 7 and 30 days, respectively. A bigger decrease in compressive strength is observed, as anticipated, when specimens are immersed in 1 mol L−1 HCl. The recorded values are 27.5 MPa and 12.5 MPa (72.3% decrease), when the specimens are immersed for 7 and 30 days, respectively. It is also mentioned that a slight to moderate increase of solution pH is noted after immersion for 30 days. Immersion in distilled water results in an increase of pH from 7.6 to 10.8, while immersion in 1 mol L−1 HCl results in a pH increase from 1.3 to 2.3, as also shown in earlier studies with the use of AAMs produced from different precursors [36,40].

3.2.7. Comparison with Other Studies

Table 6 compares the results of this study to those obtained from other studies that investigated the production of laterite soil-based AAMs using pre-cursors with different mineralogical composition that were not subjected to acid leaching that affects their nature.
Gualtieri et al. [76] produced AAMs by alkali activation of calcined laterite (700 °C for 2 h) and metakaolin with the use of phosphoric acid, sodium hydroxide, and sodium silicate solutions as activators. The results showed that the highest compressive strength achieved was low, more specifically, 4 MPa, when the curing temperature was 60 °C and the ageing period was 28 days. Phummipham et al. [77] produced AAMs by mixing marginal lateritic soil with fly ash at a mass ratio of 70:30, using sodium hydroxide and sodium silicate solutions as activators. The produced specimens acquired slightly higher compressive strength, 7.1 MPa, after curing at 30 °C and ageing for 7 days. Furthermore, Nkwaju et al. [78] investigated the potential of sugar cane bagasse as reinforcement of laterite soil-based geopolymer cement. The laterite soil, which was the precursor, was calcined at 700 °C for 4 h prior to use. The produced specimens acquired compressive strength that varied between 15 and 50 MPa, after curing at room temperature and ageing for 28 days. Lemougna et al. [67] produced AAMs using a mixture of calcined laterite (700 °C for 2 h) and ground granulated blast furnace slag (50 wt% by weight) as precursors, while the activators were sodium hydroxide and sodium silicate solutions. The paste cured at 25 °C and, after ageing for 28 days, the produced specimens acquired a compressive strength of 65 MPa. This high value is due to the beneficial effect of slag, which is a by-product with noticeable alkali activation potential. Kaze et al. [73] produced AAMs using laterite calcined at 600 °C and meta–halloysite as precursors and sodium hydroxide and sodium silicate solutions as activators. Meta-halloysite was produced by calcining halloysite at 600 °C for 4 h. The produced AMMs acquired a compressive strength of 45 MPa after curing at 25 ± 3 °C and ageing for 28 days. Finally, Obonyo et al. [79] investigated the geopolymerization potential of two lateritic soils, also after calcination at 700 °C for 4 h in the presence of river sand, also using sodium hydroxide and sodium silicate solutions as alkali activators. The paste was pressed and cured at room temperature for 7 days in order to produce disks of 40 mm diameter and 6–9 mm thickness. The authors studied in depth the mechanisms involved in the process as well as the mineralogy and morphology of the produced specimens.
In the present study, the produced AAMs, after alkali activation of laterite leaching residues amended with 10 wt% metakaolin, acquired a relatively high compressive strength of 41 MPa. The SiO2/Na2O molar ratios used varied from 0.3 to 1.6 due to the different configurations used. The results show that the use of metakaolin enables the successful alkali activation of a by-product that has very low inherent alkali activation potential.

3.3. Mineralogy-Morphology of AAMs

3.3.1. XRD Analysis

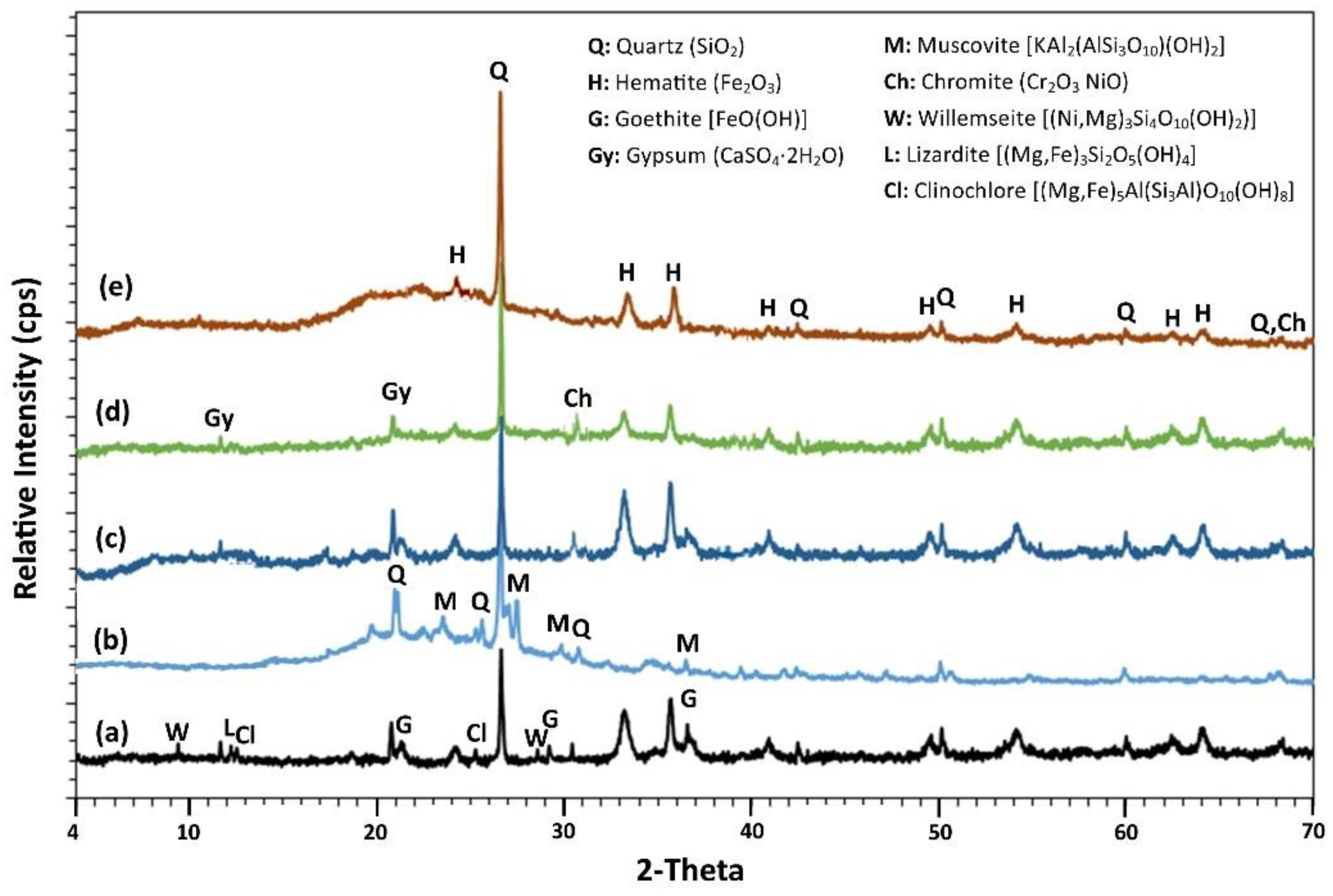

The XRD patterns of laterite leaching residues and selected AAMs are shown in Figure 7. It is observed that the main mineralogical phases present in the leaching residues are quartz (SiO2) and hematite (Fe2O3), while other minor phases are goethite (FeO(OH)), clinochlore ((Mg,Fe)5Al(Si3Al)O10(OH)8), and lizardite ((Mg,Fe) 3Si2O5(OH)4) (Figure 7a). The main Ni-bearing phases detected in the leaching residues are chromite (Cr2O3 NiO) and willemseite ((Ni,Mg)3Si4O10(OH)2). As a result of the acid column leaching of limonitic laterite (CaO content, 3.7 wt%; Table 1) with the use H2SO4 solution, gypsum was also detected in the residues. On the other hand, the main mineralogical phases present in the XRD pattern of metakaolin are quartz and muscovite with a broad amorphous hump seen between 17° and 40° 2-Theta (Figure 7b).
After alkali activation (LR2 AAM), which, as explained earlier in this paper, is poor due to the low content of Al2O3, a slight increase in the intensity of the peaks of the crystalline phases such as quartz and hematite is observed, compared to the ones present in the laterite leaching residues (Figure 7c). This observation confirms that these phases do not participate in the alkali activation reactions [67].
On the contrary, the intensity of the peaks of the crystalline phases present in LR90MK10 AAM is significantly lower compared to the ones present in the leaching residues; this is due to metakaolin addition, which has a high alkali activation potential as a result of the dissolution of sufficient number of Si and Al ions that participate in alkali activated reactions and the development of the geopolymeric network (Figure 7d). Thus, a broad hump between 17 and 40° 2-Theta in the XRD pattern, which represents the amorphous content typical for metakaolin-based AAMs, is seen [80], which justifies the high compressive strength acquired by LR90MK10 AAM (45 MPa). After firing the leaching residues at 800 °C, the amorphous hump of the LR90MK10 AAM is more apparent (Figure 7e). However, the center of the hump shifts towards lower 2-Theta, i.e., from 27° 2-Theta to 26.5° 2-Theta for the specimen before and after firing of the laterite leaching residues, respectively. This slight decrease implies partial depolymerization of metakaolin after firing at 800 °C and the subsequent reorganization of its structure resulting in partial reduction of compressive strength (23.1 MPa), as has also been reported in earlier studies [81]. In all laterite leaching residue based AAMs (before firing), minor but detectable quantities of crystalline chromite and gypsum were detected in the corresponding XRD patterns, indicating their partial dissolution after alkali activation.

3.3.2. FTIR Analysis

The FTIR spectra, over the range 4000–400 cm−1, of the leaching residues and the AAMs produced by mixing them (unaltered or after firing) with metakaolin at mass ratio 90:10 (LR90MK10 AAM) are presented in Figure 8. In line with the XRD results, FTIR spectra of leaching residues show the characteristic bands at 460 cm−1 and 694 cm−1, the double bands at 778 cm−1 and 796 cm−1, and 1086 cm−1 and 1145 cm−1, which are attributed to quartz [82], and small shoulders at 528 cm−1 and 910 cm−1, which are attributed to hematite and goethite, respectively (Figure 8a) [24,49,67]. After alkali activation, the bands of the major crystalline phases (quartz and hematite) present in the laterite leaching residues remained almost unaffected in the LR2 AAM (Figure 8b), which confirms the low reactivity of the leaching residues during alkali-activation.
However, compared to LR2 ΑΑΜ, a clear difference in the shape, position, and depth of the bands can be seen in the spectrum of the LR90MK10 AAM in the region of 450–1250 cm−1 (Figure 8c). This is a result of the different vibrations belonging to the Al–, Fe–, and Si– containing phases in the raw material/binder (leaching residues and metakaolin) and the respective Si–O–Si, Fe–O–Si, and Si–O–Al bonds in the produced alkali activated matrices. In this context, the rocking band seen at 460 cm−1 in the leaching residues and the LR2 ΑΑΜ (Figure 8a,b), which was slightly shifted to 466 cm−1 in LR90MK10 AAM (Figure 8c), is attributed to the bending motions of the Al- and Si-containing phases [24,67]. The band present in LR2 AAM at 528 cm−1 was shifted to higher frequency, i.e., 538 cm−1, in LR90MK10 AAM, while the one observed at 910 cm−1 disappeared, possibly due to enhanced dissolution of Fe ions from the crystalline phase of hematite and goethite, respectively, that were present in the laterite leaching residues and their subsequent participation in the alkali-activated reactions [73,83]. Moreover, the major difference between LR2 and LR90MK10 ΑΑΜs is due to the shifting of the pair of strong bands at 778 cm−1 and 796 cm−1 observed in the LR2 (as well as in the leaching residues), which is associated with the asymmetric stretching vibrations of the Si–O–Al bonds towards lower wavenumbers (770 cm−1 and 788 cm−1), thus indicating the formation of inorganic gel in LR90MK10 ΑΑΜ [73,84]. The displacement of the band shown at 1086 cm−1 in LR2 AAM to a lower wavelength (1080 cm−1) in LR90MK10 AAM indicates the dissolution of aluminosilicate phases present in the laterite leaching residues and their subsequent polymerization during alkali-activation. The intense absorption bands at ~1410 cm–1 and ~1490 cm–1, shown only in the LR90MK10 AAM, are attributed to asymmetric stretching vibrations of O-C-O bonds due to the formation of carbonation products from the reaction between the alkali activated silicates and the atmospheric CO2 during the curing period [73]. The weaker band located at 1632 cm−1 in the LR2 AAM, which shifted as a sharper peak at 1648 cm−1 in the LR90MK10 AAM, corresponds to the characteristic bending vibrations of H-O-H [85]. The presence of water is more evident in LR90MK10 AAM because a relatively wide absorption band region appeared between 3000 cm−1 and 3700 cm−1 belonging to stretching vibrations of the OH groups as a result of the hydration processes that took place during alkali activation. After firing the laterite leaching residues at 800 °C, a structural reorganization of the LR90MK10 AAM was noticed, which is indicated by the very broad band shown in the region of 800–1200 cm−1 as result of the stretching vibrations of the Si(Al)–O groups (Figure 8d) [67]. This change in the polymeric matrix, along with the incomplete dihydroxylation, represented by a narrower band region between 3000 cm−1 and 3700 cm−1 compared to LR90MK10 AAM, results in lower compressive strength [86].

3.3.3. SEM Analysis

Figure 9 shows SEM-back-scattered electron (BSE) images of selected AAMs produced using only laterite leaching residues (LR2) as well as by mixing leaching residues and metakaolin at mass ratio 90:10 (LR90MK10) both as is and after firing at 800 °C for 2 h. Among the AAMs examined, significant differences in the microstructure and the associated EDS analyses were noticed, depending on the nature of the starting raw materials/binders used. As also shown in the XRD analysis, the examination of LR2 AAM by SEM/EDS (Figure 9a) revealed a heterogeneous and porous structure with a poor cohesion between the paste and the raw material that is dominated by large quartz and hematite crystals (>30 μm) with sharp edges, along with small tabular crystals (<10 μm) of gypsum and some grains of goethite. It is important to note that some chromite particles with loose connections were also present inside the pore cavities of the inorganic matrix (dark areas) of the LR2 AAM. The large number of hollow cavities, irregular voids, and un-reacted or partially reacted particles indicate a low alkali activation degree, which is confirmed by the low compressive strength acquired by this specimen (1.3 MPa) [87].
On the other hand, as shown in Figure 9b,c, the microstructure of the AAMs produced by mixing laterite leaching residues and metakaolin at mass ratio 90:10 (LR90MK10) is mainly characterized by a more dense and homogeneous polymeric network when compared to LR2 AAM. Additionally, less voids and fewer unreactive particles, mainly round in shape, that exhibit better cohesion with the inorganic matrix of the LR90MK10 AAM as well as the presence of mixed aggregates, are shown (Figure 9b). As the alkali-activation reactions progressed, gel products filled the hollow cavities and voids and strongly bonded the solid particles together with the precursors to form a compact matrix, with significantly reduced porosity and water absorption, as shown in Figure 9c (zoom of rectangular area of Figure 9b). SEM-EDS analyses confirmed the formation of (N,C)–A–S–H gel with high ratios of Al/Si and Na/Si, 0.32 and 0.43, respectively, and a Ca/Si ratio of 0.15. This microstructure justifies the higher compressive strength of the LR90MK10 AAM (41 MPa) among all specimens examined in this study (Table 4).

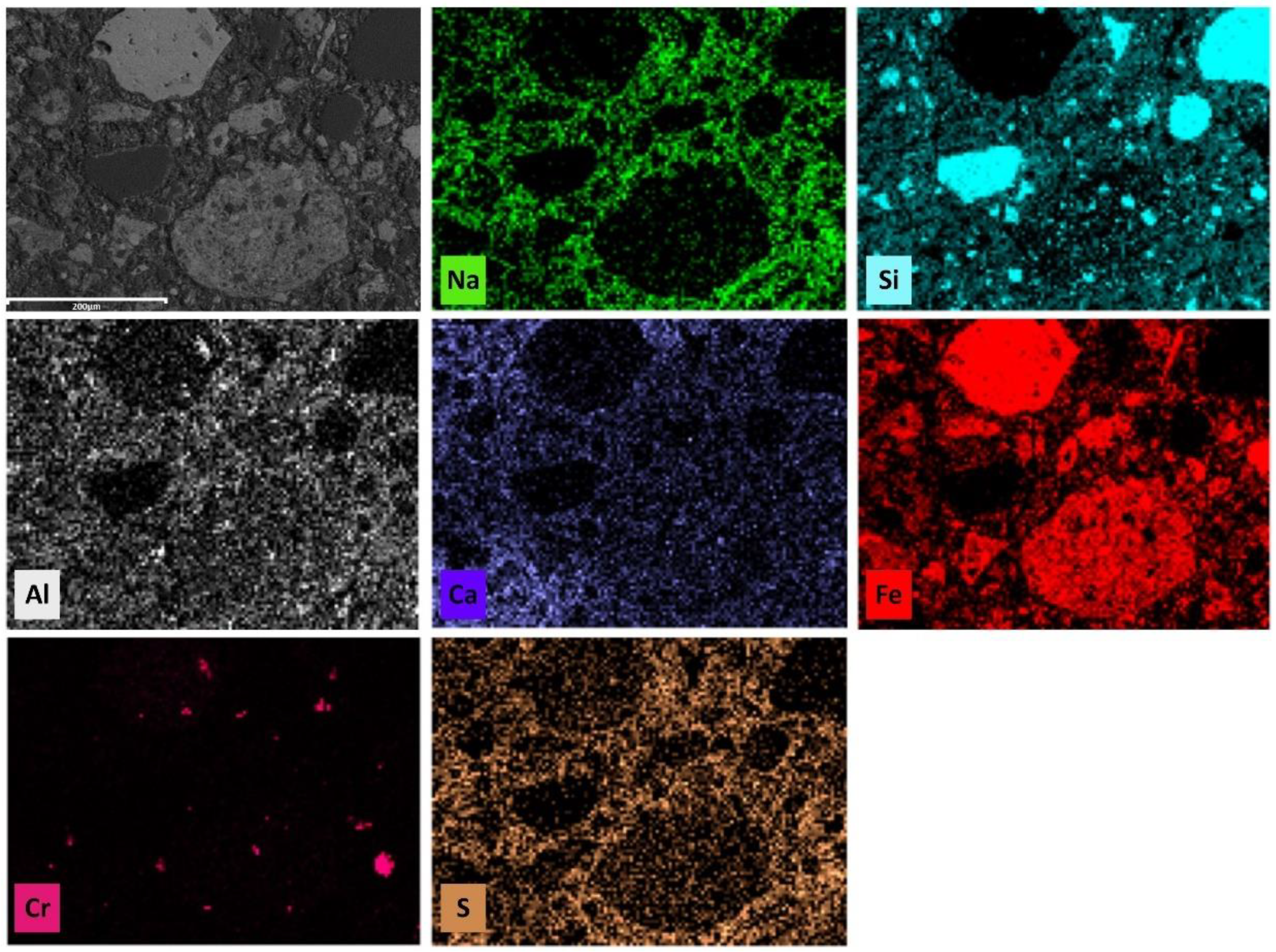

The microstructure of the LR90MK10 AAM was further evaluated using EDS elemental mapping analysis in order to elucidate the alkali activation mechanisms and the subsequent formation of reaction products in the polymeric matrix (Figure 10). The results of elemental mapping show a quite homogenous distribution of the main elements Ca, Fe, Al, Si, S, and Na throughout the polymeric matrix, thus suggesting the formation of strong bonds due to reactions between leaching residues, metakaolin, and alkaline activators (NaOH and Na2SiO3 solutions). In this context, the elemental maps of Al, Ca, and S indicate that the high Al content of metakaolin (40.3% as oxide) as well as gypsum formed during the column acid leaching of the limonitic laterite with the use of H2SO4 were evenly distributed in the formed gel. The uniform distribution of gypsum inside the polymeric network indicates the synergistic interaction with the metakaolin added in the starting mixture, which results in the production of specimens with beneficial mechanical properties [88]. However, and in line with the XRD results, elemental mapping shows that some unreacted particles of quartz, hematite, and chromite are still present (bright spot areas) in the produced AAMs. It is important here to note that, despite the fact that laterite leaching residues have a relatively high content of Cr2O3 (2.5 wt%), as shown in Table 1, elemental distribution of Cr indicates that its dissolution from the raw material is extremely limited.
Regarding the produced LR90MK10 AAM after firing at 800 °C (Figure 9d), SEM analysis indicated the presence of a polymeric matrix filled with rounded particles, mostly hematite, seen in the center of the map. Even though firing at 800 °C resulted in a glassy structure, extensive cracking and noticeable formation of voids due to the evaporation of free water and shrinkage are visible in the fired specimen [89]. The co-existence of cracking and voids/shrinkage detected in the LR90MK10 AAM after firing is a major contributor to its 54% reduction in compressive strength (i.e., 23.1 MPa) compared to the LR90MK10 specimen.

4. Conclusions

The present study is novel because it is the first one that explores the potential of, and investigates the main factors affecting, the alkali activation of laterite acid leaching residues. In order to accomplish this, the residues obtained after column leaching tests of Greek laterites were alkali activated without alteration, after calcination at 800 and 1000 °C, or after the addition of metakaolin at mass ratios leaching residues: metakaolin 95:5 and 90:10, in order to increase the reactivity of the starting mixture.
The experimental results show that the unaltered leaching residues cannot be practically alkali activated and the compressive strength of the produced AAMs hardly reaches 1.4 MPa, while the addition of 10 wt% metakaolin in the starting mixture results in the production of AAMs with noticeably higher compressive strength (41 MPa). The use of metakaolin is considered beneficial during alkali activation due to its high amorphous content and its pozzolanic nature, provided that the calcination of kaolin takes place at the most suitable temperature (around 750 °C). On the other hand, calcination of the residues at 800 and 1000 °C has little or no beneficial effect on alkali activation. The produced AAMs under the optimum synthesis conditions (using molar ratios H2O/Na2O, 17.4 and SiO2/Na2O, 1.0 in the alkali activation solution consisting of NaOH and Na2SiO3 solutions; pre-curing time, 4 h; curing temperature, 80 °C; curing time, 24 h; ageing period, 7 days) also exhibited good structural integrity when subjected to high temperature firing for 2 h and after immersion in distilled water or acidic solution (1 mol L−1 HCl) for 7 and 30 days.
The use of analytical techniques, including XRD, FTIR, and SEM-EDS, provided useful insights on the beneficial effect of metakaolin addition towards the improvement of the alkali activation potential of laterite acid leaching residues.
The results of this study can be used for the development of an integrated approach, which involves leaching residue valorization for the production of much higher added value products that can be used as binders or construction elements, in line with the zero-waste approach and circular economy principles.
