Toxicity of Formulated Systemic Insecticides Used in Apple Orchard Pest Management Programs to the Honey Bee (Apis mellifera (L.))

by
Sarah Heller
1,2,
Julia Fine
3,
Ngoc T. Phan
4,5,
Edwin G. Rajotte
2,
David J. Biddinger
1,2 and
Neelendra K. Joshi
4,*
1
Penn State Fruit Research and Extension Center, Biglerville, PA 17307, USA
2
Department of Entomology, The Pennsylvania State University, University Park, PA 17307, USA
3
Invasive Species and Pollinator Health Research Unit, US Department of Agriculture-Agricultural Research Service, 3026 Bee Biology Rd., Davis, CA 95616, USA
4
Department of Entomology and Plant Pathology, University of Arkansas, Fayetteville, AR 72701, USA
5
Research Center for Tropical Bees and Beekeeping, Gia Lam, Hanoi 100000, Vietnam
*
Author to whom correspondence should be addressed.
Environments 2022, 9(7), 90; https://doi.org/10.3390/environments9070090
Submission received: 15 March 2022 / Revised: 30 June 2022 / Accepted: 6 July 2022 / Published: 11 July 2022
Browse Figure
Versions Notes

Abstract

:
Honey bees (Apis mellifera) are one of the most important pollinating species of flowering plants. Recently, populations of honey bees have been declining due to a combination of factors, including the widespread use of agricultural pesticides. Laboratory studies were conducted to determine the acute oral toxicity of different formulated pesticides to honey bee adults. In particular, we assessed the acute oral toxicity of two neonicotinoids (acetamiprid, Assail 30SG and thiamethoxam, Actara 25WDG) and two other systemic insecticide products (sulfoxaflor, Closer 2SC and flupyradifurone, Sivanto 200SL), all of which are generally used in pest management programs in commercial apple orchards in the Eastern United States. Honey bees were fed a range of doses of each pesticide in order to create a response curve, and LC50, LC90, and LD50 values were determined. The pesticide formulation containing flupyradifurone as the active ingredient was found to be the least toxic to honey bees followed by the formulations containing sulfoxaflor and acetamiprid. The toxicity values obtained in this study differ from other studies testing only technical active ingredient compounds, suggesting the need to evaluate formulated products while conducting ecotoxicological risk assessment.

1. Introduction

Pollinators provide essential ecosystem services, supporting approximately 85% of the world’s flowering plants [1] and 35% of the global crop production [2]. Pollinator health has become a pressing issue as populations of both managed and native pollinators are declining worldwide [3]. Honey bees (Apis mellifera L.) are the most studied pollinators and are considered the most valuable [4]. Honey bee populations, however, have been affected by a combination of environmental factors in recent years [5]. Studies suggest that bee declines, generally, are caused by the interaction of many stress factors, including pathogens, parasitic mites, pesticides, lack of forage and nesting habitat due to intensive monocultures, and stress from poor nutrition and the transport of hives for commercial pollination [6,7,8,9]. Pesticide exposure has received a disproportionate amount of media attention due to the presence of agricultural chemicals detected in honey bee wax and pollen [10,11,12].
One class of pesticides, known as neonicotinoids, has been implicated in increased mortality of honey bee colonies [13,14,15] and has become the subject of much debate [16] and regulatory restrictions on its use [17]. Neonicotinoids are systemic pesticides that, once applied by foliar sprays, trunk injection, or root drenching, are transported throughout the plant vascular tissue and protect against sap-feeding insects. Neonicotinoids act as nicotinic acetylcholine receptors, blocking the transmission of nerve impulses in the central nervous system of insects [18,19]. Bees can encounter systemic insecticides, such as neonicotinoids, in many ways, including direct contact with foliar sprays or particles released during treated seed planting, contacting residues on treated plants or nesting substrate, or consuming contaminated pollen, nectar, and water [20,21,22]. Neonicotinoids may also have indirect effects on honey bees by altering the community structure of the bee gut microbiome [23]. However, because of their lower mammalian toxicity, neonicotinoids are sometimes considered lower risk relative to other pesticides [24]. Different pesticides, including neonicotinoids and other reduced-risk insecticides, are used in insect pest management in apple orchards [25,26,27,28,29,30]. In the Eastern US, apple orchards, insecticides are generally not applied during the 7 to 10-day bloom period. Therefore, oral exposure through contaminated pollen and nectar from the systemic movement in the plant of pre-bloom applications is the primary route of exposure in orchards [31], and such exposure could be toxic to non-target species as the DT50 values of systemic insecticides used in orchard pest management are usually longer than the bloom period.
Although much research has been undertaken on the effects of some neonicotinoids on bee health [32,33,34,35,36], few studies have been performed on the newer neonicotinoids and systemic active ingredient compounds that are applied as foliar sprays in tree fruit crops such as apples [37]. Federal safety regulations for pesticide registration require assessing pollinator risk by performing toxicity laboratory studies on honey bees, using the active ingredient of a substance rather than the formulated product [38]. However, formulated pesticides usually contain inert ingredients in higher amounts than the active ingredient, and recent studies have shown that consumption of these inert ingredients can adversely affect target and non-target insects [39,40].
The main objective of this study was to determine the risk to honey bees associated with the use of formulated neonicotinoids and neonicotinoid-related products as categorized by the Insecticide Resistance Action Committee (IRAC). In particular, we assessed the acute oral toxicities of two formulated neonicotinoids (IRAC group 4A) and two other systemic insecticide products (IRAC group 4C and 4D) commonly used in apple production in the Eastern United States.

2. Materials and Methods

2.1. Insects and Experimental Design

Adult worker bees were sourced from three different hives in the Penn State apiary at University Park, PA, located within about 60 m of each other. House bees or middle-aged bees were selected by shaking frames of honey [41]. These hives were maintained according to best management practices [42], and the bees were in good health. After bees were collected from the hives, they were starved for four hours and placed into group feeding cages. Five bees from each hive were placed into each cage to eliminate hive effects for 15 bees per cage in total. Cages were constructed as described in Biddinger et al. [43]. A Petri dish (100 mm × 20 mm) encased the open ends of a 100 mm-long wire mesh cylinder. Each Petri dish had a hole made with a heated cork-borer, one side with a larger hole to put bees in and remove dead bees, and the other side with a smaller hole where the feeder hung. The feeder was a 1.7-milliliter centrifuge tube with two pin-sized holes in the bottom to allow ad libitum feeding.

2.2. Pesticide Treatments

The commercial formulations (AI%; manufacturer) of the treatments were the neonicotinoids (IRAC Code 4A) Assail 30SG (acetamiprid 30%; United Phosphorous Inc., King of Prussia, PA, USA) [44] and Actara 25WP (25.0% thiamethoxam, Syngenta, Wilmington, DE, USA) [45], and the neonicotinoid-related compounds (IRAC Code 4D and 4C, respectively) Sivanto 200SL (flupyradifurone 17.09%, Bayer CropScience, Research Triangle Park, NC, USA) [46] and Closer 240SC (sulfoxaflor 21.8%, Dow AgroSciences LLC, Indianapolis, IN, USA) [47]. One dose of Cygon 400 (dimethoate 43.5%; Drexel Chemical Company, Memphis, TN, USA) [48] was included as a positive control [49], and negative control bees had access to 50% sucrose solution.
The feeding protocol was adapted from the Organization for Co-operation and Development Test No. 213: Honeybees, Acute Oral Toxicity Test [50]. Treatment doses were chosen based on previously published median lethal doses for the active ingredient of each pesticide (acetamiprid [51], thiamethoxam [52], flupyradifurone [53], and sulfoxaflor: average derived from multiple reports [54,55]). The median lethal dose, or LD50, is the dose required to kill half of a test population. For each pesticide formulation used in this study, a range of five dose treatment concentrations (10, 20, 40, 80, and 160 ppm) were extrapolated from the published data, aiming to produce mortalities between 10 and 90%, as suggested in Robertson et al. [56]. These values were converted into a concentration per bee, with 50% sucrose solution as the solvent. After the starvation period, bees were given a feeder with 400 microliters of the assigned treatment. Bees were watched until approximately 200 microliters of the treatment was consumed volumetrically, at which point the feeder was replaced with a feeder containing 50% sucrose solution only. All bees consumed the 200 microliters within 4 h. Three replicate cages of bees were tested with each treatment, for a total of 45 bees per dose and 225 bees per chemical. Cages were placed inside large plastic containers, which also contained a jar of saturated NaCl solution to maintain ~75% relative humidity. All plastic containers were kept in a growth chamber at 34.5 °C in darkness.

2.3. Data Collection and Analysis

The amount of treatment solution consumed by weight was recorded and converted into an average dose per bee assuming equal consumption by individuals in a treatment cage. Mortality and behavioral observations were recorded at zero, 12, 24, and 48 h post-exposure. Bees were considered dead when they remained absolutely still during the 30 s observation period (similar to Laurino et al. [57]). Quantal response regressions were estimated assuming the normal distribution (i.e., probit model) with the computer program POLOPlus 2.0 (LeOra Software [58]) as described by Robertson et al. [56]. The median lethal concentration (LC50 and LC90) values with 95% confidence intervals were also calculated using POLOPlus 2.0, and the median lethal dose (LD50) values were calculated based on the procedure described in Phan et al. [59].

3. Results and Discussion

In this study, the negative control mortality (n = 45) was 0%, and positive control mortality (n = 45) was 4.4%. Response curves (Figure 1) and LC50 and LC90 values (Table 1) were generated for pesticide formulations containing acetamiprid, flupyradifurone, and sulfoxaflor as individual active ingredients. A valid toxicity response curve could not be generated by POLOPlus 2.0 for pesticide formulation containing thiamethoxam because the data points were concentrated at very low dose mortality, producing too much variance for a correct calculation of toxicity values. However, we expected to be able to create response curves for all four chemicals, because the doses were based on published data and we used the full range necessary for POLOPlus to generate valid curves [56,60]. The sources of variation could be the differences in age [61] or genetic lineage [62] of the bees used in our study.
Conversely, the range of mortalities observed was great enough to calculate valid LC50 and LC90 values for acetamiprid, flupyradifurone, and sulfoxaflor-based product formulations. The number of individuals included in the analysis (n), the slope of the response curve, and 95% confidence intervals for the LC50 and LC90 values are also reported (Table 1). These values are not usually reported in conventional toxicity testing, but they are essential for making comparisons between different chemicals, different bee species, different populations of the same species, and for extrapolating the toxicity of a known dose [56,60]. A similar trend in the toxicity was also observed in the LD50 values (μg/bee) of these formulated products in this study. The flupyradifurone active ingredient-based formulation was the least toxic (LD50 = 2.87 μg/bee, 95% CL = 2.24–5.42), followed by sulfoxaflor (LD50 = 1.03 μg/bee, (95% CL = 0.81–1.31), and acetamiprid (LD50 = 0.80 μg/bee, 95% CL = 0.65–1.00). These toxicity values differ from other studies conducted using technical compounds [51,54,55,63,64,65,66]. For instance, the LD50 value (2.87 μg/bee) for the formulation containing flupyradifurone was over two times higher than the LD50 value reported by the US EPA [66] and Nauen et al. (1.20 μg/bee) [67]. However, the LD50 value for flupyradifurone in our study was slightly lower than the LD50 value (2.995 μg/bee) reported by Tosi and Nieh [66] in a recent study. Toxicities of these formulated products may also vary among products containing the same active ingredient. For instance, in a laboratory study, the LD50 value for a different acetamiprid-based formulated product was 1.69 μg/bee [68]. Such differences could be likely due to the differences in the composition of inactive ingredients.
Most toxicity bioassays are generally conducted using technical active ingredient compounds. However, pesticide formulations contain several other inactive ingredients, and toxicity differences in the current study could be likely due to the use of formulated products compared to previous studies where only technical active ingredients (i.e., active substances) were evaluated [51,54,55,63,64,65,66]. In general, the inactive ingredients in pesticide formulations are assumed to be inert and are not included in the required pesticide registration toxicity tests for pollinators [39]. There is much debate over the oral toxicity of the inactive ingredients of formulated pesticides, but consumption of these “inert” ingredients has been shown to cause adverse effects, including learning impairments in honey bees [39,40]. The impact of pesticide formulations on pollinator health must be further investigated, and using formulated products is necessary for pesticide toxicity testing, and in addition, differences in the toxicity of technical active ingredients and associated formulated products highlight the need for future studies in this direction.
Much of the mortality occurred within 12 h of feeding. However, all bees were sustained on sucrose solution long after the experiment was over, and only the untreated control bees survived beyond 7 days, indicating delayed mortality in treated bees. The poisoning symptoms observed mirrored those already reported in similar studies [59,69]. Sublethal effects such as staggering, partial paralysis, abdomen tucking, and twitching were observed to some degree in all treated bees during the feeding period, but most often in those treated with thiamethoxam and sulfoxaflor. These observations could be an indication of sublethal and chronic effects of pesticide consumption. These effects are not observed in the 48 h acute pesticide testing and can impact longevity, reproduction, and colony health [70]. Therefore, it is important to conduct both short- and long-term toxicity studies while conducting pesticide risk assessment.
To further advance pesticide registration testing, moving beyond using A. mellifera as a surrogate species is necessary. Previous research has found that there are differences in the contact toxicity of systemic pesticides to A. mellifera and another apple pollinator, Osmia cornifrons (Radoszkowski, 1887) [43]. Although it is impossible to test all bee species, including a few other surrogates, such as an Osmia (mason bee) or Bombus (bumble bee) species, in pesticide registration and extension of testing would greatly improve our knowledge of the threat to pollinators.
Additional research is necessary on the toxicity of the inert ingredients in systemic pesticide formulations and their ability to move to the pollen and nectar, as consumption is a primary route of exposure for pollinators. Additionally, the data reported on neonicotinoid toxicity to pollinators varies greatly due to inconsistent testing methods [71]. The development of more field-realistic toxicity testing is vital as honey bees are exposed to insecticides through various routes [20,72]. This would include using pesticide formulations, as well as toxicity testing on all life stages, long-term studies to observe sublethal effects, choice tests, field-scale assays, and varying bee species [73]. This range of exposure testing is not currently considered during the registration or regulation of insecticides by the United States Environmental Protection Agency [74]. Moving forward, we believe field-scale studies where pesticide application is highly controlled and bee behavior and reproduction can be observed would be best. A uniform toxicity testing technique that emphasizes field-realistic conditions with formulated pesticides could reduce the variability in reported data and produce results that better represent the effects seen in the field. Additionally, legally requiring reporting of response curve slopes and confidence intervals around LD50 values would allow more detailed conclusions to be drawn, such as which chemical is more toxic and at what dose. With more reliable and consistent toxicity data, integrated pest management programs can be adjusted to protect pollinators while controlling pests [75].

4. Conclusions

In this study, the toxicities of different systemic insecticide formulations to honey bees were established. In terms of the LC50 and LD50 values, the formulation based on the active ingredient flupyradifurone was found to be the least toxic, followed by sulfoxaflor and acetamiprid-based formulations. The toxicity of formulated insecticide products to honey bees may differ from the toxicity of technical active ingredients. The toxicity values determined in this study are based on the formulated insecticide products that growers apply on their farms, which is more realistic than testing active ingredients alone as honey bees are exposed to formulated pesticides and not just the technical active ingredients. There is increasing evidence of differences in the toxicity of technical active ingredients and their associated formulated products. The current pesticide risk assessment framework could be refined further to incorporate formulated pesticides while conducting ecotoxicological risk assessments since many ‘inert ingredients’ can cause adverse effects in honey bees and other non-target species.

Author Contributions

Conceptualization, D.J.B., S.H., E.G.R. and N.K.J.; methods and experimentation, S.H., J.F., N.K.J. and D.J.B.; formal analysis and data curation, N.T.P., S.H. and N.K.J.; writing—original draft preparation, S.H. and N.K.J. with inputs from D.J.B., E.G.R., N.T.P. and J.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded in part by the Pennsylvania Department of Agriculture—Specialty Crop Grant, USDA Specialty Crops Research Initiative (PEN04398, ICP-Project MICL05063), and the State Horticultural Association of Pennsylvania.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available upon request.

Acknowledgments

Authors are thankful to the Pennsylvania Department of Agriculture—Specialty Crop Grant, USDA Specialty Crops Research Initiative (PEN04398, ICP-Project MICL05063), and the State Horticultural Association of Pennsylvania for financial support for this research work. The authors are also thankful to Chris Mullin for the use of his laboratory and equipment. N.J. was supported by USDA-NIFA (Project# ARK02527 and ARK02710). Any opinions, findings, conclusions, or recommendations expressed in this publication are those of the authors and do not necessarily reflect the view of the U.S. Department of Agriculture or affiliated institutions. Mention of trade names or commercial products in this publication is solely for the purpose of providing specific information and does not imply recommendation or endorsement by the U.S. Department of Agriculture. USDA is an equal opportunity provider and employer.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Ollerton, J.; Winfree, R.; Tarrant, S. How Many Flowering Plants Are Pollinated by Animals? Oikos 2011, 120, 321–326. [Google Scholar] [CrossRef]
  2. Klein, A.-M.; Vaissière, B.E.; Cane, J.H.; Steffan-Dewenter, I.; Cunningham, S.A.; Kremen, C.; Tscharntke, T. Importance of Pollinators in Changing Landscapes for World Crops. Proc. R. Soc. B Biol. Sci. 2007, 274, 303–313. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Potts, S.G.; Biesmeijer, J.C.; Kremen, C.; Neumann, P.; Schweiger, O.; Kunin, W.E. Global Pollinator Declines: Trends, Impacts and Drivers. Trends Ecol. Evol. 2010, 25, 345–353. [Google Scholar] [CrossRef]
  4. Calderone, N.W. Insect Pollinated Crops, Insect Pollinators and US Agriculture: Trend Analysis of Aggregate Data for the Period 1992–2009. PLoS ONE 2012, 7, e37235. [Google Scholar] [CrossRef] [Green Version]
  5. CCD Steering Committee. Available online: https://www.ars.usda.gov/is/br/ccd/ccd_actionplan.pdf (accessed on 20 June 2017).
  6. Van Engelsdorp, D.; Evans, J.D.; Saegerman, C.; Mullin, C.; Haubruge, E.; Nguyen, B.K.; Frazier, M.T.; Frazier, J.L.; Cox-Foster, D.; Chen, Y.; et al. Colony Collapse Disorder: A Descriptive Study. PLoS ONE 2009, 4, e6481. [Google Scholar] [CrossRef]
  7. Goulson, D.; Nicholls, E.; Botías, C.; Rotheray, E.L. Bee Declines Driven by Combined Stress from Parasites, Pesticides, and Lack of Flowers. Science 2015, 347, 1255957. [Google Scholar] [CrossRef]
  8. Belsky, J.E.; Joshi, N.K. Effects of Fungicide and Herbicide Chemical Exposure on Apis and Non-Apis Bees in Agricultural Landscape. Front. Environ. Sci. 2020, 8, 81. [Google Scholar] [CrossRef]
  9. Siviter, H.; Bailes, E.J.; Martin, C.D.; Oliver, T.R.; Koricheva, J.; Leadbeater, E.; Brown, M.J.F. Agrochemicals Interact Synergistically to Increase Bee Mortality. Nature 2021, 596, 389–392. [Google Scholar] [CrossRef]
  10. Mullin, C.A.; Frazier, M.T.; Frazier, J.L.; Ashcraft, S.A.; Simonds, R.; van Engelsdorp, D.; Pettis, J.S. High Levels of Miticides and Agrochemicals in North American Apiaries: Implications for Honey Bee Health. PLoS ONE 2010, 5, e9754. [Google Scholar] [CrossRef] [Green Version]
  11. Ostiguy, N.; Drummond, F.A.; Aronstein, K.; Eitzer, B.D.; Ellis, J.D.; Spivak, M.; Sheppard, W.S. Honey Bee Exposure to Pesticides: A Four-Year Nationwide Study. Insects 2019, 10, 13. [Google Scholar] [CrossRef] [Green Version]
  12. Zawislak, J.; Adamczyk, J.; Johnson, D.R.; Lorenz, G.; Black, J.; Hornsby, Q.; Stewart, S.D.; Joshi, N.K. Comprehensive Survey of Area-Wide Agricultural Pesticide Use in Southern United States Row Crops and Potential Impact on Honey Bee Colonies. Insects 2019, 10, 280. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Maxim, L.; van der Sluijs, J.P. Expert Explanations of Honeybee Losses in Areas of Extensive Agriculture in France: Gaucho® Compared with Other Supposed Causal Factors. Environ. Res. Lett. 2010, 5, 014006. [Google Scholar] [CrossRef] [Green Version]
  14. Wintermantel, D.; Odoux, J.F.; Decourtye, A.; Henry, M.; Allier, F.; Bretagnolle, V. Neonicotinoid-Induced Mortality Risk for Bees Foraging on Oilseed Rape Nectar Persists despite EU Moratorium. Sci. Total Environ. 2020, 704, 135400. [Google Scholar] [CrossRef] [PubMed]
  15. Flores, J.M.; Gámiz, V.; Gil-Lebrero, S.; Rodríguez, I.; Navas, F.J.; García-Valcárcel, A.I.; Cutillas, V.; Fernández-Alba, A.R.; Hernando, M.D. A Three-Year Large Scale Study on the Risk of Honey Bee Colony Exposure to Blooming Sunflowers Grown from Seeds Treated with Thiamethoxam and Clothianidin Neonicotinoids. Chemosphere 2021, 262, 127735. [Google Scholar] [CrossRef]
  16. Cressey, D. Europe Debates Risk to Bees: Proposed Pesticide Ban Gathers Scientific Support as Some Experts Call for More Field Studies. Nature 2013, 496, 408. [Google Scholar] [CrossRef] [Green Version]
  17. Demortain, D. The Science behind the Ban: The Outstanding Impact of Ecotoxicological Research on the Regulation of Neonicotinoids. Curr. Opin. Insect Sci. 2021, 46, 78–82. [Google Scholar] [CrossRef]
  18. Matsuda, K.; Buckingham, S.D.; Kleier, D.; Rauh, J.J.; Grauso, M.; Sattelle, D.B. Neonicotinoids: Insecticides Acting on Insect Nicotinic Acetylcholine Receptors. Trends Pharmacol. Sci. 2001, 22, 573–580. [Google Scholar] [CrossRef]
  19. Tomizawa, M.; Casida, J.E. Selective Toxicity of Neonicotinoids Attributable to Specificity of Insect and Mammalian Nicotinic Receptors. Annu. Rev. Entomol. 2003, 48, 339–364. [Google Scholar] [CrossRef]
  20. Krupke, C.H.; Hunt, G.J.; Eitzer, B.D.; Andino, G.; Given, K. Multiple Routes of Pesticide Exposure for Honey Bees Living near Agricultural Fields. PLoS ONE 2012, 7, e29268. [Google Scholar] [CrossRef]
  21. Hopwood, J.; Code, A.; Vaughan, M.; Biddinger, D.J.; Matthew, S.; Black, S.H.; Lee-Mäder, E.; Celeste, M. Are Neonicotinoids Killing Bees? A Review of Research into the Effects of Neonicotinoid Insecticides on Bees, 2nd ed.; Morris, S., Ed.; The Xerces Society for Invertebrate Conservation: Portland, OR, USA, 2016. [Google Scholar]
  22. Zawislak, J.; Lorenz, G.; Adamczyk, J.; Wiedenmann, R.; Joshi, N.K. Proportion of Commodity Crop Pollens and Pesticide Contamination in Honey Bee Diets in Two Different Landscapes. Environ. Adv. 2021, 5, 100116. [Google Scholar] [CrossRef]
  23. Alberoni, D.; Favaro, R.; Baffoni, L.; Angeli, S.; di Gioia, D. Neonicotinoids in the Agroecosystem: In-Field Long-Term Assessment on Honeybee Colony Strength and Microbiome. Sci. Total Environ. 2021, 762, 144116. [Google Scholar] [CrossRef] [PubMed]
  24. Ensley, S.M. Neonicotinoids. In Veterinary Toxicology: Basic and Clinical Principles; Academic Press: Cambridge, MA, USA, 2018; pp. 521–524. ISBN 9780128114100. [Google Scholar]
  25. Hull, L.A.; Joshi, N.K.; Zaman, F.U. Large Plot Reduced Risk Insecticide Study for Lepidopteran Pests Infesting Apples, 2008. Arthropod Manag. Tests 2009, 34, A11. [Google Scholar] [CrossRef] [Green Version]
  26. Joshi, N.K.; Leslie, T.; Rajotte, E.G.; Biddinger, D.J. Environmental Impacts of Reduced-Risk and Conventional Pesticide Programs Differ in Commercial Apple Orchards, but Similarly Influence Pollinator Community. Chemosphere 2020, 240, 124926. [Google Scholar] [CrossRef] [PubMed]
  27. Agnello, A.M.; Atanassov, A.; Bergh, J.C.; Biddinger, D.J.; Gut, L.J.; Haas, M.J.; Harper, J.K.; Hogmire, H.W.; Hull, L.A.; Kime, L.F.; et al. Reduced-Risk Pest Management Programs for Eastern U.S. Apple and Peach Orchards: A 4-Year Regional Project. Am. Entomol. 2009, 55, 184–197. [Google Scholar] [CrossRef] [Green Version]
  28. Hull, L.A.; Joshi, N.K.; Zaman, F.U. Management of Internal Feeding Lepidopteran Pests in Apple, 2008. Arthropod Manag. Tests 2009, 34, A8. [Google Scholar] [CrossRef] [Green Version]
  29. Brunner, J.F.; Beers, E.H.; Dunley, J.E.; Doerr, M.; Granger, K. Role of Neonicotinyl Insecticides in Washington Apple Integrated Pest Management-Part I. Control of Lepidopteran Pests. J. Insect Sci. 2005, 5, 14. [Google Scholar] [CrossRef] [Green Version]
  30. Agnello, A.M.; Reissig, W.H.; Kovach, J.; Nyrop, J.P. Integrated Apple Pest Management in New York State Using Predatory Mites and Selective Pesticides. Ecosyst. Environ. 2003, 94, 183–195. [Google Scholar] [CrossRef]
  31. Heller, S.; Joshi, N.K.; Chen, J.; Rajotte, E.G.; Mullin, C.A.; Biddinger, D.J. Pollinator Exposure to Systemic Insecticides and Fungicides Applied in the Previous Fall and Pre-Bloom Period in Apple Orchards. Environ. Pollut. 2020, 265, 114589. [Google Scholar] [CrossRef]
  32. Cresswell, J.E. A Meta-Analysis of Experiments Testing the Effects of a Neonicotinoid Insecticide (Imidacloprid) on Honey Bees. Ecotoxicology 2011, 20, 149–157. [Google Scholar] [CrossRef]
  33. Tsvetkov, N.; Samson-Robert, O.; Sood, K.; Patel, H.S.; Malena, D.A.; Gajiwala, P.H.; Maciukiewicz, P.; Fournier, V.; Zayed, A. Chronic Exposure to Neonicotinoids Reduces Honey Bee Health near Corn Crops. Science 2017, 356, 1395–1397. [Google Scholar] [CrossRef] [Green Version]
  34. Baines, D.; Wilton, E.; Pawluk, A.; de Gorter, M.; Chomistek, N. Neonicotinoids Act like Endocrine Disrupting Chemicals in Newly-Emerged Bees and Winter Bees. Sci. Rep. 2017, 7, 10979. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Ma, S.; Yang, Y.; Fu, Z.; Diao, Q.; Wang, M.; Luo, Q.; Wang, X.; Dai, P. A Combination of Tropilaelaps mercedesae and Imidacloprid Negatively Affects Survival, Pollen Consumption and Midgut Bacterial Composition of Honey Bee. Chemosphere 2021, 268, 129368. [Google Scholar] [CrossRef] [PubMed]
  36. Bommuraj, V.; Chen, Y.; Birenboim, M.; Barel, S.; Shimshoni, J.A. Concentration- and Time-Dependent Toxicity of Commonly Encountered Pesticides and Pesticide Mixtures to Honeybees (Apis mellifera L.). Chemosphere 2021, 266, 128974. [Google Scholar] [CrossRef] [PubMed]
  37. Shugrue, S.E. Pesticide Use and Habitat Manipulation and Management Changes as Factors in Pollinator Sustainability in Pennsylvania Apple Orchards. Master’s Thesis, The Pennsylvania State University, University Park, PA, USA, 2016. [Google Scholar]
  38. OPP; US EPA. Guiding Principles for Data Requirements. Available online: https://www.epa.gov/pesticide-registration/guiding-principles-data-requirements (accessed on 31 May 2016).
  39. Mullin, C.A.; Chen, J.; Fine, J.D.; Frazier, M.T.; Frazier, J.L. The Formulation Makes the Honey Bee Poison. Pestic. Biochem. Physiol. 2015, 120, 27–35. [Google Scholar] [CrossRef] [PubMed]
  40. Ciarlo, T.J.; Mullin, C.A.; Frazier, J.L.; Schmehl, D.R. Learning Impairment in Honey Bees Caused by Agricultural Spray Adjuvants. PLoS ONE 2012, 7, e40848. [Google Scholar] [CrossRef] [Green Version]
  41. Johnson, B.R. Division of Labor in Honeybees: Form, Function, and Proximate Mechanisms. Behav. Ecol. Sociobiol. 2010, 64, 305–316. [Google Scholar] [CrossRef] [Green Version]
  42. Gray, J. Best Management Practices for Bee Health. Available online: https://extension.psu.edu/best-management-practices-for-bee-health (accessed on 17 May 2022).
  43. Biddinger, D.J.; Robertson, J.L.; Mullin, C.A.; Frazier, J.L.; Ashcraft, S.A.; Rajotte, E.G.; Joshi, N.K.; Vaughan, M. Comparative Toxicities and Synergism of Apple Orchard Pesticides to Apis mellifera (L.) and Osmia cornifrons (Radoszkowski). PLoS ONE 2013, 8, e72587. [Google Scholar] [CrossRef] [Green Version]
  44. UPL NA Inc. Assail Safety Data Sheet. Available online: https://www.cdms.net/LabelsSDS/Assail (accessed on 31 December 2018).
  45. Syngenta Crop Protection LLC Actara Safety Data Sheet. Available online: https://www.cdms.net/LabelsSDS/Actara (accessed on 22 July 2016).
  46. Bayer CropScience Sivanto Safety Data Sheet. Available online: https://www.cdms.net/LabelsSDS/Sivanto (accessed on 24 January 2017).
  47. Dow AgroSciences Southern Africa PTY LTD Closer Safety Data Sheet. Available online: https://www.cdms.net/LabelsSDS/Closer (accessed on 2 May 2020).
  48. FMC Corporation Cygon Safety Data Sheet. Available online: https://www.cdms.net/LabelsSDS/Cygon (accessed on 20 December 2018).
  49. Gough, H.J.; McIndoe, E.C.; Lewis, G.B. The Use of Dimethoate as a Reference Compound in Laboratory Acute Toxicity Tests on Honey Bees (Apis mellifera L.) 1981–1992. J. Apic. Res. 1994, 33, 119–125. [Google Scholar] [CrossRef]
  50. OECD. OECD 213: Guidelines for the Testing of Chemicals-Honeybees, Acute Oral Toxicity Test; OECD Publishing: Paris, France, 1998. [Google Scholar]
  51. EC. Acetamiprid SANCO/1392/2001-Final. Available online: https://www.benevit.org/uploads/6/3/9/3/6393191/acetamiprid_eu.pdf (accessed on 16 April 2016).
  52. Syngenta Crop Protection Inc. Material Safety Data Sheet: Thiamethoxam. Available online: https://kernred.co.kern.ca.us/kern-agcomm/products/PLATINUM%2075SG.pdf (accessed on 13 December 2017).
  53. US EPA. Flupyradifurone-New Active Ingredient Review. Available online: http://www.mda.state.mn.us/sites/default/files/inline-files/nair-flupyradifurone.pdf (accessed on 18 July 2018).
  54. US EPA. EPA Issues Sulfoxaflor Registration for Some Uses. Available online: https://www.epa.gov/pesticides/epa-issues-sulfoxaflor-registration-some-uses (accessed on 9 September 2021).
  55. US EPA. Decision to Register New Uses for the Insecticide Sulfoxaflor. Available online: https://www.epa.gov/ingredients-used-pesticide-products/decision-register-new-uses-insecticide-sulfoxaflor (accessed on 17 May 2022).
  56. Robertson, J.L.; Russel, R.M.; Preisler, H.K.; Savin, N.E. Bioassays with Arthropods, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2007; ISBN 9780849323317. [Google Scholar]
  57. Laurino, D.; Porporato, M.; Patetta, A.; Manino, A. Toxicity of Neonicotinoid Insecticides to Honey Bees: Laboratory Tests. Bull. Insectology 2011, 64, 107–113. [Google Scholar]
  58. LeOra Software LLC PoloPlus 2.0. Available online: https://leora-software-company-poloplus.software.informer.com/2.0/ (accessed on 17 May 2022).
  59. Phan, N.T.; Joshi, N.K.; Rajotte, E.G.; López-Uribe, M.M.; Zhu, F.; Biddinger, D.J. A New Ingestion Bioassay Protocol for Assessing Pesticide Toxicity to the Adult Japanese Orchard Bee (Osmia cornifrons). Sci. Rep. 2020, 10, 9517. [Google Scholar] [CrossRef]
  60. Robertson, J.L.; Jones, M.M.; Olguin, E.; Alberts, B. Bioassays with Arthropods, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2017; ISBN 9781482217087. [Google Scholar]
  61. Zhu, Y.C.; Caren, J.; Reddy, G.V.P.; Li, W.; Yao, J. Effect of Age on Insecticide Susceptibility and Enzymatic Activities of Three Detoxification Enzymes and One Invertase in Honey Bee Workers (Apis mellifera). Comp. Biochem. Physiol. Part C 2020, 238, 108844. [Google Scholar] [CrossRef] [PubMed]
  62. Milone, J.P.; Rinkevich, F.D.; McAfee, A.; Foster, L.J.; Tarpy, D.R. Differences in Larval Pesticide Tolerance and Esterase Activity across Honey Bee (Apis mellifera) Stocks. Ecotoxicol. Environ. Saf. 2020, 206, 111213. [Google Scholar] [CrossRef]
  63. Iwasa, T.; Motoyama, N.; Ambrose, J.T.; Roe, R.M. Mechanism for the Differential Toxicity of Neonicotinoid Insecticides in the Honey Bee, Apis mellifera. Crop Prot. 2004, 23, 371–378. [Google Scholar] [CrossRef]
  64. US EPA. Response to Public Comments on EPA’s “Proposed Registration of the New Active Ingredient Sulfoxaflor for Use on Multiple Commodities, Turfgrass, and Ornamentals” (Docket # EPA-HQ-OPP-2010-0889). Available online: https://www.regulations.gov/docket/EPA-HQ-OPP-2010-0889/document (accessed on 18 May 2022).
  65. Glaberman, S.; White, K. Environmental Fate and Ecological Risk Assessment for Foliar, Soil Drench, and Seed Treatment Uses of the New Insecticide Flupyradifurone (BYI 02960). Available online: https://www.regulations.gov/document/EPA-HQ-OPP-2013-0226-0047 (accessed on 25 June 2016).
  66. Tosi, S.; Nieh, J.C. Lethal and Sublethal Synergistic Effects of a New Systemic Pesticide, Flupyradifurone (Sivanto®) on Honey Bees. Proc. R. Soc. B Biol. Sci. 2019, 286, 20190433. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Nauen, R.; Jeschke, P.; Velten, R.; Beck, M.E.; Ebbinghaus-Kintscher, U.; Thielert, W.; Wölfel, K.; Haas, M.; Kunz, K.; Raupach, G. Flupyradifurone: A Brief Profile of a New Butenolide Insecticide. Pest Manag. Sci. 2015, 71, 850–862. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Badawy, M.E.I.; Nasr, H.M.; Rabea, E.I. Toxicity and Biochemical Changes in the Honey Bee Apis Mellifera Exposed to Four Insecticides under Laboratory Conditions. Apidologie 2015, 46, 177–193. [Google Scholar] [CrossRef] [Green Version]
  69. Decourtye, A.; Devillers, J. Ecotoxicity of Neonicotinoid Insecticides to Bees. In Insect Nicotinic Acetylcholine Receptors; Thany, S.H., Ed.; Springer: New York, NY, USA, 2010; Volume 683, pp. 85–95. ISBN 978-1-4419-6444-1. [Google Scholar]
  70. Dively, G.P.; Embrey, M.S.; Kamel, A.; Hawthorne, D.; Pettis, J.S. Assessment of Chronic Sublethal Effects of Imidacloprid on Honey Bee Colony Health. PLoS ONE 2015, 10, e0118748. [Google Scholar] [CrossRef]
  71. Blacquière, T.; Smagghe, G.; van Gestel, C.A.M.; Mommaerts, V. Neonicotinoids in Bees: A Review on Concentrations, Side-Effects and Risk Assessment. Ecotoxicology 2012, 21, 973–992. [Google Scholar] [CrossRef] [Green Version]
  72. Belsky, J.; Biddinger, D.J.; Seiter, N.; Joshi, N.K. Various Routes of Formulated Insecticide Mixture Whole-Body Acute Contact Toxicity to Honey Bees (Apis mellifera). Environ. Chall. 2022, 6, 100408. [Google Scholar] [CrossRef]
  73. Carreck, N.L.; Ratnieks, F.L.W. The Dose Makes the Poison: Have “Field Realistic” Rates of Exposure of Bees to Neonicotinoid Insecticides Been Overestimated in Laboratory Studies? J. Apic. Res. 2014, 53, 607–614. [Google Scholar] [CrossRef] [Green Version]
  74. US EPA. Ecological Effects Test Guidelines-OCSPP 850.3020: Honey Bee Acute Contact Toxicity Test. Available online: https://nepis.epa.gov/Exe/ZyNET.exe/P100IRFL.TXT?ZyActionD=ZyDocument&Client=EPA&Index=2011+Thru+2015&Docs=&Query=&Time=&EndTime=&SearchMethod=1&TocRestrict=n&Toc=&TocEntry=&QField=&QFieldYear=&QFieldMonth=&QFieldDay=&IntQFieldOp=0&ExtQFieldOp=0&XmlQuery=&File=D%3A%5Czyfiles%5CIndex%20Data%5C11thru15%5CTxt%5C00000010%5CP100IRFL.txt&User=ANONYMOUS&Password=anonymous&SortMethod=h%7C-&MaximumDocuments=1&FuzzyDegree=0&ImageQuality=r75g8/r75g8/x150y150g16/i425&Display=hpfr&DefSeekPage=x&SearchBack=ZyActionL&Back=ZyActionS&BackDesc=Results%20page&MaximumPages=1&ZyEntry=1&SeekPage=x&ZyPURL (accessed on 7 December 2016).
  75. Biddinger, D.J.; Rajotte, E.G.; Joshi, N.K. Integrating Pollinator Health into Tree Fruit IPM: A Case Study of Pennsylvania Apple Production. In The Pollination of Cultivated Plants: A Compendium for Practitioners; Roubik, D.W., Ed.; Food and Agriculture Organization of The United Nations: Rome, Italy, 2018; pp. 67–80. ISBN 9789251305065. [Google Scholar]
Environments 09 00090 g001 550

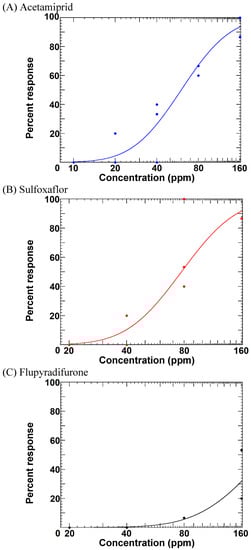

Figure 1. Toxicity responses of Apis mellifera to different systemic pesticides: acetamiprid (A), sulfoxaflor (B), and flupyradifurone (C) through ingestion bioassays (at 48 h after treatment). The points represent percent response; when two replications had the same percent response, the points overlapped.
Figure 1. Toxicity responses of Apis mellifera to different systemic pesticides: acetamiprid (A), sulfoxaflor (B), and flupyradifurone (C) through ingestion bioassays (at 48 h after treatment). The points represent percent response; when two replications had the same percent response, the points overlapped.
Environments 09 00090 g001
Table
Table 1. Response curve slopes, LC50, and LC90 values for different pesticides using mortality observations at 48 h post-feeding.
Table 1. Response curve slopes, LC50, and LC90 values for different pesticides using mortality observations at 48 h post-feeding.
Product
(Active Ingredient)		n ‡Slope ± SELC50 (ppm)
(95% CL)		LC90 (ppm)
(95% CL)
Assail
(acetamiprid)		2253.58 ± 0.4159.93
(48.51–74.92)		136.77
(103.57–218.05)
* Actara
(thiamethoxam)		135---
Closer
(sulfoxaflor)		1804.39 ± 0.5577.32
(60.85–98.32)		151.37
(115.21–259.39)
Sivanto
(flupyradifurone)		1803.69 ± 0.97214.96
(167.77–406.45)		477.85
(294.85–2025.36)
* Values were not calculated as the data points were concentrated in the very low mortality zone. ‡ n is the number of individuals included in the analysis.
