Expression Analysis of a Novel Oxidoreductase Glutaredoxin 2 in Black Tiger Shrimp, Penaeus monodon

by
Rui Fan
1,2,
Yundong Li
1,
Qibin Yang
1,3,
Song Jiang
1,
Jianhua Huang
1,
Lishi Yang
1,
Xu Chen
1,3,
Falin Zhou
1,3,* and
Shigui Jiang
1,*
1
Key Laboratory of South China Sea Fishery Resources Exploitation and Utilization, Ministry of Agriculture and Rural Affairs, South China Sea Fisheries Research Institute, Chinese Academy of Fishery Sciences, Guangzhou 510300, China
2
College of Fisheries and Life Science, Shanghai Ocean University, Shanghai 201306, China
3
Tropical Fishery Research and Development Center, South China Sea Fisheries Research Institute, Chinese Academy of Fishery Sciences, Sanya 572018, China
*
Authors to whom correspondence should be addressed.
Antioxidants 2022, 11(10), 1857; https://doi.org/10.3390/antiox11101857
Submission received: 23 August 2022 / Revised: 15 September 2022 / Accepted: 19 September 2022 / Published: 20 September 2022
(This article belongs to the Special Issue Oxidative Stress in Aquatic Organisms)
Browse Figures
Review Reports Versions Notes

Abstract

:
Glutaredoxin (Grx) is a glutathione-dependent oxidoreductase that is an important component of the redox system in organisms. However, there is a serious lack of sequence information and functional validation related to Grx in crustaceans. In this study, a novel Grx was identified in Penaeus monodon (PmGrx2). The full-length cDNA of PmGrx2 is 998 bp, with an open reading frame (ORF) of 441 bp, encoding 119 amino acids. Sequence alignment showed that PmGrx2 had the highest identity with Grx2 of Penaeus vannamei at 96.64% and clustered with Grx2 of other crustaceans. Quantitative real-time PCR (qRT-PCR) analysis showed that PmGrx2 was expressed in all examined tissues, with higher expression levels in the stomach and testis. PmGrx2 was continuously expressed during development and had the highest expression level in the zygote stage. Both ammonia-N stress and bacterial infection could differentially induce the expression of PmGrx2 in hepatopancreas and gills. When PmGrx2 was inhibited, the expression of antioxidant enzymes was suppressed, the degree of apoptosis increased, and the GSH content decreased with the prolongation of ammonia-N stress. Inhibition of PmGrx2 resulted in shrimp being exposed to a greater risk of oxidative damage. In addition, an SNP locus was screened on the exons of PmGrx2 that was significantly associated with an ammonia-N-stress-tolerance trait. This study suggests that PmGrx2 is involved in redox regulation and plays an important role in shrimps’ resistance to marine environmental stresses.

1. Introduction

Glutaredoxins (Grxs, also known as thioltransferase), as members of the thioredoxins (Trxs) superfamily, are oxidoreductases that are characterized by their thermal stability and small molecular weight [1,2]. Grxs are indispensable in the redox system of organisms [3]. Grxs were originally discovered in Escherichia coli lacking Trxs activity, in 1976 [4]. Typical Grxs fall into two categories according to active site motifs, the dithiol Grxs and the monothiol Grxs, whose active site motifs are Cys-X-X-Cys and Cys-Gly-Phe-Ser, respectively. In the monothiol Grxs, a single Cys residue is present at the n-terminal only. With the assistance of reduced glutathione (GSH), both types of Grxs can reduce disulfide bonds in proteins and convert GSH to oxidized glutathione (GSSH). The difference between the two is that both Cys-active sites of dithiol Grxs are involved in the reaction, whereas monothiol Grxs use only the N-terminal Cys for the reaction. This process is reversible, which implies the important role of Grxs in maintaining intracellular GSH/GSSG ratio homeostasis [5]. Many other types of Grxs are also observed, especially prokaryotes, owing to further research [6]. The Grxs of most types and quantities are currently found in plants, which exhibit a unique active site of Cys-Cys-X-X [7]. In addition, the involvement of Grxs in various physiological and biochemical activities, such as iron–sulfur cluster coordination, resistance to oxidative stress, and cell growth and apoptosis, has been proved [8,9,10]. Instead, there exist numerous studies on prokaryotes, mammals, and plants, while studies on relevant sequences and the functional validation of Grxs in crustaceans are rare.
The black tiger shrimp (Penaeus monodon) is an economically promising mariculture crustacean, accounting for about 8% of the crustacean farming industry [11]. However, during the culture process, black tiger shrimps are exposed to oxidative stress damage from biotic or abiotic stressors, leading to high mortality rates from time to time and subsequent significant economic losses [12]. Studies on the expression responses of relevant genes in black tiger shrimps under environmental stress and pathogen infection can enhance shrimp culture management and fill the gap in crustacean-related research.
Therefore, this paper cloned the full-length cDNA of P. monodon Grx2 (PmGrx2) and elaborated its expression during development and in various tissues. In the hope of clarifying the involvement of PmGrx2 in other physiological activities in shrimps, the authors selected the most common ammonia-N stress factor and various pathogenic bacteria in the aquatic survival environment and observed the expressions of PmGrx2 in these conditions and the physiological changes in shrimps after PmGrx2 was disrupted. Moreover, the SNPs loci of PmGrx2 related to the ammonia-N-stress-tolerance trait were screened. The study contributes to the future exploration of PmGrx2’s role in the regulation of redox homeostasis in shrimp.

2. Materials and Methods

2.1. Materials

The authors obtained the shrimps from the experimental base of South China Sea Fisheries Research Institute, Shenzhen, Guangdong, China. Shrimps that were 7.01 ± 0.8 g in weight and 5.12 ± 0.69 cm in length underwent RNA interference. Shrimps that were 1.53 ± 0.36 g and 2.11 ± 0.24 cm were used for SNPs analysis. The indicators of the remaining were 15.08 ± 1.20 g and 12.37 ± 0.57 cm. The shrimps were stored in plastic cylinders with aerated filtered seawater for a week (salinity 29‰, temperature 26 ± 2 °C, and pH 7.5–7.8) and were fed once a day with compound feed in the temporary feeding period until 24 h before use.

2.2. Materials Collection

The PmGrx2 expression test required fourteen tissues, while that of PmGrx2 during development required samples collection under fourteen phases from oosperm to post-larvae [13]. The samples were kept in RNALater solution (Ambion, Austin, TX, USA) at 4 °C for one day and later at −80 °C till being used.

2.3. Ammonia-N Stress

As for the testing of PmGrx2 expression under ammonia-N stress, an acute ammonia-N stress pre-experiment was utilized to study the 96 h median lethal concentration (96 h LC50) and safe concentration (SC) of 180 shrimps. Groups of 30 shrimps were preserved separately in 200 L of filtered seawater, which was aerated constantly through an air stone and refreshed daily. The NH4Cl was applied to seawater of per cylinder to prepare ammonia-N in six concentrations, covering 0, 20, 40, 60, 80, and 100 mg/L. The pre-experiment recorded mortality every 3 h, and the 96 h LC50 and SC computed by Linear Regression after completion stood at 29.47 and 2.95 mg/L, respectively [14,15].
The actual experiment and pre-experiment conducted under similar conditions employed shrimps of alike size, which randomly fell into 3 groups (control, 96 h LC50, and SC), each having 3 subgroups consisting of 30 shrimps per. The survival of shrimps was recorded every 3 h without feed supply, and the dead were immediately removed from the container. Three were picked for duplication at different time points, and their hepatopancreas and gills were dissected and preserved in the RNALater solution (Ambion, USA) at 4 °C for one day and then at −80 °C till being used.

2.4. In Vivo Experiment

The PmGrx2 expression test following the immune challenge randomly divided the samples into 4 groups, each having 3 subgroups consisting of 25 shrimps each. The bacteria mentioned were obtained from Key Laboratory of South China Sea Fishery Resources Extraction & Utilization. Samples of the control group were previously injected with 100 μL sterile phosphate buffer solution (PBS, pH 7.4), while those of other groups with 100 μL (1.0 × 108 CFU/mL) of corresponding bacterial solution, respectively [16]. All were intramuscularly injected at the second abdominal segment. Similarly, the survival was logged every 3 h, and the dead were immediately taken out of the container. Three were selected at different time points, and their hepatopancreas and gills were dissected and kept by RNALater solution (Ambion, USA) at 4 °C for one day and later at −80 °C till being used.

2.5. Extraction of RNA and Synthesis of cDNA

The HiPure Fibrous RNA Plus Kit (Magen, Guangzhou, China) was used to obtain the total RNA of the samples in quantification experiments, and the RNeasy Mini Kit (Qiagen, Hilden, Germany) was adopted to obtain the total RNA of the remaining samples. Moreover, a NanoDrop 2000 device (Thermo, Waltham, MA, USA) was utilized to explore the ultraviolet absorbance ratio at 260/280 nm, thus determining the purity and quantity of the total RNA, while 1 percent agarose gel electrophoresis was also taken to evaluate its integrity. The RNA was synthesized into the corresponding cDNA, which was stored under −80 °C until it was used.

2.6. Cloning the Full-Length cDNA of PmGrx2

PmGrx2 was screened for partial fragments and identified through the NCBI database BLAST in the cDNA library of P. monodon in the laboratory, upon which the primers were established through Premier 6.0. The PCR program, which facilitated the expansion of PmGrx2 open reading frame (ORF), underwent three procedures: 95 °C (3 min), 35 cycles of 95 °C (15 s), 55 °C (15 s), 72 °C (15 s), and 72 °C (5 min). In addition, the PCR amplification was completed in 25 μL of reaction mixture made up of forward primer (1 μL), reverse primer (1 μL), cDNA template (1 μL), double-distilled water (12.5 μL), and 2 × Taq Plus Master Mix Ⅱ (12.5 μL) (Vazyme, Nanjing, China). Nested PCR primers featuring 3’ and 5’ ends end were generated by Premier 6.0 based on PmGrx2 ORF. The procedures of the PCR program referred to the literature [11].
All PCR products were cloned into pEASY®-T1 Cloning Vector (TransGen, Beijing, China), and a positive monoclonal colony was sequenced. RACE technology was taken to calculate the full-length cDNA of PmGrx2, while Ruibiotech (Guangzhou, China) was used for the synthesis of primers and the sequencing of PCR products. Supplementary Tables S1 and S2 list the primers above.

2.7. mRNA Expression by Quantitative Real-Time PCR (qRT-PCR) Analysis

This study employed qRT-PCR to detect the expression of PmGrx2 and related genes of samples in the experiment, Premier 6.0. to construct the qRT-PCR primers, and Elongation factor 1α (EF-1α) to represent the reference gene. All primers were synthesized by Ruibiotech (Guangzhou, China) and are demonstrated in Supplementary Table S3. A Roche Light Cycler®480II contributed to the qRT-PCR, and the specific procedures referred to the literature [11].

2.8. Ammonia-N Stress on PmGrx2-Interfered Shrimps

The T7 RiboMAX Express RNAi kit (Promega, Madisonm, WI, USA) was taken to synthesize the double-stranded RNA (dsRNA) for PmGrx2 (dsGrx2) and green fluorescent protein (GFP, as a non-specific negative control) gene (dsGFP). Supplementary Table S4 demonstrates the primers adopted for the synthetization. The ultraviolet absorbance ratio at 260/280 nm obtained through a NanoDrop 2000 device (Thermo, USA) promoted the calculation of dsRNA’s purity and quantity, while 1 percent agarose gel electrophoresis shed a light on its integrity. The dsRNA was kept under −80 °C until used.
The PmGrx2 expression was initially explored by qRT-PCR to clarify the interference efficiency of dsGrx2. The dsRNA was diluted to 1 μg/μL through PBS buffer prior to in vivo injection. The samples were categorized into two groups of three replicates each, with five shrimps in each replicate. The second ventral segment was injected with dsGrx2 or dsGFP dilution (3 μg per gram of shrimp weight), with the former serving as the experimental group and the latter as the control group. Three of each replicate were picked 24 h after injection, and their hepatopancreas were gathered; then the same procedures as in Section 2.7 were followed.
Given dsRNA’s significant interference efficiency, the shrimps were again categorized into two groups with three replicates of 40 shrimps each, and injections were conducted as above. Twenty-four hours after injection, shrimps injected with dsGrx2 or dsGFP experienced acute ammonia-N stress that lasted for 48 h, using 96 h LC50. Three shrimps of each replicate were taken at each time, and the hepatopancreas was gathered. One half was preserved in RNALater solution (Ambion, USA) at 4 °C for one day and later at −80 °C till being used, while the remaining was kept directly in liquid nitrogen till being used.
The steps in Section 2.5 and Section 2.7 were conducted to explore the relative expression of related genes, whose primers are demonstrated in Supplementary Table S1. Given the identity of Grx2 as a glutathione-dependent oxidoreductase, shrimps directly preserved by liquid nitrogen were explored through a reduced glutathione (GSH) assay kit (Nanjing Jiancheng Bioengineering Institute, Nanjing, China), and three replicates of each shrimp were detected and statistically probed according to the instruction.

2.9. Correlation Analysis between the SNPs of PmGrx2 and Ammonia-N-Stress-Tolerance Trait

The ammonia-N-stress experiment adopted 400 healthy juvenile shrimps and followed the approach mentioned in Section 2.3. The first 40 shrimps that died belonged to the sensitive group, while the last 40 and those still alive were the resistant group. They were kept in ethanol for DNA extraction through MagPure Tissue/Blood DNA LQ Kit (Magen, Guangzhou, China).
The NCBI database was utilized to predict the exonic region of PmGrx2, upon which Premier 6.0 designed primers that spanned the exonic regions to amplify the samples’ DNA order. The PCR reaction solution included forward primer (1 µL), reverse primer (1 µL), DNA template (2 µL), and mix green (21 µL) (Tsingke, Beijing, China). The three PCR procedures included 98 °C for 2 min, 35 cycles of 98 °C (10 s), 55 °C (15 s), 72 °C (1 min), and 72 °C (10 min). Tsingke Biotechnology undertook the synthesis of primers and the sequencing of PCR products (Guangzhou, China). The details are given in Supplementary Table S5.
DNAMAN and Chromas were adopted to elucidate DNA sequences of each shrimp, thus acknowledging the SNPs of PmGrx2. WPS office was used to calculate genetic parameters. An χ2 test was conducted with SPSS 26.0 to explore how the SNPs of PmGrx2 are correlated to the ammonia-N-stress-tolerance trait, and p < 0.05 indicated a significant difference.

3. Results

3.1. Identification and Characterization of the PmGrx2 Nucleotide Sequence

The cDNA of PmGrx2 (Supplementary Figure S1A; GenBank No. ON368189) is 998 bp in full length, covering 179 bp 5’-UTR, 459 bp 3’-UTR, a poly-A tail, and 360 bp ORF, as well as encoding a 119 amino acid putative protein. The putative PmGrx2 protein, which was 12.87 kDa and covered only one Grx structural domain, had an isoelectric point of 8.51 theoretically. The active site motif of the PmGrx2 domain was as typical as other known Grx2 proteins, C-P-Y-C (39–42 aa). All of these supported the inclusion of PmGrx2 into the dithiol Grxs family. In the putative secondary structure, the α-helix, extended strand, β-turn, and random coil accounted for 42.02%, 15.97%, 8.40%, and 33.61%, respectively. Supplementary Figure S1B illustrates the tertiary structure.
The paper compared the amino acid sequences of Grx2 of seven crustacean species, most of which were conserved, and all had active site C-P-Y-C (Supplementary Figure S2). PmGrx2 had the highest identity with Grx2 from Penaeus vannamei (96.64%). The homology parameters of Grx2 and PmGrx2 for the species involved in the comparison are shown in Supplementary Table S7. The amino acid sequences of fifty-four Grxs were chosen, and the minimal evolution of MEGA-X was employed to create a phylogenetic tree. Grx3 and Grx5 were clustered together, Grx2 from plants and bacteria was clustered separately, and Grx2 from the remaining species was clustered together (Supplementary Figure S3). Grx from crustaceans clustered closely, with PmGrx2 being most closely related to Grx2 from P. vannamei and Penaeus japonicus. The scientific names and accession numbers of all the above species are shown in Supplementary Table S6.
Given the shortage of relevant sequence information and validation concerning crustaceans, the amino acid sequence of human Grx2 was selected for protein interaction analysis. The predicted results are shown in Figure 1. Among the proteins that have major interactions with Grx2, Grx3 and Grx5 belong to the same Grxs family as Grx2. Glutathione reductase (GSR) and glutathione peroxidase (GPX) are glutathione-dependent enzymes, and thioredoxin reductase 2 (TXNRD2) and thioredoxin (TXN) are key enzymes of the thioredoxin system. These proteins are important components of the eukaryotic antioxidant system, along with catalase (CAT). In addition, RNA-binding motif protein 28 (RBM28), isochorismatase 1 (ISOC1), and neural precursor-cell-expressed developmentally downregulated 8 (NEDD8) also interact closely with Grx2. The names and websites of the analysis software above are shown in Supplementary Table S8.

3.2. mRNA Expression of PmGrx2 in Different Tissues and Developmental Stage

PmGrx2 was expressed in all 14 tissues of the shrimp and was significantly more abundant in the stomach and testis than in other tissues (p < 0.05). PmGrx2 was less abundant in the ovary, brain, eyestalk nerves, and abdominal nerves (Figure 2).
The expression of PmGrx2 was constantly observed along the evolution of shrimp from zygote to post-larva, which obviously outnumbered in the zygote period compared with other periods (p < 0.05). As shrimp development progressed to the nauplius stage, the PmGrx2 expression increased as a whole. In the zoea and mysis stages, the expression of PmGrx2 decreased and fluctuated, and it only temporarily surged in zoea III (Figure 2B).

3.3. Exploration of PmGrx2 Transcription of Hepatopancreas and Gills on the Heels of Bacterial Challenge

Figure 3A validated the much higher expression of PmGrx2 in the hepatopancreas compared with the control (p < 0.05) after the injection of Staphylococcus aureus, as well as its peak at 72 h after injection. Such expression, however, failed to jump after injection of two Gram-negative bacteria separately, especially Vibrio anguillarum. After injection of Vibrio Harveyi, it only picked up a certain amount at 24 h post-injection, followed by a decline. Figure 3B denies the exact similarity of PmGrx2’s expression profiles between the gill and the hepatopancreas after bacterial injection. However, S. aureus still significantly elicited a response of PmGrx2 in the gill (p < 0.05), just not as violently as PmGrx2 in the hepatopancreas. After separate injections of the two Gram-negative bacteria, no jump of PmGrx2 expression was observed in the gill compared to the control.

3.4. Exploration of PmGrx2 Transcription of Hepatopancreas and Gill under Ammonia-N Stress

Figure 4A confirms the similarity of the PmGrx2’s expression pattern in the two experimental groups under ammonia-N stress, and both peaked at 12 h (p < 0.05). No jump in the PmGrx2’s expression was observed in both experimental groups with increasing time compared with the control (p < 0.05), but its expression profile of the gill at 96 h following ammonia-N stress differed greatly from that in the hepatopancreas (Figure 4B). PmGrx2’s expression in the gill of the 96 h SC group outnumbered the control group within 12 h following the stress (p < 0.05), peaked at 6 h, and was not on par with the control group as the duration of ammonia-N stress prolonged. In contrast, its expression of the 96 h LC50 group never jumped (p < 0.05). PmGrx2’s expression was much lower compared with the control (p < 0.05) 12 h following stress.

3.5. The Interference Efficiency of dsGrx2 in the Hepatopancreas

Figure 5A proves dsGrx2’s role in sharply decreasing PmGrx2’s expression in the hepatopancreas (p < 0.05). Figure 5B reveals the application of ammonia-N stress into both groups 24 h following dsRNA injection. As to PmGrx2’s expression within 48 h following stress (p < 0.05), the dsGFP-injected group sharply outnumbered dsGrx2-injected group, indicating the powerful inhibitory effect of dsGrx2 within 72 h following injection.

3.6. GSH Content and mRNA Expression of Related Genes in the Hepatopancreas of dsRNA-Injected Shrimps under Ammonia-N Stress

Figure 6A demonstrates the gradual climb of PmTrx’s expression in the dsGFP-injected group, its peak at 12 h following ammonia-N stress, and the following gradual decrease. Such expression of the group injected with dsGrx2 also increased gradually and then decreased after a period of fluctuation. The expression of PmTrx in the dsGrx2-injected group outnumbered the dsGFP-injected counterpart at 6 h and 24 h following stress (p < 0.05).
In regard to PmPrx1’s expression, Figure 6B reveals its increase at 3 h under stress, and the following decrease and fluctuation at a similar level in the group injected with dsGFP. The one in the dsGrx2-injected group with the same stress, however, dramatically fluctuated and peaked at 6 h. The expression of PmPrx1 of the two groups exhibited an opposite trend and differed significantly after 3 h, 6 h, and 24 h under the stress (p < 0.05).
Figure 6C validates both groups’ similar expression tendency of PmCAT within 12 h after the stress, which first increased and then decreased. However, starting from 24 h, the dsGrx2-injected group presented a much lower expression (p < 0.05).
Figure 6D shows the similar expression tendency of PmCYC in both groups within 12 h following the stress, as well as the much higher expression in the dsGrx2-injected group (p < 0.05). One day later, the expression of the dsGrx2-injected group declined, and it decreased abruptly at 48 h (p < 0.01). In contrast, the expression of the dsGFP-injected counterpart gradually increased.
Figure 6E illustrates PmIAP’s irregularly fluctuated expression of the dsGFP-injected group within 48 h following the stress. The dsGrx2-injected group showed an increase and then a decrease in the expression of PmIAP, and then it reached a maximum at 6 h (p < 0.05).
Figure 6F illustrates the groups’ similar trend of GSH content in 48 h following the stress in the hepatopancreas. The GSH content was the lowest in both groups at 48 h, while that of the dsGrx2-injected group was much lower compared to the group injected with dsGFP (p < 0.05).

3.7. Correlation Analysis between the SNPs of PmGrx2 and Ammonia-N-Stress-Tolerance Trait

This paper found two SNPs on the exons of PmGrx2, whose information and sequencing maps are demonstrated in Table 1 and Figure 7, respectively. According to Table 2, which reveals polymorphic parameters, PmGrx2-E3371 had a Ho of 0.0125, He of 0.0125, Ne of 1.0126, and MAF of 0.0063; the corresponding values for PmGrx2-E3398 were 0.0000, 0.0722, 1.0778, and 0.0375, respectively. Both PmGrx2-E3371 and PmGrx2-E3398 exhibited low polymorphism (PIC < 0.2500). The HWE results showed that PmGrx2-E3398 deviated significantly from HWE, while PmGrx2-E3371 did not. Table 3 displays the relation between the SNPs and ammonia-N-stress-tolerance trait. PmGrx2-E3398 was significantly correlated with the latter (p < 0.05), while PmGrx2-E3371 was not.

4. Discussion

For the first time, the authors succeed in cloning the full-length cDNA of a new glutaredoxin, PmGrx2, in crustaceans. The only active site motif that is present among the predicted motifs was the Grx structural domain of C-P-Y-C, a typical dithiol Grx structural domain, which supported the inclusion of PmGrx2 into the Grxs family [5]. This paper picked the amino acid sequences of Grx2 of seven crustacean species for multiple sequence alignment, and all of them had C-P-Y-C in their sequences. Phylogenetic analysis showed that the monothiol Grx3 and Grx5 clustered together, while the dithiol Grx2 clustered separately. Among them, PmGrx2 converged to the one of crustacean Grx2. The above indicates that the Grx active sites are highly conserved among different species. However, Grxs are a large family with distinct segregation characteristics, both from a species-classification point of view and from a Grxs-classification point of view. For example, plants are known to possess dozens of Grxs, far more than other eukaryotes [18]. In recent years, new types of Grxs have been found in prokaryotes [6]. The abovementioned suggests that different types of Grxs may have distinct functions, and the taxonomic diversity they exhibit guides us to investigate and add new elements in different species.
Of the proteins predicted to interact with Grx2, most are core members of the eukaryotic redox system. This suggests that the fundamental role of Grx2 is to maintain redox homeostasis in the organism. In addition, RBM28 is an intracellular host factor that can interact directly with RNA viruses [19]. ISOC1 is involved in intracellular pathogen recognition and clearance [20]. NEDD8 is vital for the organism’s defense mechanism against proteotoxicity [21]. The three proteins matter a lot in the organism’s reaction to pathogen infection and immune activation. The predicted result that Grx2 interacts with them indicates the potential involvement of PmGrx2 in the innate immune process in shrimp.
PmGrx2 was significantly more expressed in the stomach and testis than in other tissues. On the one hand, the stomach, as an important digestive organ of shrimp, undertakes functions such as grinding food, a process that consumes energy and generates a variety of oxygen metabolites [22]. On the other hand, the gastric epithelium acts as an external barrier to the digestive system, and it is crucial to maintain its redox homeostasis [23]. These may be the reasons for the elevated expression of PmGrx2 in the stomach. Previous studies have shown that Grx2 expression levels are elevated during human sperm maturation. Moreover, Grx2b and Grx2c are testis-specific protein isoforms. It is hypothesized that Grx2 may be involved in the generation of disulfide bonds during sperm maturation [24]. In addition, a redox homeostatic system exists in reproductive tissues of animals, and the antioxidant mechanism is activated when stimulated by ROS, thus reducing the extent of oxidative damage to spermatozoa [25]. Therefore, PmGrx2 may play the same role in the stomach and testis of shrimp.
PmGrx2 was expressed throughout the early growth of black tiger shrimps, which is complex and rapid, and employs mitochondria as feed [26]. In zebrafish, Grx2 was shown to participate in the coordination of intracellular iron–sulfur clusters [8]. Considering the vital role of the iron–sulfur cluster in the mitochondrial respiratory chain, ZfGrx2 matters much as to the energy supply of mitochondria and is involved in regulating vascular, heart, and brain growth in zebrafish embryos [27,28,29,30]. All of these indicate PmGrx2’s similar function in driving their early development.
PmGrx2 in both hepatopancreas and gills responded strongly to S. aureus (Gram-positive bacteria) after injection with different species of bacteria. In contrast, both Gram-negative bacteria had almost no effect on the expression of PmGrx2 compared to the control group. This indicates PmGrx2’s part in innate immune process of shrimp against pathogenic bacteria, but with different sensitivities to various species of pathogens. Since Gram-positive bacteria tend to produce exotoxins and do not have an outer membrane formed by lipopolysaccharides. Gram-negative bacteria tend to produce endotoxins and have capsules and mucus layers that cover the outer membrane, a characteristic that makes it easier for Gram-negative bacteria to invade organisms latently. In fact, it is often Gram-negative bacteria that cause mortality in aquatic animal populations during aquaculture. Gram-negative bacteria do not elicit PmGrx2’s response in the gills, and this is one of the favorable conditions for their invasion of the organism. Meanwhile, the hepatopancreas was considered to be an immune organ of the highest significance in shrimp [31]. PmGrx2’s expression in the gills of the experimental group failed to be as strong as that in the hepatopancreas in comparison with the control, despite the higher expression of PmGrx2.
Ammonia-N refers to an ordinary environmental stressor in aquaculture processes. Excess ammonia-N induced excessive production of ROS/RNS, which caused oxidative damage and inflammatory effects in aquatic organisms [32,33,34]. PmGrx2’s expression in the 96 h SC group increased to different degrees following ammonia-N stress in comparison with the control group, and this was true for both hepatopancreas and gills. However, such expression in the 96 h LC50 group was only increased in the hepatopancreas, and in the gills, it was always lower compared with the control group. It is hypothesized that, since the gills are the first line of defense in contact with the aquatic environment, high concentrations of ammonia-N potentially undermine the gills in shrimp [15,35]. In P. vannamei, Grx2’s expression of hepatopancreas and gills increased similarly following ammonia-N stress [36]. All of these suggest that PmGrx2 participates in the resistance of shrimp to stress.
In regard to the part of PmGrx2 in the resistance of shrimp to ammonia-N stress, dsRNA was employed to interfere PmGrx2’s expression, which supports its powerful interference role at least 72 h following injection. PmTrx and PmPrx1, also included in the Trx superfamily as PmGrx2, were picked for expression elaboration following the suppression of PmGrx2’s expression. In the hepatopancreas, PmTrx’s expression of the dsGrx2-injected group started to outnumber the dsGFP-injected group at 6 h following stress and was significant at 6 h and 24 h. PmPrx1’s expression in the dsGrx2-injected group, however, performed the opposite trend compared to the dsGFP-injected group under ammonia-N stress. Previously, it was shown that Grx could functionally supplement E. coli Trx mutant strains [4]. It is hypothesized that functionally similar enzymes in the same family complement each other, and the functional decline of one side surely causes the expression upregulation of the other side to compensate for the functional deficiency of the organism. This is the reason why Grx was originally called the Trx backup system [9]. With longer stress time, the dsGrx2-injected group presented much lower PmCAT’s expression compared with the dsGFP-injected group. PmCAT is a peroxidase, and the hike of its expression always oxidatively damages the organism [37]. As for PmCYC, an enzyme that was vital in apoptosis, its expression remained high in the dsGrx2-injected group compared to the dsGFP-injected group from 6 h to 24 h after stress [38]. IAP is an anti-apoptotic enzyme [39]. At the beginning of ammonia-N stress, PmIAP’s expression in the group with dsGrx2 gradually increased; however, from 12 h after stress, the expression was lower compared with the dsGFP-injected group. Meanwhile, the GSH content in hepatopancreas dropped. The abovementioned indicated the organism’s upregulation of genes with alike functions to fight against ammonia-N stress in the presence of inhibited PmGrx2, some antioxidant enzymes’ lower expression, and a higher degree of apoptosis. When PmGrx2 was inhibited, the resistance of shrimp was weakened in the face of oxidative damage.
This study firstly adopted direct sequencing in PmGrx2 for locus typing and obtained two SNPs loci, among which PmGrx2-E3398 significantly deviated from the Hardy–Weinberg equilibrium (p < 0.05). Allele frequency is swayed by manual selection, as well as extreme samples [11]. Both PmGrx2-E3371 and PmGrx2-E3398 are located on the ORF. Among them, PmGrx2-E3398 is a synonymous mutation, while PmGrx2-E3371 is a missense mutation, which would result in the mutation of glutamine (Gln) to histidine (His). Both Gln and His are polar amino acids. In the present study, PmGrx2-E3398 was highly related to the ammonia-N-stress-tolerance trait (p < 0.05). Since this mutation did not involve alteration of the encoded protein, the specific mode of its effect requires further investigation. Despite the long-standing neutral function of synonymous mutations, studies in recent years have demonstrated that synonymous mutations affect the efficiency and stability of transcription and translation of genes [40,41,42]. PmGrx2-E3398 could be developed as a molecular marker for breeding shrimp tolerant to stress.

5. Conclusions

The cDNA of PmGrx2 was cloned and included into Grxs family. PmGrx2 was proved to express most in the stomach and testis of shrimp, and such an expression can be found in the early developmental stages. The expression of PmGrx2 in the hepatopancreas and gills was induced owing to ammonia-N stress and bacterial infection, indicating the essential part of PmGrx2 in the defense mechanism against environmental stress and pathogen infection. The inhibition of PmGrx2 expression under the ammonia-N stress resulted in a greater risk of oxidative damage to shrimp. Moreover, this paper acknowledged SNPs in the exon region of PmGrx2, explored their relation to the ammonia-N-stress-tolerance trait, and successfully screened an SNP locus whose relationship with the ammonia-N-stress-tolerance trait was determined to be significant. This paper lays the foundation for studies on the involvement of Grx2 in crustacean resistance to oxidative stress.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/antiox11101857/s1. Figure S1: The sequence of nucleotides, the deduced sequence of amino acids, and the putative secondary structure of PmGrx2 (A). The putative tertiary structure of PmGrx2 (B). Figure S2: Multiple sequence alignment of Grx2 from seven crustacean species. Figure S3: Phylogenetic tree of Grxs based on amino acid sequences. Tables S1–S5: Primers used in the study. Table S6: Accession numbers were used the alignment and phylogenic tree in this study. Table S7: Homology of PmGrx2 with Grx2 of other species. Table S8: Names and Websites of the analysis software.

Author Contributions

Conceptualization, R.F., Y.L., F.Z. and S.J. (Shigui Jiang); methodology, R.F., Q.Y., S.J. (Song Jiang), J.H., L.Y. and X.C.; software, R.F.; validation, F.Z. and S.J. (Shigui Jiang); data curation, R.F. and F.Z.; writing—original draft preparation, R.F.; writing—review and editing, F.Z.; visualization, R.F.; supervision, S.J. (Shigui Jiang); project administration, S.J. (Shigui Jiang); funding acquisition, F.Z. and S.J. (Shigui Jiang). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Research and Development Projects in Key Areas of Guangdong Province, grant number 2021B0202003; China Agriculture Research System of MOF and MARA, grant number CARS-48; Central Public-interest Scientific Institution Basal Research Fund, CAFS, grant number No. 2020TD30; Financial Fund of Ministry of Agriculture and Rural affairs of Chin, grant number NHYYSWZZZYKZX2020; Central Public Interest Scientific Institution Basal Research Fund, South China Sea Fisheries Research Institute, CAFS, grant number NO.2021SD13; and Guangdong Basic and Applied Basic Research Foundation, grant number 2020A1515110200.

Institutional Review Board Statement

All experimental protocols and methods in this study were approved by the Animal Care and Use Ethics Committee in the South China Sea Fisheries Research Institute (20200826m).

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Holmgren, A.; Johansson, C.; Berndt, C.; Lönn, M.E.; Hudemann, C.; Lillig, C.H. Thiol redox control via thioredoxin and glutaredoxin systems. Biochem. Soc. Trans. 2005, 33, 1375–1377. [Google Scholar] [CrossRef] [PubMed]
  2. Carvalho, A.P.; Fernandes, P.A.; Ramos, M.J. Similarities and differences in the thioredoxin superfamily. Prog. Biophys. Mol. Biol. 2006, 91, 229–248. [Google Scholar] [CrossRef]
  3. Kapoor, D.; Sharma, R.; Handa, N.; Kaur, H.; Rattan, A.; Yadav, P.; Gautam, V.; Kaur, R.; Bhardwaj, R. Redox homeostasis in plants under abiotic stress: Role of electron carriers, energy metabolism mediators and proteinaceous thiols. Front. Environ. Sci. 2015, 3, 13. [Google Scholar] [CrossRef]
  4. Holmgreen, A. Glutathione dependent synthesis of deoxyribonucleotides. J. Biol. Chem. 1979, 254, 3622–3638. [Google Scholar] [CrossRef]
  5. Lillig, C.H.; Berndt, C.; Holmgren, A. Glutaredoxin systems. Biochim. Biophys. Acta 2008, 1780, 1304–1317. [Google Scholar] [CrossRef]
  6. Mondal, S.; Kumar, V.; Singh, S.P. Phylogenetic distribution and structural analyses of cyanobacterial glutaredoxins (Grxs). Comput. Biol. Chem. 2020, 84, 107141. [Google Scholar] [CrossRef]
  7. Yang, Y.; Xue, W.; Chen, P.; Yuan, X.; Li, X.; Zhang, T.; Chen, S. Identification and expression analyzes of CC-type glutaredoxin in cucumber (Cucumis sativus L.) under abiotic stress. Sci. Hortic. 2021, 289, 110417. [Google Scholar] [CrossRef]
  8. Bräutigam, L.; Johansson, C.; Kubsch, B.; McDonough, M.A.; Bill, E.; Holmgren, A.; Berndt, C. An unusual mode of iron-sulfur-cluster coordination in a teleost glutaredoxin. Biochem. Biophys. Res. Commun. 2013, 436, 491–496. [Google Scholar] [CrossRef]
  9. Fernandes, A.P.; Holmgren, A. Glutaredoxins: Glutathione-dependent redox enzymes with functions far beyond a simple thioredoxin backup system. Antioxid. Redox Signal. 2004, 6, 63–74. [Google Scholar] [CrossRef]
  10. Murata, H.; Ihara, Y.; Nakamura, H.; Yodoi, J.; Sumikawa, K.; Kondo, T. Glutaredoxin Exerts an Antiapoptotic Effect by Regulating the Redox State of Akt. J. Biol. Chem. 2003, 278, 50226–50233. [Google Scholar] [CrossRef] [Green Version]
  11. Fan, R.; Jiang, S.; Li, Y.; Yang, Q.; Jiang, S.; Huang, J.; Yang, L.; Chen, X.; Zhou, F. Molecular Characterization and Expression Analysis of Glutaredoxin 5 in Black Tiger Shrimp (Penaeus monodon) and Correlation Analysis Between the SNPs of PmGrx5 and Ammonia-N Stress Tolerance Trait. Front. Mar. Sci. 2022, 9, 909827. [Google Scholar] [CrossRef]
  12. Li, Y.; Zhou, F.; Huang, J.; Yang, L.; Jiang, S.; Yang, Q.; He, J.; Jiang, S. Transcriptome reveals involvement of immune defense, oxidative imbalance, and apoptosis in ammonia-stress response of the black tiger shrimp (Penaeus monodon). Fish Shellfish. Immunol. 2018, 83, 162–170. [Google Scholar] [CrossRef] [PubMed]
  13. Gürel, T. The Larval Development of Penaeus semisulcatus (de Hann, 1850) (Decapoda: Penaeidae). J. Fish. Aquat. Sci. 2005, 22, 195–199. [Google Scholar] [CrossRef]
  14. Li, Y.; Yang, Q.; Su, T.; Zhou, F.; Yang, L.; Huang, J. The toxicity of ammonia-N on Penaeus monodon and immune parameters. J. Shanghai Ocean. Univ. 2012, 21, 358–362. [Google Scholar]
  15. Zhou, K.; Zhou, F.; Huang, J.; Yang, Q.; Jiang, S.; Qiu, L.; Yang, L.; Zhu, C.; Jiang, S. Characterization and Expression Analysis of a Chitinase Gene (PmChi-4) From Black Tiger Shrimp (Penaeus monodon) Under Pathogen Infection and Ambient Ammonia Nitrogen Stress. Fish Shellfish. Immunol. 2017, 62, 31–40. [Google Scholar] [CrossRef]
  16. Qin, Y.; Jiang, S.; Huang, J.; Zhou, F.; Yang, Q.; Jiang, S.; Yang, L. C-type lectin response to bacterial infection and ammonia nitrogen stress in tiger shrimp (Penaeus monodon). Fish Shellfish. Immunol. 2019, 90, 188–198. [Google Scholar] [CrossRef]
  17. Dunnen, J.; Dalgleish, R.; Maglott, D.; Hart, R.; Greenblatt, M.; Jordan, J.; Roux, A.; Smith, T.; Antonarakis, S.; Taschner, P.E.M. HGVS Recommendations for the Description of Sequence Variants: 2016 Update. Hum. Mutat. 2016, 37, 564–569. [Google Scholar] [CrossRef]
  18. Malik, W.A.; Wang, X.; Wang, X.; Shu, N.; Cui, R.; Chen, X.; Wang, D.; Lu, X.; Yin, Z.; Wang, J.; et al. Genome-wide expression analysis suggests glutaredoxin genes response to various stresses in cotton. Int. J. Biol. Macromol. 2020, 153, 470–491. [Google Scholar] [CrossRef]
  19. Lisy, S.; Rothamel, K.; Ascano, M. RNA Binding Proteins as Pioneer Determinants of Infection: Protective, Proviral, or Both? Viruses 2021, 13, 2172. [Google Scholar] [CrossRef]
  20. Wang, Y.; Zhang, K.; Shi, X.; Wang, C.; Wang, F.; Fan, J.; Shen, F.; Xu, J.; Bao, W.; Liu, M.; et al. Critical role of bacterial isochorismatase in the autophagic process induced by Acinetobacter baumannii in mammalian cells. FASEB J. 2016, 30, 3563–3577. [Google Scholar] [CrossRef]
  21. Maghames, C.M.; Lobato-Gil, S.; Perrin, A.; Trauchessec, H.; Rodriguez, M.S.; Urbach, S.; Marin, P.; Xirodimas, D.P. NEDDylation promotes nuclear protein aggregation and protects the Ubiquitin Proteasome System upon proteotoxic stress. Nat. Commun. 2018, 9, 4376. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Aviello, G.; Knaus, U.G. NADPH oxidases and ROS signaling in the gastrointestinal tract. Mucosal Immunol. 2018, 11, 1011–1023. [Google Scholar] [CrossRef] [PubMed]
  23. Goroshinskaya, I.; Surikova, E.; Frantsiyants, E.; Neskubina, I.; Pogorelova, Y.; Medvedeva, D.; Maslov, A.; Kit, O. Redox forms of glutathione mark the aggressiveness of stomach cancer. Ann. Oncol. 2018, 29, v4. [Google Scholar] [CrossRef]
  24. Lönn, M.E.; Hudemann, C.; Berndt, C.; Cherkasov, V.; Capani, F.; Holmgren, A.; Lillig, C.H. Expression pattern of human glutaredoxin 2 isoforms: Identification and characterization of two testis/cancer cell-specific isoforms. Antioxid. Redox Signal. 2008, 10, 547–557. [Google Scholar] [CrossRef]
  25. Fujii, J.; Iuchi, Y.; Matsuki, S.; Ishii, T. Cooperative function of antioxidant and redox systems against oxidative stress in male reproductive tissues. Asian J. Androl. 2003, 3, 231–242. [Google Scholar]
  26. Beinert, H. Iron-sulfur proteins: Ancient structures, still full of surprises. J. Biol. Inorg. Chem. 2000, 5, 2–15. [Google Scholar] [CrossRef]
  27. Bräutigam, L.; Jensen, L.D.E.; Poschmann, G.; Nyström, S.; Bannenberg, S.; Dreij, K.; Lepka, K.; Prozorovski, T.; Montano, S.J.; Aktas, O.; et al. Glutaredoxin regulates vascular development by reversible glutathionylation of sirtuin 1. Proc. Natl. Acad. Sci. USA 2013, 110, 20057–20062. [Google Scholar] [CrossRef]
  28. Berndt, C.; Poschmann, G.; Stühler, K.; Holmgren, A.; Bräutigam, L. Zebrafish heart development is regulated via glutaredoxin 2 dependent migration and survival of neural crest cells. Redox Biol. 2014, 2, 673–678. [Google Scholar] [CrossRef]
  29. Mailloux, R.J.; Xuan, J.Y.; McBride, S.; Maharsy, W.; Thorn, S.; Holterman, C.E.; Kennedy, C.R.J.; Rippstein, P.; deKemp, R.; da Silva, J.; et al. Glutaredoxin-2 is required to control oxidative phosphorylation in cardiac muscle by mediating deglutathionylation reactions. J. Biol. Chem. 2014, 289, 14812–14828. [Google Scholar] [CrossRef]
  30. Bräutigam, L.; Schütte, L.D.; Godoy, J.R.; Prozorovski, T.; Gellert, M.; Hauptmann, G.; Holmgren, A.; Lillig, C.H.; Berndt, C. Vertebrate-specific glutaredoxin is essential for brain development. Proc. Natl. Acad. Sci. USA 2011, 108, 20532–20537. [Google Scholar] [CrossRef]
  31. Rőszer, T. The invertebrate midintestinal gland (“hepatopancreas”) is an evolutionary forerunner in the integration of immunity and metabolism. Cell Tissue Res. 2014, 358, 685–695. [Google Scholar] [CrossRef] [PubMed]
  32. Randall, D.J.; Tsui, T.K.N. Ammonia toxicity in fish. Mar. Pollut. Bull. 2002, 45, 17–23. [Google Scholar] [CrossRef]
  33. Cheng, C.; Yang, F.; Ling, R.; Liao, S.; Miao, Y.; Ye, C.; Wang, A. Effects of ammonia exposure on apoptosis, oxidative stress and immune response in pufferfish (Takifugu obscurus). Aquat. Toxicol. 2015, 164, 61–71. [Google Scholar] [CrossRef] [PubMed]
  34. Liu, M.; Guo, H.; Liu, B.; Zhu, K.; Guo, L.; Liu, B.; Zhang, N.; Yang, J.; Jiang, S.; Zhang, D. Gill oxidative damage caused by acute ammonia stress was reduced through the HIF-1α/NF-κb signaling pathway in golden pompano (Trachinotus ovatus). Ecotoxicol. Environ. Saf. 2021, 222, 112504. [Google Scholar] [CrossRef] [PubMed]
  35. Shi, M.; Jiang, S.; Li, Y.; Yang, Q.; Jiang, S.; Yang, L.; Huang, J.; Zhou, F. Comprehensive expression analysis of the beta integrin from Penaeus monodon indicating its participation in innate immunity and ammonia nitrogen stress response. Fish Shellfish. Immunol. 2019, 98, 887–898. [Google Scholar] [CrossRef]
  36. Zheng, P.; Wang, L.; Wang, A.; Zhang, X.; Ye, J.; Wang, D.; Sun, J.; Li, J.; Lu, Y.; Xian, J. cDNA cloning and expression analysis of glutaredoxin (Grx) 2 in the Pacific white shrimp Litopenaeus vannamei. Fish Shellfish. Immunol. 2018, 86, 662–671. [Google Scholar] [CrossRef]
  37. Trenzado, C.; Hidalgo, M.C.; García-Gallego, M.; Morales, A.E.; Furné, M.; Domezain, A.; Domezain, J.; Sanz, A. Antioxidant enzymes and lipid peroxidation in sturgeon Acipenser naccarii and trout Oncorhynchus mykiss. A comparative study. Aquaculture 2005, 254, 758–767. [Google Scholar] [CrossRef]
  38. Hu, W.; Yao, C. Molecular and immune response characterizations of a novel AIF and cytochrome c in Litopenaeus vannamei defending against WSSV infection. Fish Shellfish. Immunol. 2016, 56, 84–95. [Google Scholar] [CrossRef]
  39. Zhu, J.; Du, R.; Liu, Q.; Luo, L.; Lin, S.; Zhang, H.; Chen, Y. Transcriptome analysis provides insights into the molecular mechanism of hepatocyte apoptosis in response to feeding restriction in juvenile largemouth bass Micropterus salmoides. Aquaculture 2022, 548, 737500. [Google Scholar] [CrossRef]
  40. Chaney, J.L.; Clark, P.L. Roles for Synonymous Codon Usage in Protein Biogenesis. Annu. Rev. Biophys. 2015, 44, 143–166. [Google Scholar] [CrossRef]
  41. Chen, K.; Guo, R.; Wei, C.C. Synonymous mutation rs2515641 affects CYP2E1 mRNA and protein expression and susceptibility to drug-induced liver injury. Pharmacogenomics 2020, 21, 459–470. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, S.Y.; Cheng, Y.Y.; Liu, S.C.; Xu, Y.X.; Gao, Y.; Wang, C.L.; Wang, Z.G.; Feng, T.Q.; Lu, G.H.; Song, J.; et al. A synonymous mutation in IGF-1 impacts the transcription and translation process of gene expression. Mol. Ther.-Nucleic Acids 2021, 26, 1446–1465. [Google Scholar] [CrossRef] [PubMed]
Antioxidants 11 01857 g001 550

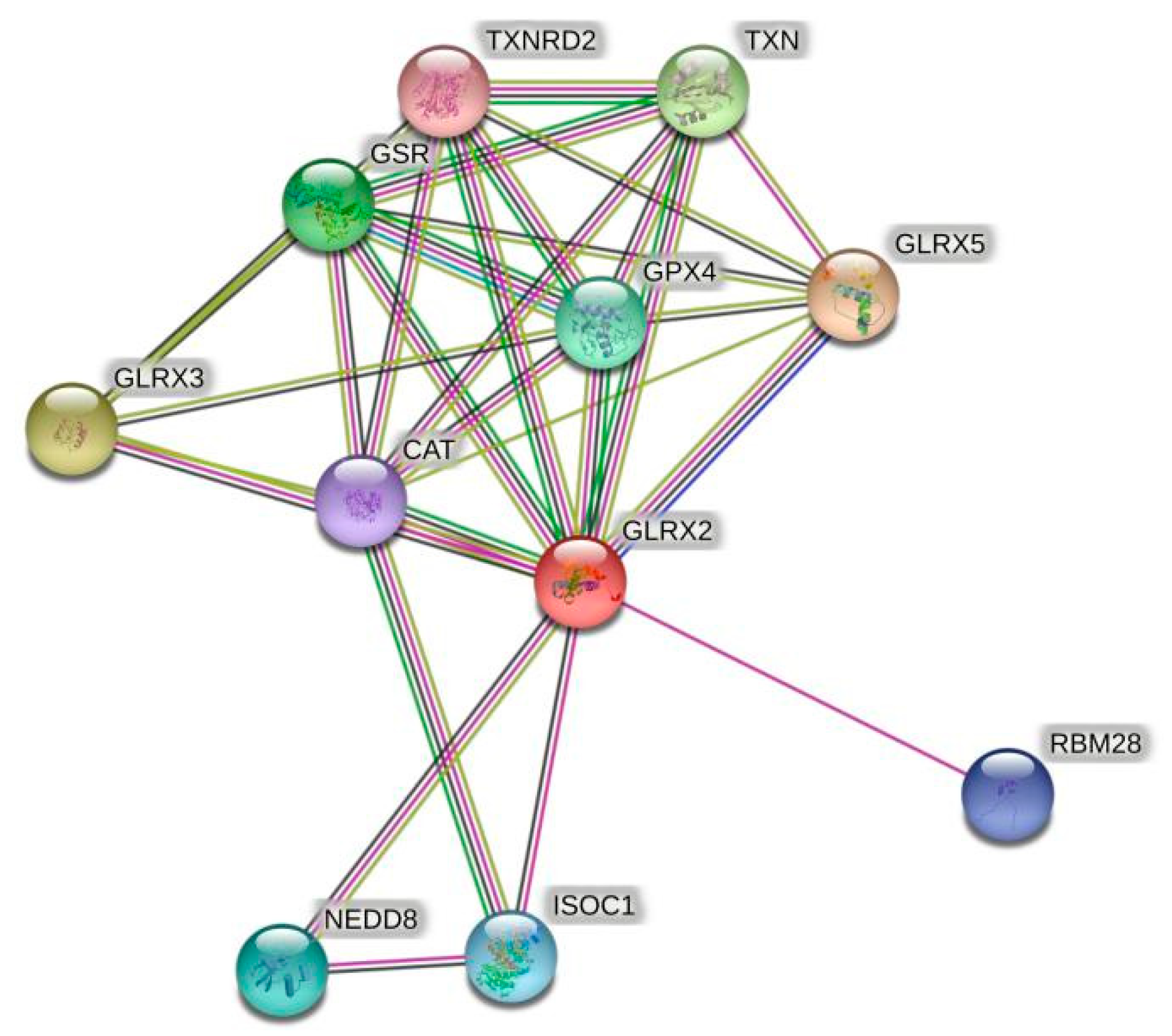

Figure 1. Grx2 protein interactions networks. The red dots represent the target protein Grx2. Other colored dots represent proteins that interact with Grx2. The names of all proteins are abbreviated to the top right of the dots.
Figure 1. Grx2 protein interactions networks. The red dots represent the target protein Grx2. Other colored dots represent proteins that interact with Grx2. The names of all proteins are abbreviated to the top right of the dots.
Antioxidants 11 01857 g001
Antioxidants 11 01857 g002 550

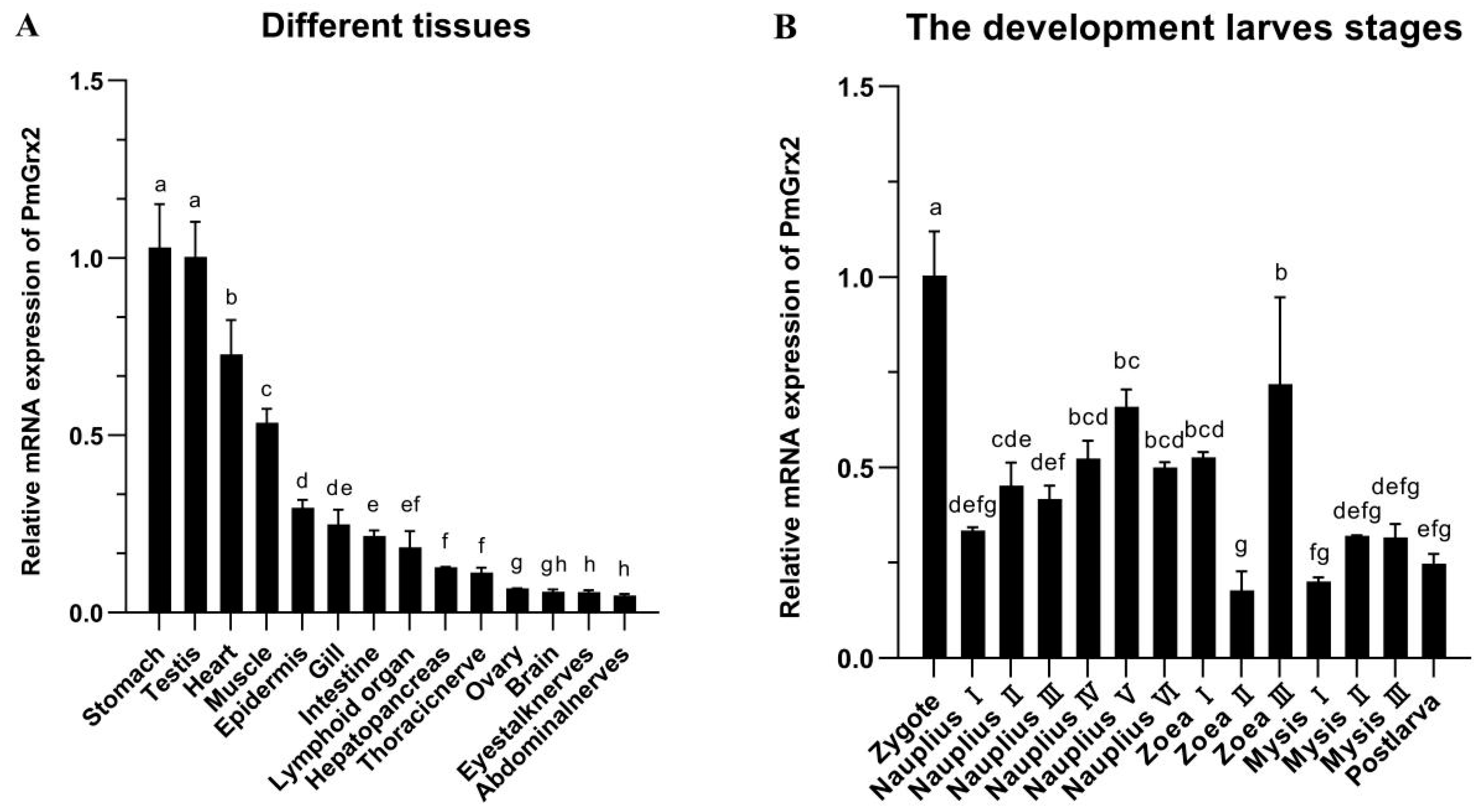

Figure 2. (A) mRNA expression levels of PmGrx2 in different tissues. The data are presented as mean ± SD (n = 3). Different letters show significant differences (p < 0.05). (B) mRNA expression levels of PmGrx2 during the developmental period. The data are presented as mean ± SD (n = 3). Different letters are used to show significant differences (p < 0.05).
Figure 2. (A) mRNA expression levels of PmGrx2 in different tissues. The data are presented as mean ± SD (n = 3). Different letters show significant differences (p < 0.05). (B) mRNA expression levels of PmGrx2 during the developmental period. The data are presented as mean ± SD (n = 3). Different letters are used to show significant differences (p < 0.05).
Antioxidants 11 01857 g002
Antioxidants 11 01857 g003 550

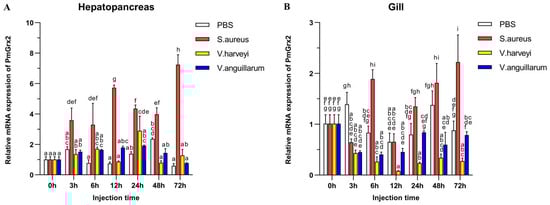

Figure 3. mRNA expression levels of PmGrx2 in the hepatopancreas (A) and gill (B) at different time intervals after multiple pathogenic bacteria injections. The data are presented as mean ± SD (n = 3). Different letters are used to show significant differences (p < 0.05).
Figure 3. mRNA expression levels of PmGrx2 in the hepatopancreas (A) and gill (B) at different time intervals after multiple pathogenic bacteria injections. The data are presented as mean ± SD (n = 3). Different letters are used to show significant differences (p < 0.05).
Antioxidants 11 01857 g003
Antioxidants 11 01857 g004 550

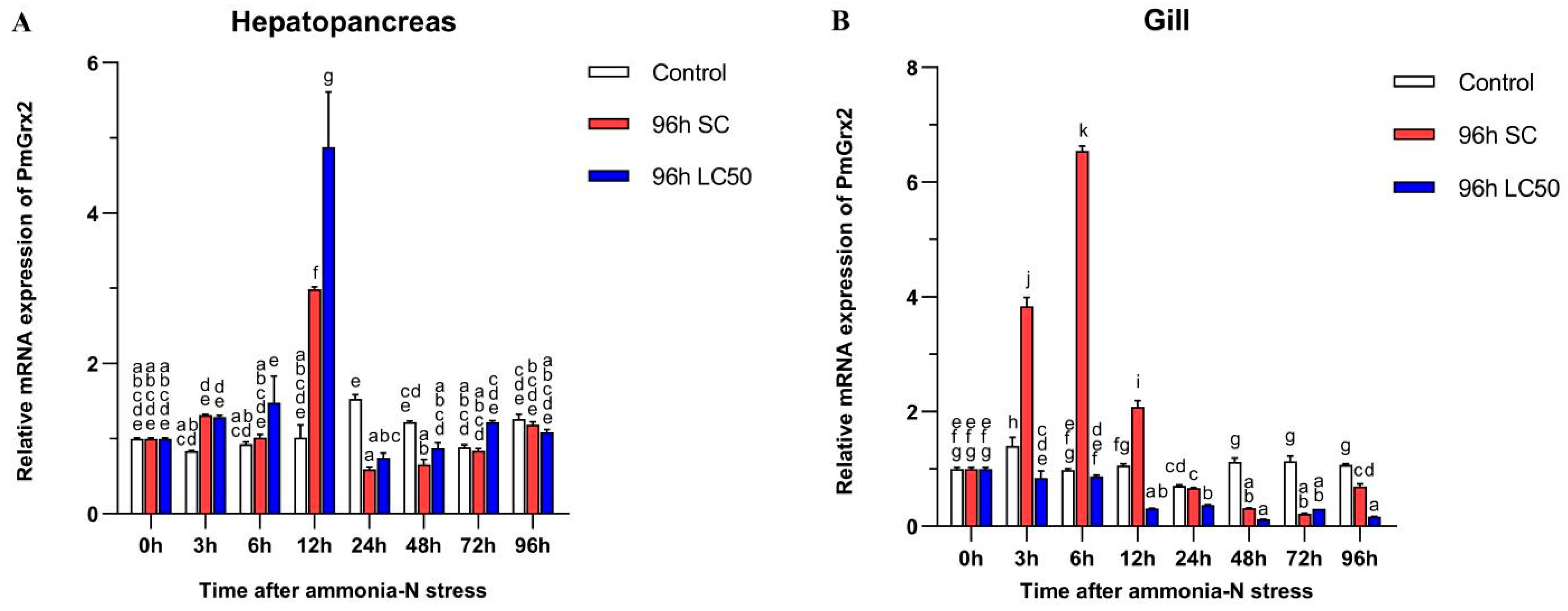

Figure 4. mRNA expression levels of PmGrx2 in the hepatopancreas (A) and gill (B) at different time intervals, under different concentrations of ammonia-N stress. The data are presented as mean ± SD (n = 3). Different letters are used to show significant differences (p < 0.05).
Figure 4. mRNA expression levels of PmGrx2 in the hepatopancreas (A) and gill (B) at different time intervals, under different concentrations of ammonia-N stress. The data are presented as mean ± SD (n = 3). Different letters are used to show significant differences (p < 0.05).
Antioxidants 11 01857 g004
Antioxidants 11 01857 g005 550

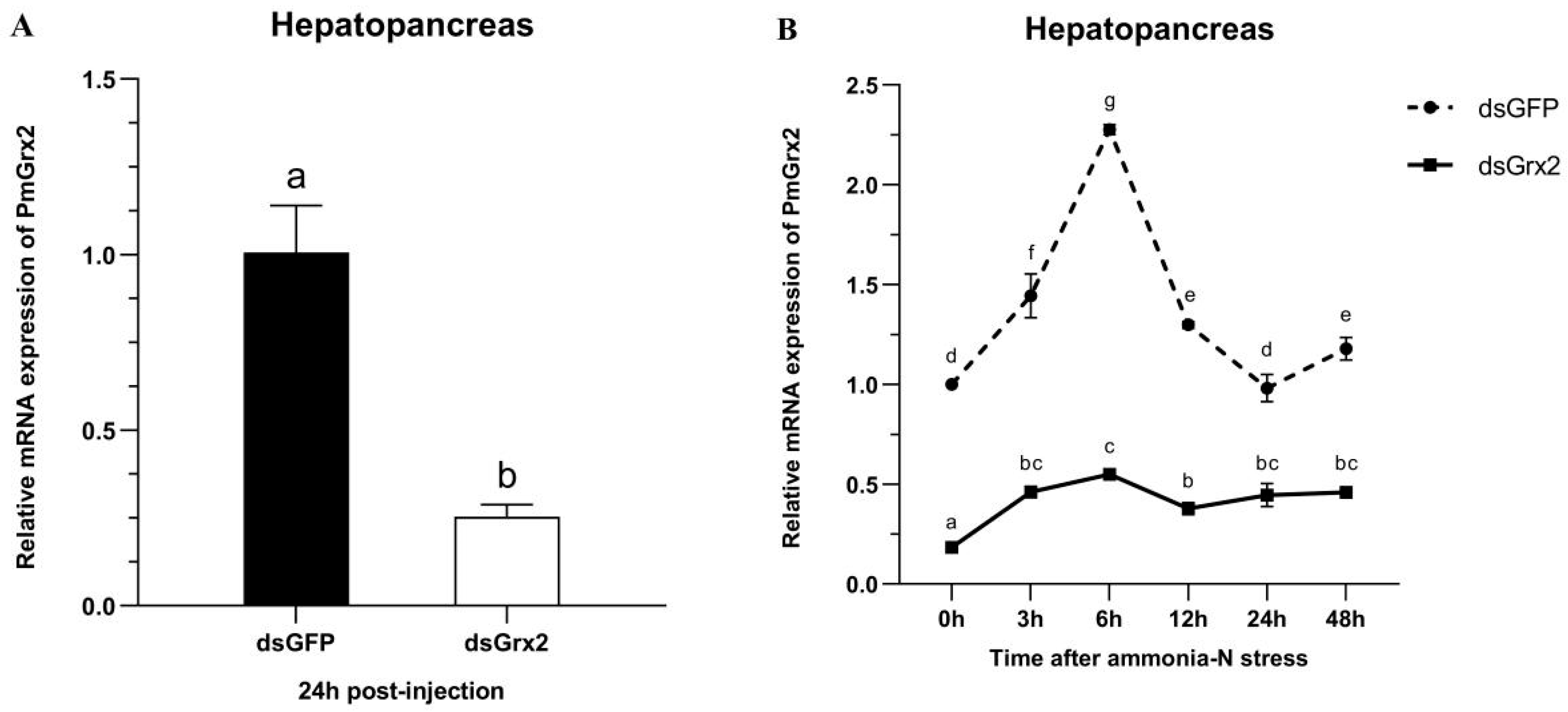

Figure 5. (A) mRNA expression levels of PmGrx2 in the hepatopancreas at 24 h after dsRNA injection. (B) Expression profile of PmGrx2 in the hepatopancreas of dsRNA-injected shrimps within 48 h under ammonia-N stress. The data are presented as mean ± SD (n = 3). Different letters show significant differences (p < 0.05).
Figure 5. (A) mRNA expression levels of PmGrx2 in the hepatopancreas at 24 h after dsRNA injection. (B) Expression profile of PmGrx2 in the hepatopancreas of dsRNA-injected shrimps within 48 h under ammonia-N stress. The data are presented as mean ± SD (n = 3). Different letters show significant differences (p < 0.05).
Antioxidants 11 01857 g005
Antioxidants 11 01857 g006a 550Antioxidants 11 01857 g006b 550

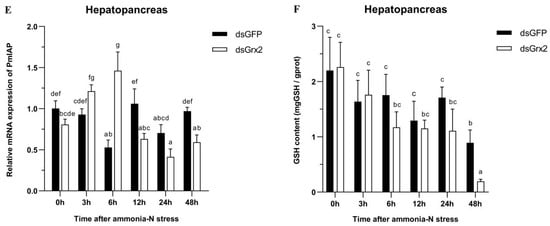

Figure 6. Expression profiles of five genes (PmTrx (A), PmPrx1 (B), PmCAT (C), PmCYC (D), and PmIAP (E)) and changes in GSH content (F) in the hepatopancreas of dsRNA-injected shrimps under ammonia-N stress. The data are presented as mean ± SD (n = 3). Different letters show significant differences (p < 0.05).
Figure 6. Expression profiles of five genes (PmTrx (A), PmPrx1 (B), PmCAT (C), PmCYC (D), and PmIAP (E)) and changes in GSH content (F) in the hepatopancreas of dsRNA-injected shrimps under ammonia-N stress. The data are presented as mean ± SD (n = 3). Different letters show significant differences (p < 0.05).
Antioxidants 11 01857 g006aAntioxidants 11 01857 g006b
Antioxidants 11 01857 g007 550

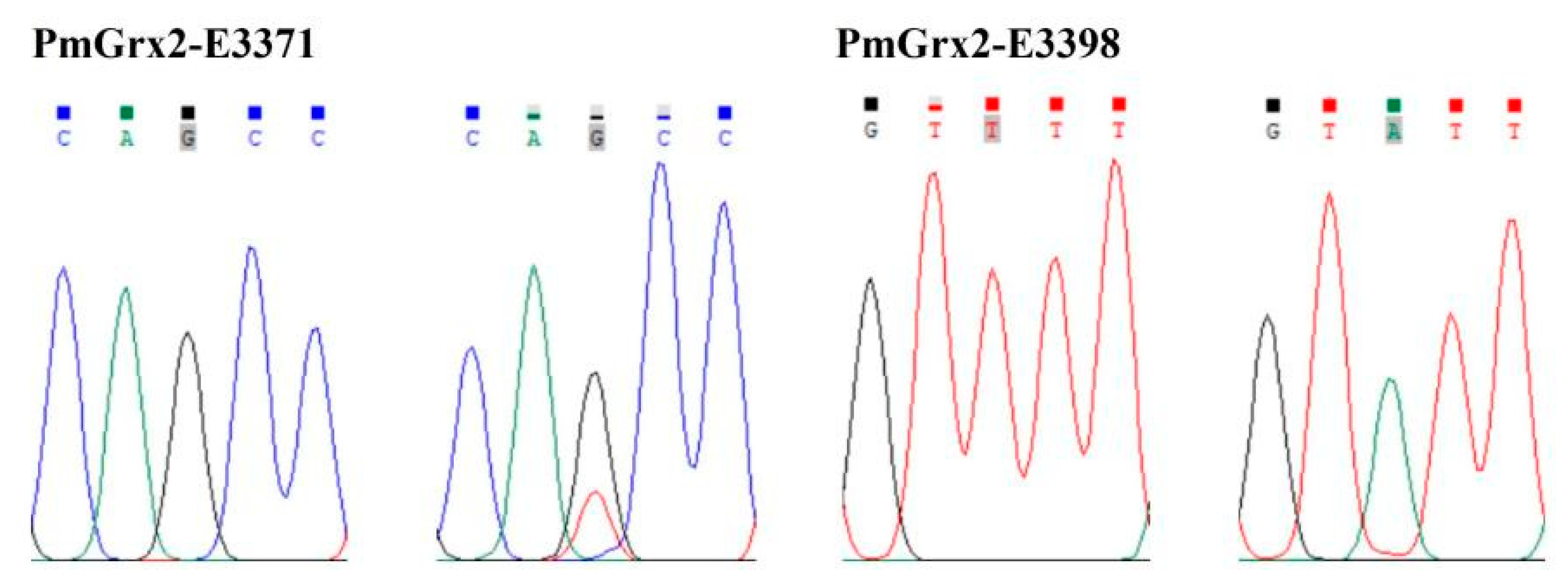

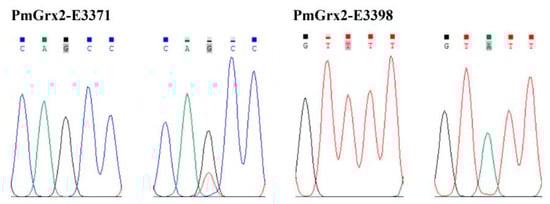

Figure 7. Sequencing maps of the SNPs of PmGrx2.
Figure 7. Sequencing maps of the SNPs of PmGrx2.
Antioxidants 11 01857 g007
Table
Table 1. Specific information of the SNPs of PmGrx2.
Table 1. Specific information of the SNPs of PmGrx2.
SNPsPositionType of Base MutationType of Protein Mutation
PmGrx2-E3371Exon 3 (371 bp)c.192G > TMm p.Gln64His
PmGrx2-E3398Exon 3 (398 bp)c.219T > ASm p.Val73=
Mm, missense mutation; Sm, synonymous mutation; Meaning of the symbols in Table 2 [17].
Table
Table 2. Polymorphic parameters of the SNPs of PmGrx2.
Table 2. Polymorphic parameters of the SNPs of PmGrx2.
SNPsHoHeNeMAFPICHWE
PmGrx2-E33710.01250.01241.01260.00630.01230.9984
PmGrx2-E33980.00000.07221.07780.03750.06960.0000
SNPs, single nucleotide polymorphisms; Ho, observed heterozygosity; He, expected heterozygosity; Ne, effective number; MAF, minimum allele frequency; PIC, polymorphism information content; HWE, Hardy–Weinberg equilibrium.
Table
Table 3. Correlation analysis between the SNPs of PmGrx2 and ammonia-N-stress-tolerance trait.
Table 3. Correlation analysis between the SNPs of PmGrx2 and ammonia-N-stress-tolerance trait.
SNPsGenotypeGenotype Frequenciesχ2 Valuep-Value
SensitivityResistance
PmGrx2-E3371GG1.00000.97502.00060.1572
TG0.00000.0250
PmGrx2-E3398AA0.07500.00006.01630.0142 *
TT0.92501.0000
* Denotes significant correlation (p < 0.05).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Fan, R.; Li, Y.; Yang, Q.; Jiang, S.; Huang, J.; Yang, L.; Chen, X.; Zhou, F.; Jiang, S. Expression Analysis of a Novel Oxidoreductase Glutaredoxin 2 in Black Tiger Shrimp, Penaeus monodon. Antioxidants 2022, 11, 1857. https://doi.org/10.3390/antiox11101857

AMA Style

Fan R, Li Y, Yang Q, Jiang S, Huang J, Yang L, Chen X, Zhou F, Jiang S. Expression Analysis of a Novel Oxidoreductase Glutaredoxin 2 in Black Tiger Shrimp, Penaeus monodon. Antioxidants. 2022; 11(10):1857. https://doi.org/10.3390/antiox11101857

Chicago/Turabian Style

Fan, Rui, Yundong Li, Qibin Yang, Song Jiang, Jianhua Huang, Lishi Yang, Xu Chen, Falin Zhou, and Shigui Jiang. 2022. "Expression Analysis of a Novel Oxidoreductase Glutaredoxin 2 in Black Tiger Shrimp, Penaeus monodon" Antioxidants 11, no. 10: 1857. https://doi.org/10.3390/antiox11101857

APA Style

Fan, R., Li, Y., Yang, Q., Jiang, S., Huang, J., Yang, L., Chen, X., Zhou, F., & Jiang, S. (2022). Expression Analysis of a Novel Oxidoreductase Glutaredoxin 2 in Black Tiger Shrimp, Penaeus monodon. Antioxidants, 11(10), 1857. https://doi.org/10.3390/antiox11101857

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
