Oxidised Albumin Levels in Plasma and Skeletal Muscle as Biomarkers of Disease Progression and Treatment Efficacy in Dystrophic mdx Mice

by
Jessica R. Terrill
1,
Angelo Patrick R. Bautista
1,
Irene Tsioutsias
1,2,
Miranda D. Grounds
2 and
Peter G. Arthur
1,*
1
School of Molecular Sciences, The University of Western Australia, Perth, WA 6009, Australia
2
School of Human Sciences, The University of Western Australia, Perth, WA 6009, Australia
*
Author to whom correspondence should be addressed.
Antioxidants 2024, 13(6), 720; https://doi.org/10.3390/antiox13060720
Submission received: 21 April 2024 / Revised: 5 June 2024 / Accepted: 6 June 2024 / Published: 13 June 2024
(This article belongs to the Special Issue Exploring the Role of Redox Biology in Skeletal Muscle-Related Diseases)
Browse Figures
Versions Notes

Abstract

:
Redox modifications to the plasma protein albumin have the potential to be used as biomarkers of disease progression and treatment efficacy in pathologies associated with inflammation and oxidative stress. One such pathology is Duchenne muscular dystrophy (DMD), a fatal childhood disease characterised by severe muscle wasting. We have previously shown in the mdx mouse model of DMD that plasma albumin thiol oxidation is increased; therefore, the first aim of this paper was to establish that albumin thiol oxidation in plasma reflects levels within mdx muscle tissue. We therefore developed a method to measure tissue albumin thiol oxidation. We show that albumin thiol oxidation was increased in both mdx muscle and plasma, with levels correlated with measures of dystropathology. In dystrophic muscle, albumin content was associated with areas of myonecrosis. The second aim was to test the ability of plasma thiol oxidation to track acute changes in dystropathology: we therefore subjected mdx mice to a single treadmill exercise session (known to increase myonecrosis) and took serial blood samples. This acute exercise caused a transient increase in total plasma albumin oxidation and measures of dystropathology. Together, these data support the use of plasma albumin thiol oxidation as a biomarker to track active myonecrosis in DMD.

1. Introduction

Albumin is the most abundant plasma protein and is present in almost all mammalian tissues, with approximately 60% of total body albumin in the extravascular compartment of muscle, skin, and adipose tissue [1,2]. Apart from its roles in osmosis, signalling, and transport, albumin is considered an important antioxidant due to the free thiol group of cysteine 34 (Cys34), allowing this to serve as a trap for reactive oxygen and nitrogen species [3]. Cys34 exists mostly in a reduced state in human plasma but is susceptible to direct oxidation by oxidants or indirect oxidation via thiol/disulfide (SH/SS) exchange reactions [4,5,6]. Cys34 has three isoforms according to the redox state of the free cysteine residue at position 34: mercaptalbumin (reduced albumin), non-mercaptalbumin-1 (reversibly oxidised albumin), and non-mercaptalbumin-2 (irreversibly oxidised albumin) [7]. It should be noted that in mice only, we have observed an additional cysteine residue on albumin that is susceptible to redox modifications; whereas in humans, rats, dogs, cows, horses, and sheep, we have observed only one (which is consistent with previous research). Oxidative modifications of serum albumin Cys34 have previously been investigated in exercise [8] and various disease states, such as organ failure, kidney diseases, and diabetes mellitus [4,9,10,11,12,13,14], where increased percentages of reversibly and irreversibly oxidised plasma albumin Cys34 are reported.
We have investigated the use of plasma albumin thiol oxidation as a blood biomarker in animal models of Duchenne muscular dystrophy (DMD), a fatal X-chromosome linked disease with an incidence of 1 in 5000 male births (reviewed in [15,16,17]). DMD occurs due to mutations in the dystrophin gene that result in dysfunctional or missing dystrophin protein in skeletal muscle [18]. An absence of functional dystrophin leads to a severe loss of muscle mass over time, due to increased susceptibility of myofibres to sarcolemma damage resulting in myofibre necrosis (myonecrosis) (reviewed in [19,20]). While the precise mechanisms of myonecrosis and progressive dystropathology remain unclear, oxidative stress caused by excessive generation of oxidants has long been widely implicated (reviewed in [21,22,23,24,25]). We recently investigated the relationship between myonecrosis and oxidative stress in dystrophic muscle and showed images of protein oxidation mainly colocalised to areas of myonecrosis and associated immune cell infiltration [26]. We also showed that in the mdx mouse model for DMD [27], plasma albumin thiol oxidation is increased at various stages of the disease and correlates with plasma creatine kinase (CK) levels, a marker of dystropathology [28].
Our research into this potential blood biomarker for DMD hypothesised that the increased albumin thiol oxidation in mdx plasma is due to increased oxidative stress associated with myonecrosis within the large mass of dystrophic muscle. The primary aim of the present study was to test this hypothesis, by examining the relationship between plasma and muscle albumin thiol oxidation using mdx mice. To facilitate this, we modified the plasma thiol oxidation technique developed in our laboratory [28] to be suitable for tissue analysis of albumin oxidation by immunoblot. We then measured albumin thiol oxidation in plasma and muscle from mdx and normal control C57 (WT) mice at two ages: 23 days (when myonecrosis as a measure of dystropathology is most severe) and 12 weeks (when myonecrosis is less active). We also included a group of 23-day-old mdx mice treated with taurine, since we and others have shown that taurine is an effective therapeutic intervention for this muscular dystrophy, including reduced myonecrosis [29,30,31,32,33,34,35,36,37].
We compared the levels of albumin thiol oxidation with albumin protein content and measures of dystropathology such as myofibre necrosis, muscle inflammation (myeloperoxidase activity), and membrane leakiness, as measured by plasma CK [38]. An additional aim was to further test the use of plasma albumin thiol oxidation as a biomarker of myonecrosis and dystropathology, in response to an acute intervention known to modify the amount of myonecrosis. Since we could not take serial blood samples from 23-day-old young mice subjected to taurine treatment (such juvenile mice are too small), we measured albumin thiol oxidation in plasma taken from tail-vein samples from 12 week adult mdx mice subjected to a single treadmill exercise session, known to increase dystropathology [32,39]. We also tracked plasma CK and grip strength in these mice, as established biomarkers of muscle pathology.
This research developed a simple new method to measure albumin thiol oxidation in tissues. This was used as a marker of oxidative stress in dystrophic muscle, to provide more evidence of a strong relationship between plasma and muscle albumin thiol oxidation (and other measures of dystropathology). This study confirms that plasma albumin thiol oxidation is a reliable biomarker that can be used to track levels of myonecrosis in mdx mice.

2. Materials and Methods

All chemicals and reagents were purchased from Sigma-Aldrich, St Louis, MO, USA, unless otherwise stated.

2.1. Animal Procedures

Experiments were carried out on dystrophic mdx (C57Bl/10ScSnmdx/mdx) and normal wildtype control (C57Bl/10ScSn) mice (the parental strain for mdx) from the Animal Resource Centre, Murdoch, Western Australia. Mice were maintained at the University of Western Australia under standard conditions, with free access to food and drinking water. All experiments were conducted in strict accordance with the guidelines of the National Health and Medical Research Council Code of practice for the care and use of animals for scientific purposes (2004) and the Animal Welfare act of Western Australia (2002) and were approved by the Animal Ethics committee at the University of Western Australia (ethics number 2020ET000034). Young mice were sampled at 23 days of age and adult mice at 12 weeks.

2.2. Taurine Treatment

Juvenile mdx mice were given taurine from 15 days of postnatal age (prior to weaning and the acute onset of myonecrosis that occurs by 21 days) in soft chow containing 4% taurine. Untreated mdx and WT mice had soft chow without taurine. Each group included pups (n = 8), with approximately equal male and female mdx pups, with all males for the WT group. Mice were sampled at 23 days of age after 7 days of taurine treatment.

2.3. Treadmill Exercise

Adult mdx mice aged 12 weeks (n = 7–8) underwent a single 30 min exercise session on a horizontal rodent treadmill (Columbus Instruments, Columbus, OH, USA), using an established protocol [39]. In brief, the protocol involved a settling (stationary) period for 2 min, an acclimatisation with gentle walking period for 2 min (2 m/minute), a warm-up period for 8 min (8 m/minute) and the main exercise session of 30 min at a pace of 12 m/minute. Prior to the exercise session, and at 1 h and 24 h after the exercise bout, blood samples were taken by tail vein, using 22-gauge needles and heparinised capillary tubes. We have previously shown at these post-exercise times that plasma CK and muscle protein thiol oxidation are increased [28,39]. Blood was centrifuged and plasma stored at −80 °C until biochemical analysis. Just before the time of tail vein sampling, the grip strength of mice was measured using a Chatillon Digital Force Gauge (DFE-002). Mice were placed on the front of the triangle bar (attached to a force transducer) and pulled gently until released. Each mouse underwent 5 consecutive grip-strength trials; the grip strength value for each mouse was recorded as the average of the three trials with the highest force. Average grip strength was normalised to body weight. Mice were sampled 24 h after the exercise protocol.
At termination of the experiment, while mice were under terminal anaesthesia (2% v/v Attane isoflurane, Bomac, Hallam, VIC, Australia), whole blood was collected via cardiac puncture, immediately centrifuged, plasma removed, and stored at −80 °C until biochemical analysis. Mice were then killed by cervical dislocation and quadriceps muscles were dissected and either frozen in pre-cooled isopentane for histological analysis or snap frozen in liquid nitrogen for biochemical analysis.

2.4. Histology

Frozen muscles were cut in transverse sections (8 μm) through the mid-region on a Leica CM3050S cryostat (Leica, Wetzlar, Germany) and stained with Haematoxylin and Eosin (H&E). For morphological analysis, non-overlapping tiled images of transverse muscle sections were acquired with a Nikon Eclipse Ti microscope equipped with a CoolSNAP-HQ2 camera, using Nikon NIS-Elements software (version 4.0, Melville, NY, USA).
Muscle morphology was drawn manually by the researcher using ImageJ software (version 1.53, National Institutes of Health, Bethesda, MD, USA). The area occupied by necrotic myofibres (myofibres with fragmented sarcoplasm and/or areas of inflammatory cells) was measured as a percentage (area) of the whole muscle section. All section analyses were performed ‘blind’.
Serial sections (as per above) were also stained for albumin by immunohistochemistry. Briefly, sections were air-dried and incubated in 2% paraformaldehyde in phosphate buffered saline (PBS), pH 7.2. After washing with tris-buffered saline with Tween-20 (TBST), samples were incubated with 3% hydrogen peroxide. Sections were washed again and incubated overnight at 4 °C with antibodies to albumin (A0433, Sigma-Aldrich) diluted 1:20,000 in TBST. After washing, sections were incubated with horseradish peroxidase conjugated goat anti-rabbit secondary antibodies (Thermo Fisher Scientific, Waltham, MA, USA) diluted 1:1000 in 5% skim milk in TBST for one hour at room temperature. Samples were washed and incubated with 3,3′-Diaminobenzidine (DAB) solution for 15 min. Sections were finally washed with tap water, counter-stained with haematoxylin, dehydrated, cleared, and mounted for microscopy. Digital images were acquired as per above.

2.5. Plasma CK

Plasma CK activity reflects the leak of CK from myofibres into the blood and is a classic systemic measure of damage and necrosis of dystrophic muscles [40]. CK levels were measured using a CK-NAC kit (CK110, Randox Laboratories, Crumlin, UK) and analysed kinetically using a BioTek Powerwave XS Spectrophotometer using the Biotek software (Gen 5, Agilent, Santa Clara, CA, USA).

2.6. Muscle Inflammation

Myeloperoxidase (MPO) is an enzyme secreted by neutrophils (inflammatory cells that appear very rapidly after tissue damage) and MPO activity is a useful biomarker of neutrophils in tissues [41,42]. The enzyme MPO catalyses the production of hypochlorous acid (HOCl) from hydrogen peroxide and chloride [43] and HOCl acid reacts with 2-[6-(4-aminophenoxy)-3-oxo-3H-xanthen-9-yl]benzoic acid (APF) to form the highly fluorescent compound fluorescein, that is measured in this method, as previously described [29]. Briefly, frozen muscle was crushed under liquid nitrogen and homogenised in 0.5% hexadecyltrimethylammonium bromide in PBS. Samples were centrifuged and supernatants were diluted in PBS. Human MPO was used as the standard for the assay (Cayman Chemical, Ann Arbor, MI, USA). Aliquots of each experimental sample or MPO standard were pipetted into a 384-well plate, before APF working solution (20 µM APF and 20 µM hydrogen peroxide in PBS) was added. The plate was incubated at room temperature (protected from light) for 30 min, with the fluorescence being measured every minute using excitation at 485 nm and emission at 515–530 nm. The rate of change of fluorescence for each sample was compared to that of the standards and results were expressed per mg of protein, quantified using the DC protein assay (Bio-Rad, Hercules, CA, USA).

2.7. Muscle Total Protein Thiol Oxidation

Total muscle protein thiol oxidation was measured using the 2-tag technique as described previously [29]. In brief, frozen muscle was crushed under liquid nitrogen before protein was extracted with 20% trichloroacetic acid (TCA)/acetone. Protein was solubilised in SDS buffer and protein thiols were labelled with the fluorescent dye BODIPY FL-N-(2-aminoethyl) maleimide (FLM, Invitrogen, Waltham, MA, USA). Following the removal of the unbound dye using cysteine, protein was re-solubilised in SDS buffer and oxidised thiols were reduced with tris(2-carboxyethyl)phosphine (TCEP) before the subsequent unlabelled reduced thiols were labelled with a second fluorescent dye, Texas Red C2-maleimide (Texas red, Invitrogen). The sample was washed in 100% TCA, followed by acetone, and resuspended in SDS buffer. Samples were read using a fluorescent plate reader (Fluostar Optima, Offenburg, Germany) with wavelengths set at excitation 485 nm and emission 520 nm for FLM and excitation 595 nm and emission 610 nm for Texas red. A standard curve for each dye was generated using ovalbumin and the results were expressed per mg of protein, quantified using the DC protein assay (Bio-Rad).

2.8. Muscle Albumin Thiol Oxidation Method Development

It is important to note that while all previous research has indicated that albumin has a total of 35 cysteine residues, with 34 forming 17 intramolecular disulfide bridges with the remaining residue (Cys34) being free and redox-active [7], we have consistently detected two thiols in mouse albumin susceptible to oxidation (confirmed by UniProt sequence). We have not observed this in any other species. We therefore adapted our method to measure oxidised albumin specifically in mouse plasma and modified it further to be used in muscle tissue. These methods are detailed below and illustrated in Figure 1. Malpeg undergoes PEGylation reactions with thiol groups on cysteine side chains and has a large molecular weight (5 kD is used in our method), and therefore it can cause a molecular weight shift that is observable on SDS-PAGE gels and immunoblot. This allows for the separation of oxidised and reduced albumin (since oxidised cysteine cannot bind to malpeg). We were therefore able to establish the oxidation state of albumin in both mdx plasma as well as muscle. As illustrated in Figure 1, most albumin in both WT and mdx muscle has one thiol oxidised; therefore, we have chosen to present for skeletal muscle just the data for the percentage of albumin with two cysteine side chains being oxidised (expressed as fully oxidised albumin).
In contrast, for plasma albumin thiol, a significant amount of albumin has two reduced thiols in both WT and mdx mice. Therefore, for plasma, we present the sum of the percentage of albumin with both one and two thiols oxidised (which we have termed ‘sum of fully and partially oxidised albumin’) and two thiols oxidised (fully oxidised).

2.9. Muscle Albumin Thiol Oxidation Method

Analysis of muscle albumin thiol oxidation (non-mercaptalbumin-1 and 2) was performed using our method for analysis of plasma samples with some modifications [28]. Although plasma albumin thiol oxidation could be measured using electrophoresis (see below), the method was not sufficiently sensitive for muscle and therefore an immunoblot with increased sensitivity was used. Frozen muscle samples were crushed under liquid nitrogen, and aliquots of approximately 10 mg were homogenised in PBS containing 1 mM methoxypolyethylene glycol maleimide (malpeg, 5000 g/mol, JenKem Technology) malpeg (previously diluted in 40 mM imidazole, pH 7.4). In order to remove excess malpeg (which interferes with electrophoresis), protein was extracted using a chloroform-methanol protein precipitation method. Extracted protein was resuspended in loading buffer containing 94 mM Tris pH 7, 2% SDS, 0.015% bromophenol blue, 15% glycerol, and 350 mM dithiothreitol (DTT), and it was heated for 15 min at 80 °C. Samples were resolved in 12% acrylamide and 1% SDS gels containing 1% (v/v) of 2,2,2-trichloroethanol for fluorescent stain-free imaging [44]. Gels were imaged using the Stain-Free imaging program on the ChemiDoc MP Imaging System (Bio-Rad), and loading was checked by measuring albumin signal. Proteins were transferred to nitrocellulose membranes using the Trans Turbo Blot System (Bio-Rad). Immunoblotting was performed with antibodies to albumin (A0433, Sigma-Aldrich) dissolved 1:60,000 in tris-buffered saline (TBST). Horseradish peroxidase conjugated goat anti-rabbit secondary antibodies (Thermo Fisher Scientific) were diluted 1:10,000 in 5% skim milk in TBST. The ChemiDoc MP Imaging System (Bio-Rad) was used to capture chemiluminescence signals. ImageJ software (version 1.53) was used to quantify the resultant images [45]. Total albumin content was standardised to total protein (as measured by stain-free imaging).
Sample analysis for irreversible albumin oxidation (non-mercaptalbumin-2) was also performed by reducing malpeg labelled as per above with L-cysteine hydrochloride monohydrate, which was added to a final concentration of 3 mM, followed by incubation at room temperature for 60 min. Malpeg was added to a final concentration of 3.5 mM, followed by incubation at room temperature for 15 min. Excess malpeg was removed and immunoblotting was performed as above. We observed that in both WT and mdx muscle, the majority of albumin had one cysteine residue undergoing irreversible oxidation, while neither WT nor mdx had both cysteine residues undergoing irreversible oxidation. It was therefore determined that in muscle, the measurement of irreversible albumin cysteine oxidation was not a useful measure of dystropathology.

2.10. Plasma Albumin Thiol Oxidation

Plasma albumin thiol oxidation was measured using our established method [28], adapted for capillary electrophoresis (CE). In brief, plasma samples were incubated with 30 mM malpeg for 15 min. Malpeg conjugated plasma was aliquoted into two: (1) aliquot-1 was diluted with CE-buffer (0.01% DMSO, 45 mM phosphate pH 8.0 with 2.5% w/v SDS) and (2) aliquot-2 was reduced for irreversible albumin oxidation analysis. The reduction of reversibly oxidised thiols from aliquot-2 was performed by incubation with 7.5 mM cysteine for 30 min. Malpeg was added to a final concentration of 15 mM, followed by incubation for 15 min. Reduced samples were diluted with CE-buffer.
Capillary electrophoresis was performed using an Agilent 7100 CE system. The capillary used was a 50-micron bare-fused silica capillary (Polymicro Technologies, Tucson, AZ, USA) with an effective length of 32.5 cm. The background electrolyte was composed of 45 mM phosphate pH 8.0 with 2.5% SDS. Diluted samples were hydrodynamically (10 mbar/s for 10 s) injected, with electrophoretic separation performed by applying +15 kV for 15 min. Detection was by absorbance at a wavelength of 214 nm. Area under the curve analysis was performed using Agilent Chemstation software (version B.04.03).

2.11. Statistics

Significant differences between groups were determined using GraphPad Prism software (Version 9.4.1). Data were analysed using two-way ANOVA tests with post hoc testing. All data are presented as mean ± standard error of the mean (SEM). Significance was set at p < 0.05. Pearson’s correlation was used to assess the relationship between plasma and muscle albumin thiol oxidation and dystropathology measures.

3. Results

3.1. Characterisation of Dystropathology

To examine the effect of changes in dystropathology on albumin oxidation in the muscle and blood of mdx mice, we tested young mice at the time of peak active myonecrosis (23 days old) and young adults where there is less active myonecrosis (12 weeks). Myofibre necrosis was 16-fold higher in quadriceps of 23-day-old mdx muscle versus WT and 20-fold higher in 12-week-old mdx muscle versus WT (Figure 2A). Myofibre necrosis was 1.6-fold higher in quadriceps of 23-day-old compared with 12-week-old mdx mice (Figure 2A).
Another classic marker of dystropathology, plasma CK content measuring myofibre membrane leakiness, was 12-fold higher in 23-day-old mdx versus WT mice and 24-fold higher in 12-week-old mdx versus WT mice (Figure 2B), with no significant difference between the young and adult mdx plasma CK levels (Figure 2B). The characterisation of dystropathology by increased inflammation and oxidative stress was evident in mdx quadriceps muscles at both ages, compared with WT mice as shown by increased MPO activity, a marker of neutrophil presence, and protein thiol oxidation, a marker of oxidative stress. The MPO activity in quadriceps muscles was 5.5–6-fold higher in mdx compared with WT mice (Figure 2C), with no significant impact of age. Similarly, total protein thiol oxidation in quadriceps was 1.4–1.5-fold higher in mdx compared with WT mice, with no impact of age (Figure 2D).
Short-term treatment of juvenile mdx mice with taurine (from 15–23 days), compared with untreated control mdx mice, decreased myonecrosis by 38% (Figure 2A), plasma CK content by 60% (Figure 2B), muscle MPO activity by 45%, and muscle protein thiol oxidation by 25% (Figure 2C,D). This therapeutic intervention further demonstrates a strong association between these four different measurements of dystropathology in muscle and blood. This combined data in young and adult mdx mice form the background for the following in-depth analysis of protein thiol oxidation of albumin in dystrophic plasma and muscle. Taken together, these data show that 23-day-old and 12-week-old mdx mice were suitable models to examine the effects of dystropathology on albumin oxidation.

3.2. Albumin Thiol Oxidation in mdx Plasma

Two forms of oxidised albumin were measured as summarised in Figure 1: partially oxidised albumin (one thiol oxidised) and fully oxidised albumin (two thiols oxidised). In plasma, the sum of partially and fully oxidised albumin was 1.2-fold higher in both young and adult mdx mice, compared with WT, with no impact of age in either strain (Figure 3A).
Fully oxidised albumin was 1.5-fold higher in the plasma of young (23 day) mdx mice compared with WT (Figure 3B). However, for adult (12 week) mice, there was no difference between strains. Levels of fully oxidised albumin were 50% lower in both adult strains, compared with young mice of the same strain (Figure 3B). These data indicate that oxidation of plasma albumin was particularly pronounced during periods of active myonecrosis (23-day-old young mdx mice). Taurine treatment of juvenile mdx mice for 7 days significantly reduced the sum of partially and fully oxidised albumin by 15% and 33%, respectively, in 23-day-old mice (Figure 3A,B).

3.3. Levels of Albumin in Dystrophic and Normal Muscles

Dystrophy causes extensive tissue disturbances involving the vasculature, myonecrosis and inflammation which have the potential to affect albumin levels within the muscle, and exposure to oxidants. We therefore measured the levels of albumin in skeletal muscle. In mdx muscles, albumin content was higher (about 2-fold) at both ages, compared with WT (Figure 4).
Albumin content was approximately 3-fold higher in quadriceps of 23-day-old compared with 12-week-old WT and mdx mice (Figure 4). Taurine treatment prevented the increase in albumin content seen at 23 days in untreated mdx muscle (Figure 4), reflecting the prevention of myonecrosis, with albumin levels being similar to normal WT muscle.
Since albumin content was about 2-fold higher in (untreated) mdx quadriceps muscle at both ages (compared with WT mice), the location of albumin within the muscles was investigated by immunostaining using albumin antibodies. Albumin in WT muscles was present in the interstitium outside the myofibres (as expected) since albumin does not enter intact myofibres (Figure 5B,D).
In mdx muscle as well as the interstitium, there was increased staining of albumin in areas of myonecrosis, also in the interstitium where immune cells were present, and there was inflammation within myofibres that were undergoing necrosis (Figure 5F,H,J). This albumin staining is observed in hypercontracted myofibres (indicating an early stage of necrosis), myofibres that are fully degenerated, and some newly regenerating myofibres (Figure 5F,H,J).

3.4. Levels of Albumin Thiol Oxidation in mdx Muscle

We examined whether albumin in muscle was oxidised given that dystrophic muscle is characterised by increased oxidative stress (Figure 2D). Fully oxidised albumin was 1.6-fold higher in 23-day-old mdx muscle versus WT and 4-fold higher in 12-week-old mdx muscle versus WT (Figure 6).
Fully oxidised albumin was 65% lower in 12-week-old WT muscle compared to 23-day-old WT muscle, but there was no difference in fully oxidised albumin between 23-day-old and 12-week-old adult mdx muscle (Figure 6). Taurine treatment decreased fully oxidised albumin in 23-day-old mdx muscle by 40% (Figure 6).
We compared the extent of albumin oxidation in plasma and muscle tissue by comparing the amount of fully oxidised albumin in plasma and muscle shown in Figure 1B and Figure 6. In 23-day-old and 12-week-old WT mice, fully oxidised albumin was 3.3-fold and 2.5-fold higher in muscle tissue, relative to plasma. This difference was also observed with mdx mice, where fully oxidised albumin was 3.4-fold, 3.5-fold, and 5-fold higher in 23-day-old mice, 23-day-old mice treated with taurine, and 12-week-old mdx mice. Together, these data indicate that in mice, fully oxidised albumin is consistently higher in muscle than plasma.
To assess whether changes in muscle albumin thiol oxidation are associated with increased necrosis and inflammation, we compared thiol oxidation with other measures of damage and inflammation (in both strains). All indices (muscle albumin, total muscle protein thiol oxidation, myofibre necrosis, muscle inflammation, and plasma CK content) correlated significantly with plasma and muscle albumin thiol oxidation; with plasma and muscle albumin thiol oxidation also correlated with each other (Table 1).

3.5. Tracking Plasma Albumin Thiol Oxidation

We have previously proposed that plasma albumin thiol oxidation could be used to track acute changes in dystropathology (such as after the initiation of a drug treatment) [46]. Therefore, we tested changes in albumin thiol oxidation (and other measures of dystropathology including plasma CK and muscle strength) in individual 12-week-old mdx mice that underwent a treadmill exercise session, known to exacerbate dystropathology. Tail vein blood samples were taken before, 1 h after, and 24 h after a single 30 min treadmill exercise session. These time points were chosen as we have previously shown that plasma CK and muscle protein thiol oxidation are increased [28,39]. CK and grip strength were used as established biomarkers of muscle pathology to track the effects of exercise.
CK content was 10-fold higher in mdx versus WT plasma (pre-exercised, Figure 7A).
One hour post-exercise, mdx plasma CK content was 14-fold higher than baseline (pre-exercised, Figure 7A). At 24 h post-exercise, CK content in mdx plasma had returned to baseline (Figure 7A). Grip strength was 20% lower in mdx versus WT (Figure 7B). At both 1 h and 24 h post-exercise, grip strength was 25% lower than baseline (pre-exercised, Figure 7B).
Since differences in irreversible oxidation levels of plasma albumin were observed when comparing mdx and WT mice, data are presented as reversible, irreversible, and both combined. Reversibly oxidised plasma albumin was 1.2-fold higher in mdx versus WT plasma (Figure 7C). One hour post-exercise, reversibly oxidised albumin in mdx plasma was 1.3-fold higher than baseline (pre-exercised, Figure 7C); and by 24 h post-exercise, this had returned to baseline (Figure 7C). Irreversibly oxidised albumin in plasma was the same in (unexercised) mdx and WT mice (Figure 7D). At 1 h post-exercise, irreversibly oxidised albumin was 1.2-fold higher than baseline (pre-exercised, Figure 7D) and remained high at 24 h (i.e., did not return to baseline levels in contrast with reversibly oxidised plasma albumin). When combining the reversible and irreversible data, combined oxidised albumin was 1.2-fold higher in (unexercised) mdx plasma versus WT (Figure 7E). At 1 h post-exercise, combined mdx oxidised albumin was 1.3-fold higher than baseline (pre-exercised, Figure 7E) and at 24 h post-exercise, it had returned to baseline (Figure 7E).

4. Discussion

The new data presented here reinforce the relationship between plasma and muscle albumin thiol oxidation, as well as measures of ongoing dystropathology in mdx mice. The key results are the following: (i) a new method is described to measure albumin thiol oxidation in tissues utilising immunoblot. The use of this new method shows (ii) that levels of muscle albumin thiol oxidation in dystrophic mdx plasma and muscle are significantly higher than normal control at two ages, 23 days and 12 weeks, and these data correlate with measures of dystropathology, including global protein thiol oxidation, myofibre necrosis, muscle inflammation, and plasma CK release. We also demonstrate (iii) that plasma albumin thiol oxidation measured serially in mdx mice can track acute changes in dystropathology induced experimentally by an acute bout of exercise in adult mice. The significance of these combined new observations is discussed below.
Oxidative stress has been implicated in the pathology of DMD [47], so the accurate measurement of oxidation in dystrophic tissue can provide insight into molecular mechanisms causing pathology. We have previously developed a method (2-tag) to measure the global protein thiol oxidation in tissue, using two different maleimide tags that measure reduced and oxidised protein thiols [48]. This method has been used to successfully measure oxidative stress in skeletal muscle in the mdx mouse model of DMD [29]. We have found this to be an accurate and sensitive measure of oxidative stress; however, the method is challenging and requires training. We have also previously developed a sensitive oxidative stress method for plasma albumin thiol oxidation, which can be performed with immunoblot [28]. We therefore adapted this method to measure albumin thiol oxidation in tissue utilising immunoblot, making it a relatively easy to perform and a readily accessible method for use as a sensitive marker of oxidative stress in muscle.
Of note is that previous research suggests that albumin has a total of 35 cysteine residues with 34 forming 17 intramolecular disulfide bridges, and the remaining residue (Cys34) is free and redox-active [7]. However, we consistently detected two thiols in mouse albumin susceptible to oxidation but not in any other species we have investigated, including humans, rats, dogs, cows, horses, and sheep. Interestingly, and unlike in plasma, we found substantial irreversible thiol oxidation (non-mercaptalbumin-2) on one cysteine residue only in muscle, even in normal WT mice. It is not known if this irreversible oxidation is occurring on this additional cysteine or on Cys34. Since we have not been able to find any other studies that have also observed this additional thiol group on mouse albumin, nor any studies that have observed this extensive irreversible oxidation of albumin in muscle or other tissue, we are not able to further interpret the biological significance of these observations. Additional mass spectrometry analysis of mouse albumin, from both plasma and within tissue, is required to better understand the type of irreversible oxidation. The analysis of the extent of irreversible albumin thiol oxidation in muscle from other species (where this additional Cys residue is not observed) may also give some indication of the significance of this new result in mice.
An interesting observation was that the age of mice (mdx and normal WT) had an impact on levels of both plasma and muscle albumin thiol oxidation, with levels of fully oxidised albumin initially high in juveniles at 23 days and then decreased by 12 weeks (in adults). We have previously observed this in both mdx and WT plasma, with albumin thiol oxidation decreasing after 23 days and increasing again by 18 months [28]. Increased oxidation of albumin in aging has been reported previously [49], but the high levels of albumin oxidation in juvenile mice appear to be a novel observation as we were not able to locate any literature reporting this occurrence. Further work is required to establish the biological significance of the higher level of albumin oxidation during early post-natal growth and whether this is a consequence of increased generation of oxidants or decreased antioxidant activity.
While albumin is abundant in plasma, most body albumin is in the extravascular compartment of tissues such as muscle, skin, and adipose tissue [1,2]. Studies show the substantial transcapillary transit of albumin with return to the plasma compartment via the lymphatic system [2,50]. With exercise, there is a substantial increase in albumin content, and albumin transit, in muscle [51]. We therefore hypothesised that changes in the extent of plasma albumin thiol oxidation are a consequence of changes in the oxidative state of albumin in tissues, specifically skeletal muscles that comprise about 40% of body mass. A novel observation was that even in normal WT muscles, the amount of oxidised albumin is considerably (approximately 4-fold) higher than for plasma, suggesting that the movement of albumin through tissue is a significant source of oxidation. This may be particularly true for muscle, which produces significant oxidants due to its contractile activity and high oxygen consumption [52].
We found in mdx muscle that albumin content was increased (relative to normal muscle), and this is consistent with reports that inflammation increases albumin content, and albumin transit, in tissues [53]. In mdx muscles, albumin was high in the interstitium (especially around areas of inflammatory cell invasion), and also within myofibres. Many studies show that albumin (bound to Evans blue dye) accumulates in dystrophic myofibres after exercise-induced damage [54,55]. Since it is visually confirmed that protein oxidation is mainly colocalised to areas of myofibre necrosis and associated immune cell infiltration in mdx muscles [26], the high levels of albumin localised in these areas of dystrophic muscle damage are likely to become oxidised within this cellular environment [26]. The present study also demonstrated that the oxidation of albumin is prevented by taurine administration, an intervention widely reported to reduce dystropathology, including decreased myonecrosis and inflammation [29,30,31,32,33,34,35,36,37]. Interestingly, the present study also showed that taurine decreased the amount of albumin entering the muscle, supporting the hypothesis that the increased albumin thiol oxidation in mdx muscle (and therefore plasma) is a consequence of increased albumin migrating through the muscle tissue.
To further examine whether plasma albumin thiol oxidation could be used as a biomarker to track acute changes in dystropathology in individual mdx mice, we subjected adult (12 week) mdx mice to a single treadmill exercise session, which is known to increase myonecrosis and plasma CK release and decrease grip strength [39]. Our findings revealed two patterns of plasma albumin oxidation, with both reversible and irreversible albumin thiol oxidation rapidly elevated at 1 h after exercise, with reversible, but not irreversible, plasma albumin thiol oxidation returning to baseline by 24 h after exercise. This difference may reflect irreversible oxidation of albumin being a permanent modification to the protein, whereas reversible oxidation can be reversed by thiol/disulfide exchange [11,56,57]. Thus, the exercise caused acute changes in pathology associated with the very rapid increase in oxidative stress within the muscles, that oxidised the local albumin in the muscle tissues, that then returned to the circulating plasma, which caused the change in albumin reversible oxidation. This concept is supported by the pattern of plasma CK release, which was similar (with a rapid increase within one hour) to total plasma albumin thiol oxidation. As changes in CK reflect increased permeability of the muscle plasma membrane (sarcolemma) caused by dystropathology, the changes in reversible thiol oxidation likely also reflect acute changes in dystropathology. In contrast, the sustained decrease in grip strength (loss of function) indicates ongoing damage which may be related to a sustained increase in oxidants having direct adverse effects on myosin and other contractile proteins [58] and causing the additional irreversible oxidation of albumin.

5. Conclusions

We show that albumin thiol oxidation is elevated in plasma of mdx mice, and this reflects increased albumin oxidation in mdx muscles, plus plasma albumin thiol oxidation is acutely responsive to changes in dystropathology. These combined observations strongly support the measurement of changes in plasma albumin oxidation as a promising biomarker to track acute changes in dystropathology. There is a need for molecular biomarkers to track the severity of dystropathology in animal models and DMD, particularly for blood biomarkers to help rapidly evaluate the potential efficacy of clinical trials for DMD.

Author Contributions

Conceptualisation, J.R.T., A.P.R.B., I.T., M.D.G. and P.G.A.; methodology, J.R.T., A.P.R.B. and I.T.; data curation, J.R.T.; writing—original draft preparation, J.R.T.; writing—review and editing, J.R.T., A.P.R.B., I.T., M.D.G. and P.G.A.; project administration, P.G.A.; funding acquisition, P.G.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by funding from Duchenne UK and Save Our Sons Duchenne Foundation (Australia).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Institutional Review Board (or Ethics Committee) of the University of Western Australia. The animal study protocols were approved by the Institutional Review Board (or Ethics Committee) of the University of Western Australia.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article, further inquiries can be directed to the corresponding author/s.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Veskoukis, A.S.; Kyparos, A.; Stagos, D.; Kouretas, D. Differential effects of xanthine oxidase inhibition and exercise on albumin concentration in rat tissues. Appl. Physiol. Nutr. Metab. 2010, 35, 244–250. [Google Scholar] [CrossRef] [PubMed]
  2. Ellmerer, M.; Schaupp, L.; Brunner, G.A.; Sendlhofer, G.; Wutte, A.; Wach, P.; Pieber, T.R. Measurement of interstitial albumin in human skeletal muscle and adipose tissue by open-flow microperfusion. Am. J. Physiol.-Endocrinol. Metab. 2000, 278, E352–E356. [Google Scholar] [CrossRef] [PubMed]
  3. Belinskaia, D.A.; Voronina, P.A.; Shmurak, V.I.; Jenkins, R.O.; Goncharov, N.V. Serum albumin in health and disease: Esterase, antioxidant, transporting and signaling properties. Int. J. Mol. Sci. 2021, 22, 10318. [Google Scholar] [CrossRef] [PubMed]
  4. Oettl, K.; Birner-Gruenberger, R.; Spindelboeck, W.; Stueger, H.P.; Dorn, L.; Stadlbauer, V.; Putz-Bankuti, C.; Krisper, P.; Graziadei, I.; Vogel, W.; et al. Oxidative albumin damage in chronic liver failure: Relation to albumin binding capacity, liver dysfunction and survival. J. Hepatol. 2013, 59, 978–983. [Google Scholar] [CrossRef] [PubMed]
  5. Di Giuseppe, D.; Ulivelli, M.; Bartalini, S.; Battistini, S.; Cerase, A.; Passero, S.; Summa, D.; Frosali, S.; Priora, R.; Margaritis, A.; et al. Regulation of redox forms of plasma thiols by albumin in multiple sclerosis after fasting and methionine loading test. Amino Acids 2010, 38, 1461–1471. [Google Scholar] [CrossRef] [PubMed]
  6. Turell, L.; Radi, R.; Alvarez, B. The thiol pool in human plasma: The central contribution of albumin to redox processes. Free Radic. Biol. Med. 2013, 65, 244–253. [Google Scholar] [CrossRef] [PubMed]
  7. Tabata, F.; Wada, Y.; Kawakami, S.; Miyaji, K. Serum albumin redox states: More than oxidative stress biomarker. Antioxidants 2021, 10, 503. [Google Scholar] [CrossRef] [PubMed]
  8. Imai, H.; Hayashi, T.; Negawa, T.; Nakamura, K.; Tomida, M.; Koda, K.; Tajima, T.; Koda, Y.; Suda, K.; Era, S. Strenuous exercise-induced change in redox state of human serum albumin during intensive kendo training. Jpn. J. Physiol. 2002, 52, 135–140. [Google Scholar] [CrossRef] [PubMed]
  9. Colombo, G.; Clerici, M.; Giustarini, D.; Rossi, R.; Milzani, A.; Dalle-Donne, I. Redox albuminomics: Oxidized albumin in human diseases. Antioxid. Redox Signal. 2012, 17, 1515–1527. [Google Scholar] [CrossRef]
  10. Rasheed, Z.; Ali, R. Reactive oxygen species damaged human serum albumin in patients with type 1 diabetes mellitus: Biochemical and immunological studies. Life Sci. 2006, 79, 2320–2328. [Google Scholar] [CrossRef]
  11. Bocedi, A.; Cattani, G.; Stella, L.; Massoud, R.; Ricci, G. Thiol disulfide exchange reactions in human serum albumin: The apparent paradox of the redox transitions of Cys(34). FEBS J. 2018, 285, 3225–3237. [Google Scholar] [CrossRef] [PubMed]
  12. Terawaki, H.; Yoshimura, K.; Hasegawa, T.; Matsuyama, Y.; Negawa, T.; Yamada, K.; Matsushima, M.; Nakayama, M.; Hosoya, T.; Era, S. Oxidative stress is enhanced in correlation with renal dysfunction: Examination with the redox state of albumin. Kidney Int. 2004, 66, 1988–1993. [Google Scholar] [CrossRef] [PubMed]
  13. Oettl, K.; Reibnegger, G.; Schmut, O. The redox state of human serum albumin in eye diseases with and without complications. Acta Ophthalmol. 2011, 89, e174–e179. [Google Scholar] [CrossRef] [PubMed]
  14. Nasif, W.A.; Mukhtar, M.H.; El-Emshaty, H.M.; Alwazna, A.H. Redox State of Human Serum Albumin and Inflammatory Biomarkers in Hemodialysis Patients with Secondary Hyperparathyroidism During Oral Calcitriol Supplementation for Vitamin D. Open Med. Chem. J. 2018, 12, 98–110. [Google Scholar] [CrossRef] [PubMed]
  15. Bushby, K.; Finkel, R.; Birnkrant, D.J.; Case, L.E.; Clemens, P.R.; Cripe, L.; Kaul, A.; Kinnett, K.; McDonald, C.; Pandya, S.; et al. Diagnosis and management of Duchenne muscular dystrophy, part 1: Diagnosis, and pharmacological and psychosocial management. Lancet Neurol. 2010, 9, 77–93. [Google Scholar] [CrossRef] [PubMed]
  16. Crisafulli, S.; Sultana, J.; Fontana, A.; Salvo, F.; Messina, S.; Trifirò, G. Global epidemiology of Duchenne muscular dystrophy: An updated systematic review and meta-analysis. Orphanet J. Rare Dis. 2020, 15, 141. [Google Scholar] [CrossRef] [PubMed]
  17. Biggar, W.D. Duchenne muscular dystrophy. Pediatr. Rev. 2006, 27, 83–88. [Google Scholar] [CrossRef] [PubMed]
  18. Duan, D.; Goemans, N.; Takeda, S.; Mercuri, E.; Aartsma-Rus, A. Duchenne muscular dystrophy. Nat. Rev. Dis. Primers 2021, 7, 13. [Google Scholar] [CrossRef] [PubMed]
  19. Kharraz, Y.; Guerra, J.; Pessina, P.; Serrano, A.L.; Munoz-Canoves, P. Understanding the process of fibrosis in Duchenne muscular dystrophy. Biomed. Res. Int. 2014, 2014, 965631. [Google Scholar] [CrossRef]
  20. Falzarano, M.S.; Scotton, C.; Passarelli, C.; Ferlini, A. Duchenne Muscular Dystrophy: From Diagnosis to Therapy. Molecules 2015, 20, 18168–18184. [Google Scholar] [CrossRef]
  21. Kourakis, S.; Timpani, C.A.; de Haan, J.B.; Gueven, N.; Fischer, D.; Rybalka, E. Targeting Nrf2 for the treatment of Duchenne Muscular Dystrophy. Redox Biol. 2021, 38, 101803. [Google Scholar] [CrossRef] [PubMed]
  22. Canton, M.; Menazza, S.; Di Lisa, F. Oxidative stress in muscular dystrophy: From generic evidence to specific sources and targets. J. Muscle Res. Cell Motil. 2014, 35, 23–36. [Google Scholar] [CrossRef] [PubMed]
  23. Ragusa, R.J.; Chow, C.K.; Porter, J.D. Oxidative stress as a potential pathogenic mechanism in an animal model of Duchenne muscular dystrophy. Neuromuscul. Disord. 1997, 7, 379–386. [Google Scholar] [CrossRef] [PubMed]
  24. Kim, J.H.; Kwak, H.B.; Thompson, L.V.; Lawler, J.M. Contribution of oxidative stress to pathology in diaphragm and limb muscles with Duchenne muscular dystrophy. J. Muscle Res. Cell Motil. 2013, 34, 1–13. [Google Scholar] [CrossRef] [PubMed]
  25. Rando, T.A. Oxidative stress and the pathogenesis of muscular dystrophies. Am. J. Phys. Med. Rehabil. 2002, 81, S175–S186. [Google Scholar] [CrossRef] [PubMed]
  26. Iwasaki, T.; Terrill, J.R.; Kawarai, K.; Miyata, Y.; Tagami, T.; Maeda, N.; Hasegawa, Y.; Watanabe, T.; Grounds, M.D.; Arthur, P.G. The location of protein oxidation in dystrophic skeletal muscle from the mdx mouse model of Duchenne muscular dystrophy. Acta Histochem. 2022, 124, 151959. [Google Scholar] [CrossRef] [PubMed]
  27. Bulfield, G.; Siller, W.; Wight, P.; Moore, K. X chromosome-linked muscular dystrophy (mdx) in the mouse. Proc. Natl. Acad. Sci. USA 1984, 81, 1189–1192. [Google Scholar] [CrossRef] [PubMed]
  28. Al-Mshhdani, B.A.; Grounds, M.D.; Arthur, P.G.; Terrill, J.R. A Blood Biomarker for Duchenne Muscular Dystrophy Shows That Oxidation State of Albumin Correlates with Protein Oxidation and Damage in Mdx Muscle. Antioxidants 2021, 10, 1241. [Google Scholar] [CrossRef] [PubMed]
  29. Terrill, J.R.; Pinniger, G.J.; Graves, J.A.; Grounds, M.D.; Arthur, P.G. Increasing taurine intake and taurine synthesis improves skeletal muscle function in the mdx mouse model for Duchenne muscular dystrophy. J. Physiol. 2016, 594, 3095–3110. [Google Scholar] [CrossRef]
  30. Terrill, J.R.; Grounds, M.D.; Arthur, P.G. Increased taurine in pre-weaned juvenile mdx mice greatly reduces the acute onset of myofibre necrosis and dystropathology and prevents inflammation. PLoS Curr. 2016, 8. [Google Scholar] [CrossRef]
  31. Cozzoli, A.; Rolland, J.F.; Capogrosso, R.F.; Sblendorio, V.T.; Longo, V.; Simonetti, S.; Nico, B.; De Luca, A. Evaluation of potential synergistic action of a combined treatment with alpha-methyl-prednisolone and taurine on the mdx mouse model of Duchenne muscular dystrophy. Neuropathol. Appl. Neurobiol. 2011, 37, 243–256. [Google Scholar] [CrossRef] [PubMed]
  32. De Luca, A.; Pierno, S.; Liantonio, A.; Cetrone, M.; Camerino, C.; Fraysse, B.; Mirabella, M.; Servidei, S.; Ruegg, U.T.; Conte Camerino, D. Enhanced dystrophic progression in mdx mice by exercise and beneficial effects of taurine and insulin-like growth factor-1. J. Pharmacol. Exp. Ther. 2003, 304, 453–463. [Google Scholar] [CrossRef] [PubMed]
  33. De Luca, A.; Pierno, S.; Liantonio, A.; Cetrone, M.; Camerino, C.; Simonetti, S.; Papadia, F.; Camerino, D.C. Alteration of excitation-contraction coupling mechanism in extensor digitorum longus muscle fibres of dystrophic mdx mouse and potential efficacy of taurine. Br. J. Pharmacol. 2001, 132, 1047–1054. [Google Scholar] [CrossRef] [PubMed]
  34. Capogrosso, R.F.; Cozzoli, A.; Mantuano, P.; Camerino, G.M.; Massari, A.M.; Sblendorio, V.T.; De Bellis, M.; Tamma, R.; Giustino, A.; Nico, B.; et al. Assessment of resveratrol, apocynin and taurine on mechanical-metabolic uncoupling and oxidative stress in a mouse model of duchenne muscular dystrophy: A comparison with the gold standard, alpha-methyl prednisolone. Pharmacol. Res. 2016, 106, 101–113. [Google Scholar] [CrossRef] [PubMed]
  35. Mele, A.; Mantuano, P.; De Bellis, M.; Rana, F.; Sanarica, F.; Conte, E.; Morgese, M.G.; Bove, M.; Rolland, J.-F.; Capogrosso, R.F. A long-term treatment with taurine prevents cardiac dysfunction in mdx mice. Transl. Res. 2019, 204, 82–99. [Google Scholar] [CrossRef] [PubMed]
  36. Horvath, D.M.; Murphy, R.M.; Mollica, J.P.; Hayes, A.; Goodman, C.A. The effect of taurine and β-alanine supplementation on taurine transporter protein and fatigue resistance in skeletal muscle from mdx mice. Amino Acids 2016, 48, 2635–2645. [Google Scholar] [CrossRef] [PubMed]
  37. Barker, R.G.; Horvath, D.; van der Poel, C.; Murphy, R.M. Benefits of prenatal taurine supplementation in preventing the onset of acute damage in the Mdx mouse. PLoS Curr. 2017, 9. [Google Scholar] [CrossRef]
  38. Allen, D.G.; Whitehead, N.P. Duchenne muscular dystrophy–what causes the increased membrane permeability in skeletal muscle? Int. J. Biochem. Cell Biol. 2011, 43, 290–294. [Google Scholar] [CrossRef] [PubMed]
  39. Radley-Crabb, H.; Terrill, J.; Shavlakadze, T.; Tonkin, J.; Arthur, P.; Grounds, M. A single 30 min treadmill exercise session is suitable for ‘proof-of concept studies’ in adult mdx mice: A comparison of the early consequences of two different treadmill protocols. Neuromuscul. Disord. 2012, 22, 170–182. [Google Scholar] [CrossRef]
  40. Burch, P.M.; Pogoryelova, O.; Goldstein, R.; Bennett, D.; Guglieri, M.; Straub, V.; Bushby, K.; Lochmüller, H.; Morris, C. Muscle-derived proteins as serum biomarkers for monitoring disease progression in three forms of muscular dystrophy. J. Neuromuscul. Dis. 2015, 2, 241–255. [Google Scholar] [CrossRef]
  41. Setsukinai, K.; Urano, Y.; Kakinuma, K.; Majima, H.J.; Nagano, T. Development of novel fluorescence probes that can reliably detect reactive oxygen species and distinguish specific species. J. Biol. Chem. 2003, 278, 3170–3175. [Google Scholar] [CrossRef] [PubMed]
  42. Winterbourn, C.C.; Vissers, M.C.M.; Kettle, A.J. Myeloperoxidase. Curr. Opin. Hematol. 2000, 7, 53–58. [Google Scholar] [CrossRef] [PubMed]
  43. Winterbourn, C.C.; Kettle, A.J. Biomarkers of myeloperoxidase-derived hypochlorous acid. Free Radic. Biol. Med. 2000, 29, 403–409. [Google Scholar] [CrossRef] [PubMed]
  44. Ladner, C.L.; Yang, J.; Turner, R.J.; Edwards, R.A. Visible fluorescent detection of proteins in polyacrylamide gels without staining. Anal. Biochem. 2004, 326, 13–20. [Google Scholar] [CrossRef] [PubMed]
  45. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef] [PubMed]
  46. Grounds, M.D.; Terrill, J.R.; Al-Mshhdani, B.A.; Duong, M.N.; Radley-Crabb, H.G.; Arthur, P.G. Biomarkers for Duchenne muscular dystrophy: Myonecrosis, inflammation and oxidative stress. Dis. Model. Mech. 2020, 13, dmm043638. [Google Scholar] [CrossRef] [PubMed]
  47. Almeida-Becerril, T.; Rodríguez-Cruz, M.; Sánchez-González, J.R.; Villaldama-Soriano, M.A.; Atilano-Miguel, S.; Villa-Morales, J.; Cárdenas-Conejo, A.; Cárdenas-Vázquez, R. Circulating markers of oxidative stress are associated with a muscle injury in patients with muscular dystrophy Duchenne. Brain Dev. 2021, 43, 111–120. [Google Scholar] [CrossRef] [PubMed]
  48. Armstrong, A.E.; Zerbes, R.; Fournier, P.A.; Arthur, P.G. A fluorescent dual labeling technique for the quantitative measurement of reduced and oxidized protein thiols in tissue samples. Free Radic. Biol. Med. 2011, 50, 510–517. [Google Scholar] [CrossRef] [PubMed]
  49. Era, S.; Kazuo, K.; Imai, H.; Nakamura, K.; Hayashi, T.; Sogami, M. Age-related change in redox state of human serum albumin. Biochim. Biophys. Acta BBA-Protein Struct. Mol. Enzymol. 1995, 1247, 12–16. [Google Scholar] [CrossRef]
  50. Mullins, R.J.; Bell, D.R. Changes in interstitial volume and masses of albumin and IgG in rabbit skin and skeletal muscle after saline volume loading. Circ. Res. 1982, 51, 305–313. [Google Scholar] [CrossRef]
  51. Heilig, A.; Pette, D. Albumin in rabbit skeletal muscle. Origin, distribution and regulation by contractile activity. Eur. J. Biochem. 1988, 171, 503–508. [Google Scholar] [CrossRef] [PubMed]
  52. Lian, D.; Chen, M.-M.; Wu, H.; Deng, S.; Hu, X. The role of oxidative stress in skeletal muscle myogenesis and muscle disease. Antioxidants 2022, 11, 755. [Google Scholar] [CrossRef] [PubMed]
  53. Erstad, B.L. Albumin disposition in critically Ill patients. J. Clin. Pharm. Ther. 2018, 43, 746–751. [Google Scholar] [CrossRef] [PubMed]
  54. Wooddell, C.I.; Zhang, G.; Griffin, J.B.; Hegge, J.O.; Huss, T.; Wolff, J.A. Use of Evans blue dye to compare limb muscles in exercised young and old mdx mice. Muscle Nerve Off. J. Am. Assoc. Electrodiagn. Med. 2010, 41, 487–499. [Google Scholar] [CrossRef]
  55. Hamer, P.; McGeachie, J.i.; Davies, M.; Grounds, M. Evans Blue Dye as an in vivo marker of myofibre damage: Optimising parameters for detecting initial myofibre membrane permeability. J. Anat. 2002, 200, 69–79. [Google Scholar] [CrossRef] [PubMed]
  56. Turell, L.; Botti, H.; Carballal, S.; Ferrer-Sueta, G.; Souza, J.M.; Durán, R.; Freeman, B.A.; Radi, R.; Alvarez, B. Reactivity of sulfenic acid in human serum albumin. Biochemistry 2008, 47, 358–367. [Google Scholar] [CrossRef] [PubMed]
  57. Dröge, W. Aging-related changes in the thiol/disulfide redox state: Implications for the use of thiol antioxidants. Exp. Gerontol. 2002, 37, 1333–1345. [Google Scholar] [CrossRef]
  58. Reid, M.B. Invited Review: Redox modulation of skeletal muscle contraction: What we know and what we don’t. J. Appl. Physiol. 2001, 90, 724–731. [Google Scholar] [CrossRef]
Antioxidants 13 00720 g001

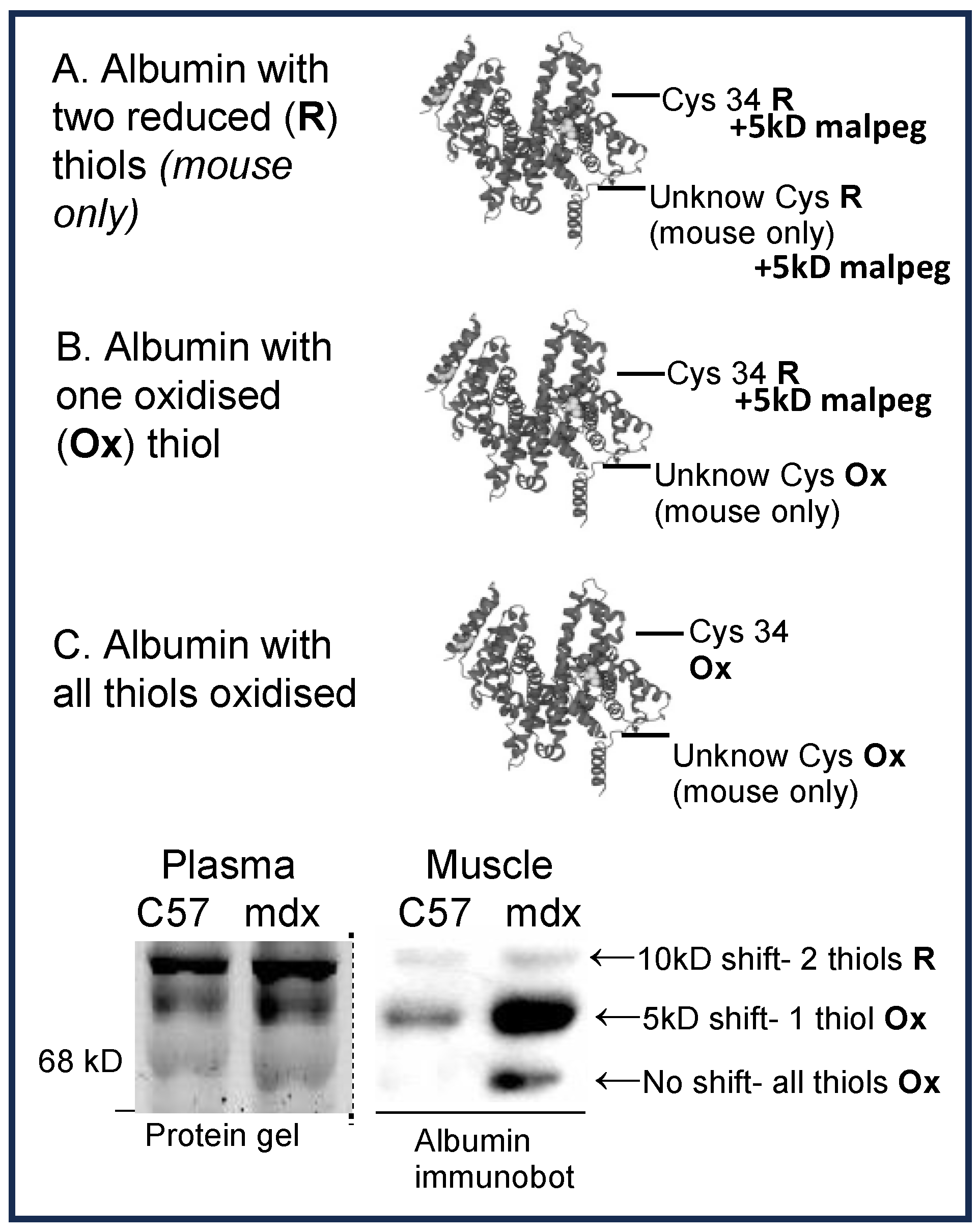

Figure 1. Diagram for immunoblot method to quantify albumin thiol oxidation in plasma and muscle. Plasma and muscle tissue extracts are treated with malpeg that binds to reduced albumin, causing a molecular weight shift that is detectable via immunoblot using antibodies for albumin. Since mouse albumin has two cysteine residues susceptible to redox modifications, albumin can be detected in three states, represented as three distinct bands on the immunoblot membrane. (A) represents albumin with two thiols in the reduced (R) state (with two malpeg molecules bound) and a 10 kD shift in band observed. (B) represents albumin with only one reduced thiol, and therefore one oxidised (Ox) thiol. This results in only one malpeg molecule bound and a 5 kD shift observed. (C) represents albumin with both thiols being oxidised (with no malpeg bound) and no shift is observed. In the Results text, the extent of thiol oxidation (Ox albumin) is referred to as ‘the sum of fully and partially oxidised albumin’ (B + C) and ‘fully oxidised albumin’ (C). Note that in other species, only one cysteine residue (Cys34) is susceptible to redox modifications, and therefore only one shift is observed when Cys34 is in the reduced state. Also of note, in mice, we do not know which thiol group (Cys34 or the other) is more susceptible to oxidation, and therefore which one is highly oxidised in muscle.
Figure 1. Diagram for immunoblot method to quantify albumin thiol oxidation in plasma and muscle. Plasma and muscle tissue extracts are treated with malpeg that binds to reduced albumin, causing a molecular weight shift that is detectable via immunoblot using antibodies for albumin. Since mouse albumin has two cysteine residues susceptible to redox modifications, albumin can be detected in three states, represented as three distinct bands on the immunoblot membrane. (A) represents albumin with two thiols in the reduced (R) state (with two malpeg molecules bound) and a 10 kD shift in band observed. (B) represents albumin with only one reduced thiol, and therefore one oxidised (Ox) thiol. This results in only one malpeg molecule bound and a 5 kD shift observed. (C) represents albumin with both thiols being oxidised (with no malpeg bound) and no shift is observed. In the Results text, the extent of thiol oxidation (Ox albumin) is referred to as ‘the sum of fully and partially oxidised albumin’ (B + C) and ‘fully oxidised albumin’ (C). Note that in other species, only one cysteine residue (Cys34) is susceptible to redox modifications, and therefore only one shift is observed when Cys34 is in the reduced state. Also of note, in mice, we do not know which thiol group (Cys34 or the other) is more susceptible to oxidation, and therefore which one is highly oxidised in muscle.
Antioxidants 13 00720 g001
Antioxidants 13 00720 g002

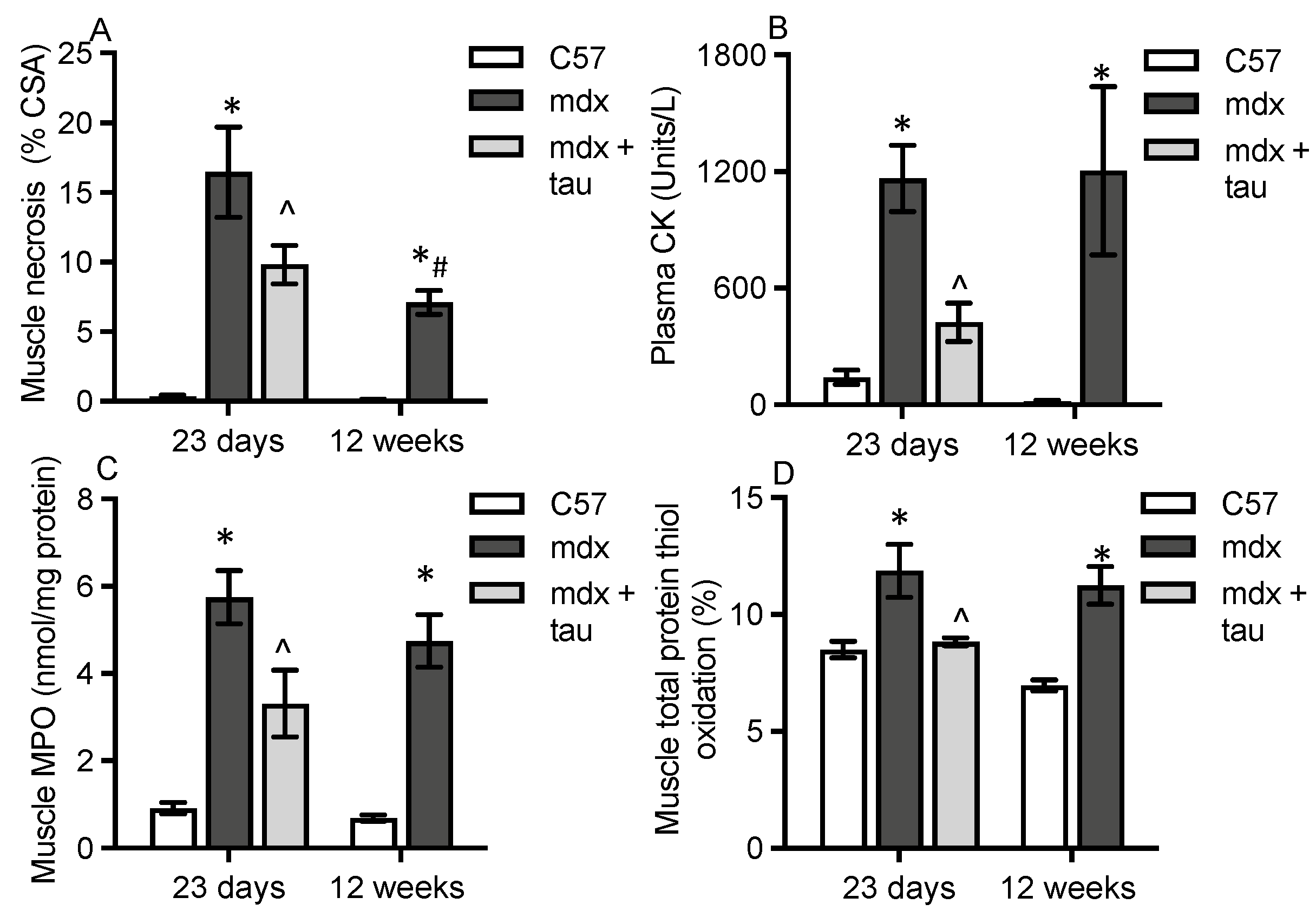

Figure 2. Measures of dystropathology. Myofibre necrosis (A), plasma CK (B), muscle inflammation, myeloperoxidase (MPO, C), and total protein thiol oxidation (D) in young 23-day-old and adult 12-week-old WT and untreated mdx mice, plus for taurine-treated young mdx mice sampled at 23 days. CSA= cross-sectional area. * = significantly (p < 0.05) different to WT of same age. ^ = significantly (p < 0.05) different to untreated mdx (effect of taurine treatment). # = significantly (p < 0.05) different to same strain at 23 days. Bars represent mean ± SEM and n = 7–8 mice per group.
Figure 2. Measures of dystropathology. Myofibre necrosis (A), plasma CK (B), muscle inflammation, myeloperoxidase (MPO, C), and total protein thiol oxidation (D) in young 23-day-old and adult 12-week-old WT and untreated mdx mice, plus for taurine-treated young mdx mice sampled at 23 days. CSA= cross-sectional area. * = significantly (p < 0.05) different to WT of same age. ^ = significantly (p < 0.05) different to untreated mdx (effect of taurine treatment). # = significantly (p < 0.05) different to same strain at 23 days. Bars represent mean ± SEM and n = 7–8 mice per group.
Antioxidants 13 00720 g002
Antioxidants 13 00720 g003

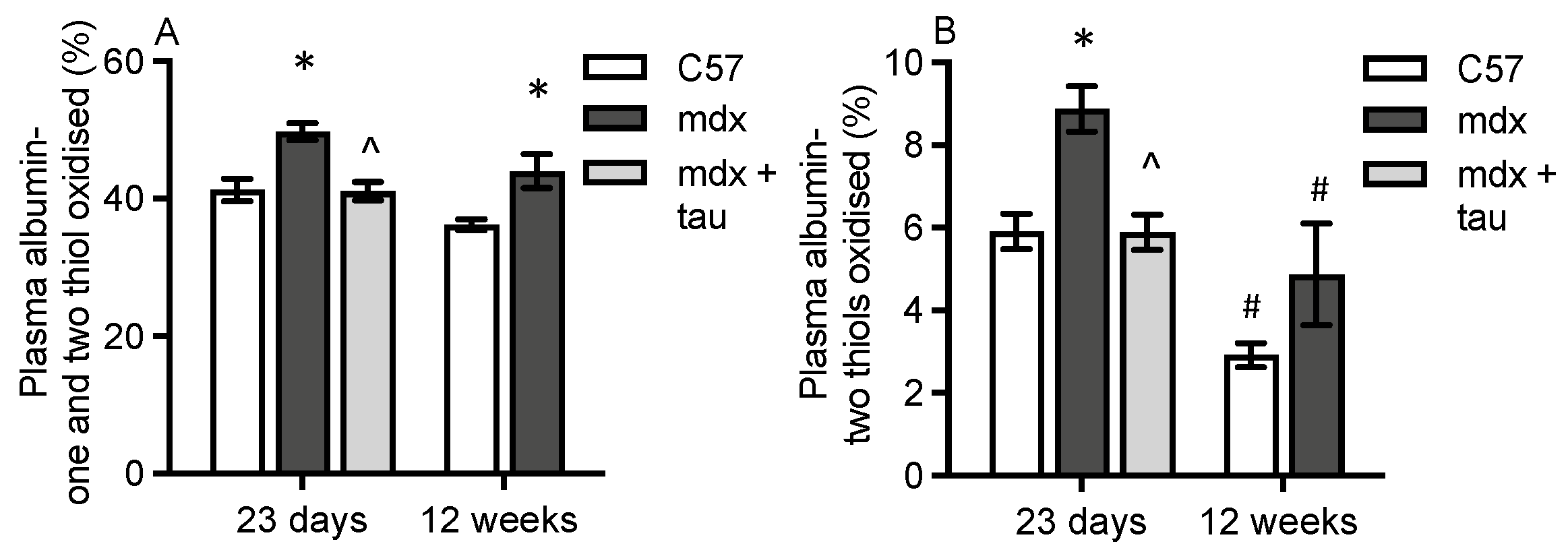

Figure 3. Levels of oxidised plasma albumin. Both the sum of fully and partially oxidised plasma albumin (A) and fully oxidised plasma albumin (B) in 23-day-old and 12-week-old WT and untreated mdx mice, and taurine-treated mdx mice aged 23 days. * = significantly (p < 0.05) different to WT of same age. ^ = significantly (p < 0.05) different to untreated mdx (effect of taurine treatment). # = significantly (p < 0.05) different to same strain at 23 days. Bars represent mean ± SEM and n = 7–8 mice per group.
Figure 3. Levels of oxidised plasma albumin. Both the sum of fully and partially oxidised plasma albumin (A) and fully oxidised plasma albumin (B) in 23-day-old and 12-week-old WT and untreated mdx mice, and taurine-treated mdx mice aged 23 days. * = significantly (p < 0.05) different to WT of same age. ^ = significantly (p < 0.05) different to untreated mdx (effect of taurine treatment). # = significantly (p < 0.05) different to same strain at 23 days. Bars represent mean ± SEM and n = 7–8 mice per group.
Antioxidants 13 00720 g003
Antioxidants 13 00720 g004
Figure 4. Levels of albumin protein in muscles. Albumin content in quadriceps muscles of 23-day-old and 12-week-old WT and untreated mdx mice and taurine-treated mdx mice aged 23 days. * = significantly (p < 0.05) different to WT of same age. ^ = significantly (p < 0.05) different to untreated mdx (effect of taurine treatment). # = significantly (p < 0.05) different to same strain at 23 days. Bars represent mean ± SEM and n = 7–8 mice per group.
Figure 4. Levels of albumin protein in muscles. Albumin content in quadriceps muscles of 23-day-old and 12-week-old WT and untreated mdx mice and taurine-treated mdx mice aged 23 days. * = significantly (p < 0.05) different to WT of same age. ^ = significantly (p < 0.05) different to untreated mdx (effect of taurine treatment). # = significantly (p < 0.05) different to same strain at 23 days. Bars represent mean ± SEM and n = 7–8 mice per group.
Antioxidants 13 00720 g004
Antioxidants 13 00720 g005
Figure 5. Location of albumin in muscles, visualised by immunostaining. Serial frozen sections of 23-day-old WT (A–D) and mdx (E–J) quadriceps muscle were stained with H&E (A,C,E,G,I,K) and with antibodies to albumin (B,D,F,H,J). Section (L) is a negative control (no primary antibody). In mdx muscle, albumin staining is in the areas of immune cell recruitment (arrow), and within necrotic myofibres, including hypercontracted (asterisk), degenerated (hash), and newly formed (dollar). Images were taken at 10× magnification and scalebar line = 200 µm.
Figure 5. Location of albumin in muscles, visualised by immunostaining. Serial frozen sections of 23-day-old WT (A–D) and mdx (E–J) quadriceps muscle were stained with H&E (A,C,E,G,I,K) and with antibodies to albumin (B,D,F,H,J). Section (L) is a negative control (no primary antibody). In mdx muscle, albumin staining is in the areas of immune cell recruitment (arrow), and within necrotic myofibres, including hypercontracted (asterisk), degenerated (hash), and newly formed (dollar). Images were taken at 10× magnification and scalebar line = 200 µm.
Antioxidants 13 00720 g005
Antioxidants 13 00720 g006

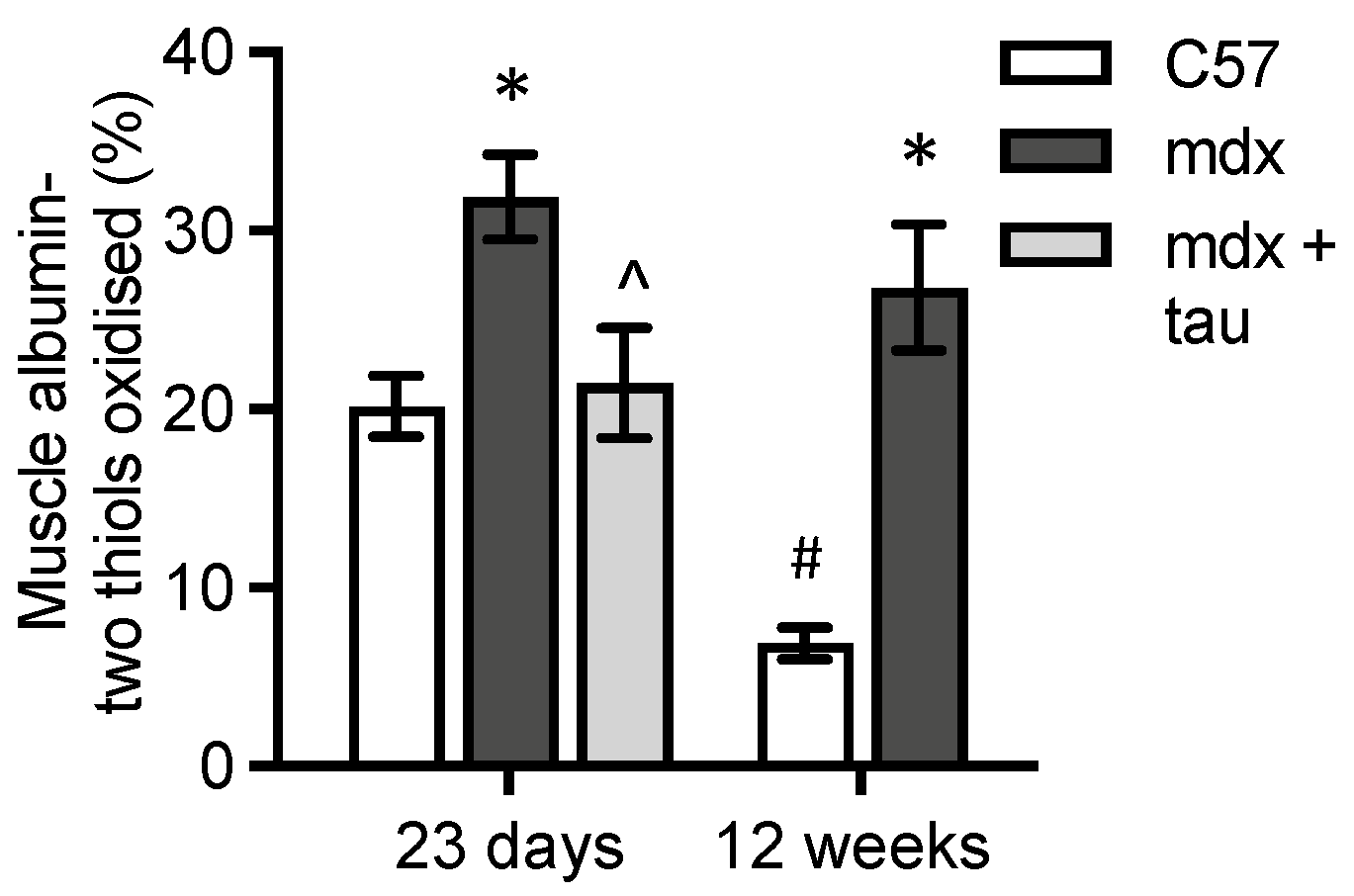

Figure 6. Fully oxidised albumin in quadriceps muscle. Albumin in 23-day-old and 12-week-old WT and untreated mdx mice and taurine-treated mdx mice aged 23 days. * = significantly (p < 0.05) different to WT of same age. ^ = significantly (p < 0.05) different to untreated mdx (effect of taurine treatment). # = significantly (p < 0.05) different to same strain at 23 days. Bars represent mean ± SEM and n = 7–8 mice per group.
Figure 6. Fully oxidised albumin in quadriceps muscle. Albumin in 23-day-old and 12-week-old WT and untreated mdx mice and taurine-treated mdx mice aged 23 days. * = significantly (p < 0.05) different to WT of same age. ^ = significantly (p < 0.05) different to untreated mdx (effect of taurine treatment). # = significantly (p < 0.05) different to same strain at 23 days. Bars represent mean ± SEM and n = 7–8 mice per group.
Antioxidants 13 00720 g006
Antioxidants 13 00720 g007
Figure 7. Plasma albumin thiol oxidation and measures of dystropathology in serial samples of treadmill-exercised mdx mice. Graphs show data from unexercised WT mice, and mdx mice pre-exercise and with sampling at 1 h and 24 h after a single 30 min treadmill exercise for plasma CK (A), grip strength (B), plasma reversibly oxidised albumin (C), plasma irreversibly oxidised albumin (D), and the combination of reversibly and irreversibly oxidised albumin (E). * = significantly (p < 0.05) different to WT of same age. ^ = significantly (p < 0.05) different to pre-exercised mdx values. # = significantly (p < 0.05) different to 1 h post-exercise mdx values. Bars represent mean ± SEM and n = 6–8 mice per group.
Figure 7. Plasma albumin thiol oxidation and measures of dystropathology in serial samples of treadmill-exercised mdx mice. Graphs show data from unexercised WT mice, and mdx mice pre-exercise and with sampling at 1 h and 24 h after a single 30 min treadmill exercise for plasma CK (A), grip strength (B), plasma reversibly oxidised albumin (C), plasma irreversibly oxidised albumin (D), and the combination of reversibly and irreversibly oxidised albumin (E). * = significantly (p < 0.05) different to WT of same age. ^ = significantly (p < 0.05) different to pre-exercised mdx values. # = significantly (p < 0.05) different to 1 h post-exercise mdx values. Bars represent mean ± SEM and n = 6–8 mice per group.
Antioxidants 13 00720 g007
Table 1. Correlation between plasma and muscle for fully oxidised albumin (see definition in Figure 1) and measures of dystropathology. Data shown for 23-day-old and 12-week-old mdx and WT control mice. N = 37. r = Pearson correlation coefficient. * represents significant correlation of p < 0.05.
Table 1. Correlation between plasma and muscle for fully oxidised albumin (see definition in Figure 1) and measures of dystropathology. Data shown for 23-day-old and 12-week-old mdx and WT control mice. N = 37. r = Pearson correlation coefficient. * represents significant correlation of p < 0.05.
Indices 1Indices 2rp
Oxidised plasma albuminOxidised muscle albumin0.8<0.0001 *
Oxidised plasma albuminMuscle albumin 0.5<0.02 *
Oxidised plasma albuminTotal muscle protein thiol oxidation 0.6<0.0003 *
Oxidised plasma albuminMuscle necrosis0.6<0.0003 *
Oxidised plasma albuminMuscle inflammation0.6<0.0003 *
Oxidised plasma albuminPlasma Ck 0.7<0.0001 *
Oxidised muscle albuminMuscle albumin 0.6<0.001 *
Oxidised muscle albuminTotal muscle protein thiol oxidation 0.6<0.003 *
Oxidised muscle albuminMuscle necrosis0.6<0.006 *
Oxidised muscle albuminMuscle inflammation0.6<0.0001 *
Oxidised muscle albuminPlasma Ck 0.7<0.0001 *
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Terrill, J.R.; Bautista, A.P.R.; Tsioutsias, I.; Grounds, M.D.; Arthur, P.G. Oxidised Albumin Levels in Plasma and Skeletal Muscle as Biomarkers of Disease Progression and Treatment Efficacy in Dystrophic mdx Mice. Antioxidants 2024, 13, 720. https://doi.org/10.3390/antiox13060720

AMA Style

Terrill JR, Bautista APR, Tsioutsias I, Grounds MD, Arthur PG. Oxidised Albumin Levels in Plasma and Skeletal Muscle as Biomarkers of Disease Progression and Treatment Efficacy in Dystrophic mdx Mice. Antioxidants. 2024; 13(6):720. https://doi.org/10.3390/antiox13060720

Chicago/Turabian Style

Terrill, Jessica R., Angelo Patrick R. Bautista, Irene Tsioutsias, Miranda D. Grounds, and Peter G. Arthur. 2024. "Oxidised Albumin Levels in Plasma and Skeletal Muscle as Biomarkers of Disease Progression and Treatment Efficacy in Dystrophic mdx Mice" Antioxidants 13, no. 6: 720. https://doi.org/10.3390/antiox13060720

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
