Phytochemical Composition and Toxicological Screening of Anise Myrtle and Lemon Myrtle Using Zebrafish Larvae

by
Paolin Rocio Cáceres-Vélez
1,*,
Akhtar Ali
2,
Alexandre Fournier-Level
1,
Frank R. Dunshea
2,3 and
Patricia Regina Jusuf
1,*
1
School of Biosciences, The University of Melbourne, Parkville, VIC 3010, Australia
2
School of Agriculture, Food and Ecosystem Sciences, The University of Melbourne, Parkville, VIC 3010, Australia
3
Faculty of Biological Sciences, The University of Leeds, Leeds LS2 9JT, UK
*
Authors to whom correspondence should be addressed.
Antioxidants 2024, 13(8), 977; https://doi.org/10.3390/antiox13080977
Submission received: 29 June 2024 / Revised: 5 August 2024 / Accepted: 6 August 2024 / Published: 12 August 2024
(This article belongs to the Special Issue Natural Products: Biological, Antioxidant Properties and Health Effects—3rd Edition)
Browse Figures
Versions Notes

Abstract

:
Plants are an immense source of drugs, and 50% of modern pharmacopeia has a plant origin. With increasing life expectancy in humans, many age-related degenerative diseases converge on oxidative cellular stress pathways. This provides an opportunity to develop broad treatments by targeting the cause of common pathologic cell degeneration. Toxicological effects can be readily assessed in a live animal model system to establish potential fauna for clinical use. Here, we characterized and evaluated the antioxidant potential and toxicological effects of anise myrtle (Syzygium anisatum) and lemon myrtle (Backhousia citriodora) leaves. Using zebrafish larvae, a model for high-throughput pre-clinical in vivo toxicology screening, we identified safe levels of extract exposures for development of future therapeutics. The antioxidant capacity and toxicity were very similar in these two myrtles. The LC50-96h for anise myrtle was 284 mg/L, and for lemon myrtle, it was 270 mg/L. These measurements are comparable to ongoing studies we are performing using the same criteria in zebrafish, which allow for robust testing and prioritization of natural fauna for drug development.

1. Introduction

As human life expectancy increases, age-related diseases driven by cellular oxidative stress are increasing at alarming rates [1]. Despite an abundance of counteracting antioxidants, the lack of effective therapies highlights knowledge gaps limiting the progress of clinical translation. Limitations include the lack of standardized platforms to compare the effectiveness and safety of different antioxidant classes in vertebrates. Additionally, once antioxidants have been identified, drug delivery methods still need to be developed to optimise formation, bio distribution and systemic bioavailability. Botanically derived bioactive antioxidants can counteract oxidative stress-induced cellular damage [2,3]. As antioxidants come in various subclasses, direct identification and efficacy assessment of novel compounds using a high throughput in vivo testing platform is critical for streamlining the testing of promising drugs. Here, we present the first study directly analyzing bioactivity in conjunction with a pre-clinical live vertebrate toxicology screening method for each sample. This allows for direct cross-correlation using the same sample, as extraction methods and storage can significantly change composition and thus toxicity.
Australia’s megadiversity offers a vast number of plants with distinct mixtures of antioxidant compounds [4,5,6], which can be potentially used to develop treatments for oxidative stress-related diseases with enhanced safety characteristics and competitive performance [7,8,9]. Our study focused on two native Australian plants, anise myrtle (Syzygium anisatum) and lemon myrtle (Backhousia citriodora). Anise and lemon myrtle belong to the Myrtaceae family, which includes eucalypt trees [10]. Anise myrtle, or ringwood, is characterised by its undulate leaves that emit a characteristic aniseed fragrance. It features creamy white flowers similar to those of the eucalyptus and tiny, dry fruiting bodies resembling capsules. Anise myrtle is a tall tree that may grow up to 50 m in height and is mostly found in Bellinger and Nambucca, two small valleys in northeastern New South Wales [11].
Native Australians have used anise and lemon myrtle both for cooking and in healing [12]. Both plants are rich in antioxidants [13,14], though the yield and retention of their phytochemicals depend critically on the extraction method, as described by Saifullah and coworkers in 2023 [15]. As flavourings, their leaves have been used in and on various culinary products such as shortbread, milk-based dishes, pasta, macadamia nuts, and vegetable oils [12,16]. Both myrtles have also been used in fragrances, personal care goods, and as flavour enhancers in European cuisine and phytotherapy [9]. The leaves are frequently used in the form of dehydrated flakes or as a concentrated flavour extract that is enclosed in capsules to prolong its shelf life. Additionally, the functional properties of lemon and anise myrtle have been attributed to their essential oils [10,11]. Lemon myrtle extracts possess anti-inflammatory benefits [17]. Insect repellents and antiviral treatments, such as for Molluscum contagiosum, also use them [18]. Thus, they have recently sparked interest as effective anti-fungal chemicals and food preservatives [12,19,20].
Considering the bioactive potential of these plants, performing a toxicology screening for drug discovery is necessary. Thus, toxicological characterization of anise myrtle and lemon myrtle must be first completed to identify safe concentrations and minimize potential adverse effects for subsequent efficacy testing [21]. Importantly, sample-to-sample variation due to extraction methods means that direct correlation in the same sample is critical to understanding compounds’ benefit–welfare ratio, which might be considered for future translational use. To address this, we have used a rapid, non-invasive, in vivo screening system using zebrafish embryos as a preclinical model [22,23], which represents an essential bridge between in vitro assays and mammalian studies [24,25]. Zebrafish possess features particularly suitable for screening of therapeutic compounds [26,27,28]. Zebrafish embryos are widely used to undertake unbiased screening of compounds by directly correlating toxicity and efficacy and identifying the most promising candidate molecules [26,29,30]. Vertebrate organisms are powerful models and useful screening platforms for studying human disease due to their high genetic, anatomical, and neural conservation with humans and ease of manipulation [31,32]. This work undertakes a toxicological screening of native plant extracts, namely anise and lemon myrtles, to determine safe concentrations of novel therapeutic compounds for further clinical applications. The outcomes of our previous studies [26,27] form the basis for an understanding of how many botanical extracts that are deemed beneficial might represent synergistic mixtures of antioxidants to be considered for treatment development.

2. Materials and Methods

2.1. Material and Chemicals

All chemicals were at least analytical, HPLC, and LC-MS-grade and purchased from Sigma Aldrich. Gallic acid, Folin–Ciocalteu’s phenol reagent, sodium carbonate, DPPH, ABTS salt, LC-MS-grade formic acid, Trolox, potassium ferricyanide, trichloroacetic acid, FeCl3, NaCl, KCl, CaCl2, and MgSO4 were purchased from Sigma Aldrich (Castle Hill, NSW, Australia). HPLC vials and syringe filters were purchased from Agilent Technologies. Ethanol, methanol, and 96-well plates were purchased from Thermo Fisher Scientific (Scoresby, VIC, Australia).

2.2. Extraction of Phytochemicals

The extracts were prepared as described in Cáceres-Vélez et al. [26]. Briefly, one gram of fresh leaves of each anise myrtle (Syzygium anisatum) and lemon myrtle (Backhousia citriodora), collected from Peppermint Ridge Farm (Tyrnong North, VIC, Australia), was blended independently in 10 mL of 70% analytical grade ethanol and incubated at 4 °C at 120 rpm for 24 h. Then, the extracts were filtered, and the solvent was eluted by lyophilization.

2.3. Measurement of Total Phenols and Antioxidant Potential

2.3.1. Total Phenolic Content (TPC)

The extracts’ total phenolic content was analysed using a modified version of the spectrophotometric approach reported by Kiani et al. [33]. In total, 25 µL of extracts, 25 µL of Folin–Ciocalteu reagent solution (diluted 1:3 with water), and 200 µL of water were combined and placed in a 96-well plate from Corning Inc., located in Midland, NC, USA. The mixture was then incubated at 25 °C for 5 min. After adding 25 µL of 10% (w/w) Na2CO3, a further incubation period of 1 h at 25 °C was required. Subsequently, the spectrophotometer plate reader was used to detect the absorbance at a wavelength of 765 nm. A calibration curve was created using a gallic acid standard with concentrations ranging from 0 to 200 µg/mL to measure the total phenolic content. The findings are reported in milligrams of gallic acid equivalents per gram.

2.3.2. 2,2-Diphenyl-1-picrylhydrazyl (DPPH) Activity

DPPH activity was measured using the method described by Ebrahimi et al. [34] with some modifications; 25 μL of the sample extract was combined with 275 μL of 100 micromolar DPPH in methanol to determine the radical scavenging activity. The mixture was then put into a 96-well plate and incubated at 25 °C for 30 min. The DPPH was measured by comparing with the Trolox (0–100 μg/mL) at 517 nm.

2.3.3. 2,2′-Azinobis-(3-ethylbenzothiazoline-6-sulfonate) (ABTS) Activity

ABTS activity was assessed by conducting an ABTS decolorization experiment, per Ali et al. [35]. A mixture was prepared to acquire the fresh ABTS+ dye by combining 6.25 mL of a 7 mmol/L ABTS solution with 110 µL of a 140 mmol/L potassium persulfate solution and incubated for 16 h in dark. Moreover, high-quality ethanol was used to dilute the produced ABTS+ dye to achieve an absorbance of 0.70 at 734 nm. Then 290 microliters of ABTS radical cation reagent was combined with 10 microliters of the sample solution. The mixture was allowed to incubate for 6 min in a dark area at room temperature. Subsequently, the absorbance was measured at a wavelength of 734 nm, and a standard curve was constructed using a range of concentrations of Trolox (0–200 μg/mL) in methanol.

2.3.4. Reducing Power Activity (RPA)

The RPA was determined by adding 10 μL of extract, 25 μL of 0.2 M phosphate buffer with a pH of 6.6, and 25 μL of 1% K3[Fe(CN)6] following the method of Ebrahimi et al. [34] with slight modifications. The mixture was then incubated at 25 °C for 20 min. Next, the reaction was halted by adding 25 μL of a 10% trichloroacetic acid solution. Then, 85 μL of water and 10 μL of FeCl3 were added. The mixture was then incubated for an additional 15 min at 25 °C. Subsequently, absorbance was measured at a specific wavelength of 750 nm. Trolox (0–600 μg/mL) was used as an external standard.

2.4. High-Performance Liquid Chromatography Mass Spectrometry (HPLC-MS) Analysis

Phytochemicals were identified following the protocol described by Ali et al. [36] using an Agilent 6520 Accurate-Mass QTOF machine. Phytochemicals were identified using MassHunter Workstation Software (version B.06.00). The trials were conducted three times. The quantification of individual chemicals was accomplished by employing the methodology described in Cáceres-Vélez et al. [26]. The detection wavelengths were configured at 280 nm, 320 nm, and 370 nm. The chemicals were measured in triplicate based on the dry weight (μg/g). Our previous study reported the standard curves of individual compounds [37].

2.5. Acute Toxicity Test Using Zebrafish Embryos as In Vivo Model

A fresh stock solution of each plant extract was prepared in autoclaved E3 medium (containing 5 mM NaCl, 0.17 mM KCl, 0.33 mM CaCl2, and 0.33 mM MgSO4). The stock solution was then diluted to obtain various concentrations (0, 15, 30, 60, 120, 240, and 480 mg/L) for both anise and lemon myrtle extracts. At 3 h post-fertilization (hpf), zebrafish embryos were exposed to a static system as described in 2022 by Cáceres-Vélez et al. [26] and Ali et al. [27]. Briefly, healthy embryos were placed individually into 46-well plates (one embryo/well) containing 500 μL/well of test solution. Phenotypic and behavioral changes were recorded daily (24, 48, 72, and 96 h of exposure) for each embryo, using a stereomicroscope (LEICA M80). The endpoints examined were mortality, developmental alterations and morbidity which encompasses coagulation, deceased embryo/larvae, heart beating, lack of blood circulation in the tail, balance disorder, delays in hatching, pigmentation, and yolk sac absorption, as well as the presence of cardiac and yolk sac oedema. Additionally, malformations in the head, eyes, spine, tail, and somites were quantified. Balance disorder was classified as a behavioural modification. The experiments were performed in triplicate (n = 60 embryos per concentration) for each plant extract, in accordance with the Australian code for the care and use of animals for scientific purposes and the regulations of the Animal Welfare and Animal Ethics Committee of the University of Melbourne (Melbourne, Australia).

2.6. Statistical Analysis

The data were analyzed by one-way analysis of variance (ANOVA) followed by Dunnett’s multiple comparisons test with a significance threshold set to 5%, and the LC50 was determined by fitting a Probit model to the data in GraphPad Prism v9.3.0.

3. Results

3.1. Characterization of Australian Native Plant Extracts

3.1.1. Total Phenolic Content and Antioxidant Activities

Anise myrtle and lemon myrtle showed different phenolic and antioxidant profiles, as measured using TPC, DPPH, ABTS, and RPA assays (Table 1).
Lemon myrtle showed a higher TPC than anise myrtle, possibly due to a higher concentration of flavonoids, including catechin, epicatechin, (-)-epicatechin 3-O-gallate, procyanidin B2, and isorhamnetin in lemon myrtle. The TPC content of anise myrtle was comparable to strawberry gum (Eucalyptus olida) (36.57 mg GAE/g), but higher than Davidson plum (Davidsonia pruriens) (32.49 mg GAE/g) and lower than quandong peach (Santalum acuminatum) (42.85 mg GAE/g) [35]. The TPC content of lemon myrtle is comparable with Chinese star anise (Illicium verum) (53.89 mg GAE/g), but lower than bush mint (Mentha saureioides) (57.70 mg GAE/g), and higher than river mint (Mentha australis) (46.59 mg GAE/g) [36] and villous amomum fruit (Wurfbaina villosa) (46.02 mg GAE/g) while around 2 times higher than muntries (Kunzea pomifera). Previously, we reported the TPC of anise myrtle (55.9 mg/g) and lemon myrtle (31.4 mg/g). In another study, we measured the TPC of anise myrtle (52.49 mg/g) and lemon myrtle (28.77 mg/g) [37]. The plants’ antioxidant capacity is vital in counteracting detrimental free radicals, diminishing oxidative stress, averting chronic illnesses, and promoting general well-being and longevity. This study measured the antioxidant capacity of anise and lemon myrtles using DPPH, ABTS, and RPA. Lemon myrtle showed higher antioxidant potential than anise myrtle (Table 1) The high antioxidant activity of Australian myrtles is due to their abundant concentration of phenolic compounds, especially flavonoids. These bioactives can efficiently eliminate free radicals, enhancing their potential to avoid or decelerate the advancement of many illnesses. Previously, a lower ABTS was measured in Maria Rita myrtle leaves (135.7 ± 10.21 mM TE/g DW), Maria Antonetta (242.6 ± 10.93 mM TE/g DW), Sofia (245.03 ± 1.21 mmol TE/g DW) and Myrtus communis leaves, such as Giavanna (173.9 ± 3.7 mmol TE/g DW, than Australian myrtles [38]. While Konczak et al. [13] measured the FRAP of aniseed myrtle (2.2 mM TE/g DW) and lemon myrtle (1.2 mM TE/g DW), they also quantified the oxygen radical absorbance capacity (ORAC) of aniseed myrtle (2.6 mM TE/g) and lemon myrtle (3.4 mM TE/g), which are much lower than those in this study.

3.1.2. HPLC-MS Screening and Quantification of Phytochemicals in Myrtles

The phytochemical composition of plant extracts was characterized and identified using LC-MS/MS (Figure S1). We identified 183 metabolites (Table S1). These metabolites were validated using fragment MS/MS spectra (Table S1). We identified 12 hydroxybenzoic acids and derivatives; 21 hydroxycinnamic acids and derivatives; 6 other phenolic acids; 15 flavanols; 22 flavonols; 25 flavones; 6 chalcones and dihydrochalcones; 8 flavanones; 8 isoflavonoids; 2 extended flavonoids; 14 other flavonoids; 10 tannins; 8 coumarins and derivatives; 2 phenolic terpenes; 2 tyrosols; 4 stilbenes; 6 lignans; 9 other polyphenols; 2 limonoids; and 1 sesquiterpenoids.
The most abundant compounds in anise and lemon myrtles were quantified/semi-quantified (Table 2). Phenolic acids were the most abundant group quantified in this study. Twenty-four phenolic acids were quantified, and epicatechin was found at a higher concentration (4656.04 ± 230.92 μg/g) in anise myrtle and catechin (5903.02 ± 762.73 μg/g) in lemon myrtle compared to other metabolites. Syringic acid, caffeic acid, caftaric acid, ellagic acid arabinoside, ellagic acid glucoside, and myricetin 3-arabinoside were only identified in anise myrtle, while 3,4-O-dimethygallic acid, resveratrol, sinapic acid, catechin, and epigallocatechin were only identified in lemon myrtle. Overall, flavonoids are abundant in Australian myrtles. Higher concentrations of myricetin 3-arabinoside (1.2 mg/g), ellagic acid glucoside (0.8 mg/g), isovitexin (3.5 mg/g), ellagic acid arabinoside (2.5 mg/g), syringic acid (1.2 mg/g), quercetin (0.4 mg/g) procyanidin B2 (0.4 mg/g) were measured in anise myrtle while epicatechin (3.8 mg/g), (-)-epicatechin 3-O-gallate (1.5 mg/g), procyanidin B2 (1.3 mg/g), isovitexin (0.4 mg/g), quercetin (0.2 mg/g), and isorhamnetin (0.2 mg/g) were measured in lemon myrtle. Previously, Rupesinghe et al. [4] also identified catechin, epicatechin, procyanidin B2, epigallocatechin, quercetin, and p-coumaric acid in Australian myrtles.

3.2. Acute Toxicity Test Using Zebrafish Embryos as In Vivo Model

For all experiments, zebrafish embryos from the control group (0 mg/L) displayed normal morphology and low mortality <5% over the complete experiment. The LC50-96h was calculated considering the cumulative percentage of the following signs of mortality: egg coagulation (from 0–24 h of exposure), dead embryos (before hatching, 24–48 h of exposure), and dead larvae (after hatching, 48–96 h of exposure). For anise myrtle extract, the LC50-96h calculated was 283.5 mg/L and mortality occurred mainly during the first 24 h of exposure (Figure 1A) for all the concentrations tested. For lemon myrtle extract, the LC50-96h calculated was 270.2 mg/L and mortality occurred mainly during the first 24 h of exposure (Figure 1B) for all the concentrations tested, except for 15 mg/L in which the main mortality was observed at 48 and 96 h of exposure. For embryos exposed to 60 and 240 mg/L, substantial mortality was also observed at 96 h, as well as 72 h. Compared to anise myrtle, additional mortality with increasing exposure time was observed in the lemon myrtle toxicity tests.
Exposure to either myrtle resulted primarily in hatching delay across most of the concentrations. In anise myrtle, other alterations in the surviving larvae were very mild, while for lemon myrtle, increased alterations were observed at a concentration of 240 mg/L. The reduced observed alterations at 480 mg/L are likely due to the death of more larvae with those surviving representing those with minimal alterations.
Mortality upon anise myrtle exposure was statistically significant (p < 0.001) just for the zebrafish larvae exposed to 60 and 480 mg/L (Figure 2A), indicating no concentration-response. In contrast, Lemon myrtle’s mortality was significantly higher at the two highest concentrations (Figure 2B), consistent with a dose response.
Hatching delay was the main morphological trait observed (Figure 2). In general, for both myrtles, balance disorder and signs of morbidity such as bradycardia and loss of blood circulation in the tail were relatively scarce in the surviving larvae, with only bradycardia at 240 mg/L (p < 0.001).
In the surviving larvae exposed to anise myrtle, alterations and malformations were relatively limited (Figure 3A,B). Only spine and tail alternations showed a significant but relatively small increase in frequency at some concentrations with a high overall variability. In contrast, surviving larvae exposed to lemon myrtle showed a sudden increase in abnormalities at 240 mg/L. Zebrafish in this exposure group exhibited significant alterations (p < 0.001), with developmental delay, yolk sac absorption delay, yolk sac edema, cardiac edema, and malformations (in the spine and tail, p < 0.05).
The LC50-96h of anise myrtle (283.5 mg/L) was slightly higher than the LC50-96h of lemon myrtle (270.2 mg/L). However, lemon myrtle extract caused a higher occurrence of deleterious effects, with increased signs of mortality, morbidity, alterations, and malformations than the embryos exposed to anise myrtle.

4. Discussion

For decades, plant-derived bioactive compounds, including alkaloids, polyphenols, and terpenoids, have been recognized for their beneficial effects on health, aiding in the prevention and treatment of Alzheimer’s disease, cancers, obesity, and cardiovascular diseases. Australia is home to unique medicinal plants, among which anise and lemon myrtles are known in traditional medicine for their therapeutic benefits [12]. These plants are rich in antioxidants and exhibit numerous biological properties, including antioxidant, anti-inflammatory, and anti-microbial properties. However, while there have been studies on cell cultures [17,20,39,40], there has been limited research regarding their safety using in vivo studies [41,42]. This study pioneers identifying and analyzing the phytochemicals present in these Australian myrtles and investigates their potential health risk in the in vivo zebrafish model. It is crucial to demonstrate the safety of these natural phytochemicals before considering their use as food additives or in pharmaceuticals.
Our in vivo tests showed that despite the antioxidant activity (Table 1) and abundance of phenolic compounds such as epicatechin and catechin in anise and lemon myrtles (Table 2), respectively, significant adverse effects were caused in zebrafish embryos (Figure 1, Figure 2 and Figure 3). One study revealed that while individual exposure to the five catechins did not induce malformations in zebrafish, embryos exposed to green tea containing catechin exhibited disruptions in dorsoventral differentiation and inhibited epiboly progression [43]. In particular, the constituents present in green tea exhibited a similar effect on embryos as the green tea solution itself. Alafiatayo and colleagues [44] investigated the embryotoxic and teratogenic effects of the methanolic extract of curcuma, a rhizome plant, on zebrafish. Notably, this plant is abundant in flavonoids (catechin and epicatechin), similar to lemon and anise myrtle extracts. The results showed toxic effects and physical deformities in zebrafish larvae exposed to curcuma extract manifested at concentrations above 62.50 μg/mL, which is considerably lower than the concentration (240 mg/L) at which significant toxic effects and malformations were observed in our study involving lemon and anise myrtle extracts. Consistent with our observations, similar teratogenic effects, such as tail and spine malformations, and yolk sac edema, were observed in embryos exposed to the curcuma extract as well as the anise and lemon myrtle extracts. Soares de Araújo Pinho et al. (2014) conducted a study on Drosophila melanogaster to evaluate the toxicity of Duguetia furfuracea a medicinal plant in Brazil [45]. Despite the antioxidant content present in the hydroalcoholic leaf extracts of D. furfuracea, the results revealed adverse effects in the flies, which may be attributed to either the individual or synergistic action of the phytochemicals found in this plant throughout exposure. Other in vivo toxicological studies carried out in zebrafish model include quandong peach (LC50 > 480mg/L), Kakadu plum (LC50 > 480 mg/L), Davidson plum (LC50 376 mg/L) and muntries (LC50 169 mg/L) [27], pomegranate (LC50 196 mg/L) [46], safflower (LC50 10–60 mg/L at different ages) [47], Euphorbia kansui (LC50 345.6 mg/L) [48], Chinese motherwort (Leonurus japonicus) (LC50 10 mg/L) [49], Andrographis paniculata (LC50 530 mg/L), Curcuma xanthorrhiza (LC50 700 mg/L), Cinnamon zylanicum (LC50 50 mg/L), Eugenia polyantha) (LC50 60 mg/L) and Orthosiphon stanineus (LC50 169 mg/L) [50]. While most of the LC50 are within the same order of magnitude (most between 60–700 mg/L), differences in extraction methods do not allow direct comparison. The complex biochemical profile of such plants makes it difficult to ascribe the toxicology effects to specific metabolites. The diversity of phytochemicals within species depends on various factors, including the environment, genotype, plant tissue and age, and post-harvest processing and storage. Moreover, extraction conditions and methods, including the temperature, time, type and concentration of solvent, and extraction type, also affect the diversity of phytochemicals [15], which is why toxicology must be correlated to a specific extraction sample.
As more studies are performed on the zebrafish, representing the highest-throughput vertebrate in vivo toxicology model, we can perform standardized analysis for quantitative comparison. Ultimately, correlating toxicity with specific metabolites will allow for improved targeted approaches to selecting potential botanicals. A detailed analysis of the individual components present in these medicinal plants should be undertaken to ascertain their safety profile concerning embryonic development and potential adverse effects on embryos.
The findings of our study thus align with previous research on other medicinal plants, suggesting that the adverse effects observed on zebrafish embryonic development upon exposure to lemon and anise myrtle extracts could be primarily attributed to the cumulative impact of the multiple components present in the extract solutions tested. These findings underscore the significance of conducting thorough toxicological evaluations involving understudied plant products for drug discovery. Furthermore, the results collectively demonstrate that plants with therapeutic potential could also pose potential threats when consumed at higher doses, particularly to embryonic development. Notably, this study represents the first comprehensive assessment of the in vivo toxicity of hydroethanolic extracts derived from anise and lemon myrtle plants.
Phytochemicals identified in our (Table S1) and previous myrtle extracts [15] are found throughout plants and exhibit diverse structures, and molecular weights. Phenolics are recognized for their physiological effects, including antioxidant, anticancer, and antibacterial capabilities, attributed to the presence of phenolic hydroxyl groups. Phytochemical substances have shown efficacy in preventing chronic cardiovascular disease. Specifically, flavonoid compounds that contain hydroxyl groups are responsible for the radical scavenging actions observed in plants. Additional investigation is required to examine the molecular-level antioxidant activity mechanisms of potent compounds, including catechin, epicatechin, ellagic acid arabinoside, isovitexin, procyanidin B2, and myricetin 3-arabinoside extracted from these myrtles.
The phytochemicals in our myrtle leave extracts have been described as possessing potent antioxidant, anti-inflammatory, antimicrobial, antiviral, antifungal and prebiotic capacity, and particularly high levels of phenolics [14,15,40,51,52,53]. Of note, many previous studies have demonstrated beneficial potential from analysis of specifically the essential oils derived from the leaves of the two myrtles, which contain distinct bioactives. Essential oils from both myrtles contain high levels of neral (α-citral) and geranial (β-citral) with high antibacterial activity [10,15,20,40,53,54,55,56,57,58]. In vitro testing of lemon myrtle demonstrated effective anti-inflammatory properties in murine macrophage and human cells [14,15,17,51]. However, despite the great potential of lemon myrtle essential oil as an antimicrobial and antioxidant agent, it has been reported as toxic for mammalian skin cells [20,59], human cell lines (HepG2, F1-73), and primary cell cultures of human skin fibroblasts [20]. Thus, the biological effects of depend closely on the concentration and composition of the extract [12] and thus cannot be correlated across different samples.
The results and effects observed in our current study support the idea that compounds from anise myrtle may be valuable for future pharmaceutical applications. However, their adverse effects need to be studied further in other in vivo models. Anise and lemon myrtle hydroethanolic extracts exhibited similar lethal concentrations on zebrafish embryos (LC50-anise: 283.5 mg/L, LC50-lemon: 270.2 mg/L). Despite being plants from the same family (Myrtaceae), anise myrtle and lemon myrtle extracts displayed different effects on traits such as bradycardia, developmental delay, yolk sac absorption delay, yolk sac edema, and malformations in the spine and tail. For instance, lemon myrtle displayed a higher percentage of embryos with bradycardia, alterations, and malformations than anise myrtle (Figure 2 and Figure 3). The different effects observed between these plant extracts could be explained by the independent and synergistic effects of specific compounds from each extract, as reported in Table S1. The potent antioxidant properties and rich presence of bioactive compounds in anise and lemon myrtle have motivated further investigations to gain a deeper understanding of the mechanisms underlying the action of these extracts. This knowledge could pave the way for their utilization as novel therapeutic interventions for a wide spectrum of diseases associated with oxidative stress.

5. Conclusions

Wild plants, including the incredible diversity of native Australian plants, are still understudied and underutilized for therapeutic approaches. This is despite the critical role of native plants in drug discovery and the unique Australian flora. We identified various bioactive metabolites in both myrtle plant extracts. The differences in the combination and abundance of antioxidant compounds will potentially have distinct benefits against different pathologies. Thus, continued systematic comparison of antioxidant activity and toxicity will help prioritize target plants and compound combinations for further development as drugs.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/antiox13080977/s1. Supplementary data include the chromatograms of the myrtles and a Table showing the identification and characterization of phytochemicals from the myrtles.

Author Contributions

Conceptualization, P.R.C.-V., A.F.-L. and P.R.J.; methodology, P.R.C.-V. and A.A.; validation, P.R.C.-V. and A.A.; formal analysis, P.R.C.-V. and A.A.; investigation, P.R.C.-V. and A.A.; resources, P.R.J., A.F.-L. and F.R.D.; data curation, P.R.C.-V., P.R.J. and A.A.; writing—original draft preparation, P.R.C.-V., P.R.J. and A.A.; writing—review and editing, A.F.-L. and F.R.D.; visualization, P.R.C.-V., P.R.J. and A.A.; supervision, P.R.J. and F.R.D.; project administration, P.R.C.-V. and P.R.J.; funding acquisition, P.R.C.-V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by a J. N. Peters Fellowship and a K. M. Brutton Bequest from the Faculty of Science, University of Melbourne, Australia.

Institutional Review Board Statement

All in vivo experiments were conducted in compliance with the Australian code for the care and use of animals for scientific purposes and the regulation of the Animal Welfare and Animal Ethics Committee of the University of Melbourne (Melbourne, Australia).

Informed Consent Statement

Not applicable.

Data Availability Statement

All data provided in the manuscript.

Acknowledgments

We gratefully acknowledge Julie Weatherhead and Anthony Hooper (owners of Peppermint Ridge Farm) for collaborating with us by providing the plant material and suggesting the use of lemon and anise myrtle for this research.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Golpich, M.; Amini, E.; Mohamed, Z.; Azman Ali, R.; Mohamed Ibrahim, N.; Ahmadiani, A. Mitochondrial dysfunction and biogenesis in neurodegenerative diseases: Pathogenesis and treatment. CNS Neurosci. Ther. 2017, 23, 5–22. [Google Scholar] [CrossRef]
  2. Cui, X.; Xiang, J.; Zhu, W.; Wei, A.; Le, Q.; Xu, J.; Zhou, X. Vitamin A palmitate and carbomer gel protects the conjunctiva of patients with long-term prostaglandin analogs application. J. Glaucoma 2016, 25, 487–492. [Google Scholar] [CrossRef]
  3. Shim, S.H.; Kim, J.M.; Choi, C.Y.; Kim, C.Y.; Park, K.H. Ginkgo biloba extract and bilberry anthocyanins improve visual function in patients with normal tension glaucoma. J. Med. Food 2012, 15, 818–823. [Google Scholar] [CrossRef] [PubMed]
  4. Rupesinghe, E.J.; Jones, A.; Shalliker, R.A.; Pravadali-Cekic, S. A rapid screening analysis of antioxidant compounds in native Australian food plants using multiplexed detection with active flow technology columns. Molecules 2016, 21, 118. [Google Scholar] [CrossRef]
  5. Cock, I.E. The phytochemistry and chemotherapeutic potential of Tasmannia lanceolata (Tasmanian pepper): A review. Pharmacogn. Commun. 2013, 3, 13–25. [Google Scholar]
  6. Cock, I.E. Medicinal and aromatic plants–Australia. In Ethnopharmacology, Encyclopedia of Life Support Systems (EOLSS); EOLSS Publishers: Paris, France, 2011; Volume 1, pp. 1–173. [Google Scholar]
  7. Konczak, I.; Zabaras, D.; Dunstan, M.; Aguas, P.; Roulfe, P.; Pavan, A. Health Benefits of Australian Native Foods: An Evaluation of Health-Enhancing Compounds; Rural Industries Research and Development Corporation: Barton, ACT, Australia, 2009. [Google Scholar]
  8. Tan, A.C.; Konczak, I.; Ramzan, I.; Sze, D.M.Y. Antioxidant and cytoprotective activities of native Australian fruit polyphenols. Food Res. Int. 2011, 44, 2034–2040. [Google Scholar] [CrossRef]
  9. Tan, A.C.; Konczak, I.; Ramzan, I.; Sze, D.M.Y. Native Australian fruit polyphenols inhibit cell viability and induce apoptosis in human cancer cell lines. Nutr. Cancer 2011, 63, 444–455. [Google Scholar] [CrossRef] [PubMed]
  10. Nirmal, N.P.; Mereddy, R.; Li, L.; Sultanbawa, Y. Formulation, characterisation and antibacterial activity of Lemon myrtle and anise myrtle essential oil in water nanoemulsion. Food Chem. 2018, 254, 1–7. [Google Scholar] [CrossRef]
  11. Sultanbawa, Y. Chapter 23—Anise myrtle (Syzygium anisatum) oils. In Essential Oils in Food Preservation, Flavor and Safety; Preedy, V.R., Ed.; Academic Press: San Diego, CA, USA, 2016; pp. 215–219. [Google Scholar]
  12. Horn, T.; Barth, A.; Rühle, M.; Häser, A.; Jürges, G.; Nick, P. Molecular diagnostics of Lemon myrtle (Backhousia citriodora vs. Leptospermum citratum). Eur. Food Res. Technol. 2012, 234, 853–861. [Google Scholar] [CrossRef]
  13. Konczak, I.; Zabaras, D.; Dunstan, M.; Aguas, P. Antioxidant capacity and phenolic compounds in commercially grown native Australian herbs and spices. Food Chem. 2010, 122, 260–266. [Google Scholar] [CrossRef]
  14. Guo, Y.; Sakulnarmrat, K.; Konczak, I. Anti-inflammatory potential of native Australian herbs polyphenols. Toxicol. Rep. 2014, 1, 385–390. [Google Scholar] [CrossRef]
  15. Saifullah, M.D.; McCullum, R.; Vuong, Q.V. Phytochemicals and bioactivities of Australian native Lemon myrtle (Backhousia citriodora) and lemon-scented tea tree (Leptospermum petersonii): A comprehensive review. Food Rev. Int. 2022, 39, 6934–6954. [Google Scholar] [CrossRef]
  16. Weatherhead, J. Australian Native Food Harvest—A Guide for the Passionate Cook and Gardener, 1st ed.; Peppermint Ridge Farm: Tynong North, Australia, 2016. [Google Scholar]
  17. Shim, S.-Y.; Kim, J.-H.; Kho, K.-H.; Lee, M. Anti-inflammatory and anti-oxidative activities of Lemon myrtle (Backhousia citriodora) leaf extract. Toxicol. Rep. 2020, 7, 277–281. [Google Scholar] [CrossRef] [PubMed]
  18. Burke, B.E.; Baillie, J.E.; Olson, R.D. Essential oil of Australian Lemon myrtle (Backhousia citriodora) in the treatment of molluscum contagiosum in children. Biomed. Pharmacother. 2004, 58, 245–247. [Google Scholar] [CrossRef]
  19. Rahman, M.M.; Wills, R.B.H.; Bowyer, M.C.; Vuong, V.Q.; Golding, J.B.; Kirkman, T.; Pristijono, P. Efficacy of Lemon myrtle essential oil as a bio-fungicide in inhibiting citrus green mould. Plants 2023, 12, 3742. [Google Scholar] [CrossRef]
  20. Hayes, A.J.; Markovic, B. Toxicity of Australian essential oil Backhousia citriodora (Lemon myrtle). Part 1. Antimicrobial activity and in vitro cytotoxicity. Food Chem. Toxicol. 2002, 40, 535–543. [Google Scholar] [CrossRef]
  21. Parasuraman, S. Toxicological screening. J. Pharmacol. Pharmacother. 2011, 2, 74–79. [Google Scholar] [PubMed]
  22. Hill, A.J.; Teraoka, H.; Heideman, W.; Peterson, R.E. Zebrafish as a model vertebrate for investigating chemical toxicity. Toxicol. Sci. 2005, 86, 6–19. [Google Scholar] [CrossRef]
  23. OECD. Test No. 236: Fish Embryo Acute Toxicity (FET) Test, OECD Guidelines for the Testing of OECD Publishing; OECD: Paris, France, 2013; Volume 2. [Google Scholar]
  24. Cassar, S.; Adatto, I.; Freeman, J.L.; Gamse, J.T.; Iturria, I.; Lawrence, C.; Muriana, A.; Peterson, R.T.; Van Cruchten, S.; Zon, L.I. Use of Zebrafish in drug discovery toxicology. Chem. Res. Toxicol. 2020, 33, 95–118. [Google Scholar] [CrossRef]
  25. Pyati, U.J.; Look, A.T.; Hammerschmidt, M. Zebrafish as a powerful vertebrate model system for in vivo studies of cell death. Semin. Cancer Biol. 2007, 17, 154–165. [Google Scholar] [CrossRef]
  26. Cáceres-Vélez, P.R.; Ali, A.; Fournier-Level, A.; Dunshea, F.R.; Jusuf, P.R. Phytochemical and safety evaluations of Finger lime, Mountain pepper, and Tamarind in Zebrafish Embryos. Antioxidants 2022, 11, 1280. [Google Scholar] [CrossRef] [PubMed]
  27. Ali, A.; Kiloni, S.M.; Cáceres-Vélez, P.R.; Jusuf, P.R.; Cottrell, J.J.; Dunshea, F.R. Phytochemicals, antioxidant activities, and toxicological screening of native Australian fruits using Zebrafish embryonic model. Foods 2022, 11, 4038. [Google Scholar] [CrossRef]
  28. Link, B.A.; Collery, R.F. Zebrafish models of retinal disease. Annu. Rev. Vis. Sci. 2015, 1, 125–153. [Google Scholar] [CrossRef]
  29. Ghorbani, M.; Soto Puelles, J.; Forsyth, M.; Zhu, H.; Crawford, S.; Chen, F.; Cáceres-Vélez, P.R.; Jusuf, P.R.; Somers, A. Engineering advanced environmentally friendly corrosion inhibitors, their mechanisms, and biological effects in live Zebrafish embryos. ACS Sustain. Chem. Eng. 2022, 10, 2960–2970. [Google Scholar] [CrossRef]
  30. Kithcart, A.; MacRae, C.A. Using Zebrafish for high-throughput screening of novel cardiovascular drugs. JACC Basic Transl. Sci. 2017, 2, 1–12. [Google Scholar] [CrossRef]
  31. McMahon, C.; Semina, E.V.; Link, B.A. Using Zebrafish to study the complex genetics of glaucoma. Comp. Biochem. Physiol. Part C Toxicol. Pharmacol. 2004, 138, 343–350. [Google Scholar] [CrossRef]
  32. Evangelho, K.; Mastronardi, C.A.; de-la-Torre, A. Experimental models of Glaucoma: A powerful translational tool for the future development of new therapies for glaucoma in humans—A review of the literature. Medicina 2019, 55, 280. [Google Scholar] [CrossRef]
  33. Kiani, H.S.; Ali, B.; Al-Sadoon, M.K.; Al-Otaibi, H.S.; Ali, A. LC-MS/MS and GC-MS identification of metabolites from the selected herbs and spices, their antioxidant, anti-diabetic potential, and chemometric analysis. Processes 2023, 11, 2721. [Google Scholar] [CrossRef]
  34. Ebrahimi, F.; Subbiah, V.; Agar, O.T.; Bringloe, T.T.; Legione, A.R.; Suleria, H.A.R. LC-ESI-QTOF-MS/MS characterization of phenolic compounds from Victorian shorebound red seaweeds and their antioxidant capacity. Algal Res. 2024, 82, 103609. [Google Scholar] [CrossRef]
  35. Ali, A.; Cottrell, J.J.; Dunshea, F.R. Identification and characterization of anthocyanins and non-anthocyanin phenolics from Australian native fruits and their antioxidant, antidiabetic, and anti-Alzheimer potential. Food Res. Int. 2022, 162, 111951. [Google Scholar] [CrossRef]
  36. Ali, A.; Cottrell, J.J.; Dunshea, F.R. Characterization, antioxidant potential, and pharmacokinetics properties of phenolic compounds from native Australian herbs and fruits. Plants 2023, 12, 993. [Google Scholar] [CrossRef] [PubMed]
  37. Ali, A.; Moeed, A.; Cottrell, J.J.; Dunshea, F.R. LC-ESI-QTOF-MS/MS identification and characterization of phenolic compounds from leaves of Australian myrtles and their antioxidant activities. Molecules 2024, 29, 2259. [Google Scholar] [CrossRef] [PubMed]
  38. Medda, S.; Fadda, A.; Dessena, L.; Mulas, M. Quantification of total phenols, tannins, anthocyanins content in Myrtus communis L. and antioxidant activity evaluation in function of plant development stages and altitude of origin site. Agronomy 2021, 11, 1059. [Google Scholar] [CrossRef]
  39. Wang, Y.F.; Zheng, Y.; Cha, Y.Y.; Feng, Y.; Dai, S.X.; Zhao, S.; Chen, H.; Xu, M. Essential oil of Lemon myrtle (Backhousia citriodora) induces S-phase cell cycle arrest and apoptosis in HepG2 cells. J. Ethnopharmacol. 2023, 312, 116493. [Google Scholar] [CrossRef] [PubMed]
  40. Cock, I.E. Antimicrobial activity of Backhousia citriodora (Lemon myrtle) methanolic extracts. Pharmacogn. Commun. 2013, 3, 58. [Google Scholar] [CrossRef]
  41. Yamamoto, A.; Honda, S.; Ogura, M.; Kato, M.; Tanigawa, R.; Fujino, H.; Kawamoto, S. Lemon myrtle (Backhousia citriodora) extract and its active compound, casuarinin, activate skeletal muscle satellite cells in vitro and in vivo. Nutrients 2022, 14, 1078. [Google Scholar] [CrossRef] [PubMed]
  42. Gorjian, H.; Khaligh, N.G. Myrtle: A versatile medicinal plant. Nutrire 2023, 48, 10. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, Q.; Gao, Q.; Zhao, L.; Li, X.; Wang, X.; Wang, Y.; Chen, D. Evaluation of the effect of green tea and its constituents on embryo development in a Zebrafish model. J. Appl. Toxicol. 2023, 43, 287–297. [Google Scholar] [CrossRef] [PubMed]
  44. Alafiatayo, A.A.; Lai, K.S.; Syahida, A.; Mahmood, M.; Shaharuddin, N.A. Phytochemical evaluation, embryotoxicity, and teratogenic effects of Curcuma longa extract on Zebrafish (Danio rerio). Evid. Based Complement. Altern. Med. 2019, 2019, 3807207. [Google Scholar] [CrossRef] [PubMed]
  45. Soares de Araujo Pinho, F.V.; da Silva, G.F.; Macedo, G.E.; Muller, K.R.; Kemmerich Martins, I.; Lausmann Ternes, A.P.; Martins da Costa, J.G.; Athayde, M.L.; Boligon, A.A.; Kamdem, J.P.; et al. Phytochemical constituents and toxicity of duguetia furfuracea hydroalcholic extrac in drosophila melanogaster. Evid.-Based Complement. Altern. Med. 2014, 2014, 838101. [Google Scholar] [CrossRef]
  46. Wibowo, I.; Permadi, K.; Hartati, R.; Damayanti, S. Ethanolic extract of pomegranate (Punica granatum L) peel: Acute toxicity tests on Zebrafish (Danio rerio) embryos and its toxicity prediction by in silico. J. Appl. Pharm. Sci. 2018, 8, 082–086. [Google Scholar]
  47. Xia, Q.; Ma, Z.; Mei, X.; Luo, J.; Wang, Y.; Li, T.; Feng, Y.; Ni, Y.; Zou, Q.; Lin, R. Assay for the developmental toxicity of safflower (Carthamus tinctorius L.) to Zebrafish embryos/larvae. J. Tradit. Chin. Med. Sci. 2017, 4, 71–81. [Google Scholar] [CrossRef]
  48. Zhang, Q.; Zhang, K.C.; Lou, J.W.; Guo, S.C.; Zhang, Y.; Yao, W.F.; Tang, Y.P.; Wu, J.H.; Zhang, L. Simultaneous quantification of twelve compounds in ethyl acetate extracts of Euphorbia kansui before and after fry-baked with vinegar by UPLC-MS/MS and its toxic effect on Zebrafish. J. Pharm. Biomed. Anal. 2018, 155, 169–176. [Google Scholar] [CrossRef] [PubMed]
  49. He, Y.L.; Shi, J.Y.; Peng, C.; Hu, L.J.; Liu, J.; Zhou, Q.M.; Guo, L.; Xiong, L. Angiogenic effect of motherwort (Leonurus japonicus) alkaloids and toxicity of motherwort essential oil on Zebrafish embryos. Fitoterapia 2018, 128, 36–42. [Google Scholar] [CrossRef] [PubMed]
  50. Ismail, H.F.; Hashim, Z.; Soon, W.T.; Rahman, N.S.A.; Zainudin, A.N.; Majid, F.A.A. Comparative study of herbal plants on the phenolic and flavonoid content, antioxidant activities and toxicity on cells and Zebrafish embryo. J. Tradit. Complement. Med. 2017, 7, 452–465. [Google Scholar] [CrossRef] [PubMed]
  51. Lee, W.J.; Ou, H.C.; Hsu, W.C.; Chou, M.M.; Tseng, J.J.; Hsu, S.L.; Tsai, K.L.; Sheu, W.H. Ellagic acid inhibits oxidized LDL-mediated LOX-1 expression, ROS generation, and inflammation in human endothelial cells. J. Vasc. Surg. 2010, 52, 1290–1300. [Google Scholar] [CrossRef] [PubMed]
  52. Sakulnarmrat, K.; Konczak, I. Composition of native Australian herbs polyphenolic-rich fractions and in vitro inhibitory activities against key enzymes relevant to metabolic syndrome. Food Chem. 2012, 134, 1011–1019. [Google Scholar] [CrossRef] [PubMed]
  53. Alderees, F.; Mereddy, R.; Webber, D.; Nirmal, N.; Sultanbawa, Y. Mechanism of action against food spoilage yeasts and bioactivity of Tasmannia lanceolata, Backhousia citriodora and Syzygium anisatum plant solvent extracts. Foods 2018, 7, 179. [Google Scholar] [CrossRef] [PubMed]
  54. Inouye, S.; Takizawa, T.; Yamaguchi, H. Antibacterial activity of essential oils and their major constituents against respiratory tract pathogens by gaseous contact. J. Antimicrob. Chemother. 2001, 47, 565–573. [Google Scholar] [CrossRef]
  55. Saifullah, M.; McCullum, R.; Vuong, Q.V. Optimization of microwave-assisted extraction of polyphenols from Lemon myrtle: Comparison of modern and conventional extraction techniques based on bioactivity and total polyphenols in dry extracts. Processes 2021, 9, 2212. [Google Scholar] [CrossRef]
  56. Dupont, S.; Caffin, N.; Bhandari, B.; Dykes, G.A. In vitro antibacterial activity of Australian native herb extracts against food-related bacteria. Food Control 2006, 17, 929–932. [Google Scholar] [CrossRef]
  57. Afolabi, W.O.; Hussein, A.; Shode, F.O.; Le Roes-Hill, M.; Rautenbach, F. Leptospermum petersonii as a potential natural food preservative. Molecules 2020, 25, 5487. [Google Scholar] [CrossRef] [PubMed]
  58. Wilkinson, J.M.; Hipwell, M.; Ryan, T.; Cavanagh, H.M. Bioactivity of Backhousia citriodora: Antibacterial and antifungal activity. J. Agric. Food Chem. 2003, 51, 76–81. [Google Scholar] [CrossRef] [PubMed]
  59. Hayes, A.J.; Markovic, B. Toxicity of Australian essential oil Backhousia citriodora (Lemon myrtle). Part 2. Absorption and histopathology following application to human skin. Food Chem. Toxicol. 2003, 41, 1409–1416. [Google Scholar] [CrossRef]
Antioxidants 13 00977 g001

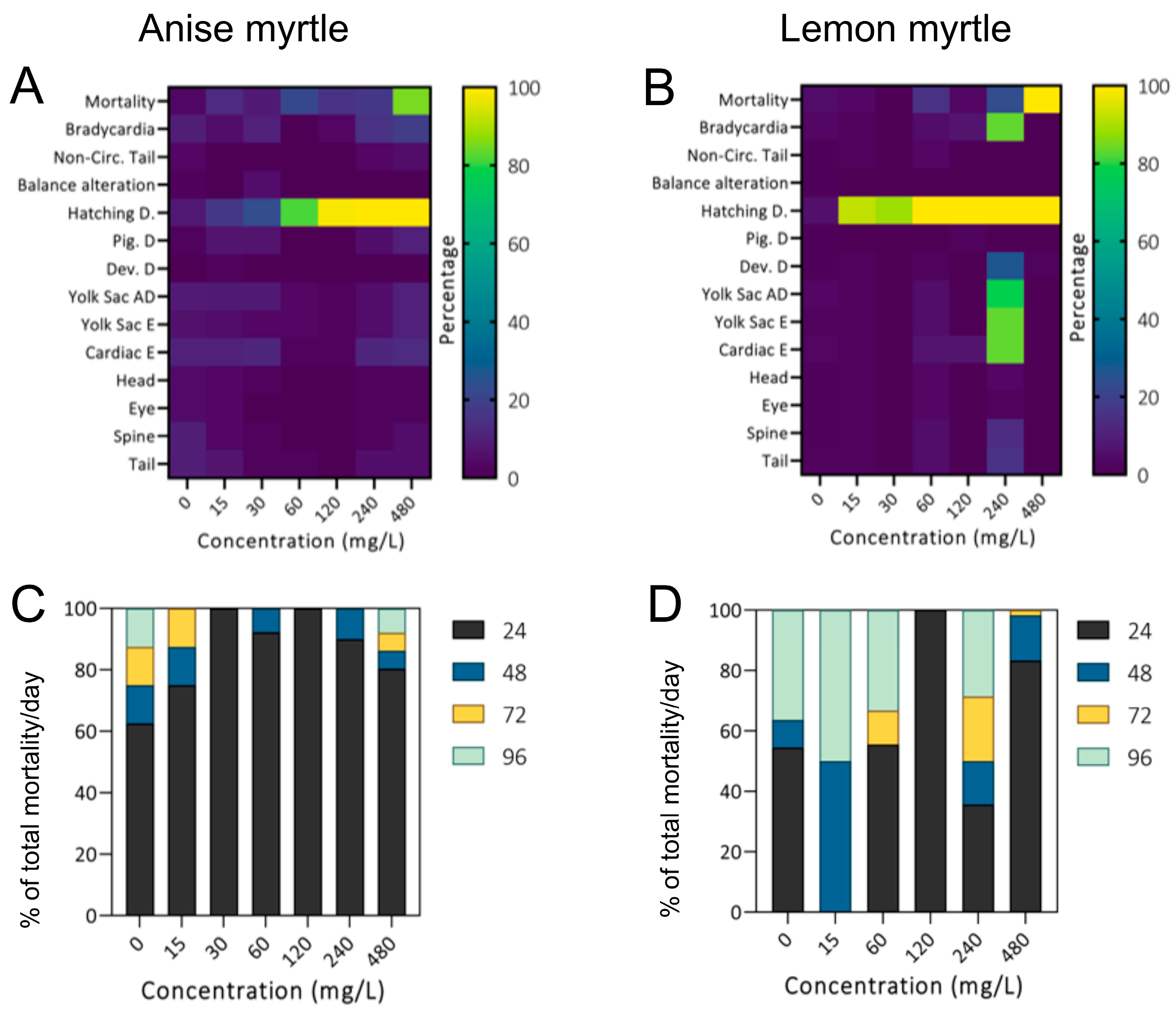

Figure 1. Alterations were observed in zebrafish embryos exposed to anise myrtle (A,C) and lemon myrtle (B,D) extract for 96 h. Heatmap showing the cumulative morbidity and phenotypic and behavioural alterations (A,B). Hatching delay occurred at higher concentrations for both plant extracts, with other mild alterations. The proportion of total mortality observed each experimental day at different concentrations (C,D). Colours represent the experimental time in hours (24–96 h). Most of the mortality occurred in the first 24 h, though continued exposure to lemon myrtle showed ongoing mortality continuing by subsequent days.
Figure 1. Alterations were observed in zebrafish embryos exposed to anise myrtle (A,C) and lemon myrtle (B,D) extract for 96 h. Heatmap showing the cumulative morbidity and phenotypic and behavioural alterations (A,B). Hatching delay occurred at higher concentrations for both plant extracts, with other mild alterations. The proportion of total mortality observed each experimental day at different concentrations (C,D). Colours represent the experimental time in hours (24–96 h). Most of the mortality occurred in the first 24 h, though continued exposure to lemon myrtle showed ongoing mortality continuing by subsequent days.
Antioxidants 13 00977 g001
Antioxidants 13 00977 g002

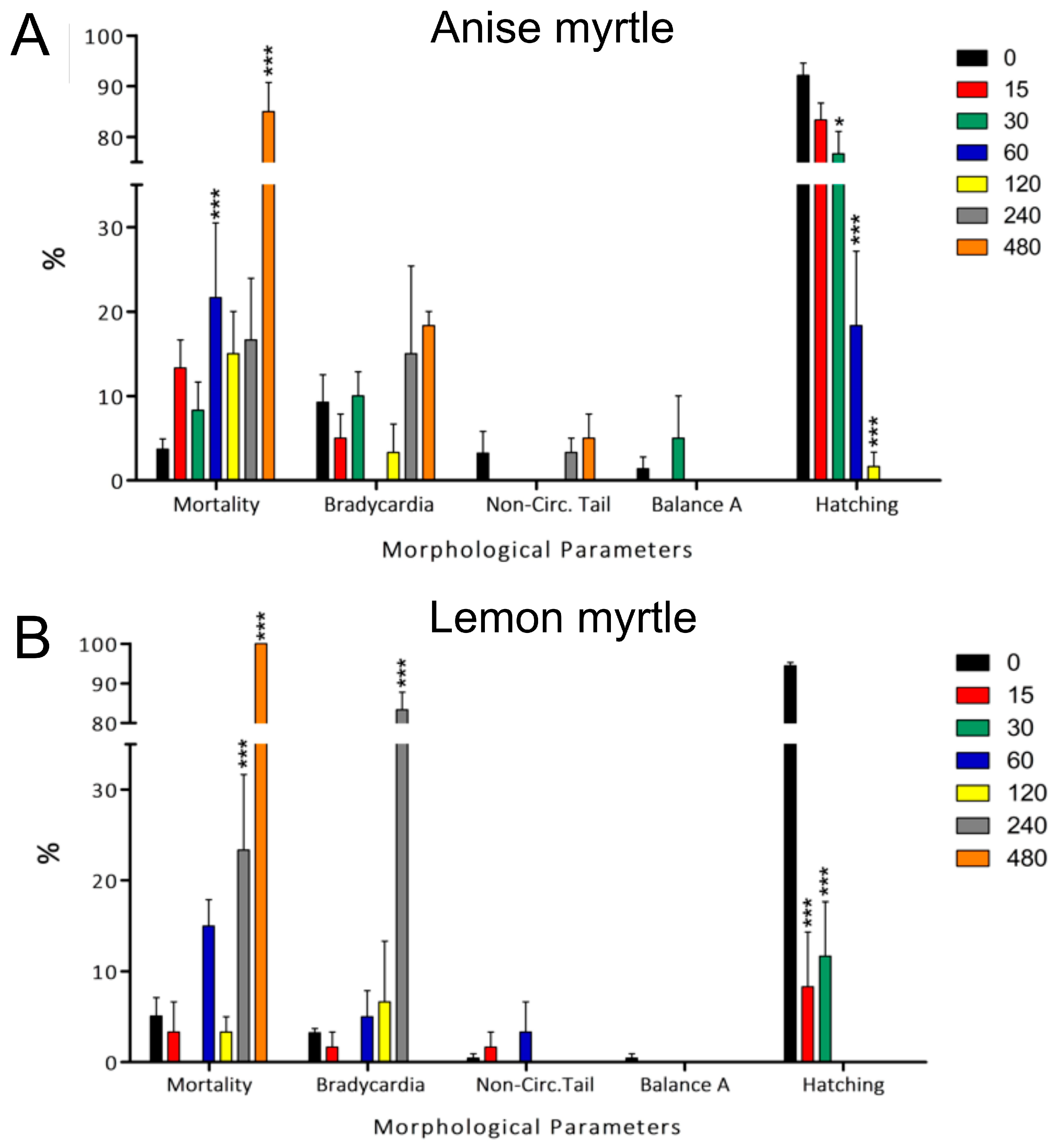

Figure 2. Morphological alterations were observed in zebrafish embryos exposed to anise (A) and lemon (B) myrtle extract for 96 h and graphed as a percentage of all larvae. The colours represent different concentrations tested (mg/L). Data show the mean ± SD, n = 60. Asterisks indicate statistical significance when compared to a control group (0 mg/L): p < 0.05 (*) and p < 0.001 (***).
Figure 2. Morphological alterations were observed in zebrafish embryos exposed to anise (A) and lemon (B) myrtle extract for 96 h and graphed as a percentage of all larvae. The colours represent different concentrations tested (mg/L). Data show the mean ± SD, n = 60. Asterisks indicate statistical significance when compared to a control group (0 mg/L): p < 0.05 (*) and p < 0.001 (***).
Antioxidants 13 00977 g002
Antioxidants 13 00977 g003

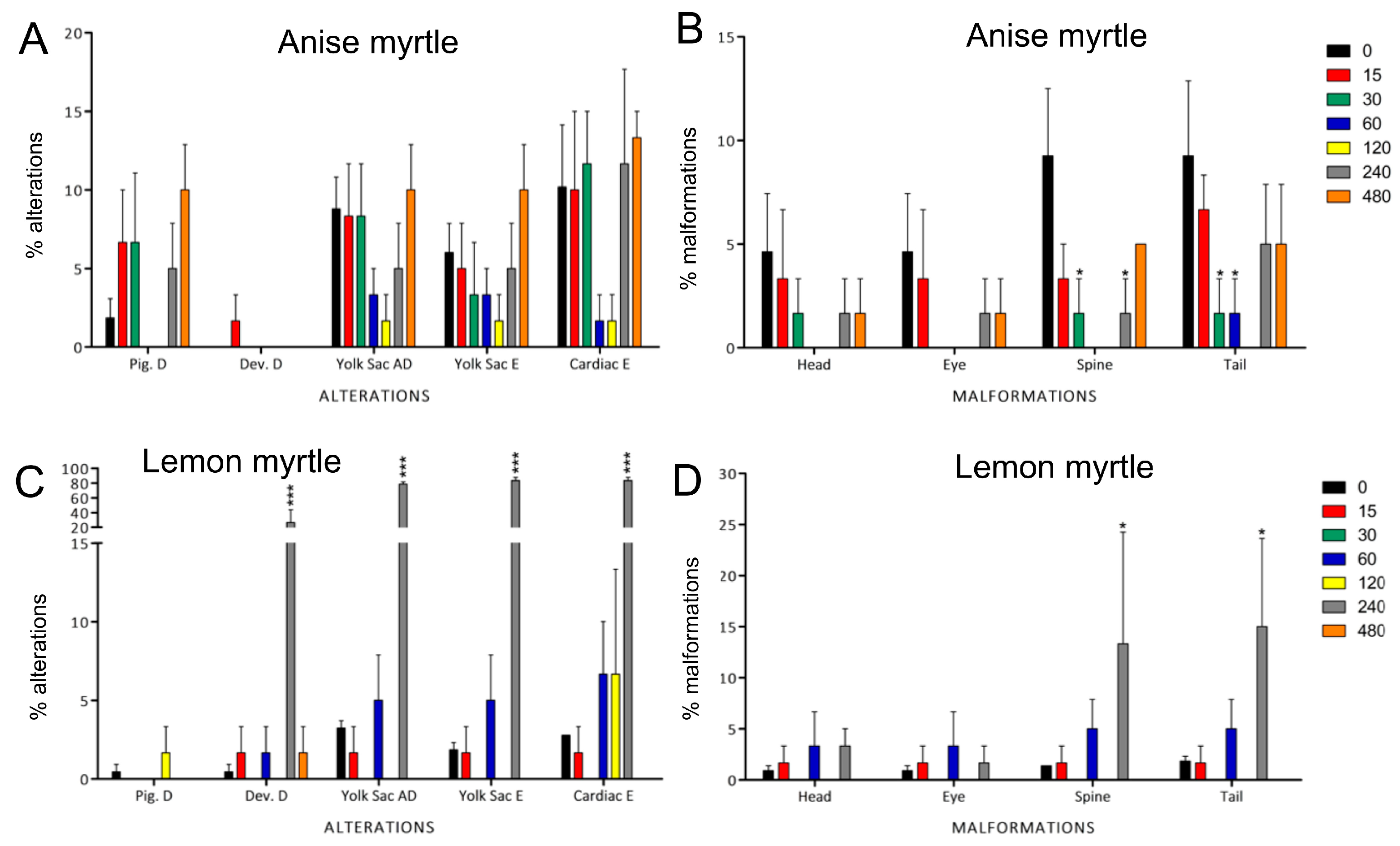

Figure 3. Developmental alterations (A,C) and malformations (B,D) were observed in zebrafish larvae exposed at 96 h post-fertilization to different concentrations of anise (A,B) and lemon (C,D) myrtle extract. The alterations observed were pigmentation delay (Pig. D), developmental delay (Dev. D), yolk sac absorption delay (Yolk Sac AD), yolk sac edema (Yolk Sac E), and cardiac edema (Cardiac E). The malformations observed were localized in the head, eyes, spine, and tail. None of the alternations observed in anise myrtle were significantly different from the control 0 mg/L group. In contrast, in Lemon myrtle, there were substantial alterations and malformations at 240 mg/L. The 480 mg/L group only includes very few survivors. Bar colours represent the concentrations tested in mg/L. Data represent the mean ± SD, n = 60. Asterisks indicate statistical significance when comparing the exposed groups with the control groups: p < 0.05 (*) and p < 0.001 (***).
Figure 3. Developmental alterations (A,C) and malformations (B,D) were observed in zebrafish larvae exposed at 96 h post-fertilization to different concentrations of anise (A,B) and lemon (C,D) myrtle extract. The alterations observed were pigmentation delay (Pig. D), developmental delay (Dev. D), yolk sac absorption delay (Yolk Sac AD), yolk sac edema (Yolk Sac E), and cardiac edema (Cardiac E). The malformations observed were localized in the head, eyes, spine, and tail. None of the alternations observed in anise myrtle were significantly different from the control 0 mg/L group. In contrast, in Lemon myrtle, there were substantial alterations and malformations at 240 mg/L. The 480 mg/L group only includes very few survivors. Bar colours represent the concentrations tested in mg/L. Data represent the mean ± SD, n = 60. Asterisks indicate statistical significance when comparing the exposed groups with the control groups: p < 0.05 (*) and p < 0.001 (***).
Antioxidants 13 00977 g003
Table 1. Measurement of phenolic contents and their antioxidant activities in anise myrtle and lemon myrtle.
Table 1. Measurement of phenolic contents and their antioxidant activities in anise myrtle and lemon myrtle.
SamplesTPC
(mg GAE/g)		DPPH
(mM TE/g)		ABTS
(mM TE/g)		RPA
(mM TE/g)
Anise myrtle36.8 ± 0.9 b362.3 ± 6.3 b415.9 ± 23.8 b399.8 ± 17.6 b
Lemon myrtle52.0 ± 2.9 a421.9 ± 5.2 a597.1 ± 29.2 a433.6 ± 19.3 a
The results (mean ± standard deviation, n = 3) per gram of sample. TPC: total phenolic content. DPPH: 2,2′-diphenyl-1-picrylhydrazyl assay. ABTS: 2,2′-azino-bis-3-ethylbenzothiazoline-6-sulfonic acid assay. RPA: reducing power assay. GAE: gallic acid equivalent. TE: Trolox equivalent. The results in each column with superscripts (a,b) are significantly different (p-value < 0.05).
Table 2. HPLC-MS quantification/semi-quantification of abundant phenolic metabolites in anise and lemon myrtle extracts.
Table 2. HPLC-MS quantification/semi-quantification of abundant phenolic metabolites in anise and lemon myrtle extracts.
CompoundsFormulaAnise Myrtle (μg/g)Lemon Myrtle (μg/g)
Gallic acidC7H6O5128.79 ± 5.58 b232.21 ± 5.10 a
p-Hydroxybenzoic acidC7H6O313.08 ± 3.09 b80.08 ± 12.57 a
Cinnamic acidC9H8O2614.12 ± 3.01 a374.44 ± 30.75 b
Ferulic acidC10H10O43.70 ± 1.25 b119.87 ± 3.99 a
Syringic acidC9H10O51290.47 ± 27.22ND
3,4-O-dimethygallic acidC9H10O5ND281.83 ± 18.39
Caffeic acidC9H8O4184.64 ± 8.41ND
Caftaric acidC13H12O9164.84 ± 11.50ND
EpicatechinC15H14O64656.04 ± 230.92 a3821.53 ± 135.11 b
(-)-Epicatechin 3-O-gallateC22H18O10120.46 ± 3.80 b1475.81 ± 113.65 a
IsorhamnetinC16H12O7164.51 ± 8.99 a242.43 ± 24.54 a
KaempferolC15H10O633.52 ± 3.04 a17.70 ± 1.31 b
QuercetinC15H10O7400.03 ± 23.57 a206.61 ± 20.57 b
Procyanidin B2C30H26O12401.33 ± 28.921281.58 ± 69.21 a
PyrogallolC6H6O3230.88 ± 3.52 b423.16 ± 33.01 a
Ellagic acid arabinosideC19H14O122537.93 ± 402.42ND
p-Coumaric acid 4-O-glucosideC15H18O8116.28 ± 4.72 b132.26 ± 10.70 a
Isovitexin C21H20O103467.56 ± 270.14 a403.24 ± 18.87 b
Ellagic acid glucosideC10H16O13835.70 ± 59.03ND
Myricetin 3-arabinosideC20H18O121185.34 ± 74.68ND
ResveratrolC14H12O3ND116.92 ± 1.10
Sinapic acidC11H12O5ND214.29 ± 3.32
CatechinC15H14O6ND5903.02 ± 762.73
Epigallocatechin C15H14O7ND116.54 ± 3.20
ND: not detected. The results in each column with superscripts (a,b) are significantly different from each other (p-value < 0.05).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cáceres-Vélez, P.R.; Ali, A.; Fournier-Level, A.; Dunshea, F.R.; Jusuf, P.R. Phytochemical Composition and Toxicological Screening of Anise Myrtle and Lemon Myrtle Using Zebrafish Larvae. Antioxidants 2024, 13, 977. https://doi.org/10.3390/antiox13080977

AMA Style

Cáceres-Vélez PR, Ali A, Fournier-Level A, Dunshea FR, Jusuf PR. Phytochemical Composition and Toxicological Screening of Anise Myrtle and Lemon Myrtle Using Zebrafish Larvae. Antioxidants. 2024; 13(8):977. https://doi.org/10.3390/antiox13080977

Chicago/Turabian Style

Cáceres-Vélez, Paolin Rocio, Akhtar Ali, Alexandre Fournier-Level, Frank R. Dunshea, and Patricia Regina Jusuf. 2024. "Phytochemical Composition and Toxicological Screening of Anise Myrtle and Lemon Myrtle Using Zebrafish Larvae" Antioxidants 13, no. 8: 977. https://doi.org/10.3390/antiox13080977

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
