Vaccination with Formulation of Nanoparticles Loaded with Leishmania amazonensis Antigens Confers Protection against Experimental Visceral Leishmaniasis in Hamster

by
Marco Antonio Cabrera González
1,2,3,†,
Ana Alice Maia Gonçalves
1,†,
Jennifer Ottino
4,
Jaqueline Costa Leite
1,
Lucilene Aparecida Resende
1,
Otoni Alves Melo-Júnior
1,
Patrícia Silveira
1,
Mariana Santos Cardoso
4,
Ricardo Toshio Fujiwara
4,
Lilian Lacerda Bueno
4,
Renato Lima Santos
5,
Tatiane Furtado de Carvalho
5,
Giani Martins Garcia
2,
Paulo Ricardo de Oliveira Paes
5,
Alexsandro Sobreira Galdino
6,
Miguel Angel Chávez-Fumagalli
7,
Marília Martins Melo
5,
Denise Silveira-Lemos
1,
Olindo Assis Martins-Filho
8,
Walderez Ornelas Dutra
1,9,
Vanessa Carla Furtado Mosqueira
2 and
Rodolfo Cordeiro Giunchetti
1,4,9,*add Show full author list remove Hide full author list
1
Departamento de Morfologia, Universidade Federal de Minas Gerais (UFMG), Belo Horizonte 31270-901, MG, Brazil
2
Laboratório de Desenvolvimento Galênico e Nanotecnologia, Escola de Farmácia, Universidade Federal de Ouro Preto (UFOP), Ouro Preto 35400-000, MG, Brazil
3
Estación Experimental Agraria Baños del Inca, Instituto Nacional de Innovación Agraria, Cajamarca 06000, Peru
4
Departamento de Parasitologia, Universidade Federal de Minas Gerais (UFMG), Belo Horizonte 31270-901, MG, Brazil
5
Escola de Veterinária, Universidade Federal de Minas Gerais (UFMG), Belo Horizonte 31270-901, MG, Brazil
6
Laboratório de Biotecnologia de Microrganismos, Universidade Federal de São João Del-Rei (UFSJ), Campus Centro Oeste, Divinópolis 35501-296, MG, Brazil
7
Computational Biology and Chemistry Research Group, Vicerrectorado de Investigación, Universidad Católica de Santa María, Urb. San José S/N, Arequipa 04000, Peru
8
FIOCRUZ-Minas Gerais, Laboratório de Biomarcadores de Diagnóstico e Monitoração, Instituto René Rachou, Belo Horizonte 30190-002, MG, Brazil
9
Instituto Nacional de Ciência e Tecnologia em Doenças Tropicais—INCT-DT, Belo Horizonte 31270-901, MG, Brazil
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Vaccines 2023, 11(1), 111; https://doi.org/10.3390/vaccines11010111
Submission received: 14 November 2022 / Revised: 23 December 2022 / Accepted: 27 December 2022 / Published: 2 January 2023
(This article belongs to the Special Issue Leishmania–Host Cell Interaction and Immunopathogenesis)
Browse Figures
Review Reports Versions Notes

Abstract

:
Visceral leishmaniasis (VL) is a fatal disease caused by the protozoa Leishmania infantum for which dogs are the main reservoirs. A vaccine against canine visceral leishmaniasis (CVL) could be an important tool in the control of human and CVL by reducing the infection pressure of L. infantum. Despite the CVL vaccine available on the market, the Brazilian Ministry of Health did not implement the use of it in their control programs. In this sense, there is an urgent need to develop more efficient vaccines. In this study, the association between two polymeric nanoformulations, (poly (D, L-lactic) acid (PLA) polymer) loading Leishmania amazonensis antigens, was evaluated as a potential immunobiological agent against VL using golden hamsters as an experimental model. The results indicated that no significant adverse reactions were observed in animals vaccinated with LAPSmP. LAPSmP presented similar levels of total anti-Leishmania IgG as compared to LAPSmG. The LAPSmP and LAPSmG groups showed an intense reduction in liver and spleen parasitic load by qPCR. The LAPSmP and LAPSmG vaccines showed exceptional results, indicating that they may be promising candidates as a VL vaccine.

1. Introduction

Leishmaniasis comprises a group of diseases caused by different flagellated protozoa belonging to the genus Leishmania [1,2]. The most severe form of the disease, visceral leishmaniasis (VL), is caused by parasites of the Leishmania donovani complex, essentially by L. donovani and L. infantum (synonym Leishmania chagasi in South America). The parasites are transmitted to vertebrate hosts during the blood meal of blood-sucking sandflies females of the genera Phlebotomus or Lutzomyia [3,4,5]. In Latin America, Brazil is responsible for about 97% of reported cases [6] and a territorial expansion of VL has been reported in recent years [7].
Dogs represent the most important domestic reservoirs of L. infantum and vaccination of dogs is considered an important tool in the control of both human (HVL) and canine (CVL) visceral leishmaniasis cases. Controlling CVL is considered a fundamental measure to reduce the infection pressure of L. infantum [8]. Due to such importance, researchers have been devoting time and effort in the search for an anti-CVL vaccine and, to date, there are three commercial vaccines: CaniLeish® and LetiFend®, available in Europe, and Leish-Tec®, marketed in Brazil. However, the Brazilian Ministry of Health has not yet incorporated the commercially available vaccine into its control programs. Therefore, it is still necessary to develop a vaccine with better efficacy to be available in health control programs against the disease. In this sense, different vaccine candidates against CVL have been reported to show the ability to induce immunoprotective mechanisms and a reduced parasite load [9,10,11,12,13,14,15,16,17,18,19].
One of the reasons that may explain the fact that vaccines do not reach a satisfactory level of protection is the lack of an adequate administration system [20]. Therefore, there is still a crucial need for an improved, safe, and efficient delivery system to enhance the immunogenicity of available vaccine candidates [21]. In order to circumvent this problem, biodegradable polymeric nanocarriers had emerged as a safe and powerful alternative to be employed in the control of various diseases associated with drugs or vaccines. Polymer-based nanoparticles are proficient in boosting the quality and magnitude of immune responses in a predictable fashion [22,23,24,25]. The use of nanoparticles as an antigen delivery system for VL has shown promising results, observed in studies of activation of the protective cellular immune response and parasite load reduction [26,27,28].
In recent years, our research group focused efforts on developing and analyzing heterologous vaccine candidates against CVL using antigens of the Leishmania dermatotropic species, with promising results [12,13,14,15,16,17]. In these studies, L. braziliensis was used to compose the LBSap vaccine, showing high immunogenicity profile resulting in heterologous protection against L. infantum infection in dogs [10,12,13,14,15,16,17]. In view of the promising results of heterologous protection using L. braziliensis, we aimed to test whether L. amazonensis would also be able to trigger protection against L. infantum infection, since it is one of the most important species causing cutaneous leishmaniasis in Brazil, found throughout the country and responsible for diffuse cutaneous leishmaniasis [29,30]. In this sense, the present study sought to develop a new CVL vaccine using nanoparticles loaded with L. amazonensis antigens to favor the delivery of the antigen to the presenting cells and allow a protective immune response against VL. Thus, a pre-clinical vaccine trial was carried out on hamsters to analyze the immunogenicity of this nanoparticle formulation against L. infantum infection.

2. Materials and Methods

2.1. Animals and Experimental Groups

This study was approved by the Ethics Committee on the Use of Animals of the Federal University of Minas Gerais (Protocol number 385/2013). Eight experimental groups with eight healthy male gold hamsters (Mesocricetus auratus) each, ages between 6–8 weeks, were used to test a vaccination protocol. The animals were divided into the following groups: (i) Infected control group, administered only with sterile saline solution (C); (ii) saponin control group, administered with the adjuvant saponin; (iii) empty submicrometric small particle vaccinated group (PSmP); (iv) empty submicrometric large particle vaccinated group (PSmG); (v) Leishmania amazonensis crude antigen vaccinated group (LA); (vi) Leishmania amazonensis crude antigen associated with the saponin group (LASAP); (vii) submicrometric small particle plus L. amazonensis crude antigen vaccinated group (LAPSmP); and (viii) submicrometric large particle plus L. amazonensis crude antigen vaccinated group (LAPSmG). In addition, eight animals were used as a pre-immune (PI) group.

2.2. Vaccine Preparation

The crude antigen of L. amazonensis was prepared using a reference strain (MHOM/BR/75/M2904), grown in Minimum Essential Medium (α–MEM—Gibco BRL, New York, USA), supplemented with 10% bovine fetal serum and 2 mM penicillin under biochemical oxygen demand (BOD) at 23 °C for a maximum of ten passages. On the fifth day of the culture, 108 stationary promastigotes were sonicated, and the crude antigen was aliquoted and stored at −80 °C [10].
The nanospheres were prepared to employ the interfacial deposition method of a preformed polymer, as described by Fessi et al. (1989) [31], at Laboratório de Desenvolvimento Galênico e Nanotecnologia da Escola de Farmácia, Universidade Federal de Ouro Preto, Brazil. The nanospheres were prepared by the association of a poly-D, L-lactic acid polymer (PLA) solution and chitosan, previously solubilized in 0.05 M acetic acid at concentrations of 50 mg/mL (large submicrometric particle—PSmG) and 5 mg/mL (small submicrometric particle—PSmP). For the production of LAPSmG and LAPSmP, 1 mL of the L. amazonensis antigen suspension, at a concentration of 1 mg/mL, was added to the nanospheres. The size of the nanospheres was characterized by the polydispersity index and zeta potential, as described by Garcia et al. (2015) [32] and determined by a photon correlation spectroscopy analyzer in a Nanosizer N5 Submicron particle analyzer (Beckman Coulter, Newark, NJ, USA). Each vaccine formulation was diluted with 0.9% sterile saline buffer during its preparation and the final volume was adjusted for 100 µL/dose.

2.3. Experimental Protocol

The animals used in the study received three doses of the formulations, according to their respective group by the subcutaneous route at 21-day intervals. An evaluation of the safety and toxicity of the formulations based on nanoparticles was performed by observing the inoculum site (presence of nodules, papules, or ulcerative lesions), signs such as local pain, alopecia, and bristling and by evaluating animals’ behavior (aggression or apathy) [10]. Fifty-one days after the end of the vaccine protocol, the animals were challenged with 107 L. infantum stationary promastigotes (strain C46) by the intraperitoneal route. The parasites were grown under the same conditions described by Giunchetti et al. (2007) [10]. At 180 days post-challenge (T180), a new blood sampling was performed 180 days post-challenge (T180) after which the animals were euthanized. The liver and spleen were collected to evaluate the vaccine efficacy, as well as make a comparative weight analysis between groups.

2.4. Assessment of Anti-Leishmania Total IgG Reactivity

The anti-Leishmania humoral immune response was evaluated by employing the sera obtained in PI, T30, and T180. Total IgG antibody was measured using an in-housee ELISA assay, as previously described [33]. Briefly, the plates were sensitized with 1 μg/mL per well with L. infantum crude antigen. Next, 200 μL/well of PBS-BSA solution (3% BSA) was added to prevent unspecific binding. The hamster’s serum diluted 1:100, was added and after incubation, the secondary anti-hamster IgG, diluted 1:5000, was incubated with the sample. The reaction was revealed with solution containing 0.03% hydrogen peroxide and 0.022 µg of ortho-phenylenediamine (OPD). The spectrophotometer ELX800 (Biotek Instruments VT, Winooski, VT, USA) was used to measure the wells’ optical density (OD) in a 490 nm wavelength.

2.5. Parasite Burden Evaluation by qPCR

The liver and spleen were used to evaluate the vaccine efficacy by qPCR. Previously to qPCR reaction, gDNA extraction from liver and spleen was performed by using a NucleoSpin® Tissue extraction kit—Genomic DNA from tissue protocol (Macherey-Nagel, Duren, Germany) in accordance with the manufacturer’s instructions. DNA was resuspended in 50 μL of elution buffer (kit provided) and quantified using Nanodrop N2000 equipment (ThermoFisher Scientific, Waltham, MA, USA).
The qPCR reactions were performed using 5 μL of the 2× Power Syber®-Green ABI reagent (ThermoFisher Scientific, Waltham, MA, USA), 0.5 μL of each primer (2μM), (kDNA Forward- 5′ CGTGGGGGAGGGGCGTTCT 3′ and kDNA Reverse- 5′ CCGAAGCAGCCGCCCCTATT 3′) with a 135 pb amplicon size, and 4 μL of DNA (5 ng/μL), in a final volume of 10 μL per well. For normalization of the reaction, the β-actin constitutive hamster gene was selected using primers that amplify a 120 bp fragment (Forward- 5′ TCGTACGTGGGTGACGAGGC 3′ and reverse- 5′ GTAGAAGGTGTGGTGCCAGA 3′).
The amplification process consisted of pre-denaturation at 95 °C for 10 min, followed by 40 cycles of denaturation at 95 °C for 15 s, and annealing at 60 °C for 1 min. A melting curve was also used. The qPCR results were plotted using the standard curve method, which was assembled from the serial dilution of DNA extracted from 108 Leishmania sp. promastigotes and 106 hamster splenocytes. The spleen qPCR data was also used to analyze the correlation between parasite load and anti-Leishmania antibody.

2.6. Statistical Analyses

All statistical analyses were performed using GraphPad Prism 5.0 software (Prism Software, California, CA, USA). Data normality was demonstrated by the Kolmogorov–Smirnoff test. The analysis of variance (ANOVA) tests, followed by the Tukey multiple comparisons test, were used to compare between the groups. The Kruskal–Wallis test, followed by Dunn’s test, was used for the nonparametric qPCR data. Statistical differences were considered significant when the p-value was less than 0.05. Spearman’s correlation methods were applied to investigate the correlation between splenic parasite load and antibody production.

3. Results

3.1. Characterization of Submicrometric Particle

The mass of PLA and chitosan was varied in order to produces sub-micrometric particles with different sizes and capable of encapsulating the vaccine antigen (Table 1). The small submicrometric particle (PSmP) sized 350.6 nm and the zeta potential was +66.6 mV. The large submicrometric particle (PsmG) sized 613.4 nm and the zeta potential was +66.8 mV. The antigen encapsulation does not alter significantly the overall size of the submicrometric particles. LAPSmP sized 409.8 nm (zeta potential was +42.2 mV) and LAPSmG sized 652.7 nm (zeta potential was +56.3 mV) (Table 1).

3.2. Safety Analyses

The animals were observed after each inoculum for possible adverse post-vaccination reactions. The presence of non-ulcerated nodules, of firm consistency, were observed in two animals from the PSmG group. Moreover, one animal from the LAPSmG group developed an ulcerated nodule that measured 3 × 3 mm. Although these nodules were transiently observed, the animals showed no signs of pain or behavioral changes. After 180 days of L. infantum experimental infection, the control groups (C, PSmG, PSmG, and LA) were those with more evident dermatological changes, such as alopecia, as compared to animals vaccinated with LAPSmG and LAPSmP, as shown in Figure 1.

3.3. Serum Reactivity of Anti-Leishmania Total IgG

Thirty days after the last inoculum, the PSmP, LA, LASAP, LAPSmP, and LAPSmG groups exhibited higher levels of total anti-Leishmania IgG antibodies in relation to PI (p < 0.05; p < 0.001; p < 0.0001; p < 0.01; p < 0.001, respectively—Figure 2A). The LA, LASAP, LAPSmP, and LAPSmG groups showed increased total anti-Leishmania IgG production, as compared with C (p < 0.05; p < 0.0001; p < 0.05; p < 0.01, respectively—Figure 2A). LASAP and LAPSmG displayed high IgG levels as compared to SAP group (p < 0,.01; p < 0.05, respectively—Figure 2A). Furthermore, LASAP produced higher IgG levels as compared to the LAPSmP (p < 0.01) and LA groups (p < 0.01) (Figure 2A). The LAPSmG group showed an increased in IgG production relative to the PSmG group (p < 0.01). After the experimental challenge (Figure 2B), the C, SAP, PSmP, PSmG, LA, LASAP, and LAPSmG groups presented higher total IgG levels as compared with PI (p < 0.01; p < 0.05; p < 0.01; p < 0.05; p < 0.01; p < 0.05; p < 0.001, respectively). Moreover, the LAPSmG group showed an increase in IgG levels as compared to the control group (p < 0.05).

3.4. Vaccine Efficacy Evaluation

The weights of the spleen and liver were compared after the animals had been euthanized. No statistical differences were observed in the liver weight (Figure 3A,C). In contrast, reduced spleen weights were observed in the SAP group relative to the LA and LASAP group (p < 0.05 for both). Moreover, the LAPSmG group presented reduced spleen weights in relation to the LASAP group (p < 0.05) (Figure 3B,C).
Data from the qPCR analysis showed that LAPSmP and LAPSmG were the only groups with a marked reduction in the splenic parasite load (p < 0.01; p < 0.05, respectively) (Figure 4A) in relation to the control group. Similar results were observed in the liver parasite load for the LAPSmP and LAPSmG groups displaying an intense reduction in relation to the control group (p < 0.05 for both). Furthermore, PSmP group also showed reduction in liver parasite load in relation to the control group (p < 0.05) (Figure 4B).
The correlation between splenic parasite load and antibody production was analyzed (Figure 5). The results showed a positive correlation between the parasite load and the IgG reactivity in the control (p < 0.011; r = 0.488) and SAP groups (p < 0.006; r = 0.876) (Figure 5). No correlation was observed between these variables in the other groups.

4. Discussion

CVL represents a major veterinary and public health problem in various parts of the New and Old World [1]. In Brazil, CVL autochthonous cases have been reported in several regions that had no previous record of canine cases [34,35]. Currently, 25 (25/27) Brazilian states have reported autochthonous CVL cases, highlighting Brazil as the principal country in South America reporting this neglected disease [36]. Thus, due to an increase in the incidence of VL cases, the development of new strategies, such as prophylactic vaccines to prevent the infection in dogs, has become a top priority [6]. In fact, dog vaccination is the only viable way to control this zoonotic disease [37]. Despite advances, the Brazilian Ministry of Health has not introduced the only commercially available vaccine, Leish-Tec®, into its VL control program. To date, this vaccine is recommended only as individual prophylaxis in dogs [38]. The development of effective vaccines is still required to induce an effective form of protection against L. infantum infection in dogs with helpful results to VL health policies.
The development of an ideal vaccine for CVL needs to meet certain criteria: It must be safe, reproducible, allow large-scale production, and be cost-effective [39]. Furthermore, one of the most critical points, if not the most essential, is the activation of a lasting immune response against L. infantum infection [10,11,12,13,14,15,16,17]. An ideal vaccine against VL requires triggering a prominent type 1 immune response. Additionally, it is important to stress the importance of selecting an appropriate antigen, the right adjuvant, and/or delivery vehicle [40,41]. Nanoparticulate formulations are currently considered as ideal vaccine delivery systems [22,23,24,40]. In fact, substantial progress has been made in the area of nanotechnology for vaccines [42] and, to date, there are studies on such diseases as malaria [43], hepatitis B virus [44], HIV [45], H1N1 [46], West Nile virus [47], and Schistosoma mansoni [48]. Thus, polymeric nanoparticles are an attractive alternative to be used in developing effective VL vaccines, acting as carriers of Leishmania antigens due to their improved bioavailability and lower toxicity [40,49].
In this study, the association between two polymeric nanoformulations with L. amazonensis antigens was analyzed to evaluate their potential as an immunobiological agent against VL using golden hamsters as experimental model. This animal model was chosen because of its greater similarity to the course of VL in dogs and humans [33,50]. However, the lack of immunological reagents for this animal model makes it difficult to understand the immunological mechanisms induced by vaccination. In this sense, the limitation to evaluate the cellular immune response in addition to the production of cytokines are the main negative points of the hamster’s animal model in pre-clinical vaccine trials. Furthermore, the VL ongoing was marked by a high production of anti-Leishmania antibodies and a positive correlation between antibody production and disease progression has already been reported [33,51,52]. The evaluation of parasite load is the main parameter to be evaluated for the analysis of efficacy, regardless of the animal model used in the pre-clinical test. Despite the limitation of evaluation in the cellular immune response in hamsters, this animal model is highly susceptible to L. infantum infection, which is a critical factor for the analysis of vaccine efficacy.
The evaluation of the innocuity and toxicity of tested immunobiological agents should not induce local or systemic damage that is incompatible with their administration [53]. An analysis of clinical and laboratory parameters was carried out to verify the safety and toxicity of the proposed vaccines. No local adverse reactions were observed in inoculated animals with PSmP and LAPSmP. In contrast, the hamsters immunized with PSmG and LAPSmG exhibited transitory local reactions. However, vaccination using LAPSmP and LAPSmG was not associated with behavioral or clinical changes, lymphadenopathy, or any other general adverse reactions. Moreover, no animal weight changes or clinical or laboratory exam abnormalities were observed (data not shown). Thus, the overall tolerance of the candidate nanoparticles vaccines in hamsters appeared to be adequate. The size of the nanoparticle used for immunization influences the cell specificity as well as the way it will be transported to the draining lymph nodes [21]. This could be the reason why local reactions were observed only in the groups immunized with the large submicrometric particle. A recent study published by our research group, also using nanoparticles loaded with Leishmania braziliensis antigens to immunize hamster, did not result in adverse reactions in the vaccinated large submicrometric particle group. However, the size of the Leishmania antigen loaded large submicrometric particle was smaller (570 nm) than the particle size used in the present study (653 nm) [54]. After the L. infantum experimental challenge, dermatological changes, mainly alopecia, were observed, especially in the Control, SAP, PSmP, PSmG, LA, and LASAP groups. These changes are consistent with those already reported during the course of VL infection in hamsters [50,55].
The levels of anti-Leishmania total IgG were accessed for antigenicity analysis and thirty days following the last dose, the LA, LASAP, LPSmP, and LPSmG groups showed an increase in the production of antibodies. In agreement with these findings, other heterologous antigens used against VL infection showed a high anti-Leishmania production after vaccination [13,14,56]. These data demonstrate that the vaccines activated a strong antigenicity profile. In addition, after the experimental challenge, the levels of total IgG in those groups increased and all the infected groups showed a similar pattern of IgG production. Mendonça and colleagues (2016) observed that the LBSap, a vaccine containing Leishmania braziliensis crude antigen, induced higher levels of anti-Leishmania IgG, as well as a reduction in spleen L. infantum parasite load in infected and vaccinated animals [57]. Similarly, Ottino et al. (2022) observed elevated levels of the anti-Leishmania antibody with a reduced spleen parasite load in infected and vaccinated hamsters [54].
Notably, hepatomegaly and splenomegaly are among the most evident clinical findings in VL, having been reported in studies with dogs and murine models [58,59,60]. In the present study, no significant changes in liver and spleen weight were observed in the LAPSmP and LAPSmG vaccinated groups in relation to the control group. Moreira et al. (2016) analyzed different clinical changes in distinct L. infantum strains and inoculation routes in hamsters and demonstrated changes in liver weight only after several months of experimental infection [50]. In this sense, the authors of this study have hypothesized that the absence of a difference in the weight of the organs between the vaccinated and the control groups may be due to the time of infection when euthanasia was performed (180 days post-challenge). Probably, the time required to trigger more prominent inflammatory changes in L. infantum target organs after experimental challenge was short, as previously described [50].
The vaccine efficacy was evaluated by qPCR to quantify the parasite burden in the liver and spleen. This quantification makes it possible to evaluate the potential of vaccine candidates to control the L. infantum infection [55]. The parasitological data revealed that only the LAPSmP and LAPSmG groups were able to reduce the parasite load in both liver and spleen, demonstrating a notable capacity in controlling parasite spread in hamsters. Similarly, corroborating the potential of the application of nanoparticles for vaccines against VL, other studies also reported a reduction in the L. infantum parasite load in infected and vaccinated animals [26,27,28,54,61]. In agreement with these findings, no correlation was observed between the parasite load and antibody production in these vaccinated groups, despite the elevated levels of IgG produced by the LAPSmP and LAPSmG groups. In fact, a correlation between splenic parasite load and anti-Leishmania antibody was detected only in the control and SAP groups and several studies have already demonstrated a direct relationship between tissue parasite density, clinical status and antibody titers in CVL [62,63,64,65]. Taken together, this study’s data confirmed the hypothesis that the development of vaccines using nanoparticles is a promising tool for VL vaccines and the LAPSmP and LAPSmG vaccine formulations hold promise for future vaccination strategies against CVL.

5. Conclusions

The vaccine formulations proposed in this study, LAPSmP and LAPSmG, proved to be innocuous, aside from transient local reactions observed in the LAPSmG group, since no safety concerns were identified, plus they proved to be antigenic. Although the immunological mechanisms activated by the immunization have not yet been investigated, it can be hypothesized that they activated a protective cellular response since a drastic reduction in the liver and spleen parasite load was observed in both LAPSmP and LAPSmG vaccinated groups. In this sense, the present findings encourage the use of nanoparticles in association with Leishmania antigens for the development of new effective vaccines for VL control.

Author Contributions

Conceptualization, J.C.L. and P.S.; methodology, M.A.C.G., J.C.L., M.A.C.G., G.M.G., P.S., P.R.d.O.P., M.S.C. and M.M.M.; software, J.C.L., M.A.C.G., A.A.M.G. and P.S.; validation, M.A.C.G., J.C.L., L.A.R., M.A.C.G., O.A.M.-J. and P.S.; formal analysis, M.A.C.G., J.C.L., L.A.R., M.A.C.G., J.O., P.S., A.A.M.G. and R.C.G.; investigation, M.A.C.G., J.C.L., M.A.C.G., P.S. and R.C.G.; resources, J.C.L., M.A.C.G., P.S. and R.C.G.; data curation, M.A.C.G., M.M.M., J.C.L., M.A.C.G., P.S. and R.C.G.; writing—original draft preparation, J.C.L., A.A.M.G., A.S.G. and M.A.C.-F.; writing—review and editing, A.A.M.G., M.A.C.-F. and R.C.G.; visualization, T.F.d.C., G.M.G., M.S.C., L.L.B., M.A.C.-F., M.M.M., V.C.F.M., R.T.F., R.L.S., P.R.d.O.P. and A.S.G.; supervision, O.A.M.-F., W.O.D., D.S.-L. and R.C.G.; project administration, R.C.G.; funding acquisition, R.C.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Ministério da Saúde, Departamento de Ciência e Tecnologia (DECIT); Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq; 440059/2021-6; 424069/2018-0); Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES); Fundação de Amparo à Pesquisa do Estado de Minas Gerais (FAPEMIG; CBB-PPM-00637-17; BPD-00954-22); and Instituto Nacional de Ciência e Tecnologia em Doenças Tropicais (INCT-DT).

Institutional Review Board Statement

The animal study protocol was approved by the Ethics Committee on the Use of Animals of the Federal University of Minas Gerais (CEUA-UFMG) (by protocol 385/2013, approved in 2013).

Informed Consent Statement

Not applicable.

Acknowledgments

RTF, RLS, ASG, MMM, OAM-F, WOD and RCG would like to thank CNPq for their research fellowship. We thank Randall Johnson for reviewing the language of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Desjeux, P. Leishmaniasis: Current situation and new perspectives. Comp. Immunol. Microbiol. Infect. Dis. 2004, 27, 305–318. [Google Scholar] [CrossRef]
  2. Schriefer, A.M.E.; Wilson, M.E.; Carvalho, E.M. Recent developments leading toward a paradigm switch in the diagnostic and therapeutic approach to human leishmaniasis. Curr. Opin. Infect. Dis. 2008, 21, 483–488. [Google Scholar] [CrossRef] [PubMed]
  3. Chappuis, F.; Sundar, S.; Hailu, A.; Ghalib, H.; Rijal, S.; Peeling, R.W.; Alvar, J.; Boelaert, M. Visceral leishmaniasis: What are the needs fordiagnosis, treatment and control? Nat. Rev. Microbiol. 2007, 5, 873–882. [Google Scholar] [CrossRef] [PubMed]
  4. Murray, H.W.; Berman, J.D.; Davies, C.R.; Saravia, N.G. Advances in leishmaniasis. Lancet 2005, 366, 1561–1577. [Google Scholar] [CrossRef] [PubMed]
  5. Griensven, J.V.; Diro, E. Visceral Leishmaniasis. Infect. Dis. Clin. N. Am. 2012, 26, 309–322. [Google Scholar] [CrossRef]
  6. Organização Pan-America da Saúde-OPAS. Leishmanioses: Informe Epidemiológico nas Américas. Núm. 9, 2020; OPAS: Washington, DC, USA, 2020; Available online: https://iris.paho.org/handle/10665.2/51742 (accessed on 31 October 2022).
  7. Dos Reis, L.L.; Balieiro, A.A.S.; Fonseca, F.R.; Gonçalves, M.J.F. Changes in the epidemiology of visceral leishmaniasis in Brazil from 2001 to 2014. Rev. Da Soc. Bras. De Med. Trop. 2017, 50, 638–645. [Google Scholar] [CrossRef] [Green Version]
  8. Reis, A.B.; Giunchetti, R.C.; Carrillo, E.; Martins-Filho, O.A.; Moreno, J. Immunity to Leishmania and the rational search for vaccines against canine leishmaniasis. Trends Parasitol. 2010, 26, 341–349. [Google Scholar] [CrossRef]
  9. Lemesre, J.L.; Holzmuller, P.; Gonçalves, R.B.; Bourdoiseau, G.; Hugnet, G.; Cavaleyra, M.; Papierok, G. Long-lasting protection against canine visceral leishmaniasis using the LiESAp-MDP vaccine in endemic areas of France: Double-blind randomised efficacy field trial. Vaccine 2007, 25, 4223–4234. [Google Scholar] [CrossRef]
  10. Giunchetti, R.C.; Correa-Oliveira, R.; Martins-Filho, O.A.; Teixeira-Carvalho, A.; Roatt, B.M.; Aguiar-Soares, R.D.O.; Souza, J.V.; Moreira, N.D.; Malaquias, L.C.C.; Castro, L.L.M.; et al. Immunogenicity of a killed Leishmania vaccine with saponin adjuvant in dogs. Vaccine 2007, 25, 7674–7686. [Google Scholar] [CrossRef]
  11. Fernandes, A.P.; Costa, M.M.; Coelho, E.A.; Michalick, M.S.; de Freitas, E.; Melo, M.N.; Tafuri, L.W.; Resende, D.M.; Hermont, V.; Abrantes, C.F.; et al. Protective immunity against challenge with Leishmania (Leishmania) chagasi in beagle dogs vaccinated with recombinant A2 protein. Vaccine 2008, 26, 5888–5895. [Google Scholar] [CrossRef]
  12. Giunchetti, R.C.; Corrêa-Oliveira, R.; Martins-Filho, O.A.; Teixeira-Carvalho, A.; Roatt, B.M.; de Oliveira Aguiar-Soares, R.D.; Coura-Vital, W.; de Abreu, R.T.; Malaquias, L.C.C.; Gontijo, N.F.; et al. A killed Leishmania vaccine with sand fly saliva extract and saponin adjuvant displays immunogenicity in dogs. Vaccine 2008, 265, 623–638. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Giunchetti, R.C.; Reis, A.B.; Silveira-Lemos, D.; Martins-Filho, O.A.; Corrêa-Oliveira, R.; Bethony, J.; Vale, A.M.; Quetz, J.S.; Bueno, L.L.; França-Silva, J.C.; et al. Antigenicity of a whole parasite vaccine as promising candidate against canine leishmaniasis. Res. Vet. Sci. 2008, 85, 106–112. [Google Scholar] [CrossRef] [PubMed]
  14. Roatt, B.M.; Aguiar-Soares, R.D.; Vitoriano-Souza, J.; Coura-Vital, W.; Braga, S.L.; Corrêa-Oliveira, R.; Martins-Filho, O.A.; Carvalho, A.T.; Lana, M.; Gontijo, N.F.; et al. Performance of LBSap vaccine after intradermal challenge with L. infantum and saliva of Lu. longipalpis: Immunogenicity and parasitological evaluation. PLoS ONE 2012, 7, e49780. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Resende, L.A.; Roatt, B.M.; Aguiar-Soares, R.D.; Viana, K.F.; Mendonça, L.Z.; Lanna, M.F.; Silveira-Lemos, D.; Corrêa-Oliveira, R.; Martins-Filho, O.A.; Fujiwara, R.T.; et al. Cytokine and nitric oxide patterns in dogs immunized with LBSap vaccine, before and after experimental challenge with Leishmania chagasi plus saliva of Lutzomyia longipalpis. Vet. Par. 2013, 198, 371–381. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Aguiar-Soares, R.D.D.O.; Roatt, B.M.; Ker, H.G.; Moreira, N.D.D.; Mathias, F.A.S.; Cardoso, J.M.D.O.; Gontijo, N.F.; Bruna-Romero, O.; Teixeira-Carvalho, A.; Martins-Filho, O.A.; et al. LbSapSal-vaccinated dogs exhibit increased circulating T-lymphocyte subsets (CD4+ and CD8+) as well as a reduction of parasitism after challenge with Leishmania infantum plus salivary gland of Lutzomyia longipalpis. Parasites Vectors 2014, 7, 61. [Google Scholar] [CrossRef] [Green Version]
  17. Resende, L.A.; Aguiar-Soares, R.D.D.O.; Gama-Ker, H.; Roatt, B.M.; Mendonça, L.Z.D.; Alves, M.L.R.; Silveira-Lemos, D.D.; Correa-Oliveira, R.; Martins-Filho, O.A.; Araújo, M.S.S.; et al. Impact of LbSapSal Vaccine in Canine Immunological and Parasitological Features before and after Leishmania chagasi-Challenge. PLoS ONE 2016, 11, e0161169. [Google Scholar] [CrossRef] [Green Version]
  18. Agallou, M.; Margaroni, M.; Kotsakis, S.D.; Karaguni, E. A Canine-Directed Chimeric Multi-Epitope Vaccine Induced Protective Immune Responses in BALB/c Mice Infected with Leishmania infantum. Vaccines 2020, 8, 350. [Google Scholar] [CrossRef]
  19. Elikaee, S.; Zarei, Z.; Khamesipour, A.; Akhoundi, B.; Borjian, A.R.; Afshar, M.J.A.; Allely, Q.K.; Heidari, S.; Mohebali, M. Live attenuated Leishmania major p27 gene knockout as a novel vaccine candidate: A study on safety, protective immunity and efficacy against canine visceral leishmaniasis caused by Leishmania infantum. Acta Trop. 2022, 225, 106153. [Google Scholar] [CrossRef]
  20. Srivastava, S.; Shankar, P.; Mishra, J.; Singh, S. Possibilities and challenges for developing a successful vaccine for leishmaniasis. Parasites Vectors 2016, 9, 277. [Google Scholar] [CrossRef] [Green Version]
  21. Pati, R.; Shevtsov, M.; Sonawane, A. Nanoparticle vaccines against infectious diseases. Front. Immunol. 2018, 9, 2224. [Google Scholar] [CrossRef]
  22. Doroud, D.; Rafati, S. Leishmaniasis: Focus on the design of nanoparticulate vaccine delivery systems. Expert Rev. Vaccines 2012, 11, 69–86. [Google Scholar] [CrossRef] [PubMed]
  23. Mehrizi, Z.T.; Ardestani, S.M.; Hoseini, M.H.M.; Khamesipour, A.; Mosaffa, N.; Ramezani, A. Novel Nanosized Chitosan-Betulinic Acid Against Resistant Leishmania Major and First Clinical Observation of such parasite in Kidney. Sci. Rep. 2018, 8, 11759. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Mehrizi, Z.T.; Khamesipour, A.; Ardestani, M.S.; Shahmabadi, H.E.; Hoseini, M.H.M.; Mosaffa, N.; Ramezani, A. Comparative analysis between four model nanoformulations of amphotericin B-chitosan, amphotericin B-dendrimer, betulinic acid-chitosan and betulinic acid-dendrimer for treatment of Leishmania major: Real-time PCR assay plus. Int. J. Nanomedicine 2019, 14, 7593–7607. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. De Souza, A.; Marins, D.S.S.; Mathias, S.L.; Monteiro, L.M.; Yukuyama, M.N.; Scarim, C.B.; Löbenberg, R.; Bou-Chacra, N.A. Promising nanotherapy in treating leishmaniasis. Int. J. Pharm. 2018, 547, 421–431. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Moura, A.P.V.; Santos, L.C.B.; Brito, C.R.N.; Valencia, E.; Junqueira, C.; Filho, A.A.P.; Sant’Anna, M.R.V.; Gontijo, N.F.; Bartholomeu, D.C.; Fujiwara, R.T.; et al. Virus-like Particle Display of the α-Gal Carbohydrate for Vaccination against Leishmania Infection. ACS Cent. Sci. 2017, 3, 1026–1031. [Google Scholar] [CrossRef] [Green Version]
  27. Agallou, M.; Athanasiou, E.; Kammona, O.; Tastsoglou, S.; Hatzigeorgiou, A.G.; Kiparissides, C.; Karagouni, E. Transcriptome Analysis Identifies Immune Markers Related to Visceral Leishmaniasis Establishment in the Experimental Model of BALB/c Mice. Front. Immunol. 2019, 10, 2749. [Google Scholar] [CrossRef]
  28. Tosyali, O.A.; Allahverdivev, A.; Bagirova, M.; Abamor, E.S.; Avdogdu, M.; Dinparvar, S.; Acar, T.; Mustafaeva, Z.; Derman, S. Nano-Co-delivery of Lipophosphoglycan with Soluble and Autoclaved Leishmania Antigens into PLGA nanoparticles: Evaluation of in Vitro and in Vivo Immunostimulatory Effects against Visceral Leishmaniasis. Mater. Sci. Eng. C 2020, 120, 111684. [Google Scholar] [CrossRef]
  29. Ministério da Saúde. Situação Epidemiológica: Distribuição da Leishmaniose Tegumentar. 2022. Available online: https://www.gov.br/saude/pt-br/assuntos/saude-de-a-a-z/l/lt/situacao-epidemiologica (accessed on 31 October 2022).
  30. Scott, P.; Novais, O. Cutaneous leishmaniasis: Immune responses in protection and pathogenesis. Nat. R Immunol. 2016, 16, 581–592. [Google Scholar] [CrossRef]
  31. Fessi, H.; Puisieux, F.; Devissaguet, J.P.; Ammoury, N.; Benita, S. Nanocapsule formation by interfacial polymer deposition following solvent displacement. Int. J. Pharm. 1989, 55, R1–R4. [Google Scholar] [CrossRef]
  32. Garcia, G.J.M.; Schroeter, J.D.; Kimbell, J.S. Olfactory deposition of inhaled nanoparticles in humans. Inhal. Toxicol. 2015, 27, 394–403. [Google Scholar] [CrossRef]
  33. Moreira, D.; Vitoriano-souza, J.; Roatt, B.M.; Melo, P.; Vieira, D.A.; Ker, H.G.; Mirelle, J.; Cardoso, D.O.; Giunchetti, R.C.; Carneiro, M.; et al. Parasite Burden in Hamsters Infected with Two Different Strains of Leishmania (Leishmania) infantum: “Leishman Donovan Units” versus Real-Time PCR. PLoS ONE 2012, 7, e47907. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Da Silva, C.J.; Mattos, C.B.; Felipin, K.P.; Silva, H.P.J.; Cantanhêde, L.M.; Porrozzi, R.; Medeiros, J.F.; Ferreira, R.G.M. First autochthonous case of canine visceral leishmaniasis in Rondônia, Brazil, a region with no history of visceral leishmaniasis. Rev. da Soc. Bras. de Med. Trop. 2018, 51, 712–715. [Google Scholar] [CrossRef] [PubMed]
  35. Faria, M.T.; Barbosa, F.S.; Teixeira-Neto, R.G.; Pinheiro, G.R.G.; Manhani, M.N.; Marcelino, A.P.; Barbosa, J.R.; Fontes, G. Autochthonous case of Canine Visceral Leishmaniasis in a non-endemic area in Minas Gerais, Brazil. Pesq. Vet. Bras. 2017, 37, 1505–1508. [Google Scholar] [CrossRef] [Green Version]
  36. Santana, R.S.; Souza, K.B.; Lussari, F.; Fonseca, E.S.; Andrade, C.O.; Meidas, M.M.K.; D’Andrea, l.A.Z.; Silva, F.A.; Flores, E.F.; Anjolete, I.R.; et al. Cases and distribution of visceral leishmaniasis in western São Paulo: A neglected disease in this region of Brazil. PLoS Neg. Trop. Dis. 2021, 15, e000941. [Google Scholar] [CrossRef] [PubMed]
  37. Cecílio, P.; Oliveira, F.; Silva, A.C. Vaccines for Human Leishmaniasis: Where Do We Stand and What Is Still Missing? Leishmaniases as Re-emerging Diseases; IntechOpen: London, UK, 2018. [Google Scholar]
  38. Ministério da Saúde. Leishmaniose Visceral. 2022. Available online: https://www.gov.br/saude/pt-br/assuntos/saude-de-a-a-z/l/leishmaniose-visceral (accessed on 2 November 2022).
  39. Petitdidier, E.; Pagniez, J.; Pissarra, J.; Holzmuller, P.; Papierok, G.; Vincendeau, P.; Lemesre, J.-L.; Bras-Gonçalves, R. Peptide-based vaccine successfully induces protective immunity against canine visceral leishmaniasis. NPJ Vaccines 2019, 4, 49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Danhier, F.; Ansorena, E.; Silva, J.M.; Coco, R.; Le Breton, A.; Préat, V. PLGA-based nanoparticles: An overview of biomedical applications. J. Control. Release 2012, 161, 505–522. [Google Scholar] [CrossRef] [PubMed]
  41. Moreno, J. Assessment of vaccine-induced immunity against canine visceral leishmaniasis. Front. Vet. Sci. 2019, 6, 1–10. [Google Scholar] [CrossRef] [PubMed]
  42. Fries, C.N.; Curvino, E.J.; Chen, J.L.; Permar, S.R.; Fouda, G.G.; Collier, J.H. Advances in nanomaterial vaccine strategies to address infectious diseases impacting global health. Nat. Nanotechnol. 2021, 16, 1–14. [Google Scholar] [CrossRef]
  43. Aikins, M.E.; Bazzill, J.; Moon, J.J. Vaccine nanoparticles for protection against HIV infection. Nanomedicine 2017, 12, 673–682. [Google Scholar] [CrossRef] [Green Version]
  44. Thomas, C.; Rawat, A.; Hope-Weeks, L.; Ahsan, F. Aerosolized PLA and PLGA nanoparticles enhance humoral, mucosal and cytokine responses to hepatitis B vaccine. Mol. Pharm. 2011, 8, 405–415. [Google Scholar] [CrossRef]
  45. Tokatlian, T.; Kulp, D.W.; Mutafyan, A.A.; Jones, C.A.; Menis, S.; Georgeson, E.; Kubitz, M.; Zhang, M.H.; Melo, M.B.; Silva, M. Enhancing humoral responses against HIV envelope trimers via nanoparticle delivery with stabilized synthetic liposomes. Sci. Rep. 2018, 8, 1–13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Kanekiyo, M.; Wei, C.J.; Yassine, H.M.; McTamney, P.M.; Boyington, J.C.; Whittle, J.R.R.; Rao, S.S.; Kong, W.P.; Wang, L.; Nabel, G.J. Self-assembling influenza nanoparticle vaccines elicit broadly neutralizing H1N1 antibodies. Nature 2013, 499, 102–106. [Google Scholar] [CrossRef] [PubMed]
  47. Niikura, K.; Matsunaga, T.; Suzuki, T.; Kobayashi, S.; Yamaguchi, H.; Orba, Y.; Kawaguchi, A.; Hasegawa, H.; Kajino, K.; Ninomiya, N.; et al. Gold nanoparticles as a vaccine platform: Influence of size and shape on immunological responses in vitro and in vivo. ACS Nano 2013, 7, 3926–3938. [Google Scholar] [CrossRef] [PubMed]
  48. Oliveira, D.C.D.P.; Barros, A.L.B.; Belardi, R.M.; Goes, A.M.; Oliveira, S.B.K.; Soares, D.C.F. Mesoporous silica nanoparticles as a potential vaccine adjuvant against Schistosoma mansoni. J. Drug Deliv. Sci. Technol. 2016, 35, 234–240. [Google Scholar] [CrossRef]
  49. Martinez-Gutierrez, F.; Olive, P.L.; Banuelos, A.; Orrantia, E.; Nino, N.; Sanchez, E.M.; Ruiz, F.; Bach, H.; Av-Gay, Y. Synthesis, characterization, and evaluation of antimicrobial and cytotoxic effect of silver and titanium nanoparticles. Nanomedicine 2010, 6, 681–688. [Google Scholar] [CrossRef]
  50. Das Moreira, D.N.; Vitoriano-Souza, J.; Roatt, B.M.; de Abreu Vieira, P.M.; Coura-Vital, W.; de Oliveira Cardoso, J.M.; Rezende, M.T.; Ker, H.G.; Giunchetti, R.C.; Carneiro, C.-M.; et al. Clinical, hematological and biochemical alterations in hamster (Mesocricetus auratus) experimentally infected with Leishmania infantum through different routes of inoculation. Parasites Vectors 2016, 9, 1. [Google Scholar] [CrossRef] [Green Version]
  51. Reis, A.B.; Teixeira-Carvalho, A.; Giunchetti, R.C.; Guerra, L.L.; Carvalho, M.G.; Mayrink, W.; Genaro, G.; Corrêa-Oliveira, R.; Martins-Filho, O.A. Phenotypic features of circulating leucocytes as immunological markers for clinical status and bone marrow parasite density in dogs naturally infected by Leishmania chagasi. Clin. Exp. Immunol. 2006, 146, 303–311. [Google Scholar] [CrossRef]
  52. De Freitas, J.C.C.; Lopes-Neto, B.E.; De Abreu, C.R.A.; Coura-Vital, W.; Braga, S.L.; Reis, A.B.; Nunes-Pinheiro, D.C.S. Profile of anti-Leishmania antibodies related to clinical picture in canine visceral leishmaniasis. Res. Vet. Sci. 2012, 93, 705–709. [Google Scholar] [CrossRef]
  53. Santos, W.R.; De Lima, V.M.F.; De Souza, E.P.; Bernardo, R.R.; Palatnik, M.; De Sousa, C.B.P. Saponins, IL12 and BCG adjuvant in the FML-vaccine formulation against murine visceral leishmaniasis. Vaccine 2012, 21, 30–43. [Google Scholar] [CrossRef]
  54. Ottino, J.; Leite, J.C.; Melo-Júnior, O.A.; González, M.A.C.; De Carvalho, T.F.; Garcia, G.M.; Batista, M.A.; Silveira, P.; Cardoso, M.S.; Bueno, L.L.; et al. Nanoformulations with Leishmania braziliensis Antigens Triggered Controlled Parasite Burden in Vaccinated Golden Hamster (Mesocricetus auratus) against Visceral Leishmaniasis. Pathogens 2022, 10, 11. [Google Scholar] [CrossRef]
  55. Resende, L.A.; Aguiar-Soares, R.D.O.; Moreira, N.D.D.; Ferreira, S.A.; Lanna, M.F.; Cardoso, J.M.O.; Mathias, F.A.S.; Coura-Vital, W.; Mariano, R.M.D.S.; Leite, J.C.; et al. In vitro Infectivity of Strains Isolated From Dogs Naturally Infected With Leishmania infantum Present a Distinct Pathogenic Profile in Hamsters. Front. Med. 2020, 28, 496. [Google Scholar] [CrossRef] [PubMed]
  56. De Oliveira Aguiar-Soares, R.D.; Roatt, B.M.; Mathias, F.A.S.; Reis, L.E.S.; de Oliveira Cardoso, J.M.; de Brito, R.C.F.; Ker, H.G.; Corrêa-Oliveira, R.; Giunchetti, R.C.; Reis, A.B. Phase I and II Clinical Trial Comparing the LBSap, Leishmune®, and Leish-Tec® Vaccines against Canine Visceral Leishmaniasis. Vaccines 2020, 8, 690. [Google Scholar] [CrossRef] [PubMed]
  57. Mendonça, L.Z.; Resende, L.A.; Lanna, M.F.; de Oliveira Aguiar-Soares, R.D.; Roatt, B.M.; de Oliveira e Castro, R.A.; Batista, M.A.; Silveira-Lemos, D.; de Assis Silva Gomes, J.; Fujiwara, R.T.; et al. Multicomponent LBSap vaccine displays immunological and parasitological profiles similar to those of Leish-Tec® and Leishmune® vaccines against visceral leishmaniasis. Parasites Vectors 2016, 9, 1. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Giunchetti, R.C.; Silveira, P.; Resende, L.A.; Leite, J.C.; de Oliveira Melo-Júnior, O.A.; Rodrigues Alves, M.L.; Costa, L.M.; Lair, D.F.; Chaves, V.R.; Soares, I.S.; et al. Canine visceral leishmaniasis biomarkers and their employment in vaccines. Vet. Parasitol. 2019, 271, 87–97. [Google Scholar] [CrossRef] [PubMed]
  59. Queiroz, P.V.S.; Monteiro, G.R.G.; Macedo, V.P.S.; Rocha, M.A.C.; Batista, L.M.M.; Queiroz, J.W.; Jerônimo, S.M.B.; Ximenes, M.F.F.M. Canine visceral leishmaniasis in urban and rural areas of Northeast Brazil. Res. Vet. Sci. 2009, 86, 267–273. [Google Scholar] [CrossRef] [PubMed]
  60. Maeda, K.; Sadoughi, S.; Morimoto, A.; Uchida, K.; Chambers, J.K.; Sanjoba, C.; Yamagishi, J.; Goto, Y. Hepatomegaly Associated with Non-Obstructive Sinusoidal Dilation in Experimental Visceral Leishmaniasis. Pathogens 2021, 10, 1356. [Google Scholar] [CrossRef]
  61. Margaroni, M.; Agallou, M.; Athanasiou, E.; Kammona, O.; Kiparissides, C.; Gaitanaki, C.; Karagouni, E. Vaccination with poly(D,L-lactide-co-glycolide) nanoparticles loaded with soluble Leishmania antigens and modified with a TNFα-mimicking peptide or monophosphoryl lipid aconfers protection against experimental visceral leishmaniasis. Int. J. Nanomed. 2017, 12, 6169–6184. [Google Scholar] [CrossRef] [Green Version]
  62. Dos-Santos, W.; Jesus, E.; Paranhos-Silva, M.; Pereira, A.; Santos, J.; Baleeiro, C.; Nascimento, E.G.; Moreira, E.D.; Oliveira, G.G.S.; Pontes-de-Carvalho, L.C. Associations among immunological, parasitological and clinical parameters in canine visceral leishmaniasis: Emaciation, spleen parasitism, specific antibodies and leishmanin skin test reaction. Vet. Immunol. Immunopathol. 2008, 5, 3–4. [Google Scholar] [CrossRef]
  63. Leal, G.A.; Roatt, B.; de Oliveira Aguiar-Soares, R.; Carneiro, C.; Giunchetti, R.C.; Teixeira-Carvalho, A.; Martins-Filho, O.A.; Francisco, A.F.; Cardoso, J.M.; Mathias, F.A.S.; et al. Immunological profile of resistance and susceptibility in naturally infected dogs by Leishmania infantum. Vet. Parasitol. 2014, 205, 472–482. [Google Scholar] [CrossRef]
  64. Proverbio, D.; Spada, E.; Giorgi, G.B.; Perego, R.; Valena, E. Relationship between Leishmania IFAT titer and clinicopathological manifestations (clinical score) in dogs. Biomed Res. Int. 2014, 412808. [Google Scholar] [CrossRef]
  65. Laranjeira, D.F.; Matta, V.L.; Tomokane, T.Y.; Marcondes, M.; Corbet, C.E.; Laurenti, M.D. Serological and infection statuses of dogs from a visceral leishmaniasis-endemic area. Rev. Saúde Publica 2014, 48, 563–571. [Google Scholar] [CrossRef] [PubMed]
Vaccines 11 00111 g001 550
Figure 1. Macroscopic changes observed in the dorsal region of golden hamsters up to l the date of euthanasia, in the different experimental groups, including: C—control; SAP—saponin; PSmP—small empty submicron particle; PSmG—large empty submicron particle; LA—L. amazonensis crude antigen; LASAP—L. amazonensis crude antigen associated with saponin; LAPSmP—small submicron particle associated with L. amazonensis; LAPSmG—large submicron particle associated with L. amazonensis.
Figure 1. Macroscopic changes observed in the dorsal region of golden hamsters up to l the date of euthanasia, in the different experimental groups, including: C—control; SAP—saponin; PSmP—small empty submicron particle; PSmG—large empty submicron particle; LA—L. amazonensis crude antigen; LASAP—L. amazonensis crude antigen associated with saponin; LAPSmP—small submicron particle associated with L. amazonensis; LAPSmG—large submicron particle associated with L. amazonensis.
Vaccines 11 00111 g001
Vaccines 11 00111 g002 550

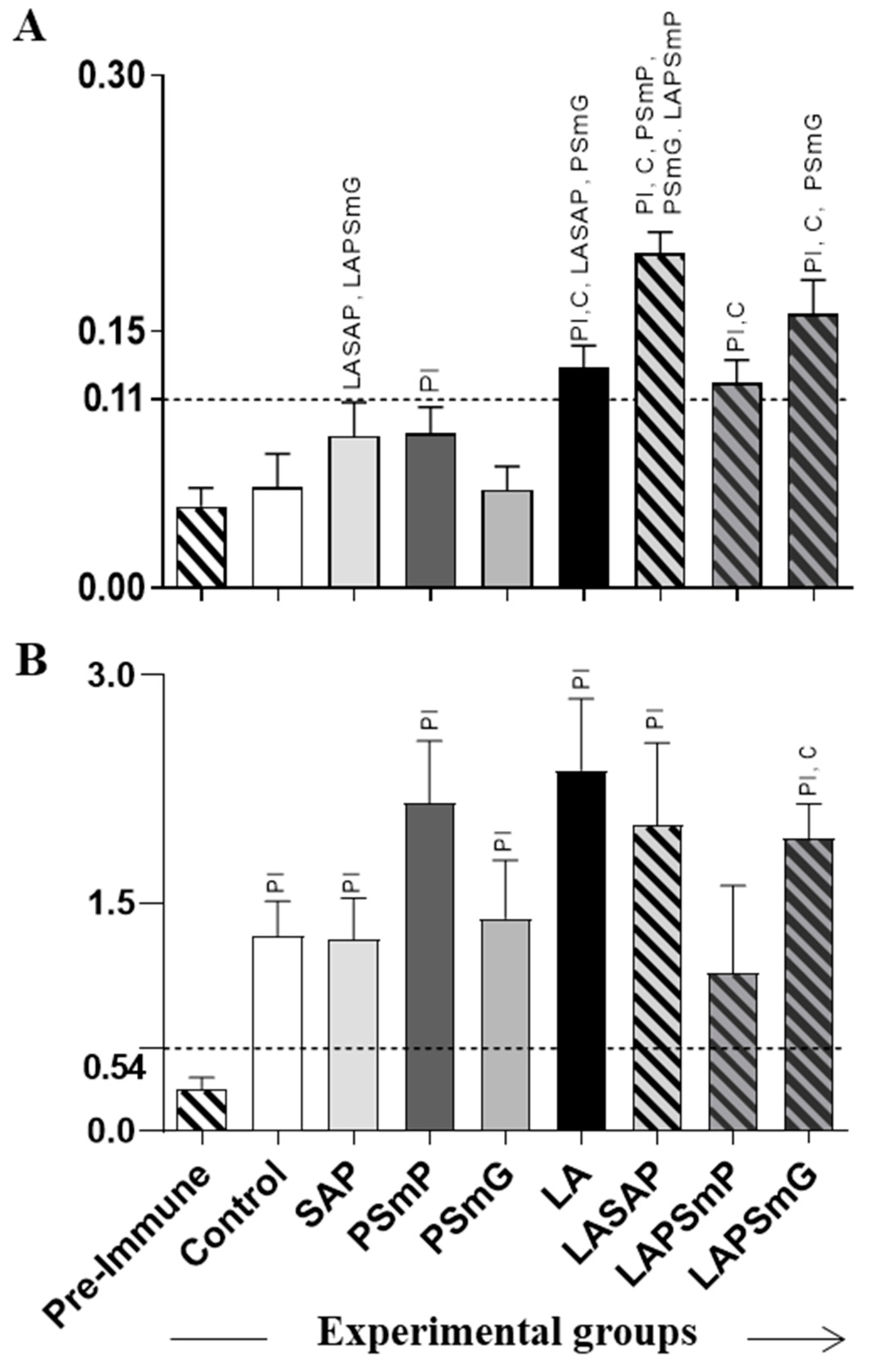

Figure 2. Anti-Leishmania infantum total IgG production. Hamster serum was obtained (A) 30 days after the third dose and (B) 180 days after the experimental challenge. The graphs represent the mean values and standard deviation of total IgG optical density measured by the ELISA assay for each group. The cut-off illustrated as a dotted line in the graph and used to assess the reactivity present in the samples is represented by the average of the absorbance values of the pre-immune serum sample added to the value of twice the standard deviation. The statistical difference (p < 0.05) was represented by acronyms of the corresponding group. Legend: PI: pre-immune; C: control; SAP: saponin; PSmP: small empty submicron particle; PSmG: large empty submicron Particle; LA: L. amazonensis crude antigen; LASAP: L. amazonensis crude antigen associated with saponin; LAPSmP: small submicron particle associated with L. amazonensis; LAPSmG: large submicron particle associated with L. amazonensis.
Figure 2. Anti-Leishmania infantum total IgG production. Hamster serum was obtained (A) 30 days after the third dose and (B) 180 days after the experimental challenge. The graphs represent the mean values and standard deviation of total IgG optical density measured by the ELISA assay for each group. The cut-off illustrated as a dotted line in the graph and used to assess the reactivity present in the samples is represented by the average of the absorbance values of the pre-immune serum sample added to the value of twice the standard deviation. The statistical difference (p < 0.05) was represented by acronyms of the corresponding group. Legend: PI: pre-immune; C: control; SAP: saponin; PSmP: small empty submicron particle; PSmG: large empty submicron Particle; LA: L. amazonensis crude antigen; LASAP: L. amazonensis crude antigen associated with saponin; LAPSmP: small submicron particle associated with L. amazonensis; LAPSmG: large submicron particle associated with L. amazonensis.
Vaccines 11 00111 g002
Vaccines 11 00111 g003 550

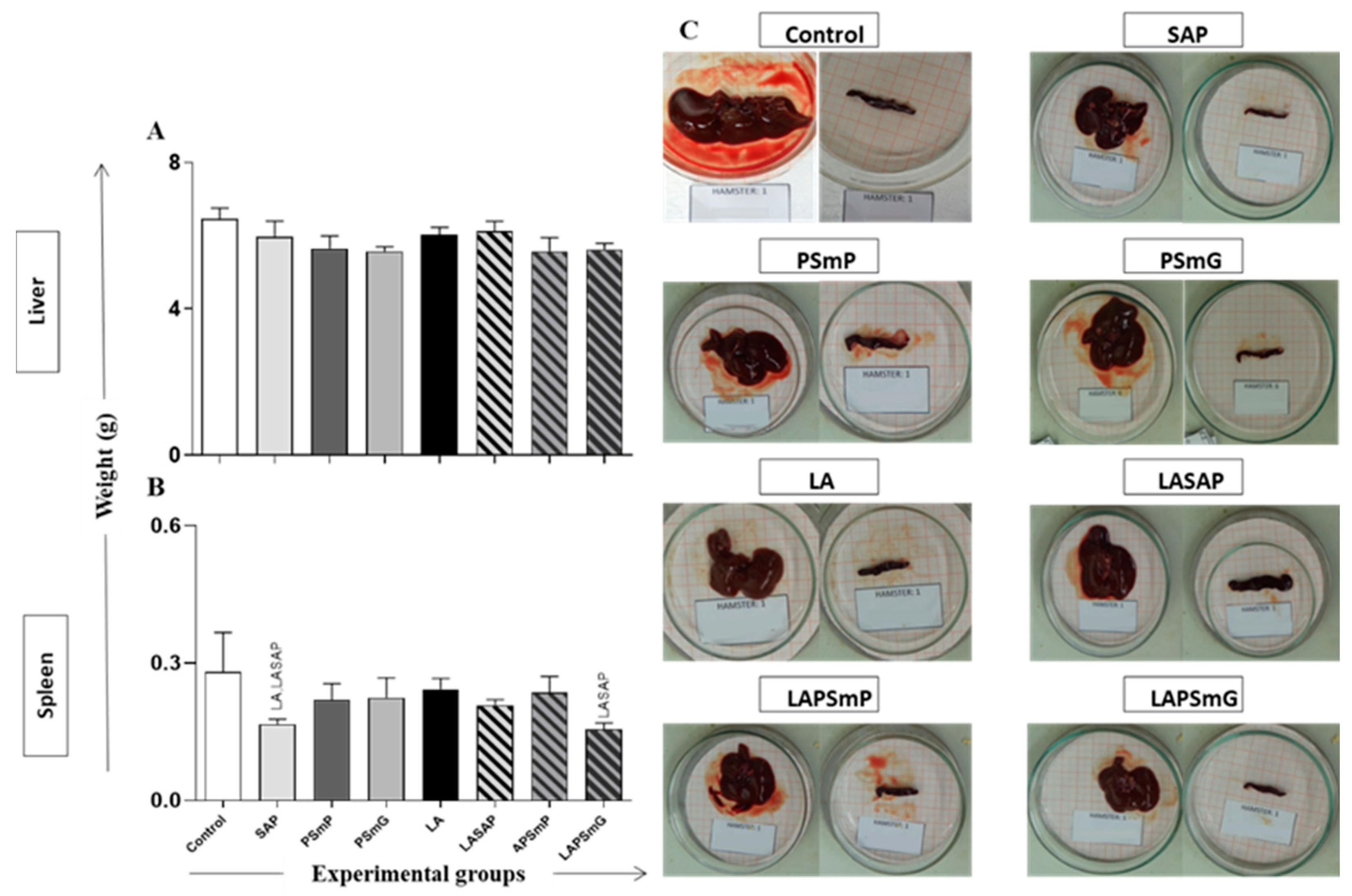

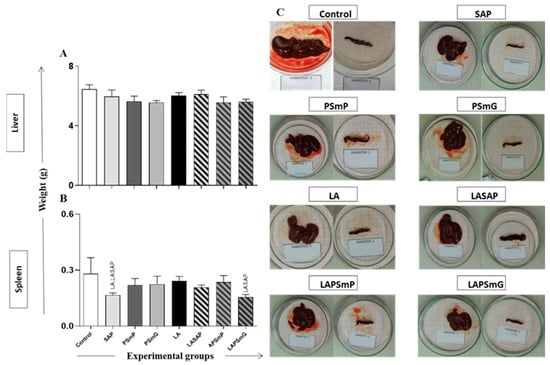

Figure 3. Liver (A) and spleen (B) weights were measured immediately after euthanasia (T180) and are represented as mean ± standard deviation. (C) Contains the representative image of the organs (liver—left side and spleen—right side) of each group. The statistical difference (p < 0.05) was represented by the acronyms of the corresponding group. Legend: C: control; SAP: saponin; PSmP: small empty submicron particle; PSmG: large empty submicron particle; LA: L. amazonensis crude antigen; LASAP: L. amazonensis crude antigen associated with saponin; LAPSmP: small submicron particle associated with L. amazonensis; LAPSmG: large submicron particle associated with L. amazonensis.
Figure 3. Liver (A) and spleen (B) weights were measured immediately after euthanasia (T180) and are represented as mean ± standard deviation. (C) Contains the representative image of the organs (liver—left side and spleen—right side) of each group. The statistical difference (p < 0.05) was represented by the acronyms of the corresponding group. Legend: C: control; SAP: saponin; PSmP: small empty submicron particle; PSmG: large empty submicron particle; LA: L. amazonensis crude antigen; LASAP: L. amazonensis crude antigen associated with saponin; LAPSmP: small submicron particle associated with L. amazonensis; LAPSmG: large submicron particle associated with L. amazonensis.
Vaccines 11 00111 g003
Vaccines 11 00111 g004 550

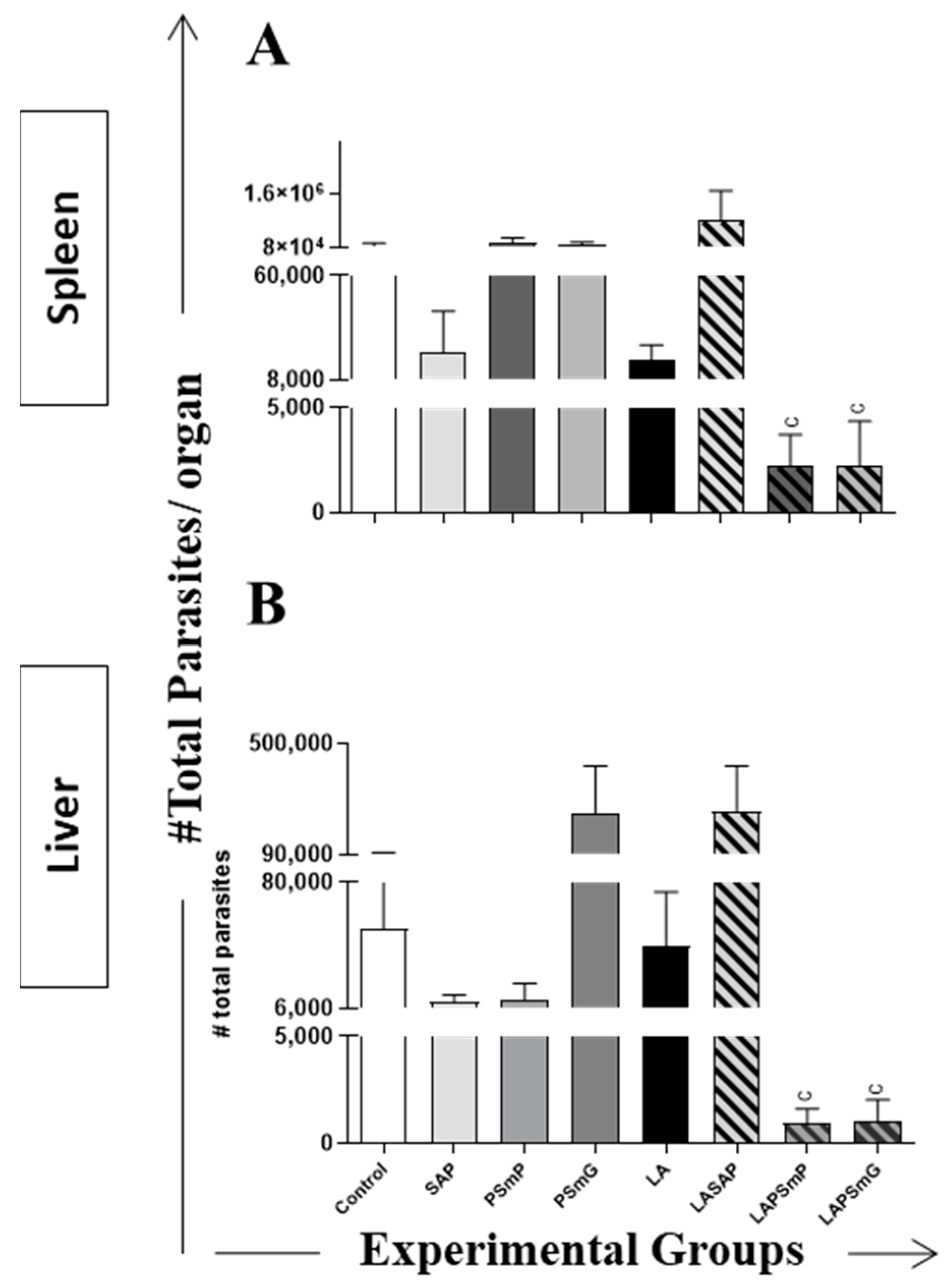

Figure 4. Parasite load in the spleen (A) and liver (B) after L. infantum experimental challenge, according to qPCR reaction. The x axis represents the experimental groups and the y axis represents the mean ± standard deviation of parasite quantification in 106 cells of each organ. The statistical difference (p < 0.05), when present, was represented by the acronym of the corresponding group. Legend: C: control; SAP: saponin; PSmP: small empty submicron particle; PSmG: large empty submicron particle; LA: L. amazonensis crude antigen; LASAP: L. amazonensis crude antigen associated with saponin; LAPSmP: small submicron particle associated with L. amazonensis; LAPSmG: large submicron particle associated with L. amazonensis.
Figure 4. Parasite load in the spleen (A) and liver (B) after L. infantum experimental challenge, according to qPCR reaction. The x axis represents the experimental groups and the y axis represents the mean ± standard deviation of parasite quantification in 106 cells of each organ. The statistical difference (p < 0.05), when present, was represented by the acronym of the corresponding group. Legend: C: control; SAP: saponin; PSmP: small empty submicron particle; PSmG: large empty submicron particle; LA: L. amazonensis crude antigen; LASAP: L. amazonensis crude antigen associated with saponin; LAPSmP: small submicron particle associated with L. amazonensis; LAPSmG: large submicron particle associated with L. amazonensis.
Vaccines 11 00111 g004
Vaccines 11 00111 g005 550

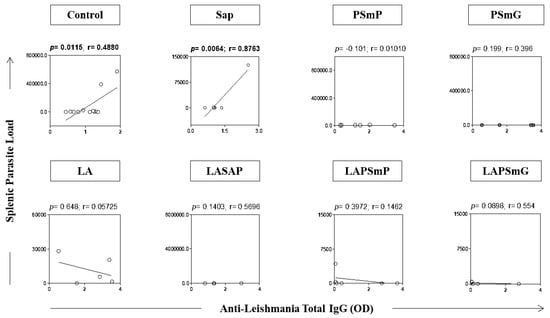

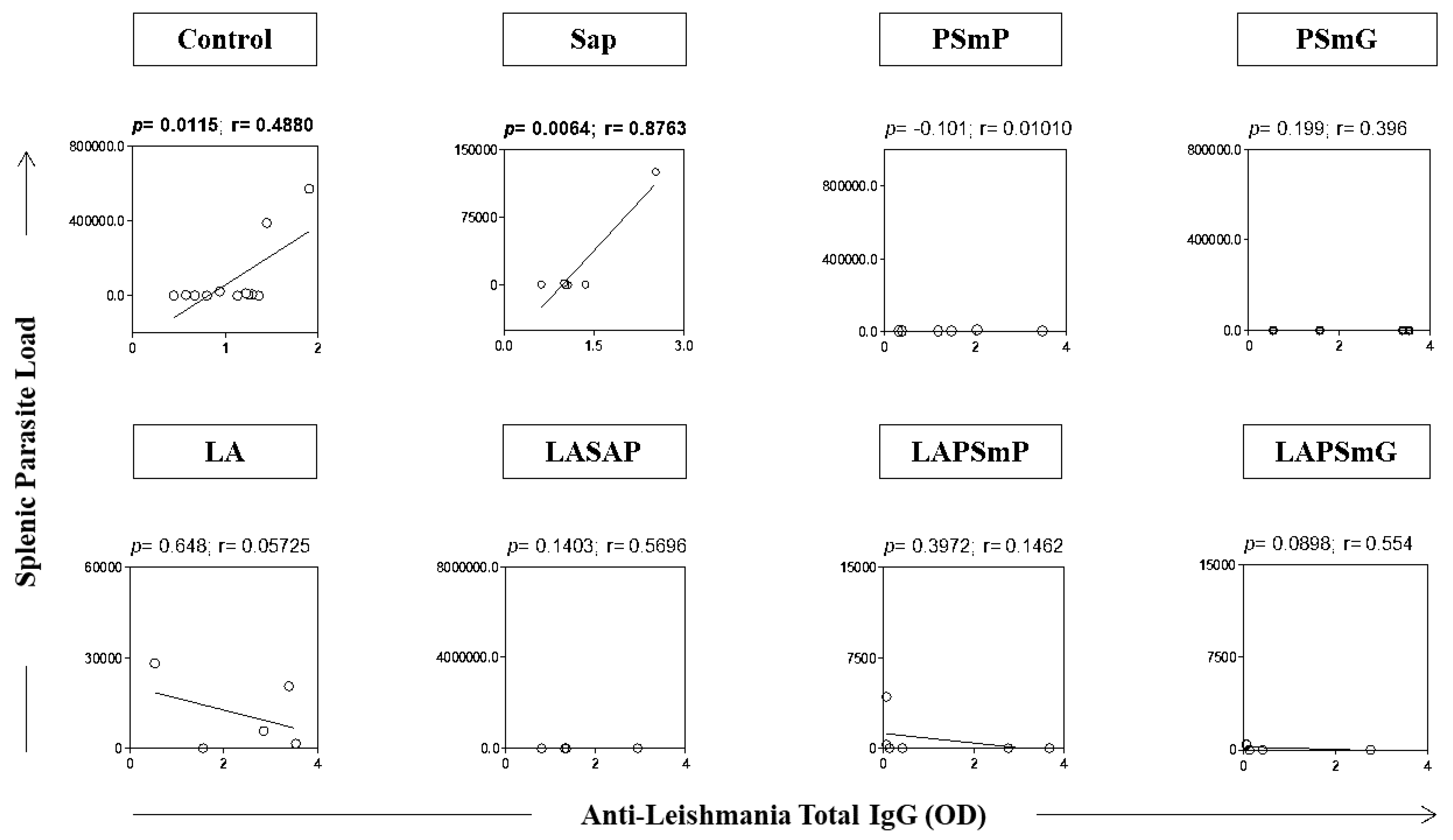

Figure 5. Correlation between splenic parasite load and total anti-Leishmania total IgG levels displayed as “◯”. The statistical difference was considered when p < 0.05. Legend: SAP: saponin; PSmP: small empty submicron particle; PSmG: large empty submicron particle; LA: L. amazonensis crude antigen; LASAP: L. amazonensis crude antigen associated with saponin; LAPSmP: small submicron particle associated with L. amazonensis; LAPSmG: large submicron particle associated with L. amazonensis.
Figure 5. Correlation between splenic parasite load and total anti-Leishmania total IgG levels displayed as “◯”. The statistical difference was considered when p < 0.05. Legend: SAP: saponin; PSmP: small empty submicron particle; PSmG: large empty submicron particle; LA: L. amazonensis crude antigen; LASAP: L. amazonensis crude antigen associated with saponin; LAPSmP: small submicron particle associated with L. amazonensis; LAPSmG: large submicron particle associated with L. amazonensis.
Vaccines 11 00111 g005
Table
Table 1. Characteristics of the SMP preparations.
Table 1. Characteristics of the SMP preparations.
PLA (mg/mL)Chitosan (mg/mL)Antigen (1 mg/mL)Size (nm)PolydispersityZeta Potential (mV)
PSmP55-350.6 ± 15.30.159+66.6 ± 4.3
PSmG5050-613.4 ± 16.80.133+66.8 ± 4.4
LAPSmP55L. amazonensis409.8 ± 11.70.157+42.2 ± 5.8
LAPSmG5050L. amazonensis652.7 ± 12.30.153+56.3 ± 4.3
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

González, M.A.C.; Gonçalves, A.A.M.; Ottino, J.; Leite, J.C.; Resende, L.A.; Melo-Júnior, O.A.; Silveira, P.; Cardoso, M.S.; Fujiwara, R.T.; Bueno, L.L.; et al. Vaccination with Formulation of Nanoparticles Loaded with Leishmania amazonensis Antigens Confers Protection against Experimental Visceral Leishmaniasis in Hamster. Vaccines 2023, 11, 111. https://doi.org/10.3390/vaccines11010111

AMA Style

González MAC, Gonçalves AAM, Ottino J, Leite JC, Resende LA, Melo-Júnior OA, Silveira P, Cardoso MS, Fujiwara RT, Bueno LL, et al. Vaccination with Formulation of Nanoparticles Loaded with Leishmania amazonensis Antigens Confers Protection against Experimental Visceral Leishmaniasis in Hamster. Vaccines. 2023; 11(1):111. https://doi.org/10.3390/vaccines11010111

Chicago/Turabian Style

González, Marco Antonio Cabrera, Ana Alice Maia Gonçalves, Jennifer Ottino, Jaqueline Costa Leite, Lucilene Aparecida Resende, Otoni Alves Melo-Júnior, Patrícia Silveira, Mariana Santos Cardoso, Ricardo Toshio Fujiwara, Lilian Lacerda Bueno, and et al. 2023. "Vaccination with Formulation of Nanoparticles Loaded with Leishmania amazonensis Antigens Confers Protection against Experimental Visceral Leishmaniasis in Hamster" Vaccines 11, no. 1: 111. https://doi.org/10.3390/vaccines11010111

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
