Protection and Safety Evaluation of Live Constructions Derived from the Pgm− and pPCP1− Yersinia pestis Strain

by
Xiuran Wang
,
Amit K. Singh
and
Wei Sun
*
Department of Immunology and Microbial Disease, Albany Medical College, Albany, NY 12208, USA
*
Author to whom correspondence should be addressed.
Vaccines 2020, 8(1), 95; https://doi.org/10.3390/vaccines8010095
Submission received: 8 February 2020 / Revised: 18 February 2020 / Accepted: 18 February 2020 / Published: 21 February 2020
(This article belongs to the Section Attenuated/Inactivated/Live and Vectored Vaccines)
Browse Figures
Review Reports Versions Notes

Abstract

:
Based on a live attenuated Yersinia pestis KIM10(pCD1Ap) strain (Pgm−, pPCP1−), we attempted to engineer its lipid A species to achieve improvement of immunogenicity and safety. A mutant strain designated as YPS19(pCD1Ap), mainly synthesizing the hexa-acylated lipid A, and another mutant strain designated as YPS20(pCD1Ap), synthesizing 1-dephosphalated hexa-acylated lipid A (detoxified lipid A), presented relatively low virulence in comparison to KIM10(pCD1Ap) by intramuscular (i.m.) or subcutaneous (s.c.) administration. The i.m. administration with either the KIM10(pCD1Ap) or YPS19(pCD1Ap) strain afforded significant protection against bubonic and pneumonic plague compared to the s.c. administration, while administration with completely attenuated YPS20(pCD1Ap) strain failed to afford significant protection. Antibody analysis showed that i.m. administration induced balanced Th1 and Th2 responses but s.c. administration stimulated Th2-biased responses. Safety evaluation showed that YPS19(pCD1Ap) was relatively safer than its parent KIM10(pCD1Ap) in Hfe−/− mice manifesting iron overload in tissues, which also did not impair its protection. Therefore, the immune activity of hexa-acylated lipid A can be harnessed for rationally designing bacteria-derived vaccines.

1. Introduction

The live EV76 vaccine is a spontaneous pgm mutant that has been used in humans for over 80 years in regions and countries of the former Soviet Union (FSU) without any deaths reported [1,2,3]. The EV76 vaccine conferred better protection against bubonic and pneumonic plague than killed vaccines in different animals, but it sometimes caused local and systemic reactions including fever, malaise, lymphadenopathy, erythema and large induration at the injection site [4,5,6,7], as well as disease in primates [6]. In addition, the live Pgm− strain (Y. pestis KIM5) retained virulence by intranasal (i.n.) or intravenous (i.v.) administration [6,8,9,10], caused fatal septicemic plague in an individual with hereditary hemochromatosis manifesting as iron overload in tissues [11], and restored its virulence in hemojuvelin-knockout (Hjv−/−) mice mimicking human hereditary hemochromatosis [12]. Thus, variable virulence of the live vaccine strain in animals and humans has deterred this vaccine from gaining worldwide acceptance [13,14]. Nevertheless, the large amount of accumulated evidence suggests that the live Pgm− vaccine strain is very close to becoming a human vaccine. The WHO 2018 plague workshop still listed the live attenuated Y. pestis vaccine as one of new-generation plague vaccines [15]. Thus, it is worthwhile to perfect this vaccine by resolving certain concerns.
One known strategy used by Y. pestis to evade host innate surveillance is to produce a tetra-acylated lipid A (the nonstimulatory form of LPS) that is not recognized by Toll-like receptor 4 (TLR4) in the mammalian host due to absence of LpxL (lauroyltransferase) [16,17,18,19]. Insertion of E. coli lpxL into the chromosome of the virulent Y. pestis KIM5+ strain (Pgm+) to generate strain χ10015(pCD1Ap) (ΔlpxP::PlpxL lpxL) restored production of hexa-acylated lipid A at both 26 °C and 37 °C, and presented high attenuation by subcutaneous (s.c.) administration [20]. The s.c. immunization with χ10015(pCD1Ap) afforded significant protection against both bubonic and pneumonic plague challenge [20] and the further attenuated strain χ10030(pCD1Ap) (ΔlpxP::PlpxL lpxL ΔPcrp::TT araC PBAD crp) was still lethal to mice (personal communication with Dr. Christopher K, Cote at CIV USAMRIID). In addition, we generated strain χ10027(pCD1Ap) (ΔlpxP::PlpxL lpxL ∆lacI::Plpp lpxE), which heterologously expresses the lpxE gene encoding the lipid A 1-phosphatase from Francisella novicida in Y. pestis, predominantly yielding 1-dephosphorylated hexa-acylated lipid A (monophosphoryl lipid A, MLPA) with significantly less stimulatory activity to several mammalian cells in vitro than the lipid A from χ10015 [21]. The lipid A dephosphorylation moderately decreased virulence of χ10027 in mice by s.c. or i.n. infection [21]. MPLA is an endotoxin derivative that has been approved by US and European authorities as a vaccine adjuvant in humans [22] and is 100- to 10,000-fold less toxic than native lipid A (biphosphoryl lipid A) [23,24]. Therefore, the live attenuated Pgm− vaccine strain with corresponding lipid A modification may retain immunogenicity but display low virulence and reactogenicity.
Another well-established virulence factor, the plasminogen-activating protease, Pla, encoded on the pPCP1 plasmid, was essential for dissemination of Y. pestis in the course of plague development [25,26,27]. Pla manipulated host cell death pathways to facilitate pulmonary infection by cleaving the Fas ligand [28], resulted in tissue destruction and hemorrhage in hosts infected with Y. pestis [25] and also thwarted T cell defense against the plague [29]. Removal of Pla clearly reduced virulence of Y. pestis [25,27,30]. A combination of deletion of the Braun lipoprotein gene (lpp) with curing of plasmid pPCP1 dramatically altered the virulence of Y. pestis CO92 in a mouse model of pneumonic plague [31]. Thus, the combination of the enhancement of immunogenic attributes by lipid A modification with attenuation by eliminating the pPCP1 plasmid on top of a Pgm− pPCP1− Y. pestis KIM-based strain might improve protective immunity and safety of the live Y. pestis vaccine. Here, we showed that high doses of the YPS20(pCD1Ap) strain (ΔlpxP::PlpxL lpxL ∆lacI::Plpp lpxE Pgm− pPCP1−) by intramuscular (i.m.) or subcutaneous (s.c.) injection did not cause any mouse death compared with those of the KIM10(pCD1Ap) and YPS19(pCD1Ap) strain (ΔlpxP::PlpxL lpxL Pgm− pPCP1−). Measurement of protective immunity showed that mice subcutaneously administrated each mutant strain partially survived challenge with bubonic and pneumonic plague. While i.m. immunization with either the YPS19(pCD1Ap) or KIM10(pCD1Ap) strain provided significant protection in mice against bubonic and pneumonic plague without a substantial difference, i.m. immunization with YPS20(pCD1Ap) did not. Safety evaluation indicated that the YPS19(pCD1Ap) strain was relatively safer than KIM10(pCD1Ap) in Hfe−/− mice.

2. Materials and Methods

2.1. Bacterial Strains, Plasmids, and Culture Conditions

All bacterial strains and plasmids used in this study are listed in Table 1. E. coli strains were grown routinely at 37 °C in Luria–Bertani broth (LB) or LB solidified with 1.2% Bacto Agar (Difco). Y. pestis bacteria were grown routinely at 28 °C on heart infusion broth (HIB) plus Congo red agar plates and tryptose-blood agar (TBA) plates (Difco) [32]. Ampicillin (100 μg/mL, Amp), chloramphenicol (25 μg/mL, Cm) or 5% sucrose were supplemented as appropriate.

2.2. Mice

Animal care and experimental protocols were in accordance with the NIH “Guide for the Care and Use of the laboratory Animals” and were approved by the Institutional Animal Care and Use Committee at Albany Medical College (IACUC protocol # 17-02004). Swiss Webster outbred mice were purchased from Charles River Laboratories. Hfe−/− mice (B6.129S6-Hfetm2Nca/J) [36] were purchased from The Jackson Laboratory. Wild-type (Hfe+/+) B6.129 mice as controls were purchased from Taconic. All deficient mice were bred at the animal facility of Albany Medical College.

2.3. Construction of Y. pestis Mutant Strains

Construction of Y. pestis mutants with the ΔlpxP::PlpxL lpxL or/and ∆lacI::Plpp lpxE insertion based on Y. pestis KIM10 (Pgm− pPCP1−) was described in our previous report [21]. Briefly, the linear lpxP-U-cat-sacB-PlpxL::lpxL-lpxP-D fragment cut from plasmid pYA4578 was electroporated into KIM10 harboring pKD46. Electroporants were plated onto TBA + Cm (25 μg/mL of chloramphenicol) plates and incubated at 26 °C for 2~3 days. Integrants with insertion of the lpxP-U-cat-sacB-PlpxL::lpxL-lpxP-D DNA fragment into the correct chromosomal site were confirmed by PCR using a primer set LpxL1/Cm-V (Table 2). Mutant colonies were streaked onto TBA + Cm + 5% sucrose plates to isolate sucrose-sensitive colonies for the second-step recombination. Then, linear lpxP-U-PlpxLlpxL-lpxP-D DNA fragments cut from pYA4577 were electroporated into lpxP-U-cat-sacB-PlpxL lpxL-lpxP-D KIM10(pKD46) intermediate cells. Colonies grown on TBA + 5% sucrose plates were confirmed to be sensitive to chloramphenicol, onto TBA + Cm plates, and then validated by PCR using a primer set LpxL1/LxpL2 (Table 2) to confirm that the PlpxL lpxL-lpxP fragment was inserted into the correct chromosomal site. Finally, plasmid pKD46 was eliminated from ΔlpxP::PlpxL lpxL KIM10(pKD46) to yield YPS19 (ΔlpxP::PlpxL lpxL) (Table 1). Then, the ∆lacI::Plpp lpxE mutation was introduced on top of YPS19 using the same procedures to generate YPS20 (ΔlpxP::PlpxL lpxL ∆lacI::Plpp lpxE) (Table 1). The correct clones were confirmed by PCR and DNA sequencing.

2.4. Virulence Analysis in Mice

A single colony of each mutant strain was inoculated into HIB supplemented with ampicillin (100 μg/mL) for selection of plasmid pCD1Ap and grown overnight at 26 °C. Bacteria were diluted into 10 mL of fresh HIB enriched with 0.2% xylose and 2.5 mM CaCl2 to obtain an OD620 of 0.1 and then incubated at 26 °C for intramuscular (i.m.) or subcutaneous (s.c.) infection, or at 37 °C for intranasal (i.n.) infection, to reach an OD620 of 0.6. The cells were then harvested, and the pellet resuspended in 1 mL of isotonic PBS and then adjusted to an appropriate concentration.
Groups of Swiss Webster mice (10/group, equal males and females) were administrated by i.m. or s.c. injection with 100 μL of bacterial suspension (107 CFU) or by i.n. route with 40 μL of bacterial suspension (106 CFU). Actual numbers of colony-forming units (CFU) inoculated were determined by plating serial dilutions onto TBA agar.

2.5. Determination of Protective Efficacy

Y. pestis strains were grown as described above. Two groups of Swiss Webster mice (10/group, equal males and females) were immunized i.m. with 1 × 107 CFU of a mutant strain in 100 μL of PBS on day 0 and boosted i.m. with 1 × 107 CFU on day 21. A group of mice (10/group) were injected with 100 μL of PBS as a control. Blood was collected by sub-mandibular vein puncture at 2- and 4-weeks post immunization. At 42 days after initial immunization, animals anesthetized with a 1:5 xylazine/ketamine mixture were challenged intranasally with 5 × 103 CFU of Y. pestis KIM6+(pCD1Ap) in 40 μL PBS. All infected animals were observed over a 15-day period.

2.6. Immune Responses

ELISA was used to assay serum IgG antibodies against Yersinia whole cell lysates (YpL) of Y. pestis KIM5+ or purified rLcrV protein [37]. Polystyrene 96-well flat-bottom microtiter plates (Dynatech Laboratories Inc., Chantilly, VA, USA) were coated with 1 μg/well of YpL protein or rLcrV. The procedures were the same as those described previously [37].

2.7. Evaluation of Vaccine Safety

Y. pestis mutant strains were evaluated for safety using 7 wk old Hfe−/− mice (n = 10/group). Mice were administered intramuscularly with a single dose of 1 × 107 CFU of each Y. pestis mutant strain. These mice were observed for signs of mortality and morbidity for 30 days.

2.8. Statistical Analysis

The Graph-Pad Prism 8.0 was used to analyze data statistically. The log-rank (Mantel–Cox) test, and the two-way ANOVA were used for survival analysis, statistical analyses of spleen weight and cytokine analysis, respectively. Data were expressed as means ± standard deviation (SD). A p-value < 0.05 was considered significant.

3. Results

3.1. Construction of Y. pestis Mutants with Lipid A Modification

To exclude potential virulence caused by Pla, Y. pestis KIM10 (Pgm− pPCP1−) was used as a parent strain to generate mutant strains. Following our previous studies [20,21], we introduced the ΔlpxP::PlpxL lpxL mutation into Y. pestis KIM10 to generate the YPS19 (ΔlpxP::PlpxL lpxL Pgm− pPCP1−) strain (Table 1 and Figure 1), in which lpxL genes from E. coli encodes the transferase that catalyzes the acyl-oxyacyl linkage of laurate to the 3’ hydroxy-myristate to synthesize hexa-acylated lipid A (Table 1 and Figure 1). Then, the ∆lacI::Plpp lpxE gene fragment was introduced into YPS19 to replace the lacI gene and form the YPS20 (ΔlpxP::PlpxL lpxL ∆lacI::Plpp lpxE Pgm− pPCP1−) strain (Table 1 and Figure 1), in which the lpxE gene encodes the lipid A 1-phosphatase from F. novicida that catalyzes removal of the 1-phosphate group from hexa-acylated lipid A to synthesize monophosphoryl lipid A (Table 1 and Figure 1).

3.2. Virulence of Y. pestis Mutants in Mice and Protective Immunity

Previous studies showed that BALB/c mice injected intramuscularly (i.m.) with 1 × 107 CFU of Y. pestis KIM D27, a Pgm− strain harboring all three virulence plasmids (pCD1, pMT1, and pPCP1), presented clinical symptoms (ruffled fur and lethargy) and 30% mortality [38]. Therefore, 1 × 107 CFU of KIM10(pCD1Ap), YPS19(pCD1Ap) or YPS20(pCD1Ap) as a minimal dose was administrated by intramuscular (i.m.) or subcutaneous (s.c.) route in this study. Groups of Swiss Webster mice (n = 10, equal males and females) were intramuscularly administrated with KIM10(pCD1Ap), YPS19(pCD1Ap) and YPS20(pCD1Ap), respectively and monitored for 30 days to record survivals. Results showed that 60% and 90% of mice survived infection with 5 × 107 CFU and 1 × 107 CFU of KIM10(pCD1Ap) by i.m. injection, respectively; 60% and 100% mice survived infection with 1 × 108 CFU and 1.7 × 107 CFU of YPS19(pCD1Ap), respectively; no mice died of infection with 5 × 107 CFU of YPS20(pCD1Ap) (Figure 2A). The s.c. injection with 3 × 107 CFU of KIM10(pCD1Ap), 1 × 108 CFU of YPS19(pCD1Ap) or 2 × 107 CFU of YPS20(pCD1Ap) showed 80%, 90% or 100% survival, respectively (Figure 2B). No mice succumbed by intranasal (i.n.) instillation with 5 × 106 CFU of KIM10(pCD1Ap), YPS19(pCD1Ap) and YPS20(pCD1Ap), respectively (data not shown).
On day 42 after administration, the animals that survived from each corresponding group by i.m. administration were pooled together and split in half (n = 8, equal males and females) for s.c. or i.n. challenge with virulent Y. pestis, respectively. All KIM10(pCD1Ap)- and YPS19(pCD1Ap)-i.m. injected mice survived s.c. challenge with 5 × 105 CFU (50,000 LD50) of Y. pestis KIM6+(pCD1Ap), while only 20% of the YPS20(pCD1Ap)-i.m. injected mice survived the same challenge (Figure 3A). The i.m. administration with KIM10(pCD1Ap) or YPS19(pCD1Ap) afforded 100% and 88% protection in mice against i.n. challenge with a median dose of 5 × 103 (50 LD50) of Y. pestis KIM6+(pCD1Ap), respectively, but the i.m. administration with YPS20(pCD1Ap) afforded 20% protection in mice against the pulmonary challenge (Figure 3B).
In addition, the animals that survived from each corresponding group by s.c. injection on day 42 after administration were pooled together and split in half (n = 8, equal males and females) for s.c. or i.n. challenge with virulent Y. pestis, respectively. Around 50% of the KIM10(pCD1Ap)-, YPS19(pCD1Ap)- and YPS20(pCD1Ap)-s.c. administrated mice survived s.c. challenge with 50,000 LD50 of Y. pestis KIM6+(pCD1Ap) (Figure 3C). The s.c. administration with KIM10(pCD1Ap) and YPS19(pCD1Ap) afforded 50% and 40% protection in mice against i.n. challenge with 50 LD50 of Y. pestis KIM6+(pCD1Ap), respectively. The s.c. administration with YPS20(pCD1Ap) only afforded 20% protection in mice against the pulmonary challenge (Figure 3D). None of the mice administrated PBS survived challenge by either route (Figure 3).
We analyzed serum IgG responses to Y. pestis whole cell lysates (YpL) from i.m. and s.c. administrated mice at week 4 post administration. KIM10(pCD1Ap)-, YPS19(pCD1Ap)- and YPS20(pCD1Ap)-i.m. inoculation primed similar levels of total anti-YpL IgG in mice without substantial difference. In addition, KIM10(pCD1Ap)-, YPS19(pCD1Ap)- and YPS20(pCD1Ap)- s.c. inoculation primed similar levels of total anti-YpL IgG among each group of mice. However, the overall anti-YPL IgG titers in mice by i.m. inoculation were significantly higher than those in mice by s.c. inoculation (Figure 4A). The serum immune responses to YpL were further examined by measuring the levels of IgG isotype subclasses IgG1 and IgG2a. The IgG2a/IgG1 ratio of anti-YpL titers in mice by i.m. administration was close to 1 (Figure 4B), indicating a mixed Th1/Th2 response was stimulated by KIM10(pCD1Ap)-, YPS19(pCD1Ap)- or YPS20(pCD1Ap)-i.m. inoculation. However, the IgG2a/IgG1 ratio of anti-YpL titers in mice by s.c. administration was around 0.5 (Figure 4C), indicating a Th2-biased response was stimulated by KIM10(pCD1Ap)-, YPS19(pCD1Ap)- or YPS20(pCD1Ap)-s.c. inoculation.

3.3. Protection Efficiency Against Pulmonary Y. pestis Infection and Serum Immune Responses

Regarding the above data, we established that the YPS20(pCD1Ap) strain showed obviously low immunogenicity compared with KIM10(pCD1Ap) or YPS19(pCD1Ap), and the i.m. inoculation with KIM10(pCD1Ap) or YPS19(pCD1Ap) afforded better protection against plague than the s.c. inoculation did and also provided complete protection against s.c. challenge with 50,000 LD50 of Y. pestis KIM6+(pCD1Ap) (Figure 3A) and significant protection against i.n. challenge with 50 LD50 of Y. pestis KIM6+(pCD1Ap) (Figure 3B). Therefore, we further evaluated protective efficacy of i.m. immunization with KIM10(pCD1Ap) and YPS19(pCD1Ap) by the prime-boost regime against pulmonary Y. pestis challenge. Groups of mice (5 male and 5 female) were immunized with 1 × 107 CFU of KIM10(pCD1Ap) or 2 × 107 CFU of YPS19(pCD1Ap) and boosted at 3 weeks post initial immunization. During immunization, two mice succumbed in the KIM10(pCD1Ap)-immunized group at day 11 post immunization (Figure 5A). Then, all immunized mice were challenged intranasally with 50 LD50 of Y. pestis KIM6+(pCD1Ap) at 42 days after initial immunization. Both KIM10(pCD1Ap)-immunized and YPS19(pCD1Ap)-immunized groups had the same protective efficacy (survival of 70%). None of the mice administrated PBS survived the pulmonary challenge (Figure 5B). Analysis of serum IgG responses to recombinant LcrV antigen and YpL showed that IgG titers to LcrV or YPL were similar in KIM10(pCD1Ap)- and YPS19(pCD1Ap)-immunized groups at week 2 and displayed increasing trends at week 4 (Figure 5C,D).

3.4. Safety Assessment of Y. pestis Mutant Strains

Virulence assays in Swiss Webster mice showed that virulence of KIM10(pCD1Ap) was slightly higher than that of YPS19(pCD1Ap) by both i.m. and s.c. administration. The attenuated Y. pestis Pgm− strain was lethal to an individual with hereditary hemochromatosis manifesting iron overload in tissues [11]. The Hfe−/− mice display the iron overload phenotype that was similarly observed in humans with hereditary hemochromatosis [36,39]. Therefore, we used Hfe−/− mice to further evaluate safety profiles of KIM10(pCD1Ap) and YPS19(pCD1Ap) strains by i.m. inoculation. The mice (n = 10, equal males and females) received 1 × 107 CFU of each strain. Inoculation with YPS19(pCD1Ap) showed 100% survival. However, 80% of Hfe−/− mice administrated KIM6+(pCD1Ap) survived by the end of the 30-day observation period. No wild-type C57BL/6 mice died by the same administration with KIM6+(pCD1Ap) or YPS19(pCD1Ap) (Figure 6). The results demonstrated that the YPS19(pCD1Ap) strain as a vaccine candidate had the same protective efficacy as KIM10(pCD1Ap), but seemed safer than KIM10(pCD1Ap) in Swiss Webster and Hfe−/− mice.

4. Discussion

The success in development of a new generation of effective plague vaccines generally depends on the existence of a suitable vaccine candidate with desirable characteristics capable of eliciting a marked immunity with minimal side effects. This can be accomplished by using technologies to significantly improve both the protection and safety characteristics of the vaccine candidate by modifying particular bacterial properties.
In addition, the outbred Swiss Webster mouse strain has been used as a small-animal model for testing the immunogenicity and efficacy of the rF1V vaccine against plague [40,41,42]. The heterogeneous immune responses expected in Swiss Webster mice due to inherent genetic differences could be a more accurate reflection of the expected human response, rather than in an inbred strain of mouse [40]. Therefore, evaluation of live attenuated Y. pestis vaccine candidates in the outbred mice would be more relevant to translation of mouse studies to human application.
Y. pestis with a single lpxL insertion synthesizing hexa-acylated lipid A induced strong inflammatory responses [17,20]. Therefore, this phenomenon would be analogous to the YPS19(pCD1Ap) strain with the single lpxL insertion. Virulence evaluation showed that YPS19(pCD1Ap) clearly reduced its virulence in Swiss Webster mice compared with its parent strain KIM10(pCD1Ap) by i.m. and s.c. administrations, respectively (Figure 2A,B), while the YPS20(pCD1Ap) strain with lpxL and lpxE double insertions synthesizing monophosphoryl lipid A showed complete attenuation (Figure 2A,B). However, our previous study showed that χ10027(pCD1Ap) (∆lpxP::PlpxL lpxL ∆lacI::Plpp lpxE) with both lpxL and lpxE insertions derived from the KIM6+(pCD1Ap) (Pgm+ pPCP1+) strain was more virulent than χ10015(pCD1Ap) (∆lpxP::PlpxL lpxL), even though strain χ10027(pCD1Ap) significantly decreased Pla activity and slightly affected Pla synthesis compared to χ10015(pCD1Ap) and KIM6+(pCD1Ap) [21]. Removal of Pla, a virulence factor encoded on the pPCP1 plasmid, clearly reduced the virulence of Y. pestis [25,27,30]. Therefore, lipid A 1-dephosphorylation may have pleiotropic effects on other virulence factors in Y. pestis. In addition, we observed that strain χ10027(pCD1Ap) produced more biofilm than χ10015(pCD1Ap) and KIM6+(pCD1Ap) in the same culture conditions (observation data). In Y. pestis, biofilm formation is primarily dependent upon genes of the hms system, including the hmsHFRS genes within the pgm (pigmentation) locus [43,44]. Thus, the lipid A 1-dephosphorylation in Y. pestis might upregulate genes such as psn [45], ripA [33] and others along with hmsHFRS within the pgm locus to increase bacterial resistance in mammalian hosts. Both YPS19(pCD1Ap) and YPS20(pCD1Ap) were derived from KIM10(pCD1Ap) and lack pPCP1 and the pgm locus, so lipid A 1-dephosphorylation in YPS20(pCD1Ap) loses this ability to upregulate virulence factors within the pgm locus, which may be one of reasons why YPS20(pCD1Ap) shows higher attenuation than YPS19(pCD1Ap).
Intramuscularly administrated YPS20(pCD1Ap) could not generate effective protection against virulent Y. pestis(pCD1Ap) challenge as immunization with KIM10(pCD1Ap) or YPS19(pCD1Ap) did (Figure 3A,B), although administration of YPS20(pCD1Ap) primed similar levels of anti-Yersinia IgG response to administration of KIM10(pCD1Ap) or YPS19(pCD1Ap) (Figure 4A). It is worthy noticing that the residual virulence in the live Y. pestis EV vaccine strain is considered to be necessary for the development of adequate immunity against plague [3,46]. Previous studies showed that vaccination with attenuated Pgm− derived Y. pestis strains primed T cells in an antibody-independent system that protect mice against pneumonic plague [47,48]. Thus, another reason for this explanation is that antibody responses induced by immunization with the above Y. pestis mutants are not essential for protection. We also noticed that i.m. immunization with attenuated Y. pestis mutants generated balanced Th1/Th2 responses, while s.c. immunization with corresponding strains stimulated Th2-biased responses (Figure 4B,C), which can explain why mice who survived s.c. administration were conferred less protection against virulent Y. pestis KIM6+(pCD1Ap) challenge than i.m. administration, except for the YPS20(pCD1Ap) strain (Figure 3).
Mice vaccinated i.m with KIM10(pCD1Ap) by a prime-boost strategy still had two deaths without significance compared to YPS19(pCD1Ap) (Figure 5A). Immunization with each strain in Swiss Webster mice conferred significant protection (70%) against pulmonary Y. pestis challenge without further enhancement (Figure 5B). The variations of protective efficacy compared to Figure 3B may be due to genetic variations in those outbred mice. Further, safety evaluation suggested that YPS19(pCD1Ap) was safer than KIM10(pCD1Ap) in Hfe−/− mice. Overall, the advantageous features of the YPS19(pCD1Ap) (ΔlpxP::PlpxL lpxL Pgm− pPCP1−) makes it a potential candidate for an improved live plague vaccine because it is high attenuation without weakening its protection. This study is paving a way to develop a safe, live Y. pestis vaccine for counteracting human plague.

5. Conclusions

Virulence evaluation in mice demonstrated that YPS19(pCD1Ap) mainly synthesizing the hexa-acylated lipid A was further attenuated in comparison to its parent strain, KIM10(pCD1Ap) by i.m. or s.c. administration. The i.m. immunization with either KIM10(pCD1Ap) or YPS19(pCD1Ap) strain induced similar levels of antibody response manifesting a balanced Th1/Th2 response and afforded the same protective efficacy against Y. pestis infection. Therefore, YPS19(pCD1Ap) would be a potential vaccine candidate with improved features.

Author Contributions

Investigation: X.W., A.K.S., W.S.; resources: W.S.; writing—original draft preparation: W.S.; writing—review and editing: X.W., A.K.S., W.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by National Institutes of Health grant AI125623 and AI139703 to WS and Albany Medical College start-up fund.

Acknowledgments

We thank Roy Curtiss III at the University of Florida for sharing the χ strains and pYA plasmids and James Bliska at Dartmouth College for sharing the KIM10 strain.

Financial Disclosure

The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Conflicts of Interest

All authors declare that they have no conflicts of interest.

References

  1. Girard, G. Immunity in plague. Acquisitions supplied by 30 years of work ont the “Pasteurella pestis EV” (Girard and Robic) strain. Biol. Med. (Paris) 1963, 52, 631–731. [Google Scholar] [PubMed]
  2. Titball, R.W.; Williamson, E.D. Yersinia pestis (plague) vaccines. Expert Opin. Biol. Ther. 2004, 4, 965–973. [Google Scholar] [CrossRef] [PubMed]
  3. Feodorova, V.A.; Corbel, M.J. Prospects for new plague vaccines. Expert Rev. Vaccines 2009, 8, 1721–1738. [Google Scholar] [CrossRef] [PubMed]
  4. Hallett, A.F.; Isaacson, M.; Meyer, K.F. Pathogenicity and immunogenic efficacy of a live attentuated plaque vaccine in vervet monkeys. Infect. Immun. 1973, 8, 876–881. [Google Scholar] [CrossRef] [Green Version]
  5. Meyer, K.F.; Cavanaugh, D.C.; Bartelloni, P.J.; Marshall, J.D., Jr. Plague immunization. I. Past and present trends. J. Infect. Dis. 1974, 129 (Suppl. 1), S13–S18. [Google Scholar] [CrossRef]
  6. Meyer, K.F.; Smith, G.; Foster, L.; Brookman, M.; Sung, M. Live, attenuated Yersinia pestis vaccine: Virulent in nonhuman primates, harmless to guinea pigs. J. Infect. Dis. 1974, 129 (Suppl. 1), S85–S120. [Google Scholar] [CrossRef]
  7. Russell, P.; Eley, S.M.; Hibbs, S.E.; Manchee, R.J.; Stagg, A.J.; Titball, R.W. A comparison of Plague vaccine, USP and EV76 vaccine induced protection against Yersinia pestis in a murine model. Vaccine 1995, 13, 1551–1556. [Google Scholar] [CrossRef]
  8. Une, T.; Brubaker, R.R. In vivo comparison of avirulent Vwa- and Pgm- or Pstr phenotypes of yersiniae. Infect. Immun. 1984, 43, 895–900. [Google Scholar] [CrossRef] [Green Version]
  9. CDC. Update: Human plague India 1994. CDC Morb. Mortal. Wkly. Rep. 1995, 43, 722–723. [Google Scholar]
  10. Batra HV, T.U. Agarwal GS Isolation and identification of Yersinia pestis responsible for the recent plague outbreaks in India. Curr. Sci. 1996, 71, 787–791. [Google Scholar]
  11. Frank, K.M.; Schneewind, O.; Shieh, W.J. Investigation of a Researcher’s Death Due to Septicemic Plague. N. Engl. J. Med. 2011, 364, 2563–2564. [Google Scholar] [CrossRef] [PubMed]
  12. Quenee, L.E.; Hermanas, T.M.; Ciletti, N.; Louvel, H.; Miller, N.C.; Elli, D.; Blaylock, B.; Mitchell, A.; Schroeder, J.; Krausz, T.; et al. Hereditary hemochromatosis restores the virulence of plague vaccine strains. J. Infect. Dis. 2012, 206, 1050–1058. [Google Scholar] [CrossRef] [PubMed]
  13. Meyer, K.F. Effectiveness of live or killed plague vaccines in man. Bull. World Health Organ. 1970, 42, 653–666. [Google Scholar] [PubMed]
  14. WHO Expert Committee on Plague. W.H.O. Technical Report Series 447:16; WHO: Geneva, Switzerland, 1970. [Google Scholar]
  15. Yazdanpanah, Y. Efficacy trials of Plague Vaccines: Endpoints, trial design, site selection. In Proceedings of the WHO Workshop 2018, Paris, France, 23 April 2018; INSERM: Paris, France, 2018. [Google Scholar]
  16. Telepnev, M.V.; Klimpel, G.R.; Haithcoat, J.; Knirel, Y.A.; Anisimov, A.P.; Motin, V.L. Tetraacylated lipopolysaccharide of Yersinia pestis can inhibit multiple Toll-like receptor-mediated signaling pathways in human dendritic cells. J. Infect. Dis. 2009, 200, 1694–1702. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Montminy, S.W.; Khan, N.; McGrath, S.; Walkowicz, M.J.; Sharp, F.; Conlon, J.E.; Fukase, K.; Kusumoto, S.; Sweet, C.; Miyake, K.; et al. Virulence factors of Yersinia pestis are overcome by a strong lipopolysaccharide response. Nat. Immunol. 2006, 7, 1066–1073. [Google Scholar] [CrossRef]
  18. Matsuura, M.; Takahashi, H.; Watanabe, H.; Saito, S.; Kawahara, K. Immunomodulatory effects of Yersinia pestis lipopolysaccharides on human macrophages. Clin. Vaccine Immunol. 2010, 17, 49–55. [Google Scholar] [CrossRef] [Green Version]
  19. Raetz, C.R.; Whitfield, C. Lipopolysaccharide endotoxins. Annu. Rev. Biochem. 2002, 71, 635–700. [Google Scholar] [CrossRef] [Green Version]
  20. Sun, W.; Six, D.; Kuang, X.Y.; Roland, K.L.; Raetz, C.R.H.; Curtiss, R. A live attenuated strain of Yersinia pestis KIM as a vaccine against plague. Vaccine 2011, 29, 2986–2998. [Google Scholar] [CrossRef] [Green Version]
  21. Sun, W.; Six, D.A.; Reynolds, C.M.; Chung, H.S.; Raetz, C.R.; Curtiss, R., 3rd. Pathogenicity of Yersinia pestis synthesis of 1-dephosphorylated lipid A. Infect. Immun. 2013, 81, 1172–1185. [Google Scholar] [CrossRef] [Green Version]
  22. Thoelen, S.; Van Damme, P.; Mathei, C.; Leroux-Roels, G.; Desombere, I.; Safary, A.; Vandepapeliere, P.; Slaoui, M.; Meheus, A. Safety and immunogenicity of a hepatitis B vaccine formulated with a novel adjuvant system. Vaccine 1998, 16, 708–714. [Google Scholar] [CrossRef]
  23. Takayama, K.; Ribi, E.; Cantrell, J.L. Isolation of a nontoxic lipid A fraction containing tumor regression activity. Cancer Res. 1981, 41, 2654–2657. [Google Scholar] [PubMed]
  24. Vuopiovarkila, J.; Nurminen, M.; Pyhala, L.; Makela, P.H. Lipopolysaccharide-Induced Non-Specific Resistance to Systemic Escherichia-Coli Infection in Mice. J. Med. Microbiol. 1988, 25, 197–203. [Google Scholar] [CrossRef] [PubMed]
  25. Lathem, W.W.; Price, P.A.; Miller, V.L.; Goldman, W.E. A plasminogen-activating protease specifically controls the development of primary pneumonic plague. Science 2007, 315, 509–513. [Google Scholar] [CrossRef]
  26. Welkos, S.L.; Friedlander, A.M.; Davis, K.J. Studies on the role of plasminogen activator in systemic infection by virulent Yersinia pestis strain CO92. Microb. Pathog. 1997, 23, 211–223. [Google Scholar] [CrossRef] [PubMed]
  27. Sodeinde, O.A.; Subrahmanyam, Y.V.; Stark, K.; Quan, T.; Bao, Y.; Goguen, J.D. A surface protease and the invasive character of plague. Science 1992, 258, 1004–1007. [Google Scholar] [CrossRef] [PubMed]
  28. Caulfield, A.J.; Walker, M.E.; Gielda, L.M.; Lathem, W.W. The Pla protease of Yersinia pestis degrades fas ligand to manipulate host cell death and inflammation. Cell Host Microbe 2014, 15, 424–434. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Smiley, S.T.; Szaba, F.M.; Kummer, L.W.; Duso, D.K.; Lin, J.S. Yersinia pestis Pla protein thwarts T cell defense against plague. Infect. Immun. 2019. [Google Scholar] [CrossRef] [Green Version]
  30. Sebbane, F.; Jarrett, C.O.; Gardner, D.; Long, D.; Hinnebusch, B.J. Role of the Yersinia pestis plasminogen activator in the incidence of distinct septicemic and bubonic forms of flea-borne plague. Proc. Natl. Acad. Sci. USA 2006, 103, 5526–5530. [Google Scholar] [CrossRef] [Green Version]
  31. Agar, S.L.; Sha, J.; Baze, W.B.; Erova, T.E.; Foltz, S.M.; Suarez, G.; Wang, S.; Chopra, A.K. Deletion of Braun lipoprotein gene (lpp) and curing of plasmid pPCP1 dramatically alter the virulence of Yersinia pestis CO92 in a mouse model of pneumonic plague. Microbiology 2009, 155, 3247–3259. [Google Scholar] [CrossRef] [Green Version]
  32. Straley, S.C.; Bowmer, W.S. Virulence genes regulated at the transcriptional level by Ca2+ in Yersinia pestis include structural genes for outer membrane proteins. Infect. Immun. 1986, 51, 445–454. [Google Scholar] [CrossRef] [Green Version]
  33. Pujol, C.; Grabenstein, J.P.; Perry, R.D.; Bliska, J.B. Replication of Yersinia pestis in interferon gamma-activated macrophages requires ripA, a gene encoded in the pigmentation locus. Proc. Natl. Acad. Sci. USA 2005, 102, 12909–12914. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Datsenko, K.A.; Wanner, B.L. One-step inactivation of chromosomal genes in Escherichia coli K-12 using PCR products. Proc. Natl. Acad. Sci. USA 2000, 97, 6640–6645. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Sun, W.; Wang, S.; Curtiss, R., 3rd. Highly efficient method for introducing successive multiple scarless gene deletions and markerless gene insertions into the Yersinia pestis chromosome. Appl. Environ. Microbiol. 2008, 74, 4241–4245. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Ajioka, R.S.; Levy, J.E.; Andrews, N.C.; Kushner, J.P. Regulation of iron absorption in Hfe mutant mice. Blood 2002, 100, 1465–1469. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Sun, W.; Roland, K.L.; Branger, C.G.; Kuang, X.; Curtiss, R., 3rd. The role of relA and spoT in Yersinia pestis KIM5 pathogenicity. PLoS ONE 2009, 4, e6720. [Google Scholar] [CrossRef] [Green Version]
  38. Quenee, L.E.; Cornelius, C.A.; Ciletti, N.A.; Elli, D.; Schneewind, O. Yersinia pestis caf1 variants and the limits of plague vaccine protection. Infect. Immun. 2008, 76, 2025–2036. [Google Scholar] [CrossRef] [Green Version]
  39. Sukumaran, A.; Chang, J.; Han, M.; Mintri, S.; Khaw, B.A.; Kim, J. Iron overload exacerbates age-associated cardiac hypertrophy in a mouse model of hemochromatosis. Sci. Rep. 2017, 7, 5756. [Google Scholar] [CrossRef] [Green Version]
  40. Fellows, P.; Lin, W.; Detrisac, C.; Hu, S.C.; Rajendran, N.; Gingras, B.; Holland, L.; Price, J.; Bolanowski, M.; House, R.V. Establishment of a Swiss Webster mouse model of pneumonic plague to meet essential data elements under the animal rule. Clin. Vaccine Immunol. 2012, 19, 468–476. [Google Scholar] [CrossRef]
  41. Anderson, G.W., Jr.; Heath, D.G.; Bolt, C.R.; Welkos, S.L.; Friedlander, A.M. Short- and long-term efficacy of single-dose subunit vaccines against Yersinia pestis in mice. Am. J. Trop. Med. Hyg. 1998, 58, 793–799. [Google Scholar] [CrossRef] [Green Version]
  42. Heath, D.G.; Anderson, G.W., Jr.; Mauro, J.M.; Welkos, S.L.; Andrews, G.P.; Adamovicz, J.; Friedlander, A.M. Protection against experimental bubonic and pneumonic plague by a recombinant capsular F1-V antigen fusion protein vaccine. Vaccine 1998, 16, 1131–1137. [Google Scholar] [CrossRef]
  43. Hinnebusch, B.J.; Perry, R.D.; Schwan, T.G. Role of the Yersinia pestis hemin storage (hms) locus in the transmission of plague by fleas. Science 1996, 273, 367–370. [Google Scholar] [CrossRef] [PubMed]
  44. Bobrov, A.G.; Kirillina, O.; Forman, S.; Mack, D.; Perry, R.D. Insights into Yersinia pestis biofilm development: Topology and co-interaction of Hms inner membrane proteins involved in exopolysaccharide production. Environ. Microbiol. 2008, 10, 1419–1432. [Google Scholar] [CrossRef] [PubMed]
  45. Fetherston, J.D.; Kirillina, O.; Bobrov, A.G.; Paulley, J.T.; Perry, R.D. The yersiniabactin transport system is critical for the pathogenesis of bubonic and pneumonic plague. Infect. Immun. 2010, 78, 2045–2052. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Feodorova, V.A.; Pan’kina, L.N.; Savostina, E.P.; Sayapina, L.V.; Motin, V.L.; Dentovskaya, S.V.; Shaikhutdinova, R.Z.; Ivanov, S.A.; Lindner, B.; Kondakova, A.N.; et al. A Yersinia pestis lpxM-mutant live vaccine induces enhanced immunity against bubonic plague in mice and guinea pigs. Vaccine 2007, 25, 7620–7628. [Google Scholar] [CrossRef] [PubMed]
  47. Philipovskiy, A.V.; Smiley, S.T. Vaccination with live Yersinia pestis primes CD4 and CD8 T cells that synergistically protect against lethal pulmonary Y. pestis infection. Infect. Immun. 2007, 75, 878–885. [Google Scholar] [CrossRef] [Green Version]
  48. Szaba, F.M.; Kummer, L.W.; Wilhelm, L.B.; Lin, J.S.; Parent, M.A.; Montminy-Paquette, S.W.; Lien, E.; Johnson, L.L.; Smiley, S.T. D27-pLpxL, an avirulent strain of Yersinia pestis, primes T cells that protect against pneumonic plague. Infect. Immun. 2009, 77, 4295–4304. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Vaccines 08 00095 g001 550

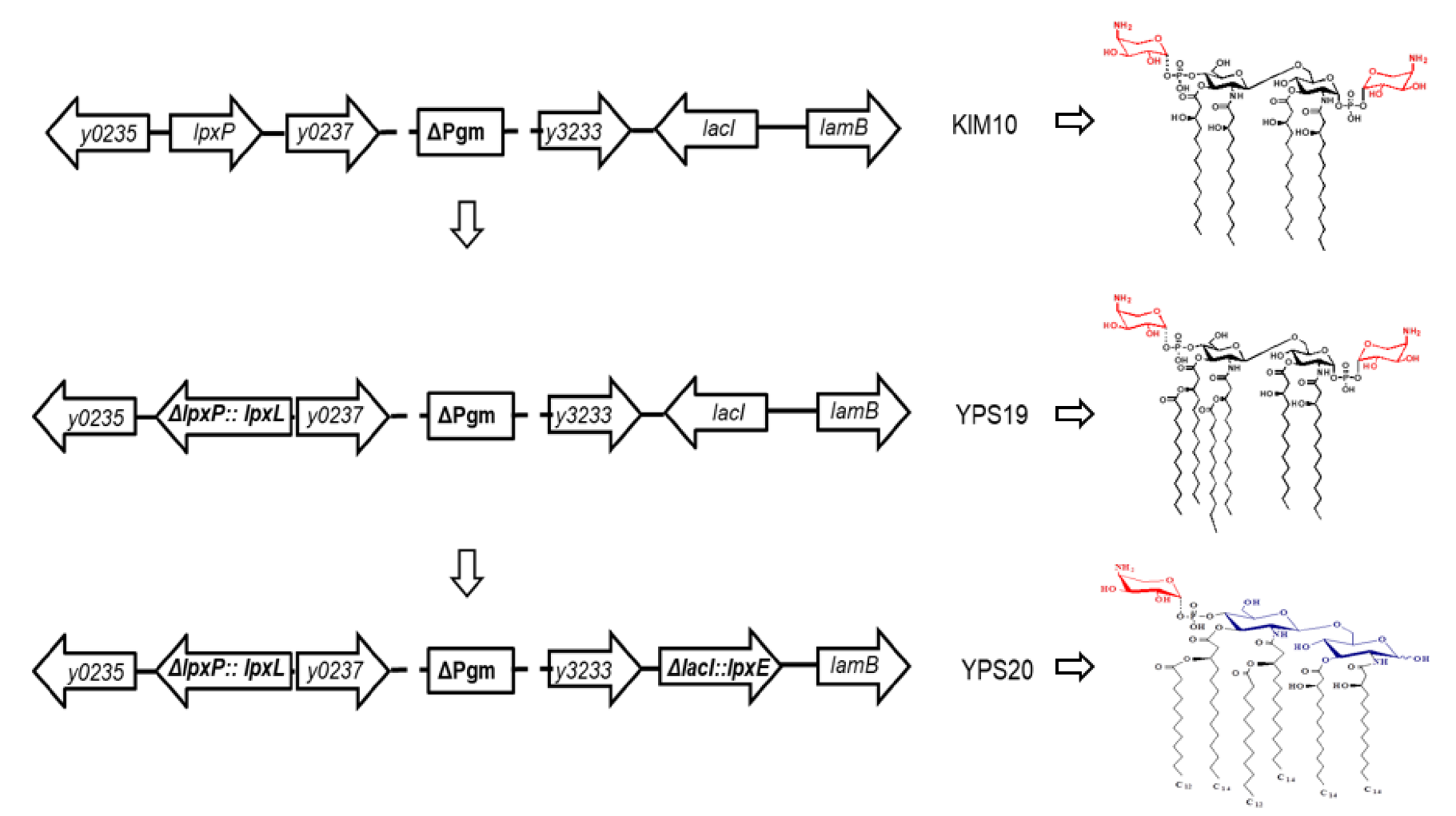

Figure 1. Schematic chromosome structure of Y. pestis KIM10 (Pgm− pPCP1−, pCD1−), YPS19 (ΔlpxP32::PlpxL lpxL, Pgm− pPCP1−, pCD1−), and YPS20 (ΔlpxP32::PlpxL lpxL ∆lacI23::Plpp lpxE, Pgm− pPCP1−, pCD1−) and their corresponding lipid A structures based on our previous reports [20,21].
Figure 1. Schematic chromosome structure of Y. pestis KIM10 (Pgm− pPCP1−, pCD1−), YPS19 (ΔlpxP32::PlpxL lpxL, Pgm− pPCP1−, pCD1−), and YPS20 (ΔlpxP32::PlpxL lpxL ∆lacI23::Plpp lpxE, Pgm− pPCP1−, pCD1−) and their corresponding lipid A structures based on our previous reports [20,21].
Vaccines 08 00095 g001
Vaccines 08 00095 g002 550

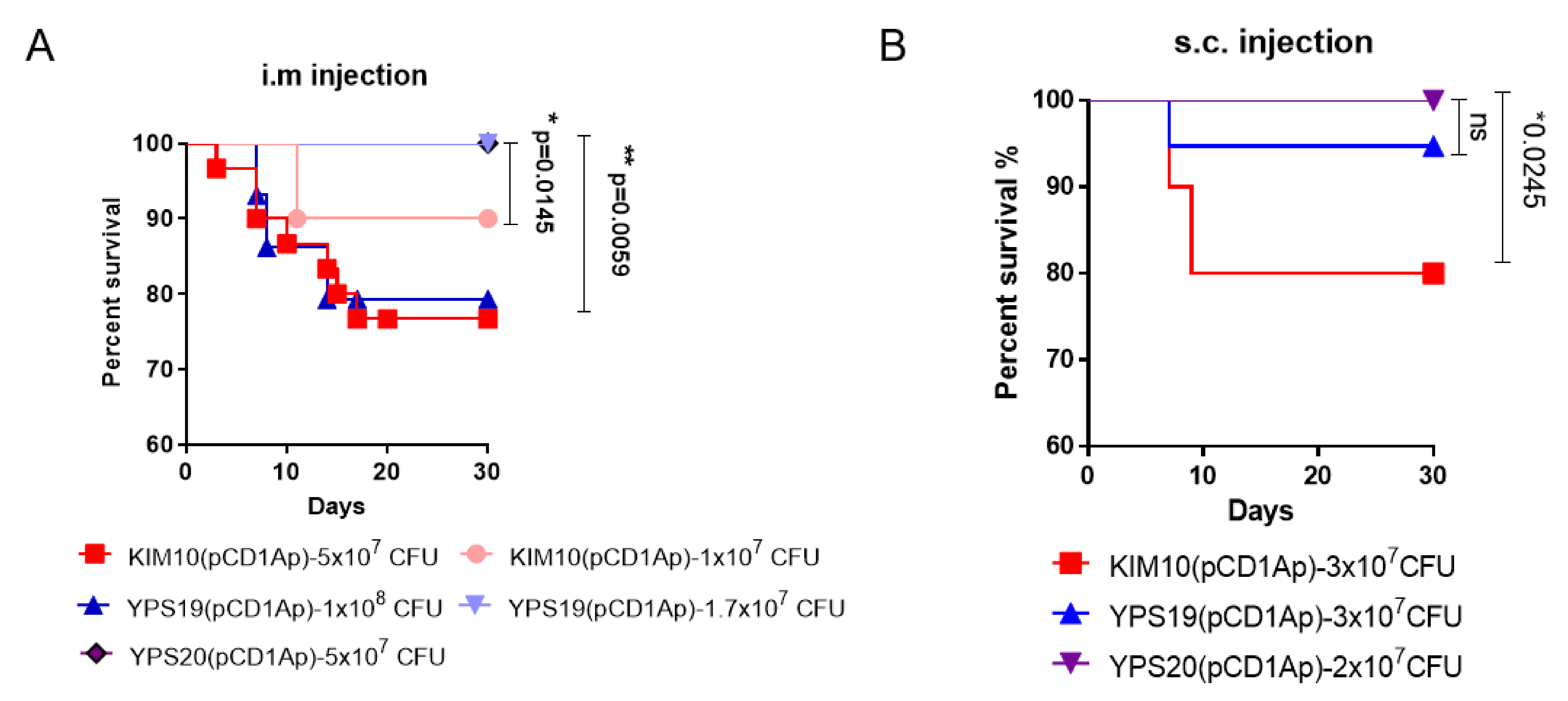

Figure 2. Survival of Swiss Webster mice administrated i.m. or s.c. with Y. pestis KIM10(pCD1Ap), YPS19(pCD1Ap), YPS20(pCD1Ap), respectively. (A) Mice (n = 10, equal males and females) were administrated i.m. with 5 × 107 CFU or 1 × 107 CFU of KIM10(pCD1Ap), with 1 × 108 CFU or 1.7 × 107 CFU of YPS19(pCD1Ap), and 5 × 107 CFU of YPS20(pCD1Ap), respectively; (B) Mice (n = 10, equal males and females) were administrated s.c. with 3 × 107 CFU of KIM10(pCD1Ap), with 3 × 107 CFU of YPS19(pCD1Ap), and 2 × 107 CFU of YPS20(pCD1Ap), respectively. The log-rank (Mantel–Cox) test was used for statistical analysis, *, the p value was less than 0.05; **, the p value was less than 0.005; ns, no significance.
Figure 2. Survival of Swiss Webster mice administrated i.m. or s.c. with Y. pestis KIM10(pCD1Ap), YPS19(pCD1Ap), YPS20(pCD1Ap), respectively. (A) Mice (n = 10, equal males and females) were administrated i.m. with 5 × 107 CFU or 1 × 107 CFU of KIM10(pCD1Ap), with 1 × 108 CFU or 1.7 × 107 CFU of YPS19(pCD1Ap), and 5 × 107 CFU of YPS20(pCD1Ap), respectively; (B) Mice (n = 10, equal males and females) were administrated s.c. with 3 × 107 CFU of KIM10(pCD1Ap), with 3 × 107 CFU of YPS19(pCD1Ap), and 2 × 107 CFU of YPS20(pCD1Ap), respectively. The log-rank (Mantel–Cox) test was used for statistical analysis, *, the p value was less than 0.05; **, the p value was less than 0.005; ns, no significance.
Vaccines 08 00095 g002
Vaccines 08 00095 g003a 550Vaccines 08 00095 g003b 550

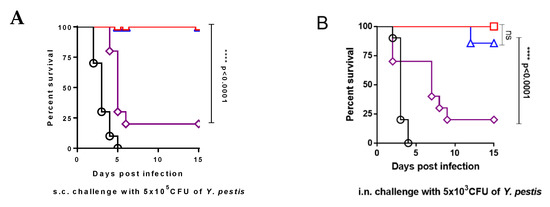

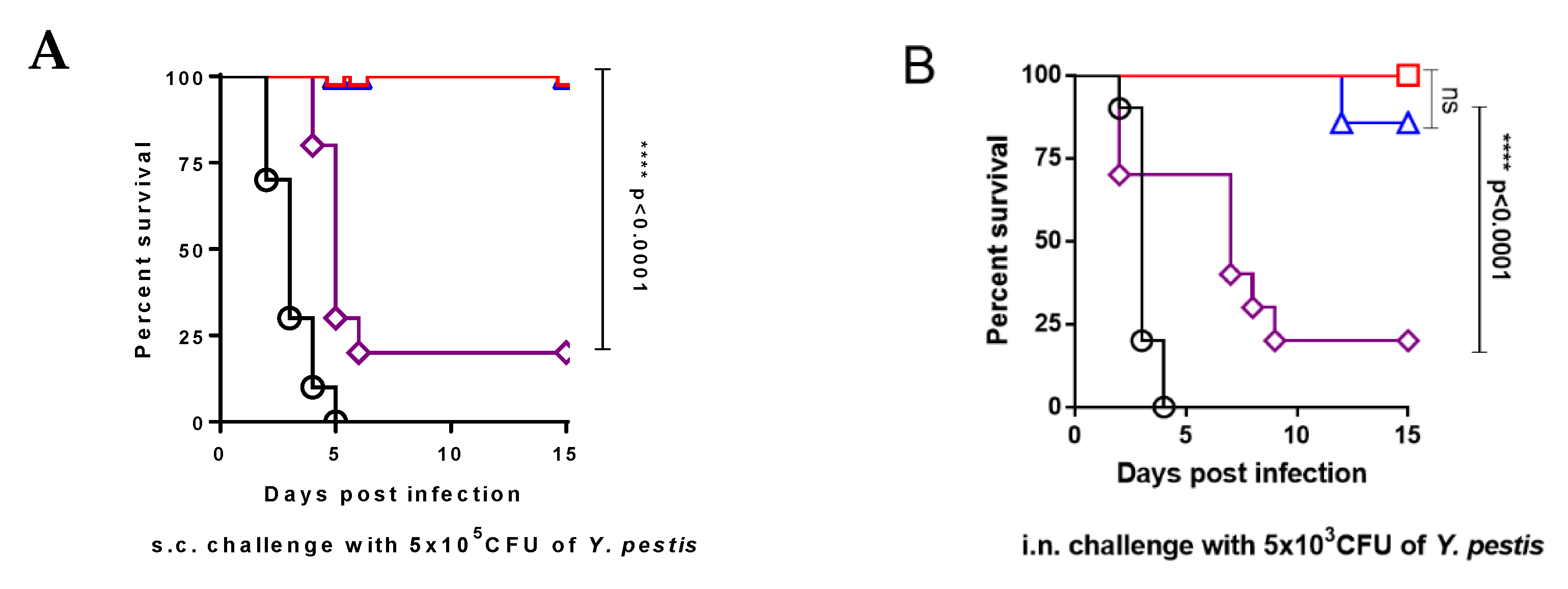

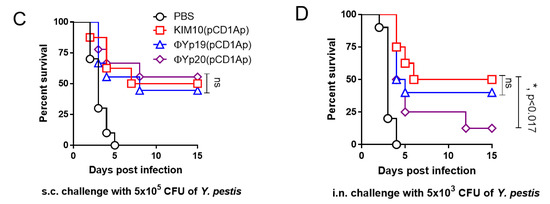

Figure 3. Mouse survival after Y. pestis KIM6+(pCD1Ap) challenge. Mice that survived after i.m. or s.c. administration were pooled and split evenly for s.c. and i.n. challenge of virulent Y. pestis KIM6+(pCD1Ap), respectively. (A) Swiss Webster mice administrated i.m. (n = 8) were challenged with 5 × 105 CFU of Y. pestis KIM6+(pCD1Ap) via the s.c. route. (B) Swiss Webster mice administrated i.m. (n = 8) were challenged via the i.n. route with 5 × 103 CFU of Y. pestis KIM6+(pCD1Ap). (C) Swiss Webster mice administrated s.c. (n = 8) were challenged with 5 × 105 CFU of Y. pestis KIM6+(pCD1Ap) via the s.c. route. (D) Swiss Webster mice administrated s.c. (n = 8) were challenged via the i.n. route with 5 × 103 CFU of Y. pestis KIM6+(pCD1Ap). For each experiment, 5 mice administrated with PBS served as negative controls. The log-rank (Mantel–Cox) test was used for statistical analysis, ****, the p value was less than 0.0001; ns, no significance.
Figure 3. Mouse survival after Y. pestis KIM6+(pCD1Ap) challenge. Mice that survived after i.m. or s.c. administration were pooled and split evenly for s.c. and i.n. challenge of virulent Y. pestis KIM6+(pCD1Ap), respectively. (A) Swiss Webster mice administrated i.m. (n = 8) were challenged with 5 × 105 CFU of Y. pestis KIM6+(pCD1Ap) via the s.c. route. (B) Swiss Webster mice administrated i.m. (n = 8) were challenged via the i.n. route with 5 × 103 CFU of Y. pestis KIM6+(pCD1Ap). (C) Swiss Webster mice administrated s.c. (n = 8) were challenged with 5 × 105 CFU of Y. pestis KIM6+(pCD1Ap) via the s.c. route. (D) Swiss Webster mice administrated s.c. (n = 8) were challenged via the i.n. route with 5 × 103 CFU of Y. pestis KIM6+(pCD1Ap). For each experiment, 5 mice administrated with PBS served as negative controls. The log-rank (Mantel–Cox) test was used for statistical analysis, ****, the p value was less than 0.0001; ns, no significance.
Vaccines 08 00095 g003aVaccines 08 00095 g003b
Vaccines 08 00095 g004 550

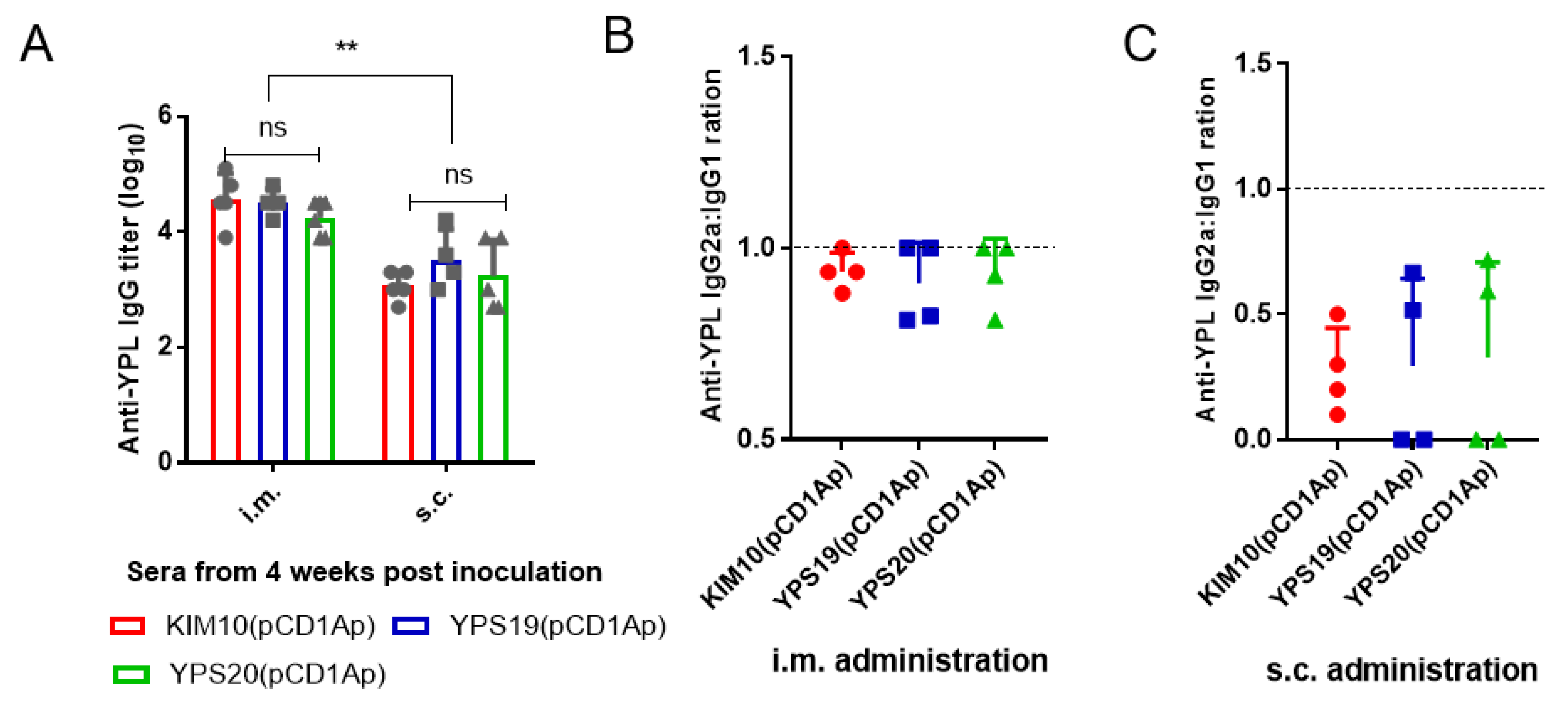

Figure 4. Antibody response in sera of mice administrated i.m. or s.c. with Y. pestis KIM10(pCD1Ap), YPS19(pCD1Ap), YPS20(pCD1Ap), respectively at week 4 post administration. A Y. pestis whole cell lysate (YPL) was used as the coating antigen. (A) Serum IgG responses in mice by i.m. or s.c. administration; (B) Ratio of serum IgG2a and IgG1 responses in mice by i.m. administration; (C) Ratio of serum IgG2a and IgG1 responses in mice by s.c. administration. The two-way ANOVA, **, the p value was less than 0.05.
Figure 4. Antibody response in sera of mice administrated i.m. or s.c. with Y. pestis KIM10(pCD1Ap), YPS19(pCD1Ap), YPS20(pCD1Ap), respectively at week 4 post administration. A Y. pestis whole cell lysate (YPL) was used as the coating antigen. (A) Serum IgG responses in mice by i.m. or s.c. administration; (B) Ratio of serum IgG2a and IgG1 responses in mice by i.m. administration; (C) Ratio of serum IgG2a and IgG1 responses in mice by s.c. administration. The two-way ANOVA, **, the p value was less than 0.05.
Vaccines 08 00095 g004
Vaccines 08 00095 g005 550

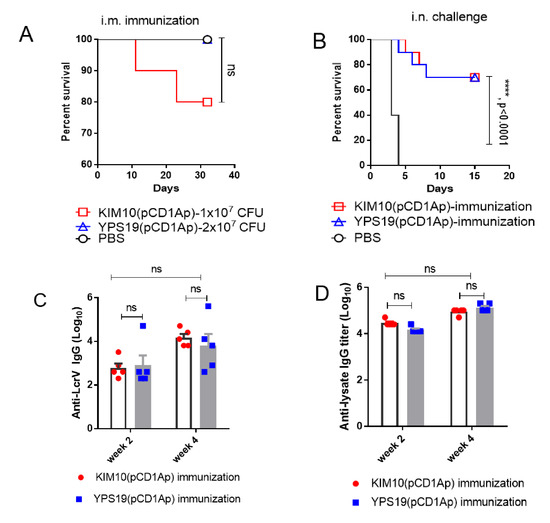

Figure 5. Mouse survival after pulmonary Y. pestis KIM6+(pCD1Ap) challenge and serum response. Mice (n = 10, equal males and females) were vaccinated i.m. with 1 × 107 CFU of KIM10(pCD1Ap), and 2 × 107 CFU of YPS19(pCD1Ap), respectively, and then boosted at 21 days post vaccination with corresponding strains. On day 42 after initial vaccination, the vaccinated mice were challenged i.n. with virulent Y. pestis KIM6+(pCD1Ap). (A) Survival of mice after i.m. vaccination with KIM10(pCD1Ap) and YPS19(pCD1Ap), respectively. (B) Vaccinated Swiss Webster mice were challenged via the i.n. route with 5 × 103 CFU of Y. pestis KIM6+(pCD1Ap). The log-rank (Mantel–Cox) test was used for statistical analysis, ****, the p value was less than 0.0001. (C) Serum IgG titers to LcrV antigen. (D) Serum IgG titers to Y. pestis whole cell lysate (YPL). The two-way ANOVA, ns, no significance.
Figure 5. Mouse survival after pulmonary Y. pestis KIM6+(pCD1Ap) challenge and serum response. Mice (n = 10, equal males and females) were vaccinated i.m. with 1 × 107 CFU of KIM10(pCD1Ap), and 2 × 107 CFU of YPS19(pCD1Ap), respectively, and then boosted at 21 days post vaccination with corresponding strains. On day 42 after initial vaccination, the vaccinated mice were challenged i.n. with virulent Y. pestis KIM6+(pCD1Ap). (A) Survival of mice after i.m. vaccination with KIM10(pCD1Ap) and YPS19(pCD1Ap), respectively. (B) Vaccinated Swiss Webster mice were challenged via the i.n. route with 5 × 103 CFU of Y. pestis KIM6+(pCD1Ap). The log-rank (Mantel–Cox) test was used for statistical analysis, ****, the p value was less than 0.0001. (C) Serum IgG titers to LcrV antigen. (D) Serum IgG titers to Y. pestis whole cell lysate (YPL). The two-way ANOVA, ns, no significance.
Vaccines 08 00095 g005
Vaccines 08 00095 g006 550

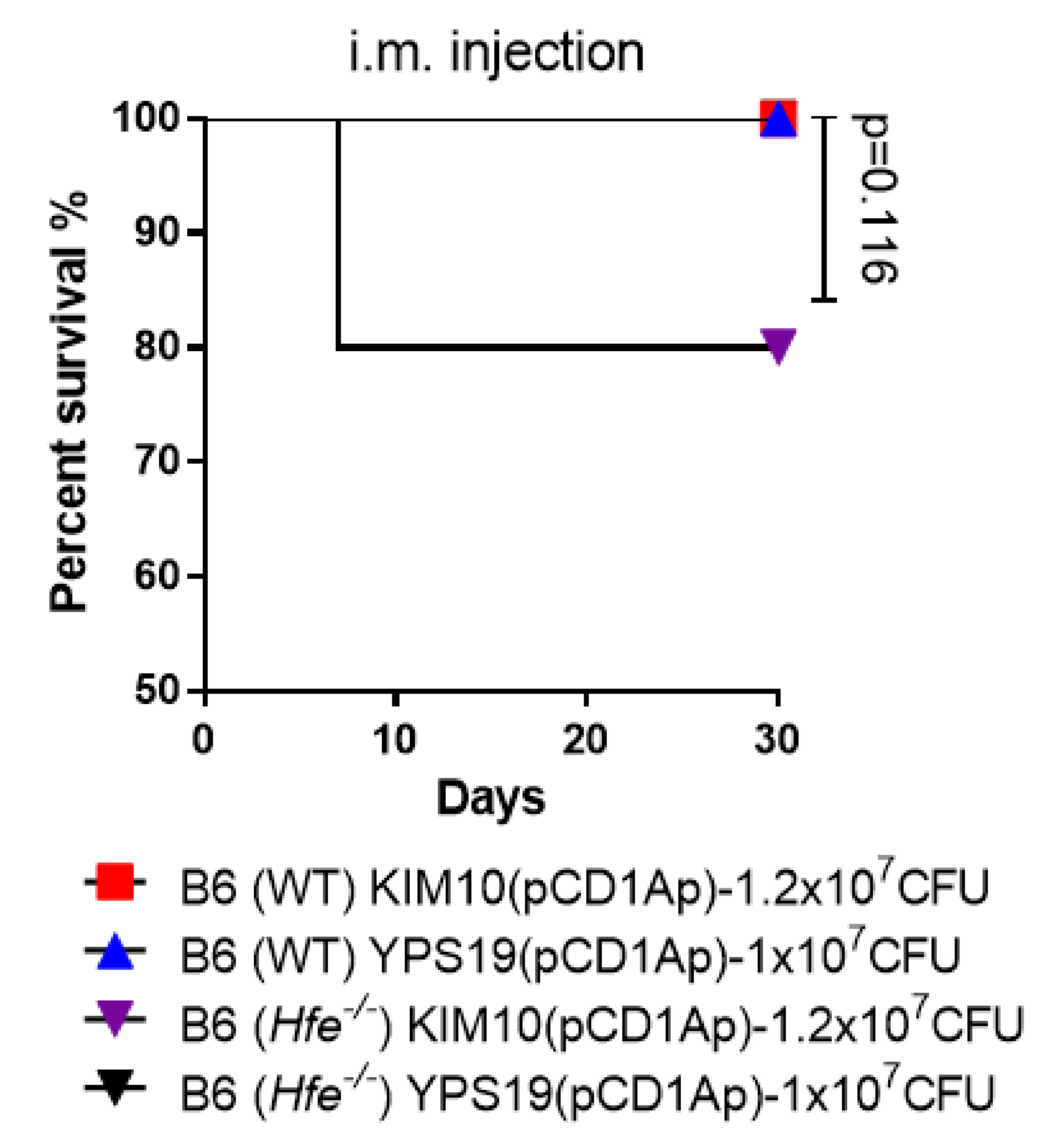

Figure 6. Safety assessment of live attenuated Y. pestis vaccine strains in wild-type and Hfe−/− C57BL/6 mice. A single dose of 107 CFU of KIM10(pCD1Ap) and YPS19(pCD1Ap) were administrated i.m. to wild-type and Hfe−/− C57BL/6 mice (n = 10, 5 males and 5 females), respectively. These mice were observed for signs of mortality and morbidity for 30 days. The log-rank (Mantel–Cox) test was used for statistical analysis, the p value is 0.116.
