Downregulation of Mannose-6-Phosphate Receptors in Fabry Disease Cardiomyopathy: A Potential Target for Enzyme Therapy Enhancement
by
, ,
Andrea Frustaci
1,2,*,
Romina Verardo
2,
Rossella Scialla
2,
Giulia Bagnato
2,
Margherita Verardo
3,
Maria Alfarano
1 and
Matteo A. Russo
4,5
1
Department of Clinical, Internal, Anesthesiologist and Cardiovascular Sciences, La Sapienza University, 00161 Rome, Italy
2
Cellular and Molecular Cardiology Lab, IRCCS L. Spallanzani, 00149 Rome, Italy
3
Unit of Neuromuscular and Neurodegenerative Disorders, Genetics and Rare Diseases Research Division, Bambino Gesù Children’s Hospital, 00146 Rome, Italy
4
MEBIC Consortium, San Raffaele Open University, 00166 Rome, Italy
5
Cellular and Molecular Pathology, IRCCS San Raffaele, 00166 Rome, Italy
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2022, 11(18), 5440; https://doi.org/10.3390/jcm11185440
Submission received: 19 August 2022
/
Revised: 7 September 2022
/
Accepted: 13 September 2022
/
Published: 16 September 2022
(This article belongs to the Section Cardiology)
Abstract
:Background: The efficacy of enzyme replacement therapy (ERT) in mobilizing globotryaosylceramide (GB-3) from Fabry cardiomyocytes is limited. The mechanism involved is still obscure. Methods: Assessment of M6Pr, M6Pr-mRNA, and Ubiquitin has been obtained by Western blot analysis and real-time PCR of frozen endomyocardial biopsy samples, from 17 pts with FD, various degree of left ventricular hypertrophy, and maximal wall thickening (MWT) from 11.5 and 20 mm. The diagnosis and severity of FDCM followed definitions of GLA mutation, α-galactosidase A enzyme activity, cardiac magnetic resonance, and left ventricular endomyocardial biopsy with the quantification of myocyte hypertrophy and the extent of Gb-3 accumulation. All patients have received alpha or beta agalsidase for ≥3 years without a reduction in LV mass nor an increase in T1 mapping at CMR. Controls were surgical biopsies from 15 patients undergoing mitral valve replacement. Results: Protein analysis showed mean M6Pr in FDCM to be 5.4-fold lower than in a normal heart (4289 ± 6595 vs. 23,581 ± 4074, p = 0.0996) (p < 0.001): specifically, 9-fold lower in males, p = 0.009, (p < 0.001) and 3-fold lower in females, p = 0.5799, (p < 0.001) showing, at histology, a mosaic of normal and diseased cells. M6Pr-mRNA expression was normal, while ubiquitin showed an increase of 4.6 fold vs. controls (13,284 ± 1723 vs. 2870 ± 690, p = 0.001) suggesting that ubiquitin-dependent post-translational degradation is likely responsible for the reduction of M6Pr in FDCM. Conclusion: M6Pr expression is remarkably reduced in FDCM as a likely result of post-translational degradation. This may explain the reduced efficacy of ERT and be a therapeutic target for the enhancement of ERT activity.
1. Introduction
Fabry disease (FD) is an X-linked inborn error of glycosphingolipid catabolism caused by deleterious mutations in the α-galactosidase A gene (GLA) encoding the lysosomal hydrolase, alpha-galactosidase A (α-Gal A) [1]. The marked deficiency or absence of α-Gal A activity results in the systemic accumulation of globotriaosylceramide (Gb-3) and related glycosphingolipids within the lysosomes, particularly in microvascular endothelial cells (ECs), vascular smooth muscle cells (VSMCs), renal tubular cells (RTCs), podocytes, and cardiomyocytes [2,3,4,5,6,7]. Their progressive accumulation, especially in ECs, podocytes, and cardiomyocytes, leads to renal failure, cardiac and cerebrovascular disease, and premature demise [1,2,3].
Currently available treatments for FD are limited and include enzyme replacement therapy (ERT, agalsidase-α and agalsidase-β since 2001 [8,9], chaperone therapy (Galactose since 2001 [10] and migalastat [11] since 2016), and a few novel approaches which are under investigation.
The efficacy of ERT on Gb-3 clearance is cell-type-specific and dose-dependent [12,13,14,15,16]. While 1 mg/kg every other week (EOW) of agalsidase-β clears endothelial and mesangial cells and fibroblasts from Gb-3 inclusions in five months, podocytes show partial clearance after one year of treatment in males with classic FD. This discrepancy may be linked to different cellular life spans, since podocytes are post-mitotic as opposed to other kidney cell types. Cardiomyocytes, similar to podocytes are post-mitotic and have long lifespans. Our knowledge on the tissue effects of ERT on cardiomyocytes is rather scarce. Using a semi-quantitative approach, Thurberg et al. [4] reported Gb-3 clearance in cardiac endothelial cells after 5 months of agalsidase-β (1 mg/kg EOW), but no clearance in cardiomyocytes.
The reasons for the limited therapeutic impact of ERT on cardiomyocytes is still unclear but reflects negatively on patients’ outcomes.
Mannose-6-phosphate receptor (M6PR) is the major intracellular carrier of α-Gal A, and thereby, likely to affect responses to ERT and the removal of Gb-3 in Fabry cells.
Indeed, in a recent report [17], we found out that Fabry cardiomyocytes, compared with enterocytes, have remarkably reduced M6PR concentrations and fail to respond to ERT while patients’ intestinal Gb-3 is removed with symptoms resolution. This observation brought us to a wider investigation of the potential role of reduced M6PR on the resistance of FDCM to ERT administration.
Herein, M6PR was determined in endomyocardial biopsy samples from a larger cohort of patients with various GLA mutations and different severities of FDCM. Molecular processes, potentially involved with M6PR’s decline, have been addressed through the assessment of M6PR-mRNA to determine the receptor’s gene expression and quantification of Ubiquitin to test a possible involvement of post-translational M6PR protein degradation.
Patient Population
Seventeen patients (10M, 7F, 45 ± 16) with a various severity of Fabry cardiomyopathy (Left ventricular maximal wall thickness—MWT—ranging from 11.5 to 20 mm) undergoing LV endomyocardial biopsy for diagnosis confirmation were enrolled in the study. Their clinical enzymatic, genetic, and histologic characteristics are summarized in Table 1. All patients had alpha or beta agalsidase for ≥3 years without a reduction in LV mass nor an increase in T1 mapping at CMR.
Controls were surgical biopsies from 15 patients affected by mitral stenosis with normal MWT and cardiac functions who were undergoing mitral valve replacement.
2. Materials and Methods
In all patients, cardiac investigations included non-invasive (ECG, Holter, 2D-echo, CMR) and invasive (coronary, left ventricular angiography and endomyocardial biopsy) studies after receiving written informed consent. Biopsy samples were processed for histology and electron microscopy. The assessment of Mannose-6-phosphate receptor (M6PR) was obtained through protein isolation, Western Blot analysis, and relative mRNA quantification.
The study complies with the Declaration of Helsinki, the locally appointed ethics committee (opinion number 6/2019) approved the research protocol, and informed consent was obtained from all subjects.
2.1. Cardiac Magnetic Resonance (CMR)
CMR exams were performed on a 1.5 Tesla scanner. Standard cardiac magnetic resonance protocol included: (i) Cine magnetic resonance images acquired during breath-holds in the short-axis, 2-chamber, and 4-chamber; (ii) black blood T2-weighted short tau inversion recovery images on short-axis planes covering the entire left ventricle during 6 to 8 consecutive breath-holds for myocardial edema detection; (iii) late gadolinium-enhanced imaging performed 15 min after injection of 0.2 nmol/kg of gadoteratemeglumine and signal intensity value 2 SDs above the mean signal intensity of the remote normal myocardium were considered suggestive for myocardial fibrosis; (iv) T1 mapping imaging was also performed in all cases before and after contrast using a modified look-locker (MOLLI) sequence acquired in the short axis at basal, mid, and apical segments, before and after contrast. Global T1 value was measured as the mean of T1 values calculated in all 3 planes, avoiding LGE areas and leaving adequate margins of separation from tissue interfaces with adipose epicardial tissue and ventricular cavities.
2.2. Invasive and Endomyocardial Biopsy Studies
Cardiac catheterization with left ventricular and coronary angiography was obtained in all patients. Endomyocardial biopsy (four to eight samples per patient) was performed in the septal-apical region of the left ventricle.
2.3. Histology and Electron Microscopy
For histological analysis, the endomyocardial samples were fixed in 10% buffered formalin and paraffin embedded. Five-micron-thick sections were stained with hematoxylin and eosin and Masson trichrome. For electron microscopy studies, additional samples were fixed in 2% glutaraldehyde in a 0.1 M phosphate buffer at pH 7.3, post-fixed in osmium tetroxide, and processed following a standard protocol for embedding in Epon resin. Ultrathin sections were stained with uranyl acetate substitute and lead hydroxyde.
2.4. Morphometric Studies
The cardiomyocyte cross-sectional area was computed measuring the cardiomyocyte diameter across the nucleus in 50 to 100 cells in transverse sections. At that level, the diameter of the perinuclear vacuoles was also measured, and the percent cardiomyocyte area occupied by vacuoles was calculated. These measurements were analyzed using Nis-Elements BR software.
2.5. Assessment of Mannose-6-Phosphate Receptors and Ubiquitin in the Myocardial Tissue of Fabry Disease Patients
We determined the expression of Mannose-6-phosphate receptors and ubiquitin in frozen myocardial tissue. Results were compared with values from surgical control unloaded myocardium (papillary muscle of patients with mitral stenosis undergoing valve replacement).
2.6. Protein Isolation and Western Blot
Heart tissue samples were treated as previously described [18]. The expression of Mannose-6-phosphate receptors, molecular weight 275 kDa, was visualized by using IGF-II Receptor/CI-M6PR, (D8Z3J) polyclonal antibody (1:1000, Cell Signaling Technology). The expression of ubiquitin, molecular weight 75 kDa, was evaluated using Ubiquitin Monoclonal Antibody (Ubi-1) (1:1000, Invitrogen ThermoFisher, Waltham, MA, USA 02451). Anti-α-sarcomeric actin antibody (1:500, Sigma-Aldrich, Burlington, MA, USA), molecular weight 43 kDa, was used for normalization. Signal was visualized using a secondary horseradish-peroxidase-labeled goat anti-mouse antibody (goat anti-mouse IgG-HRP 1:5000, SantaCruzBiotechnology, Dallas, TX, USA) and enhanced chemiluminescence (ECL Clarity Bio-Rad). The purity as well as equal loading (40γ) of the protein was determined by Nanodrop One (Thermofisher). To normalize target protein expression, the band intensity of each sample is determined by densitometry with Image J software. Next, the intensity of the target protein is divided by the intensity of the loading control protein. This calculation adjusts the expression of the protein of interest to a common scale and reduces the impact of sample-to-sample variation. Relative target protein expression can then be compared across all lanes to assess changes in target protein expression across samples. Digital images of the resulting bands were quantified by the Image Lab software package (Bio-Rad Laboratories, Munchen, Germany) and expressed as arbitrary densitometric units.
2.7. Gene Expression Study
Patient tissues were collected from the left ventricular (LV), preserved in liquid nitrogen, and treated with Animal Tissue RNA Purification Kit (Cat. 25700) Norgen Biotek in order to extract RNA according to the manufacturer’s instructions. β-actin was used as reference gene. Sensi FAST Probe No-ROX One-Step Kit was used to perform the reaction. Real-time PCR was conducted with LineGene K Plus Real-Time PCR Detection System (Hangzhou Bioer Technology Co. Ltd. (BIOER).
Primer and probe for M6Pr and β-actin were designed using the RealTimeDesign™ qPCR Assay Design Software (LGC Biosearch Technologies):
M6Prforward: 5′ d TGTGGCGAGGTTCTGTTGT 3′
M6Prreverse: 5′ d TTGGGCCTCACTGCTCATC 3′
Forward β-ACTIN: 5′ d GGCACCCAGCACAATGAAG 3′
Reverseβ-ACTIN: 5′ d GCCGATCCACACGGAGTA 3′
In accordance to the Minimum Information for Publication of Quantitative Real-Time PCR Experiments, we evaluated (M6Pr and β-actin) primer efficiency [19]. The relative quantification of the M6Pr transcript was evaluated with the comparative threshold method (2−ΔΔCt) and Pfaffl model [20] with Excel (Office 365, Microsoft). All samples were loaded in triplicate, and an RNA pool was used as a healthy control.
2.8. Statistical Analysis
Statistical analysis was performed by the GraphPad Prism package, version 5.02 (GraphPad Software Inc., San Diego, CA, USA). Comparison between groups was performed with a Mann–Whitney non-parametric test. A p value less than 0.05 was considered statistically significant.
3. Results
Comparison of clinical and endomyocardial biopsy data among patient population Group A (n = 17) and surgical controls Group B (n = 15) are shown in Table 1 and Table 2.
3.1. Cardiac Studies
All patient populations manifested normal coronary angiography and left ventricular hypertrophy at a CMR ranging from 11.5 up to 22 mm of maximal wall thickening. Alteration of T1 mapping and LGE were commonly appreciated and are reported in Table 2.
3.2. Immuno-Histochemistry Study
In histology, all FDCM patients presented hypertrophied cardiomyocytes 28.3 ± 1.19 vs. controls 10.6 ± 1.8, with cytoplasmic vacuoles (mean value 38 ± 0.13%) (Figure 1A) that in electron microscopy (Figure 1B) corresponded to the accumulation of myelin bodies. Myocardial fibrosis quantified morphometrically after Masson staining was focal and mild, mean value 4.5 ± 1(%) vs. controls 2.2 ± 0.4 (%).
After immunohistochemistry characterization of inflammatory cells with monoclonal antibody anti-CD3, CD 45Ro, and CD68, no evidence of myocarditis was recorded in our patient population.
Semiquantitative evaluation of immunostaining (grades from 0 to 4) for Mannose 6 phosphate receptors showed a reduced staining (1.1 ± 1.27 vs. controls 3.4 ± 0.38) in all cardiomyocytes (Figure 1C) of male and affected myocytes of female vs. controls (Figure 1D). In contrast, endothelial cells of intramural vessels were free of Gb-3 inclusions and showed normal immunostaining (Figure 1C).
Severe reduction of MRP6 was even documented in affected cardiomyocytes of women with Fabry disease cardiomyopathy (Figure 2A–D).
3.3. Western Blot Analysis
Protein analysis showed M6Pr in FDCM to be 5.4-fold lower than in a normal heart (respectively 23,581 ± 4074 vs. 4289 ± 6595, p = 0.0996) (p < 0.001): specifically, 9-fold lower in males, p = 0.009, (p < 0.001) and 3-fold lower in females, p = 0.5799, (p < 0.001) showing, in histology, a mosaic of normal and diseased cells. Expression protein degradation pathway (Ubiquitin) evaluated in all patients showed an increase of 4.6 fold vs. controls (13,284 ± 1723 vs. 2870 ± 690, p = 0.001).
Correlation between M6Pr expression and MWT was not statistically significant (Spearman Rho = 0.423, ns)
3.4. M6PR m-RNA Expression
The relative quantification of M6PR patient’s mRNA highlighted no statistically significant variation (p = 0.4752), as resumed in Table 2. Negative control (lacking template) yielded no detectable fluorescence. The reaction efficiency evaluated is 108% and 107%, with R2 = 0.98 and R2 = 0.99 for M6Pr and β-actin, respectively.
All cardiac histological and morpho-molecular data are shown in Table 3.
4. Discussion
There is general agreement on the limited efficacy of ERT in the removal of GB-3 from Fabry cardiomyocytes [4,21,22]. In this regard, various hypotheses have been advanced, including interstitial expansion by myocardial fibrosis [23,24,25,26], auto-reactive myocardial inflammation in response to GB-3 release [27], and an insufficient dose of α/β-agalsidase administration [28]. Up to now, no definitive explanation has been provided, and the progression of FDCM still remains unaffected, particularly for the advanced forms. The present study explored the potential pathogenetic role of M6Pr being the major cellular mechanism of agalsidase uptake and targeting to lysosomes. Results of the present study suggest a consistent downregulation of myocardial M6Pr, with a mean value reduction of 4.6 fold vs. controls (Figure 3C) and a variance between the male (reduced by 9 fold, Figure 3D) and female (diminished by 3 fold, Figure 3E) FDCM population. This sex discrepancy is explained by the X-linkage of the GLA gene and the presence in the female myocardium of normal and diseased myocytes (cell mosaic) (Figure 2A) as an expression of skewed X-chromosome inactivation. Normal immunostaining for M6Pr of unaffected myocytes (Figure 2C) in FDCM females, as well as of GB-3 free microvascular endothelial cells in all FDCM populations, confirm the importance of M6Pr in promoting cell entrance and the targeting of ERT.
On the other hand, among the other factors potentially interfering with ERT delivery, myocardial fibrosis having a focal and mild resistance to therapy was unjustified, while myocardial inflammation creating a barrier of edema and autoreactive immunocytes was not a finding.
These observations make unlikely the solution of ERT resistance of FDCM only with an increase in enzyme administration while points to the pharmacological possibilities to enhance M6Pr expression in cardiomyocytes [29]. In this regard, hormonal agents such as growth hormone and estradiol [30] have been recognized as being able to increase cellular M6Pr expression. Combining ERT with M6Pr-enhancing agents, this may potentially improve the mobilization of GB-3 and FDCM outcomes.
As far as the mechanism of M6Pr’s decline in myocardiocytes is concerned, this is still unclear.
The normal level of M6Pr-mRNA obtained in our patients population suggests GLA gene expression as not being involved.
In the present study, we tested the hypothesis that normally synthetized M6Pr might be polyubiquinated in the cytoplasm of cardiomyocytes and then degraded. Indeed, it is known that polyubiquinated substrates are transported to proteasomes, recognized by a receptoral component of the proteasome, deubiquinated, pass into the 20S proteasomal unit, and are unfolded and cleaved, generating small peptides which are released into the cytosol for recycling and further disposal [31]. In our cohort of patients with FDCM not responding to ERT administration, we found out a marked elevation of myocardial ubiquitin vs. controls, indicating a possible post-translational degradation of the receptor. (Figure 4). Specifically, it may be the case that cytosolic GB-3 might link M6Pr after its synthesis, promoting proteasome formation and protein degradation. If this pathway will be confirmed, it would disclose another potential source of enhancement for ERT’s impact in FDCM. Indeed, recent advances have shown that proteasomal functions may be inhibited/regulated by drugs including monoclonal antibodies and small molecules. Bortezomib was the first monoclonal antibody approved by the US FDA as a proteasome inhibitor for therapy of multiple myeloma, solid tumors, and some inflammatory diseases [31]. Other similar inhibitors include Carfilzomib, Ixazomib, and small molecule drugs actually under development.
Therefore, in patients showing polyubiquinated M6Pr, a treatment with proteasomal inhibitors could at least partially restore their function, enhancing ERT efficacy.
The caveat to the administration of proteasomal inhibitors is the presence or the development of cardiovascular events including arrhythmias, ischemic heart disease, hypertension, or heart failure [32]. Close patient monitoring during their use is highly recommended.
4.1. Clinical Implications
FD cells with low turnover as cardiomyocytes and podocytes appear to be more resistant to ERT impacts compared with high-turnover cells such as endothelial [4] and intestinal cells [17] where a clinical improvement and a pathological clearance of GB-3 has been demonstrated after ERT administration. It is possible that even podocytes, similarly to cardiomyocytes, have reduced M6Pr expression, and that this might be the biological basis of renal resistance to ERT. If combination therapy with ERT and enhancing M6Pr-drugs or proteasomal inhibitors will bring FDCM improvement, even Fabry renal disease has chances to be ameliorated.
4.2. Limitations
Unclarified the translational degradation of M6Pr.
4.3. Translation Perspective
In addition to ERT, inductors of M6Pr such as GH or estradiol may enhance the ability of intracellular transportation of infused enzymes, obtaining an increased mobilization of GL-3 from cardiomyocytes and the improvement of patients’ treatment and outcomes.
5. Conclusions
M6Pr expression is remarkably reduced in the myocardium of patients with FDCM as a likely result of post-translational degradation. This may explain the reduced efficacy of ERT and be a potential therapeutic target for the enhancement of ERT activity.
Abbreviation
| ERT | Enzyme replacement therapy |
| FD | Fabry disease |
| CMR | Cardiac magnetic resonance |
| LV | Left ventricular |
| FDCM | Fabry Disease Cardiomyopathy |
| GB-3 | Globotriaosylceramide |
| MWT | Maximal wall thickness |
| M6Pr | Mannose-6-phosphate receptors |
Author Contributions
A.F. designed the study, participated in and lead the categorization of the subjects, and wrote the manuscript, R.V., R.S., G.B. and M.V. categorized and organized the data and experiment. A.F. and M.A.R. discussed and verified the cases, M.A. performed the statistics and collected the data. All authors participated in drafting the manuscript and approved the final manuscript. All authors have read and agreed to the published version of the manuscript.
Funding
The study has been supported by grants from Telethon (GGP17055), Ricerca corrente IRCCS L Spallanzani, and partially by Italian Health Ministry (IRCCS San Raffaele Roma–Ricerca Corrente #2020/1) and Fondazione Roma (MEBIC # 18/6/2019). Mebic San Raffaele Pisana.
Institutional Review Board Statement
The study was conducted in accordance with the Declaration of Helsinki, and approved by the locally appointed ethics committee (opinion number 6/2019) approved the research protocol, and informed consent was obtained from all subjects.
Informed Consent Statement
Informed consent was obtained from all subjects involved in the study.
Data Availability Statement
The datasets used and analyzed during the current study are avail-able from the corresponding author upon reasonable request.
Conflicts of Interest
The authors declare that they have no competing interest.
References
- Desnick, R.J.; Ioannou, Y.A.; Eng, C.M. Alpha-Galactosidase A Deficiency: Fabry Disease; Scriver, C.R., Beaudet Al Sly, W.S., Valle, D., Eds.; McGraw-Hall: New York, NY, USA, 2001; pp. 3733–3774. [Google Scholar]
- Desnick, R.J. Fabry Disease (α-Galactosidase A Deficiency). In Genetic Diseases of the Kidney; Elsevier: Amsterdam, The Netherlands, 2009; pp. 597–616. [Google Scholar]
- Germain, D.P. Fabry disease. Orphanet J. Rare Dis. 2010, 5, 1–49. [Google Scholar] [CrossRef] [PubMed]
- Thurberg, B.L.; Fallen, J.T.; Mitchell, R.; Aretz, T.; Gordon, R.E.; O’Callaghan, M.W. Cardiac microvascular pathology in fabry disease evaluation of endomyocardial biopsies before and after enzyme replacement therapy. Circulation 2009, 119, 2561–2567. [Google Scholar] [CrossRef] [PubMed]
- Najafian, B.; Svarstad, E.; Bostad, L.; Gubler, M.C.; Tøndel, C.; Whitley, C.; Mauer, M. Progressive podocyte injury and globotriaosylceramide (GB-3) accumulation in young patients with Fabry disease. Kidney Int. 2011, 79, 663–670. [Google Scholar] [CrossRef] [PubMed]
- Chimenti, C.; Morgante, E.; Tanzilli, G.; Mangieri, E.; Critelli, G.; Gaudio, C.; Russo, M.A.; Frustaci, A. Angina in fabry disease reflects coronary small vessel disease. Circ. Heart Fail. 2008, 1, 161–169. [Google Scholar] [CrossRef]
- Scheidt, W.; von Eng, C.M.; Fitzmaurice, T.F.; Erdmann, E.; Hübner, G.; Olsen, E.G.J.; Christomanou, H.; Kandolf, R.; Bishop, D.F.; Desnick, R.J. An Atypical Variant of Fabry’s Disease with Manifestations Confined to the Myocardium. N. Engl. J. Med. 2010, 324, 395–399. [Google Scholar] [CrossRef] [PubMed]
- Eng, C.M.; Guffon, N.; Wilcox, W.R.; Germain, D.P.; Lee, P.; Waldek, S.; Caplan, L.; Linthorst, G.E.; Desnick, R.J. Safety and efficacy of recombinant human alpha-galactosidase A replacement therapy in Fabry’s disease. N. Engl. J. Med. 2001, 345, 9–16. [Google Scholar] [CrossRef]
- Germain, D.P.; Waldek, S.; Banikazemi, M.; Bushinsky, D.A.; Charrow, J.; Desnick, R.J.; Lee, P.; Loew, T.; Vedder, A.C.; Abichandani, R.; et al. Sustained, Long-Term Renal Stabilization After 54 Months of Agalsidase Therapy in Patients with Fabry Disease. J. Am. Soc. Nephrol. 2007, 18, 1547–1557. [Google Scholar] [CrossRef]
- Frustaci, A.; Chimenti, C.; Ricci, R.; Natale, L.; Russo, M.A.; Pieroni, M.; Eng, C.M.; Desnick, R.J. Improvement in cardiac function in the cardiac variant of fabry’s disease with galactose-infusion therapy. N. Engl. J. Med. 2001, 345, 25–32. [Google Scholar] [CrossRef]
- Markham, A. Migalastat: First Global Approval. Drugs 2016, 76, 1147–1152. [Google Scholar] [CrossRef]
- Ramaswami, U.; Bichet, D.G.; Clarke, L.A.; Dostalova, G.; Fainboim, A.; Fellgiebel, A.; Forcelini, C.M.; Haack, K.A.; Hopkin, R.J.; Mauer, M.; et al. Low-dose agalsidase beta treatment in male pediatric patients with Fabry disease: A 5-year randomized controlled trial. Mol. Genet. Metab. 2019, 127, 86–94. [Google Scholar] [CrossRef]
- Najafian, B.; Tøndel, C.; Svarstad, E.; Sokolovkiy, A.; Smith, K.; Mauer, M. One Year of Enzyme Replacement Therapy Reduces Globotriaosylceramide Inclusions in Podocytes in Male Adult Patients with Fabry Disease. PLoS ONE 2016, 11, e0152812. [Google Scholar] [CrossRef] [PubMed]
- Thurberg, B.L.; Byers, H.R.; Granter, S.R.; Phelps, R.G.; Gordon, R.E.; O’Callaghan, M. Monitoring the 3-year efficacy of enzyme replacement therapy in fabry disease by repeated skin biopsies. J. Investig. Dermatol. 2004, 122, 900–908. [Google Scholar] [CrossRef] [PubMed]
- Thurberg, B.L.; Rennke, H.; Colvin, R.B.; Dikman, S.; Gordon, R.E.; Collins, A.B.; Desnick, R.J.; O’Callaghan, M. Globotriaosylceramide accumulation in the Fabry kidney is cleared from multiple cell types after enzyme replacement therapy. Kidney Int. 2002, 62, 1933–1946. [Google Scholar] [CrossRef]
- Skrunes, R.; Tøndel, C.; Leh, S.; Larsen, K.K.; Houge, G.; Davidsen, E.S.; Hollak, C.; van Kuilenburg, A.B.; Vaz, F.M.; Svarstad, E. Long-Term Dose-Dependent Agalsidase Effects on Kidney Histology in Fabry Disease. Clin. J. Am. Soc. Nephrol. 2017, 12, 1470–1479. [Google Scholar] [CrossRef] [PubMed]
- Frustaci, A.; Najafian, B.; Donato, G.; Verardo, R.; Chimenti, C.; Sansone, L.; Belli, M.; Vernucci, E.; Russo, M.A. Divergent Impact of Enzyme Replacement Therapy on Human Cardiomyocytes and Enterocytes Affected by Fabry Disease: Correlation with Mannose-6-phosphate Receptor Expression. J. Clin. Med. 2022, 11, 1344. [Google Scholar] [CrossRef]
- Chimenti, C.; Verardo, R.; Scopelliti, F.; Grande, C.; Petrosillo, N.; Piselli, P.; De Paulis, R.; Frustaci, A. Myocardial expression of Toll-like receptor 4 predicts the response to immunosuppressive therapy in patients with virus-negative chronic inflammatory cardiomyopathy. Eur. J. Heart Fail. 2017, 19, 915–925. [Google Scholar] [CrossRef]
- Bustin, S.A.; Benes, V.; Garson, J.A.; Hellemans, J.; Huggett, J.; Kubista, M.; Mueller, R.; Nolan, T.; Pfaffl, M.W.; Shipley, G.L.; et al. The MIQE Guidelines: Minimum Information for Publication of Quantitative Real-Time PCR Experiments. Clin. Chem. 2009, 55, 611–622. [Google Scholar] [CrossRef]
- Pfaffl, M.W. A new mathematical model for relative quantification in real-time RT-PCR. Nucleic Acids Res. 2001, 29, e45. [Google Scholar] [CrossRef]
- Keslová-Veselíková, J.; Hůlková, H.; Dobrovolný, R.; Asfaw, B.; Poupětová, H.; Berná, L.; Sikora, J.; Goláň, L.; Ledvinová, J.; Elleder, M. Replacement of α-galactosidase A in Fabry disease: Effect on fibroblast cultures compared with biopsied tissues of treated patients. Virchows Arch. 2008, 452, 651–665. [Google Scholar] [CrossRef]
- Weidemann, F.; Niemann, M.; Störk, S.; Breunig, F.; Beer, M.; Sommer, C.; Herrmann, S.; Ertl, G.; Wanner, C. Long-term outcome of enzyme-replacement therapy in advanced Fabry disease: Evidence for disease progression towards serious complications. J. Intern. Med. 2013, 274, 331–341. [Google Scholar] [CrossRef]
- Hasegawa, H.; Takano, H.; Shindo, S.; Takeda, S.; Funabashi, N.; Nakagawa, K.; Toyozaki, T.; Kuwabara, Y.; Komuro, I. Transition from Left Ventricular Hypertrophy to Massive Fibrosis in the Cardiac Variant of Fabry Disease Images in Cardiovascular Medicine. Circulation 2006, 113, 720–721. [Google Scholar] [CrossRef] [PubMed]
- Weidemann, F.; Breunig, F.; Beer, M.; Sandstede, J.; Störk, S.; Voelker, W.; Ertl, G.; Knoll, A.; Wanner, C.; Strotmann, J.M. The variation of morphological and functional cardiac manifestation in Fabry disease: Potential implications for the time course of the disease. Eur. Heart J. 2005, 26, 1221–1227. [Google Scholar] [CrossRef] [PubMed]
- Moon, J.C.; Sachdev, B.; Elkington, A.G.; McKenna, W.J.; Mehta, A.; Pennell, D.J.; Leed, P.J.; Elliott, P.M. Gadolinium enhanced cardiovascular magnetic resonance in Anderson-Fabry disease 1 Evidence for a disease specific abnormality of the myocardial interstitium. Eur. Heart J. 2003, 24, 2151–2155. [Google Scholar] [CrossRef] [PubMed]
- Nagano, T.; Nakatsuka, S.I.; Fujita, S.; Kanda, T.; Uematsu, M.; Ikeda, Y.; Ishibashi-Ueda, H.; Yutani, C. Myocardial fibrosis pathology in Anderson-Fabry disease: Evaluation of autopsy cases in the long- and short-term enzyme replacement therapy, and non-therapy case. IJC Metab. Endocr. 2016, 12, 46–51. [Google Scholar] [CrossRef]
- Frustaci, A.; Verardo, R.; Grande, C.; Galea, N.; Piselli, P.; Carbone, I.; Alfarano, M.; Russo, M.A.; Chimenti, C. Immune-mediated myocarditis in fabry disease cardiomyopathy. J. Am. Heart Assoc. 2018, 7, e009052. [Google Scholar] [CrossRef]
- Germain, D.P.; Elliott, P.M.; Falissard, B.; Fomin, V.V.; Hilz, M.J.; Jovanovic, A.; Kantola, I.; Linhart, A.; Mignani, R.; Namdar, M.; et al. The effect of enzyme replacement therapy on clinical outcomes in male patients with Fabry disease: A systematic literature review by a European panel of experts. In Molecular Genetics and Metabolism Reports; Elsevier: Amsterdam, The Netherlands, 2019; Volume 19. [Google Scholar]
- Gary-Bobo, M.; Nirdé, P.; Jeanjean, A.; Morère, A.; Garcia, M. Mannose 6-phosphate receptor targeting and its applications in human diseases. Curr. Med. Chem. 2007, 14, 2945. [Google Scholar] [CrossRef]
- Bannoud, N.; Carvelli, F.L.; Troncoso, M.; Sartor, T.; Vargas-Roig, L.M.; Sosa, M. Cation-Dependent Mannose-6-Phosphate Receptor Expression and Distribution Are Influenced by Estradiol in MCF-7 Breast Cancer Cells. PLoS ONE 2018, 13, e0201844. [Google Scholar] [CrossRef]
- Mitchell, B.S. The proteasome--an emerging therapeutic target in cancer. N. Engl. J. Med. 2003, 348, 2597–2598. [Google Scholar] [CrossRef]
- Briasoulis, A.; Chasouraki, A.; Sianis, A.; Panagiotou, N.; Kourek, C.; Ntalianis, A.; Paraskevaidis, I. Cardiotoxicity of Non-Anthracycline Cancer Chemotherapy Agents. J. Cardiovasc. Dev. Dis. 2022, 9, 66. [Google Scholar] [CrossRef]
Figure 1.
Histology (A), electronmicroscopy (B) and immunohistochemistry (C) for M6Pr in a 43-year-old man (pt 1) affected by Fabry disease cardiomyopathy (MWT 14 mm). In panel (C), normal immunostaining of endothelial cells, (black arrows) in contrast with reduced staining of cardiomyocytes, is observed. Panel (D) represents immunohistochemistry for M6Pr in normal myocardium. The pictures suggest a severe reduced expression of M6Pr in Fabry cardiomyocytes vs. controls.
Figure 1.
Histology (A), electronmicroscopy (B) and immunohistochemistry (C) for M6Pr in a 43-year-old man (pt 1) affected by Fabry disease cardiomyopathy (MWT 14 mm). In panel (C), normal immunostaining of endothelial cells, (black arrows) in contrast with reduced staining of cardiomyocytes, is observed. Panel (D) represents immunohistochemistry for M6Pr in normal myocardium. The pictures suggest a severe reduced expression of M6Pr in Fabry cardiomyocytes vs. controls.
Figure 2.
Histology (A), electronmicroscopy (B) and immunohistochemistry (C) for M6Pr in a 54-year-old woman (pt 4) and immunohistochemistry for M6Pr in normal myocardium (D). Comparison of the two pictures (C) vs. (D) suggest a severe reduction in M6Pr expression in Fabry cardiomyocytes. Of note in (C), due to patchy cardiomyocyte involvement, unaffected cells (see arrows) are strongly positive as compared to the affected cells.
Figure 2.
Histology (A), electronmicroscopy (B) and immunohistochemistry (C) for M6Pr in a 54-year-old woman (pt 4) and immunohistochemistry for M6Pr in normal myocardium (D). Comparison of the two pictures (C) vs. (D) suggest a severe reduction in M6Pr expression in Fabry cardiomyocytes. Of note in (C), due to patchy cardiomyocyte involvement, unaffected cells (see arrows) are strongly positive as compared to the affected cells.

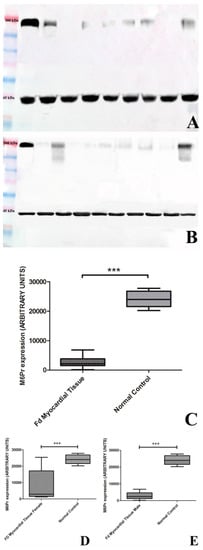

Figure 3.
Panel (A,B): Western blot analysis of all 17 patients of M6Pr, molecular weight 275 Kd. Panel (A): Lane1 = Markers; Lane 2 = Control; Lane 3 = patient 1; Lane 4 = patient 2; Lane 5 = patient 3; Lane 6 = patient 4; Lane 7 = patient 5; Lane 8 = patient 6; Lane 9 = patient 7; Lane 10 = patient 8. Panel (B): Lane 1 = Markers; Lane 2 = Control; Lane 3 = patient 9; Lane 4 = patient 10; Lane 5 = patient 11; Lane 6 = patient 12; Lane 7 = patient 13; Lane 8 = patient 14; Lane 9 = patient 15; Lane 10 = patient 16; Lane 11 = patient 17. Panel (C–E): Graphs document western blot of M6Pr, in all 17 patients with FDCM showing 5.4-fold lower of M6Pr values in patients versus normal heart (4289 ± 6595 vs. 23,581 ± 4074, p = 0.0996) (p < 0.001), (C), 9-fold lower in male, p = 0.009, (p < 0.001), (D) and 3-fold lower in female p = 0.5799, (p < 0.001), (E). Alpha sarcomeric actin (43 kDa) was used as a loading control. *** = p < 0.001.
Figure 3.
Panel (A,B): Western blot analysis of all 17 patients of M6Pr, molecular weight 275 Kd. Panel (A): Lane1 = Markers; Lane 2 = Control; Lane 3 = patient 1; Lane 4 = patient 2; Lane 5 = patient 3; Lane 6 = patient 4; Lane 7 = patient 5; Lane 8 = patient 6; Lane 9 = patient 7; Lane 10 = patient 8. Panel (B): Lane 1 = Markers; Lane 2 = Control; Lane 3 = patient 9; Lane 4 = patient 10; Lane 5 = patient 11; Lane 6 = patient 12; Lane 7 = patient 13; Lane 8 = patient 14; Lane 9 = patient 15; Lane 10 = patient 16; Lane 11 = patient 17. Panel (C–E): Graphs document western blot of M6Pr, in all 17 patients with FDCM showing 5.4-fold lower of M6Pr values in patients versus normal heart (4289 ± 6595 vs. 23,581 ± 4074, p = 0.0996) (p < 0.001), (C), 9-fold lower in male, p = 0.009, (p < 0.001), (D) and 3-fold lower in female p = 0.5799, (p < 0.001), (E). Alpha sarcomeric actin (43 kDa) was used as a loading control. *** = p < 0.001.

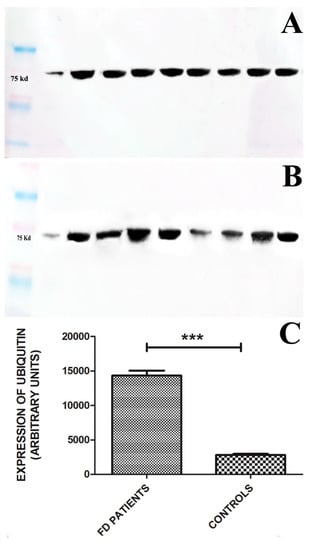

Figure 4.
Panel (A,B): Western blot analysis of Ubiquitin in 16 out of 17 patients with FDCM, molecular weight 75 Kd. Panel (A): Lane1 = Markers; Lane 2 = Control; Lane 3 = patient 1; Lane 4 = patient 2; Lane 5 = patient 3; Lane 6 = patient 4; Lane 7 = patient 5; Lane 8 = patient 6; Lane 9 = patient 7; Lane 10 = patient 8. Panel (B): Lane 1 = Markers; Lane 2= Control; Lane 3 = patient 9; Lane 4 = patient 10; Lane 5 = patient 11; Lane 6 = patient 12; Lane 7 = patient 13; Lane 8 = patient 14; Lane 9 = patient 15; Lane 10 = patient 16; Panel (C): Graphs report western blot of Ubiquitin in 16 out of 17 patients and show 4.6-fold increase in Ubiquitin values vs. controls (13,284 ± 1723 vs. 2870 ± 690, p < 0.001). *** = p < 0.001.
Figure 4.
Panel (A,B): Western blot analysis of Ubiquitin in 16 out of 17 patients with FDCM, molecular weight 75 Kd. Panel (A): Lane1 = Markers; Lane 2 = Control; Lane 3 = patient 1; Lane 4 = patient 2; Lane 5 = patient 3; Lane 6 = patient 4; Lane 7 = patient 5; Lane 8 = patient 6; Lane 9 = patient 7; Lane 10 = patient 8. Panel (B): Lane 1 = Markers; Lane 2= Control; Lane 3 = patient 9; Lane 4 = patient 10; Lane 5 = patient 11; Lane 6 = patient 12; Lane 7 = patient 13; Lane 8 = patient 14; Lane 9 = patient 15; Lane 10 = patient 16; Panel (C): Graphs report western blot of Ubiquitin in 16 out of 17 patients and show 4.6-fold increase in Ubiquitin values vs. controls (13,284 ± 1723 vs. 2870 ± 690, p < 0.001). *** = p < 0.001.
Table 1.
Baseline clinical and genetic features of patient population.
| Age/ Sex | GLA Mutation | αGAL- A Enzymatic Activity nmol/h/mL | Extra-Cardiac Features | Cardiac Symptoms | Enzymatic Replacement Therapy | ERT Duration (Months) at Enrollment | |
|---|---|---|---|---|---|---|---|
| Pt 1 | 42/M | c.666delC | 0 | cornea verticillata, gastrointestinal disorders, weight loss, proteinuria, hypo-anhidrosis | dyspnea, palpitations | agalsidase alpha | 36 |
| Pt 2 | 27/M | c.666delC | 0 | gastrointestinal disorderders, weight loss | palpitations | agalsidase alpha | 36 |
| Pt 3 | 22/F | c.666delC | 9.2 | gastrointestinal disorderders, weight loss, cornea verticillata | palpitations | agalsidase alpha | 36 |
| Pt 4 | 58/F | c.668G > A p.C223Y | 3.3 | cornea verticillata, angiokeratomas, hypo-anhidrosis, acroparesthesias | dyspnea, palpitations | agalsidase alpha | 40 |
| Pt 5 | 52/F | c.547+ 1G > A | 3.4 | proteinuria, cornea verticillata | dyspnea, palpitations | agalsidase alpha | 38 |
| Pt 6 | 27/M | deletion exons 3 and 4 | 0 | cornea verticillata, angiokeratomas, hypo-anhidrosis, acroparesthesias | palpitations | agalsidase alpha | 42 |
| Pt 7 | 52/F | deletion exons 3 and 4 | 3.5 | acroparesthesias, sicca syndrome, arthritis, proteinuria | dyspnea, palpitations | agalsidase alpha | 39 |
| Pt 8 | 22/M | c.644A > G | 0.3 | none | palpitations | agalsidase alpha | 36 |
| Pt 9 | 62/M | c.644A > G | 0 | cornea verticillata, microalbuminuria | dyspnea | agalsidase alpha | 36 |
| Pt 10 | 66/M | c.644A > G | 0 | cornea verticillata, proteinuria | dyspnea, palpitations | agalsidase alpha | 40 |
| Pt 11 | 36/F | C.548 > G | 3.8 | cornea verticillata, proteinuria | dyspnea, palpitations | agalsidase alpha | 39 |
| Pt 12 | 54/M | c.644A > G | 0 | cornea verticillata | dyspnea, palpitations | agalsidase alpha | 36 |
| Pt 13 | 30/M | deletion exons 3 and 4 | 0 | cornea verticillata, angiokeratomas, hypo-anhidrosis, acroparesthesias, proteinuria | dyspnea, palpitations | agalsidase beta | 36 |
| Pt 14 | 55/F | deletion exons 3 and 4 | 3.1 | acroparesthesias, cornea verticillata, proteinuria | dyspnea | agalsidase beta | 38 |
| Pt 15 | 37/F | C.548 > G | 4.0 | cornea verticillata, proteinuria | dyspnea | agalsidase alpha | 36 |
| Pt 16 | 59/M | c.644A > G | 0 | cornea verticillata | dyspnea, angor | agalsidase alpha | 40 |
| Pt 17 | 66/M | c.644A > G | 0.4 | acroparesthesias, cornea verticillata | dyspnea, palpitations | agalsidase alpha | 39 |
GLA, α-galactosidase A gene; αGAL- A, alpha galactosidase A; ERT, Enzymatic replacement therapy.
Table 2.
Baseline instrumental features of patient population.
| Age/ Sex | ECG | Diastolic Function 2d-Echo | LV Mass/BSA g/m2 (CMR) | MWT mm (CMR) | LV EDV/BSA mL/m2 (CMR) | LV ESV/BSA (mL/m2) (CMR) | LVEF (%) (CMR) | T1 Mapping ms (CMR) | |
|---|---|---|---|---|---|---|---|---|---|
| Pt 1 | 42/M | short PR, LVH | grade I | 112.0 | 14 | 106.3 | 33.9 | 68.1 | 874 |
| Pt 2 | 27/M | short PR | grade I | 28.1 | 10 | 82.7 | 31.8 | 61.4 | 860 |
| Pt 3 | 22/F | PSVC | normal | 26.7 | 9 | 50.1 | 20.3 | 59.4 | 980 |
| Pt 4 | 58/F | PSVC, PVC, PAF | grade I | 63.6 | 16 | 66.5 | 27.7 | 59.7 | Not detected |
| Pt 5 | 52/F | short PR, LVH | grade II | 99.1 | 15 | 86.9 | 23.8 | 68.0 | Not detected |
| Pt 6 | 27/M | short PR | grade I | 58.4 | 11.5 | 72.1 | 26.1 | 63.9 | 860 |
| Pt 7 | 52/F | 1st degree AV block | grade I | 53.1 | 10 | 78.1 | 21.1 | 72.9 | 940 |
| Pt 8 | 22/M | short PR | grade I | 60.7 | 10 | 100 | 43.2 | 57 | 930 |
| Pt 9 | 62/M | bifascicular block | grade II | 146.9 | 25 | 108 | 54.4 | 49.7 | 860 |
| Pt 10 | 66/M | LBBB | grade II | 190.6 | 20 | 142.8 | 79.8 | 44.1 | 870 |
| Pt 11 | 36/F | short PR | grade I | 61.1 | 11 | 85.4 | 27.8 | 67.0 | 990 |
| Pt 12 | 54/M | LVH | grade I | 142.6 | 26 | 79.7 | 31.7 | 60.1 | 912 |
| Pt 13 | 30/M | short PR, PSVC | grade I | 62.3 | 12 | 58.3 | 22.3 | 61.7 | 910 |
| Pt 14 | 53/F | 1st degree AV block | grade I | 58.0 | 11 | 74.0 | 23.0 | 69.0 | 940 |
| Pt 15 | 37/F | short PR, PSVC | grade I | 50.5 | 11 | 97.1 | 35.1 | 63.0 | 990 |
| Pt 16 | 59/M | LBBB | grade II | 165.5 | 28 | 81.6 | 31.3 | 61.5 | 930 |
| Pt 17 | 66/M | LBBB | grade III | 168.9 | 28 | 102.7 | 54.7 | 47 | 850 |
LVH, left ventricular hypertrophy; PSVC, premature supraventricular contractions; PVC, premature ventricular contractions; PAF, paroxysmal atrial fibrillation; AV, atrioventricular; LBBB, left bundle branch block; CMR, cardiac magnetic resonance; LV, left ventricular; BSA, body surface area; MWT, maximal wall thickness; LVEF, left ventricular ejection fraction; Alpha-galactosidase A enzymatic activity normal if >3 nmol/h/mL. T1 mapping normal if >980 ms. ECG = Electrocardiogram; EDV = End diastolic volume. Short PR = ECG parameter_PR = Depolarization of Atrial Myocardium.
Table 3.
Cardiac histologic and morpho-molecular findings in Fabry patients (Group A) vs. normal controls (Group B).
Table 3.
Cardiac histologic and morpho-molecular findings in Fabry patients (Group A) vs. normal controls (Group B).
| Group A | Group B | p Value | |
|---|---|---|---|
| Cardiomyocytes diameter (µm) | 28.3 ± 1.19 | 10.6 ± 1.8 | p < 0.001 |
| Extent of myocardial fibrosis (%) | 4.5 ± 1 | 2.2± 0.4 | p < 0.001 |
| Mannose expression (IHC grading) | 1.1 ± 1.27 | 3.4 ± 0.38 | p < 0.001 |
| Mannose 6-phosphate Receptor Western Blot (Arbitrary Units) | 4289 ± 6595 | 23,581 ± 4074 | p < 0.001 |
| Protein degradation pathway_ Ubiquitin (Arbitrary Units) | 13,284 ± 1723 | 2870 ± 690 | p < 0.001 |
| Mannose 6-phosphate Receptor m-RNA expression | 1.13 ± 0.43 | 1.01 ± 0.12 | p = 0.4752 (ns) |
p values referred to comparison between two groups. p value < 0.05 was considered statistically significant. Quantitative measurements are expressed as mean ± SD. ns = not significant. IHC = Immunohistochemical grading.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Frustaci, A.; Verardo, R.; Scialla, R.; Bagnato, G.; Verardo, M.; Alfarano, M.; Russo, M.A. Downregulation of Mannose-6-Phosphate Receptors in Fabry Disease Cardiomyopathy: A Potential Target for Enzyme Therapy Enhancement. J. Clin. Med. 2022, 11, 5440. https://doi.org/10.3390/jcm11185440
AMA Style
Frustaci A, Verardo R, Scialla R, Bagnato G, Verardo M, Alfarano M, Russo MA. Downregulation of Mannose-6-Phosphate Receptors in Fabry Disease Cardiomyopathy: A Potential Target for Enzyme Therapy Enhancement. Journal of Clinical Medicine. 2022; 11(18):5440. https://doi.org/10.3390/jcm11185440
Chicago/Turabian StyleFrustaci, Andrea, Romina Verardo, Rossella Scialla, Giulia Bagnato, Margherita Verardo, Maria Alfarano, and Matteo A. Russo. 2022. "Downregulation of Mannose-6-Phosphate Receptors in Fabry Disease Cardiomyopathy: A Potential Target for Enzyme Therapy Enhancement" Journal of Clinical Medicine 11, no. 18: 5440. https://doi.org/10.3390/jcm11185440
APA StyleFrustaci, A., Verardo, R., Scialla, R., Bagnato, G., Verardo, M., Alfarano, M., & Russo, M. A. (2022). Downregulation of Mannose-6-Phosphate Receptors in Fabry Disease Cardiomyopathy: A Potential Target for Enzyme Therapy Enhancement. Journal of Clinical Medicine, 11(18), 5440. https://doi.org/10.3390/jcm11185440
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
