Comparing a Fully Automated Cephalometric Tracing Method to a Manual Tracing Method for Orthodontic Diagnosis
by
, , ,
Ioannis A. Tsolakis
1,*
,
Apostolos I. Tsolakis
2,3
,
Tarek Elshebiny
3
,
Stefanos Matthaios
3 and
J. Martin Palomo
3
1
Department of Orthodontics, School of Dentistry, Aristotle University of Thessaloniki, 541 24 Thessaloniki, Greece
2
Department of Orthodontics, School of Dentistry, National and Kapodistrian, University of Athens, 157 72 Athens, Greece
3
Department of Orthodontics, School of Dental Medicine, Case Western Reserve University, Cleveland, OH 44106, USA
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2022, 11(22), 6854; https://doi.org/10.3390/jcm11226854
Submission received: 11 October 2022
/
Revised: 11 November 2022
/
Accepted: 16 November 2022
/
Published: 20 November 2022
(This article belongs to the Section Dentistry, Oral Surgery and Oral Medicine)
Abstract
:Background: This study aims to compare an automated cephalometric analysis based on the latest deep learning method of automatically identifying cephalometric landmarks with a manual tracing method using broadly accepted cephalometric software. Methods: A total of 100 cephalometric X-rays taken using a CS8100SC cephalostat were collected from a private practice. The X-rays were taken in maximum image size (18 × 24 cm lateral image). All cephalometric X-rays were first manually traced using the Dolphin 3D Imaging program version 11.0 and then automatically, using the Artificial Intelligence CS imaging V8 software. The American Board of Orthodontics analysis and the European Board of Orthodontics analysis were used for the cephalometric measurements. This resulted in the identification of 16 cephalometric landmarks, used for 16 angular and 2 linear measurements. Results: All measurements showed great reproducibility with high intra-class reliability (>0.97). The two methods showed great agreement, with an ICC range of 0.70–0.92. Mean values of SNA, SNB, ANB, SN-MP, U1-SN, L1-NB, SNPg, ANPg, SN/ANS-PNS, SN/GoGn, U1/ANS-PNS, L1-APg, U1-NA, and L1-GoGn landmarks had no significant differences between the two methods (p > 0.0027), while the mean values of FMA, L1-MP, ANS-PNS/GoGn, and U1-L1 were statistically significantly different (p < 0.0027). Conclusions: The automatic cephalometric tracing method using CS imaging V8 software is reliable and accurate for all cephalometric measurements.
1. Introduction
Since Broadbent developed the imaging technique in 1931, cephalometry has been used to investigate growth, identify malocclusions, and create treatment plans as well as to assess the outcomes of those treatments. After tracing anatomical features and identifying landmarks on acetate paper for the lateral cephalogram analysis, measurements were taken with rulers and protractors. The entire process was laborious, time-consuming, prone to mistakes, and largely dependent on operator skill. Developments in computer software have mostly served to automate the cephalometric measurements, but the doctor must still manually pinpoint the appropriate landmarks [1,2]. Nowadays, the advancement of different computer-based technologies such as artificial intelligence and 3D printing is giving a new perspective to the everyday orthodontic practice [3,4,5].
Artificial intelligence (AI) is the ability of a technology to mimic human intelligence or make decisions that are effective and ethical by predetermined criteria. AI may now encompass many facets of contemporary culture thanks to advances in analytics techniques, computer power, and data availability. We can already see its effects in our everyday lives on a global scale. It filters content for social media, web searches, and consumer goods such as cameras, cellphones, tablets, and even autos. Machine learning is a prominent branch of artificial intelligence. Machine learning uses the statistical patterns of previously learned data to predict new data and circumstances. Machine learning needs to incorporate training data in order to work, therefore, training data are necessary for machine learning to function. With this method, the computer model can learn from experience rather than through traditional explicit programming, improving over time. In order to learn the features of the data using abstractions from several processing levels, a model must be given a lot of data. Deep learning has the advantage that it does not require a lot of engineering work to preprocess the data and deep learning techniques have been employed most prominently in object identification and visual object recognition. Machine learning has become increasingly important in the detection and classification of specific diseases found in medical imaging as a result of recent technological advancements. There have been initiatives in orthodontics to use machine learning in various methods, one of which is the automated AI recognition of cephalometric landmarks. The two-dimensional cephalometric image is still the crucial and most often used tool in orthodontics for diagnosis, treatment planning, and result prediction even though research using three-dimensional imaging has garnered attention [6,7].
There have been numerous attempts to include AI in the cephalometric study. The International Symposium on Biomedical Imaging conferences, supported by the Institute of Electrical and Electronics Engineers, launched global AI challenges in 2014 for precise AI measurements. The challenge has changed since 2015, becoming more clinically focused and providing success categorization rates. The Institute of Electrical and Electronics Engineers (IEEE) and the International Symposium on Biomedical Imaging (ISBI) hosted challenges on the automatic recognition of cephalometric landmarks and presented 400 different lateral cephalograms. In addition, new algorithms have been created on the same open dataset. Some of these methods, including decision trees, random forests, and deep learning, have been used to increase the precision of landmark detection [8,9,10,11]. Additionally, the resultant point must be located on the average of the coordinates for the left and right landmarks when the bilateral anatomic features do not overlap. There has not been any research that has successfully described this ailment in the past. This situation may compromise the precision of landmark placement and compromise the reliability of the cephalometric study. The convolutional neural network (CNN), a deep learning network structure, is the algorithm that exhibits significant advantages in graphics processing. It has been applied to problems involving images such as target identification, character recognition, face recognition, posture assessment, and others. In medicine, and more specifically in medical imaging, CNN has been successfully used to detect and classify lesions, image segmentation, auxiliary diagnosis, etc. [12,13,14,15,16,17,18,19,20,21,22,23,24]. In 2019, Park et al., a year after Hwang et al., used two different kinds of CNN. The first one was “You-Only-Look-Once version 3” and the second one was the “Single Shot Multibox Detector”. They used both CNN types to find 80 landmarks with good results. Some of these landmarks were applied to perform measurement analysis, whereas others detected contours or outlines or were used to predict treatment outcomes [8,25].
Carestream dental is one of the companies that has shown high interest in automatic cephalometric tracing since the very beginning of this method. Nowadays, they offer a cephalometric imaging software capable of fully tracing any cephalometric X-ray taken by a Carestream cephalostat as long as the X-ray is taken in the maximum image size (18 × 24 cm lateral image). Cephalometric tracing is based on artificial intelligence, using a deep convolutional neural network (CNN) for landmark detection, followed by an active shape model (ASM) for adjusting the position of the whole structure. Some classical image processing (mathematical morphology) is also involved in tracing the soft-tissue profile. The software does not acquire information from the machine; the network is pre-trained. The training set was collected from a collaborator orthodontist, then manually annotated. There are many studies that looked over the accuracy of different software programs but, to the best of our knowledge, none of them looked over CS imaging V8 software (Carestream Dental LLC, Atlanta, GA, USA), which is a broadly used software. This study aims to compare the accuracy of automatic cephalometric analysis using CS imaging V8 software to manual cephalometric analysis.
2. Materials and Methods
Subjects were recruited from a private practice that owns a CS8100SC Evo Edition X-ray machine (Producer: Carestream Dental LLC, Atlanta, GA, USA, Year: 2020). Inclusion criteria consisted of subjects seeking orthodontic treatment whose records included cephalometric X-rays. Subjects with existing intraoral appliances were excluded. Poor quality cephalograms with artifacts that could interfere with the anatomical point identification were excluded as well. There was no restriction on patients’ gender, age, and ethnicity at the time that cephalometric X-rays were taken. A sample size calculation test was performed based on previous research. A minimum sample size of 79 patients was calculated as appropriate to detect a significant deviation in the intraclass correlation coefficient equal to or greater than 0.70 (moderate agreement and upwards) from 0.50 (poor agreement), with a power of 80%. A sample of 100 subjects was recruited and used in this project [23].
Pre-treatment lateral cephalometric radiographs of 100 patients (43 males, 57 females, mean age: 15.9 ± 4.8 years) were randomly selected. The cephalometric images were taken with the patient in the upright standing position with the Frankfort plane parallel to the floor, keeping the teeth in centric relation and the lips relaxed. All the lateral cephalometric radiographs were taken using the same lateral cephalometric machine (CS 8100 SC) by the same technician in the maximum image size (18 × 24 cm lateral image) (Figure 1).
All 100 lateral cephalometric radiographs were imported first to Dolphin 3D Imaging program version 11.0 (Dolphin Imaging and Management Solutions, Chatsworth, CA, USA) for the digital manual cephalometric tracing, and afterward, the same lateral cephalometric radiographs were imported to CS imaging V8 (Carestream Dental LLC, Atlanta, GA, USA) for the digital automatic tracing (Figure 2). All manual tracings were made by a blinded experienced operator who is a diplomate of the American Boards of orthodontics (I.A.T.). The image’s name was randomly renamed, and the list was kept in an Excel spreadsheet. Cephalometric analysis was based on the American Board of Orthodontics analysis and the European Board of Orthodontics analysis. The ABO cephalometric measurements are SNA, SNB, ANB, SN-MP, FMA, U1-SN, U1-NA, L1-MP, and L1-NB. The EBO cephalometric measurements are SNA, SNPg, ANPg, SN/ANS-PNS, SN/Go-Gn, ANS-PNS/GoGn, U1/ANS-PNS, L1/GoGn, L1/APg, and U1-L1. This resulted in the identification of 16 cephalometric landmarks, which responded to 17 angular and 2 linear measurements.
Statistical Analysis
All cephalometric measurement data were imported into an Excel spreadsheet (Microsoft, Redmond, WA, USA), and statistical analysis was performed using SPSS software (version 27; IBM, Armonk, NY, USA). Normal distribution of the data was tested using the Kolmogorov–Smirnov test. Descriptive statistics (mean, standard deviation, and minimum and maximum values) were calculated for every parameter measured by each method. Differences between methods were assessed using paired the t-test or Wilcoxon test, when appropriate. Furthermore, the Bonferroni method for multiple comparisons was applied for hypothesis testing of the equality of several parameters’ means between the automatic and manual methods. We applied the Bonferroni correction since we compared 18 parameters, so the level of statistical significance (a = 0.05) was divided by the number of parameters and was set to 0.0027 to avoid inflation of the type I error because of the multiple comparisons. The intra-method agreement was evaluated using the intraclass correlation coefficient (ICC) [26]. All comparisons were two-sided at a = 0.05 level of statistical significance.
3. Results
The sample included 100 subjects, 43 males and 57 females with a mean age of 15.9 ± 4.8 years. The operator’s reliability was calculated using intraclass correlation on 20 randomly selected subjects, whose data were re-measured 3 weeks apart. All measurements showed excellent intraclass correlation (Table 1).
3.1. American Board of Orthodontics Cephalometric Analysis
There was no significant difference between the two methods for the measurements of SNA, SNB, ANB, SN-MP, U1-SN, U1-NA, L1-MP, and L1-NB (p > 0.05) while there was a significant difference between the two methods for the measurements of FMA and L1-MP (p < 0.05). All measurements showed a high correlation between the two methods (ICC > 0.70) (Table 2 and Table 3).
3.2. European Board of Orthodontics Cephalometric Analysis
There was no significant difference between the two methods for the measurements of SNPg, ANPg, SN/ANS-PNS, SN/Go-Gn, U1/ANS-PNS, L1/GoGn, and L1/APg (p > 0.05) while there was a significant difference between the two methods for the measurements of ANS-PNS/GoGn and U1-L1 (p < 0.05). All measurements showed a high correlation between the two methods (ICC > 0.70) (Table 2 and Table 3).
4. Discussion
This study compared a digital automatic method and a digital manual method of the cephalometric analysis of the skull.
There have been studies that compared the accuracy of digital tracing to manually tracing X-rays on acetate paper at the very beginning of digital cephalometric analysis. Their findings revealed no statistically significant differences between the two strategies for identifying landmarks. There is a strong correlation between the reproducibility of landmarks within examiners when using manual and computerized procedures. However, whereas the measurement errors were generally equal, the inter-examiner repeatability of landmarks was unsatisfactory. Computerized measures offer a sizable time benefit over the manual approach. When the time benefits are considered, computer-assisted cephalometric studies can benefit physicians more because they do not result in an increase in intra- and inter-examiner error. The results of the digital cephalometric tracing between the various programs were identical [27,28,29].
Later, studies looked over the accuracy of automatic landmark identification for digital cephalometric analysis using different software. In 2020, Meric and Naoumova discovered that fully automated solutions can perform cephalometric analyses more quickly and accurately. According to the study’s findings, the manual correction of CephX landmarks produces results that are comparable to those of digital tracings made with CephNinja and Dolphin but take much less time to analyze. A year later, Bulatova et al. discovered that only the U apex, L apex, Basion, Orbitale, and Gonion landmarks identification from the automatic digital cephalometric approach revealed a statistically significant difference, but none of the other landmarks did [30,31].
Our study revealed significant differences in FMA, L1MP, ANS-PNS/GoGn, and U1-L1 landmarks while the rest showed no significant differences. These results showed an agreement with the research of Bulatova et al. It is important to mention that all measurements that resulted in a statistically significant difference between the two methods do not appear to have a clinically significant difference. In cephalometrics, for every measurement, there is a norm value with a standard deviation. The means and the standard deviation of the values between the manual and the automatic tracing that were statistically significant only differ in decimal points or by a couple of degrees. As a result, our final diagnosis will not be affected by these cephalometric measurements since those differences in the values are very small and will maintain a final diagnostic outcome in relation to the norms. Therefore, we can conclude that the automatic tracing method is reliable and accurate when used as a diagnostic method.
5. Conclusions
The automatic cephalometric tracing method using CS imaging V8 software is a reliable and accurate method for all cephalometric measurements. There was a high intraclass correlation coefficient between the two methods for all measurements. There were differences in FMA, L1-MP, ANS-PNS/GoGn, and U1-L1 measurements but they are not considered clinically significant.
Author Contributions
Conceptualization, I.A.T., A.I.T. and J.M.P.; methodology, I.A.T. and J.M.P.; validation, I.A.T., A.I.T., T.E., S.M. and J.M.P.; formal analysis I.A.T., A.I.T., T.E. and J.M.P.; investigation, I.A.T., A.I.T. and J.M.P.; resources, I.A.T., T.E. and S.M.; writing—original draft preparation, I.A.T., A.I.T., T.E., S.M. and J.M.P.; writing—review and editing, I.A.T., A.I.T., T.E., S.M. and J.M.P.; supervision, J.M.P. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Not applicable.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Broadbent, B.H. A new x-ray technique and its application to orthodontia. Angle Orthod. 1931, 1, 45–66. [Google Scholar]
- Naoumova, J.; Lindman, R. A comparison of manual traced images and corresponding scanned radiographs digitally traced. Eur. J. Orthod. 2009, 31, 247–253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Thurzo, A.; Urbanová, W.; Novák, B.; Czako, L.; Siebert, T.; Stano, P.; Mareková, S.; Fountoulaki, G.; Kosnáčová, H.; Varga, I. Where Is the Artificial Intelligence Applied in Dentistry? Systematic Review and Literature Analysis. Healthcare 2022, 10, 1269. [Google Scholar] [CrossRef] [PubMed]
- Tsolakis, I.A.; Gizani, S.; Panayi, N.; Antonopoulos, G.; Tsolakis, A.I. Three-Dimensional Printing Technology in Orthodontics for Dental Models: A Systematic Review. Children 2022, 9, 1106. [Google Scholar] [CrossRef]
- Tsolakis, I.A.; Gizani, S.; Tsolakis, A.I.; Panayi, N. Three-Dimensional-Printed Customized Orthodontic and Pedodontic Appliances: A Critical Review of a New Era for Treatment. Children 2022, 9, 1107. [Google Scholar] [CrossRef] [PubMed]
- Rahimi, H.M.; Nadimi, M.; Rohban, M.H.; Shamsoddin, E.; Lee, V.Y.; Motamediane, S.R. Machine learning and orthodontics, current trends and the future opportunities: A scoping review. Am. J. Orthod. Dentofac. Orthop. 2021, 160, 170–192. [Google Scholar] [CrossRef]
- Arik, S.; Ibragimov, B.; Xing, L. Fully automated quantitative cephalometry using convolutional neural networks. J. Med. Imaging 2017, 4, 014501. [Google Scholar] [CrossRef]
- Park, J.-H.; Hwang, H.-W.; Moon, J.-H.; Yu, Y.; Kim, H.; Her, S.-B.; Srinivasan, G.; Aljanabi, M.N.A.; Donatelli, R.E.; Lee, S.-J. Automated identification of cephalometric landmarks: Part 1—Comparisons between the latest deep-learning methods YOLOV3 and SSD. Angle Orthod. 2019, 89, 903–909. [Google Scholar] [CrossRef] [Green Version]
- Li, C.-H.; Vandaele, R.; Mirzaalian, H.; Chen, C.; Li, W.-C.; Zheng, G.; Jodogne, S.; Chang, S.-W.; Wang, C.W.; Maree, R.; et al. Evaluation and Comparison of Anatomical Landmark Detection Methods for Cephalometric X-Ray Images: A Grand Challenge. IEEE Trans. Med. Imaging 2015, 34, 1590–1900. [Google Scholar] [CrossRef]
- Lindner, C.; Wang, C.-W.; Huang, C.-T.; Li, C.-H.; Chang, S.-W.; Cootes, T.F. Fully Automatic System for Accurate Localisation and Analysis of Cephalometric Landmarks in Lateral Cephalograms. Sci. Rep. 2016, 6, 33581. [Google Scholar] [CrossRef]
- Wang, S.; Li, H.; Li, J.; Zhang, Y.; Zou, B. Automatic Analysis of Lateral Cephalograms Based on Multiresolution Decision Tree Regression Voting. J. Health Eng. 2018, 2018, 1–15. [Google Scholar] [CrossRef] [PubMed]
- Krizhevsky, A.; Sutskever, I.; Hinton, G.E. Imagenet classification with deep convolutional neural networks. Adv. Neural. Inf. Process Syst. 2012, 25, 1097–1105. [Google Scholar] [CrossRef] [Green Version]
- Yamashita, R.; Nishio, M.; Do, R.K.G.; Togashi, K. Convolutional neural networks: An overview and application in radiology. Insights Imaging 2018, 9, 611–629. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Lee, J.-S.; Adhikari, S.; Liu, L.; Jeong, H.-G.; Kim, H.; Yoon, S.-J. Osteoporosis detection in panoramic radiographs using a deep convolutional neural network-based computer-assisted diagnosis system: A preliminary study. Dentomaxillofacial Radiol. 2019, 48, 20170344. [Google Scholar] [CrossRef]
- Ekert, T.; Krois, J.; Meinhold, L.; Elhennawy, K.; Emara, R.; Golla, T.; Schwendicke, F. Deep Learning for the Radiographic Detection of Apical Lesions. J. Endod. 2019, 45, 917–922.e5. [Google Scholar] [CrossRef]
- Moutselos, K.; Berdouses, E.; Oulis, C.; Maglogiannis, I. Recognizing Occlusal Caries in Dental Intraoral Images Using Deep Learning. Annu. Int. Conf. IEEE Eng. Med. Biol. Soc. 2019, 2019, 1617–1620. [Google Scholar] [CrossRef]
- Aubreville, M.; Knipfer, C.; Oetter, N.; Jaremenko, C.; Rodner, E.; Denzler, J.; Bohr, C.; Neumann, H.; Stelzle, F.; Maier, A. Automatic Classification of Cancerous Tissue in Laserendomicroscopy Images of the Oral Cavity using Deep Learning. Sci. Rep. 2017, 7, 1–10. [Google Scholar] [CrossRef] [Green Version]
- Yu, M.; Yan, H.; Xia, J.; Zhu, L.; Zhang, T.; Zhu, Z.; Lou, X.; Sun, G.; Dong, M. Deep convolutional neural networks for tongue squamous cell carcinoma classification using Raman spectroscopy. Photodiagnosis Photodyn. Ther. 2019, 26, 430–435. [Google Scholar] [CrossRef]
- Torosdagli, N.; Liberton, D.K.; Verma, P.; Sincan, M.; Lee, J.S.; Bagci, U. Deep Geodesic Learning for Segmentation and Anatomical Landmarking. IEEE Trans. Med. Imaging 2019, 38, 919–931. [Google Scholar] [CrossRef]
- Egger, J.; Pfarrkirchner, B.; Gsaxner, C.; Lindner, L.; Schmalstieg, D.; Wallner, J. Fully Convolutional Mandible Segmentation on a valid Ground- Truth Dataset. Annu. Int. Conf. IEEE Eng. Med. Biol. Soc. 2018, 2018, 656–660. [Google Scholar] [CrossRef]
- Zhang, R.; Huang, L.; Xia, W.; Zhang, B.; Qiu, B.; Gao, X. Multiple supervised residual network for osteosarcoma segmentation in CT images. Comput. Med. Imaging Graph. 2018, 63, 1–8. [Google Scholar] [CrossRef] [PubMed]
- Poedjiastoeti, W.; Suebnukarn, S. Application of Convolutional Neural Network in the Diagnosis of Jaw Tumors. Health Informatics Res. 2018, 24, 236–241. [Google Scholar] [CrossRef] [PubMed]
- Casalegno, F.; Newton, T.; Daher, R.; Abdelaziz, M.; Lodi-Rizzini, A.; Schürmann, F.; Krejci, I.; Markram, H. Caries detection with near-infrared transillumination using deep learning. J. Dent. Res. 2019, 98, 1227–1233. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Tuzoff, D.V.; Tuzova, L.N.; Bornstein, M.M.; Krasnov, A.S.; Kharchenko, M.A.; Nikolenko, S.I.; Sveshnikov, M.M.; Bednenko, G.B. Tooth detection and numbering in panoramic radiographs using convolutional neural networks. Dentomaxillofac. Radiol. 2019, 48, 20180051. [Google Scholar] [CrossRef]
- Hwang, H.W.; Park, J.H.; Moon, J.H.; Yu, Y.; Kim, H.; Her, S.B.; Srinivasan, G.; Aljanabi, M.N.A.; Donatelli, R.E.; Lee, S.J. Automated identification of cephalometric landmarks: Part 2-Might it be better than human? Angle Orthod. 2020, 90, 69–76. [Google Scholar] [CrossRef] [Green Version]
- Koo, T.K.; Li, M.Y. A Guideline of Selecting and Reporting Intraclass Correlation Coefficients for Reliability Research. J. Chiropr. Med. 2016, 15, 155–163. [Google Scholar] [CrossRef] [Green Version]
- Chen, S.-K.; Chen, Y.-J.; Yao, C.-C.J.; Chang, H.-F. Enhanced speed and precision of measurement in a computer-assisted digital cephalometric analysis system. Angle Orthod. 2004, 74, 501–507. [Google Scholar] [CrossRef]
- Erkan, M.; Gurel, H.G.; Nur, M.; Demirel, B. Reliability of four different computerized cephalometric analysis programs. Eur. J. Orthod. 2012, 34, 318–321. [Google Scholar] [CrossRef] [Green Version]
- Uysal, T.; Baysal, A.; Yagci, A. Evaluation of speed, repeatability, and reproducibility of digital radiography with manual versus computer-assisted cephalometric analyses. Eur. J. Orthod. 2009, 31, 523–528. [Google Scholar] [CrossRef]
- Meriç, P.; Naoumova, J. Web-based Fully Automated Cephalometric Analysis: Comparisons between App-aided, Computerized, and Manual Tracings. Turk. J. Orthod. 2020, 33, 142–149. [Google Scholar] [CrossRef]
- Bulatova, G.; Kusnoto, B.; Grace, V.; Tsay, T.P.; Avenetti, D.M.; Sanchez, F.J.C. Assessment of automatic cephalometric landmark identification using artificial intelligence. Orthod. Craniofac. Res. 2021, 24, 37–42. [Google Scholar] [CrossRef] [PubMed]
Figure 1.

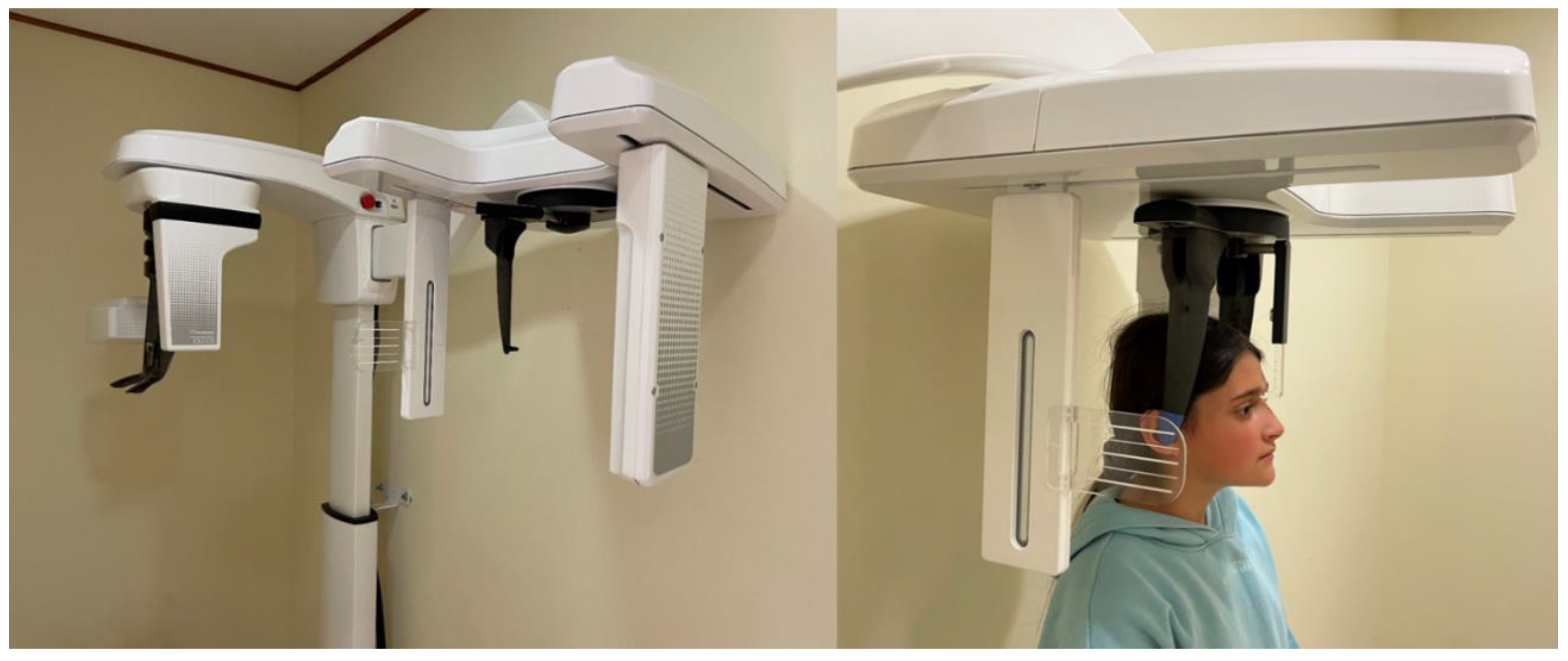

CS 8100 SC.
Figure 2.

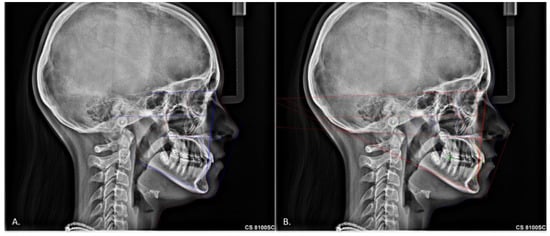

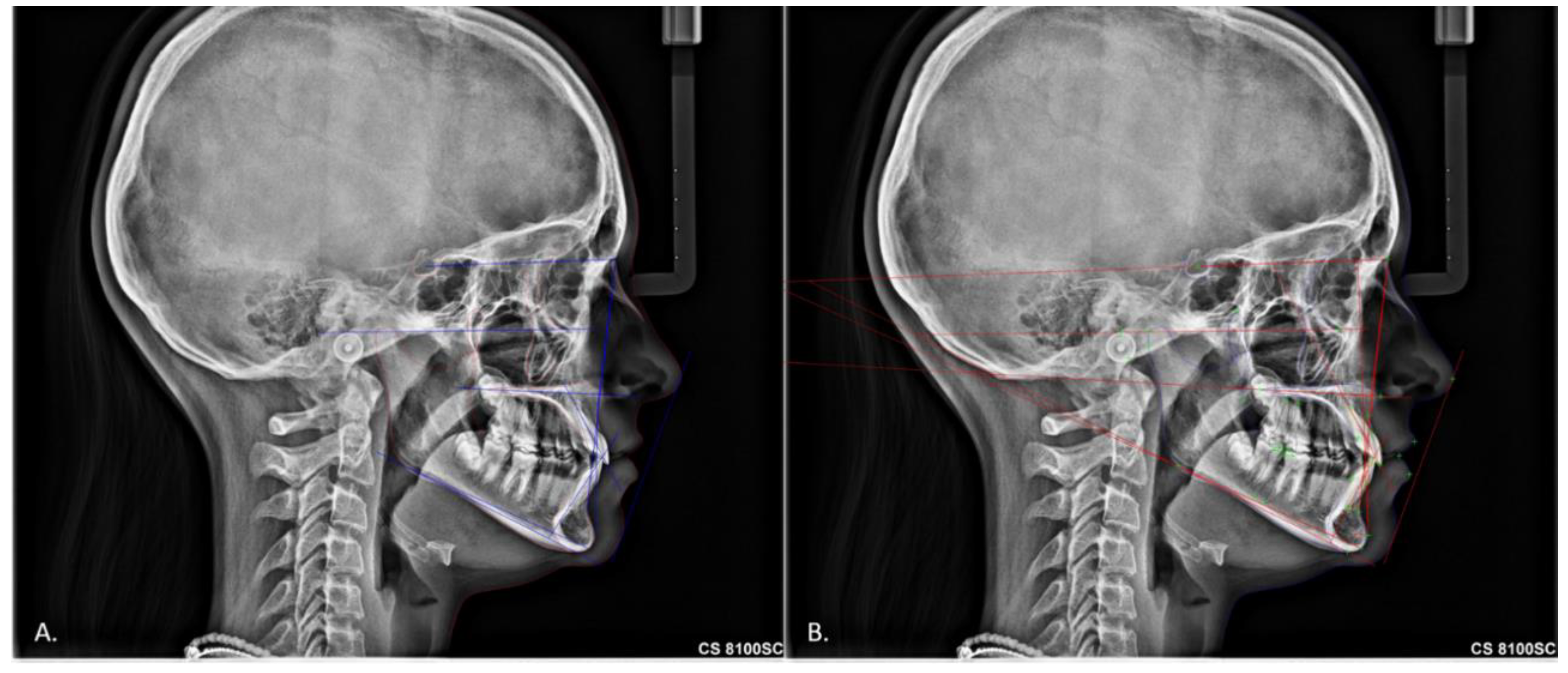

Cephalometric methods (A) Manual digital cephalometric tracing, (B) Automatic digital.
Table 1.
Intraclass correlation coefficient (ICC) and 95% confidence interval (CI) for intra-method agreement.
Table 1.
Intraclass correlation coefficient (ICC) and 95% confidence interval (CI) for intra-method agreement.
| Parameter | ICC (95% CI) | |
|---|---|---|
| Automatic | Manual | |
| ANB | 1.00 (1.00, 1.00) | 0.99 (0.97, 0.99) |
| ANPg | 1.00 (1.00, 1.00) | 0.99 (0.97, 0.99) |
| ANS-PNS/GoGn | 1.00 (1.00, 1.00) | 0.97 (0.93, 0.99) |
| FMA (MP-FH) | 1.00 (1.00, 1.00) | 1.00 (0.99, 1.00) |
| IMPA (L1-MP) | 1.00 (1.00, 1.00) | 0.98 (0.94, 0.99) |
| L1-NB | 1.00 (1.00, 1.00) | 0.97 (0.92, 0.99) |
| L1/APg | 1.00 (1.00, 1.00) | 1.00 (1.00, 1.00) |
| L1/GoGn | 1.00 (1.00, 1.00) | 0.98 (0.95, 0.99) |
| SN-GoGn | 1.00 (1.00, 1.00) | 0.98 (0.95, 0.99) |
| SN/ANS-PNS | 1.00 (1.00, 1.00) | 0.96 (0.89, 0.98) |
| SNA | 1.00 (1.00, 1.00) | 0.95 (0.88, 0.98) |
| SNB | 1.00 (1.00, 1.00) | 0.97 (0.92, 0.99) |
| SNMP | 1.00 (1.00, 1.00) | 0.98 (0.94, 0.99) |
| SNPg | 1.00 (1.00, 1.00) | 0.98 (0.96, 0.99) |
| U1-NA | 1.00 (1.00, 1.00) | 0.99 (0.99, 1.00) |
| U1-L1 | 1.00 (1.00, 1.00) | 0.99 (0.99, 1.00) |
| U1-SN | 1.00 (1.00, 1.00) | 0.99 (0.99, 1.00) |
| U1/ANS-PNS | 1.00 (1.00, 1.00) | 1.00 (0.99, 1.00) |
Table 2.
Intraclass correlation coefficient (ICC) and 95% confidence interval (CI) for inter-method agreement (auto, manual).
Table 2.
Intraclass correlation coefficient (ICC) and 95% confidence interval (CI) for inter-method agreement (auto, manual).
| Parameter | ICC (95% CI) |
|---|---|
| ANB | 0.85 (0.70, 0.97) |
| ANPg | 0.77 (0.61, 0.91) |
| ANS-PNS/GoGn | 0.72 (0.45, 0.91) |
| FMA (MP-FH) | 0.73 (0.47, 0.85) |
| IMPA (L1-MP) | 0.70 (0.49, 0.87) |
| L1-NB | 0.74 (0.76, 0.93) |
| L1/APg | 0.75 (0.57, 0.89) |
| L1/GoGn | 0.78 (0.60, 0.93) |
| SN-GoGn | 0.89 (0.72, 0.92) |
| SN/ANS-PNS | 0.77 (0.59, 0.93) |
| SNA | 0.74 (0.55, 0.90) |
| SNB | 0.78 (0.60, 0.94) |
| SNMP | 0.89 (0.73, 0.93) |
| SNPg | 0.92 (0.88, 0.94) |
| U1-NA | 0.79 (0.70, 0.86) |
| U1-L1 | 0.70 (0.54, 0.81) |
| U1-SN | 0.76 (0.61, 0.88) |
| U1/ANS-PNS | 0.72 (0.53, 0.89) |
Table 3.
Descriptive statistics for each parameter depending on the method of measurement. Statistical significance set at p < 0.0027.
Table 3.
Descriptive statistics for each parameter depending on the method of measurement. Statistical significance set at p < 0.0027.
| Automatic | Manual | Analysis | ||||||
|---|---|---|---|---|---|---|---|---|
| Parameter | Mean (SD) | min | max | Mean (SD) | min | max | Auto-Manual | p-Value * |
| ANB | 3.8 (2.7) | 0.0 | 14.0 | 3.6 (2.4) | 0.1 | 9.5 | 0.2 | 0.517 |
| ANPg | 5.8 (5.0) | 0.0 | 29.0 | 5.4 (3.8) | 0.1 | 16.5 | 0.4 | 0.467 |
| ANS-PNS/GoGn | 27.1 (4.3) | 17.7 | 45.0 | 24.1 (5.2) | 9.4 | 33.8 | 3 | <0.001 * |
| FMA (MP-FH) | 30.2 (5.6) | 15.9 | 49.0 | 28.1 (5.3) | 14.9 | 39.4 | 2.1 | <0.001 * |
| IMPA (L1-MP) | 87.1 (7.6) | 61.4 | 104.8 | 91.1 (7.8) | 71.3 | 110.1 | −4 | <0.001 * |
| L1-NB | 156.8 (16.1) | 13.7 | 174.8 | 156.3 (6.6) | 139.4 | 176.4 | 0.5 | 0.150 |
| L1/APg | 155.3 (27.0) | 4.1 | 173.9 | 156.6 (15.4) | 13.2 | 173.2 | −1.3 | 0.945 |
| L1/GoGn | 90.6 (7.5) | 64.1 | 107.0 | 93.2 (8.0) | 74.2 | 112.1 | −2.6 | 0.003 |
| SN-GoGn | 33.1 (6.6) | 19.0 | 55.4 | 31.7 (5.4) | 16.3 | 42.4 | 1.4 | 0.021 |
| SN/ANS-PNS | 7.0 (4.8) | 0.0 | 18.8 | 7.7 (3.4) | 1.1 | 17.0 | −0.7 | 0.125 |
| SNA | 82.4 (6.5) | 67.1 | 106.2 | 81.7 (3.4) | 73.4 | 91.5 | 0.7 | 0.246 |
| SNB | 78.9 (6.5) | 63.2 | 98.8 | 78.2 (3.8) | 71.4 | 90.0 | 0.7 | 0.256 |
| SNMP | 35.6 (6.6) | 21.7 | 58.5 | 34.4 (5.5) | 19.5 | 45.4 | 1.2 | 0.061 |
| SNPg | 98.5 (7.8) | 82.4 | 120.1 | 98.2 (7.9) | 80.5 | 119.5 | 0.3 | 0.252 |
| U1-NA | 35.9 (5.5) | 30.4 | 41.4 | 35.4 (3.4) | 32 | 38.8 | 0.5 | 0.014 |
| U1-L1 | 131.9 (11.1) | 107.0 | 167.6 | 128.6 (10.5) | 101.2 | 157.0 | 3.3 | <0.001 * |
| U1-SN | 105.6 (7.7) | 88.2 | 122.6 | 105.9 (8.0) | 90.2 | 124.6 | −0.3 | 0.629 |
| U1/ANS-PNS | 111.6 (5.5) | 96.4 | 125.8 | 112.8 (9.2) | 54.2 | 130.9 | −1.2 | 0.195 |
* it is used broadly for statistical significance results.
